FROSUG 2009: Little Shop of Performance Horrors

Video: http://www.youtube.com/watch?v=cklPFJysUYM

Meetup talk for the Front Range Open Solaris User Group (FROSUG) in Colorado 2009, by Brendan Gregg.

This talk covers the worst performance issues I had seen, and how to learn from these mistakes.

next
prev
1/34
next
prev
2/34
next
prev
3/34
next
prev
4/34
next
prev
5/34
next
prev
6/34
next
prev
7/34
next
prev
8/34
next
prev
9/34
next
prev
10/34
next
prev
11/34
next
prev
12/34
next
prev
13/34
next
prev
14/34
next
prev
15/34
next
prev
16/34
next
prev
17/34
next
prev
18/34
next
prev
19/34
next
prev
20/34
next
prev
21/34
next
prev
22/34
next
prev
23/34
next
prev
24/34
next
prev
25/34
next
prev
26/34
next
prev
27/34
next
prev
28/34
next
prev
29/34
next
prev
30/34
next
prev
31/34
next
prev
32/34
next
prev
33/34
next
prev
34/34

PDF: FROSUG2009_Performance_Horrors.pdf

Keywords (from pdftotext):

slide 1:
    USE
    IMPROVE
    EVANGELIZE
    Little Shop of
    Performance Horrors
    Brendan Gregg
    Staff Engineer
    Sun Microsystems, Fishworks
    FROSUG 2009

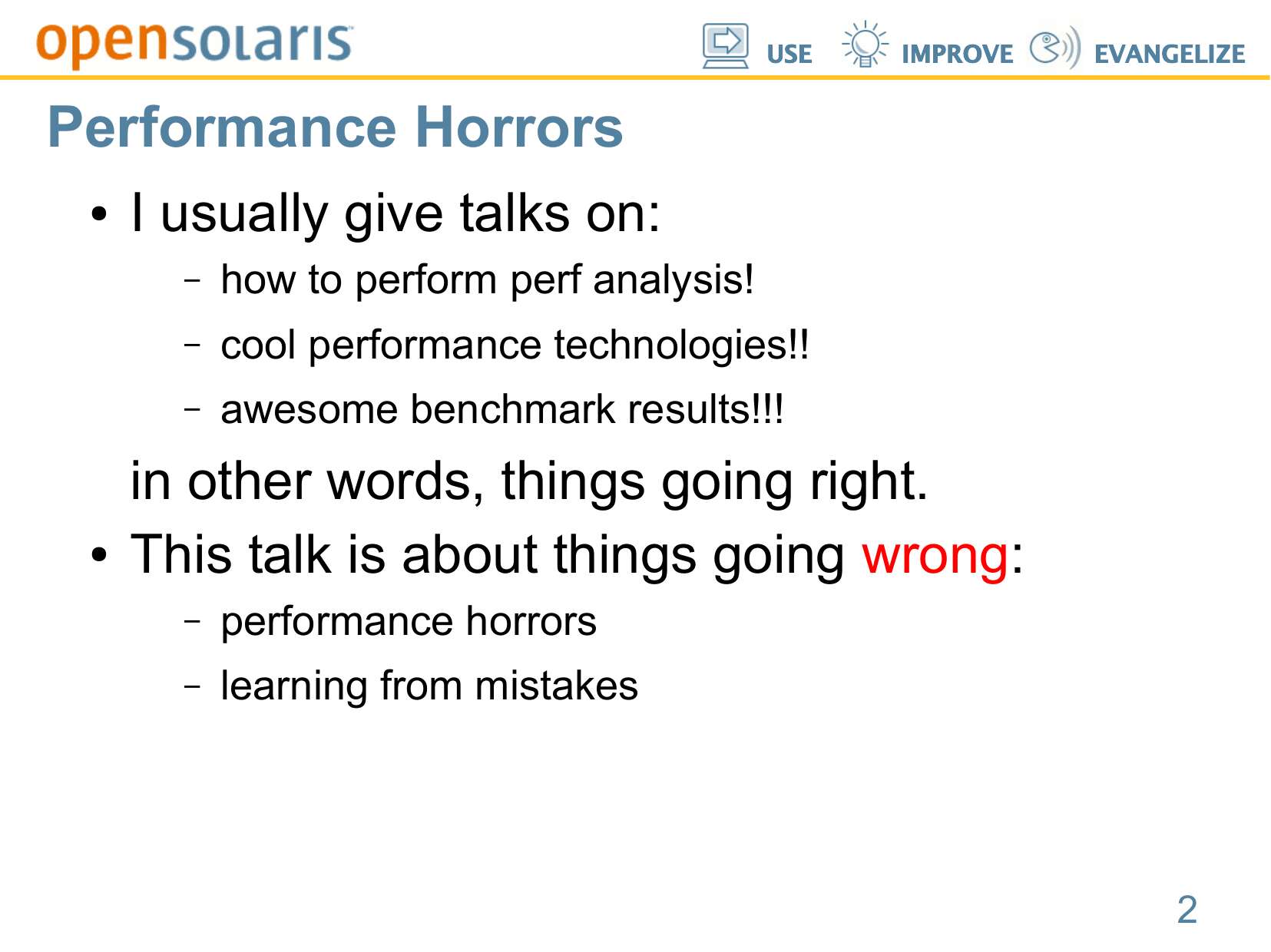

slide 2:
    USE
    IMPROVE
    EVANGELIZE
    Performance Horrors
    I usually give talks on:
    – how to perform perf analysis!
    – cool performance technologies!!
    – awesome benchmark results!!!
    in other words, things going right.
    ● This talk is about things going wrong:
    – performance horrors
    – learning from mistakes

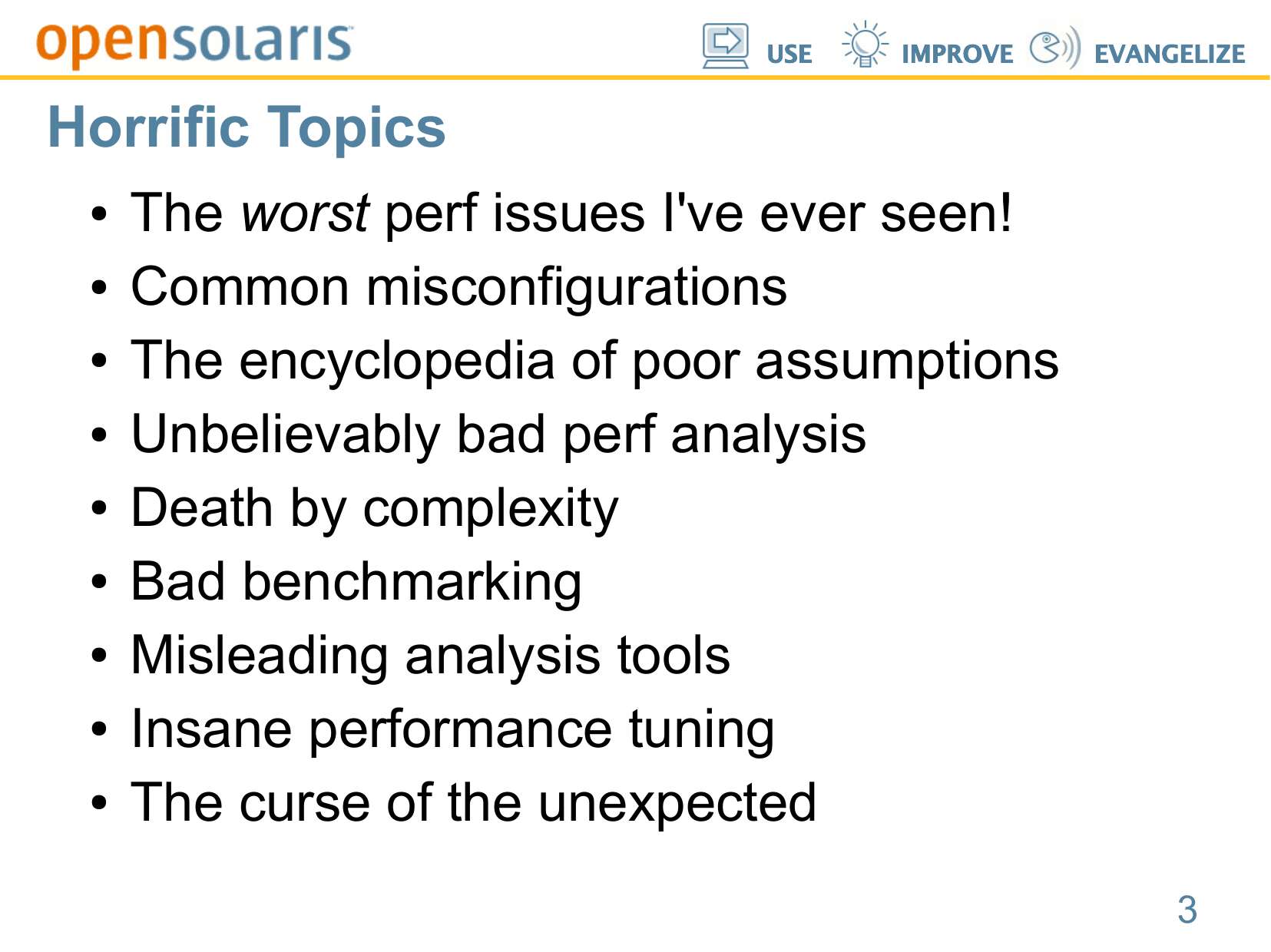

slide 3:
    USE
    IMPROVE
    EVANGELIZE
    Horrific Topics
    The worst perf issues I've ever seen!
    ● Common misconfigurations
    ● The encyclopedia of poor assumptions
    ● Unbelievably bad perf analysis
    ● Death by complexity
    ● Bad benchmarking
    ● Misleading analysis tools
    ● Insane performance tuning
    ● The curse of the unexpected

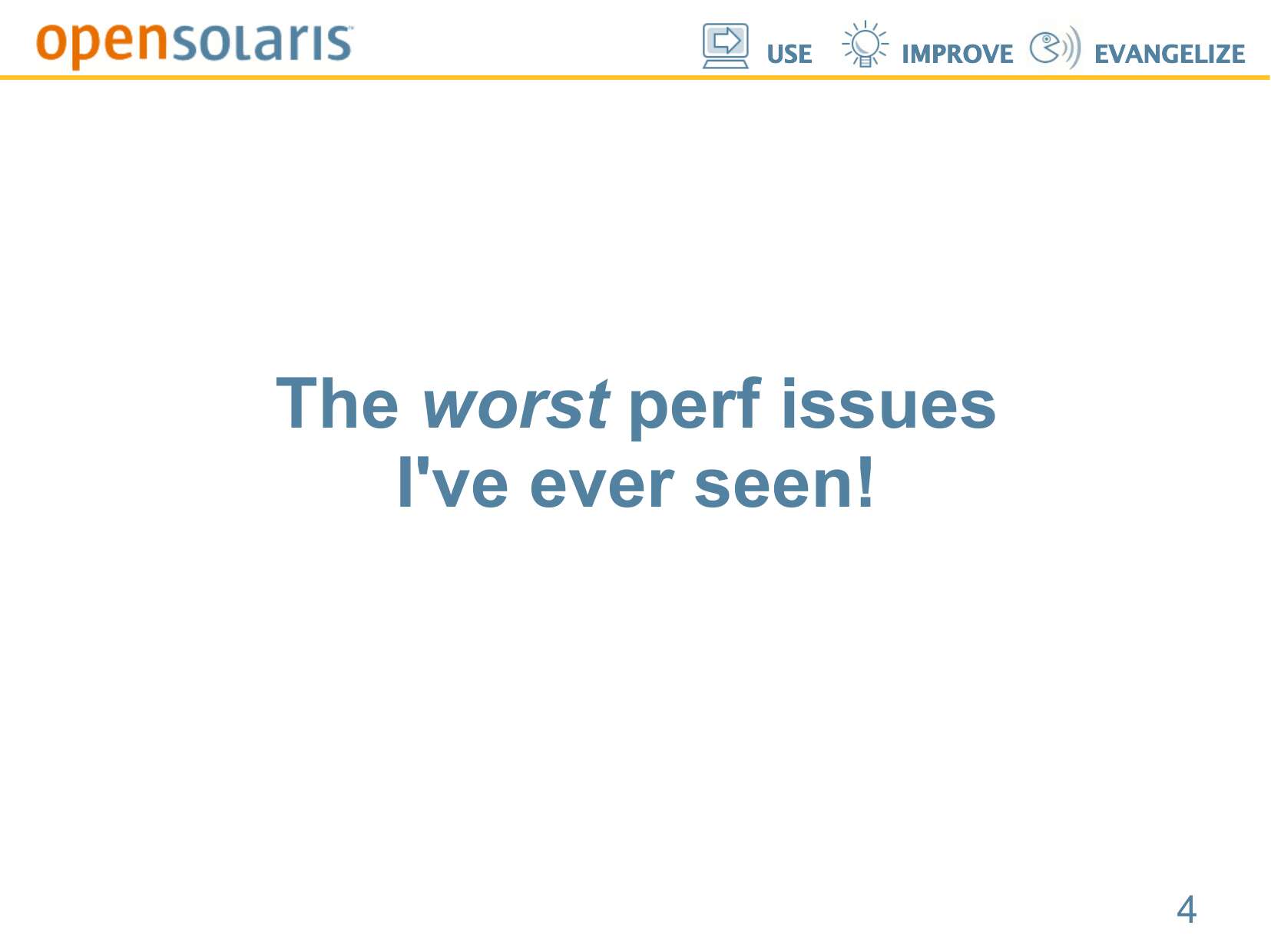

slide 4:
    USE
    IMPROVE
    EVANGELIZE
    The worst perf issues
    I've ever seen!

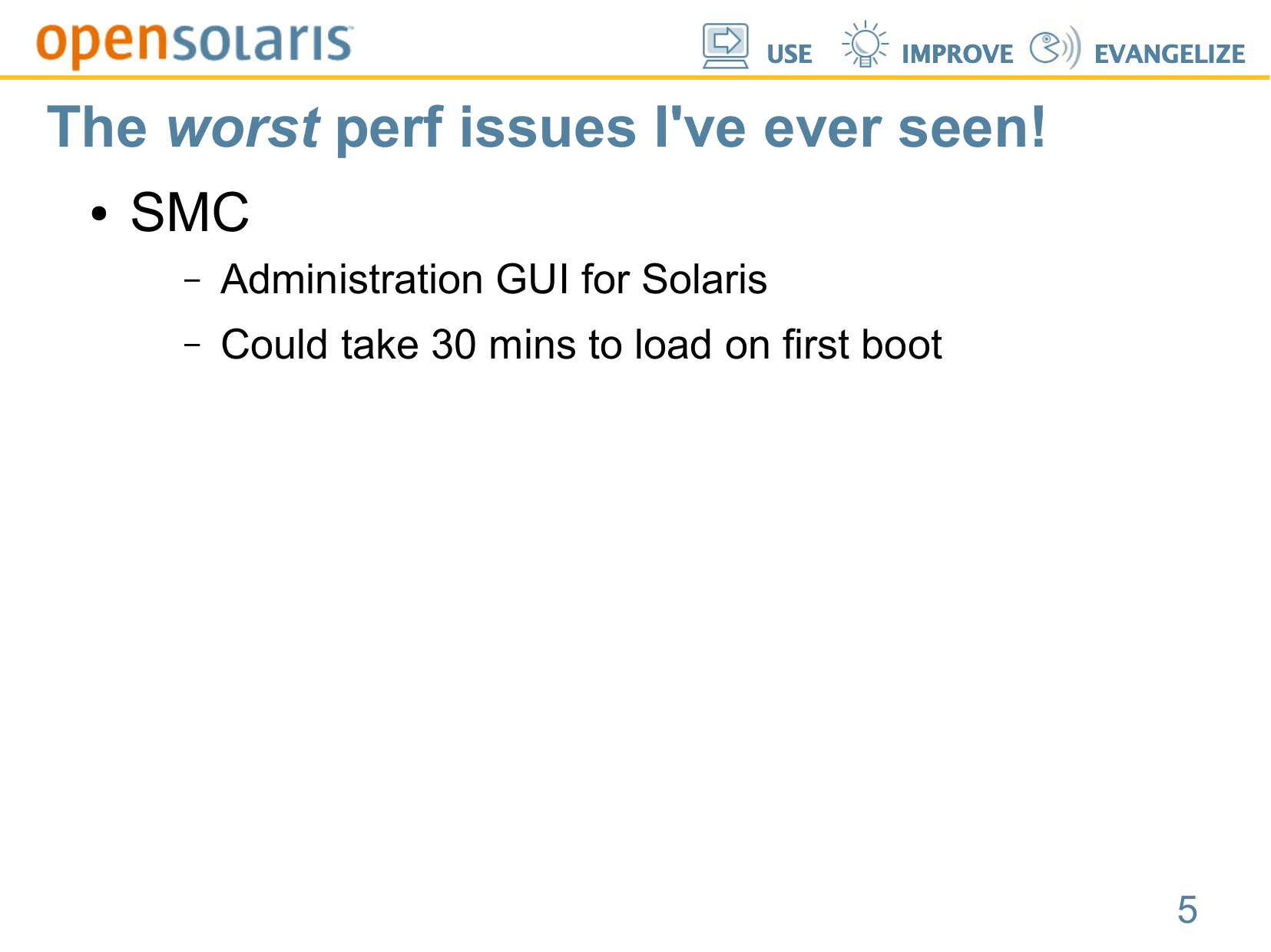

slide 5:
    USE
    IMPROVE
    EVANGELIZE
    The worst perf issues I've ever seen!
    SMC
    – Administration GUI for Solaris
    – Could take 30 mins to load on first boot

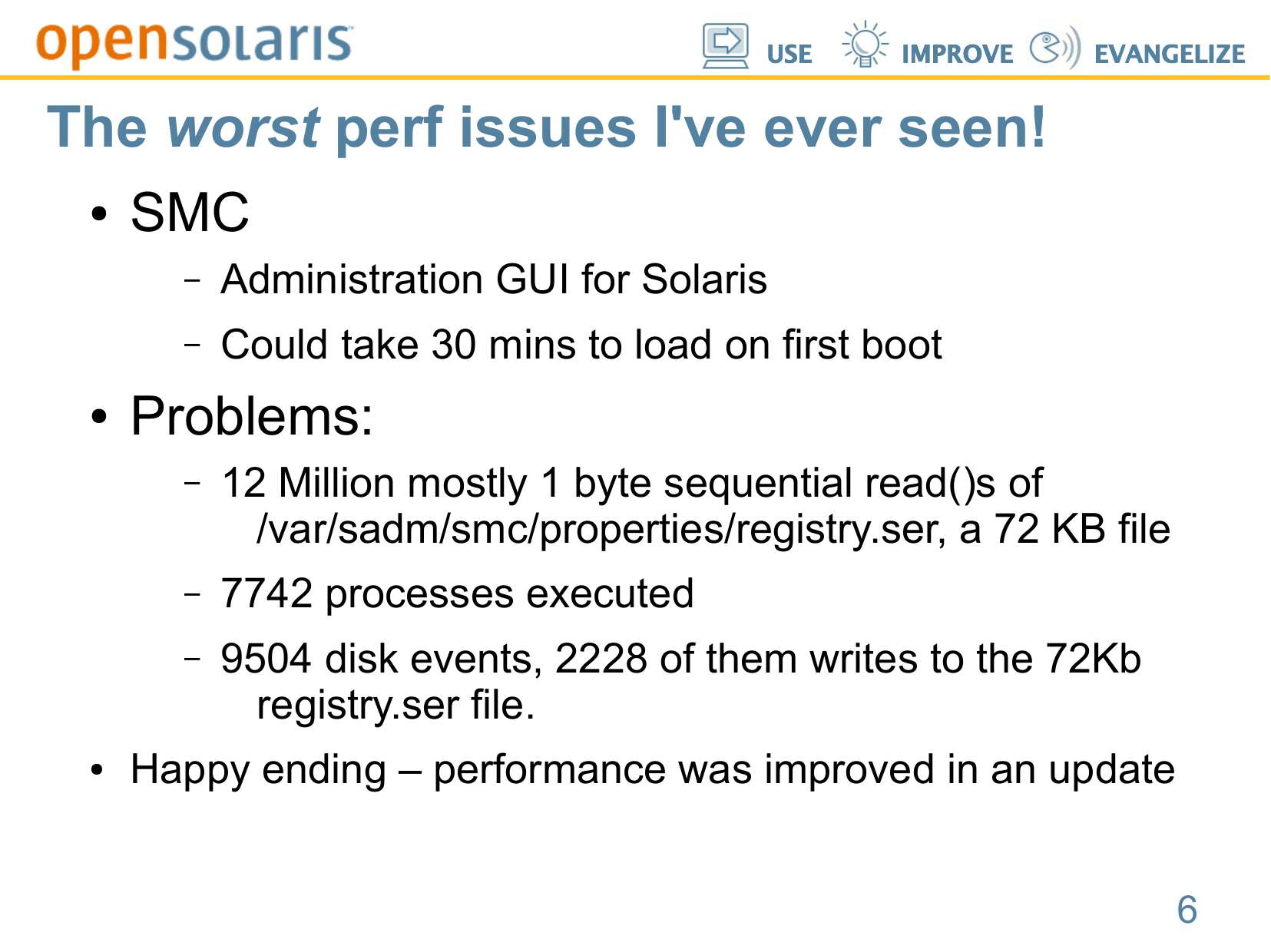

slide 6:
    USE
    IMPROVE
    EVANGELIZE
    The worst perf issues I've ever seen!
    SMC
    – Administration GUI for Solaris
    – Could take 30 mins to load on first boot
    Problems:
    – 12 Million mostly 1 byte sequential read()s of
    /var/sadm/smc/properties/registry.ser, a 72 KB file
    – 7742 processes executed
    – 9504 disk events, 2228 of them writes to the 72Kb
    registry.ser file.
    Happy ending – performance was improved in an update

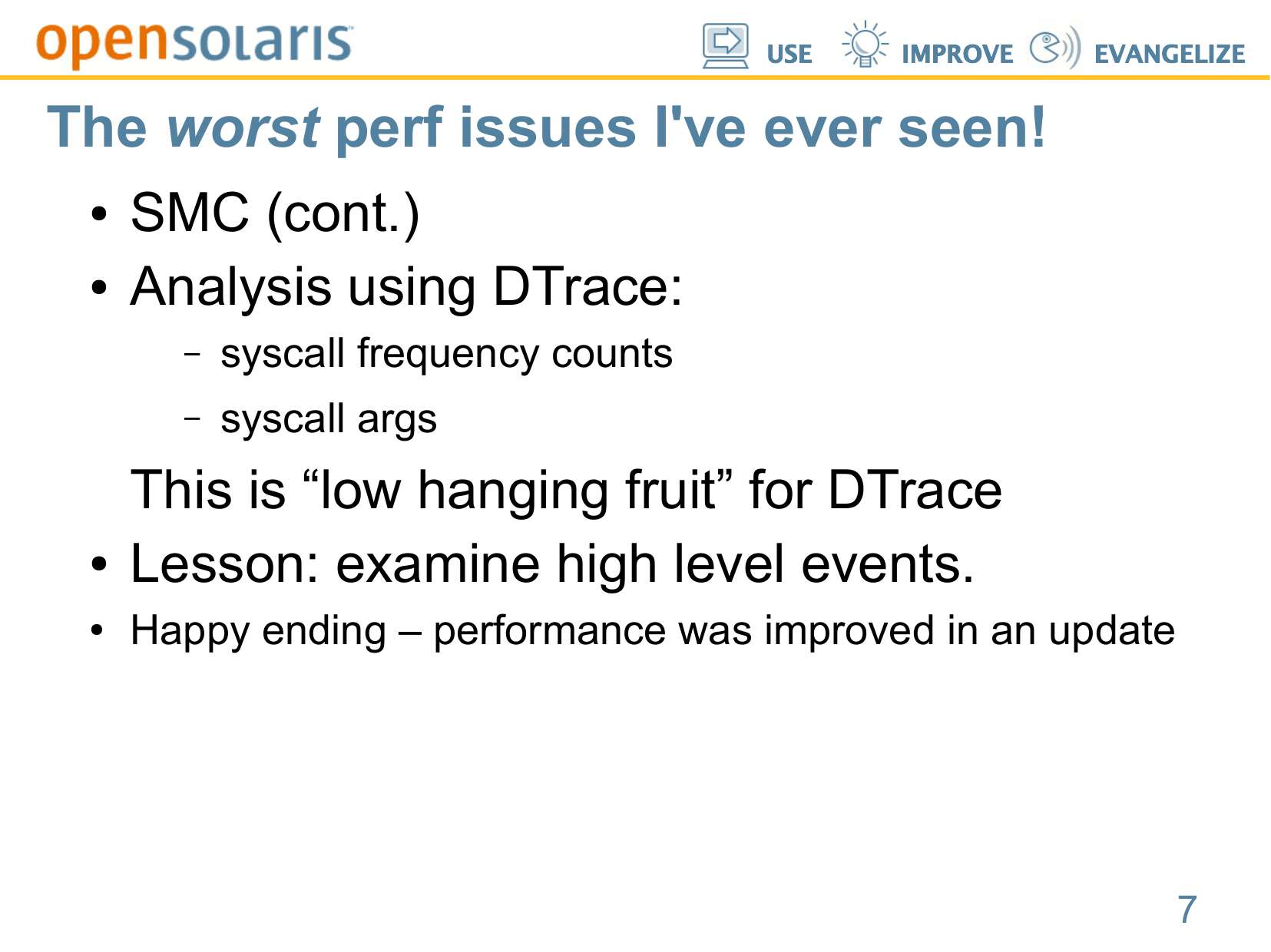

slide 7:
    USE
    IMPROVE
    EVANGELIZE
    The worst perf issues I've ever seen!
    SMC (cont.)
    ● Analysis using DTrace:
    – syscall frequency counts
    – syscall args
    This is “low hanging fruit” for DTrace
    ● Lesson: examine high level events.
    Happy ending – performance was improved in an update

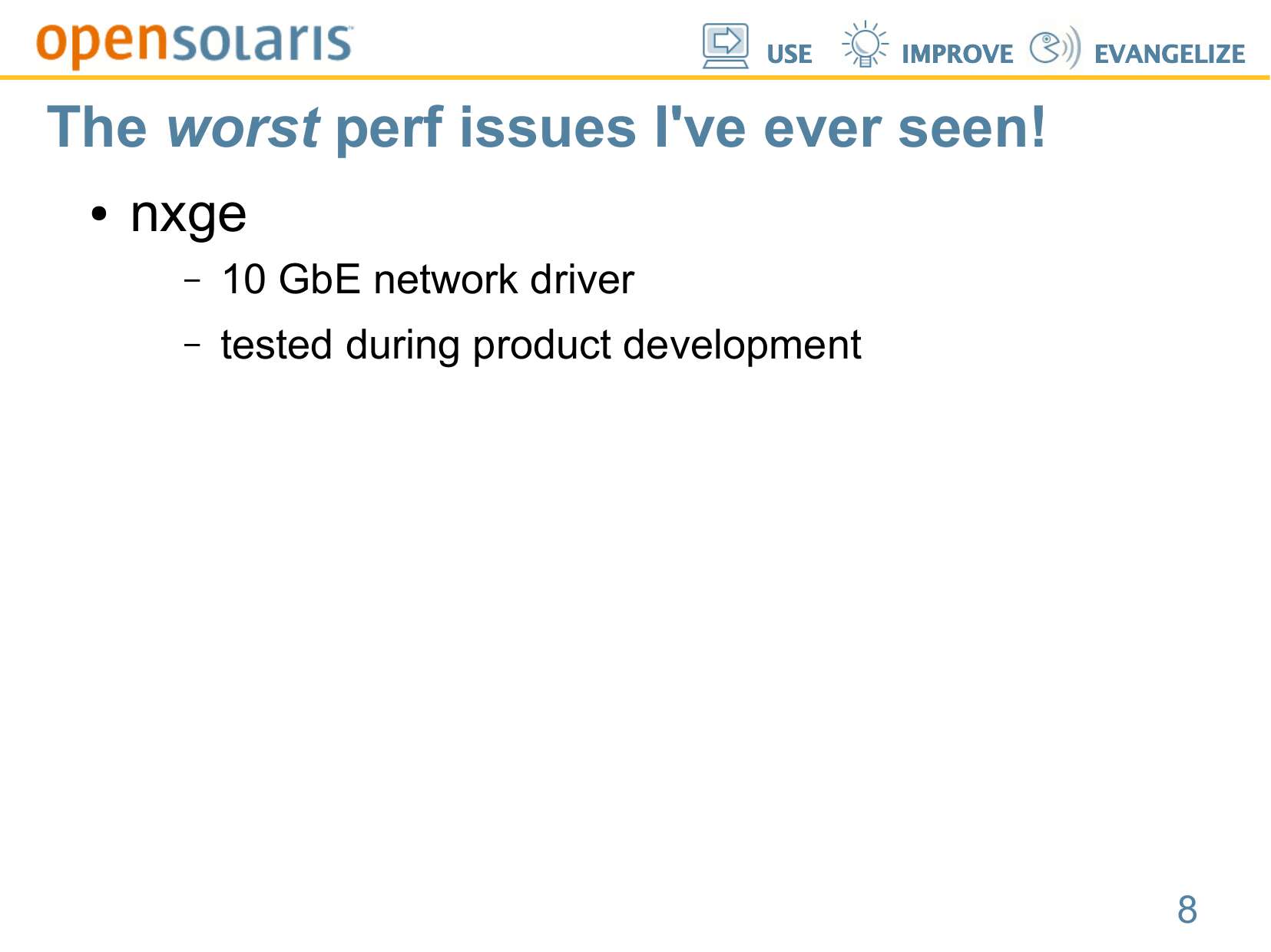

slide 8:
    USE
    IMPROVE
    EVANGELIZE
    The worst perf issues I've ever seen!
    nxge
    – 10 GbE network driver
    – tested during product development

slide 9:
    USE
    IMPROVE
    EVANGELIZE
    The worst perf issues I've ever seen!
    nxge (cont.)
    – 10 GbE network driver
    – tested during product development
    Problems:
    – kstats were wrong (rbytes, obytes)
    this made perf tuning very difficult until I realized what
    was wrong!
    – CR: 6687884 nxge rbytes and obytes kstat are wrong
    Lessons:
    – don't trust statistics you haven't double checked

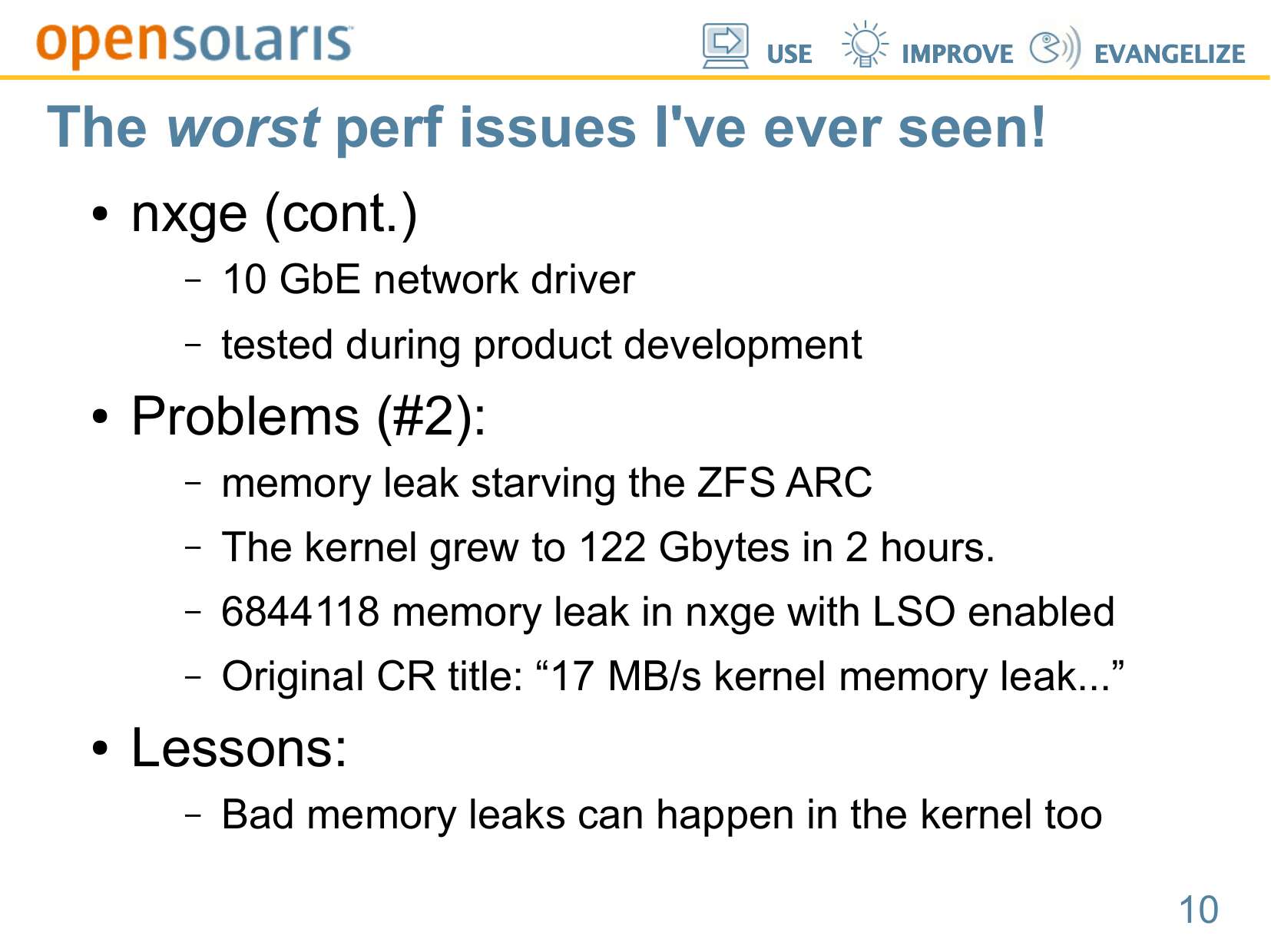

slide 10:
    USE
    IMPROVE
    EVANGELIZE
    The worst perf issues I've ever seen!
    nxge (cont.)
    – 10 GbE network driver
    – tested during product development
    Problems (#2):
    – memory leak starving the ZFS ARC
    – The kernel grew to 122 Gbytes in 2 hours.
    – 6844118 memory leak in nxge with LSO enabled
    – Original CR title: “17 MB/s kernel memory leak...”
    Lessons:
    – Bad memory leaks can happen in the kernel too

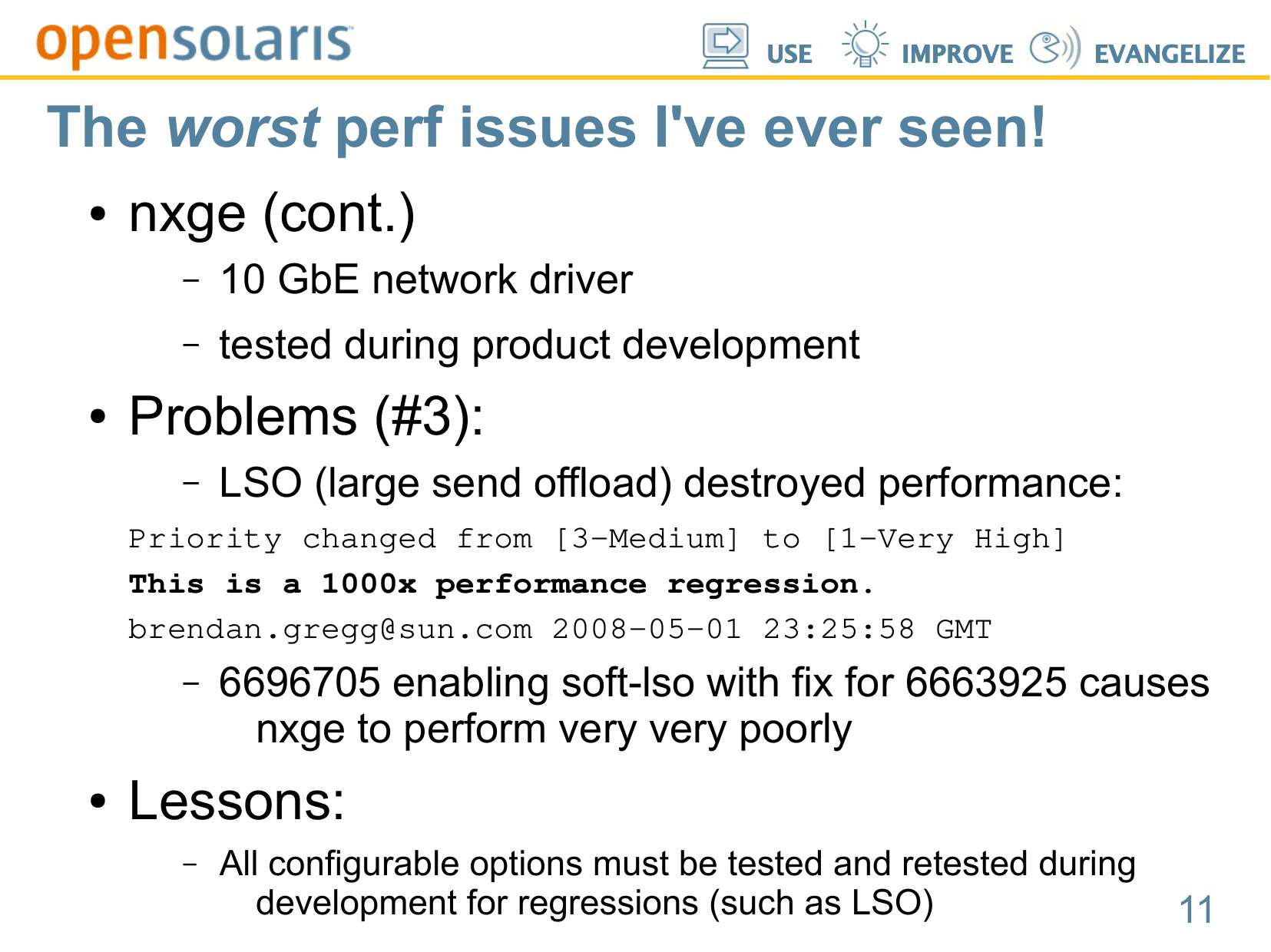

slide 11:
    USE
    IMPROVE
    EVANGELIZE
    The worst perf issues I've ever seen!
    nxge (cont.)
    – 10 GbE network driver
    – tested during product development
    Problems (#3):
    – LSO (large send offload) destroyed performance:
    Priority changed from [3-Medium] to [1-Very High]
    This is a 1000x performance regression.
    brendan.gregg@sun.com 2008-05-01 23:25:58 GMT
    – 6696705 enabling soft-lso with fix for 6663925 causes
    nxge to perform very very poorly
    Lessons:
    All configurable options must be tested and retested during
    development for regressions (such as LSO)

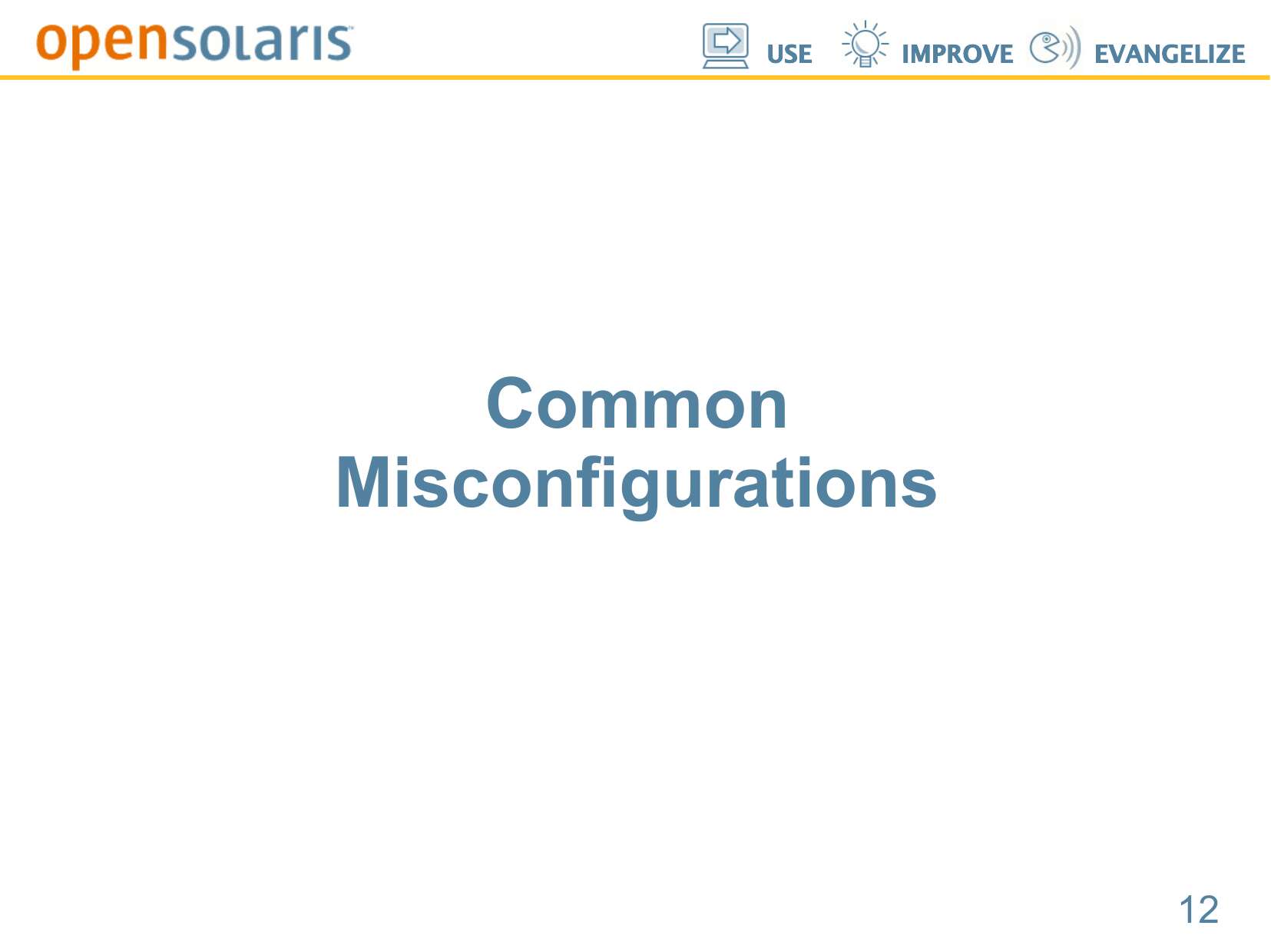

slide 12:
    USE
    IMPROVE
    EVANGELIZE
    Common
    Misconfigurations

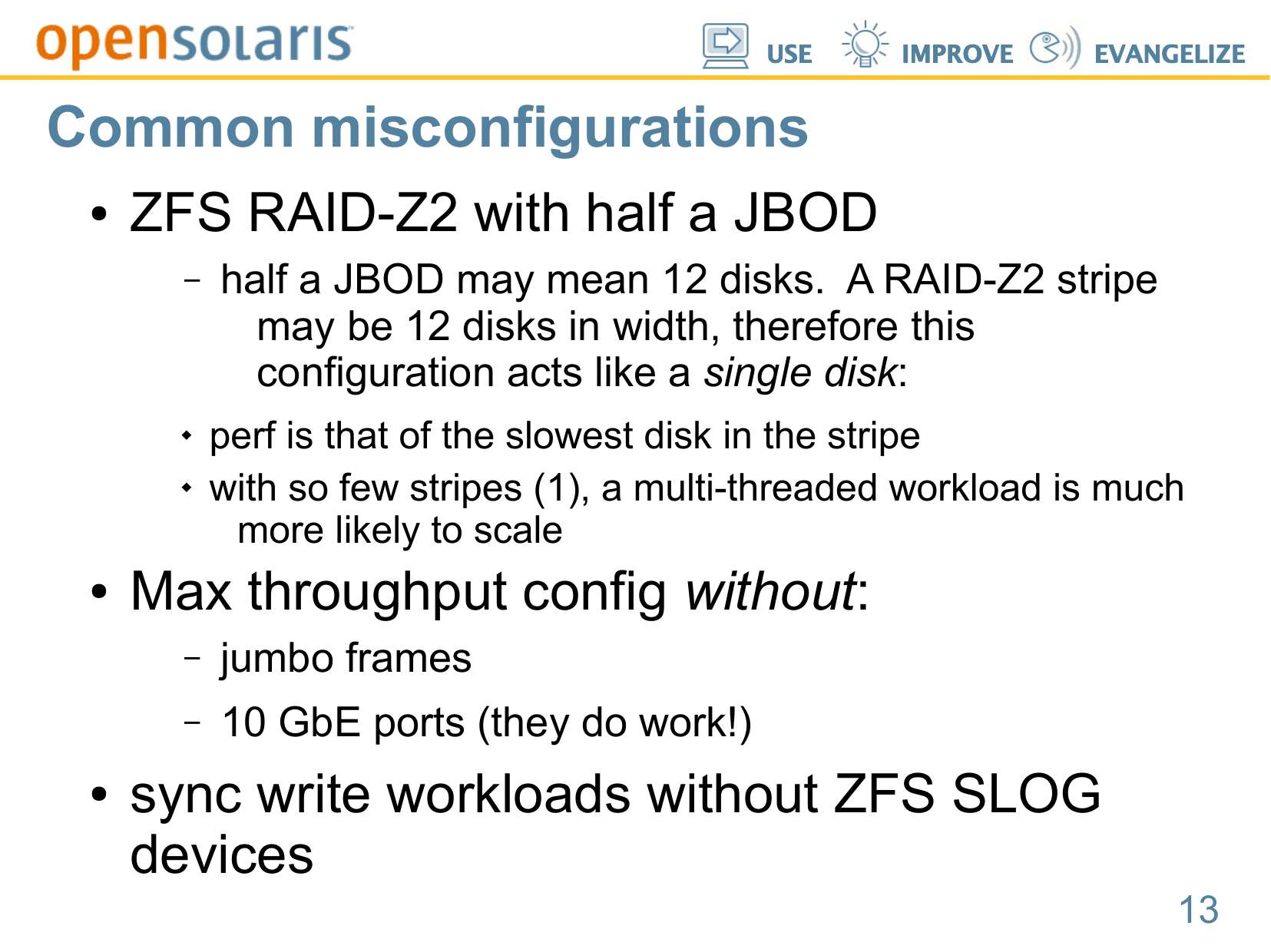

slide 13:
    USE
    IMPROVE
    EVANGELIZE
    Common misconfigurations
    ZFS RAID-Z2 with half a JBOD
    – half a JBOD may mean 12 disks. A RAID-Z2 stripe
    may be 12 disks in width, therefore this
    configuration acts like a single disk:
    perf is that of the slowest disk in the stripe
     with so few stripes (1), a multi-threaded workload is much
    more likely to scale
    Max throughput config without:
    – jumbo frames
    – 10 GbE ports (they do work!)
    sync write workloads without ZFS SLOG
    devices

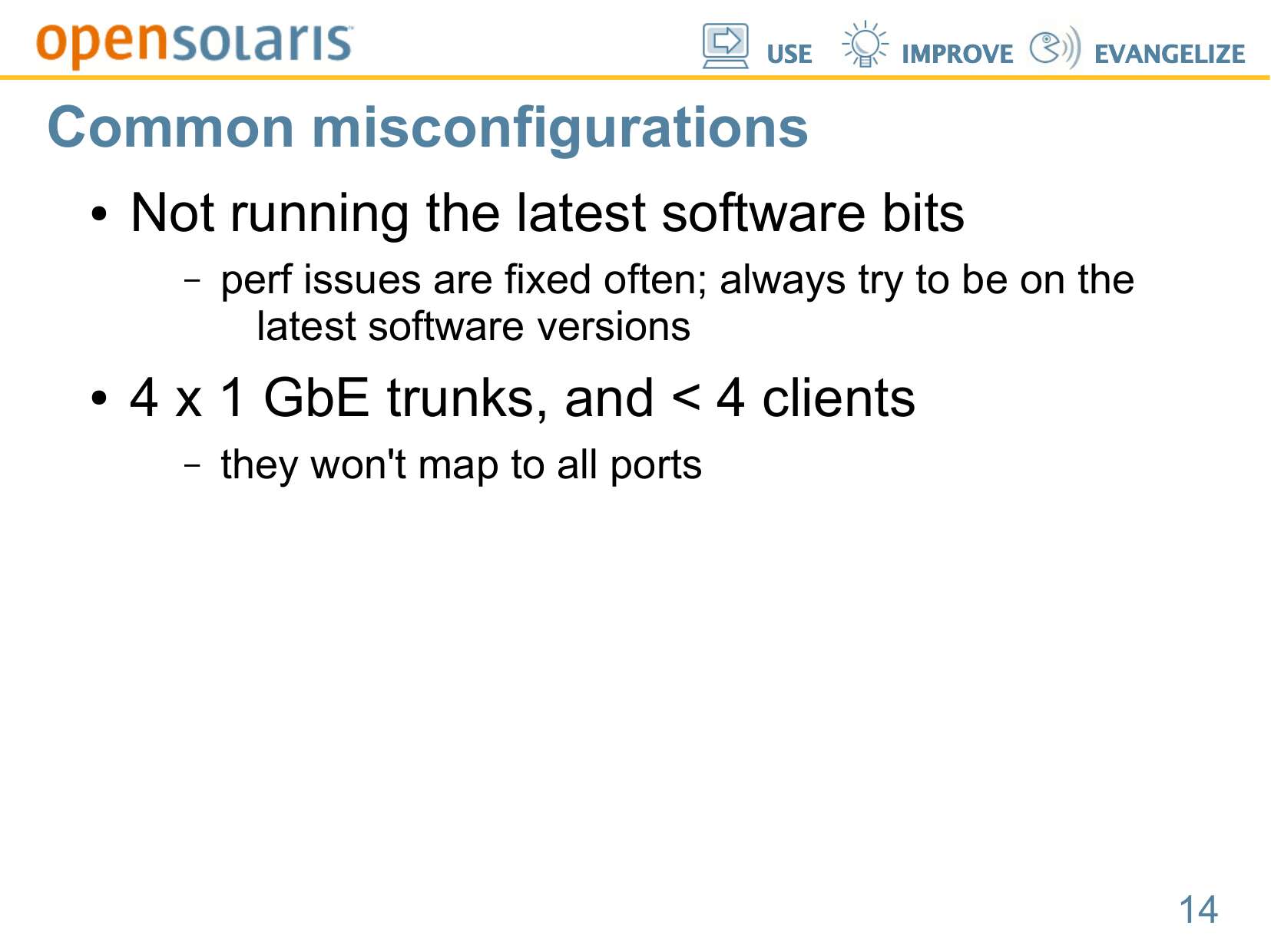

slide 14:
    USE
    IMPROVE
    EVANGELIZE
    Common misconfigurations
    Not running the latest software bits
    – perf issues are fixed often; always try to be on the
    latest software versions
    4 x 1 GbE trunks, and

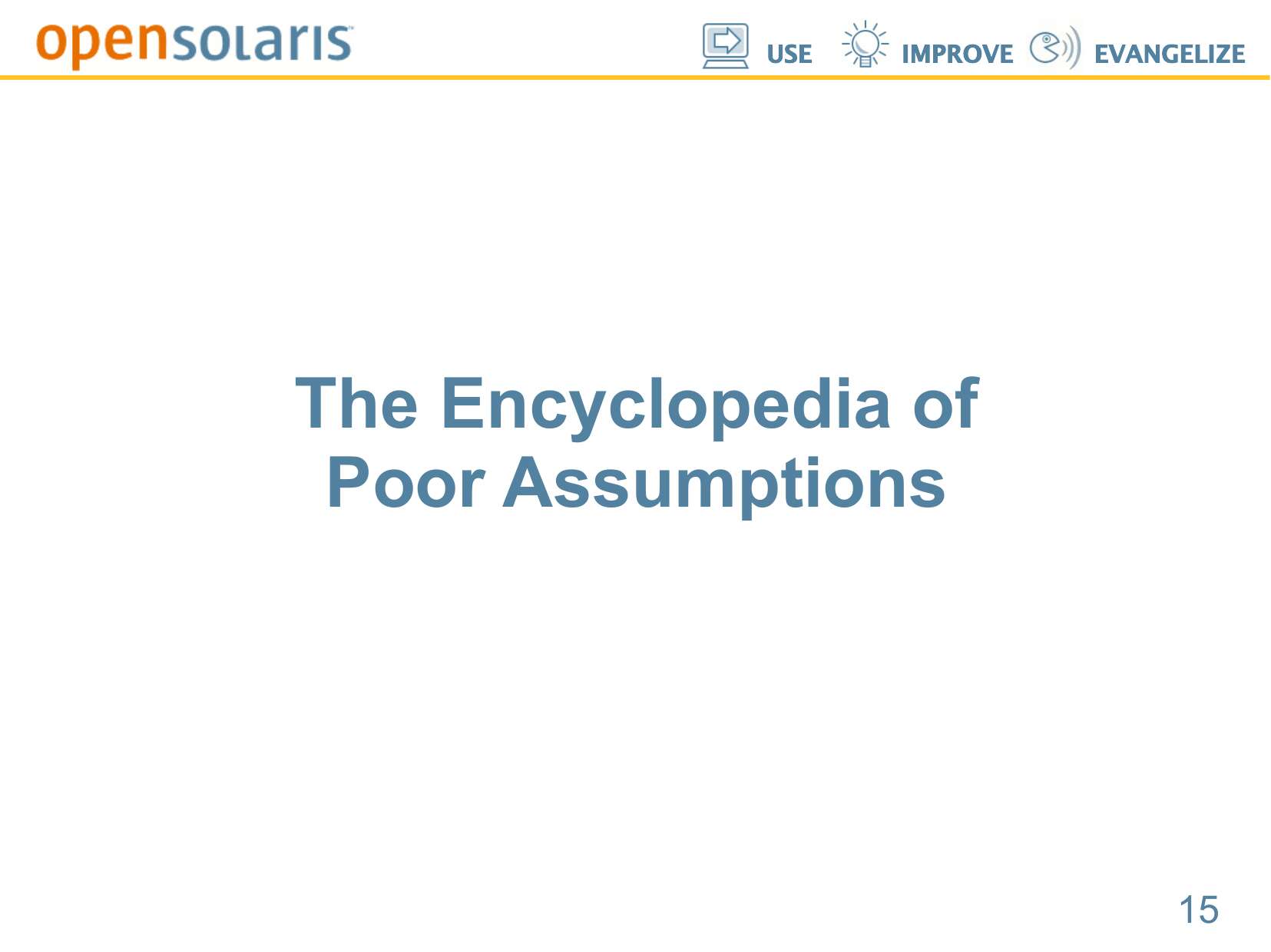

slide 15:
    USE
    IMPROVE
    EVANGELIZE
    The Encyclopedia of
    Poor Assumptions

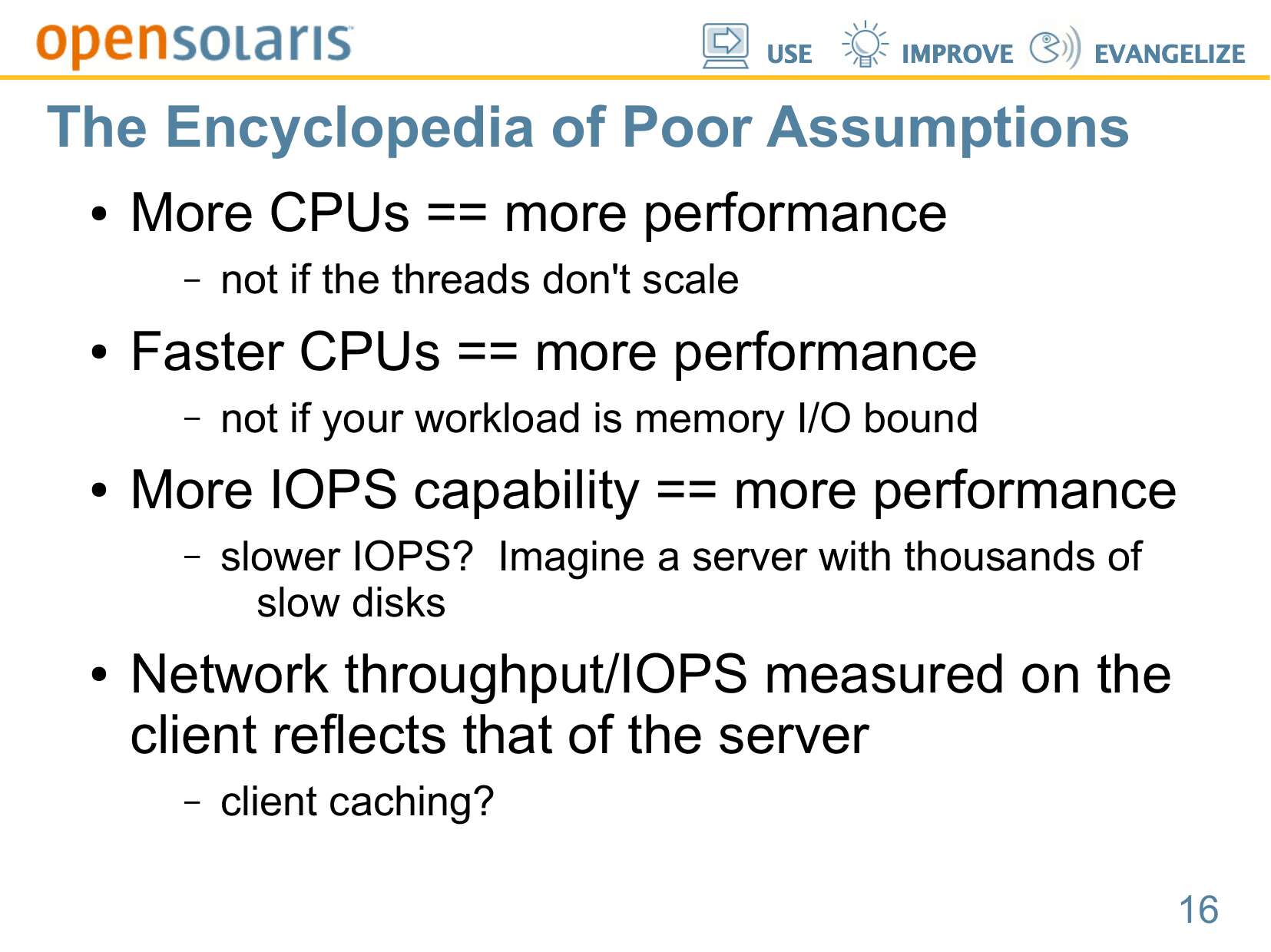

slide 16:
    USE
    IMPROVE
    EVANGELIZE
    The Encyclopedia of Poor Assumptions
    More CPUs == more performance
    – not if the threads don't scale
    Faster CPUs == more performance
    – not if your workload is memory I/O bound
    More IOPS capability == more performance
    – slower IOPS?
    Imagine a server with thousands of
    slow disks
    Network throughput/IOPS measured on the
    client reflects that of the server
    – client caching?

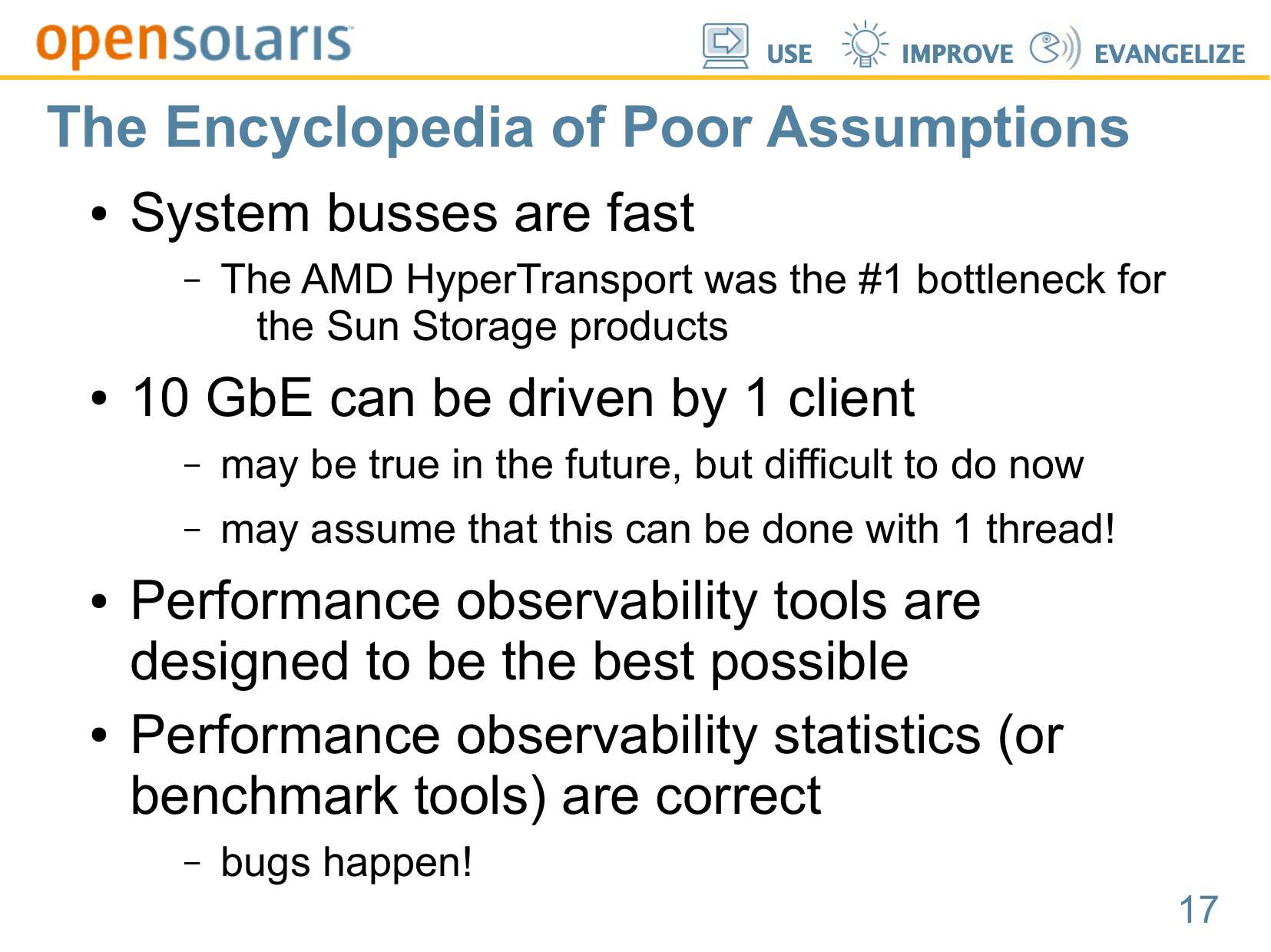

slide 17:
    USE
    IMPROVE
    EVANGELIZE
    The Encyclopedia of Poor Assumptions
    System busses are fast
    – The AMD HyperTransport was the #1 bottleneck for
    the Sun Storage products
    10 GbE can be driven by 1 client
    – may be true in the future, but difficult to do now
    – may assume that this can be done with 1 thread!
    Performance observability tools are
    designed to be the best possible
    ● Performance observability statistics (or
    benchmark tools) are correct
    – bugs happen!

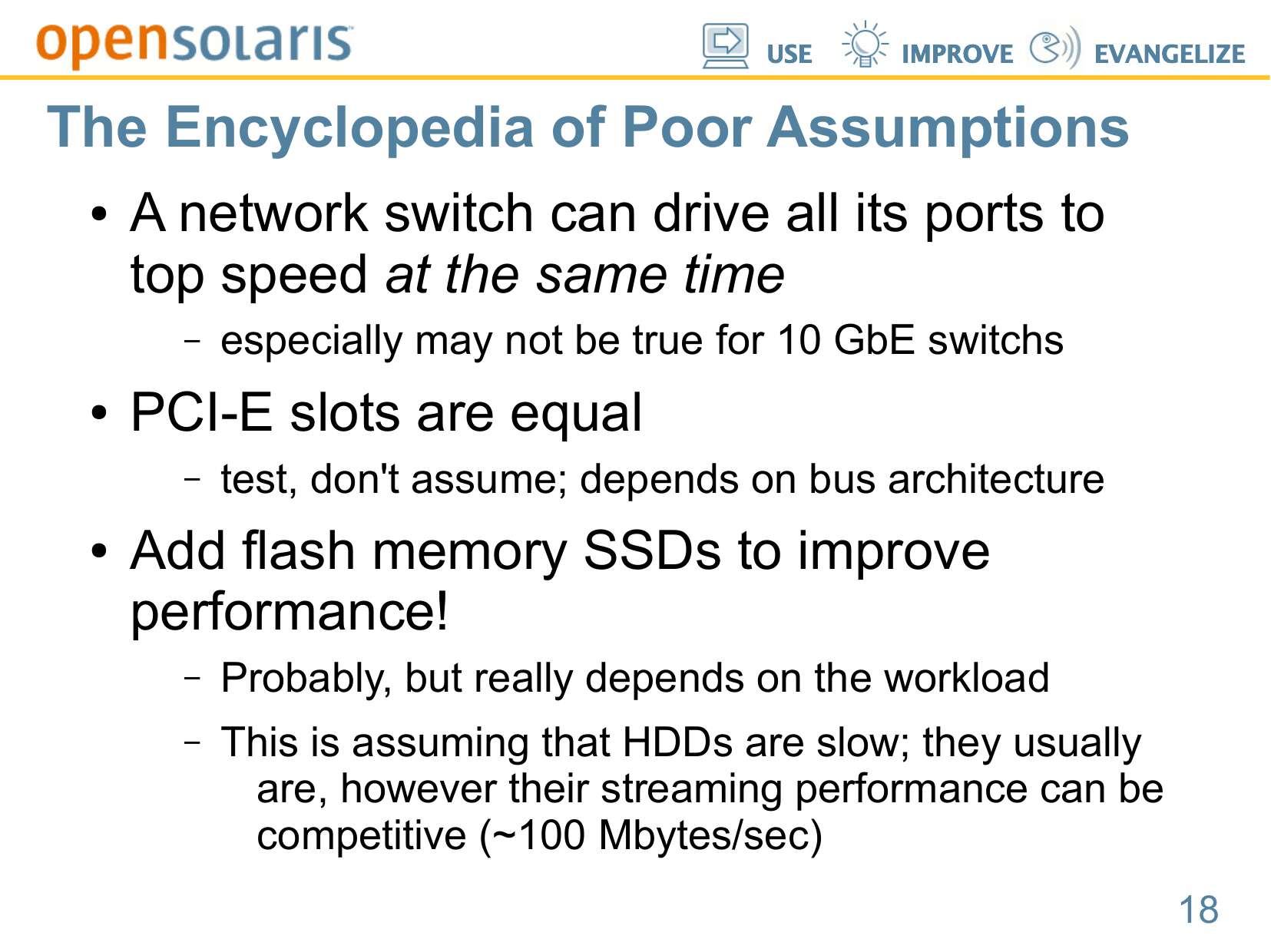

slide 18:
    USE
    IMPROVE
    EVANGELIZE
    The Encyclopedia of Poor Assumptions
    A network switch can drive all its ports to
    top speed at the same time
    – especially may not be true for 10 GbE switchs
    PCI-E slots are equal
    – test, don't assume; depends on bus architecture
    Add flash memory SSDs to improve
    performance!
    – Probably, but really depends on the workload
    – This is assuming that HDDs are slow; they usually
    are, however their streaming performance can be
    competitive (~100 Mbytes/sec)

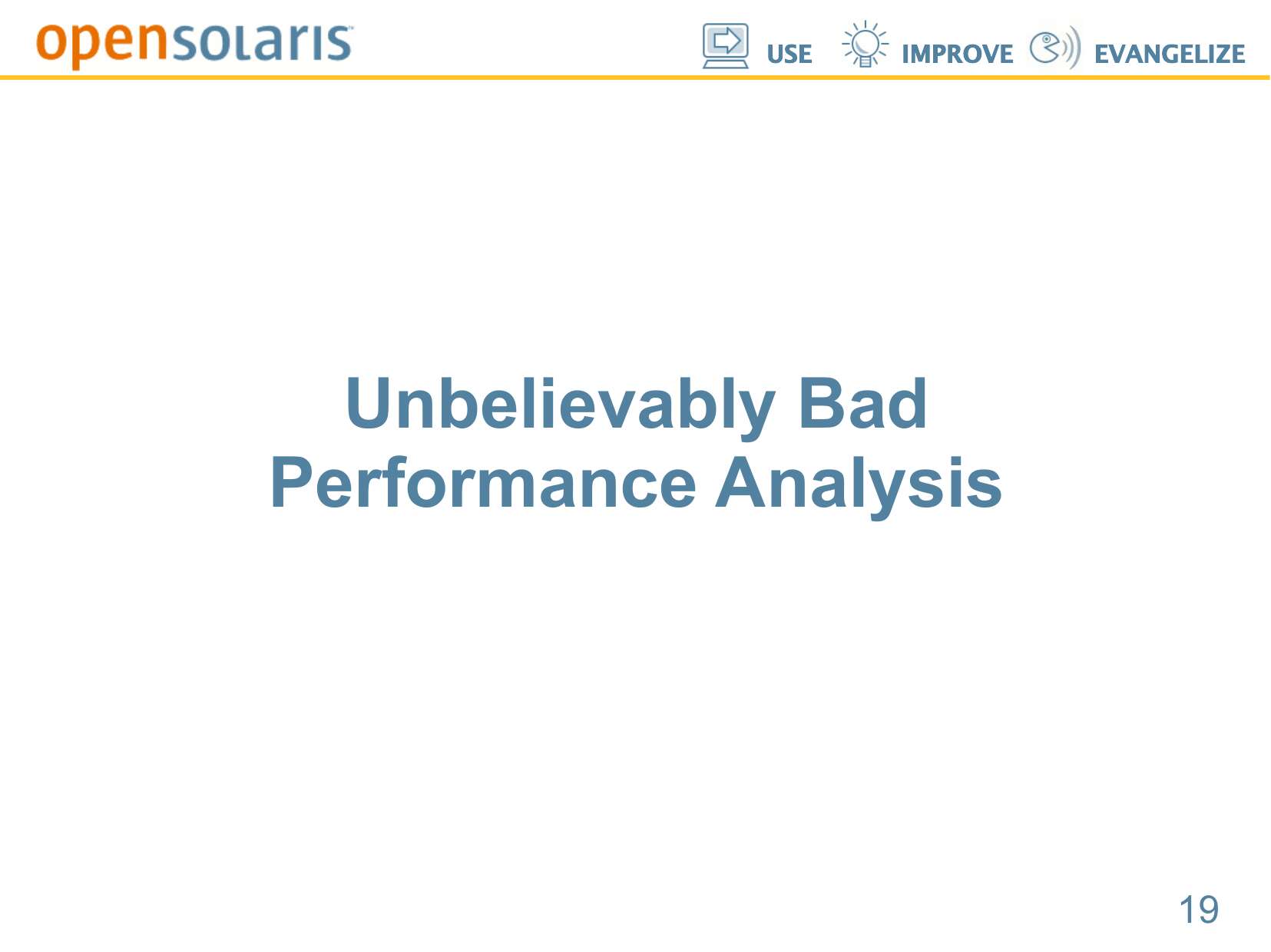

slide 19:
    USE
    IMPROVE
    EVANGELIZE
    Unbelievably Bad
    Performance Analysis

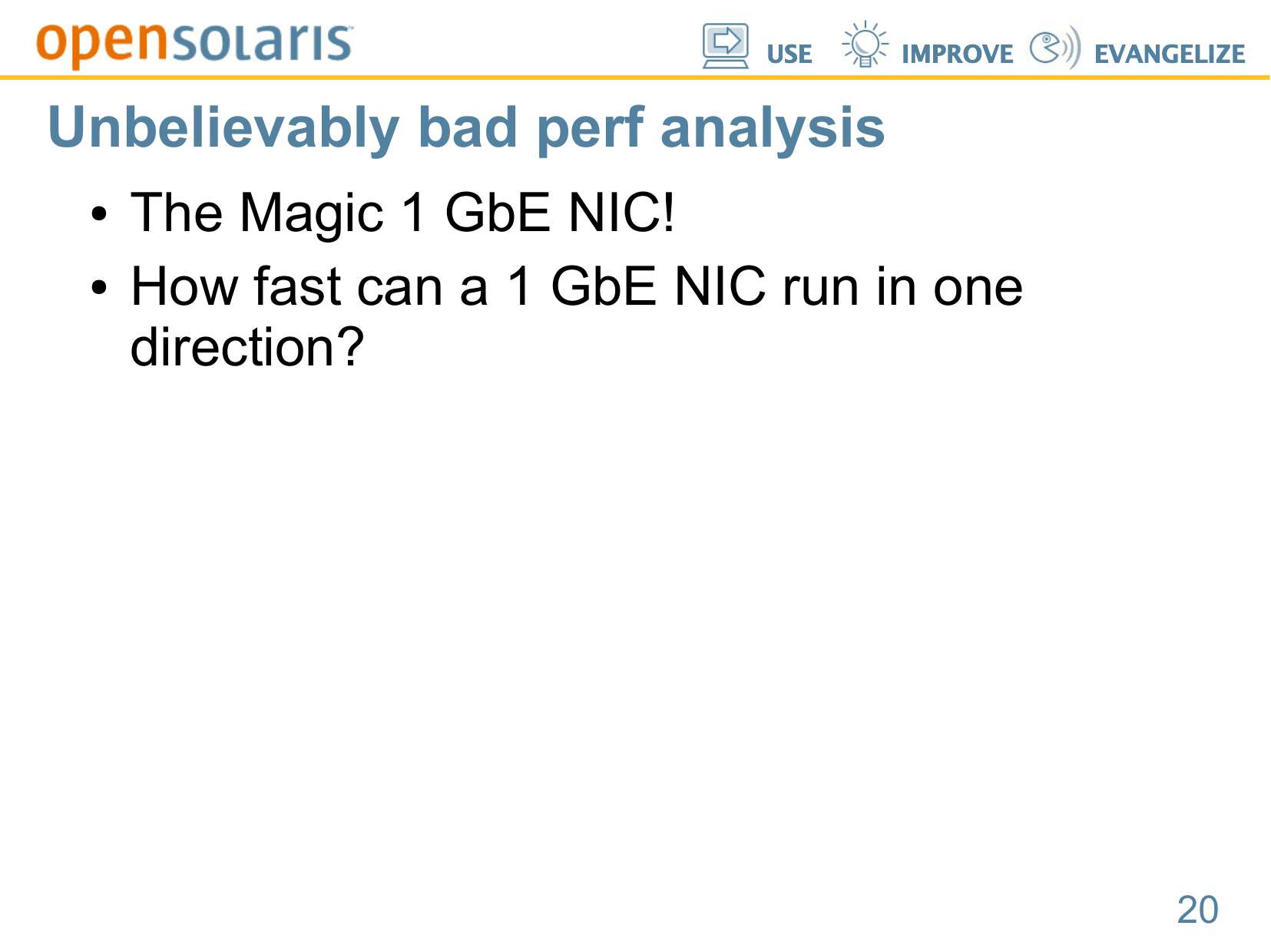

slide 20:
    USE
    IMPROVE
    EVANGELIZE
    Unbelievably bad perf analysis
    The Magic 1 GbE NIC!
    ● How fast can a 1 GbE NIC run in one
    direction?

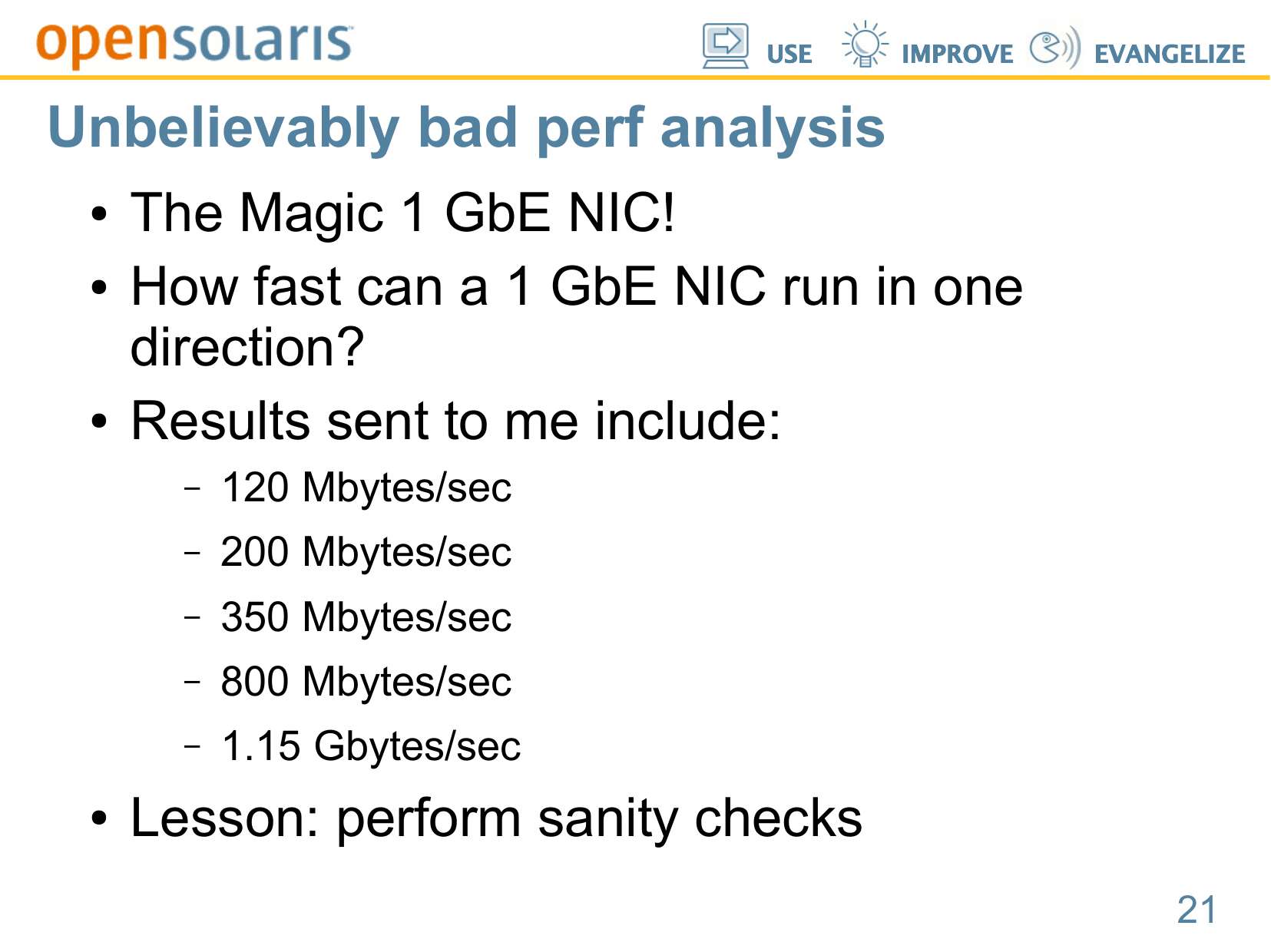

slide 21:
    USE
    IMPROVE
    EVANGELIZE
    Unbelievably bad perf analysis
    The Magic 1 GbE NIC!
    ● How fast can a 1 GbE NIC run in one
    direction?
    ● Results sent to me include:
    – 120 Mbytes/sec
    – 200 Mbytes/sec
    – 350 Mbytes/sec
    – 800 Mbytes/sec
    – 1.15 Gbytes/sec
    Lesson: perform sanity checks

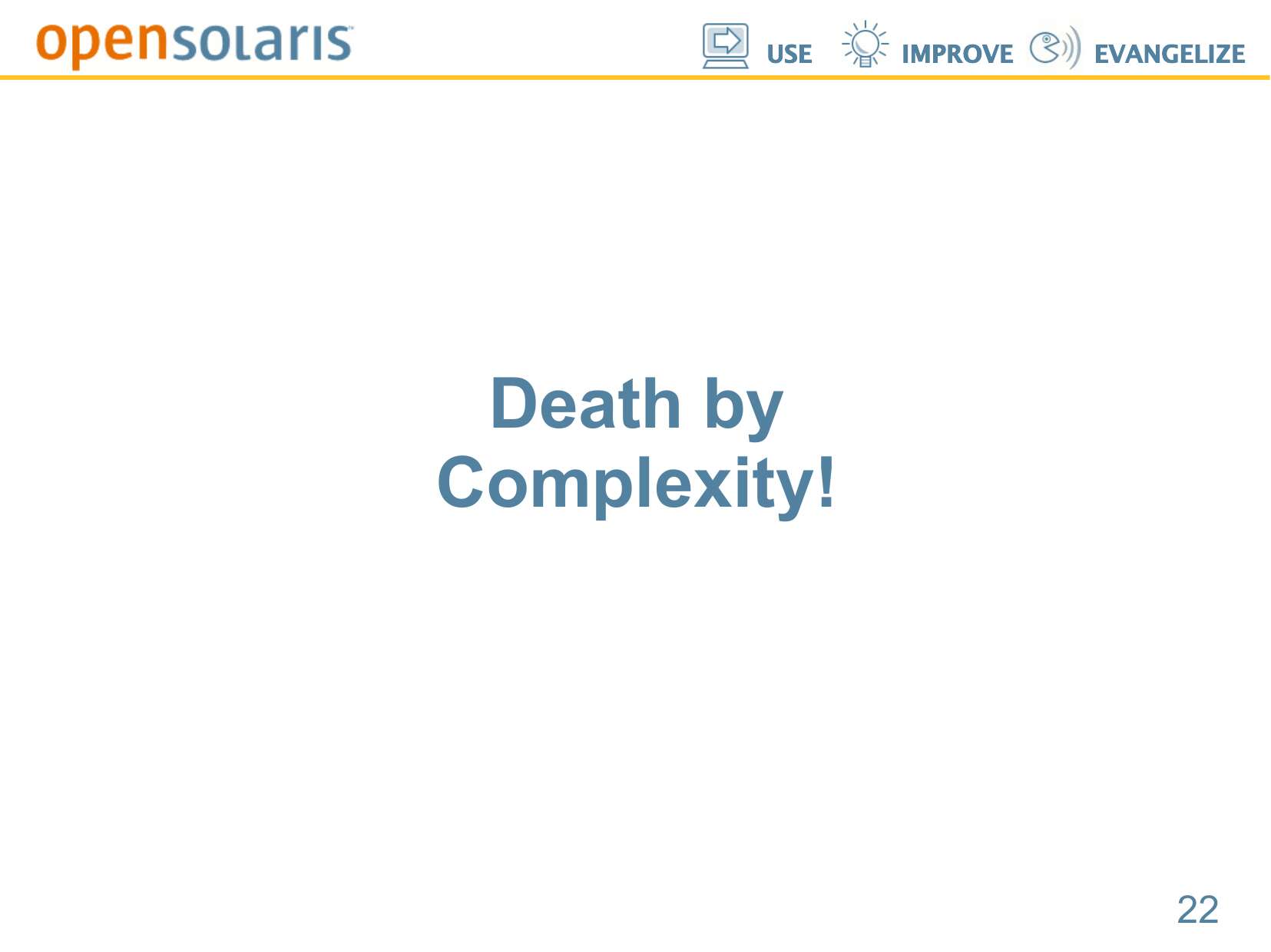

slide 22:
    USE
    IMPROVE
    EVANGELIZE
    Death by
    Complexity!

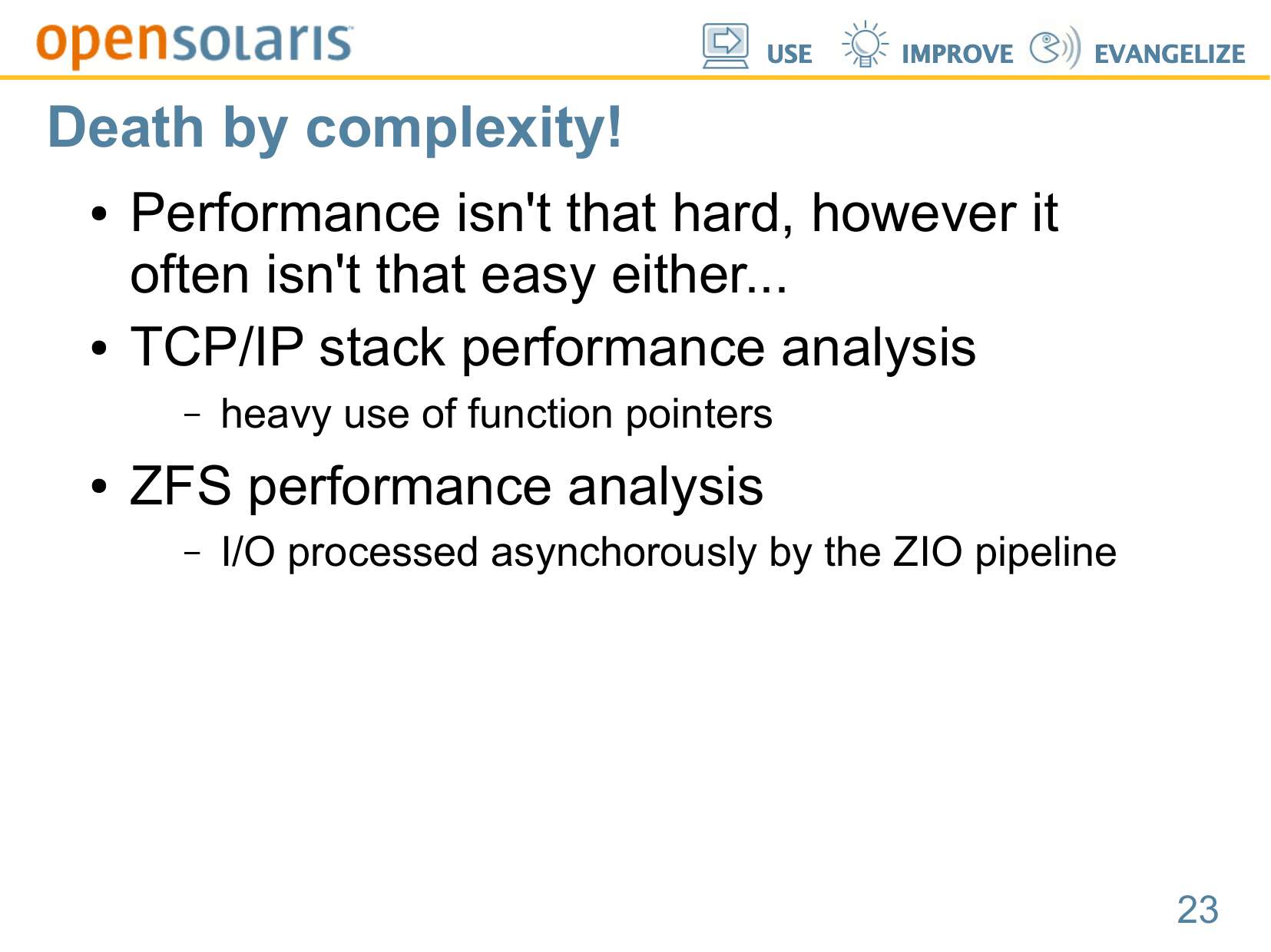

slide 23:
    USE
    IMPROVE
    EVANGELIZE
    Death by complexity!
    Performance isn't that hard, however it
    often isn't that easy either...
    ● TCP/IP stack performance analysis
    – heavy use of function pointers
    ZFS performance analysis
    – I/O processed asynchorously by the ZIO pipeline

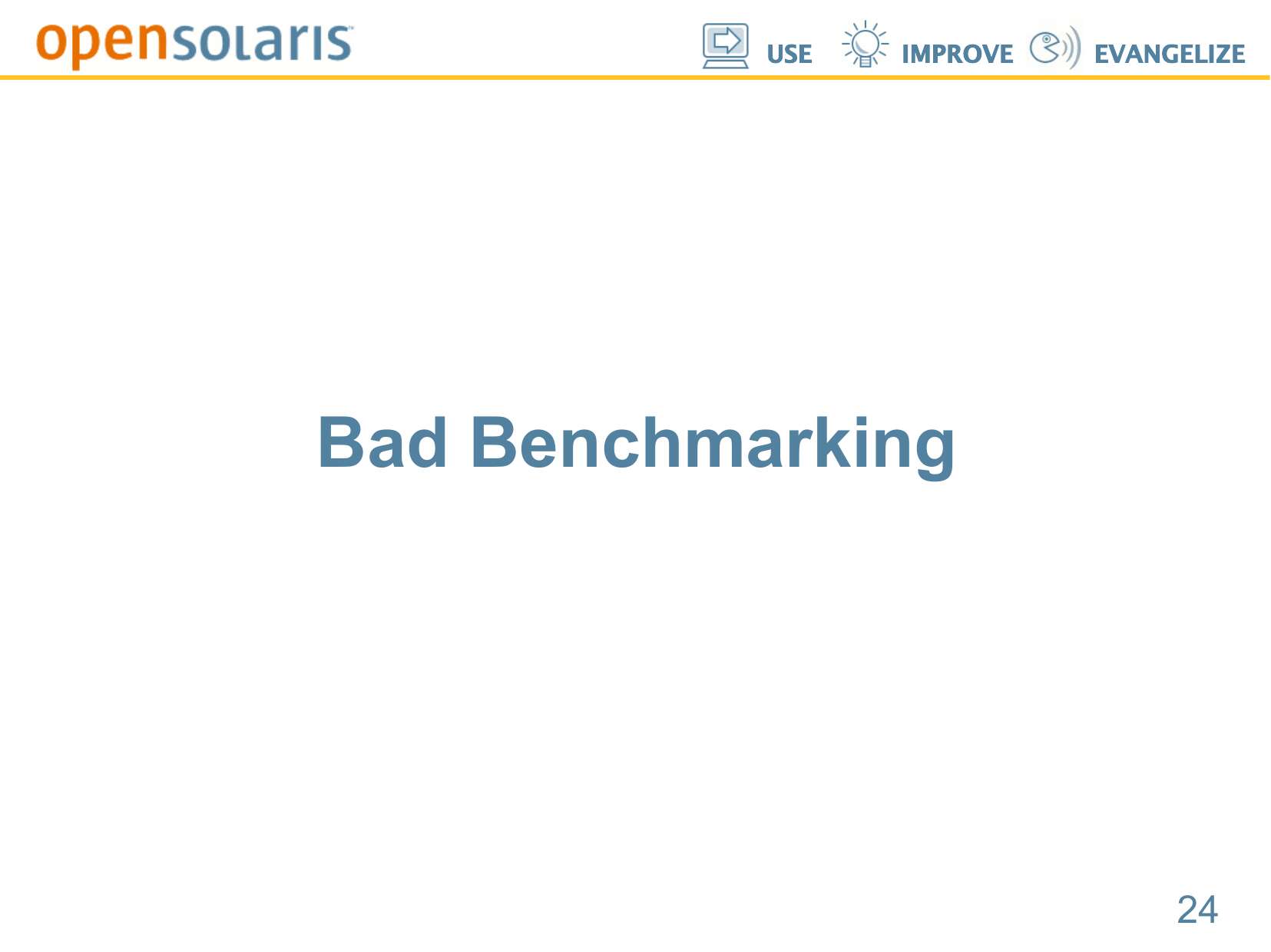

slide 24:
    USE
    IMPROVE
    EVANGELIZE
    Bad Benchmarking

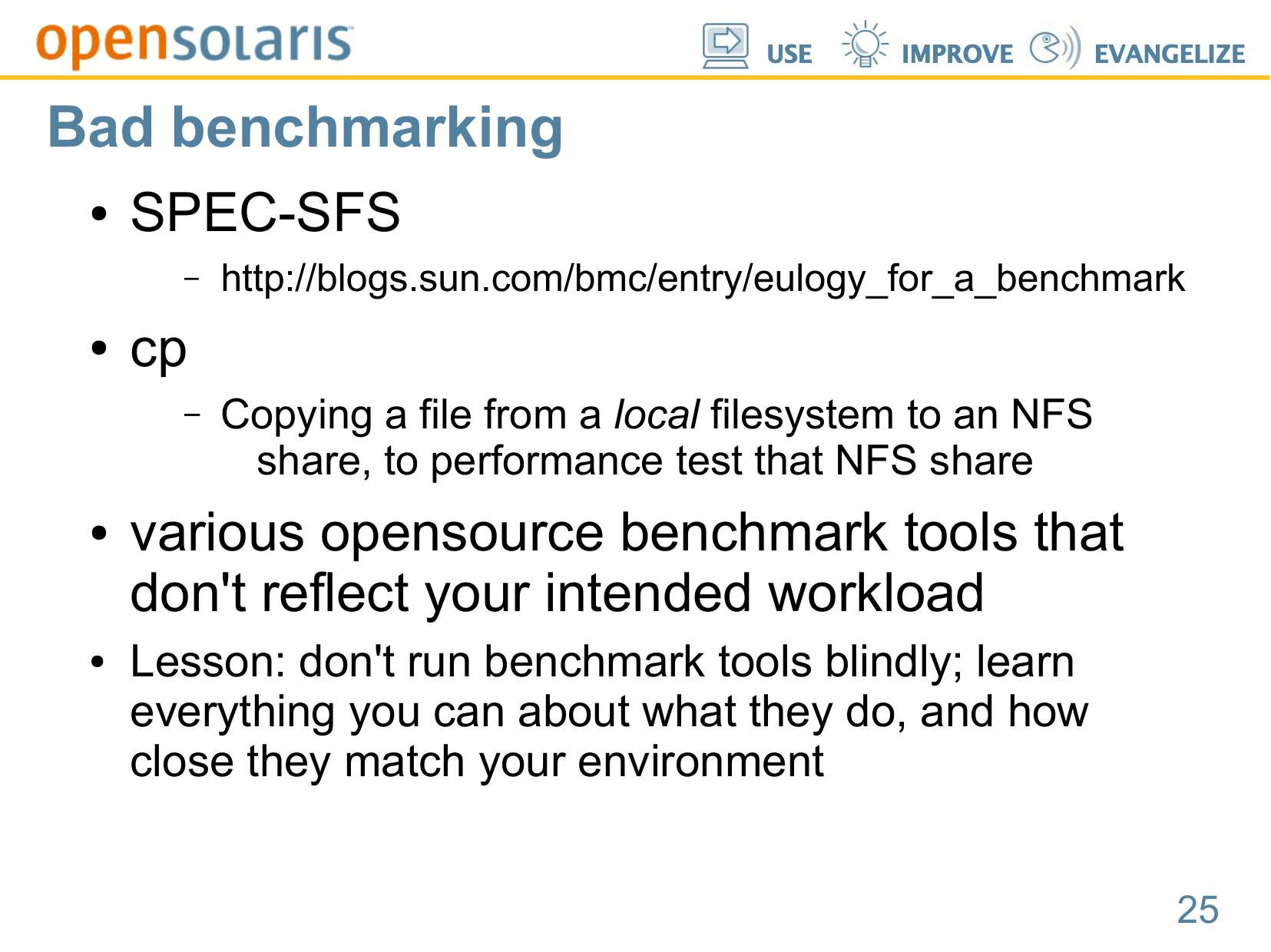

slide 25:
    USE
    IMPROVE
    EVANGELIZE
    Bad benchmarking
    SPEC-SFS
    http://blogs.sun.com/bmc/entry/eulogy_for_a_benchmark
    – Copying a file from a local filesystem to an NFS
    share, to performance test that NFS share
    various opensource benchmark tools that
    don't reflect your intended workload
    Lesson: don't run benchmark tools blindly; learn
    everything you can about what they do, and how
    close they match your environment

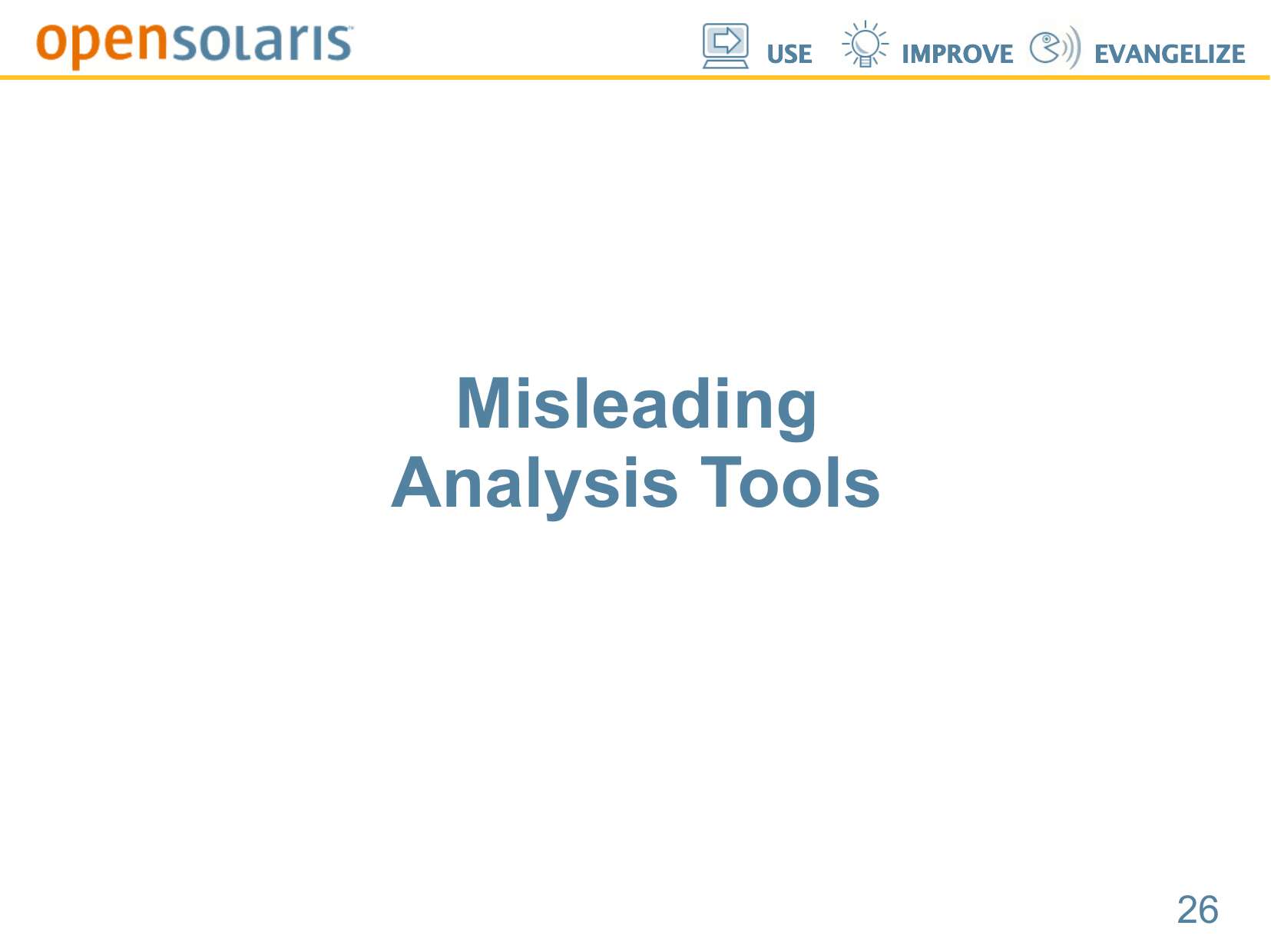

slide 26:
    USE
    IMPROVE
    EVANGELIZE
    Misleading
    Analysis Tools

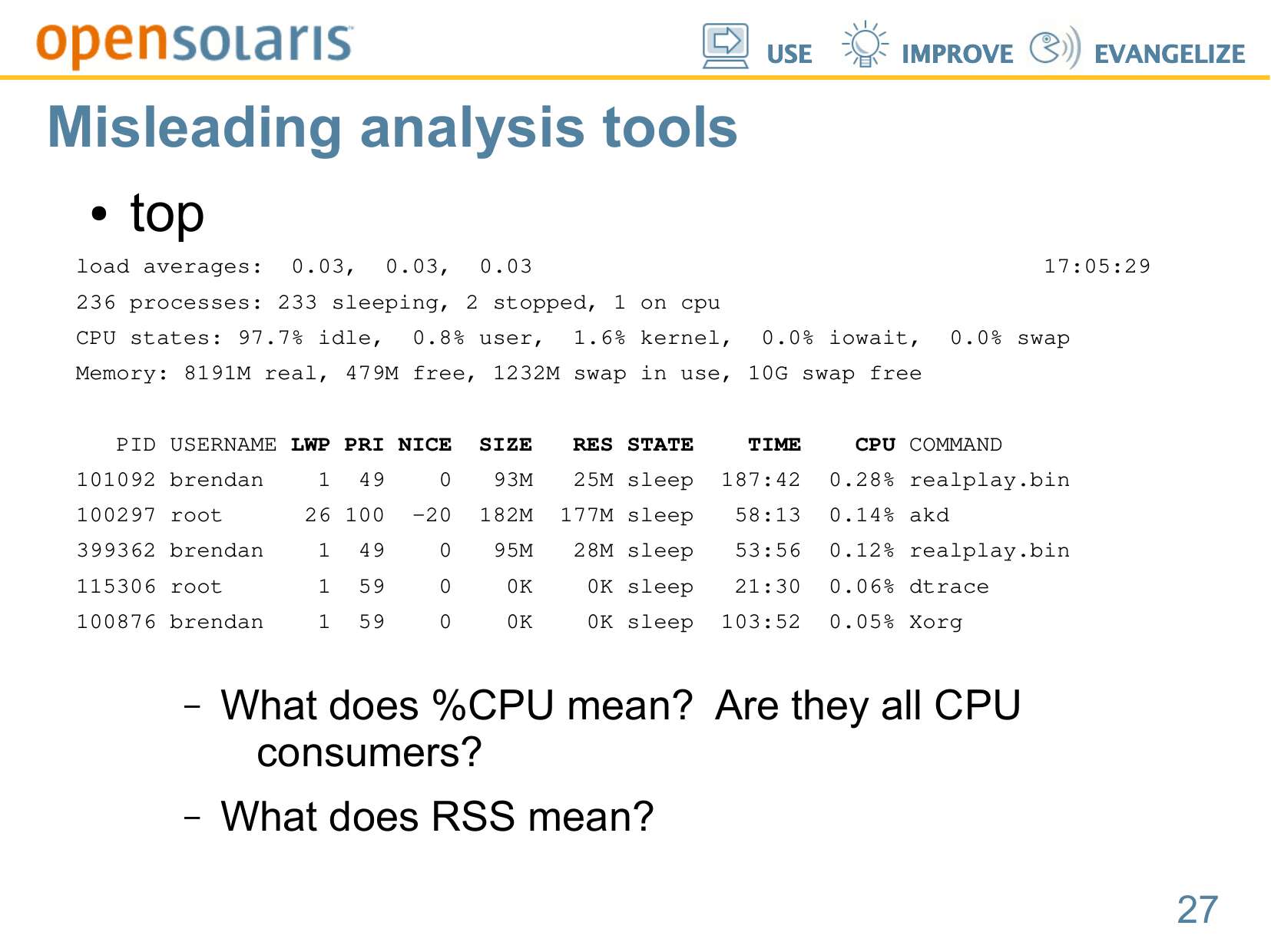

slide 27:
    USE
    IMPROVE
    EVANGELIZE
    Misleading analysis tools
    top
    load averages:
    0.03,
    0.03,
    17:05:29
    236 processes: 233 sleeping, 2 stopped, 1 on cpu
    CPU states: 97.7% idle,
    0.8% user,
    1.6% kernel,
    0.0% iowait,
    0.0% swap
    Memory: 8191M real, 479M free, 1232M swap in use, 10G swap free
    PID USERNAME LWP PRI NICE
    SIZE
    RES STATE
    TIME
    CPU COMMAND
    101092 brendan
    93M
    25M sleep
    187:42
    0.28% realplay.bin
    100297 root
    26 100
    -20
    182M
    177M sleep
    58:13
    0.14% akd
    399362 brendan
    95M
    28M sleep
    53:56
    0.12% realplay.bin
    115306 root
    0K sleep
    21:30
    0.06% dtrace
    100876 brendan
    0K sleep
    103:52
    0.05% Xorg
    – What does %CPU mean? Are they all CPU
    consumers?
    – What does RSS mean?

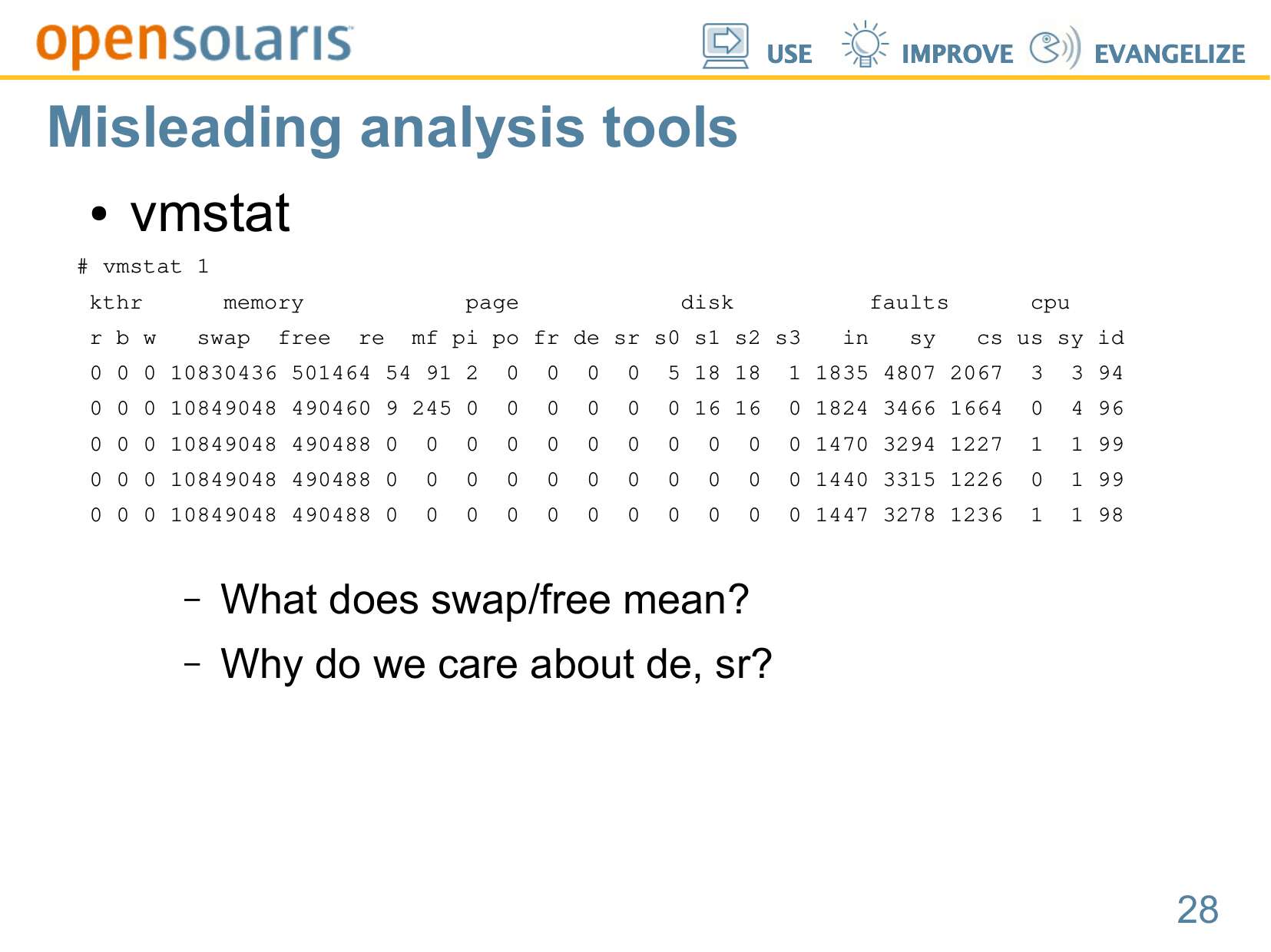

slide 28:
    USE
    IMPROVE
    EVANGELIZE
    Misleading analysis tools
    vmstat
    # vmstat 1
    kthr
    r b w
    memory
    swap
    free
    page
    disk
    mf pi po fr de sr s0 s1 s2 s3
    faults
    cpu
    cs us sy id
    0 0 0 10830436 501464 54 91 2
    5 18 18
    1 1835 4807 2067
    3 94
    0 0 0 10849048 490460 9 245 0
    0 16 16
    0 1824 3466 1664
    4 96
    0 0 0 10849048 490488 0
    0 1470 3294 1227
    1 99
    0 0 0 10849048 490488 0
    0 1440 3315 1226
    1 99
    0 0 0 10849048 490488 0
    0 1447 3278 1236
    1 98
    – What does swap/free mean?
    – Why do we care about de, sr?

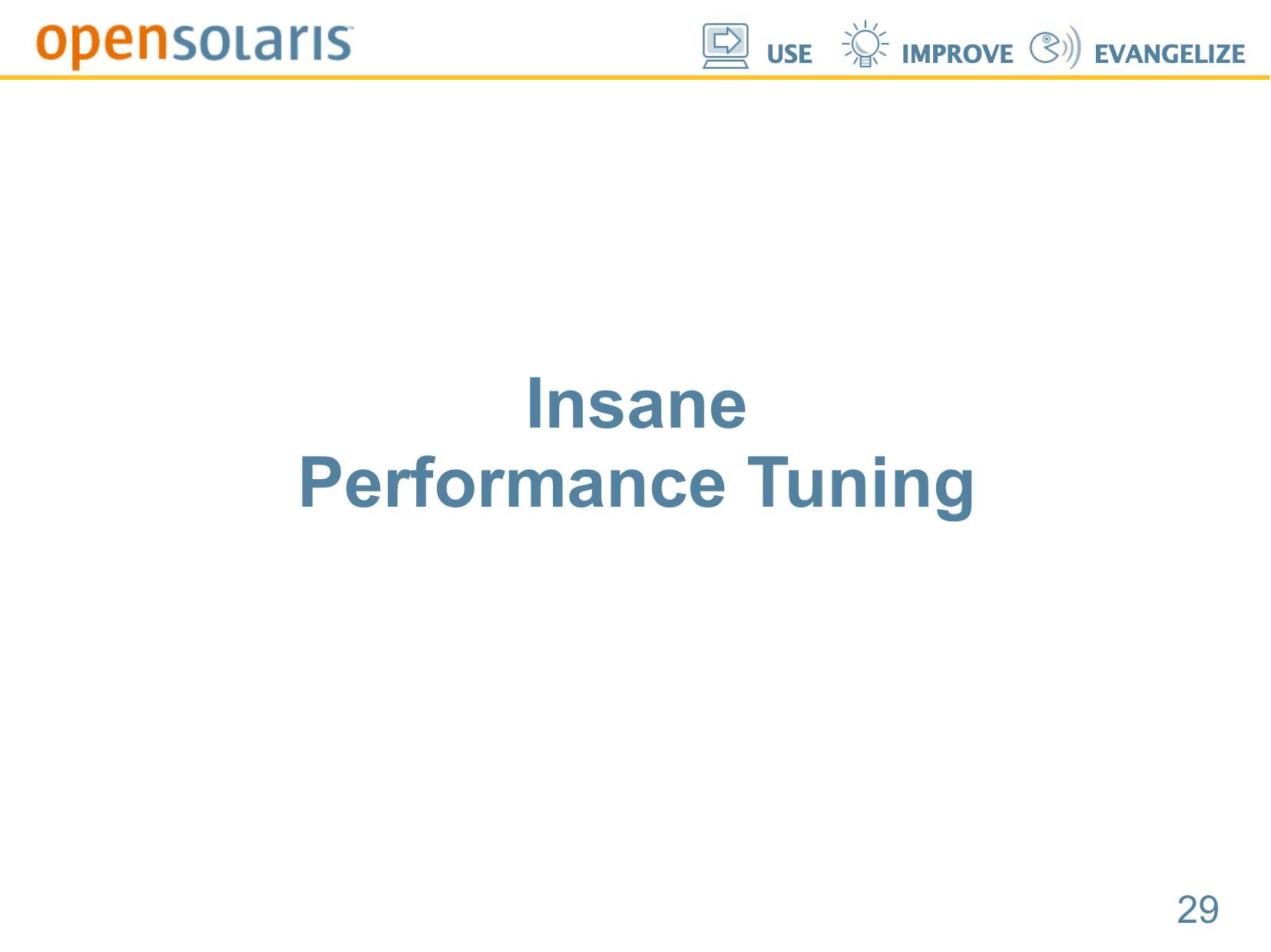

slide 29:
    USE
    IMPROVE
    EVANGELIZE
    Insane
    Performance Tuning

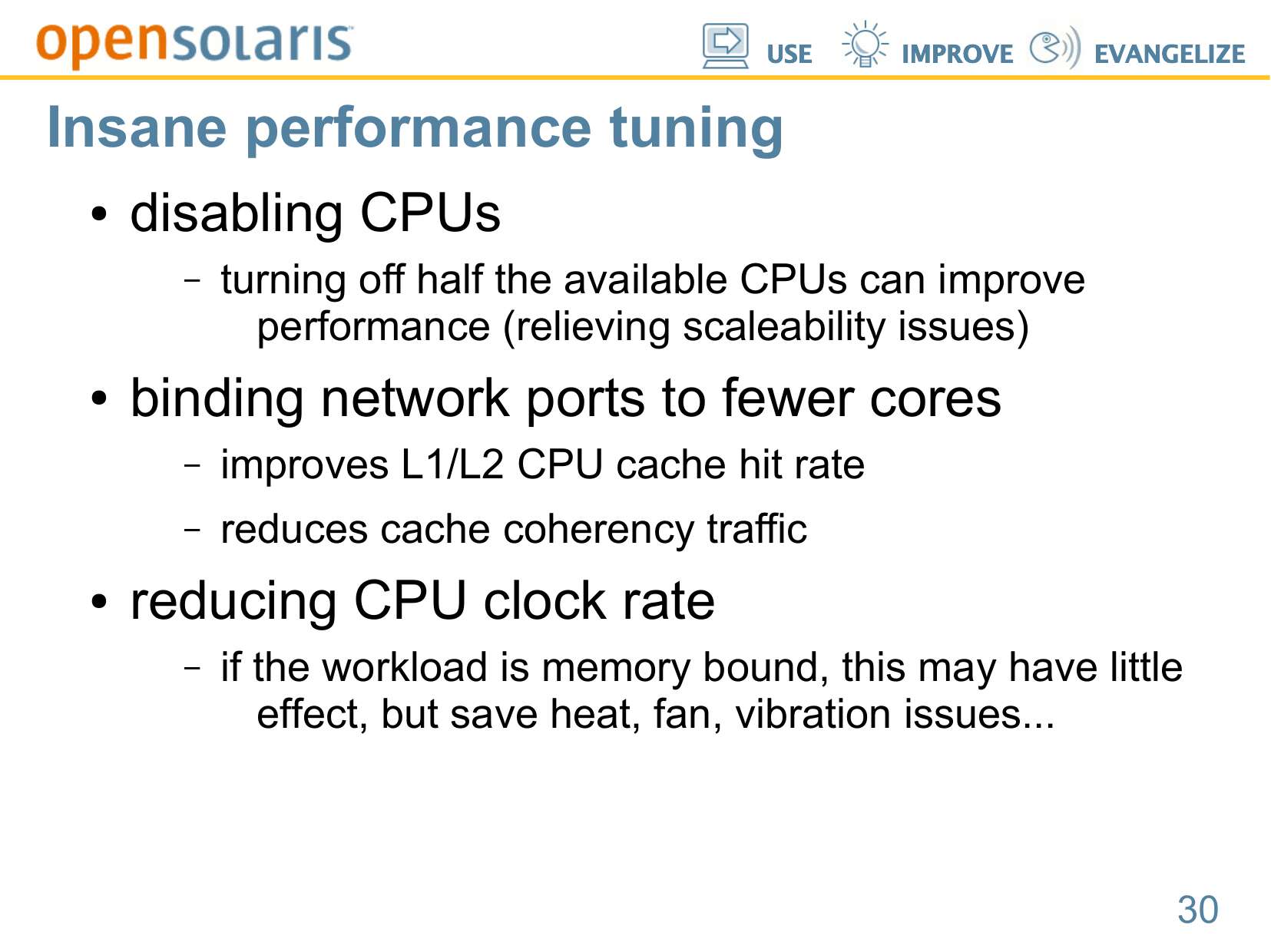

slide 30:
    USE
    IMPROVE
    EVANGELIZE
    Insane performance tuning
    disabling CPUs
    – turning off half the available CPUs can improve
    performance (relieving scaleability issues)
    binding network ports to fewer cores
    – improves L1/L2 CPU cache hit rate
    – reduces cache coherency traffic
    reducing CPU clock rate
    – if the workload is memory bound, this may have little
    effect, but save heat, fan, vibration issues...

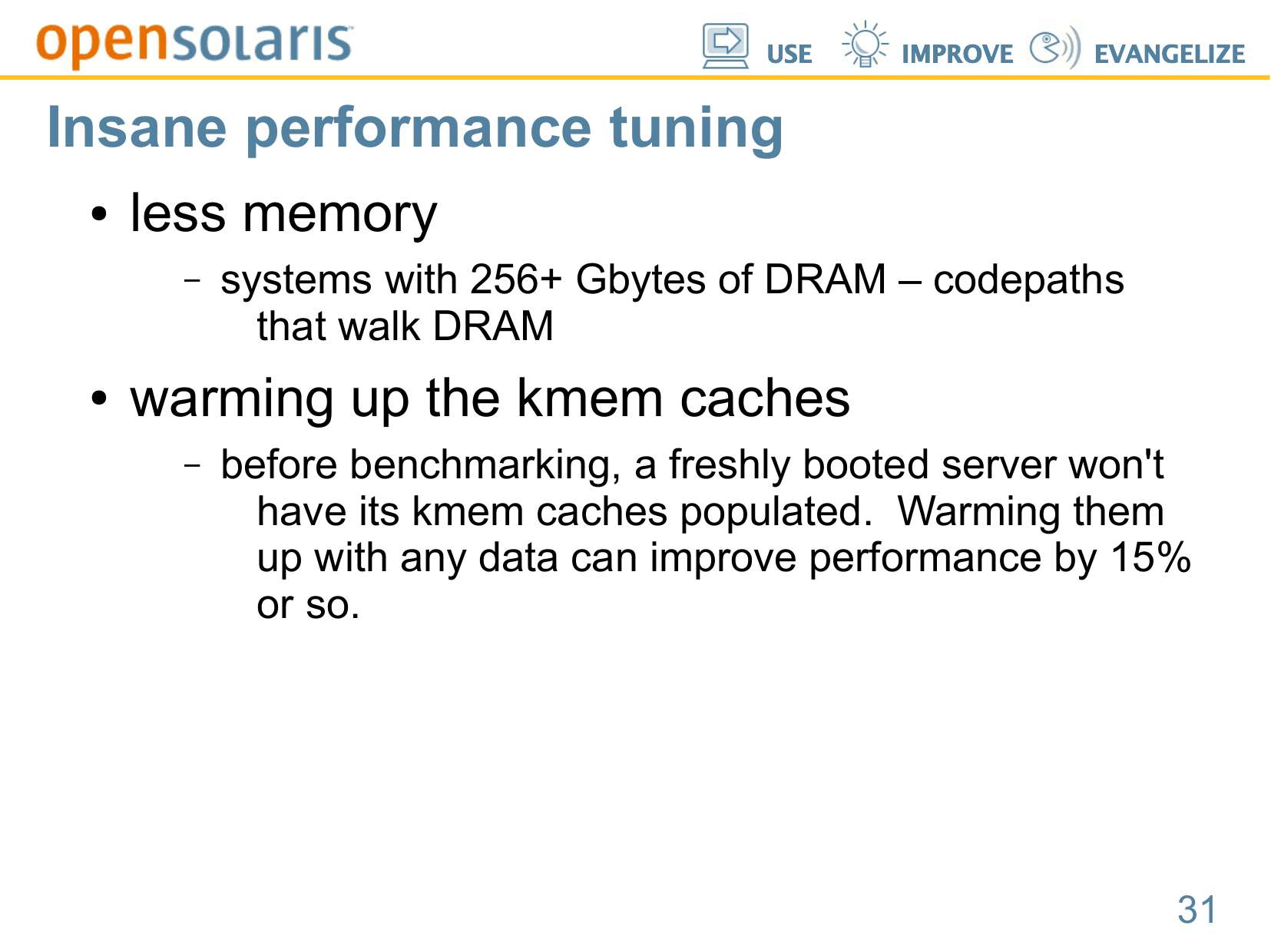

slide 31:
    USE
    IMPROVE
    EVANGELIZE
    Insane performance tuning
    less memory
    – systems with 256+ Gbytes of DRAM – codepaths
    that walk DRAM
    warming up the kmem caches
    – before benchmarking, a freshly booted server won't
    have its kmem caches populated. Warming them
    up with any data can improve performance by 15%
    or so.

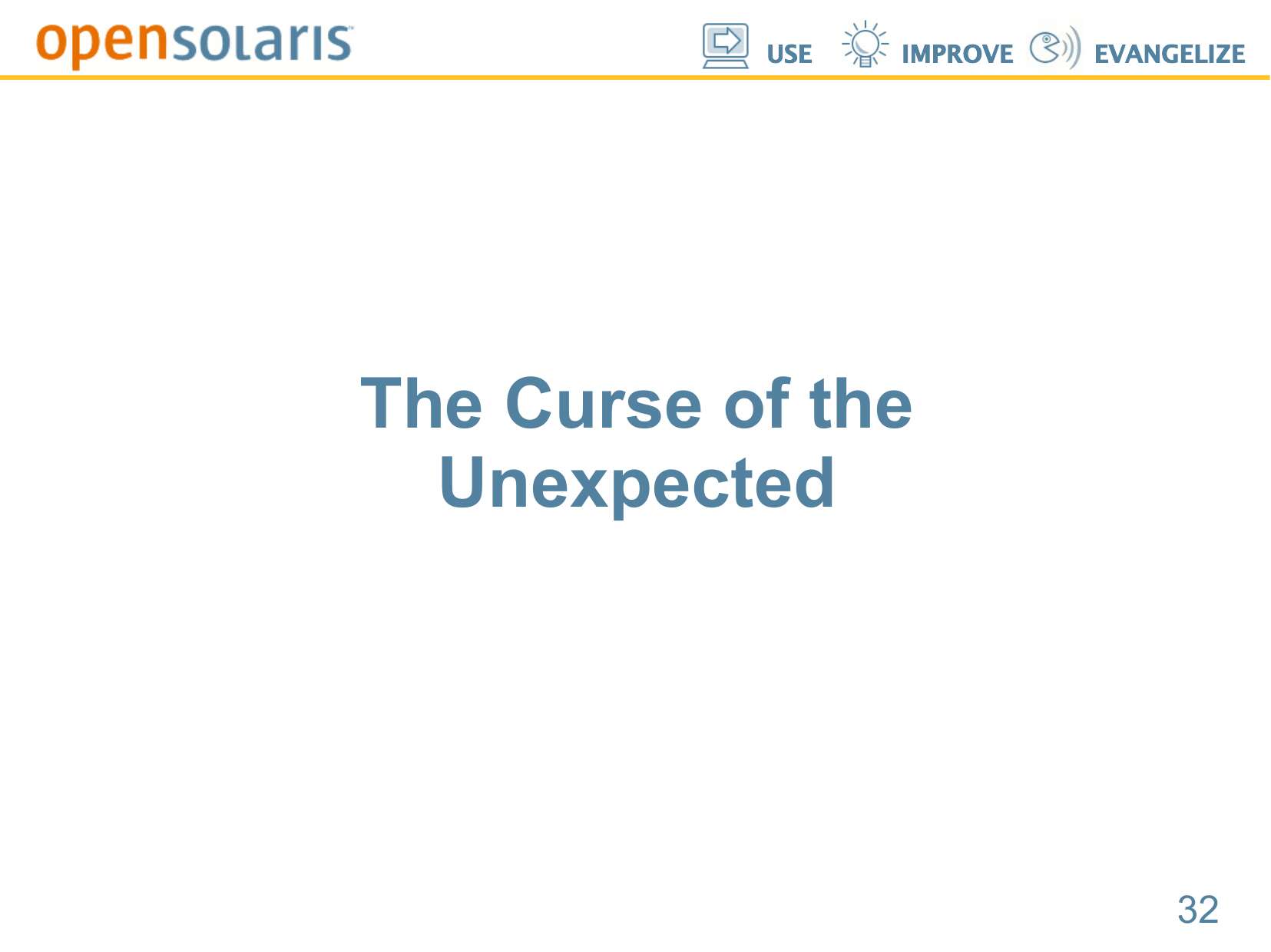

slide 32:
    USE
    IMPROVE
    EVANGELIZE
    The Curse of the
    Unexpected

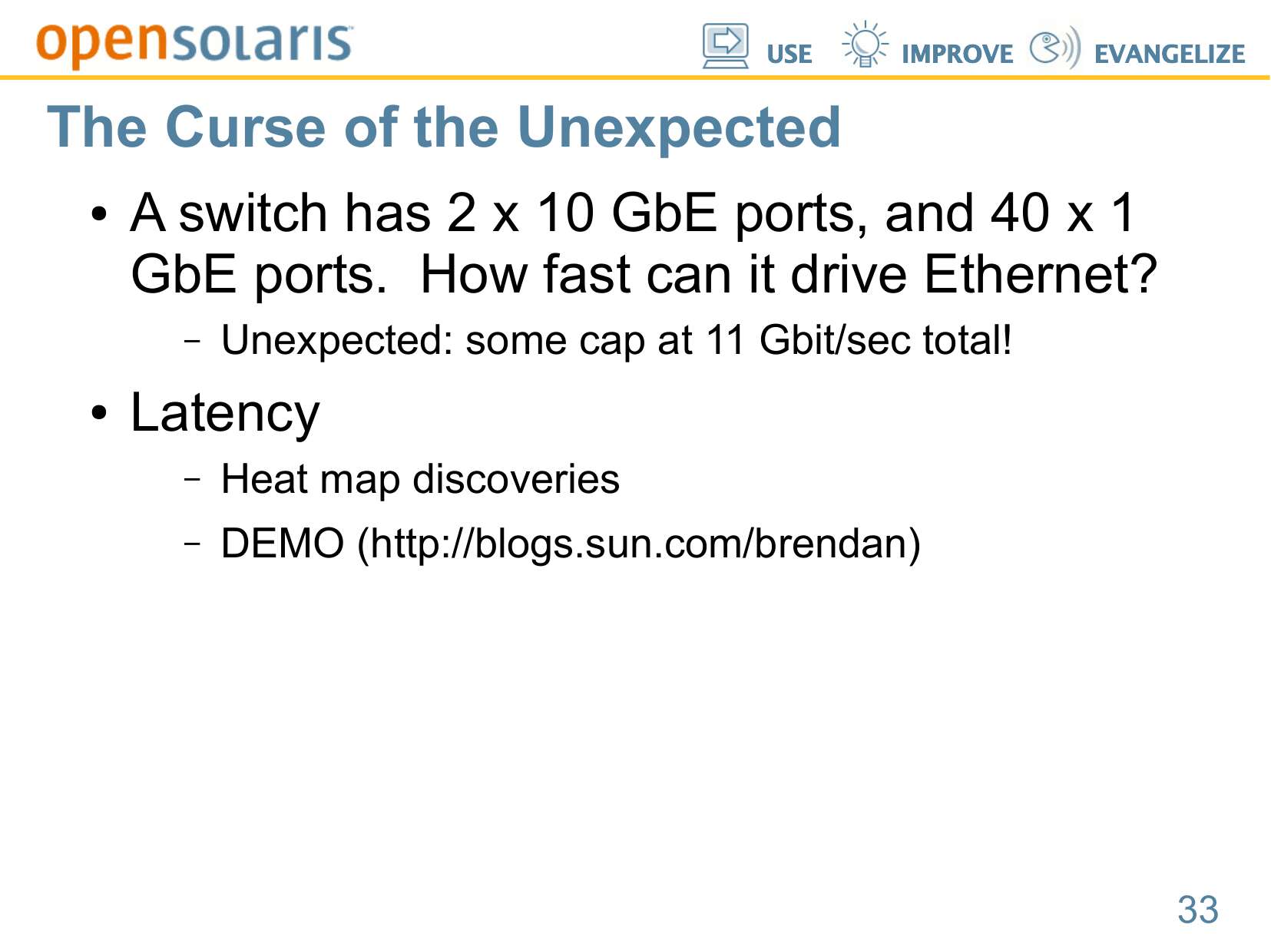

slide 33:
    USE
    IMPROVE
    EVANGELIZE
    The Curse of the Unexpected
    A switch has 2 x 10 GbE ports, and 40 x 1
    GbE ports. How fast can it drive Ethernet?
    – Unexpected: some cap at 11 Gbit/sec total!
    Latency
    – Heat map discoveries
    – DEMO (http://blogs.sun.com/brendan)

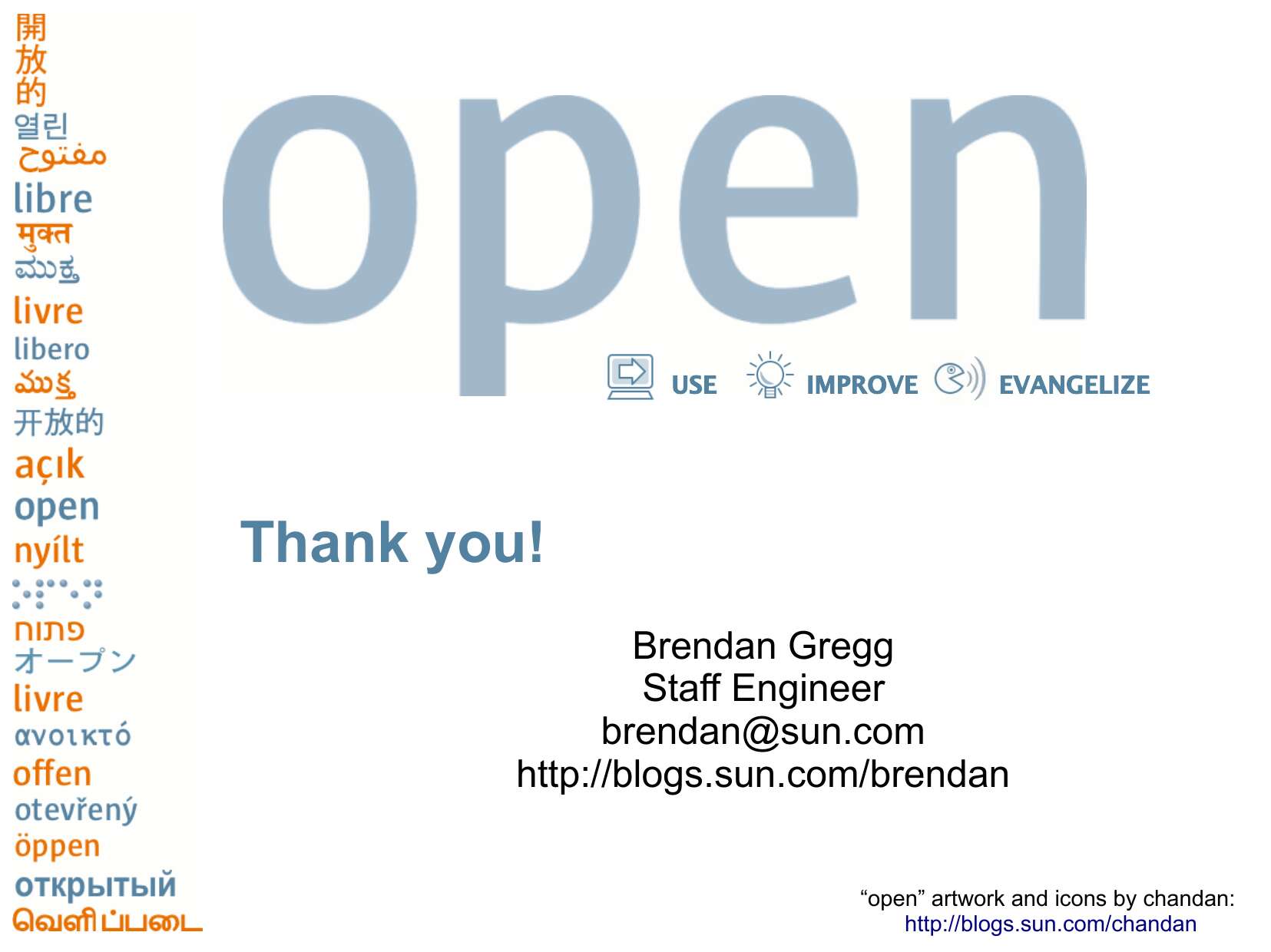

slide 34:
    USE
    IMPROVE
    EVANGELIZE
    Thank you!
    Brendan Gregg
    Staff Engineer
    brendan@sun.com
    http://blogs.sun.com/brendan
    “open” artwork and icons by chandan:
    http://blogs.sun.com/chandan
