Sep 2016
Java Performance Analysis
on Linux with Flame Graphs
Brendan Gregg Senior Performance Architect

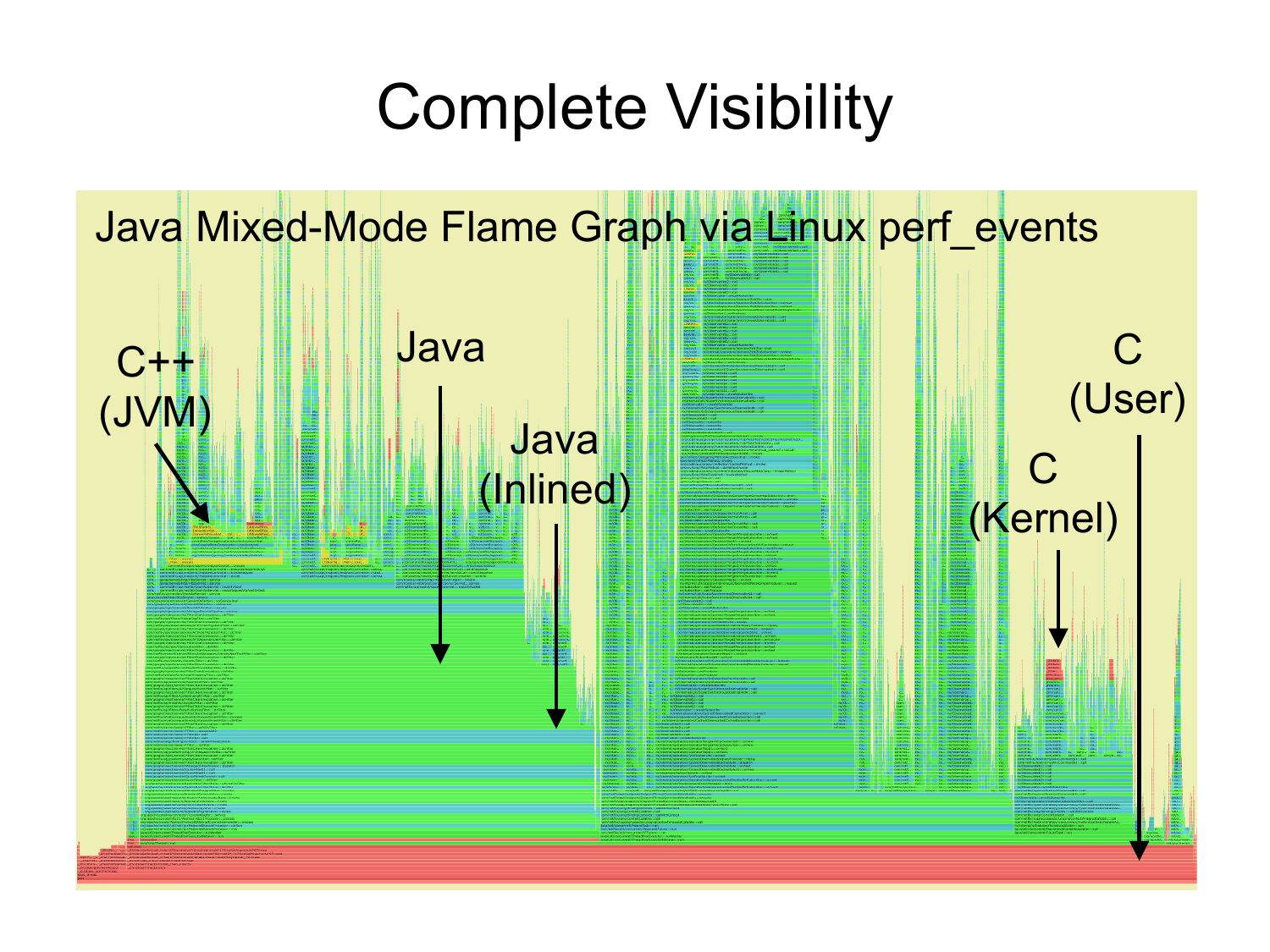

Complete Visibility
Java Mixed-Mode Flame Graph via Linux perf_events
C++
(JVM)
Java
Java
(Inlined)
(User)
(Kernel)

Cloud
OpJonal Apache,
memcached,
Node.js, …
Atlas, Vector, S3
logs, sar, trace,
perf, perf-tools,
(BPF soon)
Java (JDK 8)
GC and
thread
dump
logging
Tomcat
hystrix, servo
CloudWatch, servo

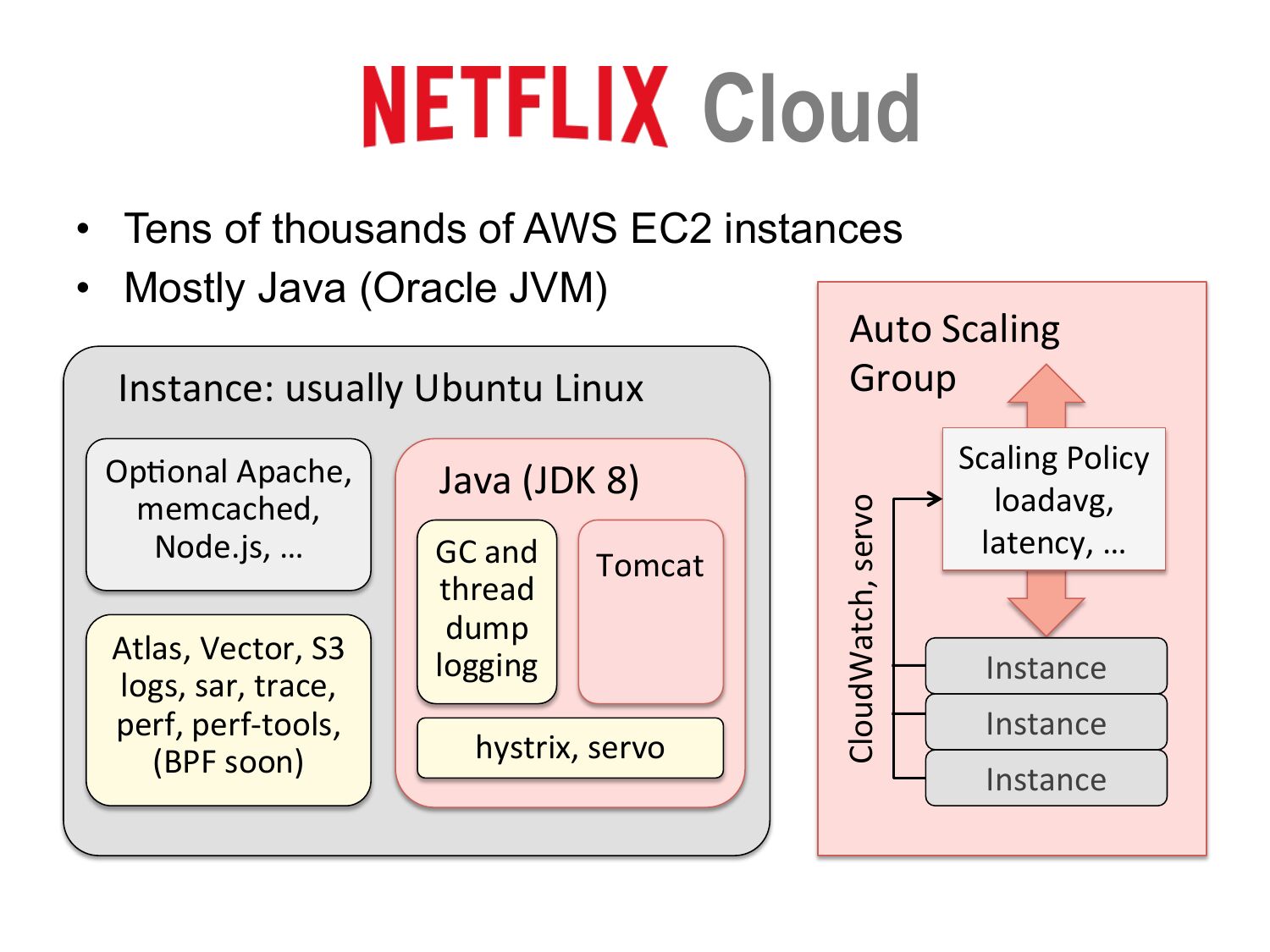

• Tens of thousands of AWS EC2 instances
• Mostly Java (Oracle JVM)
Auto Scaling
Group
Instance: usually Ubuntu Linux
Scaling Policy
loadavg,
latency, …
Instance
Instance
Instance

The Problem with Profilers

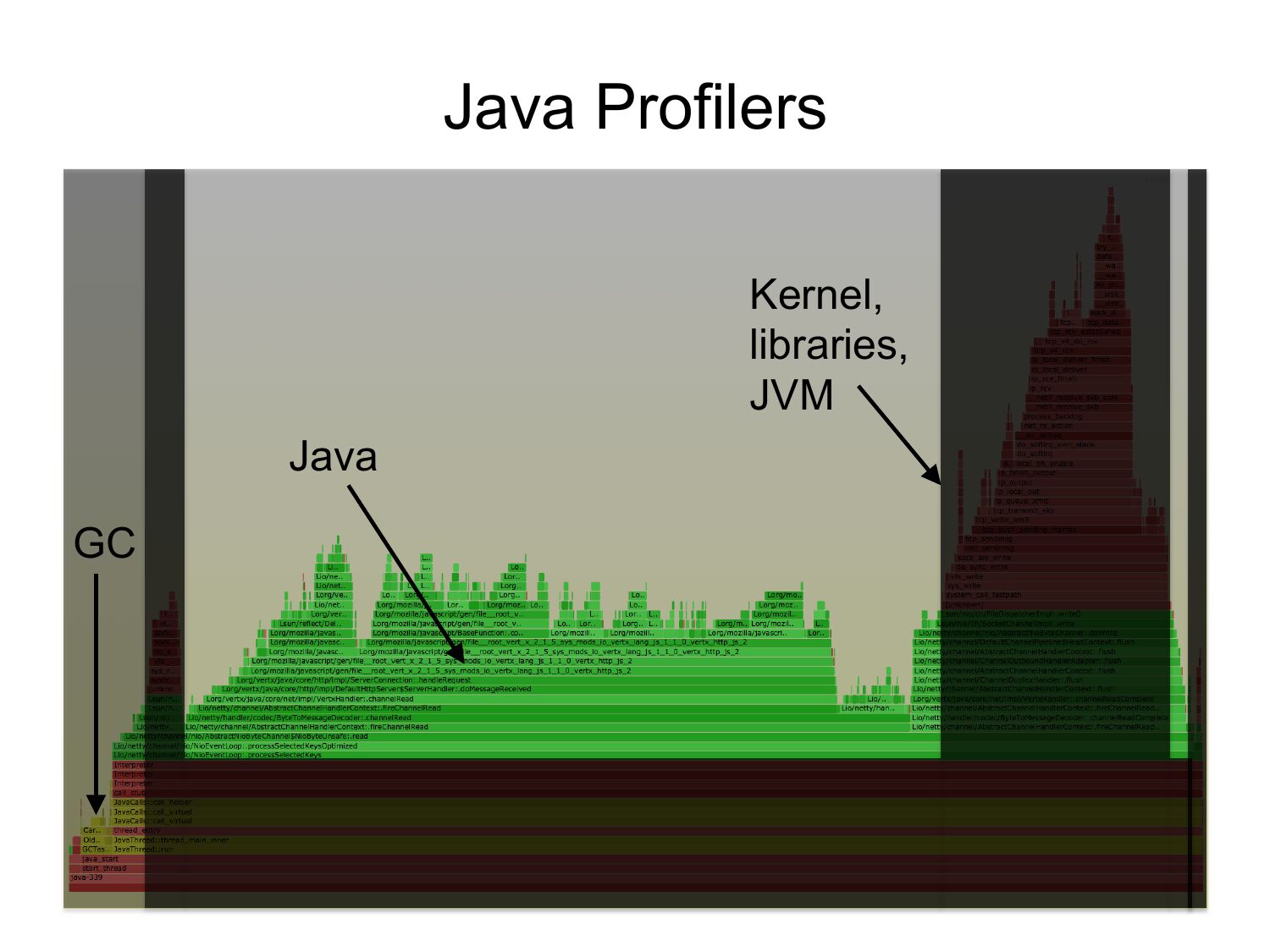

Java Profilers
Kernel,
libraries,
JVM
Java

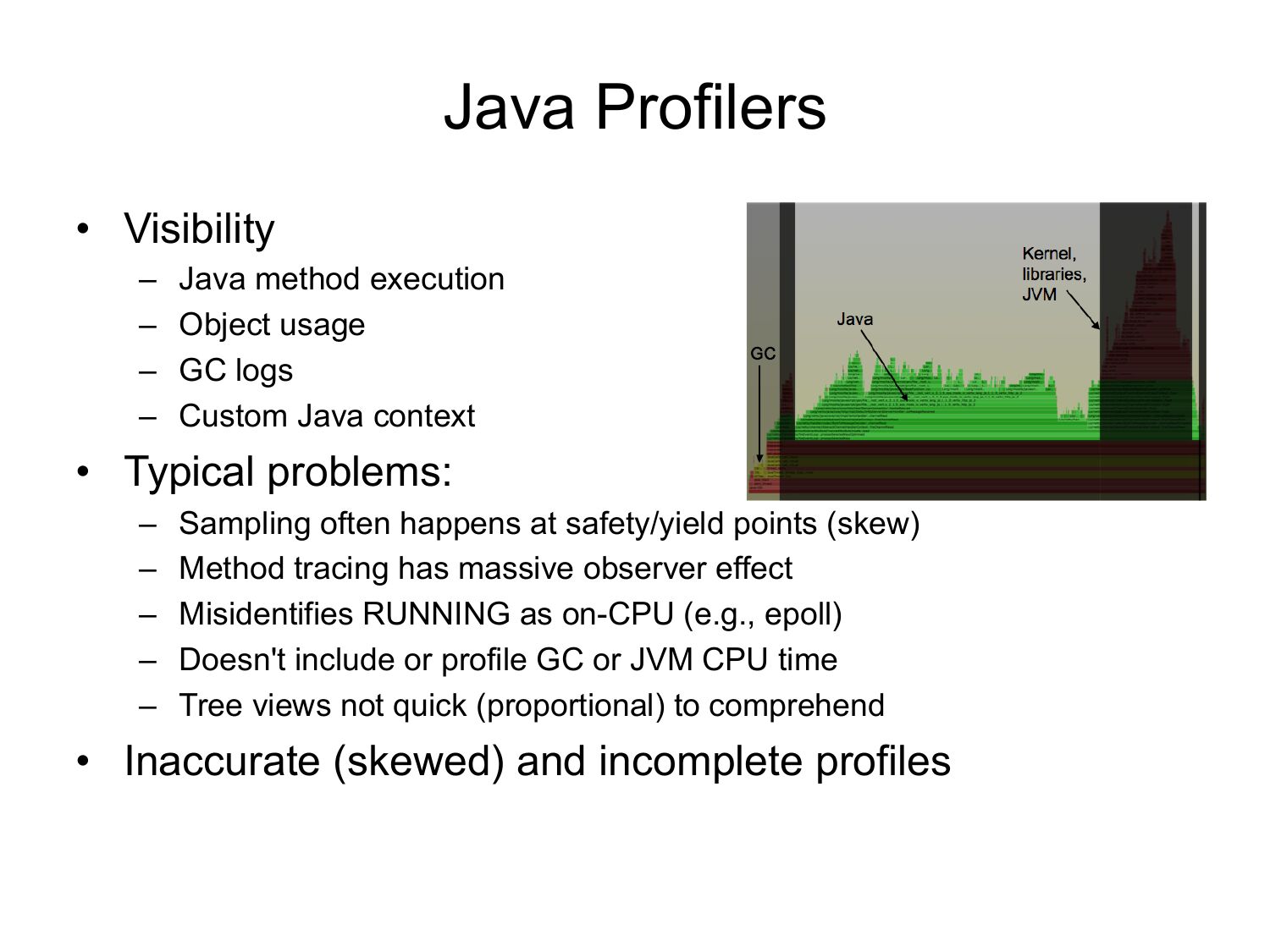

Java Profilers
• Visibility
– Java method execution
– Object usage
– GC logs
– Custom Java context
• Typical problems:
– Sampling often happens at safety/yield points (skew)
– Method tracing has massive observer effect
– Misidentifies RUNNING as on-CPU (e.g., epoll)
– Doesn't include or profile GC or JVM CPU time
– Tree views not quick (proportional) to comprehend
• Inaccurate (skewed) and incomplete profiles

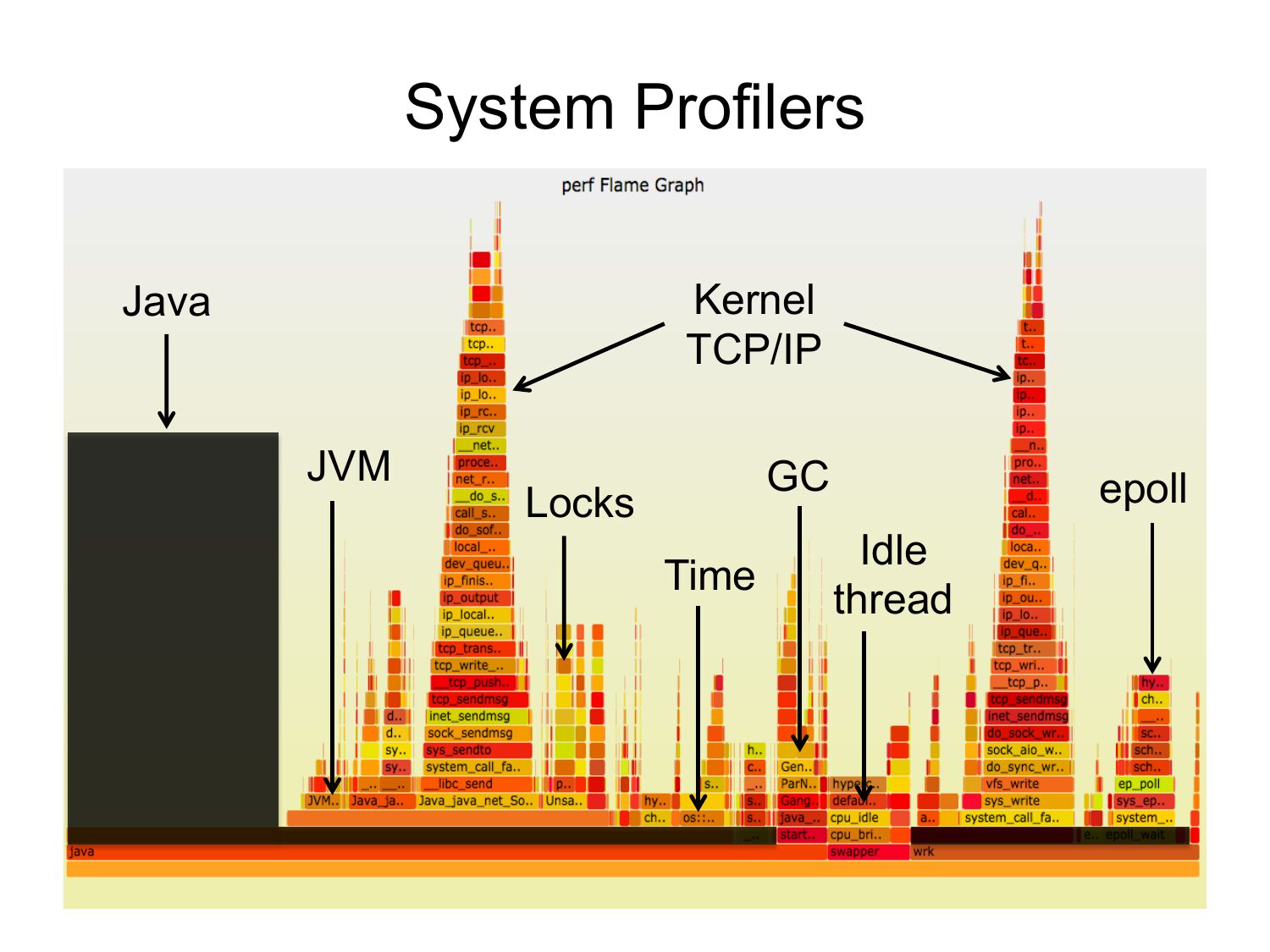

System Profilers
Kernel
TCP/IP
Java
JVM
Locks
Time
epoll
Idle
thread

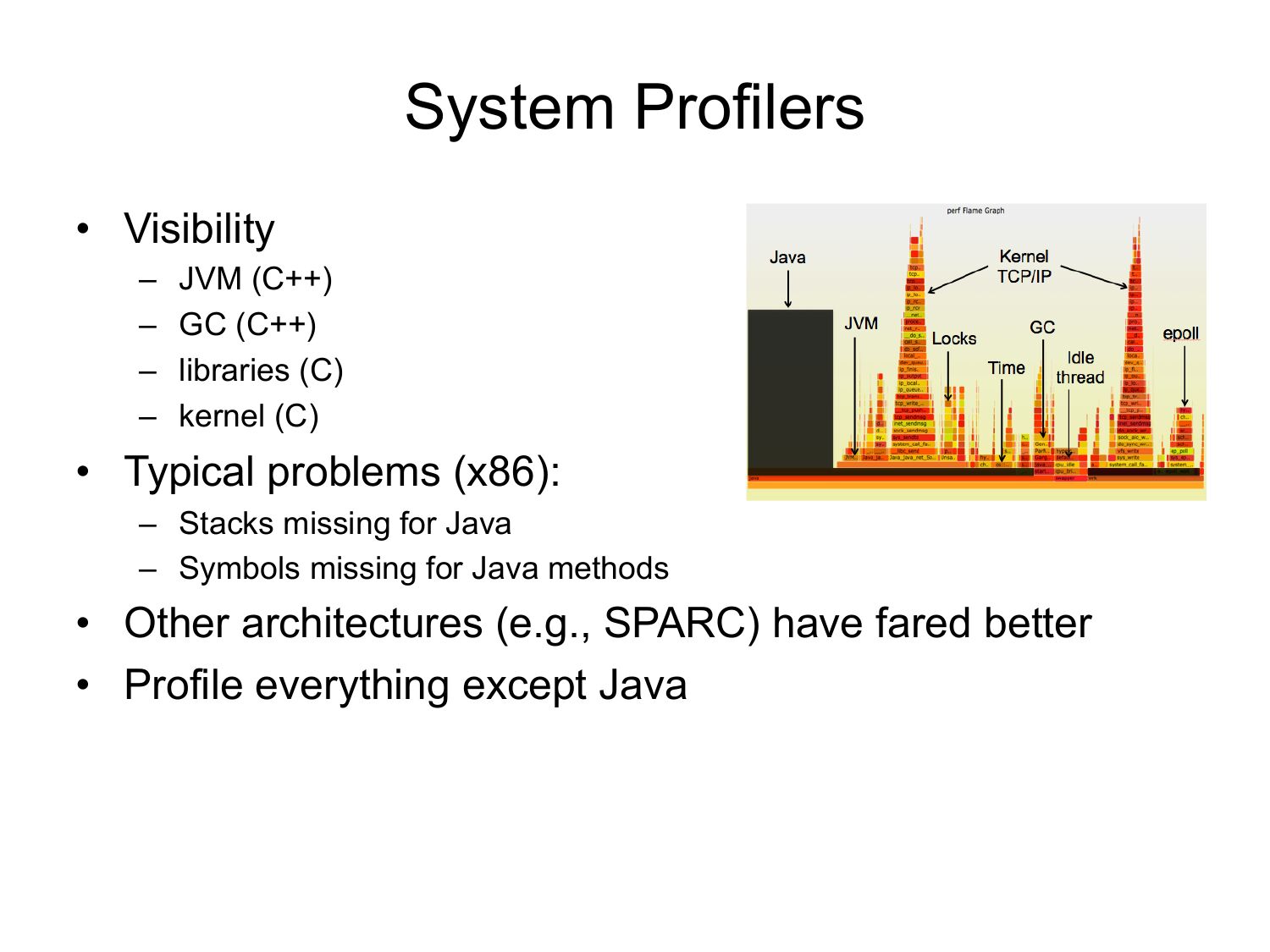

System Profilers
• Visibility
– JVM (C++)
– GC (C++)
– libraries (C)
– kernel (C)
• Typical problems (x86):
– Stacks missing for Java
– Symbols missing for Java methods
• Other architectures (e.g., SPARC) have fared better
• Profile everything except Java

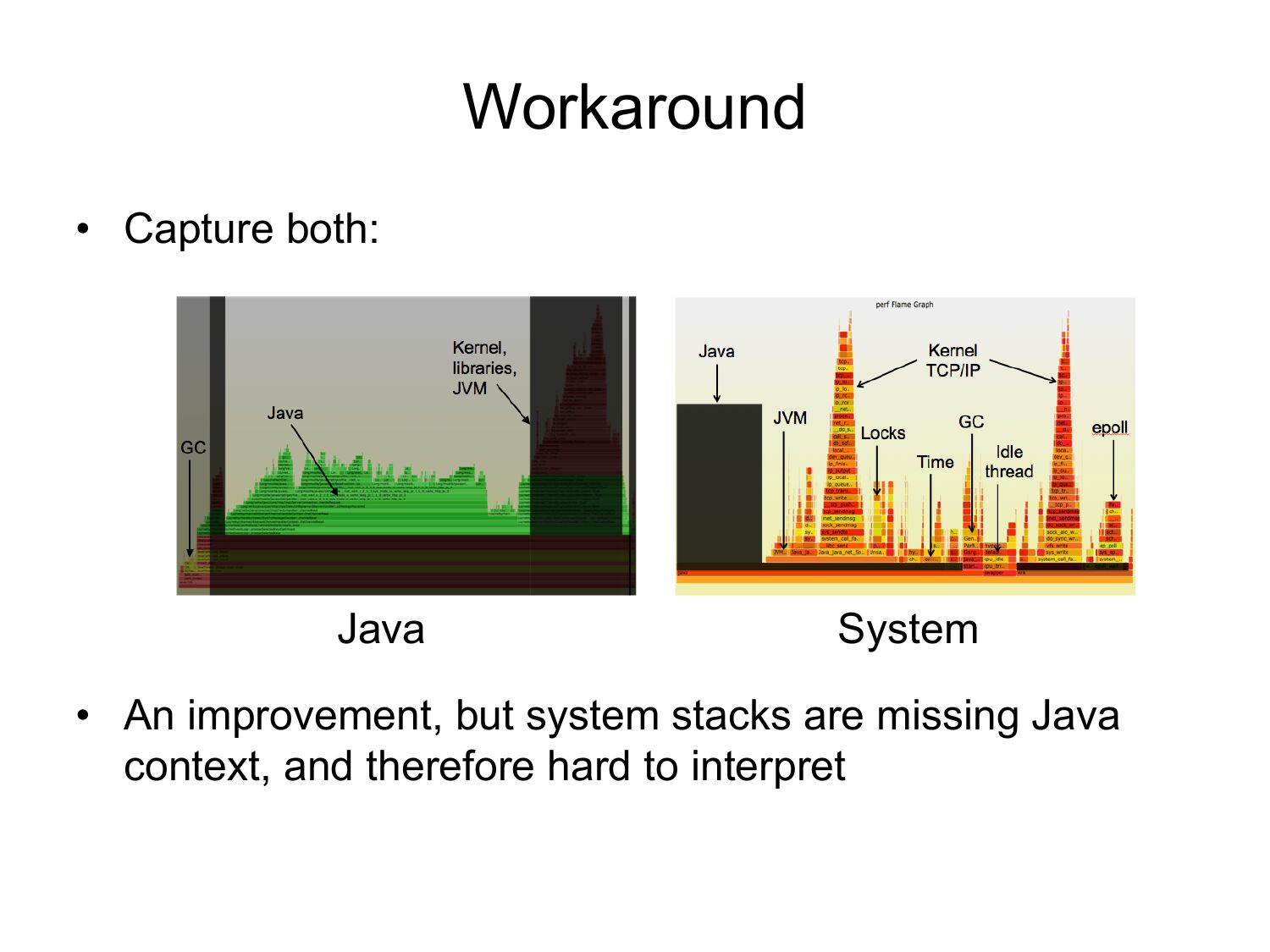

Workaround
• Capture both:
Java
System
• An improvement, but system stacks are missing Java
context, and therefore hard to interpret

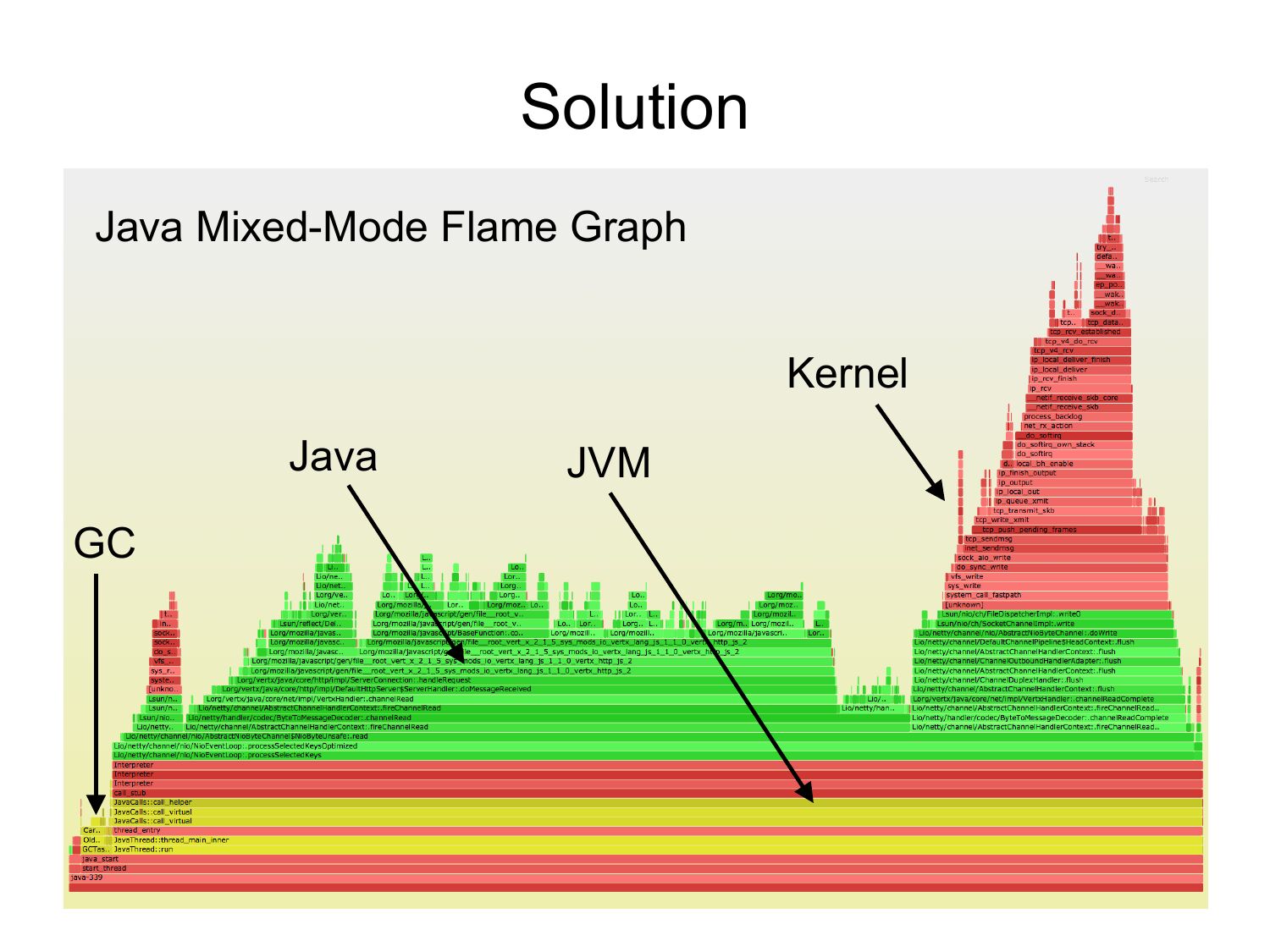

Solution
Java Mixed-Mode Flame Graph
Kernel
Java
JVM

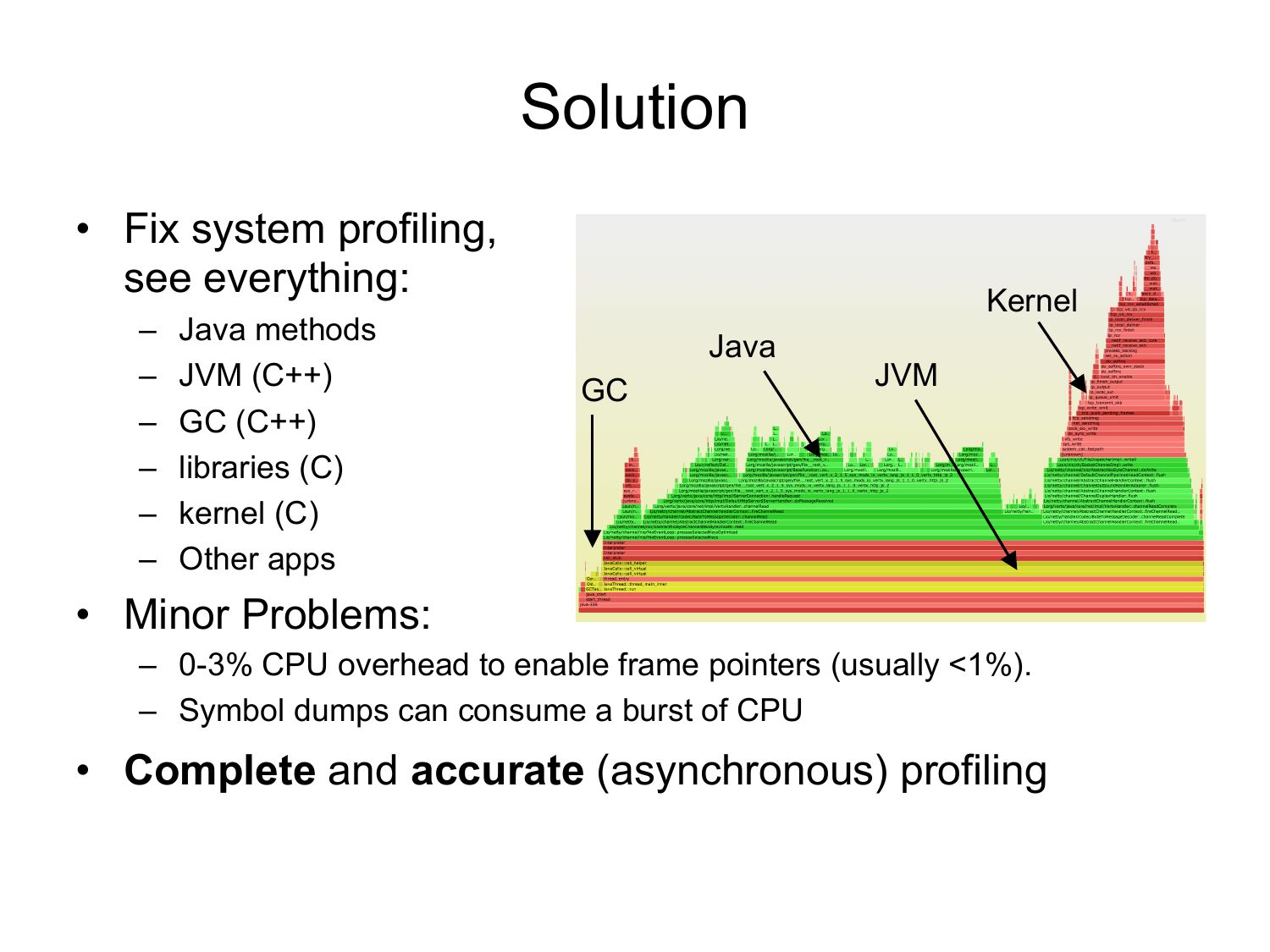

Solution
• Fix system profiling,
see everything:
– Java methods
– JVM (C++)
– GC (C++)
– libraries (C)
– kernel (C)
– Other apps
Kernel
Java
JVM
• Minor Problems:
– 0-3% CPU overhead to enable frame pointers (usually

Saving 13M CPU Minutes Per Day
• eu
hXp://techblog.neZlix.com/2016/04/saving-13-million-computaJonal-minutes.html

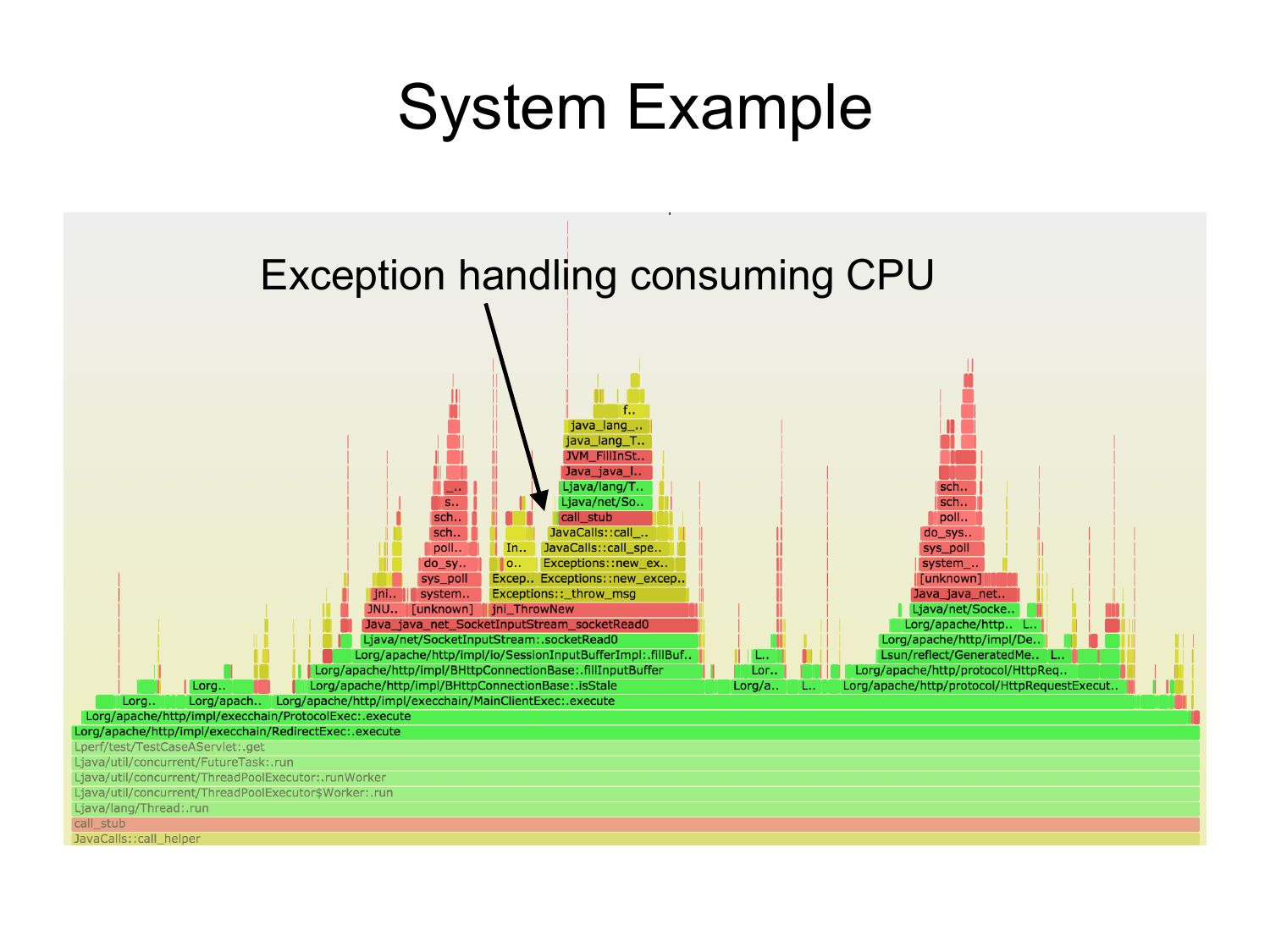

System Example
Exception handling consuming CPU

Profiling GC
GC internals, visualized:

CPU Profiling

CPU Profiling
• Record stacks at a timed interval: simple and effective
– Pros: Low (deterministic) overhead
– Cons: Coarse accuracy, but usually sufficient
stack
samples:
syscall
on-CPU
time
off-CPU
block
interrupt

Stack Traces
• A code path snapshot. e.g., from jstack(1):
$ jstack 1819
[…]
"main" prio=10 tid=0x00007ff304009000
nid=0x7361 runnable [0x00007ff30d4f9000]
java.lang.Thread.State: RUNNABLE
at Func_abc.func_c(Func_abc.java:6)
at Func_abc.func_b(Func_abc.java:16)
at Func_abc.func_a(Func_abc.java:23)
at Func_abc.main(Func_abc.java:27)
running
parent
g.parent
g.g.parent

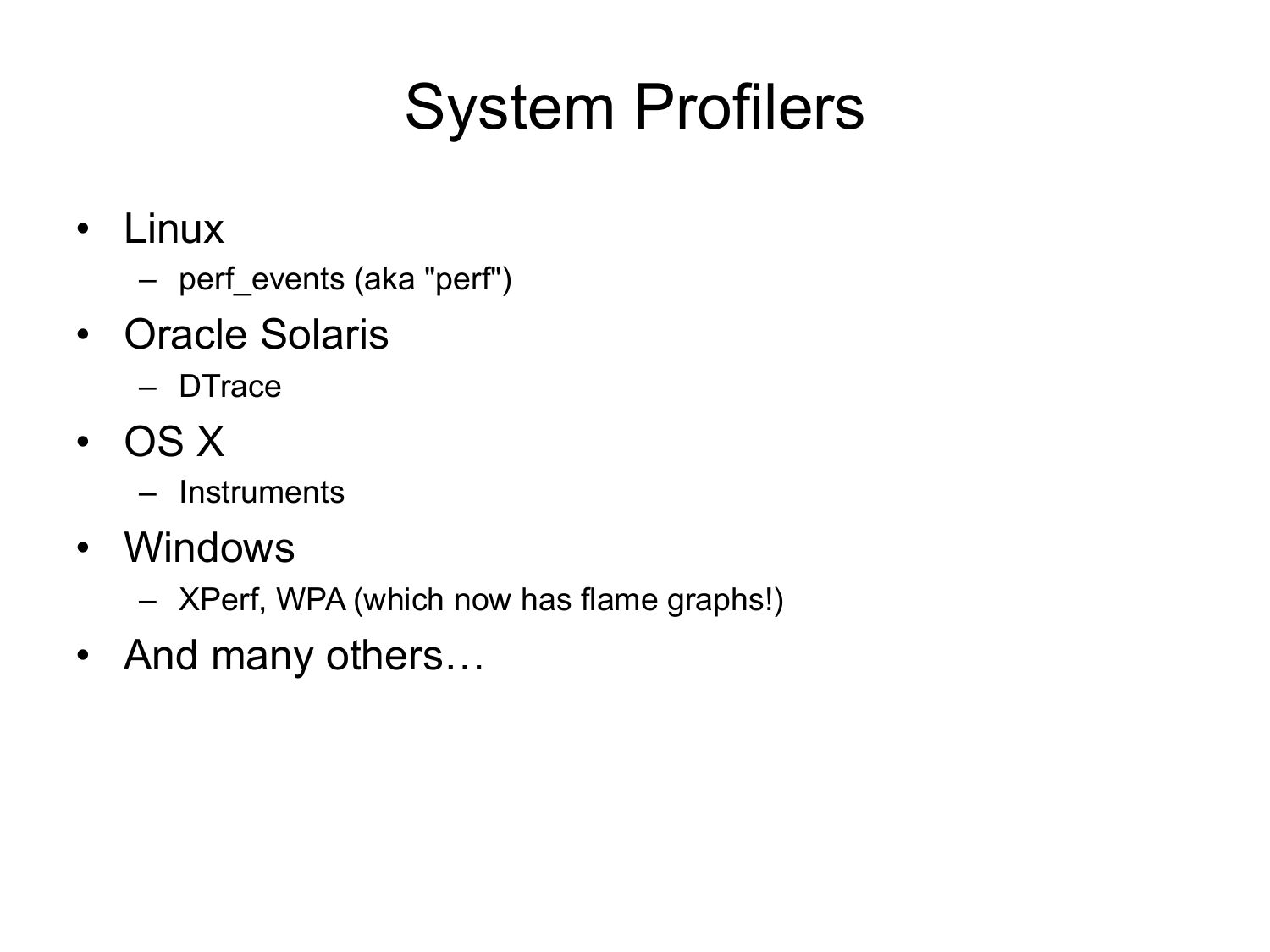

System Profilers
• Linux
– perf_events (aka "perf")
• Oracle Solaris
– DTrace
• OS X
– Instruments
• Windows
– XPerf, WPA (which now has flame graphs!)
• And many others…

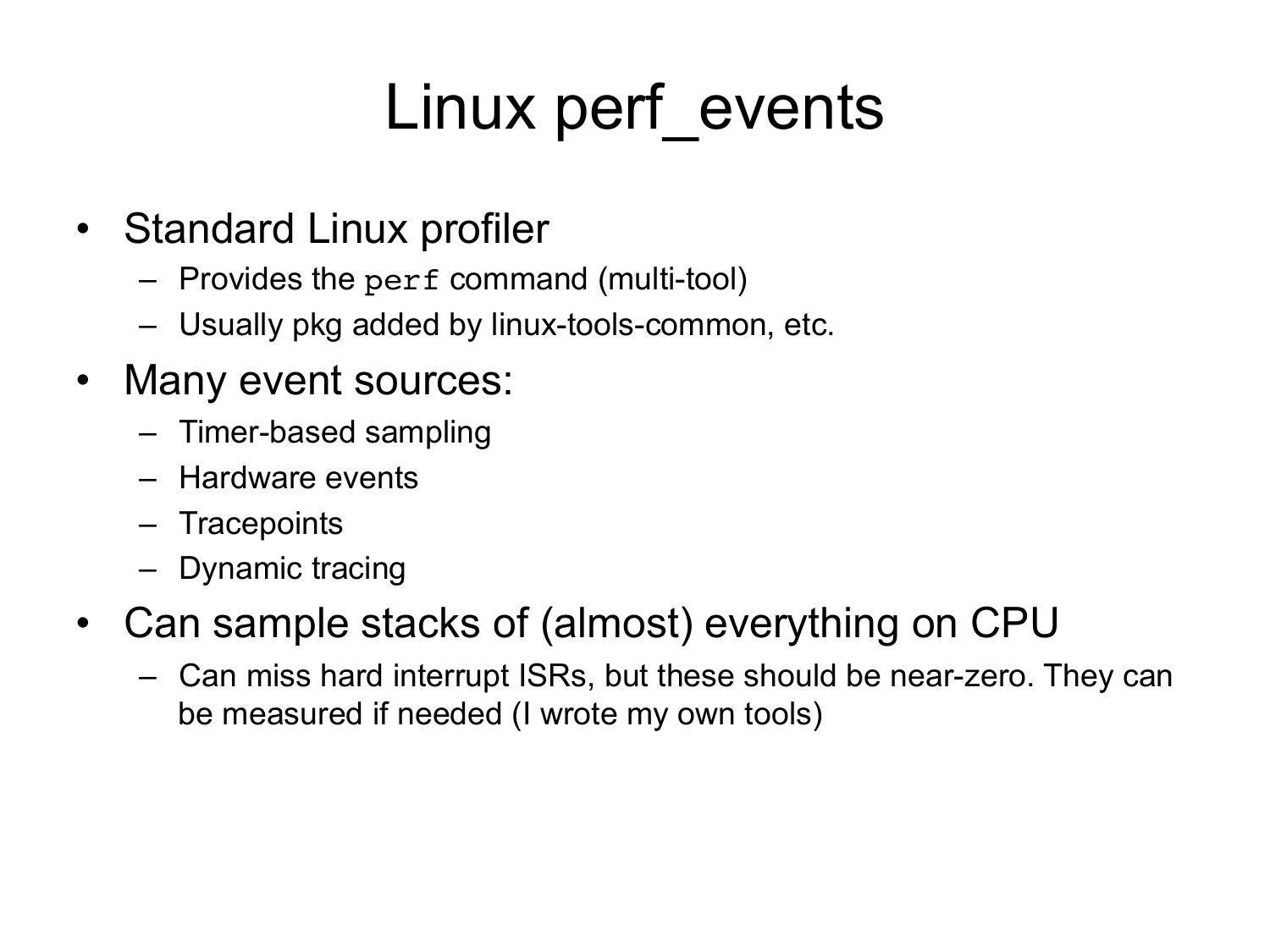

Linux perf_events
• Standard Linux profiler
– Provides the perf command (multi-tool)
– Usually pkg added by linux-tools-common, etc.
• Many event sources:
– Timer-based sampling
– Hardware events
– Tracepoints
– Dynamic tracing
• Can sample stacks of (almost) everything on CPU
– Can miss hard interrupt ISRs, but these should be near-zero. They can
be measured if needed (I wrote my own tools)

perf Profiling
# perf record -F 99 -ag -- sleep 30
[ perf record: Woken up 9 times to write data ]
[ perf record: Captured and wrote 2.745 MB perf.data (~119930 samples) ]
# perf report -n -stdio
[…]
# Overhead
Samples Command
Shared Object
Symbol
# ........ ............ ....... ................. .............................
20.42%
bash [kernel.kallsyms] [k] xen_hypercall_xen_version
--- xen_hypercall_xen_version
call tree
check_events
summary
|--44.13%-- syscall_trace_enter
tracesys
|--35.58%-- __GI___libc_fcntl
|--65.26%-- do_redirection_internal
do_redirections
execute_builtin_or_function
execute_simple_command
[… ~13,000 lines truncated …]

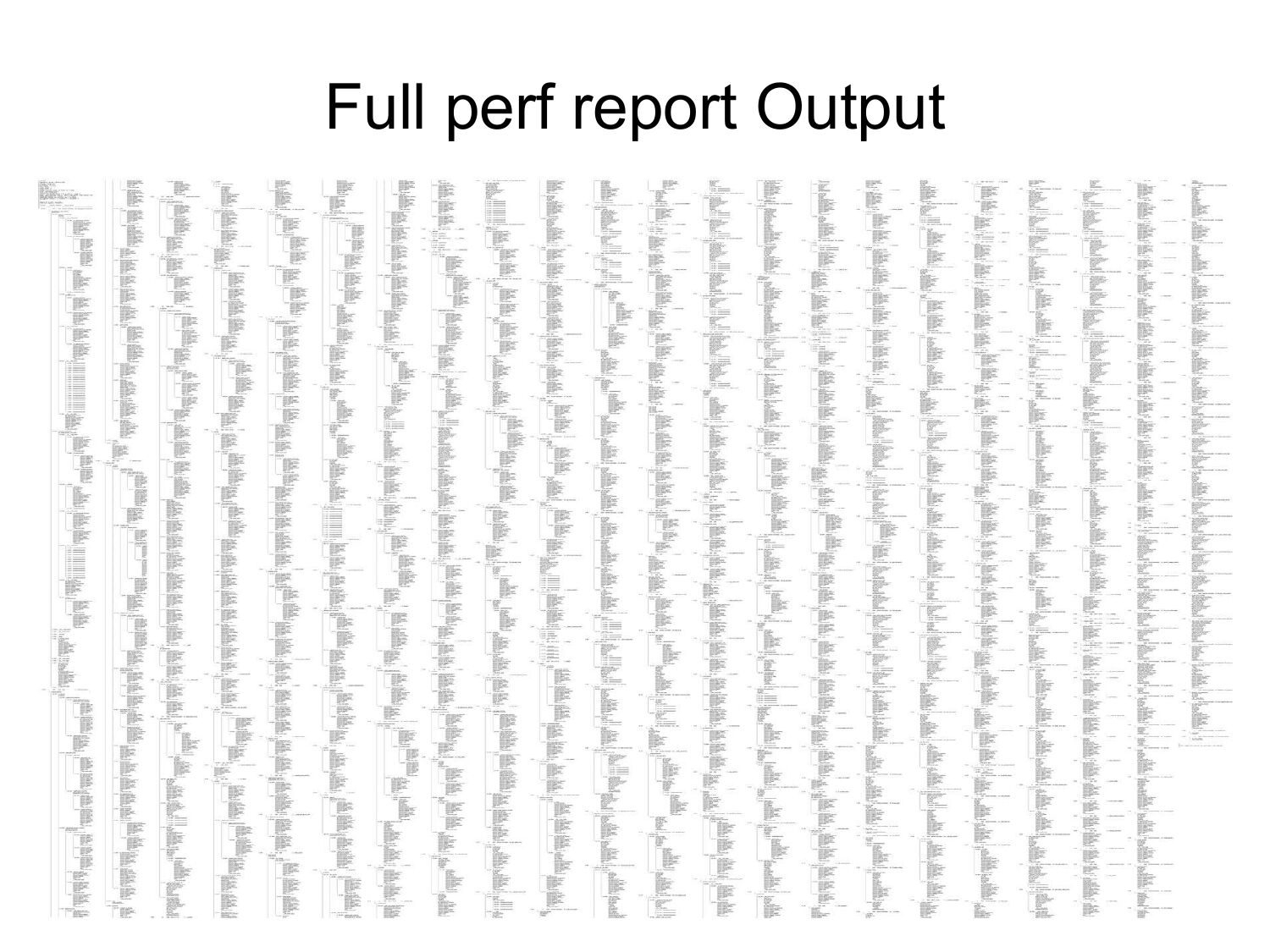

Full perf report Output

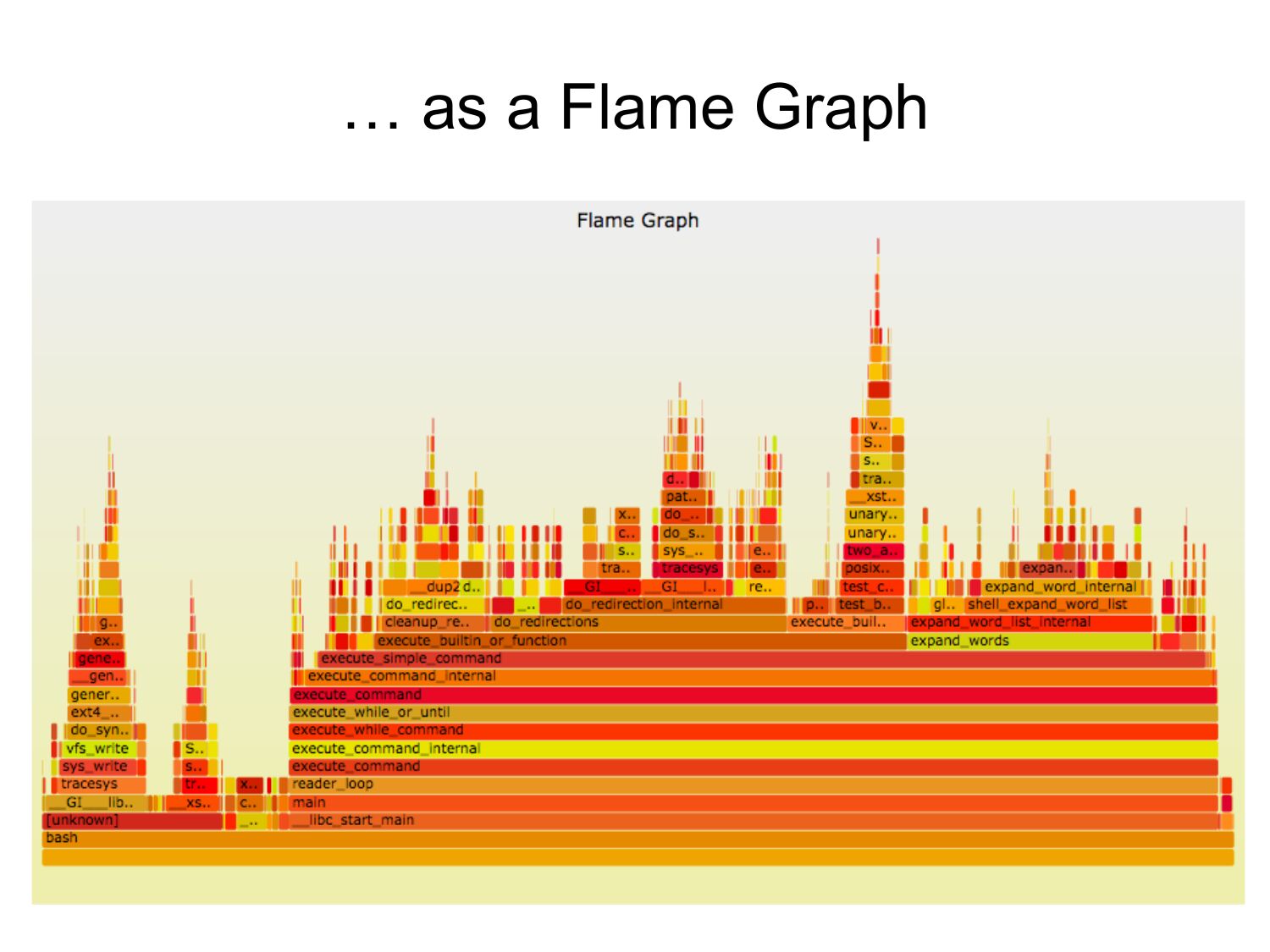

… as a Flame Graph

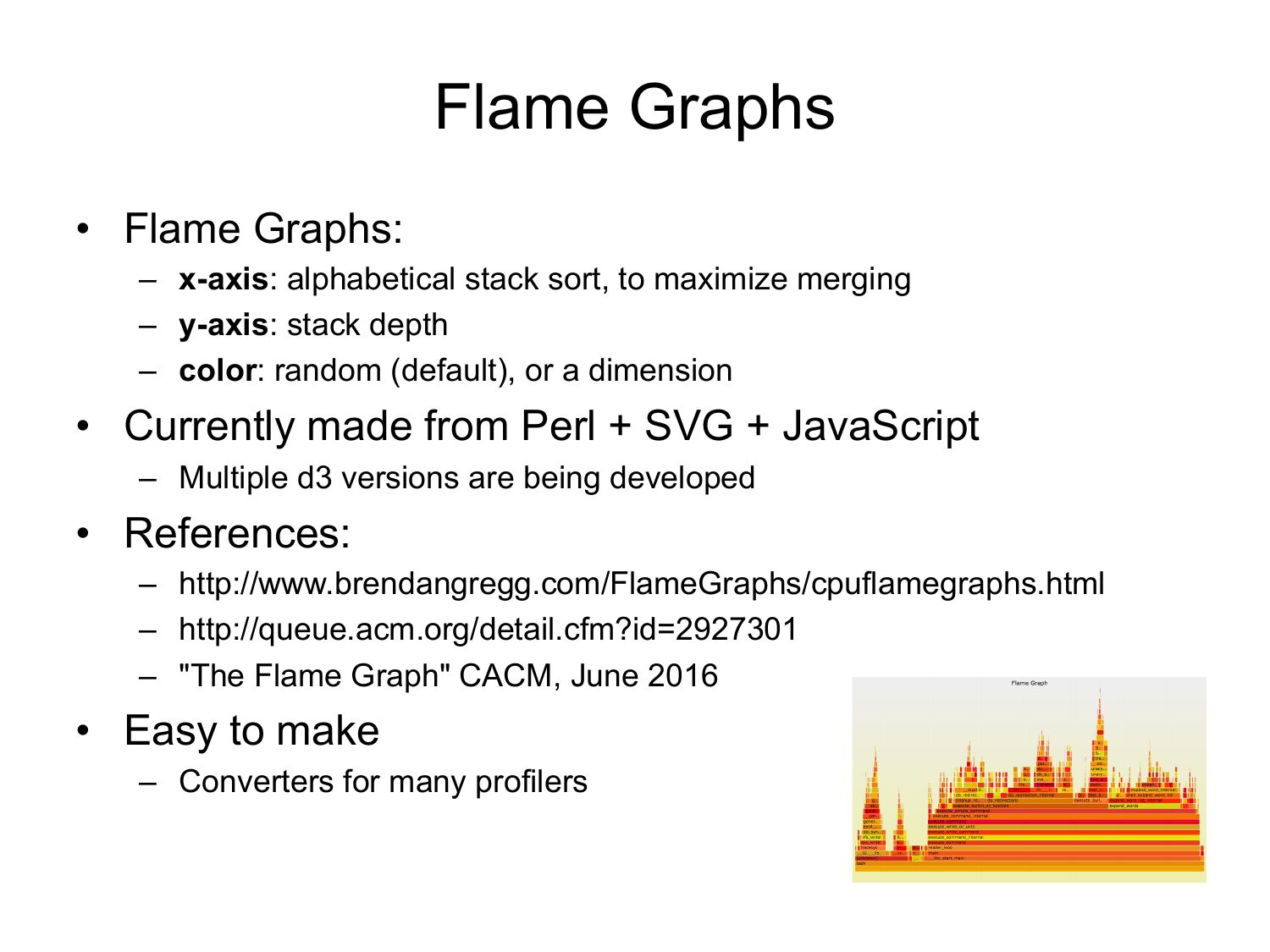

Flame Graphs
• Flame Graphs:
– x-axis: alphabetical stack sort, to maximize merging
– y-axis: stack depth
– color: random (default), or a dimension
• Currently made from Perl + SVG + JavaScript
– Multiple d3 versions are being developed
• References:
– http://www.brendangregg.com/FlameGraphs/cpuflamegraphs.html
– http://queue.acm.org/detail.cfm?id=2927301
– "The Flame Graph" CACM, June 2016
• Easy to make
– Converters for many profilers

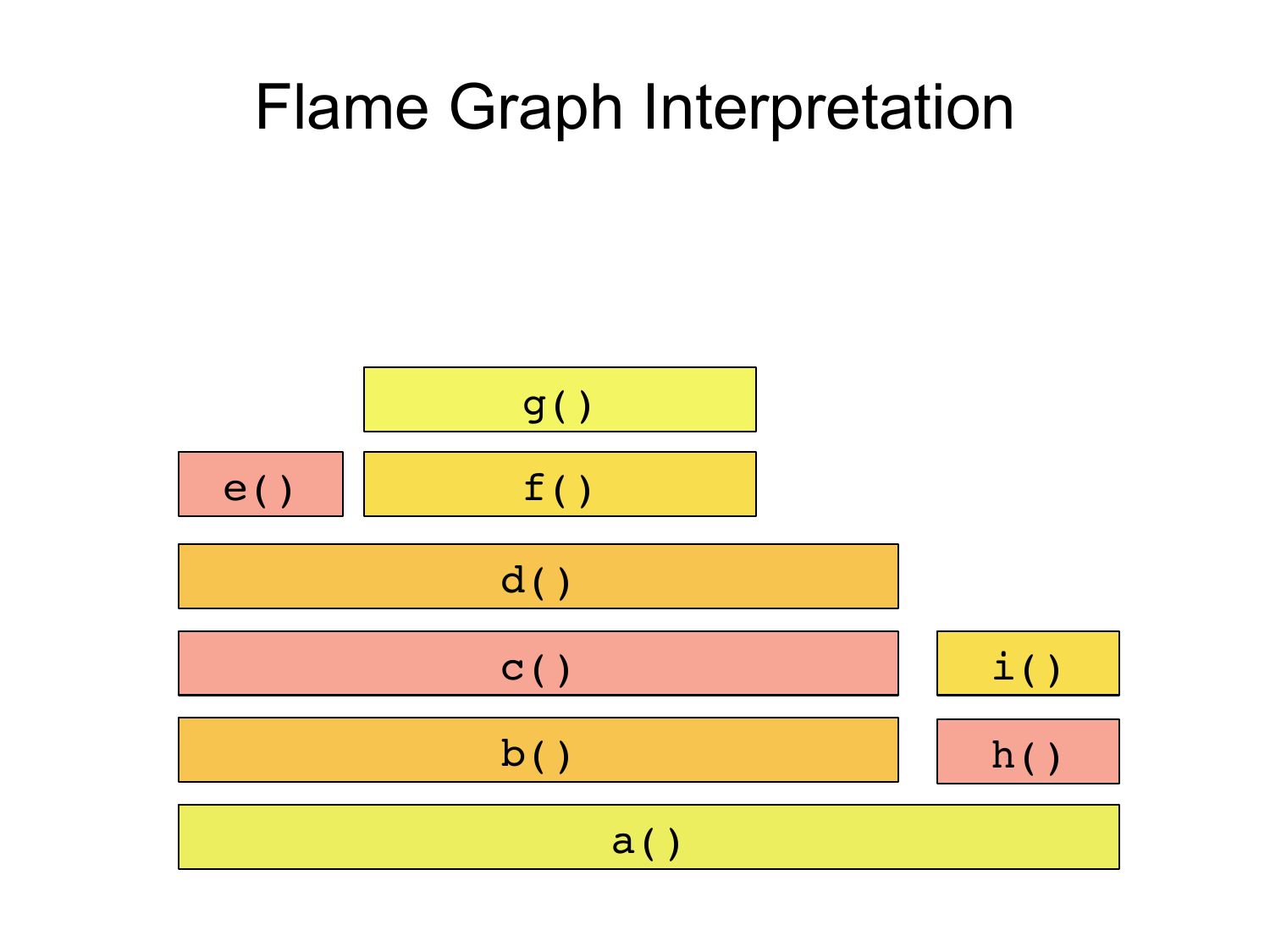

Flame Graph Interpretation
g()
e()
f()
d()
c()
i()
b()
h()
a()

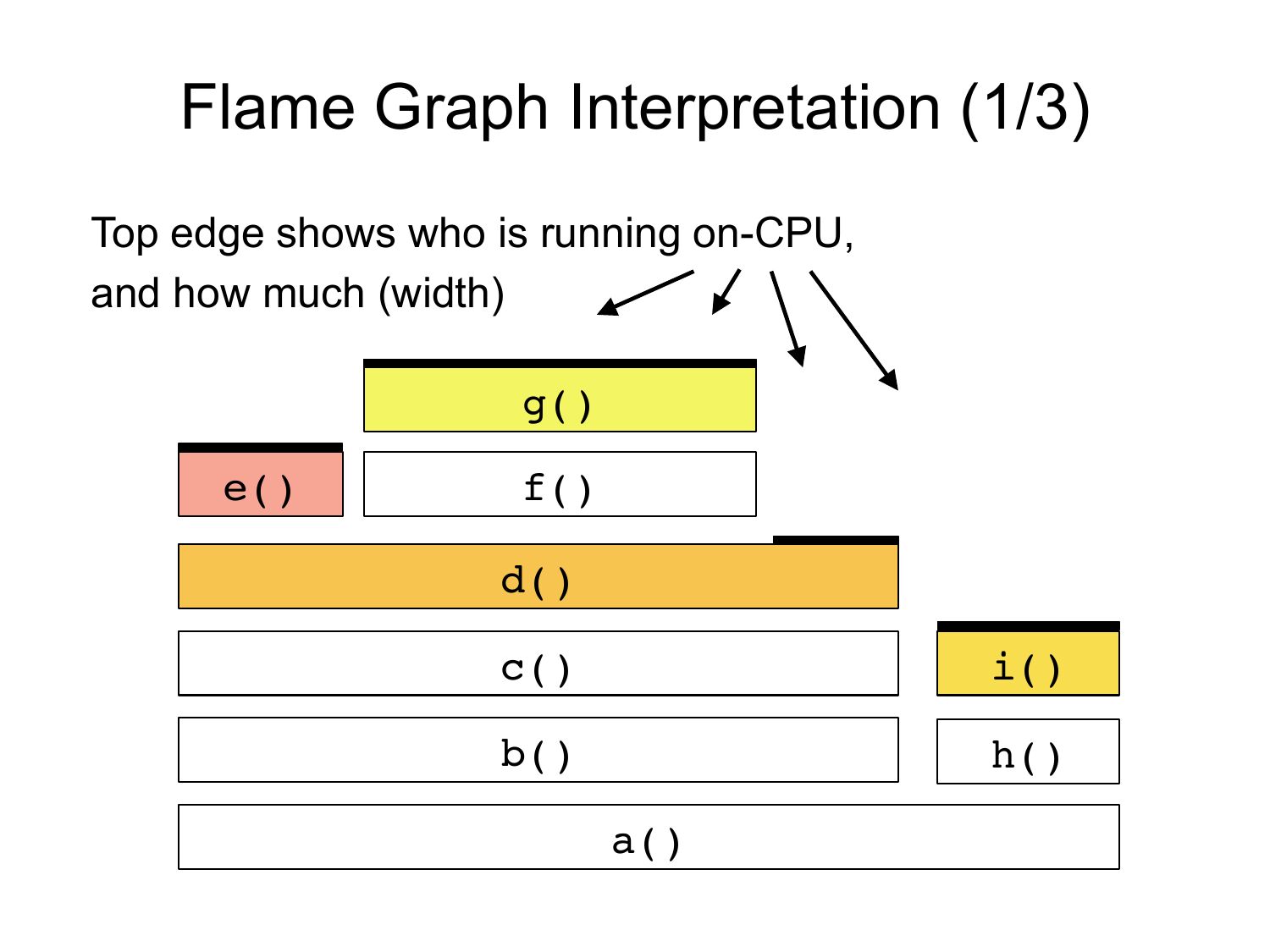

Flame Graph Interpretation (1/3)
Top edge shows who is running on-CPU,
and how much (width)
g()
e()
f()
d()
c()
i()
b()
h()
a()

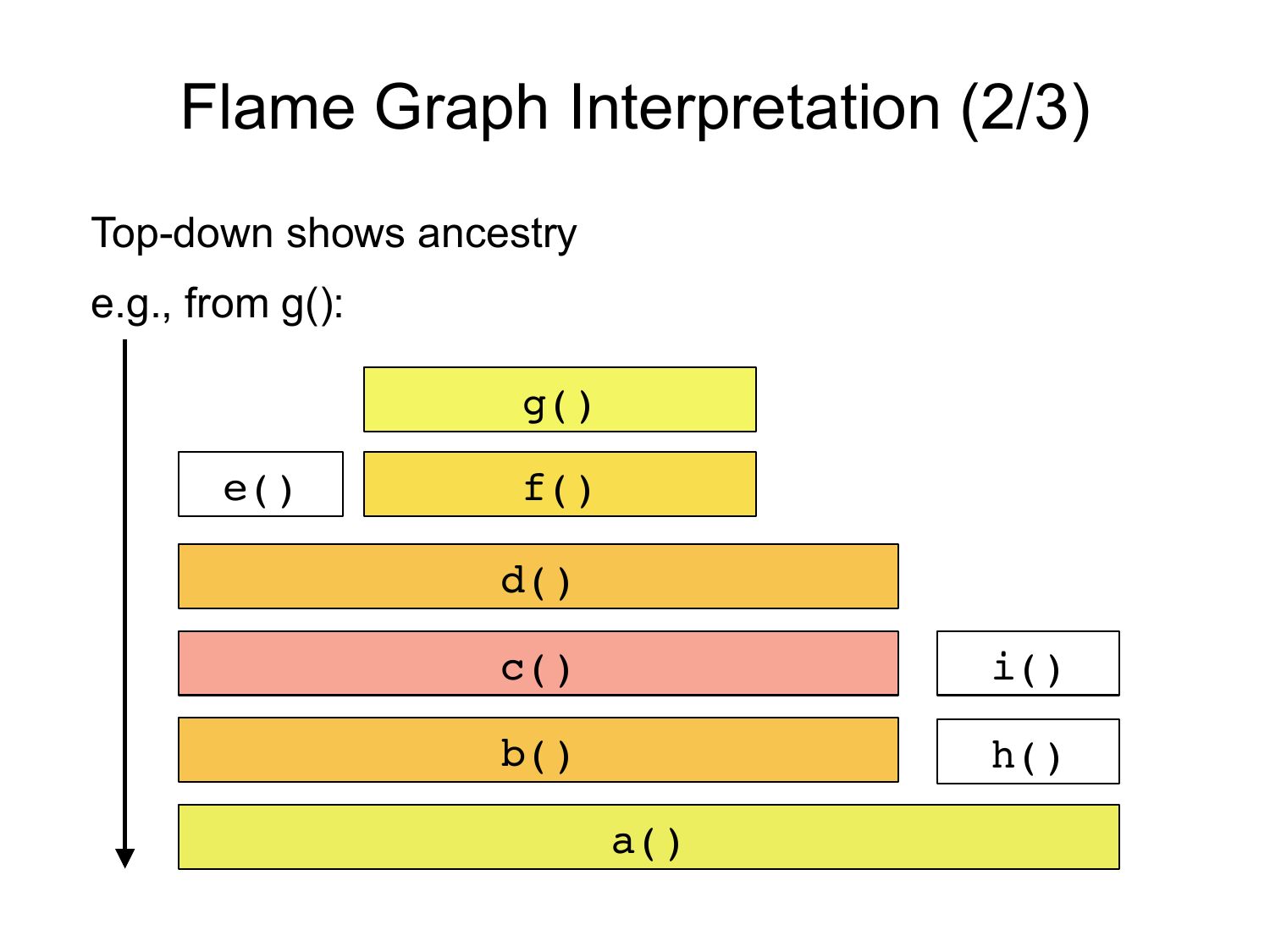

Flame Graph Interpretation (2/3)
Top-down shows ancestry
e.g., from g():
g()
e()
f()
d()
c()
i()
b()
h()
a()

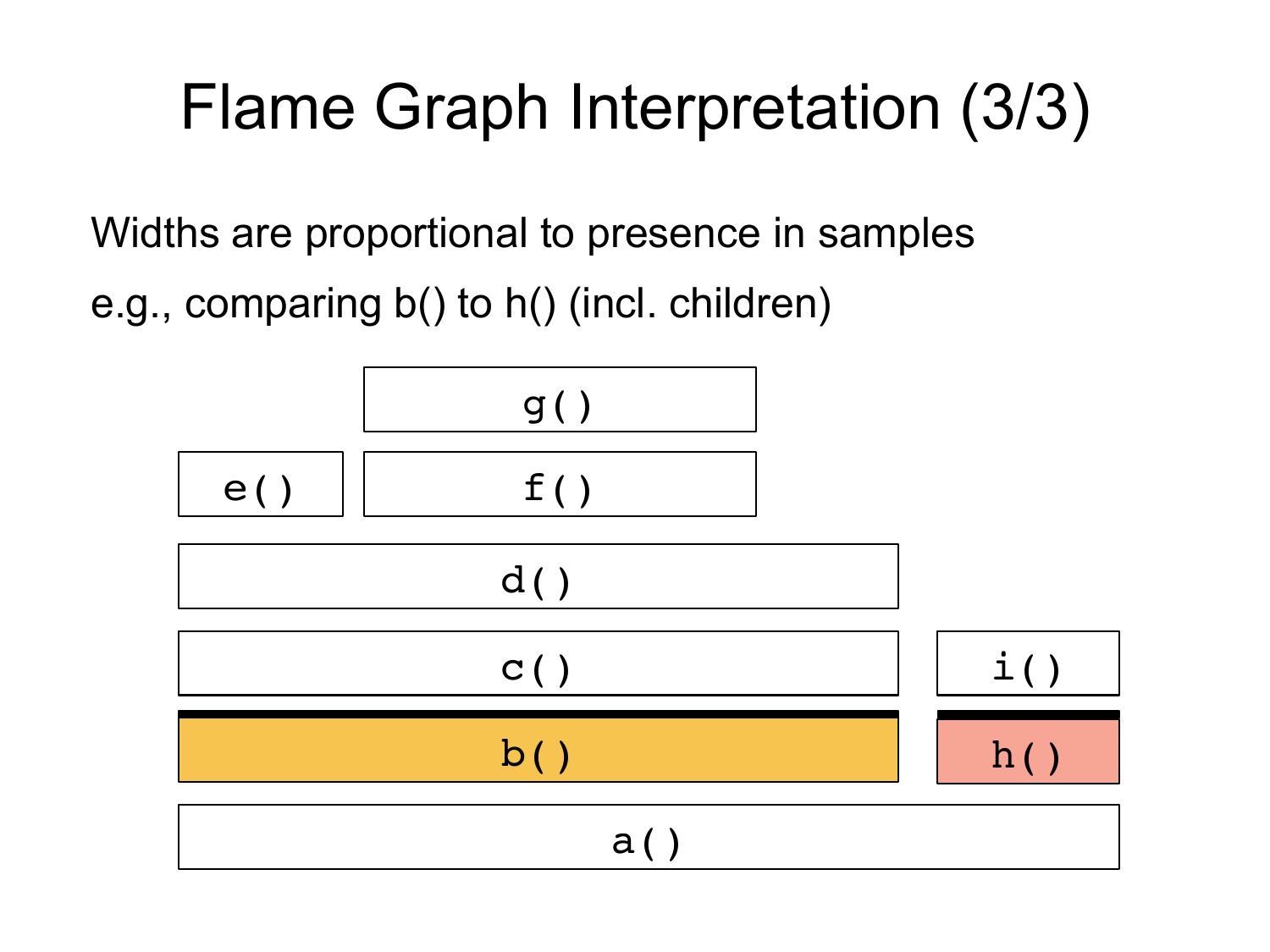

Flame Graph Interpretation (3/3)
Widths are proportional to presence in samples
e.g., comparing b() to h() (incl. children)
g()
e()
f()
d()
c()
i()
b()
h()
a()

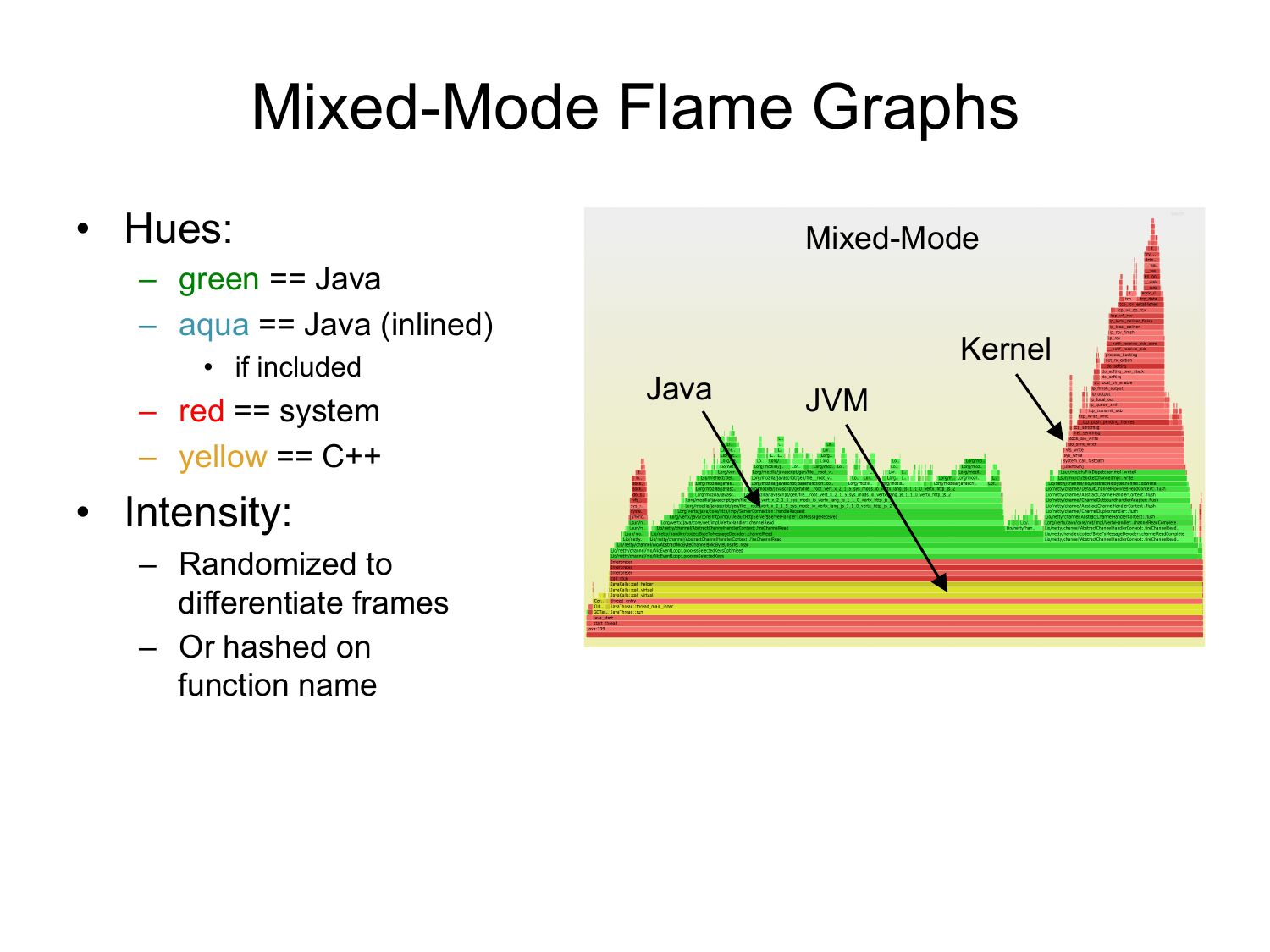

Mixed-Mode Flame Graphs
• Hues:
Mixed-Mode
– green == Java
– aqua == Java (inlined)
• if included
– red == system
– yellow == C++
• Intensity:
– Randomized to
differentiate frames
– Or hashed on
function name
Kernel
Java
JVM

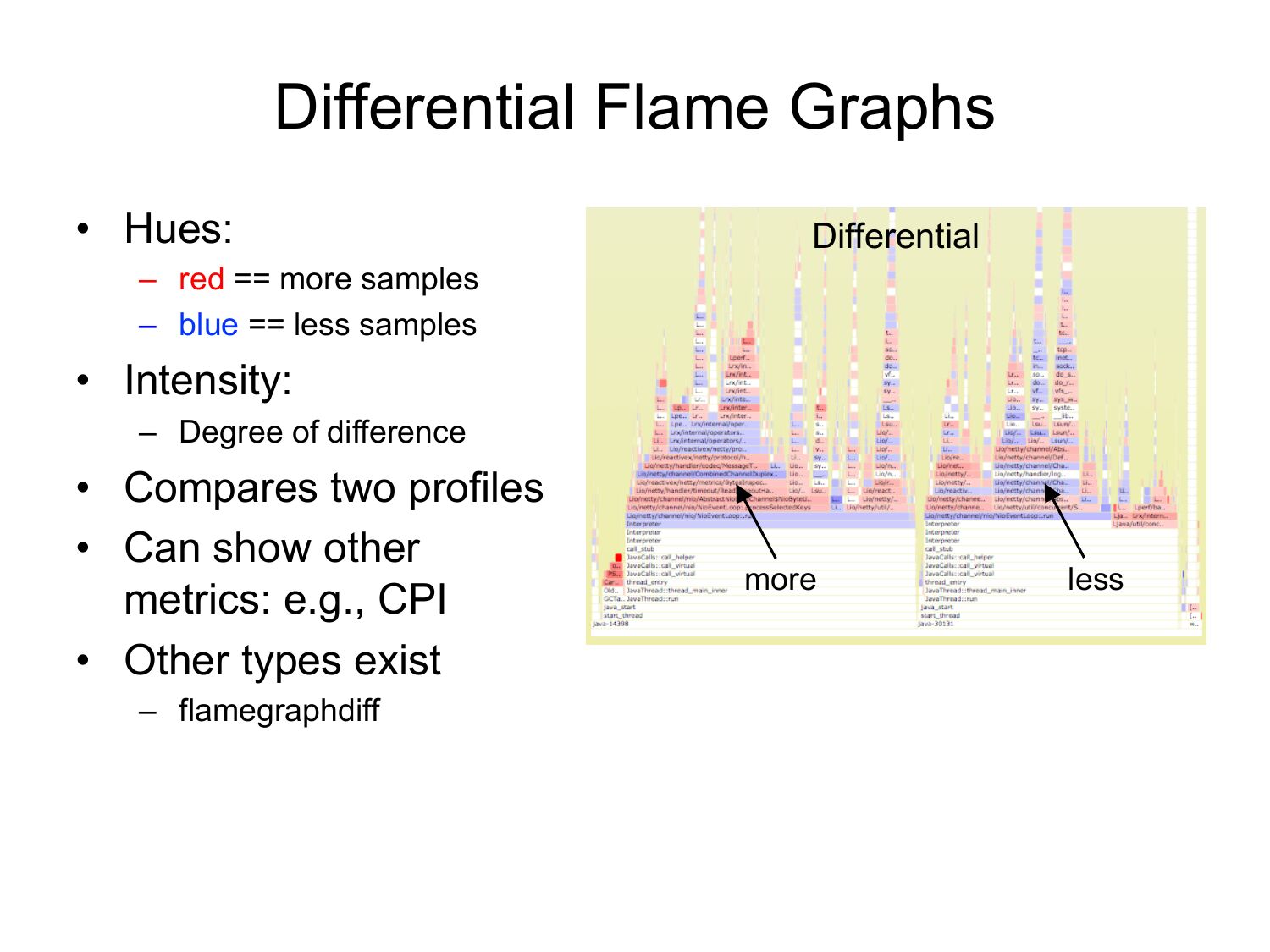

Differential Flame Graphs
• Hues:
Differential
– red == more samples
– blue == less samples
• Intensity:
– Degree of difference
• Compares two profiles
• Can show other
metrics: e.g., CPI
• Other types exist
– flamegraphdiff
more
less

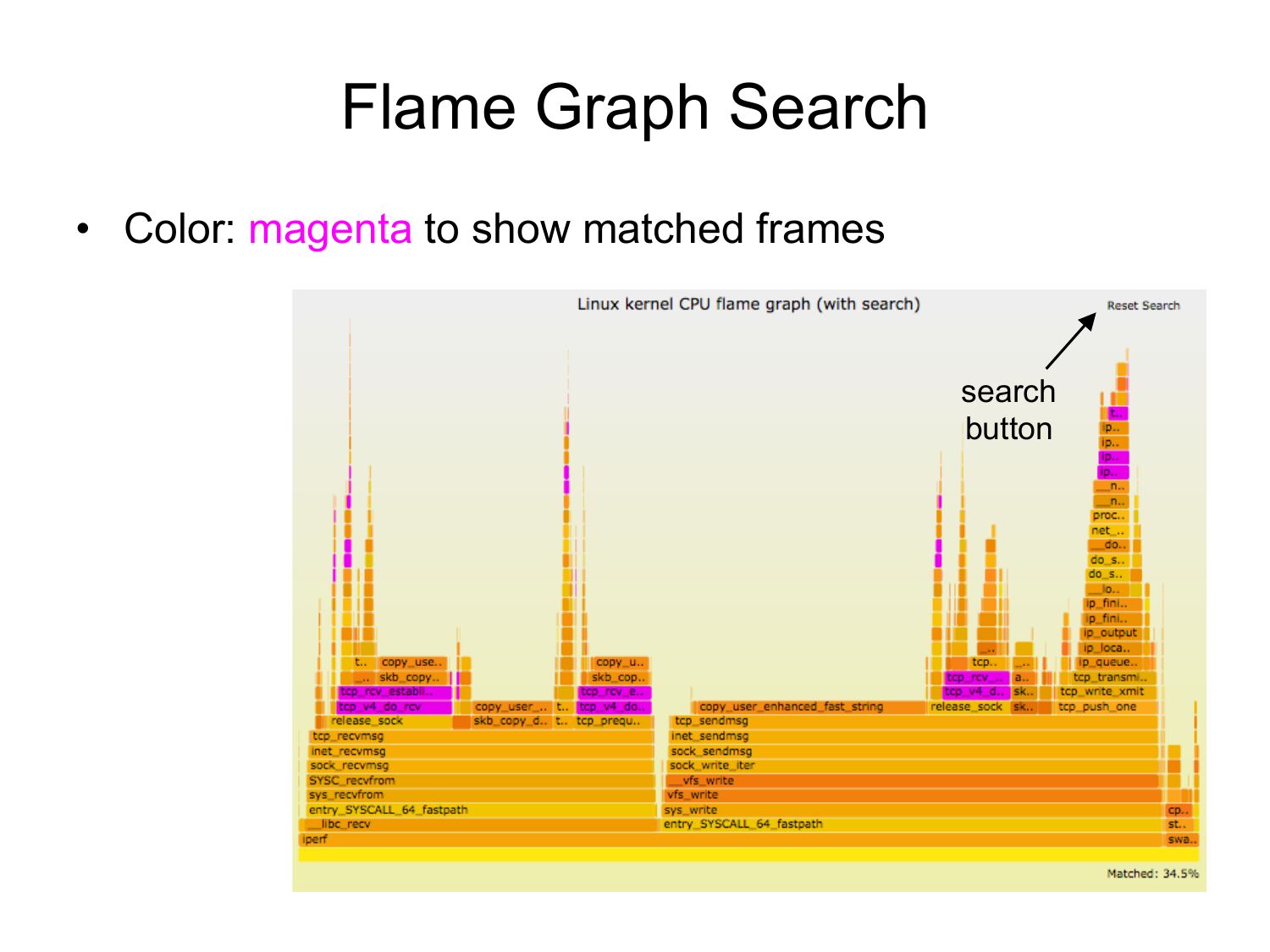

Flame Graph Search
• Color: magenta to show matched frames
search
button

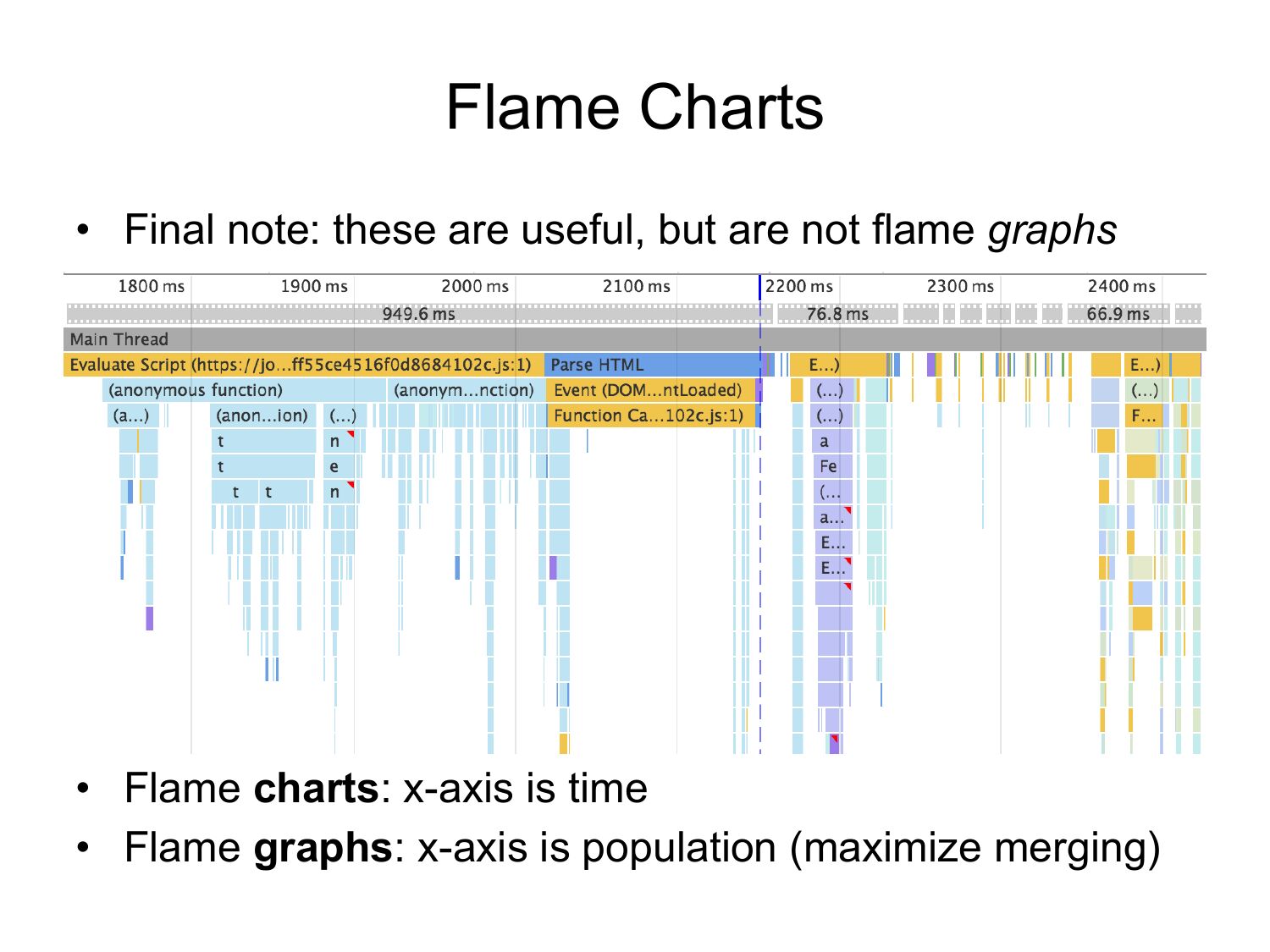

Flame Charts
• Final note: these are useful, but are not flame graphs
• Flame charts: x-axis is time
• Flame graphs: x-axis is population (maximize merging)

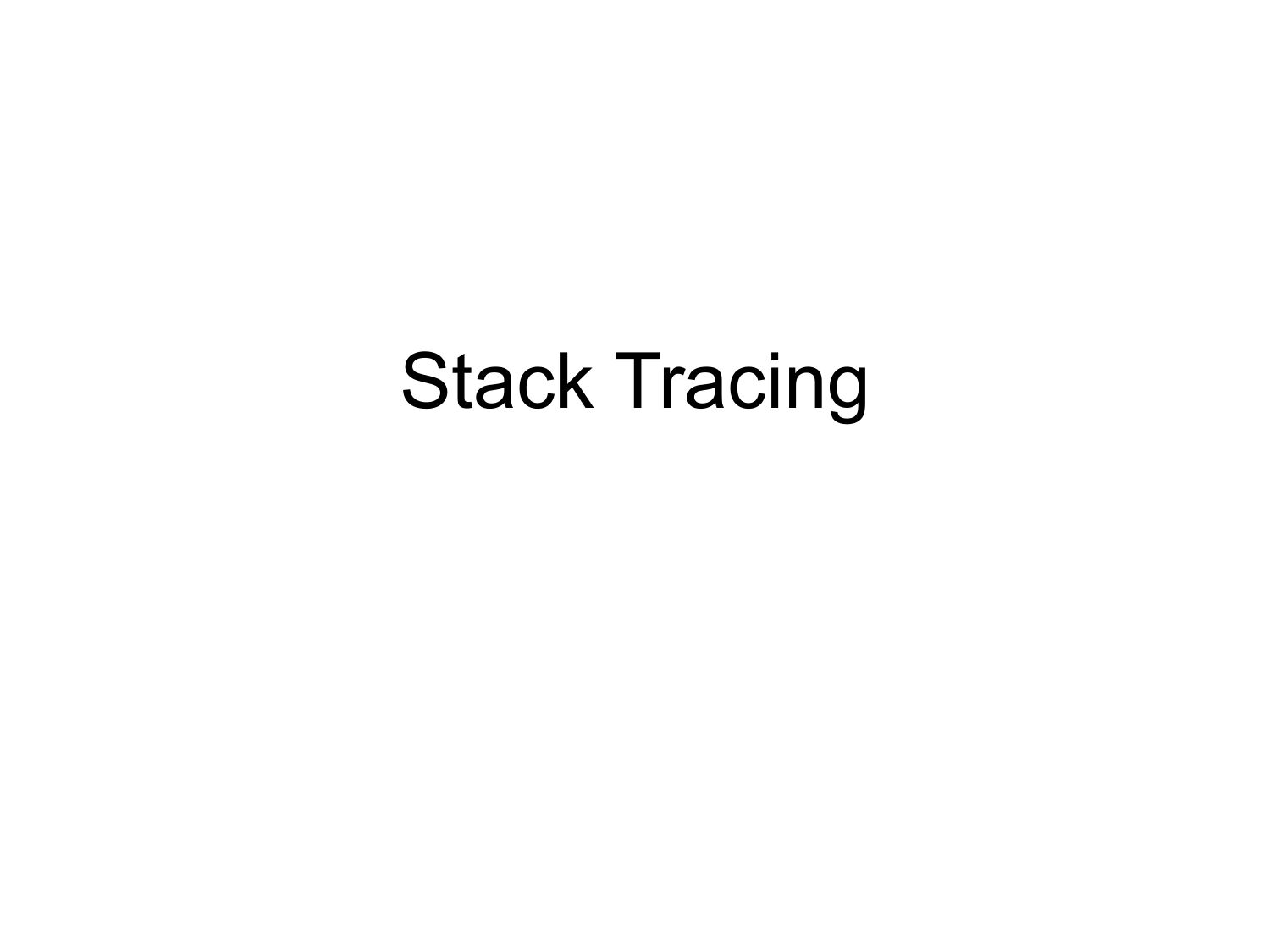

Stack Tracing

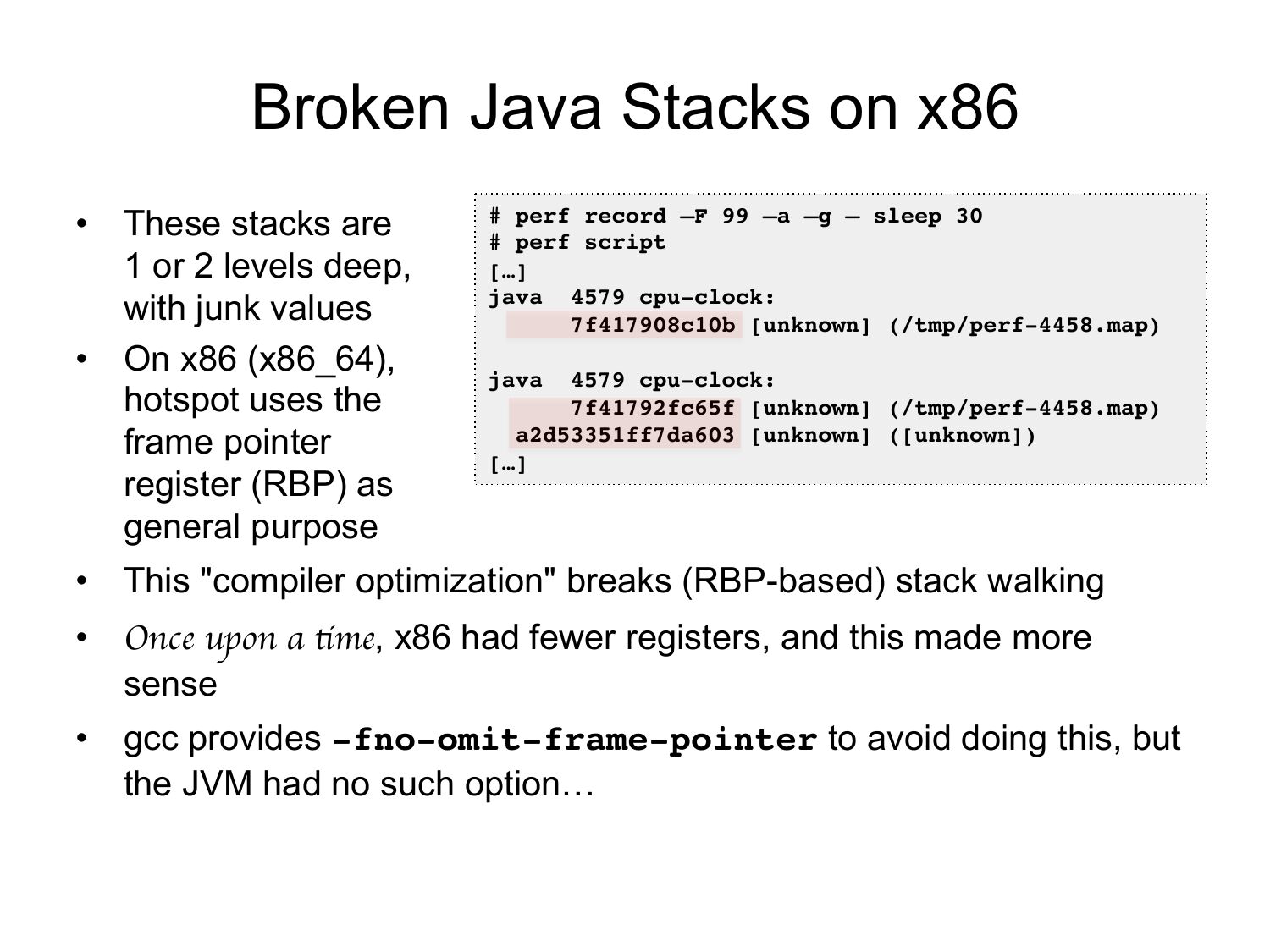

Broken Java Stacks on x86
These stacks are
1 or 2 levels deep,
with junk values
• On x86 (x86_64),
hotspot uses the
frame pointer
register (RBP) as
general purpose
# perf record –F 99 –a –g – sleep 30
# perf script
[…]
java 4579 cpu-clock:
7f417908c10b [unknown] (/tmp/perf-4458.map)
java
4579 cpu-clock:
7f41792fc65f [unknown] (/tmp/perf-4458.map)
a2d53351ff7da603 [unknown] ([unknown])
[…]
This "compiler optimization" breaks (RBP-based) stack walking
Once upon a time, x86 had fewer registers, and this made more
sense
gcc provides -fno-omit-frame-pointer to avoid doing this, but
the JVM had no such option…

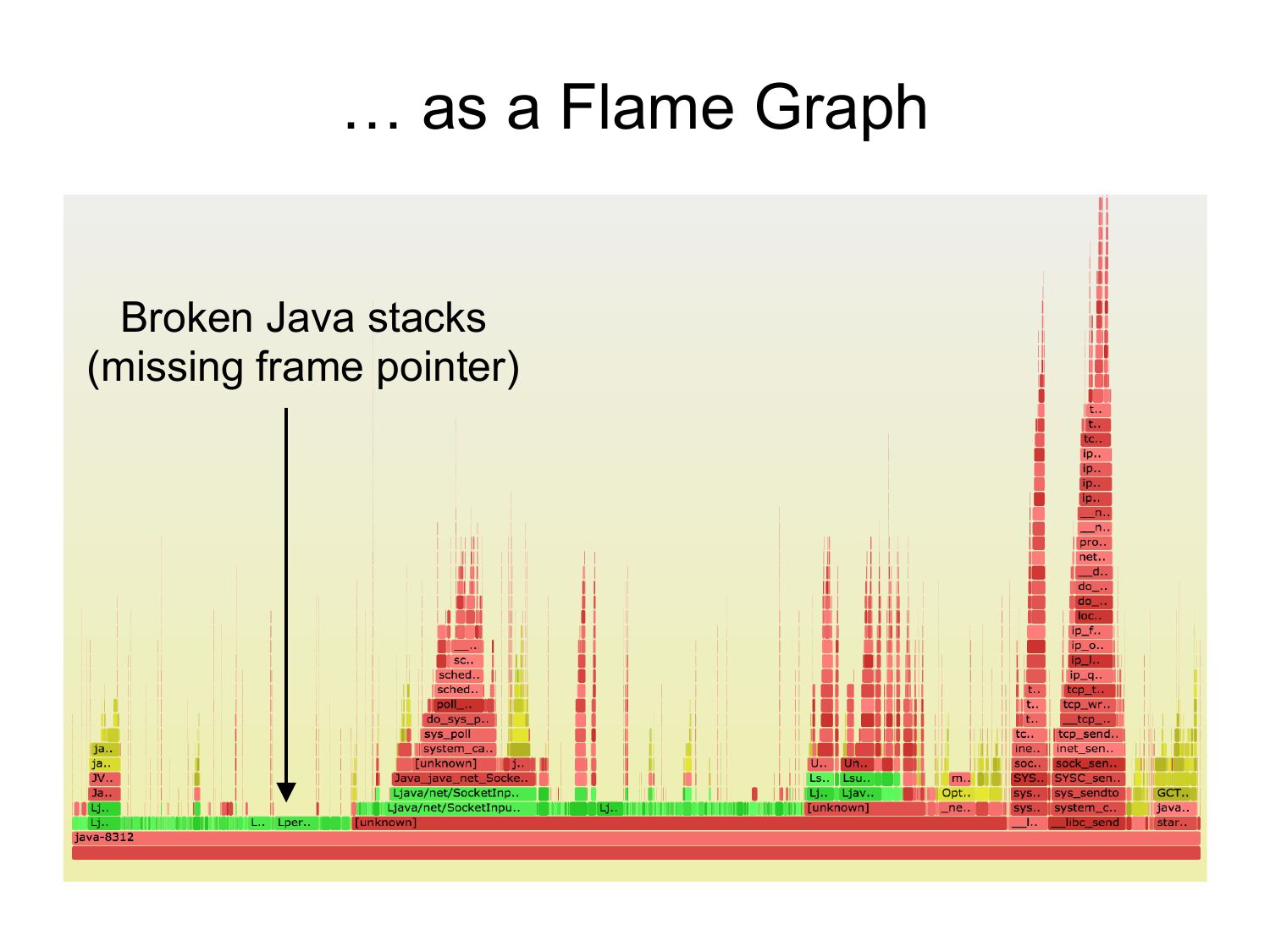

… as a Flame Graph
Broken Java stacks
(missing frame pointer)

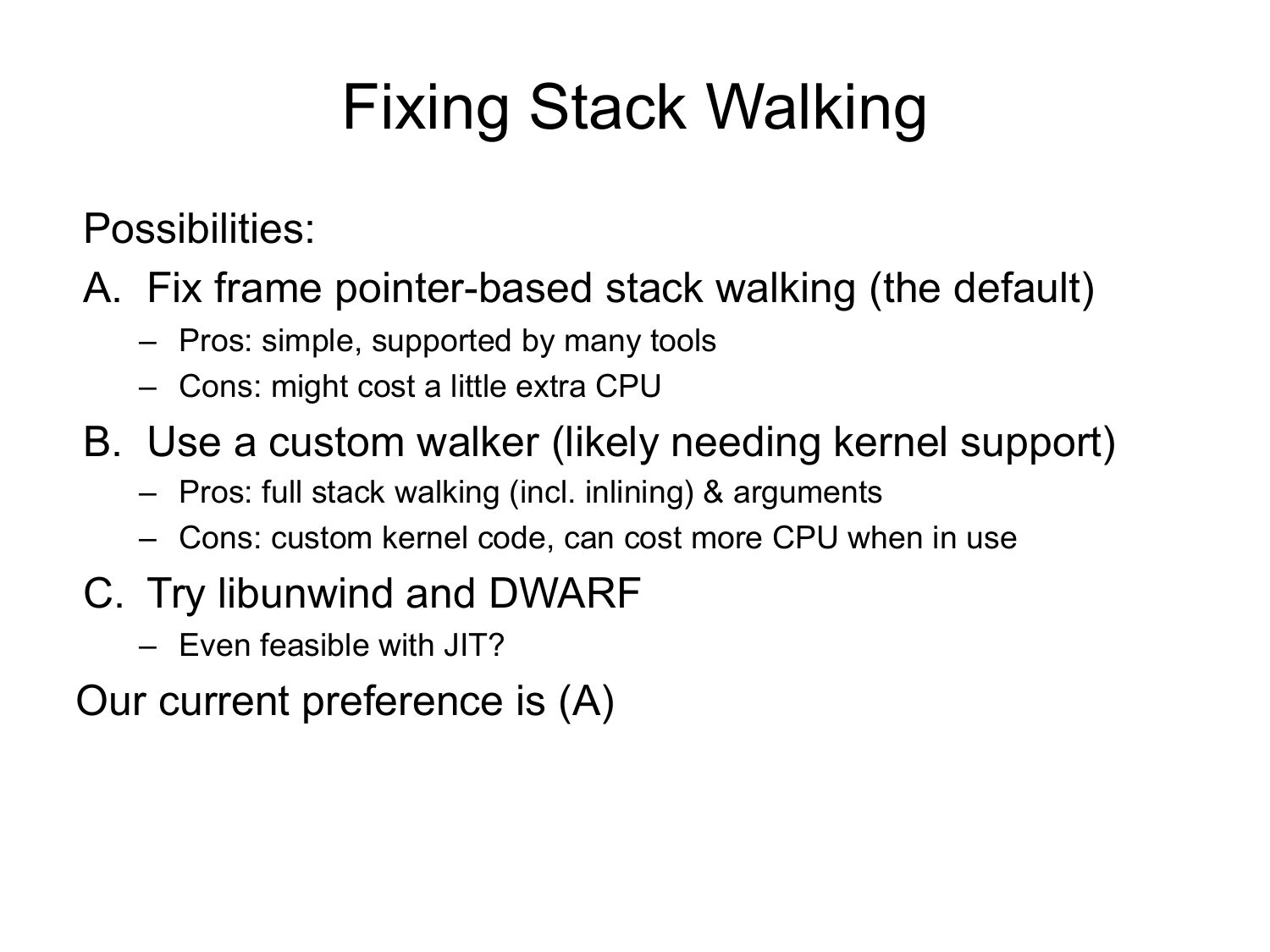

Fixing Stack Walking
Possibilities:
A. Fix frame pointer-based stack walking (the default)
– Pros: simple, supported by many tools
– Cons: might cost a little extra CPU
B. Use a custom walker (likely needing kernel support)
– Pros: full stack walking (incl. inlining) & arguments
– Cons: custom kernel code, can cost more CPU when in use
C. Try libunwind and DWARF
– Even feasible with JIT?
Our current preference is (A)

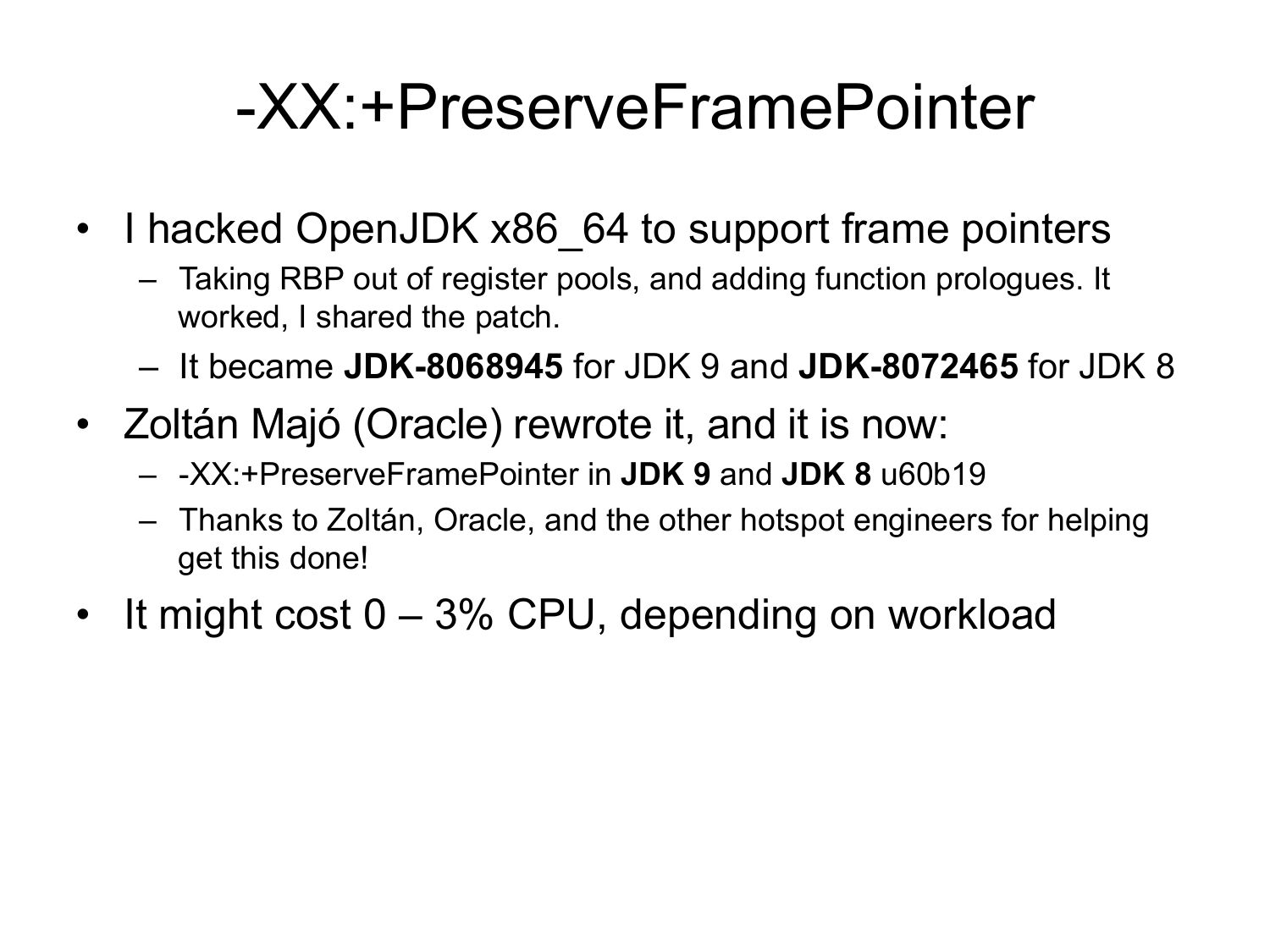

-XX:+PreserveFramePointer
• I hacked OpenJDK x86_64 to support frame pointers
– Taking RBP out of register pools, and adding function prologues. It
worked, I shared the patch.
– It became JDK-8068945 for JDK 9 and JDK-8072465 for JDK 8
• Zoltán Majó (Oracle) rewrote it, and it is now:
– -XX:+PreserveFramePointer in JDK 9 and JDK 8 u60b19
– Thanks to Zoltán, Oracle, and the other hotspot engineers for helping
get this done!
• It might cost 0 – 3% CPU, depending on workload

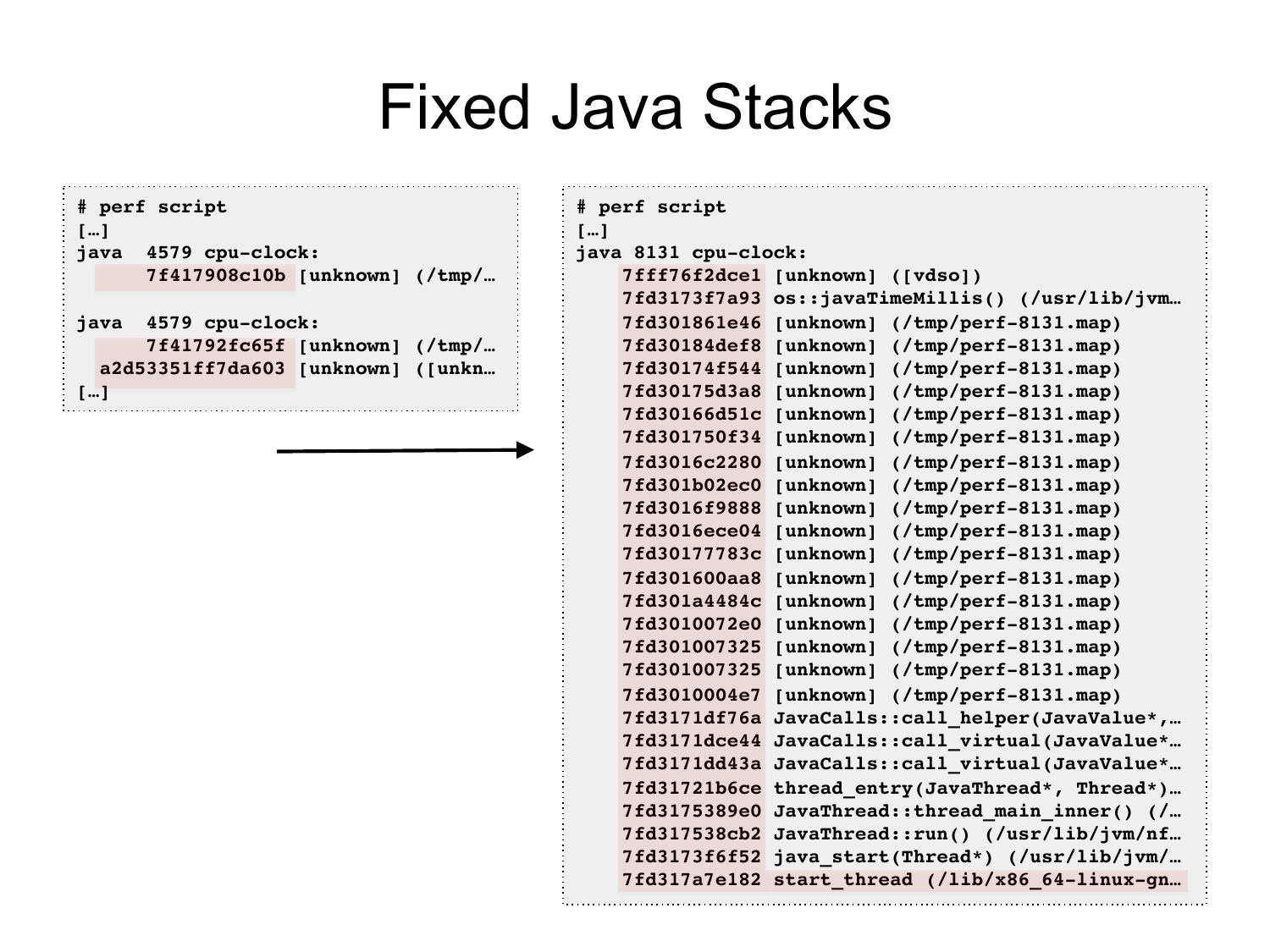

Fixed Java Stacks
# perf script
[…]
java 4579 cpu-clock:
7f417908c10b [unknown] (/tmp/…
java
4579 cpu-clock:
7f41792fc65f [unknown] (/tmp/…
a2d53351ff7da603 [unknown] ([unkn…
[…]
# perf script
[…]
java 8131 cpu-clock:
7fff76f2dce1 [unknown] ([vdso])
7fd3173f7a93 os::javaTimeMillis() (/usr/lib/jvm…
7fd301861e46 [unknown] (/tmp/perf-8131.map)
7fd30184def8 [unknown] (/tmp/perf-8131.map)
7fd30174f544 [unknown] (/tmp/perf-8131.map)
7fd30175d3a8 [unknown] (/tmp/perf-8131.map)
7fd30166d51c [unknown] (/tmp/perf-8131.map)
7fd301750f34 [unknown] (/tmp/perf-8131.map)
7fd3016c2280 [unknown] (/tmp/perf-8131.map)
7fd301b02ec0 [unknown] (/tmp/perf-8131.map)
7fd3016f9888 [unknown] (/tmp/perf-8131.map)
7fd3016ece04 [unknown] (/tmp/perf-8131.map)
7fd30177783c [unknown] (/tmp/perf-8131.map)
7fd301600aa8 [unknown] (/tmp/perf-8131.map)
7fd301a4484c [unknown] (/tmp/perf-8131.map)
7fd3010072e0 [unknown] (/tmp/perf-8131.map)
7fd301007325 [unknown] (/tmp/perf-8131.map)
7fd301007325 [unknown] (/tmp/perf-8131.map)
7fd3010004e7 [unknown] (/tmp/perf-8131.map)
7fd3171df76a JavaCalls::call_helper(JavaValue*,…
7fd3171dce44 JavaCalls::call_virtual(JavaValue*…
7fd3171dd43a JavaCalls::call_virtual(JavaValue*…
7fd31721b6ce thread_entry(JavaThread*, Thread*)…
7fd3175389e0 JavaThread::thread_main_inner() (/…
7fd317538cb2 JavaThread::run() (/usr/lib/jvm/nf…
7fd3173f6f52 java_start(Thread*) (/usr/lib/jvm/…
7fd317a7e182 start_thread (/lib/x86_64-linux-gn…

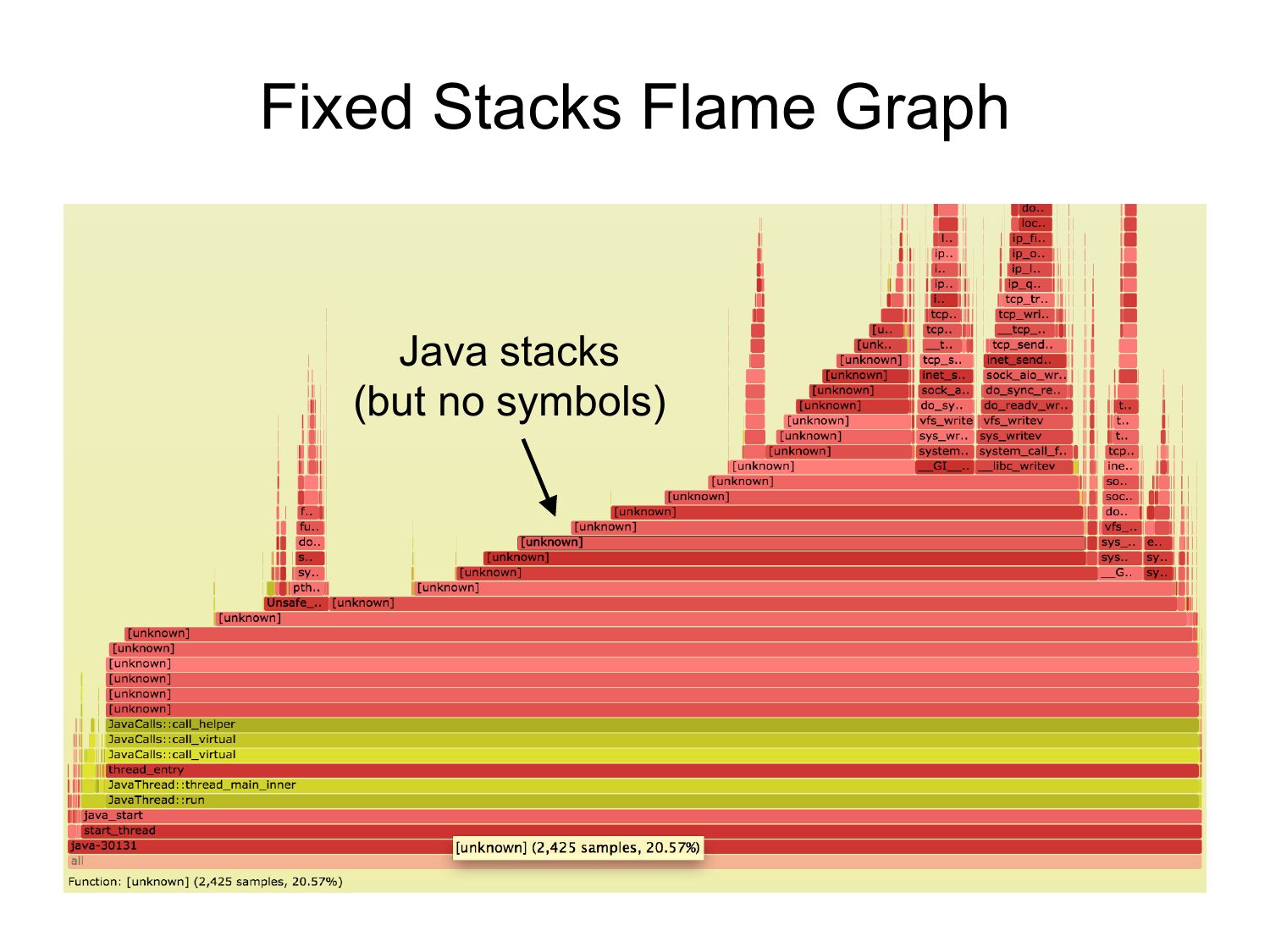

Fixed Stacks Flame Graph
Java stacks
(but no symbols)

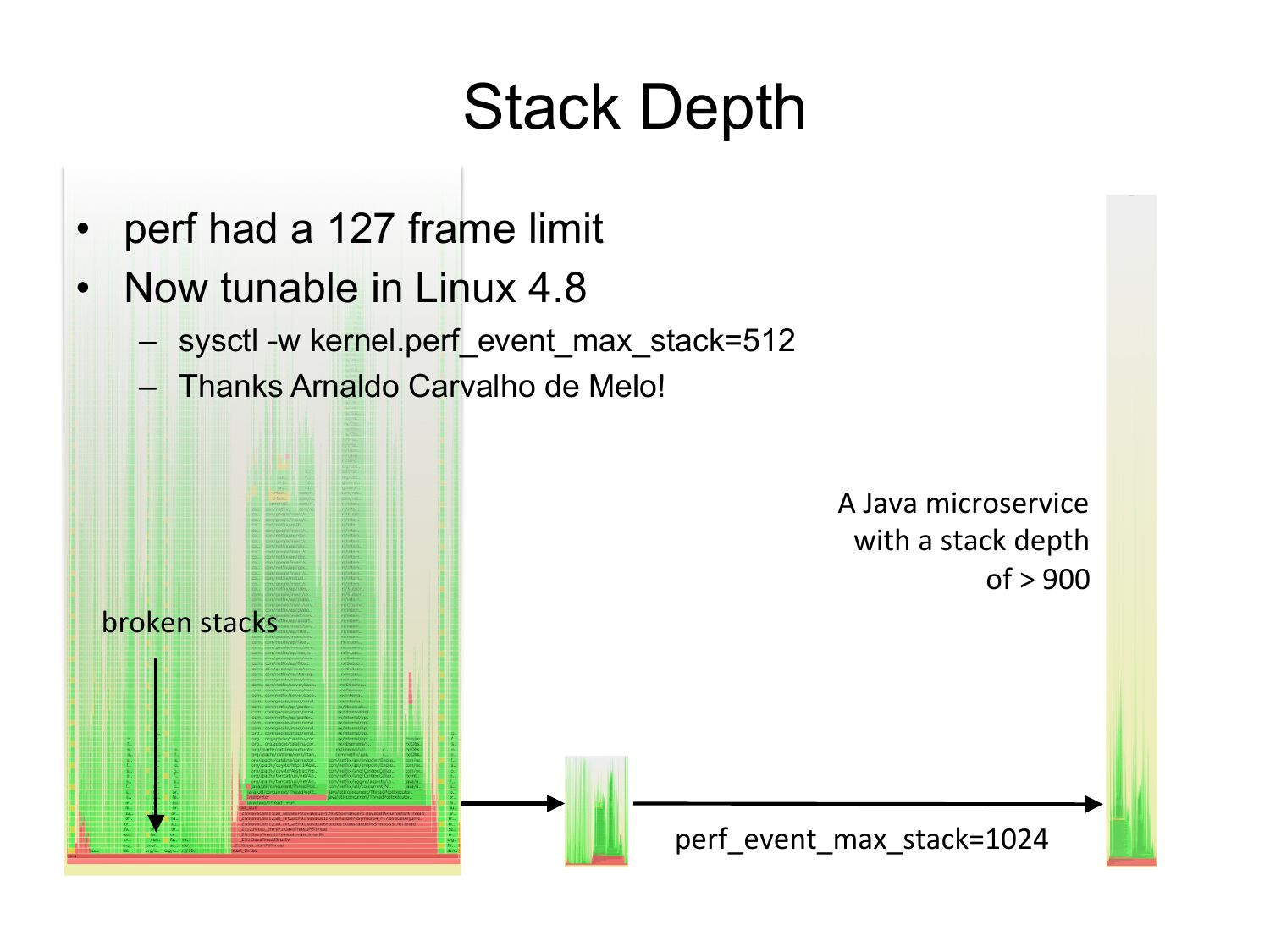

Stack Depth
• perf had a 127 frame limit
• Now tunable in Linux 4.8
– sysctl -w kernel.perf_event_max_stack=512
– Thanks Arnaldo Carvalho de Melo!
A Java microservice
with a stack depth
of >gt; 900
broken stacks
perf_event_max_stack=1024

Symbols

Fixing Symbols
For JIT'd code, Linux perf already looks for an
externally provided symbol file: /tmp/perf-PID.map, and
warns if it doesn't exist
# perf script
Failed to open /tmp/perf-8131.map, continuing without symbols
[…]
java 8131 cpu-clock:
7fff76f2dce1 [unknown] ([vdso])
7fd3173f7a93 os::javaTimeMillis() (/usr/lib/jvm…
7fd301861e46 [unknown] (/tmp/perf-8131.map)
[…]
This file can be created by a Java agent

Java Symbols for perf
• perf-map-agent
– https://github.com/jrudolph/perf-map-agent
– Agent attaches and writes the /tmp file on demand (previous versions
attached on Java start, wrote continually)
– Thanks Johannes Rudolph!
• Use of a /tmp symbol file
– Pros: simple, can be low overhead (snapshot on demand)
– Cons: stale symbols
• Using a symbol logger with perf instead
– Stephane Eranian contributed this to perf
– See lkml for "perf: add support for profiling jitted code"
# perf script
java 14025 [017] 8048.157085: cpu-clock:
HashMap;::get (/tmp/perf-12149.map)
[…]
7fd781253265 Ljava/util/
fixed
symbols

Stacks & Symbols
Java Mixed-Mode Flame Graph
Kernel
Java
JVM

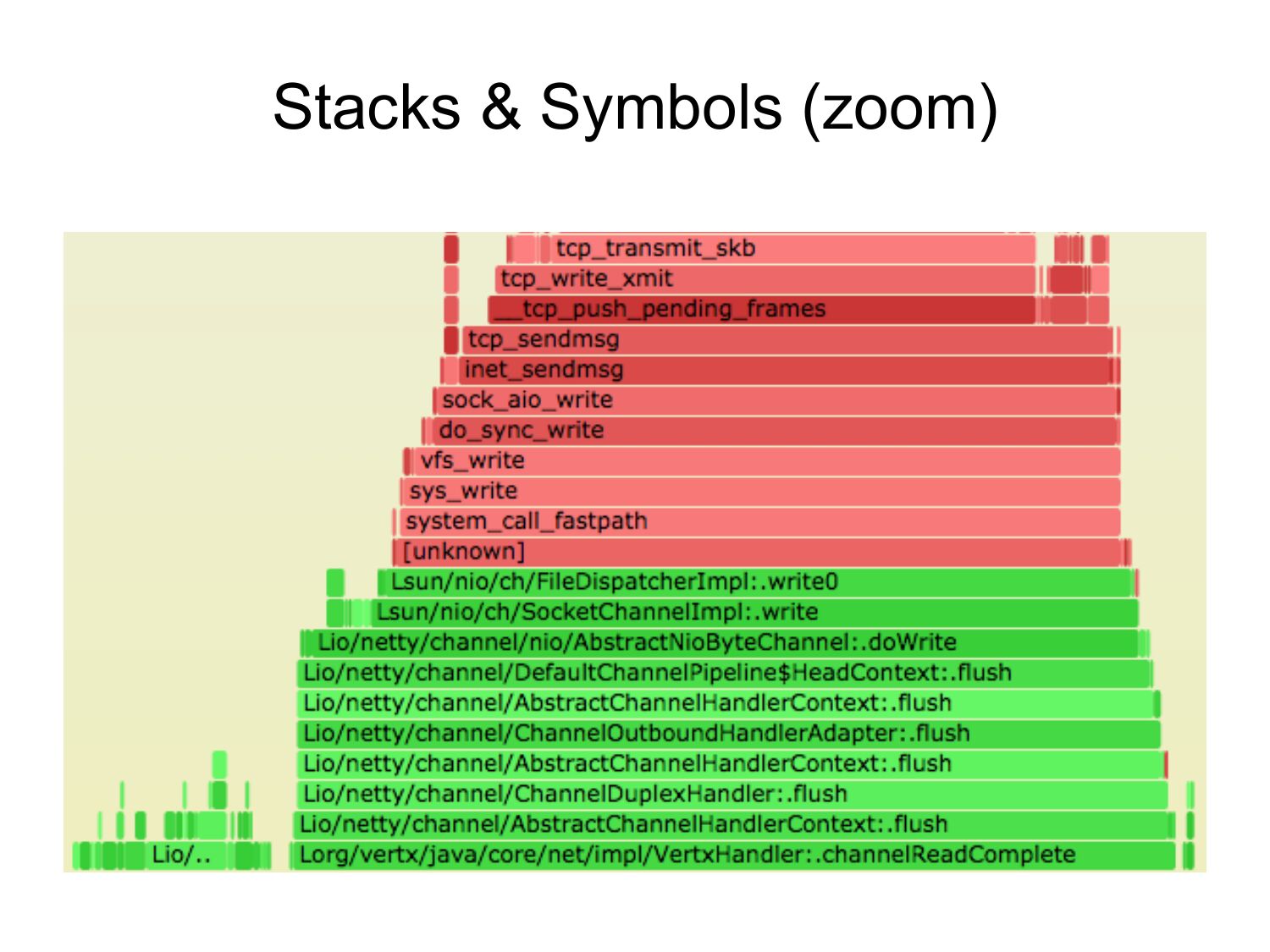

Stacks & Symbols (zoom)

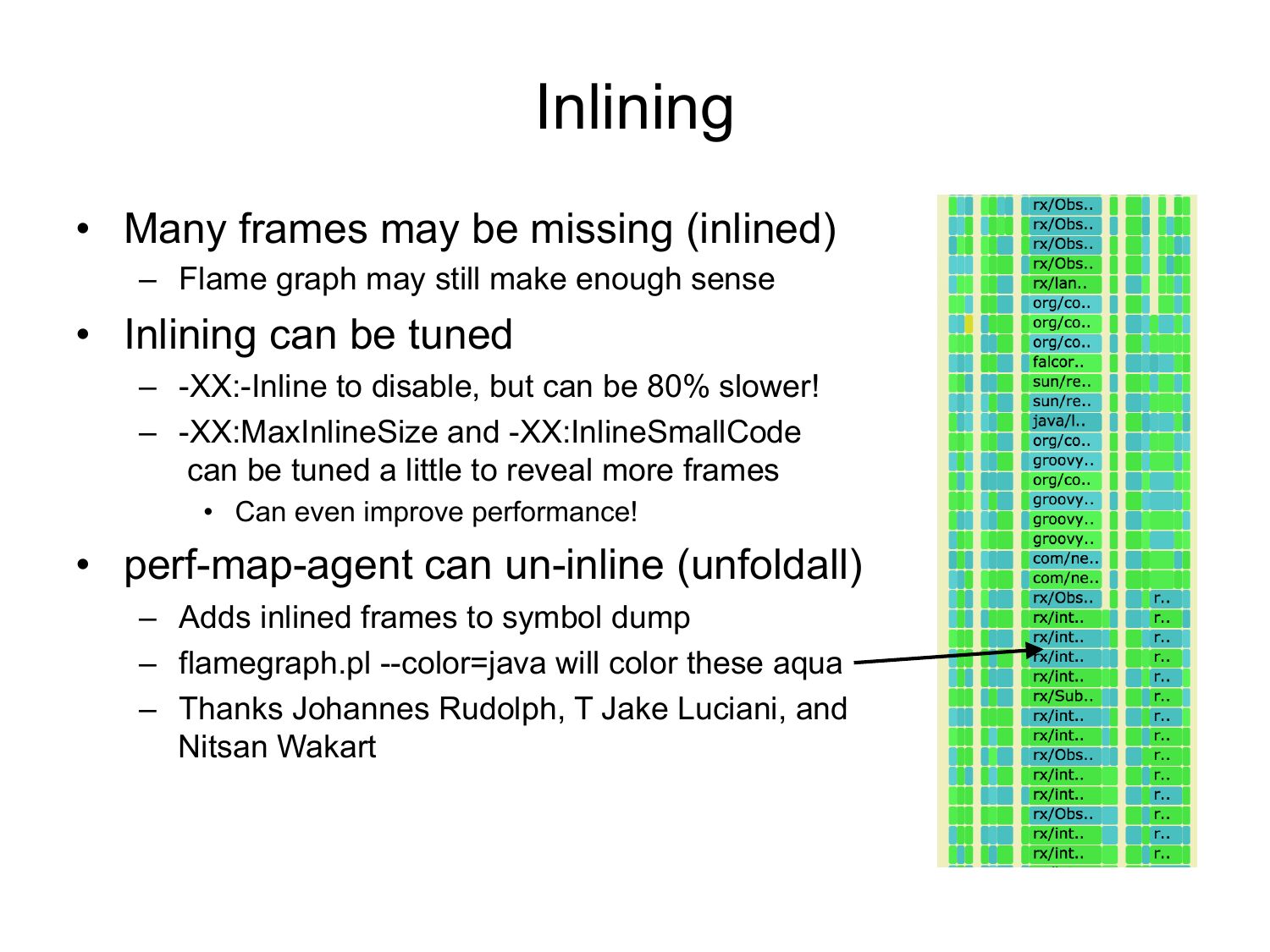

Inlining
• Many frames may be missing (inlined)
– Flame graph may still make enough sense
• Inlining can be tuned
– -XX:-Inline to disable, but can be 80% slower!
– -XX:MaxInlineSize and -XX:InlineSmallCode
can be tuned a little to reveal more frames
• Can even improve performance!
• perf-map-agent can un-inline (unfoldall)
– Adds inlined frames to symbol dump
– flamegraph.pl --color=java will color these aqua
– Thanks Johannes Rudolph, T Jake Luciani, and
Nitsan Wakart

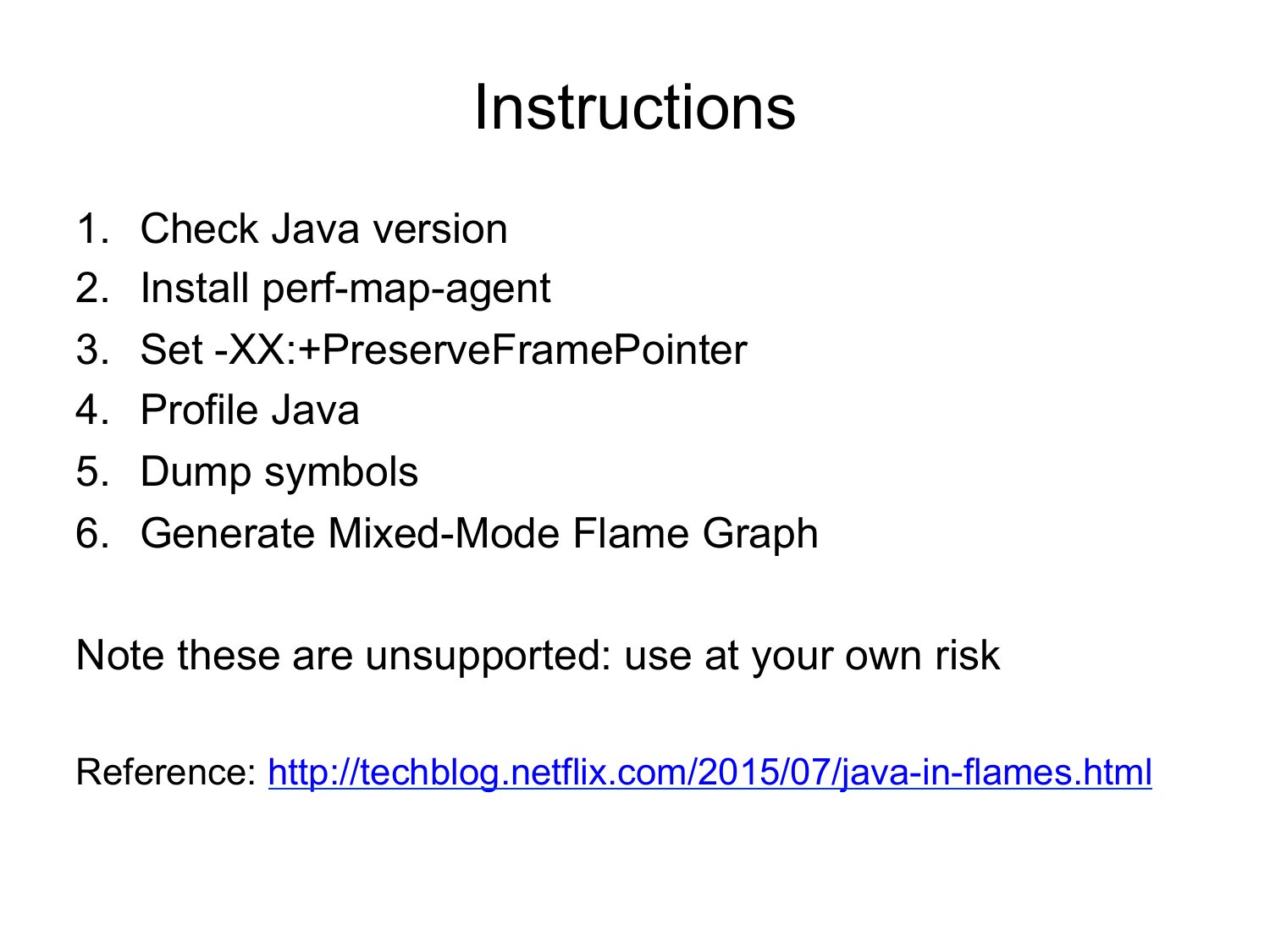

Instructions

Instructions

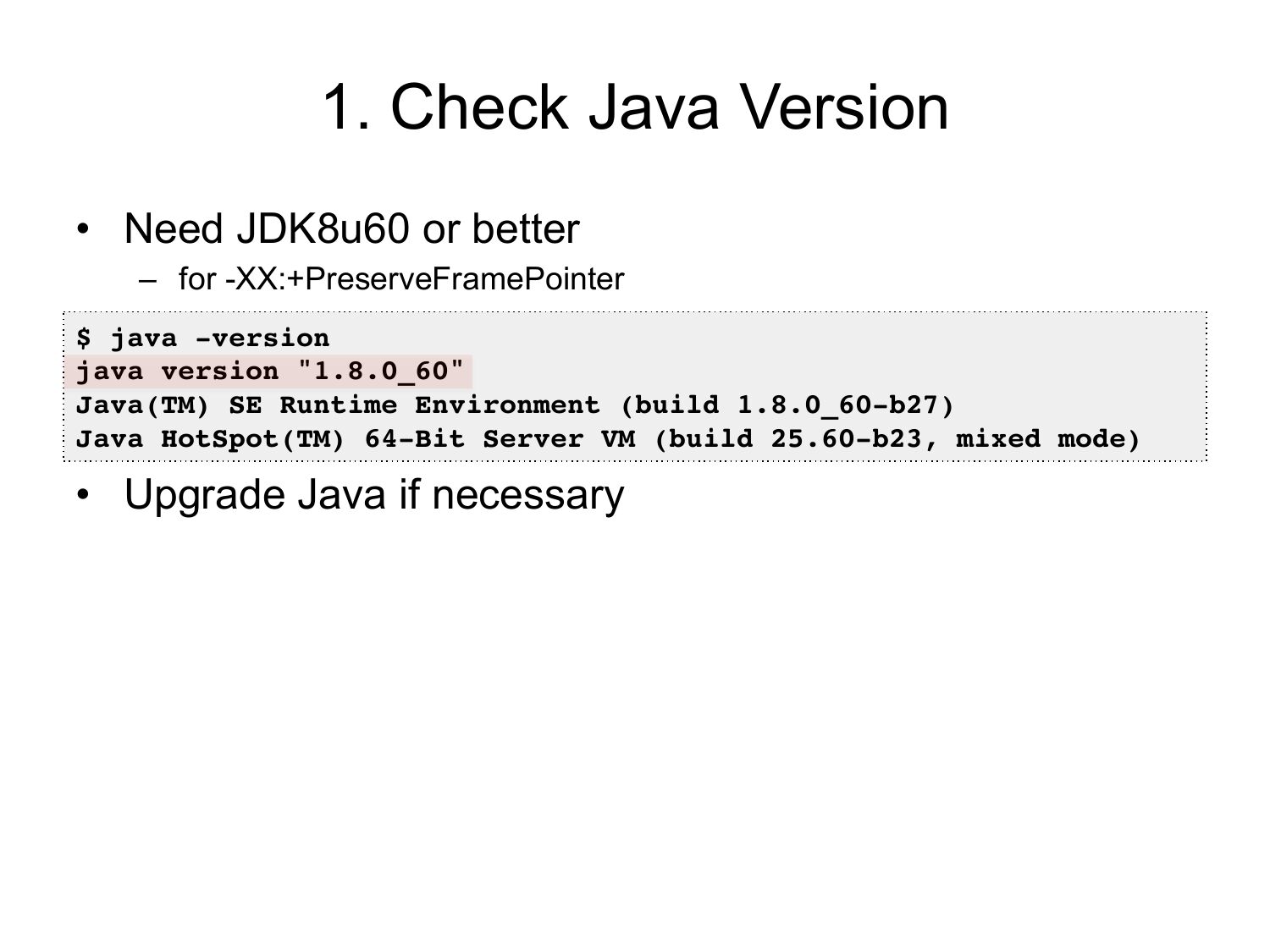

1. Check Java version

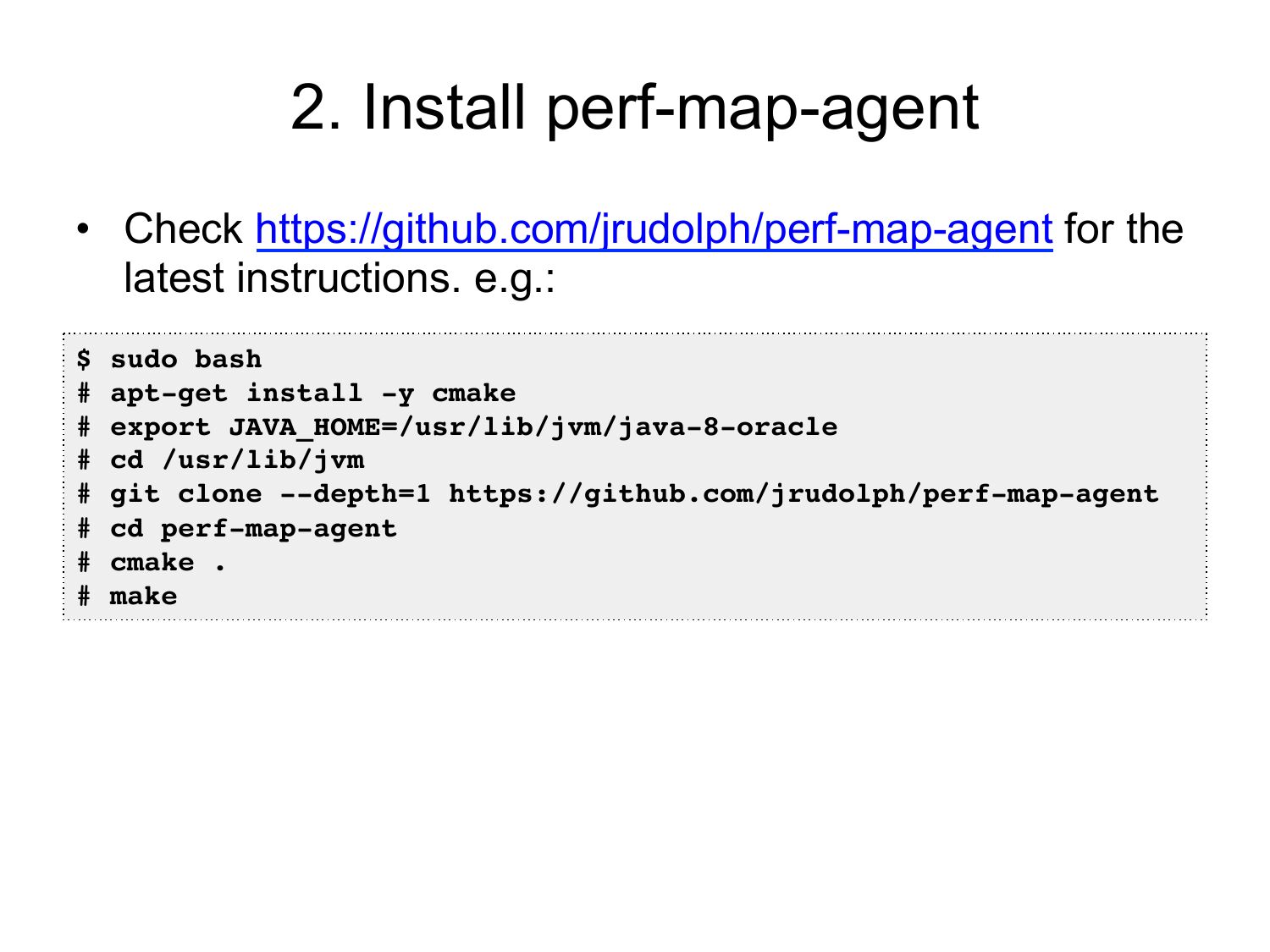

2. Install perf-map-agent

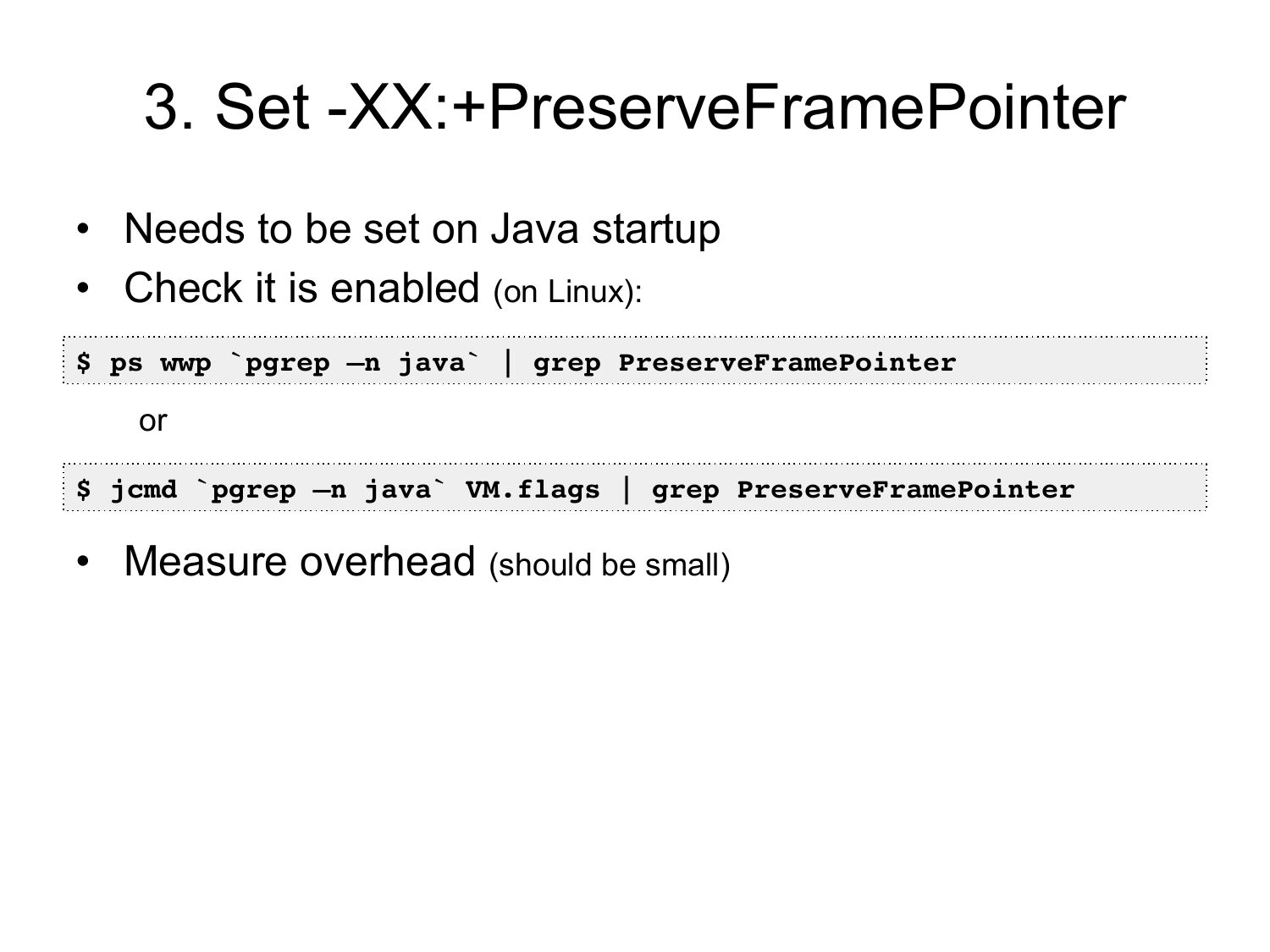

3. Set -XX:+PreserveFramePointer

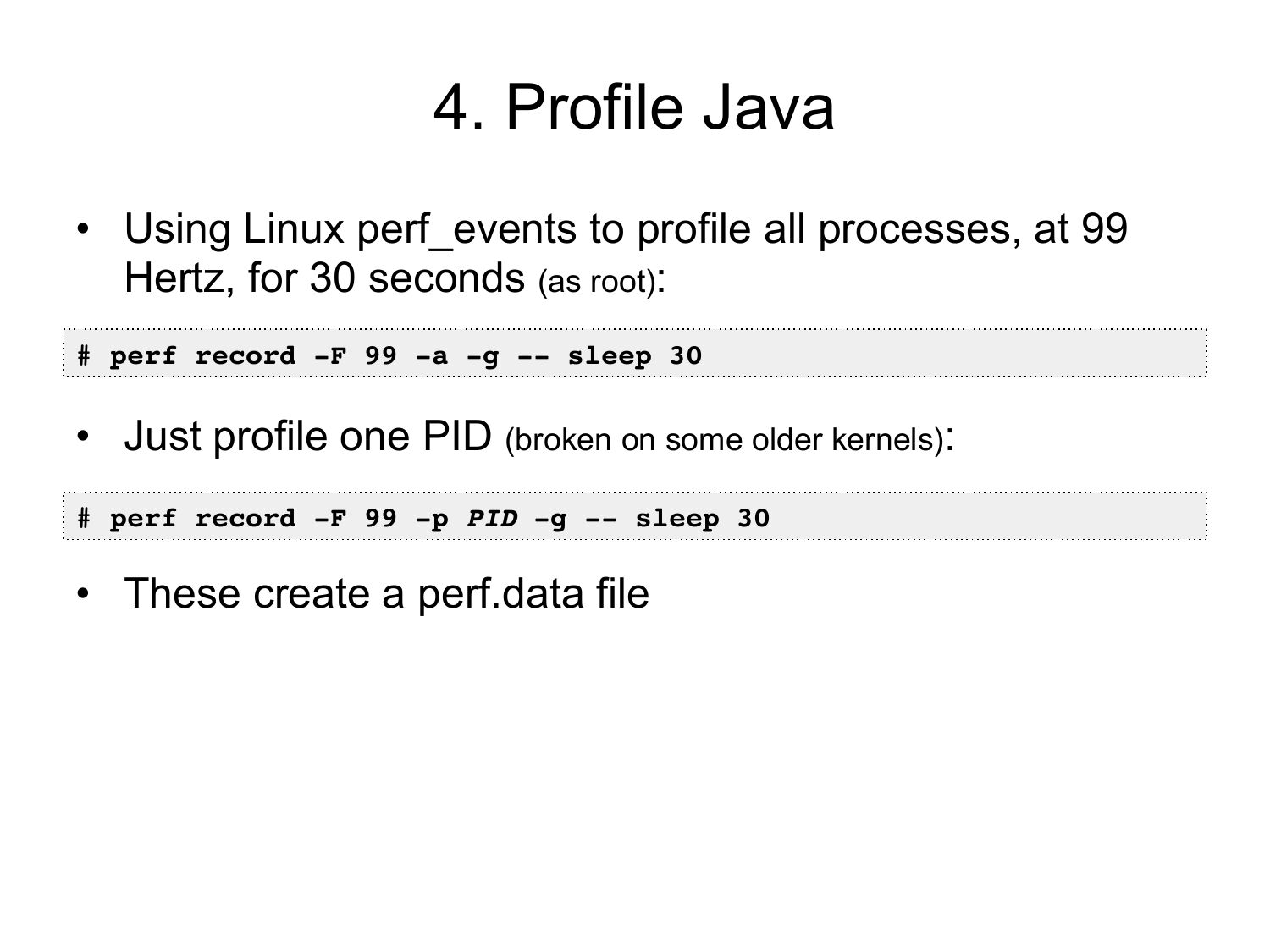

4. Profile Java

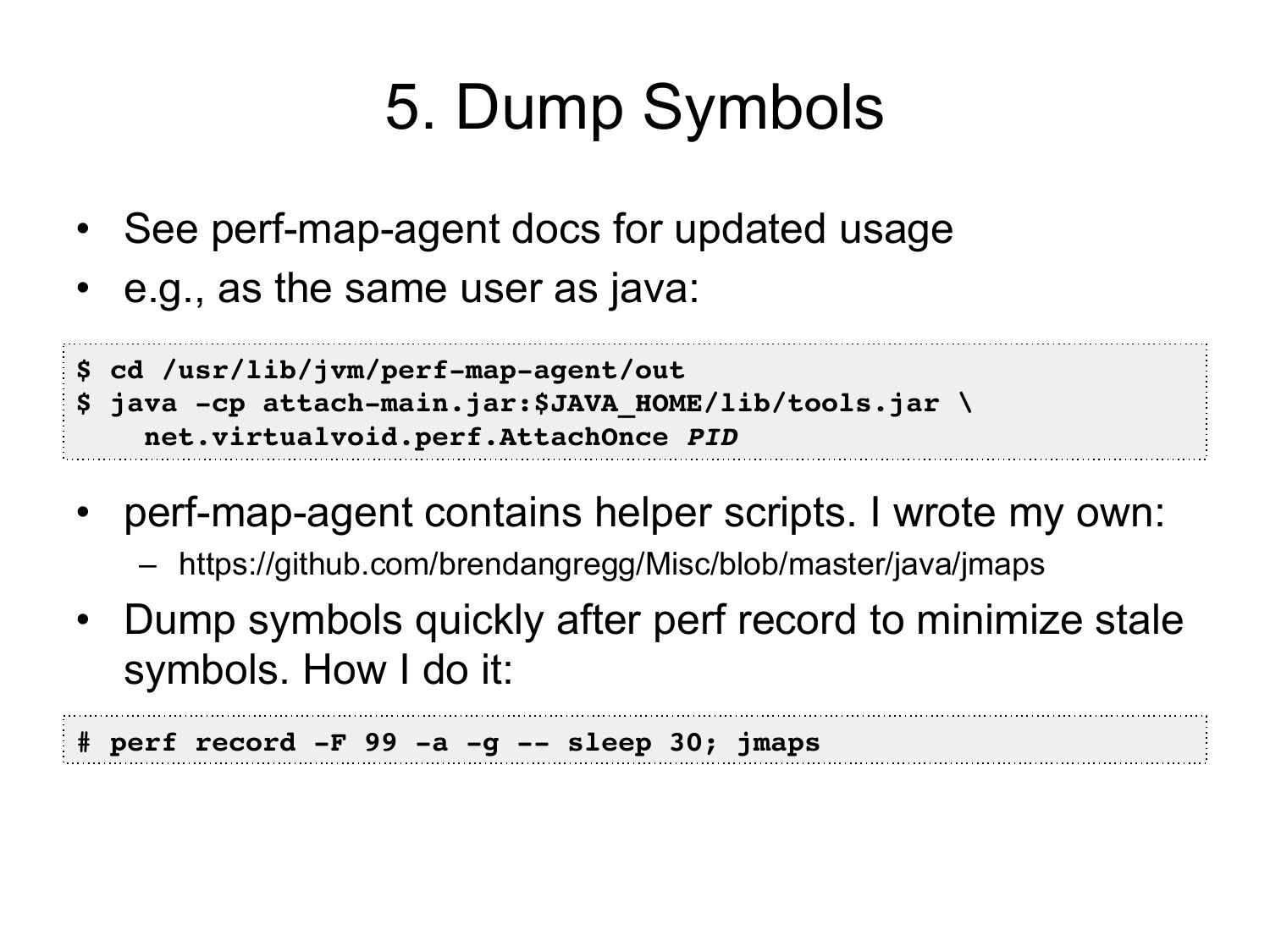

5. Dump symbols
6. Generate Mixed-Mode Flame Graph
Note these are unsupported: use at your own risk
Reference: http://techblog.netflix.com/2015/07/java-in-flames.html

1. Check Java Version
• Need JDK8u60 or better
– for -XX:+PreserveFramePointer
$ java -version
java version "1.8.0_60"
Java(TM) SE Runtime Environment (build 1.8.0_60-b27)
Java HotSpot(TM) 64-Bit Server VM (build 25.60-b23, mixed mode)
• Upgrade Java if necessary

2. Install perf-map-agent
• Check https://github.com/jrudolph/perf-map-agent for the
latest instructions. e.g.:
$ sudo bash
# apt-get install -y cmake
# export JAVA_HOME=/usr/lib/jvm/java-8-oracle
# cd /usr/lib/jvm
# git clone --depth=1 https://github.com/jrudolph/perf-map-agent
# cd perf-map-agent
# cmake .
# make

3. Set -XX:+PreserveFramePointer
• Needs to be set on Java startup
• Check it is enabled (on Linux):
$ ps wwp `pgrep –n java` | grep PreserveFramePointer
$ jcmd `pgrep –n java` VM.flags | grep PreserveFramePointer
• Measure overhead (should be small)

4. Profile Java
• Using Linux perf_events to profile all processes, at 99
Hertz, for 30 seconds (as root):
# perf record -F 99 -a -g -- sleep 30
• Just profile one PID (broken on some older kernels):
# perf record -F 99 -p PID -g -- sleep 30
• These create a perf.data file

5. Dump Symbols
• See perf-map-agent docs for updated usage
• e.g., as the same user as java:
$ cd /usr/lib/jvm/perf-map-agent/out
$ java -cp attach-main.jar:$JAVA_HOME/lib/tools.jar \
net.virtualvoid.perf.AttachOnce PID
• perf-map-agent contains helper scripts. I wrote my own:
– https://github.com/brendangregg/Misc/blob/master/java/jmaps
• Dump symbols quickly after perf record to minimize stale
symbols. How I do it:
# perf record -F 99 -a -g -- sleep 30; jmaps

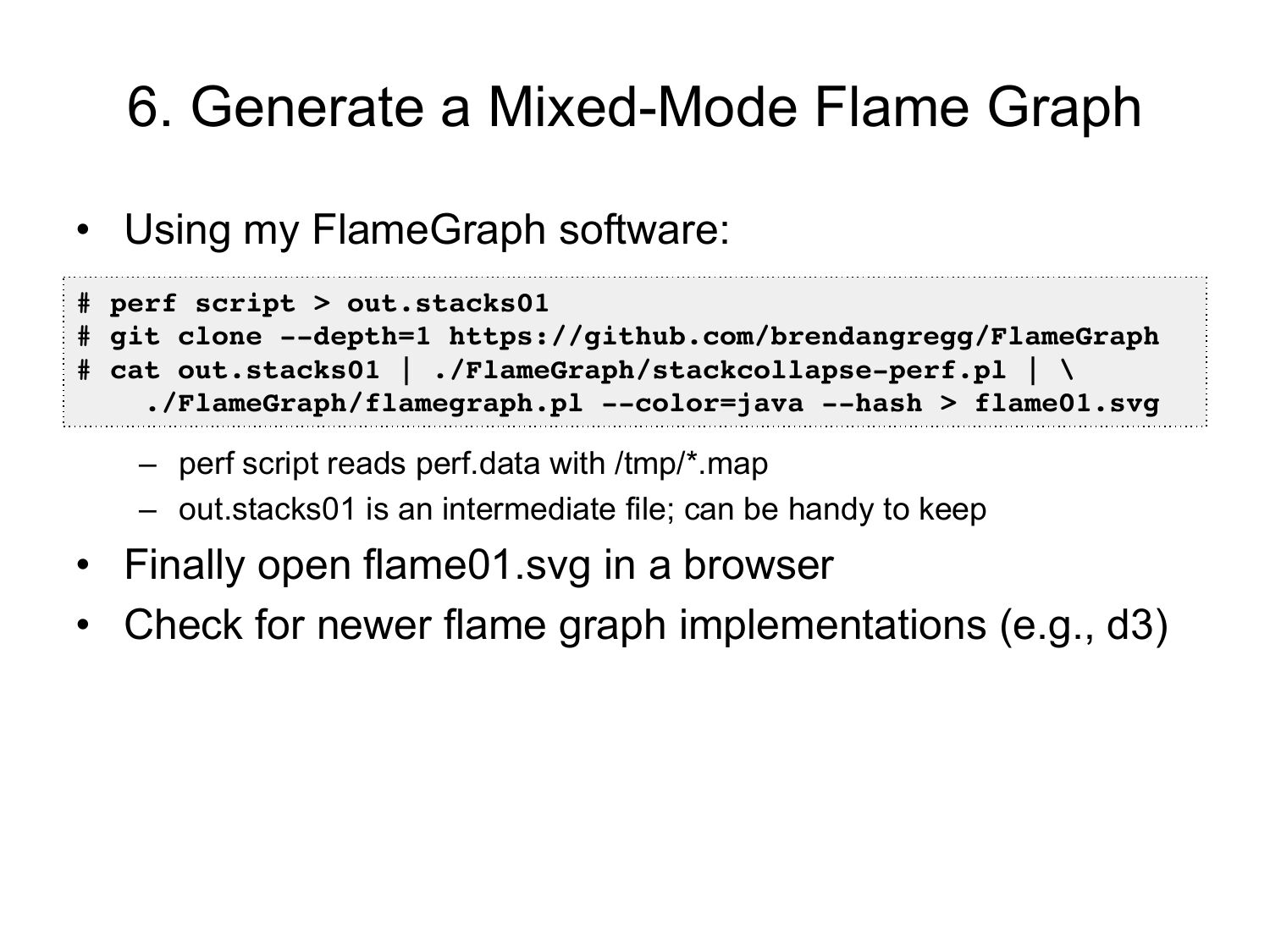

6. Generate a Mixed-Mode Flame Graph
• Using my FlameGraph software:
# perf script >gt; out.stacks01
# git clone --depth=1 https://github.com/brendangregg/FlameGraph
# cat out.stacks01 | ./FlameGraph/stackcollapse-perf.pl | \
./FlameGraph/flamegraph.pl --color=java --hash >gt; flame01.svg
– perf script reads perf.data with /tmp/*.map
– out.stacks01 is an intermediate file; can be handy to keep
• Finally open flame01.svg in a browser
• Check for newer flame graph implementations (e.g., d3)

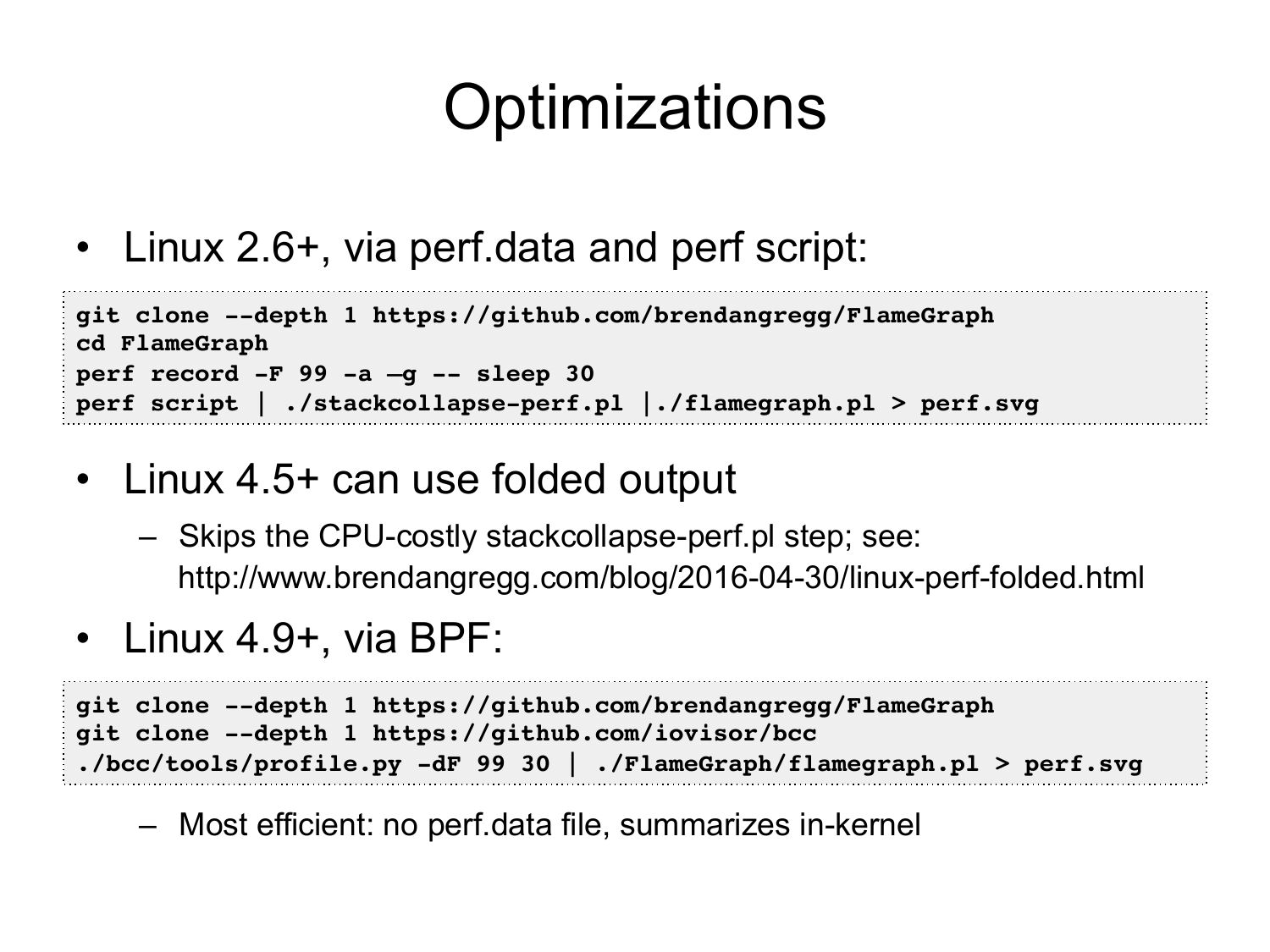

Optimizations
• Linux 2.6+, via perf.data and perf script:
git clone --depth 1 https://github.com/brendangregg/FlameGraph
cd FlameGraph
perf record -F 99 -a –g -- sleep 30
perf script | ./stackcollapse-perf.pl |./flamegraph.pl >gt; perf.svg
• Linux 4.5+ can use folded output
– Skips the CPU-costly stackcollapse-perf.pl step; see:
http://www.brendangregg.com/blog/2016-04-30/linux-perf-folded.html
• Linux 4.9+, via BPF:
git clone --depth 1 https://github.com/brendangregg/FlameGraph
git clone --depth 1 https://github.com/iovisor/bcc
./bcc/tools/profile.py -dF 99 30 | ./FlameGraph/flamegraph.pl >gt; perf.svg
– Most efficient: no perf.data file, summarizes in-kernel

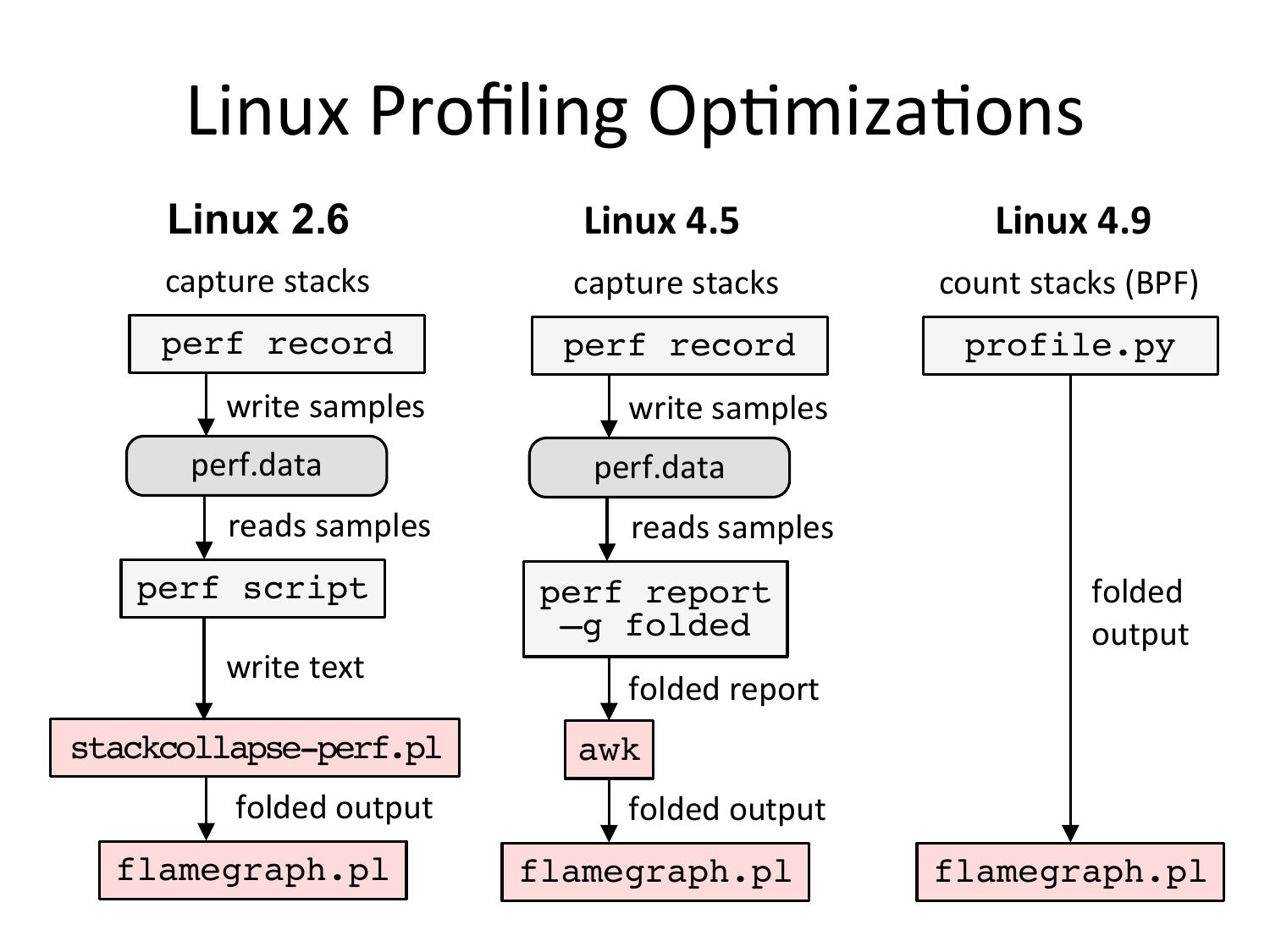

Linux Profiling OpJmizaJons
Linux 2.6
Linux 4.5
Linux 4.9
capture stacks
capture stacks
count stacks (BPF)
perf record
perf record
profile.py
write samples
perf.data
reads samples
perf script
write text
stackcollapse-perf.pl
folded output
flamegraph.pl
write samples
perf.data
reads samples
perf report
–g folded
folded
output
folded report
awk
folded output
flamegraph.pl
flamegraph.pl

Automation

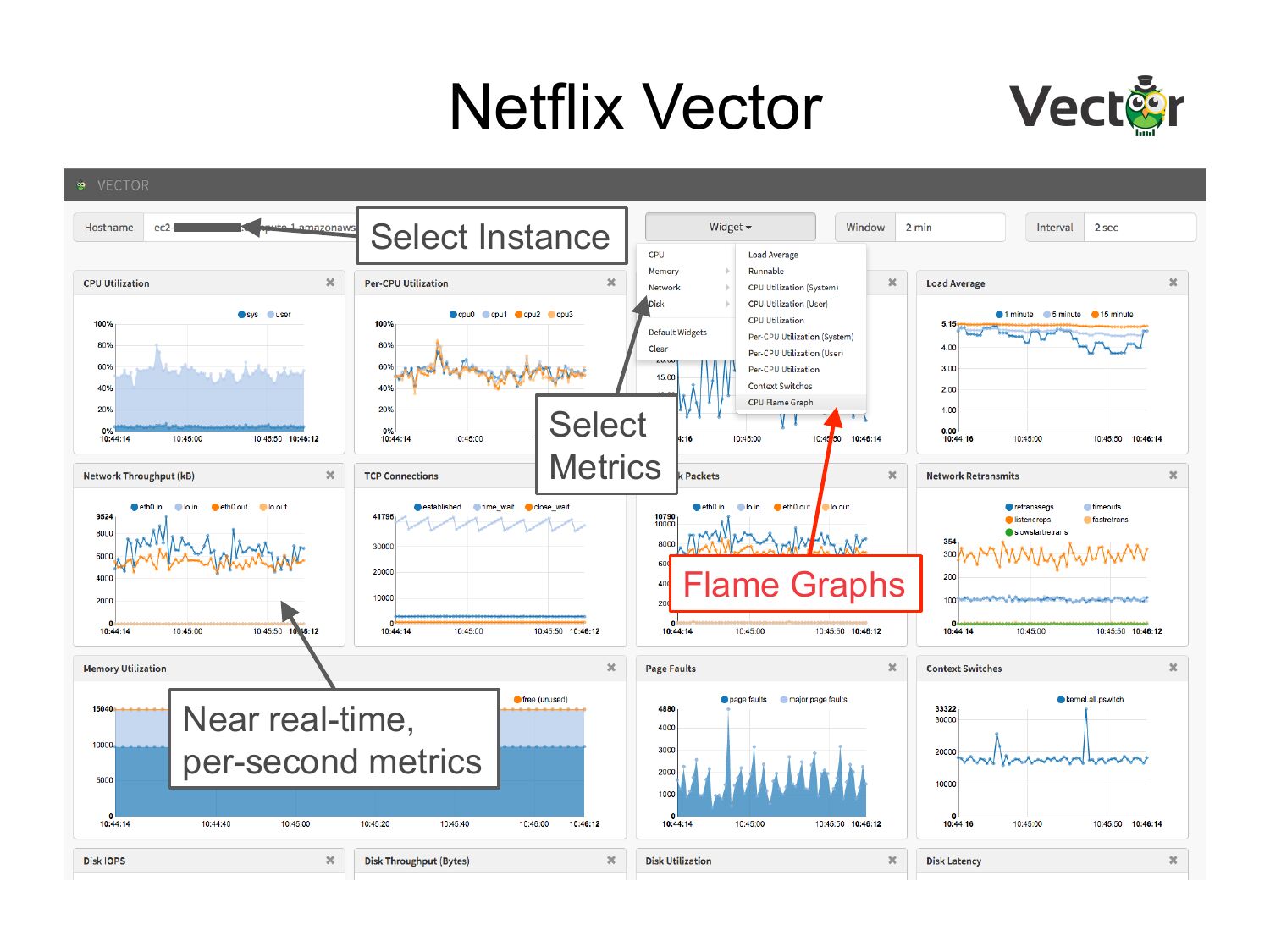

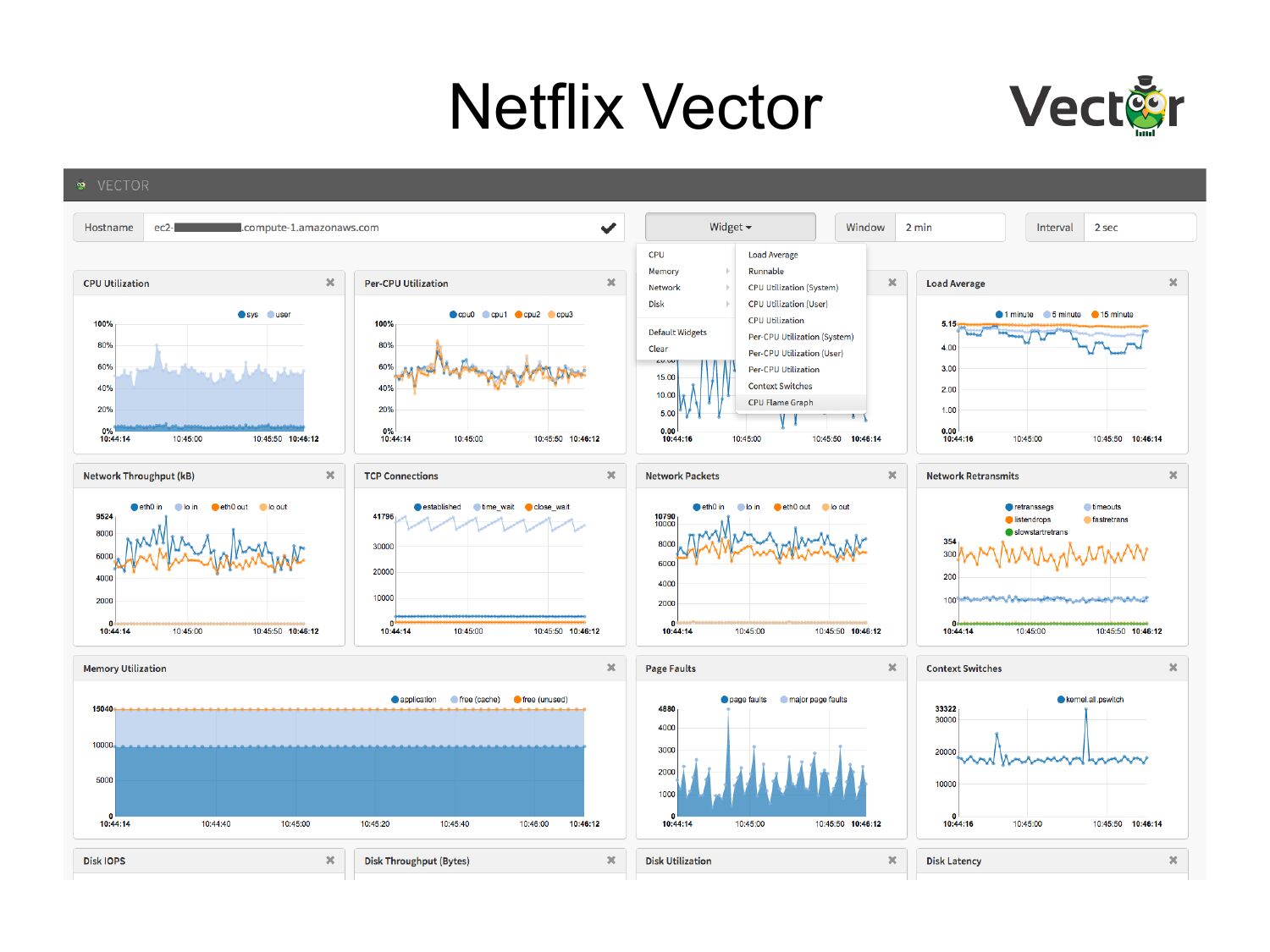

Netflix Vector

Netflix Vector
Select Instance
Select
Metrics
Flame Graphs
Near real-time,
per-second metrics

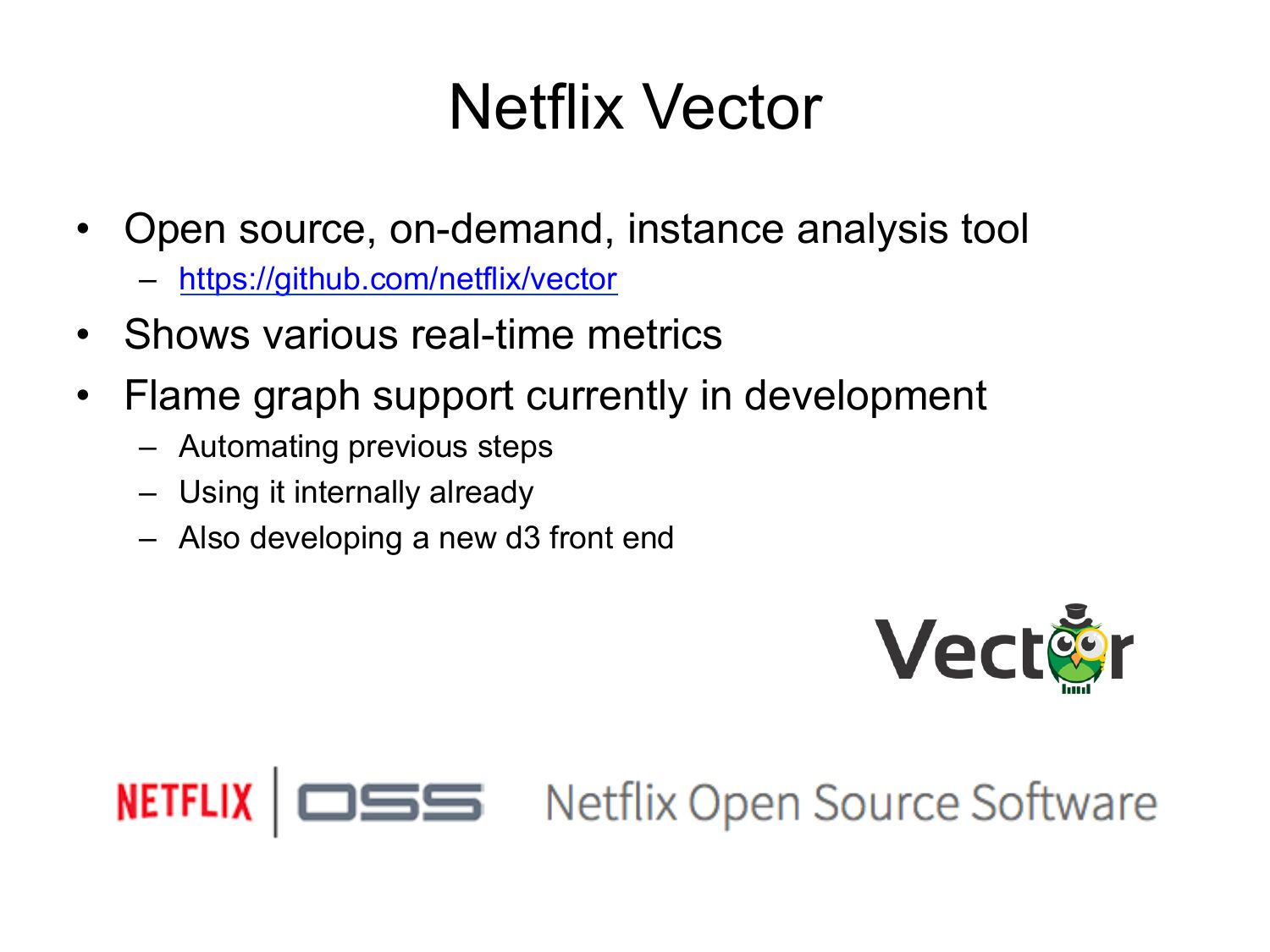

Netflix Vector
• Open source, on-demand, instance analysis tool
– https://github.com/netflix/vector
• Shows various real-time metrics
• Flame graph support currently in development
– Automating previous steps
– Using it internally already
– Also developing a new d3 front end

Advanced Analysis

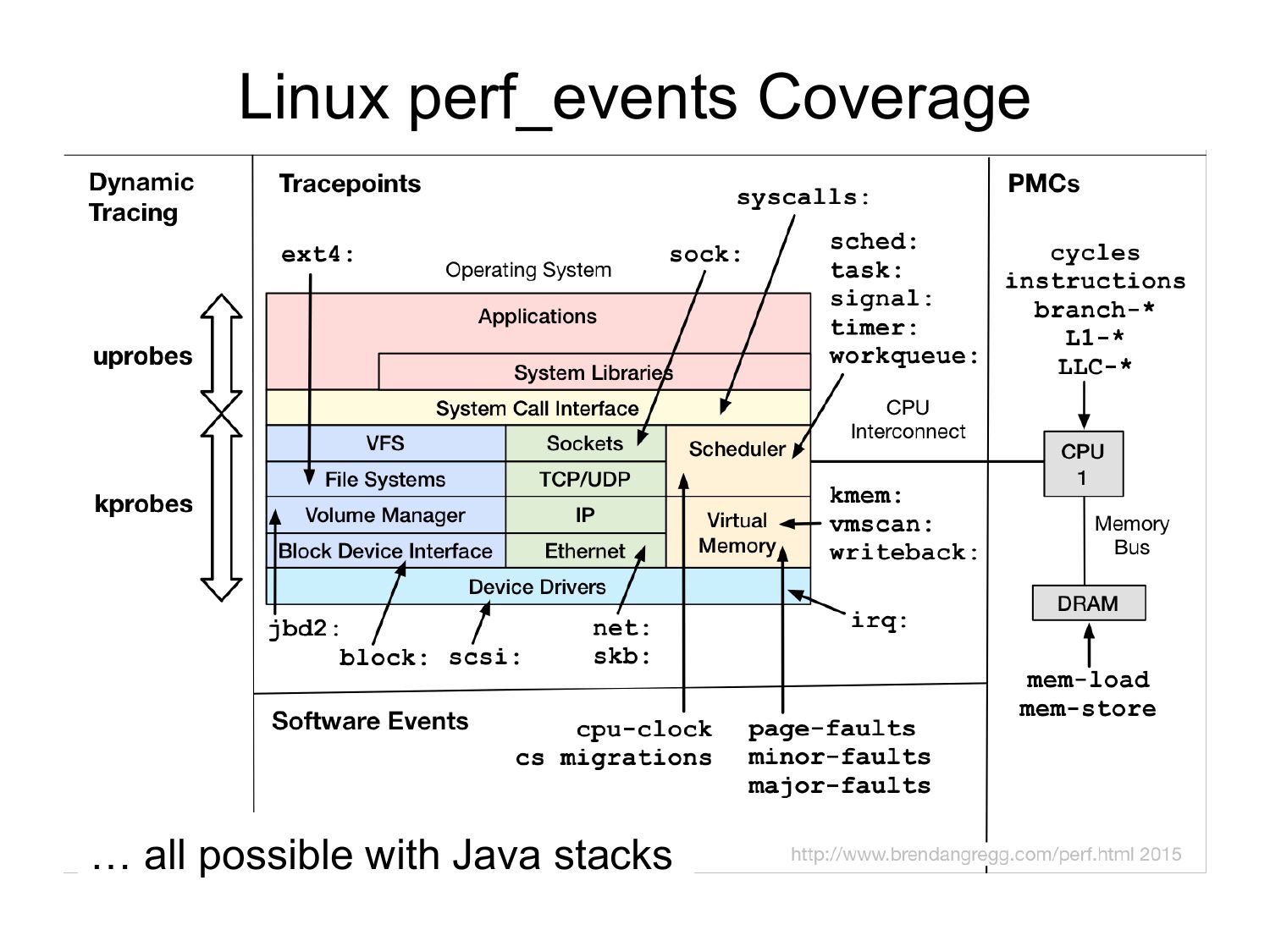

Linux perf_events Coverage
… all possible with Java stacks

Advanced Flame Graphs
• Any event can be flame graphed, provided it is issued in
synchronous Java context
– Java thread still on-CPU, and event is directly triggered
– On-CPU Java context is valid
• Synchronous examples:
– Disk I/O requests issued directly by Java à yes
• direct reads, sync writes, page faults
– Disk I/O completion interrupts à no*
– Disk I/O requests triggered async, e.g., readahead à no*
* can be made yes by tracing and associating context

Page Faults
• Show what triggered main memory (resident) to grow:
# perf record -e page-faults -p PID -g -- sleep 120
• "fault" as (physical) main memory is allocated ondemand, when a virtual page is first populated
• Low overhead tool to solve some types of memory leak
RES column in top(1)
grows
because

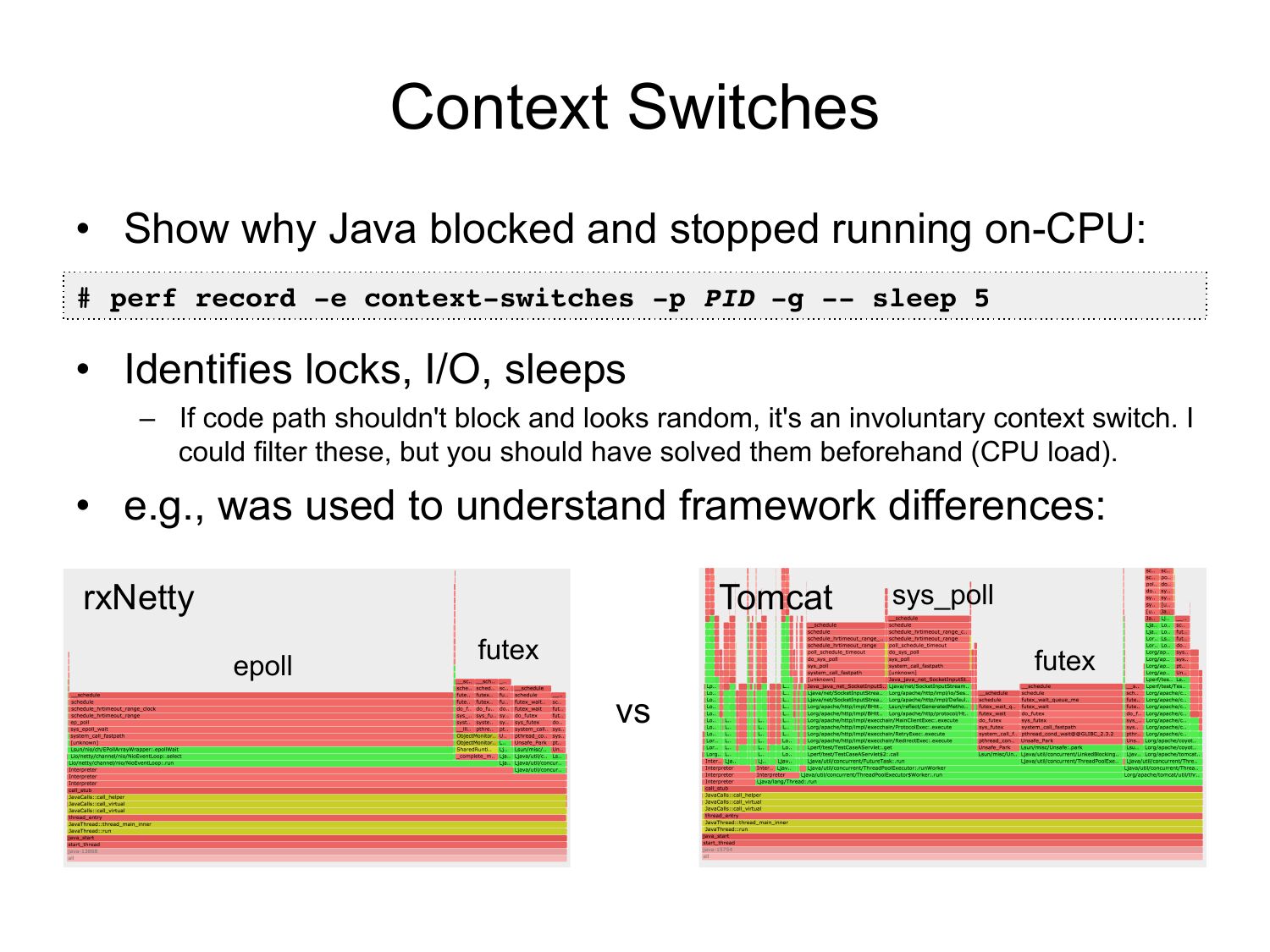

Context Switches
• Show why Java blocked and stopped running on-CPU:
# perf record -e context-switches -p PID -g -- sleep 5
• Identifies locks, I/O, sleeps
– If code path shouldn't block and looks random, it's an involuntary context switch. I
could filter these, but you should have solved them beforehand (CPU load).
• e.g., was used to understand framework differences:
rxNetty
Tomcat
epoll
futex
sys_poll
futex

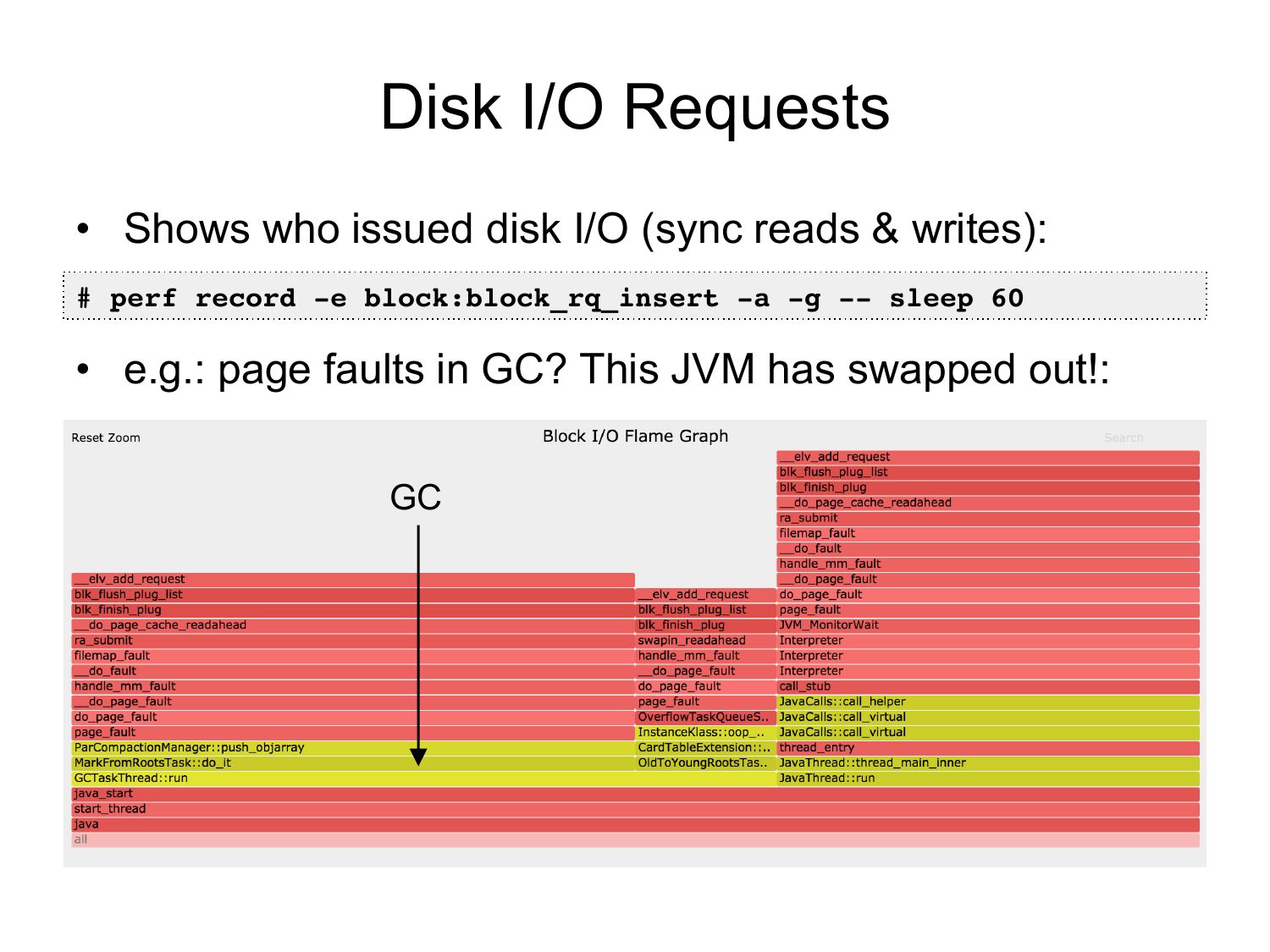

Disk I/O Requests
• Shows who issued disk I/O (sync reads & writes):
# perf record -e block:block_rq_insert -a -g -- sleep 60
• e.g.: page faults in GC? This JVM has swapped out!:

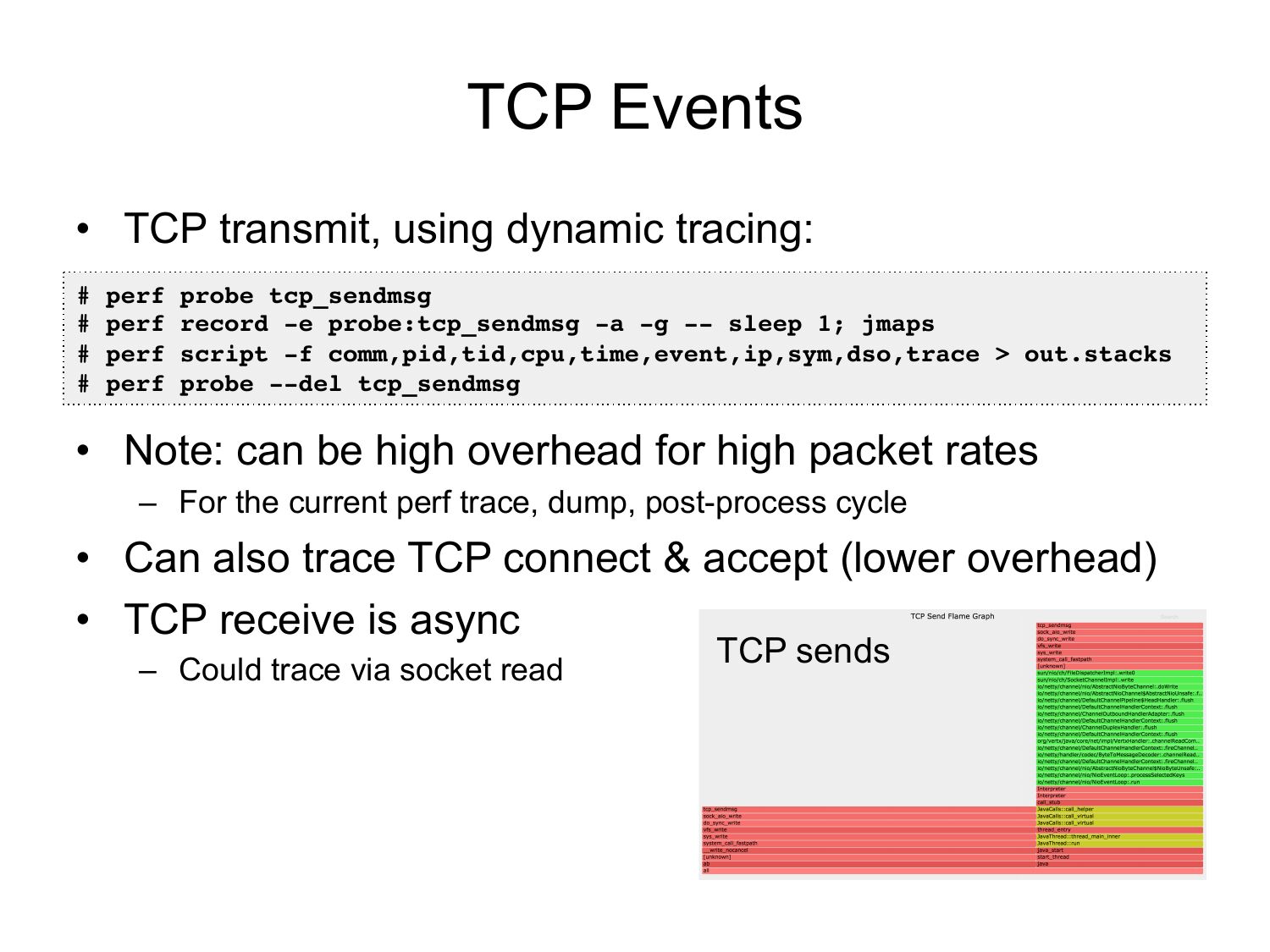

TCP Events
• TCP transmit, using dynamic tracing:
# perf probe tcp_sendmsg
# perf record -e probe:tcp_sendmsg -a -g -- sleep 1; jmaps
# perf script -f comm,pid,tid,cpu,time,event,ip,sym,dso,trace >gt; out.stacks
# perf probe --del tcp_sendmsg
• Note: can be high overhead for high packet rates
– For the current perf trace, dump, post-process cycle
• Can also trace TCP connect & accept (lower overhead)
• TCP receive is async
– Could trace via socket read
TCP sends

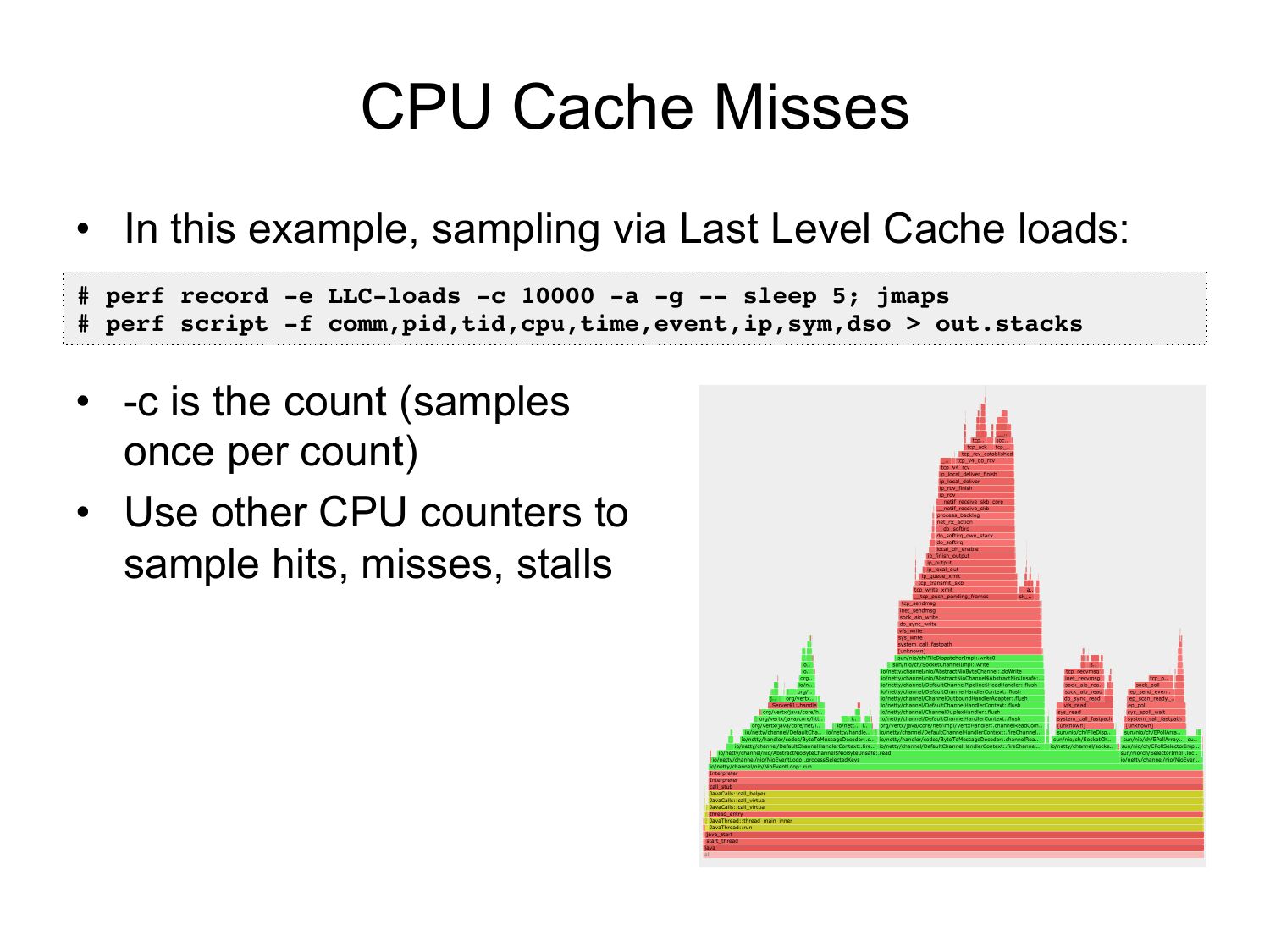

CPU Cache Misses
• In this example, sampling via Last Level Cache loads:
# perf record -e LLC-loads -c 10000 -a -g -- sleep 5; jmaps
# perf script -f comm,pid,tid,cpu,time,event,ip,sym,dso >gt; out.stacks
• -c is the count (samples
once per count)
• Use other CPU counters to
sample hits, misses, stalls

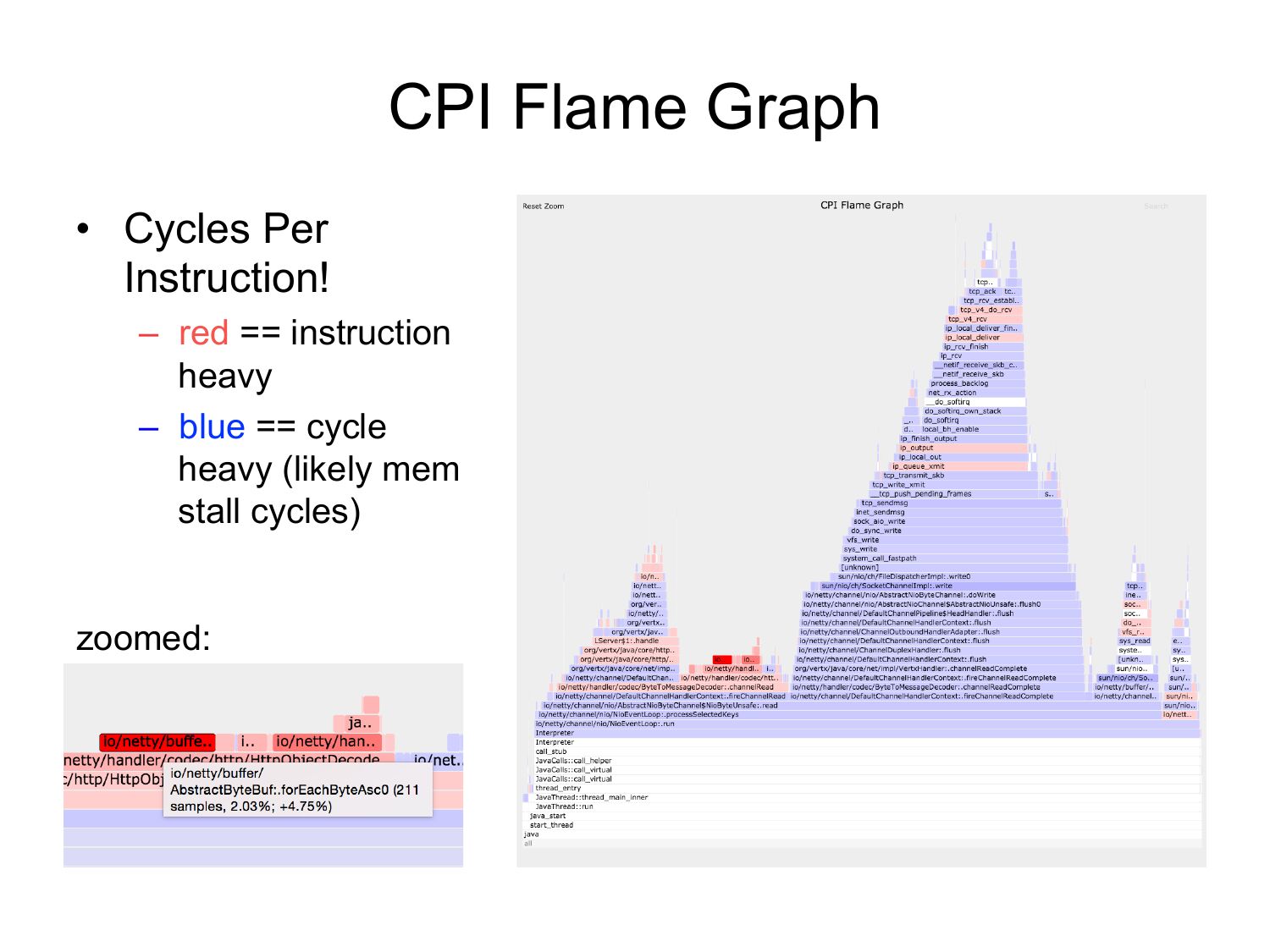

CPI Flame Graph
• Cycles Per
Instruction!
– red == instruction
heavy
– blue == cycle
heavy (likely mem
stall cycles)
zoomed:

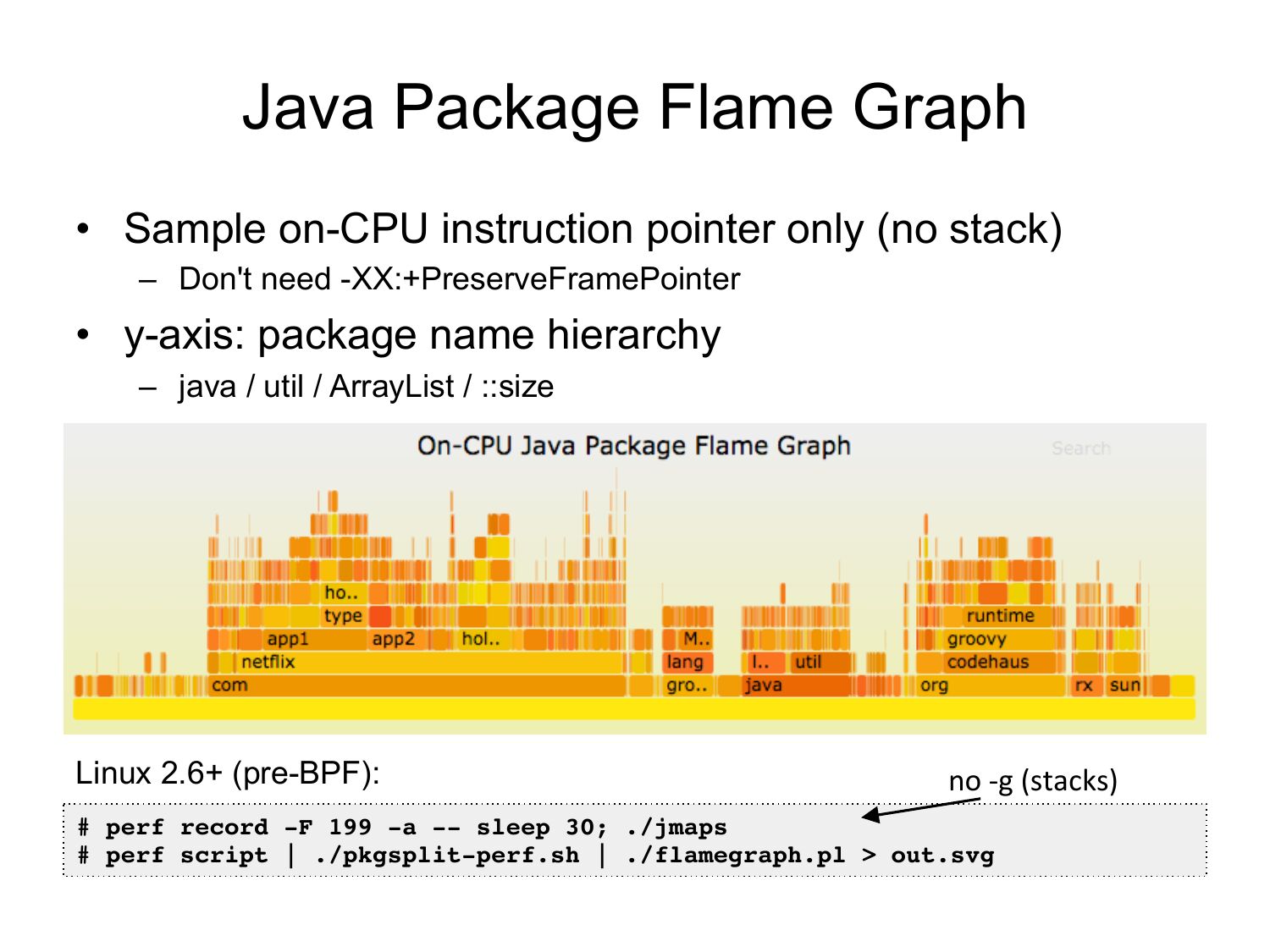

Java Package Flame Graph
• Sample on-CPU instruction pointer only (no stack)
– Don't need -XX:+PreserveFramePointer
• y-axis: package name hierarchy
– java / util / ArrayList / ::size
Linux 2.6+ (pre-BPF):
no -g (stacks)
# perf record -F 199 -a -- sleep 30; ./jmaps
# perf script | ./pkgsplit-perf.sh | ./flamegraph.pl >gt; out.svg

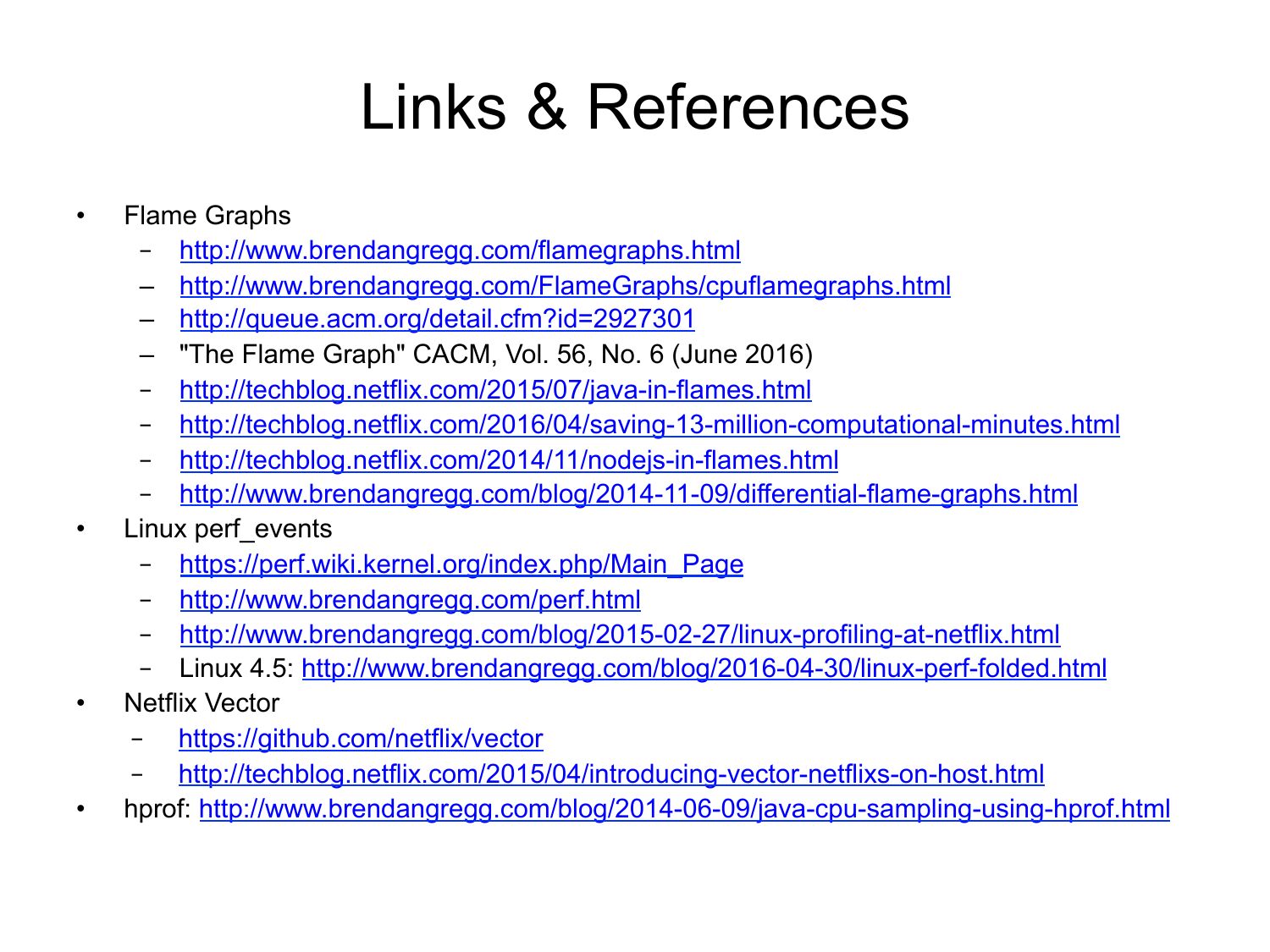

Links & References
Flame Graphs
– http://www.brendangregg.com/flamegraphs.html
– http://www.brendangregg.com/FlameGraphs/cpuflamegraphs.html
– http://queue.acm.org/detail.cfm?id=2927301
– "The Flame Graph" CACM, Vol. 56, No. 6 (June 2016)
– http://techblog.netflix.com/2015/07/java-in-flames.html
– http://techblog.netflix.com/2016/04/saving-13-million-computational-minutes.html
– http://techblog.netflix.com/2014/11/nodejs-in-flames.html
– http://www.brendangregg.com/blog/2014-11-09/differential-flame-graphs.html
Linux perf_events
– https://perf.wiki.kernel.org/index.php/Main_Page
– http://www.brendangregg.com/perf.html
– http://www.brendangregg.com/blog/2015-02-27/linux-profiling-at-netflix.html
– Linux 4.5: http://www.brendangregg.com/blog/2016-04-30/linux-perf-folded.html
Netflix Vector
– https://github.com/netflix/vector
– http://techblog.netflix.com/2015/04/introducing-vector-netflixs-on-host.html
hprof: http://www.brendangregg.com/blog/2014-06-09/java-cpu-sampling-using-hprof.html

Sep 2016
Thanks
Questions?
http://techblog.netflix.com
http://slideshare.net/brendangregg
http://www.brendangregg.com
bgregg@netflix.com
@brendangregg
