Case Study: ZFS is ea/ng my CPU
• Easy to debug using Ne9lix Vector & flame graphs
• How I expected it to look:

Case Study: ZFS is ea/ng my CPU (cont.)
• How it really looked:
Applica/on (truncated)
38% kernel /me (why?)

Case Study: ZFS is ea/ng my CPU (cont.)
Zoomed:
• ZFS ARC (adap/ve replacement cache) reclaim.
• But… ZFS is not in use. No pools, datasets, or ARC buffers.
• CPU /me is in random entropy, picking which (empty) list to evict.
Bug: hUps://github.com/zfsonlinux/zfs/issues/6531

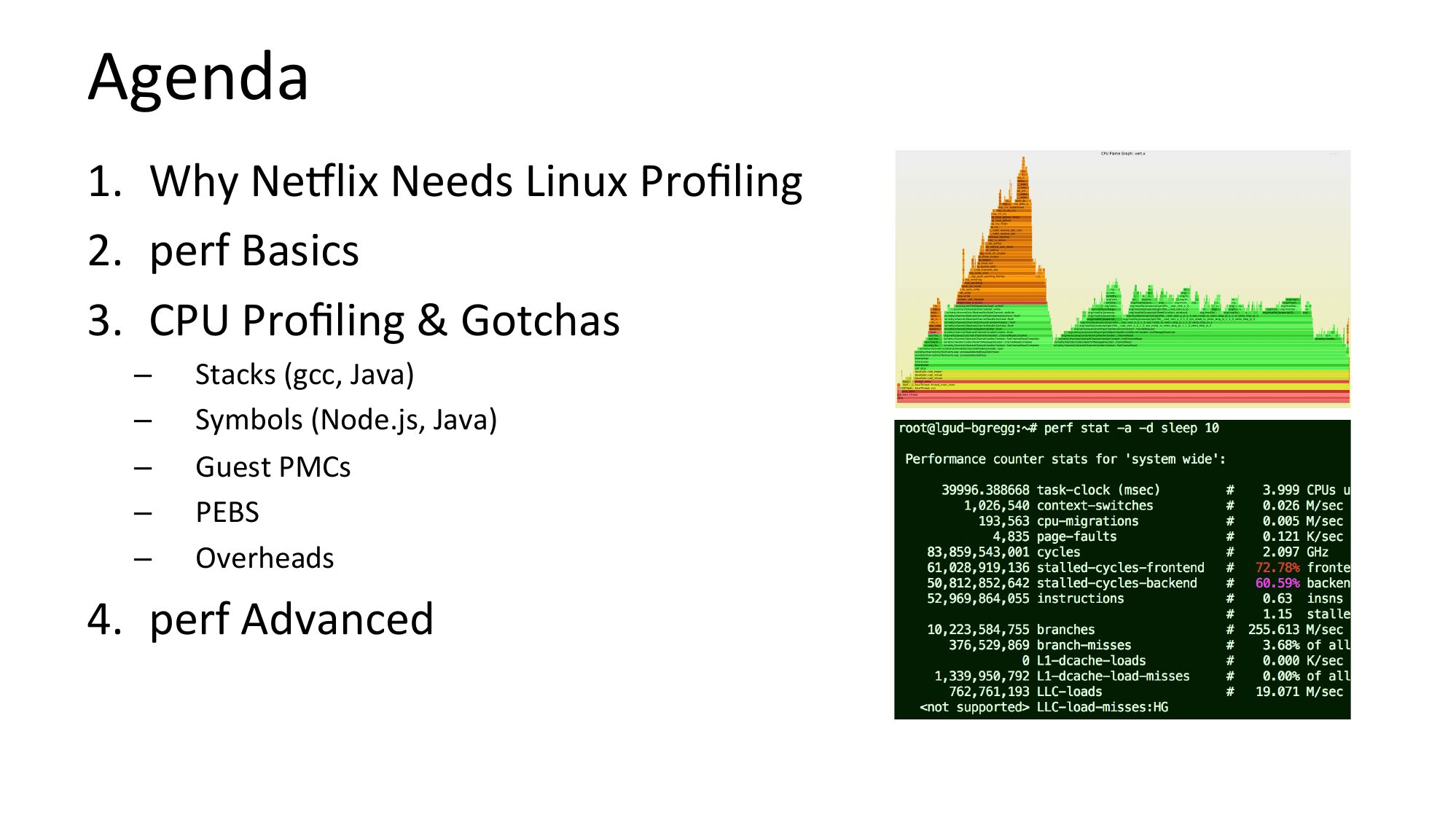

Agenda
1. Why Ne9lix Needs Linux Profiling
2. perf Basics
3. CPU Profiling & Gotchas
Stacks (gcc, Java)
Symbols (Node.js, Java)

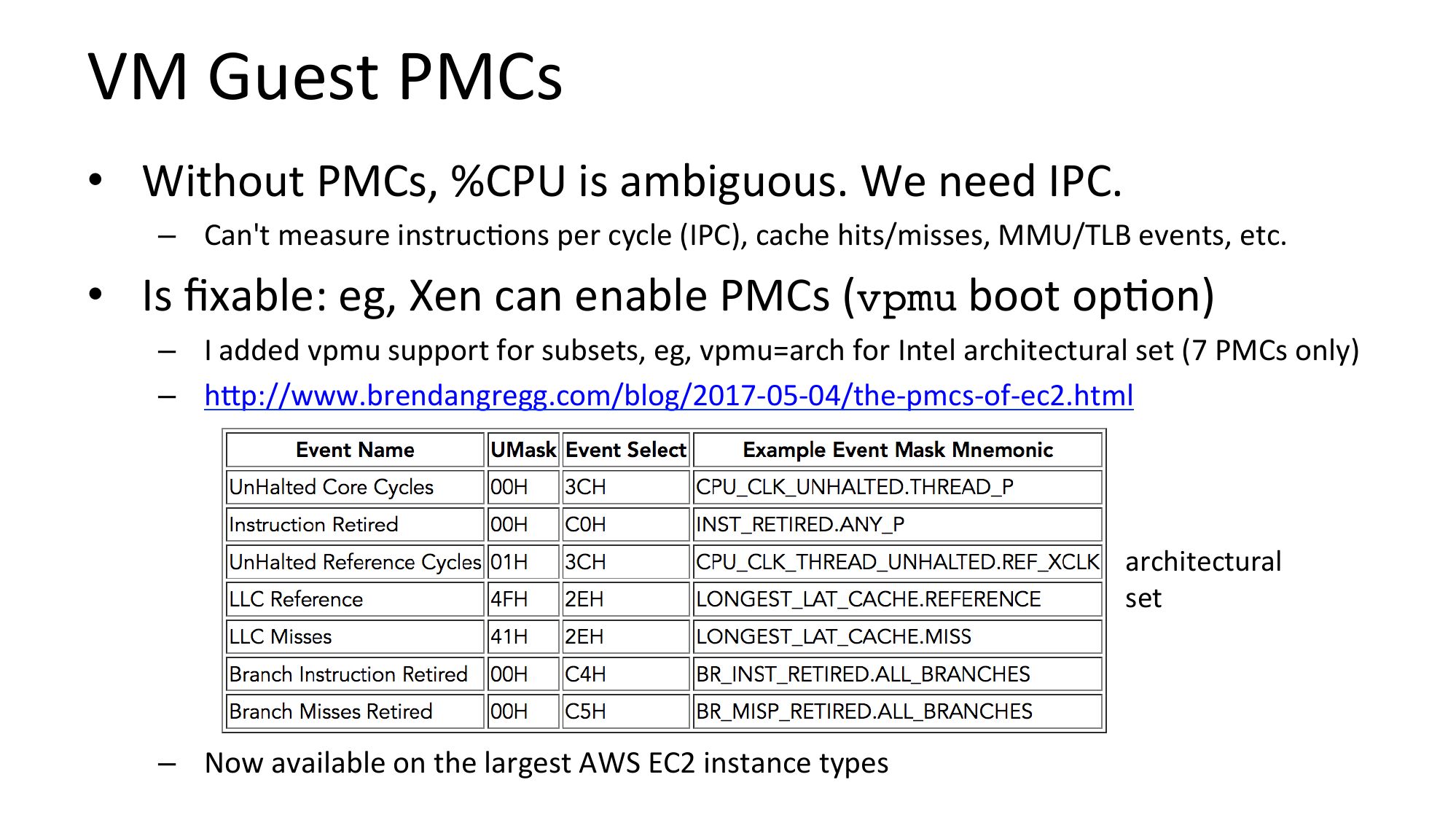

Guest PMCs
PEBS
Overheads

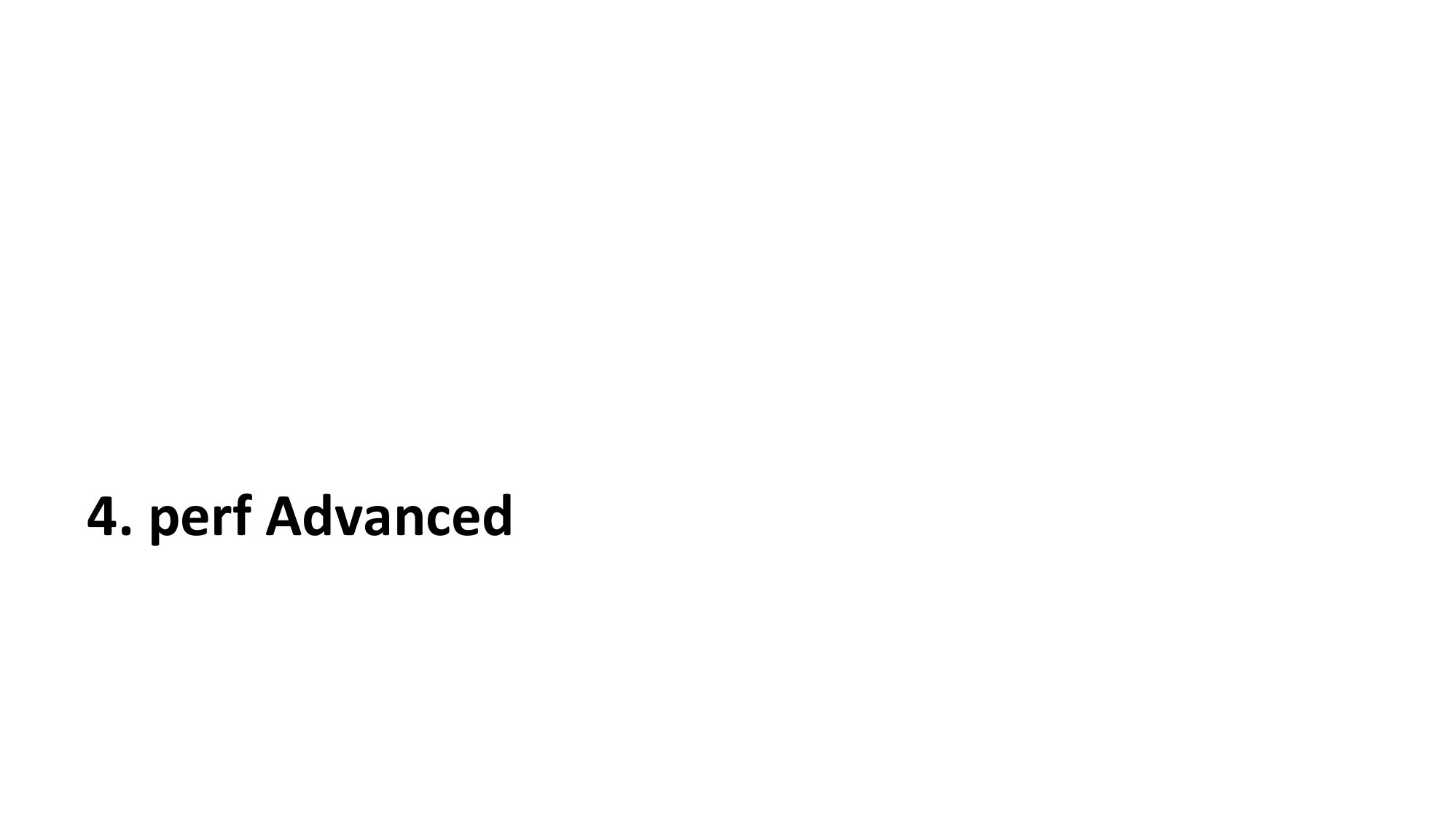

4. perf Advanced

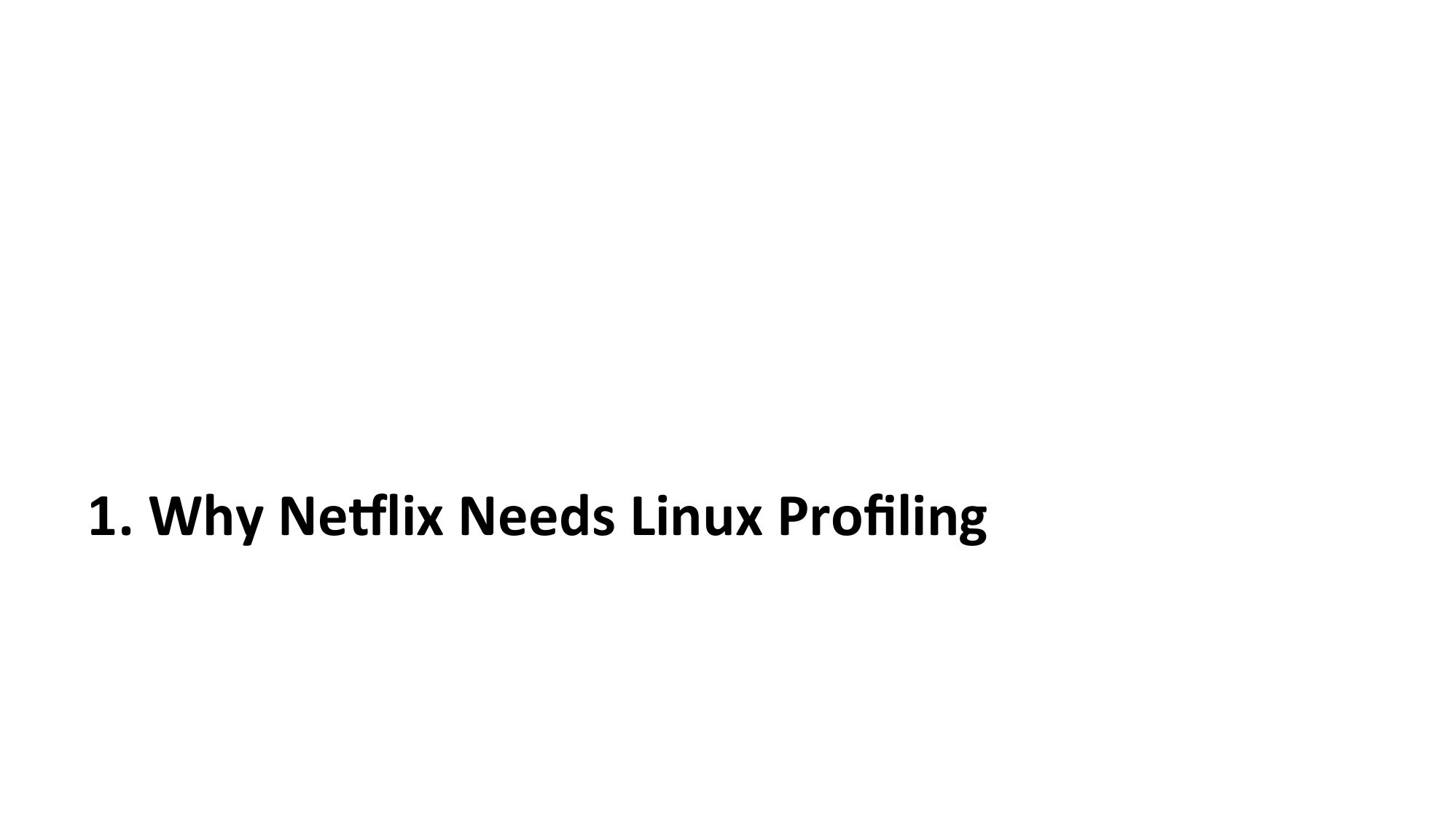

1. Why Ne)lix Needs Linux Profiling

Understand CPU usage quickly and completely

Quickly

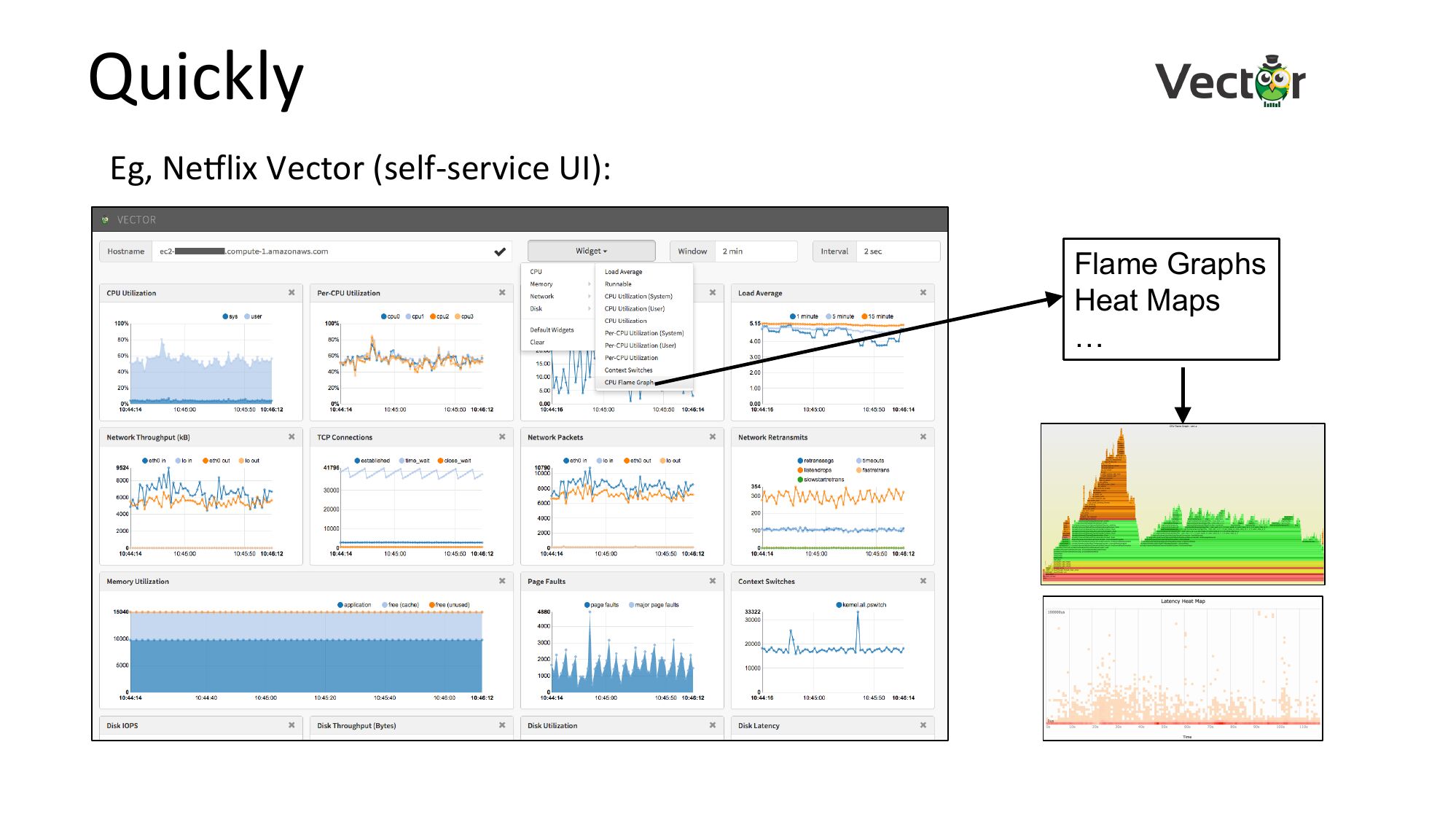

Eg, Ne9lix Vector (self-service UI):
Flame Graphs
Heat Maps

Completely

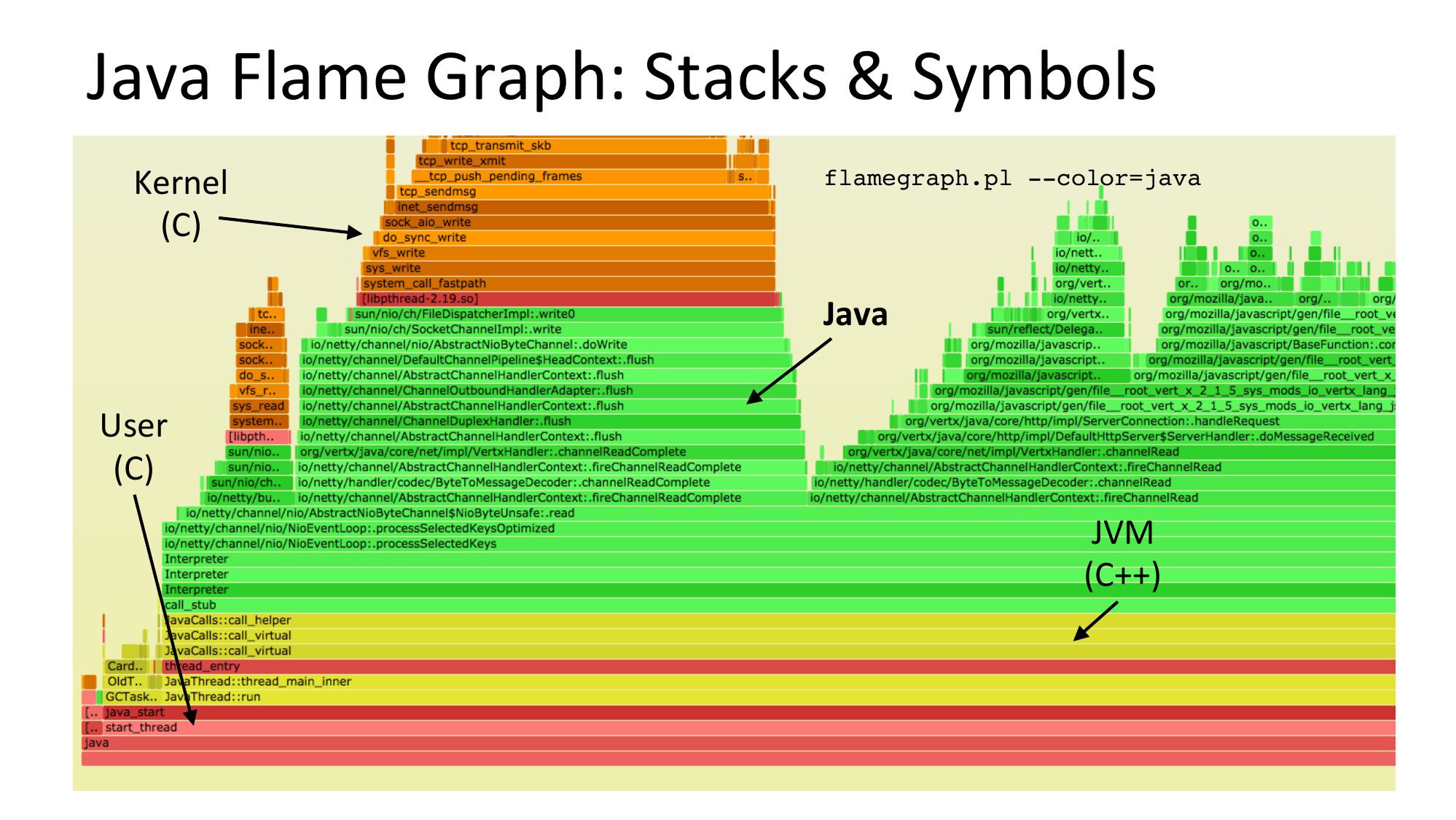

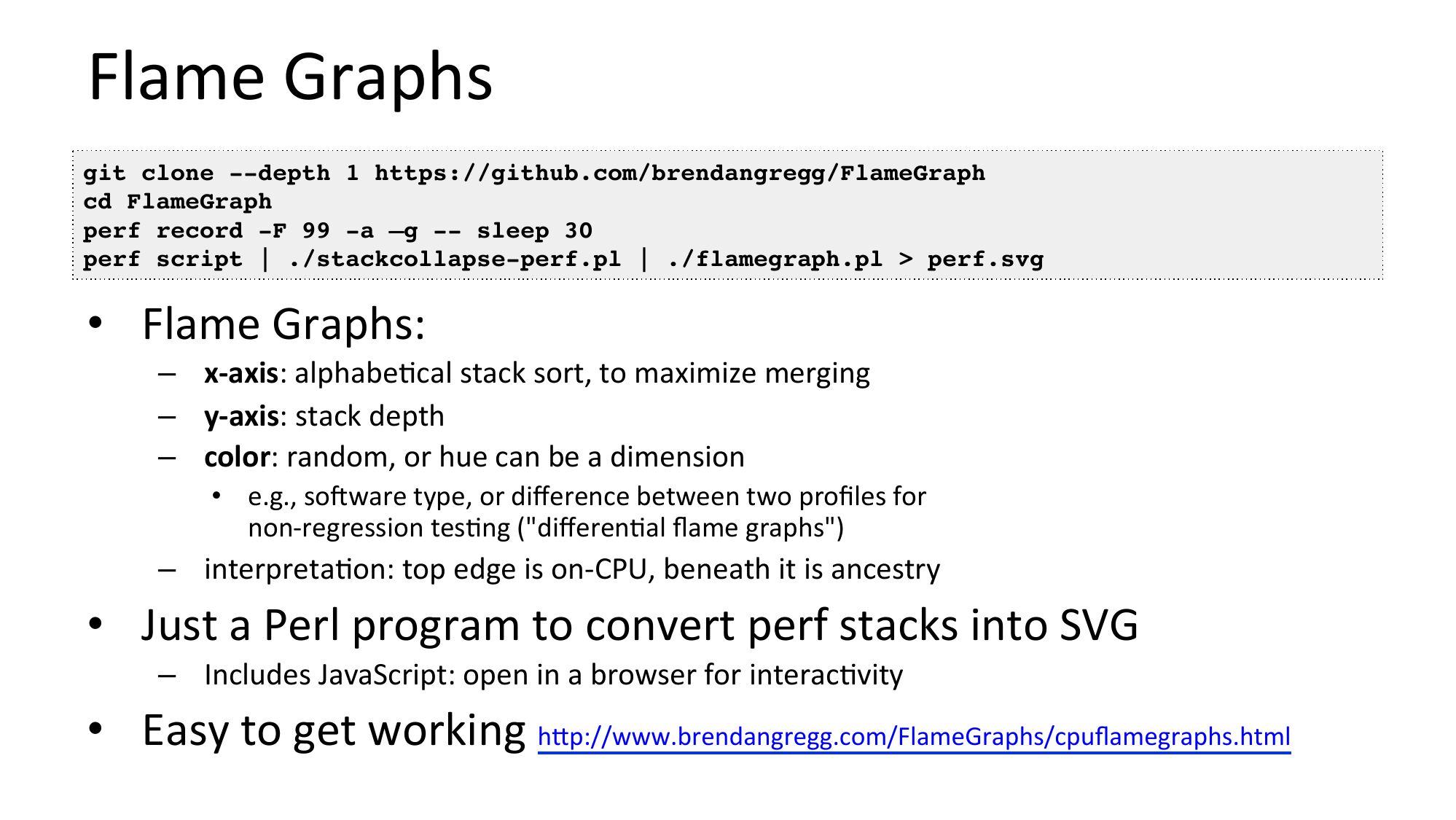

CPU Flame Graph
Kernel
(C)
User
(C)
JVM
(C++)
Java

Why Linux perf?
• Available
– Linux, open source
• Low overhead
– Tunable sampling, ring buffers
• Accurate
– Applica/on-basic samplers don't know what's really RUNNING; eg, Java and epoll
• No blind spots
– See user, library, kernel with CPU sampling
– With some work: hardirqs & SMI as well
• No sample skew
– Unlike Java safety point skew

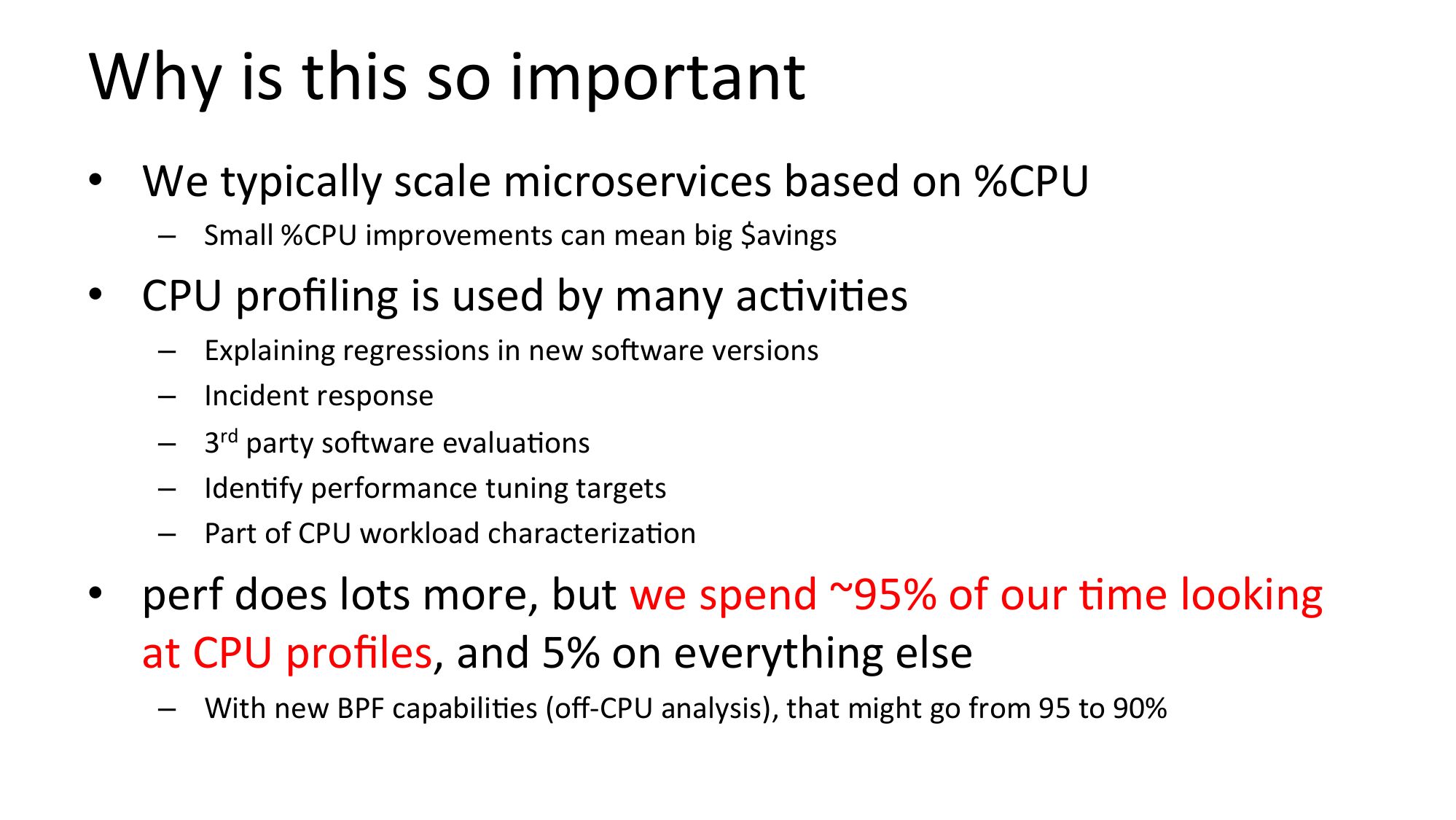

Why is this so important
• We typically scale microservices based on %CPU
– Small %CPU improvements can mean big $avings
• CPU profiling is used by many ac/vi/es
Explaining regressions in new sooware versions
Incident response
3rd party sooware evalua/ons
Iden/fy performance tuning targets
Part of CPU workload characteriza/on
• perf does lots more, but we spend ~95% of our /me looking
at CPU profiles, and 5% on everything else
– With new BPF capabili/es (off-CPU analysis), that might go from 95 to 90%

CPU profiling should be easy, but…
JIT runtimes
no frame pointers
no debuginfo
stale symbol maps
container namespaces

2. perf Basics

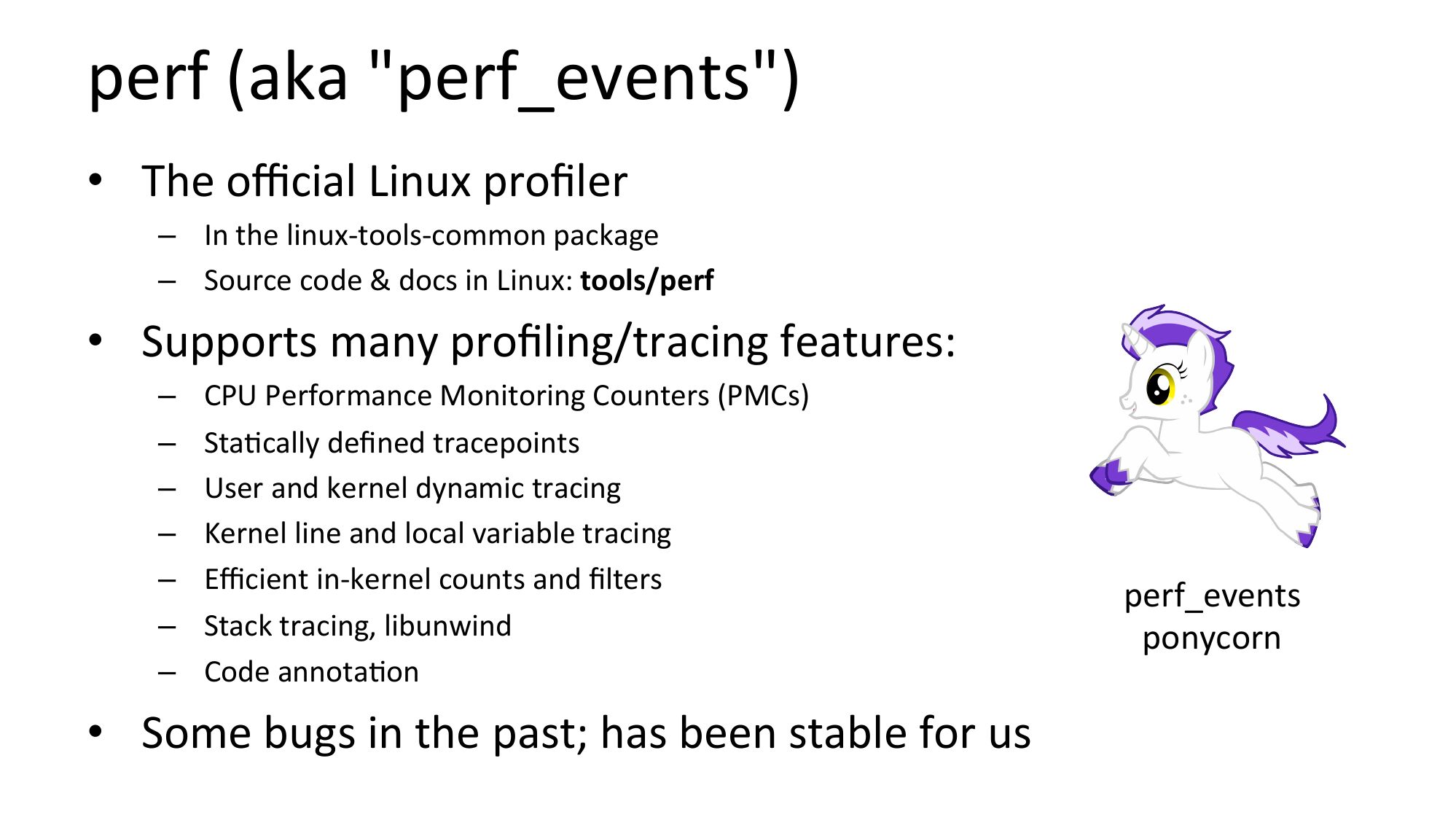

perf (aka "perf_events")
• The official Linux profiler
– In the linux-tools-common package
– Source code & docs in Linux: tools/perf
• Supports many profiling/tracing features:
CPU Performance Monitoring Counters (PMCs)
Sta/cally defined tracepoints
User and kernel dynamic tracing
Kernel line and local variable tracing
Efficient in-kernel counts and filters
Stack tracing, libunwind
Code annota/on
• Some bugs in the past; has been stable for us
perf_events
ponycorn

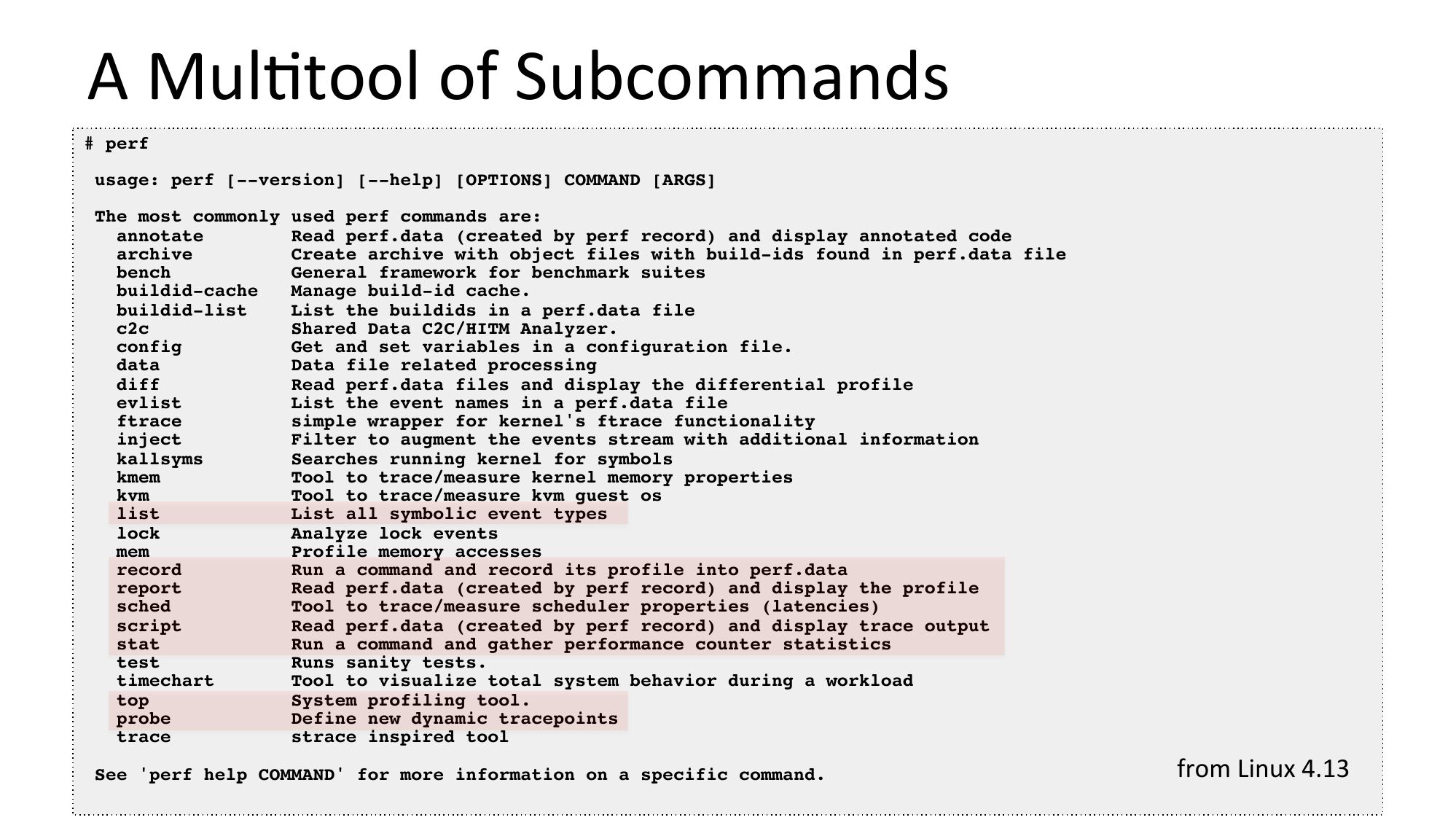

A Mul/tool of Subcommands
# perf
usage: perf [--version] [--help] [OPTIONS] COMMAND [ARGS]
The most commonly used perf commands are:
annotate
Read perf.data (created by perf record) and display annotated code
archive
Create archive with object files with build-ids found in perf.data file
bench
General framework for benchmark suites
buildid-cache
Manage build-id cache.
buildid-list
List the buildids in a perf.data file
c2c
Shared Data C2C/HITM Analyzer.
config
Get and set variables in a configuration file.
data
Data file related processing
diff
Read perf.data files and display the differential profile
evlist
List the event names in a perf.data file
ftrace
simple wrapper for kernel's ftrace functionality
inject
Filter to augment the events stream with additional information
kallsyms
Searches running kernel for symbols
kmem
Tool to trace/measure kernel memory properties
kvm
Tool to trace/measure kvm guest os
list
List all symbolic event types
lock
Analyze lock events
mem
Profile memory accesses
record
Run a command and record its profile into perf.data
report
Read perf.data (created by perf record) and display the profile
sched
Tool to trace/measure scheduler properties (latencies)
script
Read perf.data (created by perf record) and display trace output
stat
Run a command and gather performance counter statistics
test
Runs sanity tests.
timechart
Tool to visualize total system behavior during a workload
top
System profiling tool.
probe
Define new dynamic tracepoints
trace
strace inspired tool
See 'perf help COMMAND' for more information on a specific command.
from Linux 4.13

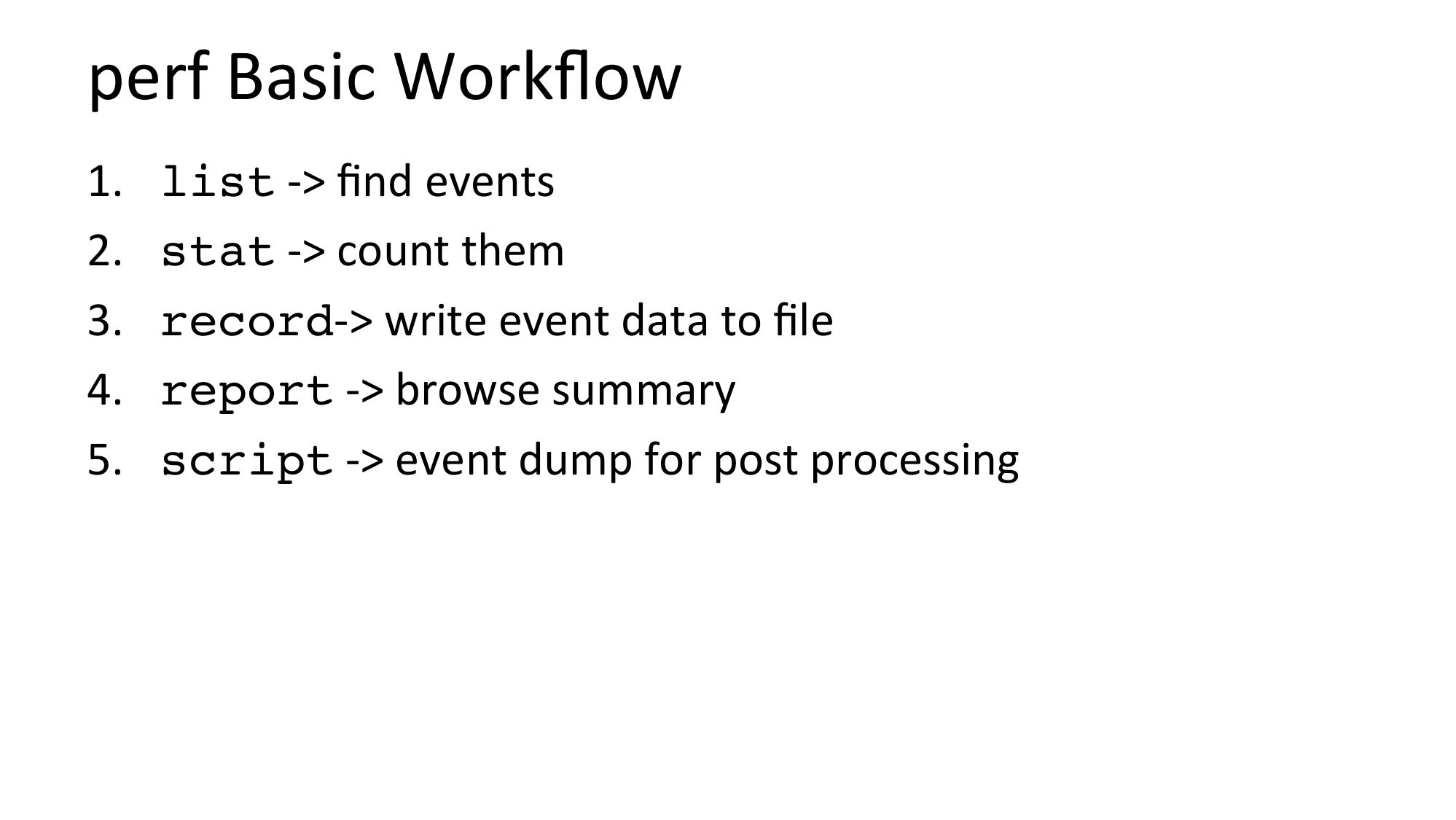

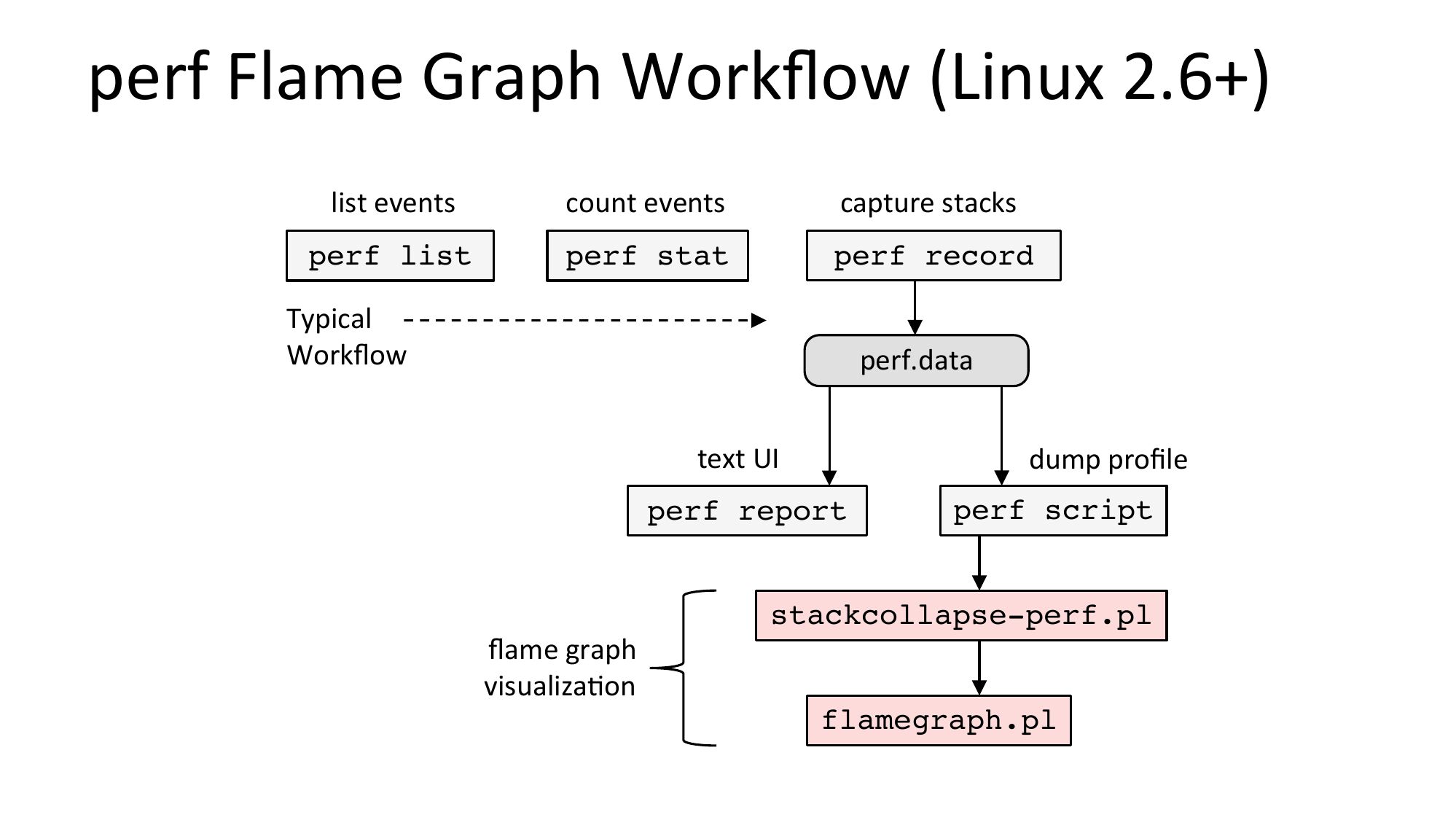

perf Basic Workflow
list ->gt; find events
stat ->gt; count them
record->gt; write event data to file
report ->gt; browse summary
script ->gt; event dump for post processing

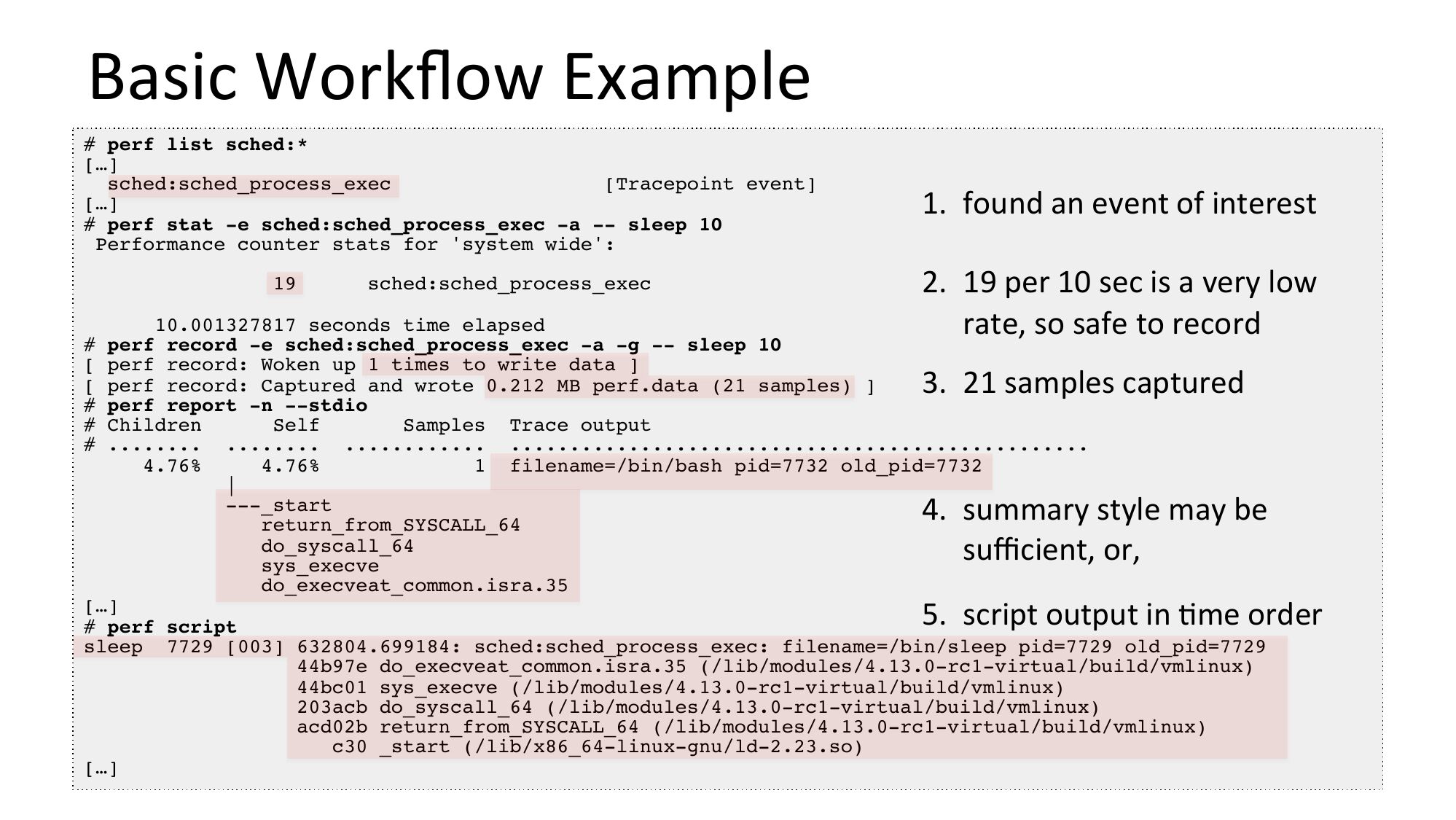

Basic Workflow Example
# perf list sched:*
[…]
sched:sched_process_exec
[Tracepoint event]
[…]
# perf stat -e sched:sched_process_exec -a -- sleep 10
Performance counter stats for 'system wide':
sched:sched_process_exec
1. found an event of interest
2. 19 per 10 sec is a very low
rate, so safe to record
10.001327817 seconds time elapsed
# perf record -e sched:sched_process_exec -a -g -- sleep 10
[ perf record: Woken up 1 times to write data ]
[ perf record: Captured and wrote 0.212 MB perf.data (21 samples) ]
# perf report -n --stdio
# Children
Self
Samples Trace output
# ........ ........ ............ .................................................
4.76%
4.76%
1 filename=/bin/bash pid=7732 old_pid=7732
---_start
return_from_SYSCALL_64
do_syscall_64
sys_execve
do_execveat_common.isra.35
[…]
# perf script
sleep 7729 [003] 632804.699184: sched:sched_process_exec: filename=/bin/sleep pid=7729 old_pid=7729
44b97e do_execveat_common.isra.35 (/lib/modules/4.13.0-rc1-virtual/build/vmlinux)
44bc01 sys_execve (/lib/modules/4.13.0-rc1-virtual/build/vmlinux)
203acb do_syscall_64 (/lib/modules/4.13.0-rc1-virtual/build/vmlinux)
acd02b return_from_SYSCALL_64 (/lib/modules/4.13.0-rc1-virtual/build/vmlinux)
c30 _start (/lib/x86_64-linux-gnu/ld-2.23.so)
[…]
3. 21 samples captured
4. summary style may be
sufficient, or,
5. script output in /me order

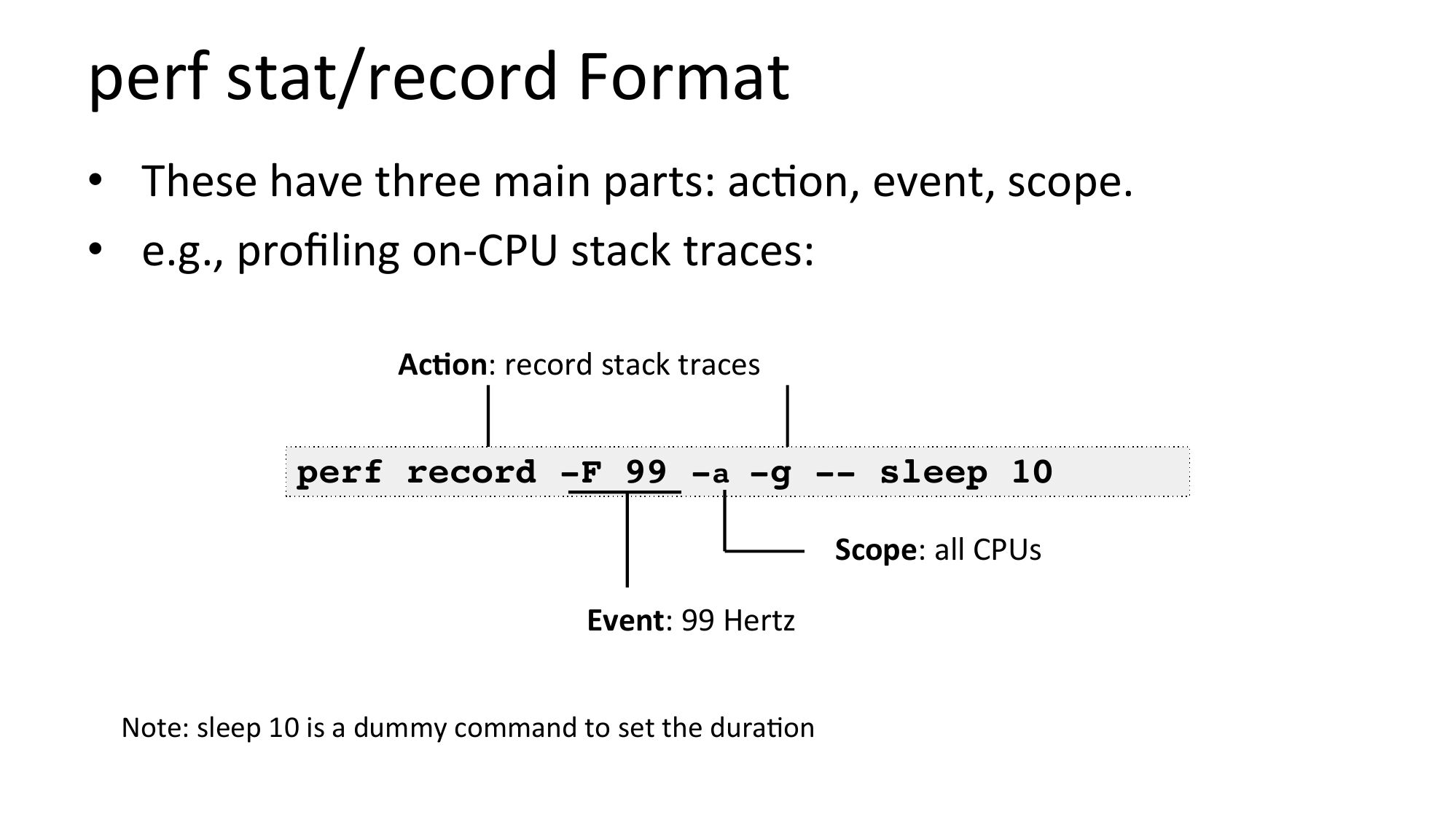

perf stat/record Format
• These have three main parts: ac/on, event, scope.
• e.g., profiling on-CPU stack traces:
AcCon: record stack traces
perf record -F 99 -a -g -- sleep 10
Scope: all CPUs
Event: 99 Hertz
Note: sleep 10 is a dummy command to set the dura/on

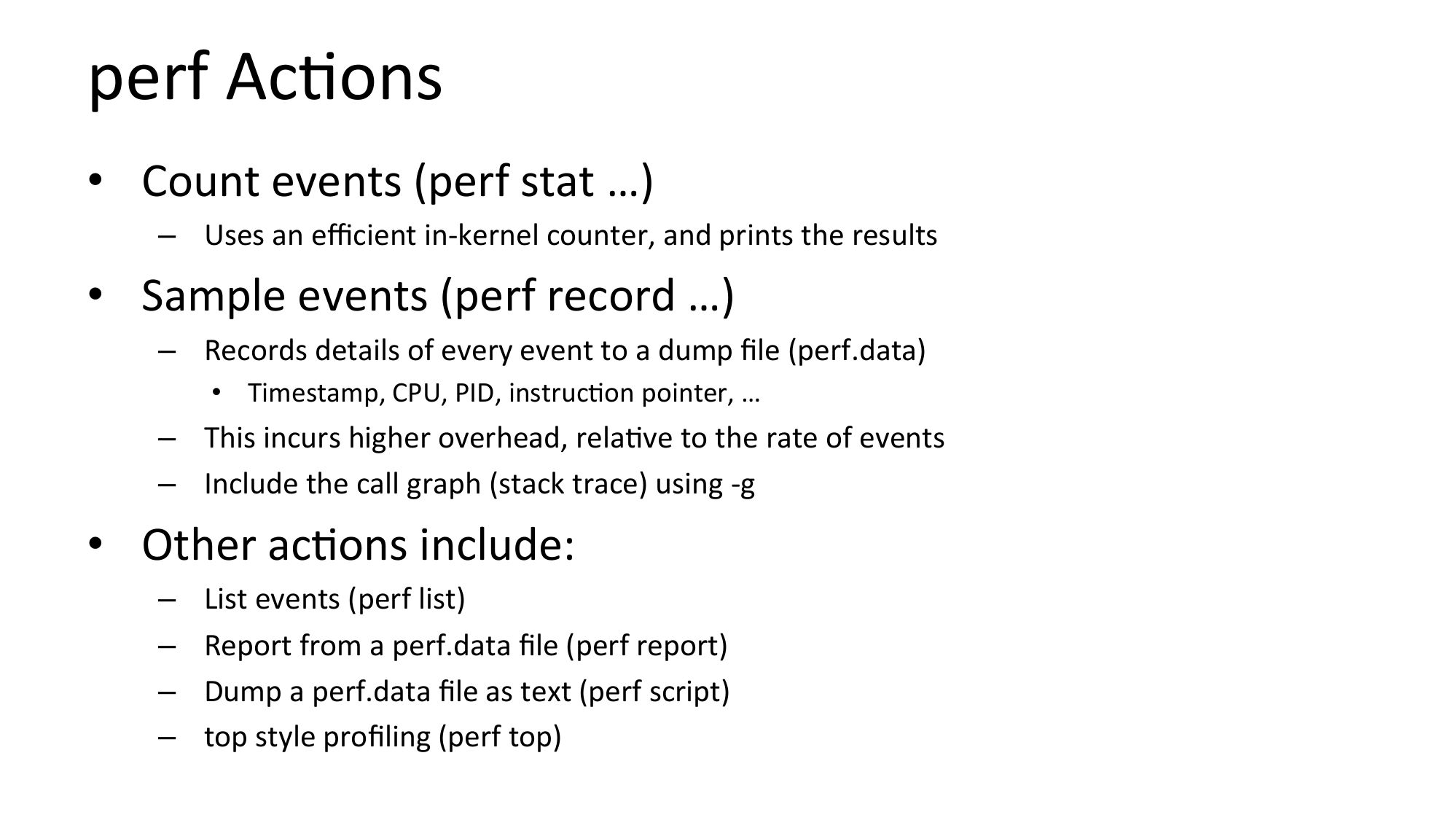

perf Ac/ons
• Count events (perf stat …)
– Uses an efficient in-kernel counter, and prints the results
• Sample events (perf record …)
– Records details of every event to a dump file (perf.data)
• Timestamp, CPU, PID, instruc/on pointer, …
– This incurs higher overhead, rela/ve to the rate of events
– Include the call graph (stack trace) using -g
• Other ac/ons include:
List events (perf list)
Report from a perf.data file (perf report)
Dump a perf.data file as text (perf script)
top style profiling (perf top)

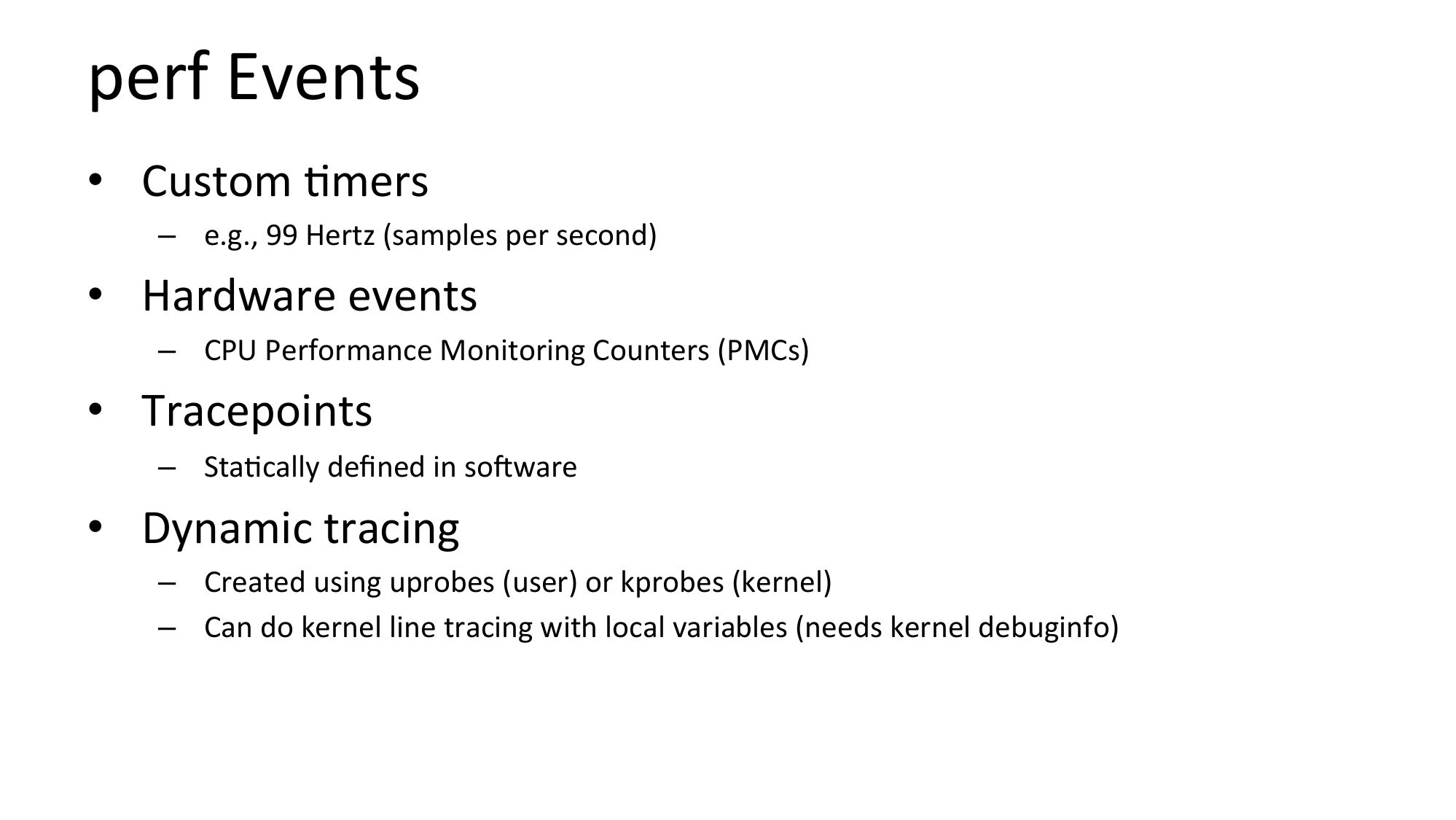

perf Events
• Custom /mers
– e.g., 99 Hertz (samples per second)
• Hardware events
– CPU Performance Monitoring Counters (PMCs)

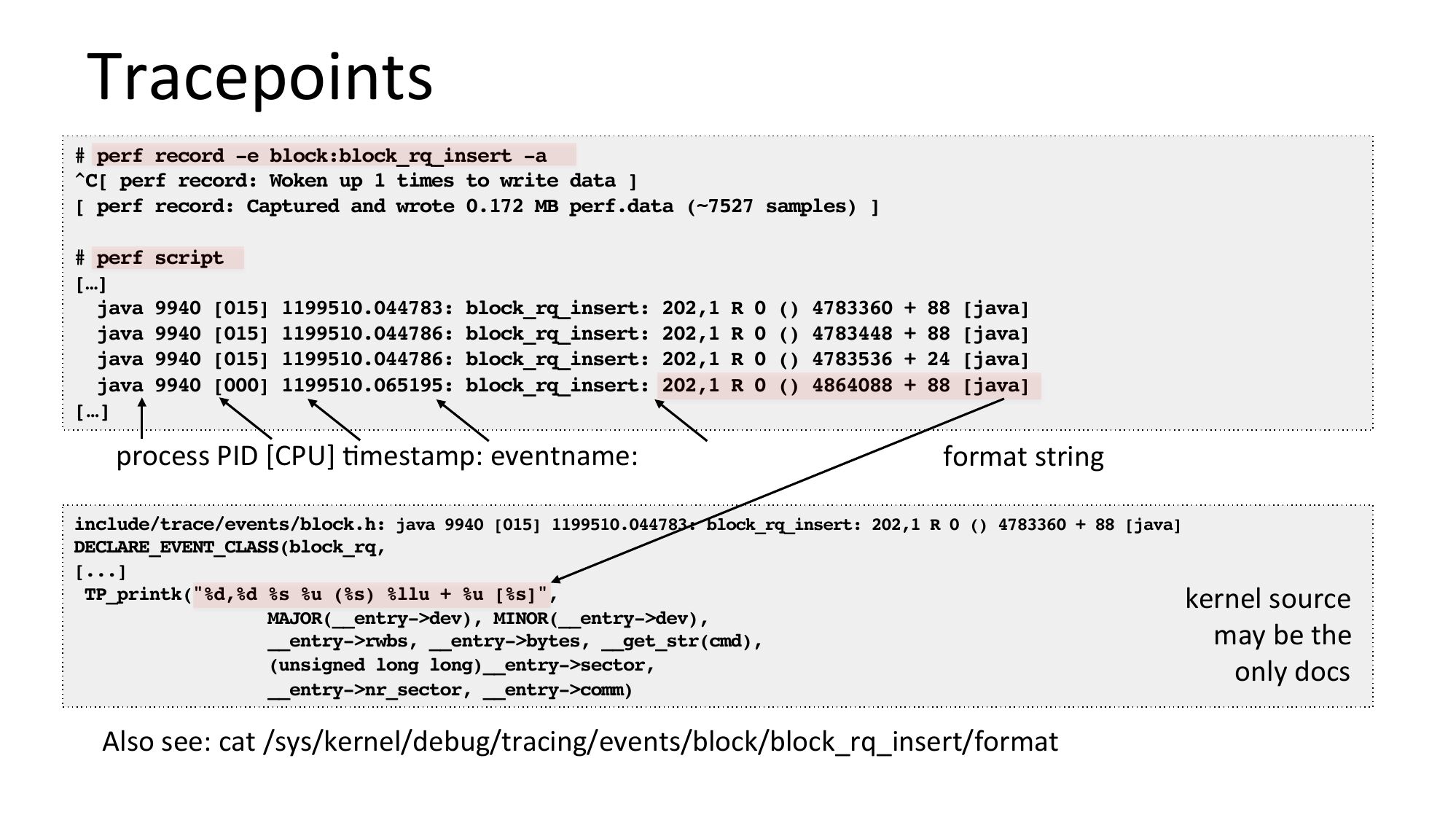

• Tracepoints
– Sta/cally defined in sooware
• Dynamic tracing
– Created using uprobes (user) or kprobes (kernel)
– Can do kernel line tracing with local variables (needs kernel debuginfo)

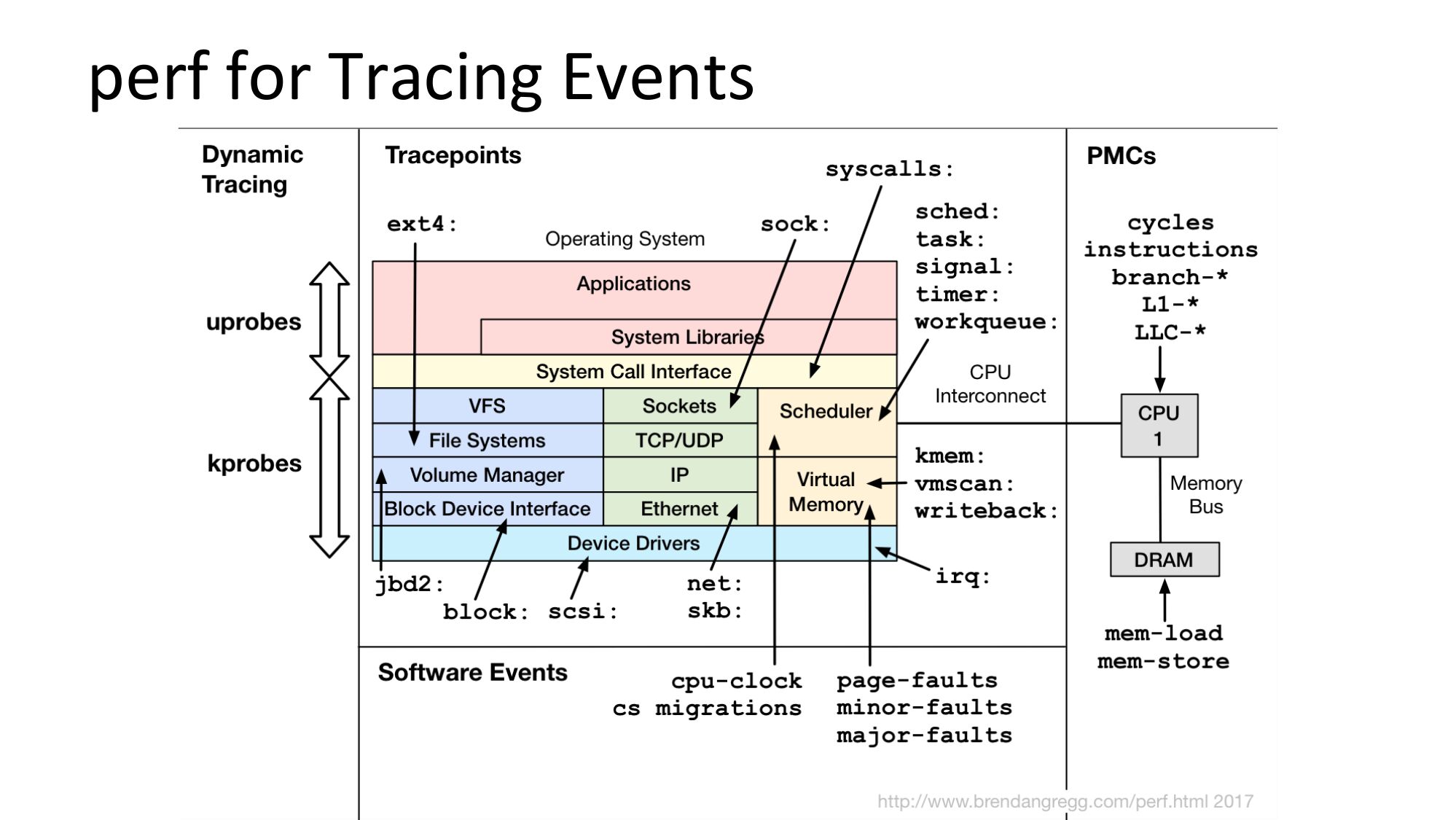

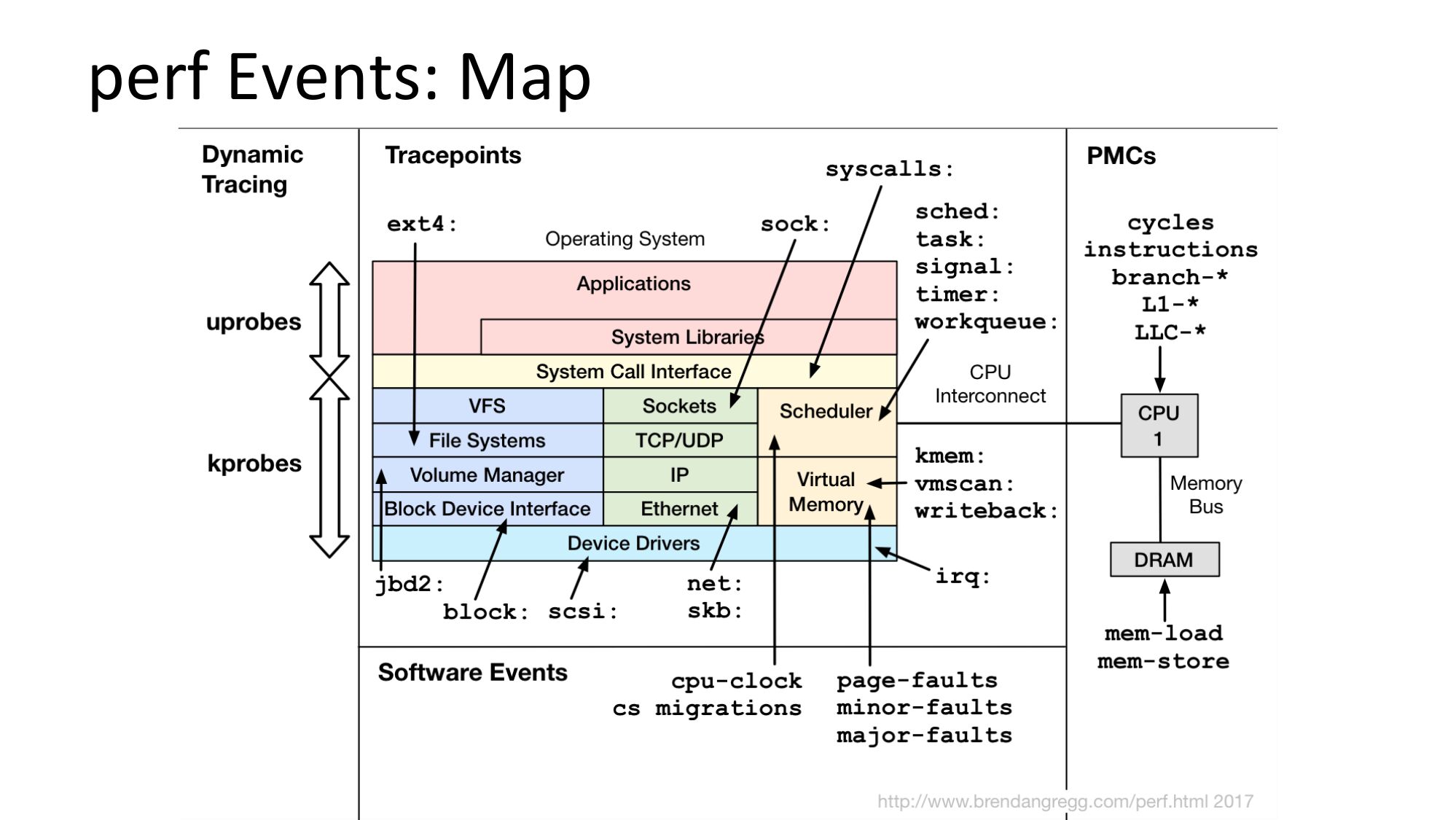

perf Events: Map

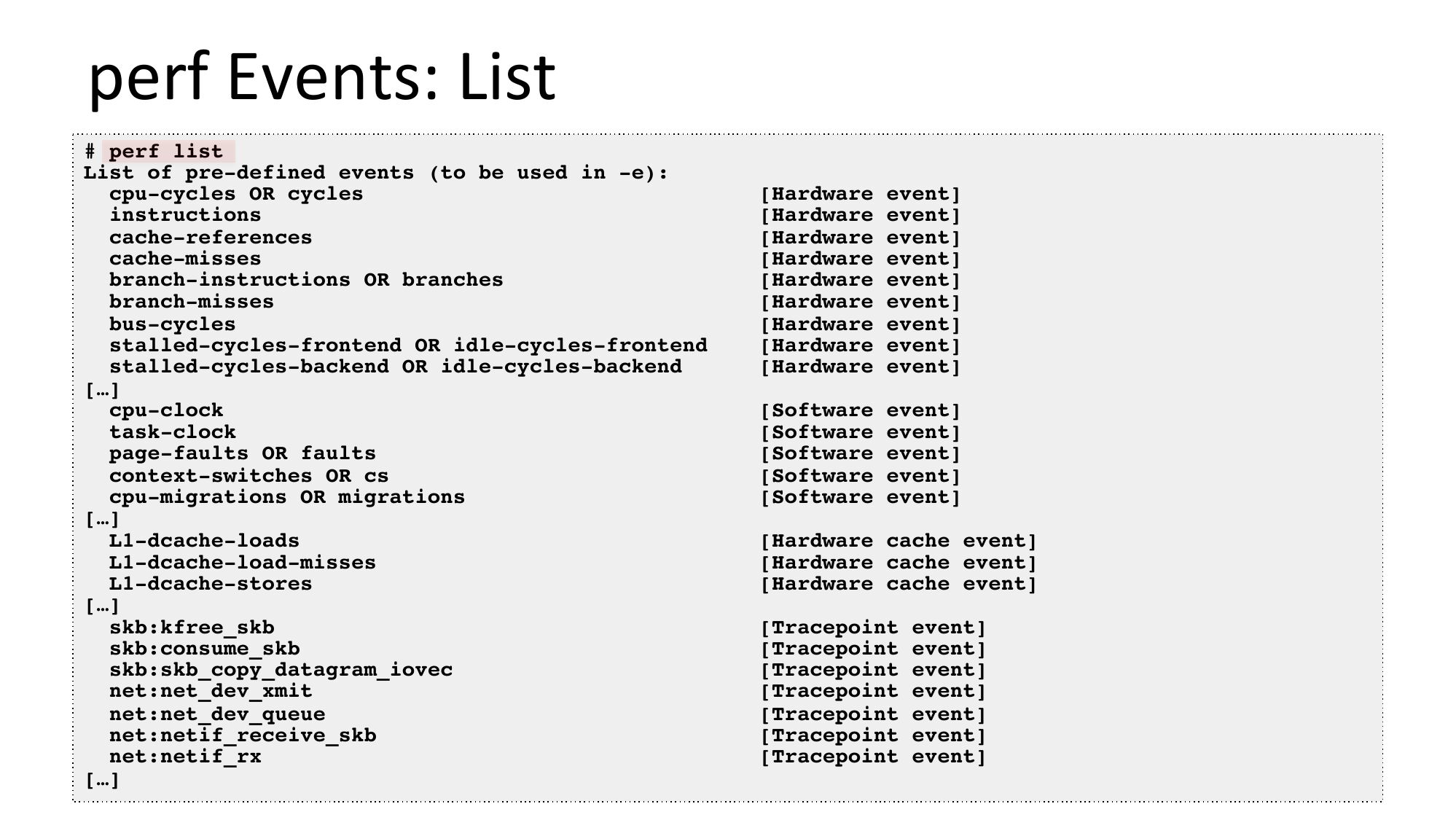

perf Events: List
# perf list
List of pre-defined events (to be used in -e):
cpu-cycles OR cycles
instructions
cache-references
cache-misses
branch-instructions OR branches
branch-misses
bus-cycles
stalled-cycles-frontend OR idle-cycles-frontend
stalled-cycles-backend OR idle-cycles-backend
[…]
cpu-clock
task-clock
page-faults OR faults
context-switches OR cs
cpu-migrations OR migrations
[…]
L1-dcache-loads
L1-dcache-load-misses
L1-dcache-stores
[…]
skb:kfree_skb
skb:consume_skb
skb:skb_copy_datagram_iovec
net:net_dev_xmit
net:net_dev_queue
net:netif_receive_skb
net:netif_rx
[…]
[Hardware event]
[Hardware event]
[Hardware event]
[Hardware event]
[Hardware event]
[Hardware event]
[Hardware event]
[Hardware event]
[Hardware event]
[Software event]
[Software event]
[Software event]
[Software event]
[Software event]
[Hardware cache event]
[Hardware cache event]
[Hardware cache event]
[Tracepoint event]
[Tracepoint event]
[Tracepoint event]
[Tracepoint event]
[Tracepoint event]
[Tracepoint event]
[Tracepoint event]

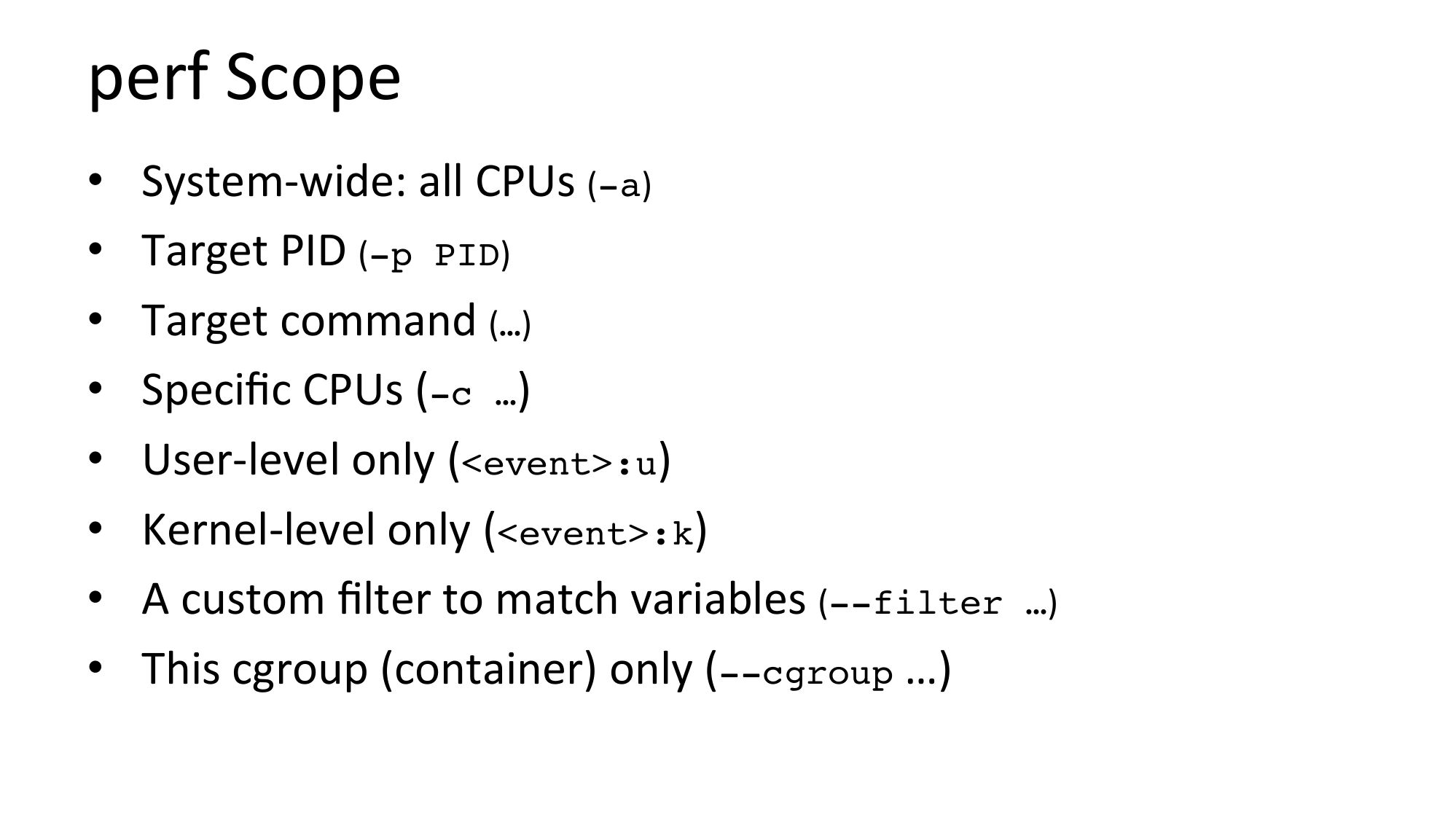

perf Scope
System-wide: all CPUs (-a)
Target PID (-p PID)
Target command (…)
Specific CPUs (-c …)
User-level only (gt;:u)
Kernel-level only (gt;:k)
A custom filter to match variables (--filter …)
This cgroup (container) only (--cgroup …)

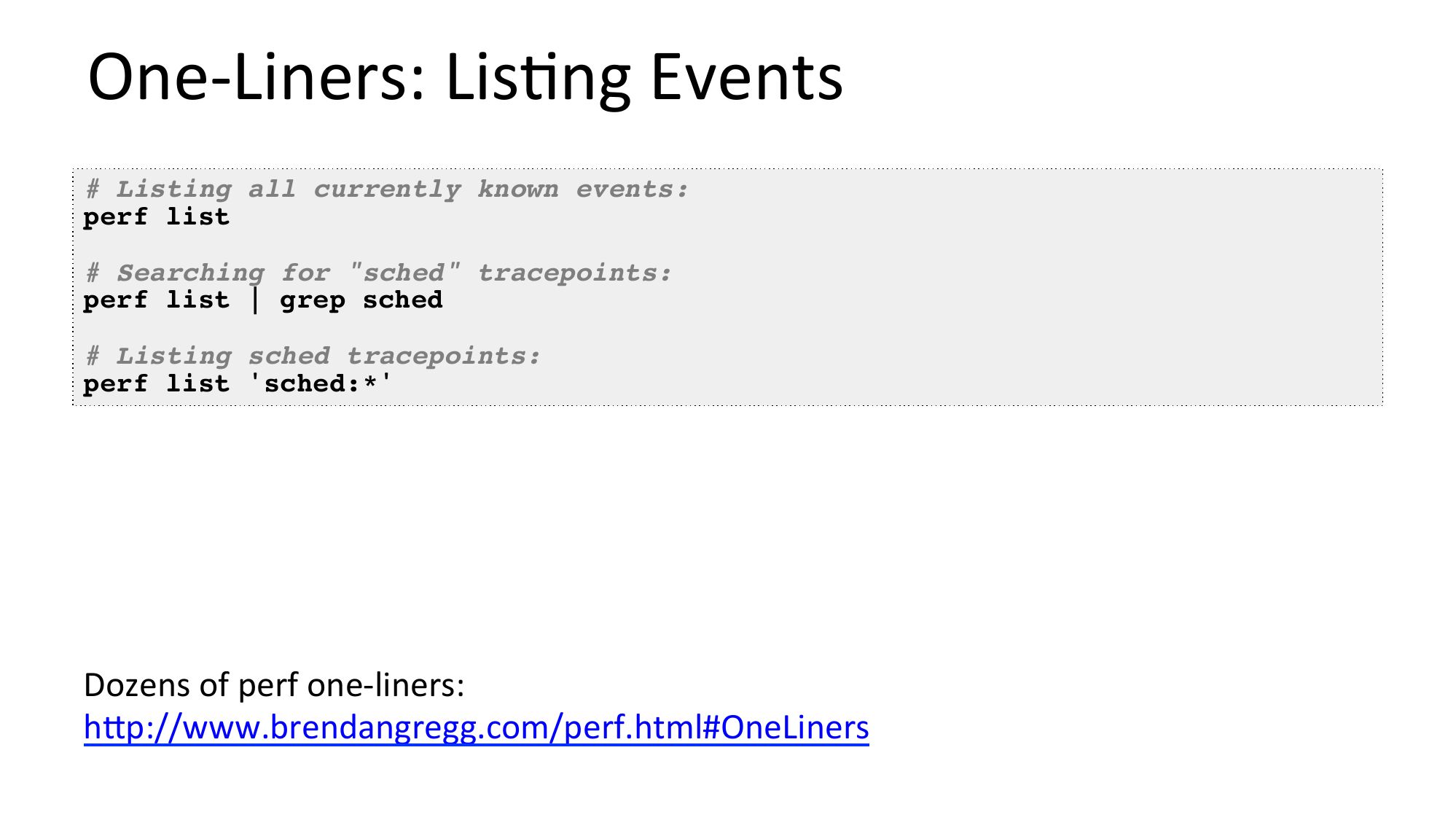

One-Liners: Lis/ng Events
# Listing all currently known events:
perf list
# Searching for "sched" tracepoints:
perf list | grep sched
# Listing sched tracepoints:
perf list 'sched:*'
Dozens of perf one-liners:
hUp://www.brendangregg.com/perf.html#OneLiners

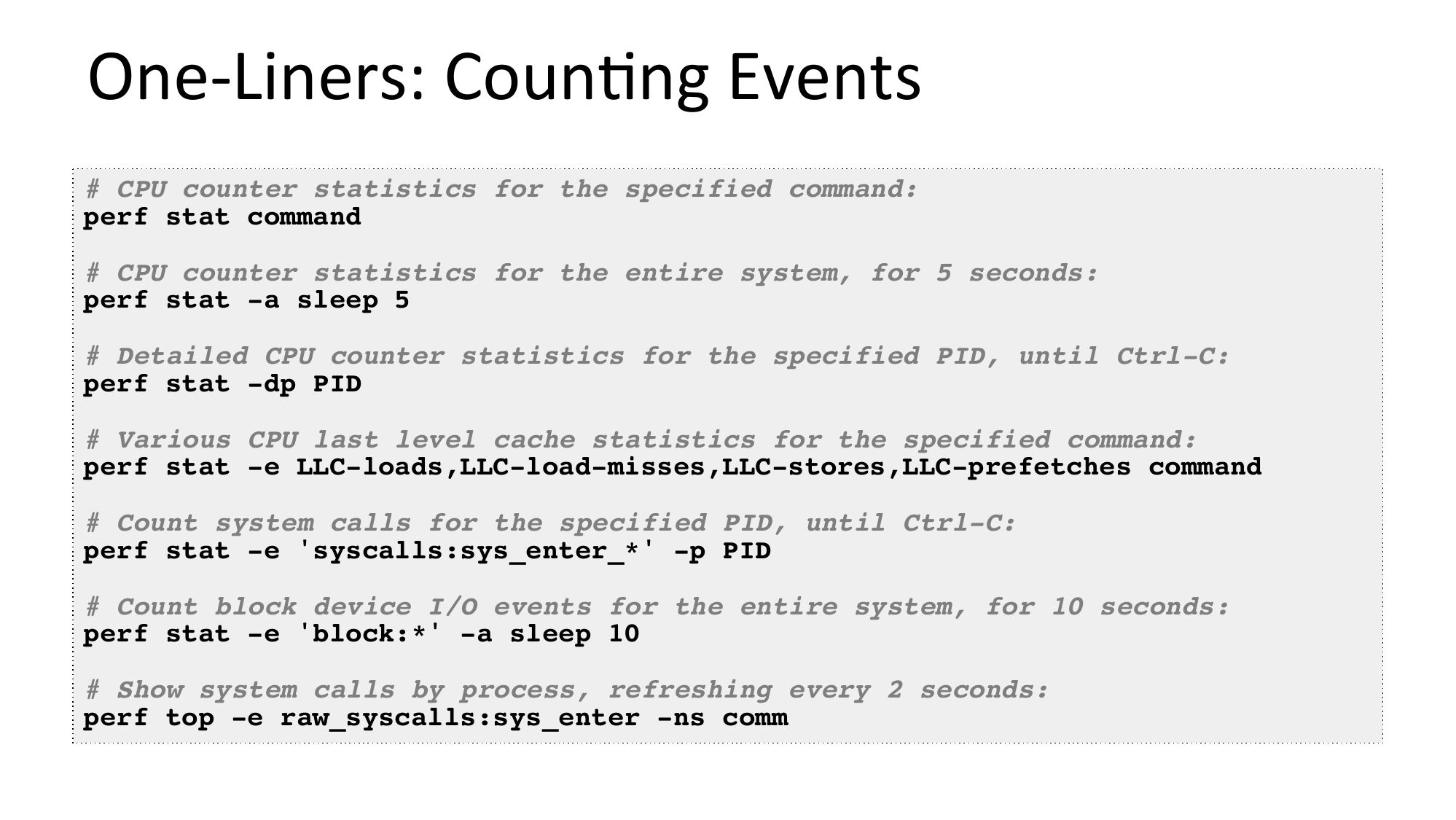

One-Liners: Coun/ng Events
# CPU counter statistics for the specified command:
perf stat command
# CPU counter statistics for the entire system, for 5 seconds:
perf stat -a sleep 5
# Detailed CPU counter statistics for the specified PID, until Ctrl-C:
perf stat -dp PID
# Various CPU last level cache statistics for the specified command:
perf stat -e LLC-loads,LLC-load-misses,LLC-stores,LLC-prefetches command
# Count system calls for the specified PID, until Ctrl-C:
perf stat -e 'syscalls:sys_enter_*' -p PID
# Count block device I/O events for the entire system, for 10 seconds:
perf stat -e 'block:*' -a sleep 10
# Show system calls by process, refreshing every 2 seconds:
perf top -e raw_syscalls:sys_enter -ns comm

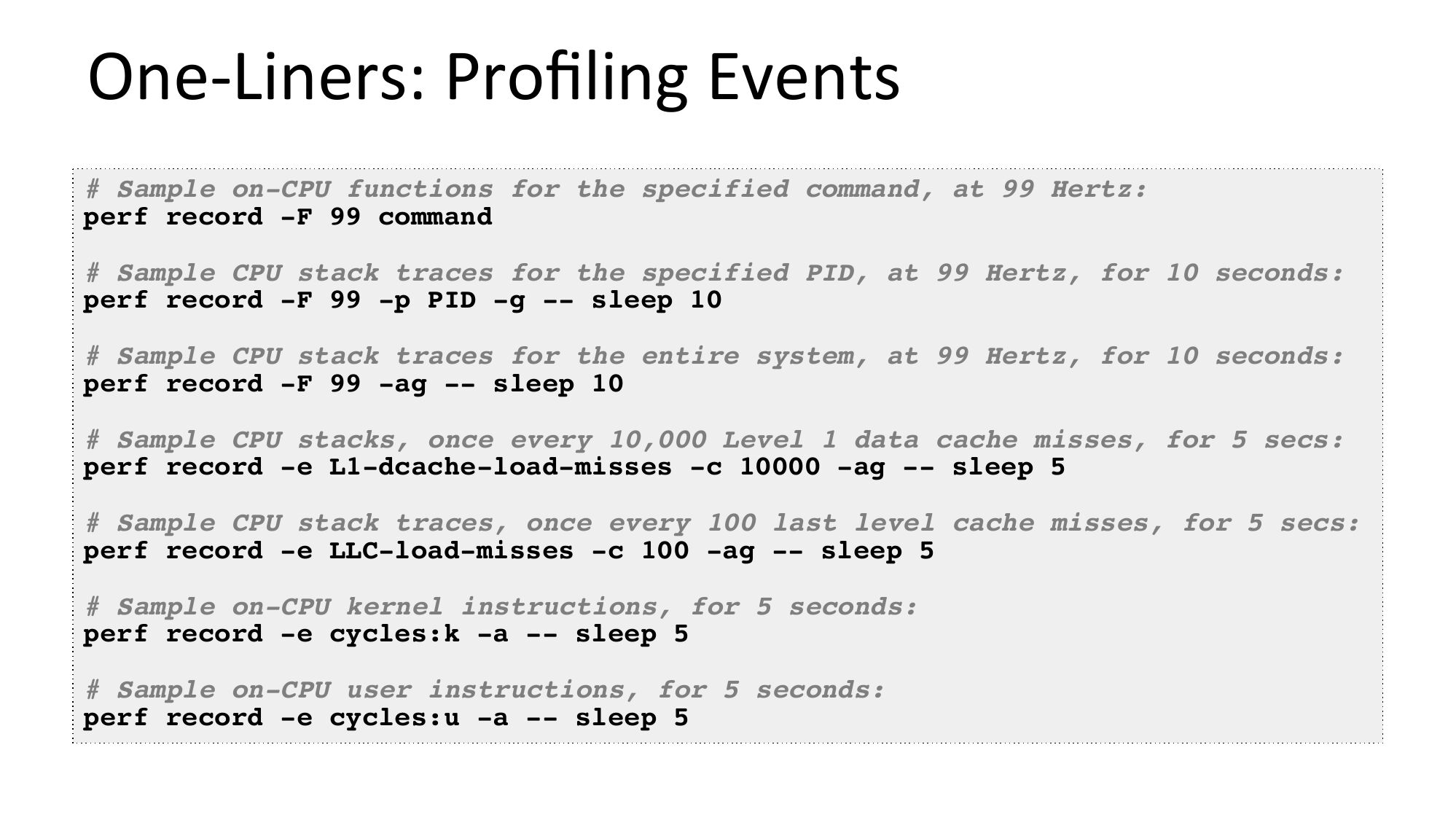

One-Liners: Profiling Events
# Sample on-CPU functions for the specified command, at 99 Hertz:
perf record -F 99 command
# Sample CPU stack traces for the specified PID, at 99 Hertz, for 10 seconds:
perf record -F 99 -p PID -g -- sleep 10
# Sample CPU stack traces for the entire system, at 99 Hertz, for 10 seconds:
perf record -F 99 -ag -- sleep 10
# Sample CPU stacks, once every 10,000 Level 1 data cache misses, for 5 secs:
perf record -e L1-dcache-load-misses -c 10000 -ag -- sleep 5
# Sample CPU stack traces, once every 100 last level cache misses, for 5 secs:
perf record -e LLC-load-misses -c 100 -ag -- sleep 5
# Sample on-CPU kernel instructions, for 5 seconds:
perf record -e cycles:k -a -- sleep 5
# Sample on-CPU user instructions, for 5 seconds:
perf record -e cycles:u -a -- sleep 5

One-Liners: Repor/ng
# Show perf.data in an ncurses browser (TUI) if possible:
perf report
# Show perf.data with a column for sample count:
perf report -n
# Show perf.data as a text report, with data coalesced and percentages:
perf report --stdio
# List all raw events from perf.data:
perf script
# List all raw events from perf.data, with customized fields:
perf script -f comm,tid,pid,time,cpu,event,ip,sym,dso
# Dump raw contents from perf.data as hex (for debugging):
perf script -D
# Disassemble and annotate instructions with percentages (needs debuginfo):
perf annotate --stdio

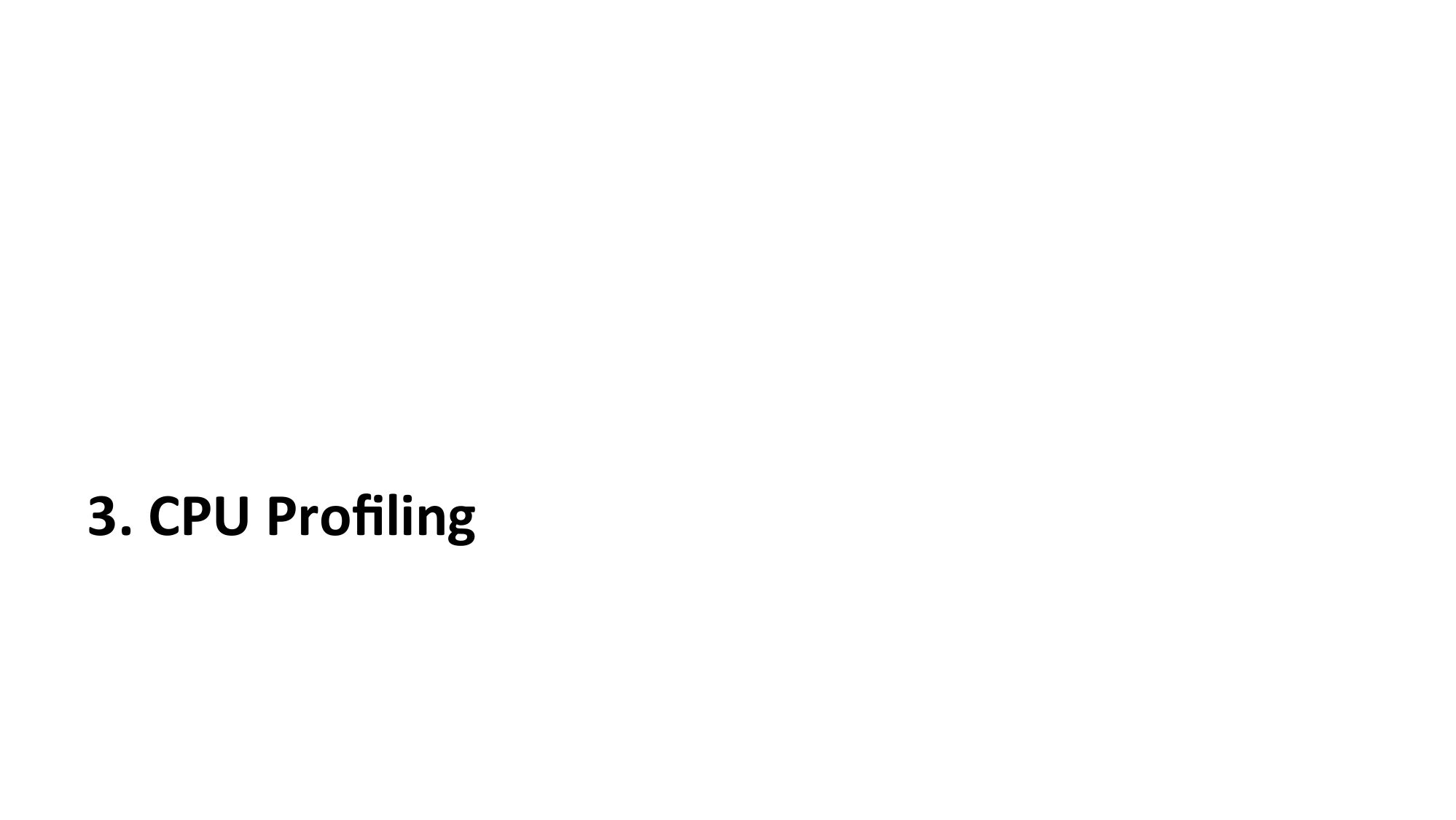

3. CPU Profiling

CPU Profiling

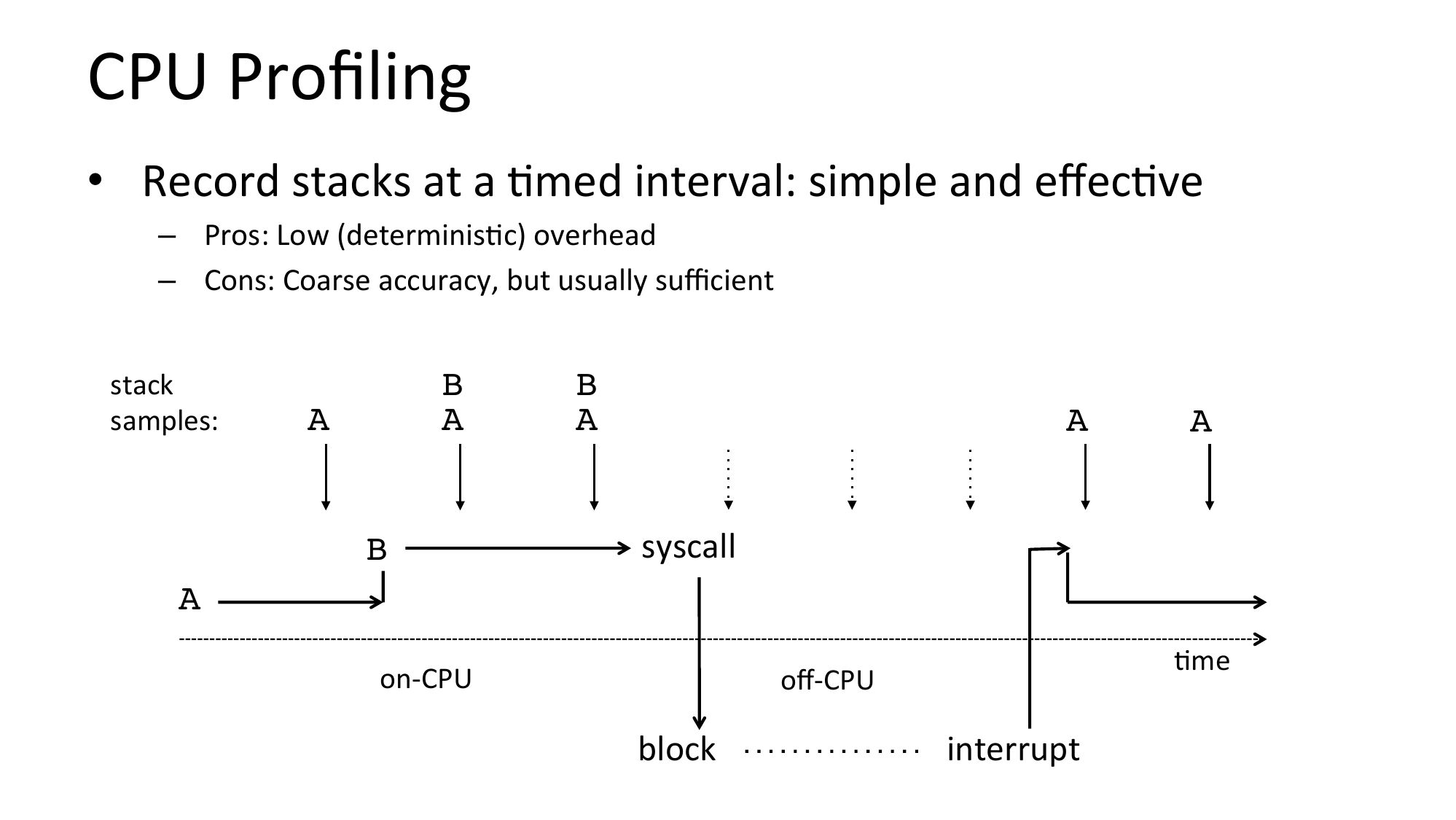

• Record stacks at a /med interval: simple and effec/ve
– Pros: Low (determinis/c) overhead
– Cons: Coarse accuracy, but usually sufficient
stack
samples:
syscall
on-CPU
/me
off-CPU
block
interrupt

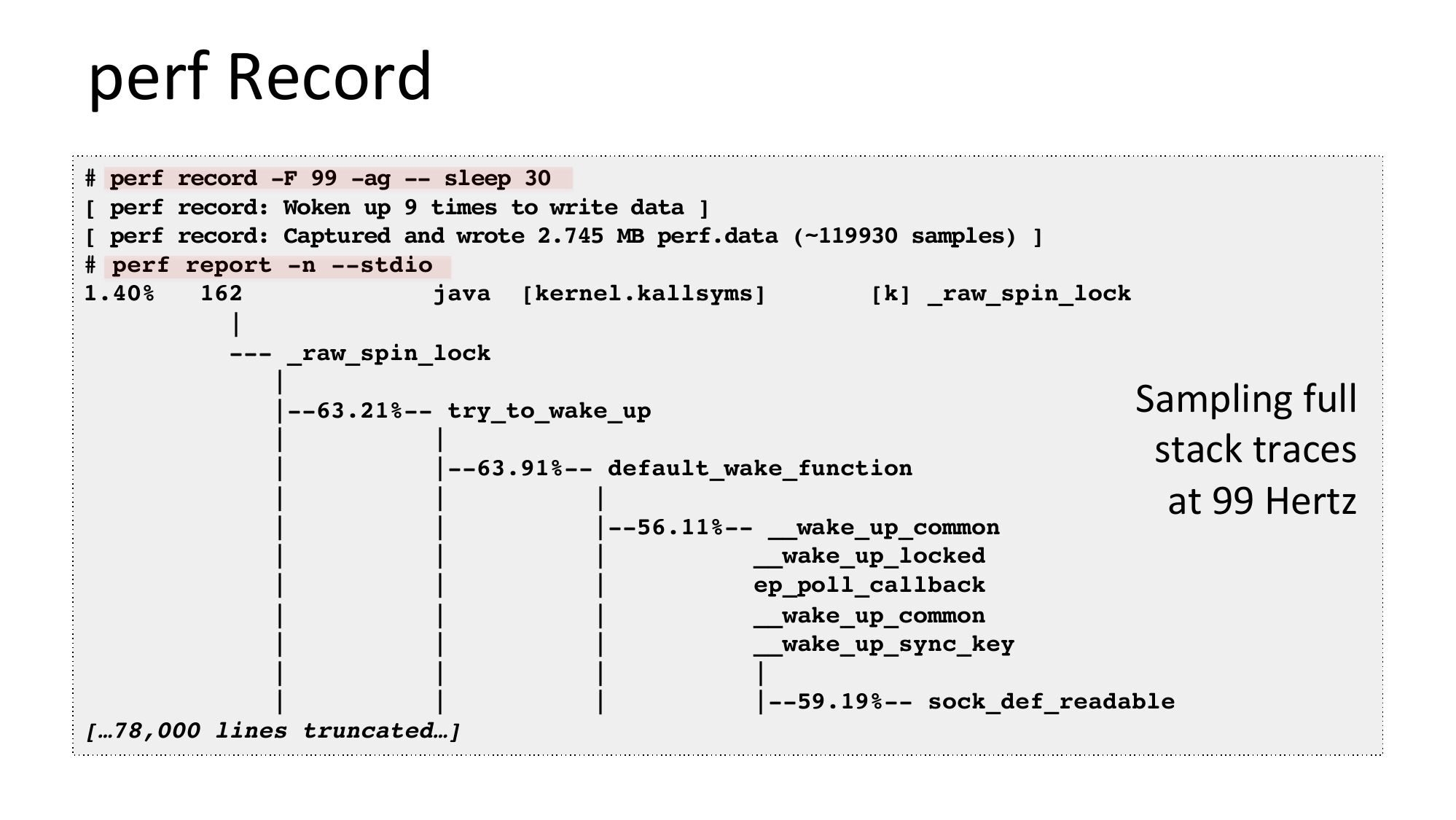

perf Record
# perf record -F 99 -ag -- sleep 30
[ perf record: Woken up 9 times to write data ]
[ perf record: Captured and wrote 2.745 MB perf.data (~119930 samples) ]

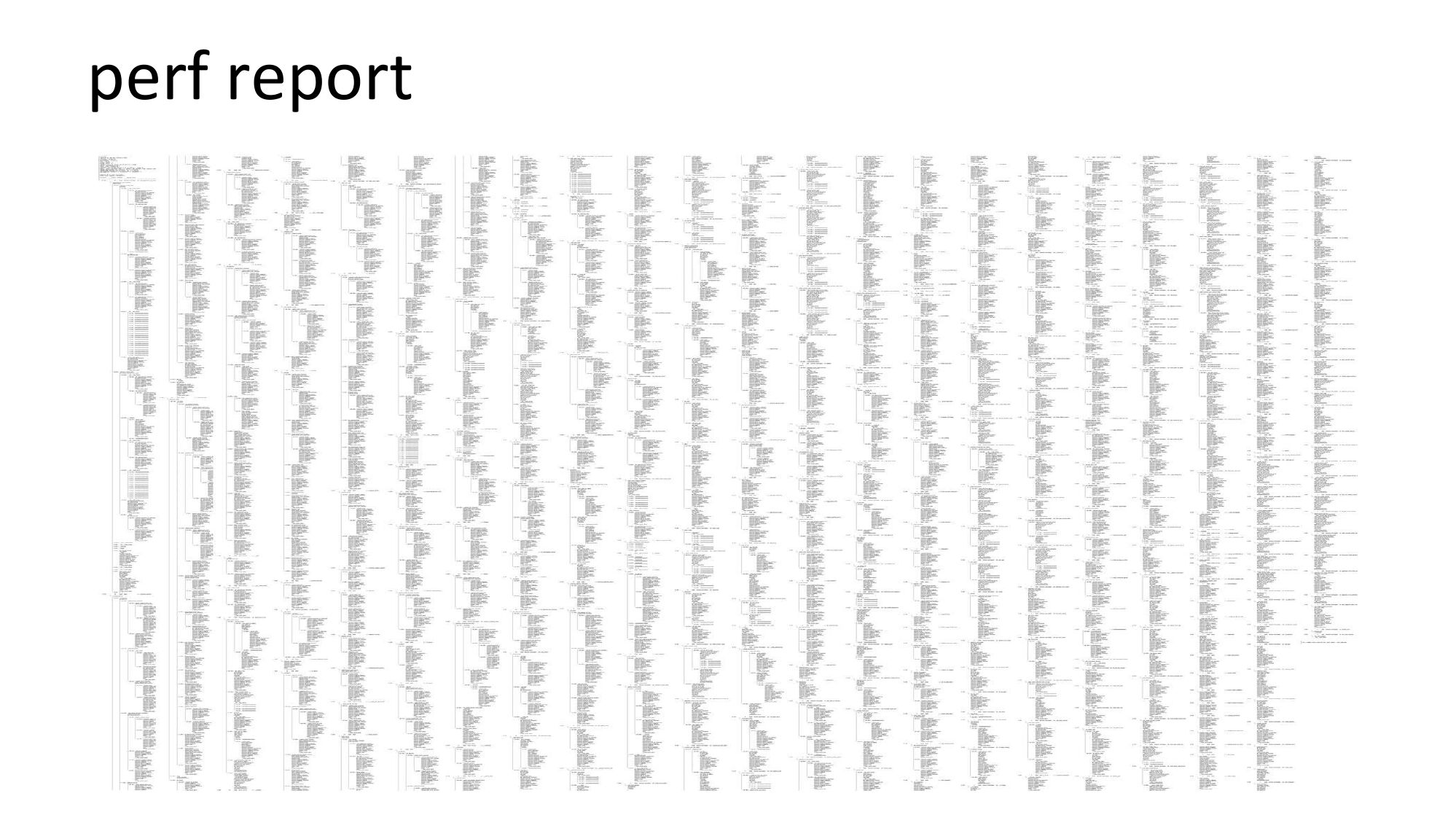

# perf report -n --stdio
1.40%
java [kernel.kallsyms]
[k] _raw_spin_lock
--- _raw_spin_lock
|--63.21%-- try_to_wake_up
|--63.91%-- default_wake_function
|--56.11%-- __wake_up_common
__wake_up_locked
ep_poll_callback
__wake_up_common
__wake_up_sync_key
|--59.19%-- sock_def_readable
[…78,000 lines truncated…]
Sampling full
stack traces
at 99 Hertz

perf Repor/ng
• perf report summarizes by combining common paths
• Previous output truncated 78,000 lines of summary
• The following is what a mere 8,000 lines looks like…

perf report

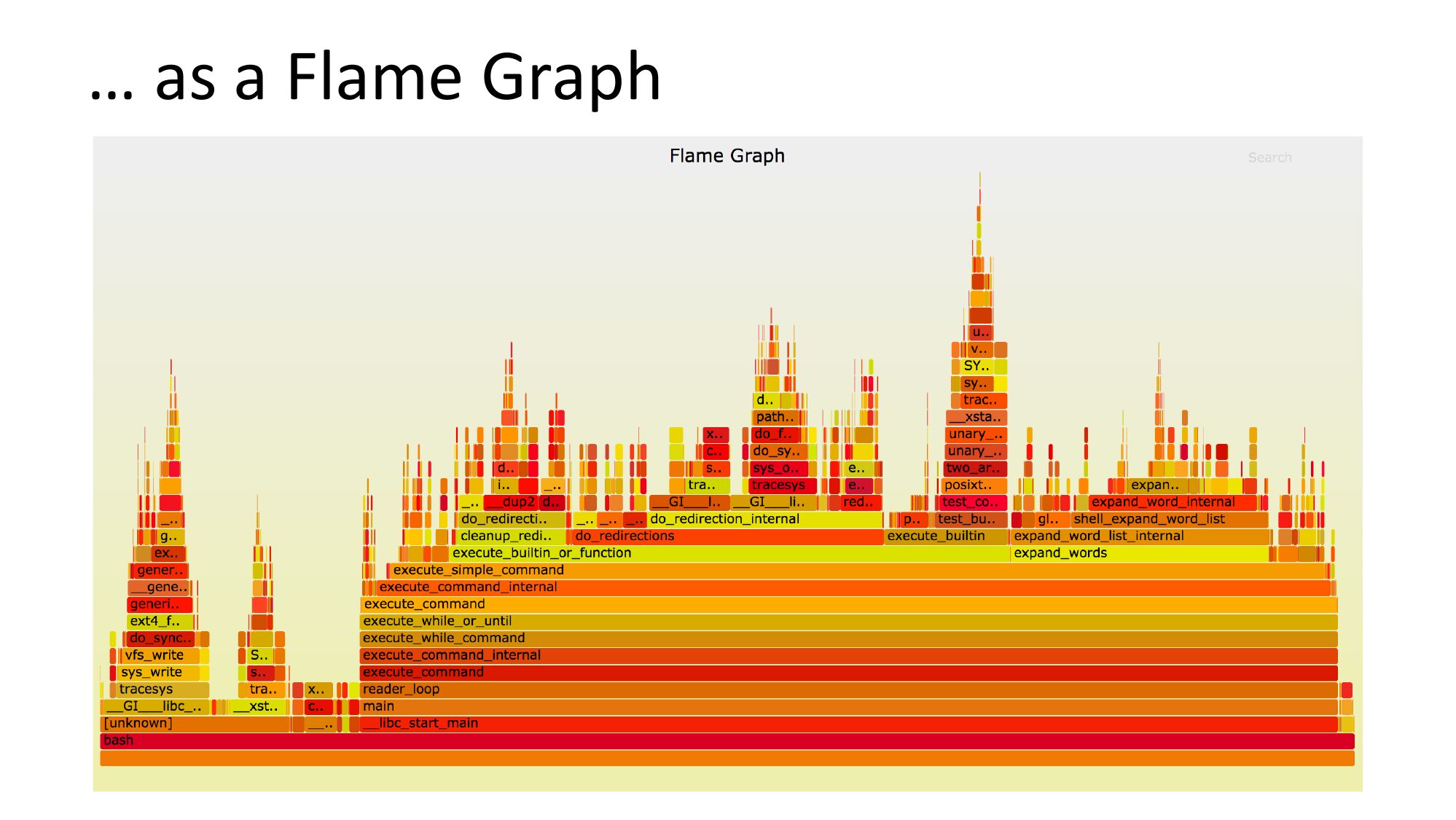

… as a Flame Graph

Flame Graphs
git clone --depth 1 https://github.com/brendangregg/FlameGraph
cd FlameGraph
perf record -F 99 -a –g -- sleep 30
perf script | ./stackcollapse-perf.pl | ./flamegraph.pl >gt; perf.svg
• Flame Graphs:
– x-axis: alphabe/cal stack sort, to maximize merging
– y-axis: stack depth
– color: random, or hue can be a dimension
• e.g., sooware type, or difference between two profiles for
non-regression tes/ng ("differen/al flame graphs")
– interpreta/on: top edge is on-CPU, beneath it is ancestry
• Just a Perl program to convert perf stacks into SVG
– Includes JavaScript: open in a browser for interac/vity
• Easy to get working hUp://www.brendangregg.com/FlameGraphs/cpuflamegraphs.html

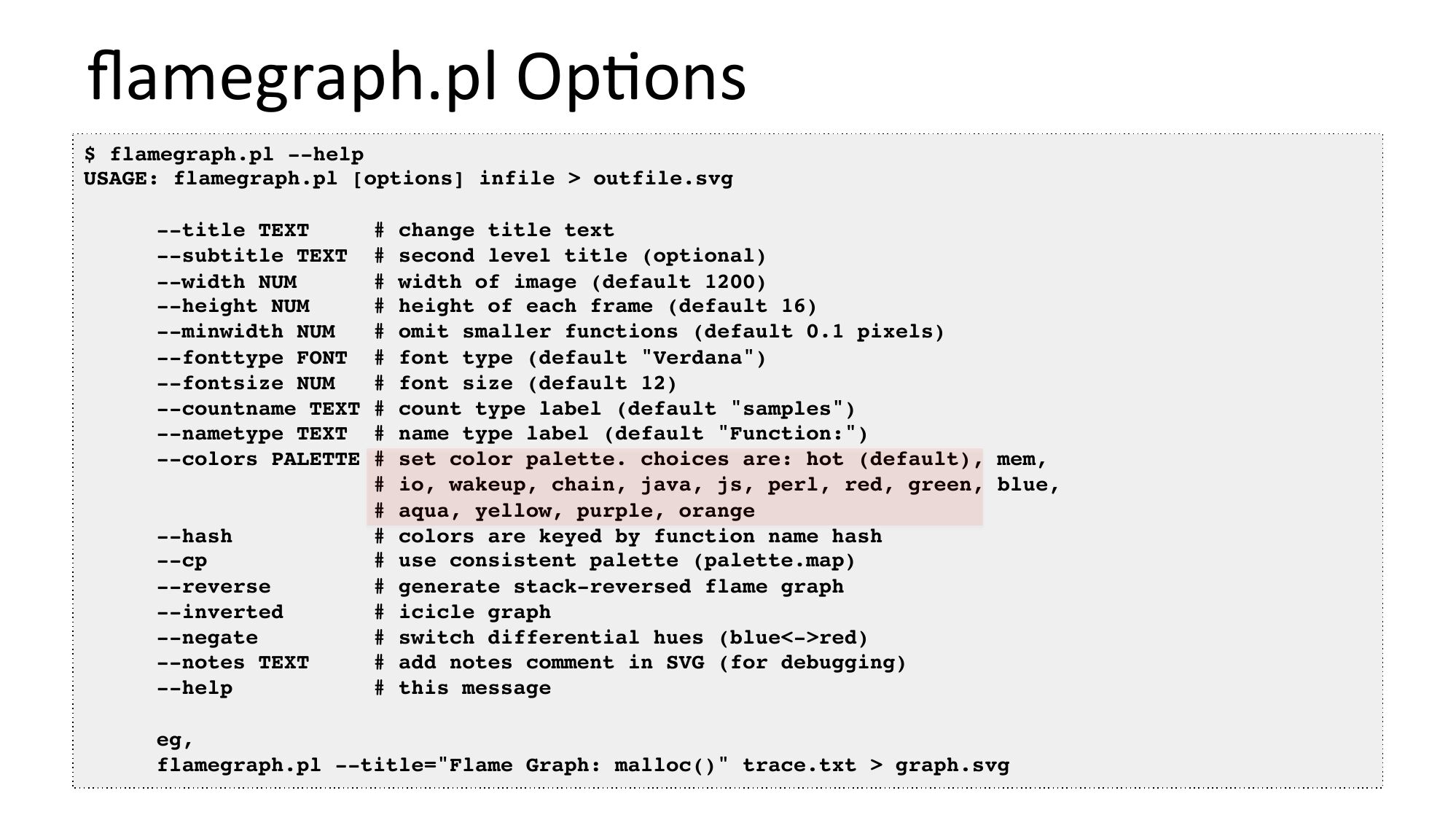

flamegraph.pl Op/ons
$ flamegraph.pl --help
USAGE: flamegraph.pl [options] infile >gt; outfile.svg
--title TEXT
# change title text
--subtitle TEXT # second level title (optional)
--width NUM
# width of image (default 1200)
--height NUM
# height of each frame (default 16)
--minwidth NUM
# omit smaller functions (default 0.1 pixels)
--fonttype FONT # font type (default "Verdana")
--fontsize NUM
# font size (default 12)
--countname TEXT # count type label (default "samples")
--nametype TEXT # name type label (default "Function:")
--colors PALETTE # set color palette. choices are: hot (default), mem,
# io, wakeup, chain, java, js, perl, red, green, blue,
# aqua, yellow, purple, orange
--hash
# colors are keyed by function name hash
--cp
# use consistent palette (palette.map)
--reverse
# generate stack-reversed flame graph
--inverted
# icicle graph
--negate
# switch differential hues (bluegt;red)
--notes TEXT
# add notes comment in SVG (for debugging)
--help
# this message
eg,
flamegraph.pl --title="Flame Graph: malloc()" trace.txt >gt; graph.svg

perf Flame Graph Workflow (Linux 2.6+)
list events
count events
capture stacks
perf list
perf stat
perf record
Typical
Workflow
perf.data
text UI
dump profile
perf report
flame graph
visualiza/on
perf script
stackcollapse-perf.pl
flamegraph.pl

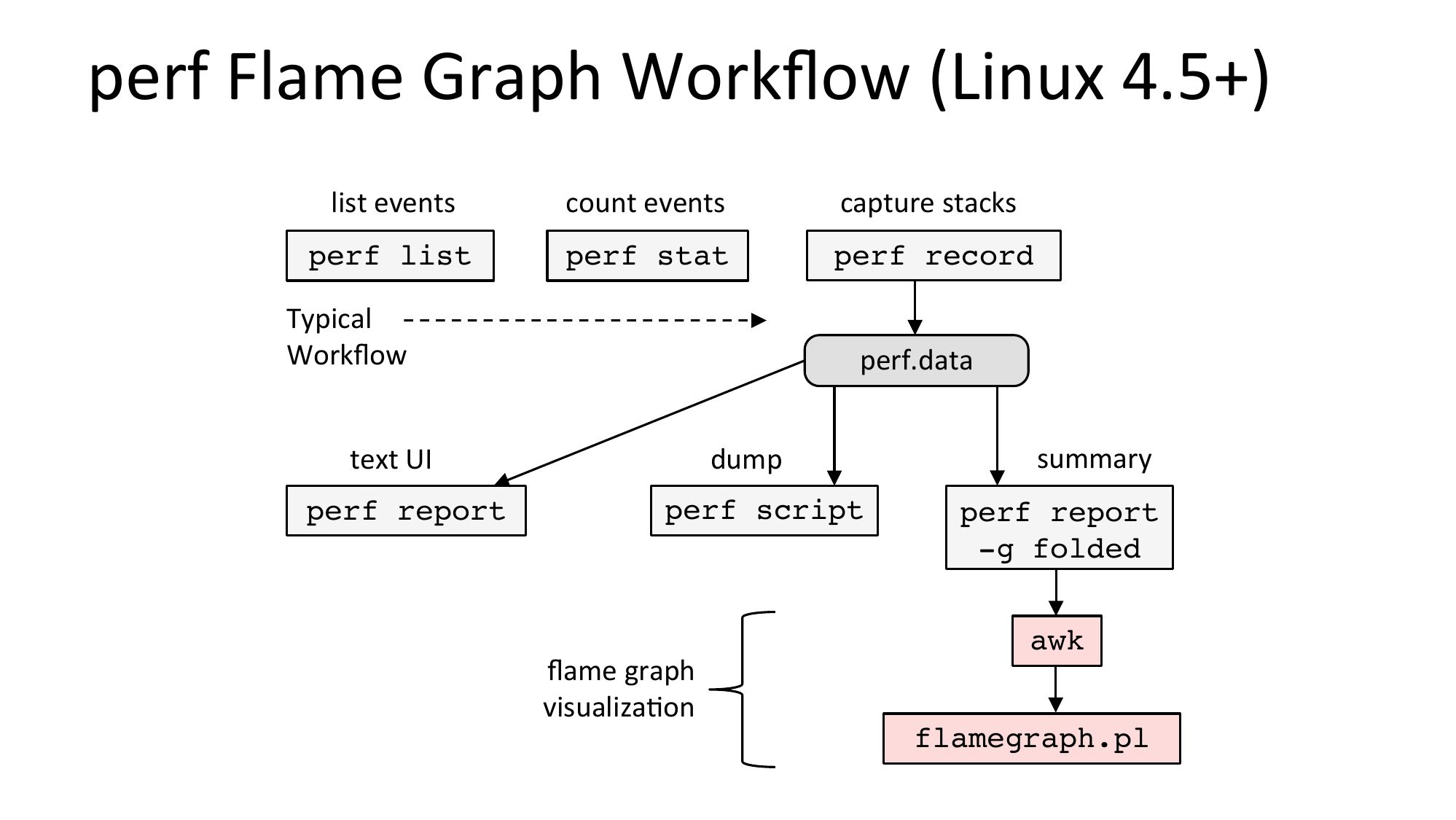

perf Flame Graph Workflow (Linux 4.5+)
list events
count events
capture stacks
perf list
perf stat
perf record
Typical
Workflow
perf.data
text UI
dump
perf report
perf script
flame graph
visualiza/on
summary
perf report
-g folded
awk
flamegraph.pl

Flame Graph Op/miza/ons
Linux 2.6
Linux 4.5
Linux 4.9
capture stacks
capture stacks
count stacks (BPF)
perf record
perf record
profile.py
write samples
perf.data
reads samples
perf script
write text
stackcollapse-perf.pl
folded output
flamegraph.pl
write samples
not perf
perf.data
reads samples
perf report
–g folded
folded
output
folded report
awk
folded output
flamegraph.pl
flamegraph.pl

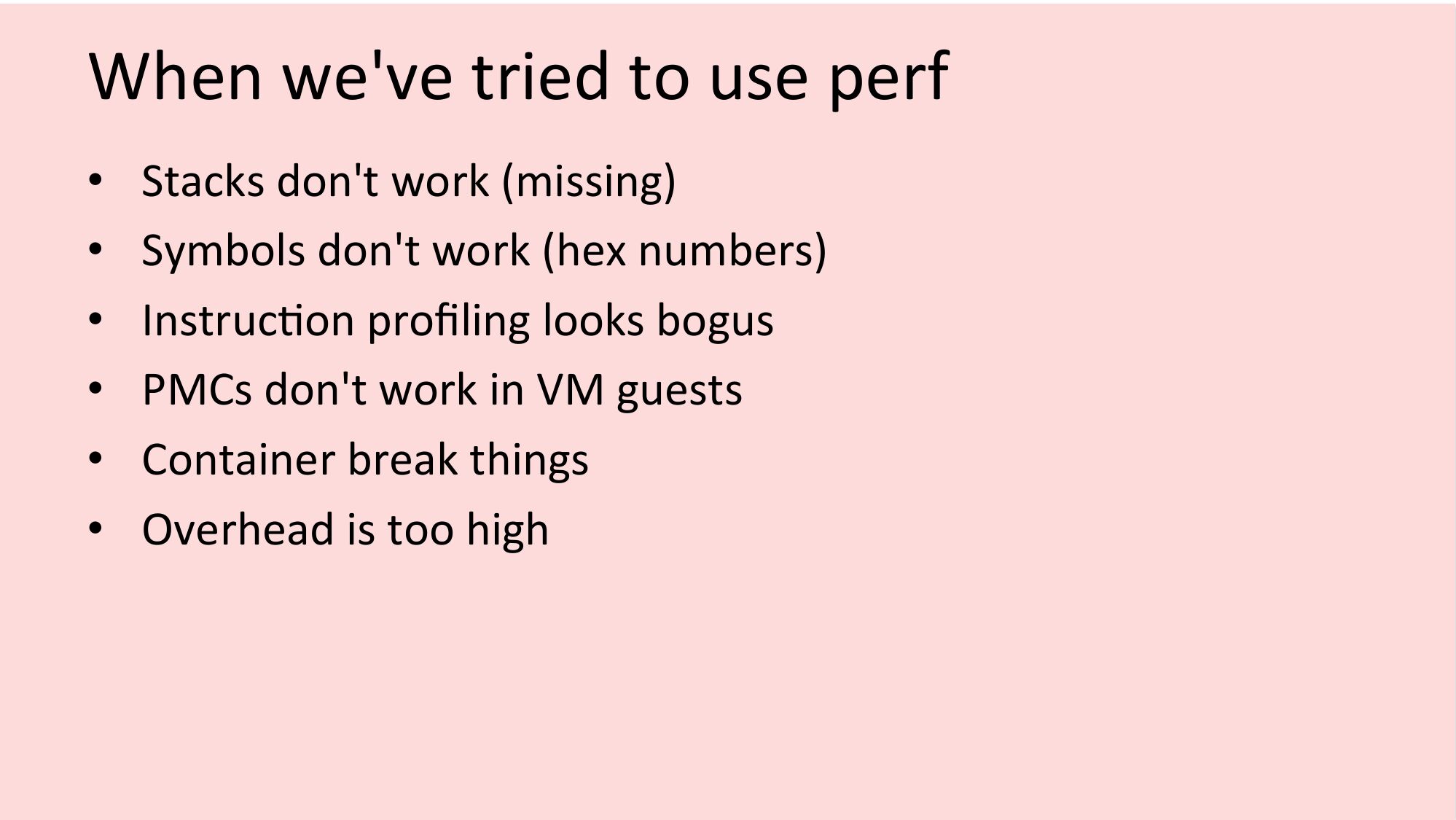

Gotchas

When we've tried to use perf
Stacks don't work (missing)
Symbols don't work (hex numbers)

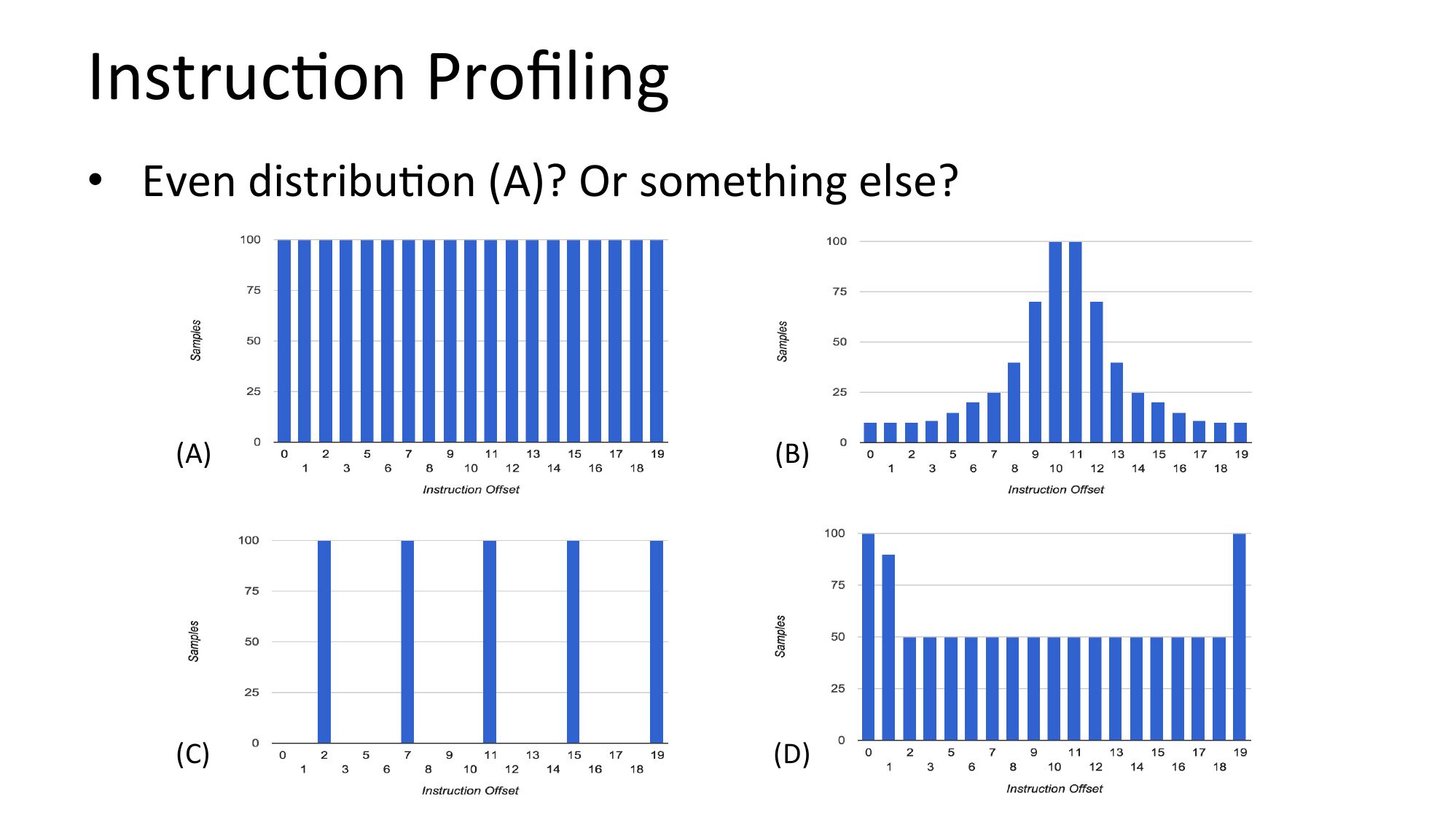

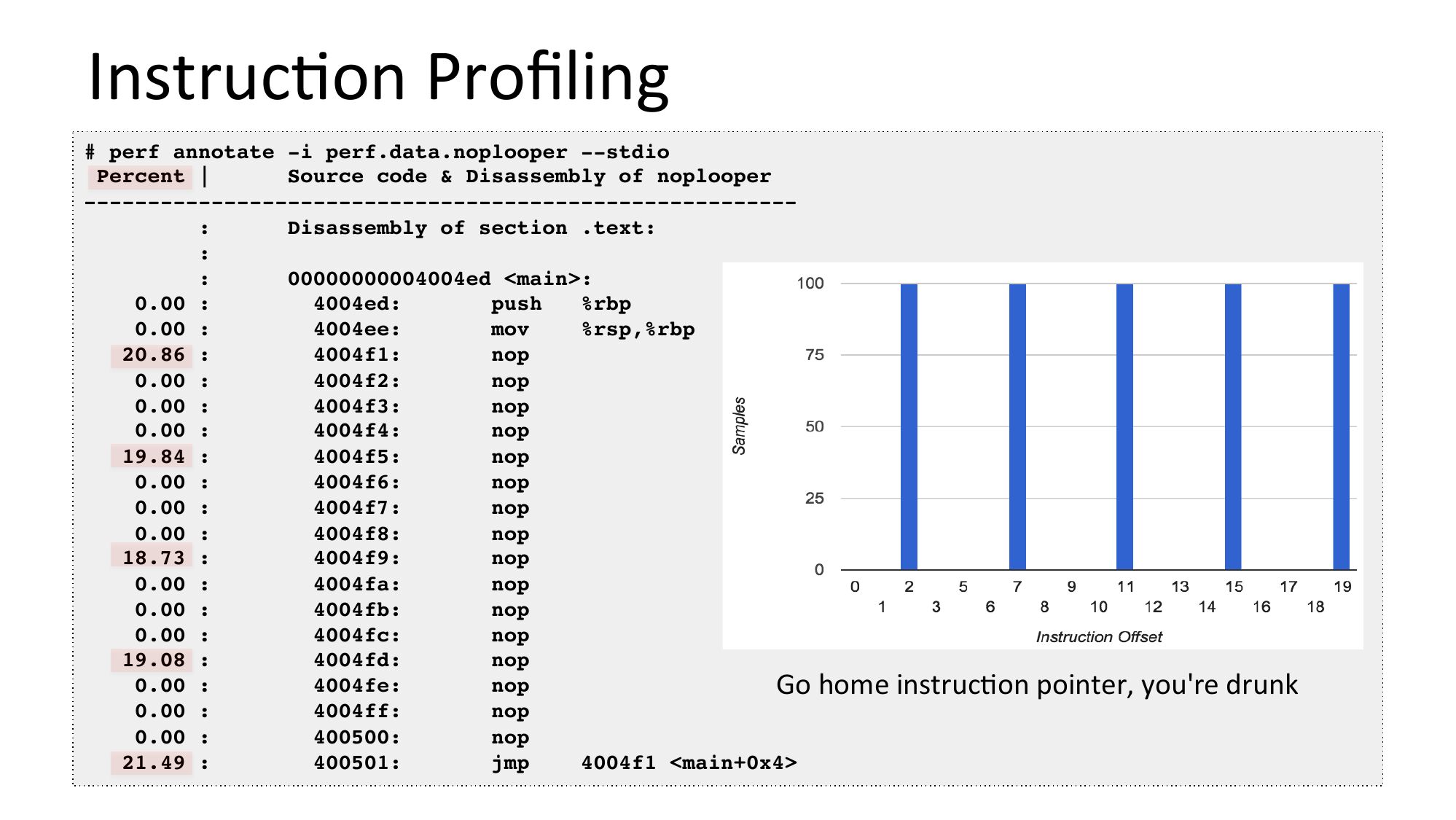

Instruc/on profiling looks bogus
PMCs don't work in VM guests
Container break things
Overhead is too high

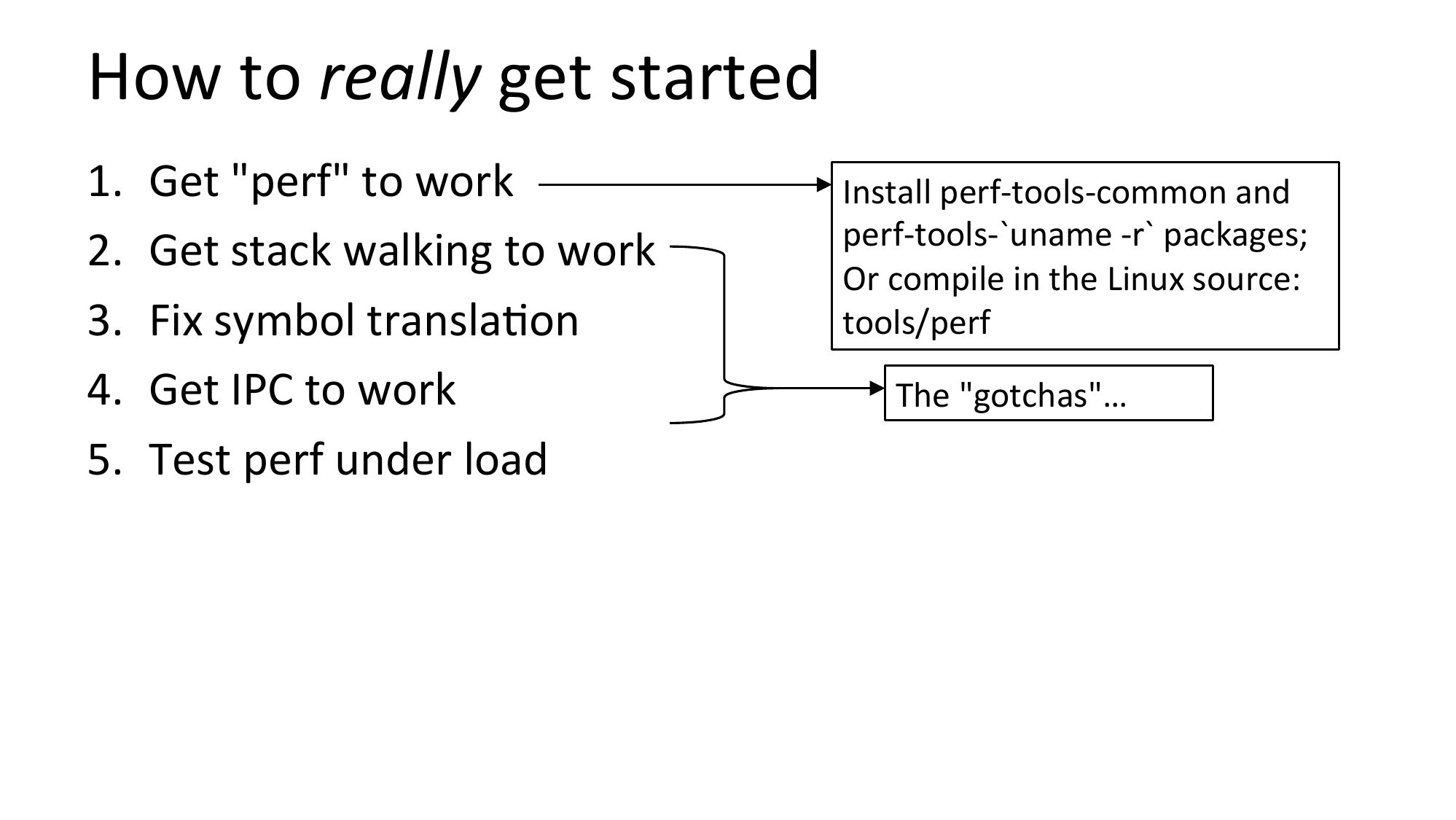

How to really get started
1. Get "perf" to work
2. Get stack walking to work
3. Fix symbol transla/on
4. Get IPC to work
5. Test perf under load
Install perf-tools-common and
perf-tools-`uname -r` packages;
Or compile in the Linux source:
tools/perf
The "gotchas"…

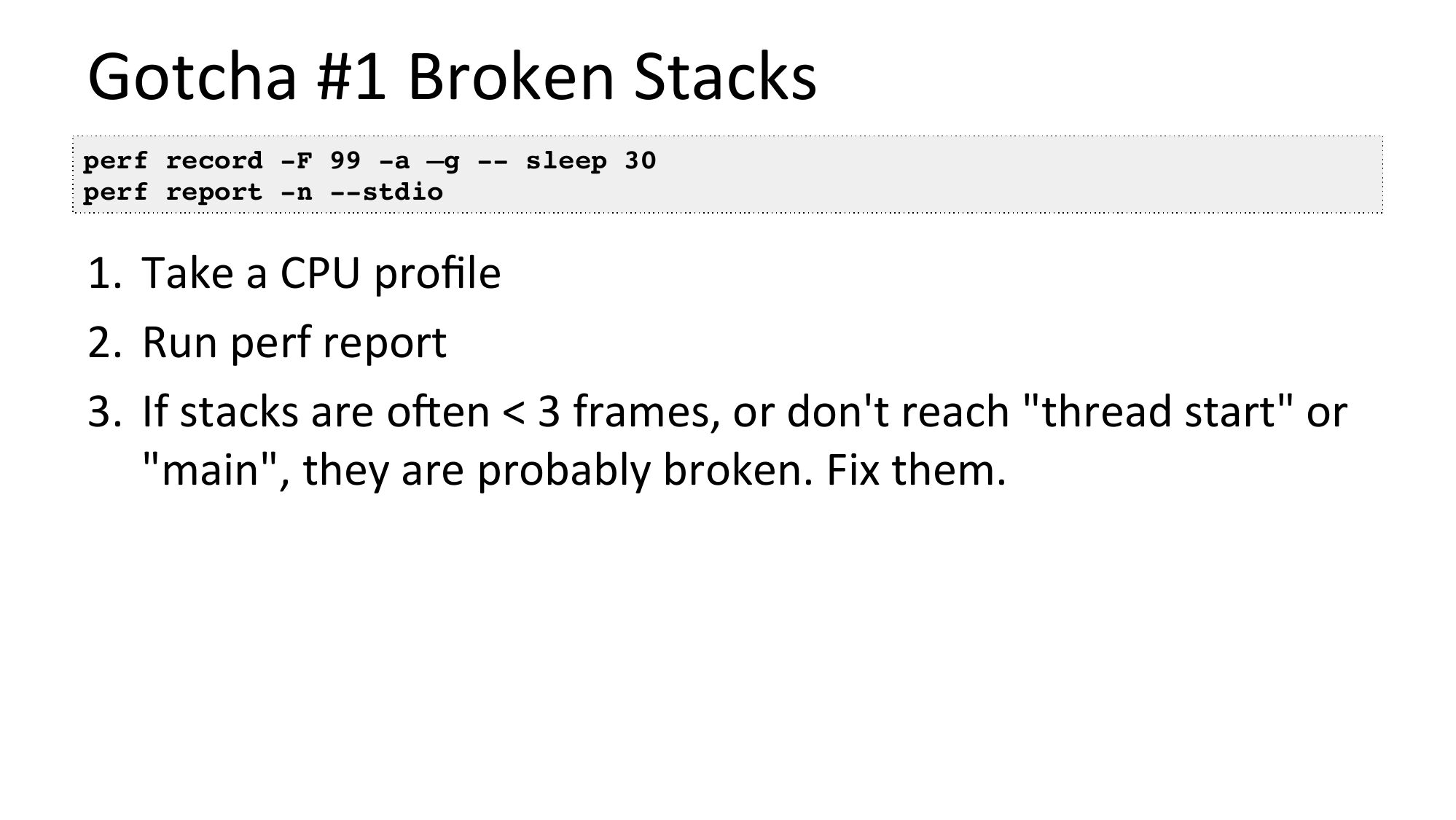

Gotcha #1 Broken Stacks
perf record -F 99 -a –g -- sleep 30
perf report -n --stdio
1. Take a CPU profile
2. Run perf report
3. If stacks are ooen

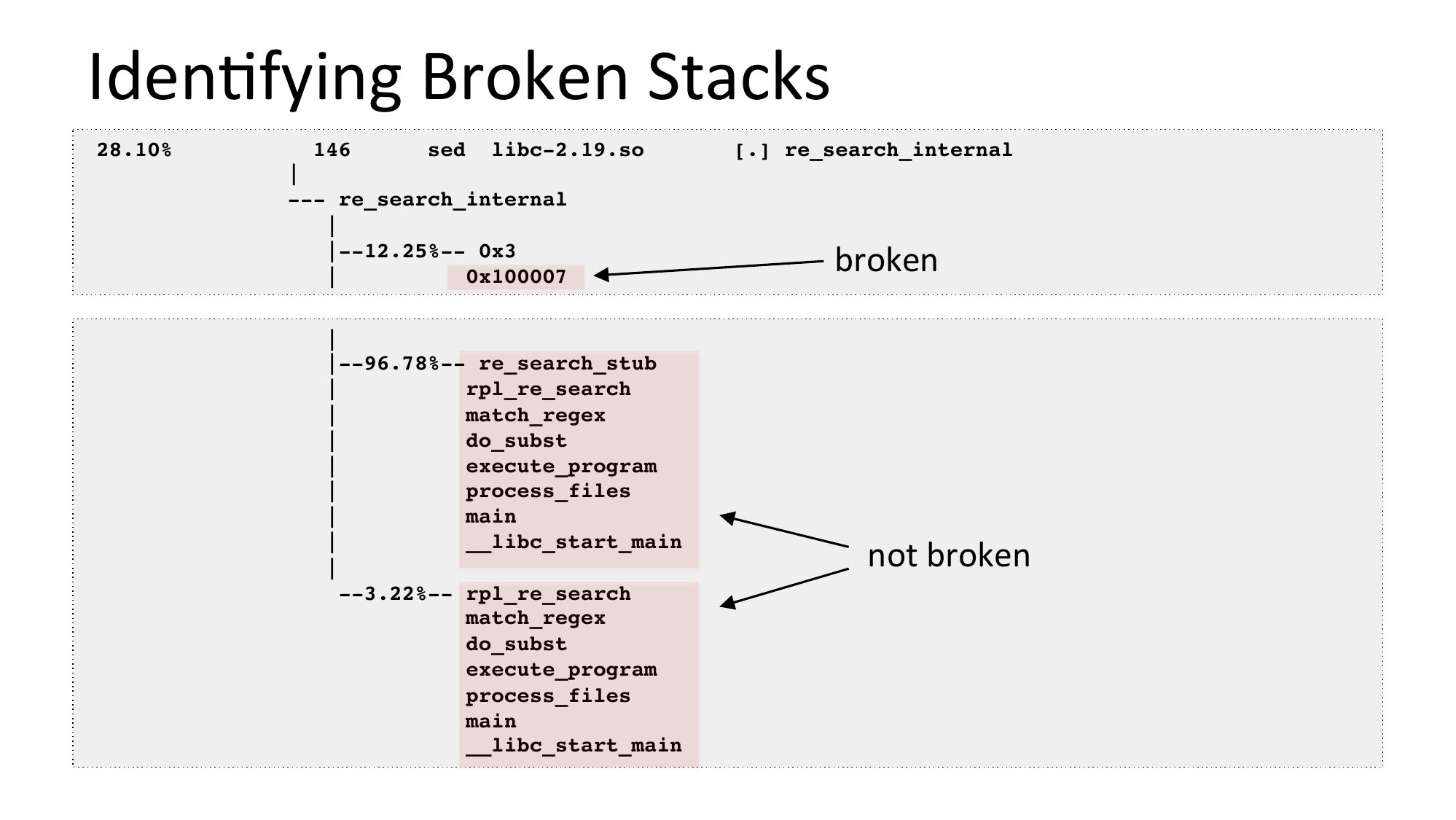

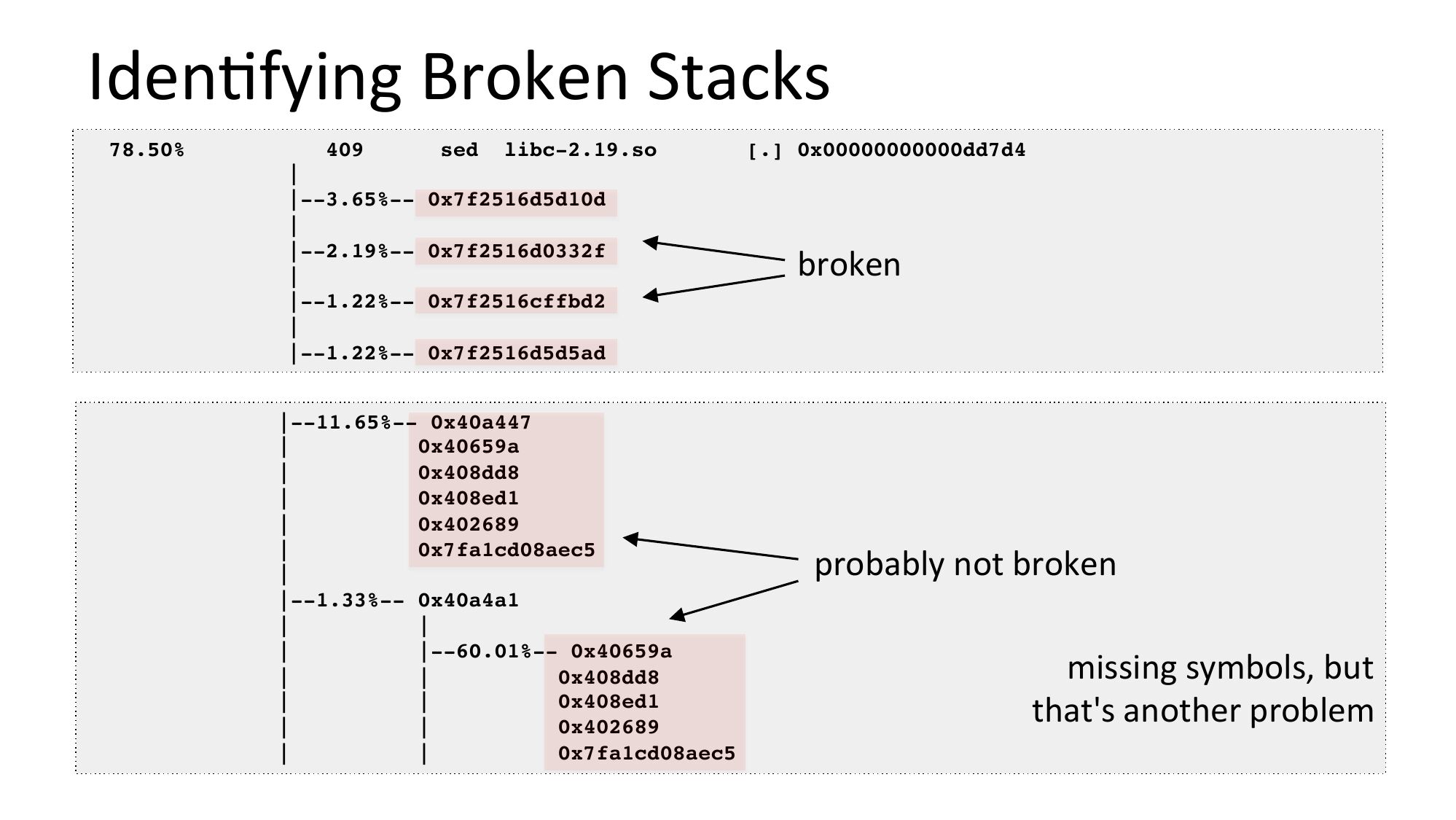

Iden/fying Broken Stacks
28.10%
sed
libc-2.19.so
--- re_search_internal
|--12.25%-- 0x3
0x100007
|--96.78%-- re_search_stub
rpl_re_search
match_regex
do_subst
execute_program
process_files
main
__libc_start_main
--3.22%-- rpl_re_search
match_regex
do_subst
execute_program
process_files
main
__libc_start_main
[.] re_search_internal
broken
not broken

Iden/fying Broken Stacks
78.50%
sed
libc-2.19.so
|--3.65%-- 0x7f2516d5d10d
|--2.19%-- 0x7f2516d0332f
|--1.22%-- 0x7f2516cffbd2
|--1.22%-- 0x7f2516d5d5ad
|--11.65%-- 0x40a447
0x40659a
0x408dd8
0x408ed1
0x402689
0x7fa1cd08aec5
|--1.33%-- 0x40a4a1
|--60.01%-- 0x40659a
0x408dd8
0x408ed1
0x402689
0x7fa1cd08aec5
[.] 0x00000000000dd7d4
broken
probably not broken
missing symbols, but
that's another problem

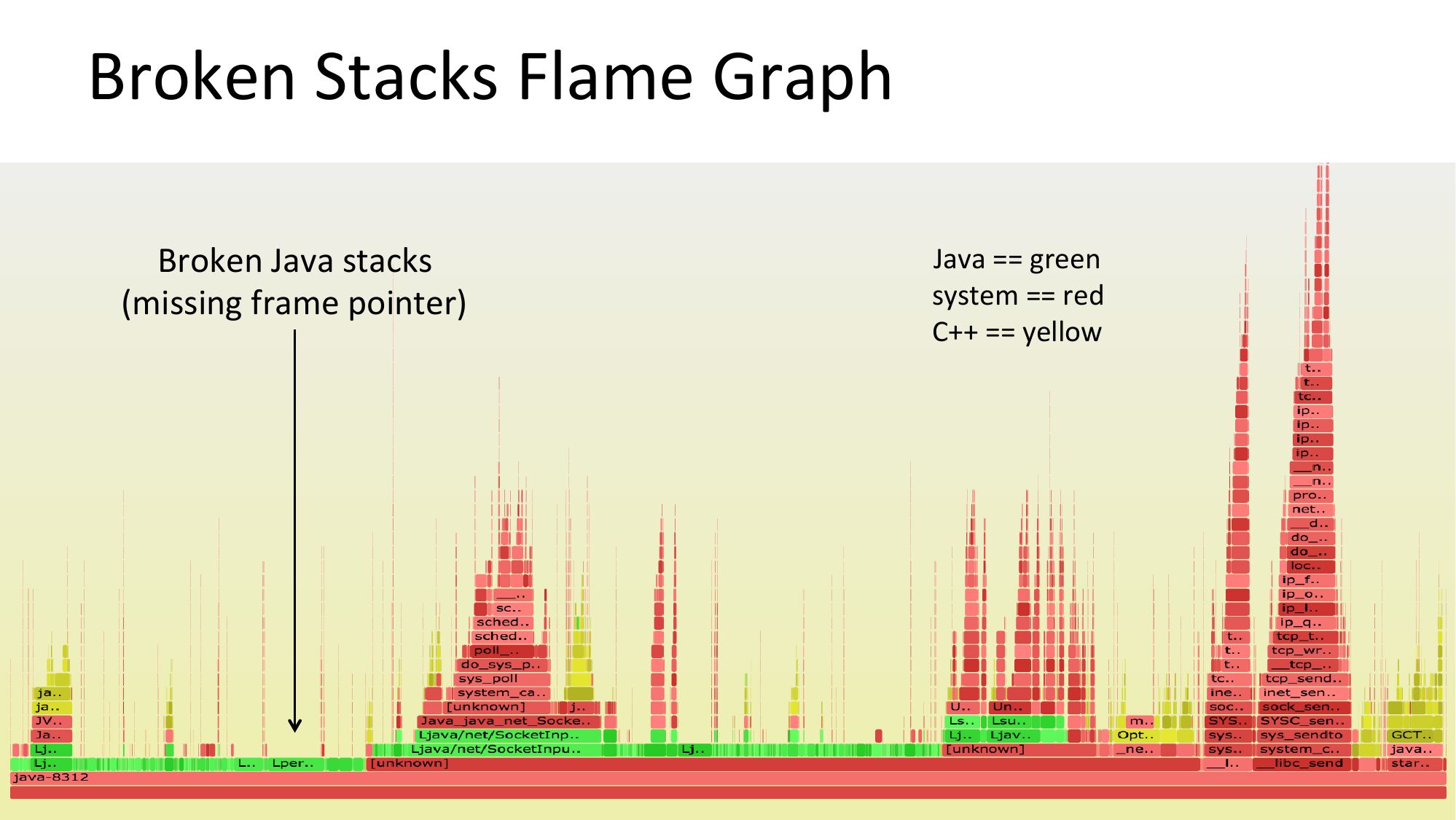

Broken Stacks Flame Graph
Broken Java stacks
(missing frame pointer)
Java == green
system == red
C++ == yellow

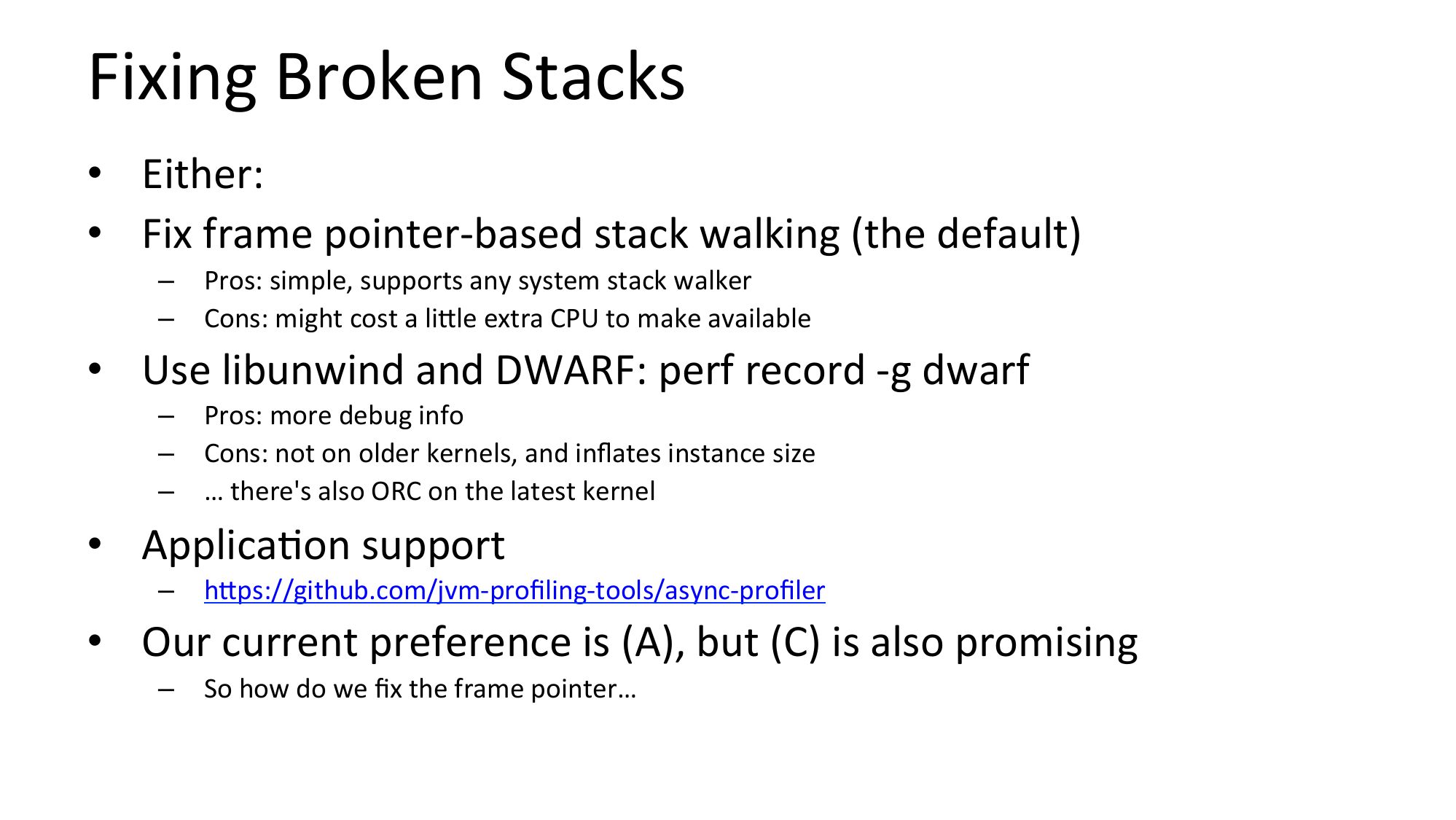

Fixing Broken Stacks
• Either:
• Fix frame pointer-based stack walking (the default)
Pros: simple, supports any system stack walker
Cons: might cost a liUle extra CPU to make available
• Use libunwind and DWARF: perf record -g dwarf
Pros: more debug info
Cons: not on older kernels, and inflates instance size
… there's also ORC on the latest kernel
• Applica/on support
hUps://github.com/jvm-profiling-tools/async-profiler
• Our current preference is (A), but (C) is also promising
So how do we fix the frame pointer…

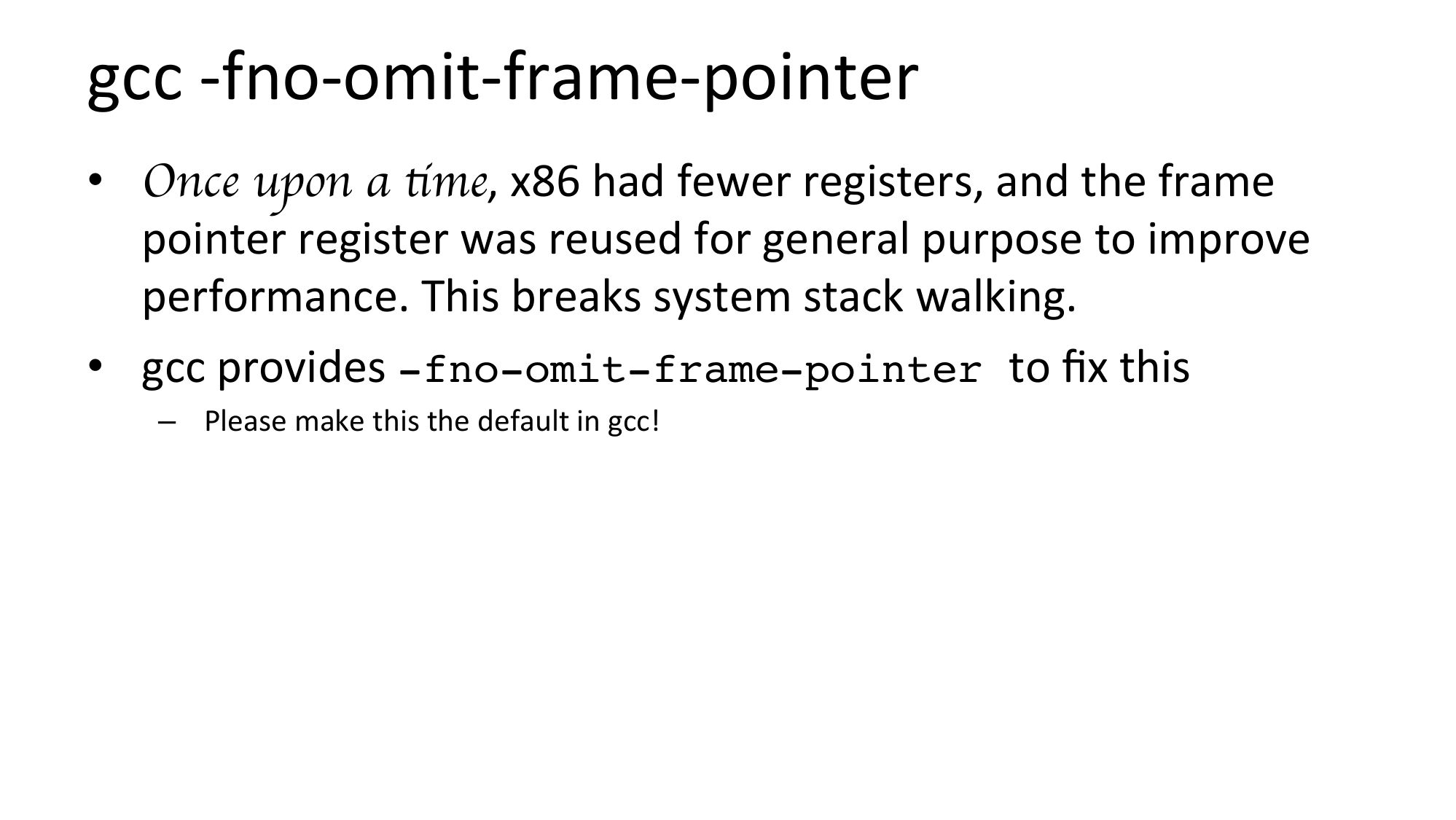

gcc -fno-omit-frame-pointer
• Once upon a time, x86 had fewer registers, and the frame
pointer register was reused for general purpose to improve
performance. This breaks system stack walking.
• gcc provides -fno-omit-frame-pointer to fix this
– Please make this the default in gcc!

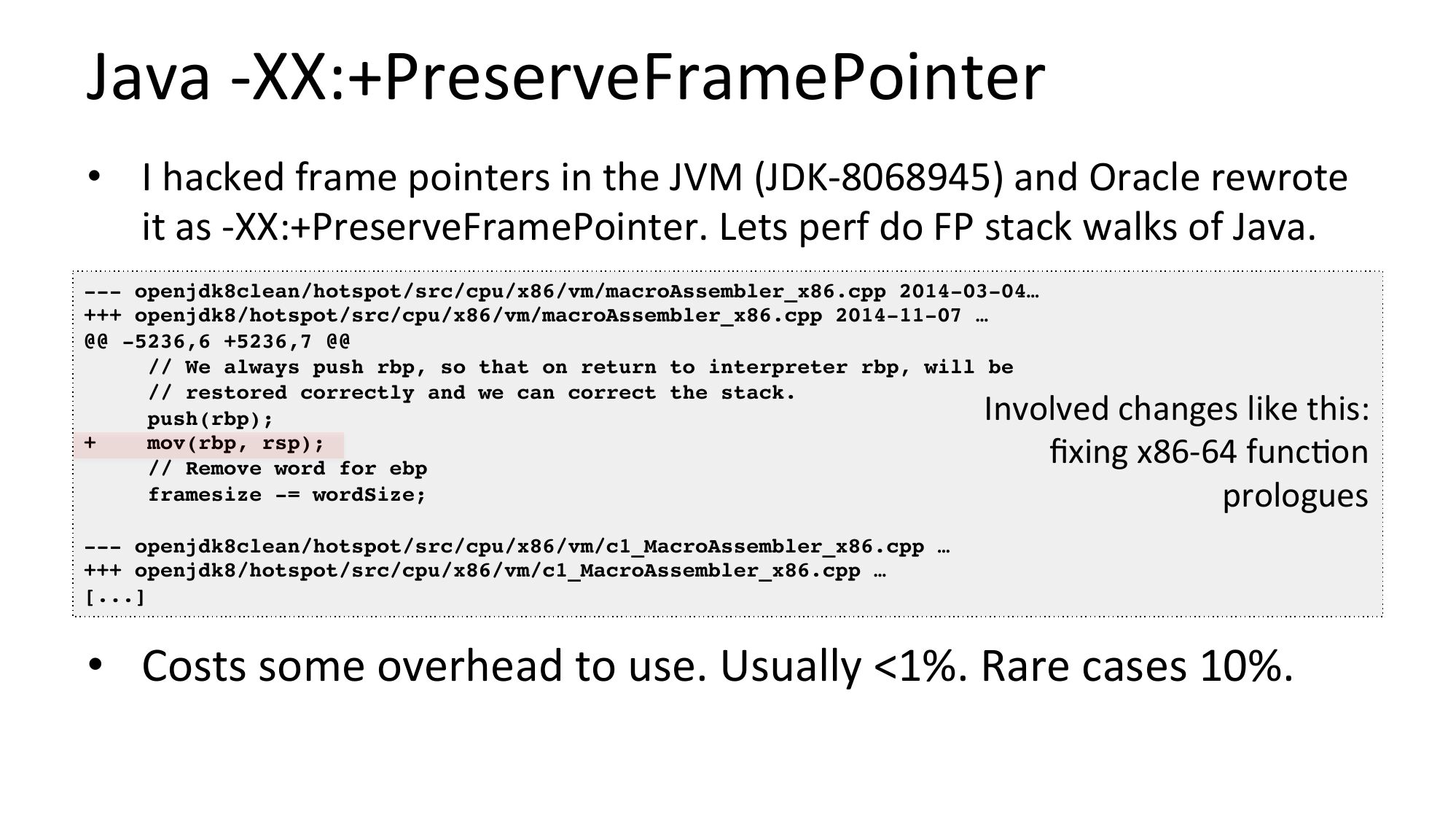

Java -XX:+PreserveFramePointer
• I hacked frame pointers in the JVM (JDK-8068945) and Oracle rewrote
it as -XX:+PreserveFramePointer. Lets perf do FP stack walks of Java.
--- openjdk8clean/hotspot/src/cpu/x86/vm/macroAssembler_x86.cpp 2014-03-04…
+++ openjdk8/hotspot/src/cpu/x86/vm/macroAssembler_x86.cpp 2014-11-07 …
@@ -5236,6 +5236,7 @@
// We always push rbp, so that on return to interpreter rbp, will be
// restored correctly and we can correct the stack.
push(rbp);
mov(rbp, rsp);
// Remove word for ebp
framesize -= wordSize;
Involved changes like this:
fixing x86-64 func/on
prologues
--- openjdk8clean/hotspot/src/cpu/x86/vm/c1_MacroAssembler_x86.cpp …
+++ openjdk8/hotspot/src/cpu/x86/vm/c1_MacroAssembler_x86.cpp …
[...]
• Costs some overhead to use. Usually

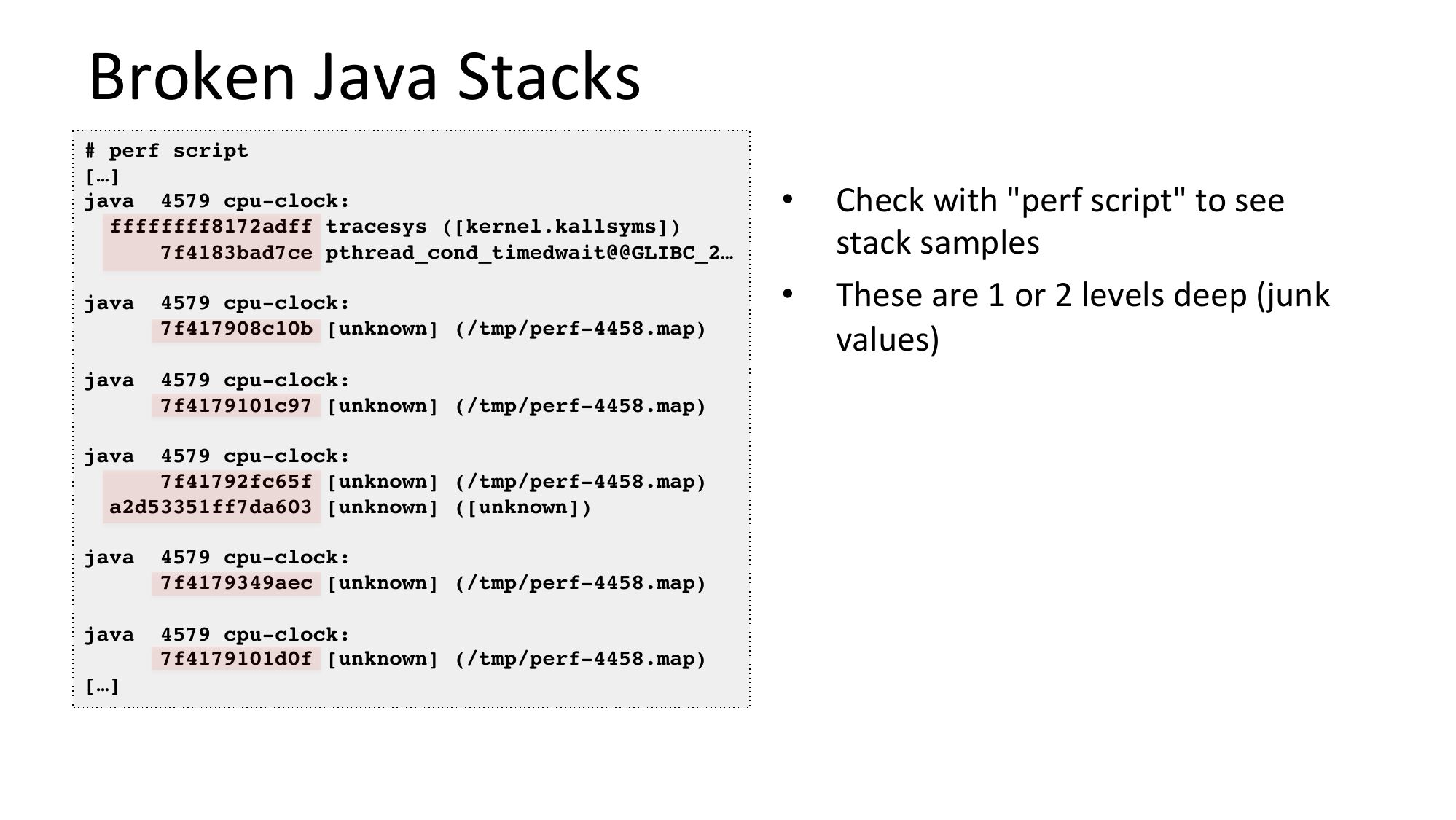

Broken Java Stacks
# perf script
[…]
java 4579 cpu-clock:
ffffffff8172adff tracesys ([kernel.kallsyms])
7f4183bad7ce pthread_cond_timedwait@@GLIBC_2…
java
4579 cpu-clock:
7f417908c10b [unknown] (/tmp/perf-4458.map)
java
4579 cpu-clock:
7f4179101c97 [unknown] (/tmp/perf-4458.map)
java
4579 cpu-clock:
7f41792fc65f [unknown] (/tmp/perf-4458.map)
a2d53351ff7da603 [unknown] ([unknown])
java
4579 cpu-clock:
7f4179349aec [unknown] (/tmp/perf-4458.map)
java
4579 cpu-clock:
7f4179101d0f [unknown] (/tmp/perf-4458.map)
[…]
Check with "perf script" to see
stack samples
These are 1 or 2 levels deep (junk
values)

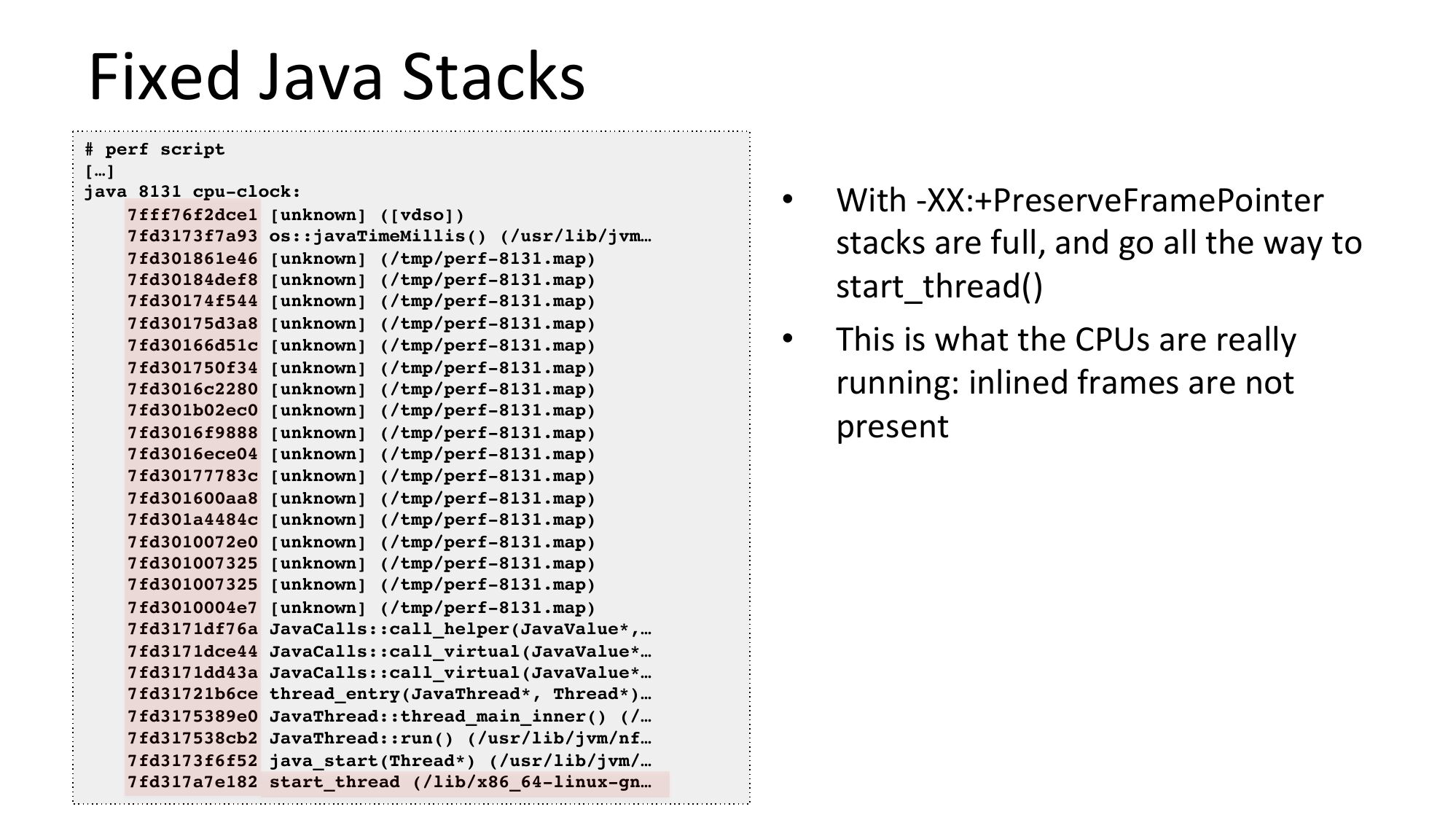

Fixed Java Stacks
# perf script
[…]
java 8131 cpu-clock:
7fff76f2dce1 [unknown] ([vdso])
7fd3173f7a93 os::javaTimeMillis() (/usr/lib/jvm…
7fd301861e46 [unknown] (/tmp/perf-8131.map)
7fd30184def8 [unknown] (/tmp/perf-8131.map)
7fd30174f544 [unknown] (/tmp/perf-8131.map)
7fd30175d3a8 [unknown] (/tmp/perf-8131.map)
7fd30166d51c [unknown] (/tmp/perf-8131.map)
7fd301750f34 [unknown] (/tmp/perf-8131.map)
7fd3016c2280 [unknown] (/tmp/perf-8131.map)
7fd301b02ec0 [unknown] (/tmp/perf-8131.map)
7fd3016f9888 [unknown] (/tmp/perf-8131.map)
7fd3016ece04 [unknown] (/tmp/perf-8131.map)
7fd30177783c [unknown] (/tmp/perf-8131.map)
7fd301600aa8 [unknown] (/tmp/perf-8131.map)
7fd301a4484c [unknown] (/tmp/perf-8131.map)
7fd3010072e0 [unknown] (/tmp/perf-8131.map)
7fd301007325 [unknown] (/tmp/perf-8131.map)
7fd301007325 [unknown] (/tmp/perf-8131.map)
7fd3010004e7 [unknown] (/tmp/perf-8131.map)
7fd3171df76a JavaCalls::call_helper(JavaValue*,…
7fd3171dce44 JavaCalls::call_virtual(JavaValue*…
7fd3171dd43a JavaCalls::call_virtual(JavaValue*…
7fd31721b6ce thread_entry(JavaThread*, Thread*)…
7fd3175389e0 JavaThread::thread_main_inner() (/…
7fd317538cb2 JavaThread::run() (/usr/lib/jvm/nf…
7fd3173f6f52 java_start(Thread*) (/usr/lib/jvm/…
7fd317a7e182 start_thread (/lib/x86_64-linux-gn…
With -XX:+PreserveFramePointer
stacks are full, and go all the way to
start_thread()
This is what the CPUs are really
running: inlined frames are not
present

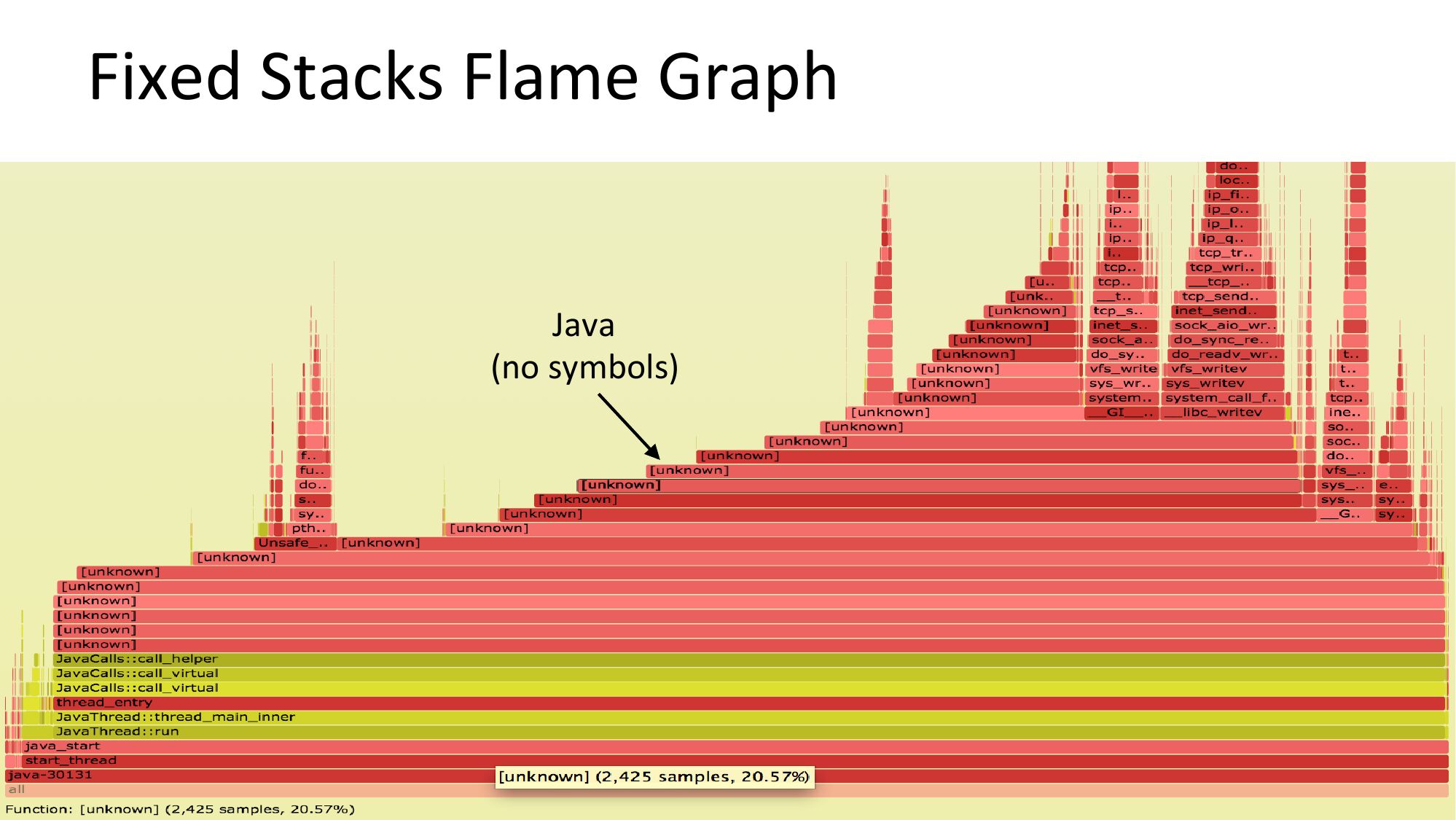

Fixed Stacks Flame Graph
Java
(no symbols)

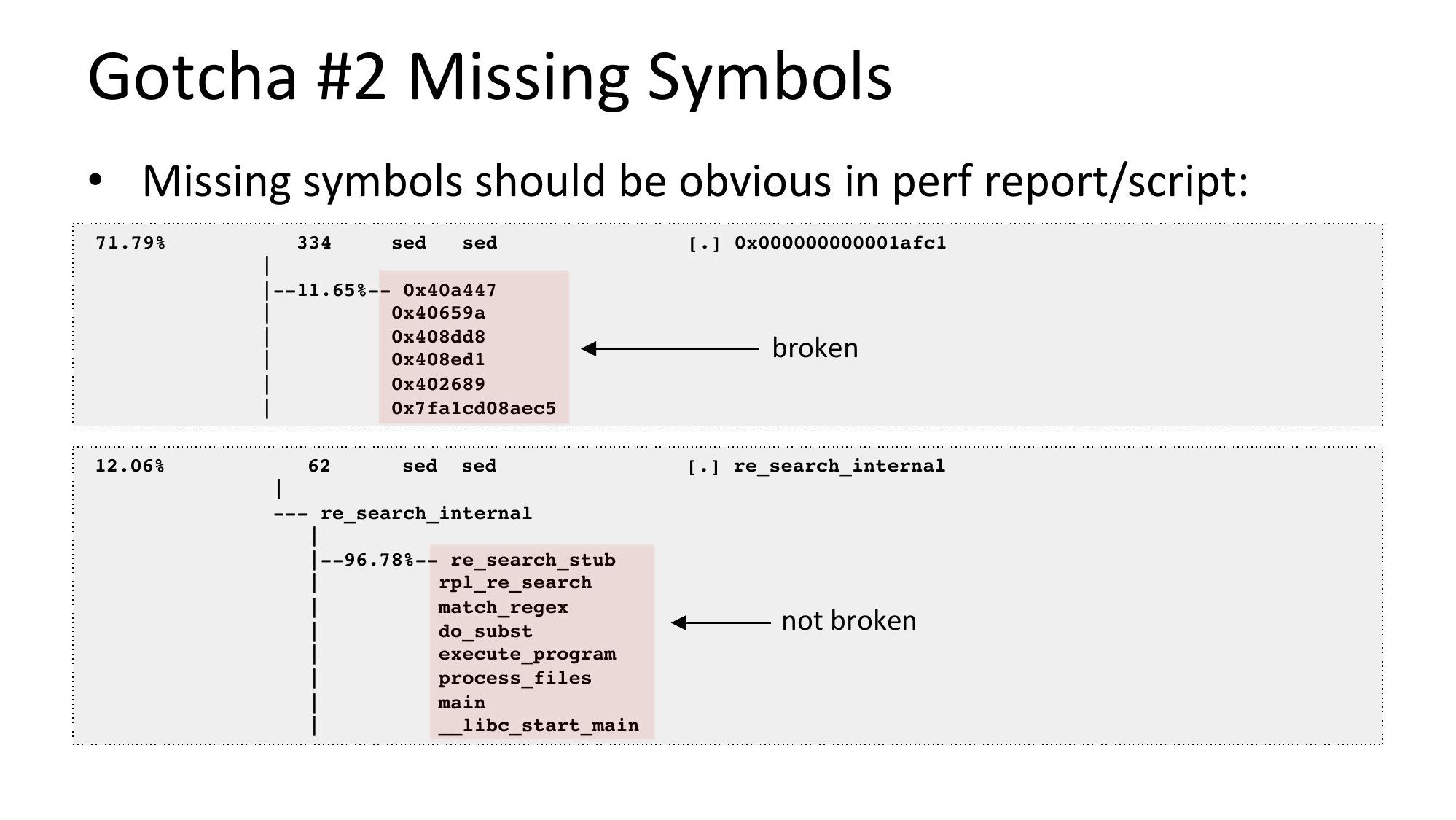

Gotcha #2 Missing Symbols
• Missing symbols should be obvious in perf report/script:
71.79%
12.06%
sed
sed
|--11.65%-- 0x40a447
0x40659a
0x408dd8
0x408ed1
0x402689
0x7fa1cd08aec5
sed
sed
--- re_search_internal
|--96.78%-- re_search_stub
rpl_re_search
match_regex
do_subst
execute_program
process_files
main
__libc_start_main
[.] 0x000000000001afc1
broken
[.] re_search_internal
not broken

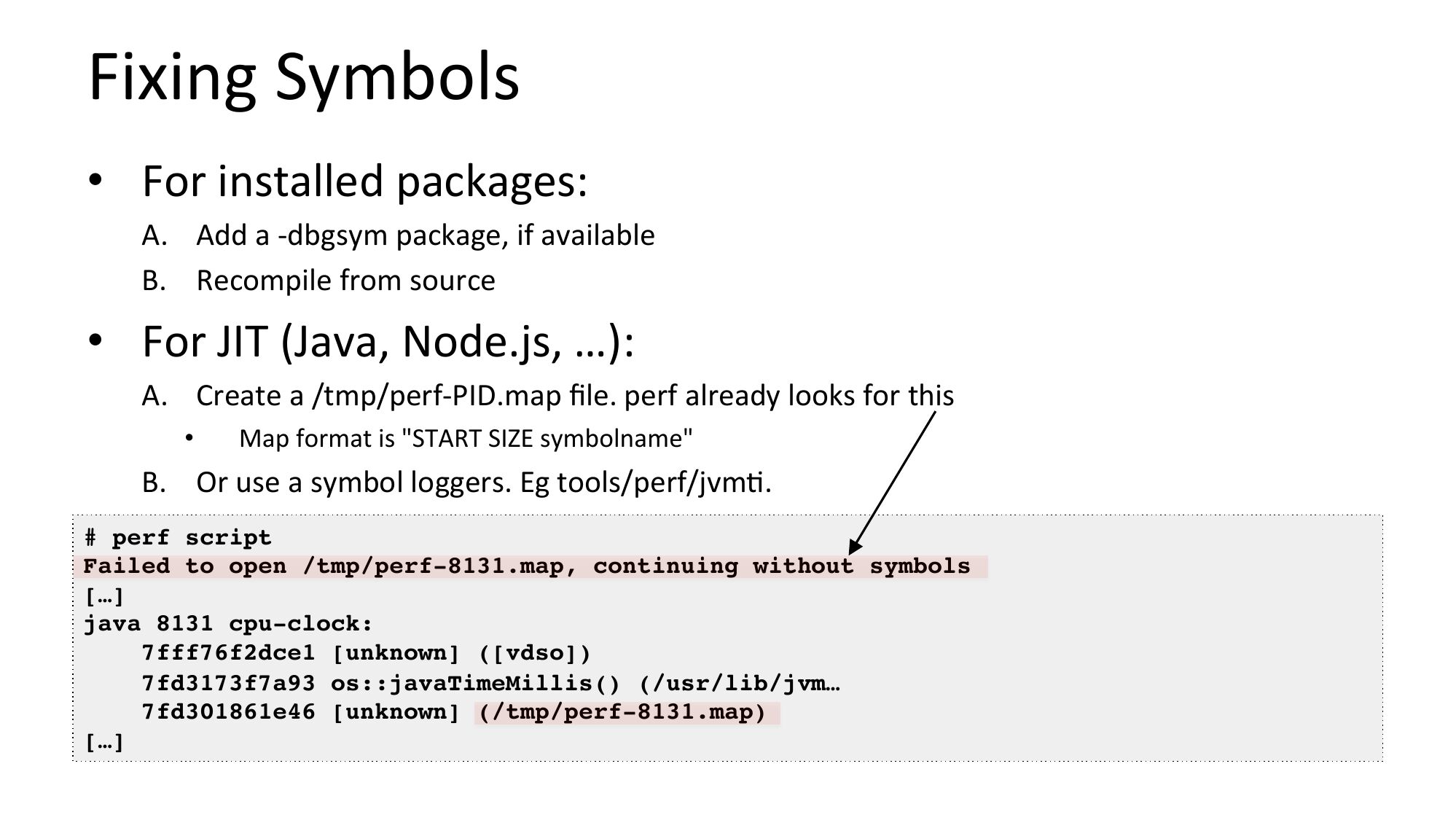

Fixing Symbols
• For installed packages:
A. Add a -dbgsym package, if available
B. Recompile from source
• For JIT (Java, Node.js, …):
A. Create a /tmp/perf-PID.map file. perf already looks for this
Map format is "START SIZE symbolname"
B. Or use a symbol loggers. Eg tools/perf/jvm/.
# perf script
Failed to open /tmp/perf-8131.map, continuing without symbols
[…]
java 8131 cpu-clock:
7fff76f2dce1 [unknown] ([vdso])
7fd3173f7a93 os::javaTimeMillis() (/usr/lib/jvm…
7fd301861e46 [unknown] (/tmp/perf-8131.map)
[…]

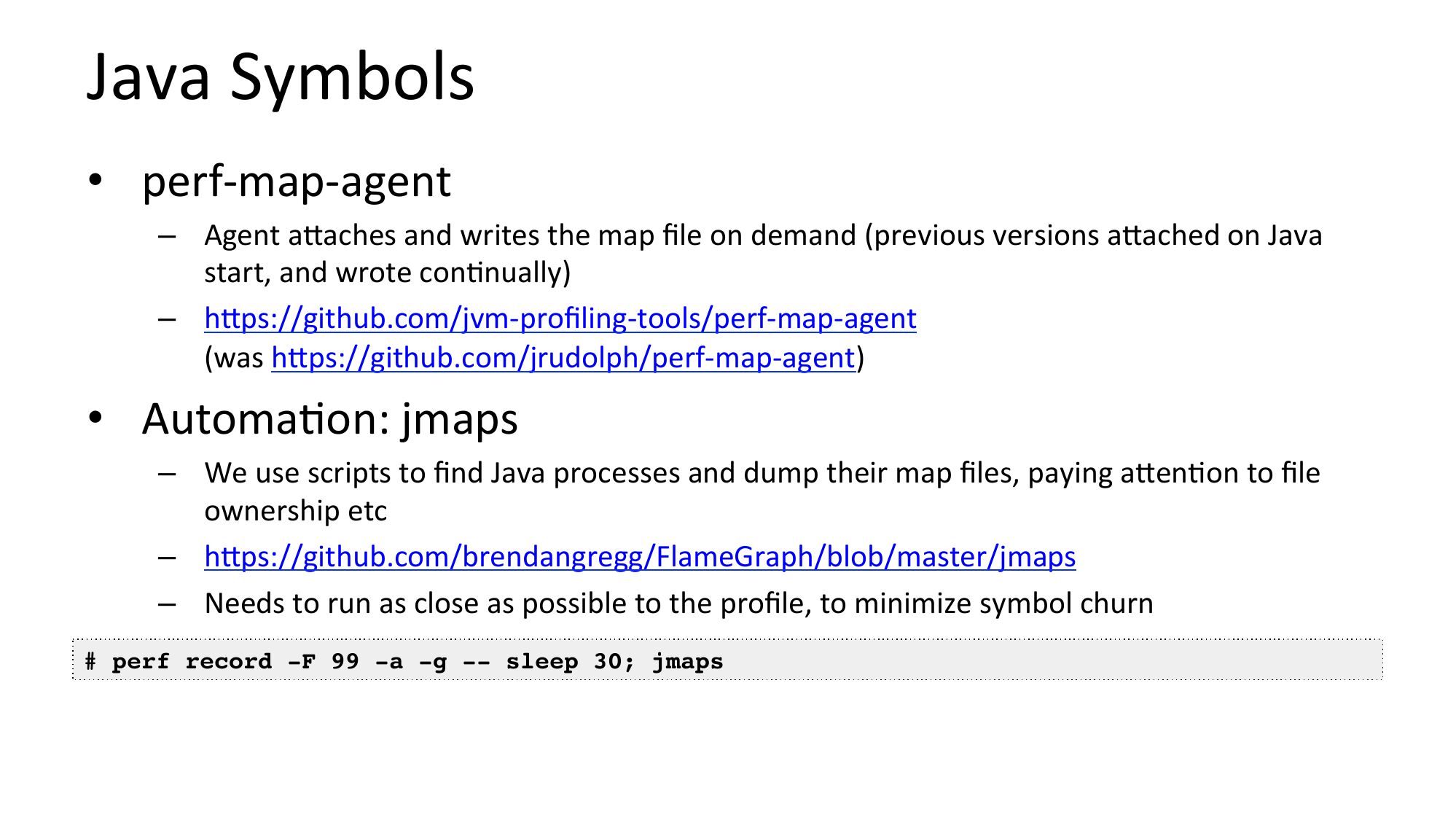

Java Symbols
• perf-map-agent
– Agent aUaches and writes the map file on demand (previous versions aUached on Java
start, and wrote con/nually)
– hUps://github.com/jvm-profiling-tools/perf-map-agent
(was hUps://github.com/jrudolph/perf-map-agent)
• Automa/on: jmaps
– We use scripts to find Java processes and dump their map files, paying aUen/on to file
ownership etc
– hUps://github.com/brendangregg/FlameGraph/blob/master/jmaps
– Needs to run as close as possible to the profile, to minimize symbol churn
# perf record -F 99 -a -g -- sleep 30; jmaps

Java Flame Graph: Stacks & Symbols
Kernel
(C)
flamegraph.pl --color=java
Java
User
(C)
JVM
(C++)

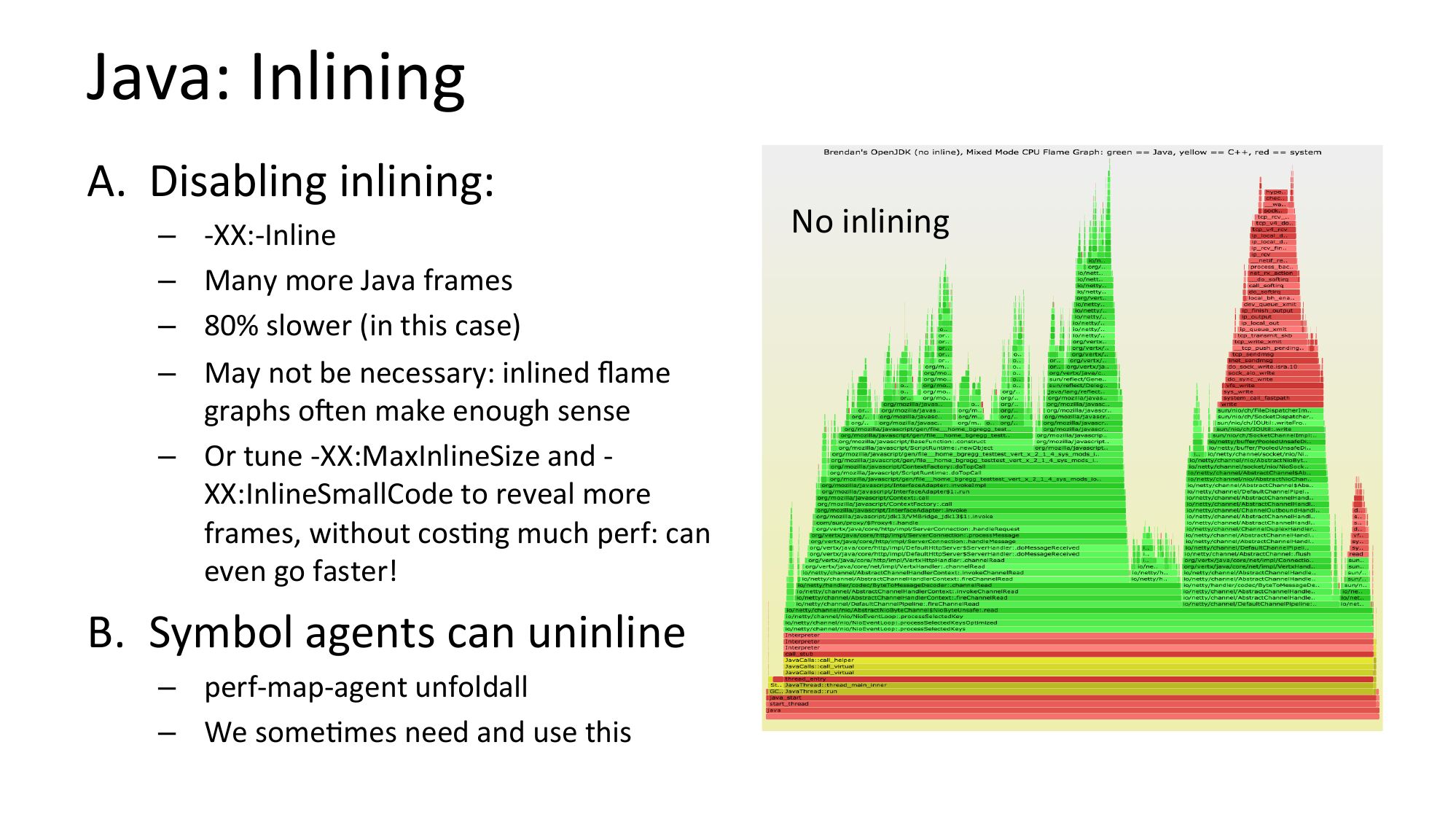

Java: Inlining
A. Disabling inlining:
-XX:-Inline
Many more Java frames
80% slower (in this case)
May not be necessary: inlined flame
graphs ooen make enough sense
– Or tune -XX:MaxInlineSize and XX:InlineSmallCode to reveal more
frames, without cos/ng much perf: can
even go faster!
B. Symbol agents can uninline
– perf-map-agent unfoldall
– We some/mes need and use this
No inlining

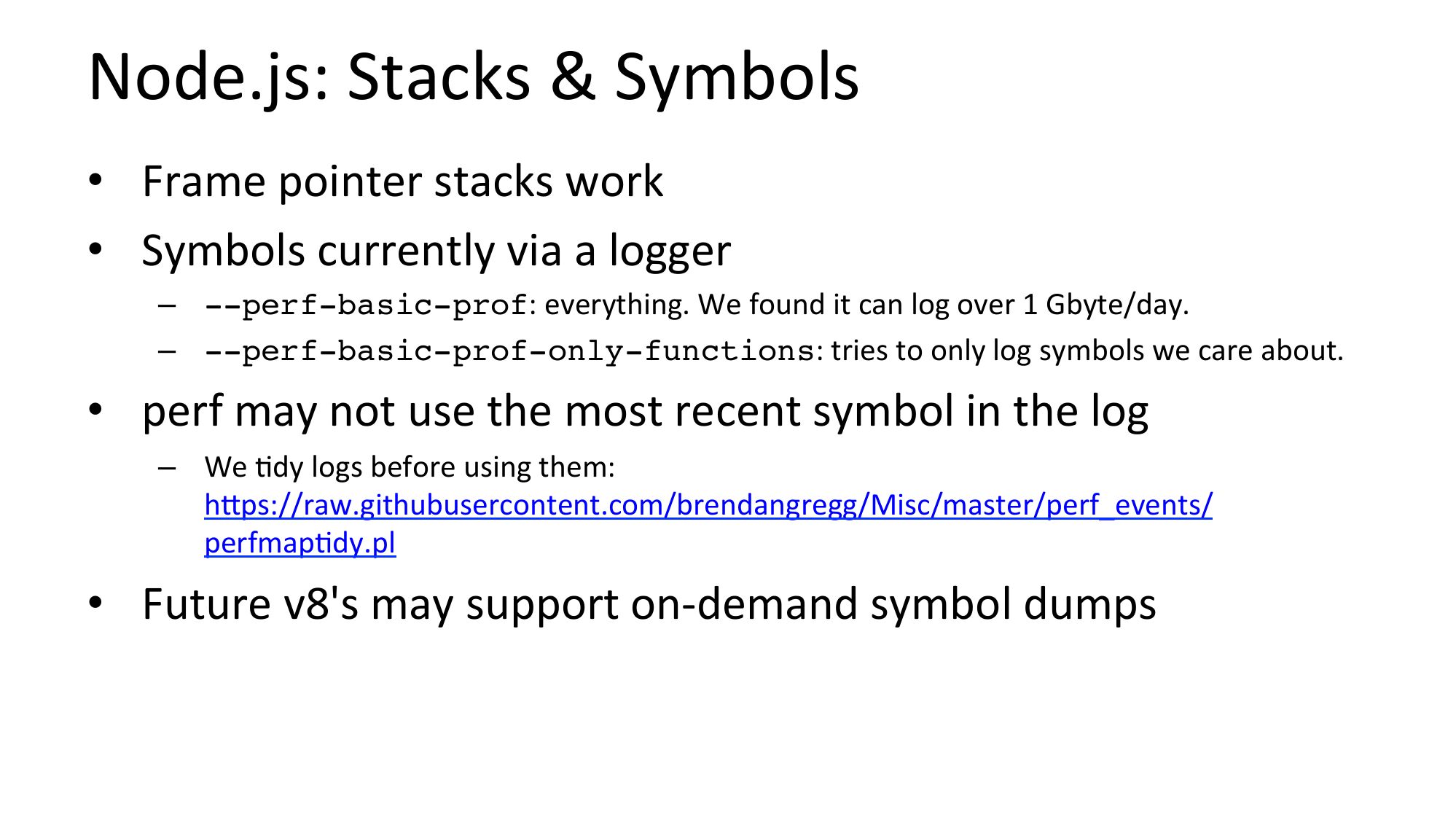

Node.js: Stacks & Symbols
• Frame pointer stacks work
• Symbols currently via a logger
– --perf-basic-prof: everything. We found it can log over 1 Gbyte/day.
– --perf-basic-prof-only-functions: tries to only log symbols we care about.
• perf may not use the most recent symbol in the log
– We /dy logs before using them:
hUps://raw.githubusercontent.com/brendangregg/Misc/master/perf_events/
perfmap/dy.pl
• Future v8's may support on-demand symbol dumps

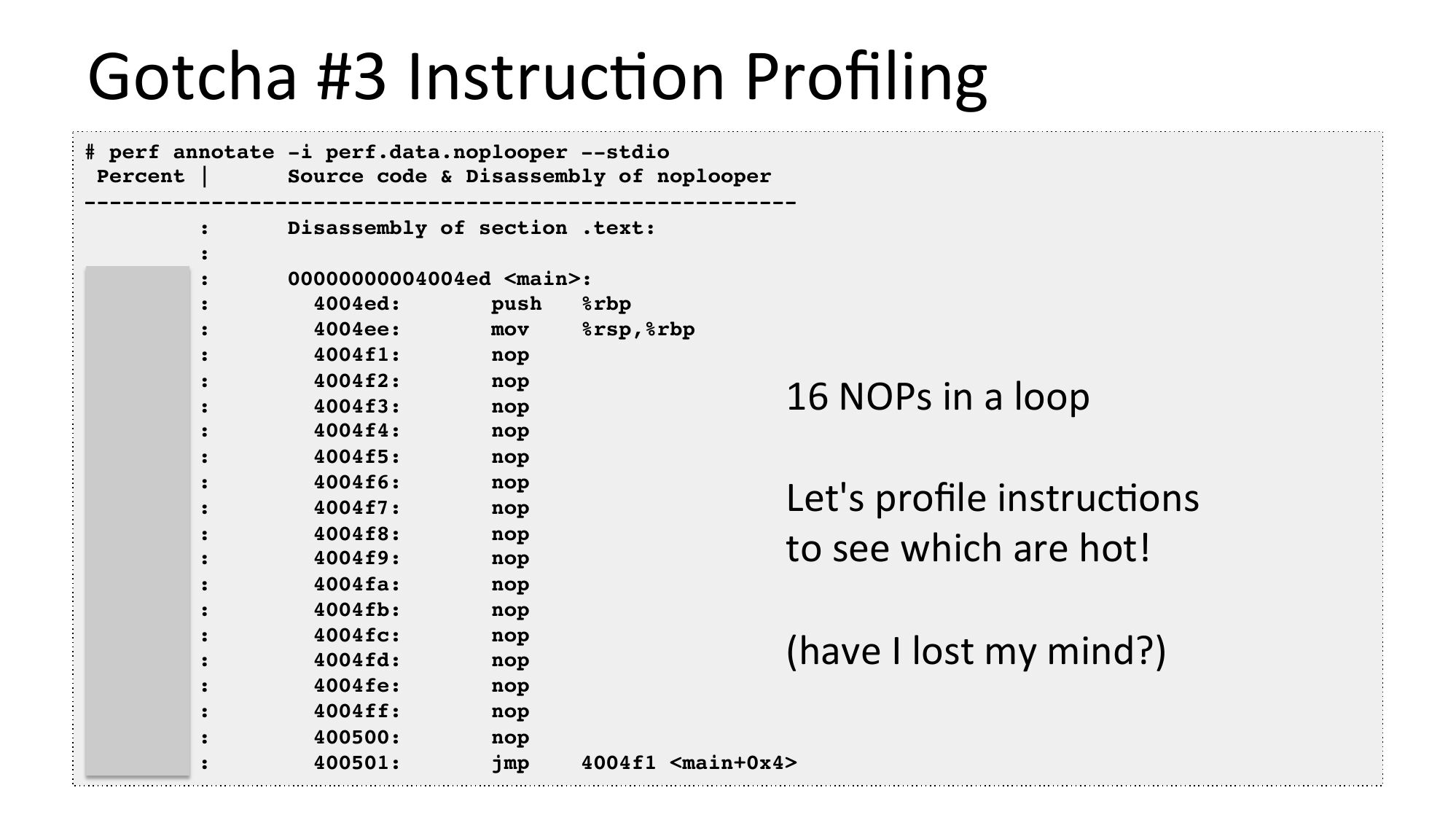

Gotcha #3 Instruc/on Profiling
# perf annotate -i perf.data.noplooper --stdio
Percent |
Source code & Disassembly of noplooper
-------------------------------------------------------:
Disassembly of section .text:
00000000004004ed gt;:
0.00 :
4004ed:
push
%rbp
0.00 :
4004ee:
mov
%rsp,%rbp
20.86 :
4004f1:
nop
0.00 :
4004f2:
nop
0.00 :
4004f3:
nop
0.00 :
4004f4:
nop
19.84 :
4004f5:
nop
0.00 :
4004f6:
nop
0.00 :
4004f7:
nop
0.00 :
4004f8:
nop
18.73 :
4004f9:
nop
0.00 :
4004fa:
nop
0.00 :
4004fb:
nop
0.00 :
4004fc:
nop
19.08 :
4004fd:
nop
0.00 :
4004fe:
nop
0.00 :
4004ff:
nop
0.00 :
400500:
nop
21.49 :
400501:
jmp
4004f1 gt;
16 NOPs in a loop
Let's profile instruc/ons
to see which are hot!
(have I lost my mind?)

Instruc/on Profiling
• Even distribu/on (A)? Or something else?
(A)
(B)
(C)
(D)

Instruc/on Profiling
# perf annotate -i perf.data.noplooper --stdio
Percent |
Source code & Disassembly of noplooper
-------------------------------------------------------:
Disassembly of section .text:
00000000004004ed gt;:
0.00 :
4004ed:
push
%rbp
0.00 :
4004ee:
mov
%rsp,%rbp
20.86 :
4004f1:
nop
0.00 :
4004f2:
nop
0.00 :
4004f3:
nop
0.00 :
4004f4:
nop
19.84 :
4004f5:
nop
0.00 :
4004f6:
nop
0.00 :
4004f7:
nop
0.00 :
4004f8:
nop
18.73 :
4004f9:
nop
0.00 :
4004fa:
nop
0.00 :
4004fb:
nop
0.00 :
4004fc:
nop
19.08 :
4004fd:
nop
0.00 :
4004fe:
nop
Go home instruc/on pointer, you're drunk
0.00 :
4004ff:
nop
0.00 :
400500:
nop
21.49 :
400501:
jmp
4004f1 gt;

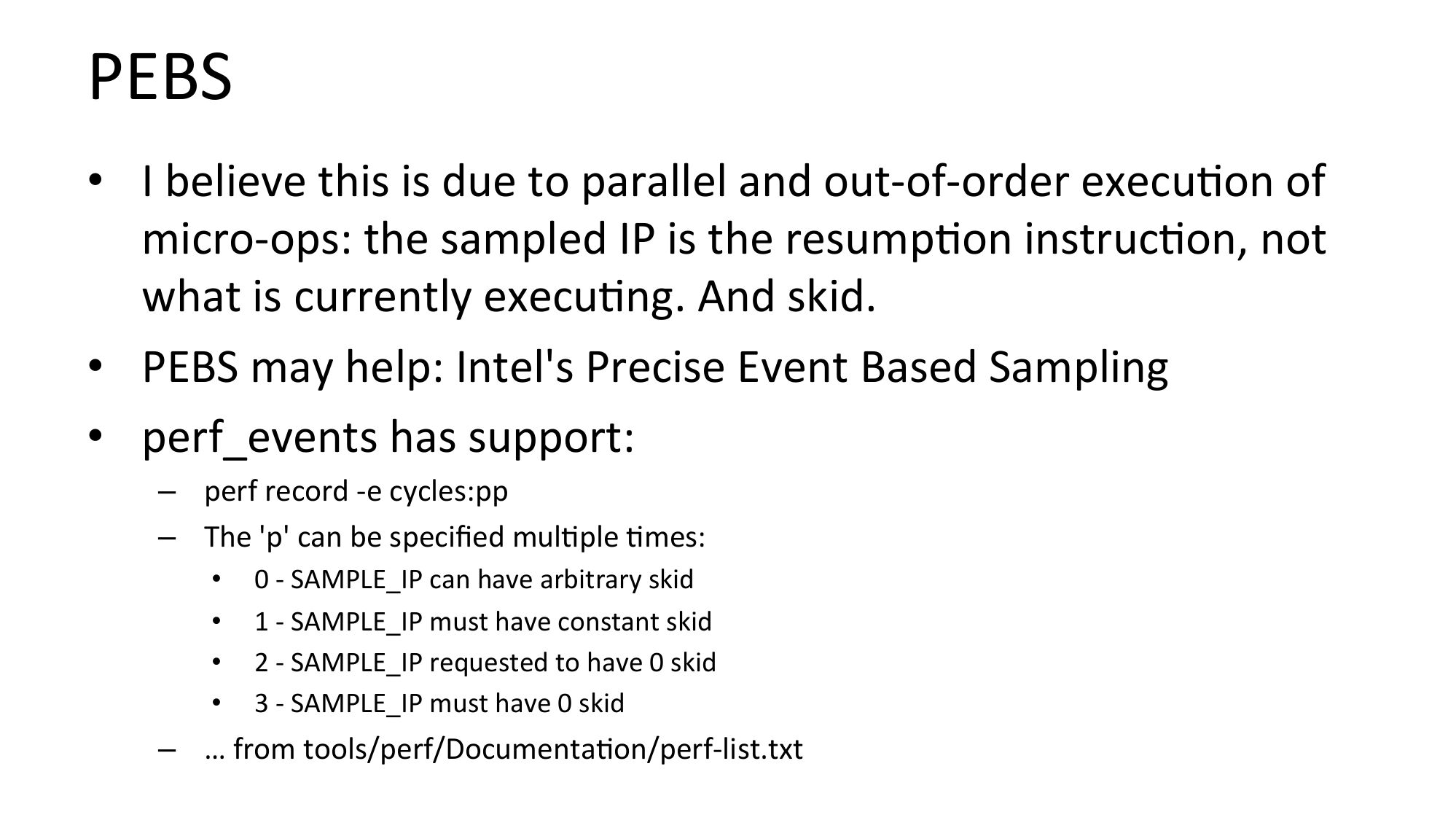

PEBS
• I believe this is due to parallel and out-of-order execu/on of
micro-ops: the sampled IP is the resump/on instruc/on, not
what is currently execu/ng. And skid.
• PEBS may help: Intel's Precise Event Based Sampling
• perf_events has support:
– perf record -e cycles:pp
– The 'p' can be specified mul/ple /mes:
0 - SAMPLE_IP can have arbitrary skid
1 - SAMPLE_IP must have constant skid
2 - SAMPLE_IP requested to have 0 skid
3 - SAMPLE_IP must have 0 skid
– … from tools/perf/Documenta/on/perf-list.txt

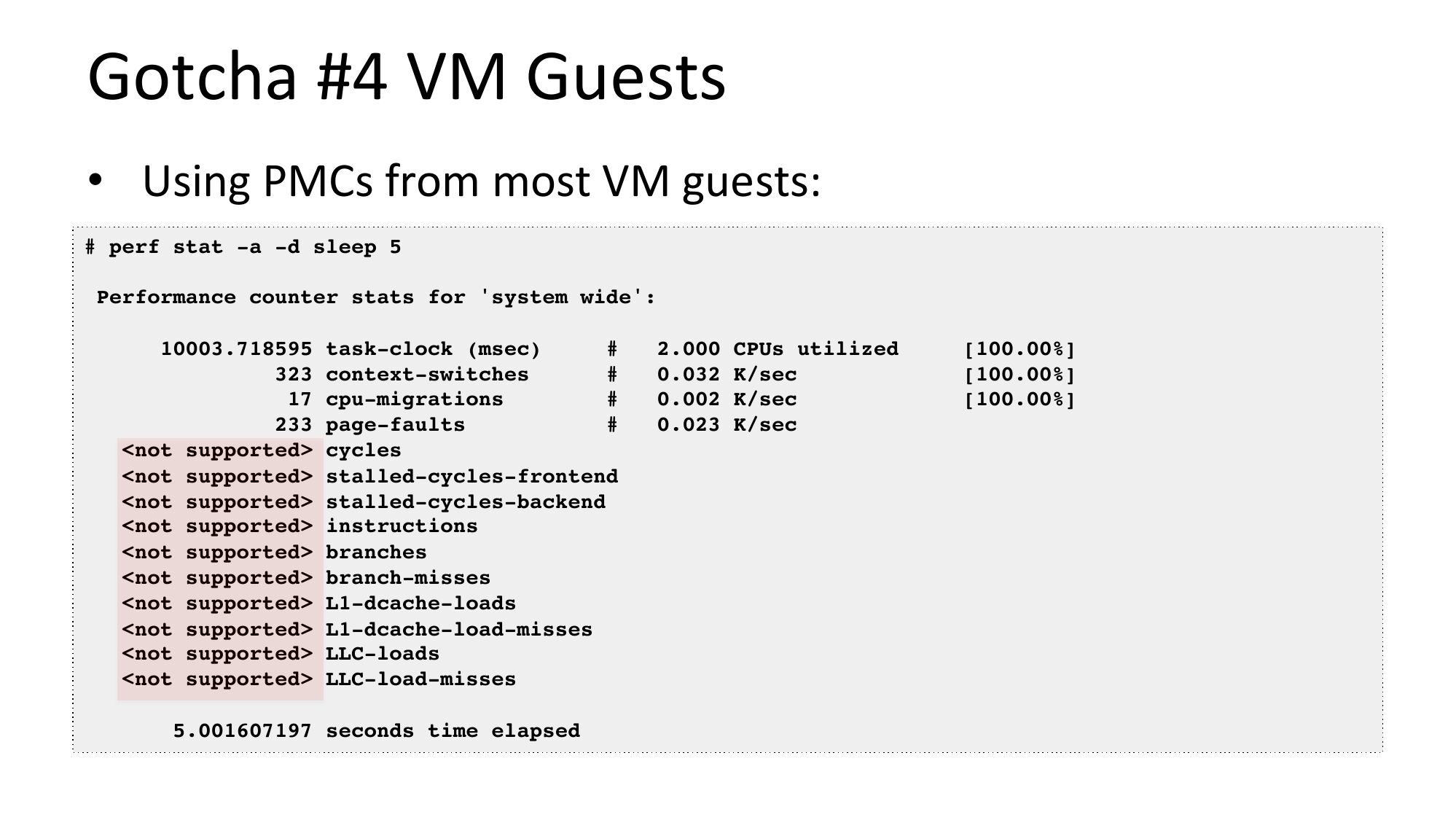

Gotcha #4 VM Guests
• Using PMCs from most VM guests:
# perf stat -a -d sleep 5
Performance counter stats for 'system wide':
10003.718595 task-clock (msec)
323 context-switches
17 cpu-migrations
233 page-faults
gt; cycles
gt; stalled-cycles-frontend
gt; stalled-cycles-backend
gt; instructions
gt; branches
gt; branch-misses
gt; L1-dcache-loads
gt; L1-dcache-load-misses
gt; LLC-loads
gt; LLC-load-misses
5.001607197 seconds time elapsed
2.000 CPUs utilized
0.032 K/sec
0.002 K/sec
0.023 K/sec
[100.00%]
[100.00%]
[100.00%]

VM Guest PMCs
• Without PMCs, %CPU is ambiguous. We need IPC.
– Can't measure instruc/ons per cycle (IPC), cache hits/misses, MMU/TLB events, etc.
• Is fixable: eg, Xen can enable PMCs (vpmu boot op/on)
– I added vpmu support for subsets, eg, vpmu=arch for Intel architectural set (7 PMCs only)
– hUp://www.brendangregg.com/blog/2017-05-04/the-pmcs-of-ec2.html
architectural
set
– Now available on the largest AWS EC2 instance types

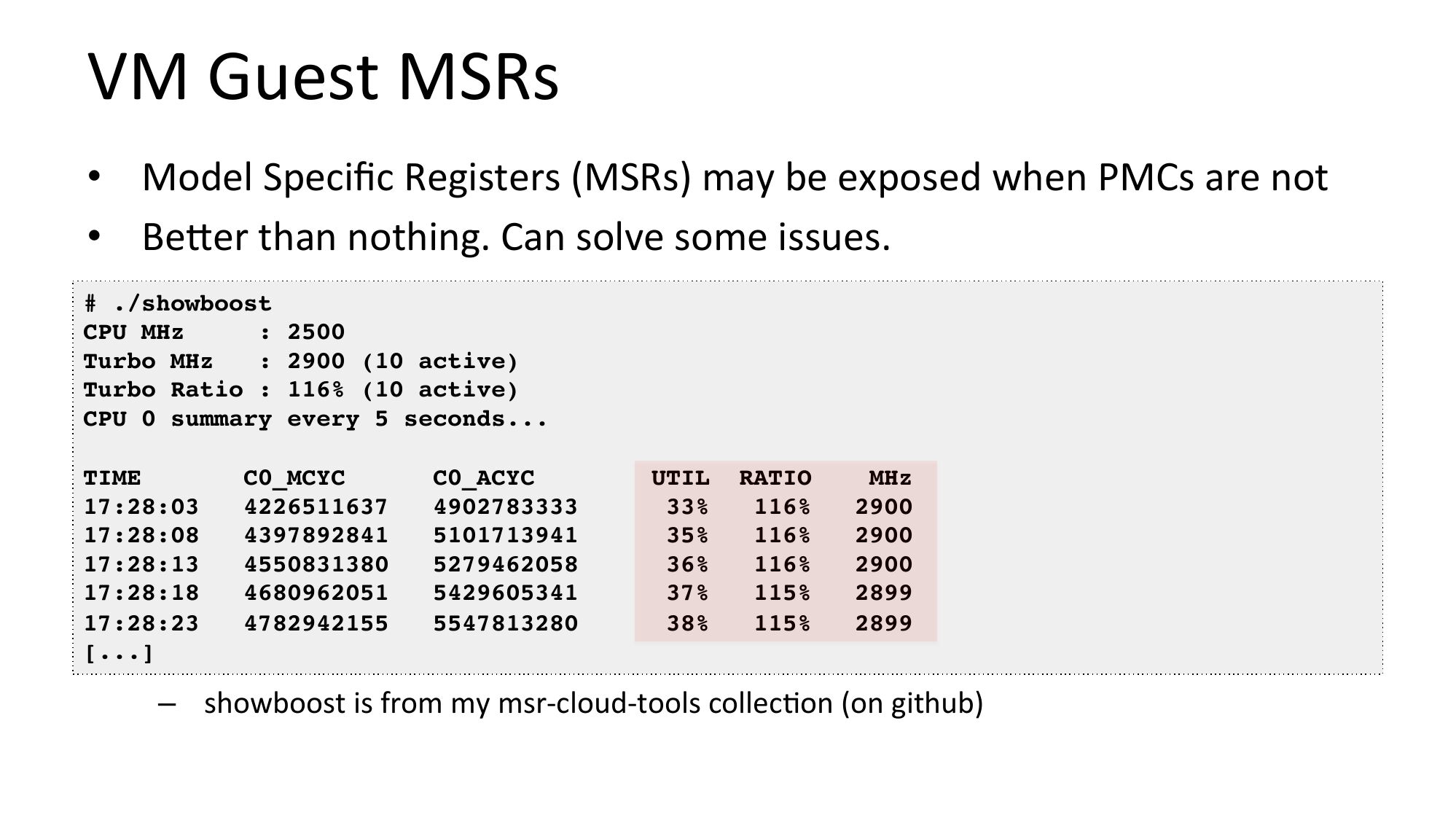

VM Guest MSRs
• Model Specific Registers (MSRs) may be exposed when PMCs are not
• BeUer than nothing. Can solve some issues.
# ./showboost
CPU MHz
: 2500
Turbo MHz
: 2900 (10 active)
Turbo Ratio : 116% (10 active)
CPU 0 summary every 5 seconds...
TIME
17:28:03
17:28:08
17:28:13
17:28:18
17:28:23
[...]
C0_MCYC
C0_ACYC
UTIL
33%
35%
36%
37%
38%
RATIO
116%
116%
116%
115%
115%
MHz
– showboost is from my msr-cloud-tools collec/on (on github)

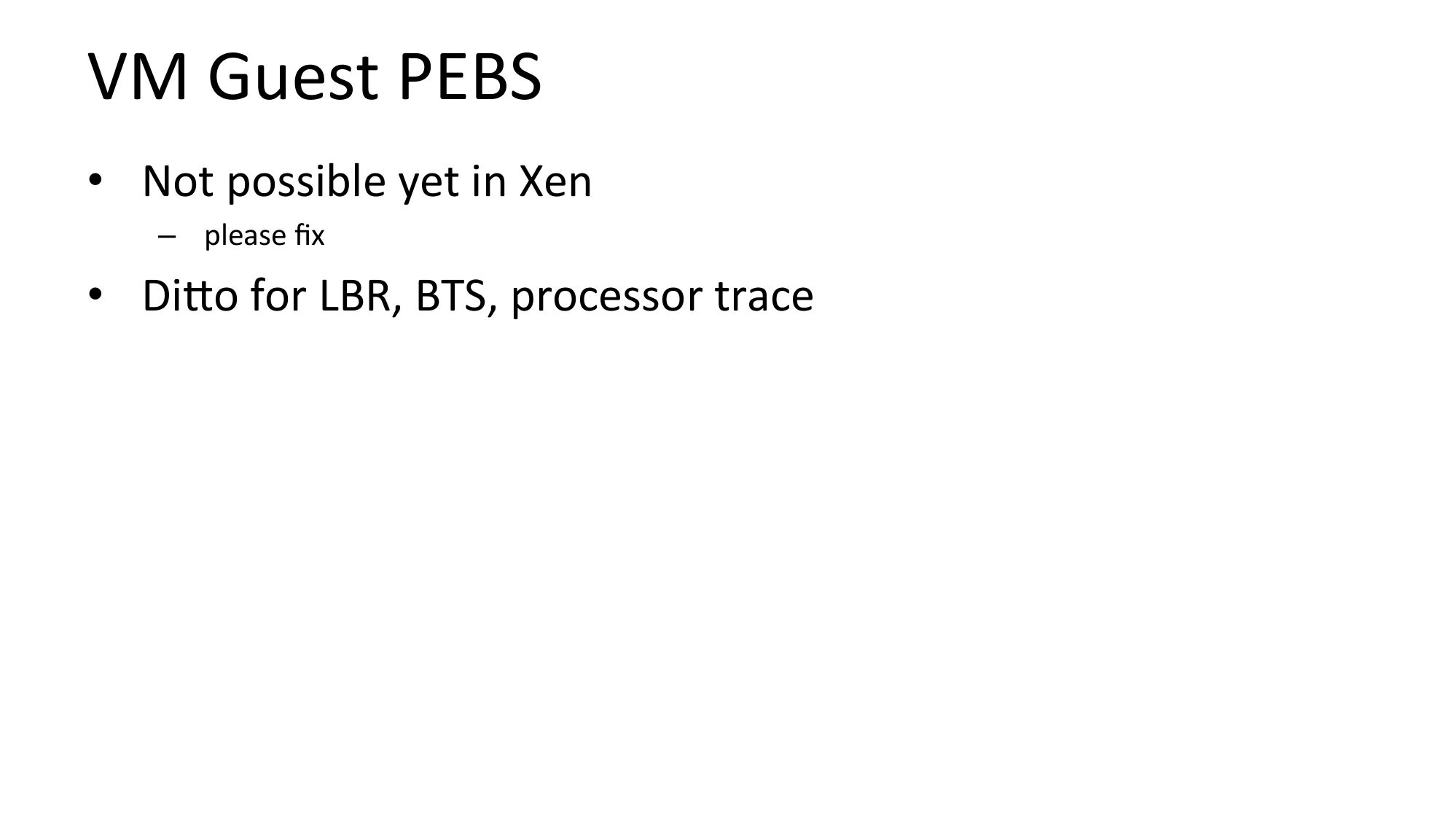

VM Guest PEBS
• Not possible yet in Xen
– please fix
• DiUo for LBR, BTS, processor trace

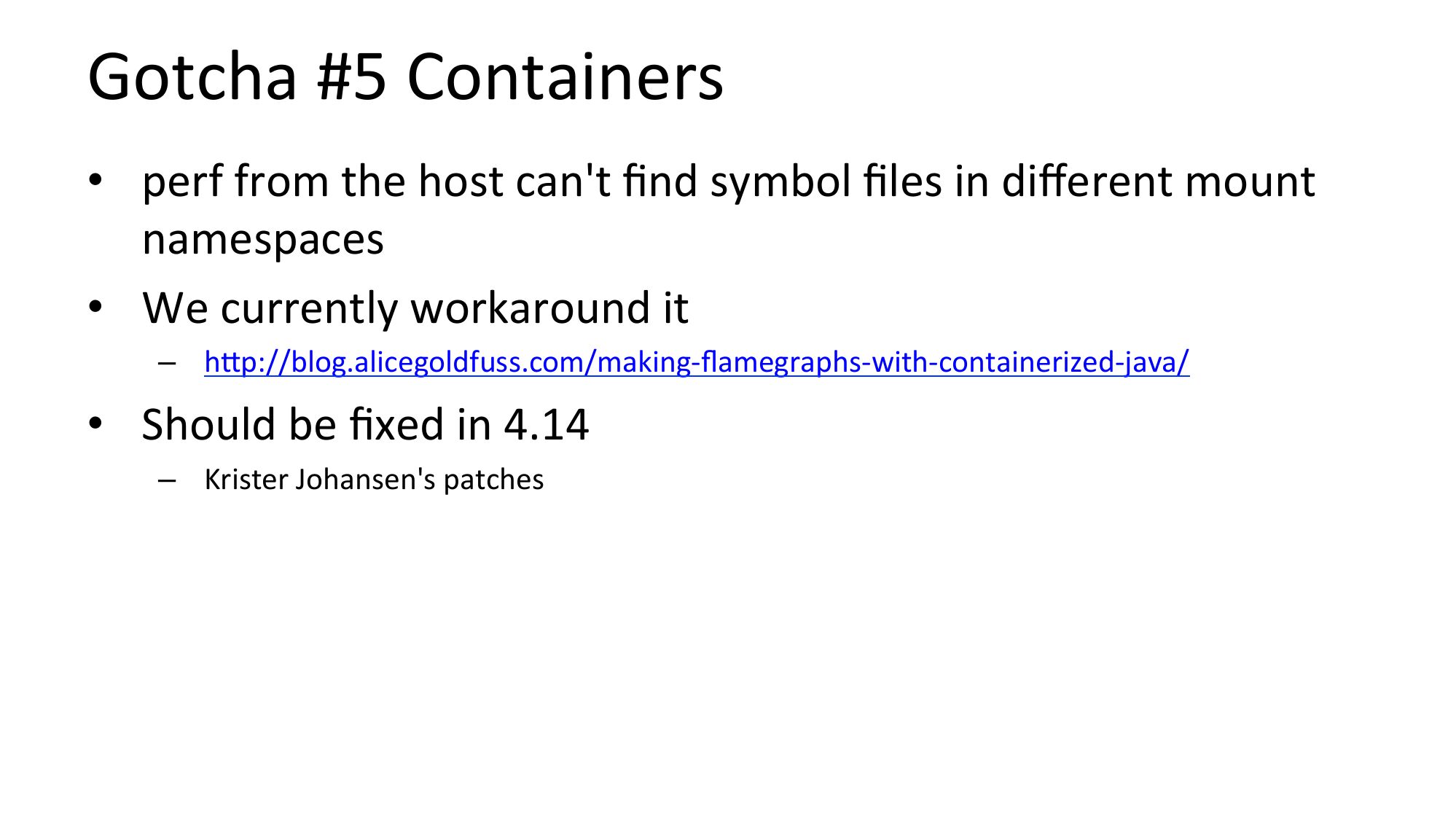

Gotcha #5 Containers
• perf from the host can't find symbol files in different mount
namespaces
• We currently workaround it
– hUp://blog.alicegoldfuss.com/making-flamegraphs-with-containerized-java/
• Should be fixed in 4.14
– Krister Johansen's patches

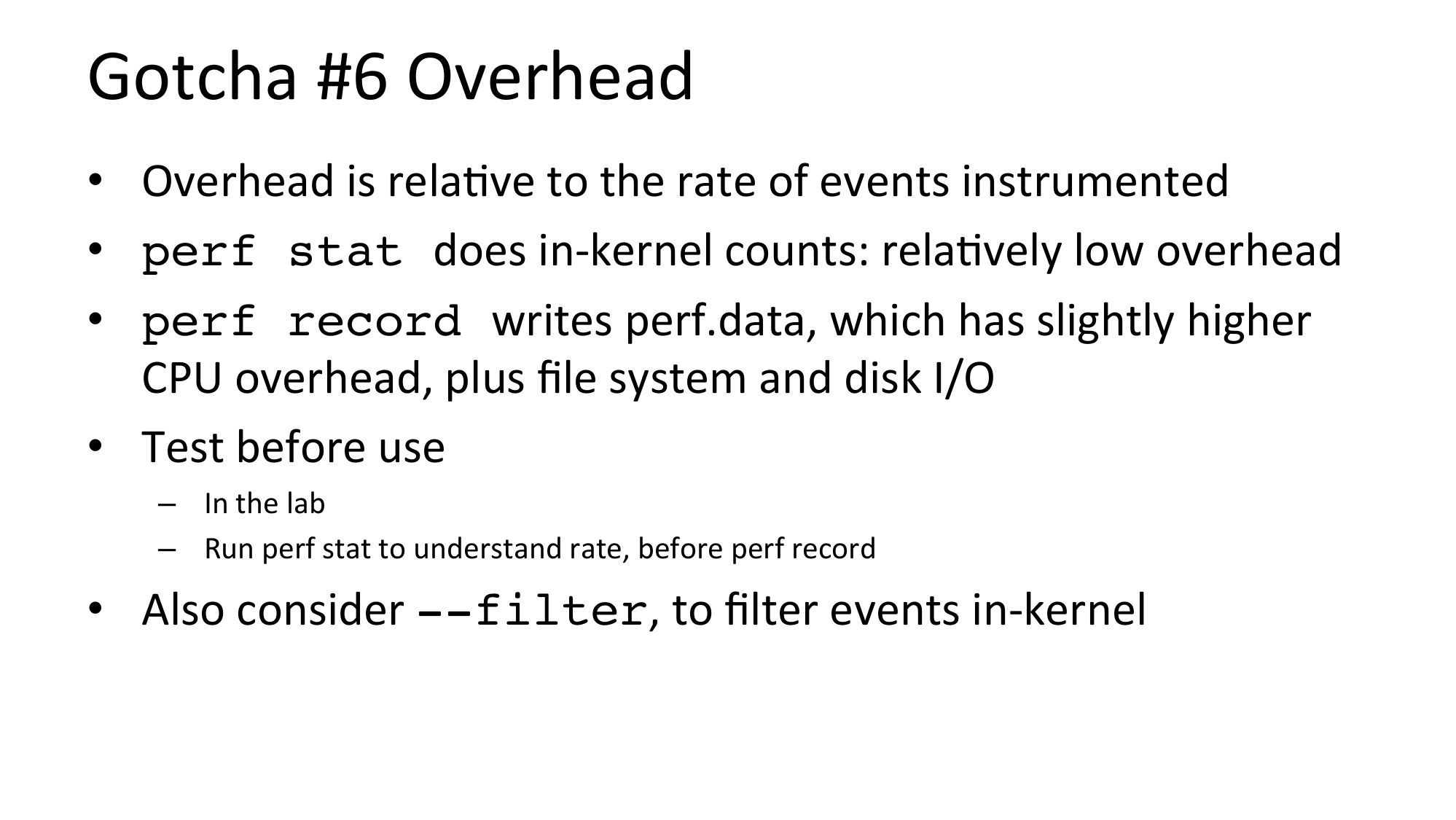

Gotcha #6 Overhead
• Overhead is rela/ve to the rate of events instrumented
• perf stat does in-kernel counts: rela/vely low overhead
• perf record writes perf.data, which has slightly higher
CPU overhead, plus file system and disk I/O
• Test before use
– In the lab
– Run perf stat to understand rate, before perf record
• Also consider --filter, to filter events in-kernel

4. perf Advanced

perf for Tracing Events

Tracepoints
# perf record -e block:block_rq_insert -a
^C[ perf record: Woken up 1 times to write data ]
[ perf record: Captured and wrote 0.172 MB perf.data (~7527 samples) ]
# perf script
[…]
java 9940 [015] 1199510.044783: block_rq_insert: 202,1 R 0 () 4783360 + 88 [java]
java 9940 [015] 1199510.044786: block_rq_insert: 202,1 R 0 () 4783448 + 88 [java]
java 9940 [015] 1199510.044786: block_rq_insert: 202,1 R 0 () 4783536 + 24 [java]
java 9940 [000] 1199510.065195: block_rq_insert: 202,1 R 0 () 4864088 + 88 [java]
[…]
process PID [CPU] /mestamp: eventname:
format string
include/trace/events/block.h: java 9940 [015] 1199510.044783: block_rq_insert: 202,1 R 0 () 4783360 + 88 [java]
DECLARE_EVENT_CLASS(block_rq,
[...]
TP_printk("%d,%d %s %u (%s) %llu + %u [%s]",
kernel source
MAJOR(__entry->gt;dev), MINOR(__entry->gt;dev),
may be the
__entry->gt;rwbs, __entry->gt;bytes, __get_str(cmd),
(unsigned long long)__entry->gt;sector,
only docs
__entry->gt;nr_sector, __entry->gt;comm)
Also see: cat /sys/kernel/debug/tracing/events/block/block_rq_insert/format

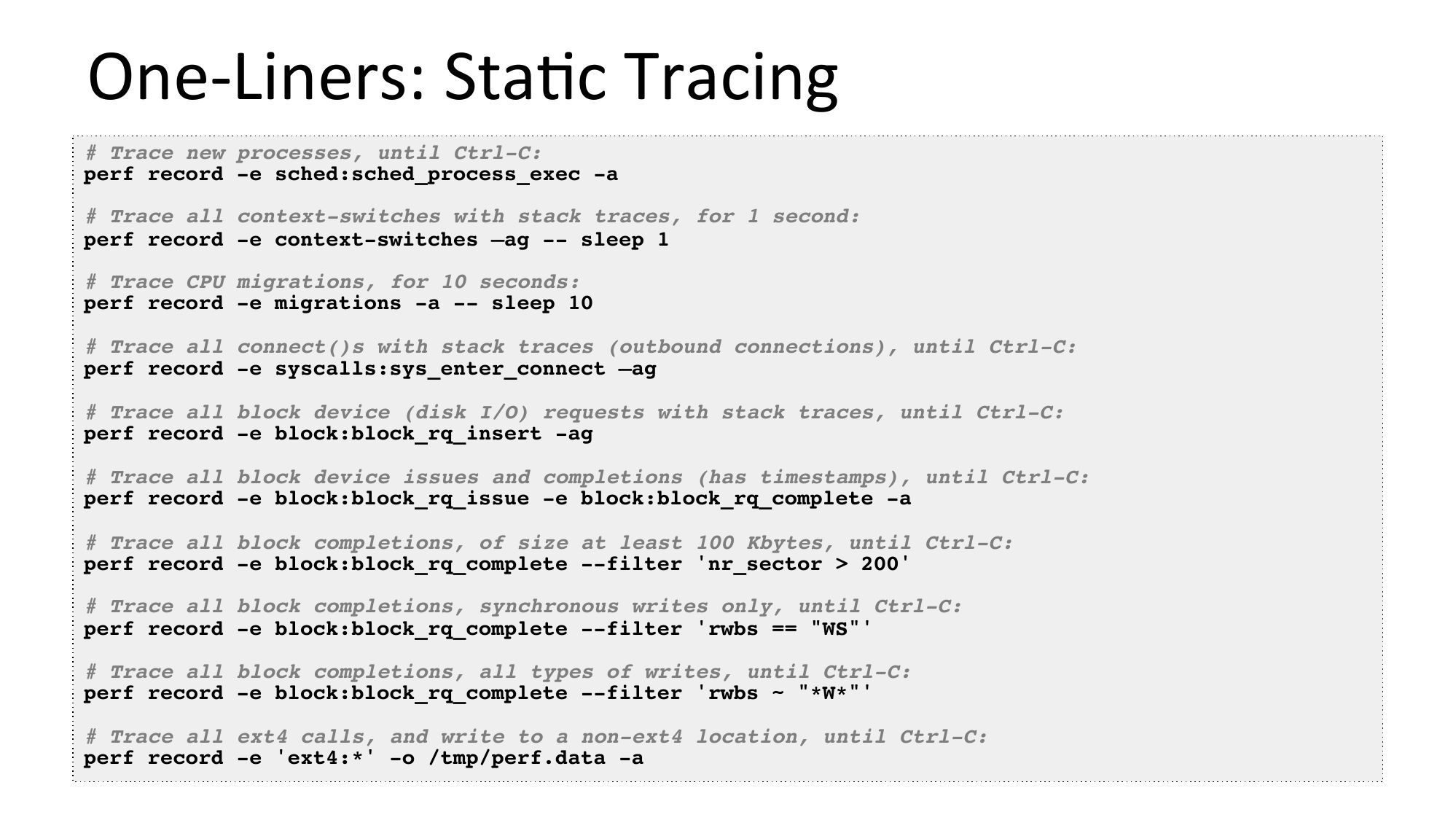

One-Liners: Sta/c Tracing
# Trace new processes, until Ctrl-C:
perf record -e sched:sched_process_exec -a
# Trace all context-switches with stack traces, for 1 second:
perf record -e context-switches –ag -- sleep 1
# Trace CPU migrations, for 10 seconds:
perf record -e migrations -a -- sleep 10
# Trace all connect()s with stack traces (outbound connections), until Ctrl-C:
perf record -e syscalls:sys_enter_connect –ag
# Trace all block device (disk I/O) requests with stack traces, until Ctrl-C:
perf record -e block:block_rq_insert -ag
# Trace all block device issues and completions (has timestamps), until Ctrl-C:
perf record -e block:block_rq_issue -e block:block_rq_complete -a
# Trace all block completions, of size at least 100 Kbytes, until Ctrl-C:
perf record -e block:block_rq_complete --filter 'nr_sector >gt; 200'
# Trace all block completions, synchronous writes only, until Ctrl-C:
perf record -e block:block_rq_complete --filter 'rwbs == "WS"'
# Trace all block completions, all types of writes, until Ctrl-C:
perf record -e block:block_rq_complete --filter 'rwbs ~ "*W*"'
# Trace all ext4 calls, and write to a non-ext4 location, until Ctrl-C:
perf record -e 'ext4:*' -o /tmp/perf.data -a

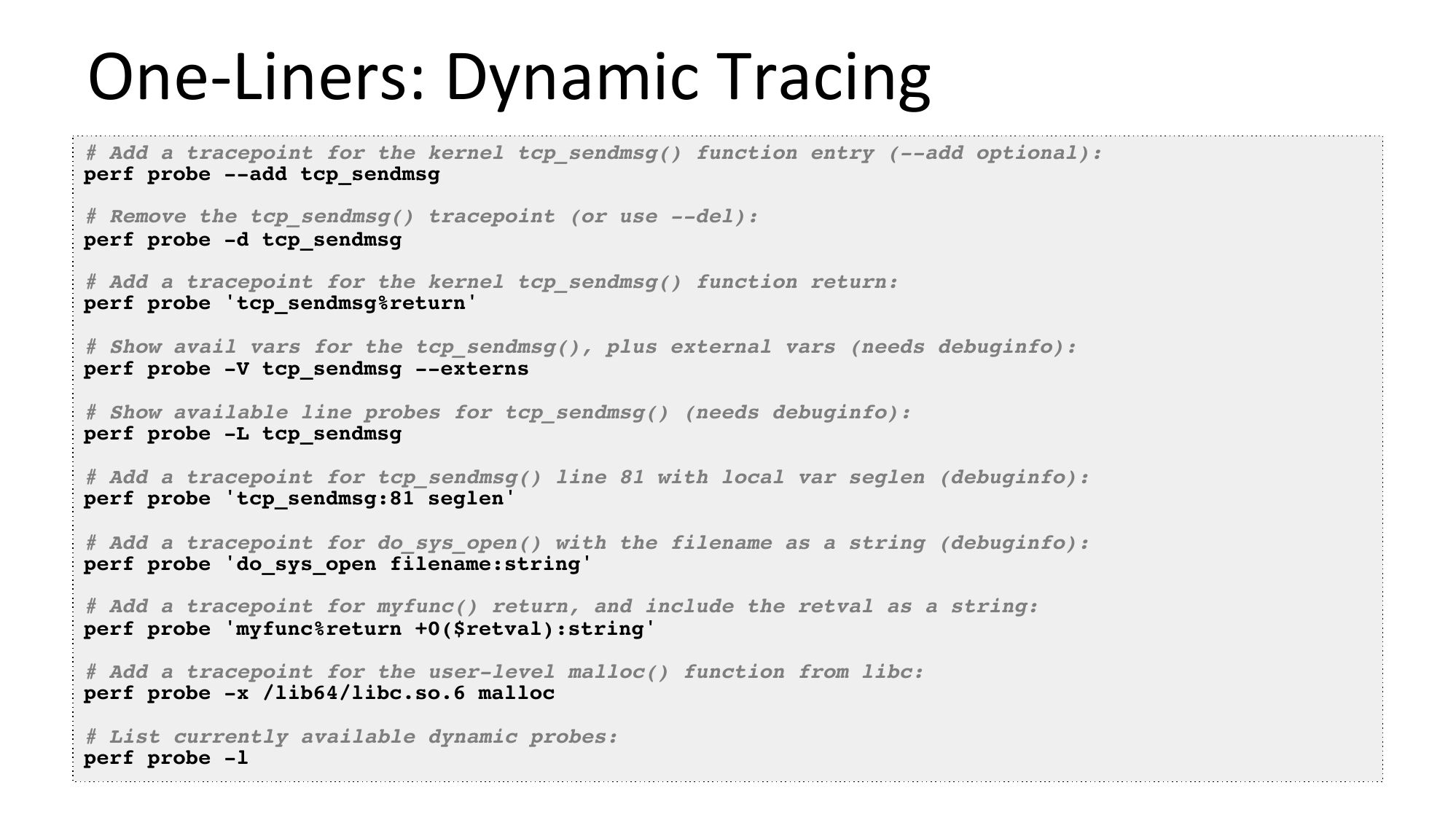

One-Liners: Dynamic Tracing
# Add a tracepoint for the kernel tcp_sendmsg() function entry (--add optional):
perf probe --add tcp_sendmsg
# Remove the tcp_sendmsg() tracepoint (or use --del):
perf probe -d tcp_sendmsg
# Add a tracepoint for the kernel tcp_sendmsg() function return:
perf probe 'tcp_sendmsg%return'
# Show avail vars for the tcp_sendmsg(), plus external vars (needs debuginfo):
perf probe -V tcp_sendmsg --externs
# Show available line probes for tcp_sendmsg() (needs debuginfo):
perf probe -L tcp_sendmsg
# Add a tracepoint for tcp_sendmsg() line 81 with local var seglen (debuginfo):
perf probe 'tcp_sendmsg:81 seglen'
# Add a tracepoint for do_sys_open() with the filename as a string (debuginfo):
perf probe 'do_sys_open filename:string'
# Add a tracepoint for myfunc() return, and include the retval as a string:
perf probe 'myfunc%return +0($retval):string'
# Add a tracepoint for the user-level malloc() function from libc:
perf probe -x /lib64/libc.so.6 malloc
# List currently available dynamic probes:
perf probe -l

One-Liners: Advanced Dynamic Tracing
# Add a tracepoint for tcp_sendmsg(), with three entry regs (platform specific):
perf probe 'tcp_sendmsg %ax %dx %cx'
# Add a tracepoint for tcp_sendmsg(), with an alias ("bytes") for %cx register:
perf probe 'tcp_sendmsg bytes=%cx'
# Trace previously created probe when the bytes (alias) var is greater than 100:
perf record -e probe:tcp_sendmsg --filter 'bytes >gt; 100'
# Add a tracepoint for tcp_sendmsg() return, and capture the return value:
perf probe 'tcp_sendmsg%return $retval'
# Add a tracepoint for tcp_sendmsg(), and "size" entry argument (debuginfo):
perf probe 'tcp_sendmsg size'
# Add a tracepoint for tcp_sendmsg(), with size and socket state (debuginfo):
perf probe 'tcp_sendmsg size sk->gt;__sk_common.skc_state'
# Trace previous probe when size >gt; 0, and state != TCP_ESTABLISHED(1) (debuginfo):
perf record -e probe:tcp_sendmsg --filter 'size >gt; 0 && skc_state != 1' -a
• Kernel debuginfo is an onerous requirement for the Netflix cloud
• We can use registers instead (as above). But which registers?

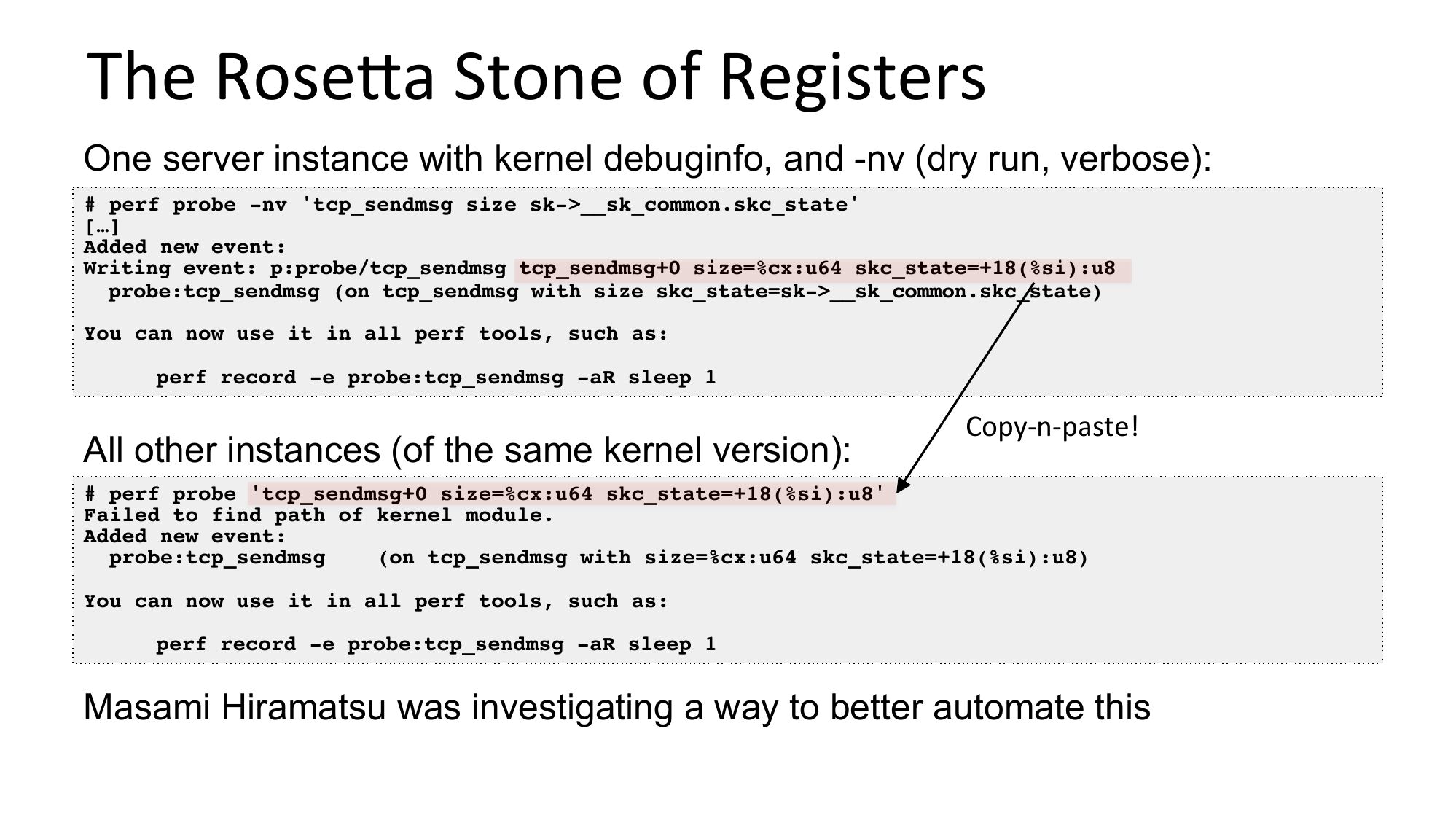

The RoseUa Stone of Registers
One server instance with kernel debuginfo, and -nv (dry run, verbose):
# perf probe -nv 'tcp_sendmsg size sk->gt;__sk_common.skc_state'
[…]
Added new event:
Writing event: p:probe/tcp_sendmsg tcp_sendmsg+0 size=%cx:u64 skc_state=+18(%si):u8
probe:tcp_sendmsg (on tcp_sendmsg with size skc_state=sk->gt;__sk_common.skc_state)
You can now use it in all perf tools, such as:
perf record -e probe:tcp_sendmsg -aR sleep 1
All other instances (of the same kernel version):
Copy-n-paste!
# perf probe 'tcp_sendmsg+0 size=%cx:u64 skc_state=+18(%si):u8'
Failed to find path of kernel module.
Added new event:
probe:tcp_sendmsg
(on tcp_sendmsg with size=%cx:u64 skc_state=+18(%si):u8)
You can now use it in all perf tools, such as:
perf record -e probe:tcp_sendmsg -aR sleep 1
Masami Hiramatsu was investigating a way to better automate this

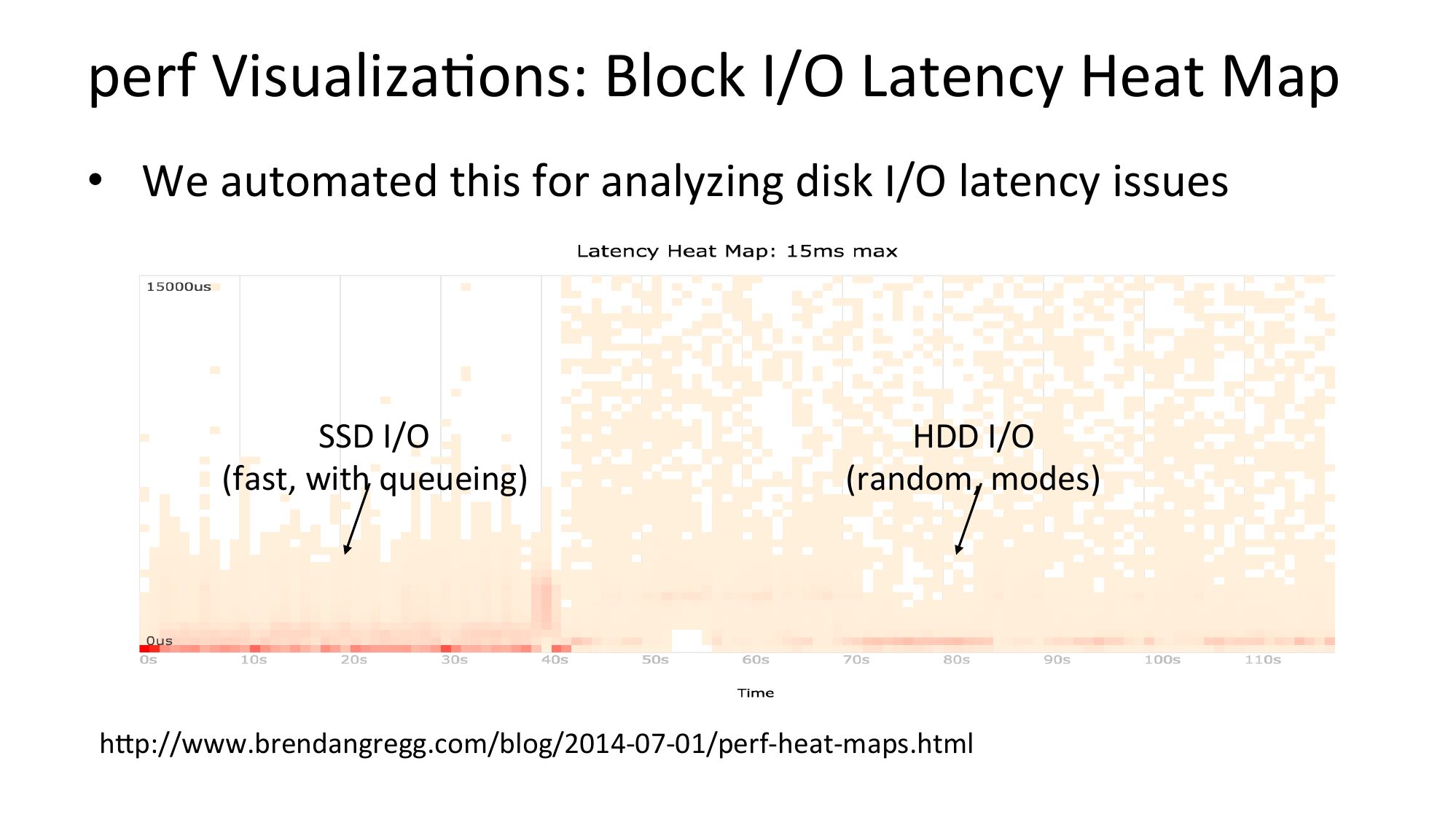

perf Visualiza/ons: Block I/O Latency Heat Map
• We automated this for analyzing disk I/O latency issues
SSD I/O
(fast, with queueing)
HDD I/O
(random, modes)
hUp://www.brendangregg.com/blog/2014-07-01/perf-heat-maps.html

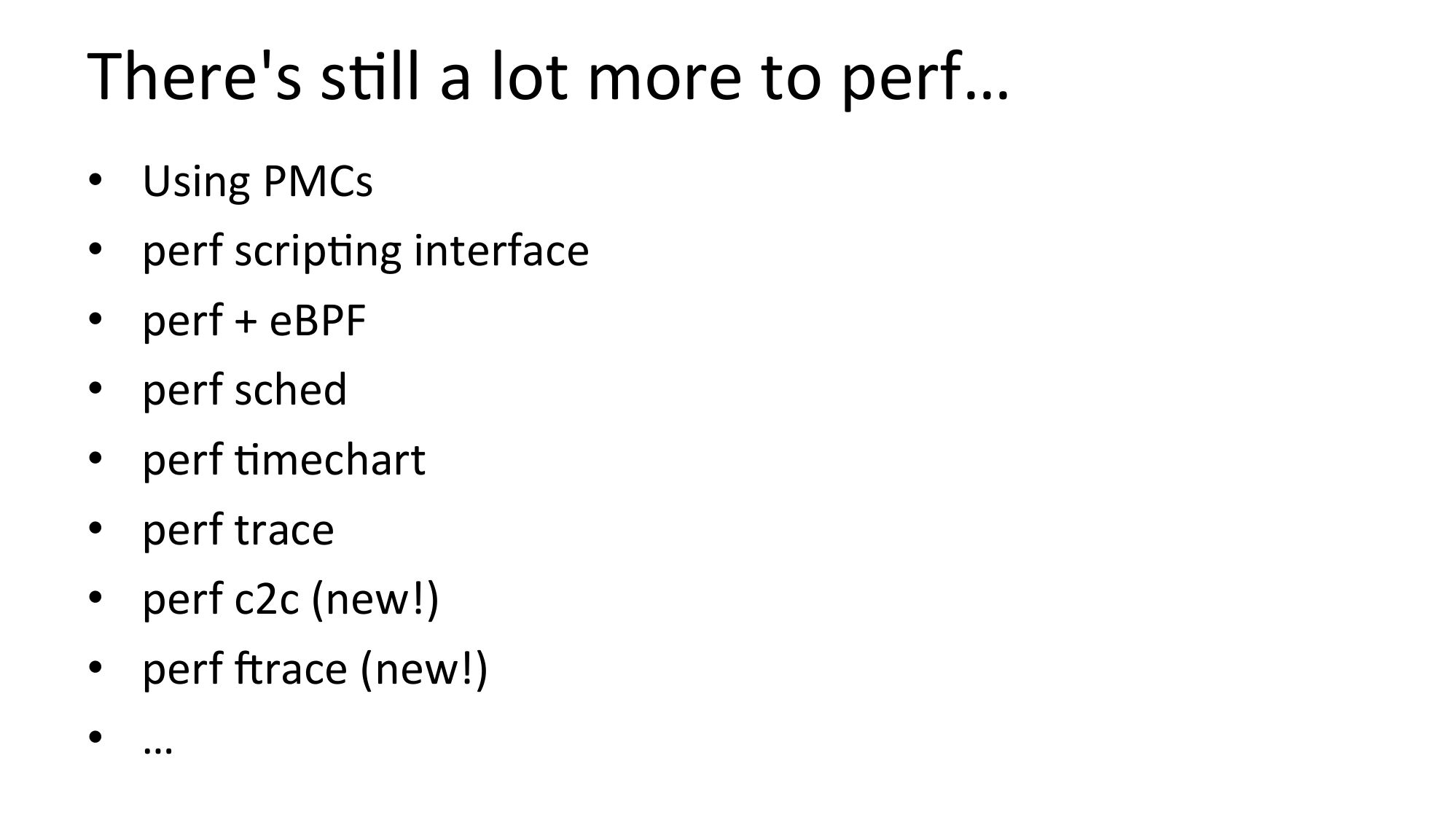

There's s/ll a lot more to perf…
Using PMCs
perf scrip/ng interface
perf + eBPF
perf sched
perf /mechart
perf trace
perf c2c (new!)
perf orace (new!)

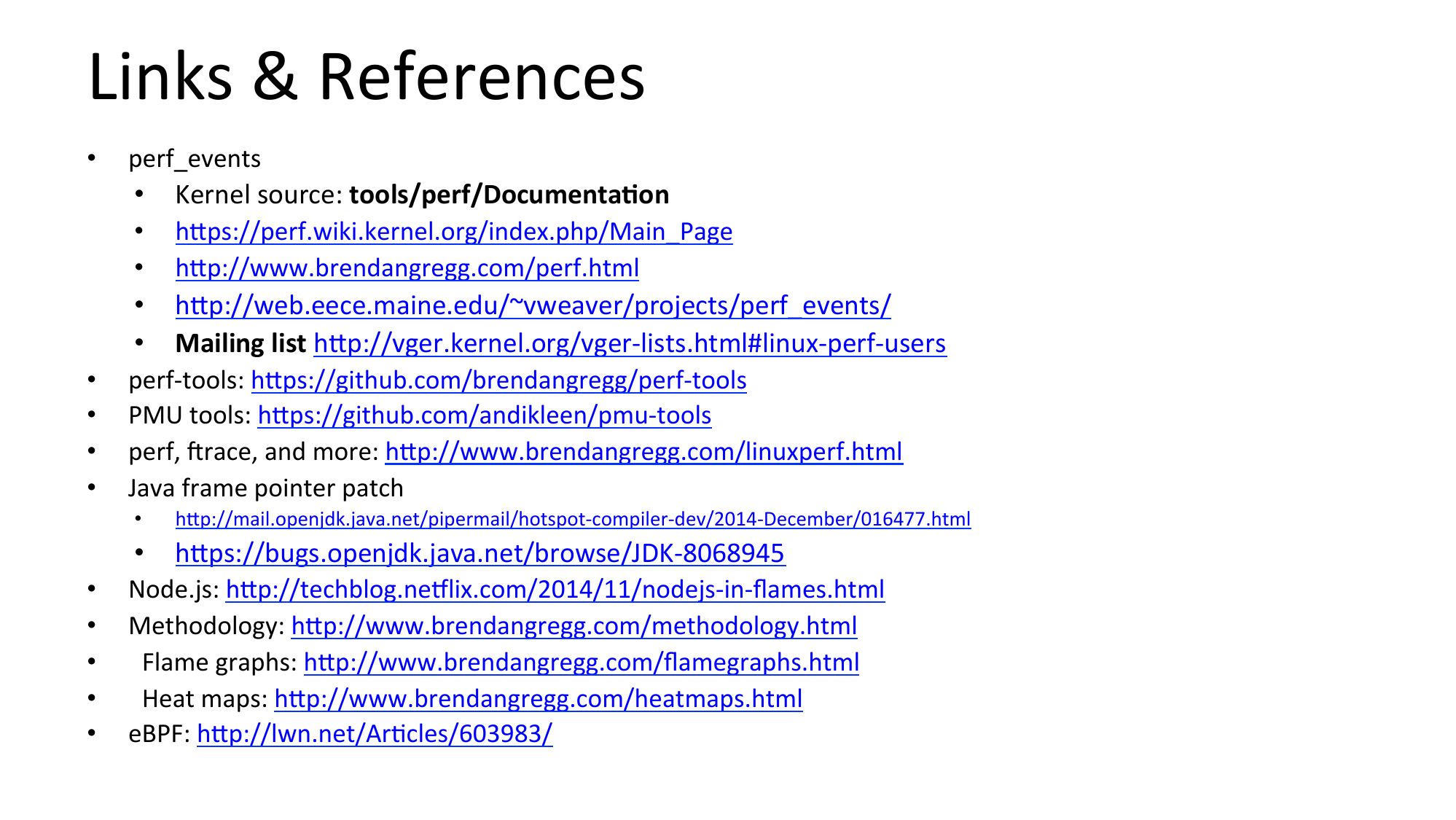

Links & References
perf_events
Kernel source: tools/perf/DocumentaCon
hUps://perf.wiki.kernel.org/index.php/Main_Page
hUp://www.brendangregg.com/perf.html
hUp://web.eece.maine.edu/~vweaver/projects/perf_events/
Mailing list hUp://vger.kernel.org/vger-lists.html#linux-perf-users
perf-tools: hUps://github.com/brendangregg/perf-tools
PMU tools: hUps://github.com/andikleen/pmu-tools
perf, orace, and more: hUp://www.brendangregg.com/linuxperf.html
Java frame pointer patch
hUp://mail.openjdk.java.net/pipermail/hotspot-compiler-dev/2014-December/016477.html
hUps://bugs.openjdk.java.net/browse/JDK-8068945
Node.js: hUp://techblog.ne9lix.com/2014/11/nodejs-in-flames.html
Methodology: hUp://www.brendangregg.com/methodology.html
Flame graphs: hUp://www.brendangregg.com/flamegraphs.html
Heat maps: hUp://www.brendangregg.com/heatmaps.html
eBPF: hUp://lwn.net/Ar/cles/603983/

Thank You
– Ques/ons?
– hUp://www.brendangregg.com
– hUp://slideshare.net/brendangregg
– bgregg@ne9lix.com
– @brendangregg
