USENIX LISA 2010: Performance Visualizations

Video: http://www.youtube.com/watch?v=ml-t-9g6Mjc and http://www.usenix.org/events/lisa10/tech/#gregg

Talk for USENIX LISA 2010, San Jose, by Brendan Gregg.

Description: "Visualizations that include heat maps can be an effective way to present performance data: I/O latency, resource utilization, and more. Patterns can emerge that would be difficult to notice from columns of numbers or line graphs, which are revealing previously unknown behavior. These visualizations are used in a product as a replacement for traditional metrics such as %CPU and are allowing end users to identify more issues much more easily (and some issues are becoming nearly impossible to identify with tools such as vmstat(1)). This talk covers what has been learned, crazy heat map discoveries, and thoughts for future applications beyond performance analysis."

next
prev
1/135
next
prev
2/135
next
prev
3/135
next
prev
4/135
next
prev
5/135
next
prev
6/135
next
prev
7/135
next
prev
8/135
next
prev
9/135
next
prev
10/135
next
prev
11/135
next
prev
12/135
next
prev
13/135
next
prev
14/135
next
prev
15/135
next
prev
16/135
next
prev
17/135
next
prev
18/135
next
prev
19/135
next
prev
20/135
next
prev
21/135
next
prev
22/135
next
prev
23/135
next
prev
24/135
next
prev
25/135
next
prev
26/135
next
prev
27/135
next
prev
28/135
next
prev
29/135
next
prev
30/135
next
prev
31/135
next
prev
32/135
next
prev
33/135
next
prev
34/135
next
prev
35/135
next
prev
36/135
next
prev
37/135
next
prev
38/135
next
prev
39/135
next
prev
40/135
next
prev
41/135
next
prev
42/135
next
prev
43/135
next
prev
44/135
next
prev
45/135
next
prev
46/135
next
prev
47/135
next
prev
48/135
next
prev
49/135
next
prev
50/135
next
prev
51/135
next
prev
52/135
next
prev
53/135
next
prev
54/135
next
prev
55/135
next
prev
56/135
next
prev
57/135
next
prev
58/135
next
prev
59/135
next
prev
60/135
next
prev
61/135
next
prev
62/135
next
prev
63/135
next
prev
64/135
next
prev
65/135
next
prev
66/135
next
prev
67/135
next
prev
68/135
next
prev
69/135
next
prev
70/135
next
prev
71/135
next
prev
72/135
next
prev
73/135
next
prev
74/135
next
prev
75/135
next
prev
76/135
next
prev
77/135
next
prev
78/135
next
prev
79/135
next
prev
80/135
next
prev
81/135
next
prev
82/135
next
prev
83/135
next
prev
84/135
next
prev
85/135
next
prev
86/135
next
prev
87/135
next
prev
88/135
next
prev
89/135
next
prev
90/135
next
prev
91/135
next
prev
92/135
next
prev
93/135
next
prev
94/135
next
prev
95/135
next
prev
96/135
next
prev
97/135
next
prev
98/135
next
prev
99/135
next
prev
100/135
next
prev
101/135
next
prev
102/135
next
prev
103/135
next
prev
104/135
next
prev
105/135
next
prev
106/135
next
prev
107/135
next
prev
108/135
next
prev
109/135
next
prev
110/135
next
prev
111/135
next
prev
112/135
next
prev
113/135
next
prev
114/135
next
prev
115/135
next
prev
116/135
next
prev
117/135
next
prev
118/135
next
prev
119/135
next
prev
120/135
next
prev
121/135
next
prev
122/135
next
prev
123/135
next
prev
124/135
next
prev
125/135
next
prev
126/135
next
prev
127/135
next
prev
128/135
next
prev
129/135
next
prev
130/135
next
prev
131/135
next
prev
132/135
next
prev
133/135
next
prev
134/135
next
prev
135/135

PDF: LISA2010_visualizations.pdf

Keywords (from pdftotext):

slide 1:
    Performance
    Visualizations
    Brendan Gregg
    Software Engineer
    brendan.gregg@joyent.com
    USENIX/LISA’10
    November, 2010

slide 2:

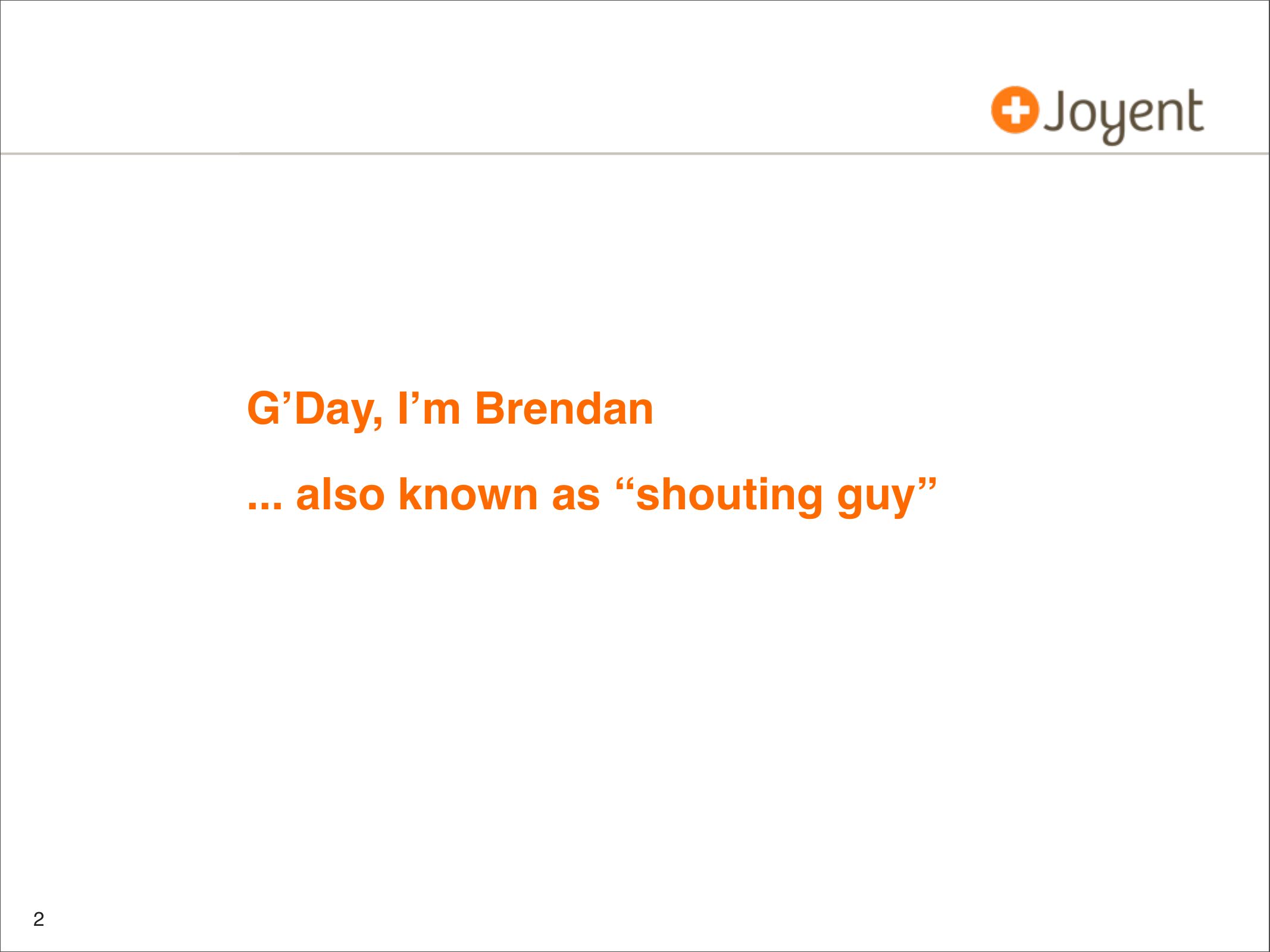

    • G’Day, I’m Brendan
    • ... also known as “shouting guy”

slide 3:
    硬碟也會鬧情緒

slide 4:

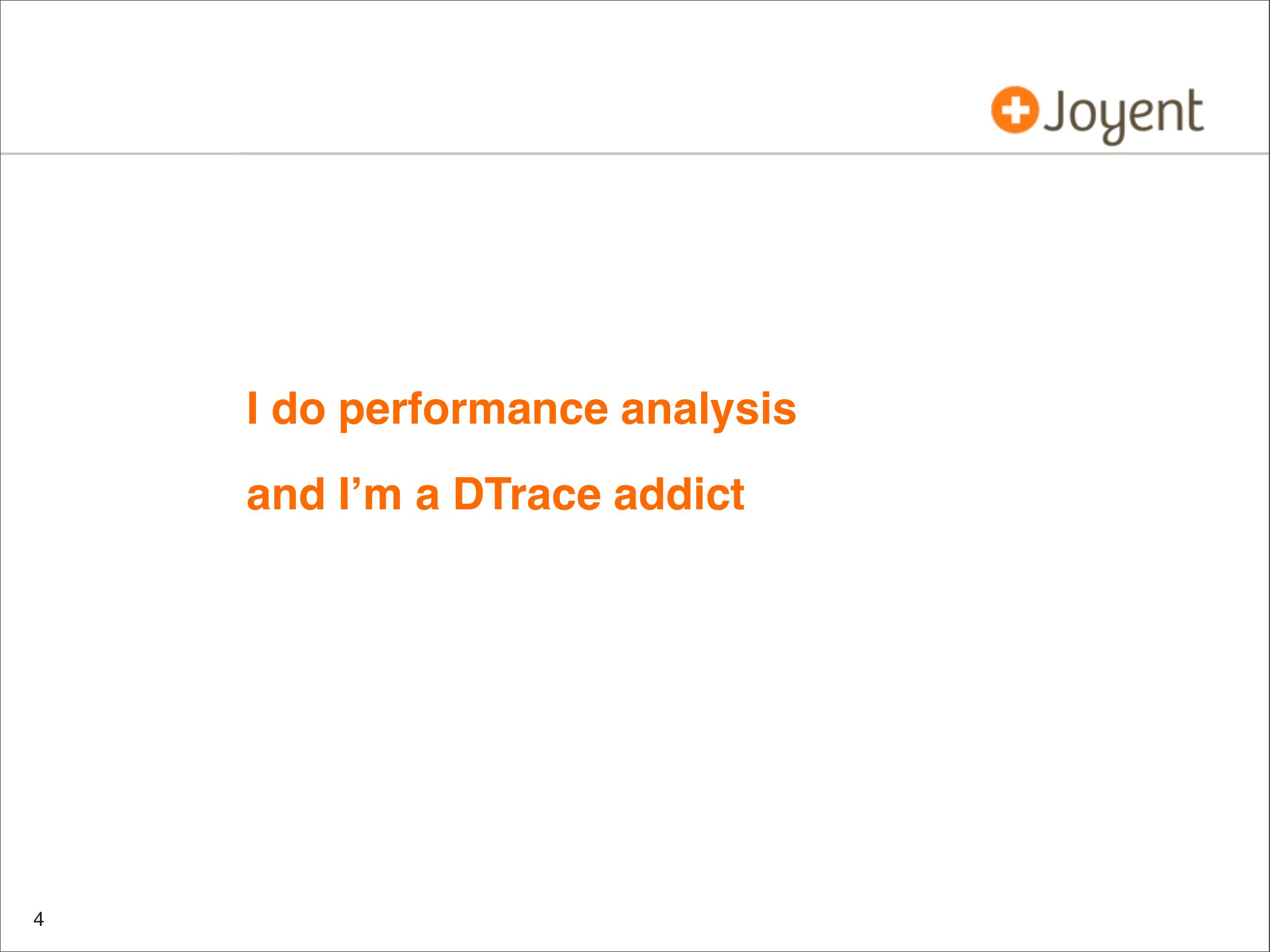

    • I do performance analysis
    • and I’m a DTrace addict

slide 5:
slide 6:

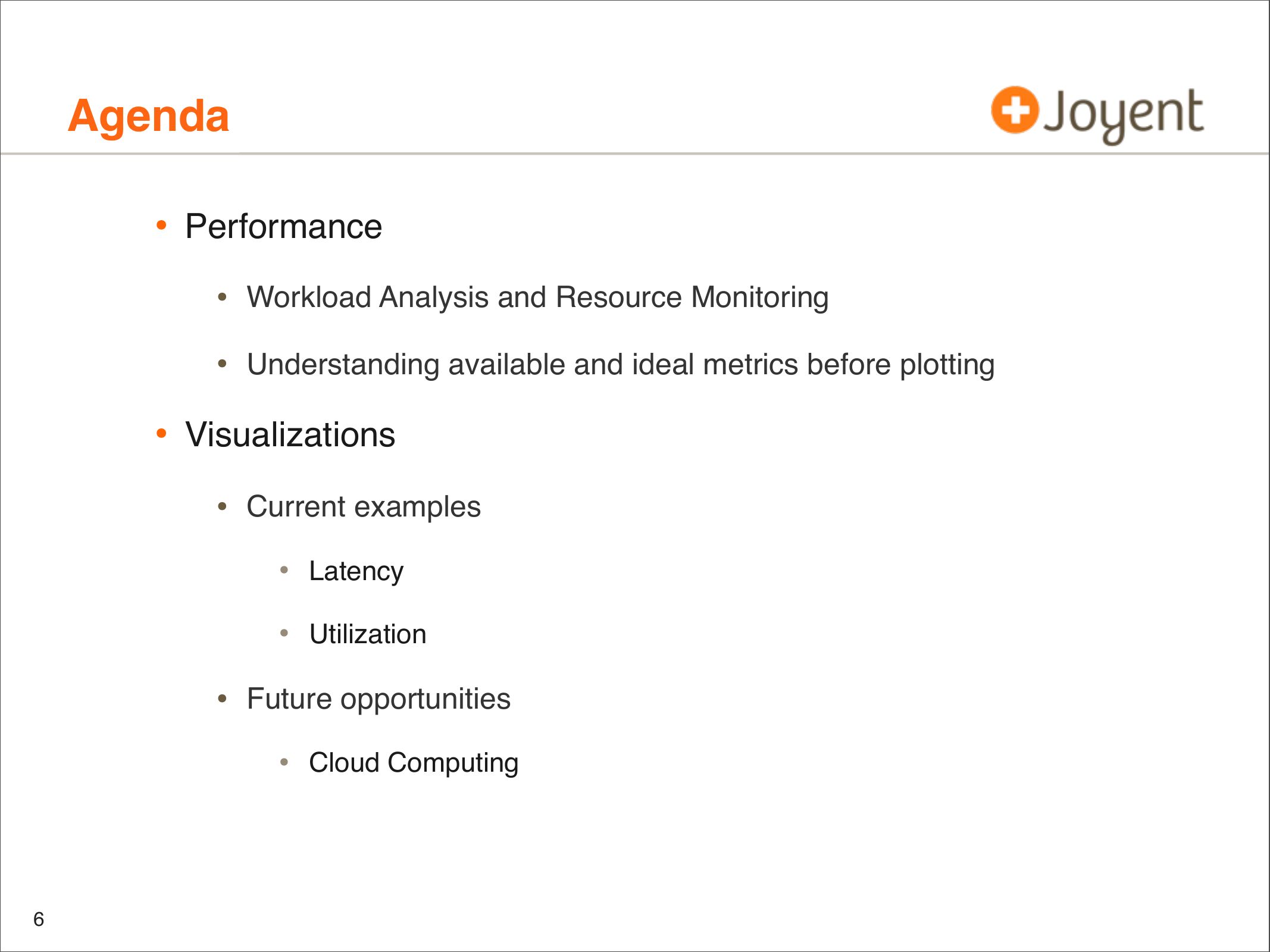

    Agenda
    • Performance
    • Workload Analysis and Resource Monitoring
    • Understanding available and ideal metrics before plotting
    • Visualizations
    • Current examples
    • Latency
    • Utilization
    • Future opportunities
    • Cloud Computing

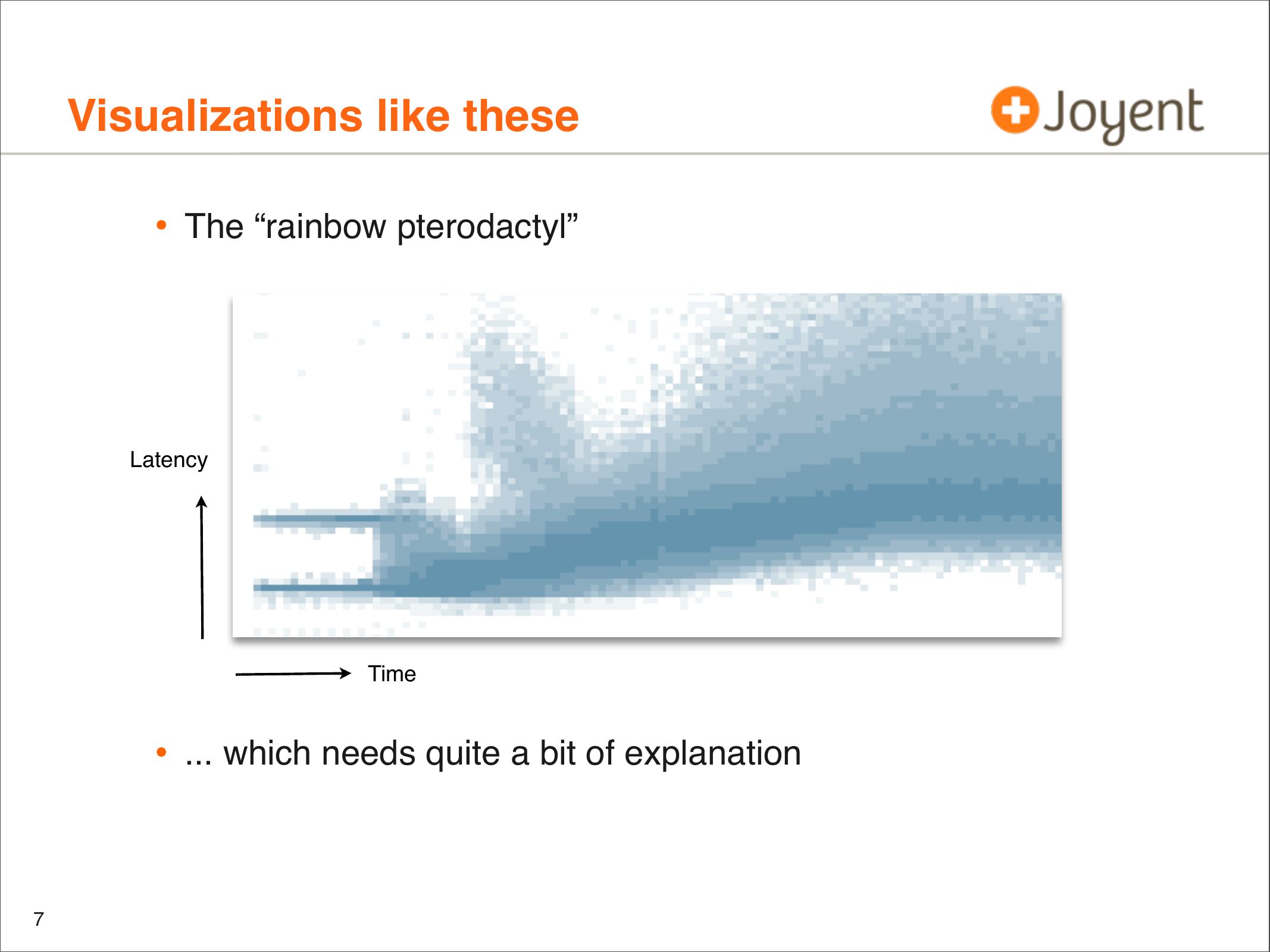

slide 7:

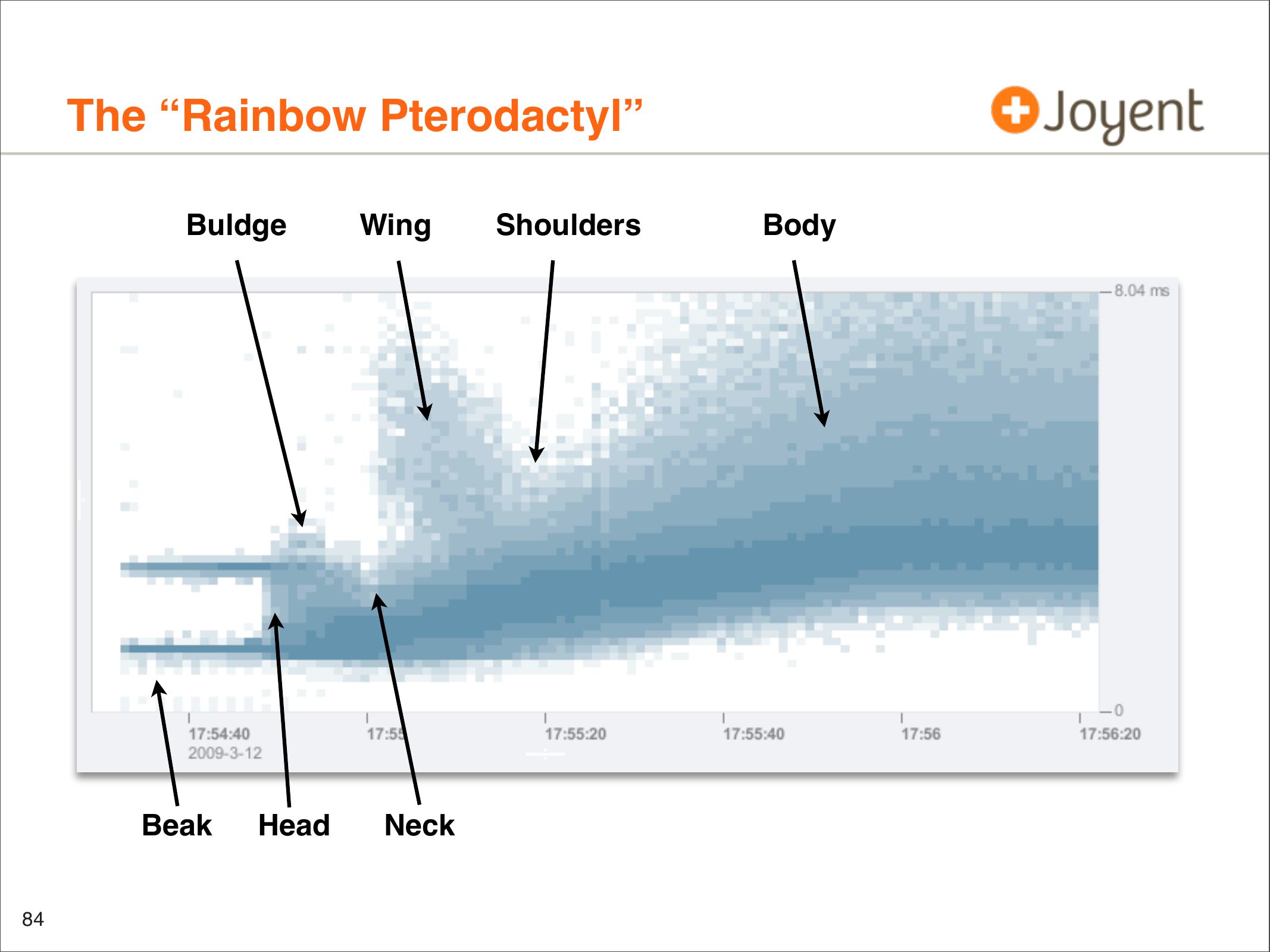

    Visualizations like these

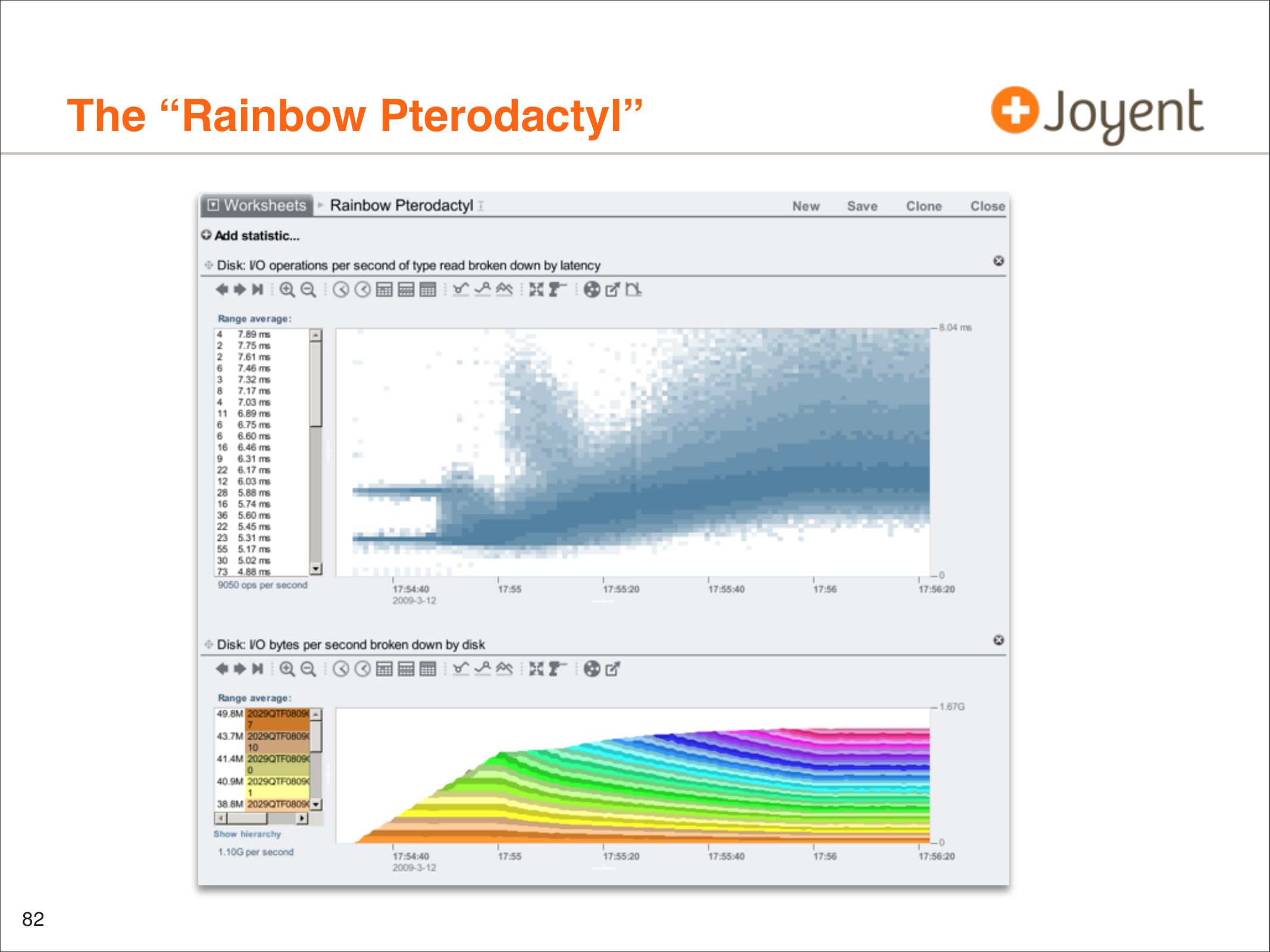

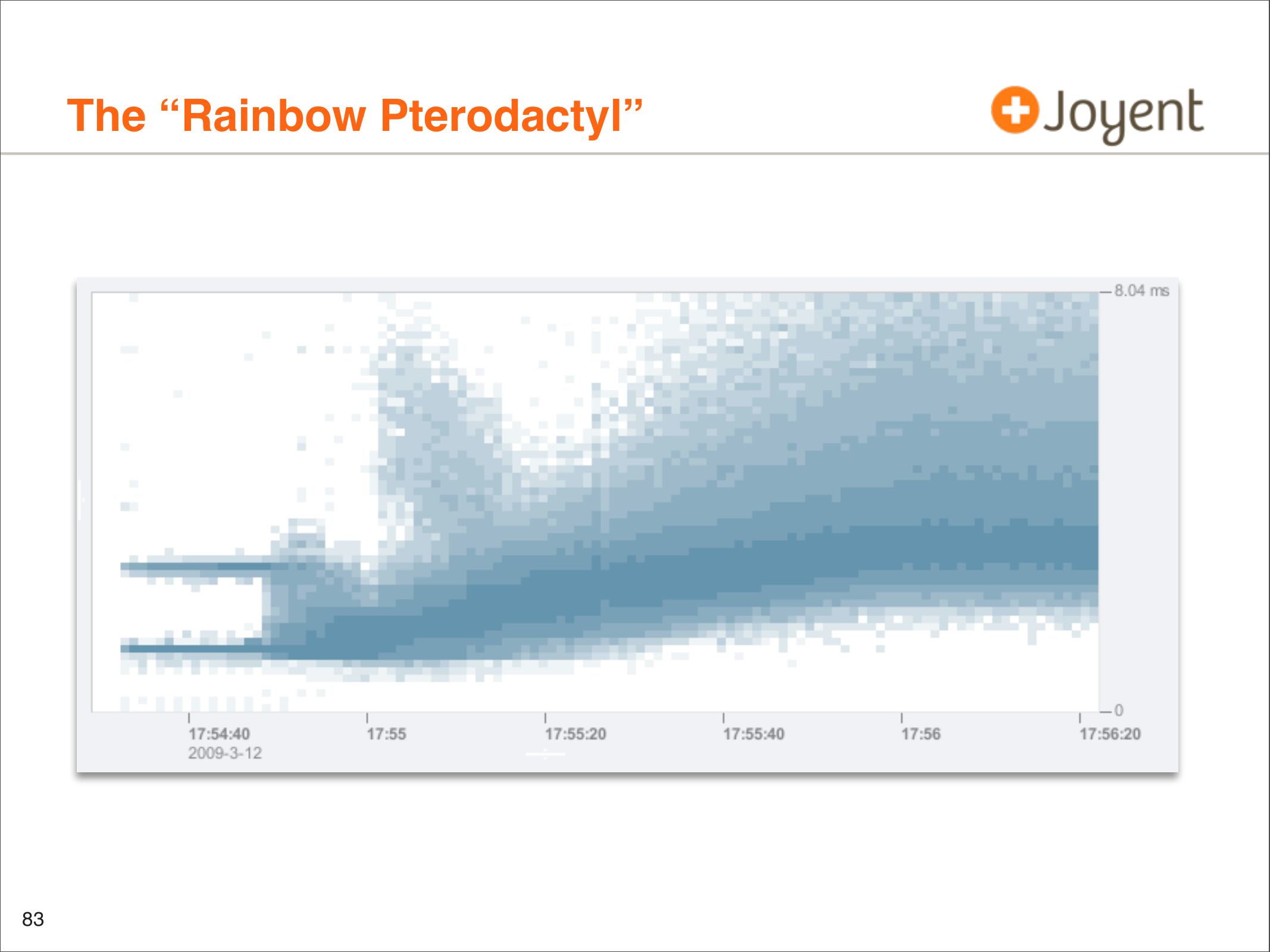

    • The “rainbow pterodactyl”
    Latency
    Time
    • ... which needs quite a bit of explanation

slide 8:

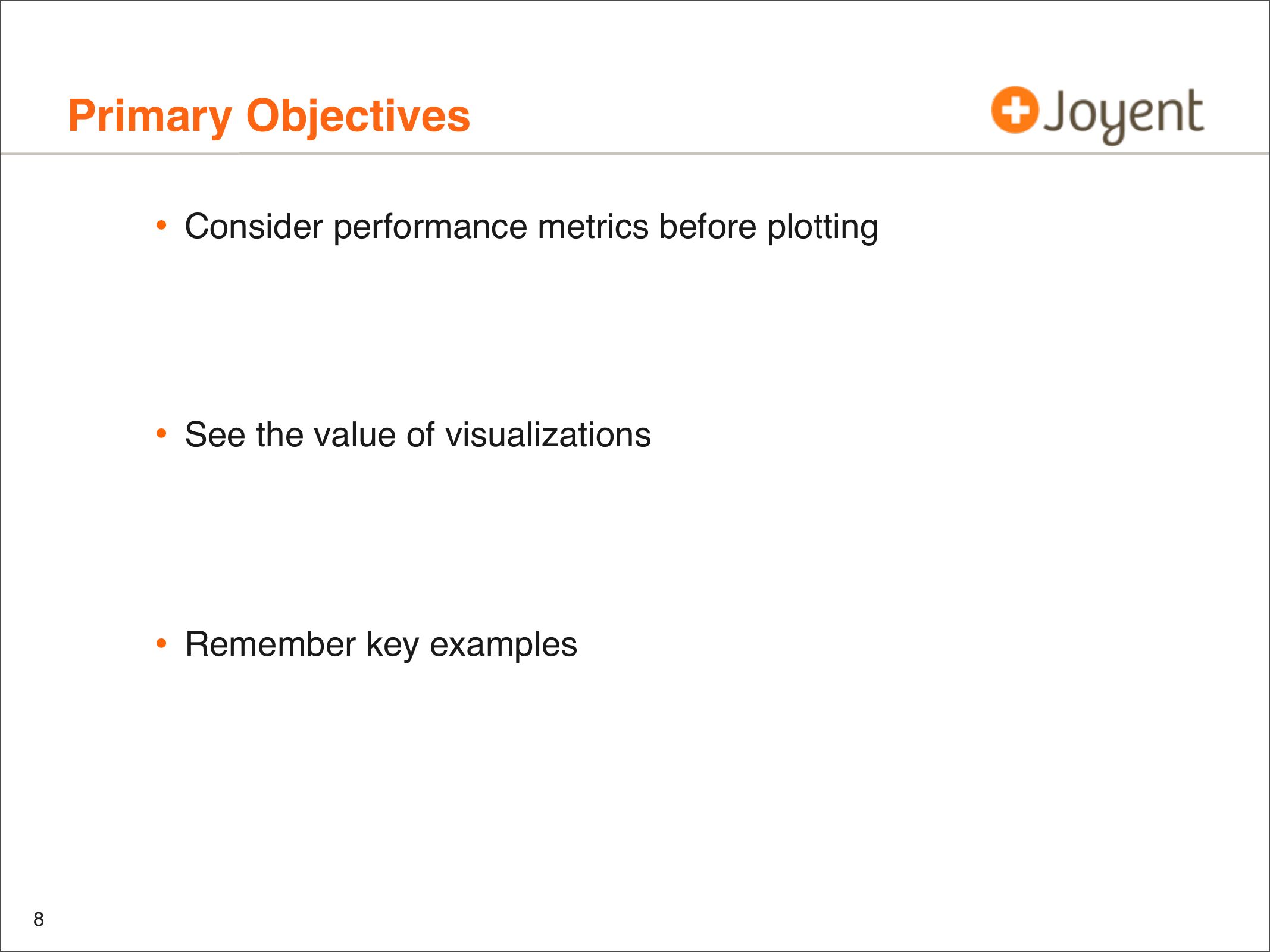

    Primary Objectives
    • Consider performance metrics before plotting
    • See the value of visualizations
    • Remember key examples

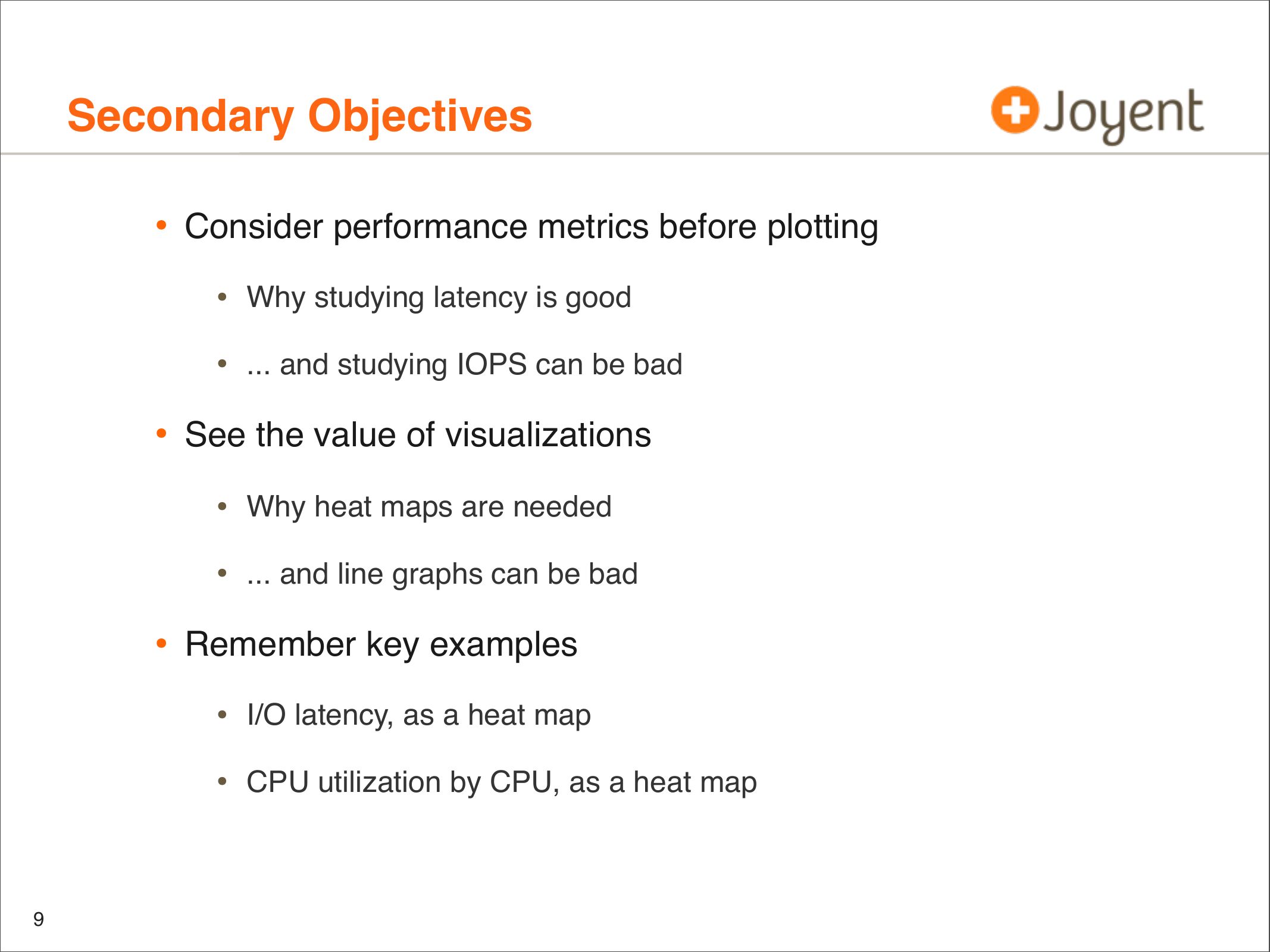

slide 9:

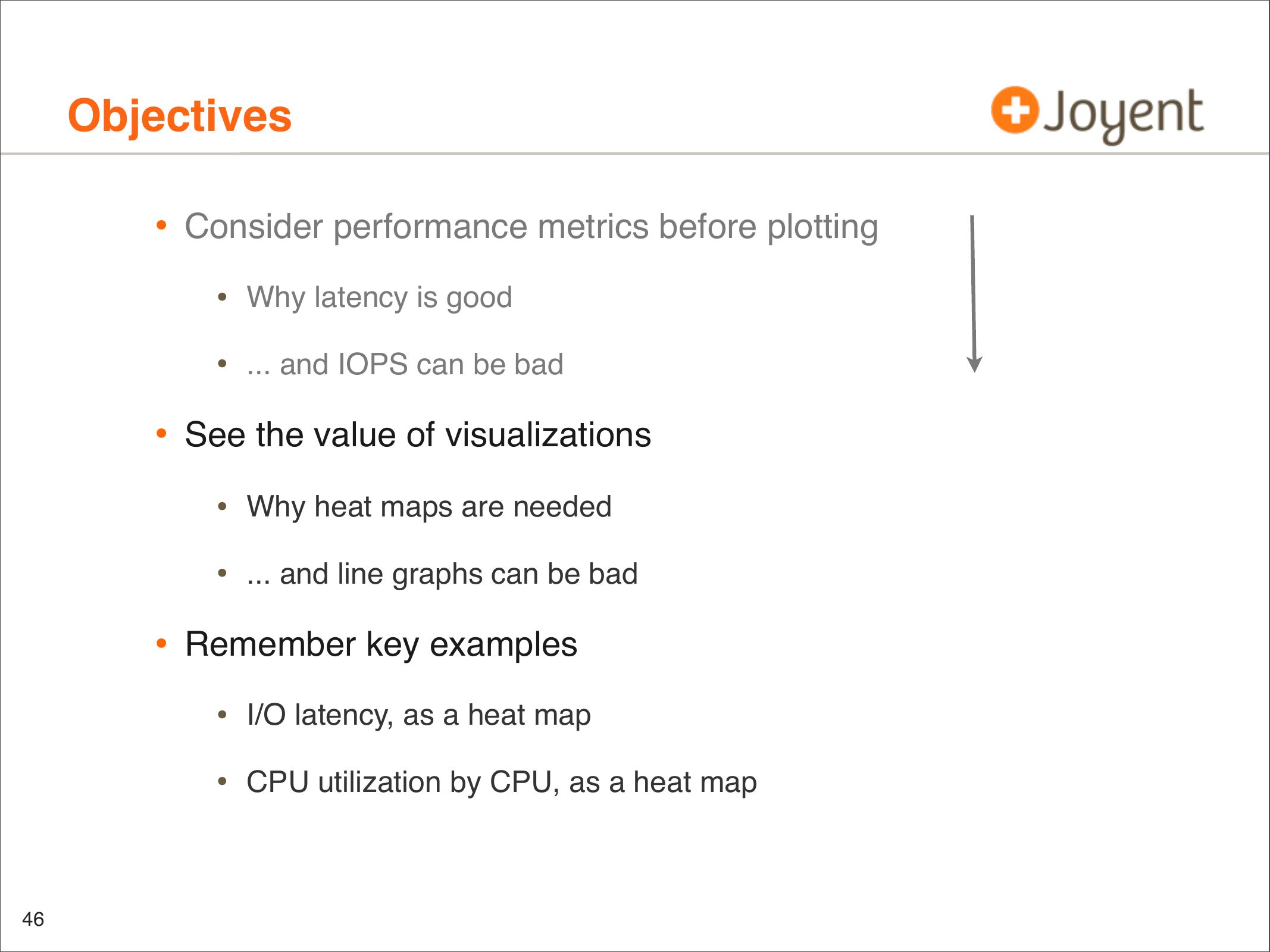

    Secondary Objectives
    • Consider performance metrics before plotting
    • Why studying latency is good
    • ... and studying IOPS can be bad
    • See the value of visualizations
    • Why heat maps are needed
    • ... and line graphs can be bad
    • Remember key examples
    • I/O latency, as a heat map

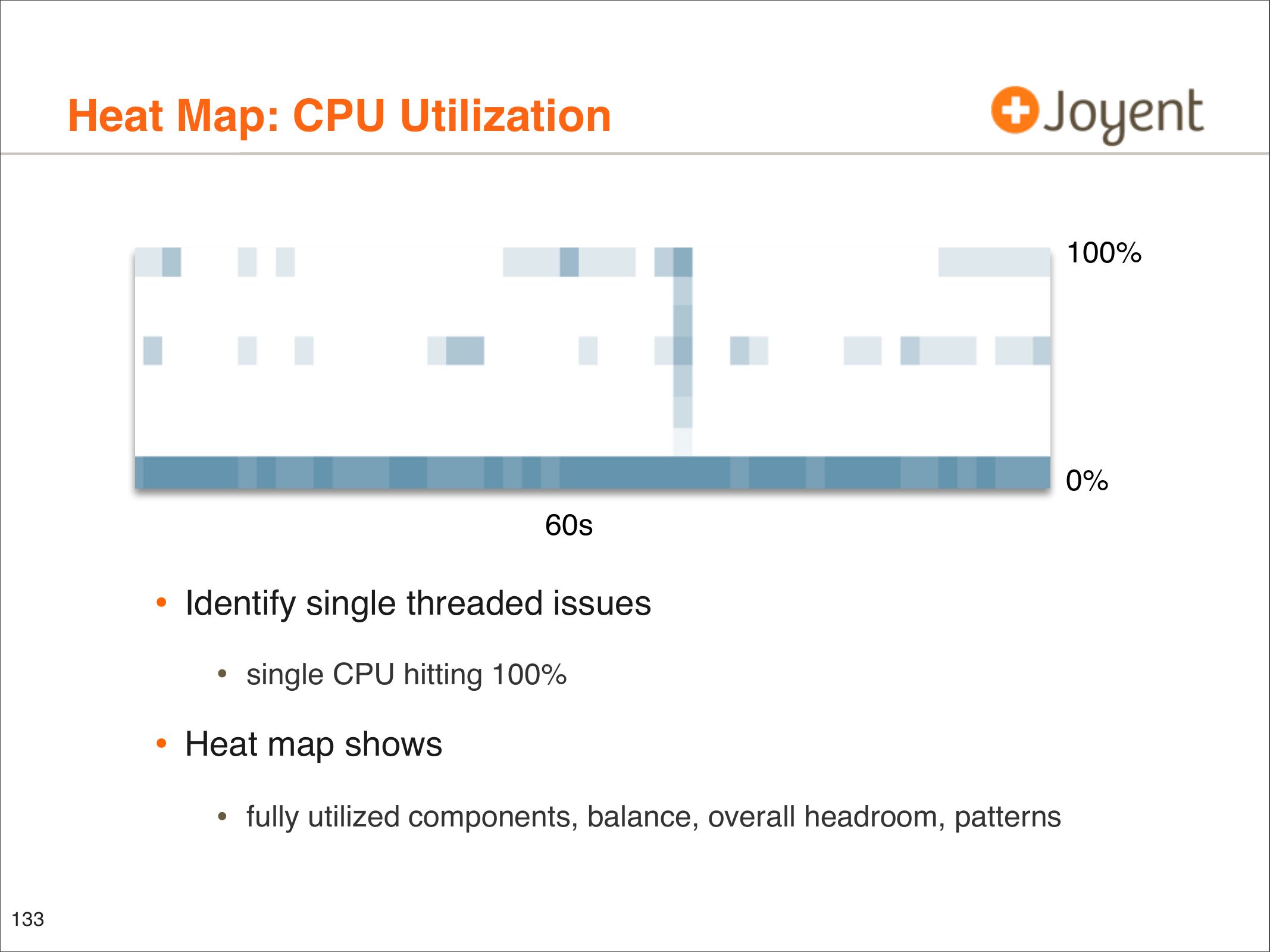

    • CPU utilization by CPU, as a heat map

slide 10:

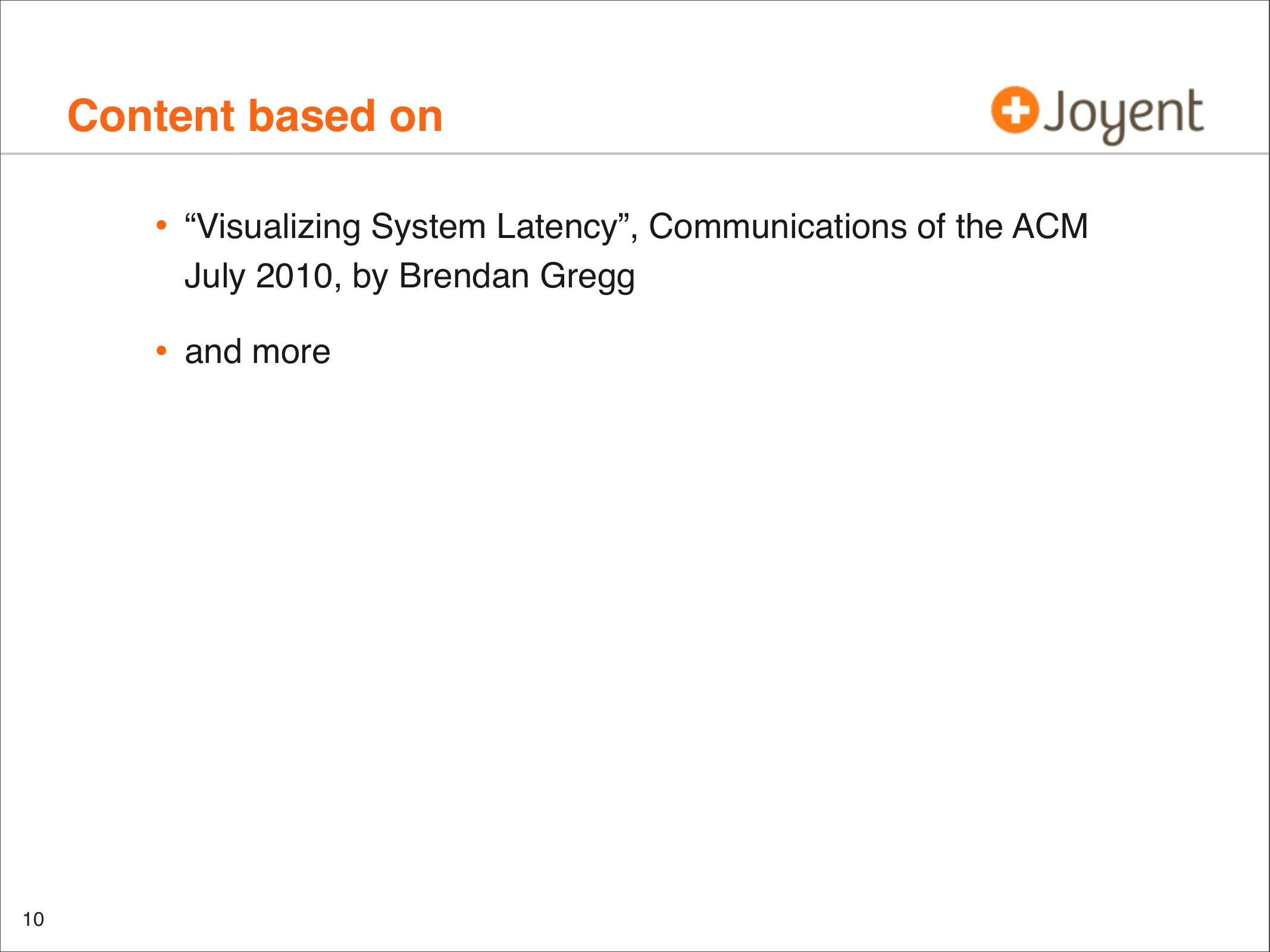

    Content based on
    • “Visualizing System Latency”, Communications of the ACM
    July 2010, by Brendan Gregg
    • and more

slide 11:

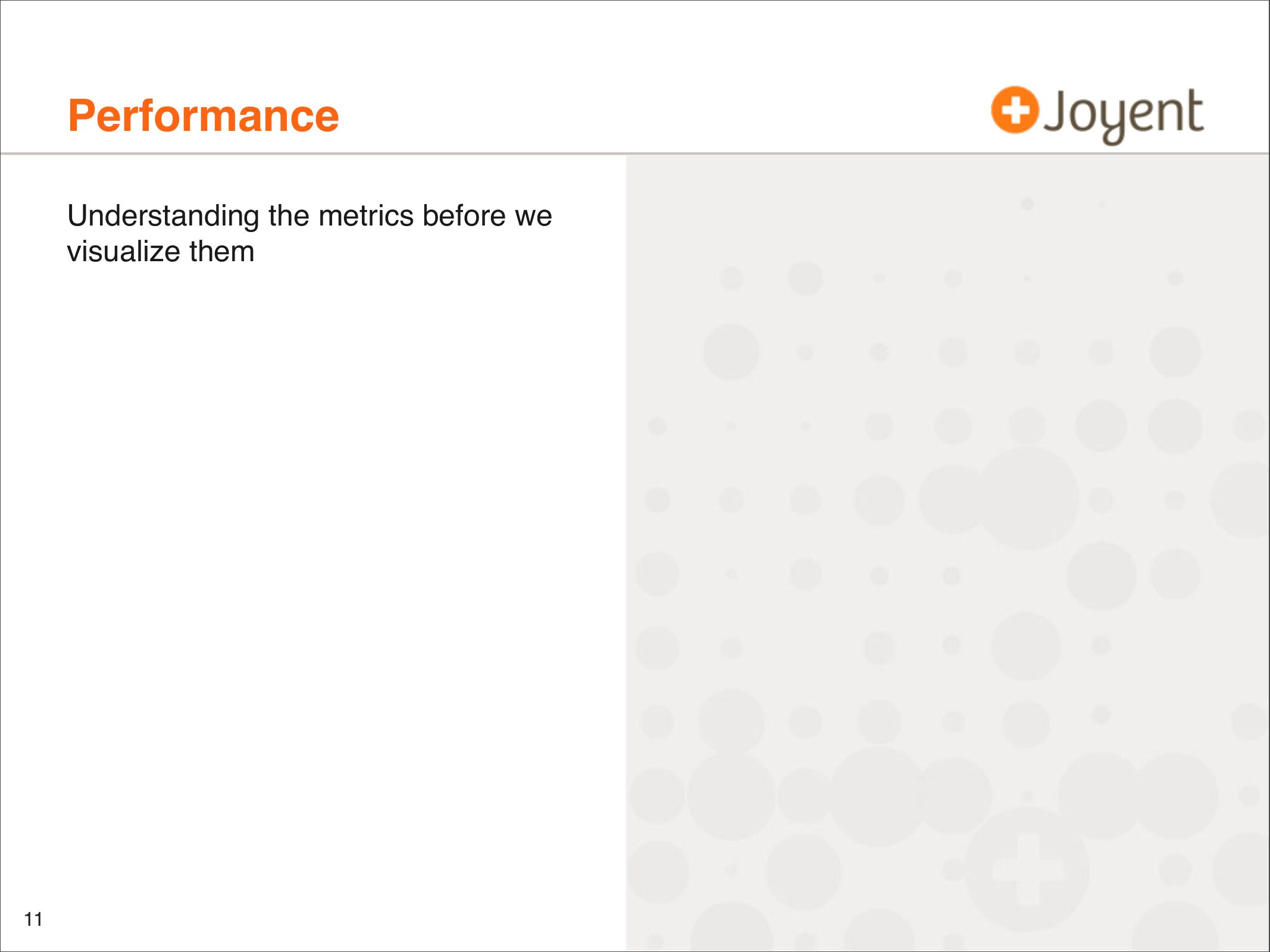

    Performance
    Understanding the metrics before we
    visualize them

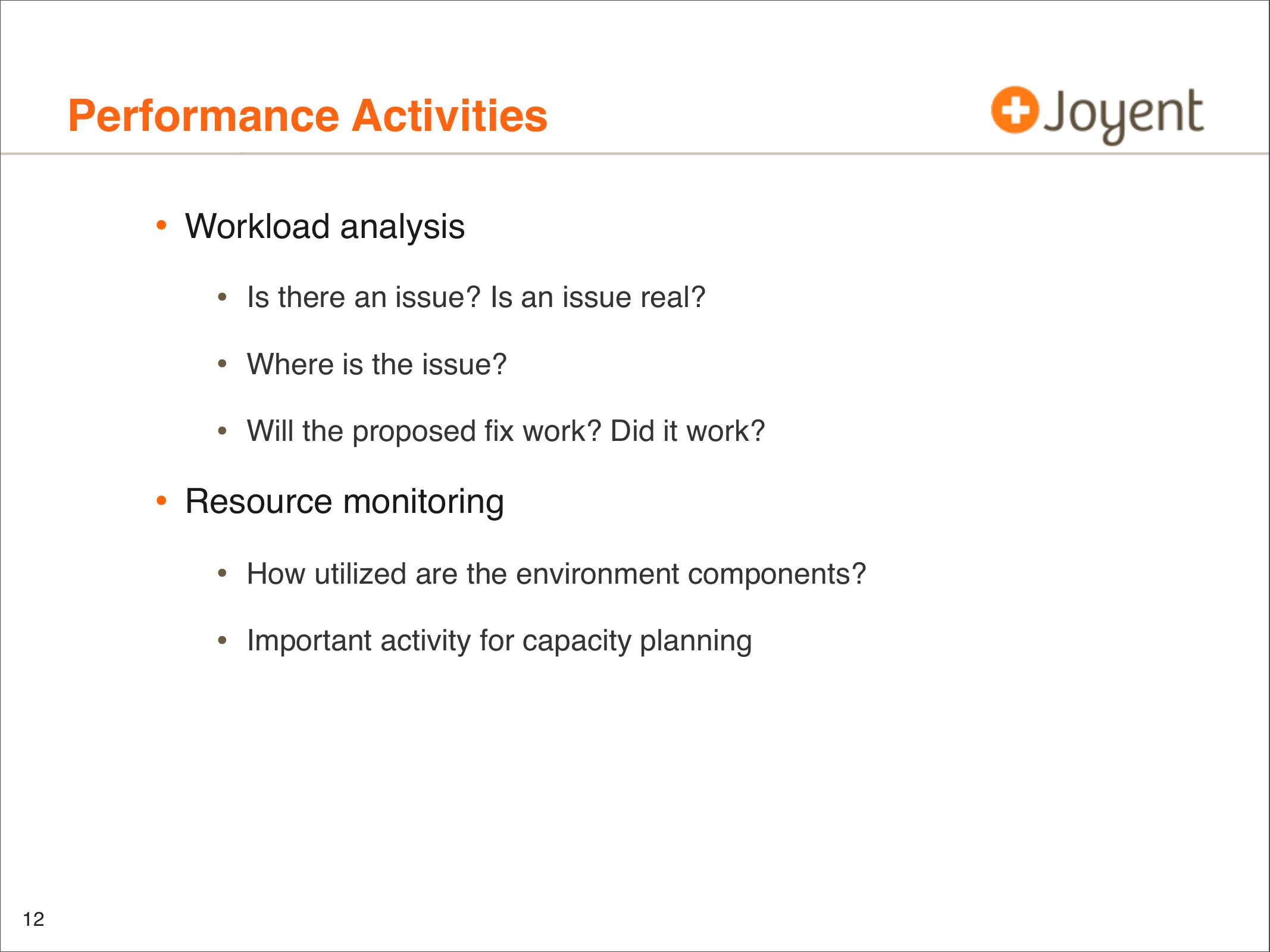

slide 12:
    Performance Activities
    • Workload analysis
    • Is there an issue? Is an issue real?
    • Where is the issue?
    • Will the proposed fix work? Did it work?
    • Resource monitoring
    • How utilized are the environment components?
    • Important activity for capacity planning

slide 13:

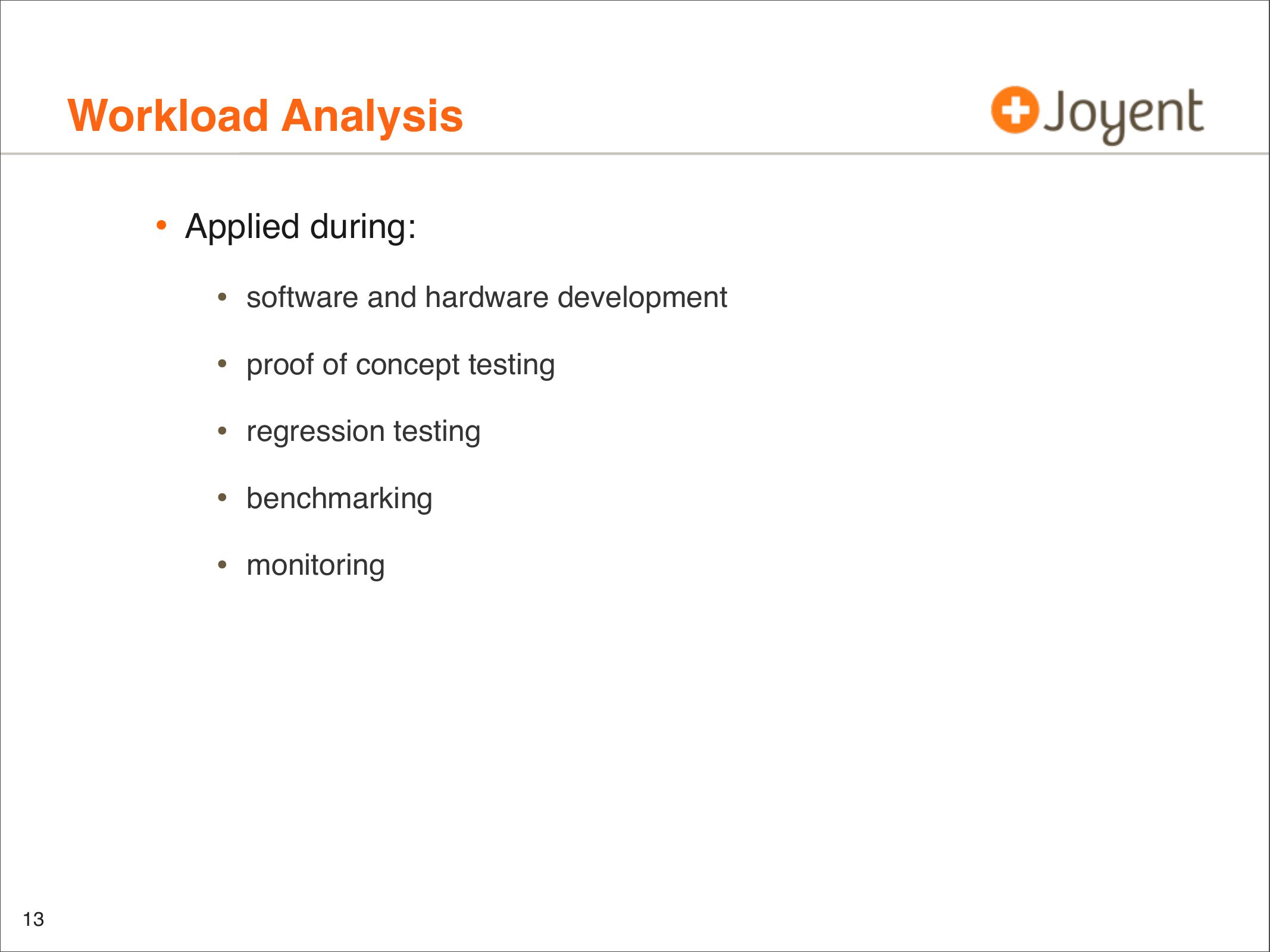

    Workload Analysis
    • Applied during:
    • software and hardware development
    • proof of concept testing
    • regression testing
    • benchmarking
    • monitoring

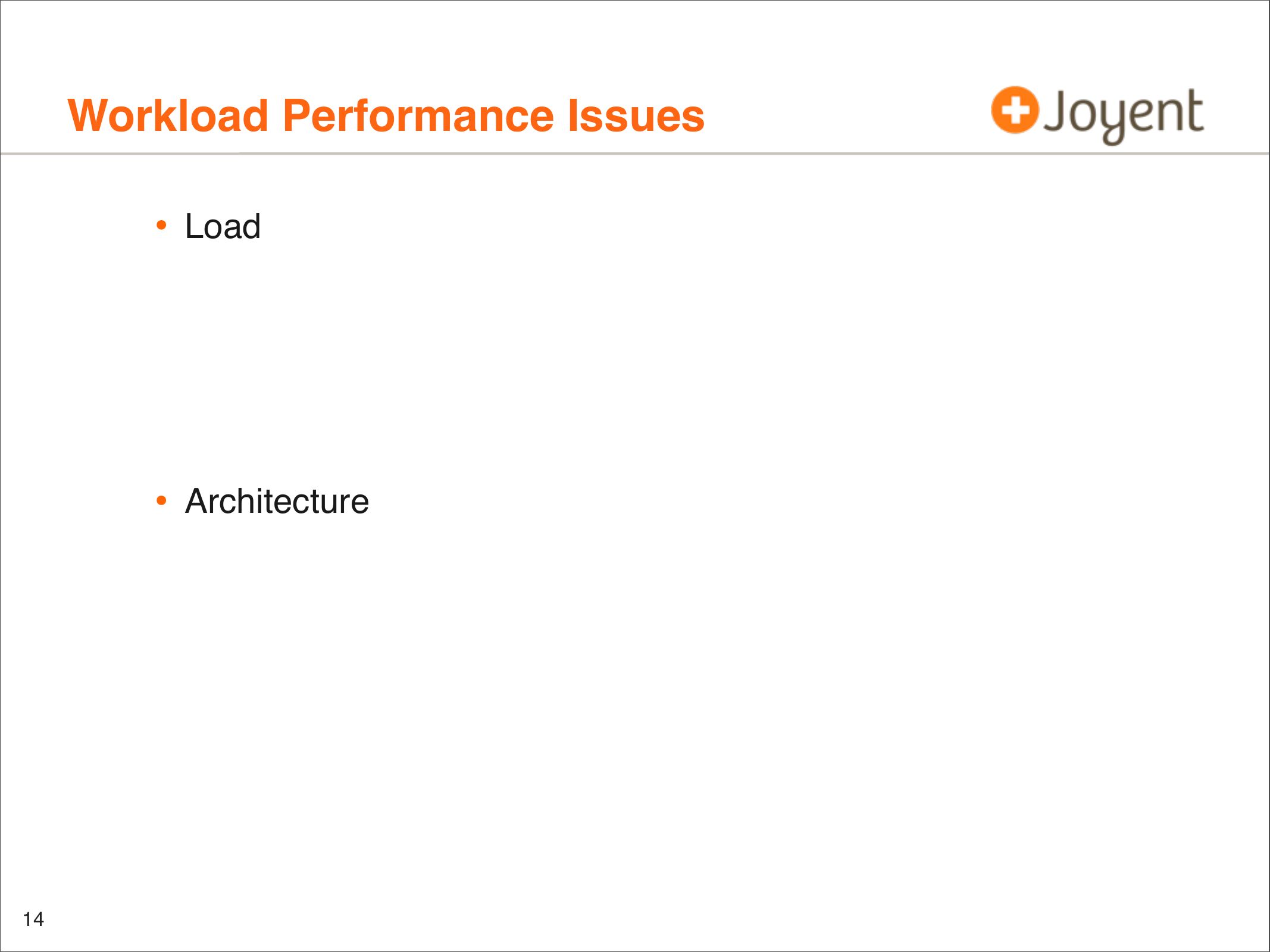

slide 14:
    Workload Performance Issues
    • Load
    • Architecture

slide 15:

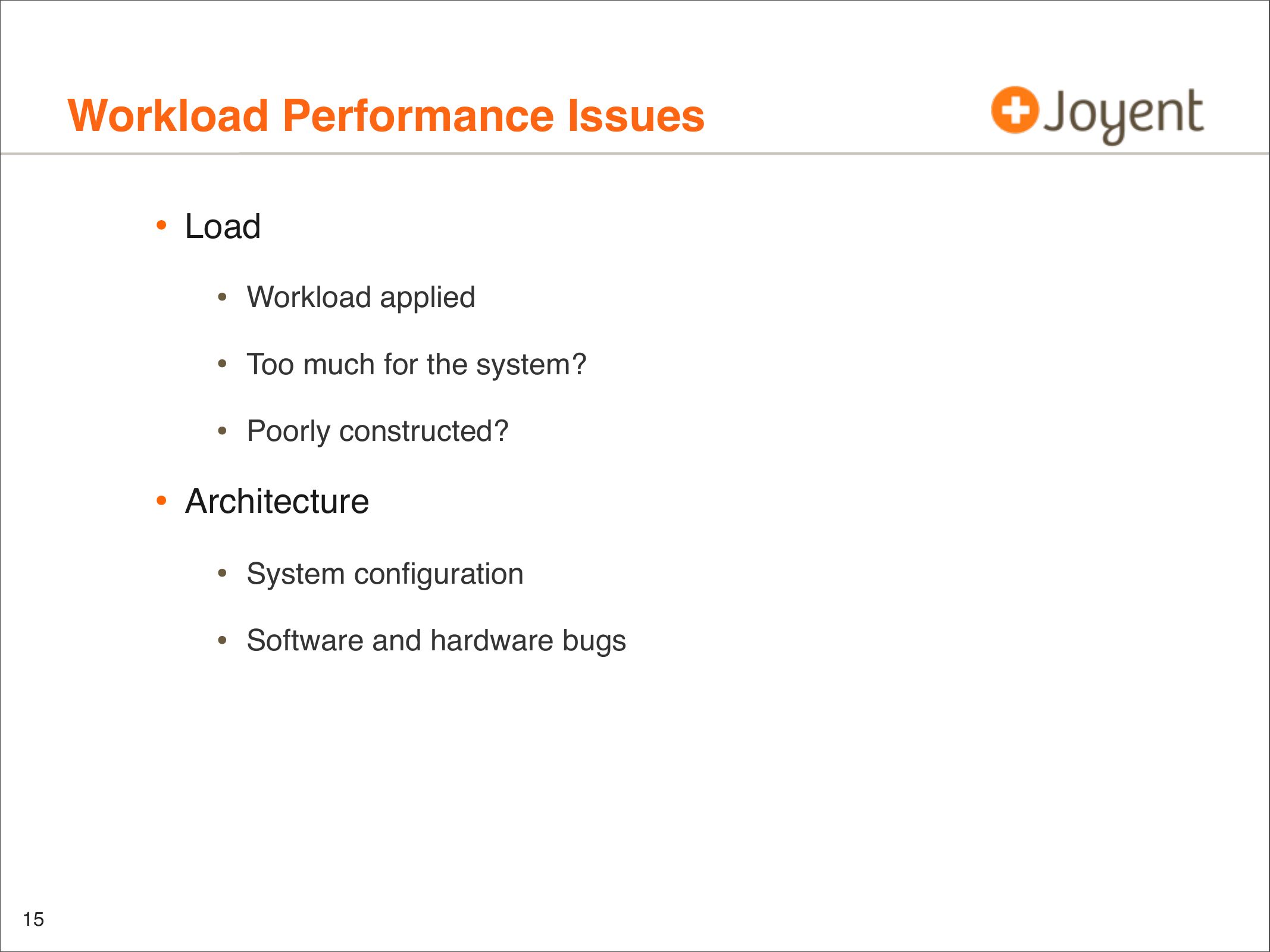

    Workload Performance Issues
    • Load
    • Workload applied
    • Too much for the system?
    • Poorly constructed?
    • Architecture
    • System configuration
    • Software and hardware bugs

slide 16:

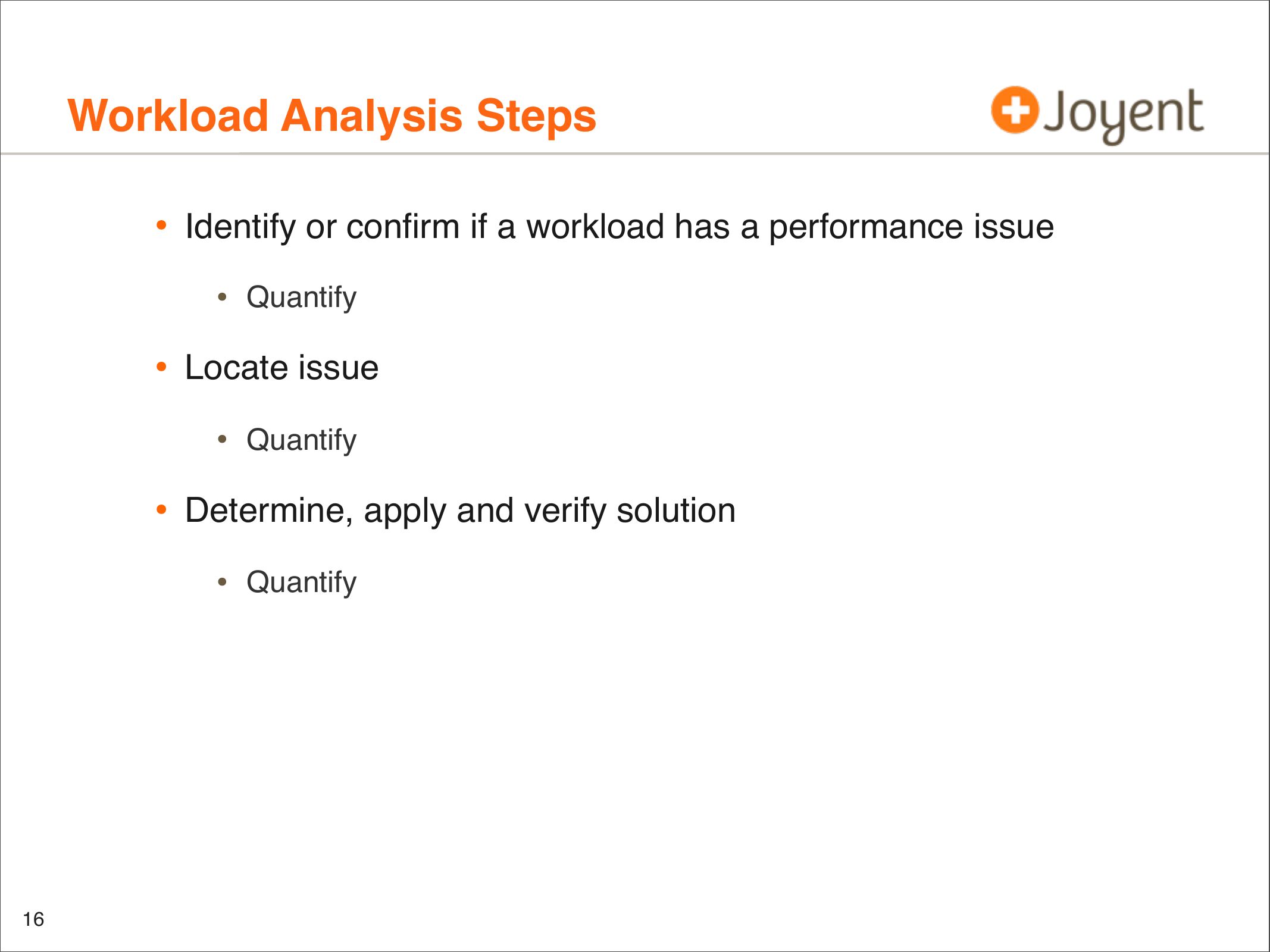

    Workload Analysis Steps
    • Identify or confirm if a workload has a performance issue
    • Quantify
    • Locate issue
    • Quantify
    • Determine, apply and verify solution
    • Quantify

slide 17:

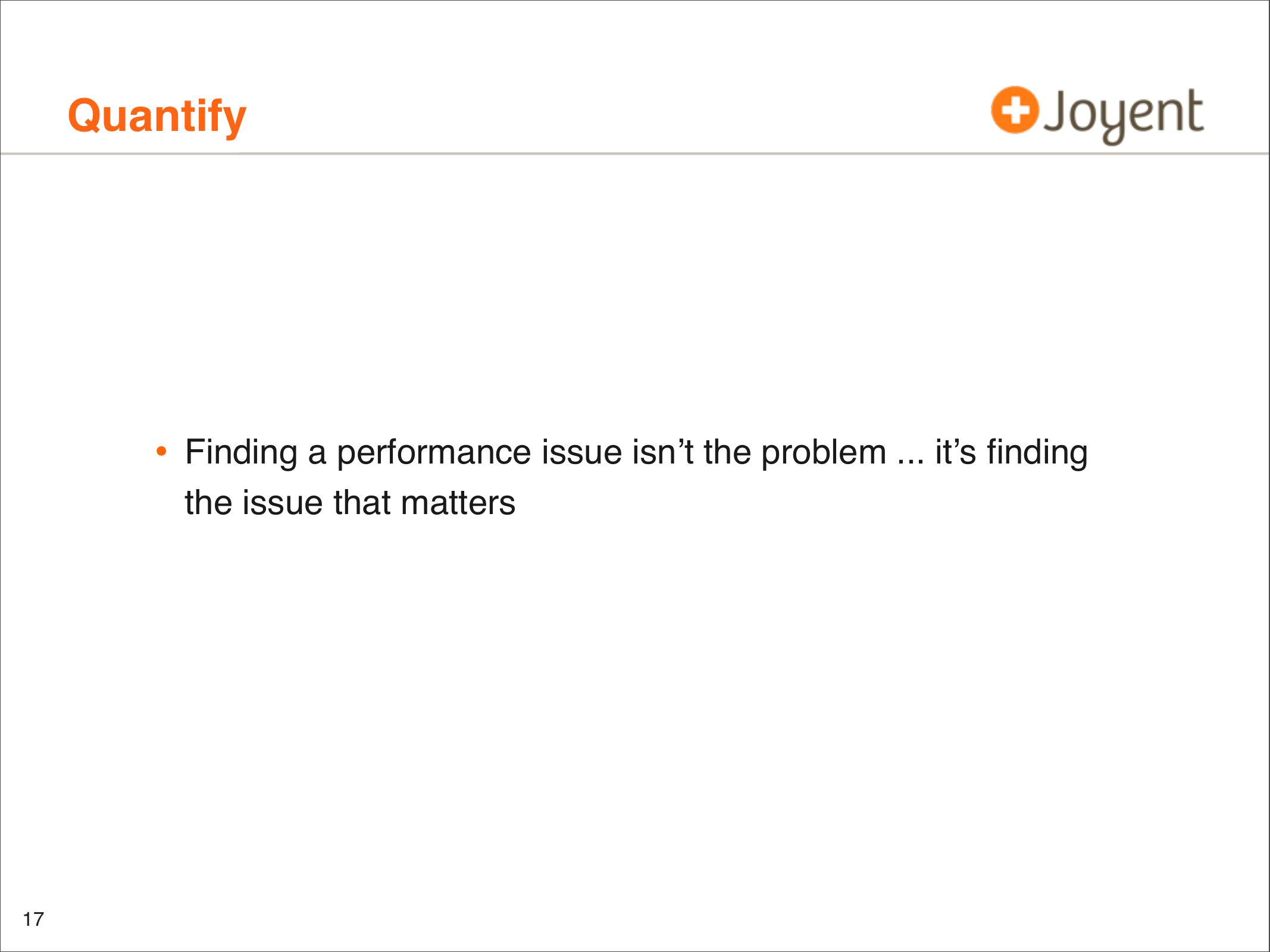

    Quantify
    • Finding a performance issue isn’t the problem ... it’s finding
    the issue that matters

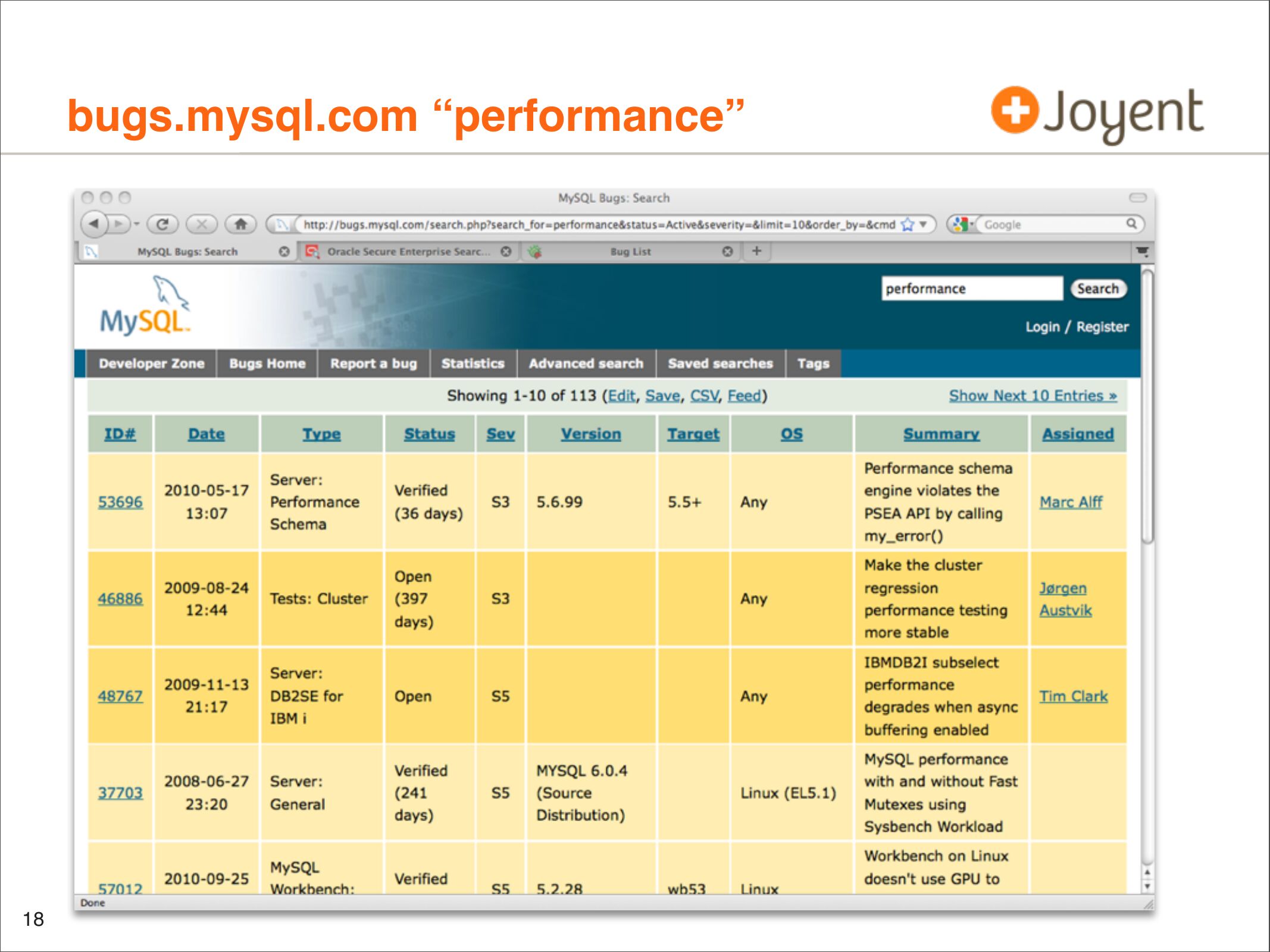

slide 18:
    bugs.mysql.com “performance”

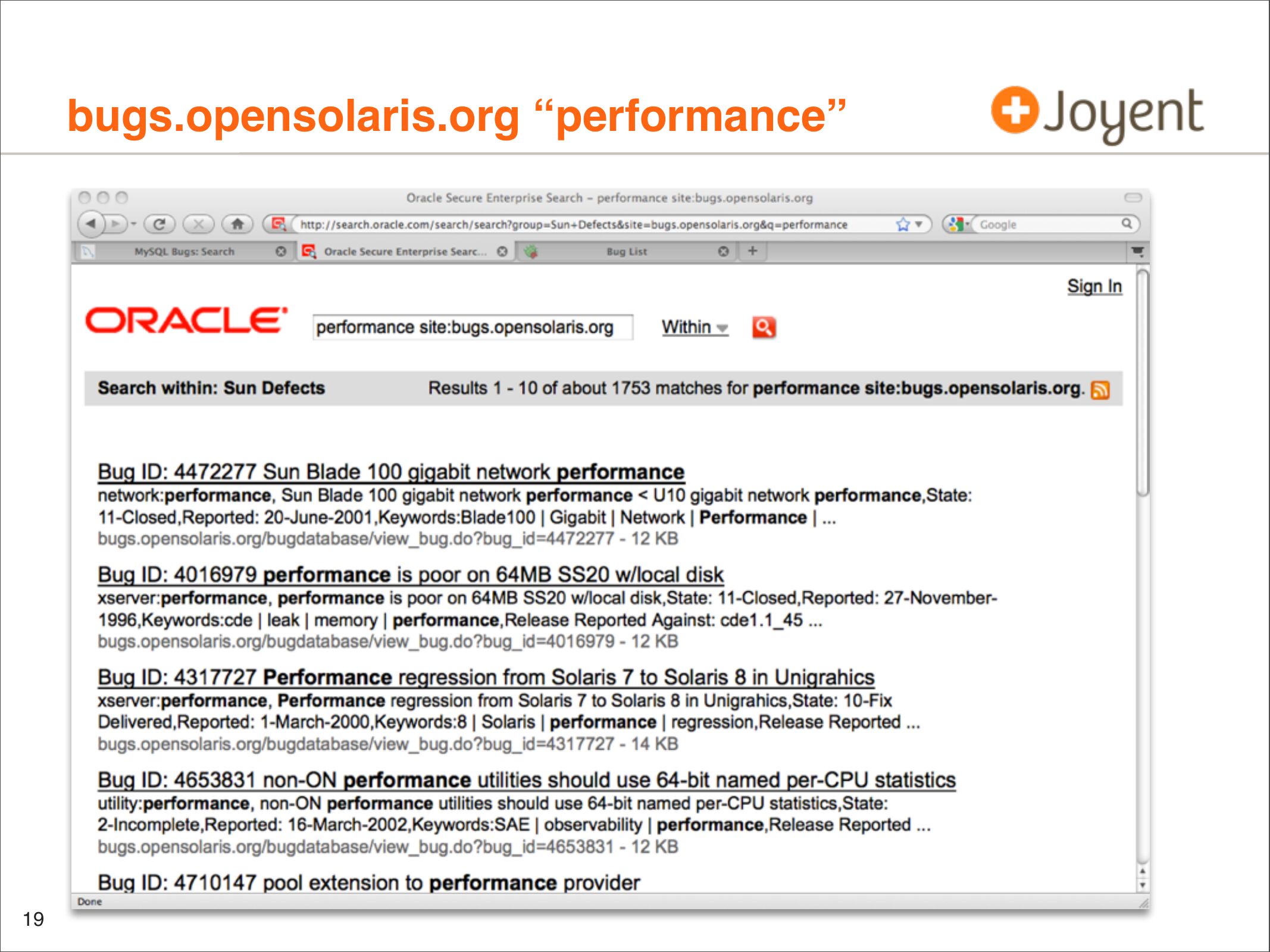

slide 19:
    bugs.opensolaris.org “performance”

slide 20:

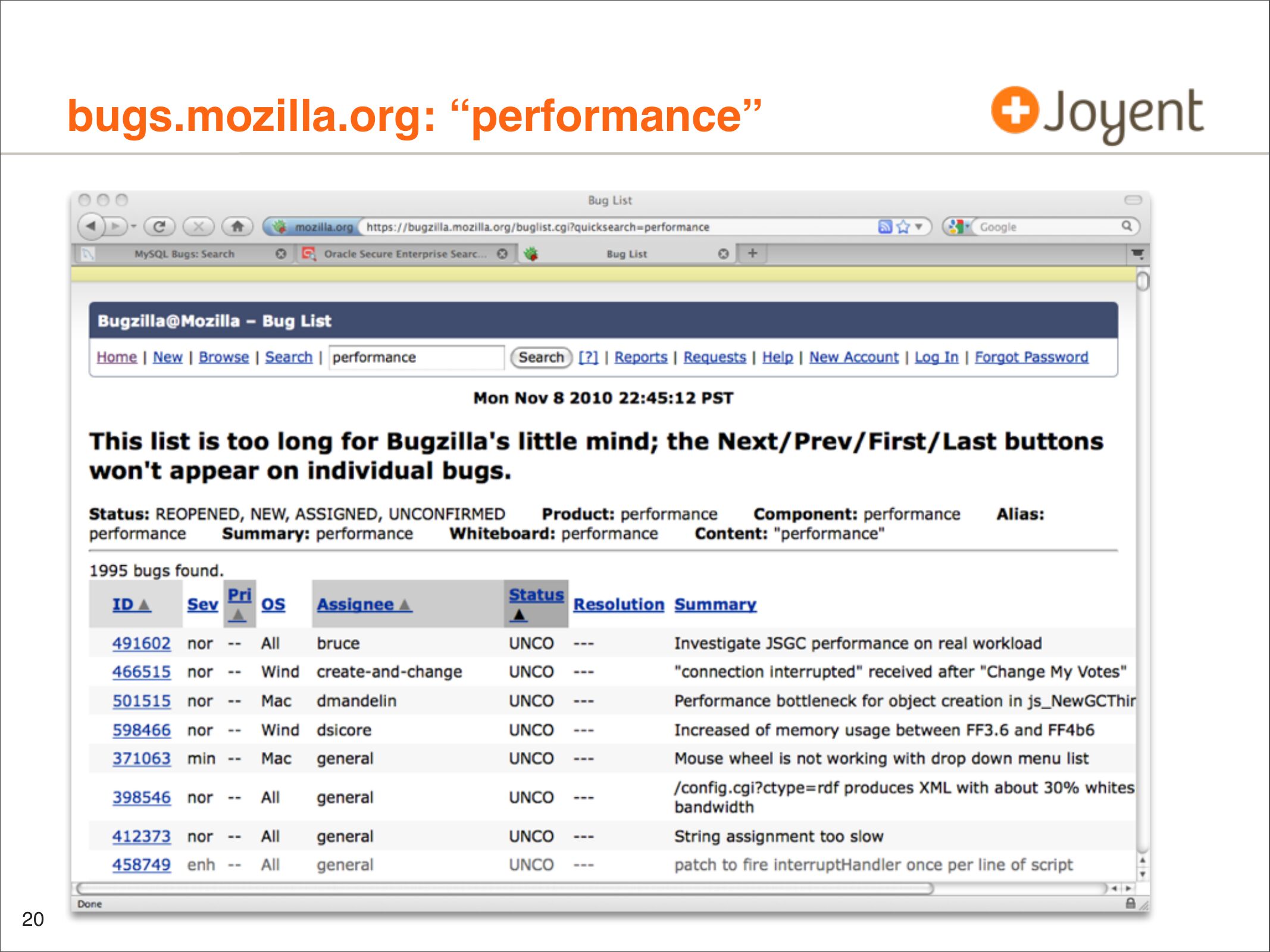

    bugs.mozilla.org: “performance”

slide 21:

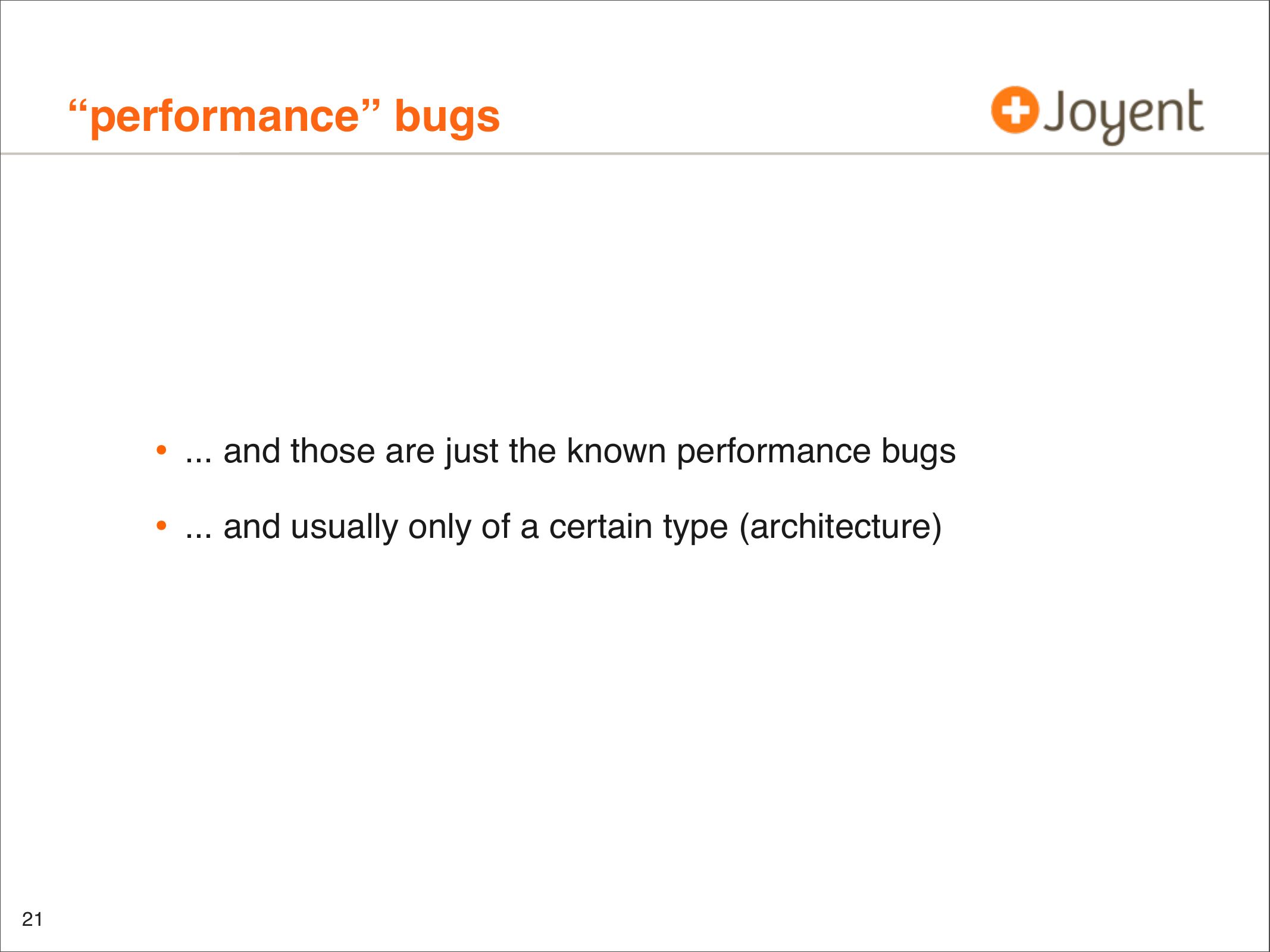

    “performance” bugs
    • ... and those are just the known performance bugs
    • ... and usually only of a certain type (architecture)

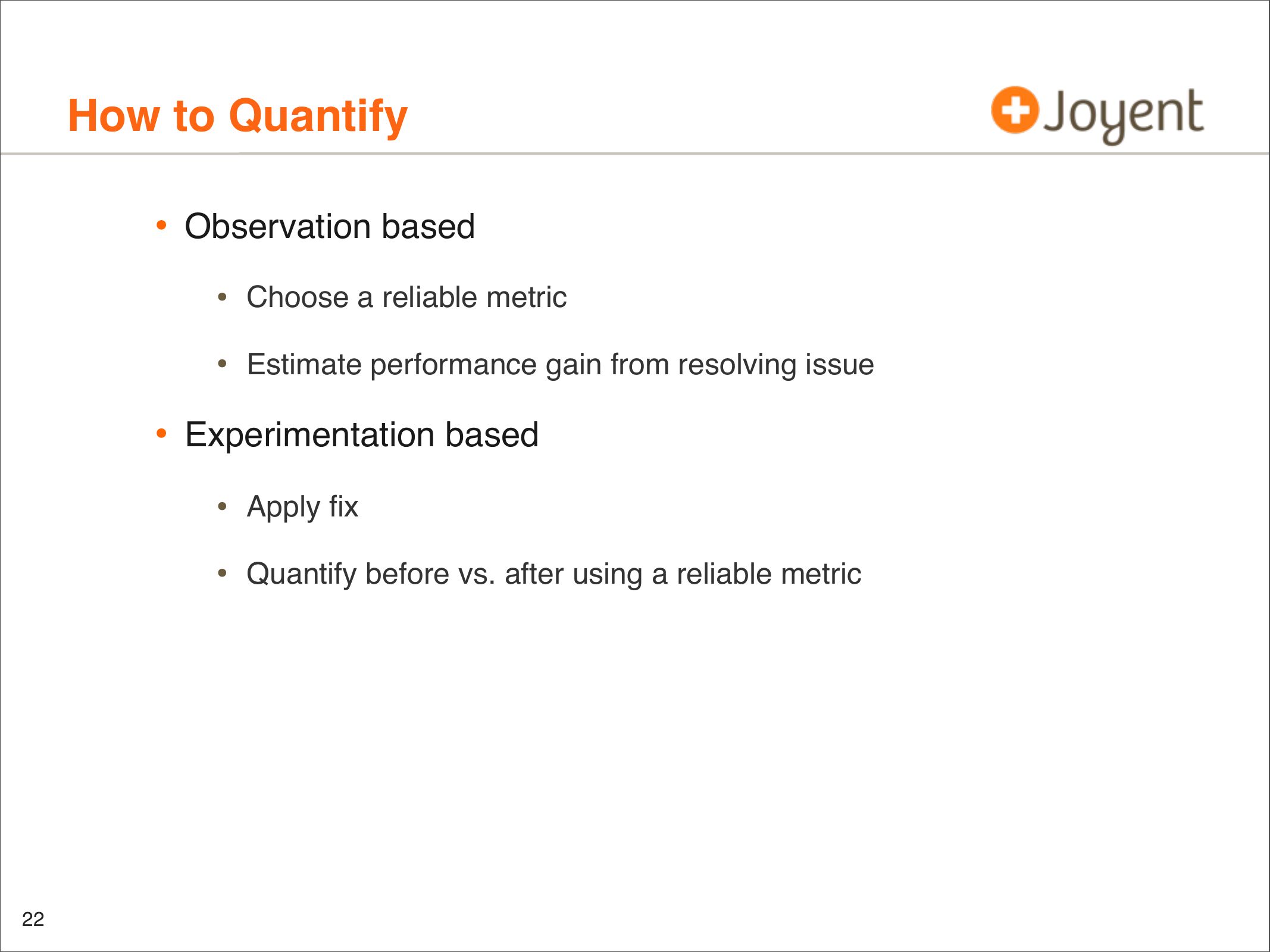

slide 22:
    How to Quantify
    • Observation based
    • Choose a reliable metric
    • Estimate performance gain from resolving issue
    • Experimentation based
    • Apply fix
    • Quantify before vs. after using a reliable metric

slide 23:

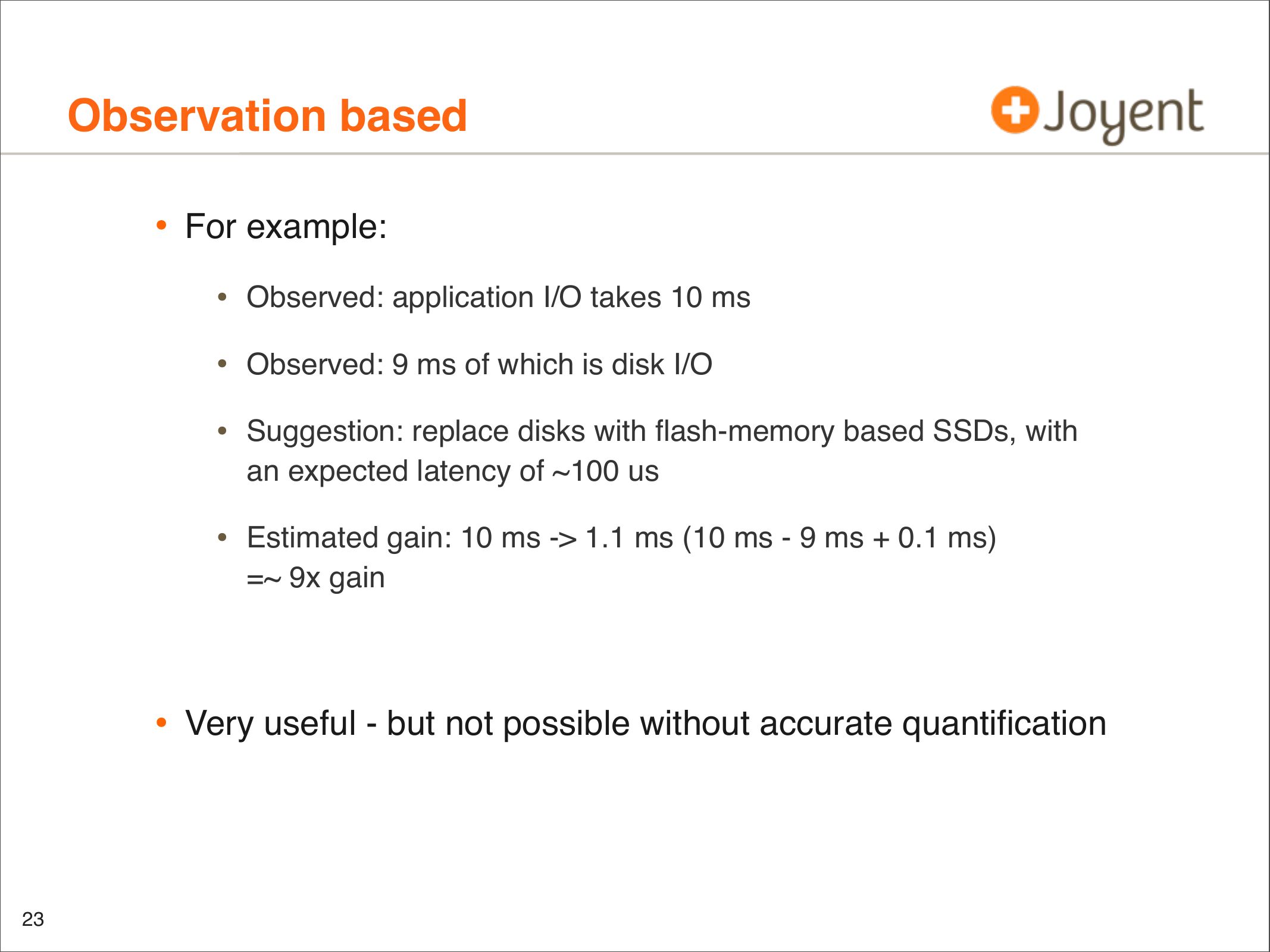

    Observation based
    • For example:
    • Observed: application I/O takes 10 ms
    • Observed: 9 ms of which is disk I/O
    • Suggestion: replace disks with flash-memory based SSDs, with
    an expected latency of ~100 us
    • Estimated gain: 10 ms ->gt; 1.1 ms (10 ms - 9 ms + 0.1 ms)
    =~ 9x gain
    • Very useful - but not possible without accurate quantification

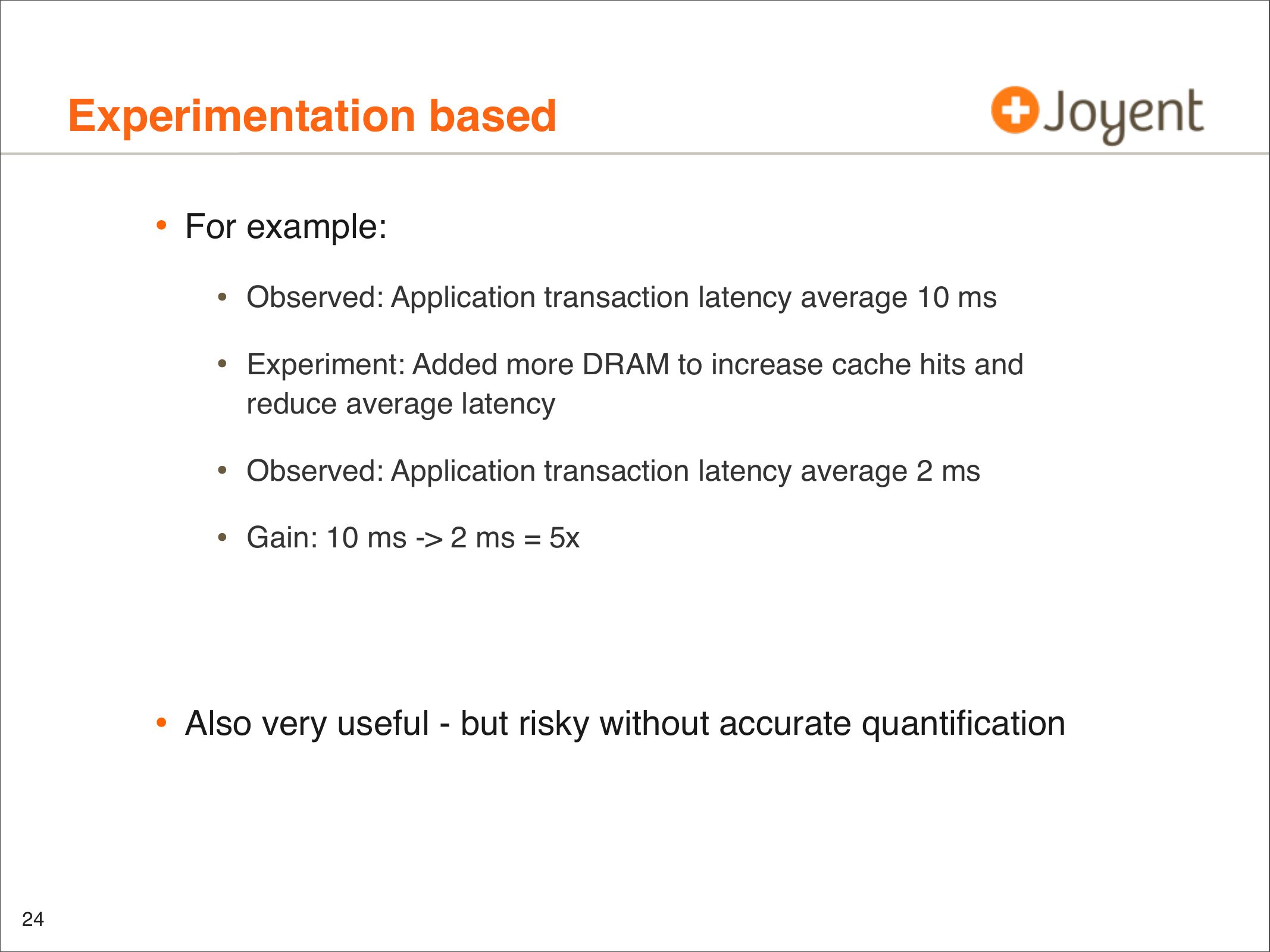

slide 24:
    Experimentation based
    • For example:
    • Observed: Application transaction latency average 10 ms
    • Experiment: Added more DRAM to increase cache hits and
    reduce average latency
    • Observed: Application transaction latency average 2 ms
    • Gain: 10 ms ->gt; 2 ms = 5x
    • Also very useful - but risky without accurate quantification

slide 25:

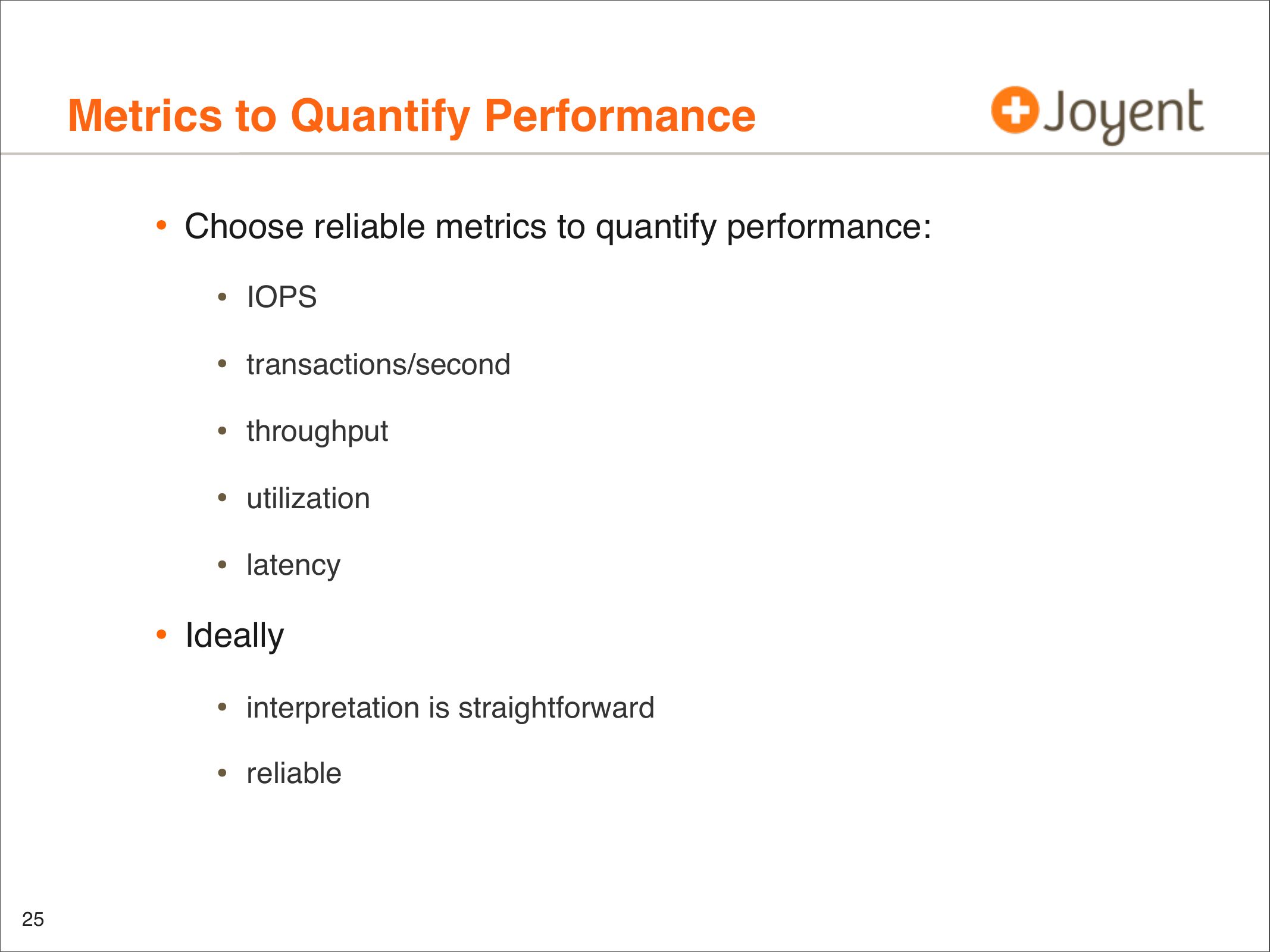

    Metrics to Quantify Performance
    • Choose reliable metrics to quantify performance:
    • IOPS
    • transactions/second
    • throughput
    • utilization
    • latency
    • Ideally
    • interpretation is straightforward
    • reliable

slide 26:

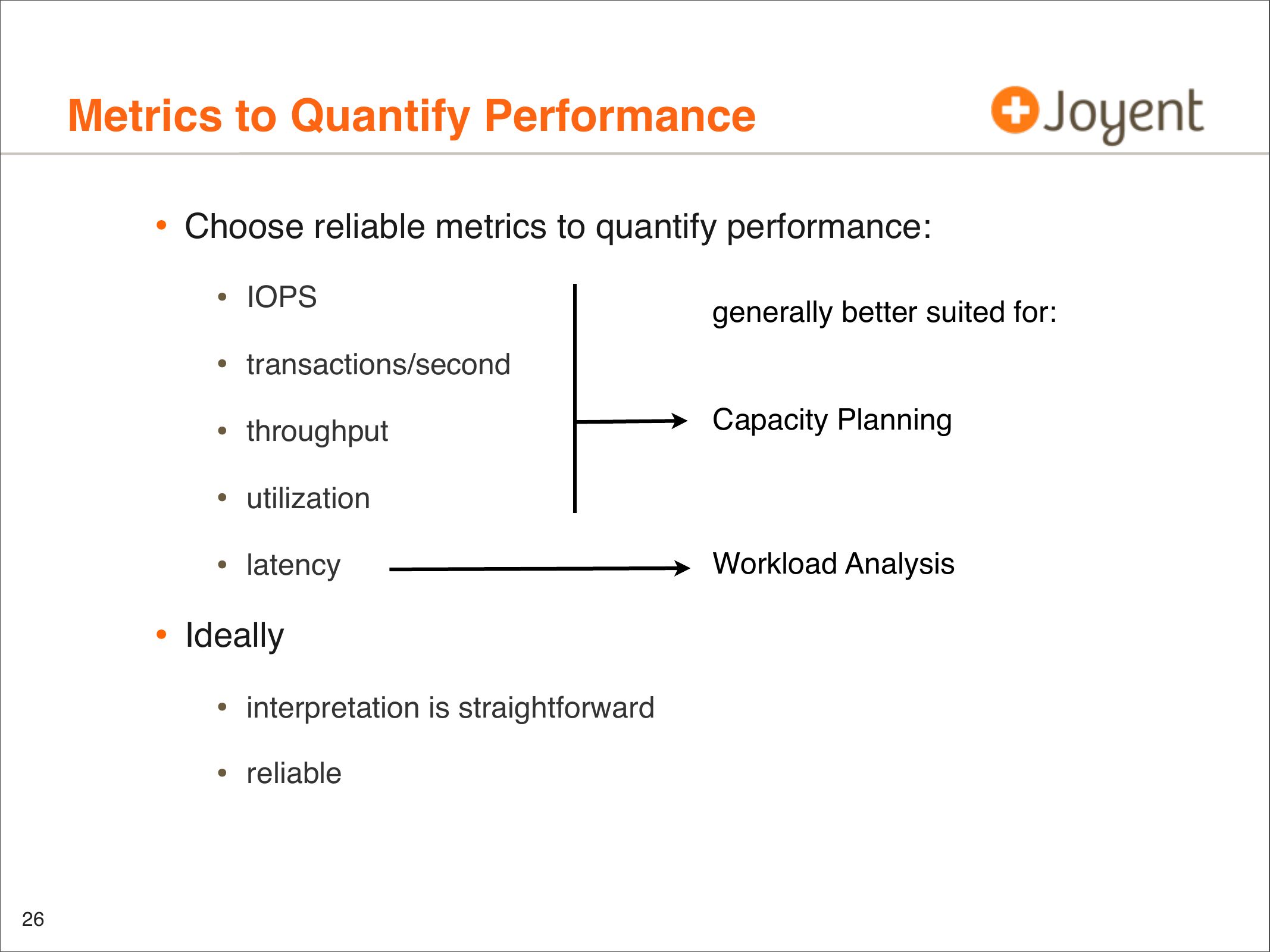

    Metrics to Quantify Performance
    • Choose reliable metrics to quantify performance:
    • IOPS
    generally better suited for:
    • transactions/second
    • throughput
    Capacity Planning
    • utilization
    • latency
    • Ideally
    • interpretation is straightforward
    • reliable
    Workload Analysis

slide 27:

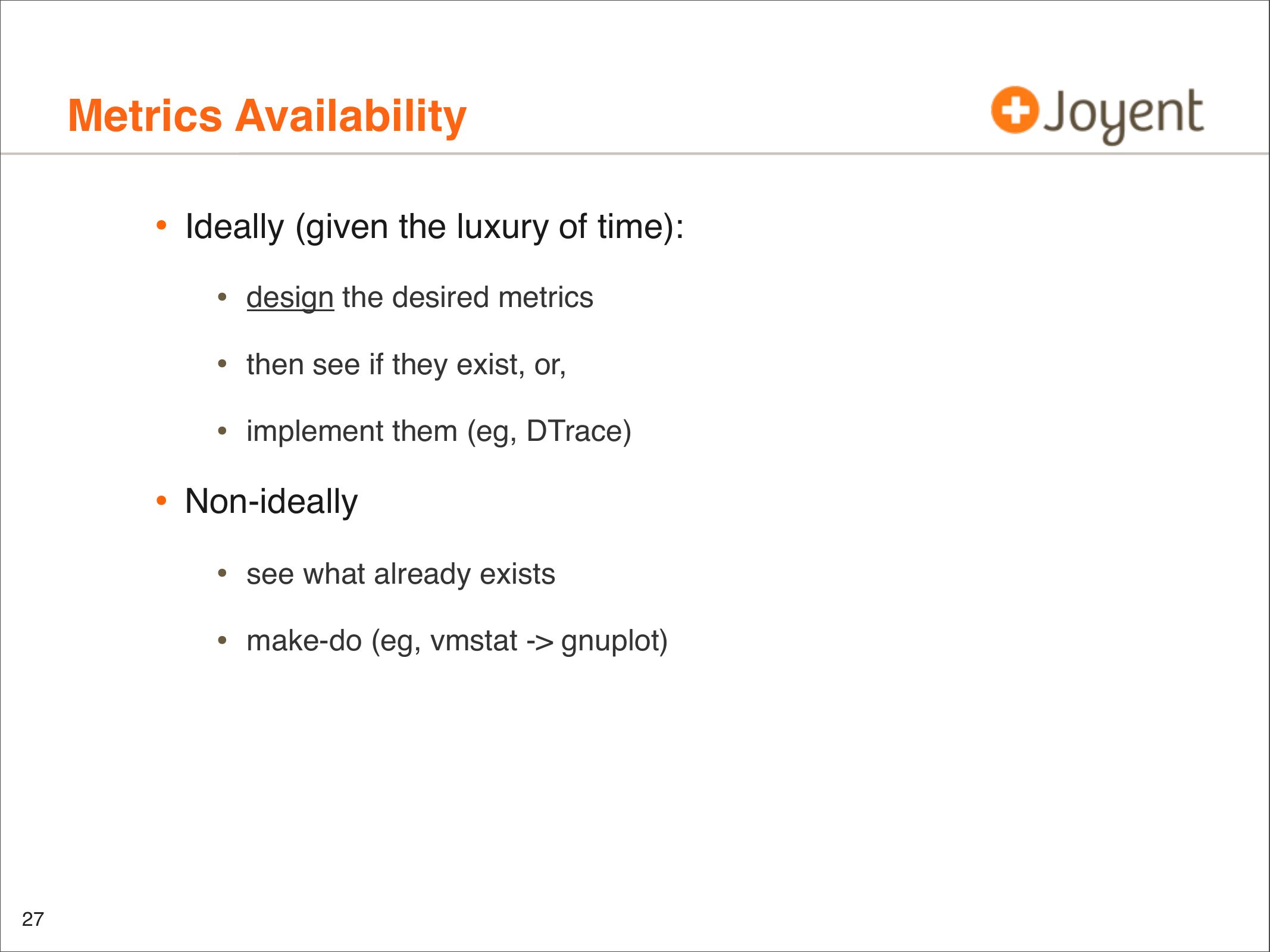

    Metrics Availability
    • Ideally (given the luxury of time):
    • design the desired metrics
    • then see if they exist, or,
    • implement them (eg, DTrace)
    • Non-ideally
    • see what already exists
    • make-do (eg, vmstat ->gt; gnuplot)

slide 28:

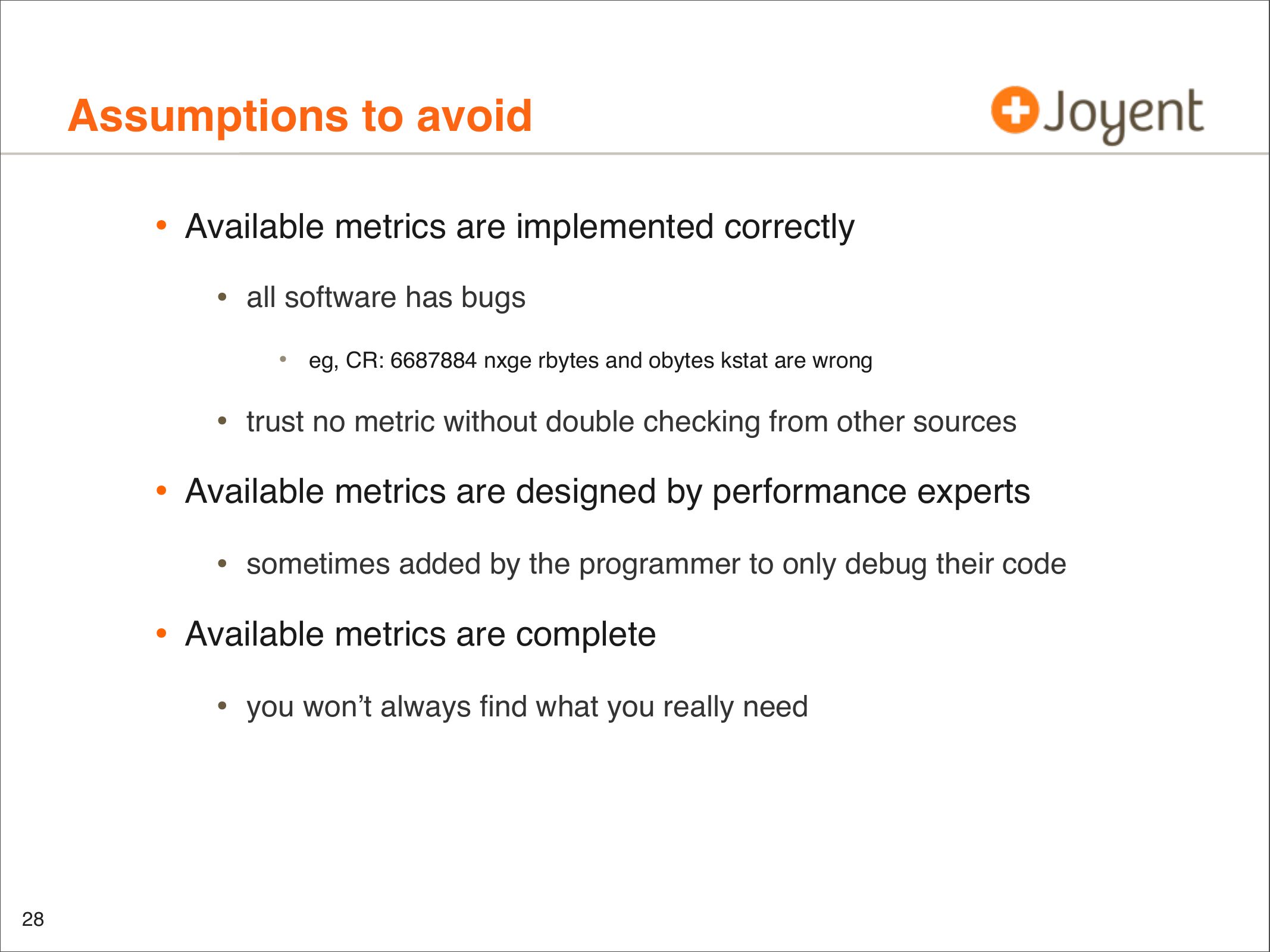

    Assumptions to avoid
    • Available metrics are implemented correctly
    • all software has bugs
    eg, CR: 6687884 nxge rbytes and obytes kstat are wrong
    • trust no metric without double checking from other sources
    • Available metrics are designed by performance experts
    • sometimes added by the programmer to only debug their code
    • Available metrics are complete
    • you won’t always find what you really need

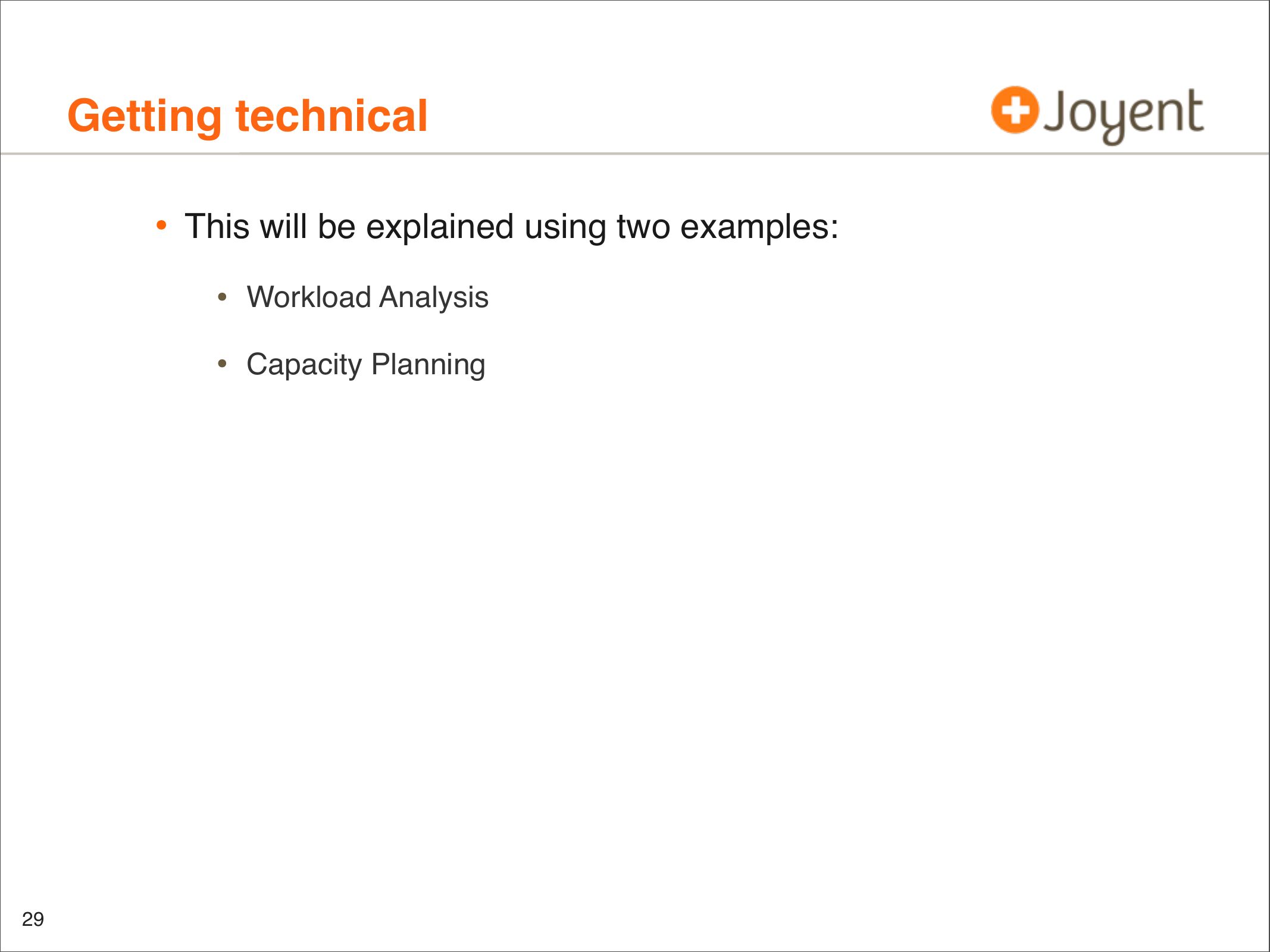

slide 29:
    Getting technical
    • This will be explained using two examples:
    • Workload Analysis
    • Capacity Planning

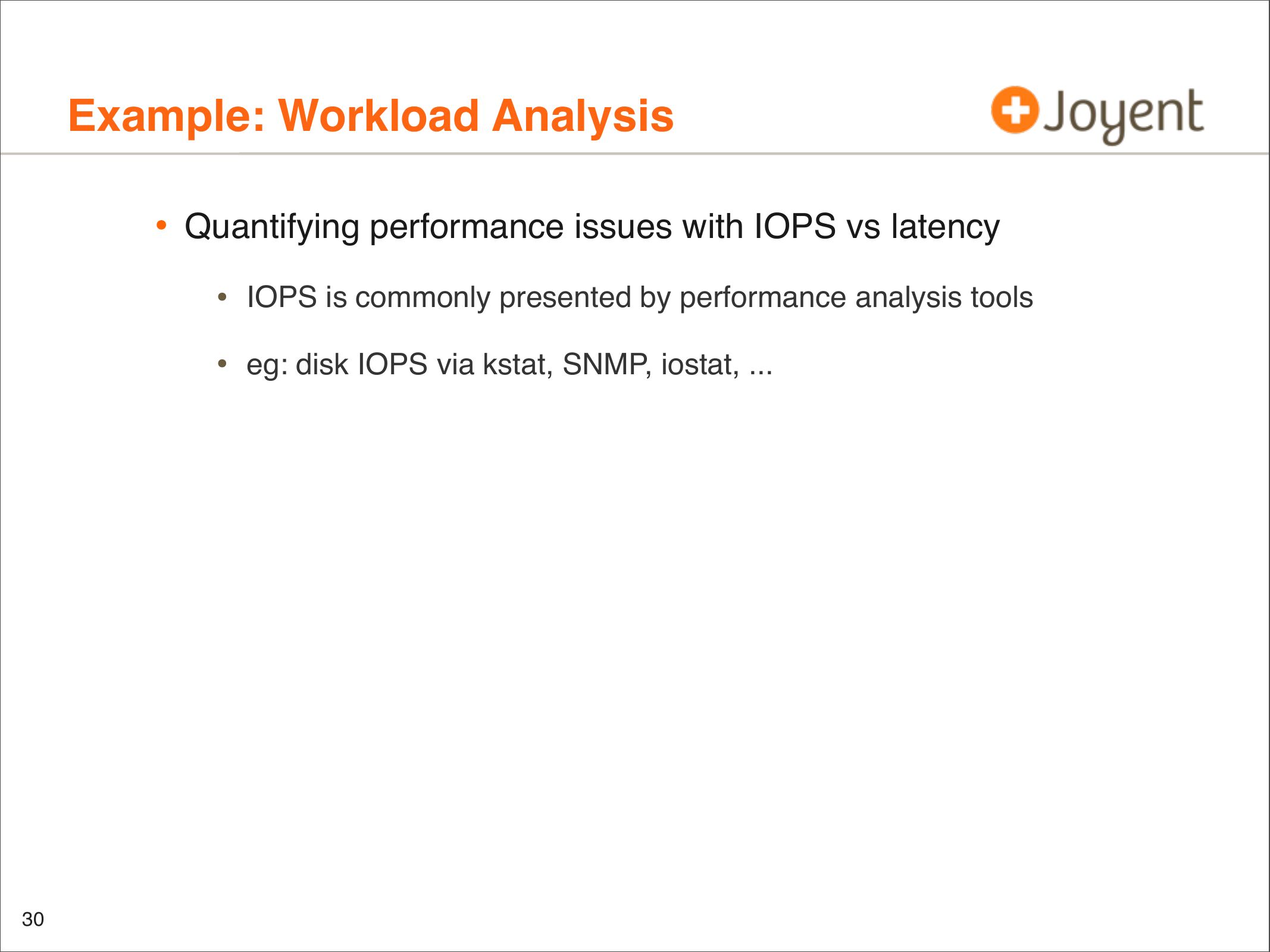

slide 30:
    Example: Workload Analysis
    • Quantifying performance issues with IOPS vs latency
    • IOPS is commonly presented by performance analysis tools
    • eg: disk IOPS via kstat, SNMP, iostat, ...

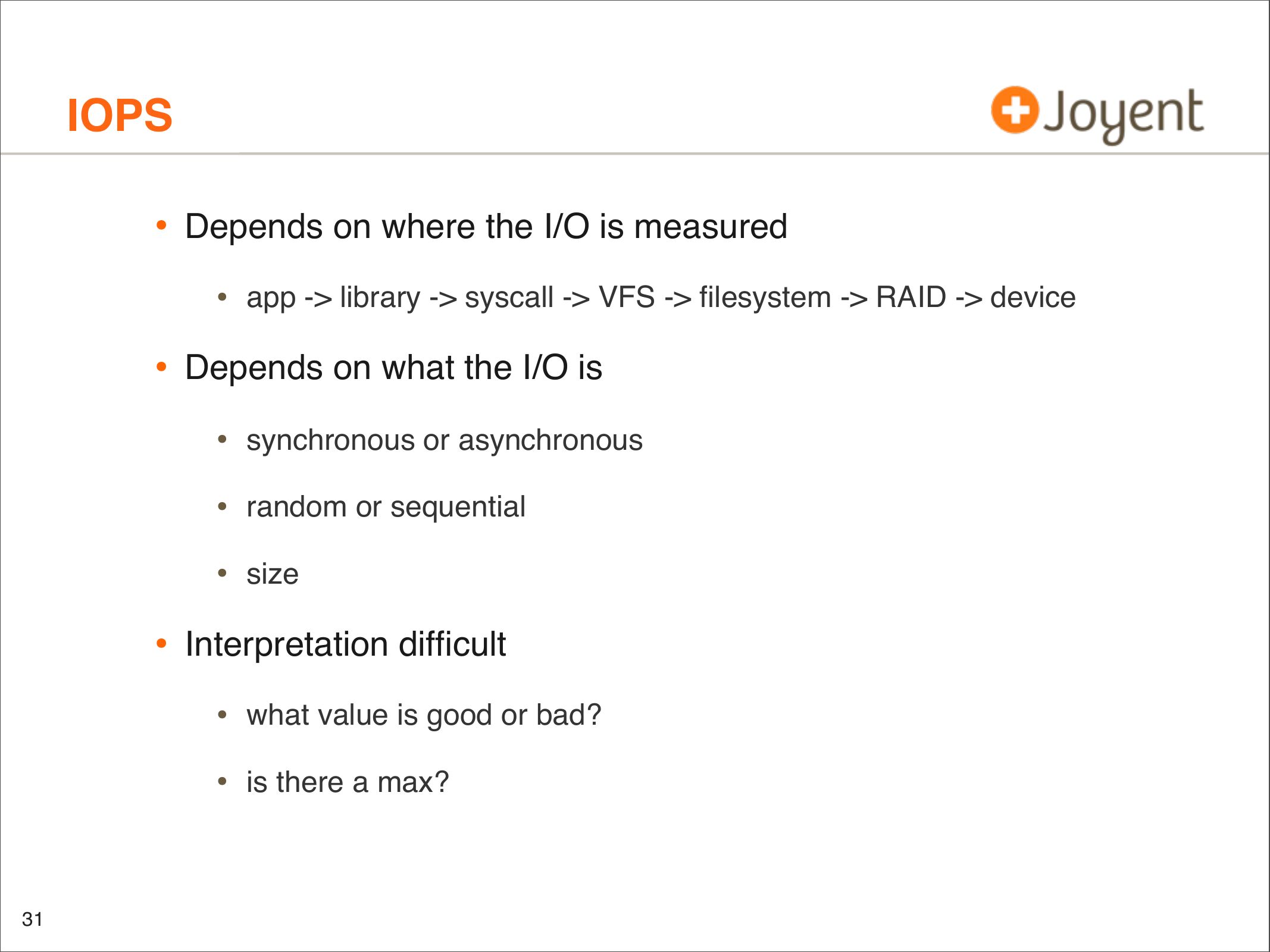

slide 31:
    IOPS
    • Depends on where the I/O is measured
    • app ->gt; library ->gt; syscall ->gt; VFS ->gt; filesystem ->gt; RAID ->gt; device
    • Depends on what the I/O is
    • synchronous or asynchronous
    • random or sequential
    • size
    • Interpretation difficult
    • what value is good or bad?
    • is there a max?

slide 32:

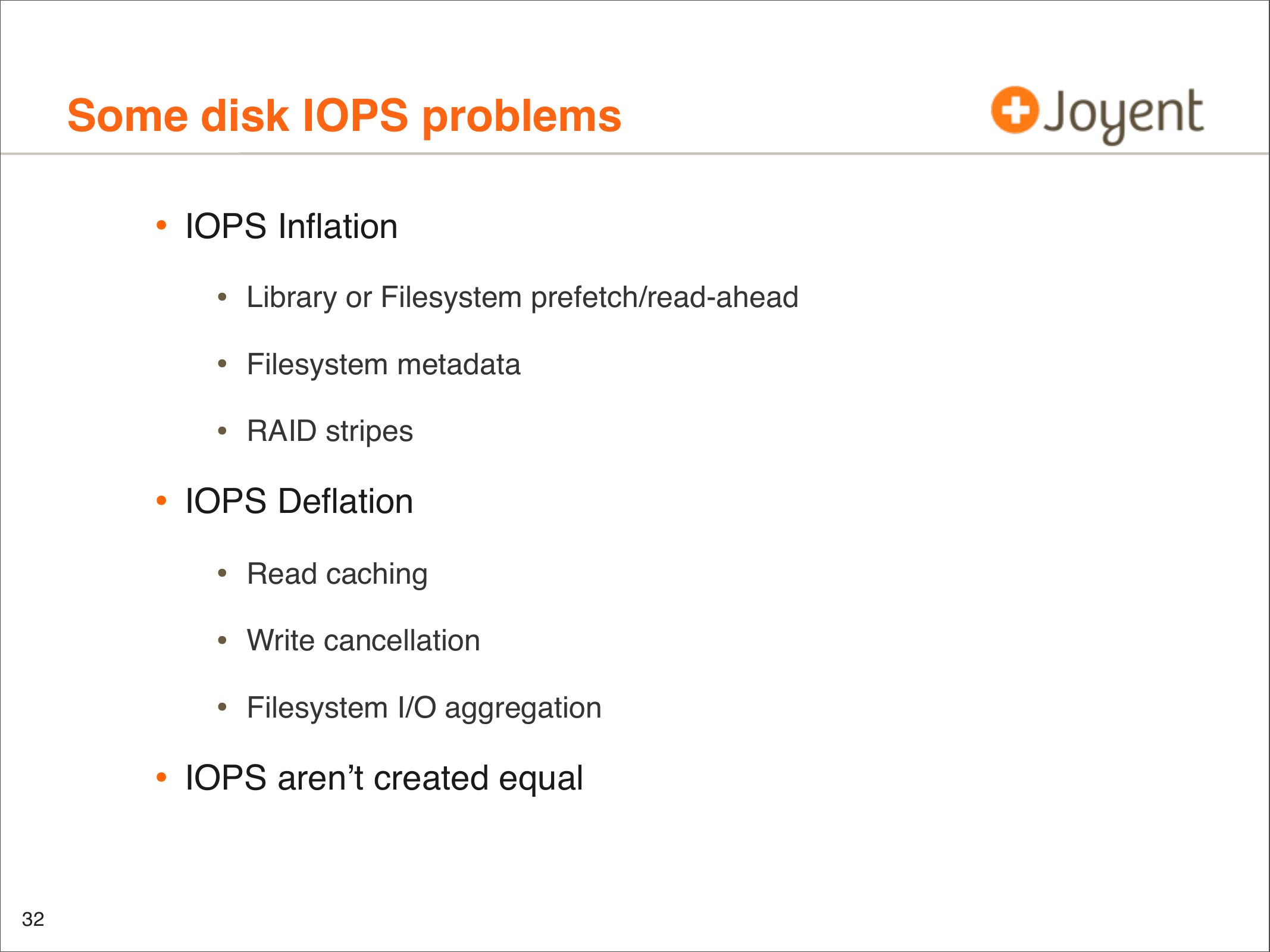

    Some disk IOPS problems
    • IOPS Inflation
    • Library or Filesystem prefetch/read-ahead
    • Filesystem metadata
    • RAID stripes
    • IOPS Deflation
    • Read caching
    • Write cancellation
    • Filesystem I/O aggregation
    • IOPS aren’t created equal

slide 33:

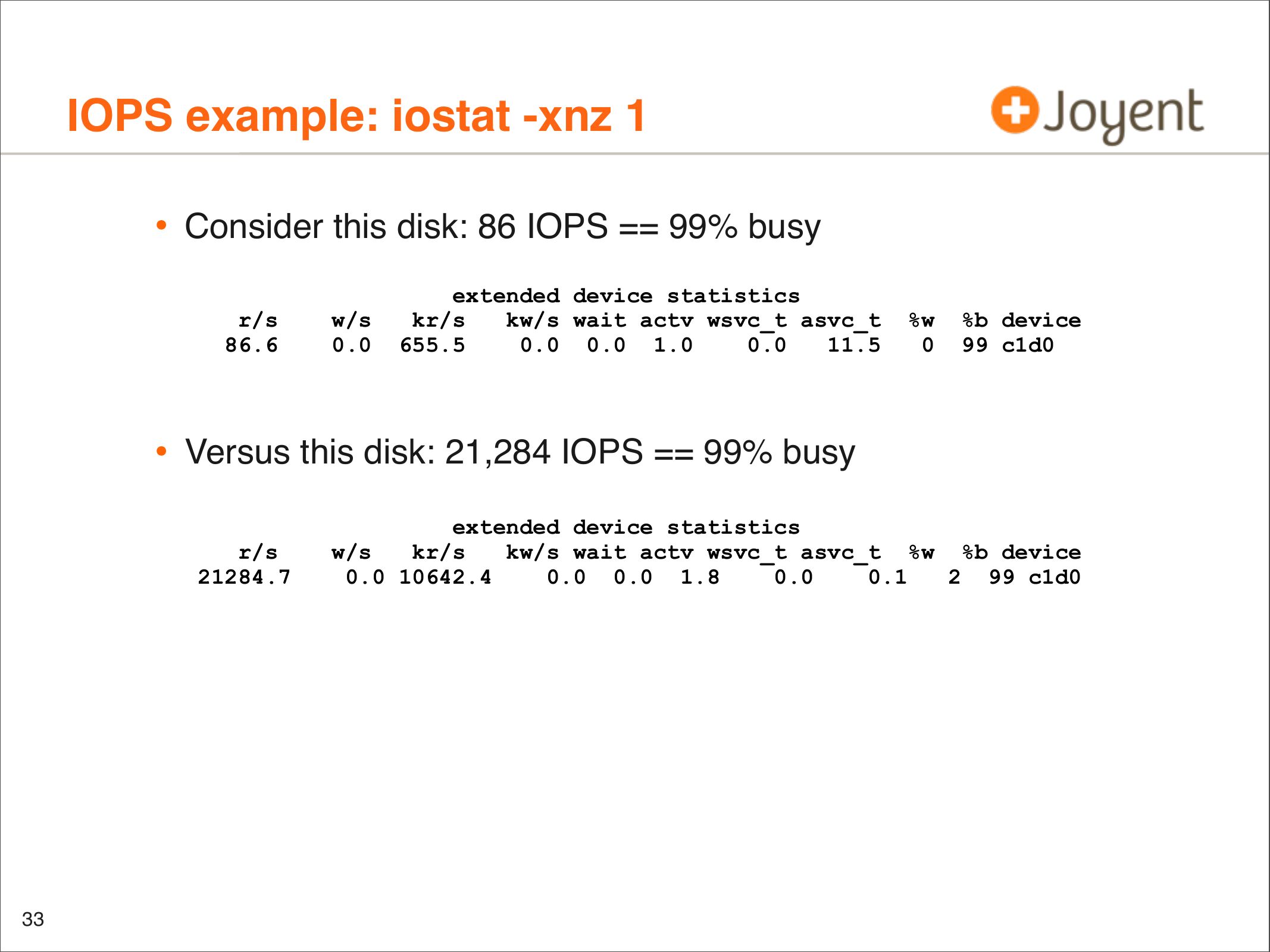

    IOPS example: iostat -xnz 1
    • Consider this disk: 86 IOPS == 99% busy
    r/s
    w/s
    extended device statistics
    kr/s
    kw/s wait actv wsvc_t asvc_t
    0.0 0.0 1.0
    %b device
    99 c1d0
    • Versus this disk: 21,284 IOPS == 99% busy
    r/s
    extended device statistics
    w/s
    kr/s
    kw/s wait actv wsvc_t asvc_t %w %b device
    0.0 10642.4
    0.0 0.0 1.8
    2 99 c1d0

slide 34:

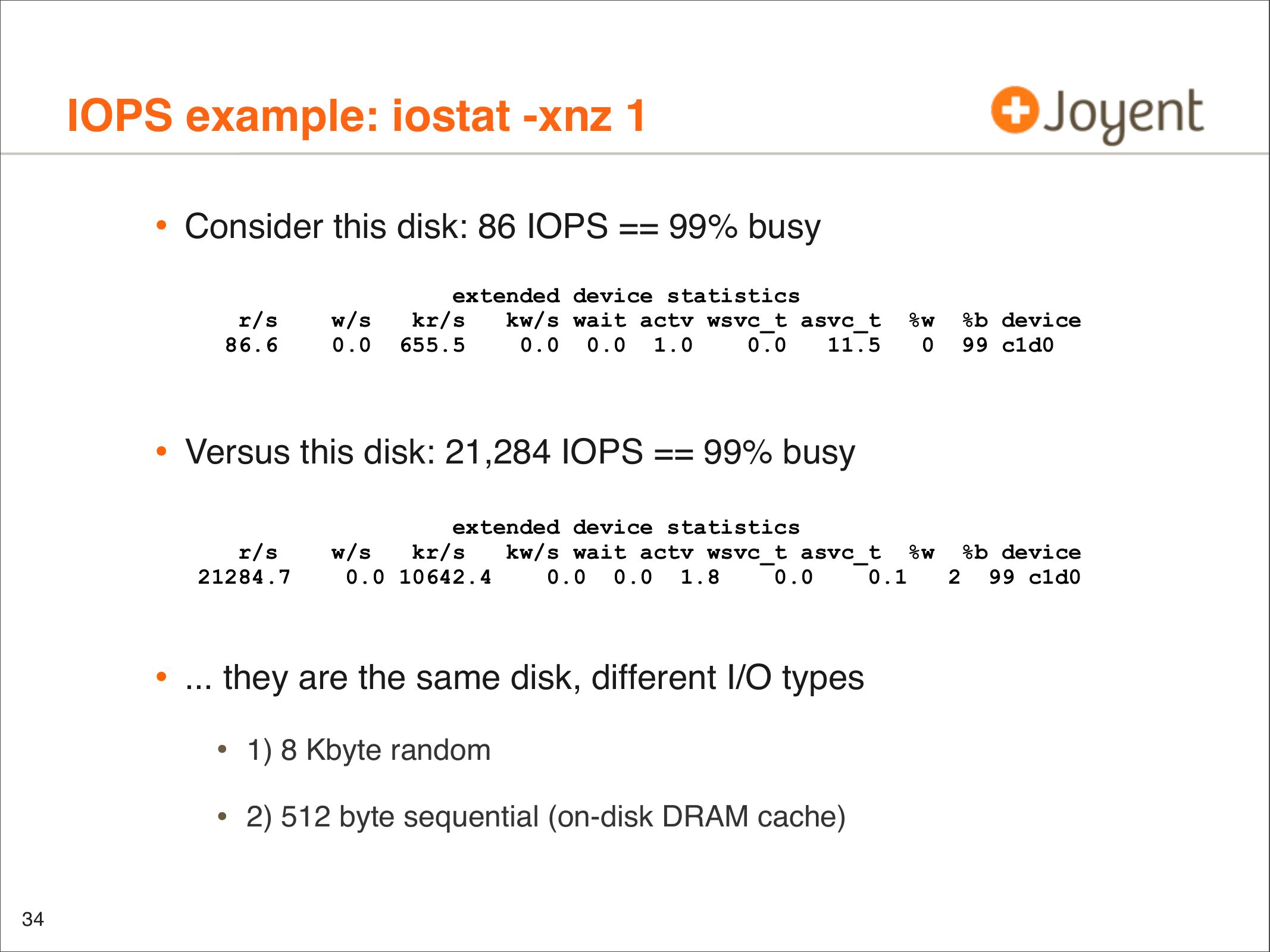

    IOPS example: iostat -xnz 1
    • Consider this disk: 86 IOPS == 99% busy
    r/s
    w/s
    extended device statistics
    kr/s
    kw/s wait actv wsvc_t asvc_t
    0.0 0.0 1.0
    %b device
    99 c1d0
    • Versus this disk: 21,284 IOPS == 99% busy
    r/s
    extended device statistics
    w/s
    kr/s
    kw/s wait actv wsvc_t asvc_t %w %b device
    0.0 10642.4
    0.0 0.0 1.8
    2 99 c1d0
    • ... they are the same disk, different I/O types
    • 1) 8 Kbyte random
    • 2) 512 byte sequential (on-disk DRAM cache)

slide 35:

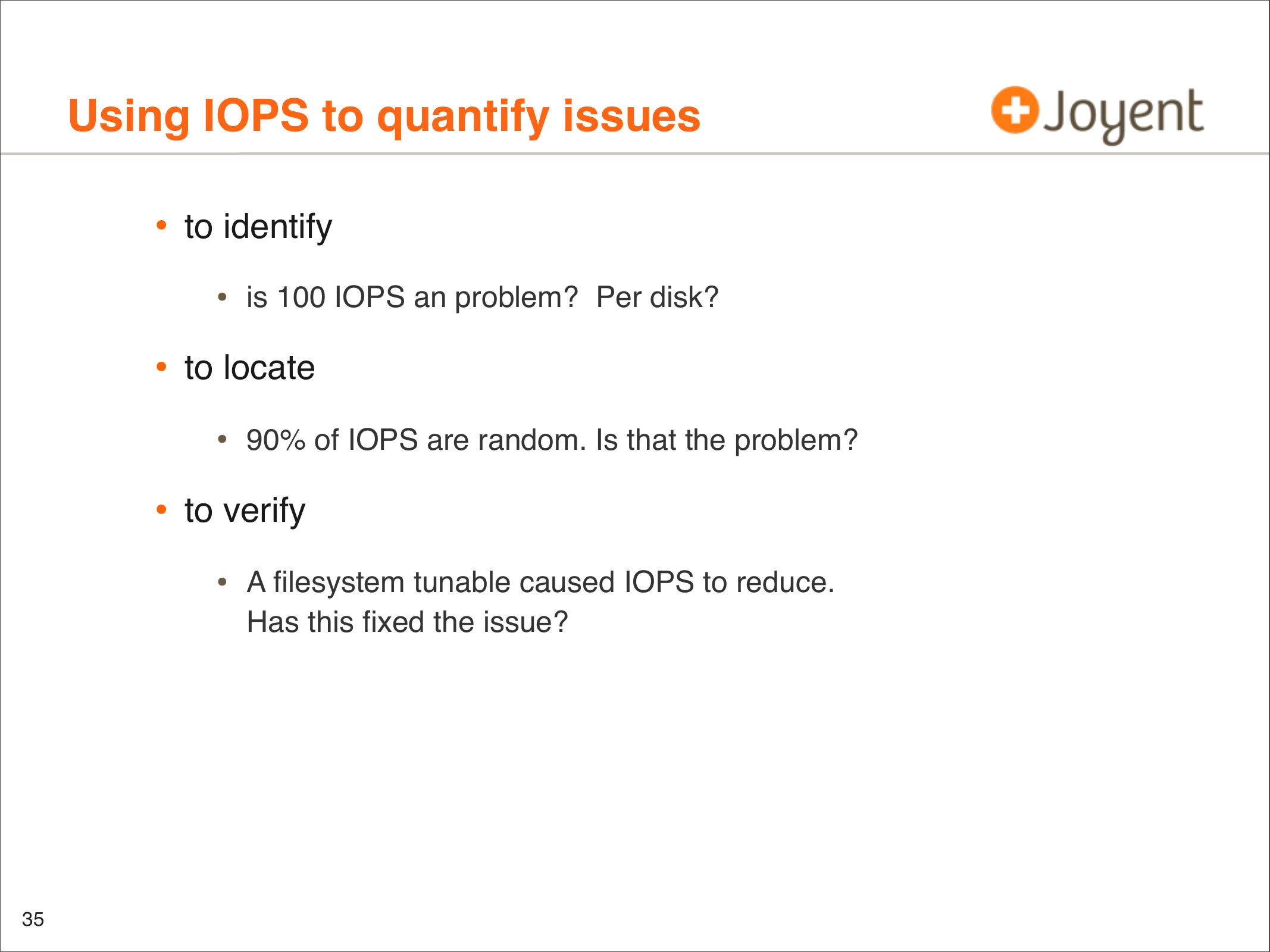

    Using IOPS to quantify issues
    • to identify
    • is 100 IOPS an problem? Per disk?
    • to locate
    • 90% of IOPS are random. Is that the problem?
    • to verify
    • A filesystem tunable caused IOPS to reduce.
    Has this fixed the issue?

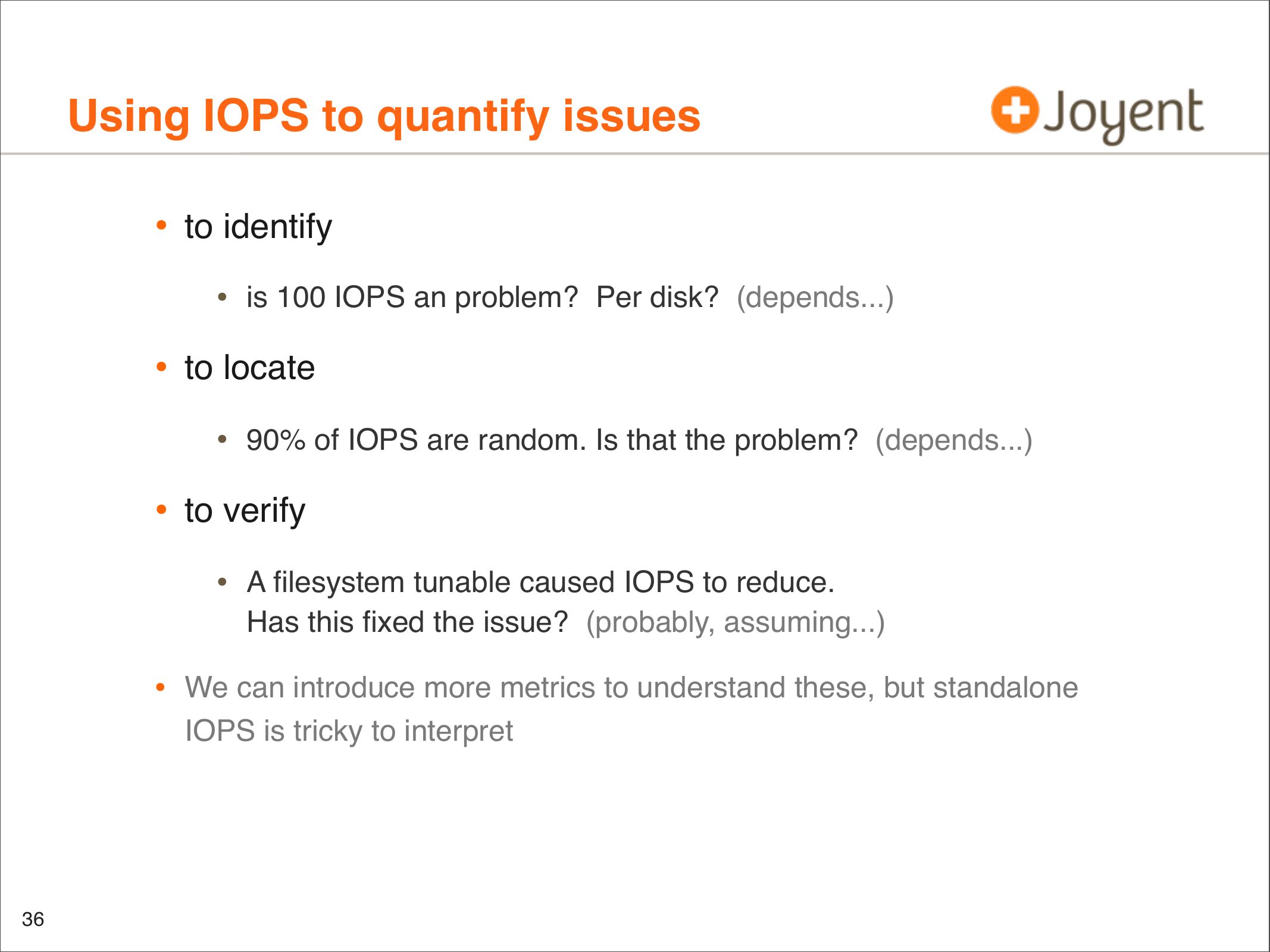

slide 36:
    Using IOPS to quantify issues
    • to identify
    • is 100 IOPS an problem? Per disk? (depends...)
    • to locate
    • 90% of IOPS are random. Is that the problem? (depends...)
    • to verify
    • A filesystem tunable caused IOPS to reduce.
    Has this fixed the issue? (probably, assuming...)
    • We can introduce more metrics to understand these, but standalone
    IOPS is tricky to interpret

slide 37:

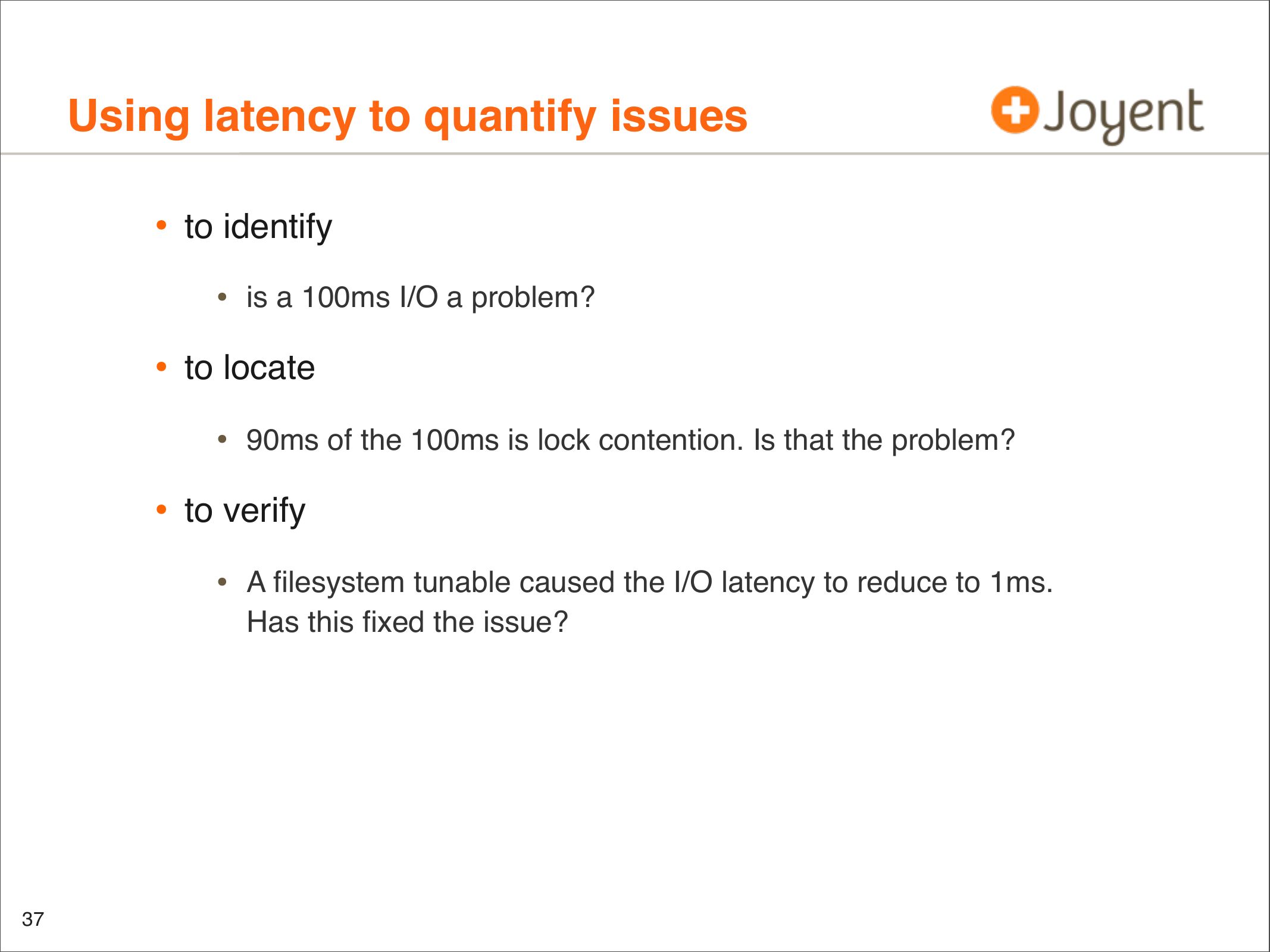

    Using latency to quantify issues
    • to identify
    • is a 100ms I/O a problem?
    • to locate
    • 90ms of the 100ms is lock contention. Is that the problem?
    • to verify
    • A filesystem tunable caused the I/O latency to reduce to 1ms.
    Has this fixed the issue?

slide 38:

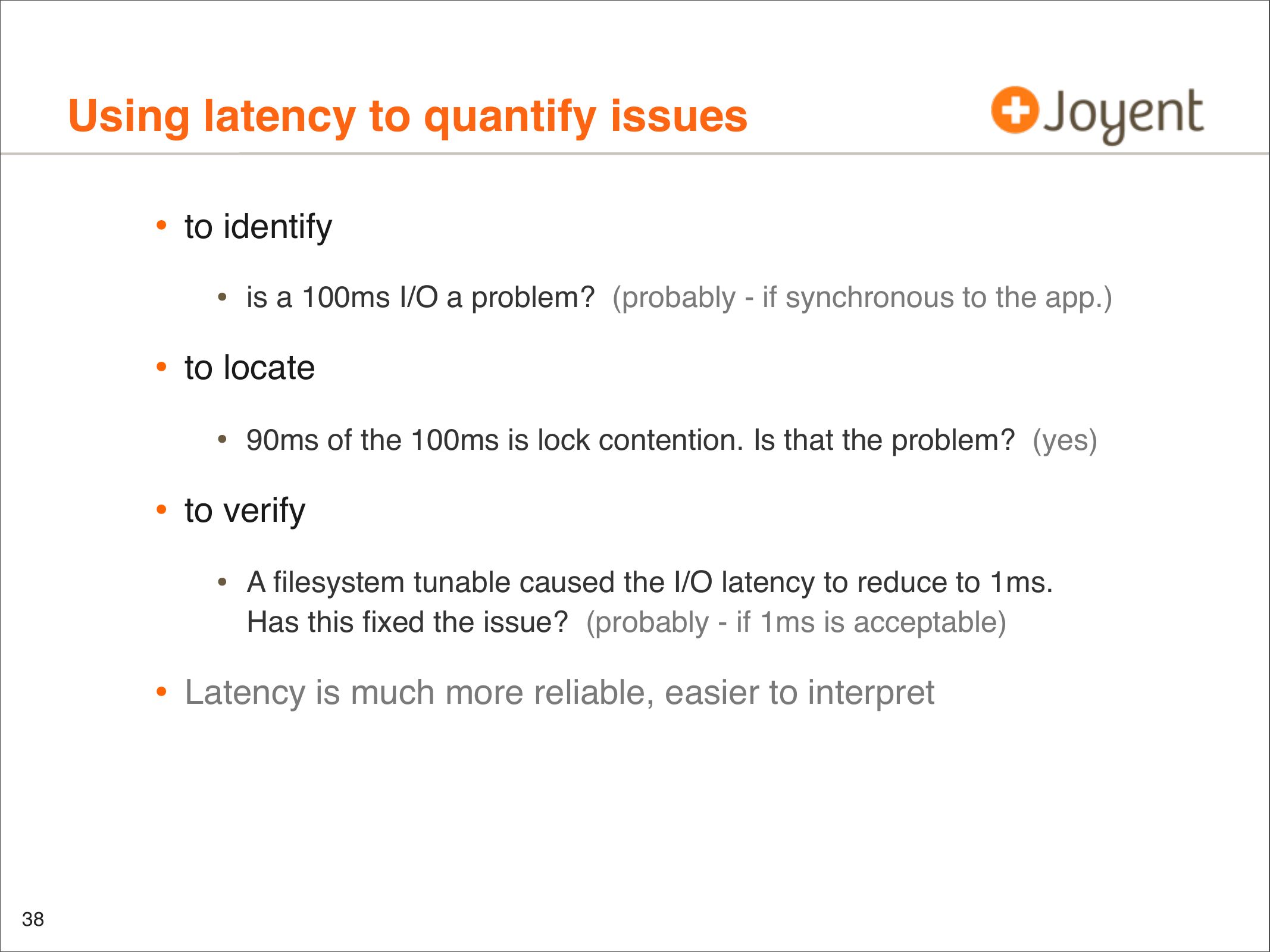

    Using latency to quantify issues
    • to identify
    • is a 100ms I/O a problem? (probably - if synchronous to the app.)
    • to locate
    • 90ms of the 100ms is lock contention. Is that the problem? (yes)
    • to verify
    • A filesystem tunable caused the I/O latency to reduce to 1ms.
    Has this fixed the issue? (probably - if 1ms is acceptable)
    • Latency is much more reliable, easier to interpret

slide 39:

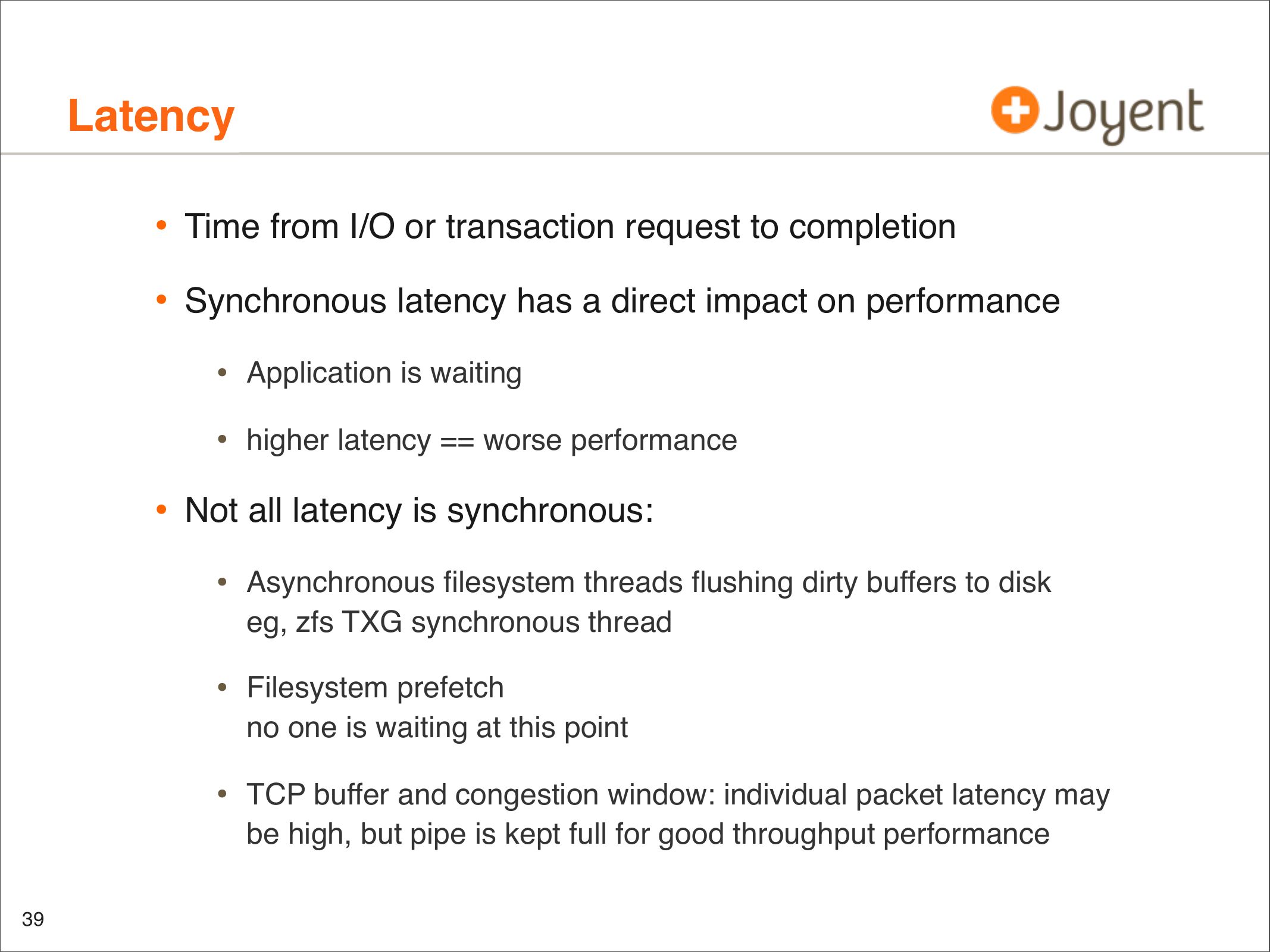

    Latency
    • Time from I/O or transaction request to completion
    • Synchronous latency has a direct impact on performance
    • Application is waiting
    • higher latency == worse performance
    • Not all latency is synchronous:
    • Asynchronous filesystem threads flushing dirty buffers to disk
    eg, zfs TXG synchronous thread
    • Filesystem prefetch
    no one is waiting at this point
    • TCP buffer and congestion window: individual packet latency may
    be high, but pipe is kept full for good throughput performance

slide 40:

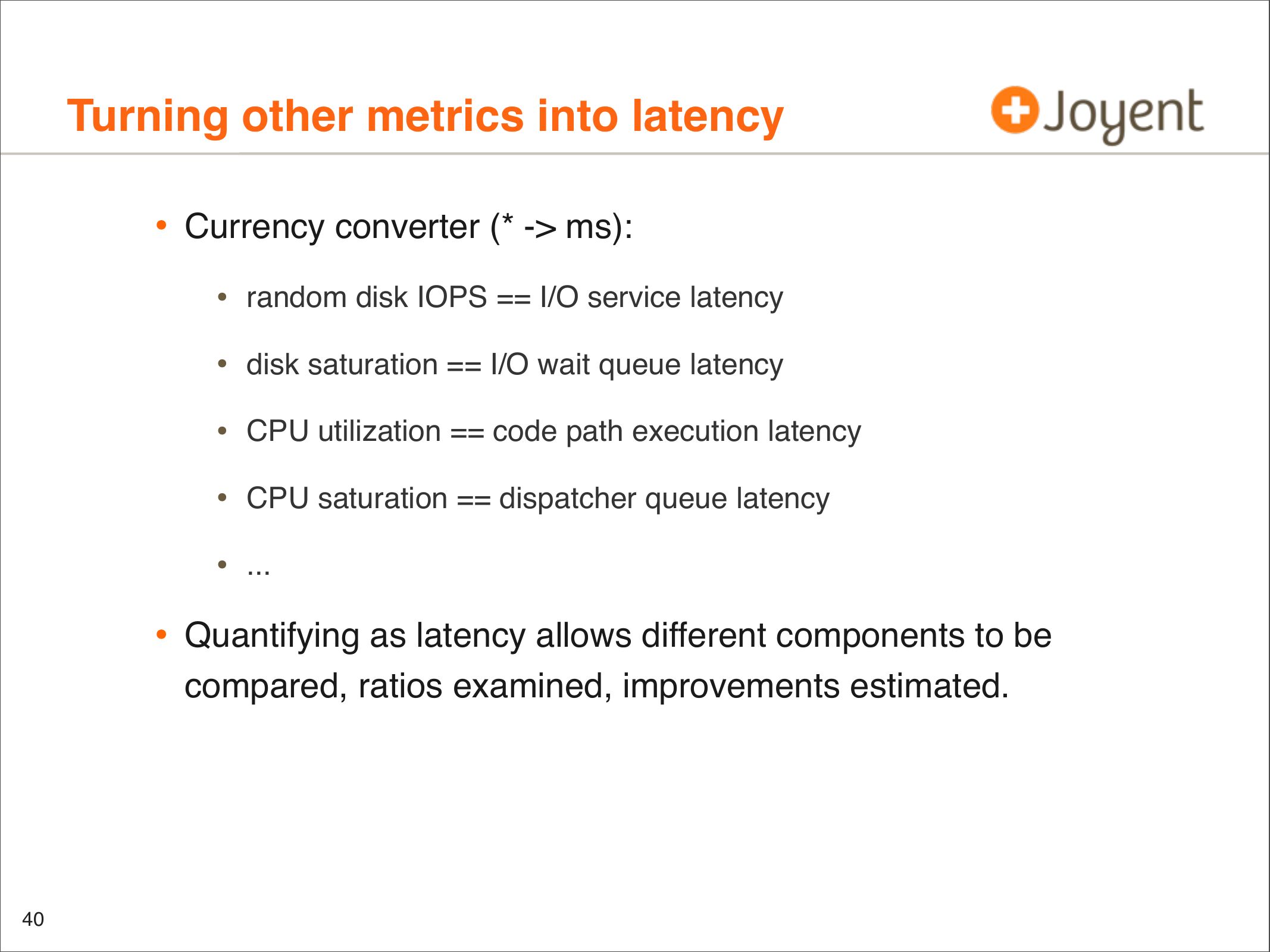

    Turning other metrics into latency
    • Currency converter (* ->gt; ms):
    • random disk IOPS == I/O service latency
    • disk saturation == I/O wait queue latency
    • CPU utilization == code path execution latency
    • CPU saturation == dispatcher queue latency
    • ...
    • Quantifying as latency allows different components to be
    compared, ratios examined, improvements estimated.

slide 41:

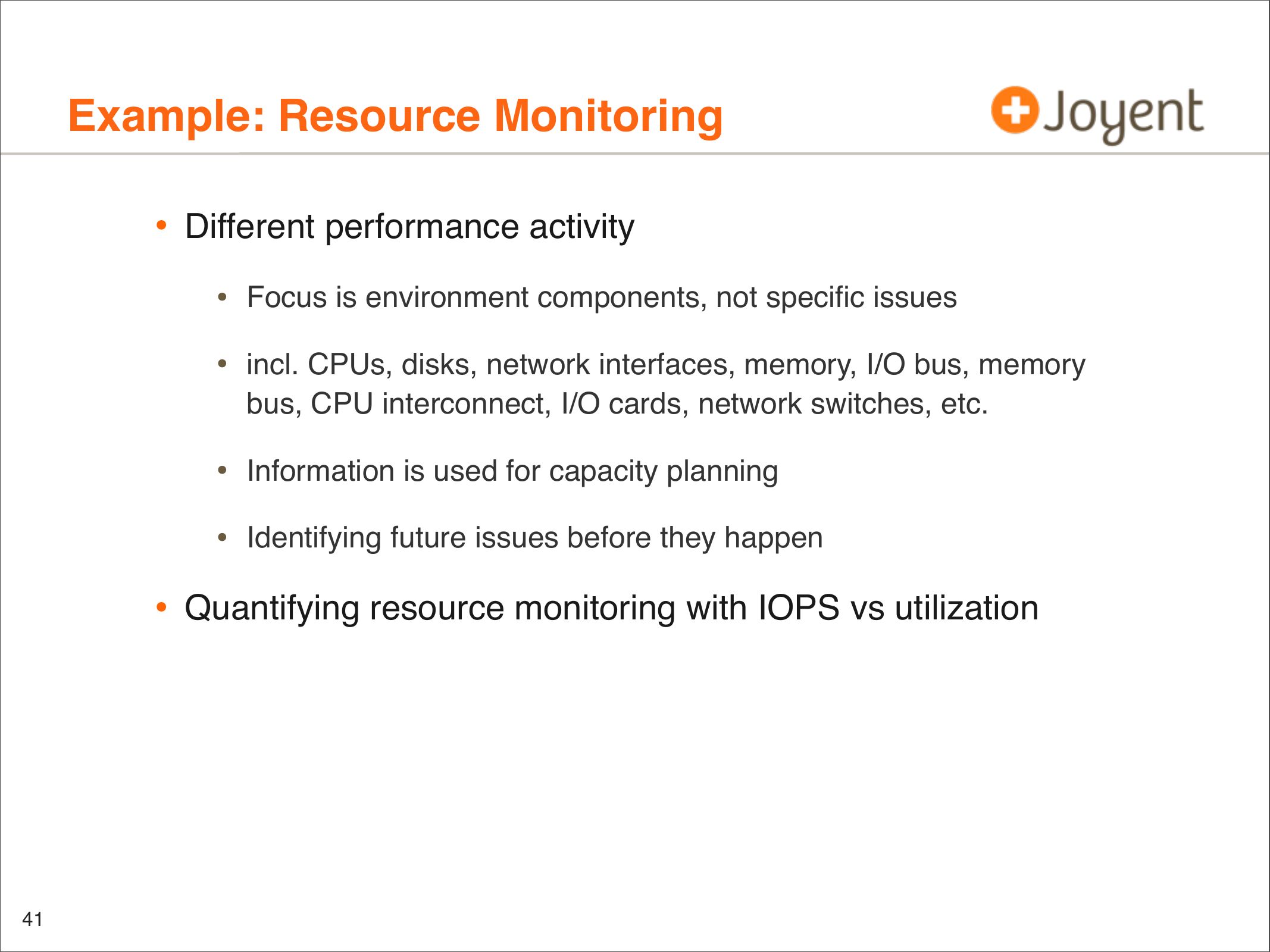

    Example: Resource Monitoring
    • Different performance activity
    • Focus is environment components, not specific issues
    • incl. CPUs, disks, network interfaces, memory, I/O bus, memory
    bus, CPU interconnect, I/O cards, network switches, etc.
    • Information is used for capacity planning
    • Identifying future issues before they happen
    • Quantifying resource monitoring with IOPS vs utilization

slide 42:

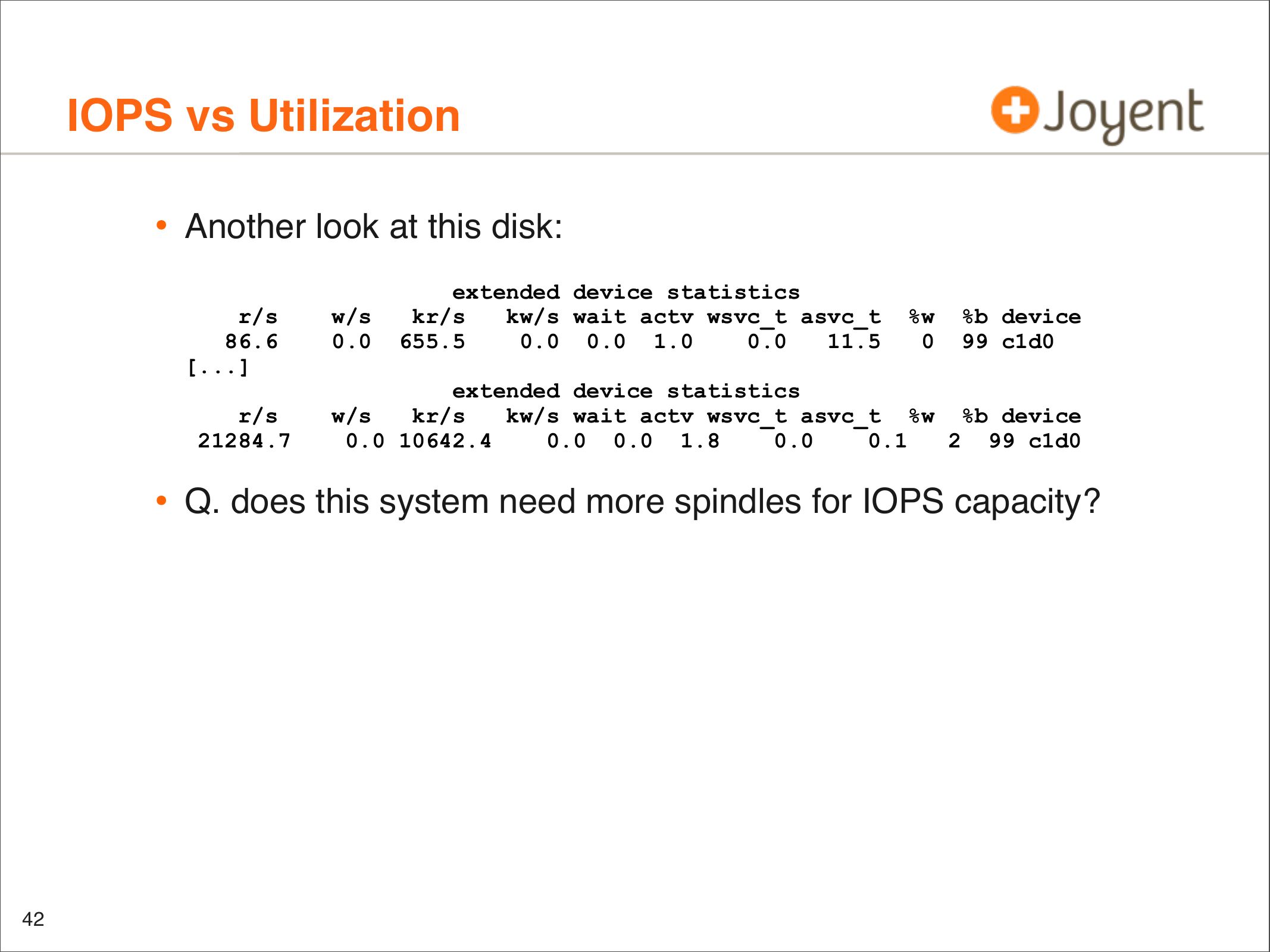

    IOPS vs Utilization
    • Another look at this disk:
    r/s
    [...]
    r/s
    w/s
    extended device statistics
    kr/s
    kw/s wait actv wsvc_t asvc_t
    0.0 0.0 1.0
    %b device
    99 c1d0
    extended device statistics
    w/s
    kr/s
    kw/s wait actv wsvc_t asvc_t %w %b device
    0.0 10642.4
    0.0 0.0 1.8
    2 99 c1d0
    • Q. does this system need more spindles for IOPS capacity?

slide 43:
    IOPS vs Utilization
    • Another look at this disk:
    r/s
    [...]
    r/s
    w/s
    extended device statistics
    kr/s
    kw/s wait actv wsvc_t asvc_t
    0.0 0.0 1.0
    %b device
    99 c1d0
    extended device statistics
    w/s
    kr/s
    kw/s wait actv wsvc_t asvc_t %w %b device
    0.0 10642.4
    0.0 0.0 1.8
    2 99 c1d0
    • Q. does this system need more spindles for IOPS capacity?
    • IOPS (r/s + w/s): ???
    • Utilization (%b): yes (even considering NCQ)

slide 44:

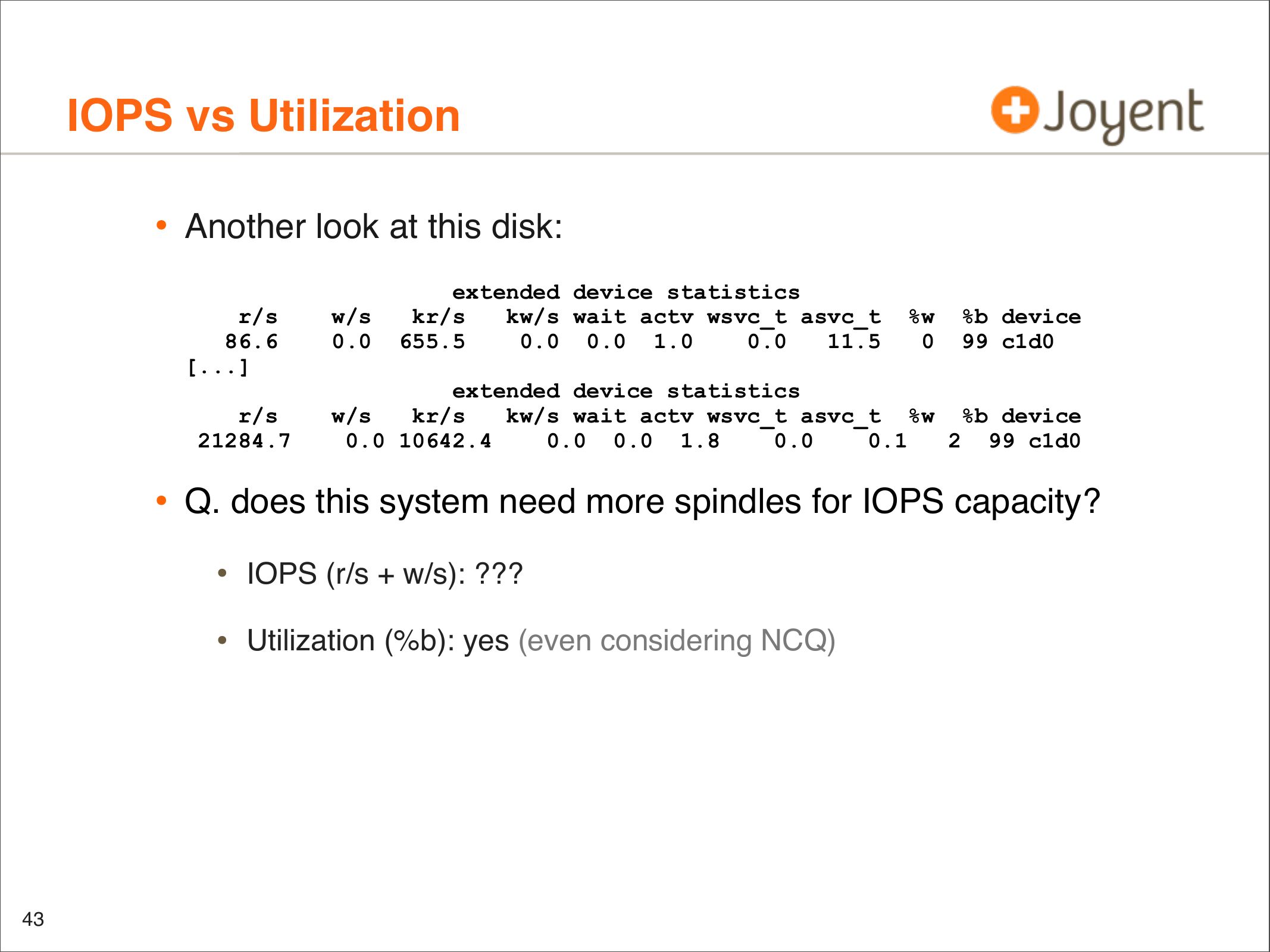

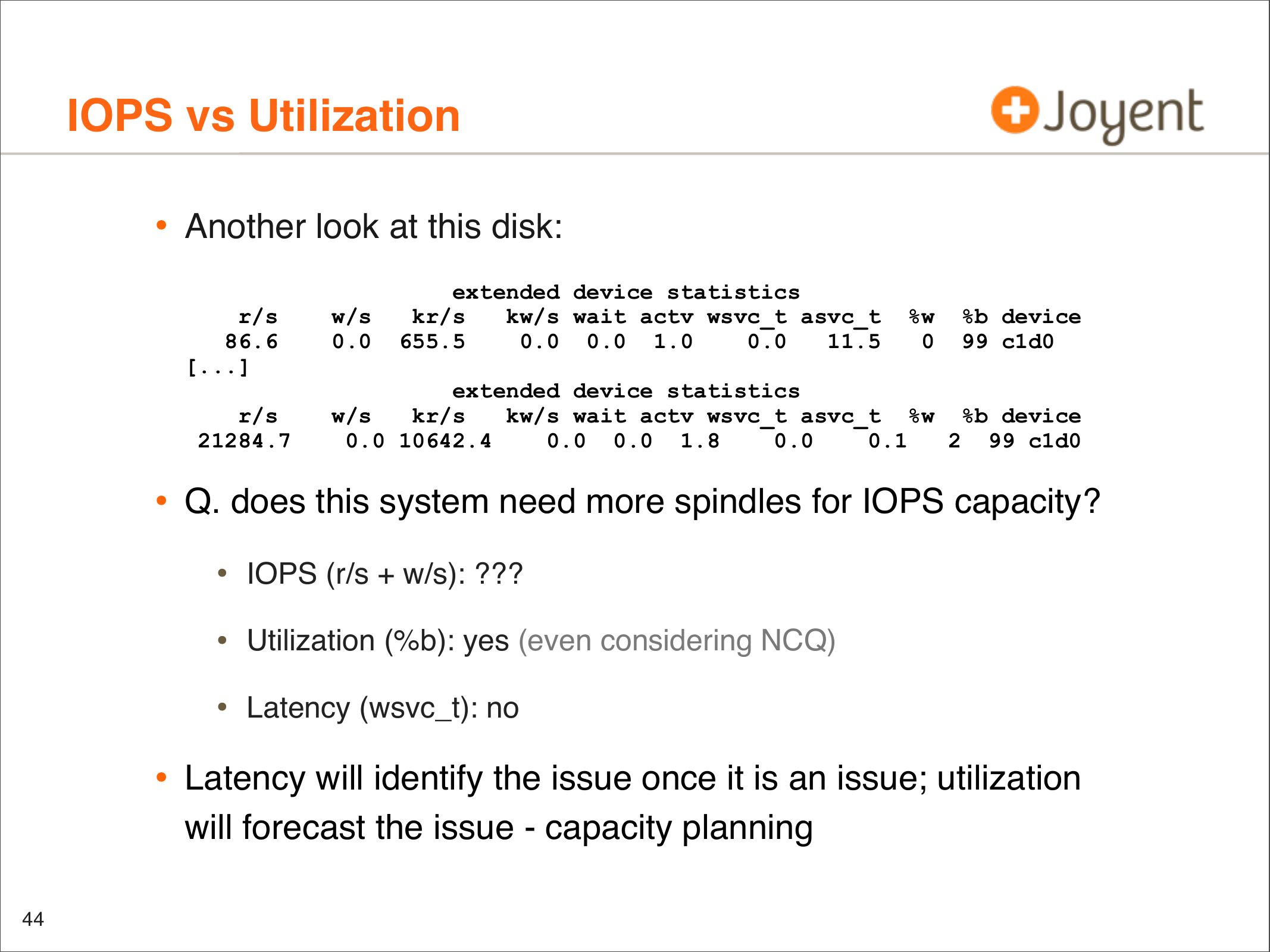

    IOPS vs Utilization
    • Another look at this disk:
    r/s
    [...]
    r/s
    w/s
    extended device statistics
    kr/s
    kw/s wait actv wsvc_t asvc_t
    0.0 0.0 1.0
    %b device
    99 c1d0
    extended device statistics
    w/s
    kr/s
    kw/s wait actv wsvc_t asvc_t %w %b device
    0.0 10642.4
    0.0 0.0 1.8
    2 99 c1d0
    • Q. does this system need more spindles for IOPS capacity?
    • IOPS (r/s + w/s): ???
    • Utilization (%b): yes (even considering NCQ)
    • Latency (wsvc_t): no
    • Latency will identify the issue once it is an issue; utilization
    will forecast the issue - capacity planning

slide 45:

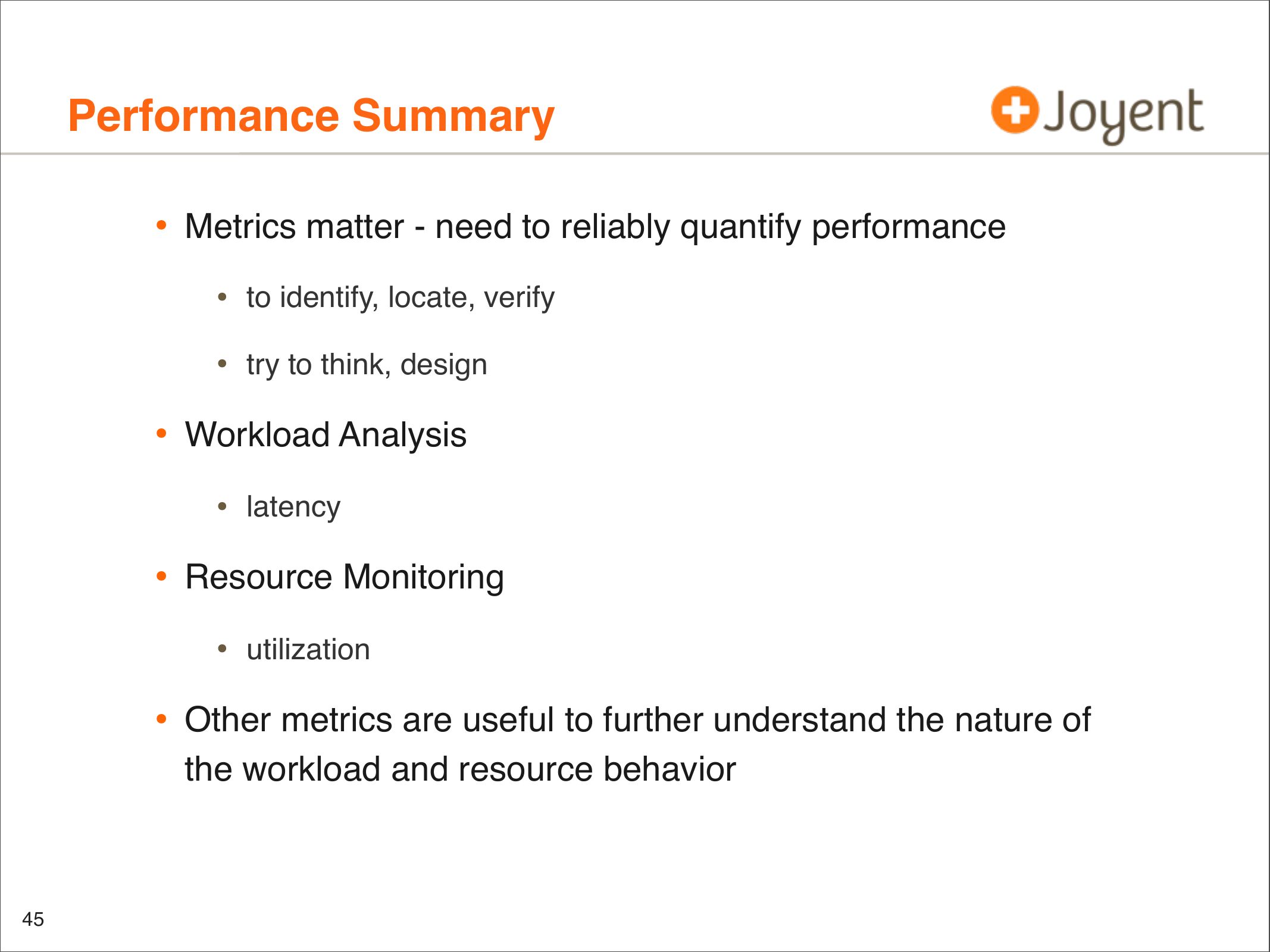

    Performance Summary
    • Metrics matter - need to reliably quantify performance
    • to identify, locate, verify
    • try to think, design
    • Workload Analysis
    • latency
    • Resource Monitoring
    • utilization
    • Other metrics are useful to further understand the nature of
    the workload and resource behavior

slide 46:

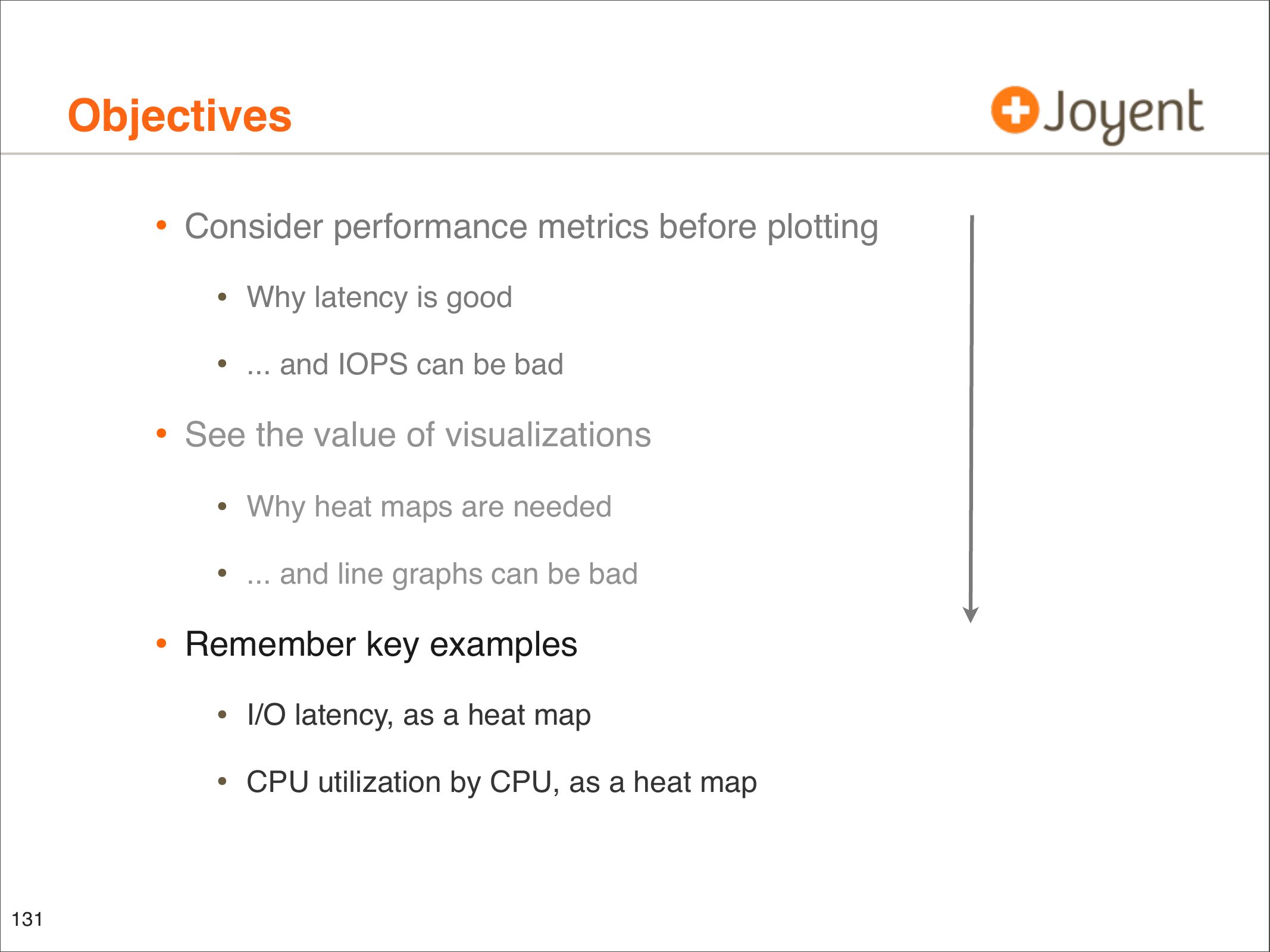

    Objectives
    • Consider performance metrics before plotting
    • Why latency is good
    • ... and IOPS can be bad
    • See the value of visualizations
    • Why heat maps are needed
    • ... and line graphs can be bad
    • Remember key examples
    • I/O latency, as a heat map

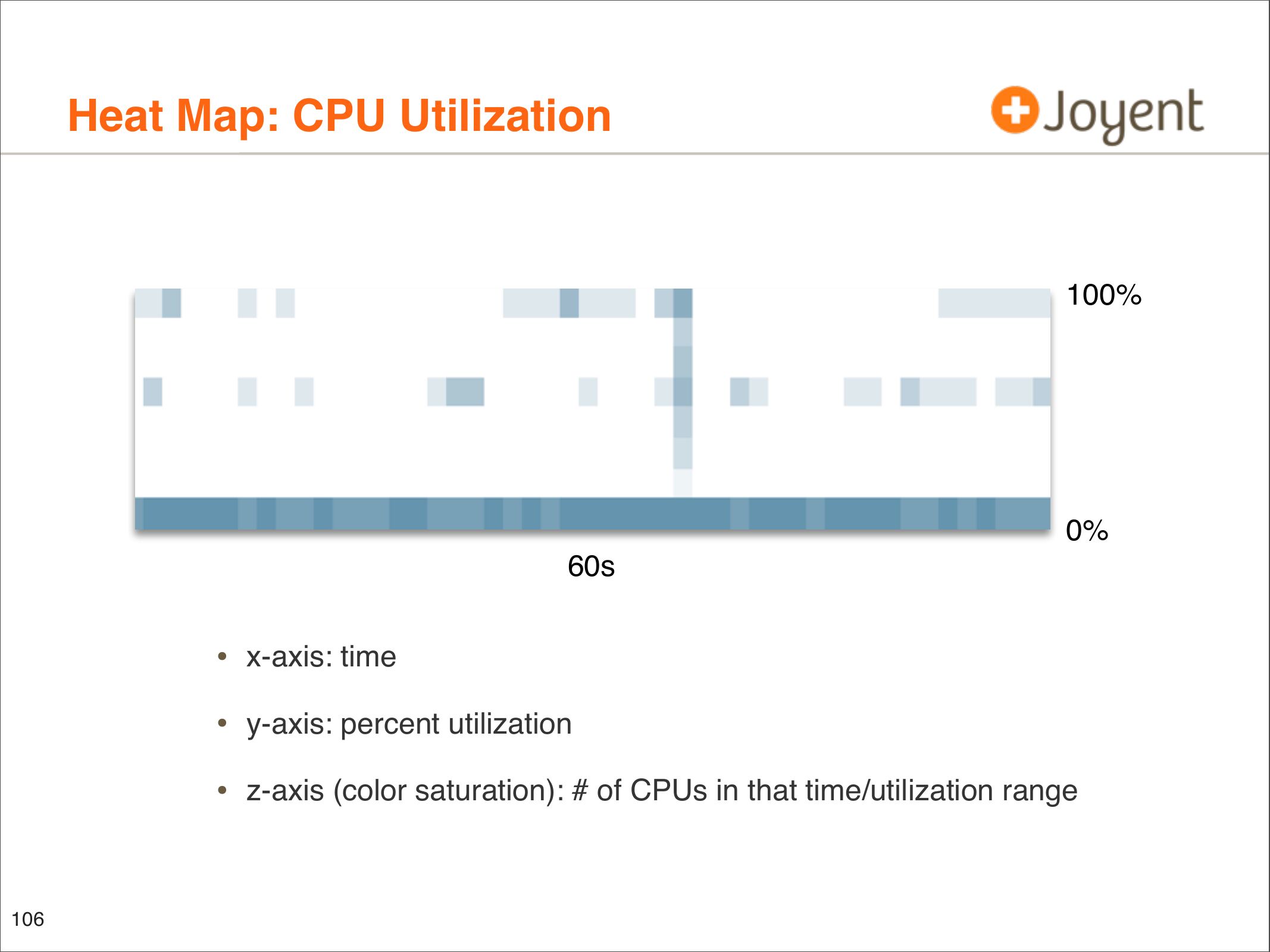

    • CPU utilization by CPU, as a heat map

slide 47:

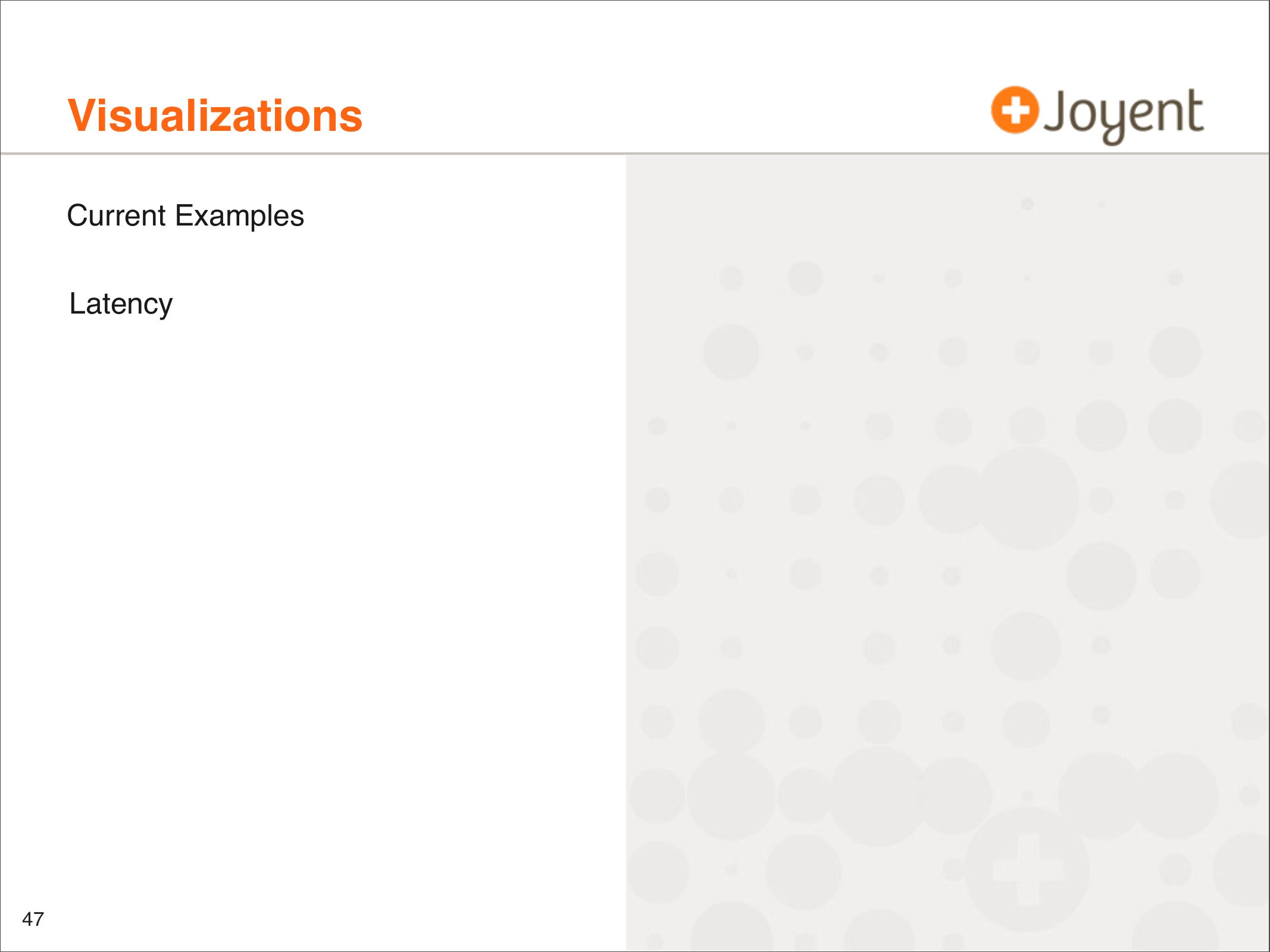

    Visualizations
    Current Examples
    Latency

slide 48:

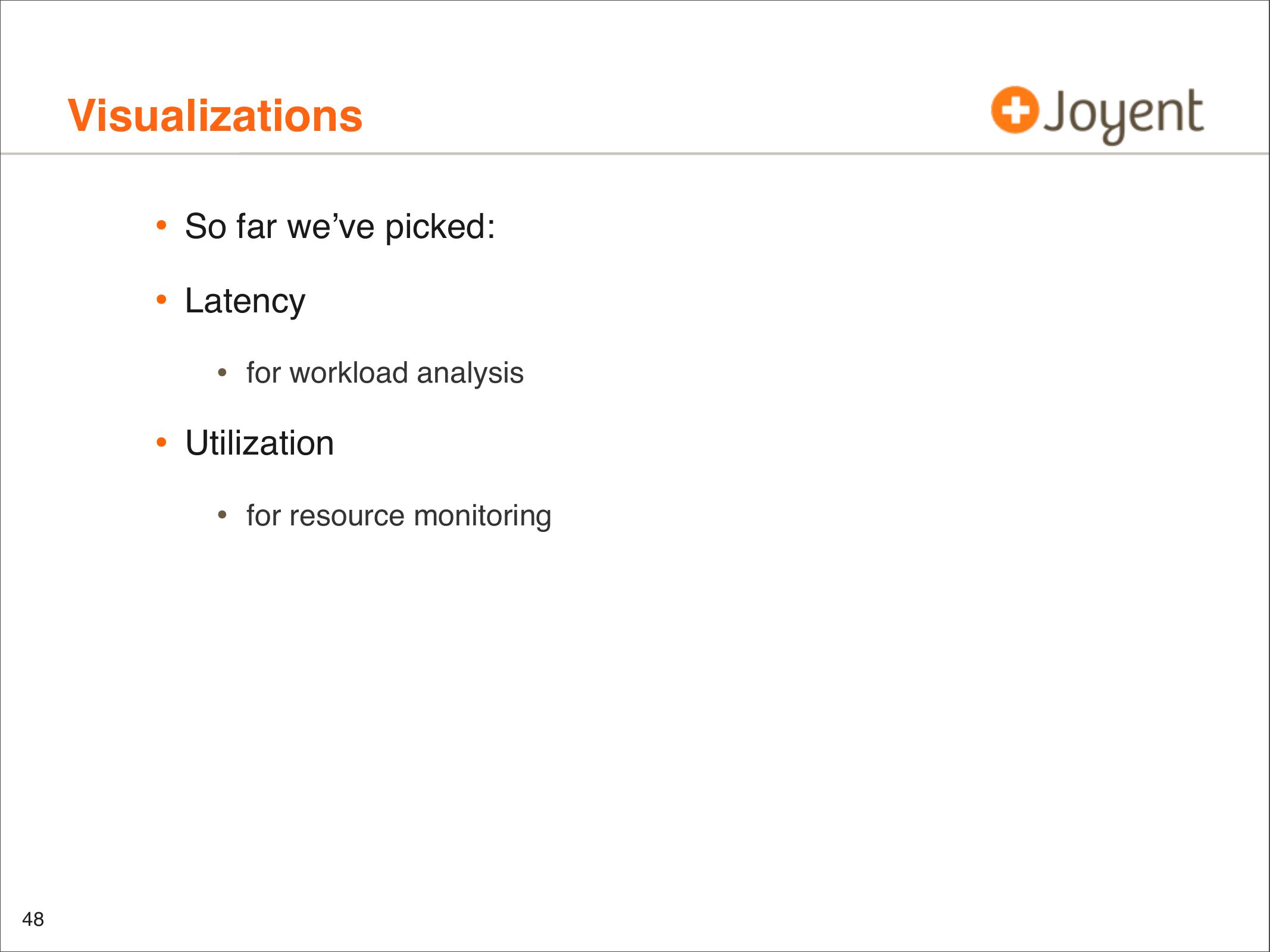

    Visualizations
    • So far we’ve picked:
    • Latency
    • for workload analysis
    • Utilization
    • for resource monitoring

slide 49:

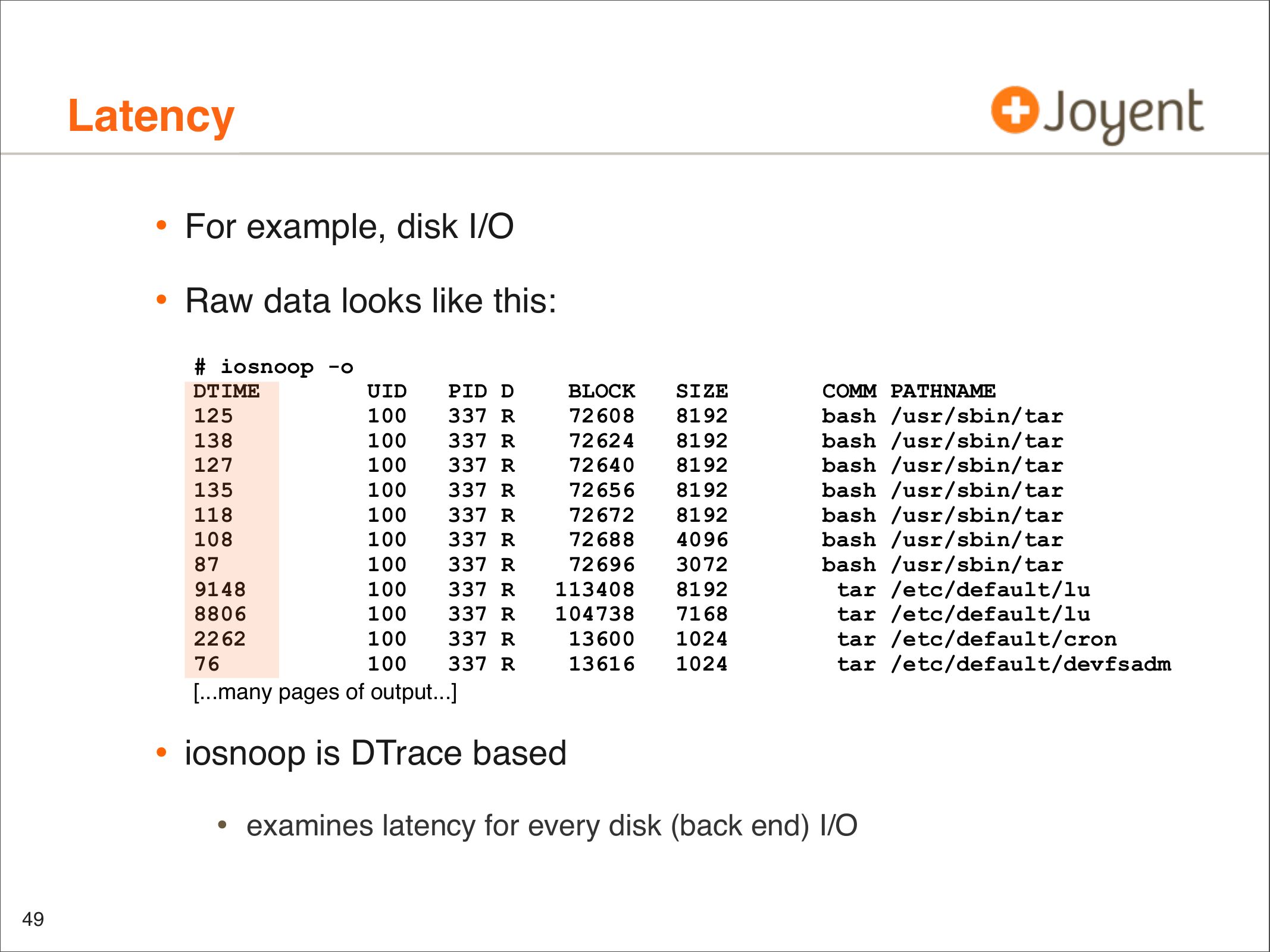

    Latency
    • For example, disk I/O
    • Raw data looks like this:
    # iosnoop -o
    DTIME
    UID
    PID D
    337 R
    337 R
    337 R
    337 R
    337 R
    337 R
    337 R
    337 R
    337 R
    337 R
    337 R
    [...many pages of output...]
    BLOCK
    SIZE
    COMM PATHNAME
    bash /usr/sbin/tar
    bash /usr/sbin/tar
    bash /usr/sbin/tar
    bash /usr/sbin/tar
    bash /usr/sbin/tar
    bash /usr/sbin/tar
    bash /usr/sbin/tar
    tar /etc/default/lu
    tar /etc/default/lu
    tar /etc/default/cron
    tar /etc/default/devfsadm
    • iosnoop is DTrace based
    • examines latency for every disk (back end) I/O

slide 50:

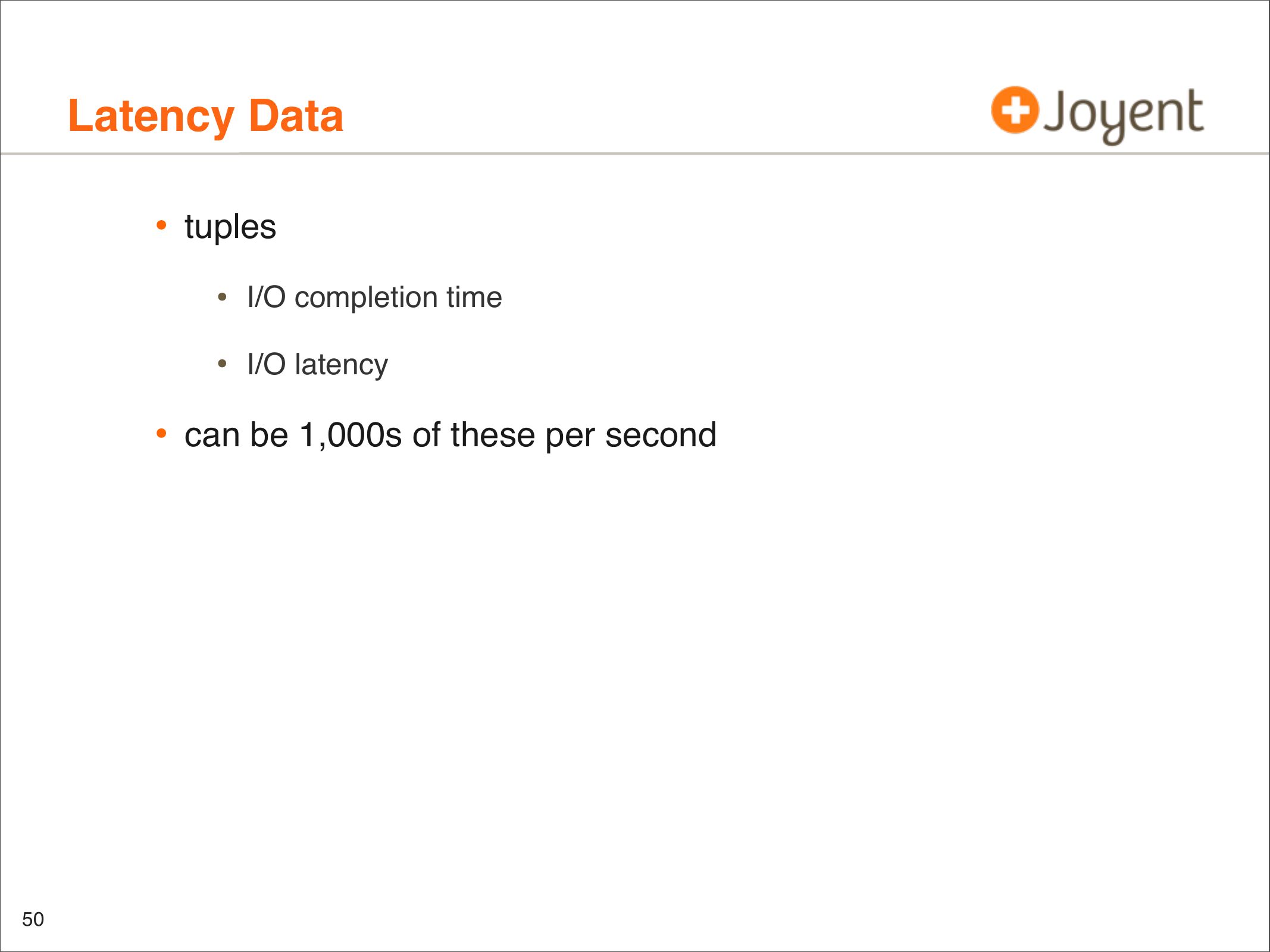

    Latency Data
    • tuples
    • I/O completion time
    • I/O latency
    • can be 1,000s of these per second

slide 51:

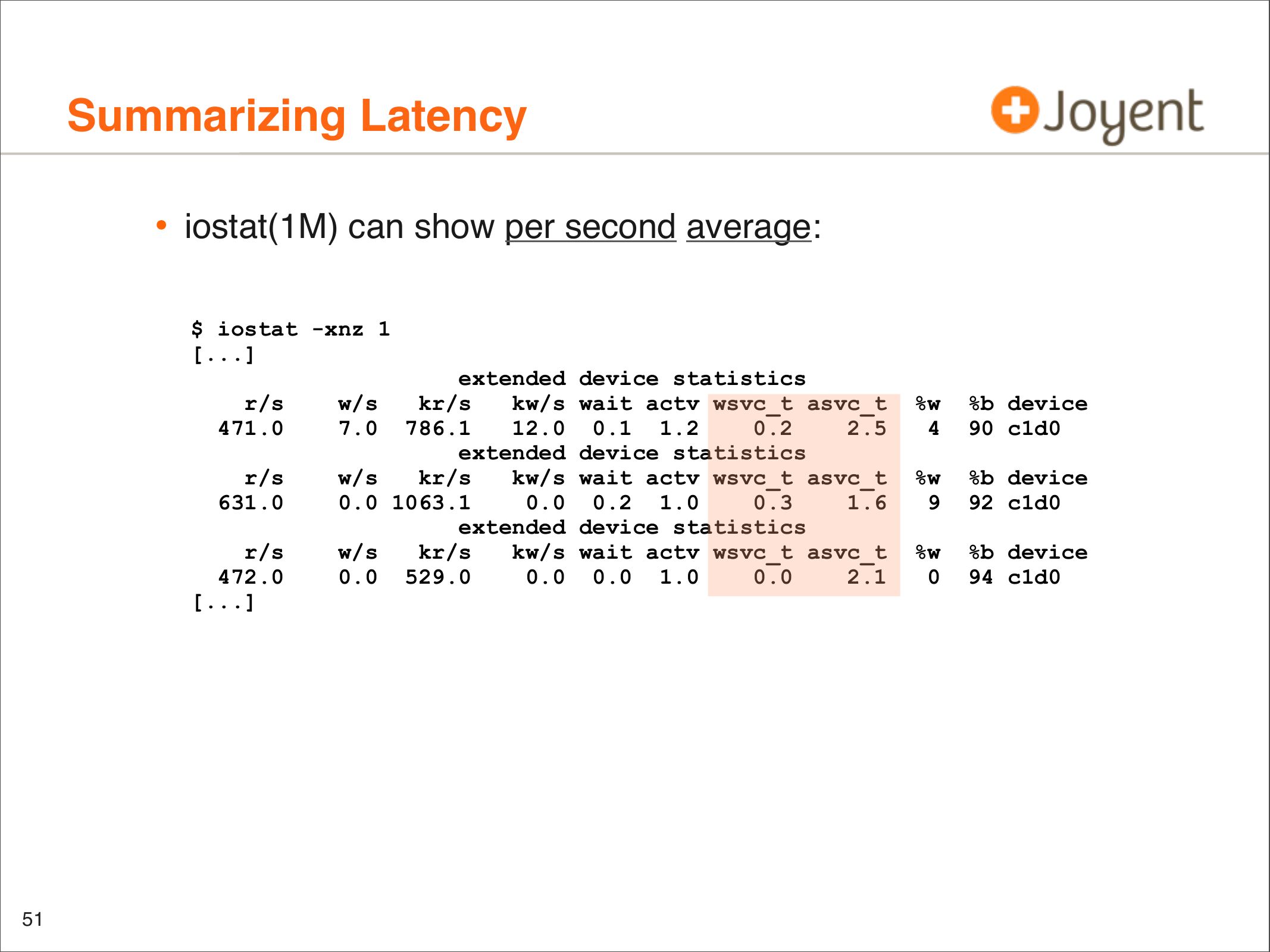

    Summarizing Latency
    • iostat(1M) can show per second average:
    $ iostat -xnz 1
    [...]
    r/s
    r/s
    r/s
    [...]
    extended device statistics
    w/s
    kr/s
    kw/s wait actv wsvc_t asvc_t
    7.0 786.1
    12.0 0.1 1.2
    extended device statistics
    w/s
    kr/s
    kw/s wait actv wsvc_t asvc_t
    0.0 1063.1
    0.0 0.2 1.0
    extended device statistics
    w/s
    kr/s
    kw/s wait actv wsvc_t asvc_t
    0.0 529.0
    0.0 0.0 1.0
    %b device
    90 c1d0
    %b device
    92 c1d0
    %b device
    94 c1d0

slide 52:

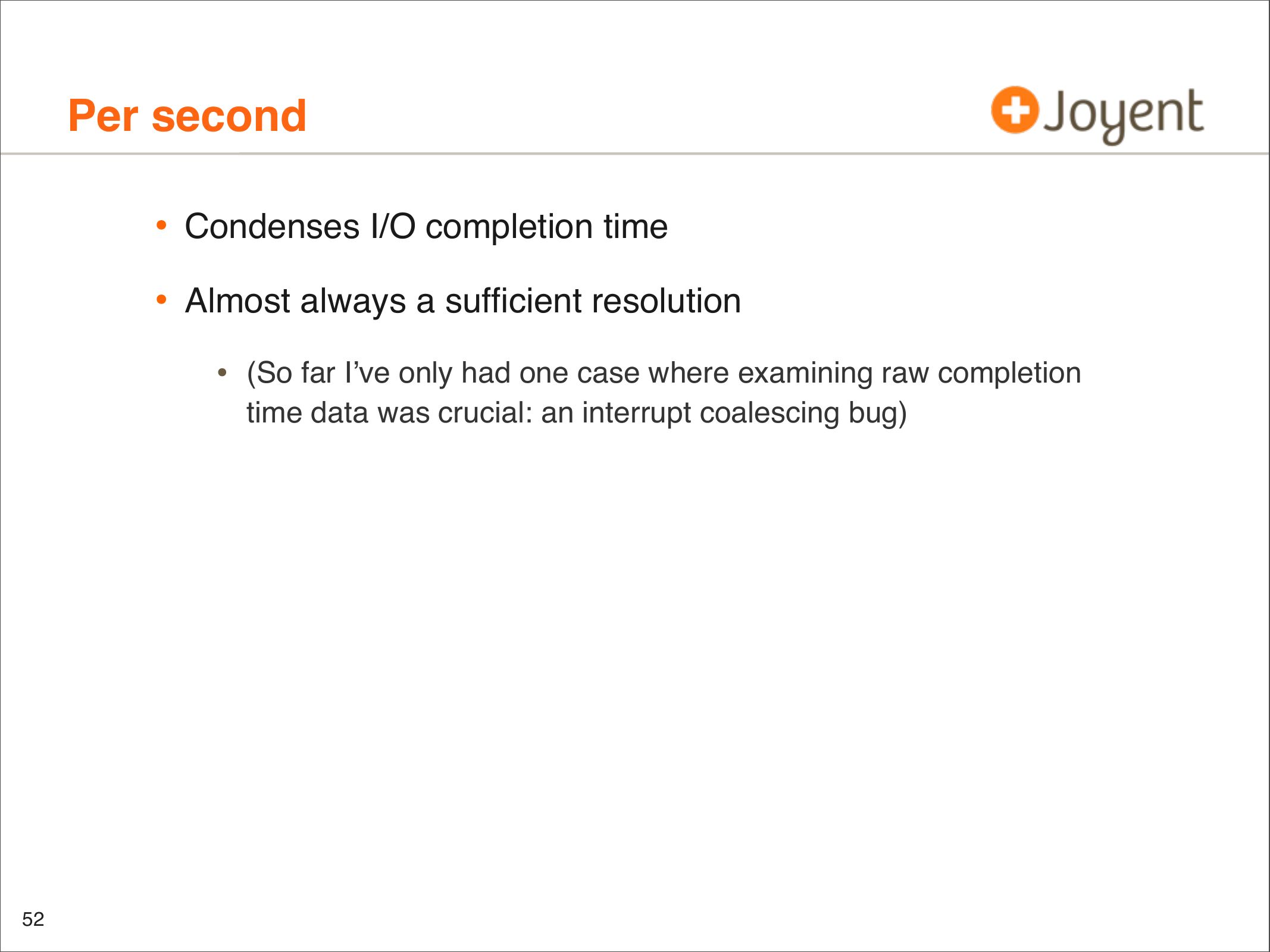

    Per second
    • Condenses I/O completion time
    • Almost always a sufficient resolution
    • (So far I’ve only had one case where examining raw completion
    time data was crucial: an interrupt coalescing bug)

slide 53:

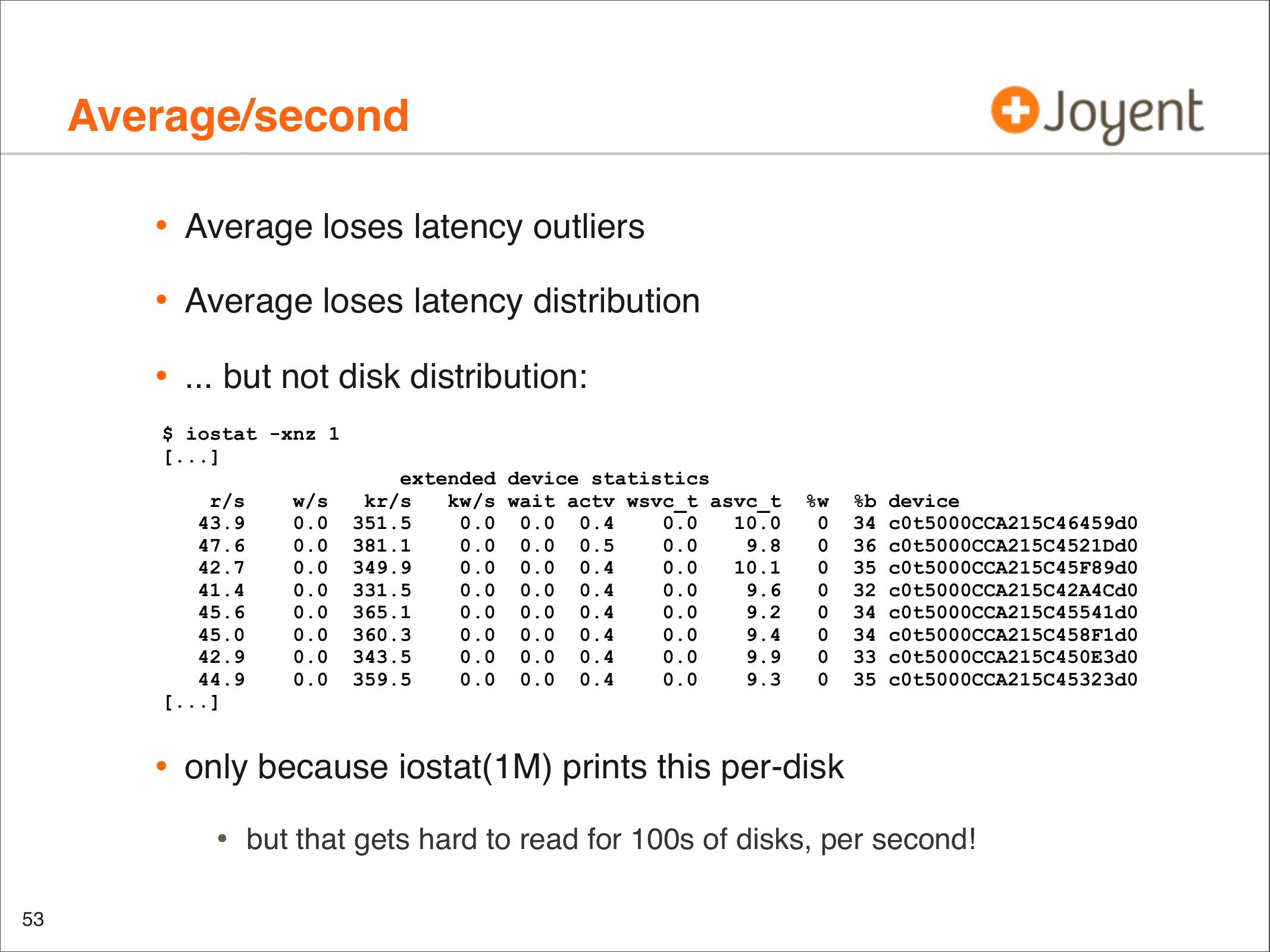

    Average/second
    • Average loses latency outliers
    • Average loses latency distribution
    • ... but not disk distribution:
    $ iostat -xnz 1
    [...]
    r/s
    [...]
    w/s
    extended device statistics
    kr/s
    kw/s wait actv wsvc_t asvc_t
    0.0 0.0 0.4
    0.0 0.0 0.5
    0.0 0.0 0.4
    0.0 0.0 0.4
    0.0 0.0 0.4
    0.0 0.0 0.4
    0.0 0.0 0.4
    0.0 0.0 0.4
    %b device
    34 c0t5000CCA215C46459d0
    36 c0t5000CCA215C4521Dd0
    35 c0t5000CCA215C45F89d0
    32 c0t5000CCA215C42A4Cd0
    34 c0t5000CCA215C45541d0
    34 c0t5000CCA215C458F1d0
    33 c0t5000CCA215C450E3d0
    35 c0t5000CCA215C45323d0
    • only because iostat(1M) prints this per-disk
    • but that gets hard to read for 100s of disks, per second!

slide 54:

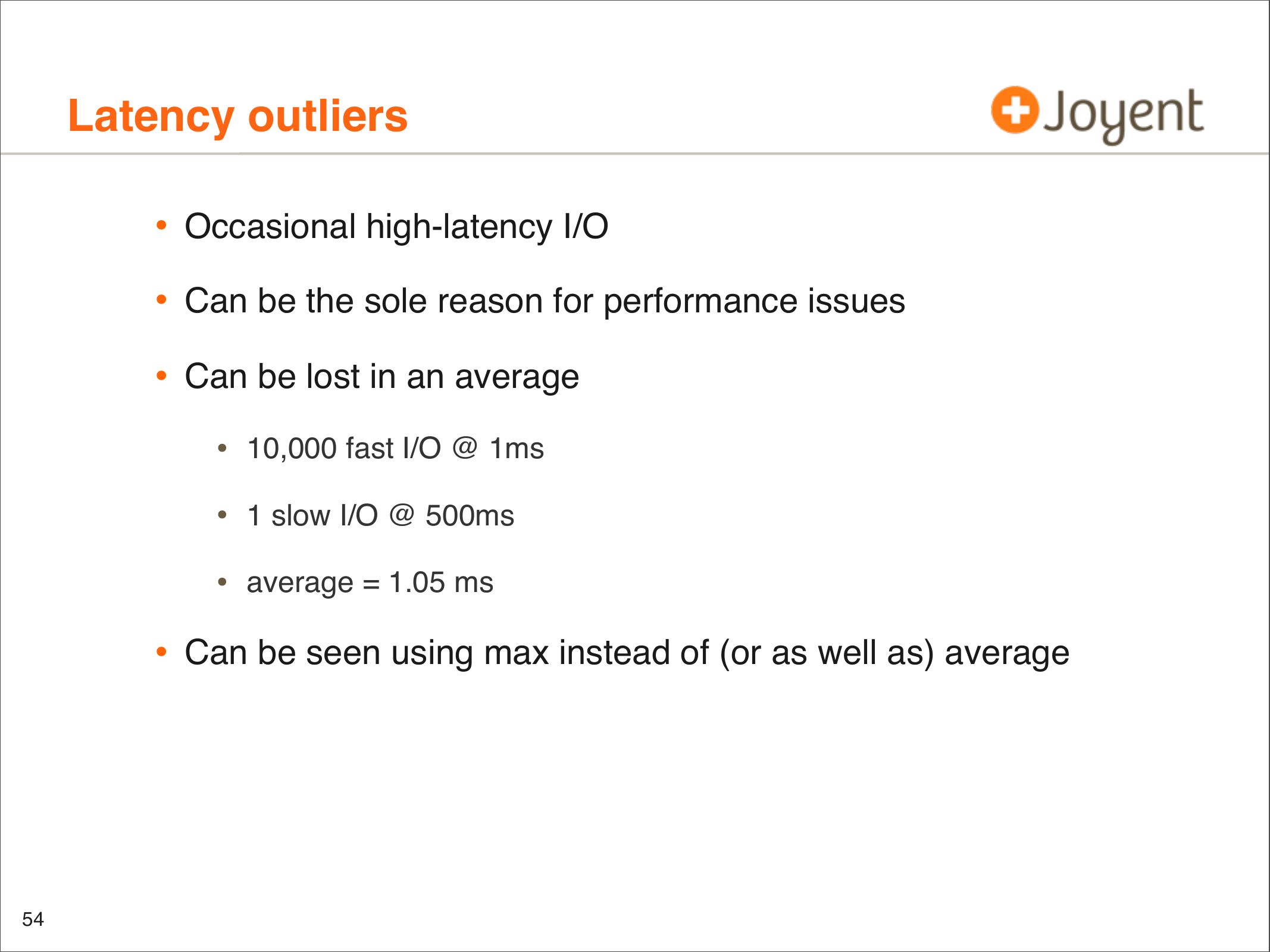

    Latency outliers
    • Occasional high-latency I/O
    • Can be the sole reason for performance issues
    • Can be lost in an average
    • 10,000 fast I/O @ 1ms
    • 1 slow I/O @ 500ms
    • average = 1.05 ms
    • Can be seen using max instead of (or as well as) average

slide 55:

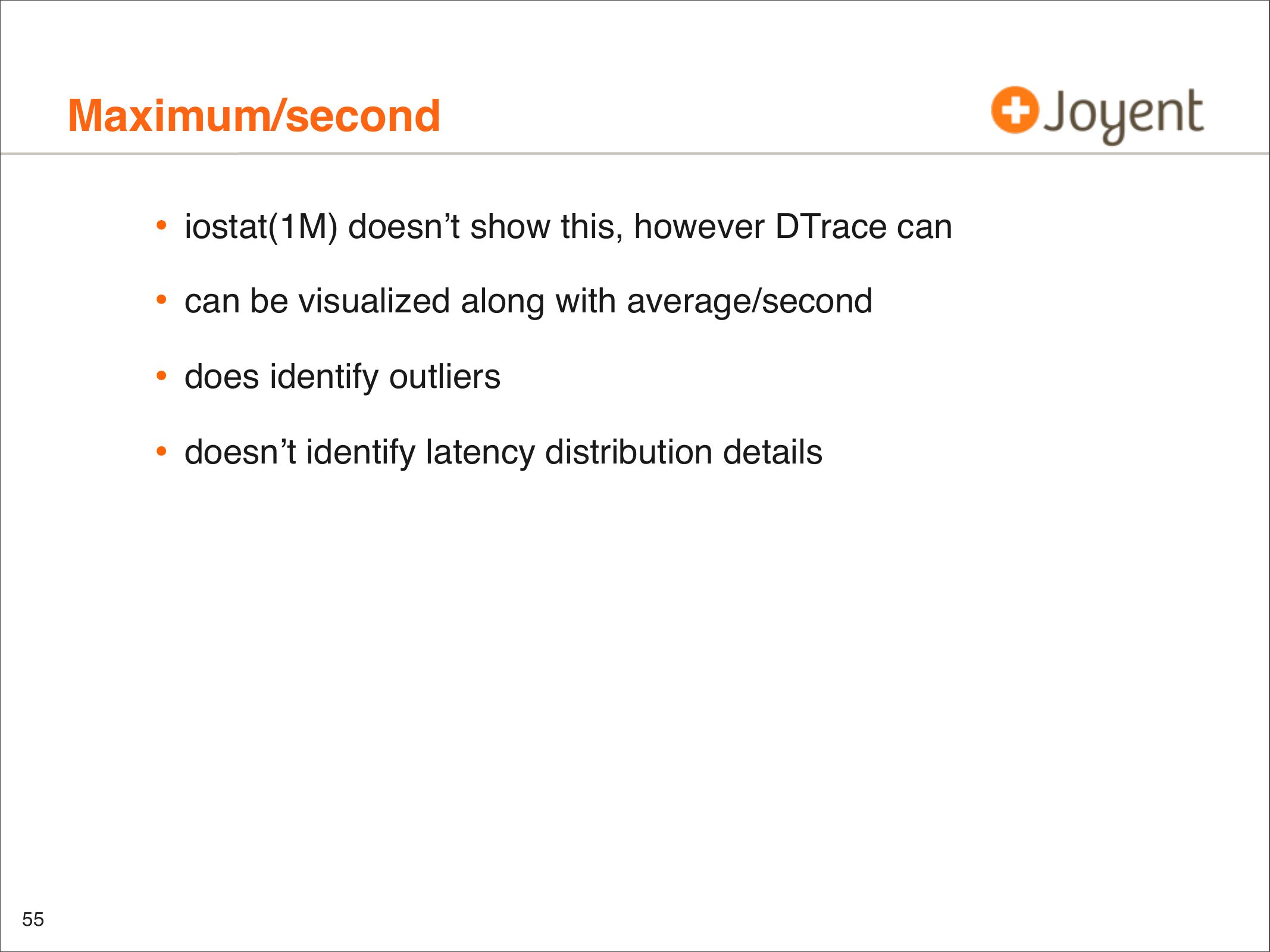

    Maximum/second
    • iostat(1M) doesn’t show this, however DTrace can
    • can be visualized along with average/second
    • does identify outliers
    • doesn’t identify latency distribution details

slide 56:

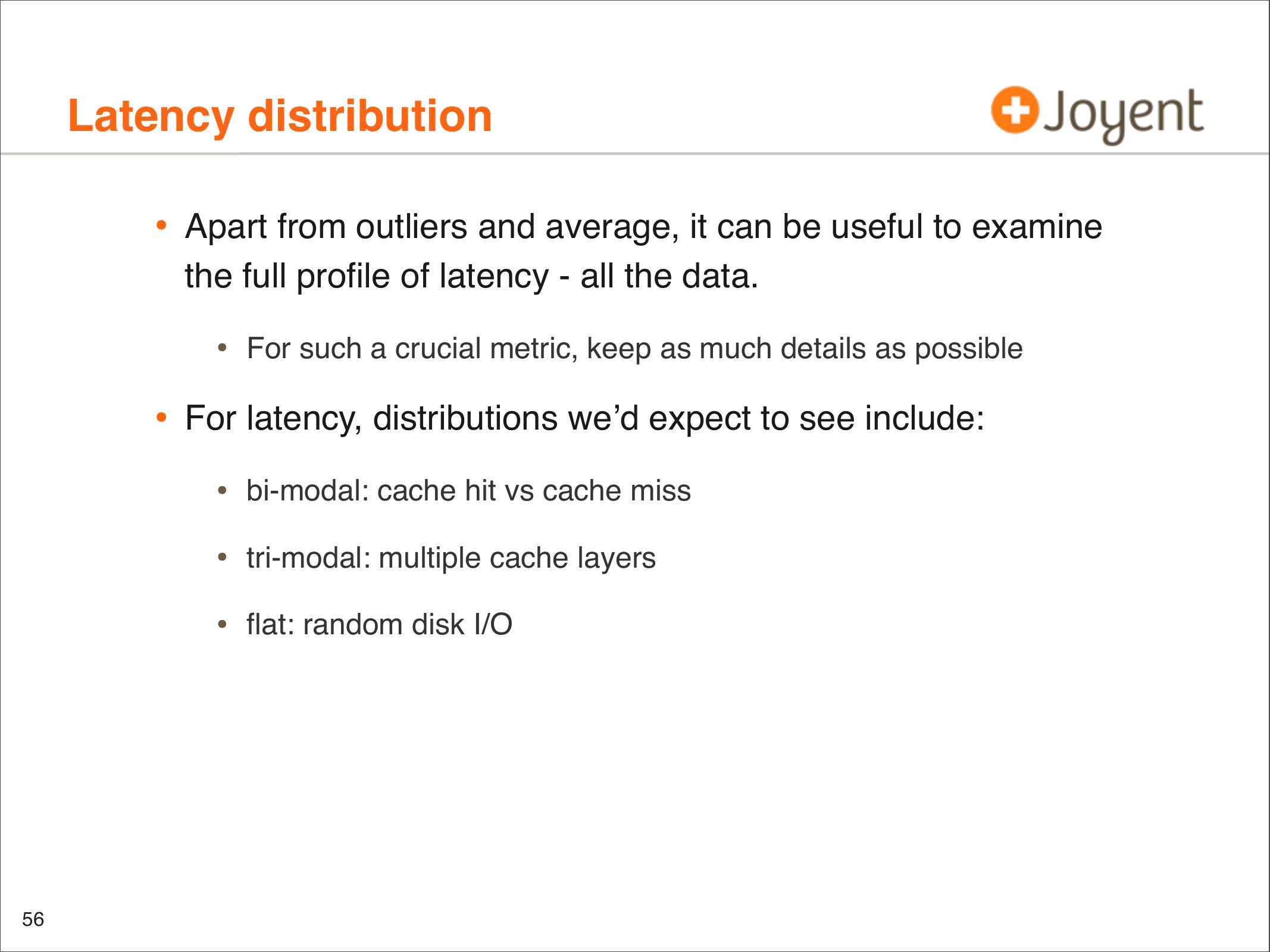

    Latency distribution
    • Apart from outliers and average, it can be useful to examine
    the full profile of latency - all the data.
    • For such a crucial metric, keep as much details as possible
    • For latency, distributions we’d expect to see include:
    • bi-modal: cache hit vs cache miss
    • tri-modal: multiple cache layers
    • flat: random disk I/O

slide 57:

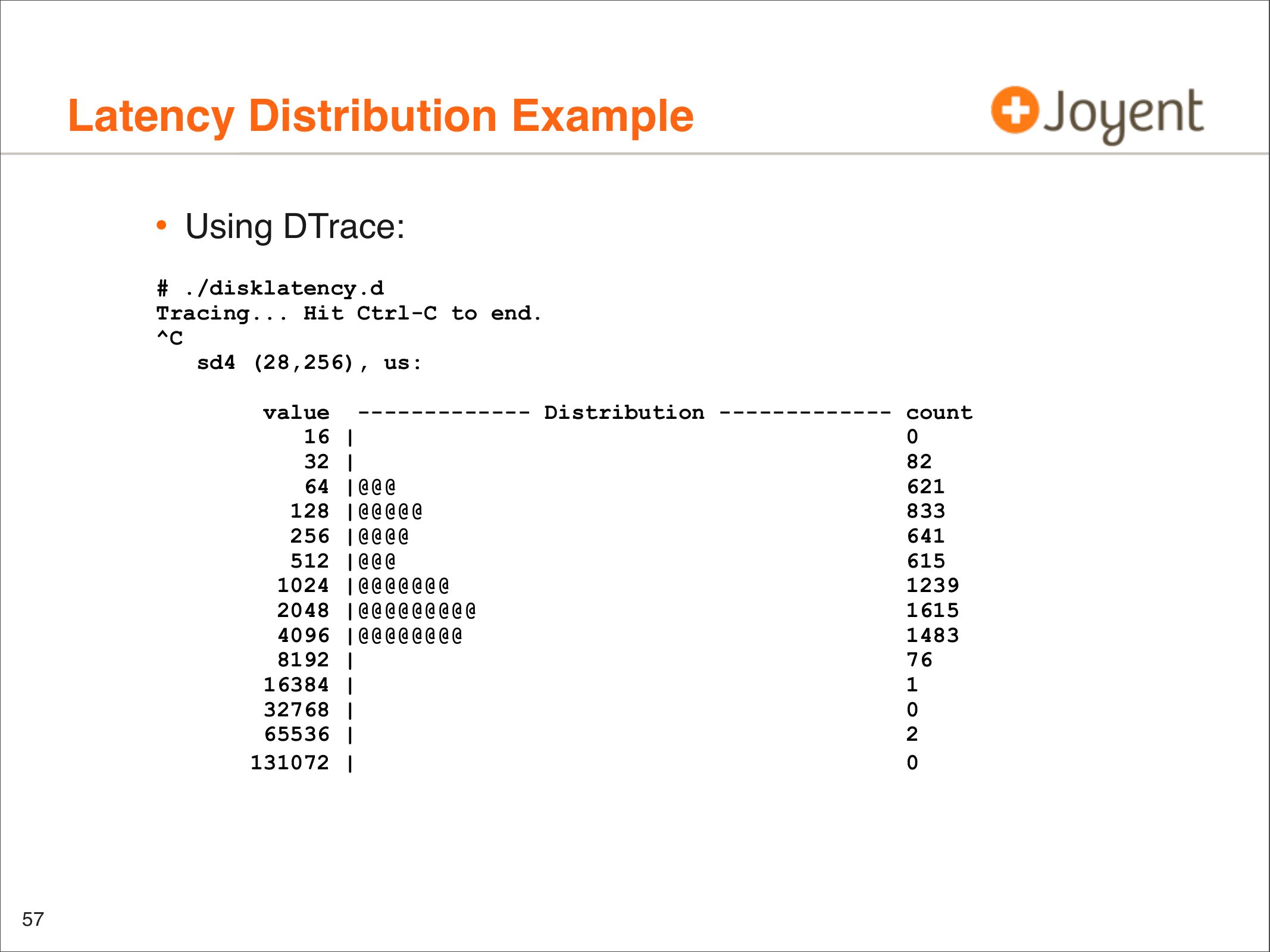

    Latency Distribution Example
    • Using DTrace:
    # ./disklatency.d
    Tracing... Hit Ctrl-C to end.
    sd4 (28,256), us:
    value ------------- Distribution ------------- count
    16 |
    32 |
    64 |@@@
    128 |@@@@@
    256 |@@@@
    512 |@@@
    1024 |@@@@@@@
    2048 |@@@@@@@@@
    4096 |@@@@@@@@
    8192 |
    16384 |
    32768 |
    65536 |
    131072 |

slide 58:

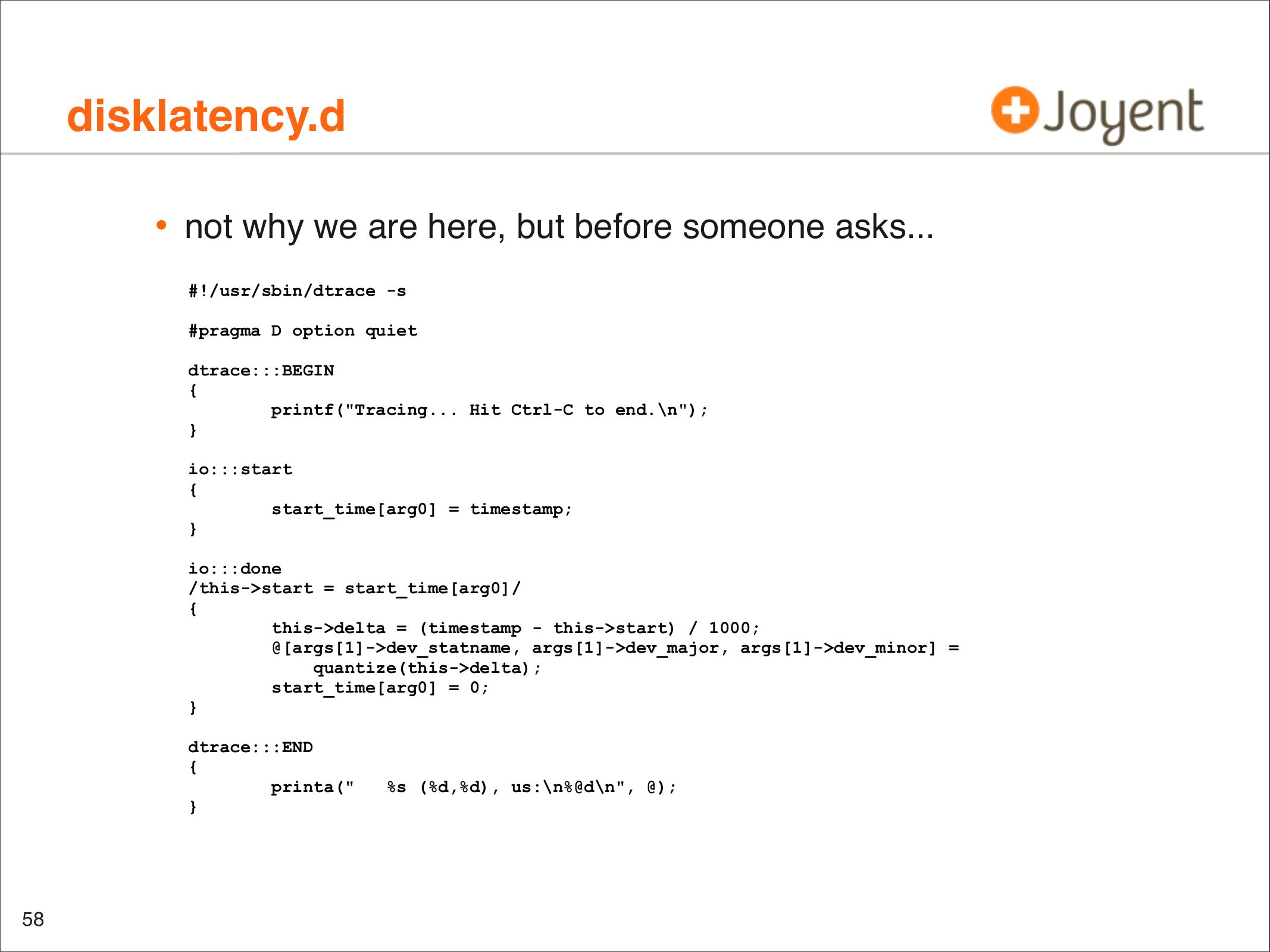

    disklatency.d
    • not why we are here, but before someone asks...
    #!/usr/sbin/dtrace -s
    #pragma D option quiet
    dtrace:::BEGIN
    printf("Tracing... Hit Ctrl-C to end.\n");
    io:::start
    start_time[arg0] = timestamp;
    io:::done
    /this->gt;start = start_time[arg0]/
    this->gt;delta = (timestamp - this->gt;start) / 1000;
    @[args[1]->gt;dev_statname, args[1]->gt;dev_major, args[1]->gt;dev_minor] =
    quantize(this->gt;delta);
    start_time[arg0] = 0;
    dtrace:::END
    printa("
    %s (%d,%d), us:\n%@d\n", @);

slide 59:

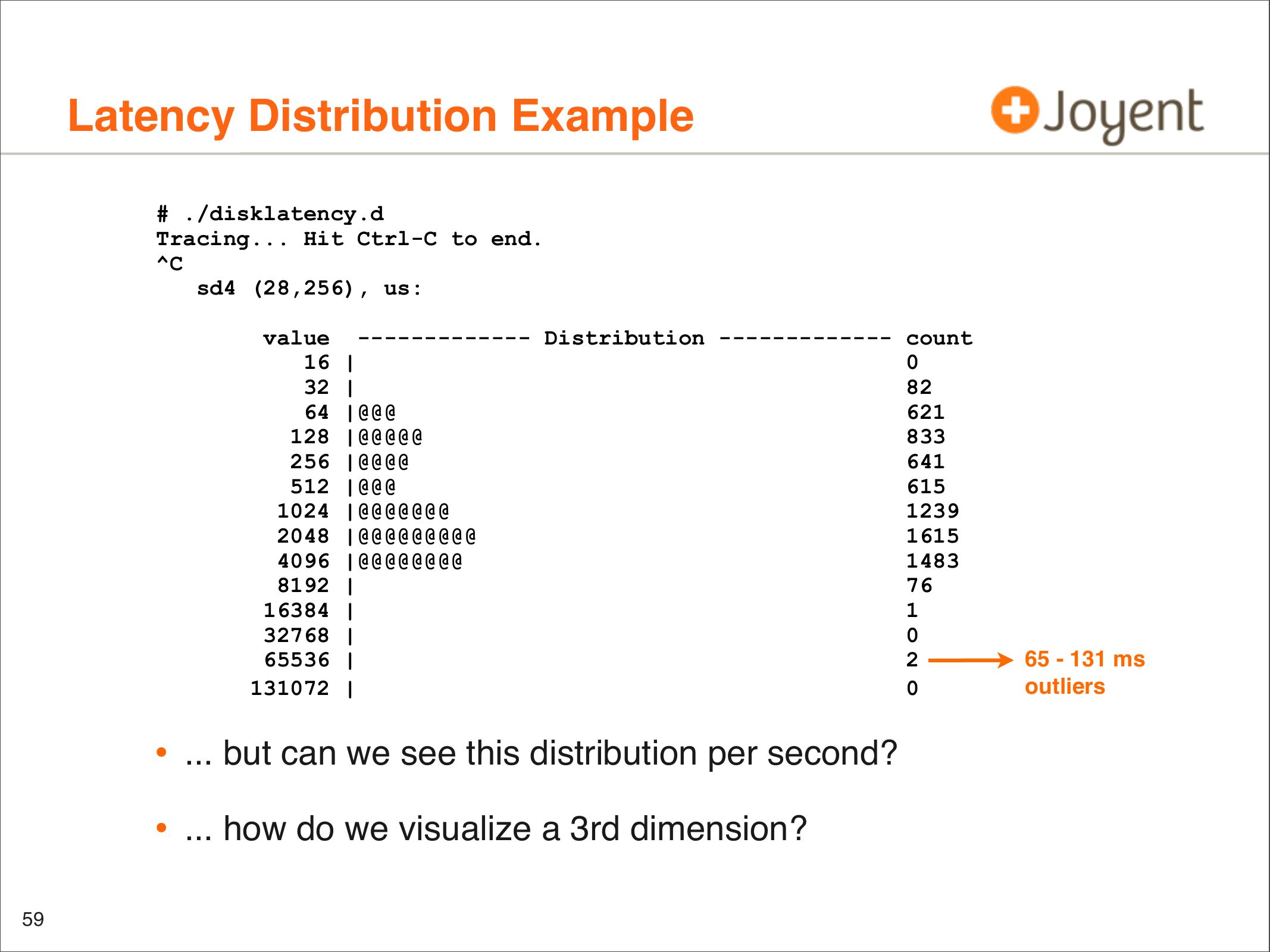

    Latency Distribution Example
    # ./disklatency.d
    Tracing... Hit Ctrl-C to end.
    sd4 (28,256), us:
    value ------------- Distribution ------------- count
    16 |
    32 |
    64 |@@@
    128 |@@@@@
    256 |@@@@
    512 |@@@
    1024 |@@@@@@@
    2048 |@@@@@@@@@
    4096 |@@@@@@@@
    8192 |
    16384 |
    32768 |
    65536 |
    131072 |
    • ... but can we see this distribution per second?
    • ... how do we visualize a 3rd dimension?
    65 - 131 ms
    outliers

slide 60:

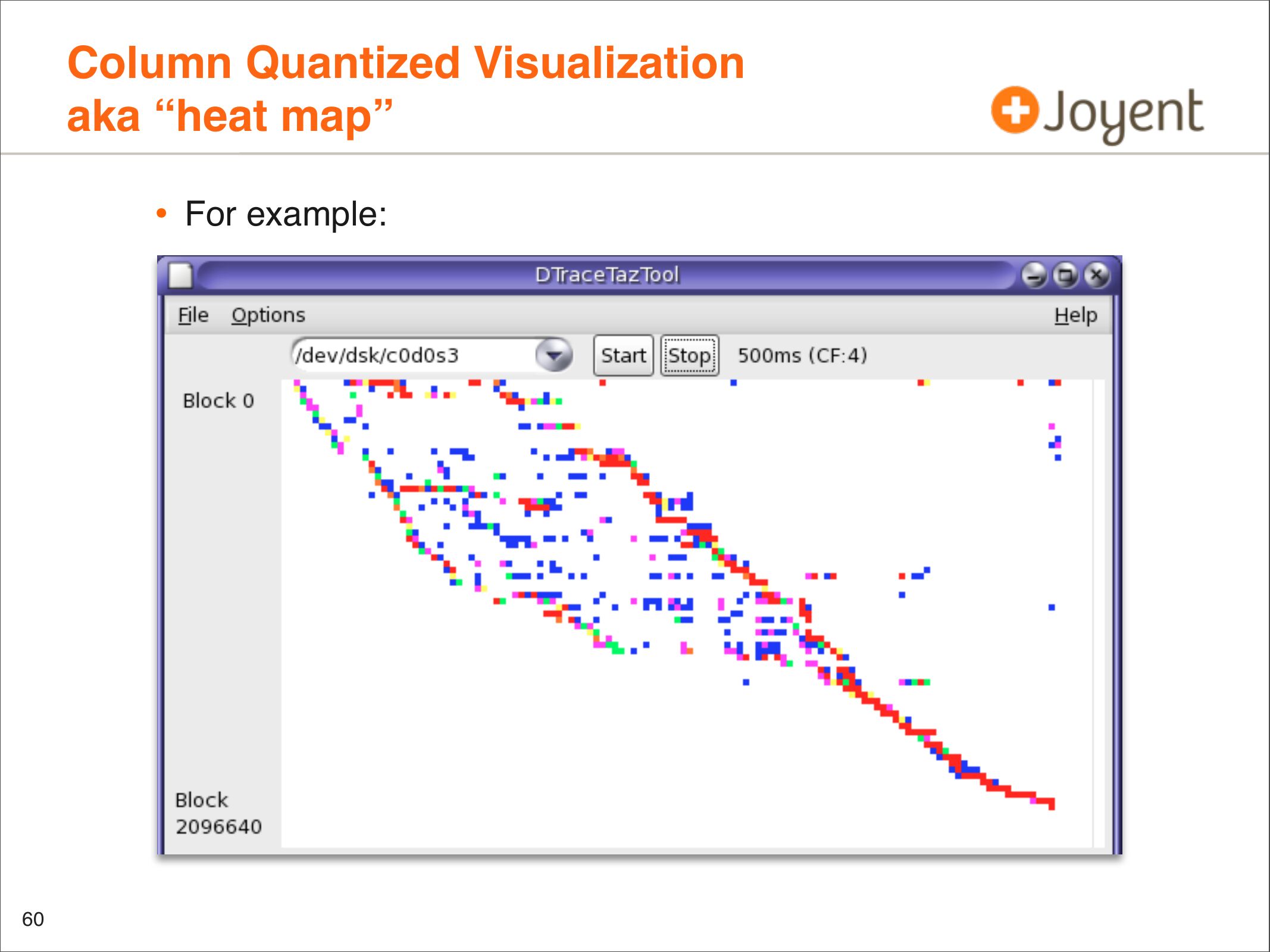

    Column Quantized Visualization
    aka “heat map”
    • For example:

slide 61:

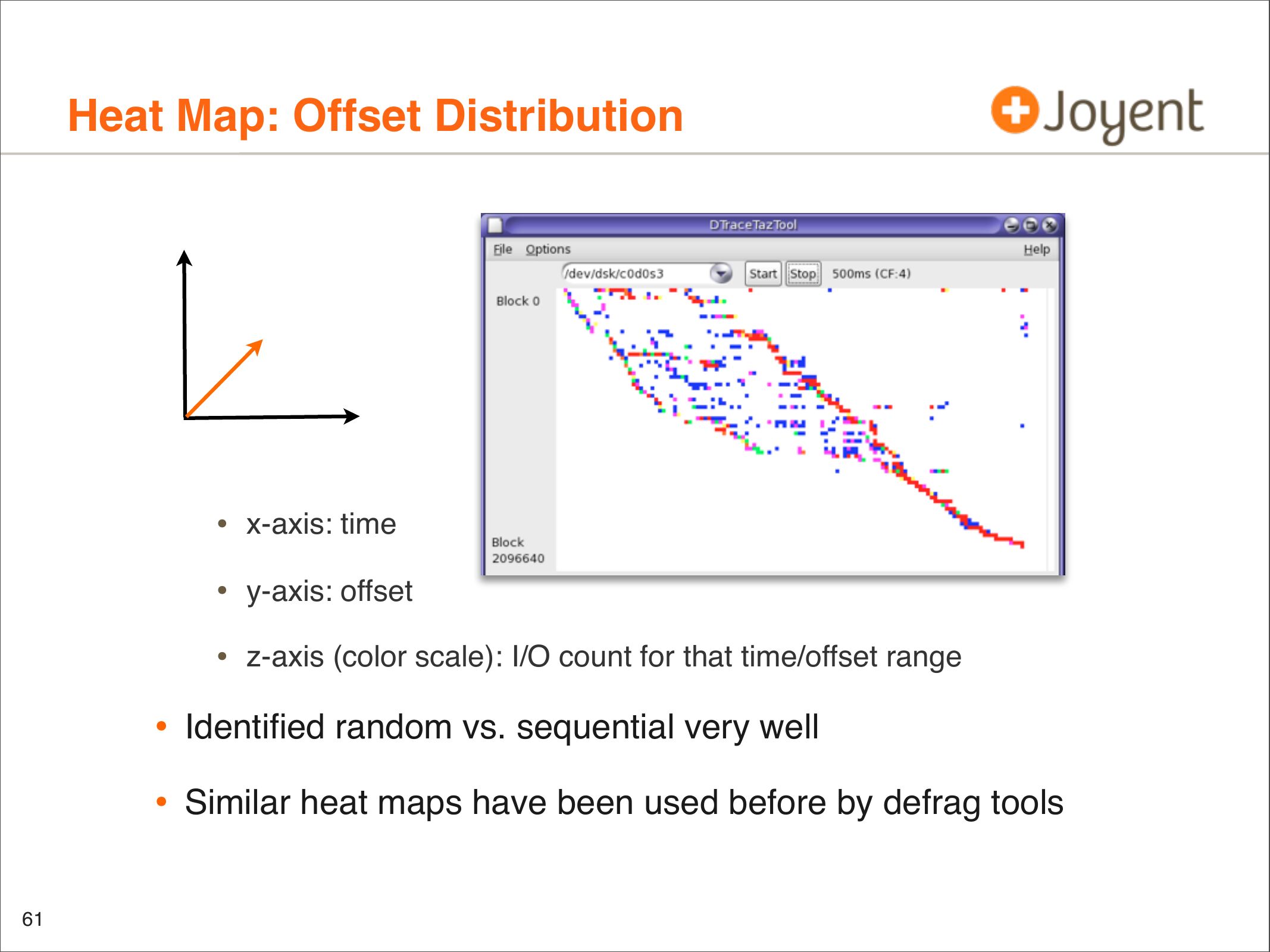

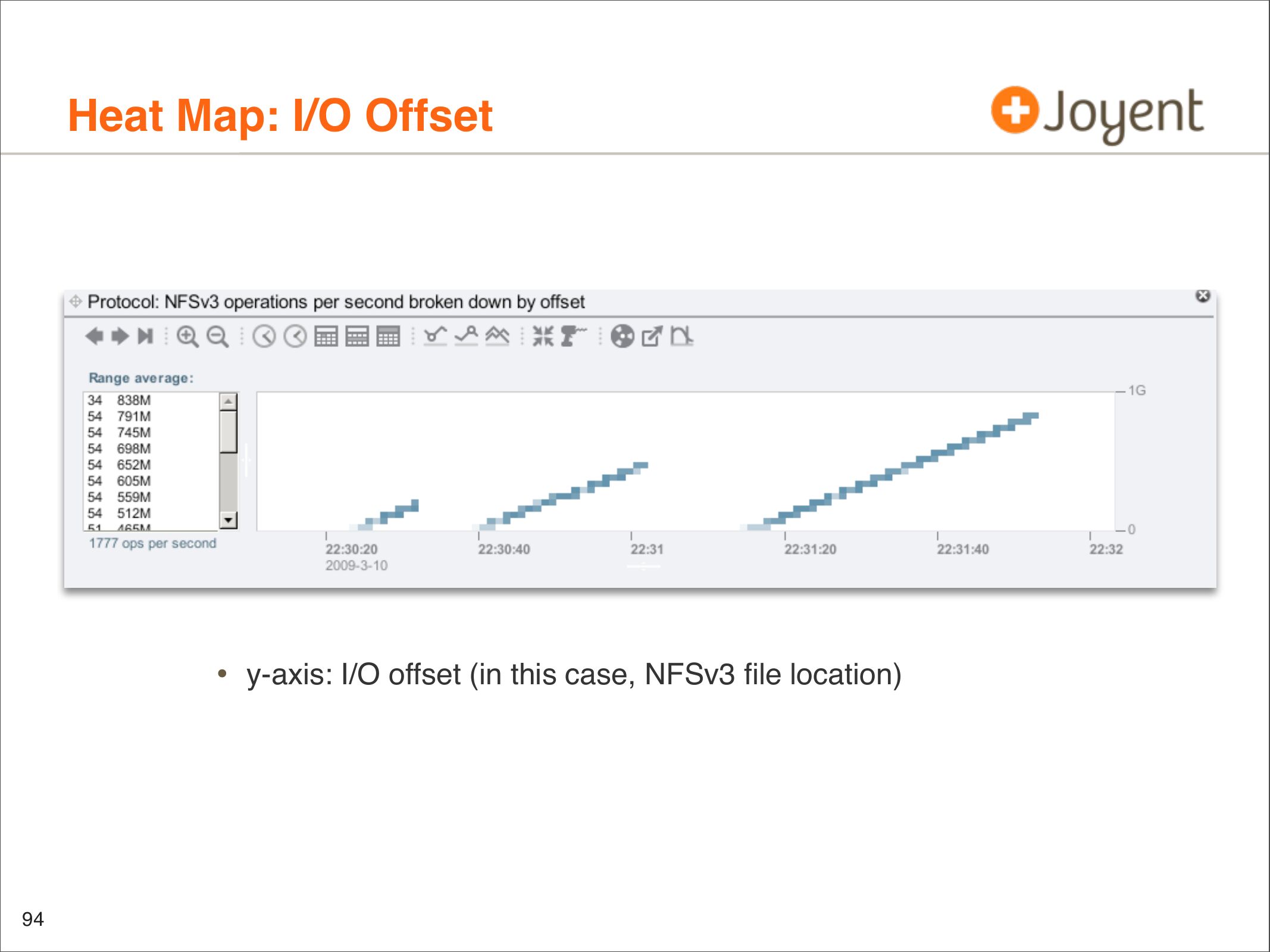

    Heat Map: Offset Distribution
    • x-axis: time
    • y-axis: offset
    • z-axis (color scale): I/O count for that time/offset range
    • Identified random vs. sequential very well
    • Similar heat maps have been used before by defrag tools

slide 62:

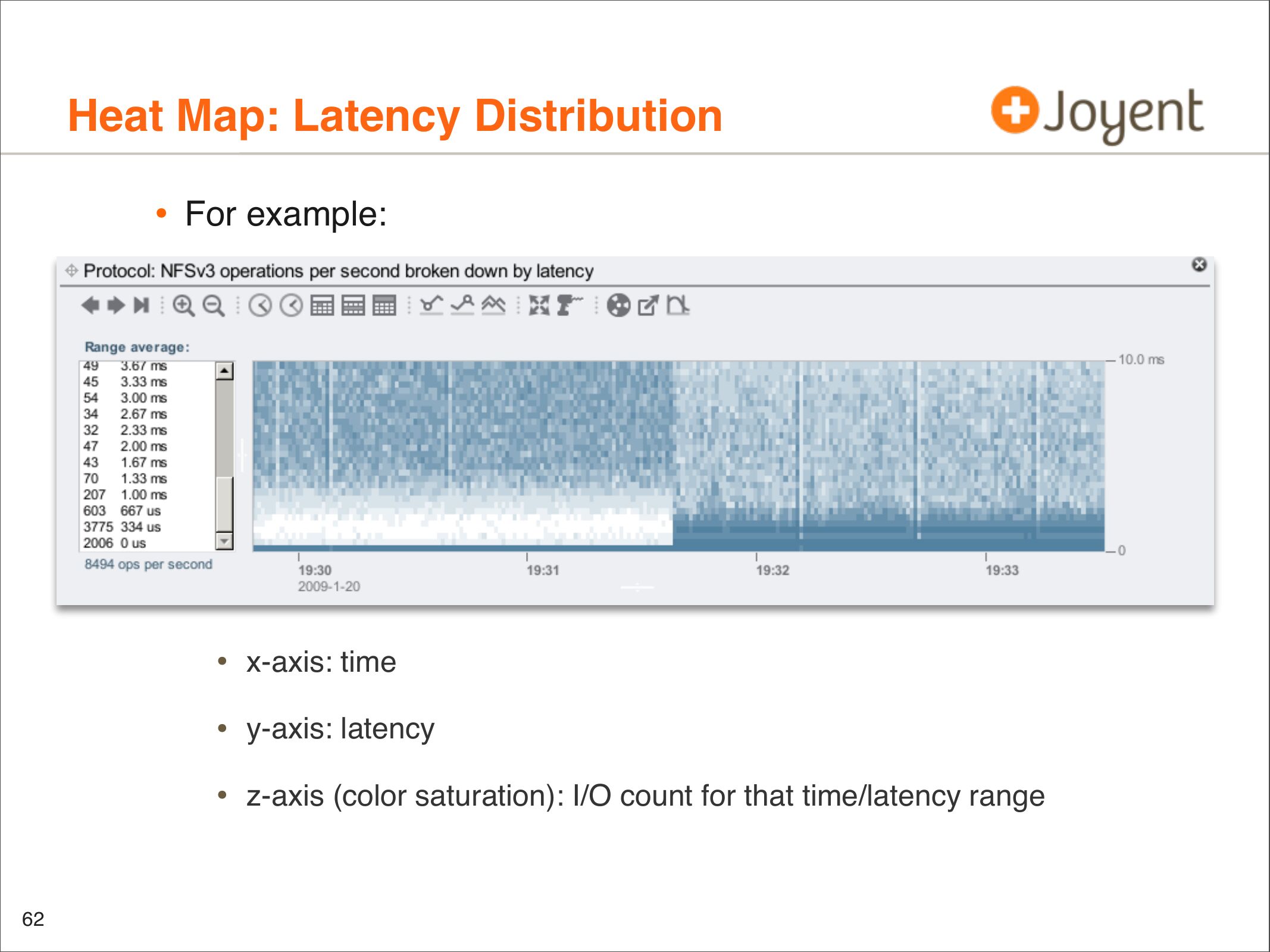

    Heat Map: Latency Distribution
    • For example:
    • x-axis: time
    • y-axis: latency
    • z-axis (color saturation): I/O count for that time/latency range

slide 63:

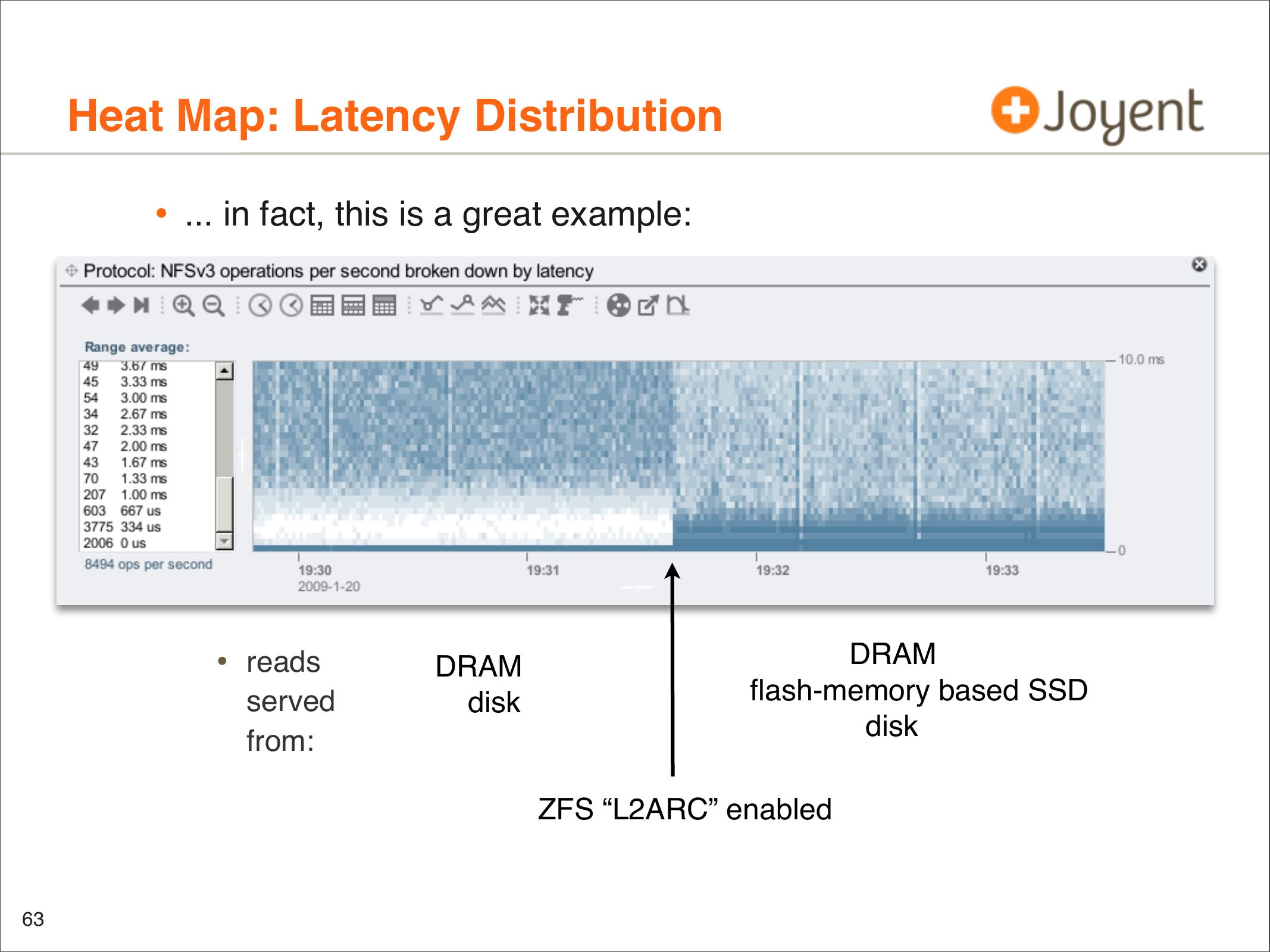

    Heat Map: Latency Distribution
    • ... in fact, this is a great example:
    • reads
    served
    from:
    DRAM
    disk
    DRAM
    flash-memory based SSD
    disk
    ZFS “L2ARC” enabled

slide 64:

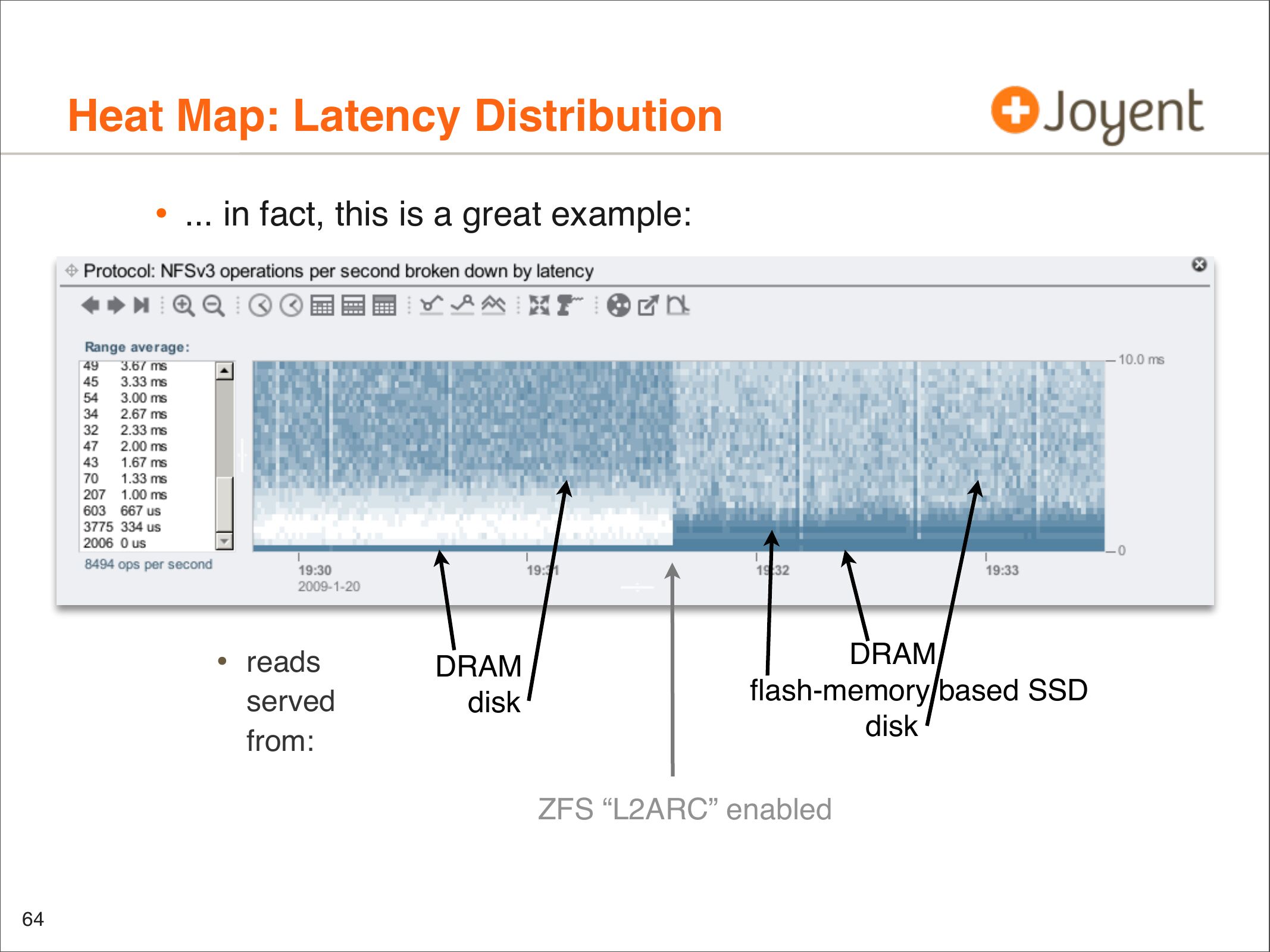

    Heat Map: Latency Distribution
    • ... in fact, this is a great example:
    • reads
    served
    from:
    DRAM
    disk
    DRAM
    flash-memory based SSD
    disk
    ZFS “L2ARC” enabled

slide 65:

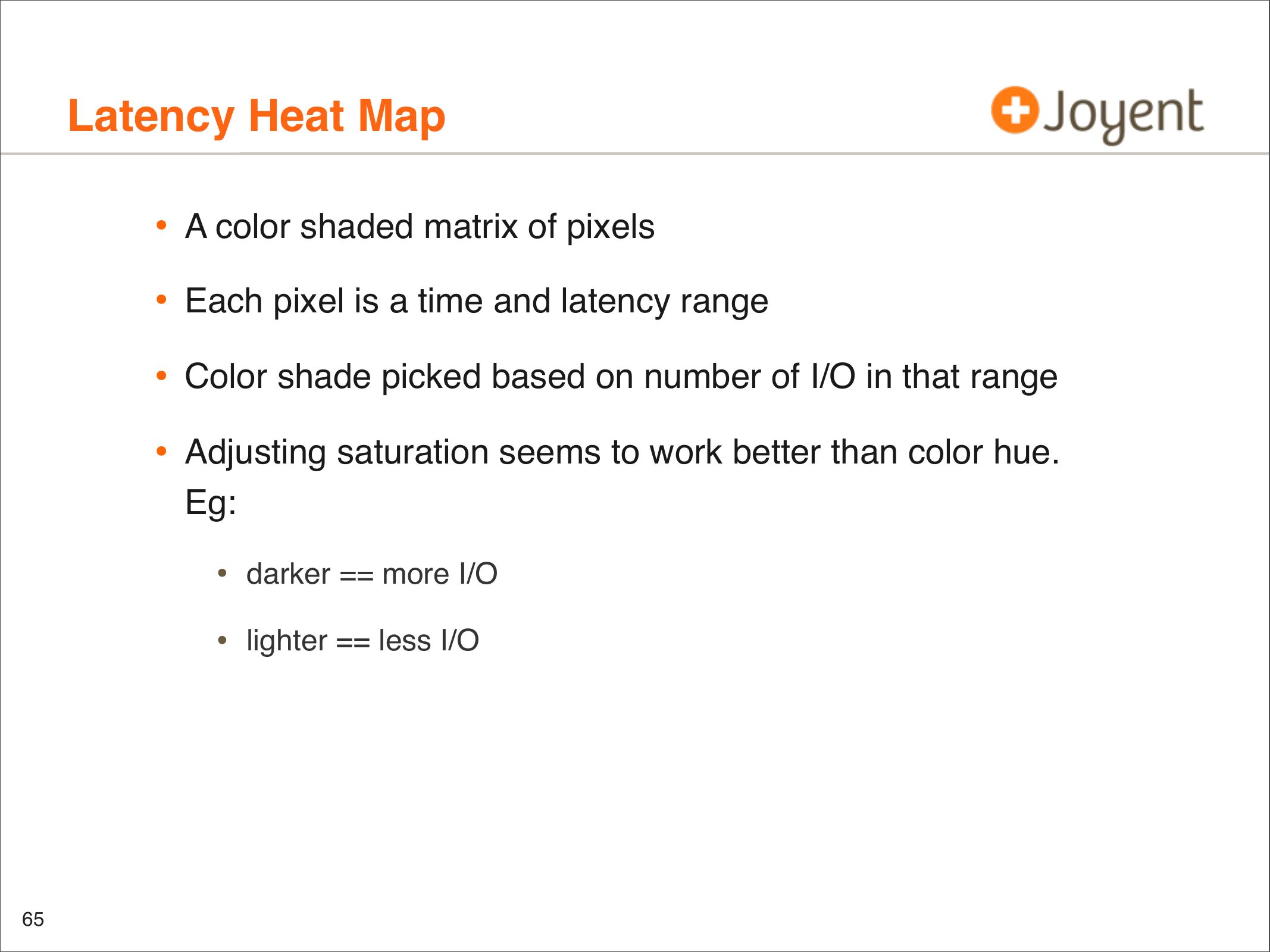

    Latency Heat Map
    • A color shaded matrix of pixels
    • Each pixel is a time and latency range
    • Color shade picked based on number of I/O in that range
    • Adjusting saturation seems to work better than color hue.
    Eg:
    • darker == more I/O
    • lighter == less I/O

slide 66:

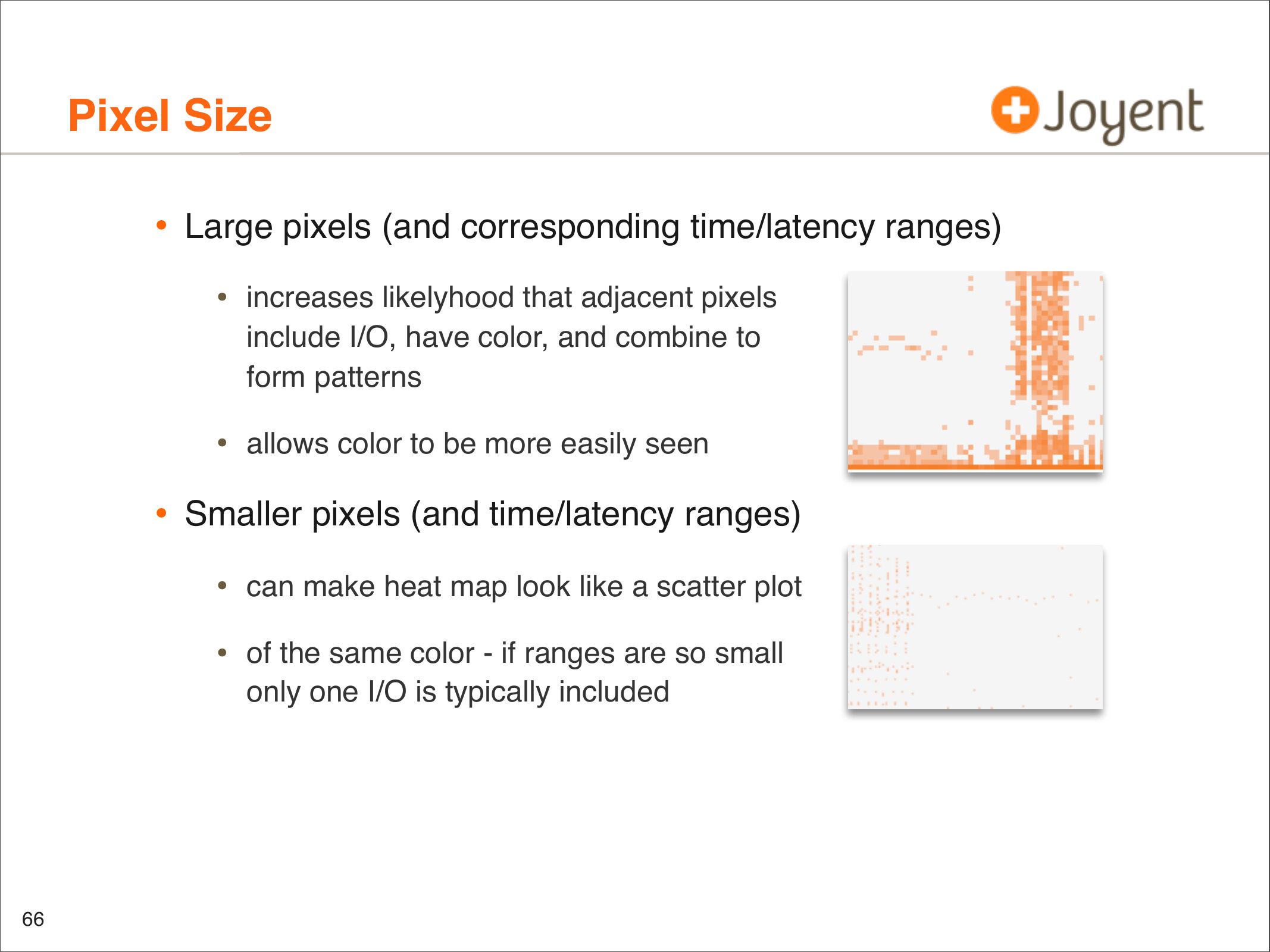

    Pixel Size
    • Large pixels (and corresponding time/latency ranges)
    • increases likelyhood that adjacent pixels
    include I/O, have color, and combine to
    form patterns
    • allows color to be more easily seen
    • Smaller pixels (and time/latency ranges)
    • can make heat map look like a scatter plot
    • of the same color - if ranges are so small
    only one I/O is typically included

slide 67:

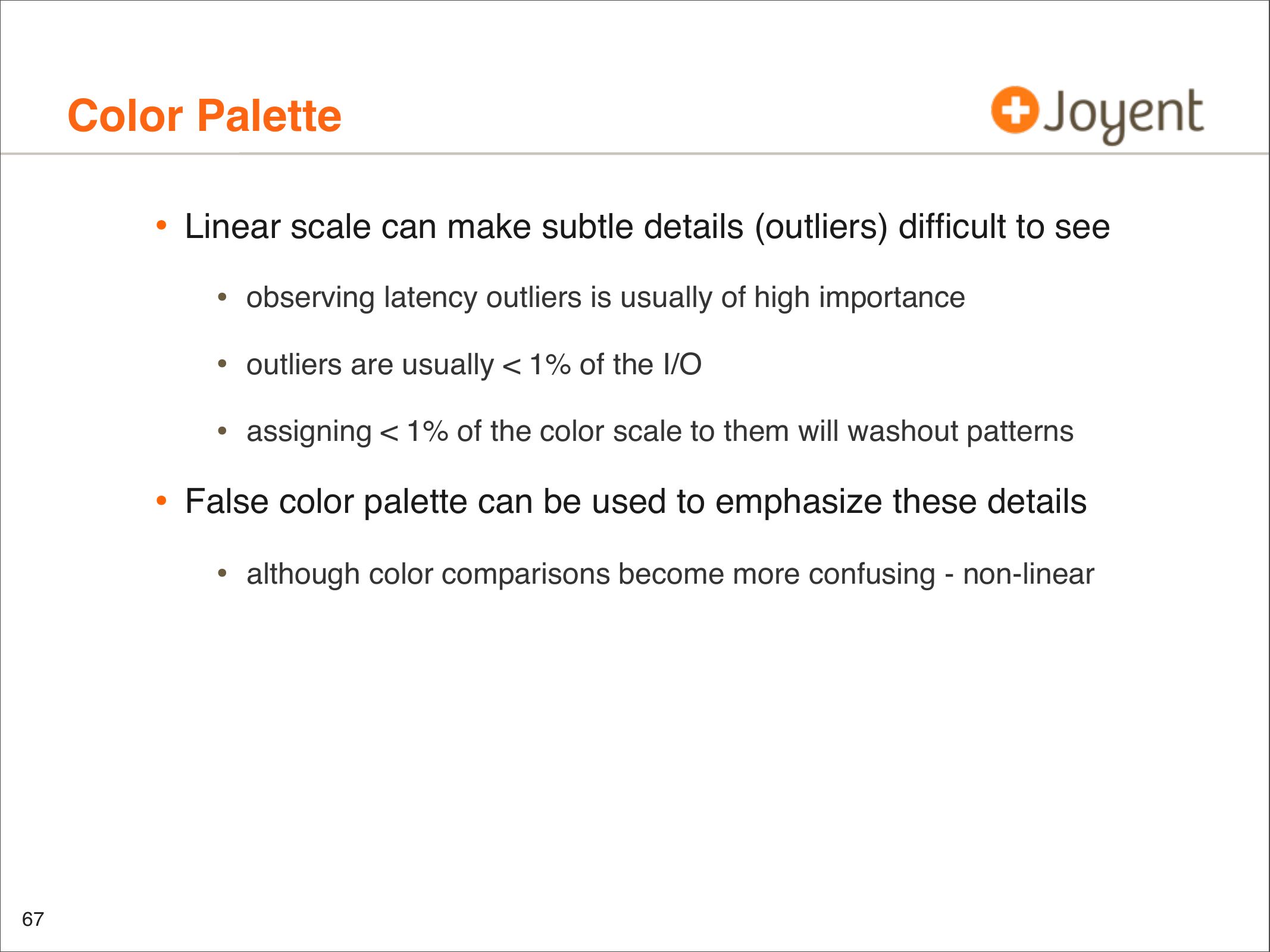

    Color Palette
    • Linear scale can make subtle details (outliers) difficult to see
    • observing latency outliers is usually of high importance
    • outliers are usually
slide 68:

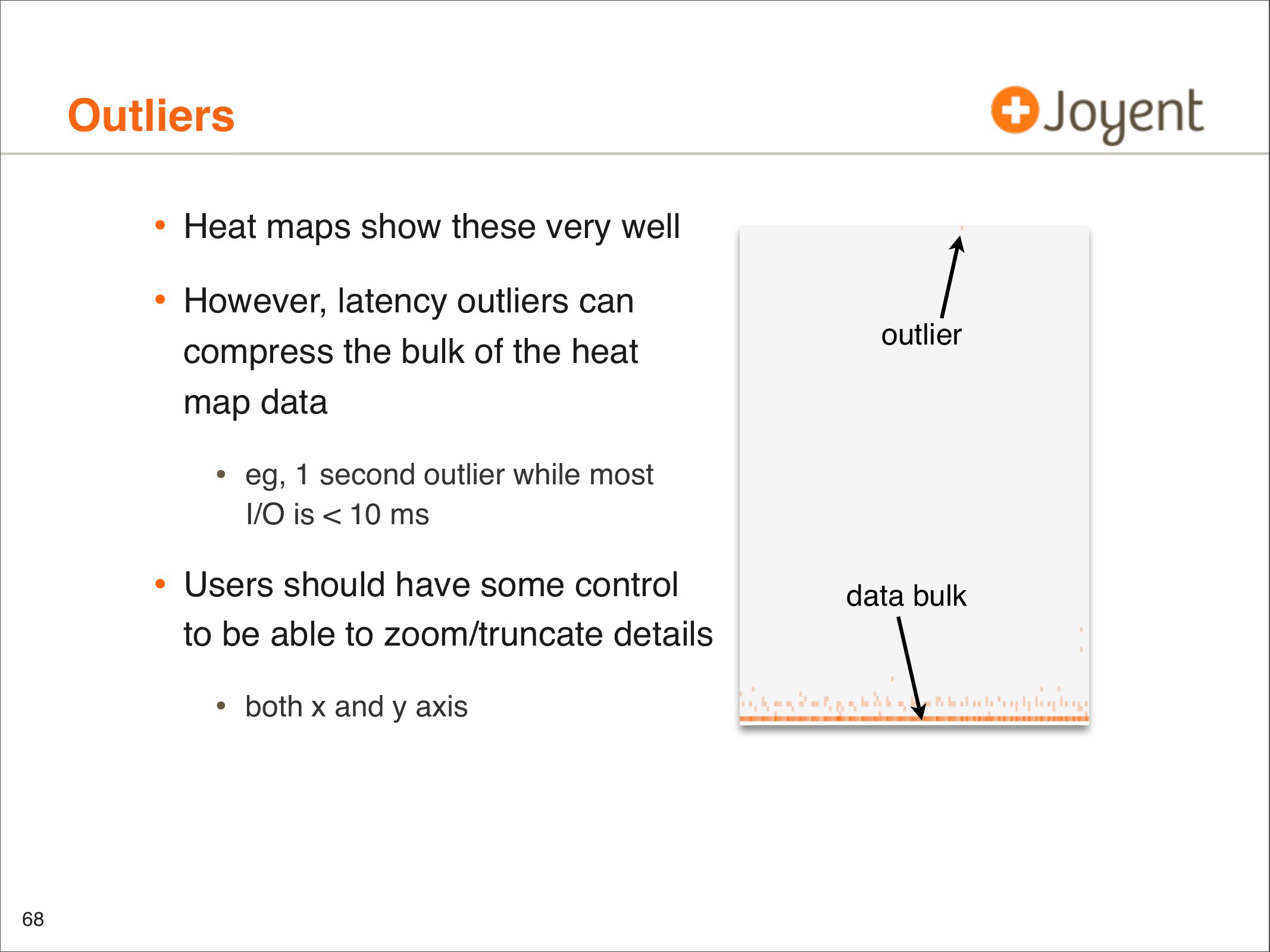

    Outliers
    • Heat maps show these very well
    • However, latency outliers can
    compress the bulk of the heat
    map data
    outlier
    • eg, 1 second outlier while most
    I/O is
slide 69:

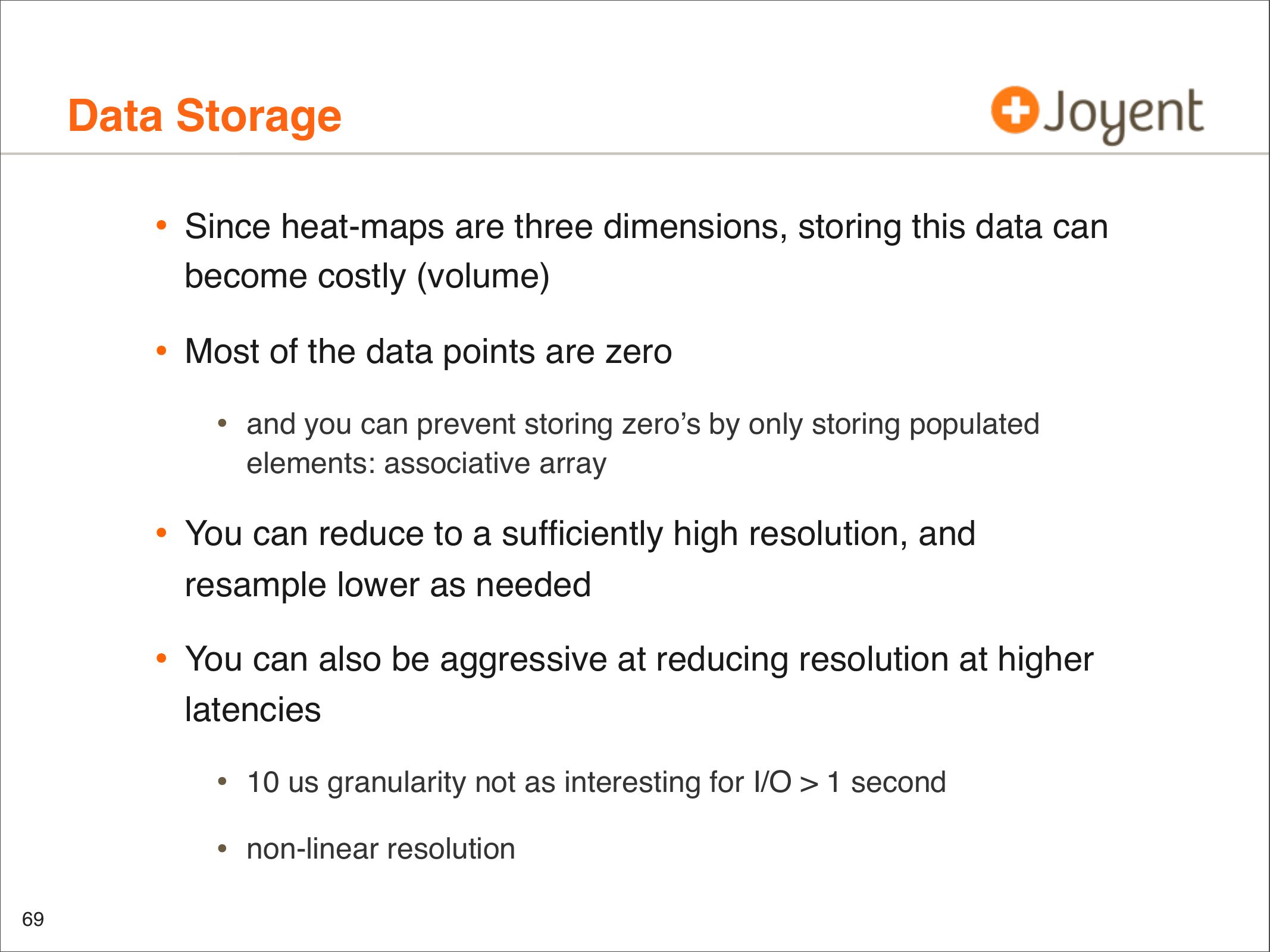

    Data Storage
    • Since heat-maps are three dimensions, storing this data can
    become costly (volume)
    • Most of the data points are zero
    • and you can prevent storing zero’s by only storing populated
    elements: associative array
    • You can reduce to a sufficiently high resolution, and
    resample lower as needed
    • You can also be aggressive at reducing resolution at higher
    latencies
    • 10 us granularity not as interesting for I/O >gt; 1 second
    • non-linear resolution

slide 70:

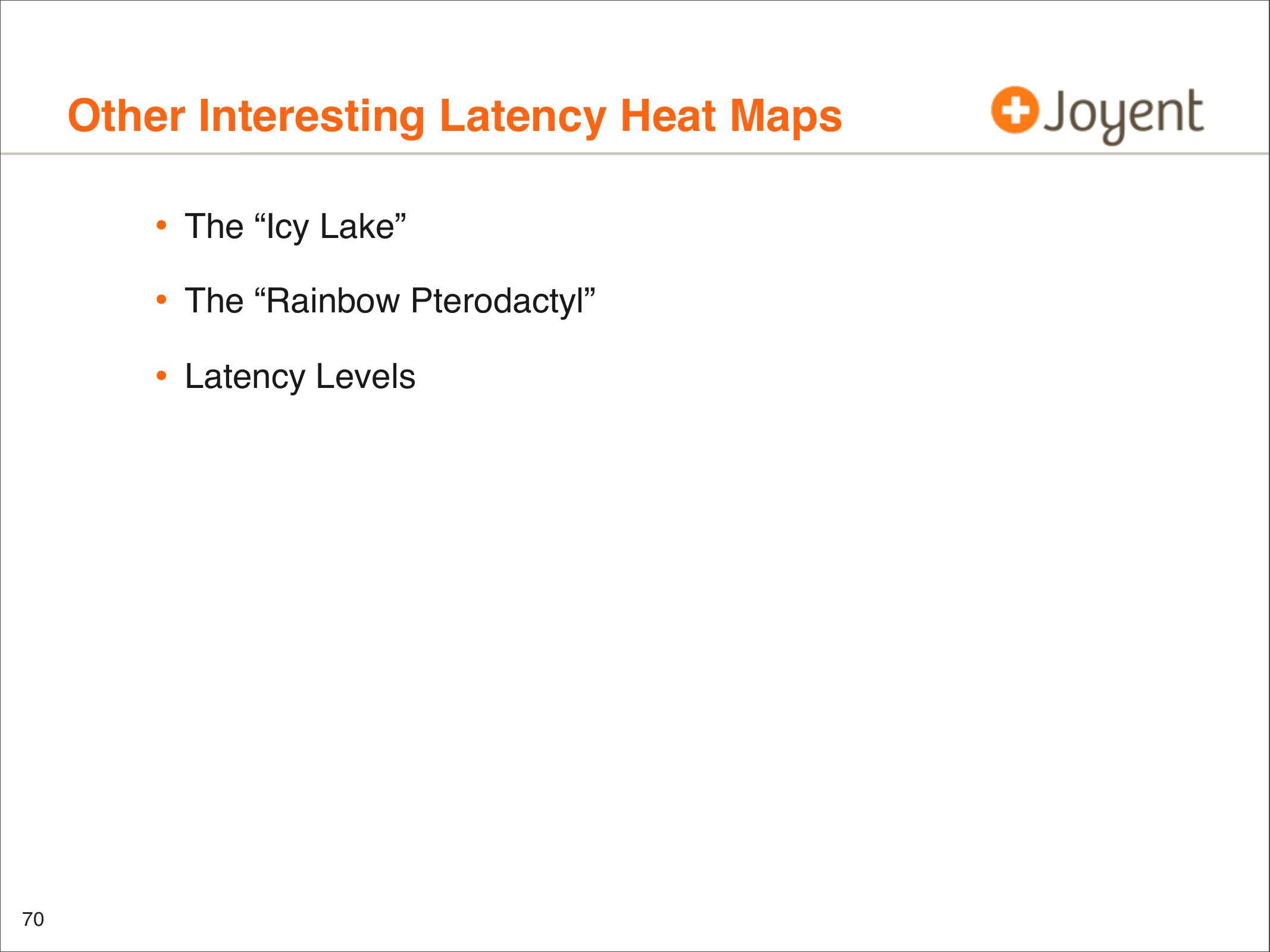

    Other Interesting Latency Heat Maps
    • The “Icy Lake”
    • The “Rainbow Pterodactyl”
    • Latency Levels

slide 71:

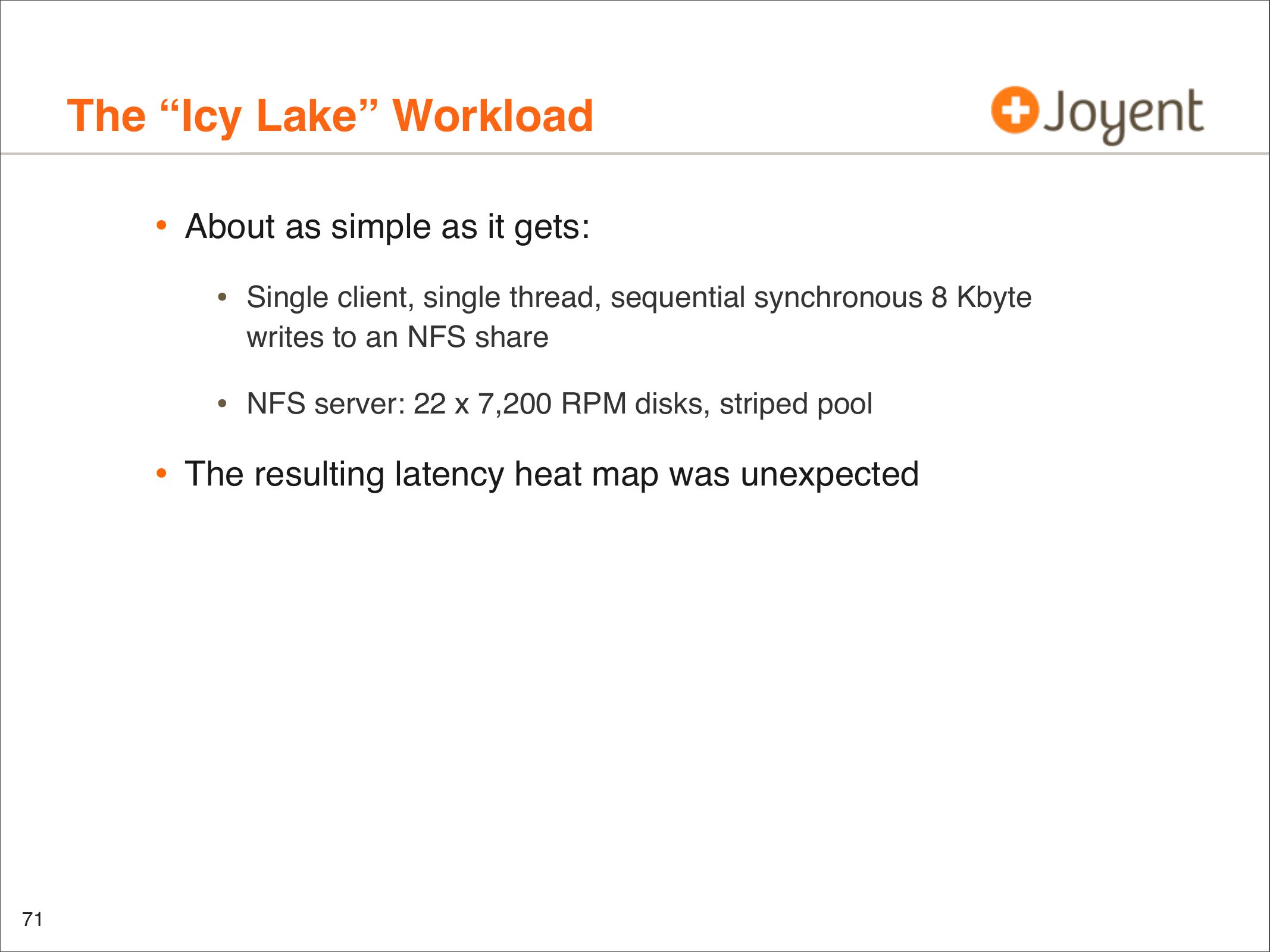

    The “Icy Lake” Workload
    • About as simple as it gets:
    • Single client, single thread, sequential synchronous 8 Kbyte
    writes to an NFS share
    • NFS server: 22 x 7,200 RPM disks, striped pool
    • The resulting latency heat map was unexpected

slide 72:

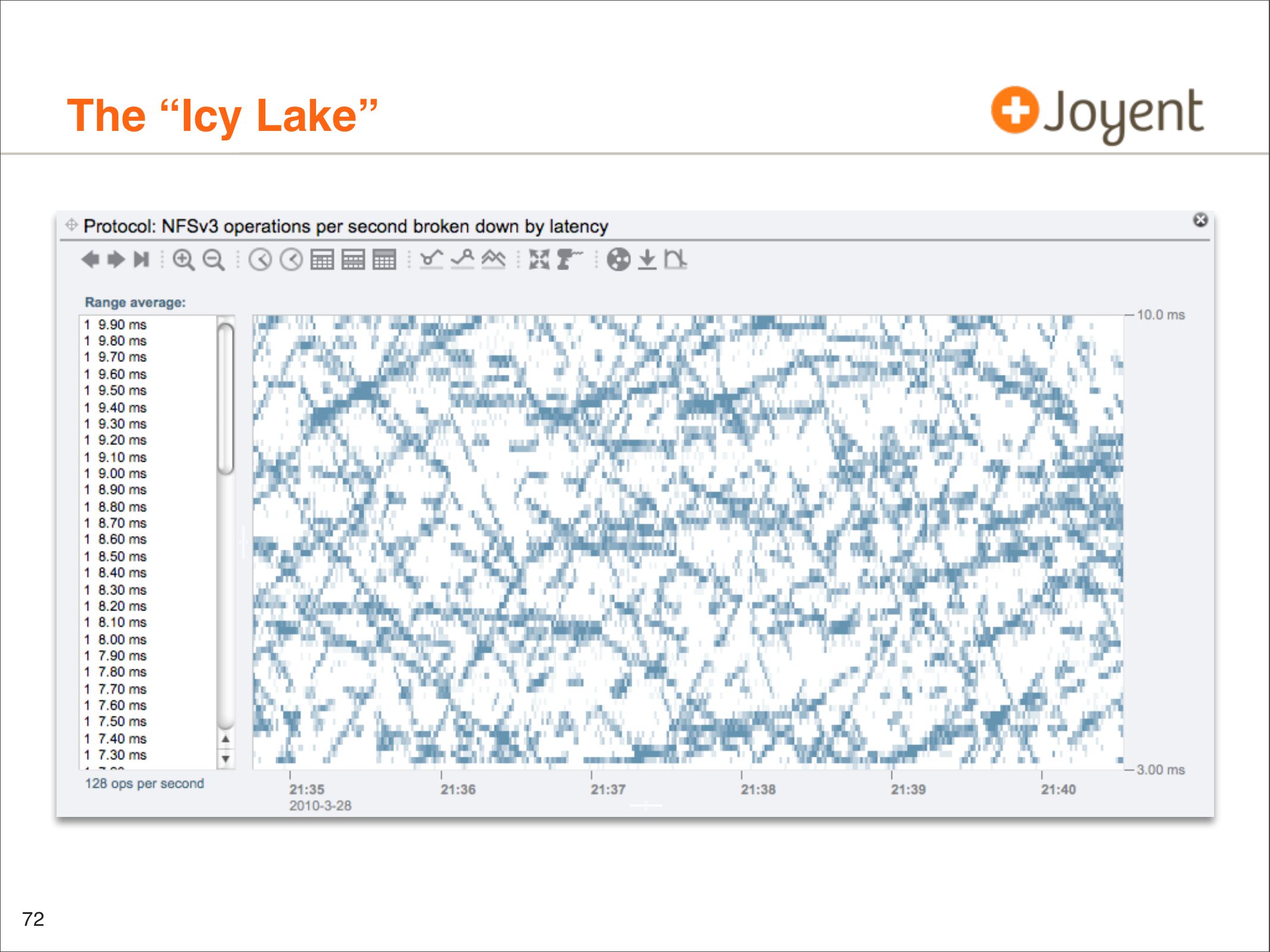

    The “Icy Lake”

slide 73:

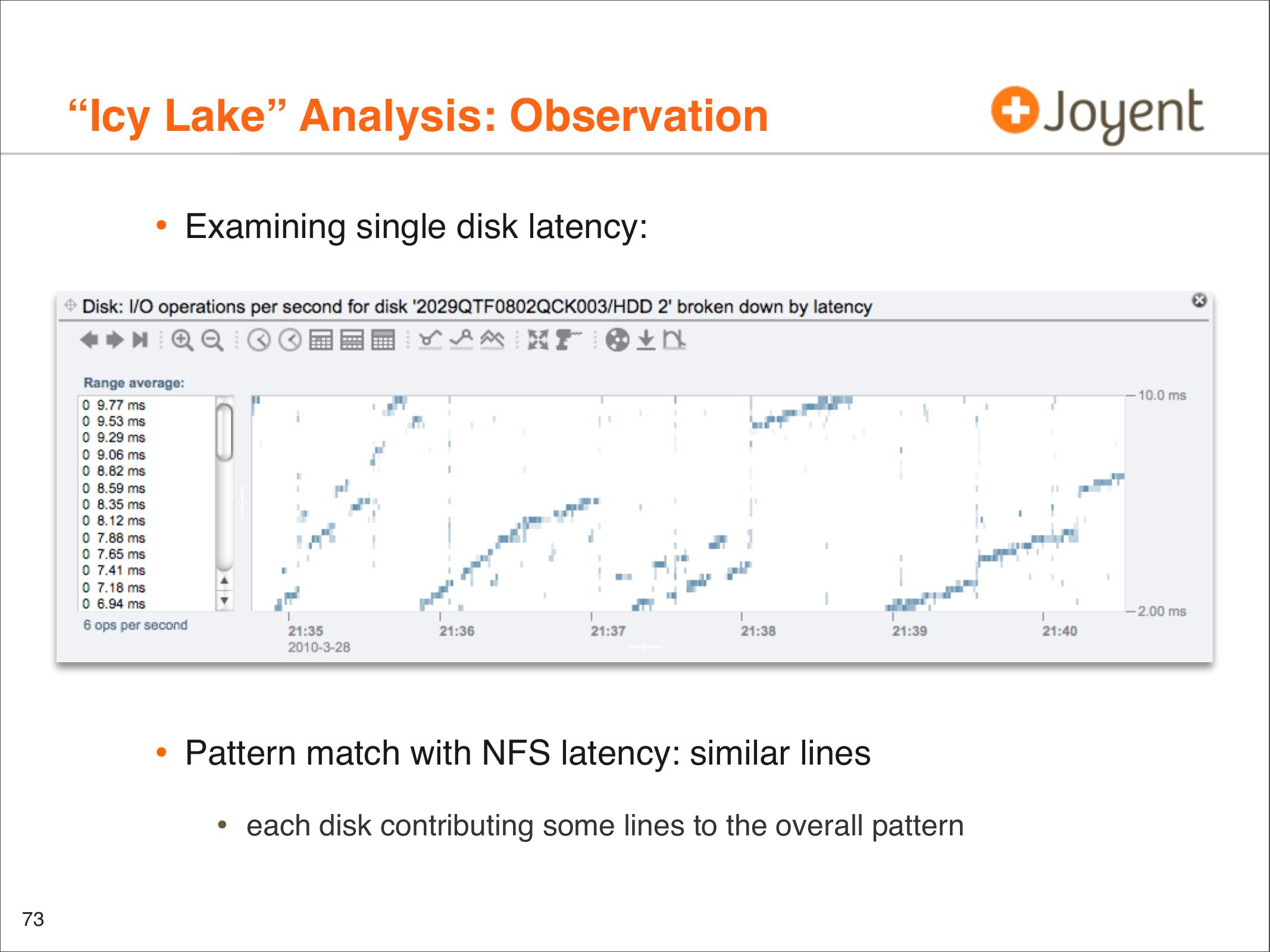

    “Icy Lake” Analysis: Observation
    • Examining single disk latency:
    • Pattern match with NFS latency: similar lines
    • each disk contributing some lines to the overall pattern

slide 74:

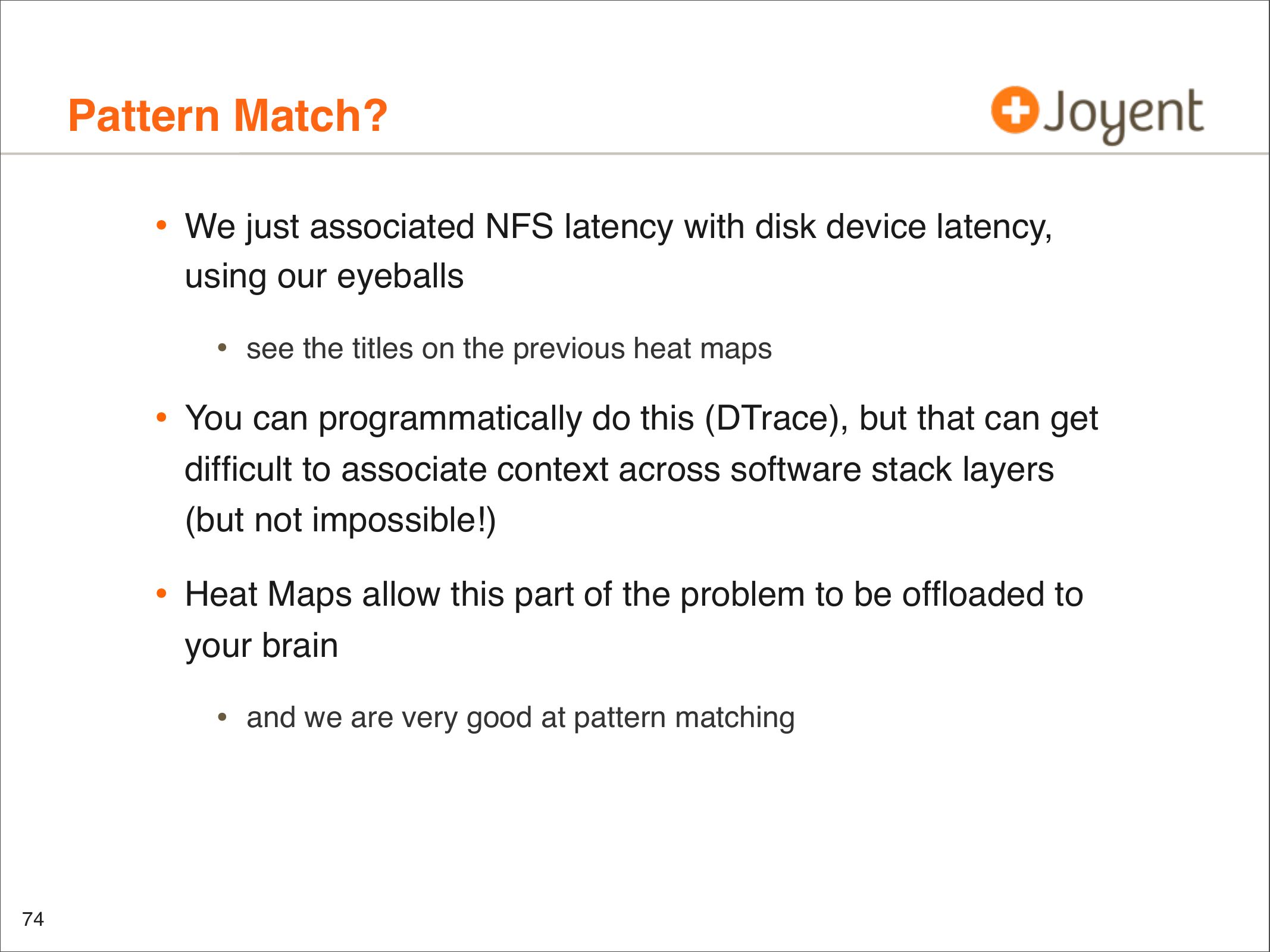

    Pattern Match?
    • We just associated NFS latency with disk device latency,
    using our eyeballs
    • see the titles on the previous heat maps
    • You can programmatically do this (DTrace), but that can get
    difficult to associate context across software stack layers
    (but not impossible!)
    • Heat Maps allow this part of the problem to be offloaded to
    your brain
    • and we are very good at pattern matching

slide 75:

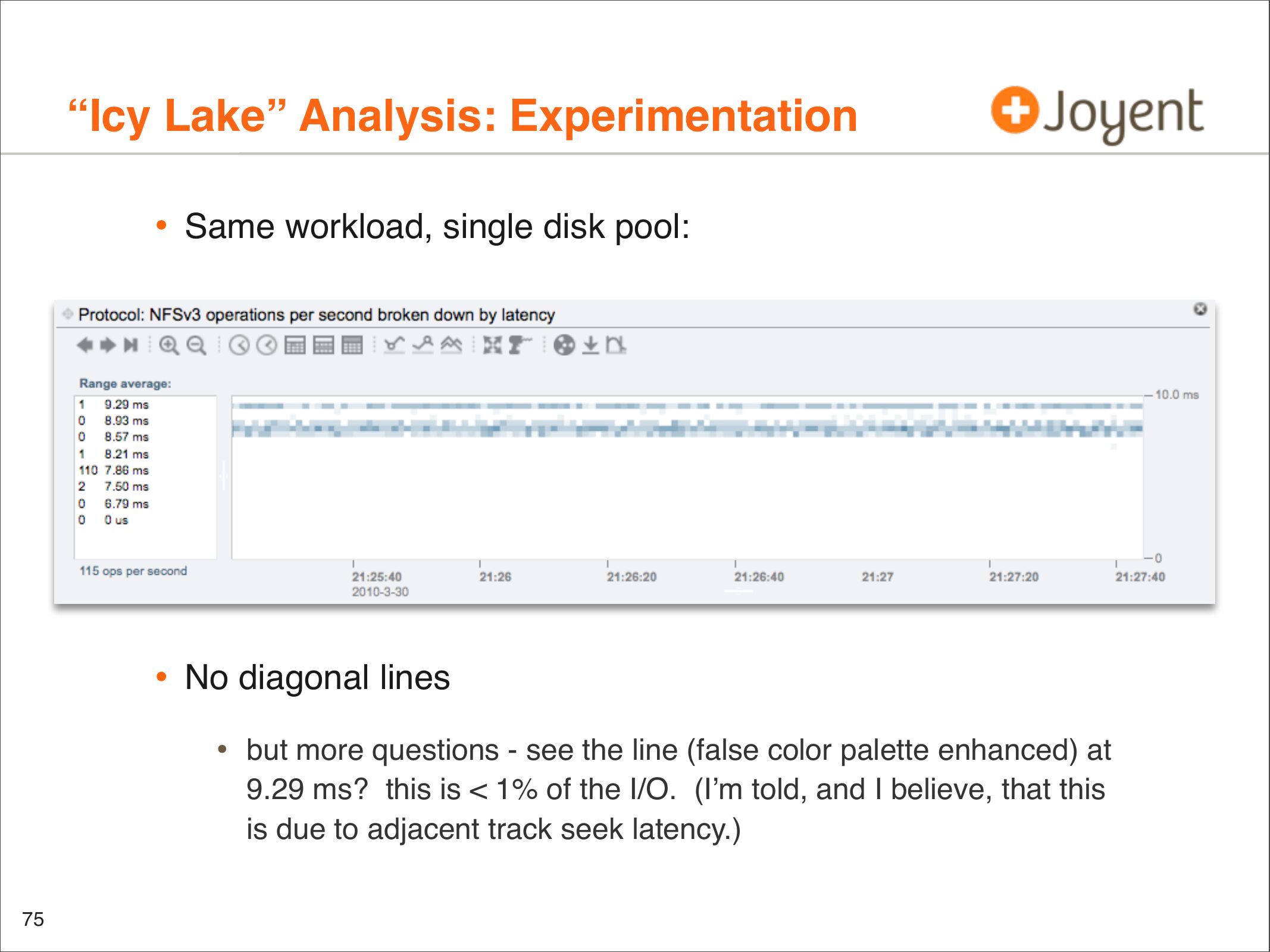

    “Icy Lake” Analysis: Experimentation
    • Same workload, single disk pool:
    • No diagonal lines
    • but more questions - see the line (false color palette enhanced) at
    9.29 ms? this is
slide 76:

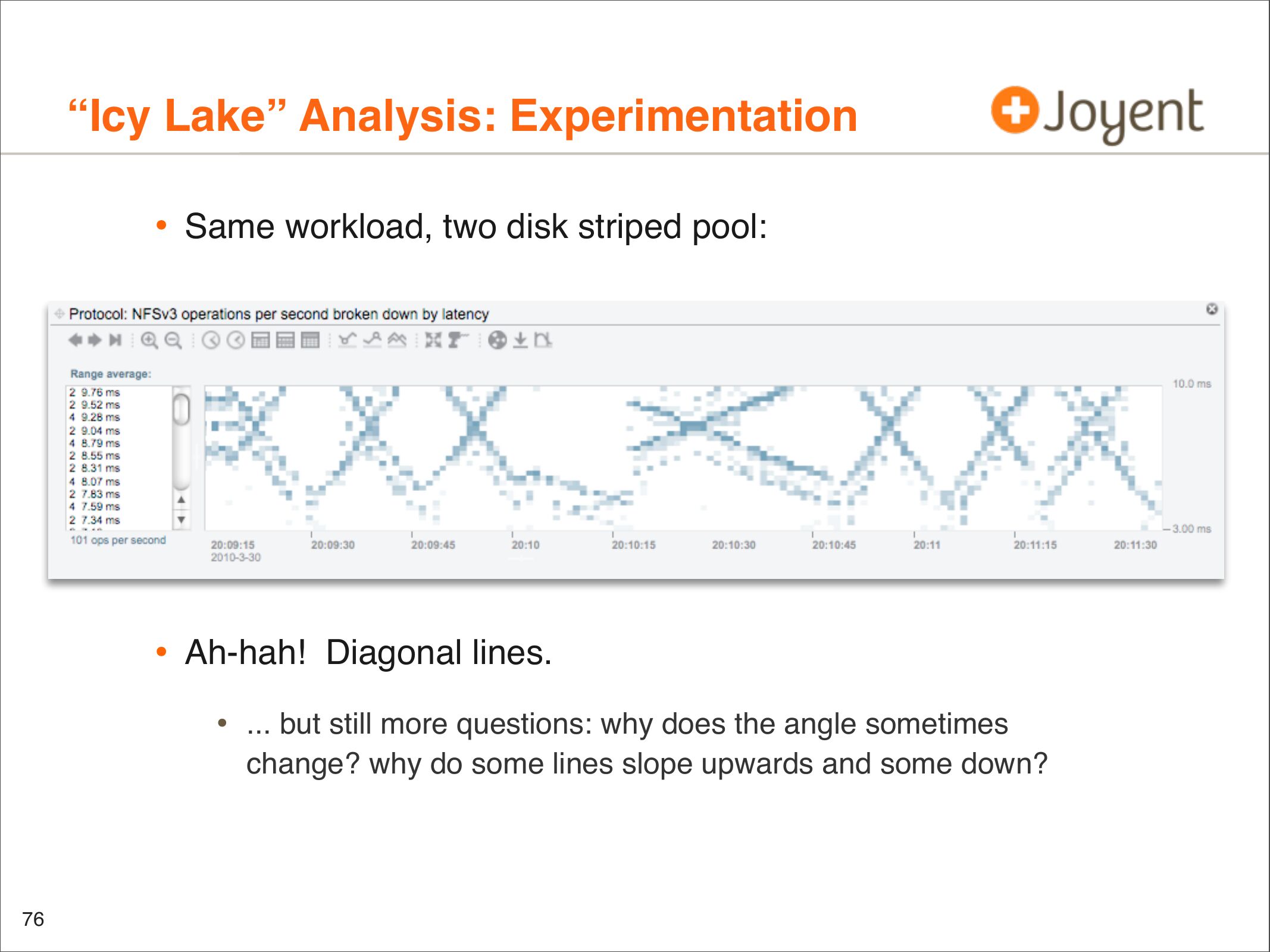

    “Icy Lake” Analysis: Experimentation
    • Same workload, two disk striped pool:
    • Ah-hah! Diagonal lines.
    • ... but still more questions: why does the angle sometimes
    change? why do some lines slope upwards and some down?

slide 77:

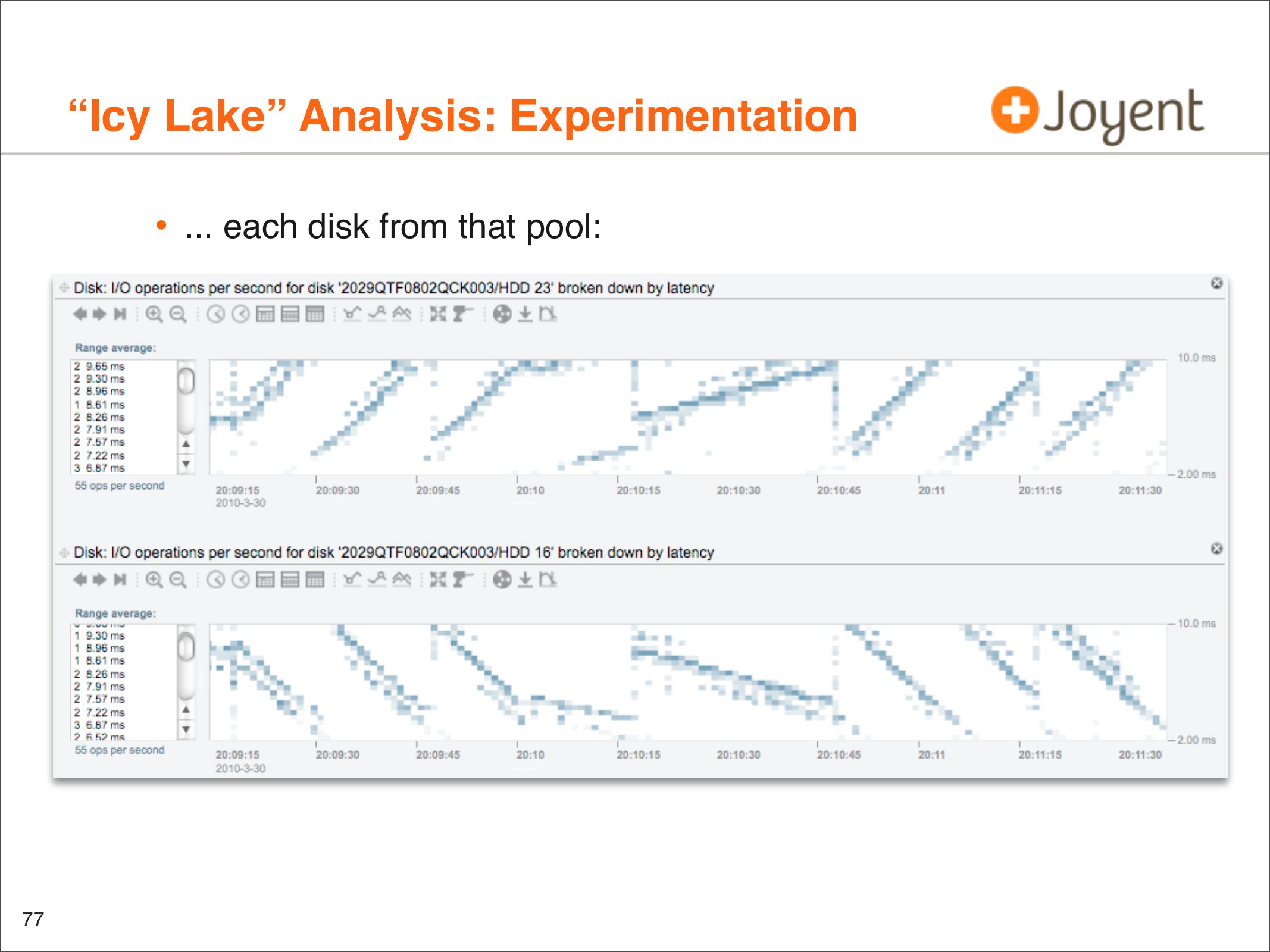

    “Icy Lake” Analysis: Experimentation
    • ... each disk from that pool:

slide 78:

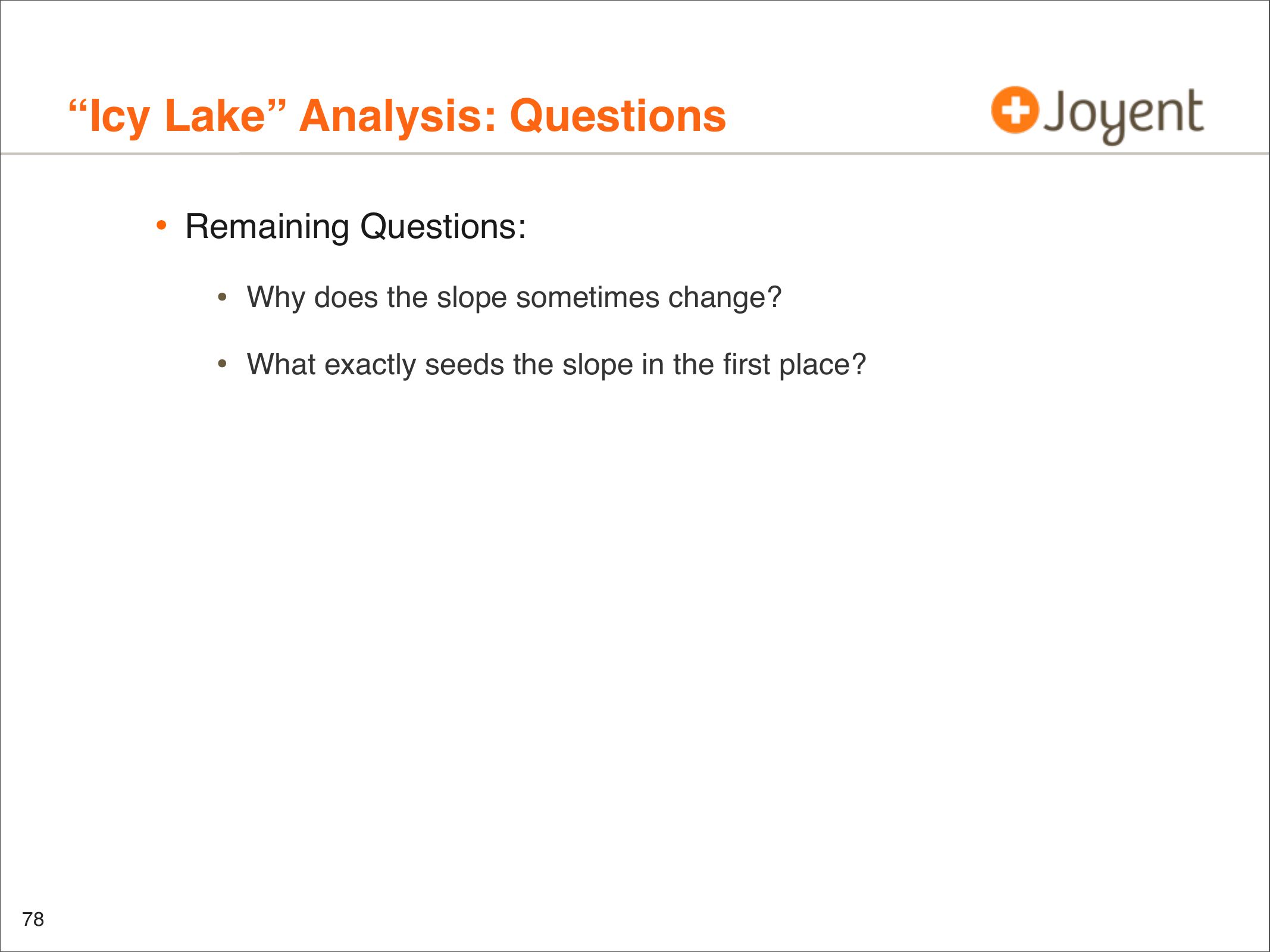

    “Icy Lake” Analysis: Questions
    • Remaining Questions:
    • Why does the slope sometimes change?
    • What exactly seeds the slope in the first place?

slide 79:

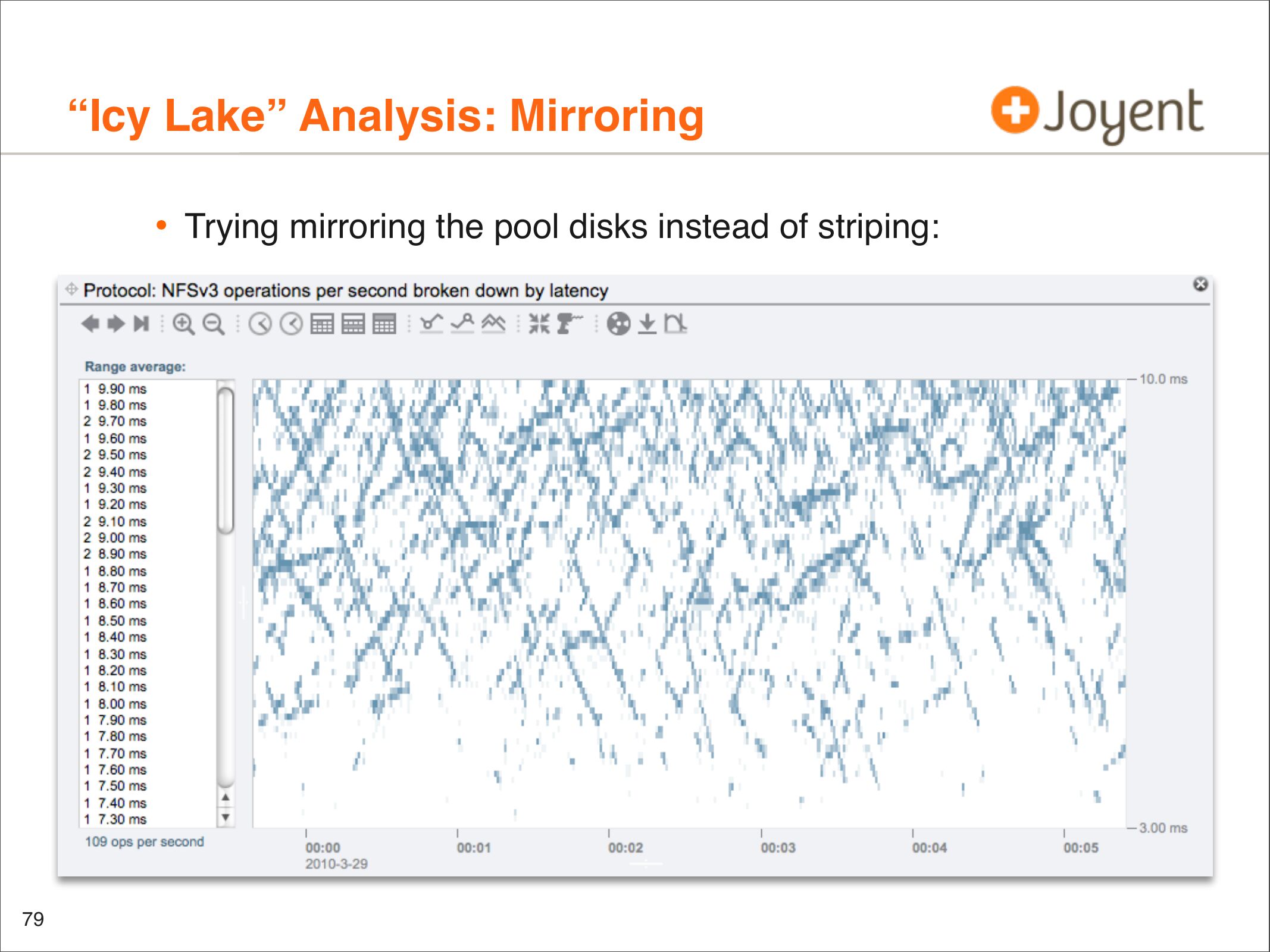

    “Icy Lake” Analysis: Mirroring
    • Trying mirroring the pool disks instead of striping:

slide 80:

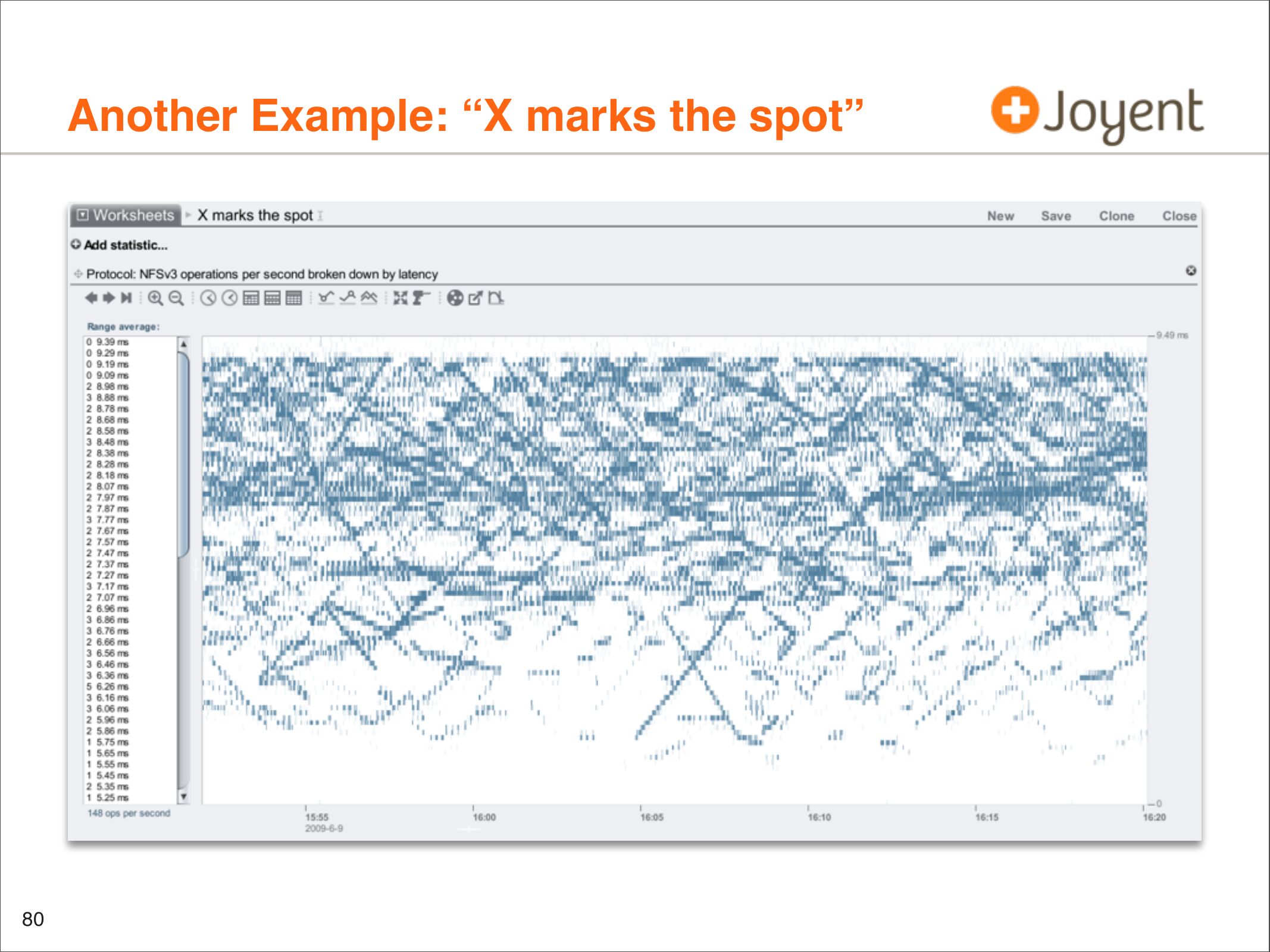

    Another Example: “X marks the spot”

slide 81:

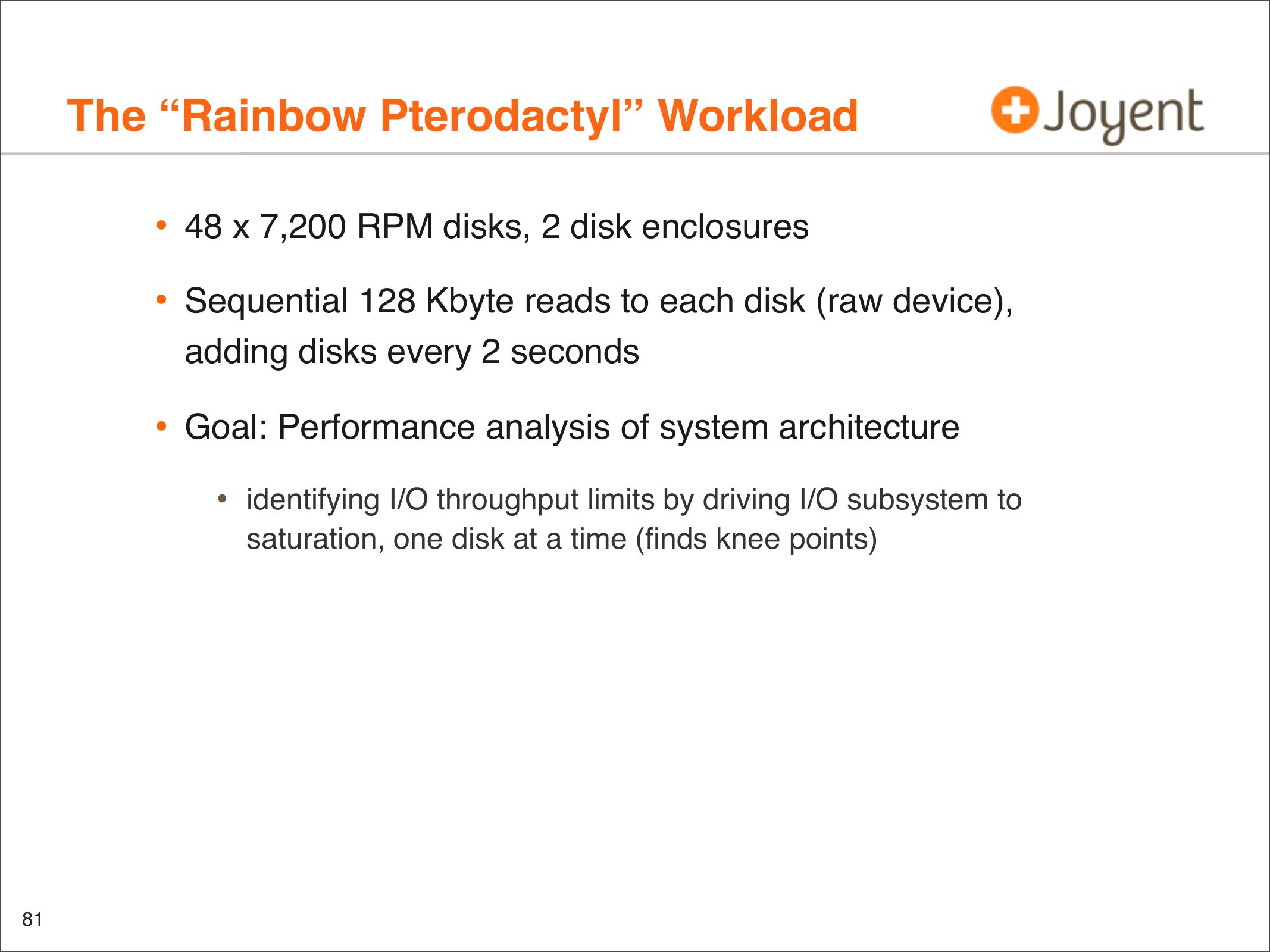

    The “Rainbow Pterodactyl” Workload
    • 48 x 7,200 RPM disks, 2 disk enclosures
    • Sequential 128 Kbyte reads to each disk (raw device),
    adding disks every 2 seconds
    • Goal: Performance analysis of system architecture
    • identifying I/O throughput limits by driving I/O subsystem to
    saturation, one disk at a time (finds knee points)

slide 82:
    The “Rainbow Pterodactyl”

slide 83:
    The “Rainbow Pterodactyl”

slide 84:
    The “Rainbow Pterodactyl”
    Buldge
    Beak
    Head
    Wing
    Neck
    Shoulders
    Body

slide 85:

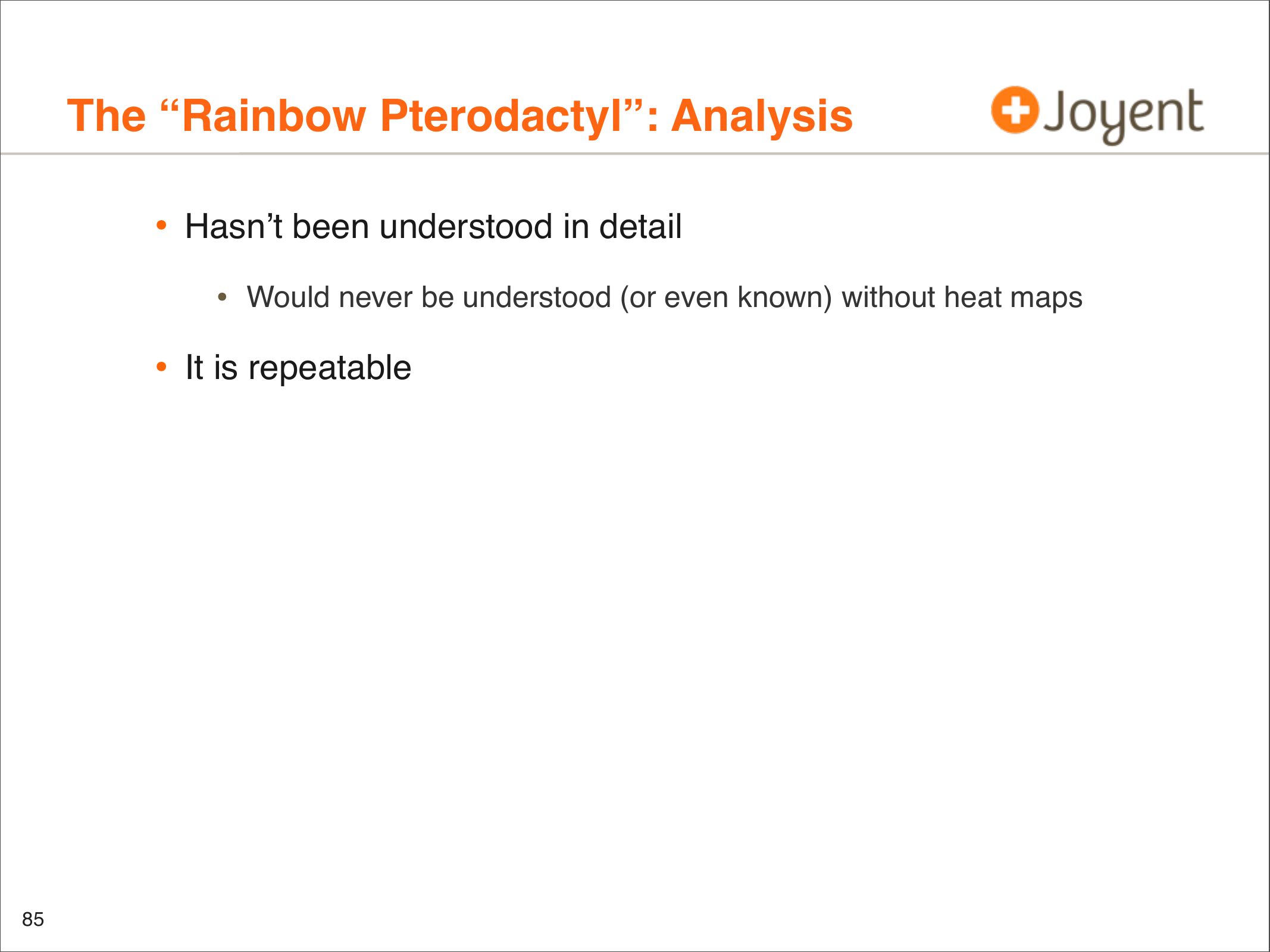

    The “Rainbow Pterodactyl”: Analysis
    • Hasn’t been understood in detail
    • Would never be understood (or even known) without heat maps
    • It is repeatable

slide 86:

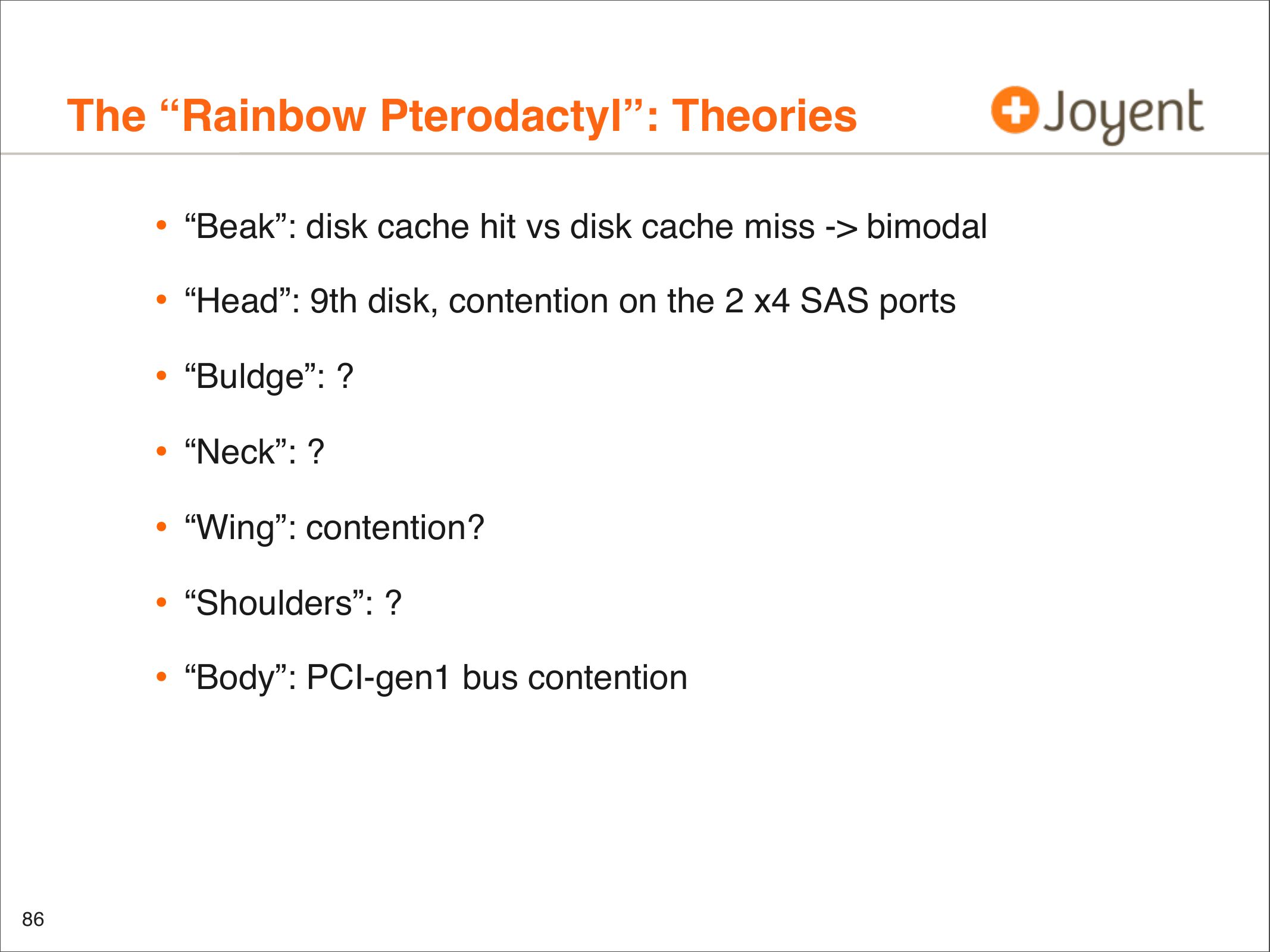

    The “Rainbow Pterodactyl”: Theories
    • “Beak”: disk cache hit vs disk cache miss ->gt; bimodal
    • “Head”: 9th disk, contention on the 2 x4 SAS ports
    • “Buldge”: ?
    • “Neck”: ?
    • “Wing”: contention?
    • “Shoulders”: ?
    • “Body”: PCI-gen1 bus contention

slide 87:

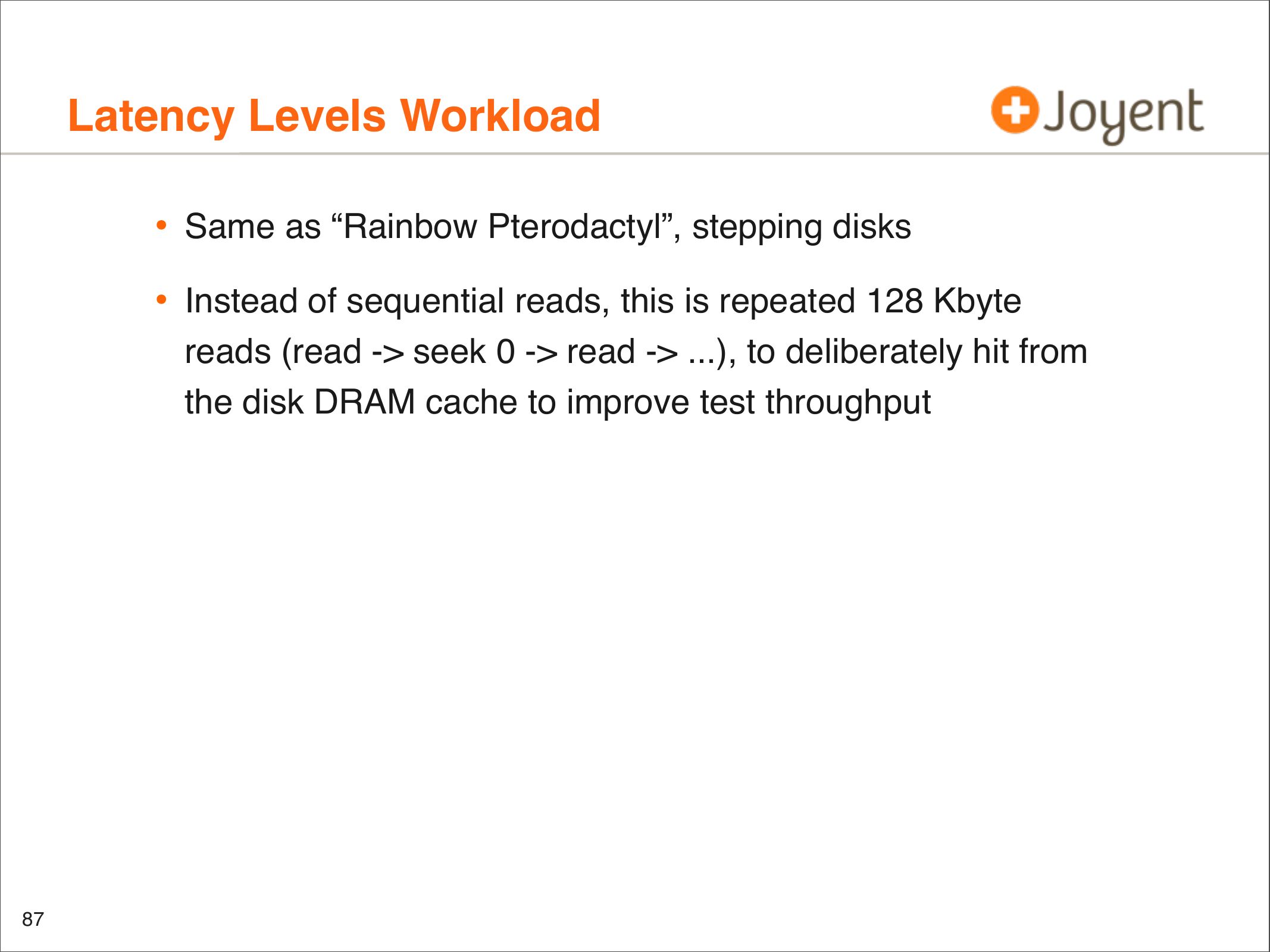

    Latency Levels Workload
    • Same as “Rainbow Pterodactyl”, stepping disks
    • Instead of sequential reads, this is repeated 128 Kbyte
    reads (read ->gt; seek 0 ->gt; read ->gt; ...), to deliberately hit from
    the disk DRAM cache to improve test throughput

slide 88:

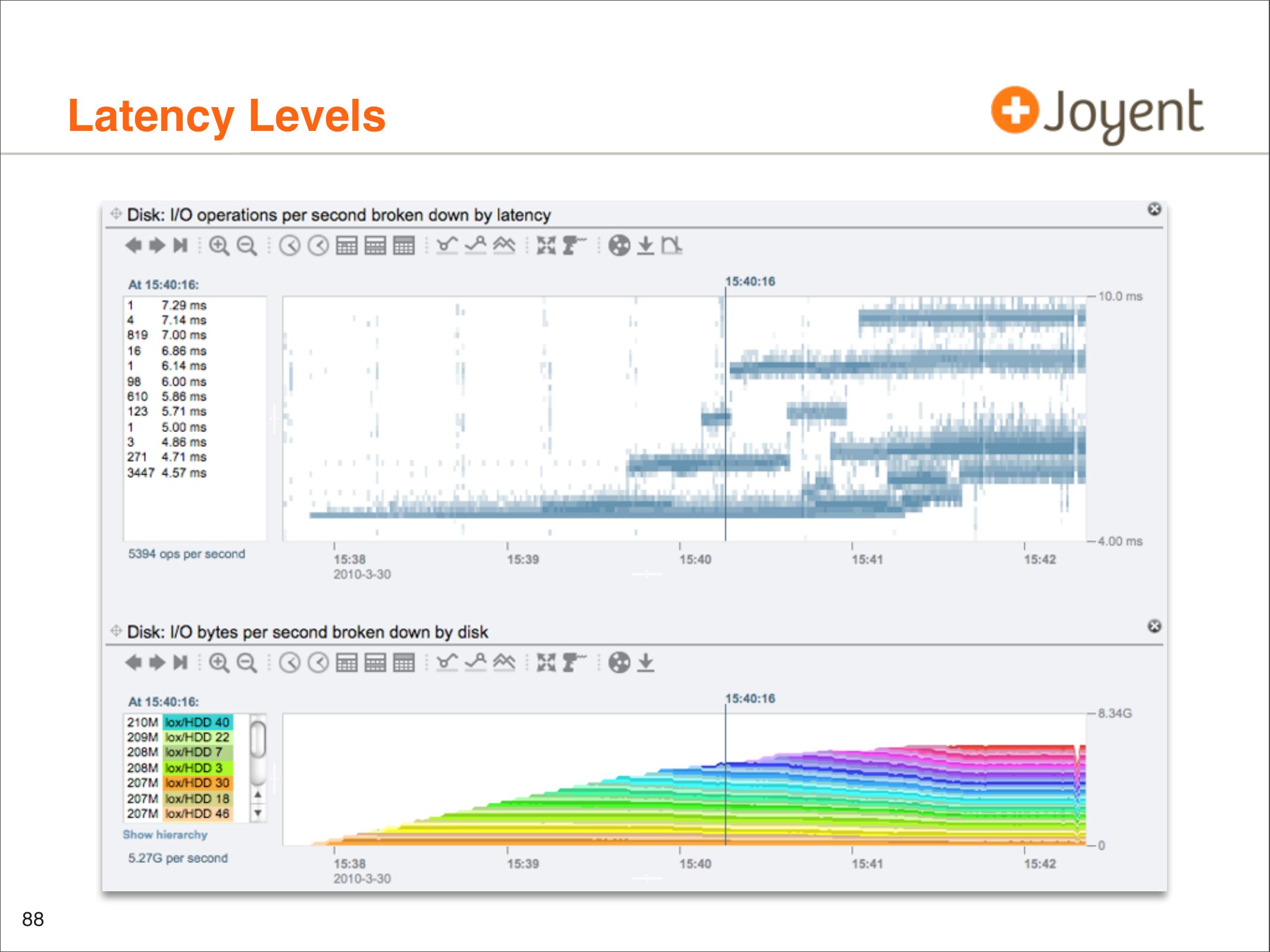

    Latency Levels

slide 89:

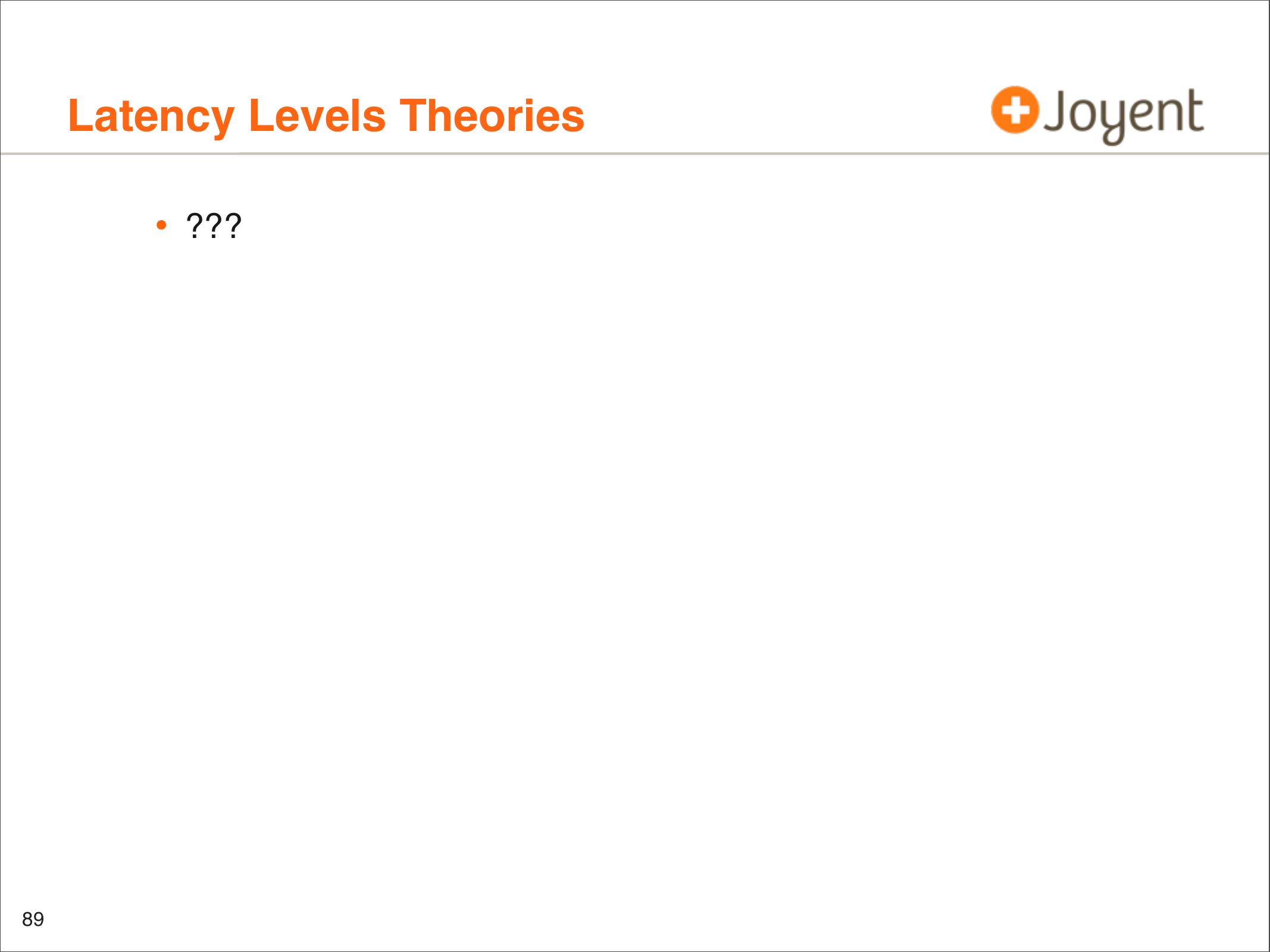

    Latency Levels Theories
    • ???

slide 90:

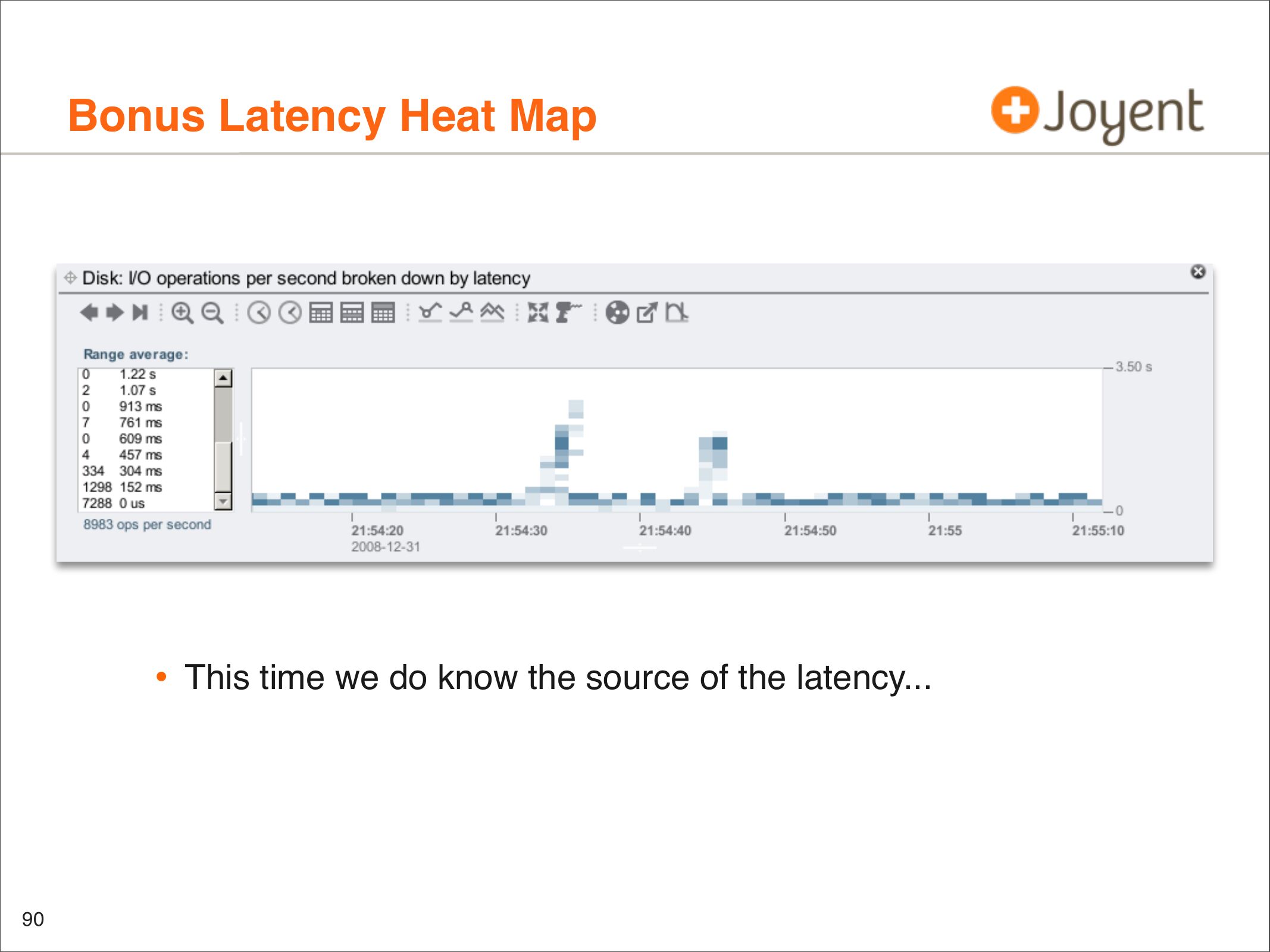

    Bonus Latency Heat Map
    • This time we do know the source of the latency...

slide 91:
    硬碟也會鬧情緒

slide 92:

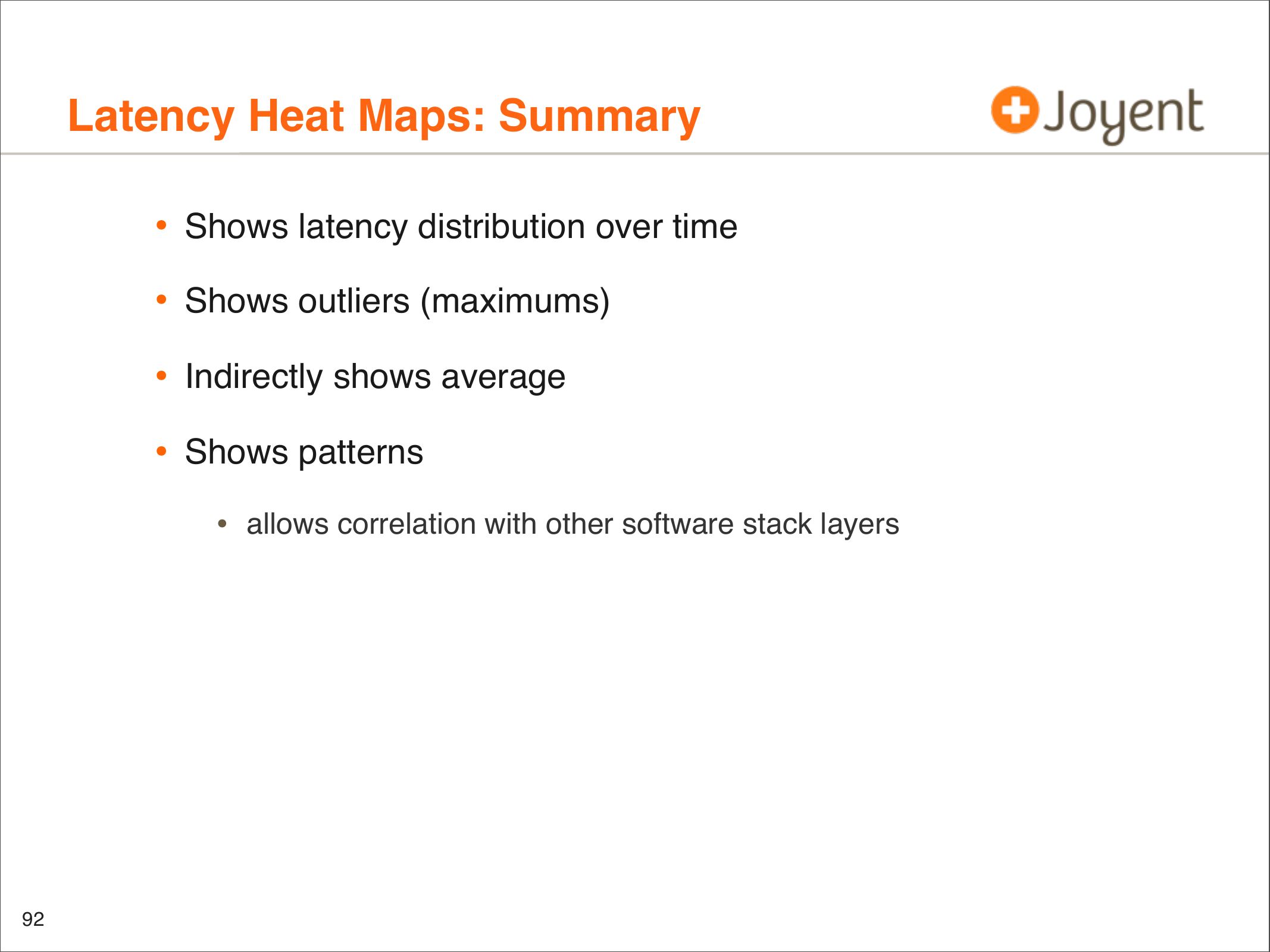

    Latency Heat Maps: Summary
    • Shows latency distribution over time
    • Shows outliers (maximums)
    • Indirectly shows average
    • Shows patterns
    • allows correlation with other software stack layers

slide 93:

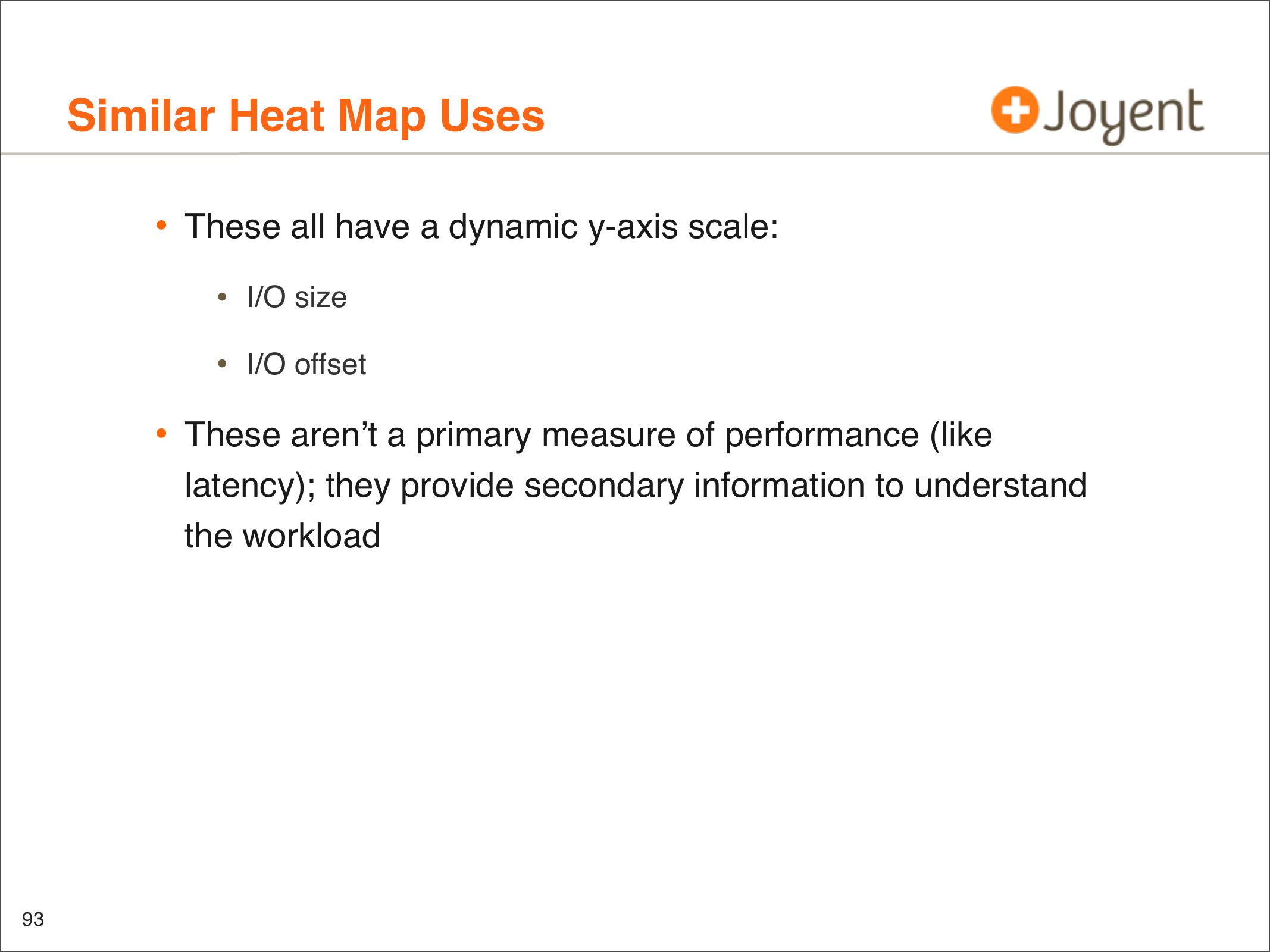

    Similar Heat Map Uses
    • These all have a dynamic y-axis scale:
    • I/O size
    • I/O offset
    • These aren’t a primary measure of performance (like
    latency); they provide secondary information to understand
    the workload

slide 94:
    Heat Map: I/O Offset
    • y-axis: I/O offset (in this case, NFSv3 file location)

slide 95:

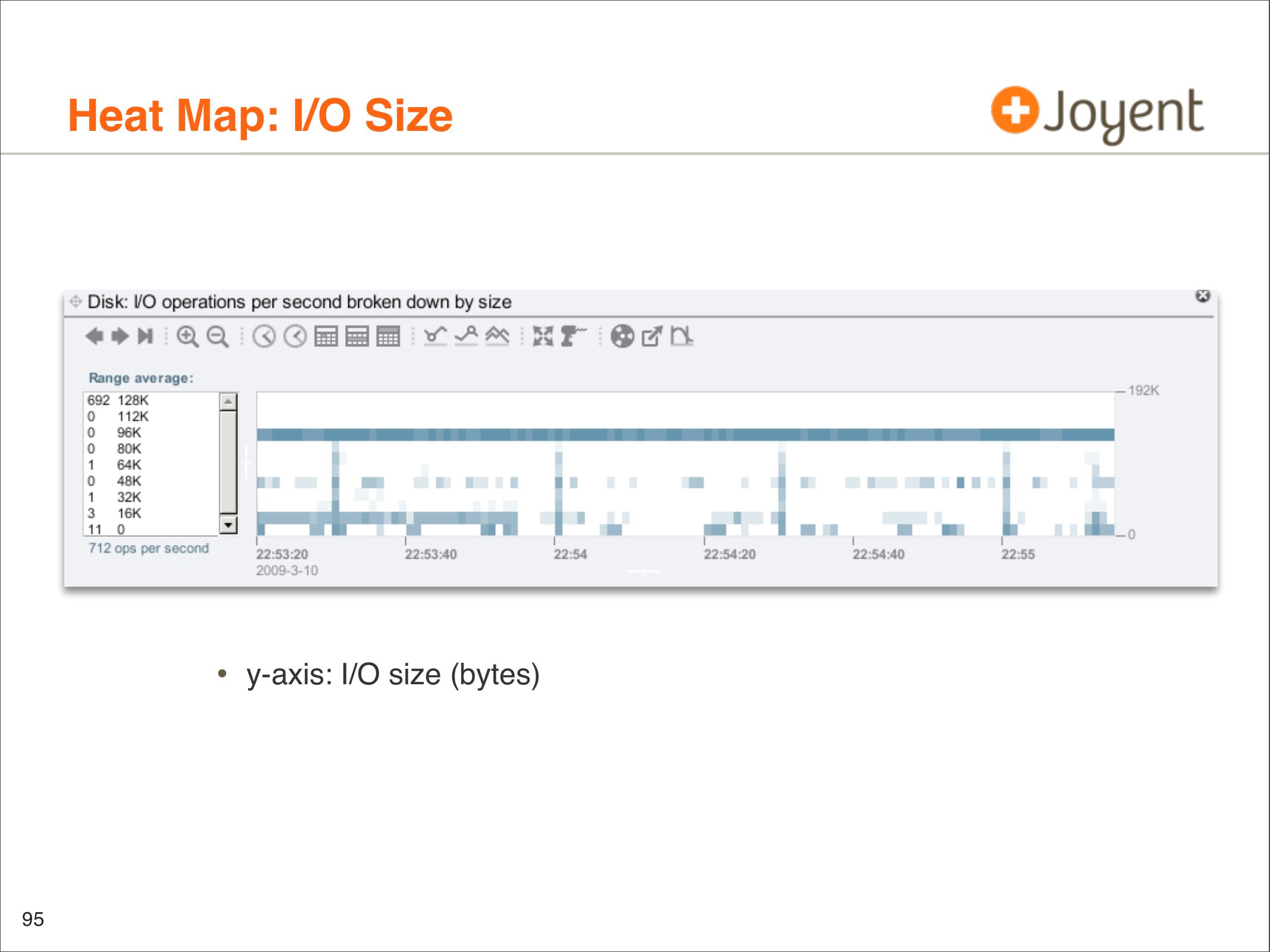

    Heat Map: I/O Size
    • y-axis: I/O size (bytes)

slide 96:

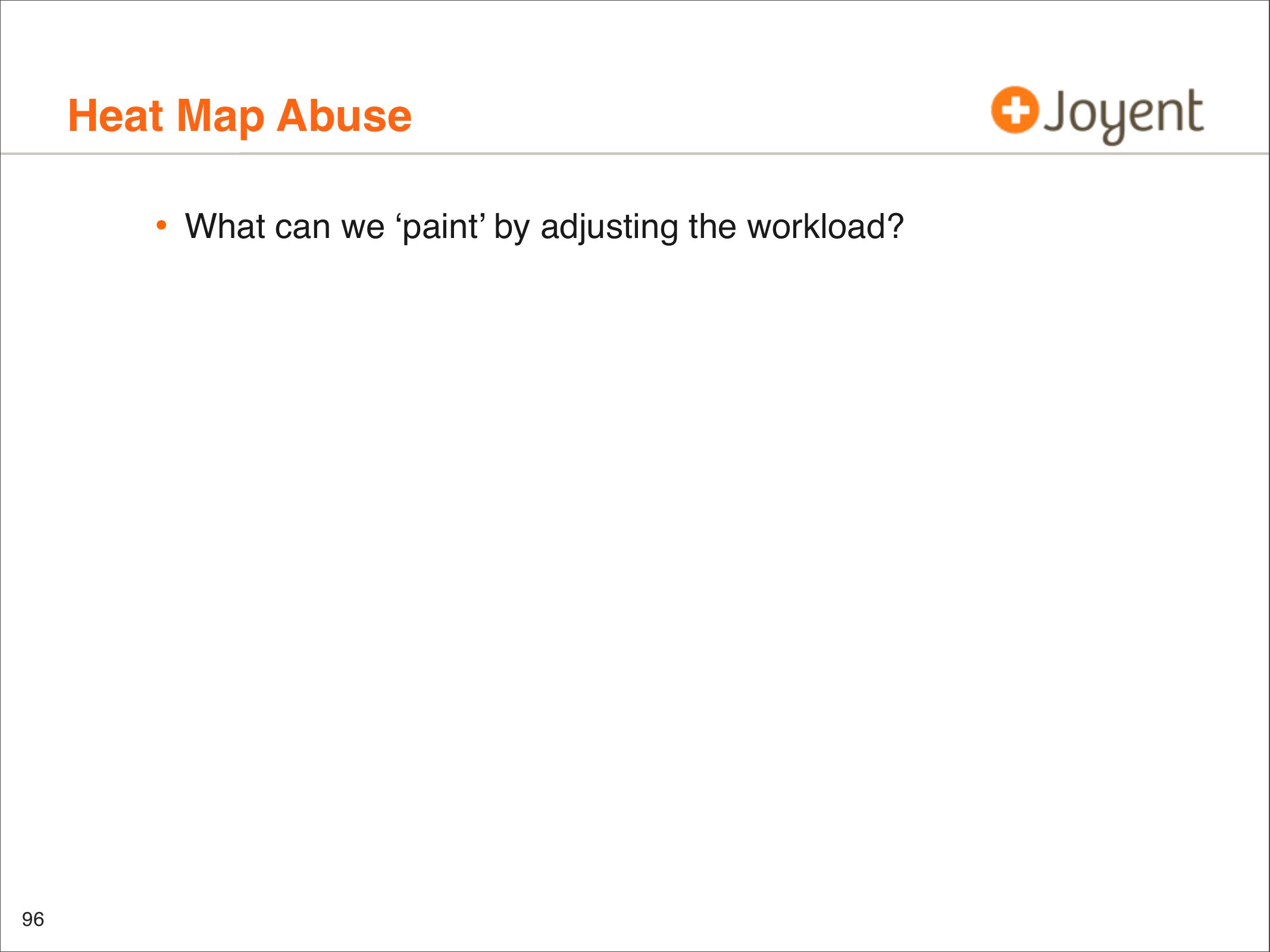

    Heat Map Abuse
    • What can we ‘paint’ by adjusting the workload?

slide 97:

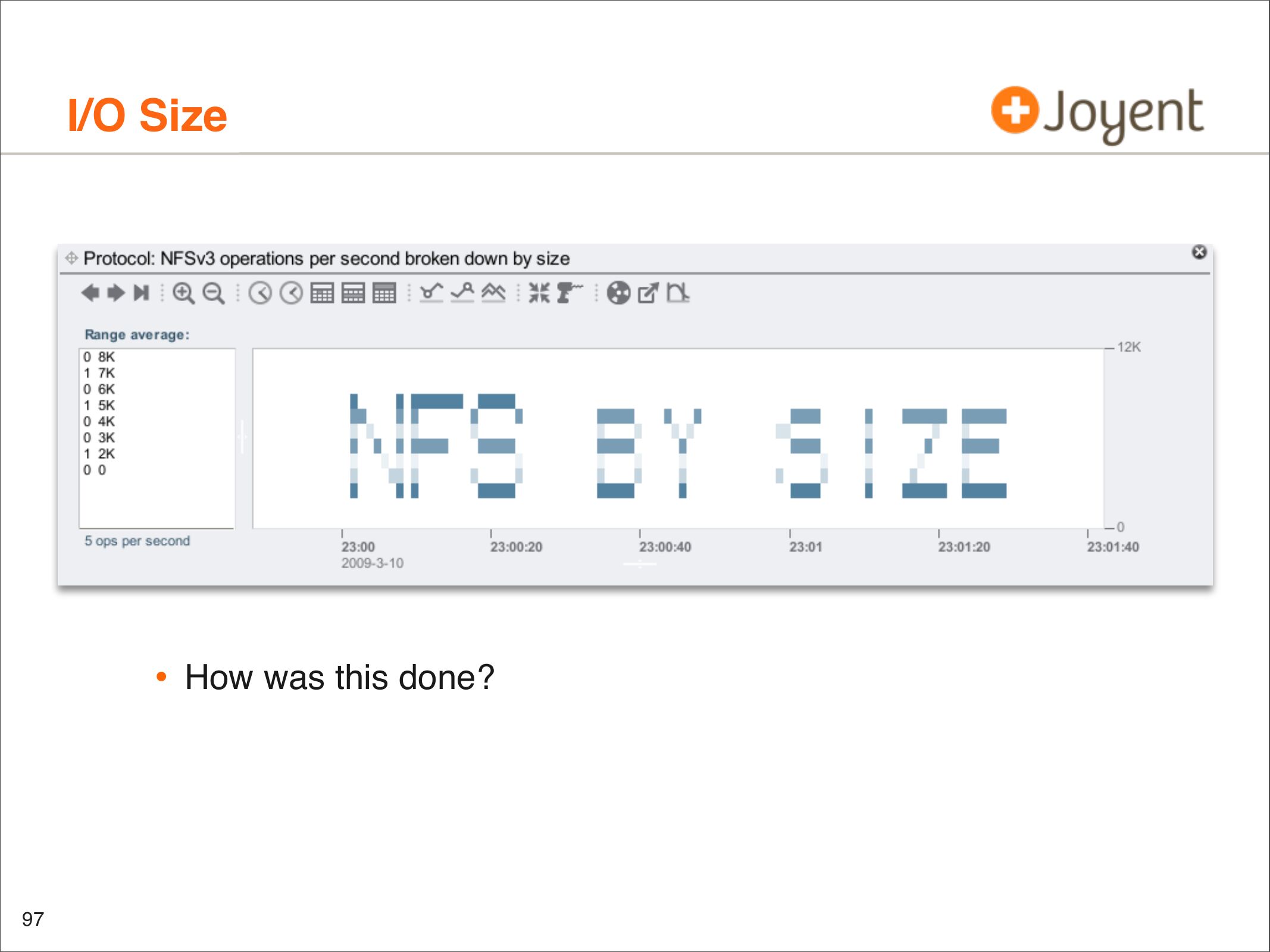

    I/O Size
    • How was this done?

slide 98:

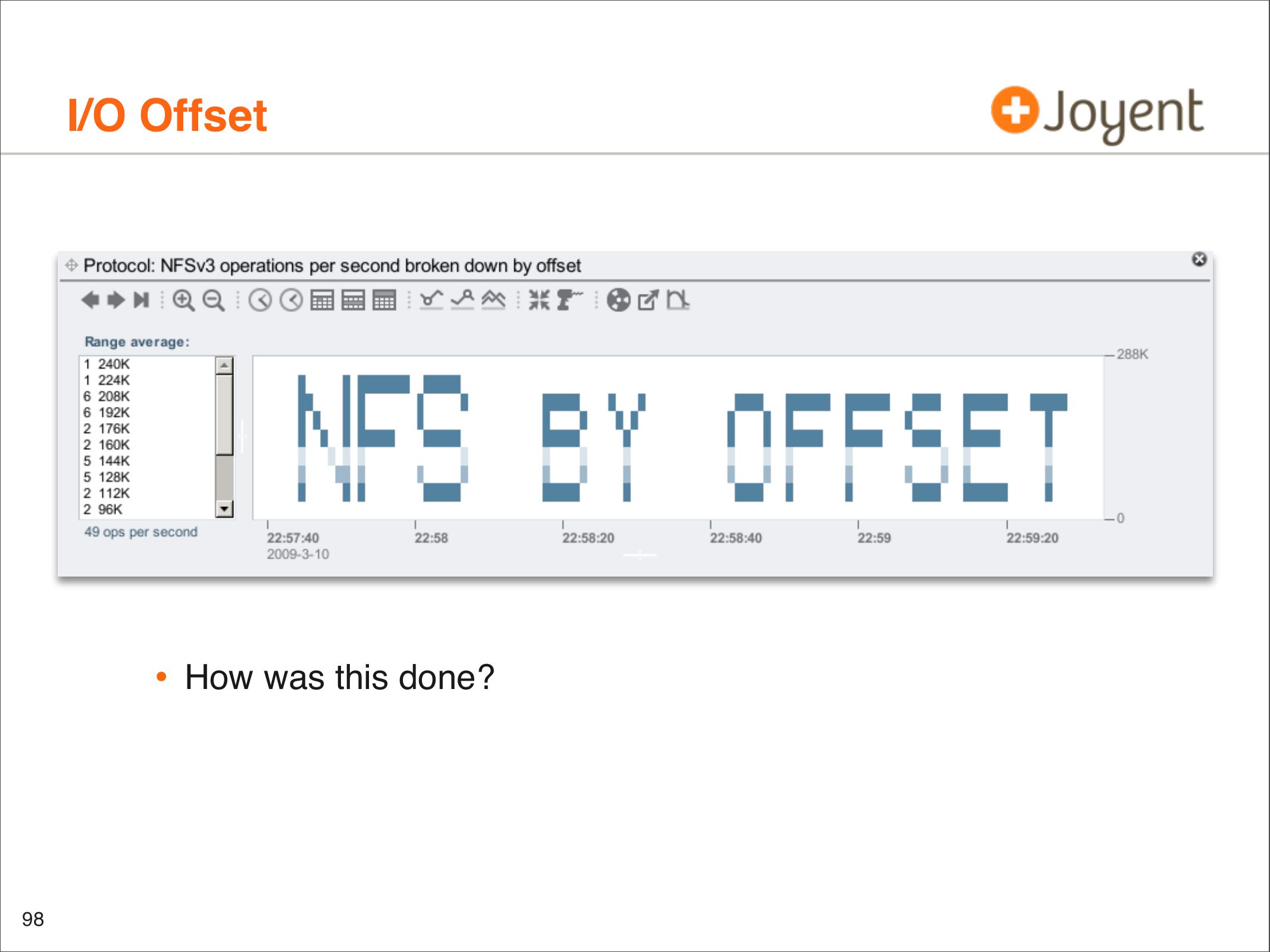

    I/O Offset
    • How was this done?

slide 99:

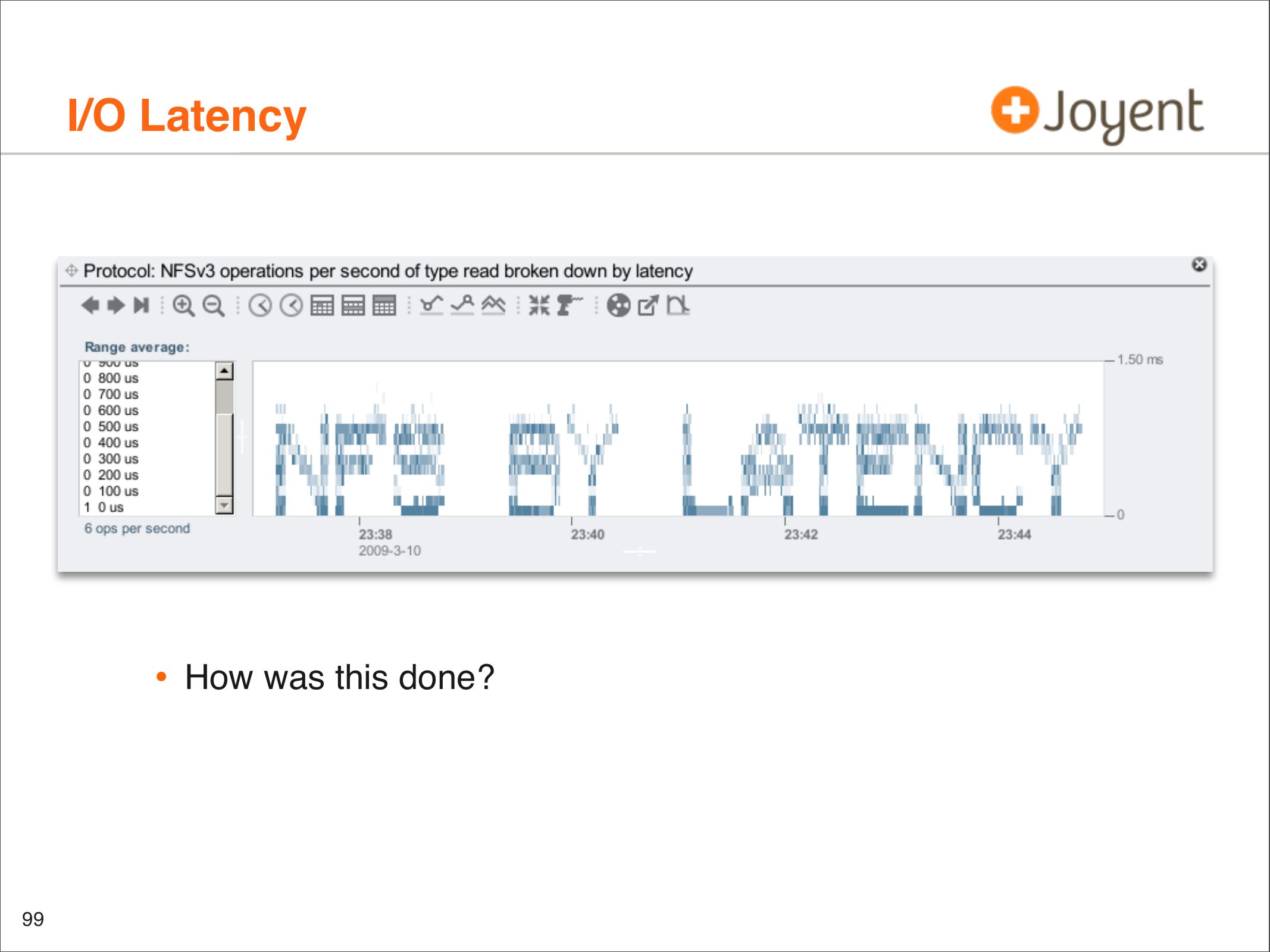

    I/O Latency
    • How was this done?

slide 100:
    Visualizations
    Current Examples
    Utilization

slide 101:

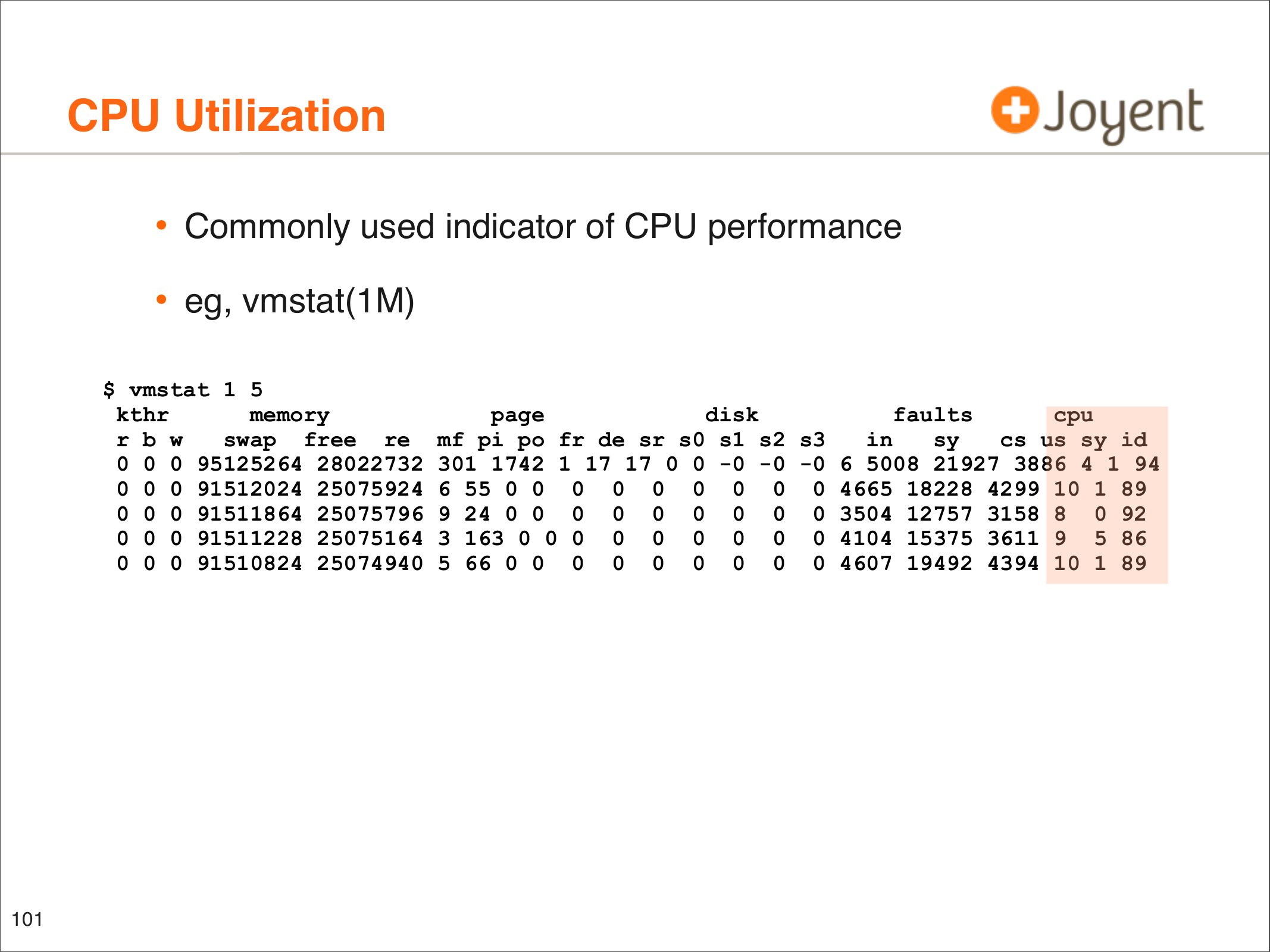

    CPU Utilization
    • Commonly used indicator of CPU performance
    • eg, vmstat(1M)
    $ vmstat 1 5
    kthr
    memory
    page
    disk
    faults
    cpu
    r b w
    swap free re mf pi po fr de sr s0 s1 s2 s3
    cs us sy id
    0 0 0 95125264 28022732 301 1742 1 17 17 0 0 -0 -0 -0 6 5008 21927 3886 4 1 94
    0 0 0 91512024 25075924 6 55 0 0 0 0 0 0 0 0 0 4665 18228 4299 10 1 89
    0 0 0 91511864 25075796 9 24 0 0 0 0 0 0 0 0 0 3504 12757 3158 8 0 92
    0 0 0 91511228 25075164 3 163 0 0 0 0 0 0 0 0 0 4104 15375 3611 9 5 86
    0 0 0 91510824 25074940 5 66 0 0 0 0 0 0 0 0 0 4607 19492 4394 10 1 89

slide 102:

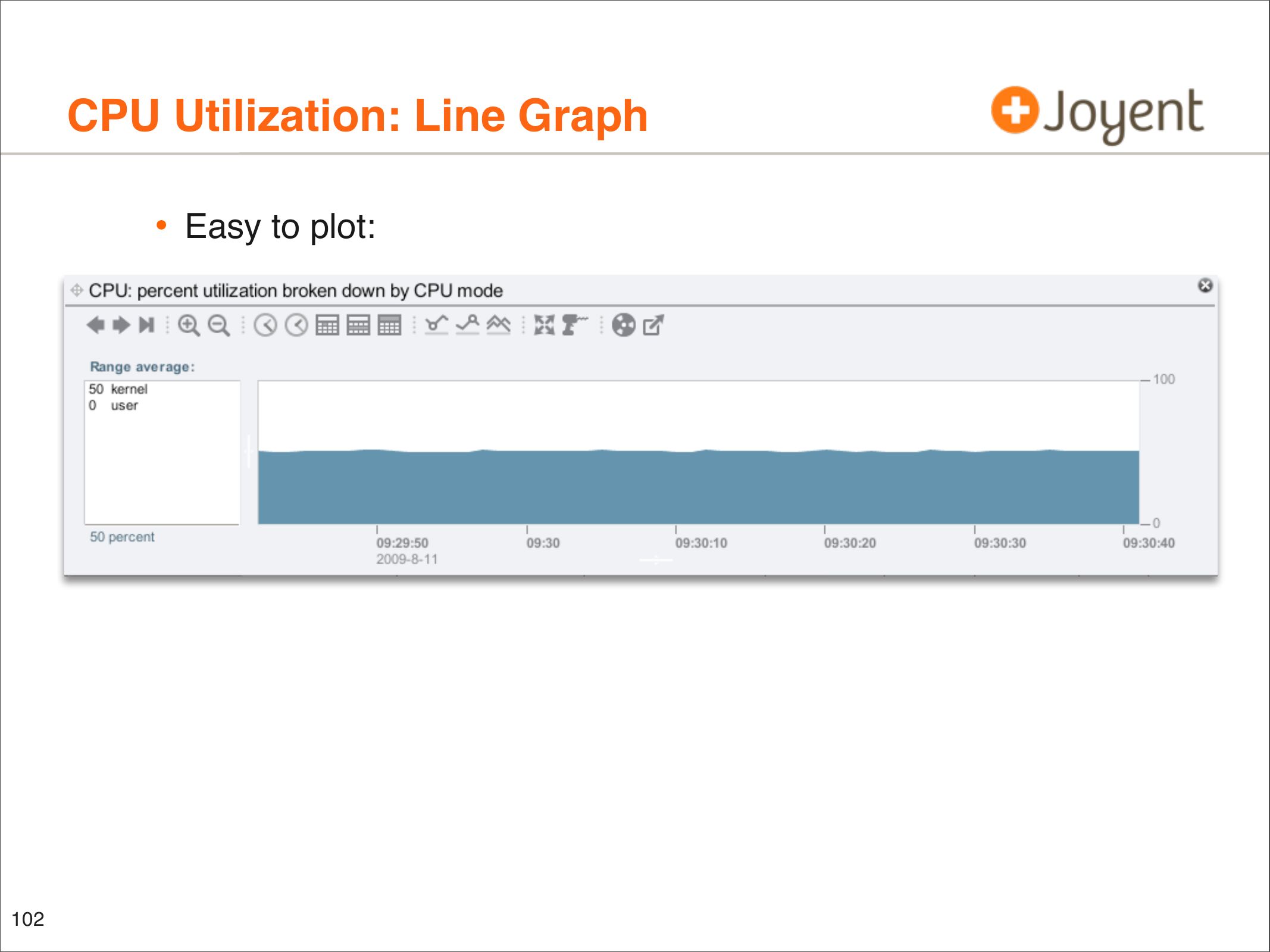

    CPU Utilization: Line Graph
    • Easy to plot:

slide 103:

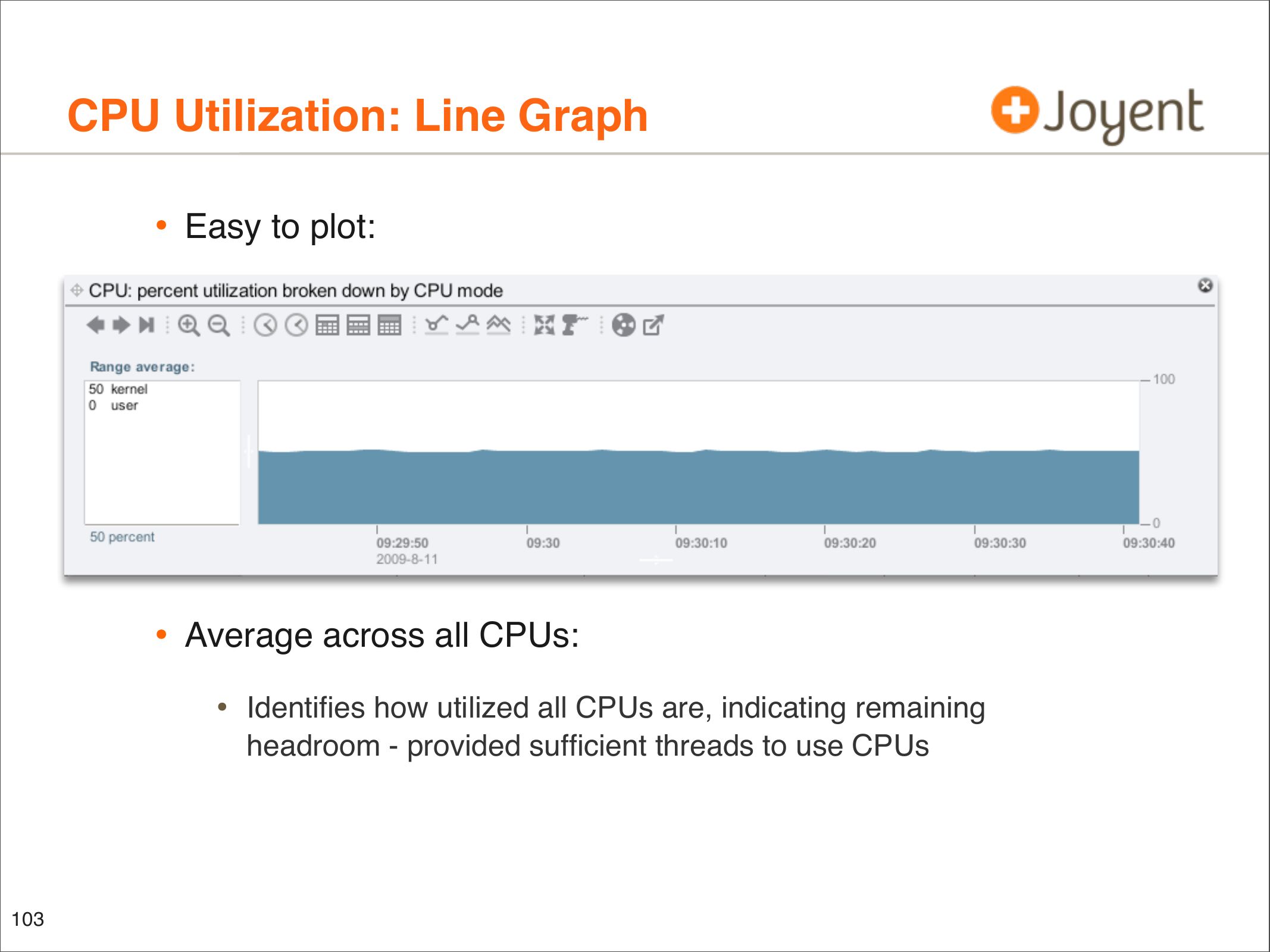

    CPU Utilization: Line Graph
    • Easy to plot:
    • Average across all CPUs:
    • Identifies how utilized all CPUs are, indicating remaining
    headroom - provided sufficient threads to use CPUs

slide 104:

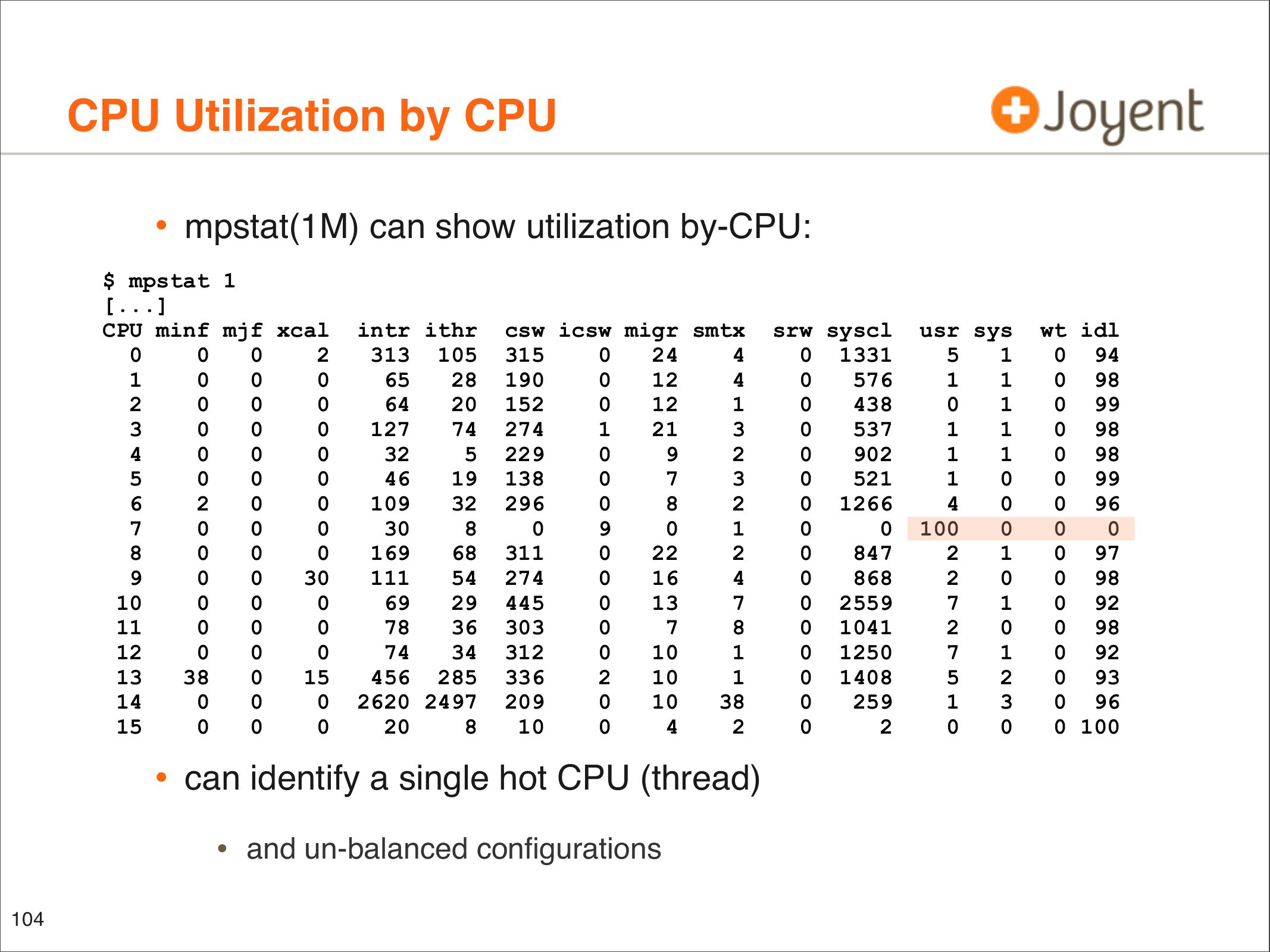

    CPU Utilization by CPU
    • mpstat(1M) can show utilization by-CPU:
    $ mpstat 1
    [...]
    CPU minf mjf xcal
    intr ithr
    313 105
    456 285
    2620 2497
    csw icsw migr smtx
    • can identify a single hot CPU (thread)
    • and un-balanced configurations
    srw syscl
    0 1331
    0 1266
    0 2559
    0 1041
    0 1250
    0 1408
    usr sys
    wt idl
    0 94
    0 98
    0 99
    0 98
    0 98
    0 99
    0 96
    0 97
    0 98
    0 92
    0 98
    0 92
    0 93
    0 96
    0 100

slide 105:

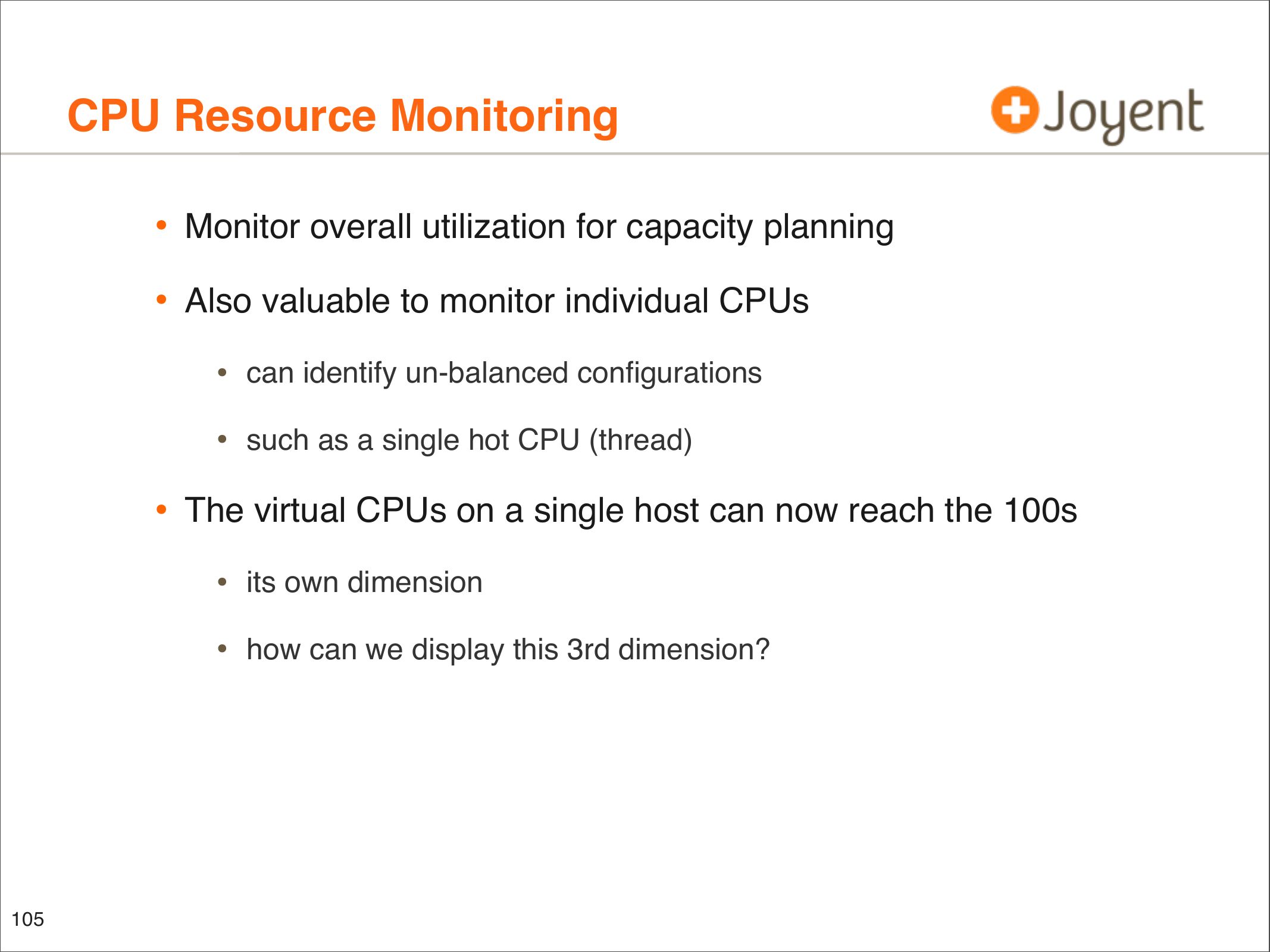

    CPU Resource Monitoring
    • Monitor overall utilization for capacity planning
    • Also valuable to monitor individual CPUs
    • can identify un-balanced configurations
    • such as a single hot CPU (thread)
    • The virtual CPUs on a single host can now reach the 100s
    • its own dimension
    • how can we display this 3rd dimension?

slide 106:
    Heat Map: CPU Utilization
    100%
    60s
    • x-axis: time
    • y-axis: percent utilization
    • z-axis (color saturation): # of CPUs in that time/utilization range

slide 107:

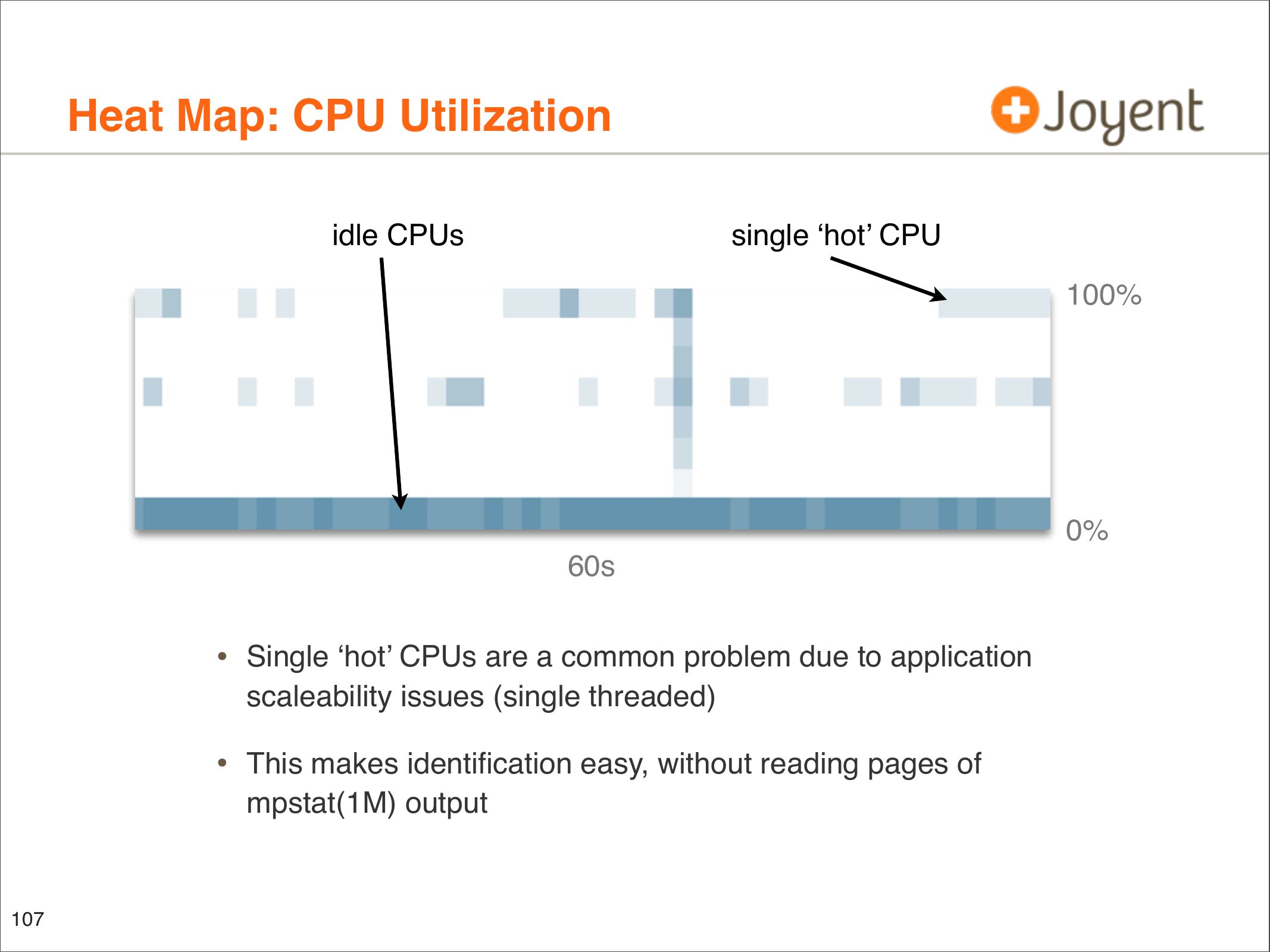

    Heat Map: CPU Utilization
    idle CPUs
    single ‘hot’ CPU
    100%
    60s
    • Single ‘hot’ CPUs are a common problem due to application
    scaleability issues (single threaded)
    • This makes identification easy, without reading pages of
    mpstat(1M) output

slide 108:

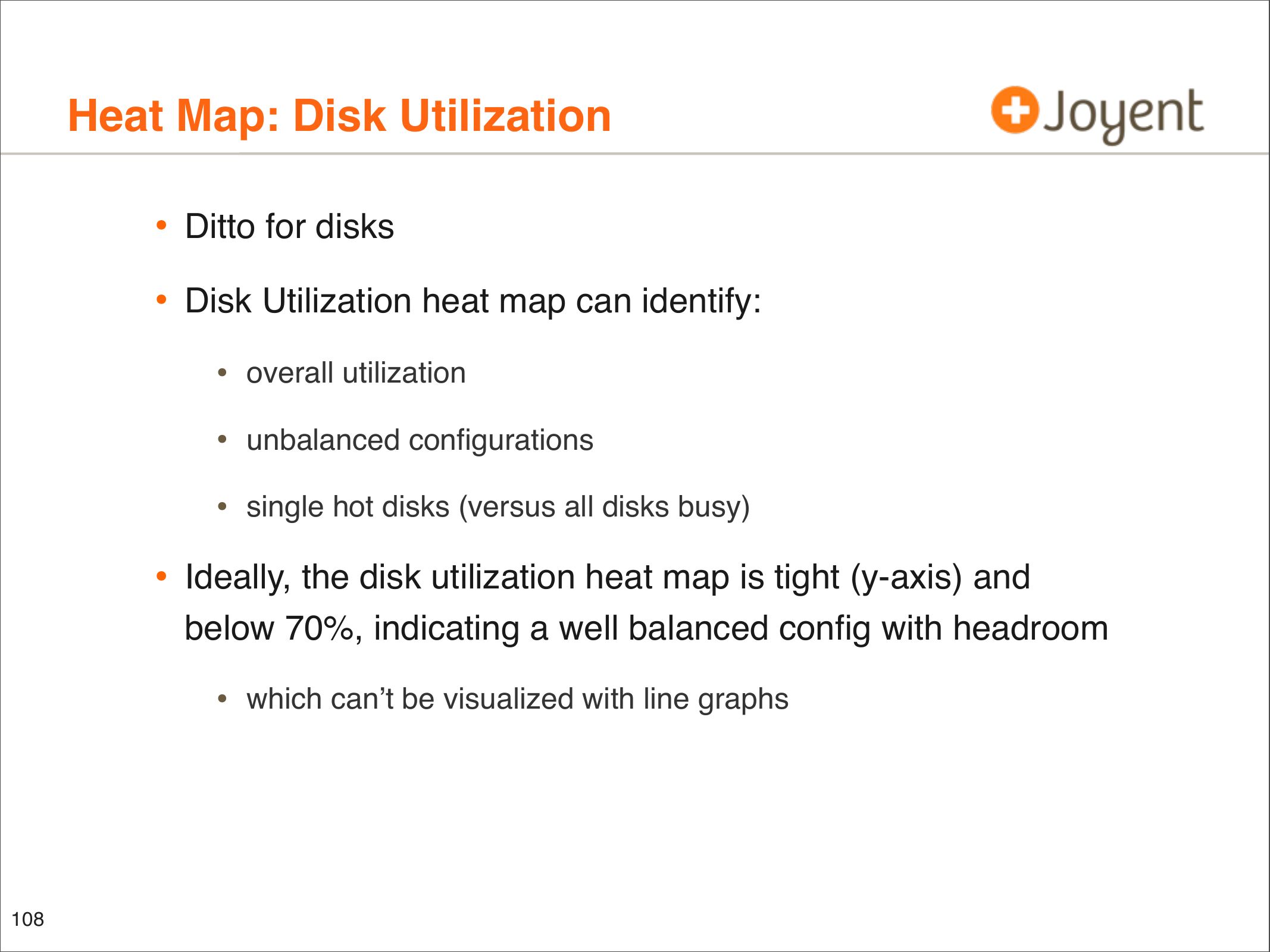

    Heat Map: Disk Utilization
    • Ditto for disks
    • Disk Utilization heat map can identify:
    • overall utilization
    • unbalanced configurations
    • single hot disks (versus all disks busy)
    • Ideally, the disk utilization heat map is tight (y-axis) and
    below 70%, indicating a well balanced config with headroom
    • which can’t be visualized with line graphs

slide 109:

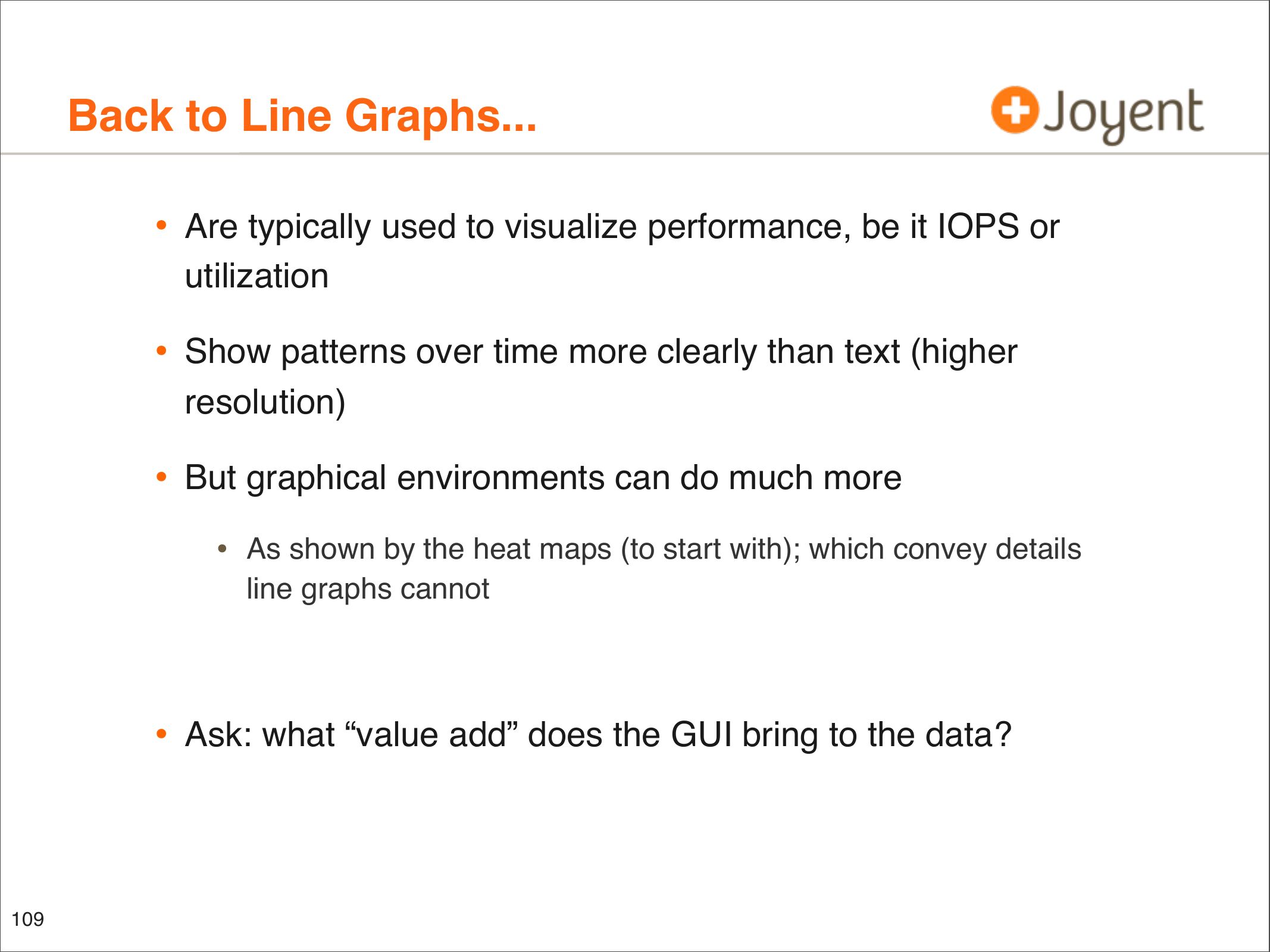

    Back to Line Graphs...
    • Are typically used to visualize performance, be it IOPS or
    utilization
    • Show patterns over time more clearly than text (higher
    resolution)
    • But graphical environments can do much more
    • As shown by the heat maps (to start with); which convey details
    line graphs cannot
    • Ask: what “value add” does the GUI bring to the data?

slide 110:

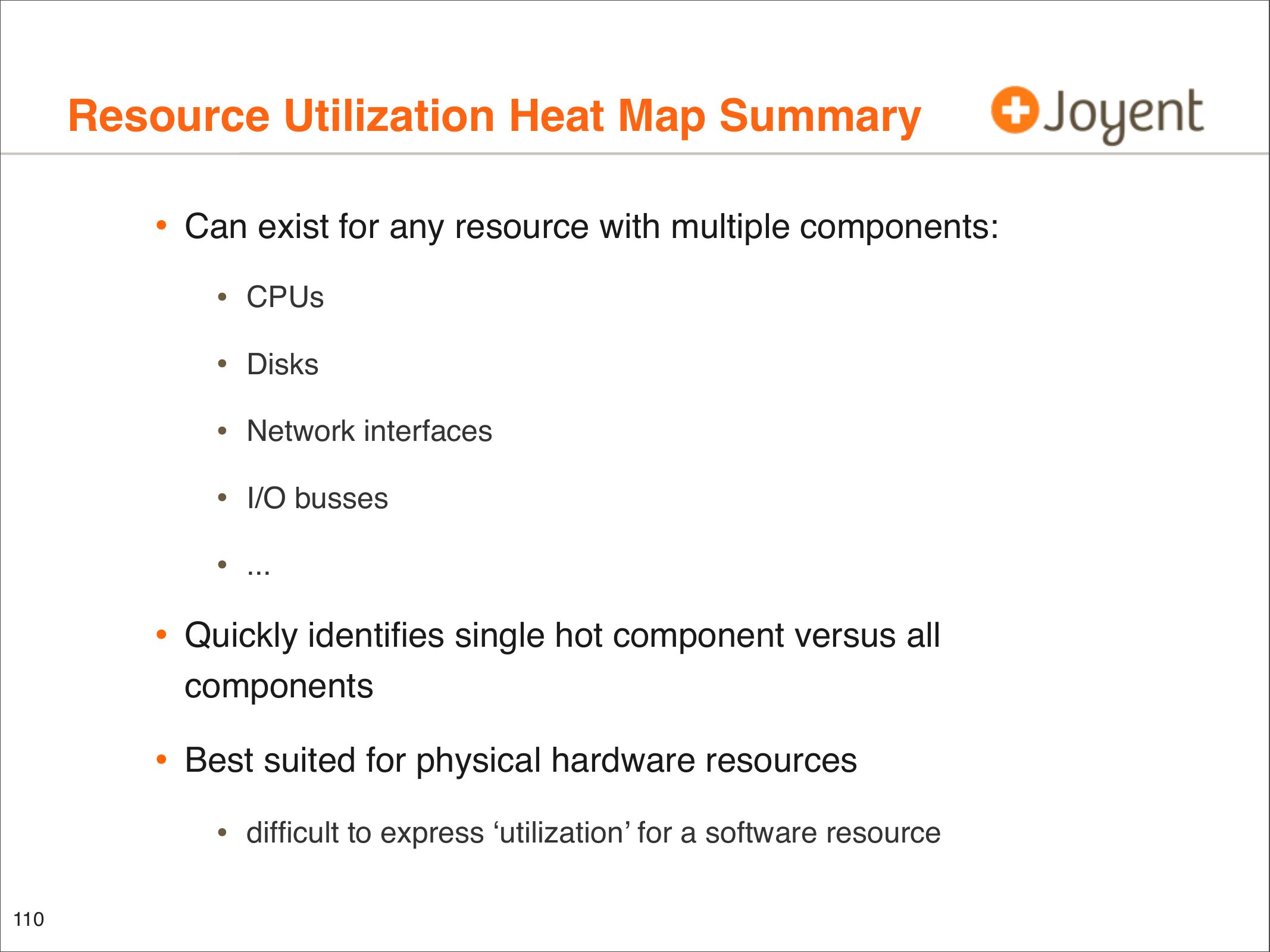

    Resource Utilization Heat Map Summary
    • Can exist for any resource with multiple components:
    • CPUs
    • Disks
    • Network interfaces
    • I/O busses
    • ...
    • Quickly identifies single hot component versus all
    components
    • Best suited for physical hardware resources
    • difficult to express ‘utilization’ for a software resource

slide 111:

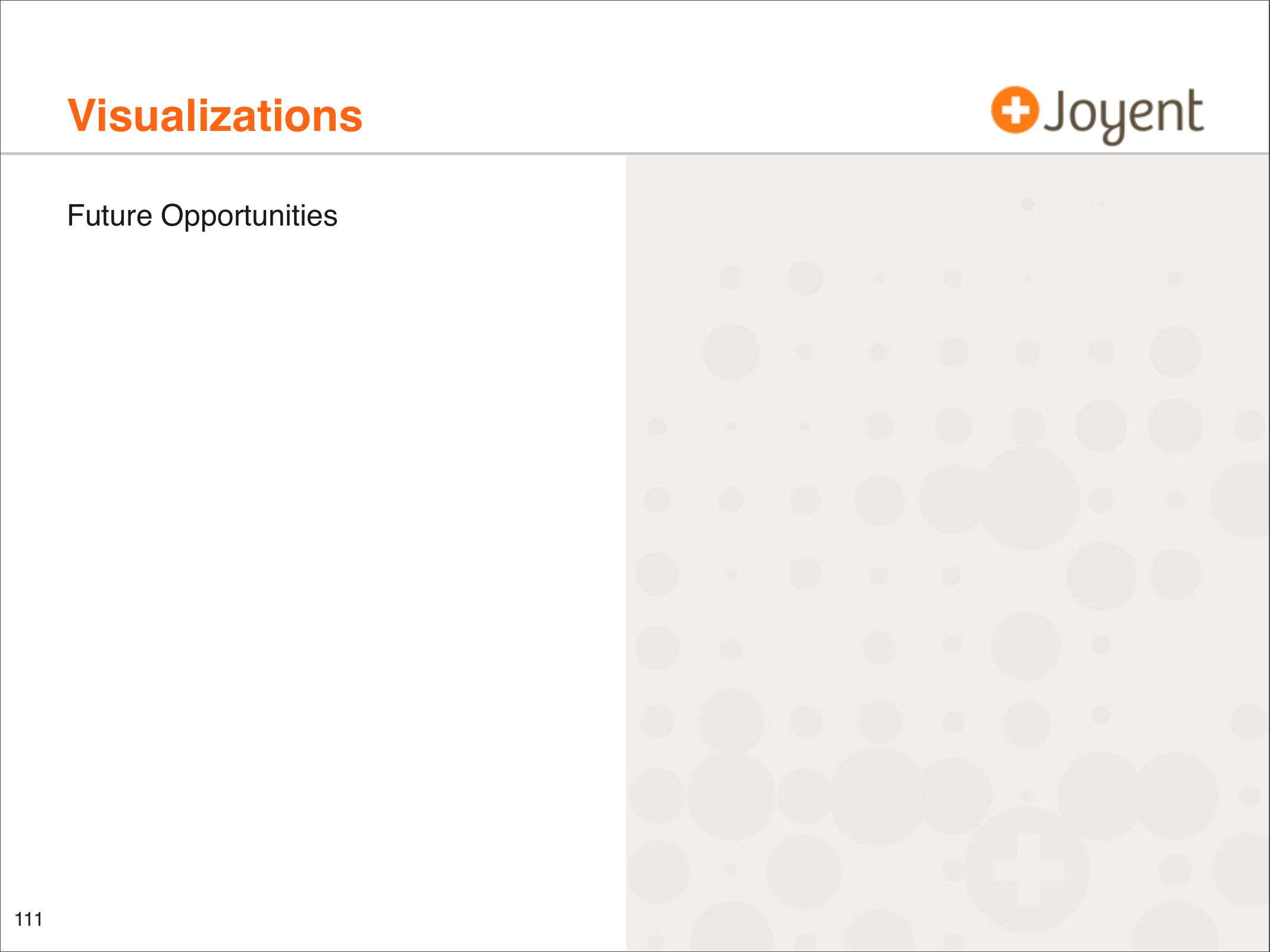

    Visualizations
    Future Opportunities

slide 112:

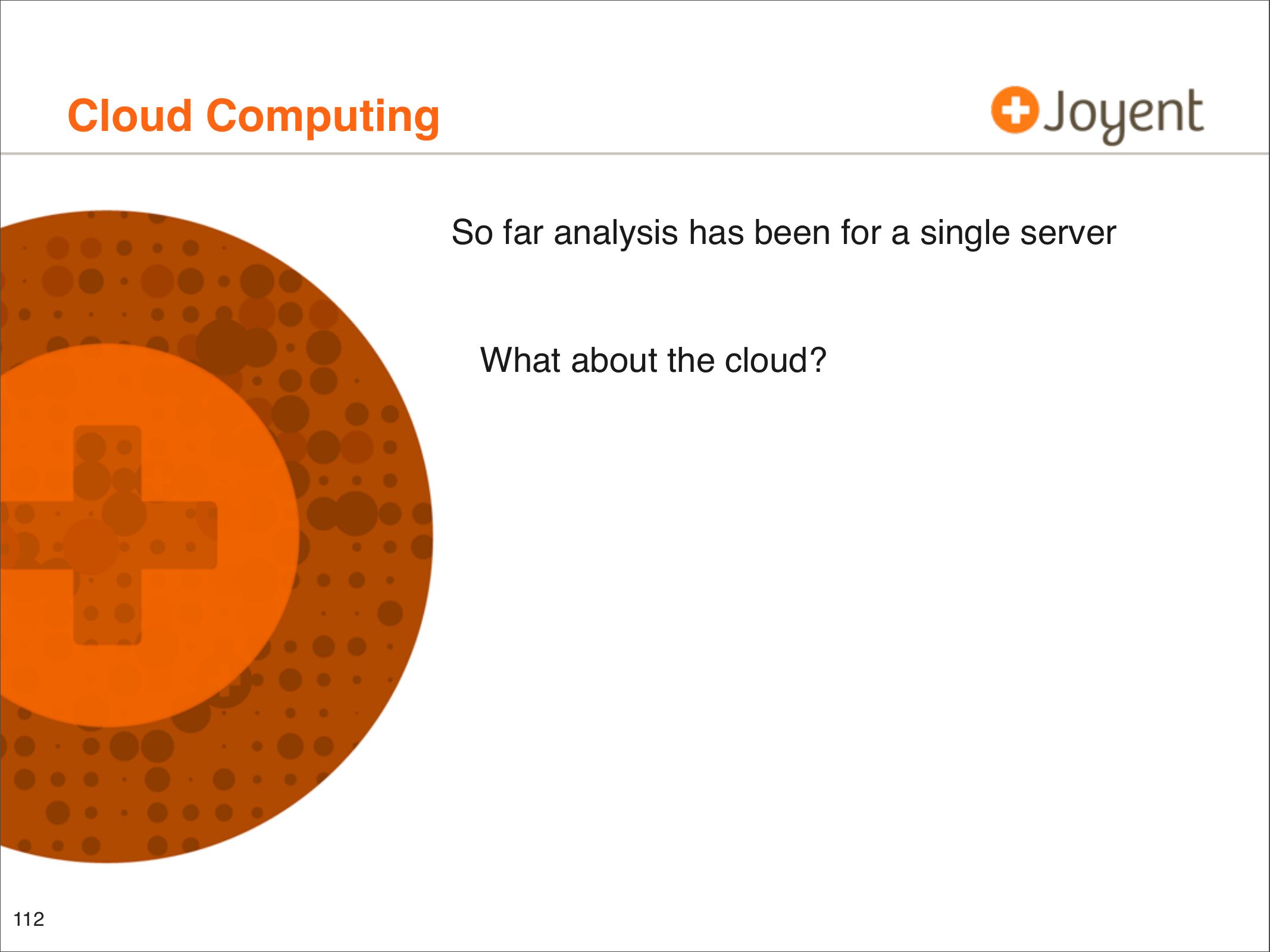

    Cloud Computing
    So far analysis has been for a single server
    What about the cloud?

slide 113:

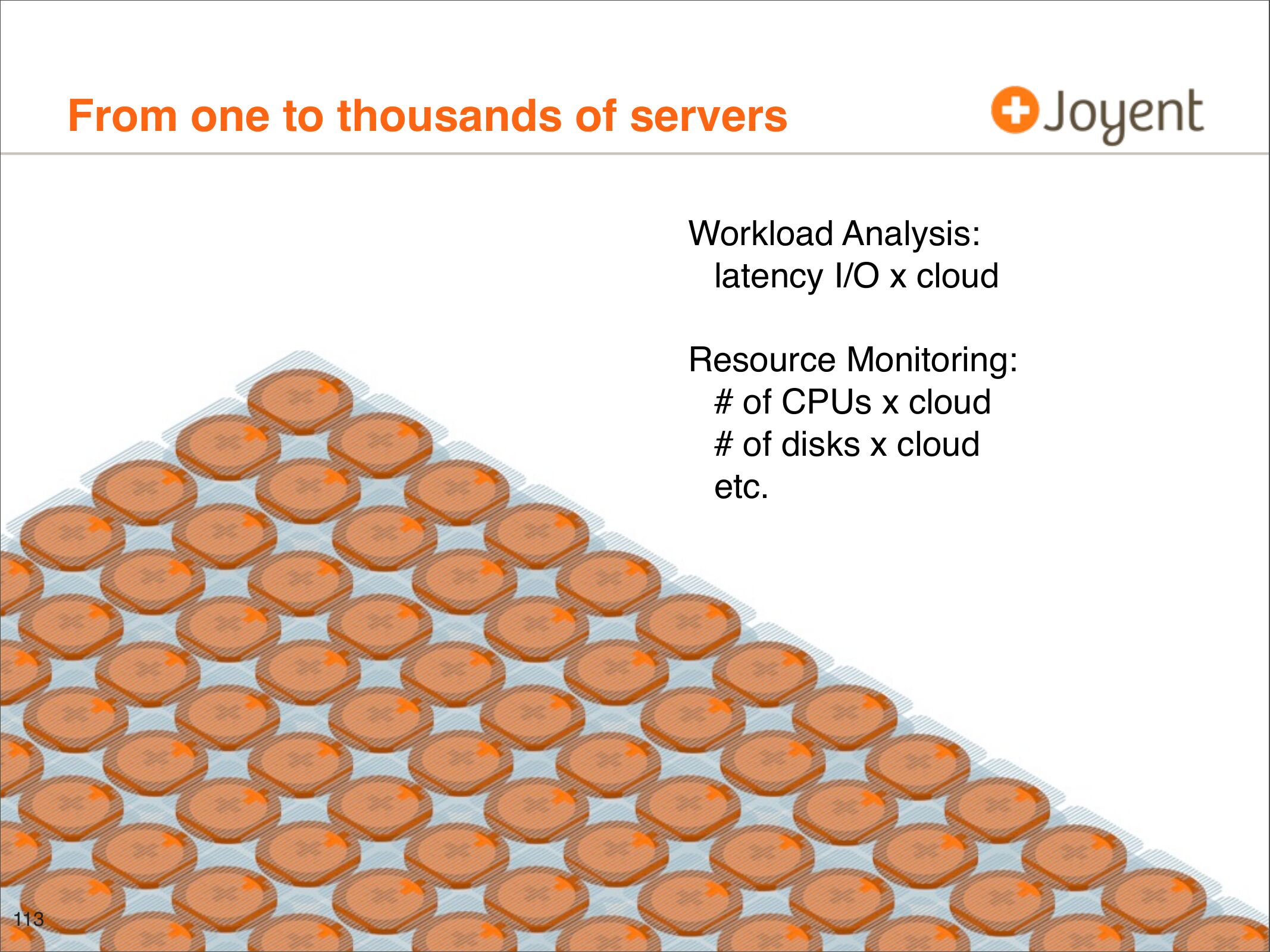

    From one to thousands of servers
    Workload Analysis:
    latency I/O x cloud
    Resource Monitoring:
    # of CPUs x cloud
    # of disks x cloud
    etc.

slide 114:

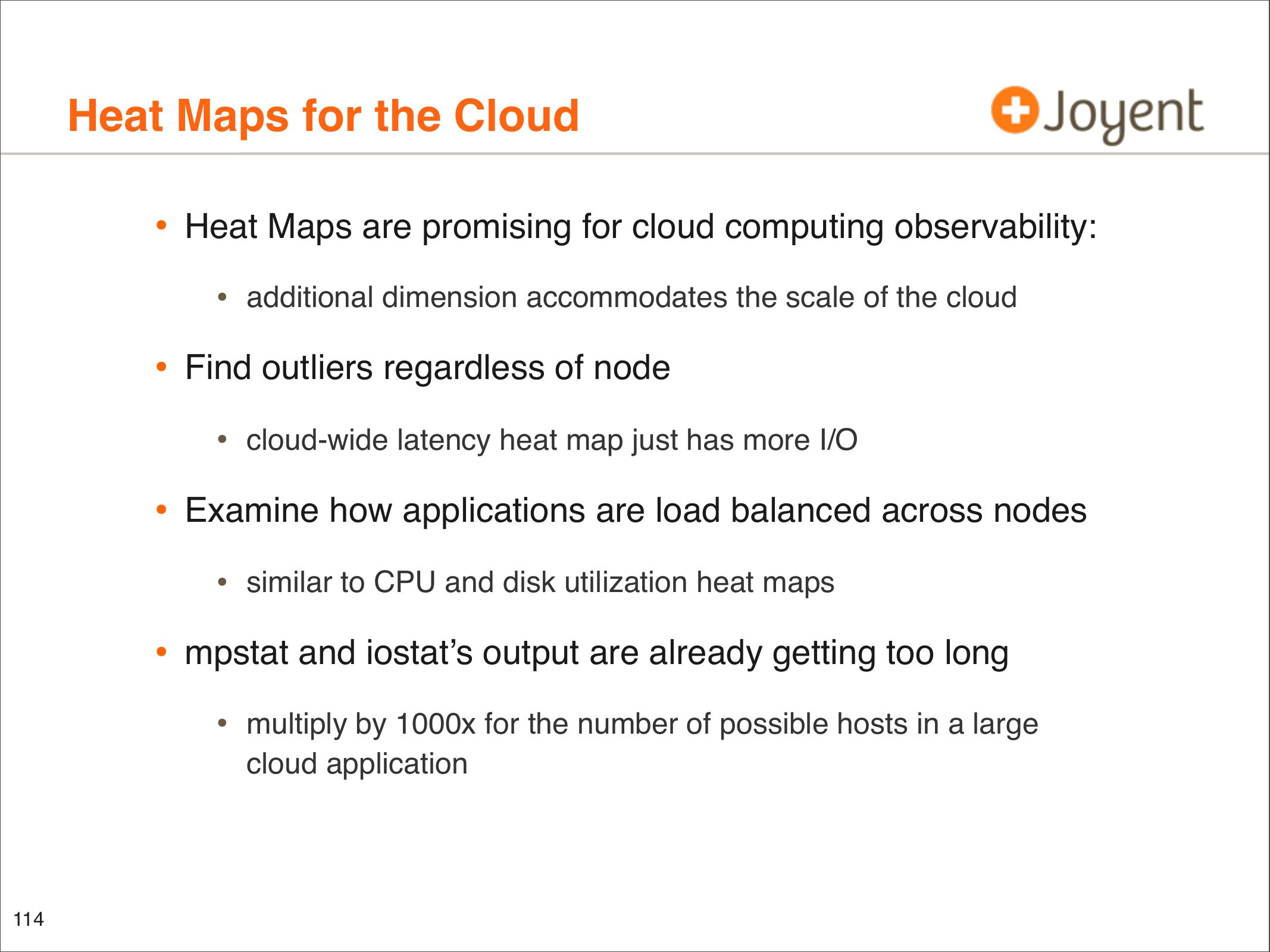

    Heat Maps for the Cloud
    • Heat Maps are promising for cloud computing observability:
    • additional dimension accommodates the scale of the cloud
    • Find outliers regardless of node
    • cloud-wide latency heat map just has more I/O
    • Examine how applications are load balanced across nodes
    • similar to CPU and disk utilization heat maps
    • mpstat and iostat’s output are already getting too long
    • multiply by 1000x for the number of possible hosts in a large
    cloud application

slide 115:

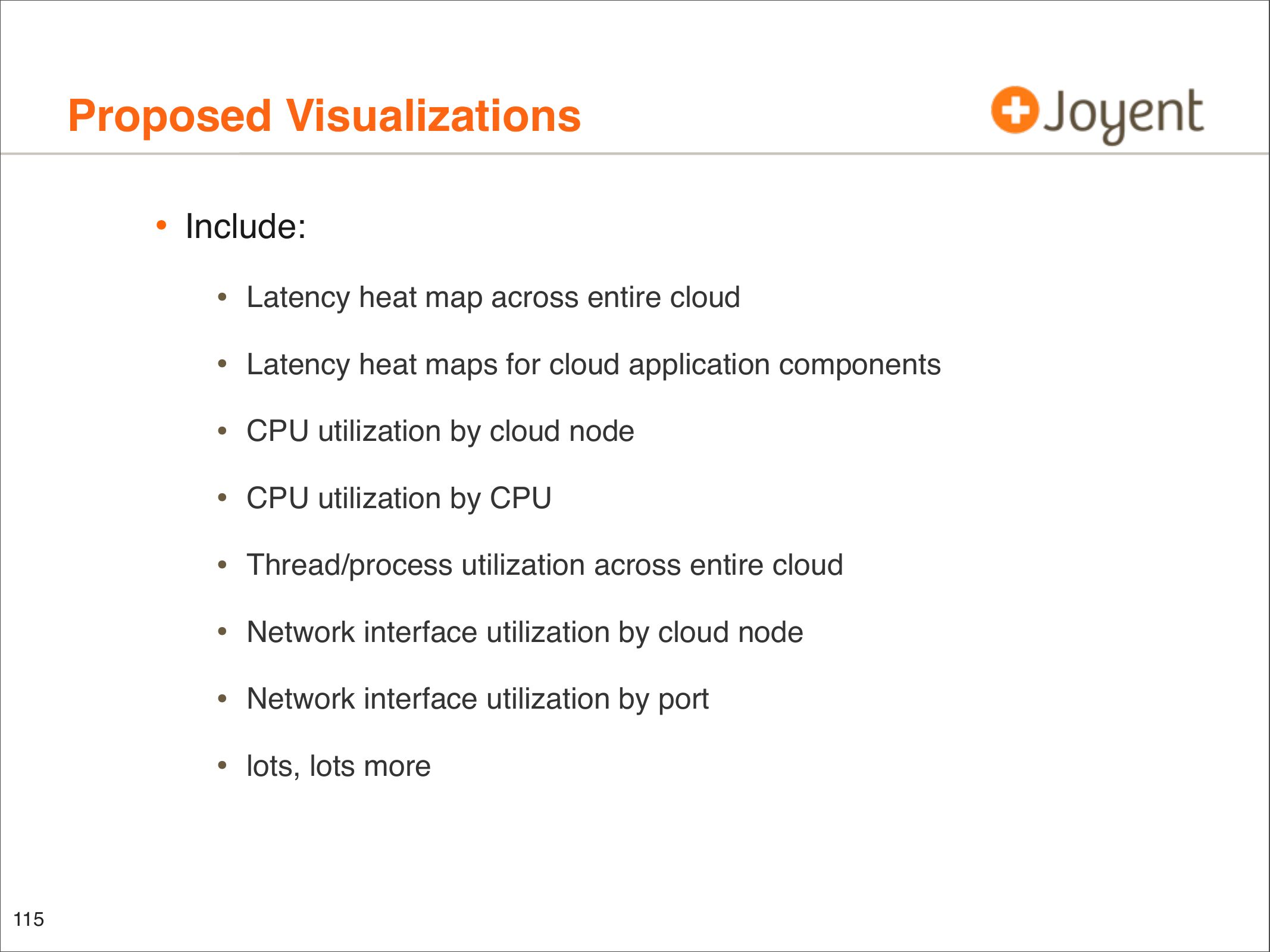

    Proposed Visualizations
    • Include:
    • Latency heat map across entire cloud
    • Latency heat maps for cloud application components
    • CPU utilization by cloud node
    • CPU utilization by CPU
    • Thread/process utilization across entire cloud
    • Network interface utilization by cloud node
    • Network interface utilization by port
    • lots, lots more

slide 116:

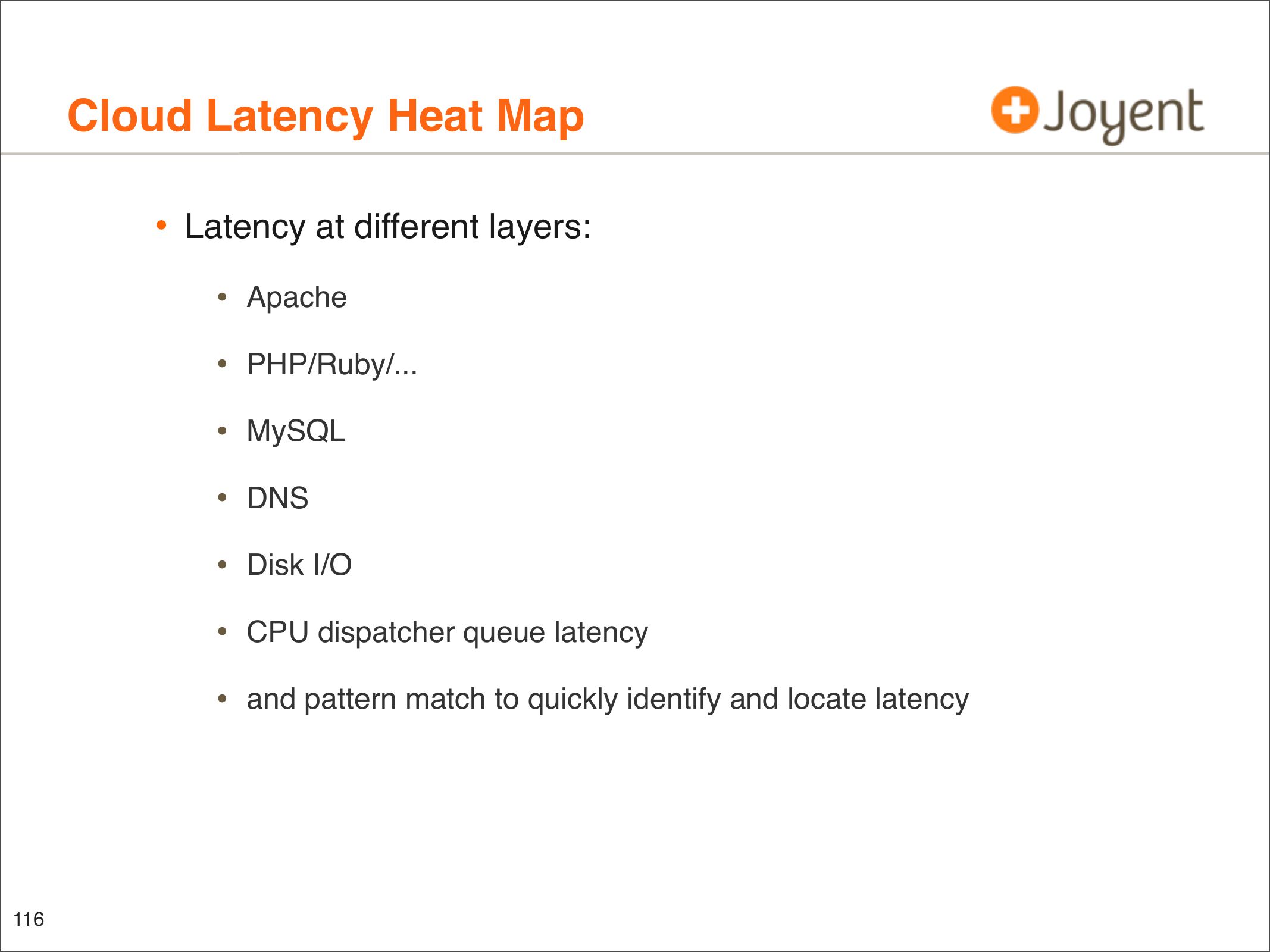

    Cloud Latency Heat Map
    • Latency at different layers:
    • Apache
    • PHP/Ruby/...
    • MySQL
    • DNS
    • Disk I/O
    • CPU dispatcher queue latency
    • and pattern match to quickly identify and locate latency

slide 117:

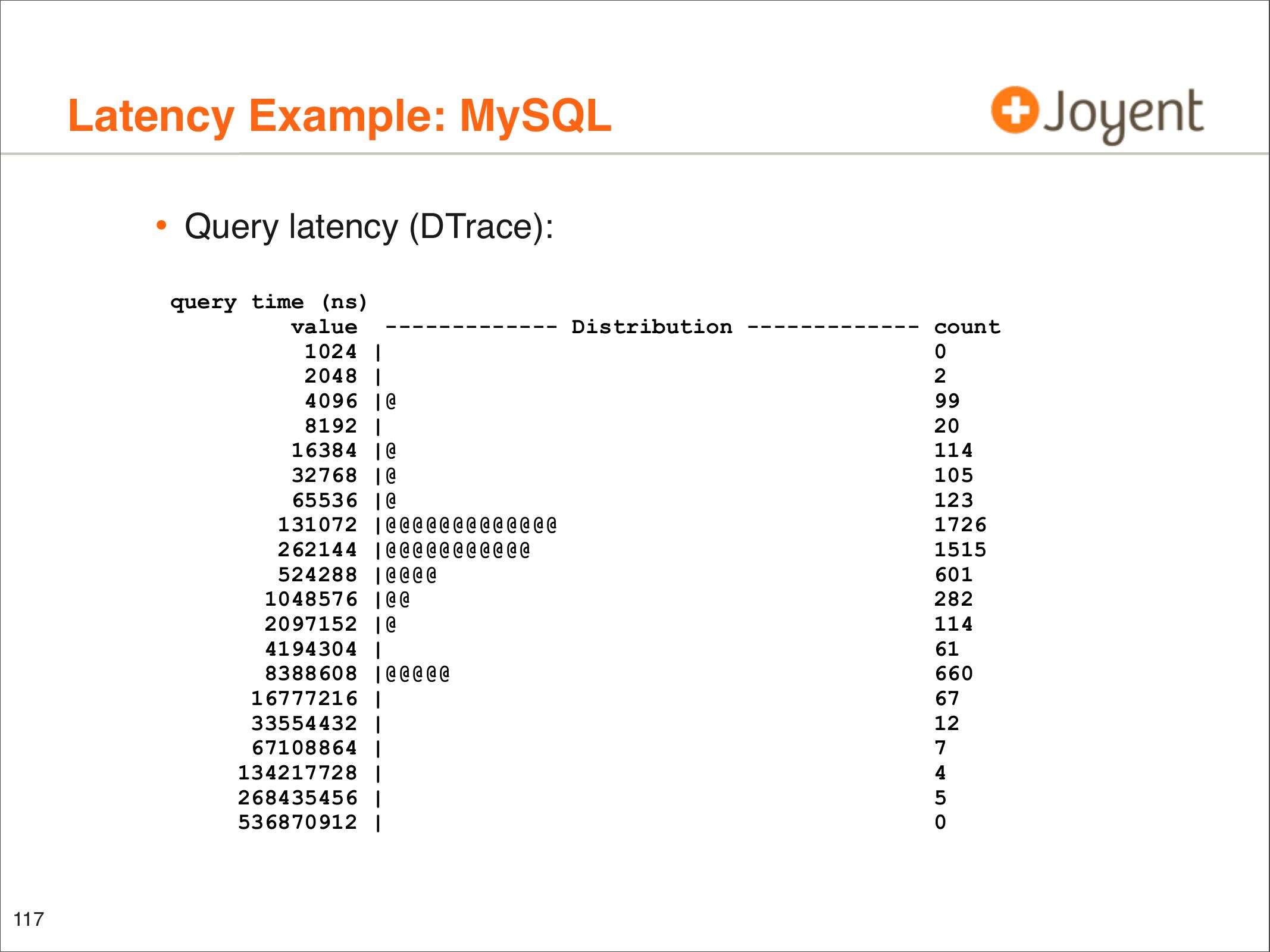

    Latency Example: MySQL
    • Query latency (DTrace):
    query time (ns)
    value ------------- Distribution ------------- count
    1024 |
    2048 |
    4096 |@
    8192 |
    16384 |@
    32768 |@
    65536 |@
    131072 |@@@@@@@@@@@@@
    262144 |@@@@@@@@@@@
    524288 |@@@@
    1048576 |@@
    2097152 |@
    4194304 |
    8388608 |@@@@@
    16777216 |
    33554432 |
    67108864 |
    134217728 |
    268435456 |
    536870912 |

slide 118:

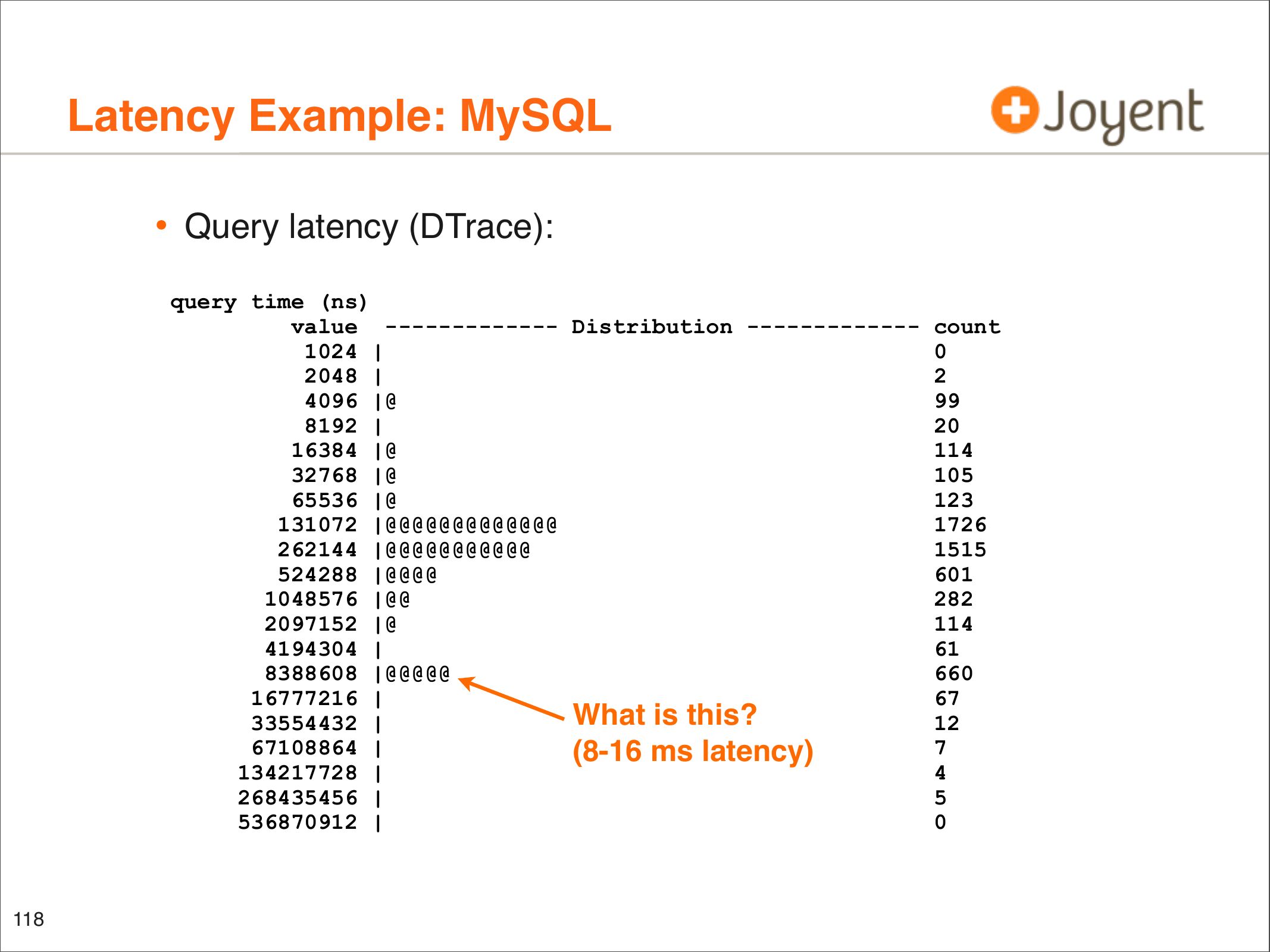

    Latency Example: MySQL
    • Query latency (DTrace):
    query time (ns)
    value ------------- Distribution ------------- count
    1024 |
    2048 |
    4096 |@
    8192 |
    16384 |@
    32768 |@
    65536 |@
    131072 |@@@@@@@@@@@@@
    262144 |@@@@@@@@@@@
    524288 |@@@@
    1048576 |@@
    2097152 |@
    4194304 |
    8388608 |@@@@@
    16777216 |
    What is this?
    33554432 |
    67108864 |
    (8-16 ms latency)
    134217728 |
    268435456 |
    536870912 |

slide 119:

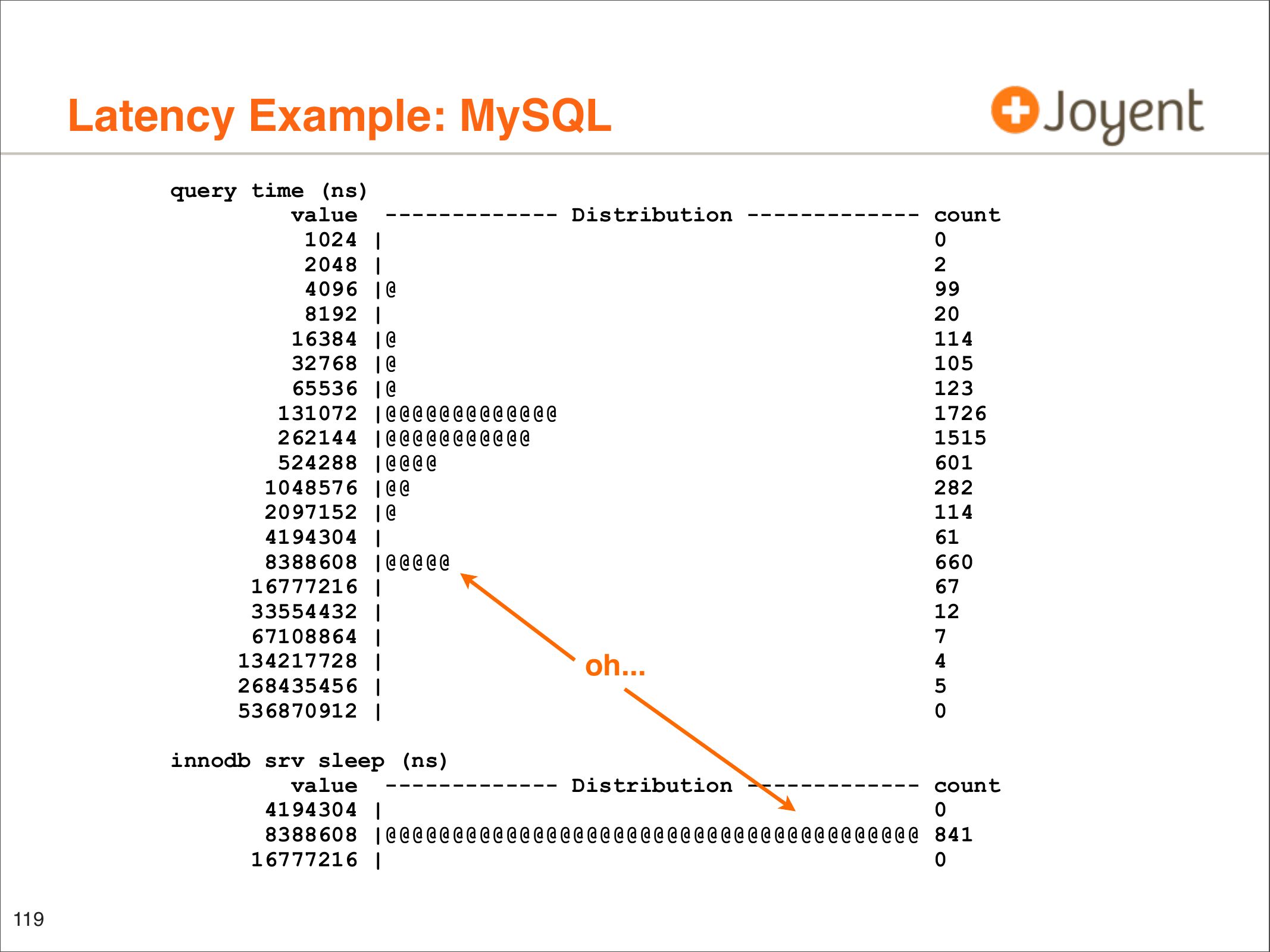

    Latency Example: MySQL
    query time (ns)
    value ------------- Distribution ------------- count
    1024 |
    2048 |
    4096 |@
    8192 |
    16384 |@
    32768 |@
    65536 |@
    131072 |@@@@@@@@@@@@@
    262144 |@@@@@@@@@@@
    524288 |@@@@
    1048576 |@@
    2097152 |@
    4194304 |
    8388608 |@@@@@
    16777216 |
    33554432 |
    67108864 |
    134217728 |
    oh...
    268435456 |
    536870912 |
    innodb srv sleep (ns)
    value ------------- Distribution ------------- count
    4194304 |
    8388608 |@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@ 841
    16777216 |

slide 120:

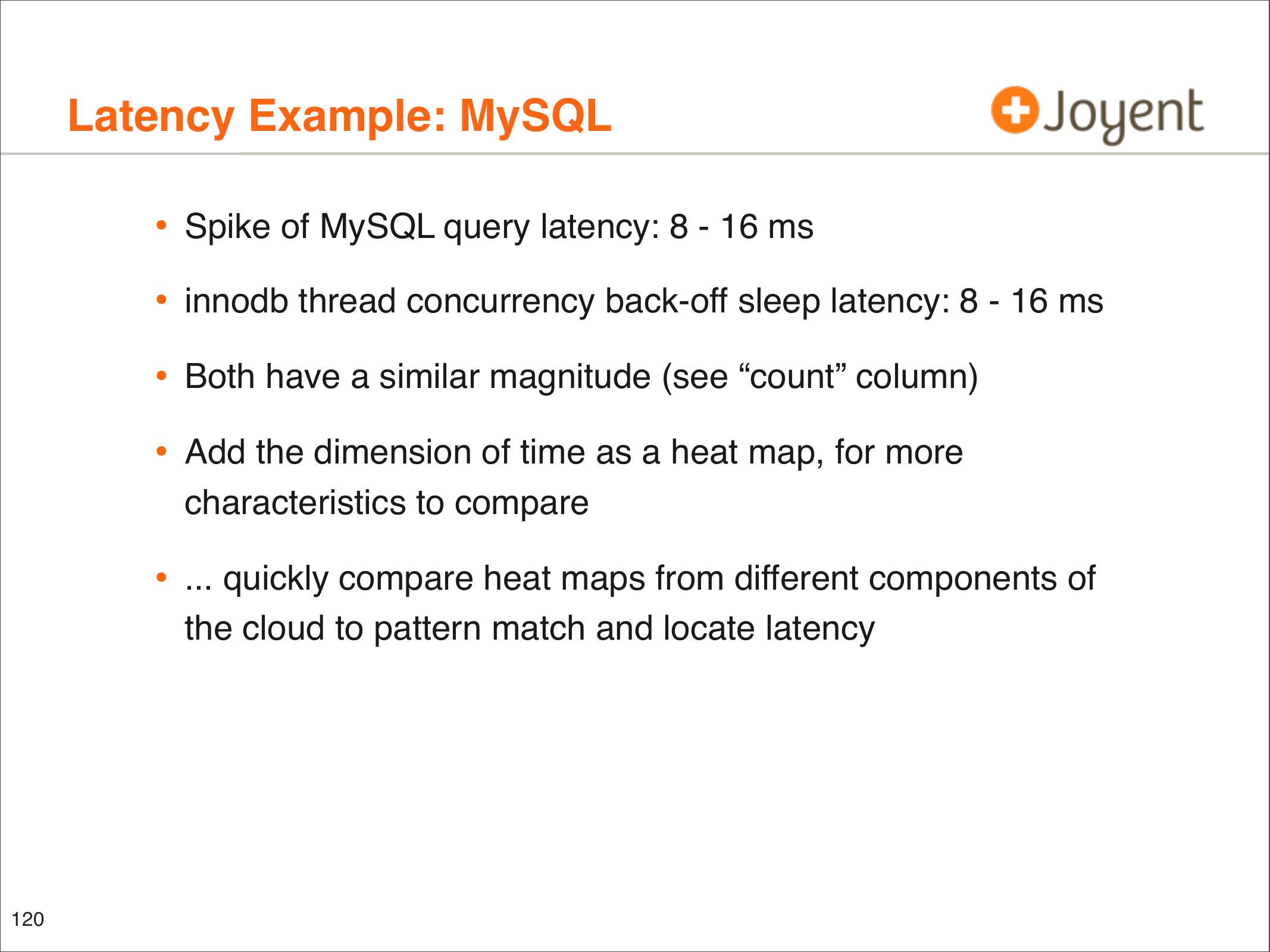

    Latency Example: MySQL
    • Spike of MySQL query latency: 8 - 16 ms
    • innodb thread concurrency back-off sleep latency: 8 - 16 ms
    • Both have a similar magnitude (see “count” column)
    • Add the dimension of time as a heat map, for more
    characteristics to compare
    • ... quickly compare heat maps from different components of
    the cloud to pattern match and locate latency

slide 121:

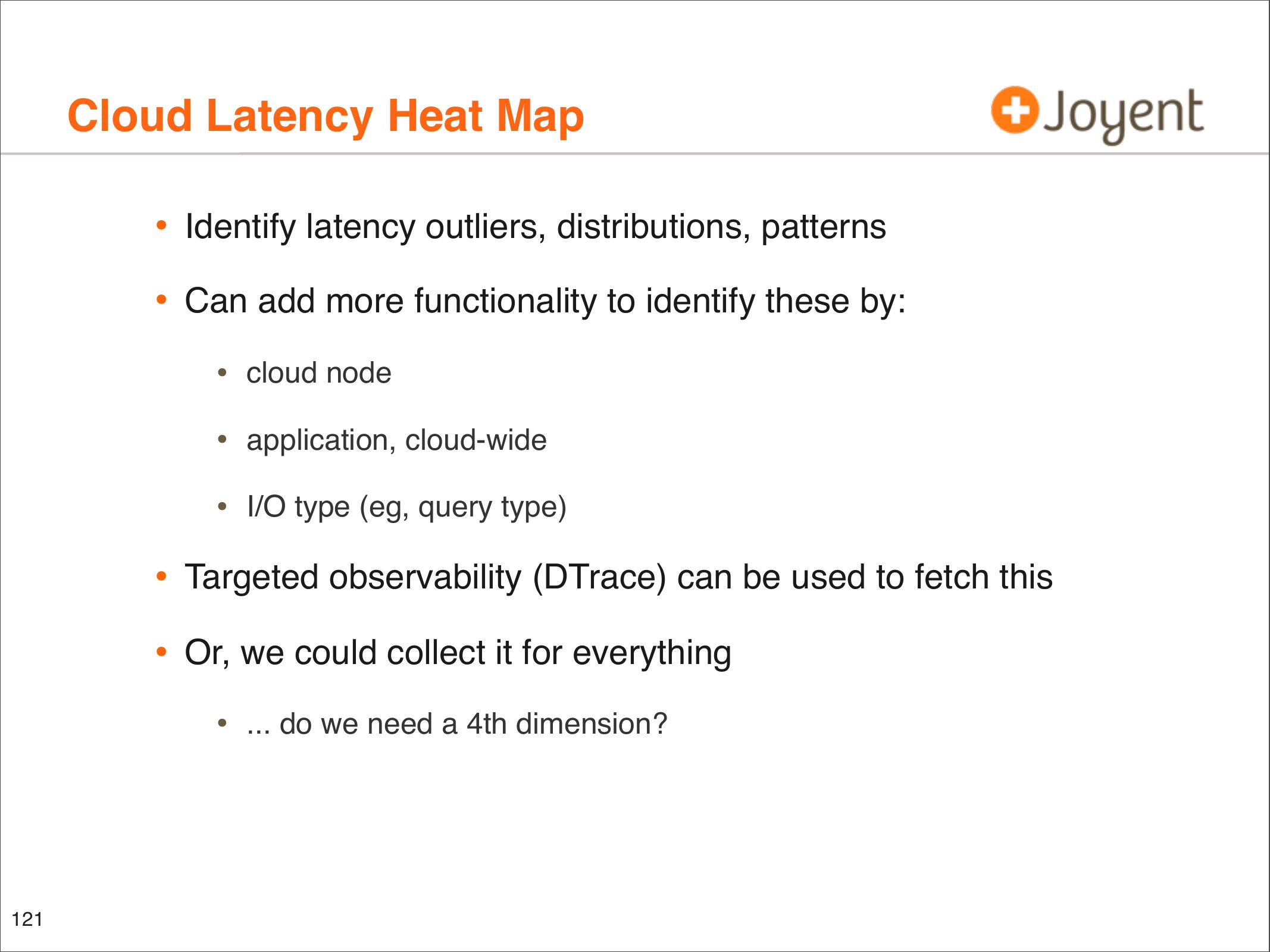

    Cloud Latency Heat Map
    • Identify latency outliers, distributions, patterns
    • Can add more functionality to identify these by:
    • cloud node
    • application, cloud-wide
    • I/O type (eg, query type)
    • Targeted observability (DTrace) can be used to fetch this
    • Or, we could collect it for everything
    • ... do we need a 4th dimension?

slide 122:

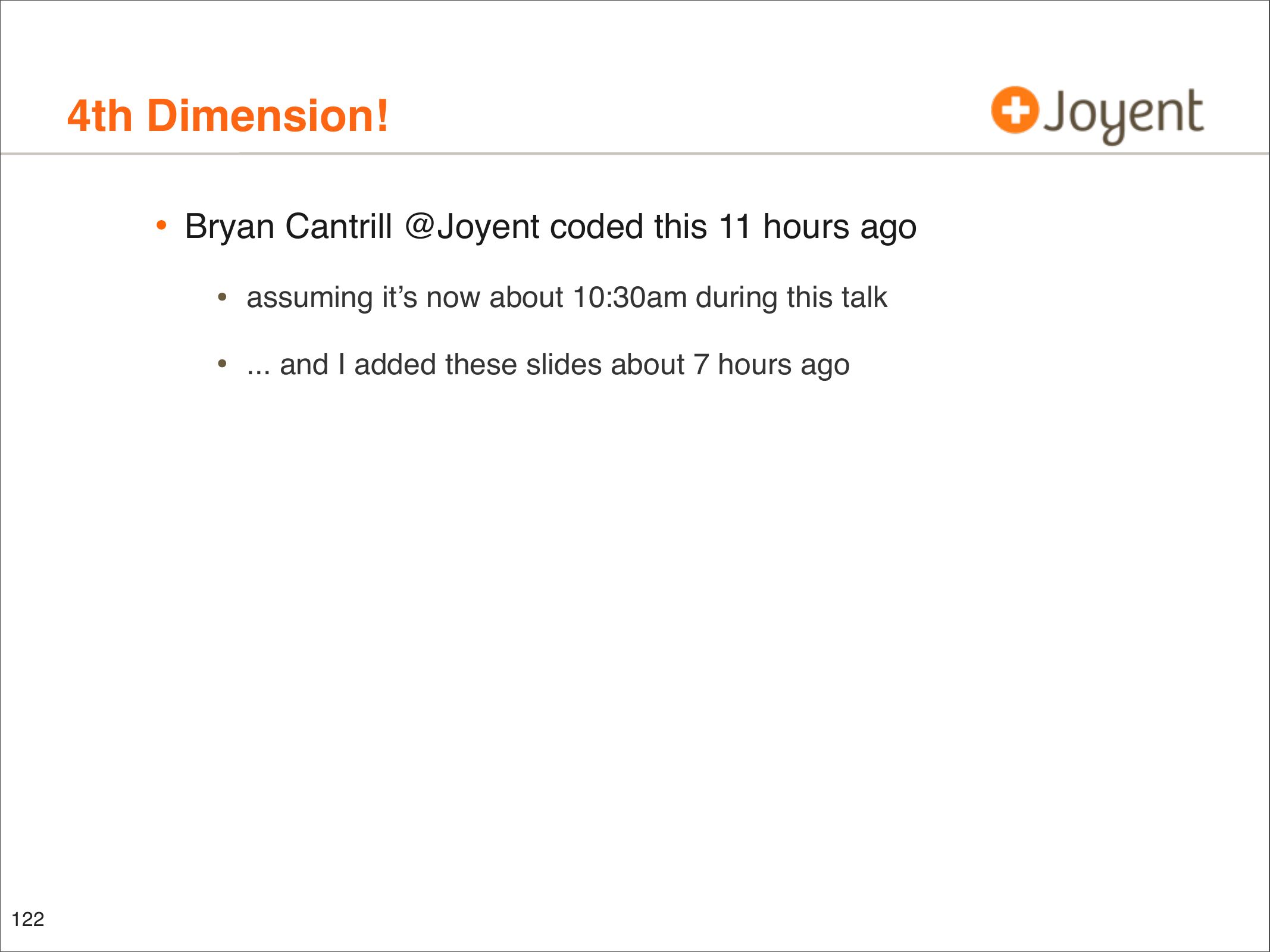

    4th Dimension!
    • Bryan Cantrill @Joyent coded this 11 hours ago
    • assuming it’s now about 10:30am during this talk
    • ... and I added these slides about 7 hours ago

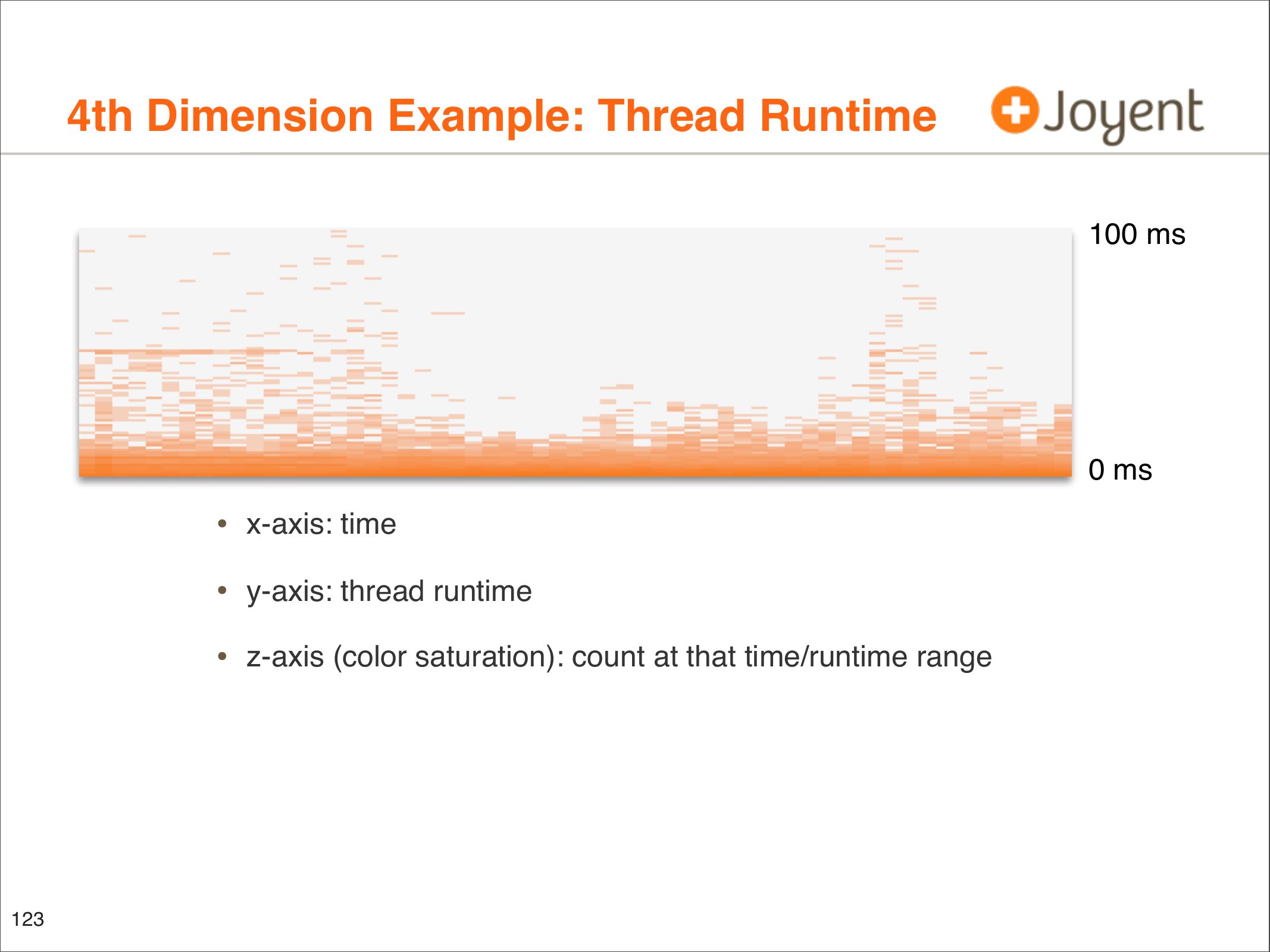

slide 123:
    4th Dimension Example: Thread Runtime
    100 ms
    0 ms
    • x-axis: time
    • y-axis: thread runtime
    • z-axis (color saturation): count at that time/runtime range

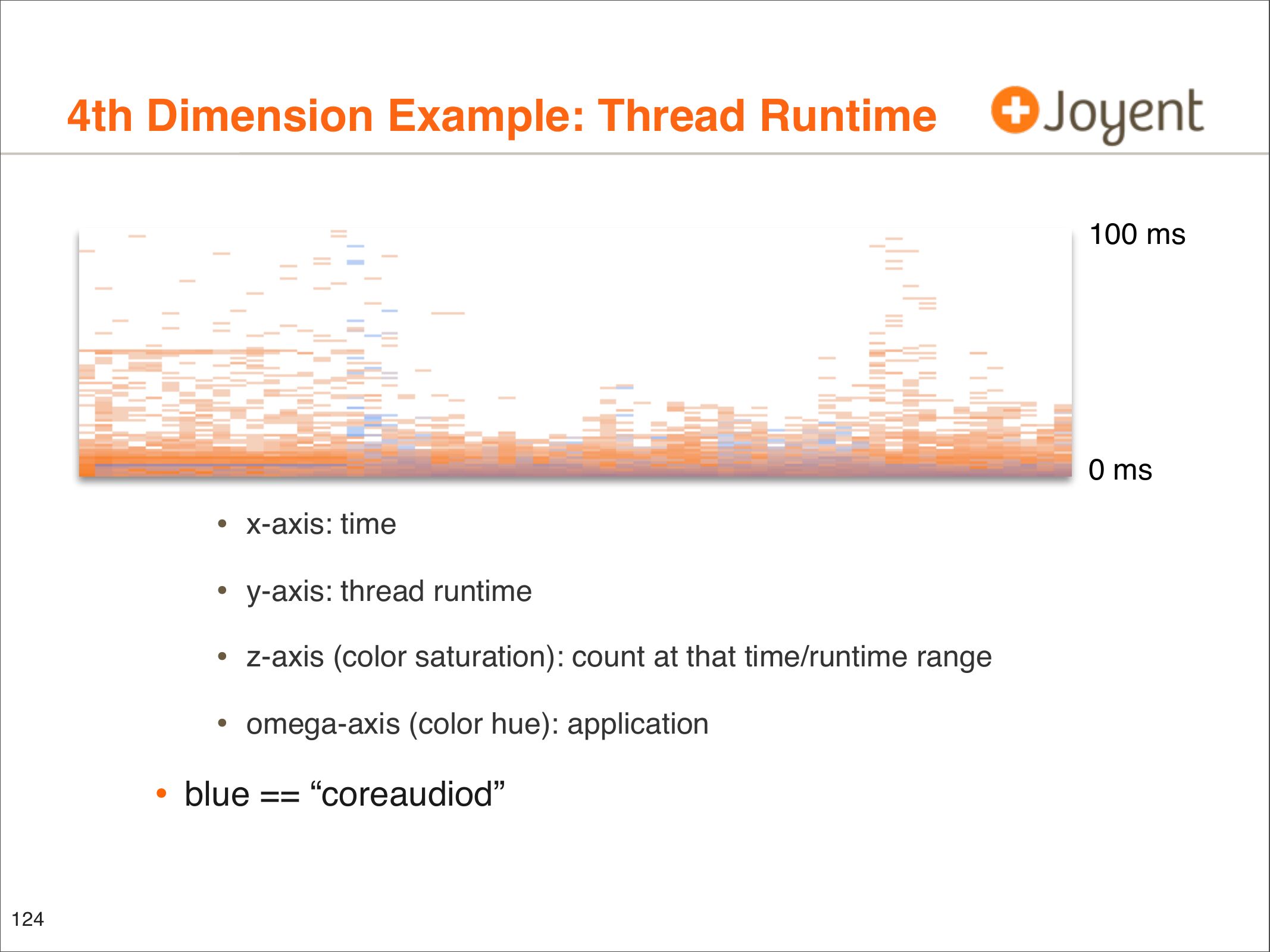

slide 124:
    4th Dimension Example: Thread Runtime
    100 ms
    0 ms
    • x-axis: time
    • y-axis: thread runtime
    • z-axis (color saturation): count at that time/runtime range
    • omega-axis (color hue): application
    • blue == “coreaudiod”

slide 125:
    4th Dimension Example: Thread Runtime
    100 ms
    0 ms
    • x-axis: time
    • y-axis: thread runtime
    • z-axis (color saturation): count at that time/runtime range
    • omega-axis (color hue): application
    • green == “iChat”

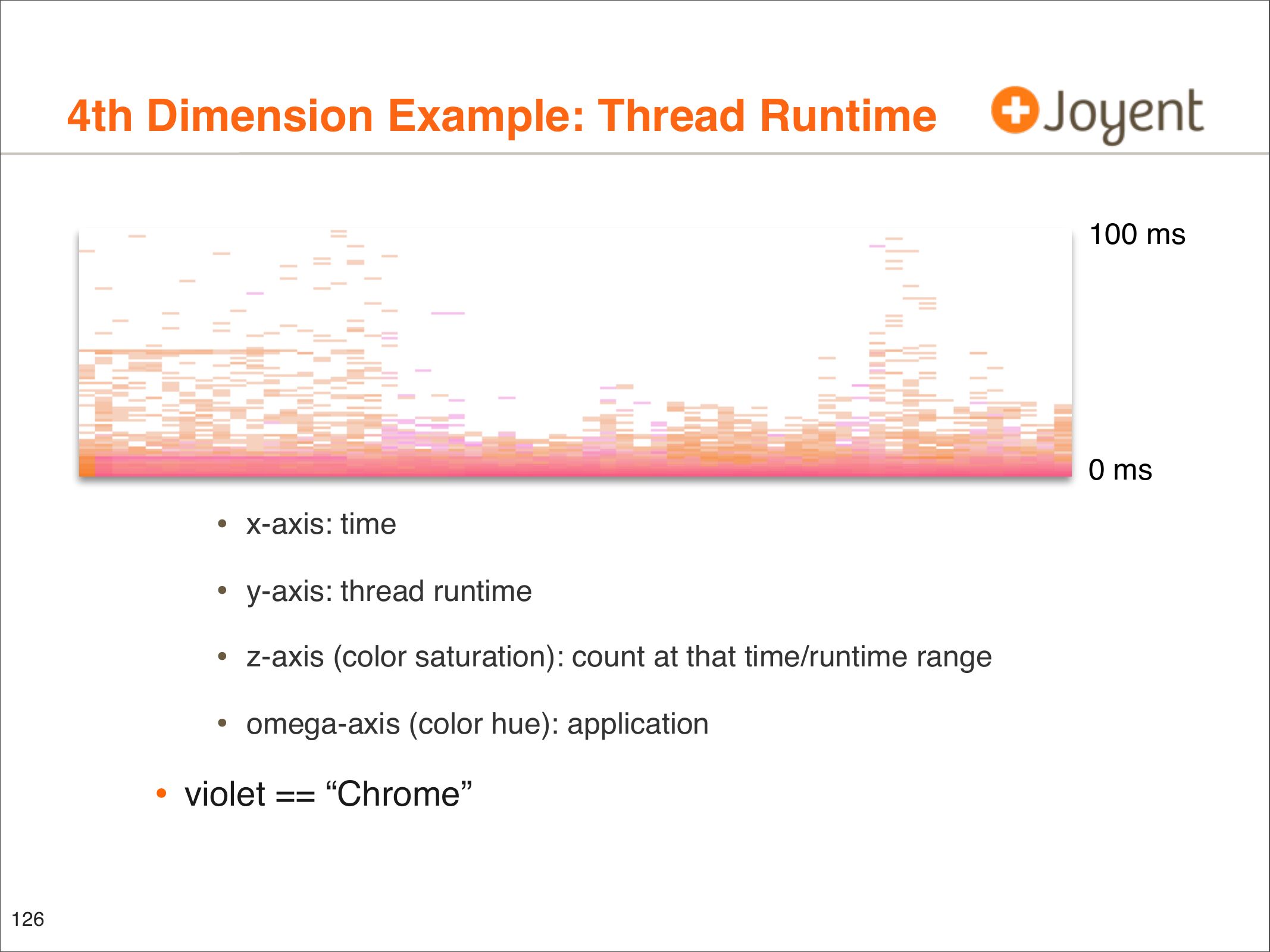

slide 126:
    4th Dimension Example: Thread Runtime
    100 ms
    0 ms
    • x-axis: time
    • y-axis: thread runtime
    • z-axis (color saturation): count at that time/runtime range
    • omega-axis (color hue): application
    • violet == “Chrome”

slide 127:

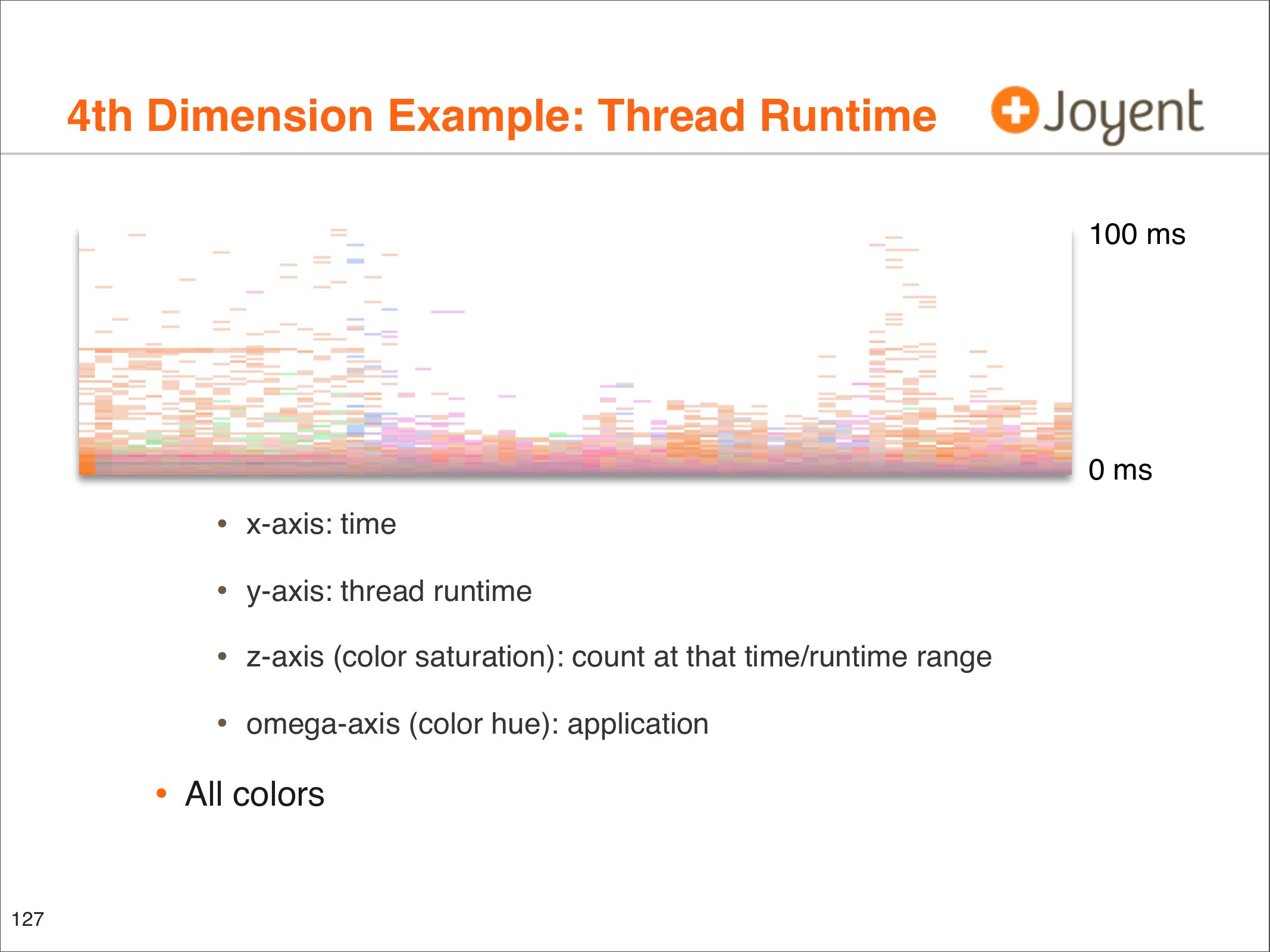

    4th Dimension Example: Thread Runtime
    100 ms
    0 ms
    • x-axis: time
    • y-axis: thread runtime
    • z-axis (color saturation): count at that time/runtime range
    • omega-axis (color hue): application
    • All colors

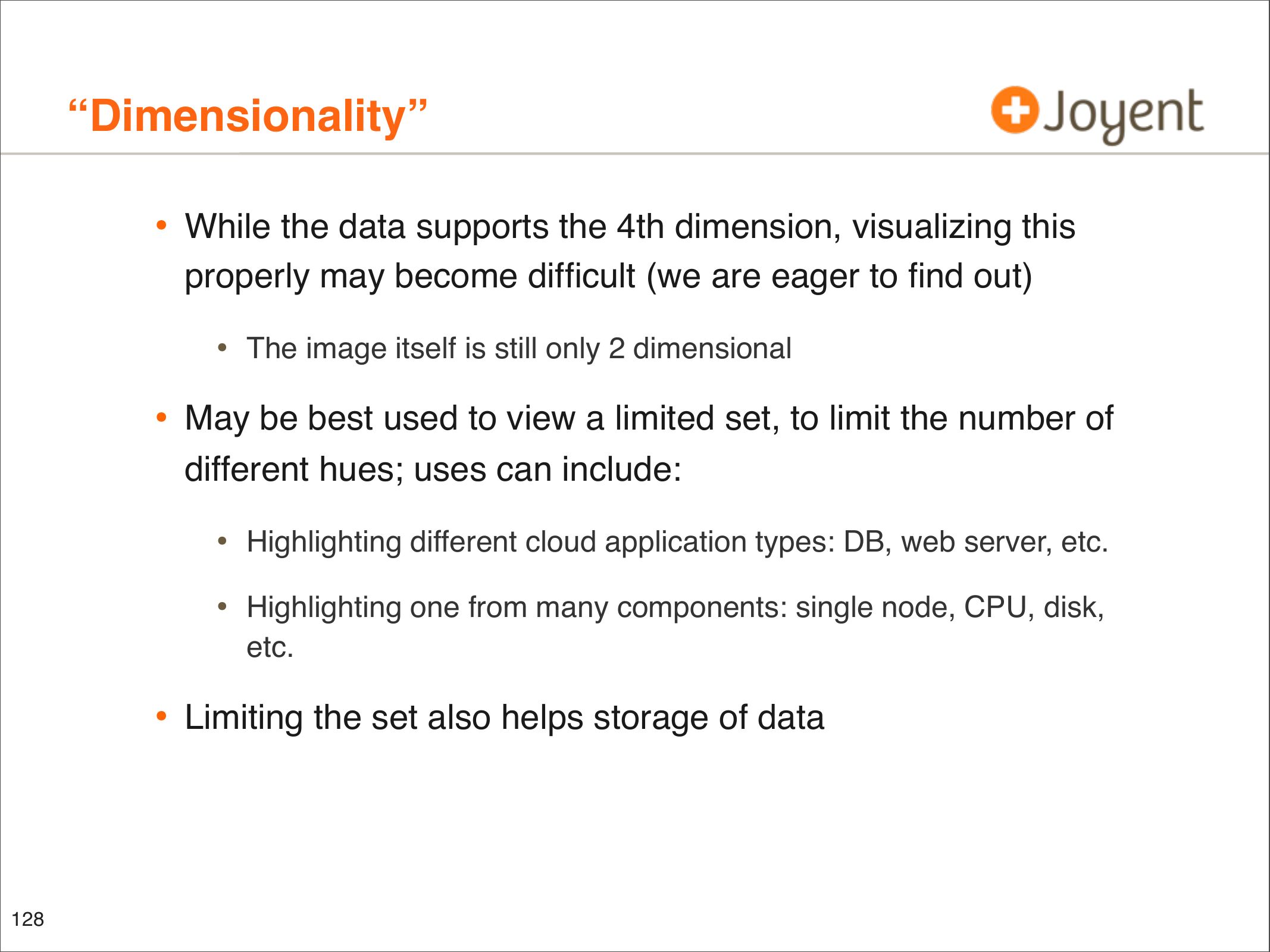

slide 128:
    “Dimensionality”
    • While the data supports the 4th dimension, visualizing this
    properly may become difficult (we are eager to find out)
    • The image itself is still only 2 dimensional
    • May be best used to view a limited set, to limit the number of
    different hues; uses can include:
    • Highlighting different cloud application types: DB, web server, etc.
    • Highlighting one from many components: single node, CPU, disk,
    etc.
    • Limiting the set also helps storage of data

slide 129:

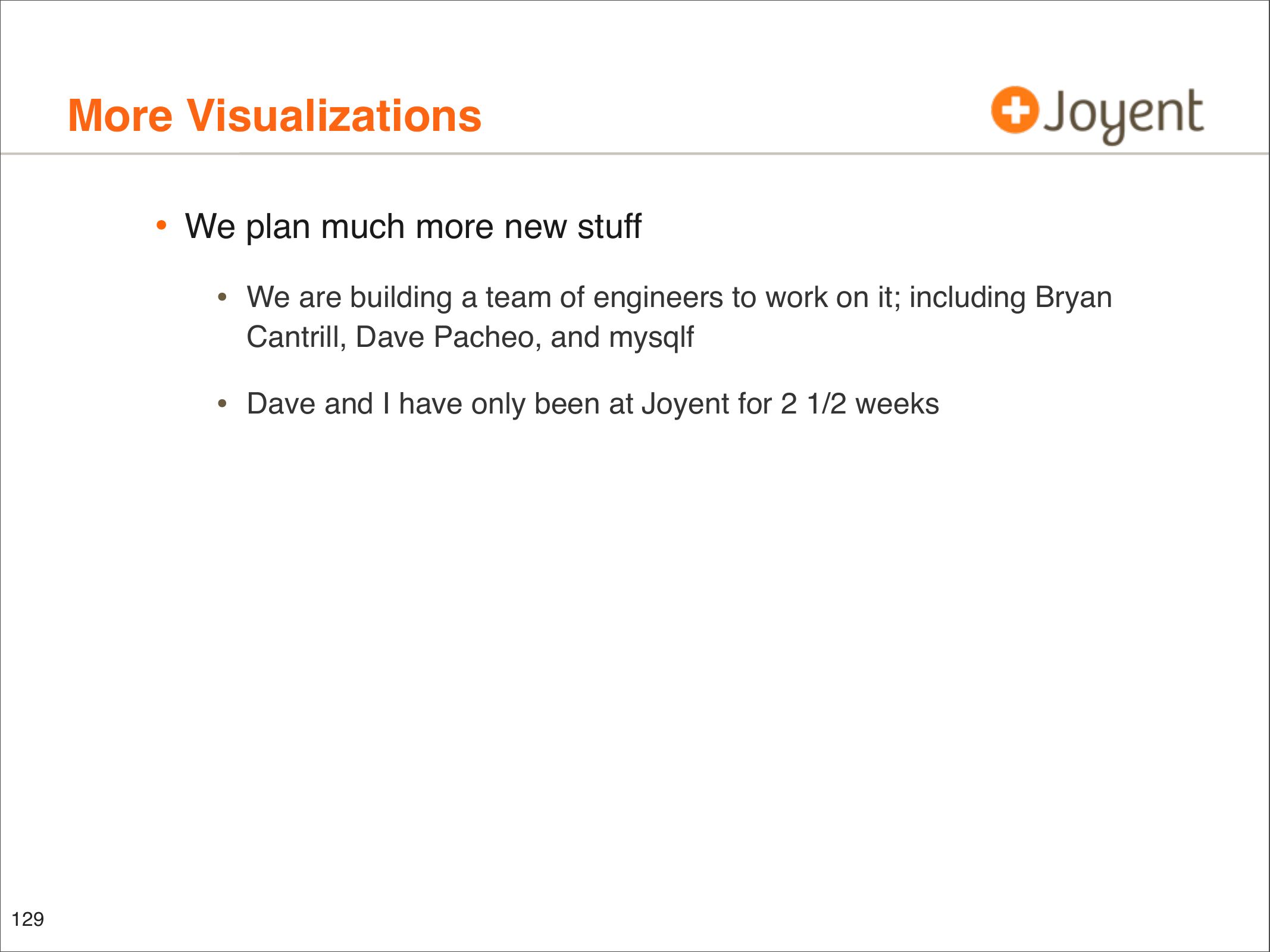

    More Visualizations
    • We plan much more new stuff
    • We are building a team of engineers to work on it; including Bryan
    Cantrill, Dave Pacheo, and mysqlf
    • Dave and I have only been at Joyent for 2 1/2 weeks

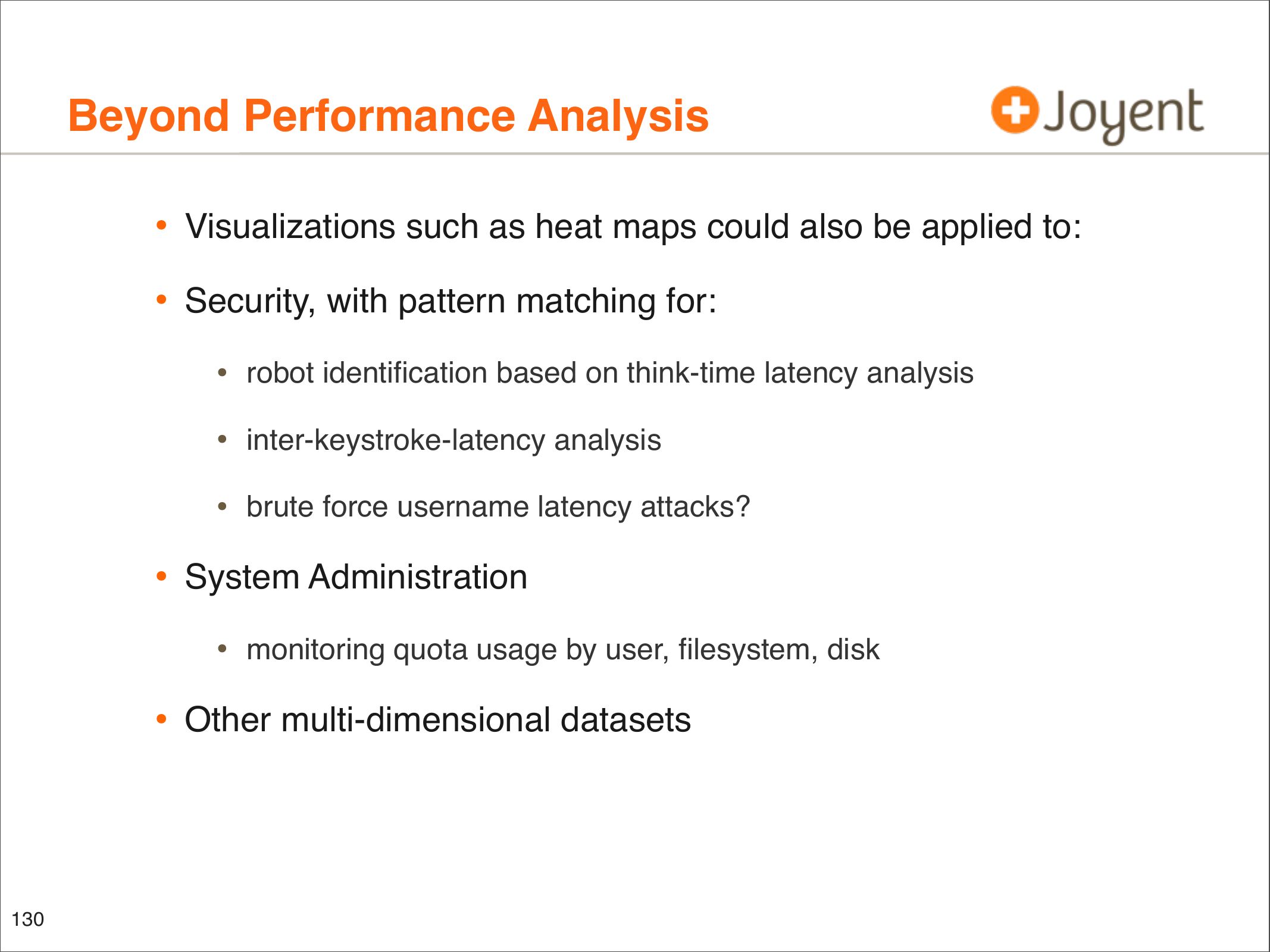

slide 130:
    Beyond Performance Analysis
    • Visualizations such as heat maps could also be applied to:
    • Security, with pattern matching for:
    • robot identification based on think-time latency analysis
    • inter-keystroke-latency analysis
    • brute force username latency attacks?
    • System Administration
    • monitoring quota usage by user, filesystem, disk
    • Other multi-dimensional datasets

slide 131:
    Objectives
    • Consider performance metrics before plotting
    • Why latency is good
    • ... and IOPS can be bad
    • See the value of visualizations
    • Why heat maps are needed
    • ... and line graphs can be bad
    • Remember key examples
    • I/O latency, as a heat map
    • CPU utilization by CPU, as a heat map

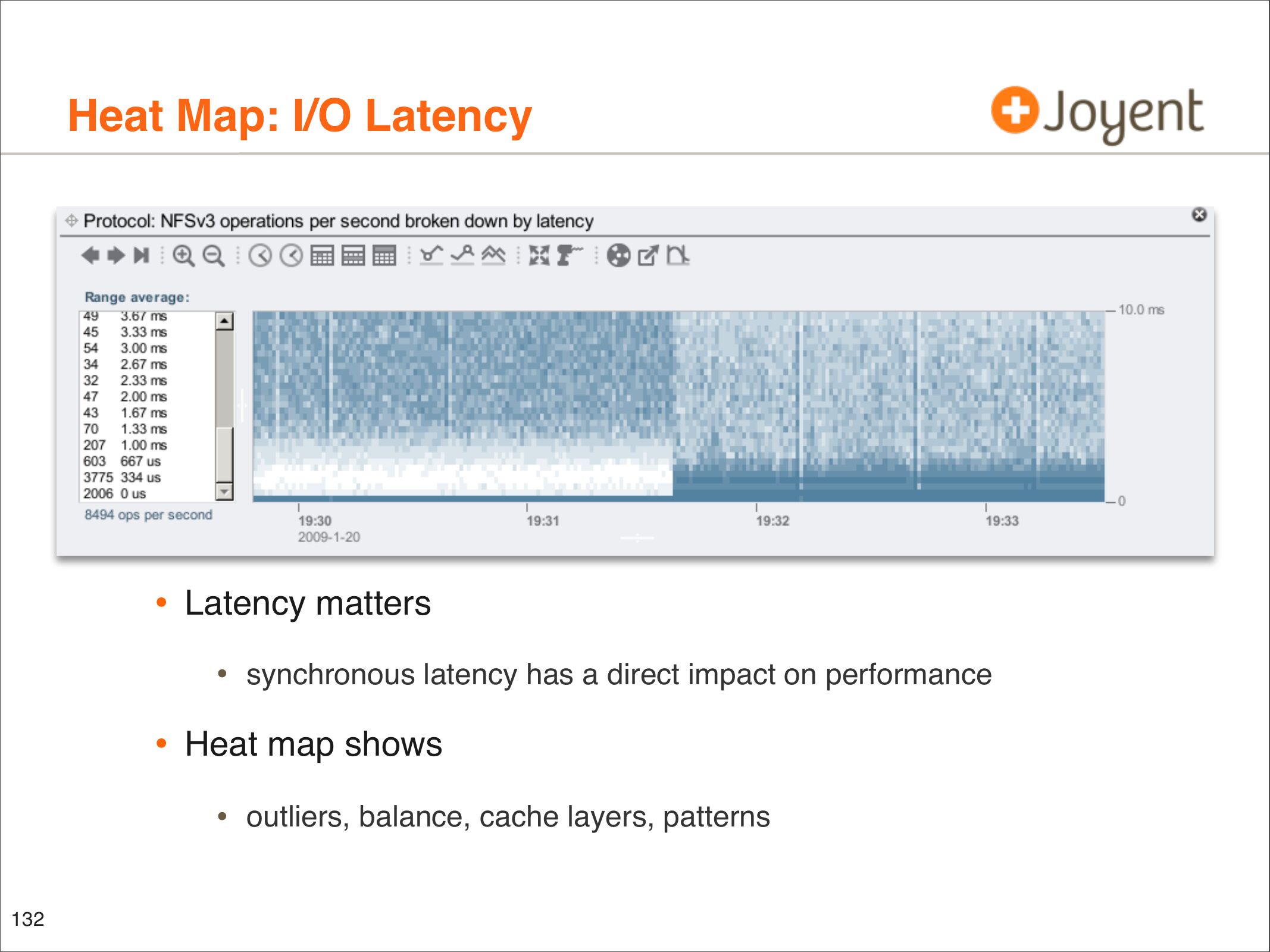

slide 132:
    Heat Map: I/O Latency
    • Latency matters
    • synchronous latency has a direct impact on performance
    • Heat map shows
    • outliers, balance, cache layers, patterns

slide 133:
    Heat Map: CPU Utilization
    100%
    60s
    • Identify single threaded issues
    • single CPU hitting 100%
    • Heat map shows
    • fully utilized components, balance, overall headroom, patterns

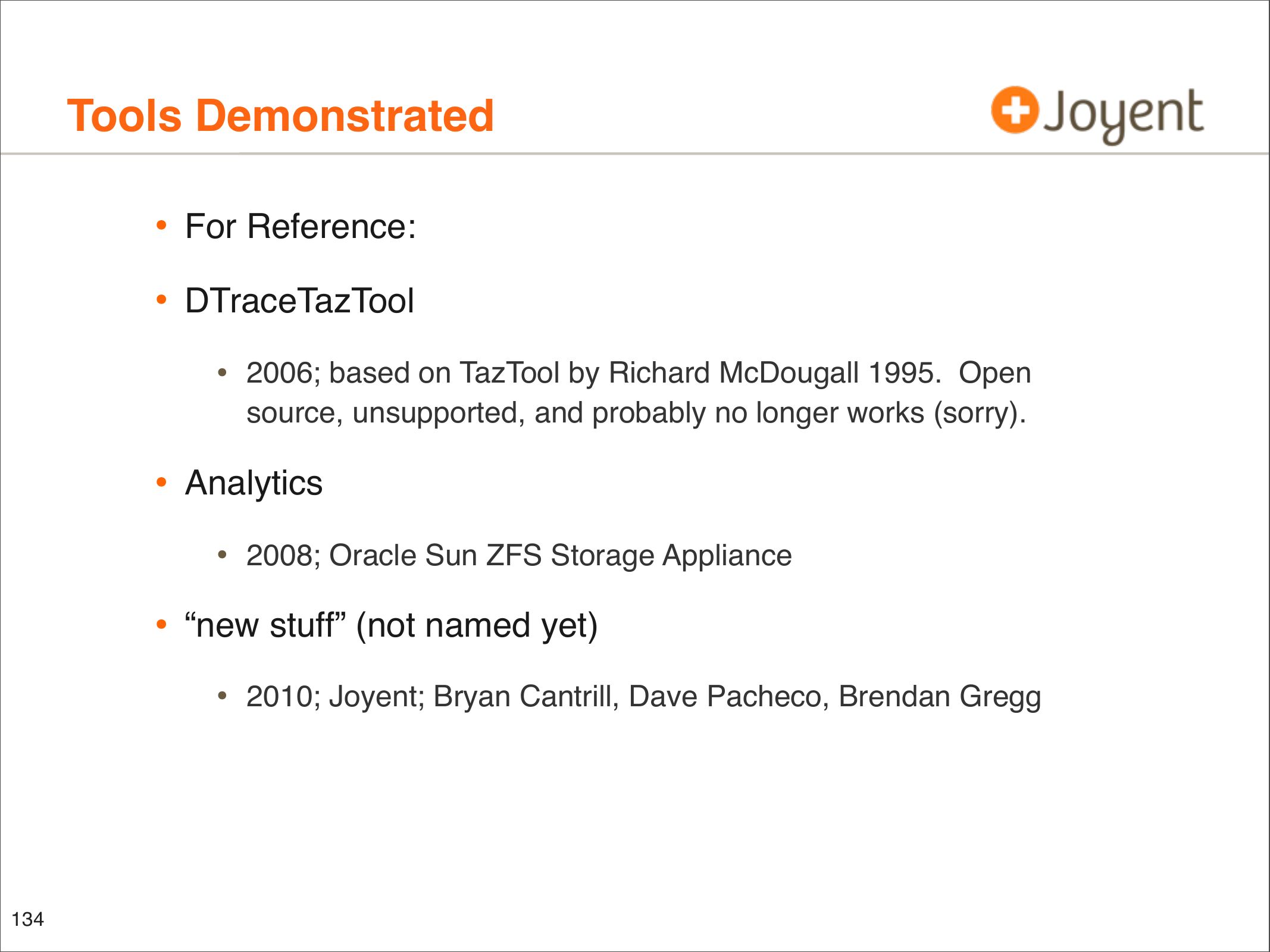

slide 134:
    Tools Demonstrated
    • For Reference:
    • DTraceTazTool
    • 2006; based on TazTool by Richard McDougall 1995. Open
    source, unsupported, and probably no longer works (sorry).
    • Analytics
    • 2008; Oracle Sun ZFS Storage Appliance
    • “new stuff” (not named yet)
    • 2010; Joyent; Bryan Cantrill, Dave Pacheco, Brendan Gregg

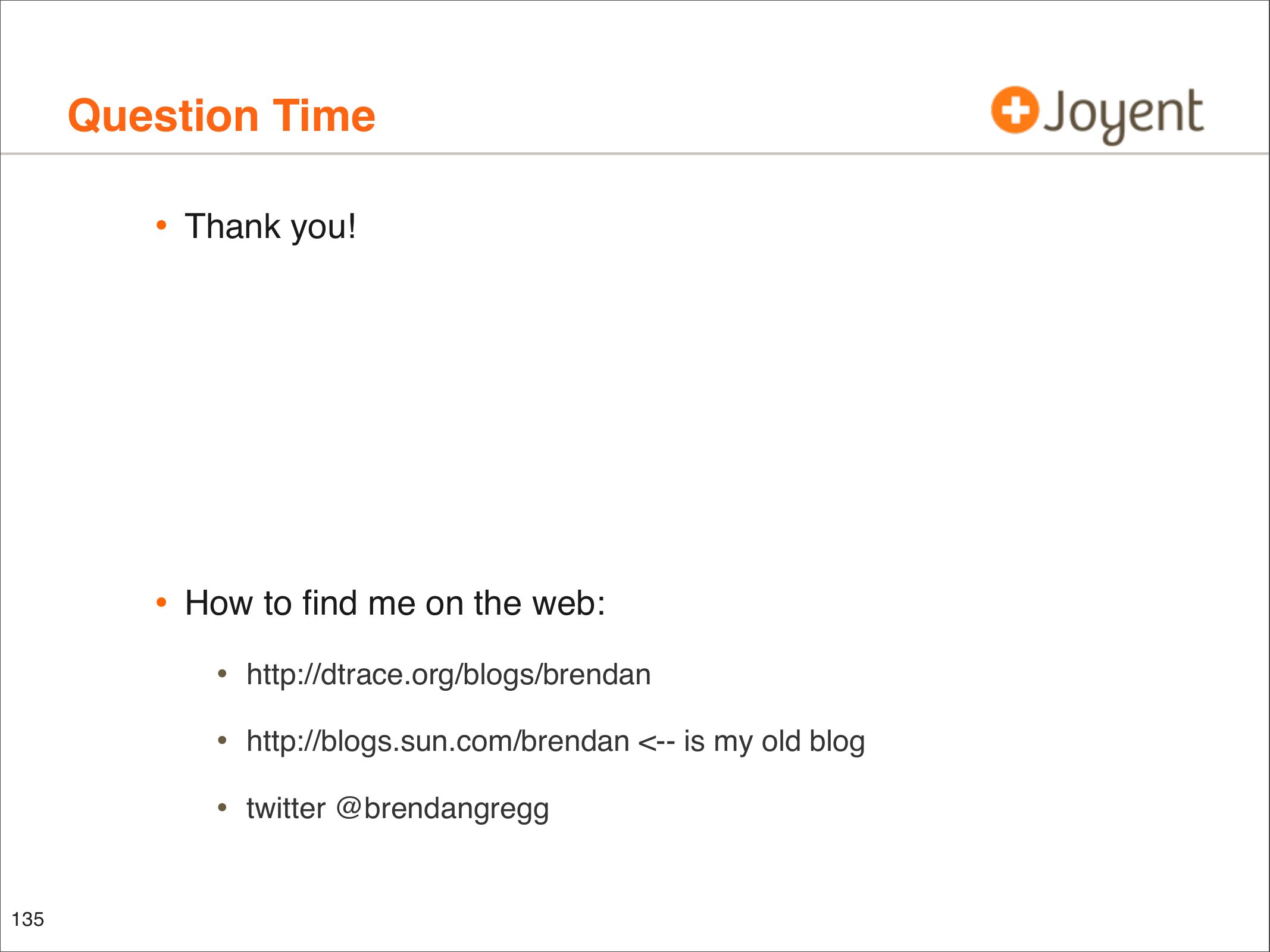

slide 135:
    Question Time
    • Thank you!
    • How to find me on the web:
    • http://dtrace.org/blogs/brendan
    • http://blogs.sun.com/brendan
