Linux Performance Analysis
New Tools and Old Secrets
Brendan Gregg
Senior Performance Architect
Performance Engineering Team
bgregg@netflix.com
@brendangregg

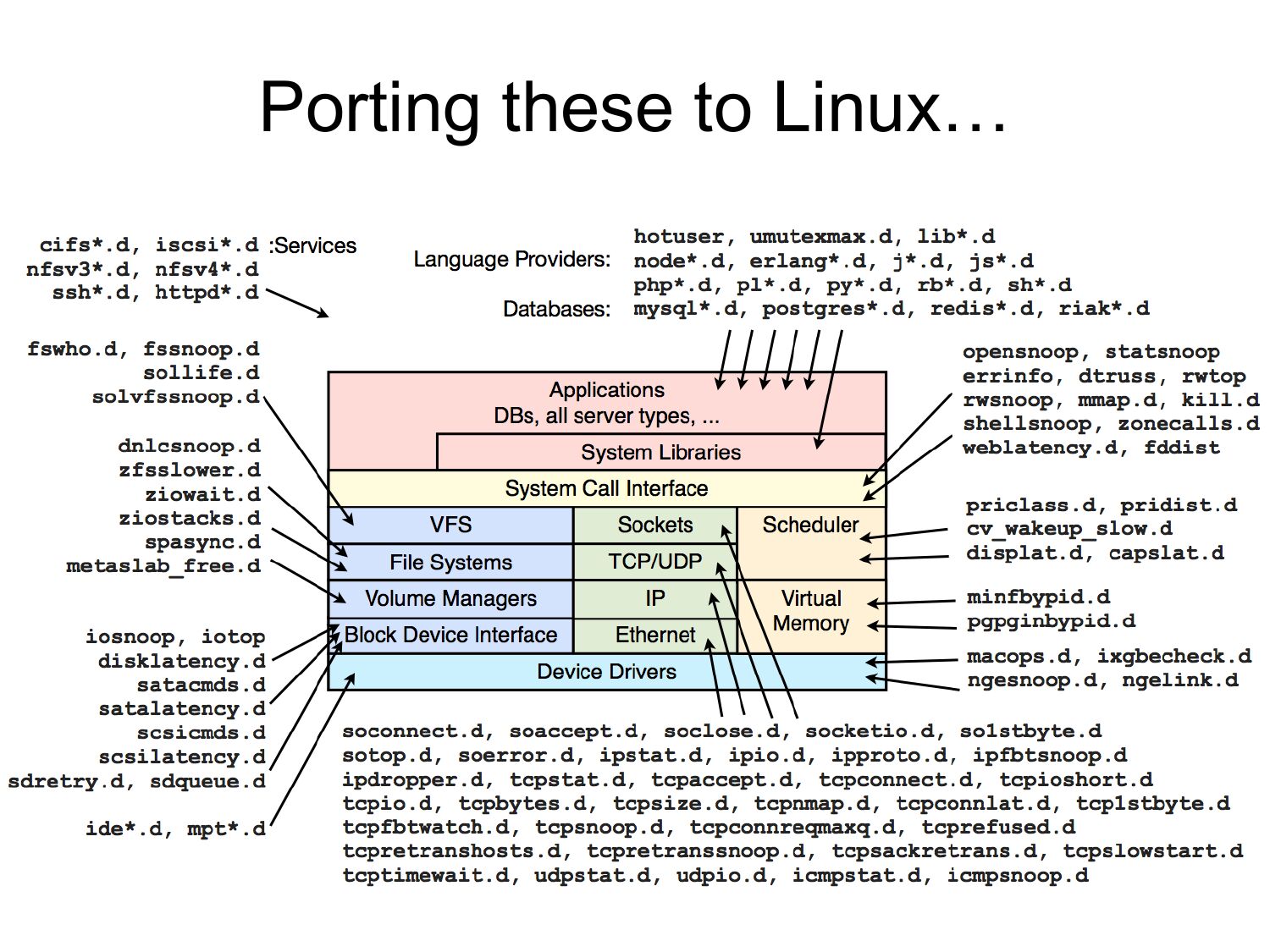

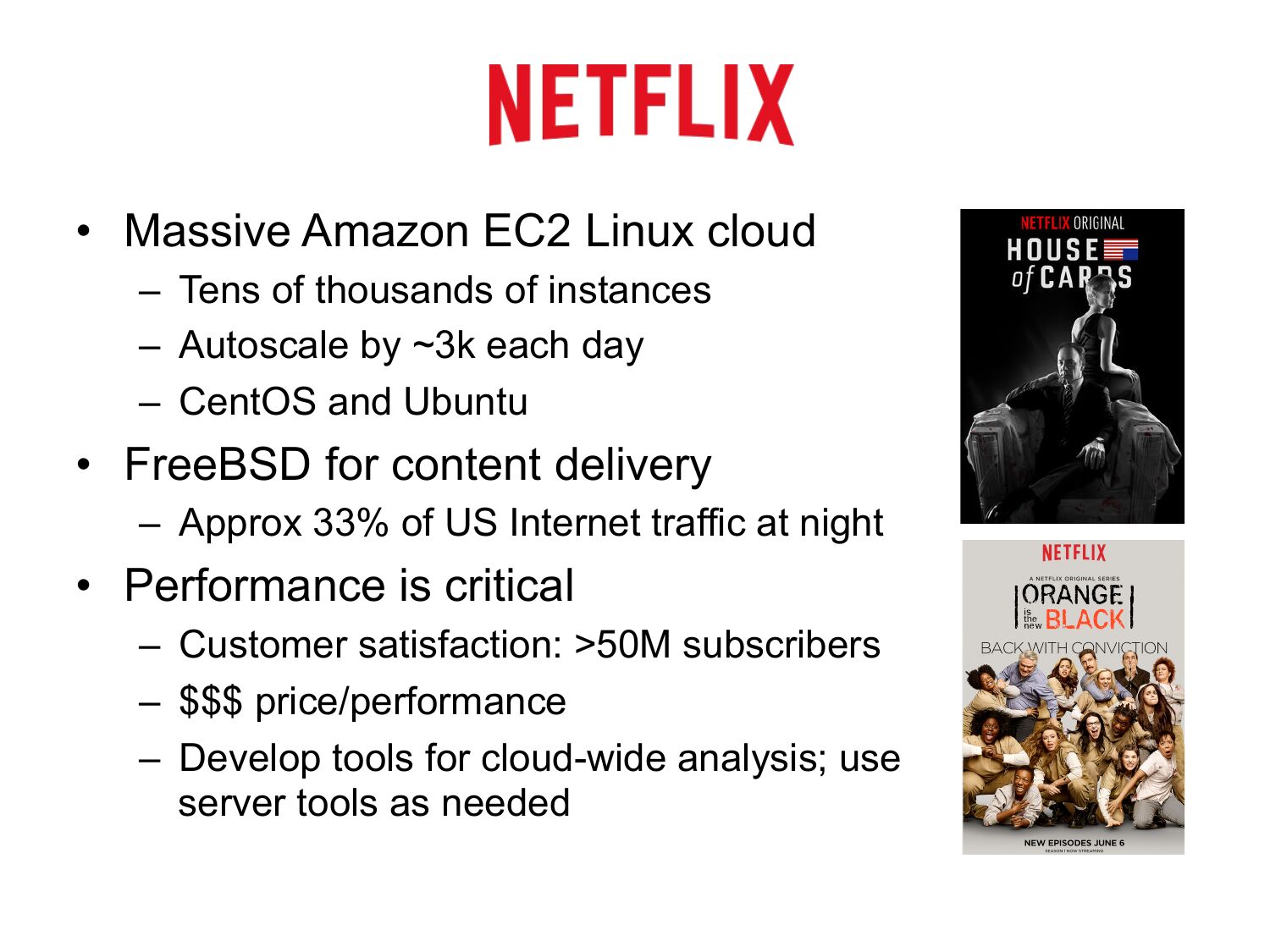

Porting these to Linux…

• Massive Amazon EC2 Linux cloud
– Tens of thousands of instances
– Autoscale by ~3k each day
– CentOS and Ubuntu
• FreeBSD for content delivery
– Approx 33% of US Internet traffic at night
• Performance is critical
– Customer satisfaction: >gt;50M subscribers
– $$$ price/performance
– Develop tools for cloud-wide analysis; use
server tools as needed

Brendan Gregg
• Senior Performance Architect, Netflix
– Linux and FreeBSD performance
– Performance Engineering team (@coburnw)
• Recent work:
– Linux perf-tools: ftrace & perf_events
– Testing of other tracers: eBPF
• Previously:
– Performance of Linux, Solaris, ZFS, DBs,
TCP/IP, hypervisors, …
– Flame graphs, heat maps, methodologies,
DTrace tools, DTraceToolkit

Agenda
Some one-liners
Background
Technology
Tools

1. Some one-liners
(cut
  to
  the
  chase!)

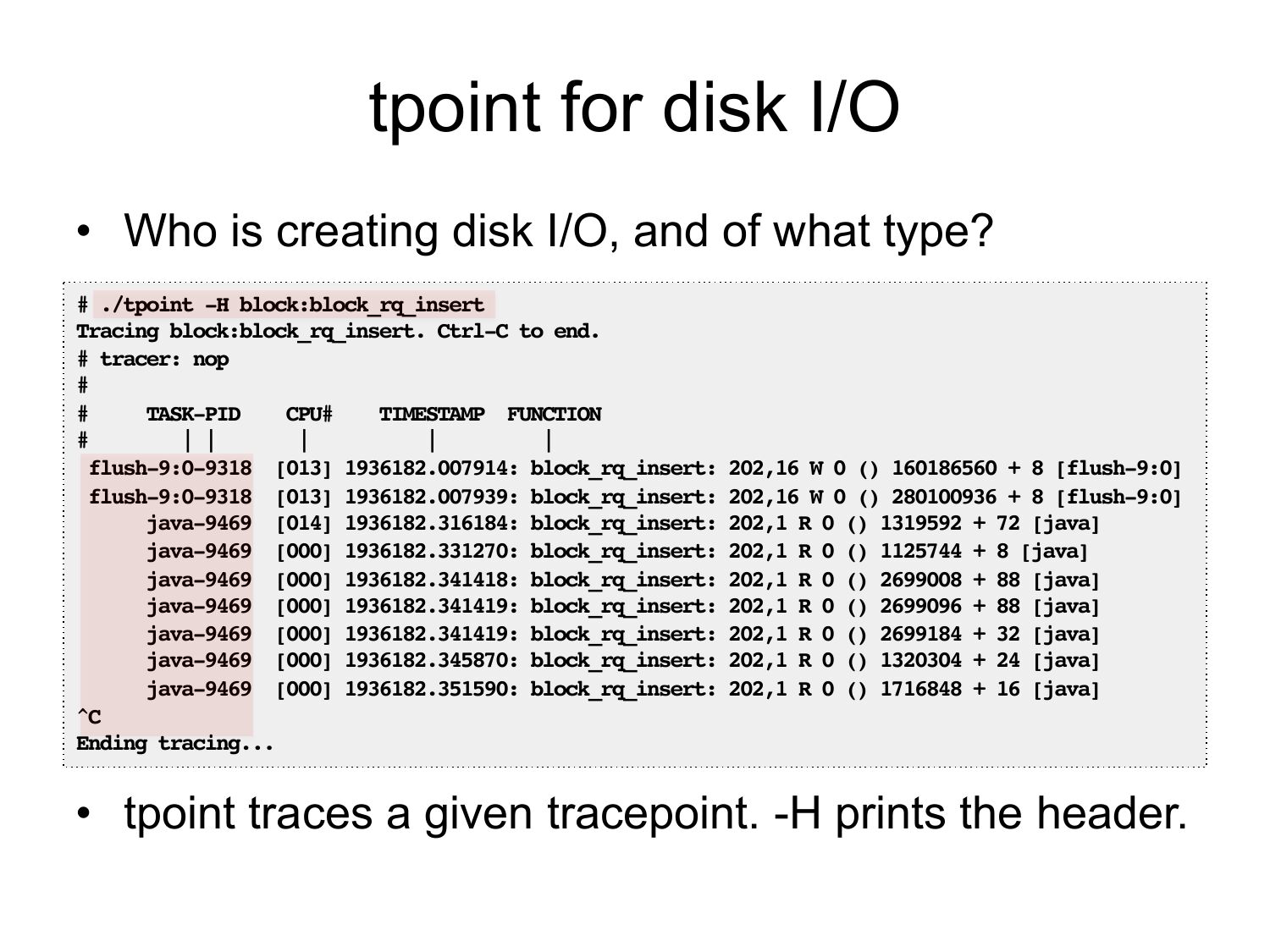

tpoint for disk I/O
• Who is creating disk I/O, and of what type?
# ./tpoint -H block:block_rq_insert!
Tracing block:block_rq_insert. Ctrl-C to end.!
# tracer: nop!
TASK-PID
CPU#
TIMESTAMP FUNCTION!
| |
flush-9:0-9318 [013] 1936182.007914: block_rq_insert: 202,16 W 0 () 160186560 + 8 [flush-9:0]!
flush-9:0-9318 [013] 1936182.007939: block_rq_insert: 202,16 W 0 () 280100936 + 8 [flush-9:0]!
java-9469 [014] 1936182.316184: block_rq_insert: 202,1 R 0 () 1319592 + 72 [java]!
java-9469 [000] 1936182.331270: block_rq_insert: 202,1 R 0 () 1125744 + 8 [java]!
java-9469 [000] 1936182.341418: block_rq_insert: 202,1 R 0 () 2699008 + 88 [java]!
java-9469 [000] 1936182.341419: block_rq_insert: 202,1 R 0 () 2699096 + 88 [java]!
java-9469 [000] 1936182.341419: block_rq_insert: 202,1 R 0 () 2699184 + 32 [java]!
java-9469 [000] 1936182.345870: block_rq_insert: 202,1 R 0 () 1320304 + 24 [java]!
java-9469 [000] 1936182.351590: block_rq_insert: 202,1 R 0 () 1716848 + 16 [java]!
^C!
Ending tracing...!
• tpoint traces a given tracepoint. -H prints the header.

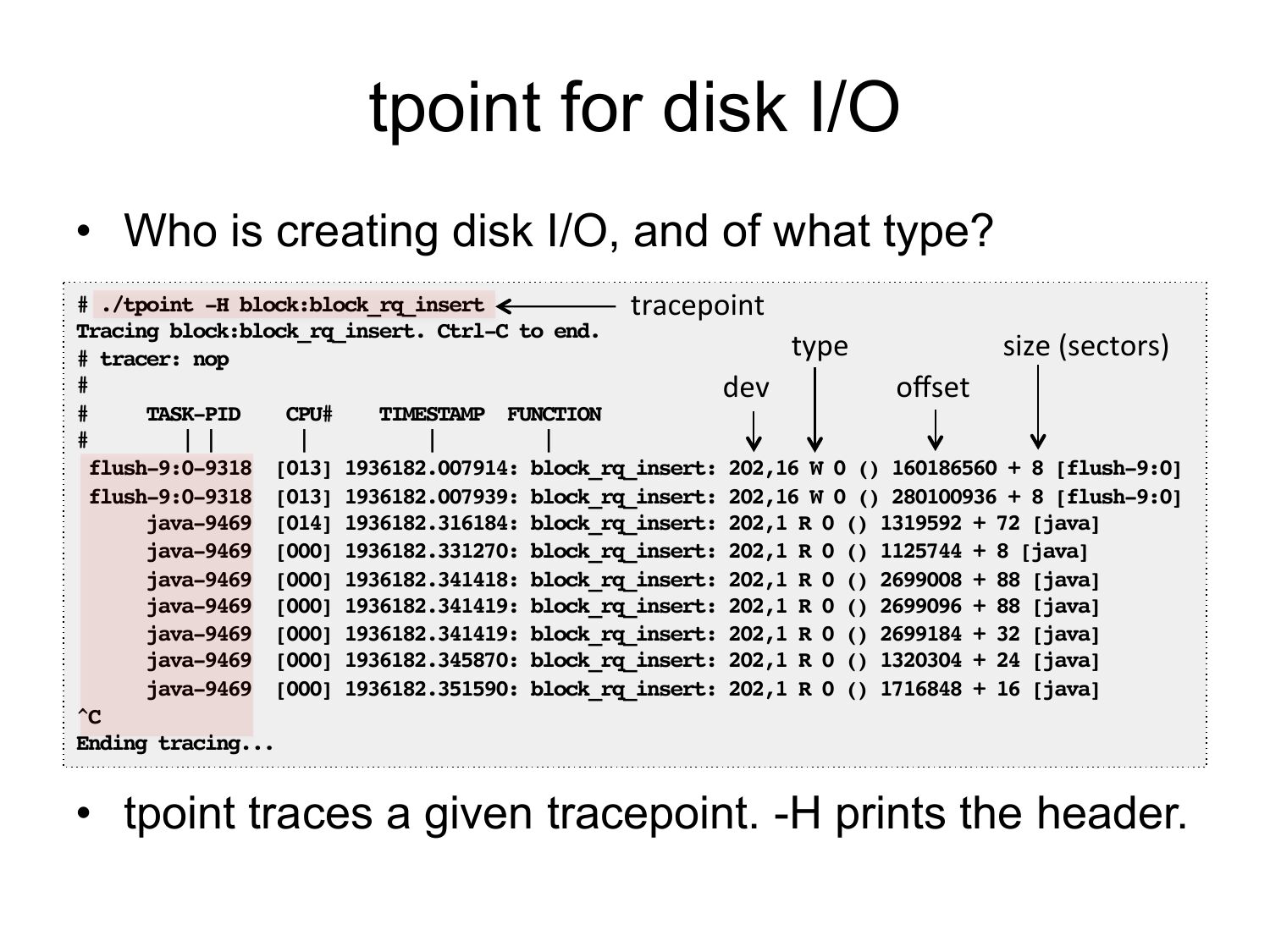

tpoint for disk I/O
• Who is creating disk I/O, and of what type?
# ./tpoint -H block:block_rq_insert!
tracepoint

Tracing block:block_rq_insert. Ctrl-C to end.!
type

size
  (sectors)

# tracer: nop!
dev

offset

TASK-PID
CPU#
TIMESTAMP FUNCTION!
| |
flush-9:0-9318 [013] 1936182.007914: block_rq_insert: 202,16 W 0 () 160186560 + 8 [flush-9:0]!
flush-9:0-9318 [013] 1936182.007939: block_rq_insert: 202,16 W 0 () 280100936 + 8 [flush-9:0]!
java-9469 [014] 1936182.316184: block_rq_insert: 202,1 R 0 () 1319592 + 72 [java]!
java-9469 [000] 1936182.331270: block_rq_insert: 202,1 R 0 () 1125744 + 8 [java]!
java-9469 [000] 1936182.341418: block_rq_insert: 202,1 R 0 () 2699008 + 88 [java]!
java-9469 [000] 1936182.341419: block_rq_insert: 202,1 R 0 () 2699096 + 88 [java]!
java-9469 [000] 1936182.341419: block_rq_insert: 202,1 R 0 () 2699184 + 32 [java]!
java-9469 [000] 1936182.345870: block_rq_insert: 202,1 R 0 () 1320304 + 24 [java]!
java-9469 [000] 1936182.351590: block_rq_insert: 202,1 R 0 () 1716848 + 16 [java]!
^C!
Ending tracing...!
• tpoint traces a given tracepoint. -H prints the header.

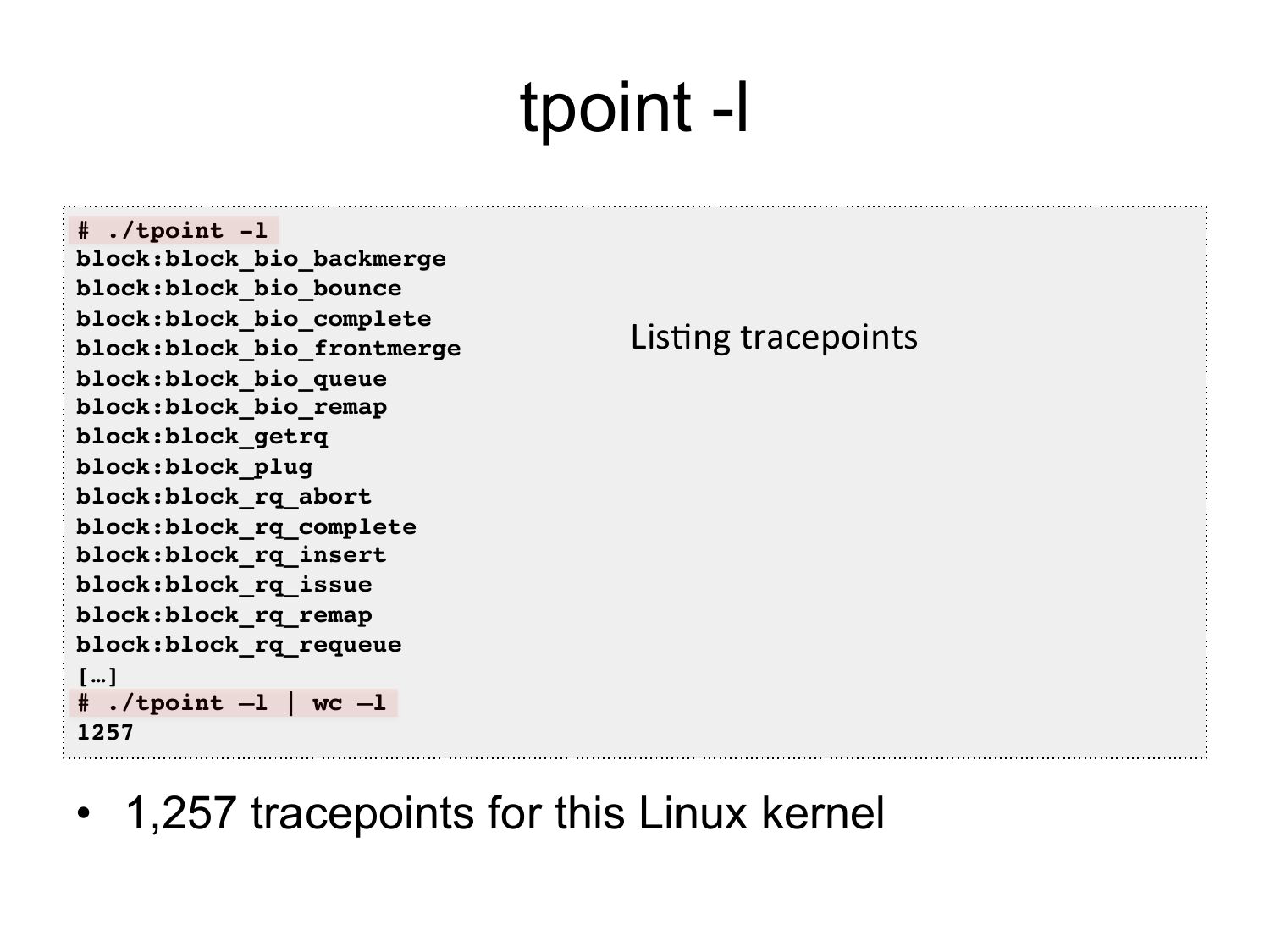

tpoint -l
# ./tpoint -l!
block:block_bio_backmerge!
block:block_bio_bounce!
block:block_bio_complete!
block:block_bio_frontmerge!
block:block_bio_queue!
block:block_bio_remap!
block:block_getrq!
block:block_plug!
block:block_rq_abort!
block:block_rq_complete!
block:block_rq_insert!
block:block_rq_issue!
block:block_rq_remap!
block:block_rq_requeue!
[…]!
# ./tpoint –l | wc –l!
1257!
Lis7ng
  tracepoints


• 1,257 tracepoints for this Linux kernel

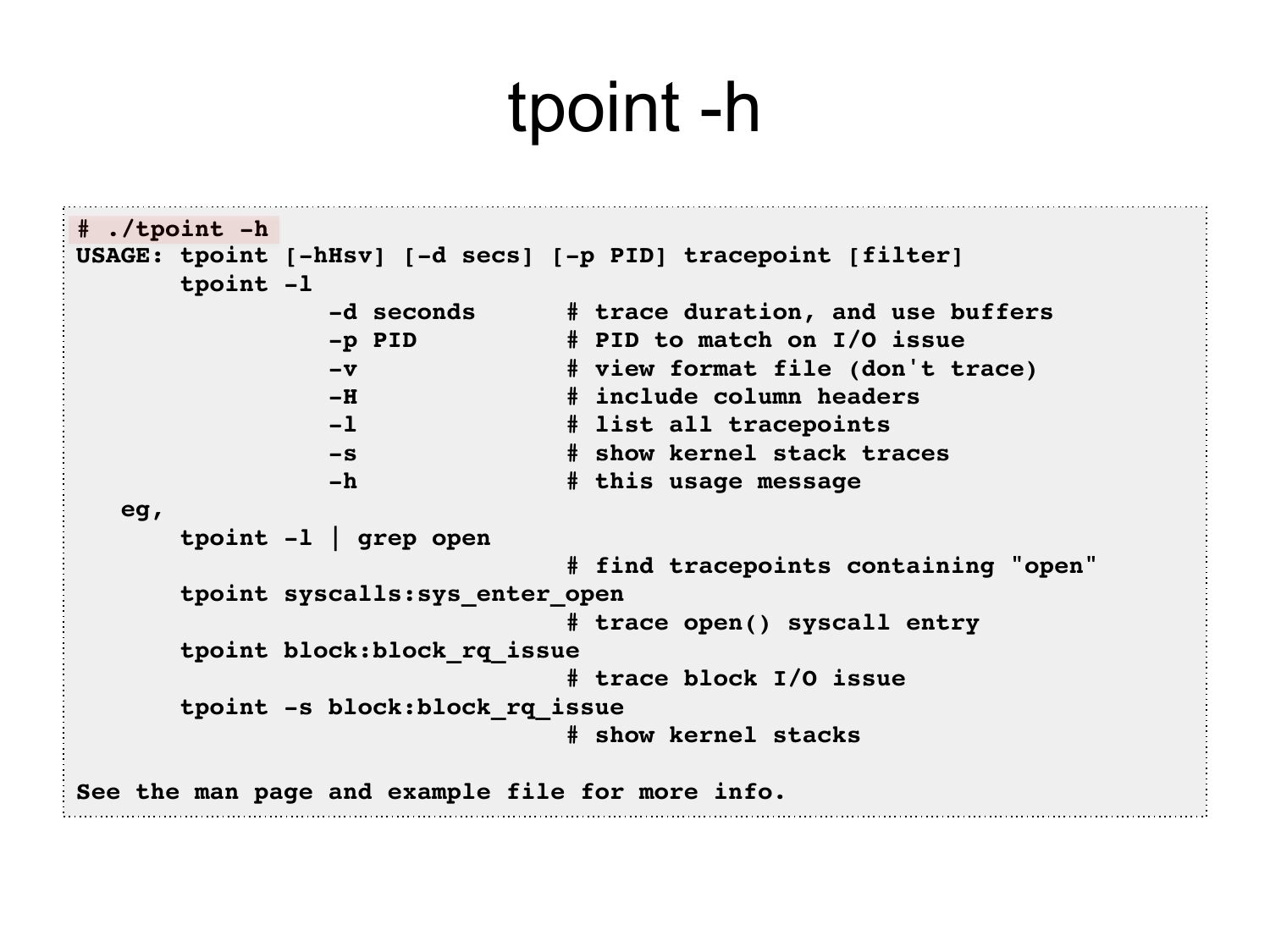

tpoint -h
# ./tpoint -h!
USAGE: tpoint [-hHsv] [-d secs] [-p PID] tracepoint [filter]!
tpoint -l!
-d seconds
# trace duration, and use buffers!
-p PID
# PID to match on I/O issue!
# view format file (don't trace)!
# include column headers!
# list all tracepoints!
# show kernel stack traces!
# this usage message!
eg,!
tpoint -l | grep open!
# find tracepoints containing "open"!
tpoint syscalls:sys_enter_open!
# trace open() syscall entry!
tpoint block:block_rq_issue!
# trace block I/O issue!
tpoint -s block:block_rq_issue!
# show kernel stacks!
See the man page and example file for more info.!

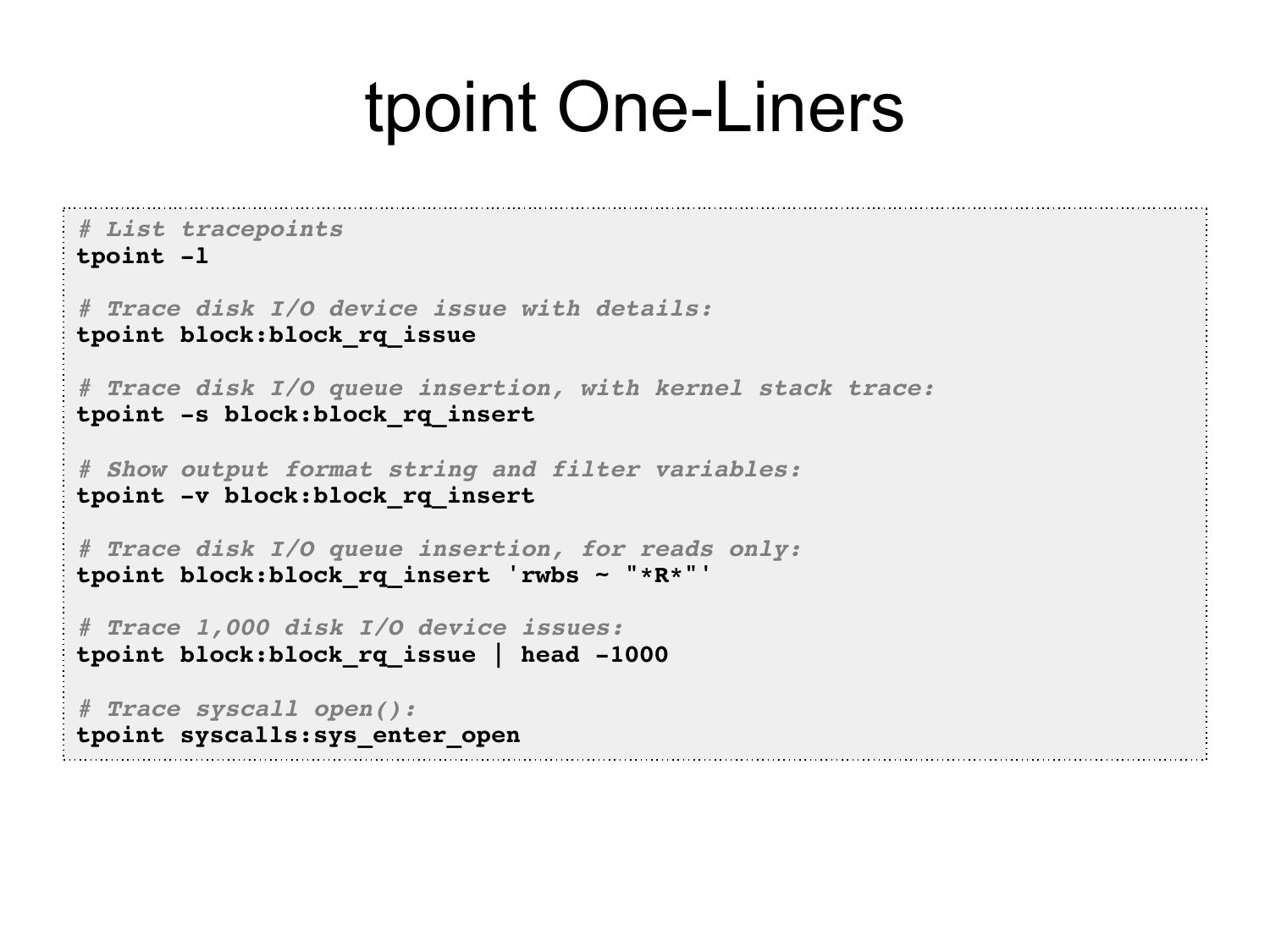

Some tpoint One-Liners
# List tracepoints!
tpoint -l!
# Show usage message!
tpoint -h!
# Trace disk I/O device issue with details:!
tpoint block:block_rq_issue!
# Trace disk I/O queue insertion with details:!
tpoint block:block_rq_insert!
# Trace disk I/O queue insertion with details, and include header:!
tpoint -H block:block_rq_insert!
# Trace disk I/O queue insertion, with kernel stack trace:!
tpoint -s block:block_rq_insert!
# Trace disk I/O queue insertion, for reads only:!
tpoint -s block:block_rq_insert 'rwbs ~ "*R*"'!
# Trace 1,000 disk I/O device issues:!
tpoint block:block_rq_issue | head -1000!

DEMO

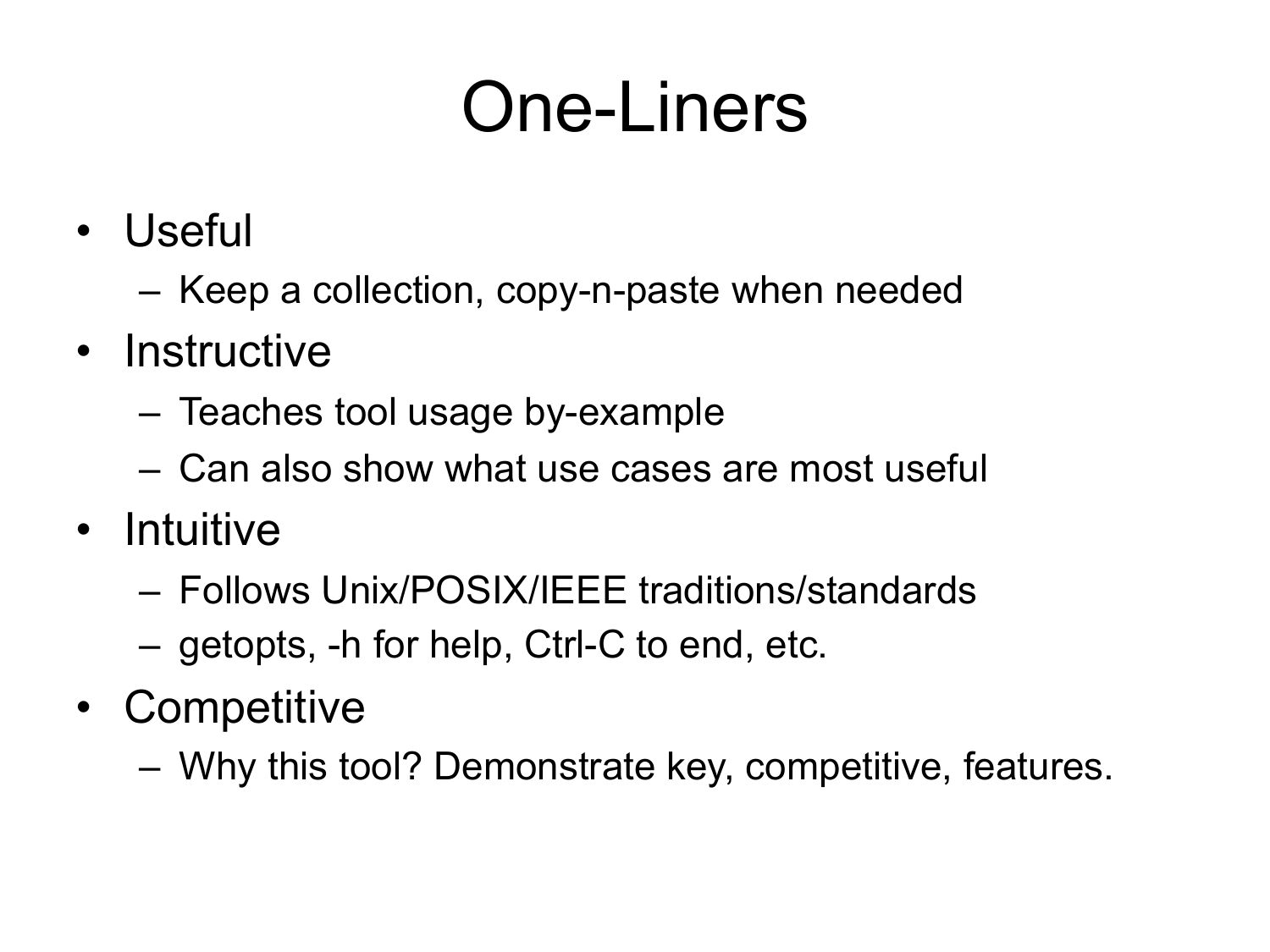

One-Liners
• Useful
– Keep a collection, copy-n-paste when needed
• Instructive
– Teaches tool usage by-example
– Can also show what use cases are most useful
• Intuitive
– Follows Unix/POSIX/IEEE traditions/standards
– getopts, -h for help, Ctrl-C to end, etc.
• Competitive
– Why this tool? Demonstrate key, competitive, features.

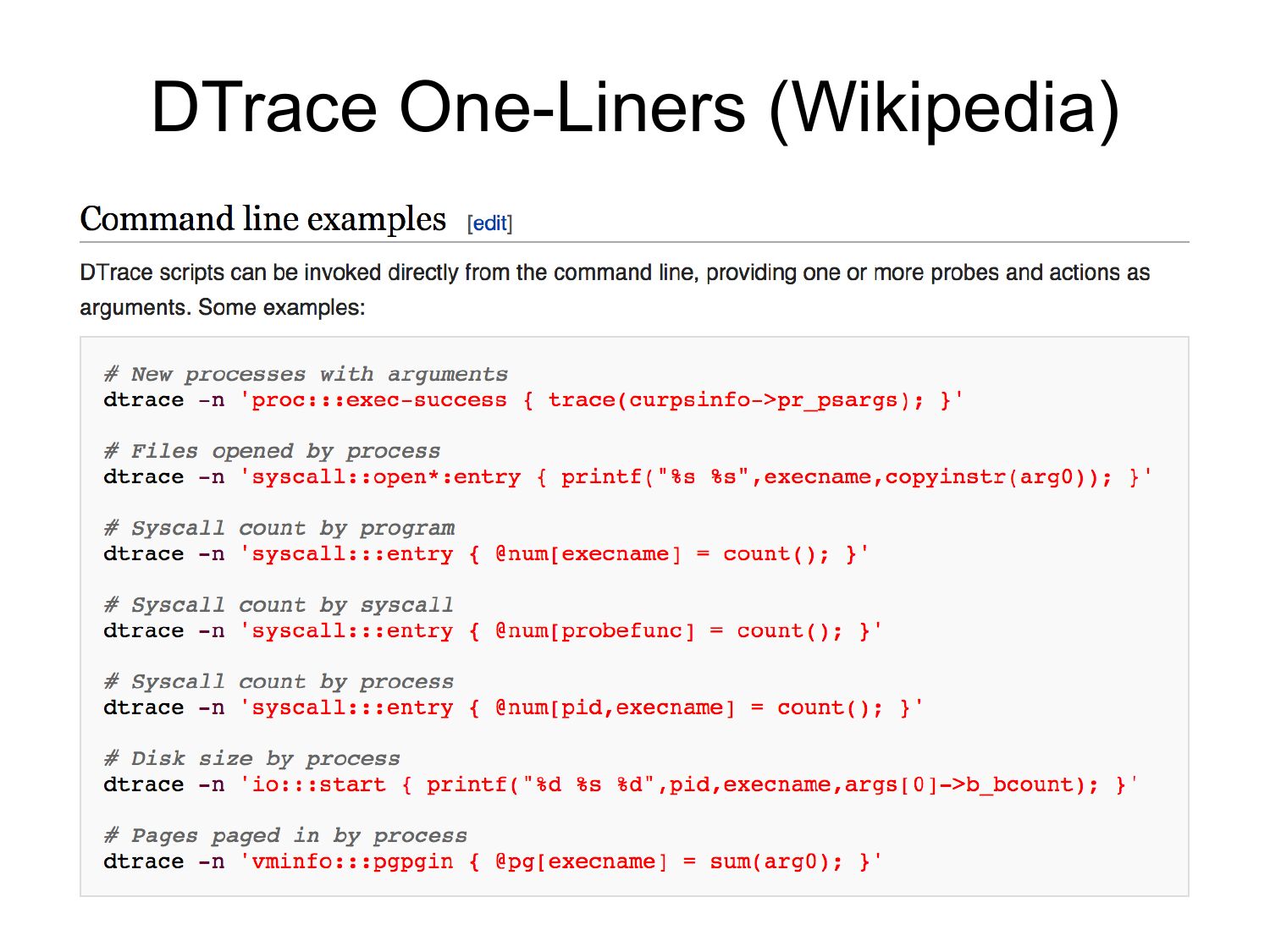

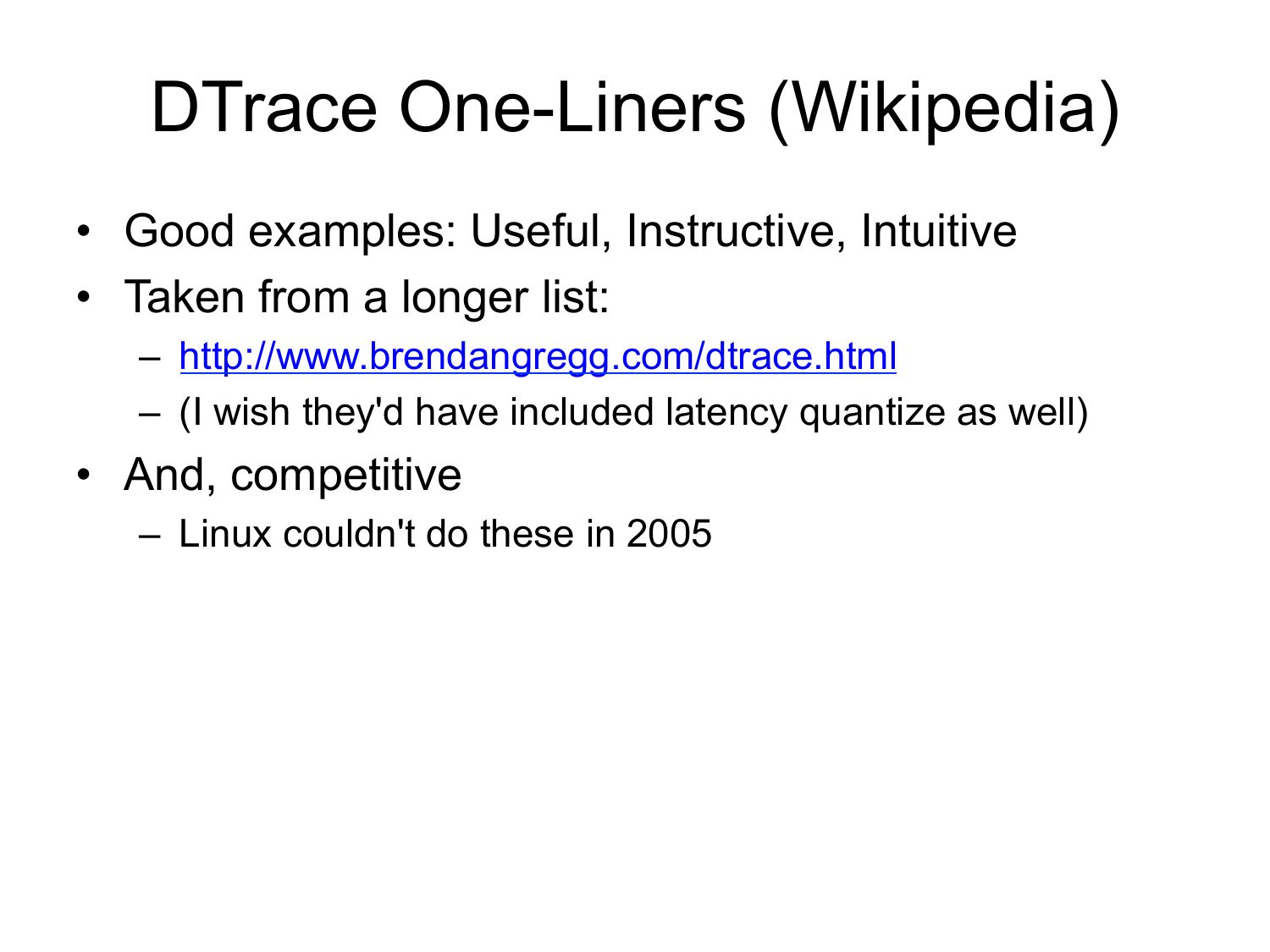

DTrace One-Liners (Wikipedia)

DTrace One-Liners (Wikipedia)
• Good examples: Useful, Instructive, Intuitive
• Taken from a longer list:
– http://www.brendangregg.com/dtrace.html
– (I wish they'd have included latency quantize as well)
• And, competitive
– Linux couldn't do these in 2005

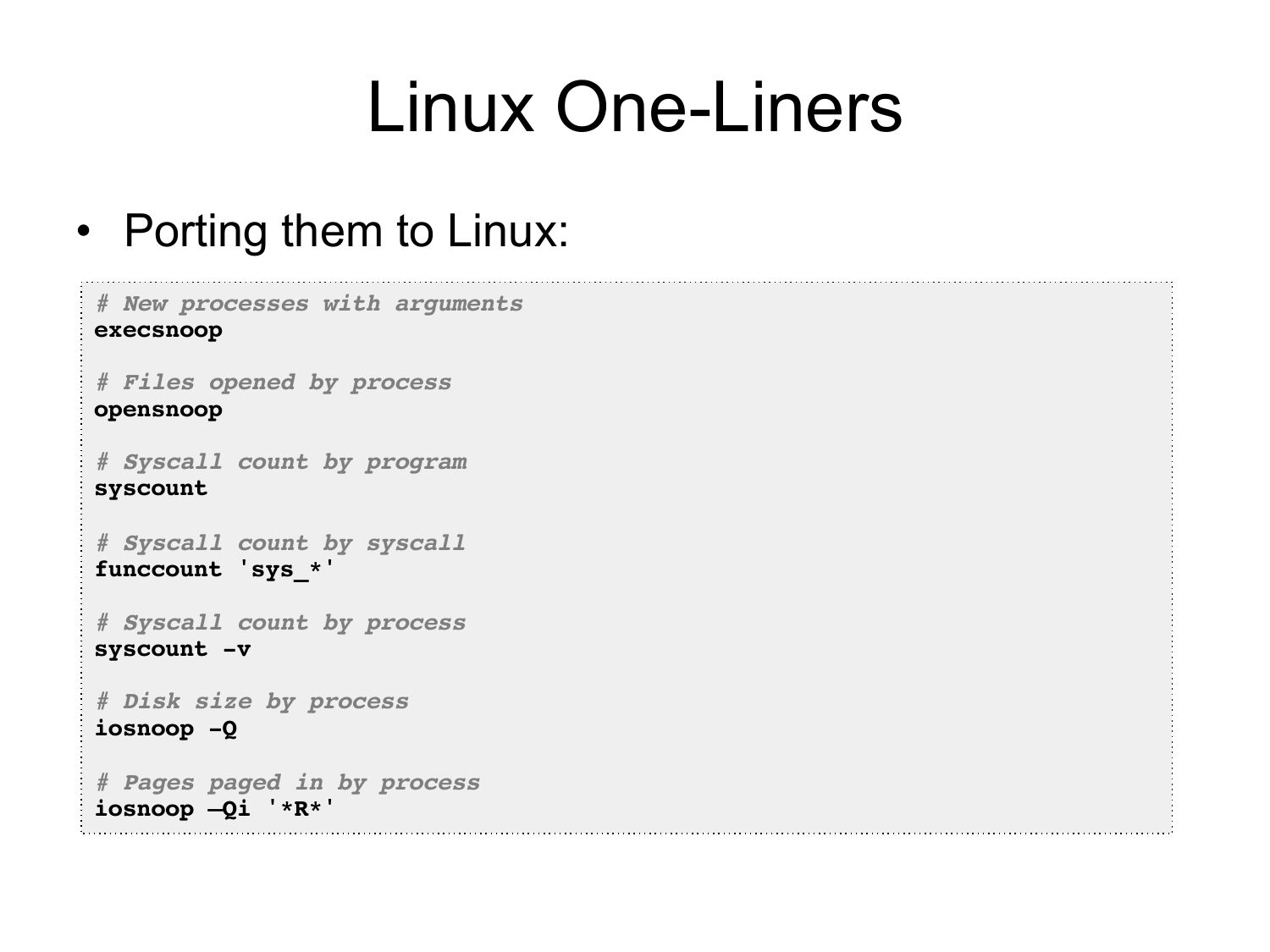

Linux One-Liners
• Porting them to Linux:
# New processes with arguments!
execsnoop!
# Files opened by process!
opensnoop!
# Syscall count by program!
syscount!
# Syscall count by syscall!

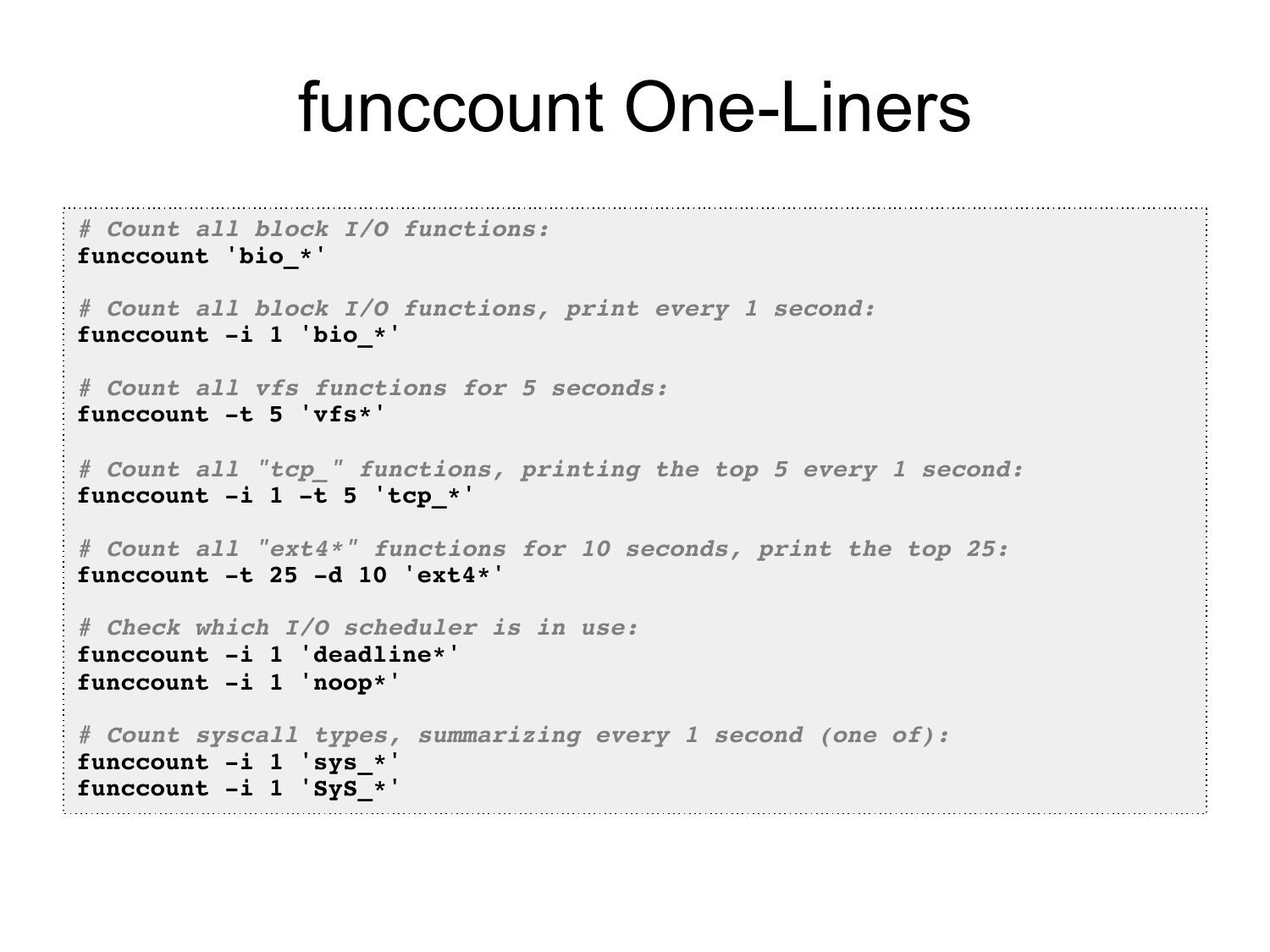

funccount 'sys_*'!
# Syscall count by process!
syscount -v!
# Disk size by process!

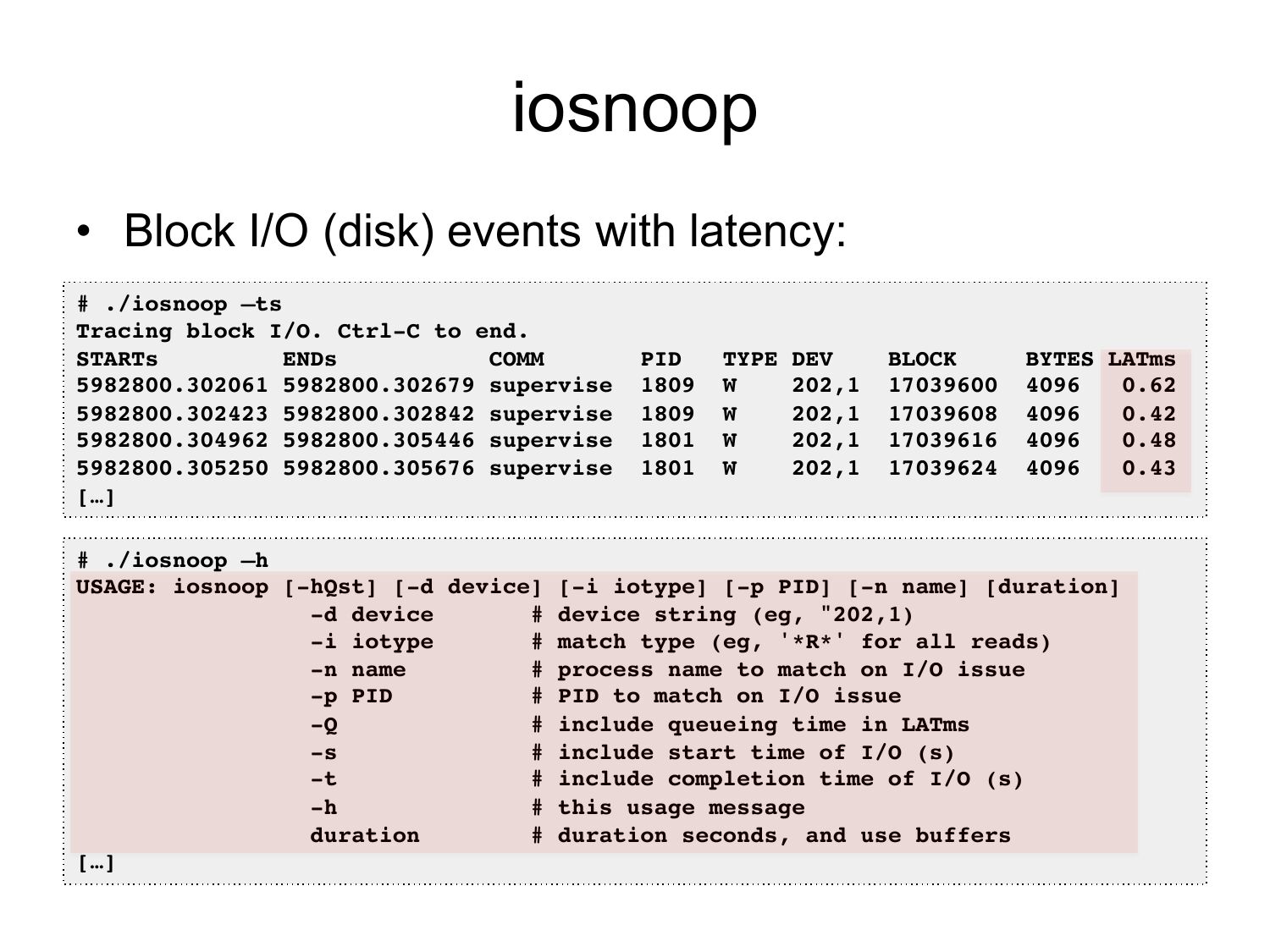

iosnoop -Q!
# Pages paged in by process!
iosnoop –Qi '*R*'!

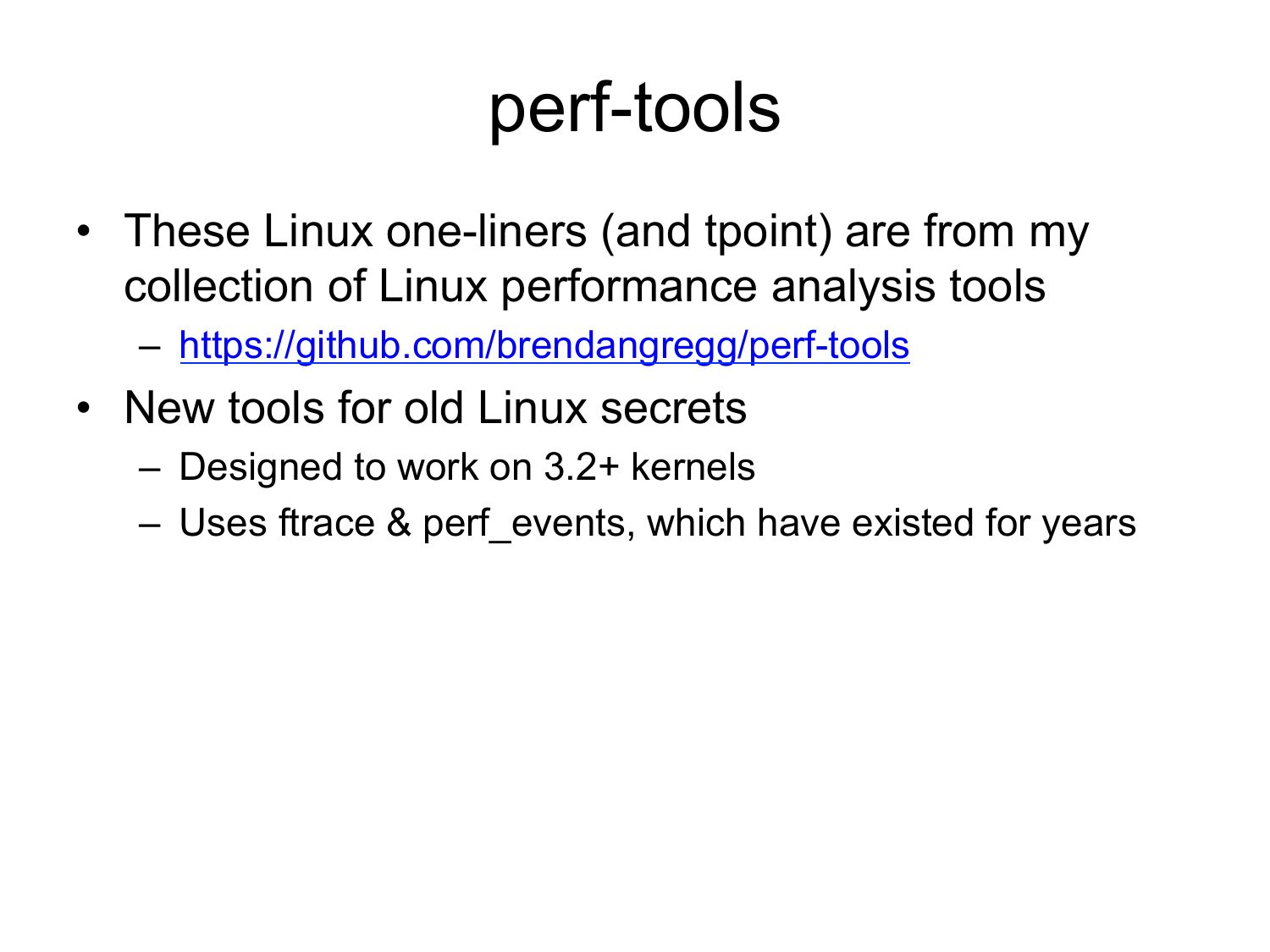

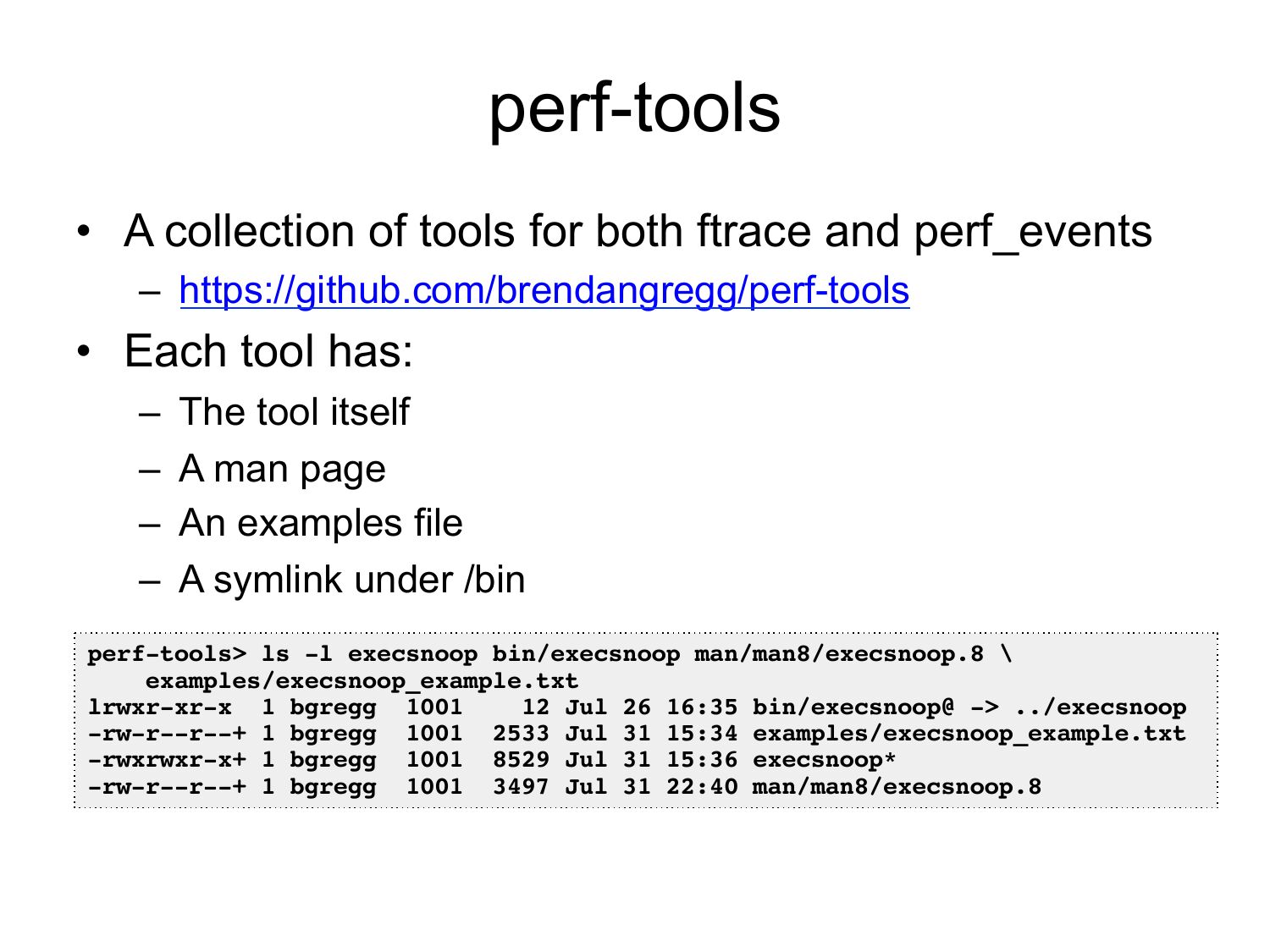

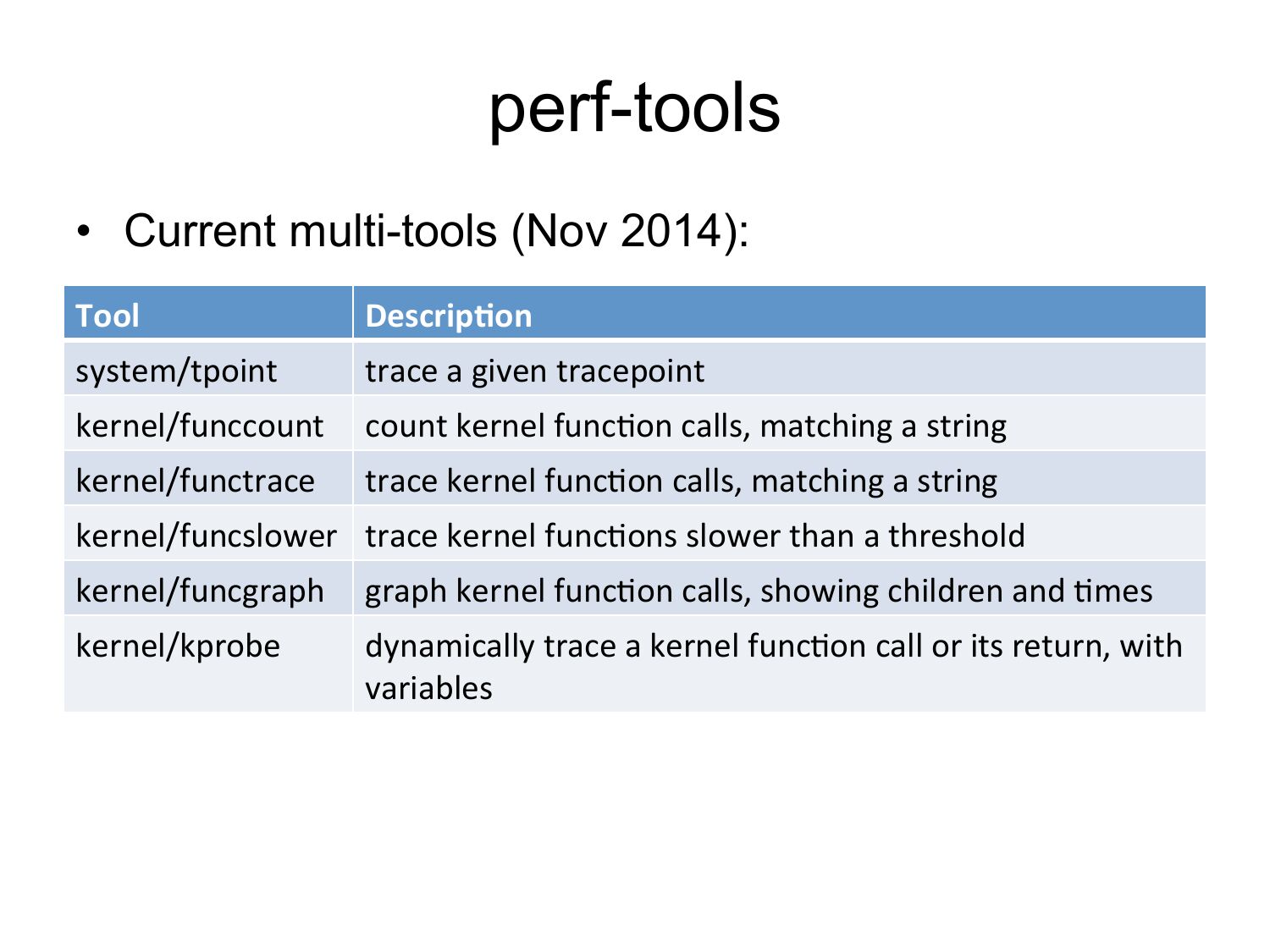

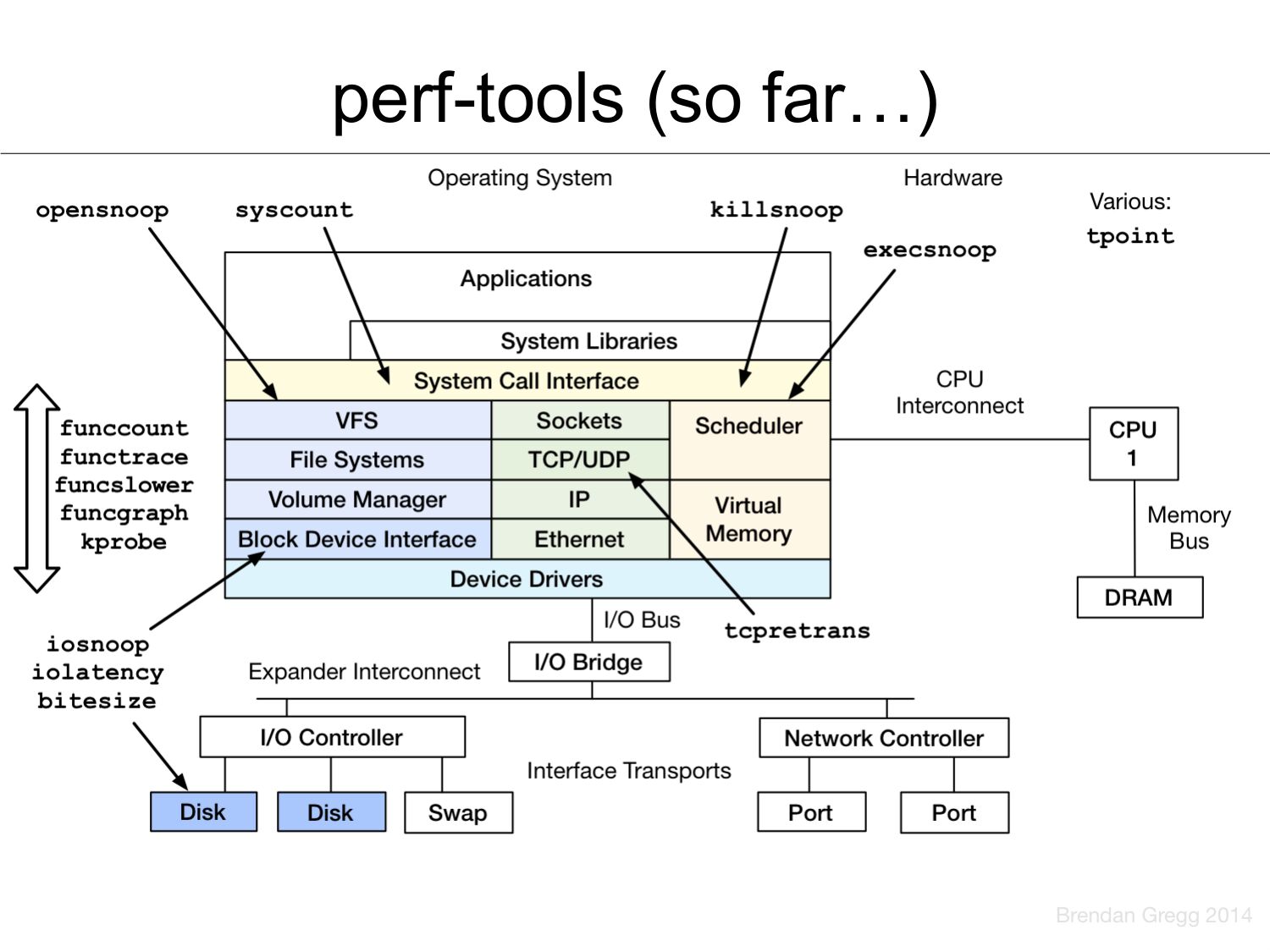

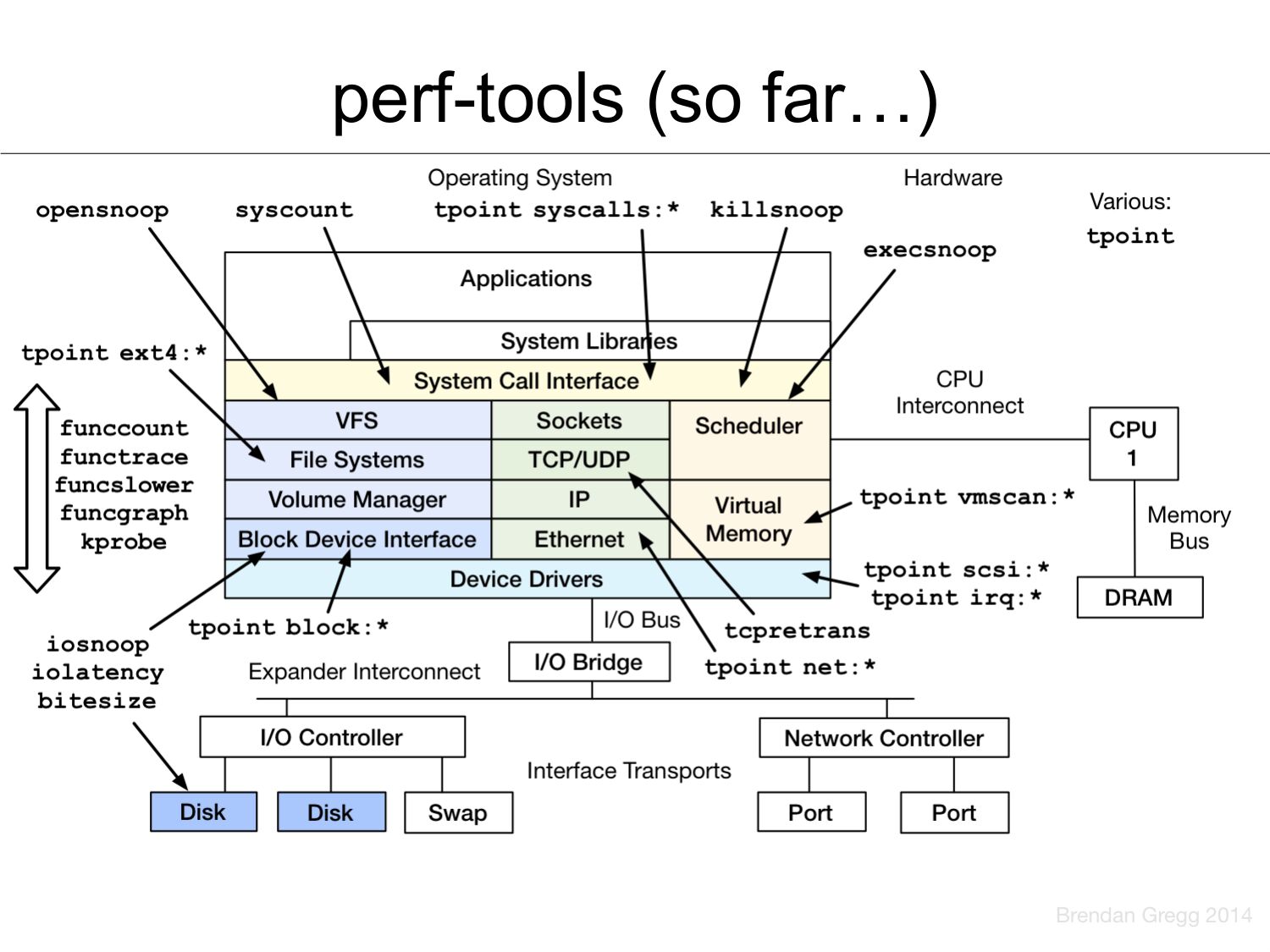

perf-tools
• These Linux one-liners (and tpoint) are from my
collection of Linux performance analysis tools
– https://github.com/brendangregg/perf-tools
• New tools for old Linux secrets
– Designed to work on 3.2+ kernels
– Uses ftrace & perf_events, which have existed for years

2. Background

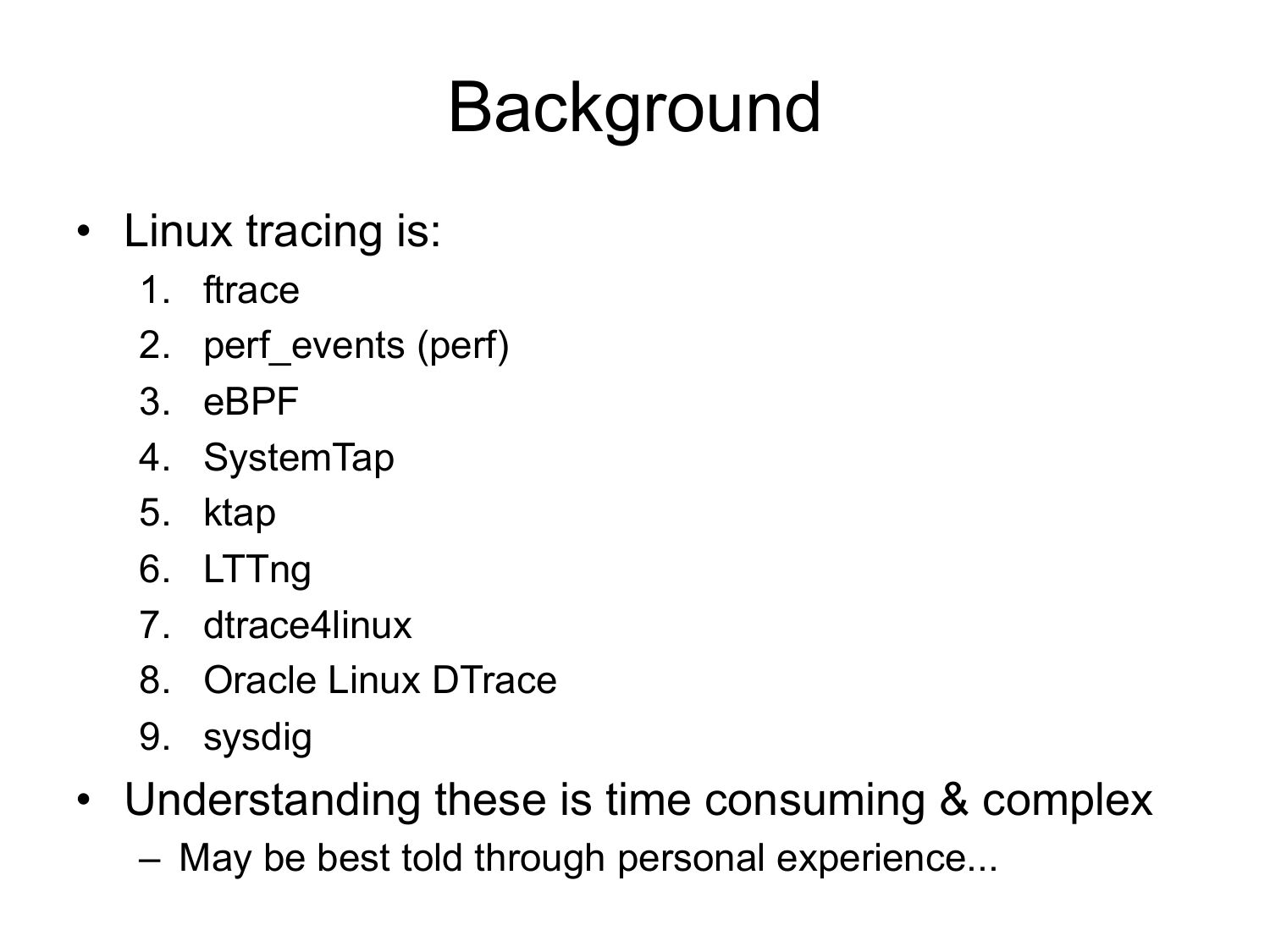

Background
• Linux tracing is:
ftrace
perf_events (perf)
eBPF
SystemTap
ktap
LTTng
dtrace4linux
Oracle Linux DTrace
sysdig
• Understanding these is time consuming & complex
– May be best told through personal experience...

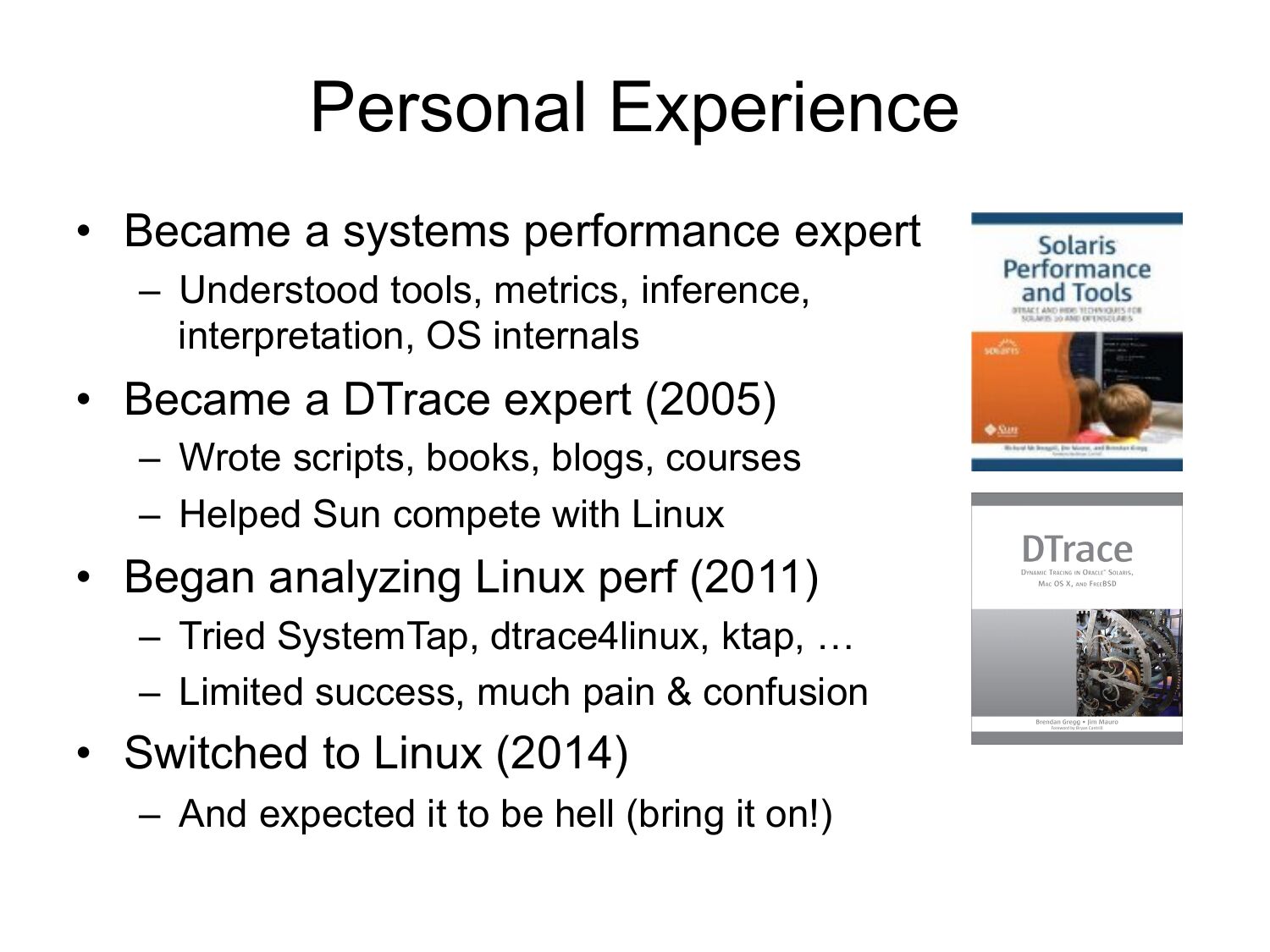

Personal Experience
• Became a systems performance expert
– Understood tools, metrics, inference,
interpretation, OS internals
• Became a DTrace expert (2005)
– Wrote scripts, books, blogs, courses
– Helped Sun compete with Linux
• Began analyzing Linux perf (2011)
– Tried SystemTap, dtrace4linux, ktap, …
– Limited success, much pain & confusion
• Switched to Linux (2014)
– And expected it to be hell (bring it on!)

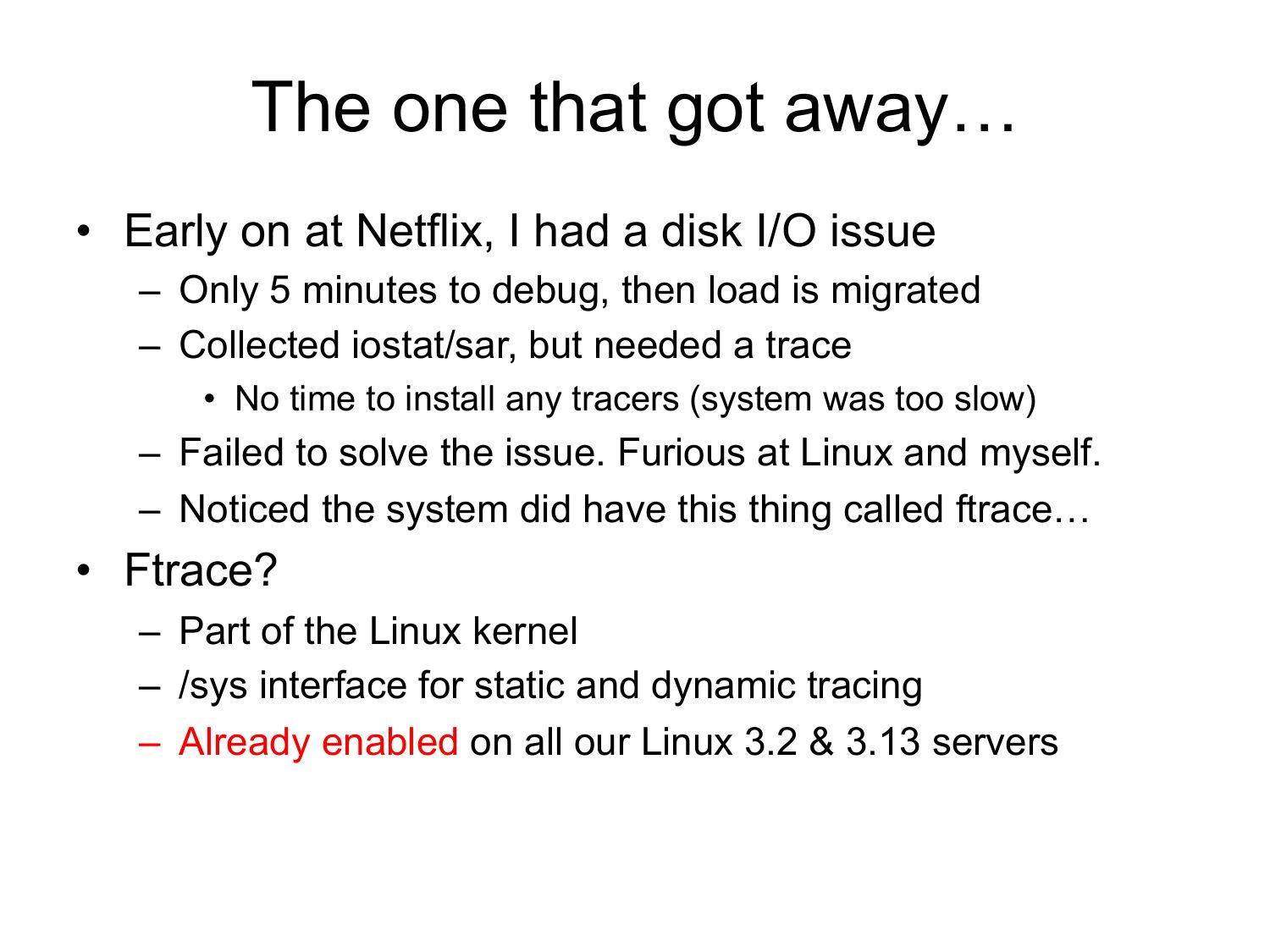

The one that got away…
• Early on at Netflix, I had a disk I/O issue
– Only 5 minutes to debug, then load is migrated
– Collected iostat/sar, but needed a trace
• No time to install any tracers (system was too slow)
– Failed to solve the issue. Furious at Linux and myself.
– Noticed the system did have this thing called ftrace…
• Ftrace?
– Part of the Linux kernel
– /sys interface for static and dynamic tracing
– Already enabled on all our Linux 3.2 & 3.13 servers

WHY AM I NOT
USING FTRACE ALREADY?
WHY IS NO ONE
USING FTRACE ALREADY?

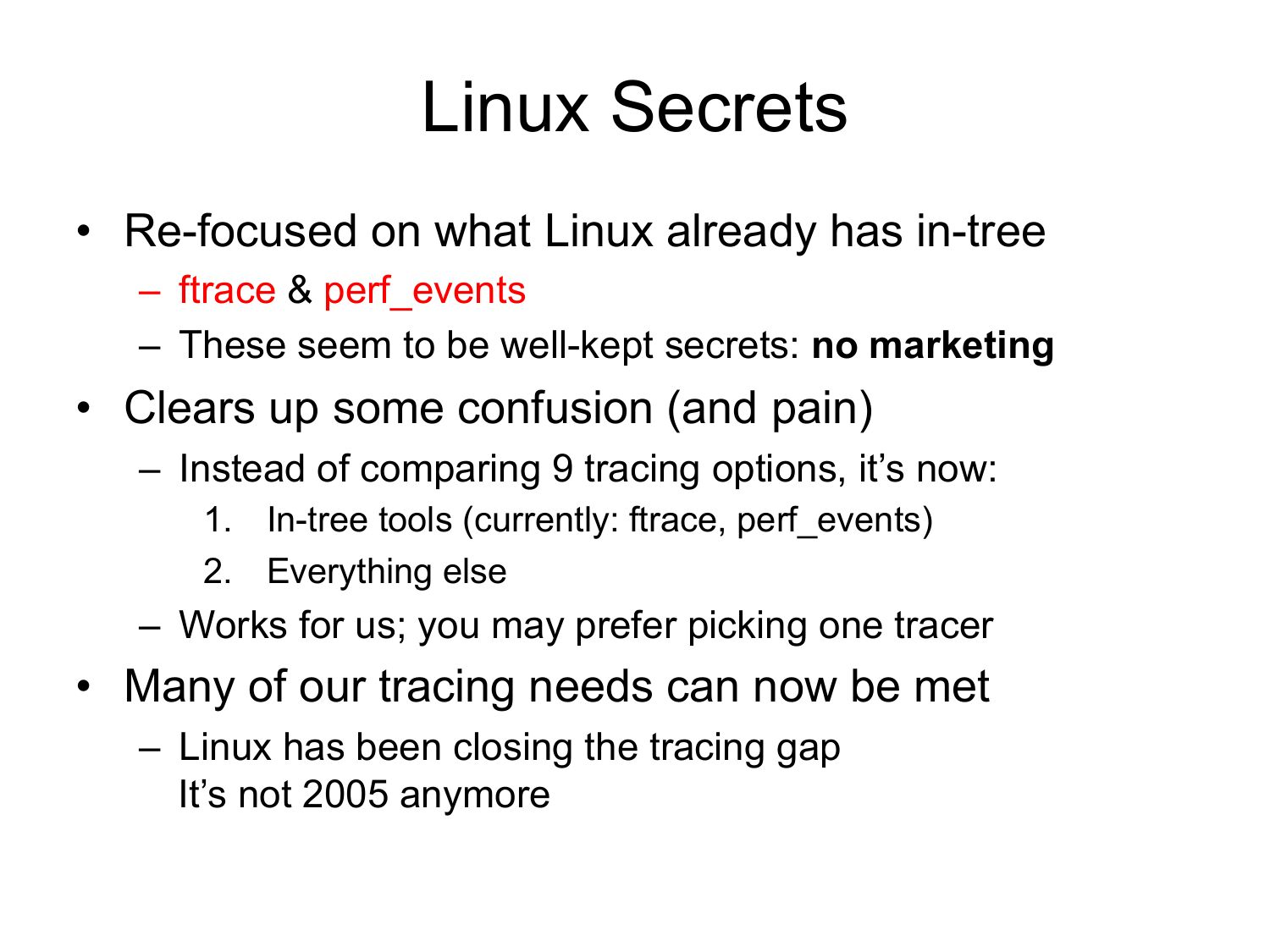

Linux Secrets
• Re-focused on what Linux already has in-tree
– ftrace & perf_events
– These seem to be well-kept secrets: no marketing
• Clears up some confusion (and pain)
– Instead of comparing 9 tracing options, it’s now:
1. In-tree tools (currently: ftrace, perf_events)
2. Everything else
– Works for us; you may prefer picking one tracer
• Many of our tracing needs can now be met
– Linux has been closing the tracing gap
It’s not 2005 anymore

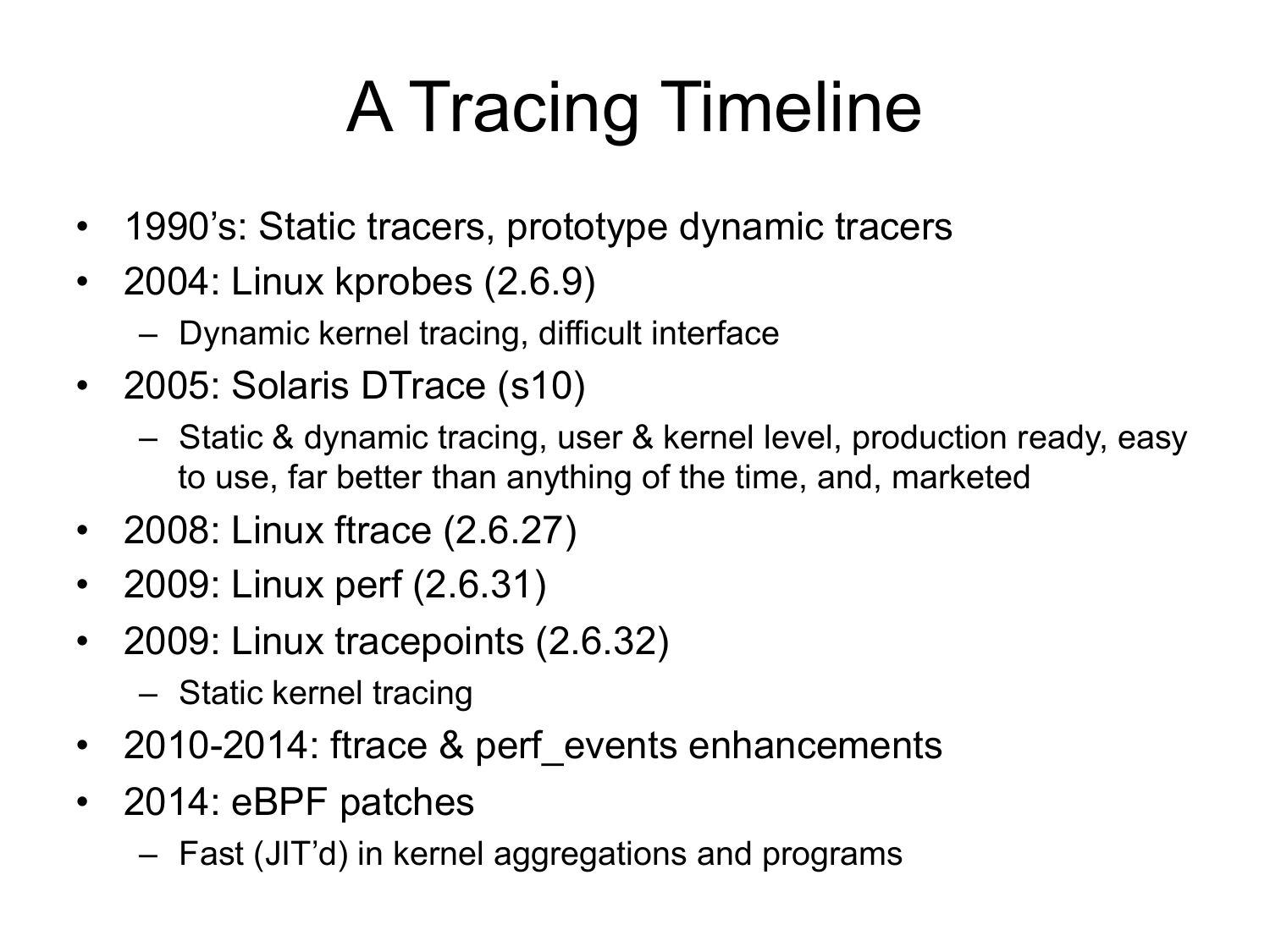

A Tracing Timeline
• 1990’s: Static tracers, prototype dynamic tracers
• 2004: Linux kprobes (2.6.9)
– Dynamic kernel tracing, difficult interface
• 2005: Solaris DTrace (s10)
– Static & dynamic tracing, user & kernel level, production ready, easy
to use, far better than anything of the time, and, marketed
• 2008: Linux ftrace (2.6.27)
• 2009: Linux perf (2.6.31)
• 2009: Linux tracepoints (2.6.32)
– Static kernel tracing
• 2010-2014: ftrace & perf_events enhancements
• 2014: eBPF patches
– Fast (JIT’d) in kernel aggregations and programs

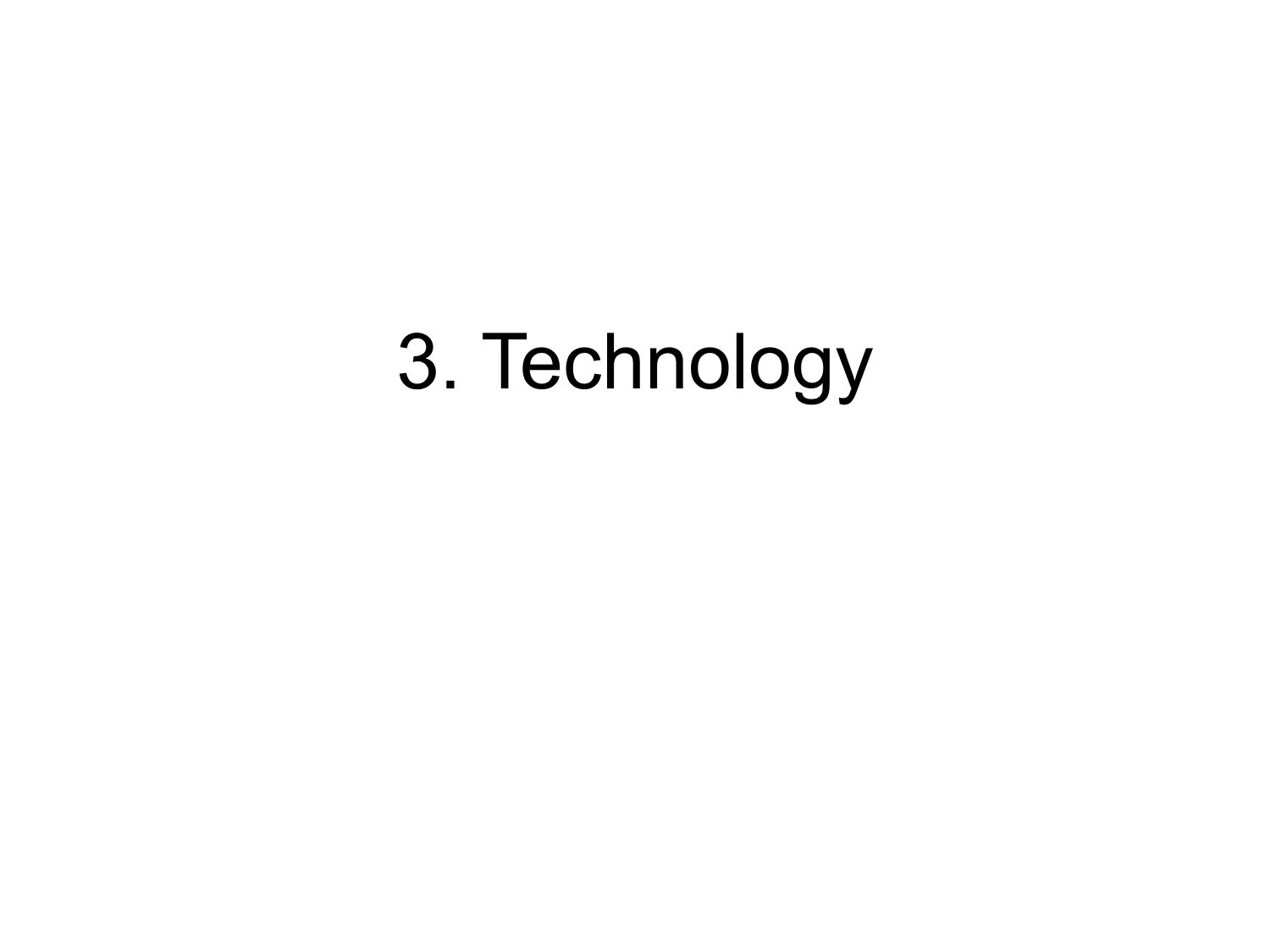

3. Technology

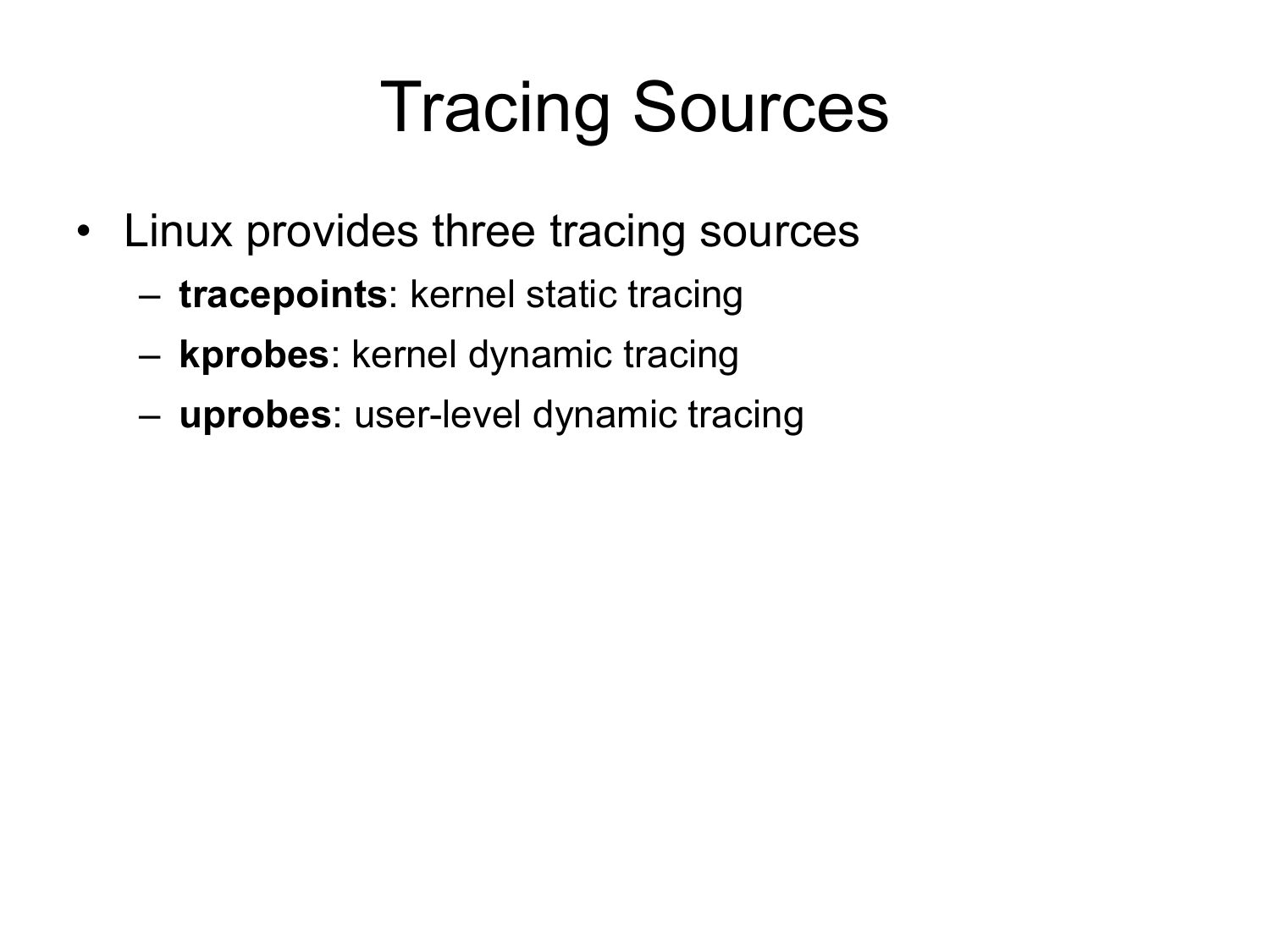

Tracing Sources
• Linux provides three tracing sources
– tracepoints: kernel static tracing
– kprobes: kernel dynamic tracing
– uprobes: user-level dynamic tracing

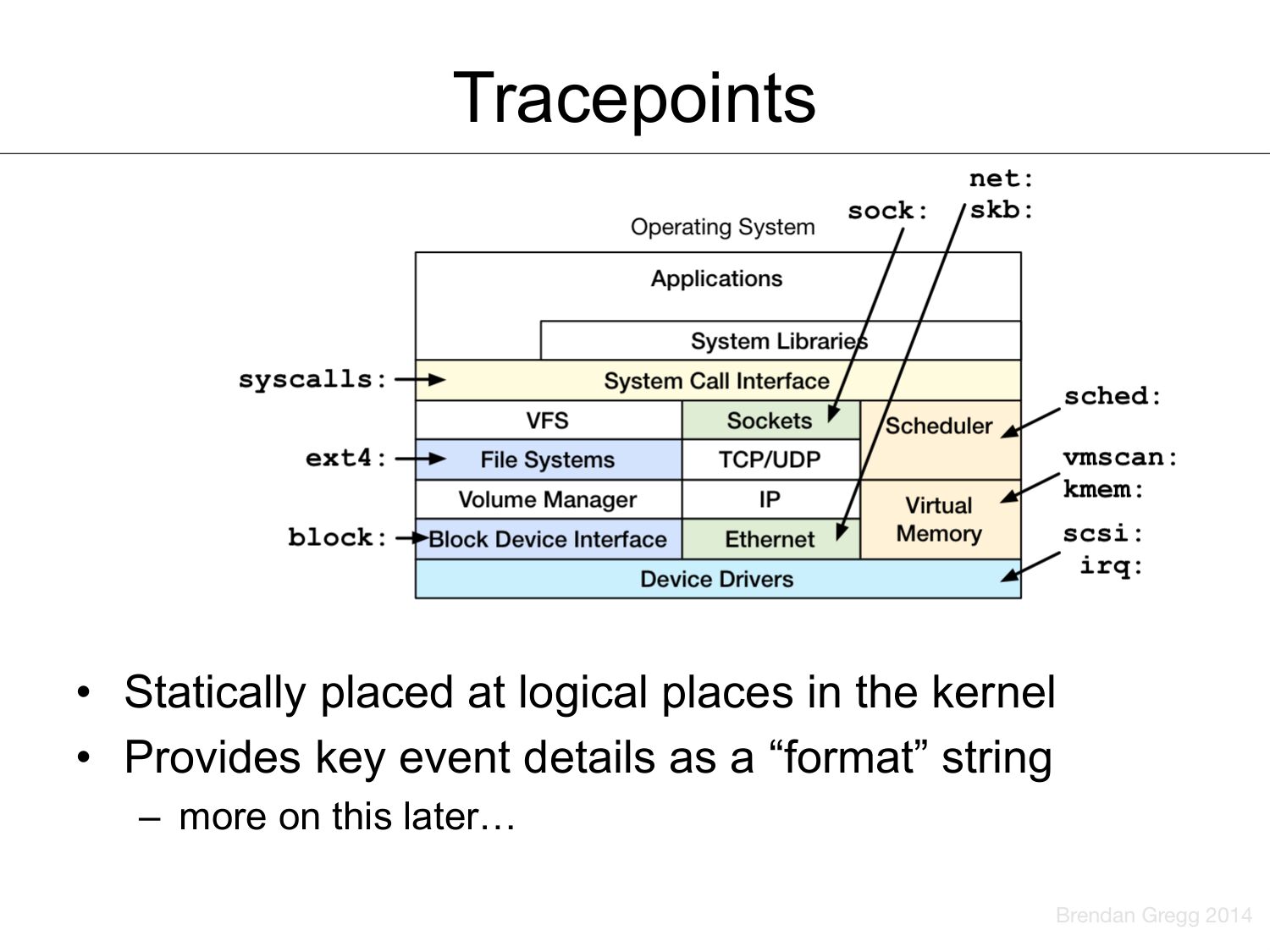

Tracepoints
• Statically placed at logical places in the kernel
• Provides key event details as a “format” string
– more on this later…

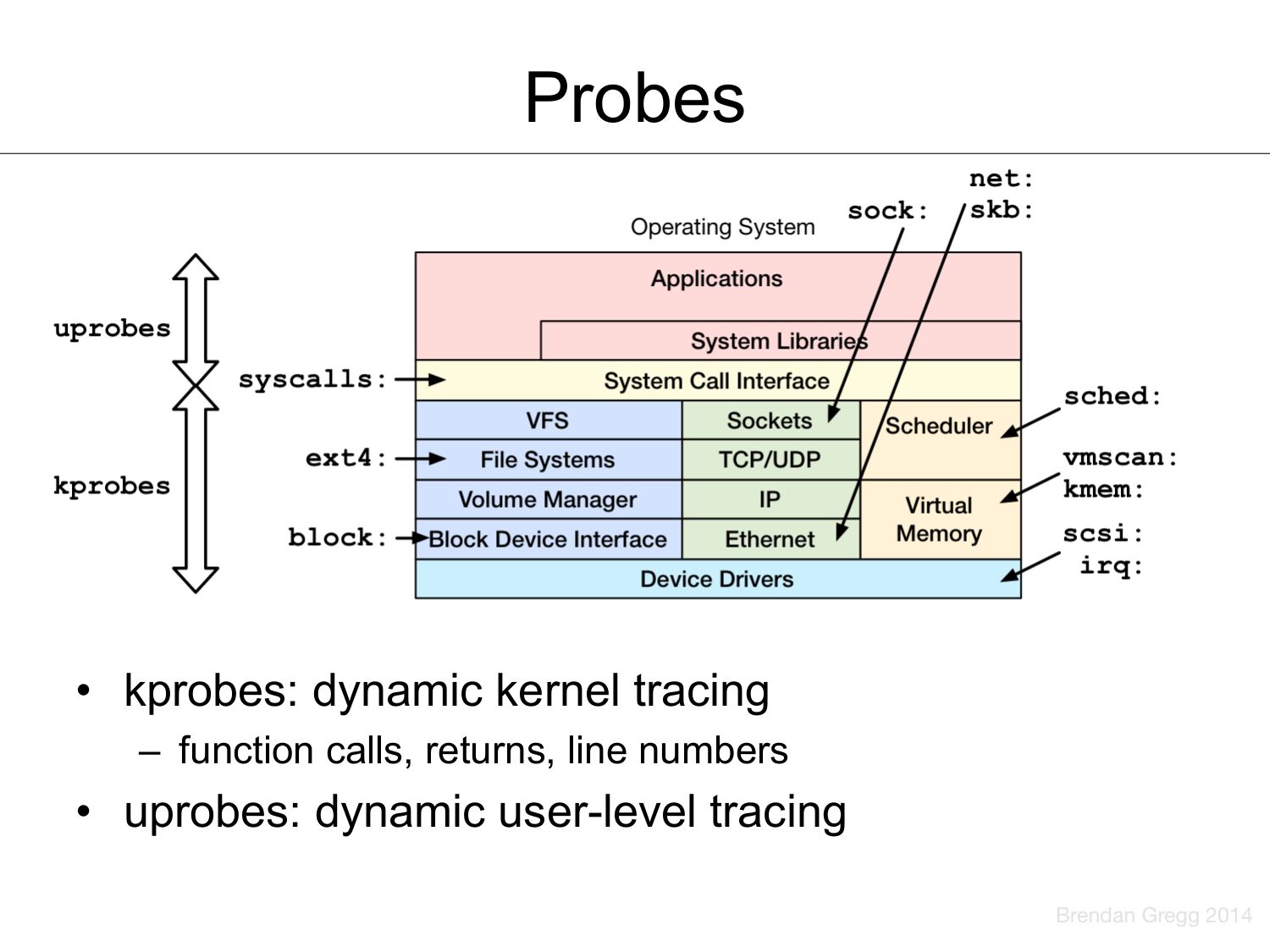

Probes
• kprobes: dynamic kernel tracing
– function calls, returns, line numbers
• uprobes: dynamic user-level tracing

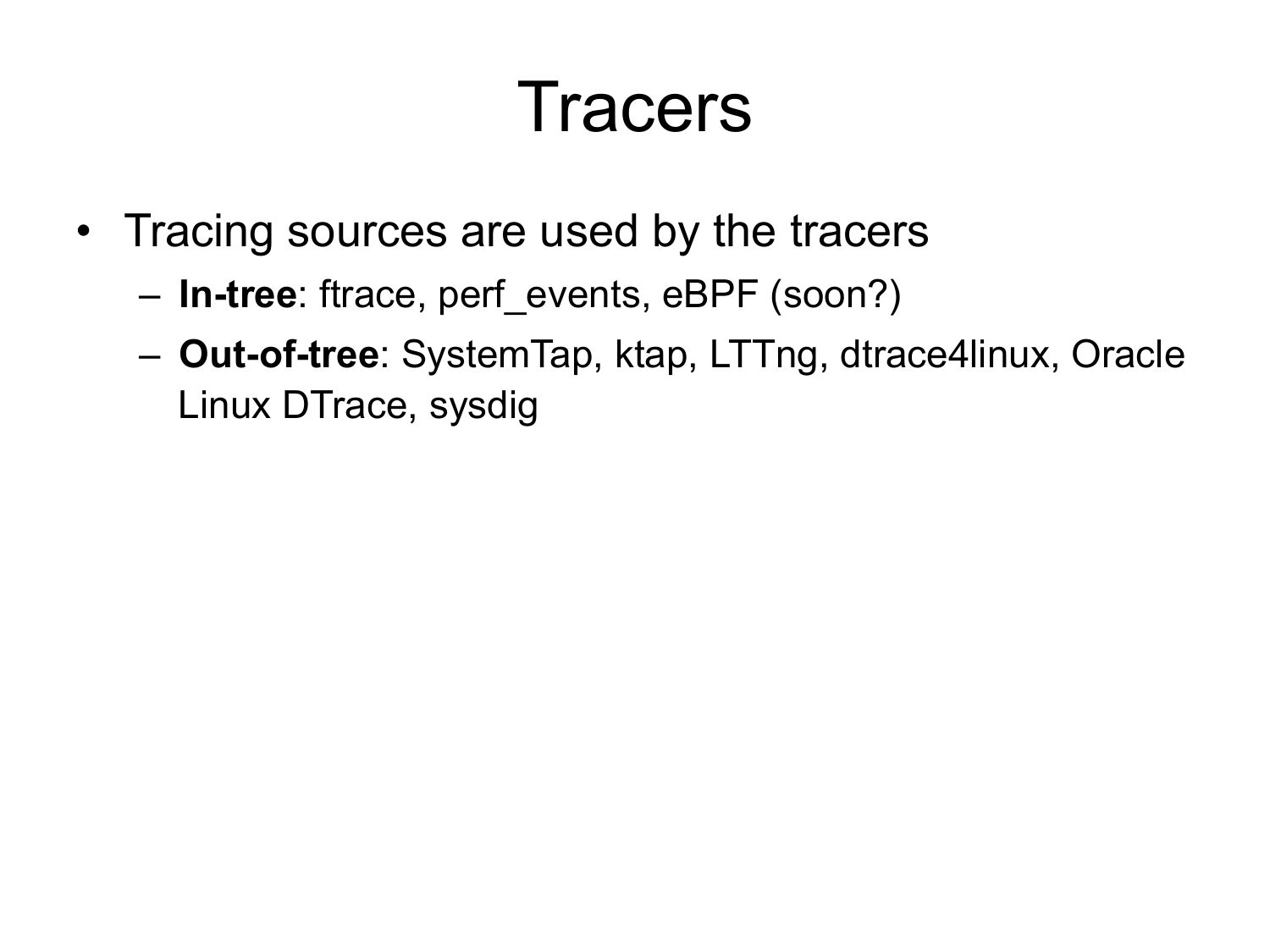

Tracers
• Tracing sources are used by the tracers
– In-tree: ftrace, perf_events, eBPF (soon?)
– Out-of-tree: SystemTap, ktap, LTTng, dtrace4linux, Oracle
Linux DTrace, sysdig

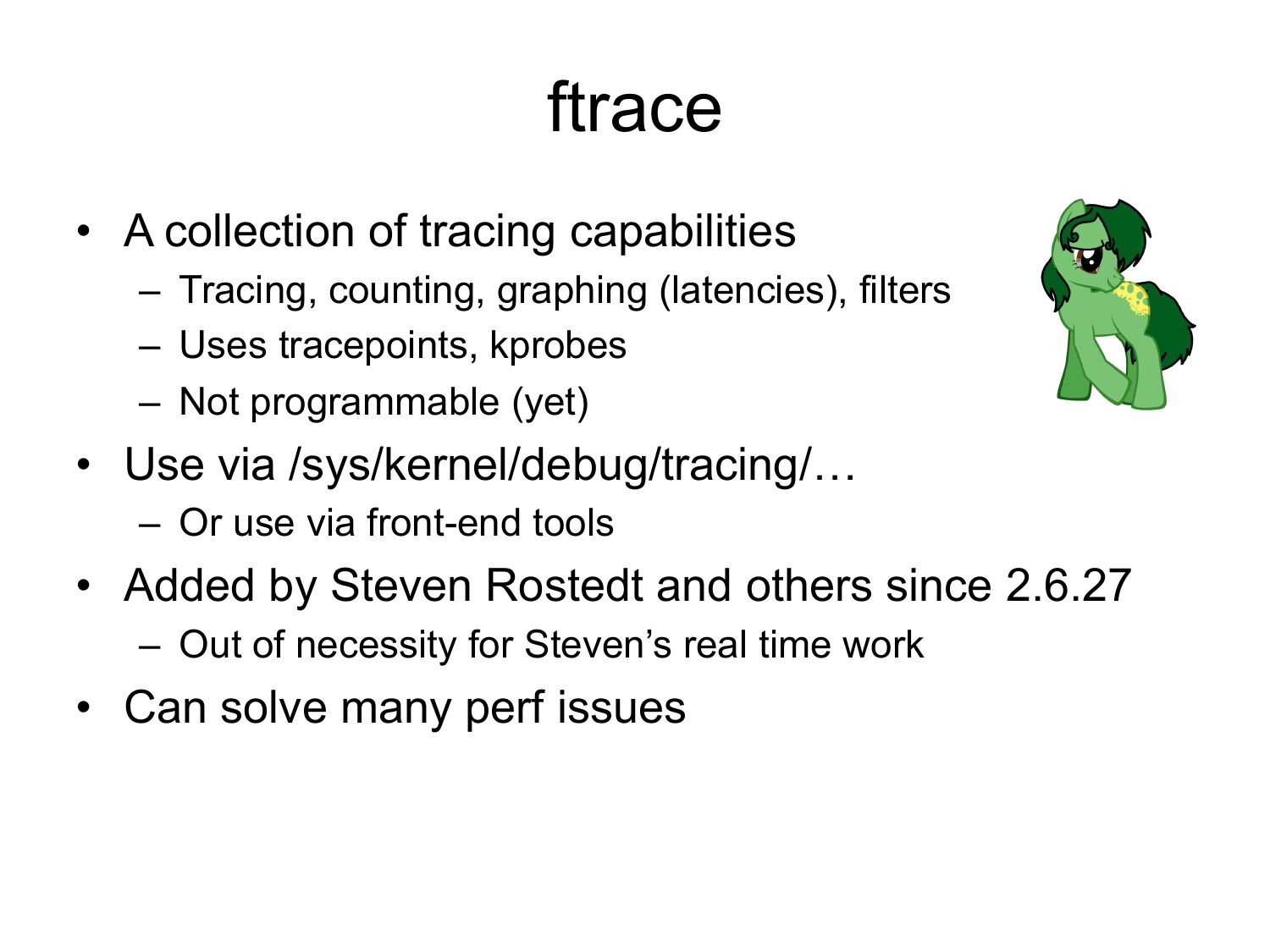

ftrace
• A collection of tracing capabilities
– Tracing, counting, graphing (latencies), filters
– Uses tracepoints, kprobes
– Not programmable (yet)
• Use via /sys/kernel/debug/tracing/…
– Or use via front-end tools
• Added by Steven Rostedt and others since 2.6.27
– Out of necessity for Steven’s real time work
• Can solve many perf issues

ftrace Interface
• Static tracing of block_rq_insert tracepoint
# cd /sys/kernel/debug/tracing!
# echo 1 >gt; events/block/block_rq_insert/enable!
# cat trace_pipe!
# echo 0 >gt; events/block/block_rq_insert/enable !
• Dynamic function tracing of tcp_retransmit_skb():
# cd /sys/kernel/debug/tracing!
# echo tcp_retransmit_skb >gt; set_ftrace_filter!
# echo function >gt; current_tracer !
# cat trace_pipe!
# echo nop >gt; current_tracer !
# echo >gt; set_ftrace_filter!
• Available tracing capabilities:
# cat available_tracers !
blk function_graph mmiotrace wakeup_rt wakeup function nop!

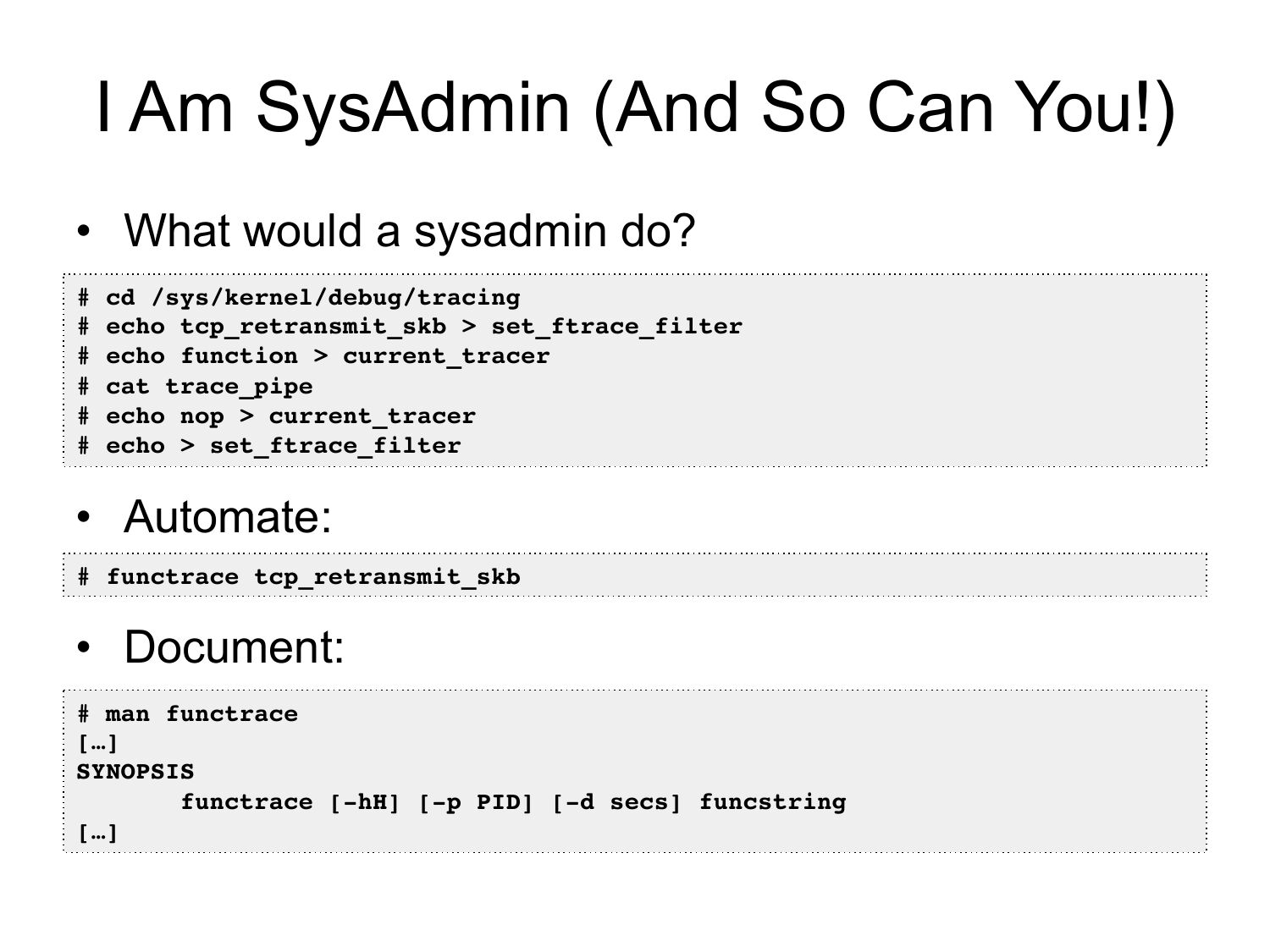

I Am SysAdmin (And So Can You!)
• What would a sysadmin do?
# cd /sys/kernel/debug/tracing!
# echo tcp_retransmit_skb >gt; set_ftrace_filter!
# echo function >gt; current_tracer !
# cat trace_pipe!
# echo nop >gt; current_tracer !
# echo >gt; set_ftrace_filter!
• Automate:
# functrace tcp_retransmit_skb!
• Document:
# man functrace!
[…]!
SYNOPSIS!
functrace [-hH] [-p PID] [-d secs] funcstring!
[…]!

ftrace Interface
• Plus many more capabilities
– buffered (trace) or live tracing (trace_pipe)
– filters for conditional tracing
– stack traces on events
– function triggers to enable/disable tracing
– functions with arguments (via kprobes)
• See Documentation/trace/ftrace.txt

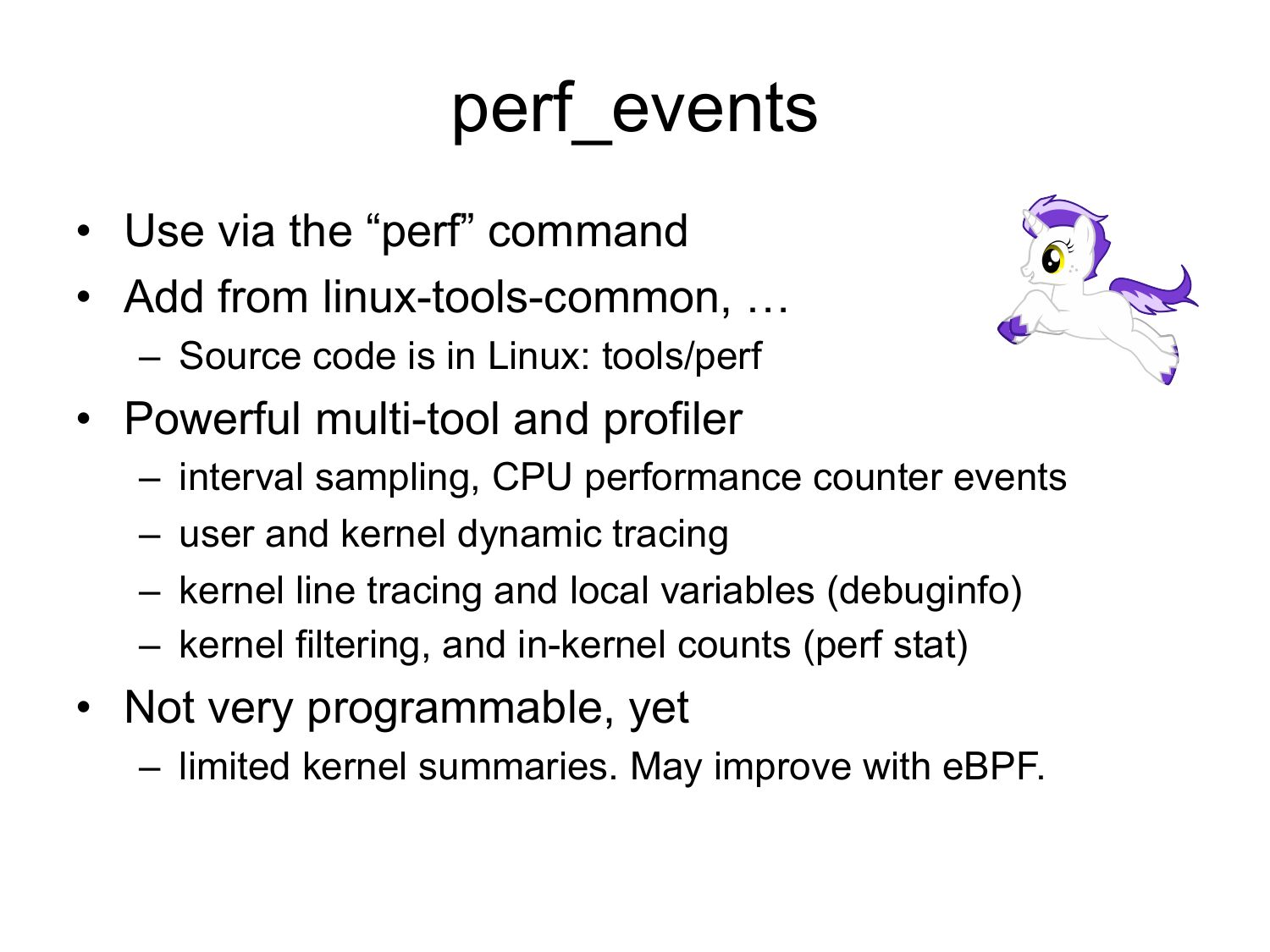

perf_events
• Use via the “perf” command
• Add from linux-tools-common, …
– Source code is in Linux: tools/perf
• Powerful multi-tool and profiler
– interval sampling, CPU performance counter events
– user and kernel dynamic tracing
– kernel line tracing and local variables (debuginfo)
– kernel filtering, and in-kernel counts (perf stat)
• Not very programmable, yet
– limited kernel summaries. May improve with eBPF.

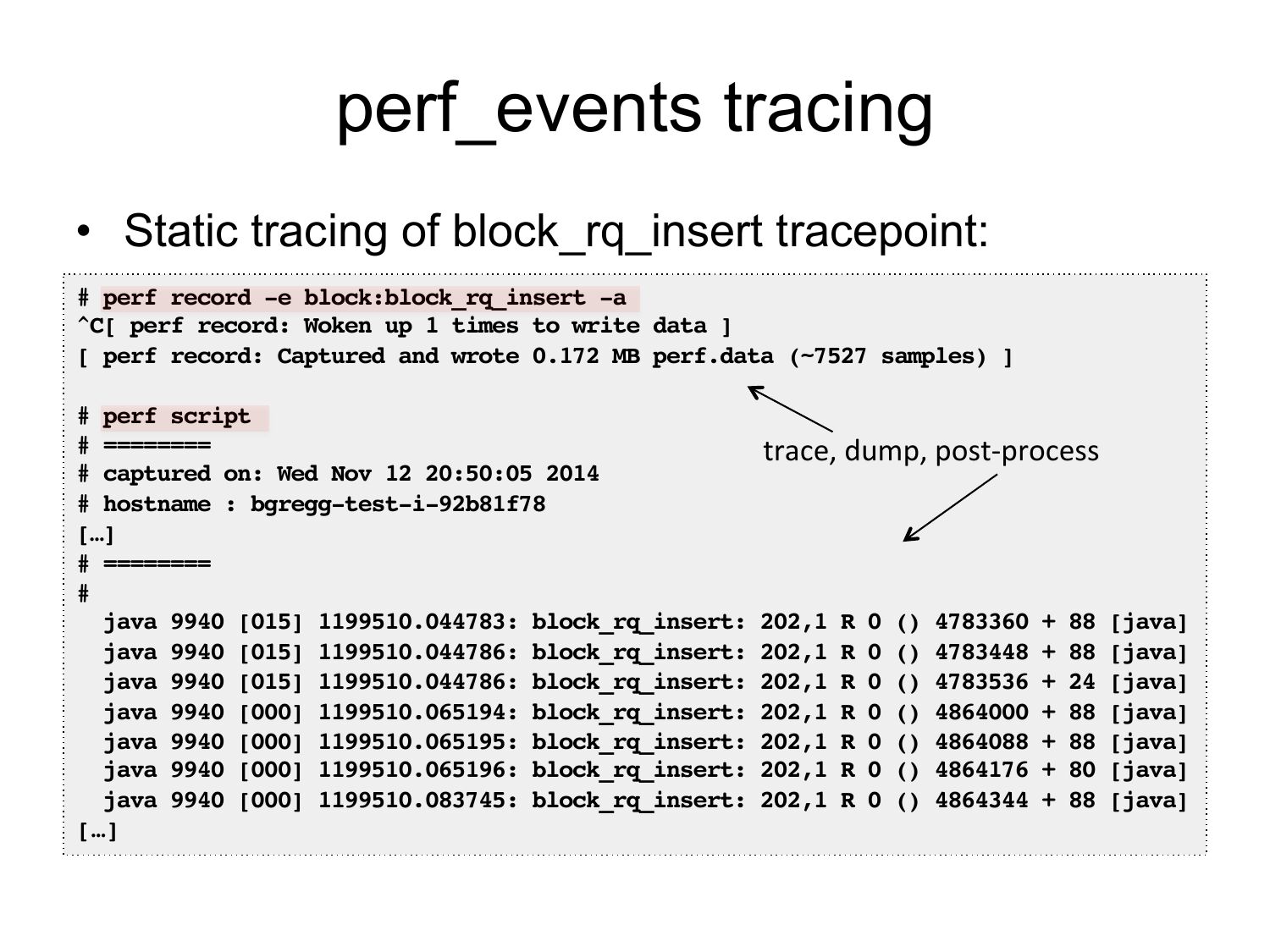

perf_events tracing
• Static tracing of block_rq_insert tracepoint:
# perf record -e block:block_rq_insert -a!
^C[ perf record: Woken up 1 times to write data ]!
[ perf record: Captured and wrote 0.172 MB perf.data (~7527 samples) ]!
# perf script!
# ========!
trace,
  dump,
  post-­‐process

# captured on: Wed Nov 12 20:50:05 2014!
# hostname : bgregg-test-i-92b81f78!
[…]!
# ========!
java 9940 [015] 1199510.044783: block_rq_insert: 202,1 R 0 () 4783360 + 88 [java]!
java 9940 [015] 1199510.044786: block_rq_insert: 202,1 R 0 () 4783448 + 88 [java]!
java 9940 [015] 1199510.044786: block_rq_insert: 202,1 R 0 () 4783536 + 24 [java]!
java 9940 [000] 1199510.065194: block_rq_insert: 202,1 R 0 () 4864000 + 88 [java]!
java 9940 [000] 1199510.065195: block_rq_insert: 202,1 R 0 () 4864088 + 88 [java]!
java 9940 [000] 1199510.065196: block_rq_insert: 202,1 R 0 () 4864176 + 80 [java]!
java 9940 [000] 1199510.083745: block_rq_insert: 202,1 R 0 () 4864344 + 88 [java]!
[…]!

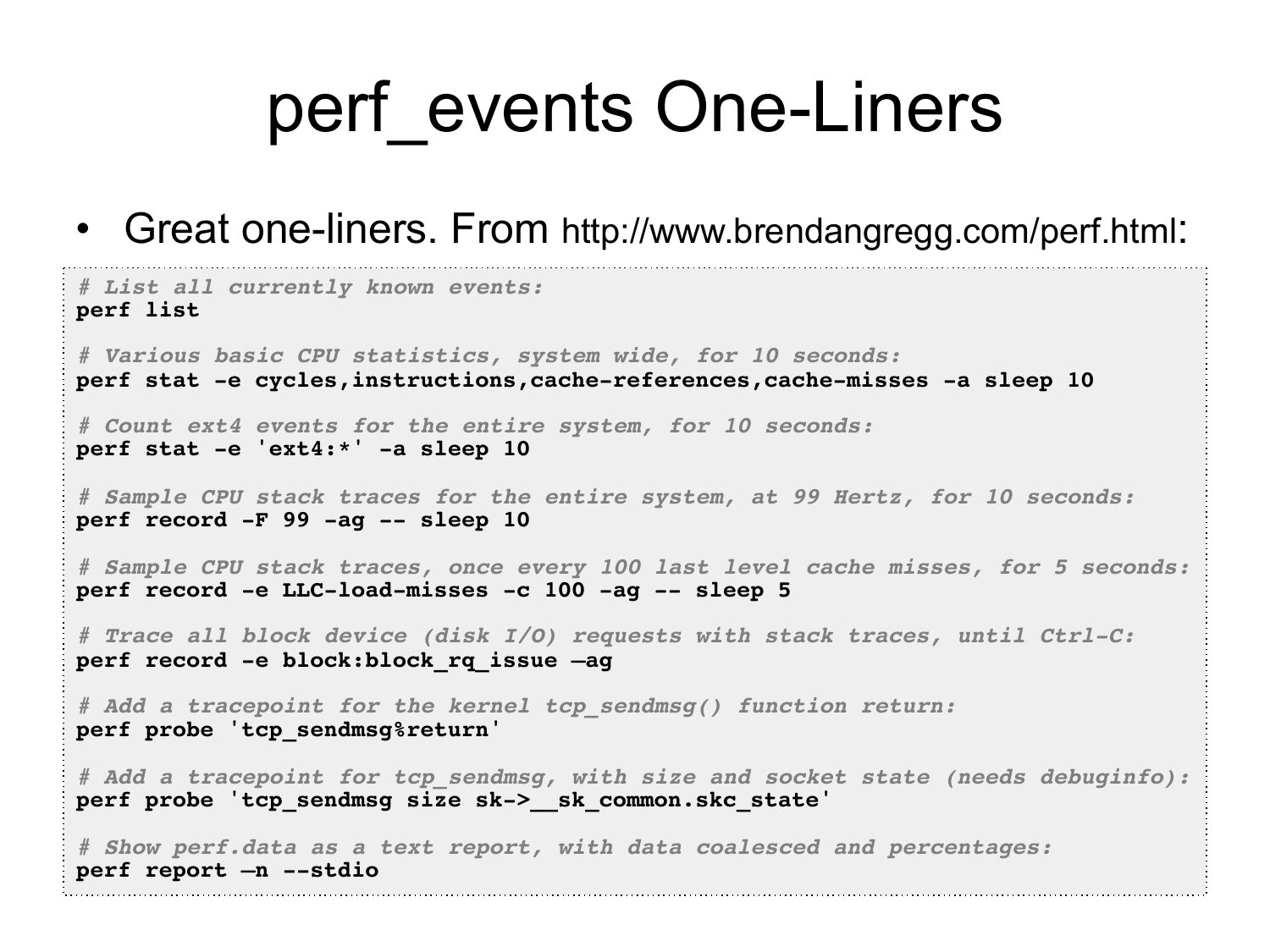

perf_events One-Liners
• Great one-liners. From http://www.brendangregg.com/perf.html:
# List all currently known events:!
perf list!
# Various basic CPU statistics, system wide, for 10 seconds:!
perf stat -e cycles,instructions,cache-references,cache-misses -a sleep 10!
# Count ext4 events for the entire system, for 10 seconds:!
perf stat -e 'ext4:*' -a sleep 10!
# Sample CPU stack traces for the entire system, at 99 Hertz, for 10 seconds:!
perf record -F 99 -ag -- sleep 10!
# Sample CPU stack traces, once every 100 last level cache misses, for 5 seconds:!
perf record -e LLC-load-misses -c 100 -ag -- sleep 5 !
# Trace all block device (disk I/O) requests with stack traces, until Ctrl-C:!
perf record -e block:block_rq_issue –ag!
# Add a tracepoint for the kernel tcp_sendmsg() function return:!
perf probe 'tcp_sendmsg%return'!
# Add a tracepoint for tcp_sendmsg, with size and socket state (needs debuginfo):!
perf probe 'tcp_sendmsg size sk->gt;__sk_common.skc_state'!
# Show perf.data as a text report, with data coalesced and percentages:!
perf report –n --stdio!

eBPF
• Extended BPF: programs on tracepoints
– High performance filtering: JIT
– In-kernel summaries: maps
Time

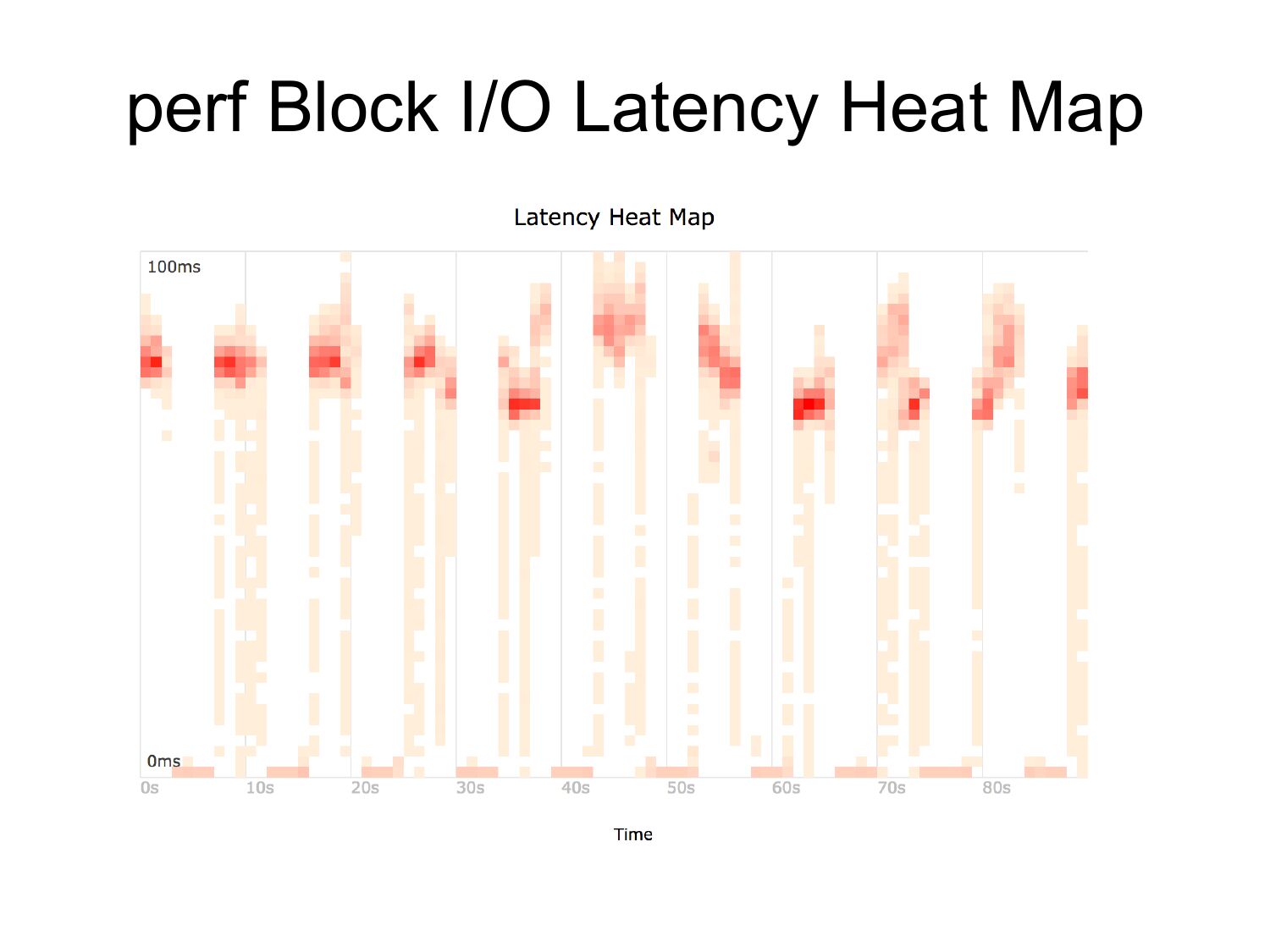

• eg, in-kernel latency heat map (showing bimodal):
Low

latency

cache

hits

High

latency

device

I/O


eBPF
• Created by Alexei Starovoitov
• Gradually being included in Linux (see lkml)
• Has been difficult to program directly
– Other tools can become front-ends: ftrace, perf_events,
SystemTap, ktap?

Other Tracers
• Discussion:
– SystemTap
– ktap
– LTTng
– DTrace ports
– sysdig

The Tracing Landscape, Nov 2014
(less
  brutal)

(my
  opinion)

Ease
  of
  use

sysdig

perf

stap

Irace

(alpha)

(brutal)

dtrace4L.
ktap

(mature)

Stage
  of

Development

eBPF

Scope
  &
  Capability

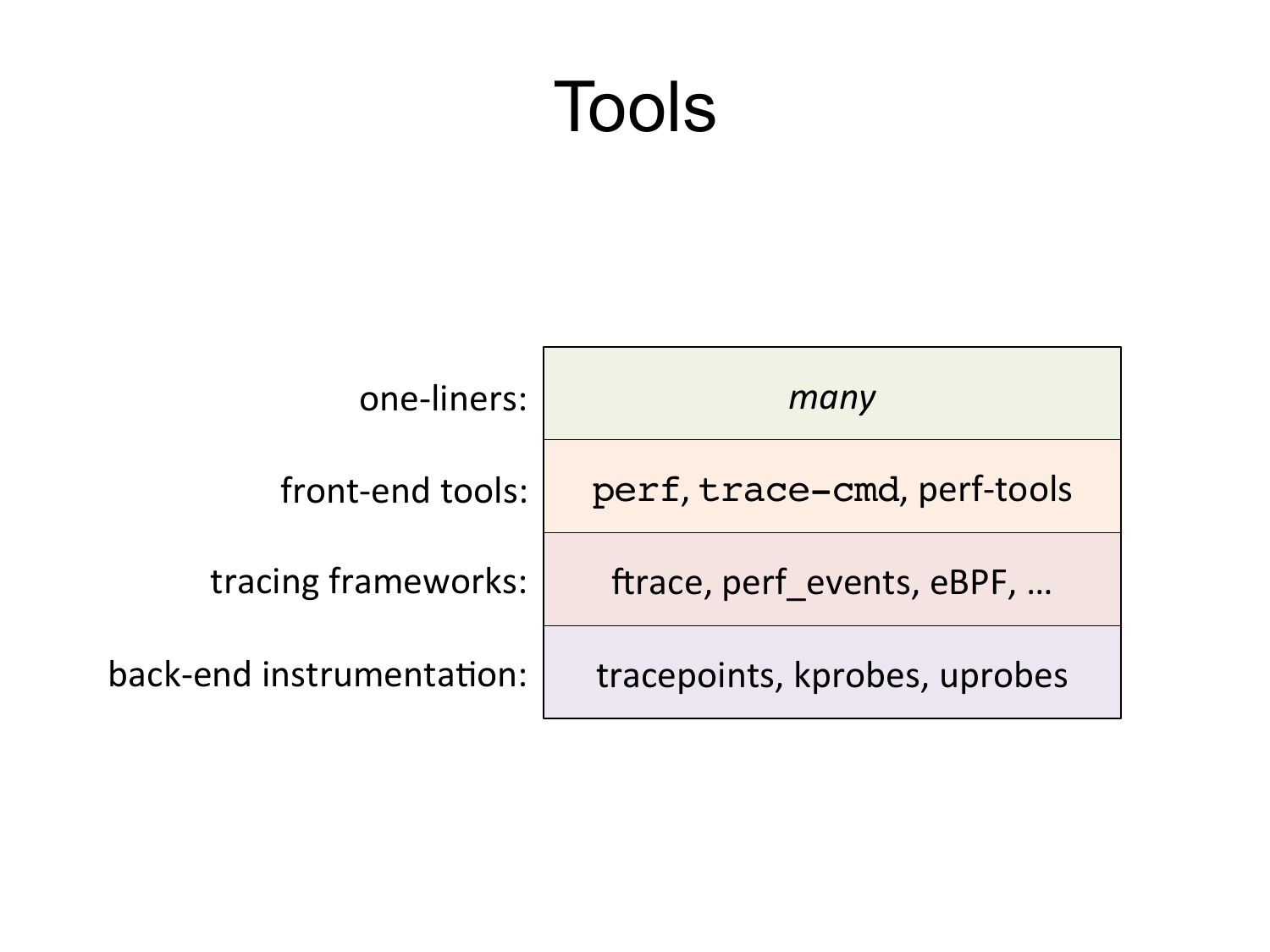

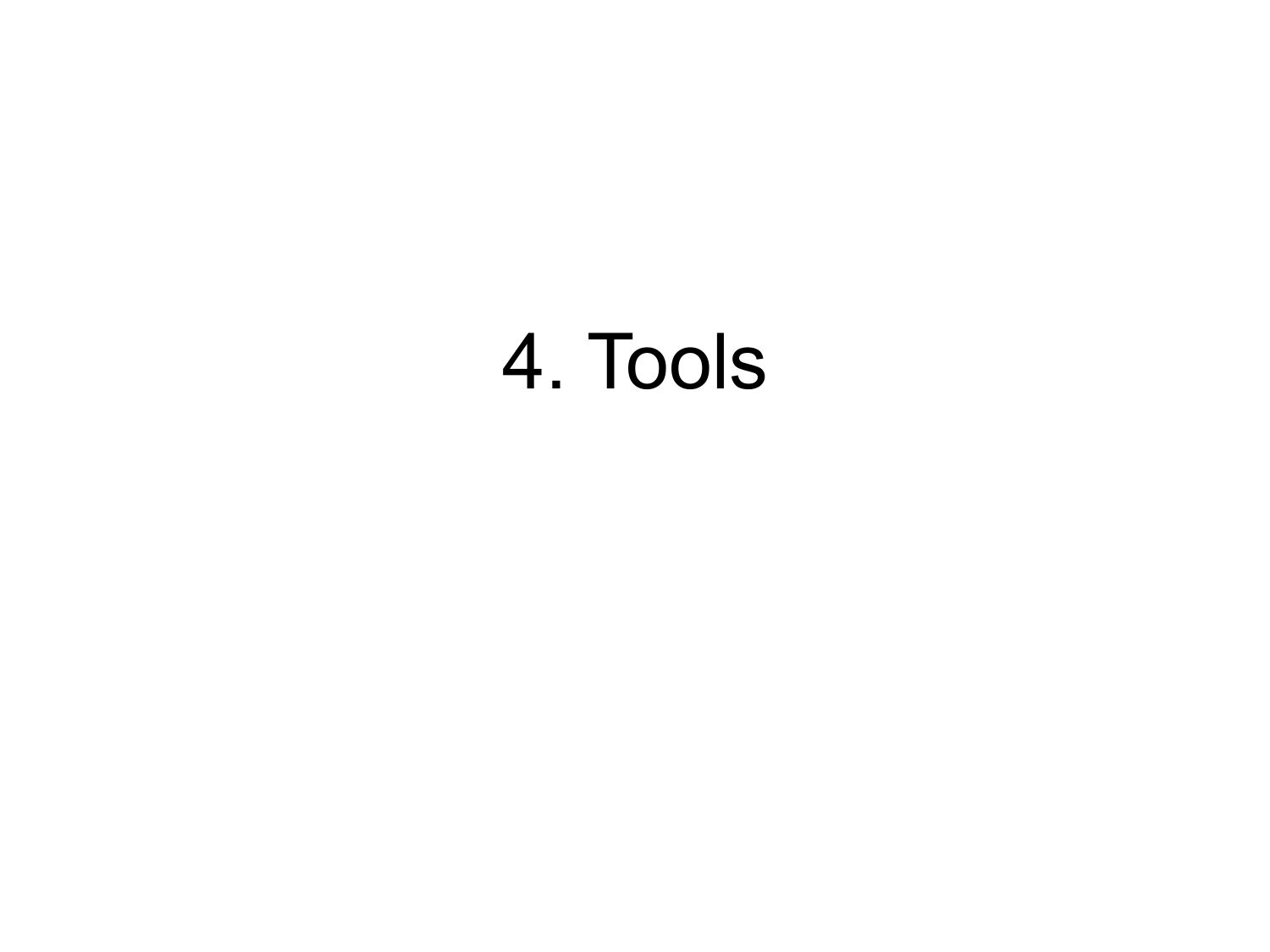

4. Tools

Tools
one-­‐liners:

many

front-­‐end
  tools:

perf,
  trace-cmd,
  perf-­‐tools

tracing
  frameworks:

Irace,
  perf_events,
  eBPF,
  …

back-­‐end
  instrumenta7on:

tracepoints,
  kprobes,
  uprobes


Front-end Tools
• For ftrace
– trace-cmd by Steven Rostedt
– perf-tools: tpoint, iosnoop, execsnoop, kprobe, …
• For perf_events
– perf (how perf_events is commonly used)
– perf-tools: eg, syscount, bitesize, …
• For eBPF
– still evolving
– Could be used via ftrace, perf_events, SystemTap, ktap?

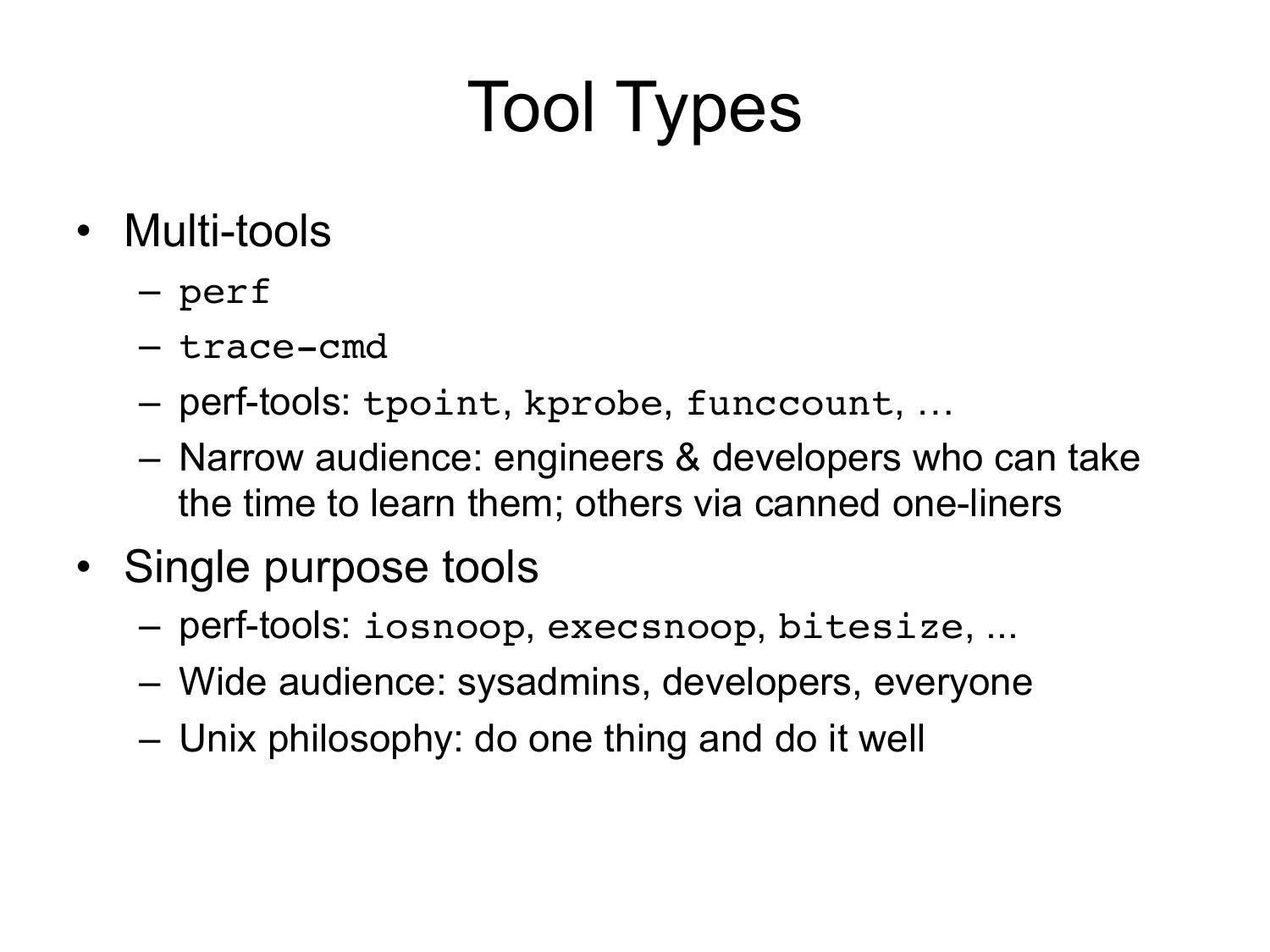

Tool Types
• Multi-tools
– perf!
– trace-cmd!
– perf-tools: tpoint, kprobe, funccount, …
– Narrow audience: engineers & developers who can take
the time to learn them; others via canned one-liners
• Single purpose tools
– perf-tools: iosnoop, execsnoop, bitesize, ...
– Wide audience: sysadmins, developers, everyone
– Unix philosophy: do one thing and do it well

perf-tools
• A collection of tools for both ftrace and perf_events
– https://github.com/brendangregg/perf-tools
• Each tool has:
– The tool itself
– A man page
– An examples file
– A symlink under /bin
perf-tools>gt; ls -l execsnoop bin/execsnoop man/man8/execsnoop.8 \!
examples/execsnoop_example.txt !
lrwxr-xr-x 1 bgregg 1001
12 Jul 26 16:35 bin/execsnoop@ ->gt; ../execsnoop!
-rw-r--r--+ 1 bgregg 1001 2533 Jul 31 15:34 examples/execsnoop_example.txt!
-rwxrwxr-x+ 1 bgregg 1001 8529 Jul 31 15:36 execsnoop*!
-rw-r--r--+ 1 bgregg 1001 3497 Jul 31 22:40 man/man8/execsnoop.8!

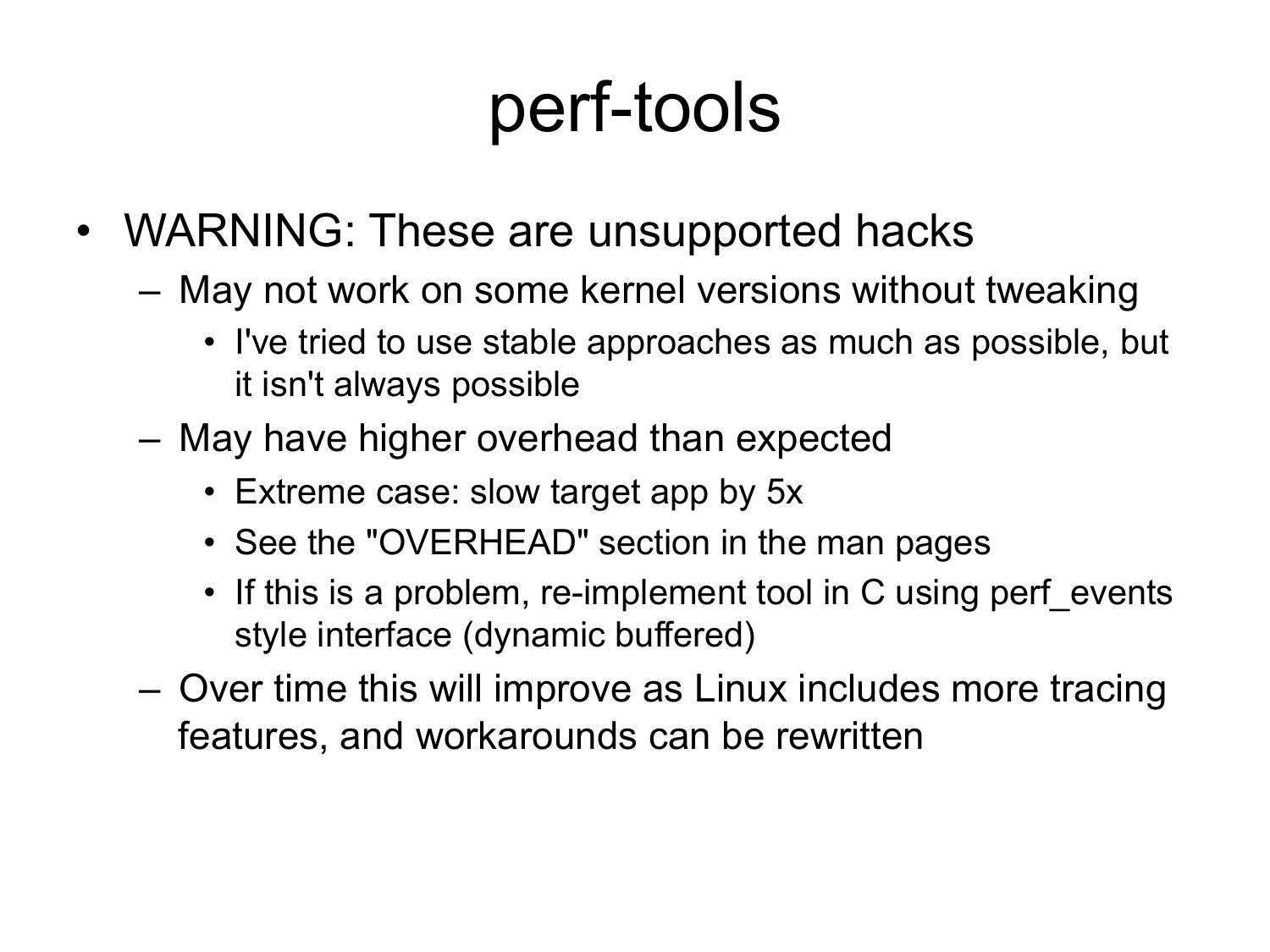

perf-tools
• WARNING: These are unsupported hacks
– May not work on some kernel versions without tweaking
• I've tried to use stable approaches as much as possible, but
it isn't always possible
– May have higher overhead than expected
• Extreme case: slow target app by 5x
• See the "OVERHEAD" section in the man pages
• If this is a problem, re-implement tool in C using perf_events
style interface (dynamic buffered)
– Over time this will improve as Linux includes more tracing
features, and workarounds can be rewritten

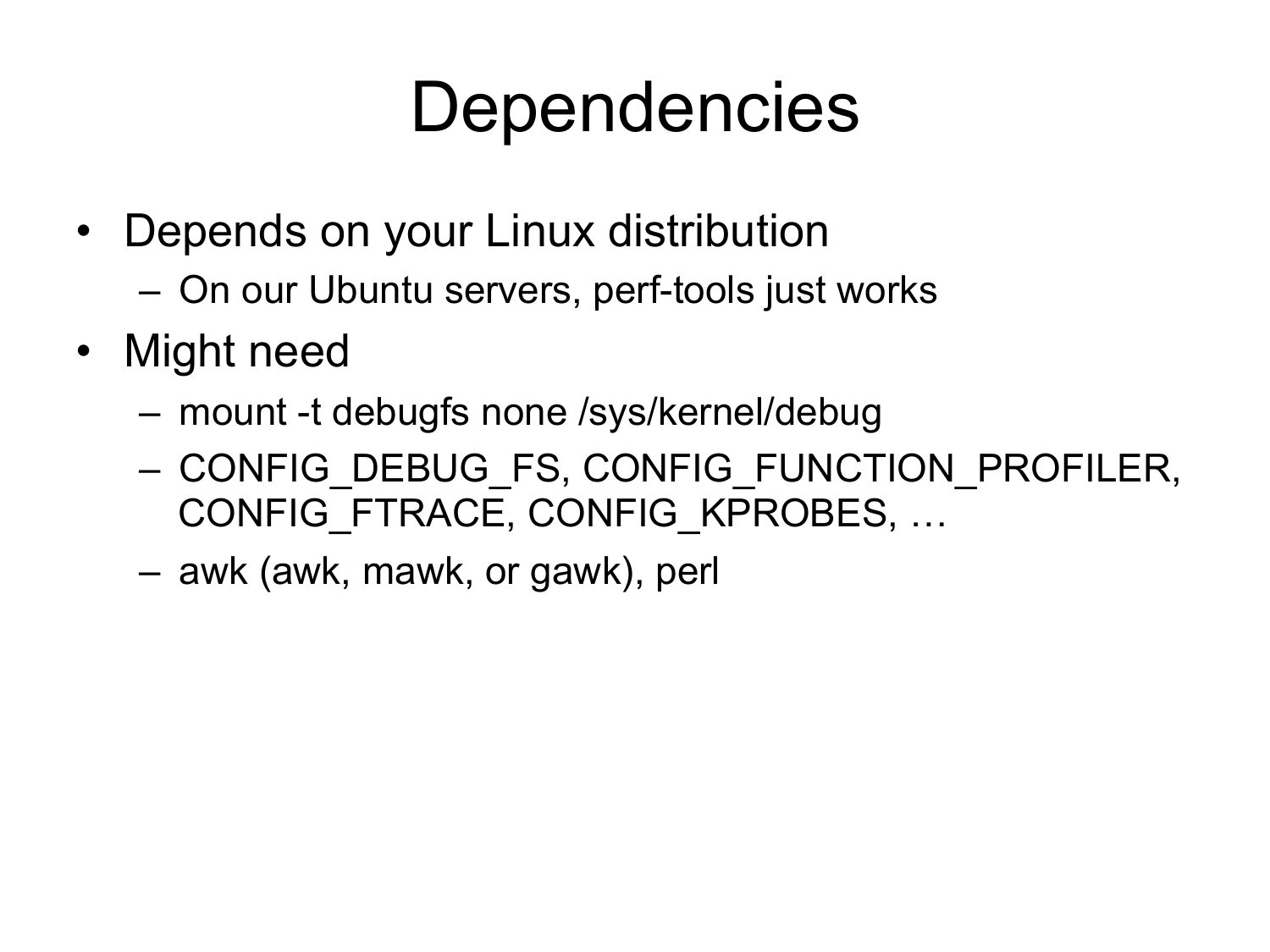

Dependencies
• Depends on your Linux distribution
– On our Ubuntu servers, perf-tools just works
• Might need
– mount -t debugfs none /sys/kernel/debug
– CONFIG_DEBUG_FS, CONFIG_FUNCTION_PROFILER,
CONFIG_FTRACE, CONFIG_KPROBES, …
– awk (awk, mawk, or gawk), perl

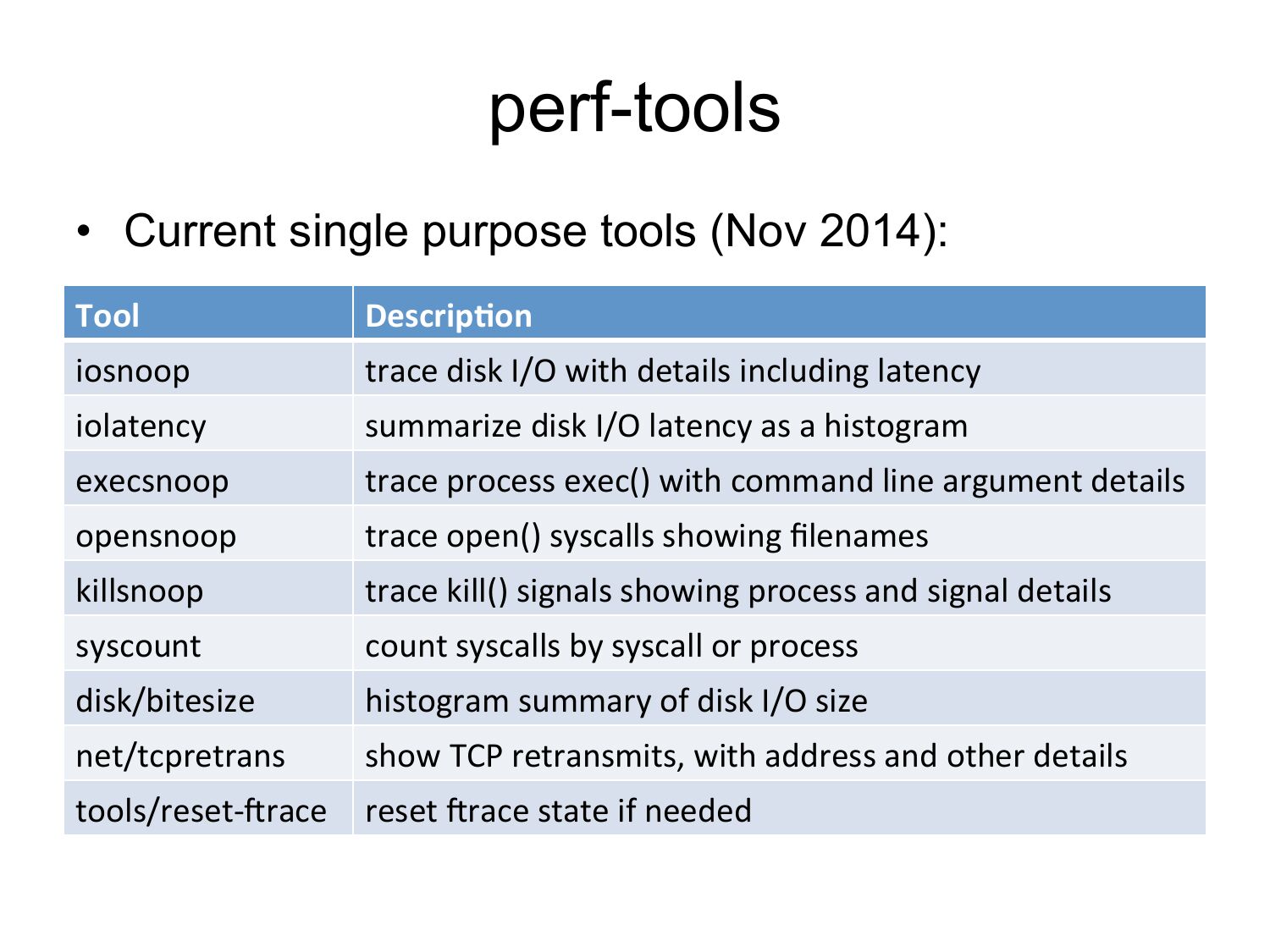

perf-tools
• Current single purpose tools (Nov 2014):
Tool

Descrip,on

iosnoop

trace
  disk
  I/O
  with
  details
  including
  latency

iolatency

summarize
  disk
  I/O
  latency
  as
  a
  histogram

execsnoop

trace
  process
  exec()
  with
  command
  line
  argument
  details

opensnoop

trace
  open()
  syscalls
  showing
  filenames

killsnoop

trace
  kill()
  signals
  showing
  process
  and
  signal
  details

syscount

count
  syscalls
  by
  syscall
  or
  process

disk/bitesize

histogram
  summary
  of
  disk
  I/O
  size

net/tcpretrans

show
  TCP
  retransmits,
  with
  address
  and
  other
  details

tools/reset-­‐Irace
   reset
  Irace
  state
  if
  needed


perf-tools
• Current multi-tools (Nov 2014):
Tool

Descrip,on

system/tpoint

trace
  a
  given
  tracepoint

kernel/funccount
   count
  kernel
  func7on
  calls,
  matching
  a
  string

kernel/functrace

trace
  kernel
  func7on
  calls,
  matching
  a
  string

kernel/funcslower
   trace
  kernel
  func7ons
  slower
  than
  a
  threshold

kernel/funcgraph
   graph
  kernel
  func7on
  calls,
  showing
  children
  and
  7mes

kernel/kprobe

dynamically
  trace
  a
  kernel
  func7on
  call
  or
  its
  return,
  with

variables


perf-tools (so far…)

perf-tools (so far…)

DEMO

iosnoop
• Block I/O (disk) events with latency:
# ./iosnoop –ts!
Tracing block I/O. Ctrl-C to end.!
STARTs
ENDs
COMM
5982800.302061 5982800.302679 supervise
5982800.302423 5982800.302842 supervise
5982800.304962 5982800.305446 supervise
5982800.305250 5982800.305676 supervise
[…]!
PID
TYPE DEV
202,1
202,1
202,1
202,1
BLOCK
BYTES LATms!
0.62!
0.42!
0.48!
0.43!
# ./iosnoop –h!
USAGE: iosnoop [-hQst] [-d device] [-i iotype] [-p PID] [-n name] [duration]!
-d device
# device string (eg, "202,1)!
-i iotype
# match type (eg, '*R*' for all reads)!
-n name
# process name to match on I/O issue!
-p PID
# PID to match on I/O issue!
# include queueing time in LATms!
# include start time of I/O (s)!
# include completion time of I/O (s)!
# this usage message!
duration
# duration seconds, and use buffers!
[…]!

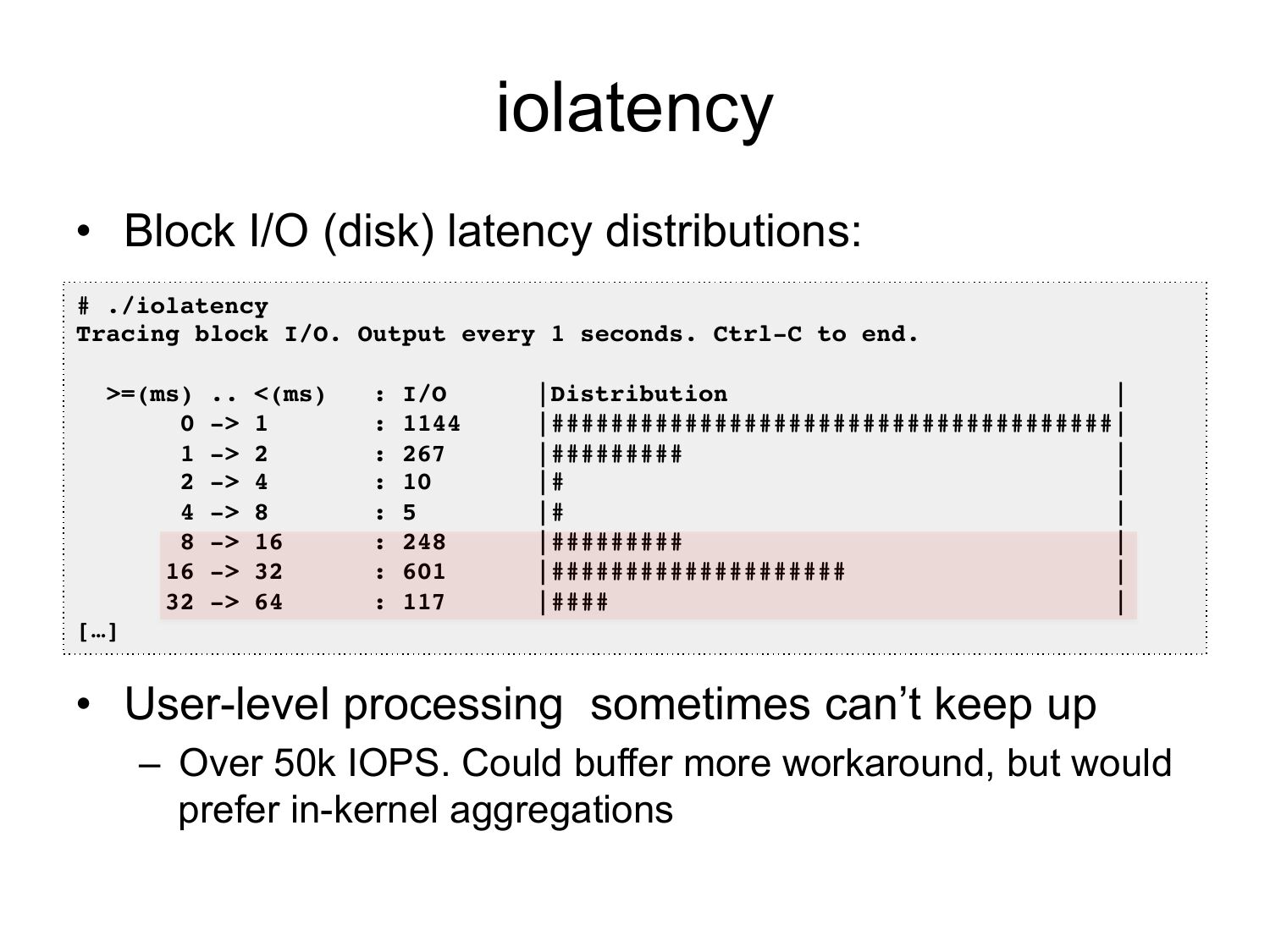

iolatency
• Block I/O (disk) latency distributions:
# ./iolatency !
Tracing block I/O. Output every 1 seconds. Ctrl-C to end.!
>gt;=(ms) .. gt; 1
: 1144
|######################################|!
1 ->gt; 2
: 267
|#########
2 ->gt; 4
: 10
4 ->gt; 8
: 5
8 ->gt; 16
: 248
|#########
16 ->gt; 32
: 601
|####################
32 ->gt; 64
: 117
|####
[…]!
• User-level processing sometimes can’t keep up
– Over 50k IOPS. Could buffer more workaround, but would
prefer in-kernel aggregations

opensnoop
• Trace open() syscalls showing filenames:
# ./opensnoop -t!
Tracing open()s. Ctrl-C to end.!
TIMEs
COMM
PID
postgres
postgres
postgres
postgres
postgres
postgres
postgres
svstat
svstat
stat
stat
stat
stat
stat
stat
[…]!
FD FILE!
0x8 /proc/self/oom_adj!
0x5 global/pg_filenode.map!
0x5 global/pg_internal.init!
0x5 base/16384/PG_VERSION!
0x5 base/16384/pg_filenode.map!
0x5 base/16384/pg_internal.init!
0x5 base/16384/11725!
0x4 supervise/ok!
0x4 supervise/status!
0x3 /etc/ld.so.cache!
0x3 /lib/x86_64-linux-gnu/libselinux…!
0x3 /lib/x86_64-linux-gnu/libc.so.6!
0x3 /lib/x86_64-linux-gnu/libdl.so.2!
0x3 /proc/filesystems!
0x3 /etc/nsswitch.conf!

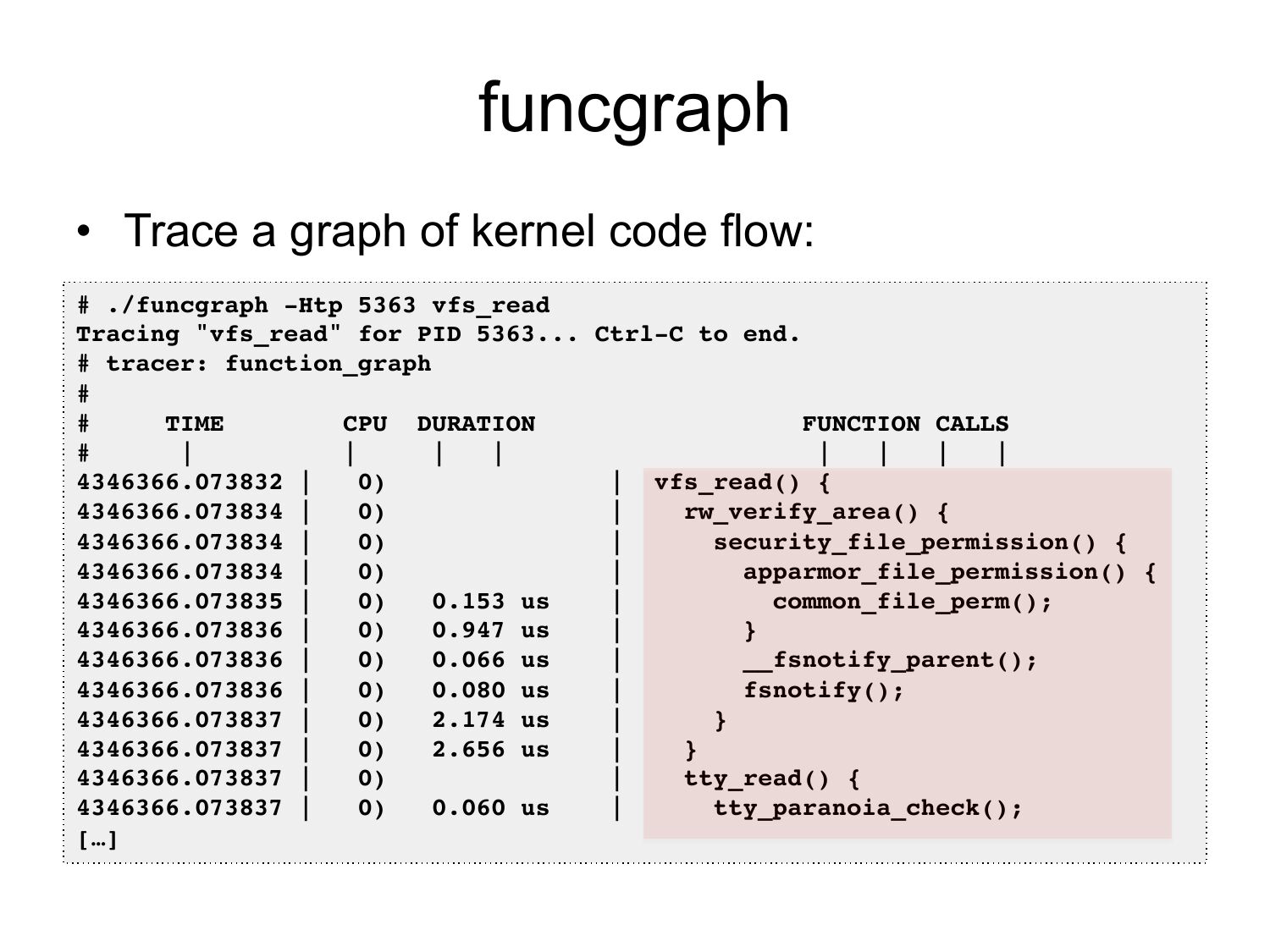

funcgraph
• Trace a graph of kernel code flow:
# ./funcgraph -Htp 5363 vfs_read!
Tracing "vfs_read" for PID 5363... Ctrl-C to end.!
# tracer: function_graph!
TIME
CPU DURATION
FUNCTION CALLS!
4346366.073832 |
| vfs_read() {!
4346366.073834 |
rw_verify_area() {!
4346366.073834 |
security_file_permission() {!
4346366.073834 |
apparmor_file_permission() {!
4346366.073835 |
0.153 us
common_file_perm();!
4346366.073836 |
0.947 us
4346366.073836 |
0.066 us
__fsnotify_parent();!
4346366.073836 |
0.080 us
fsnotify();!
4346366.073837 |
2.174 us
4346366.073837 |
2.656 us
4346366.073837 |
tty_read() {!
4346366.073837 |
0.060 us
tty_paranoia_check();!
[…]!

funccount
• Count a kernel function call rate:
# ./funccount -i 1 'bio_*'!
Tracing "bio_*"... Ctrl-C to end.!
FUNC
COUNT!
bio_attempt_back_merge
26!
bio_get_nr_vecs
361!
bio_alloc
536!
bio_alloc_bioset
536!
bio_endio
536!
bio_free
536!
bio_fs_destructor
536!
bio_init
536!
bio_integrity_enabled
536!
bio_put
729!
bio_add_page
1004!
[...]!
Counts
  are
  in-­‐kernel,

for
  low
  overhead

– -i: set an output interval (seconds), otherwise until Ctrl-C

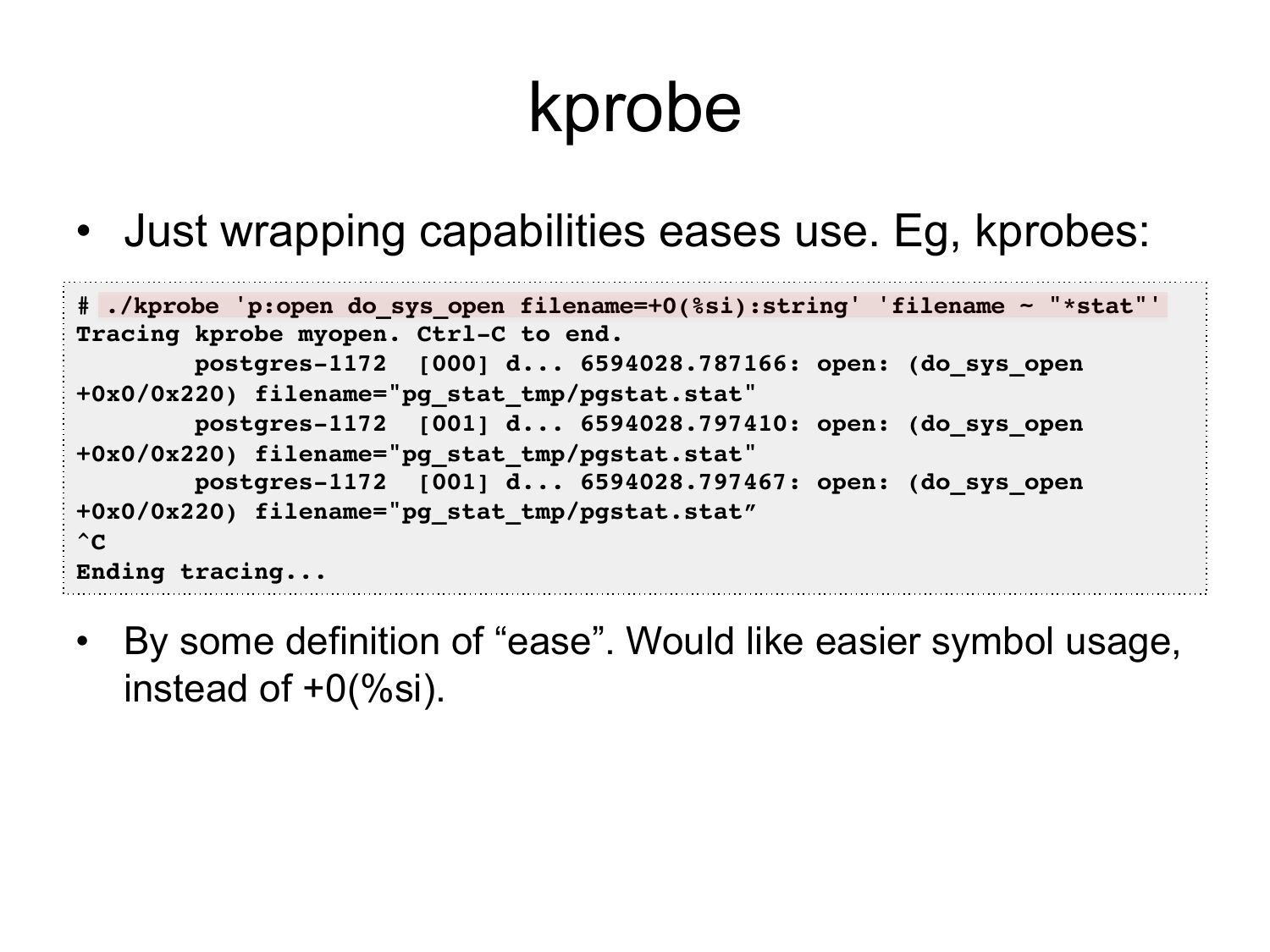

kprobe
• Just wrapping capabilities eases use. Eg, kprobes:
# ./kprobe 'p:open do_sys_open filename=+0(%si):string' 'filename ~ "*stat"'!
Tracing kprobe myopen. Ctrl-C to end.!
postgres-1172 [000] d... 6594028.787166: open: (do_sys_open
+0x0/0x220) filename="pg_stat_tmp/pgstat.stat"!
postgres-1172 [001] d... 6594028.797410: open: (do_sys_open
+0x0/0x220) filename="pg_stat_tmp/pgstat.stat"!
postgres-1172 [001] d... 6594028.797467: open: (do_sys_open
+0x0/0x220) filename="pg_stat_tmp/pgstat.stat”!
^C!
Ending tracing...!
• By some definition of “ease”. Would like easier symbol usage,
instead of +0(%si).

tpoint One-Liners
# List tracepoints!
tpoint -l!
# Trace disk I/O device issue with details:!
tpoint block:block_rq_issue!
# Trace disk I/O queue insertion, with kernel stack trace:!
tpoint -s block:block_rq_insert!
# Show output format string and filter variables:!
tpoint -v block:block_rq_insert!
# Trace disk I/O queue insertion, for reads only:!
tpoint block:block_rq_insert 'rwbs ~ "*R*"'!
# Trace 1,000 disk I/O device issues:!
tpoint block:block_rq_issue | head -1000!
# Trace syscall open():!
tpoint syscalls:sys_enter_open!

Tracepoint Format Strings
# ./tpoint -H block:block_rq_insert!
Tracing block:block_rq_insert. Ctrl-C to end.!
# tracer: nop!
TASK-PID
CPU#
TIMESTAMP FUNCTION!
| |
java-9469 [000] 1936182.331270: block_rq_insert: 202,1 R 0 () 1125744 + 8 [java]!
Comes
  from

include/trace/events/block.h:!
DECLARE_EVENT_CLASS(block_rq,!
[...]!
TP_printk("%d,%d %s %u (%s) %llu + %u [%s]",!
MAJOR(__entry->gt;dev), MINOR(__entry->gt;dev),!
__entry->gt;rwbs, __entry->gt;bytes, __get_str(cmd),!
(unsigned long long)__entry->gt;sector,!
__entry->gt;nr_sector, __entry->gt;comm)!
– Kernel source may be the only docs for tracepoints

Tracepoint Format Strings
• Can also use tpoint -v for reminders:
# ./tpoint -v block:block_rq_issue!
name: block_rq_issue!
ID: 942!
format:!
field:unsigned short common_type;
offset:0;
size:2; signed:0;!
field:unsigned char common_flags;
offset:2;
size:1; signed:0;!
field:unsigned char common_preempt_count;
offset:3;
size:1; signed:0;!
field:int common_pid;
offset:4;
size:4; signed:1;!
field:dev_t dev;
offset:8;
size:4; signed:0;!
field:sector_t sector; offset:16;
size:8; signed:0;!
field:unsigned int nr_sector;
offset:24;
size:4; signed:0;!
field:unsigned int bytes;
offset:28;
size:4; signed:0;!
field:char rwbs[8];
offset:32;
size:8; signed:1;!
field:char comm[16];
offset:40;
size:16;
signed:1;!
field:__data_loc char[] cmd;
offset:56;
size:4; signed:1;!
print fmt: "%d,%d %s %u (%s) %llu + %u [%s]", ((unsigned int) ((REC->gt;dev) >gt;>gt; 20)),
((unsigned int) ((REC->gt;dev) & ((1U gt;rwbs, REC->gt;bytes, __get_str(cmd),
(unsigned long long)REC->gt;sector, REC->gt;nr_sector, REC->gt;comm!
– Fields can be used in filters. Eg:
• tpoint block:block_rq_insert 'rwbs ~ "*R*"'!

funccount One-Liners
# Count all block I/O functions:!
funccount 'bio_*'!
# Count all block I/O functions, print every 1 second:!
funccount -i 1 'bio_*'!
# Count all vfs functions for 5 seconds:!
funccount -t 5 'vfs*'!
# Count all "tcp_" functions, printing the top 5 every 1 second:!
funccount -i 1 -t 5 'tcp_*'!
# Count all "ext4*" functions for 10 seconds, print the top 25:!
funccount -t 25 -d 10 'ext4*'!
# Check which I/O scheduler is in use:!
funccount -i 1 'deadline*'!
funccount -i 1 'noop*'!
# Count syscall types, summarizing every 1 second (one of):!
funccount -i 1 'sys_*'!
funccount -i 1 'SyS_*'!

kprobe One-Liners
# Trace calls to do_sys_open():!
kprobe p:do_sys_open!
# Trace returns from do_sys_open(), and include column header:!
kprobe -H r:do_sys_open!
# Trace do_sys_open() return as "myopen" alias, with return value:!
kprobe 'r:myopen do_sys_open $retval'!
# Trace do_sys_open() calls, and print register %cx as uint16 "mode":!
kprobe 'p:myopen do_sys_open mode=%cx:u16'!
# Trace do_sys_open() calls, with register %si as a "filename" string:!
kprobe 'p:myopen do_sys_open filename=+0(%si):string'!
# Trace do_sys_open() filenames, when they match "*stat":!
kprobe 'p:myopen do_sys_open filename=+0(%si):string' 'filename ~ "*stat"'!
# Trace tcp_init_cwnd() with kernel call stack:!
kprobe -s 'p:tcp_init_cwnd'!
# Trace tcp_sendmsg() for PID 81 and for 5 seconds (buffered):!
kprobe -p 81 -d 5 'p:tcp_sengmsg'!

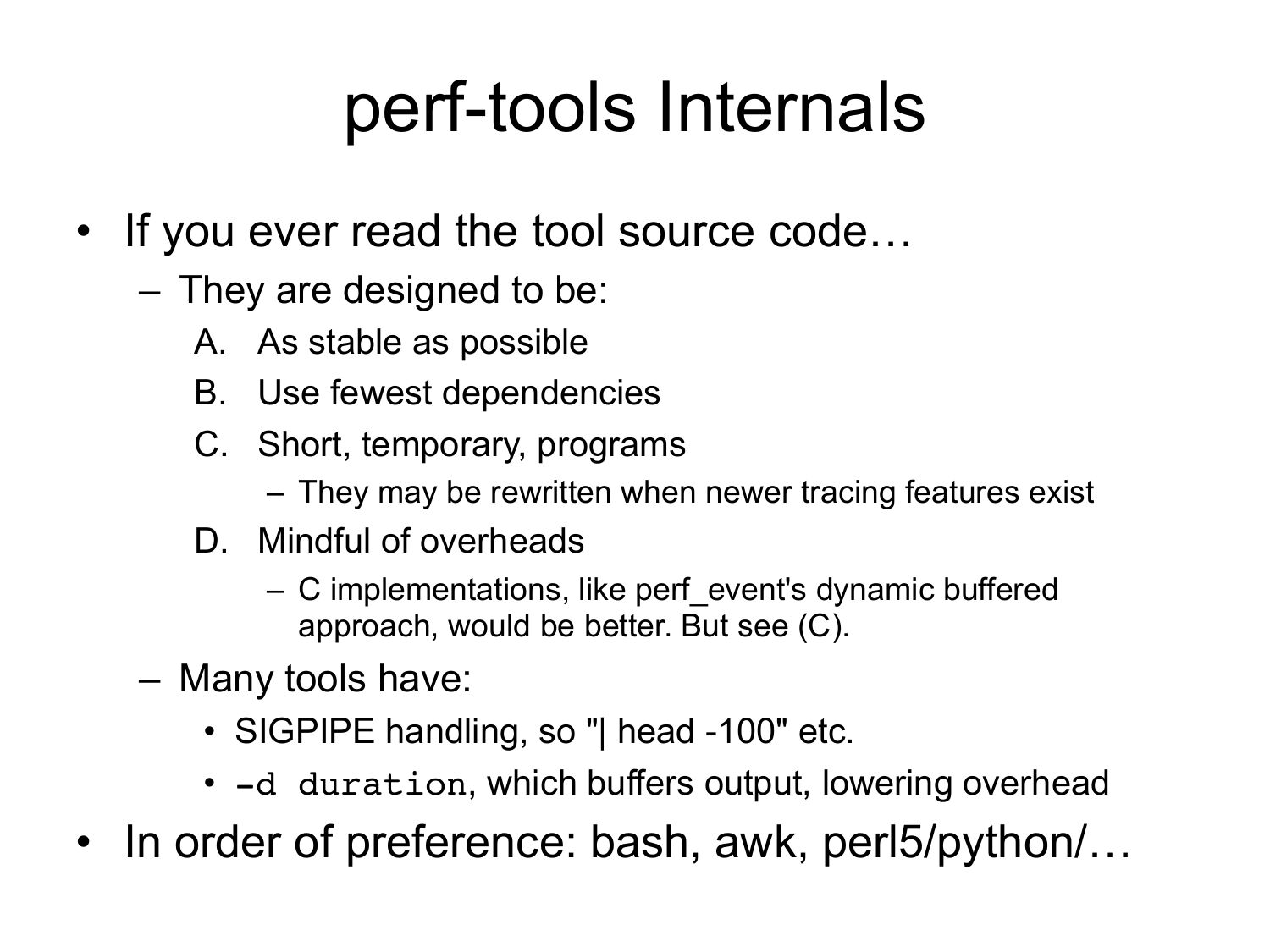

perf-tools Internals
• If you ever read the tool source code…
– They are designed to be:
A. As stable as possible
B. Use fewest dependencies
C. Short, temporary, programs
– They may be rewritten when newer tracing features exist
D. Mindful of overheads
– C implementations, like perf_event's dynamic buffered
approach, would be better. But see (C).
– Many tools have:
• SIGPIPE handling, so "| head -100" etc.
• -d duration, which buffers output, lowering overhead
• In order of preference: bash, awk, perl5/python/…

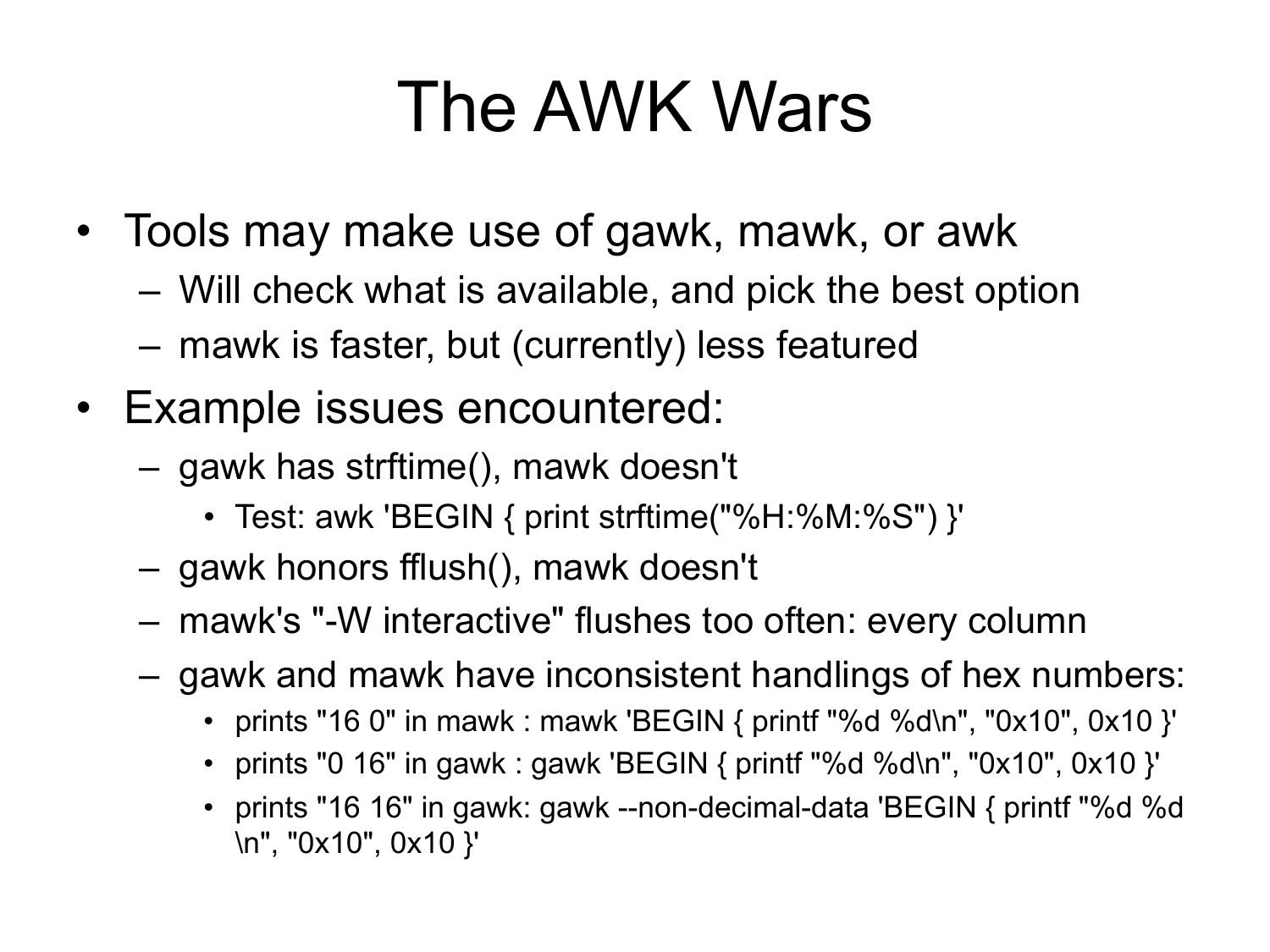

The AWK Wars
• Tools may make use of gawk, mawk, or awk
– Will check what is available, and pick the best option
– mawk is faster, but (currently) less featured
• Example issues encountered:
– gawk has strftime(), mawk doesn't
• Test: awk 'BEGIN { print strftime("%H:%M:%S") }'
– gawk honors fflush(), mawk doesn't
– mawk's "-W interactive" flushes too often: every column
– gawk and mawk have inconsistent handlings of hex numbers:
• prints "16 0" in mawk : mawk 'BEGIN { printf "%d %d\n", "0x10", 0x10 }'
• prints "0 16" in gawk : gawk 'BEGIN { printf "%d %d\n", "0x10", 0x10 }'
• prints "16 16" in gawk: gawk --non-decimal-data 'BEGIN { printf "%d %d
\n", "0x10", 0x10 }'

Much more to do… Porting more DTrace scripts

Some Visual Tools
• kernelshark
– For ftrace
• Trace Compass
– To visualize LTTng (and more) time series trace data
• Flame graphs
– For any profiles with stack traces
• Heat maps
– To show distributions over time

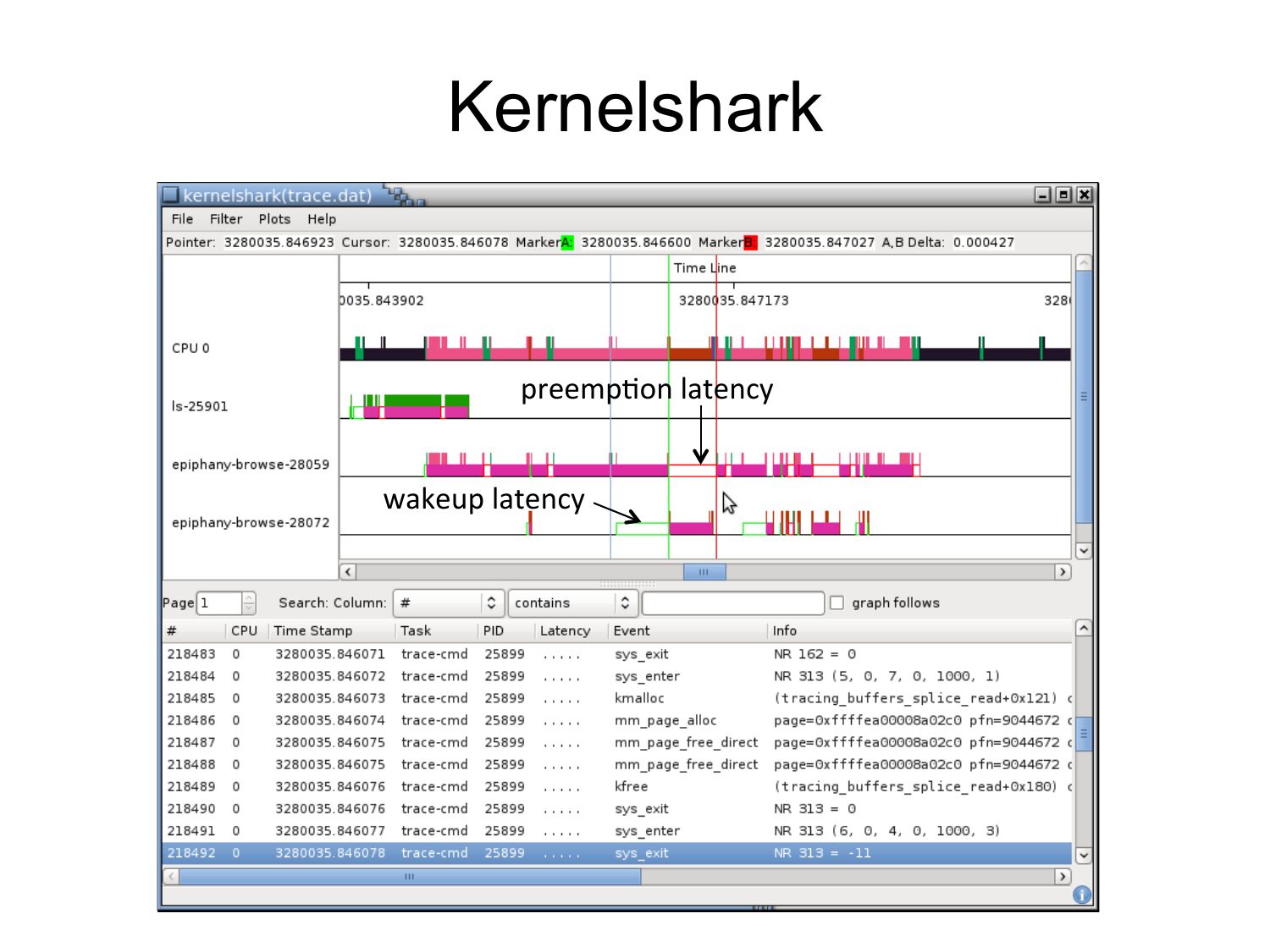

Kernelshark
preemp7on
  latency

wakeup
  latency

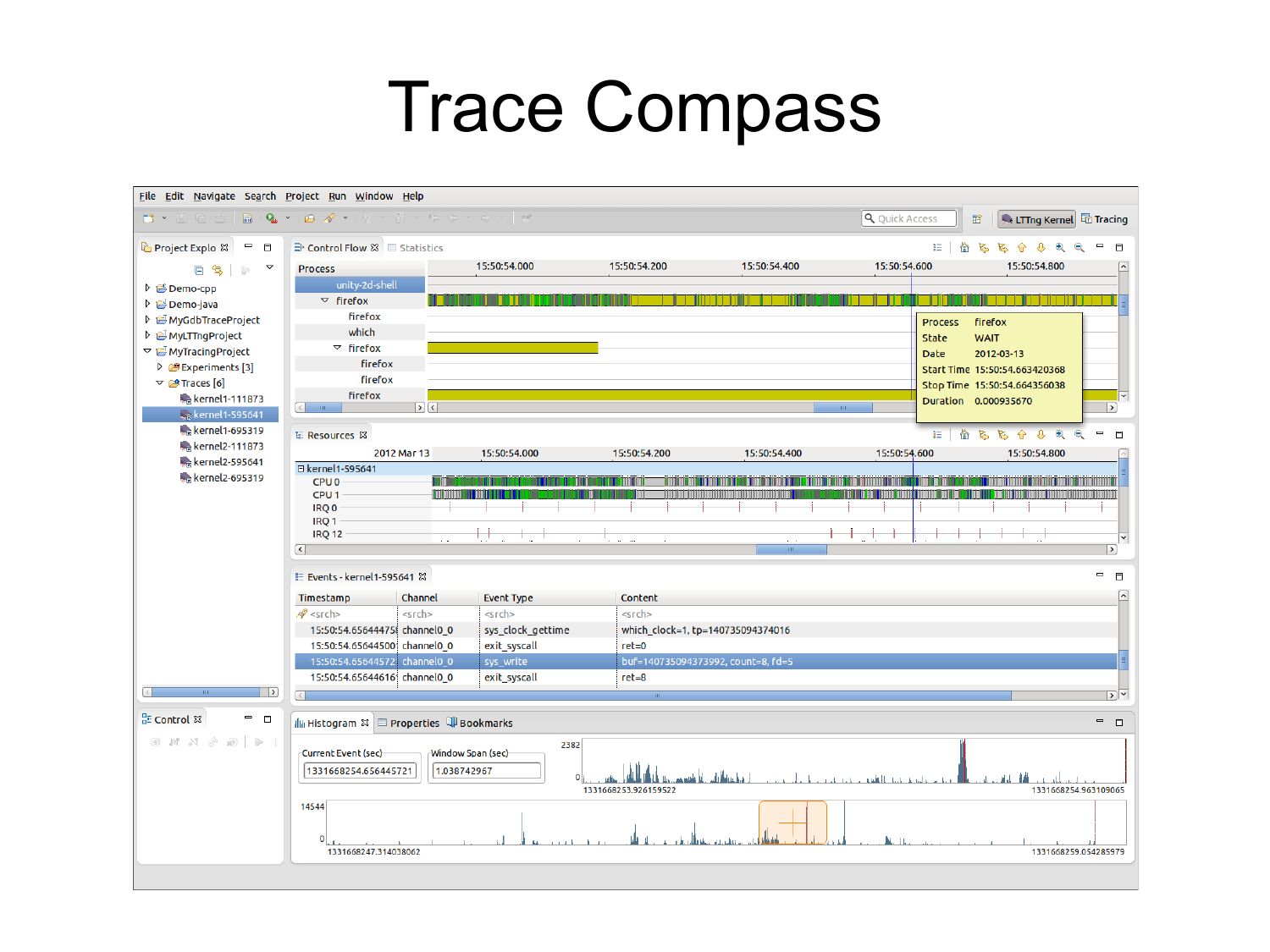

Trace Compass

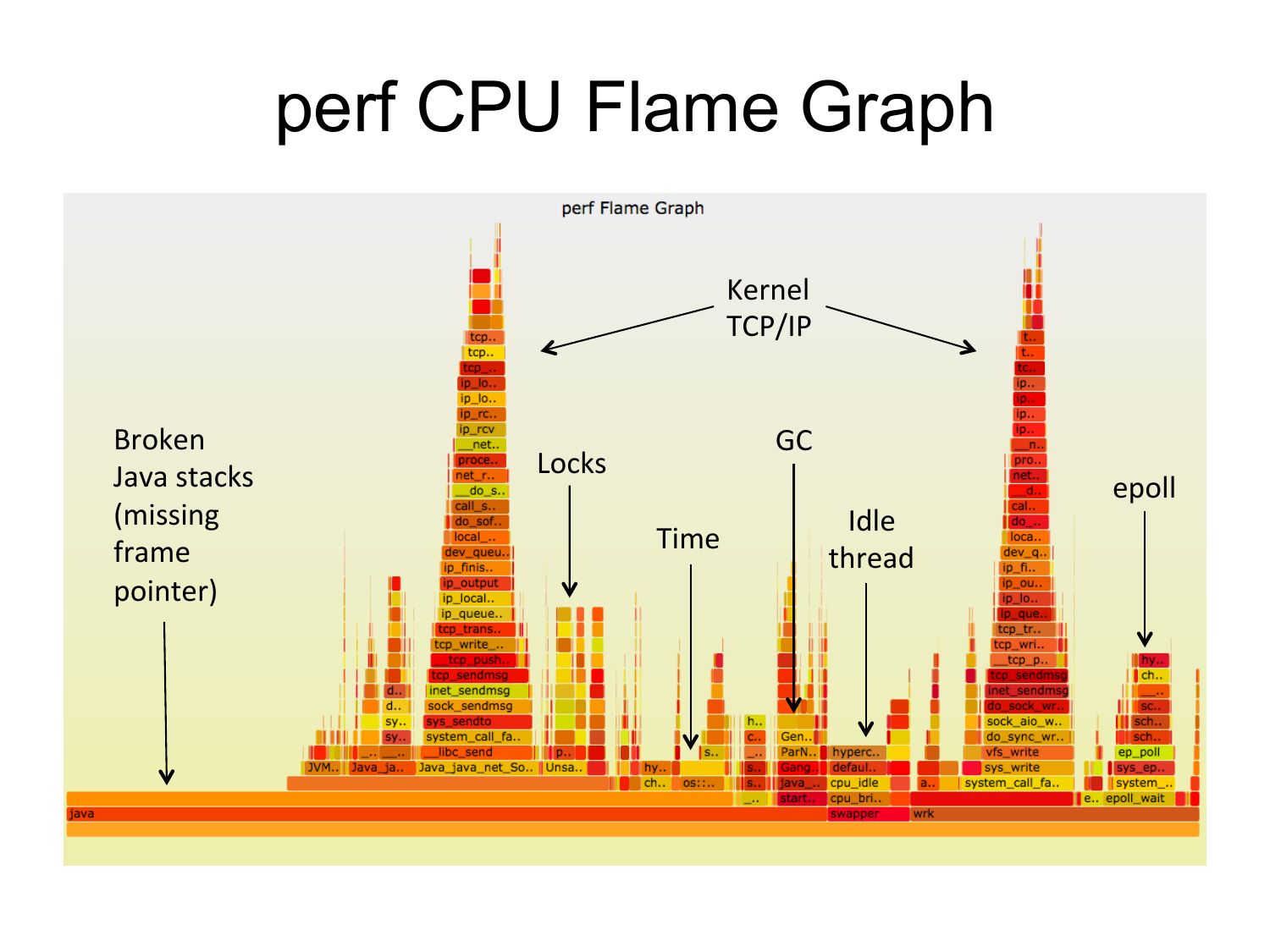

perf CPU Flame Graph
Kernel

TCP/IP

Broken

Java
  stacks

(missing

frame

pointer)

GC

Locks

Time

Idle

thread

epoll


perf Block I/O Latency Heat Map

Summary
Some one-liners
Background
Technology
Tools
Most important take away: Linux can serve many
tracing needs today with ftrace & perf_events

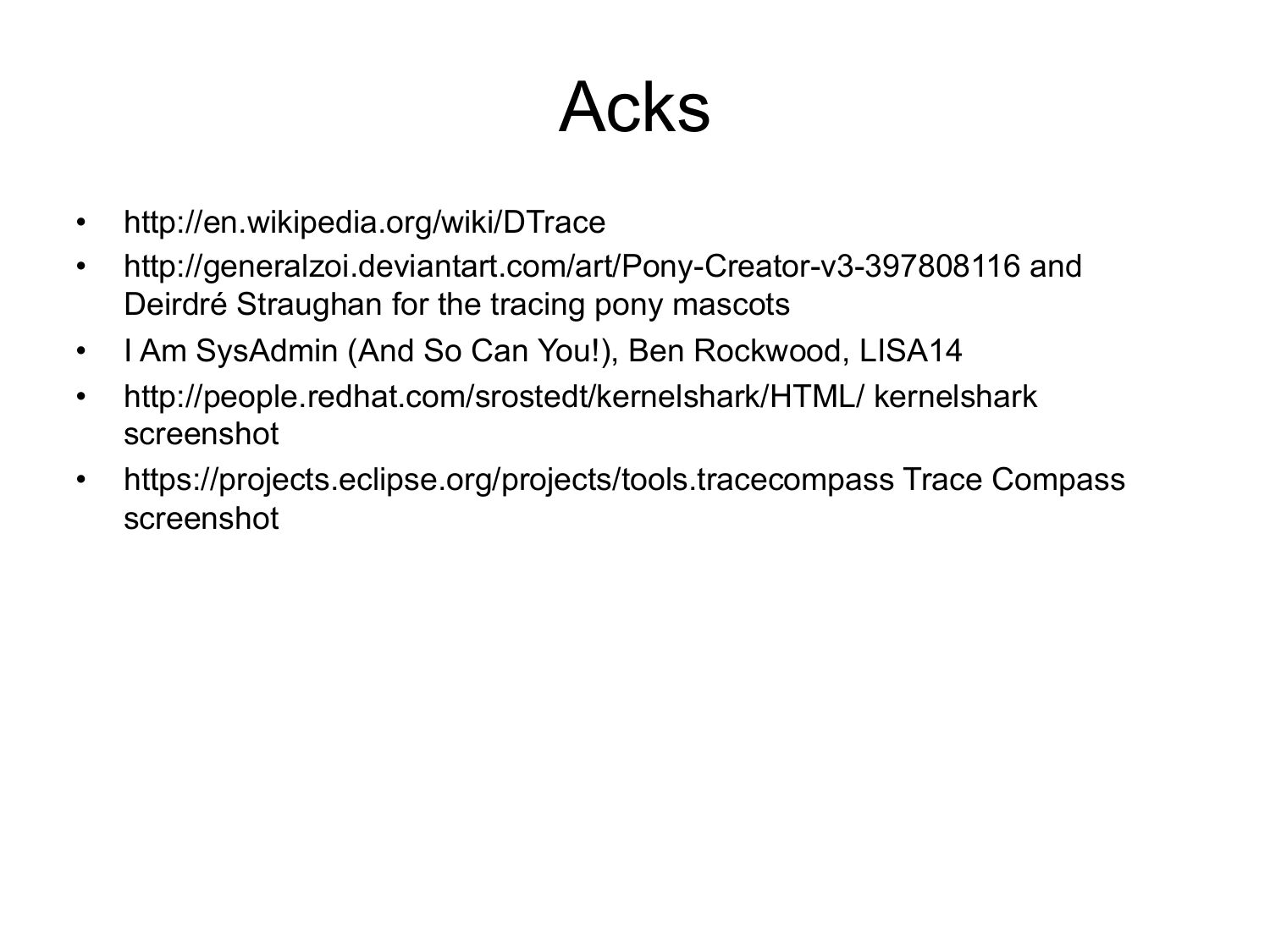

Acks
http://en.wikipedia.org/wiki/DTrace
http://generalzoi.deviantart.com/art/Pony-Creator-v3-397808116 and
Deirdré Straughan for the tracing pony mascots
I Am SysAdmin (And So Can You!), Ben Rockwood, LISA14
http://people.redhat.com/srostedt/kernelshark/HTML/ kernelshark
screenshot
https://projects.eclipse.org/projects/tools.tracecompass Trace Compass
screenshot

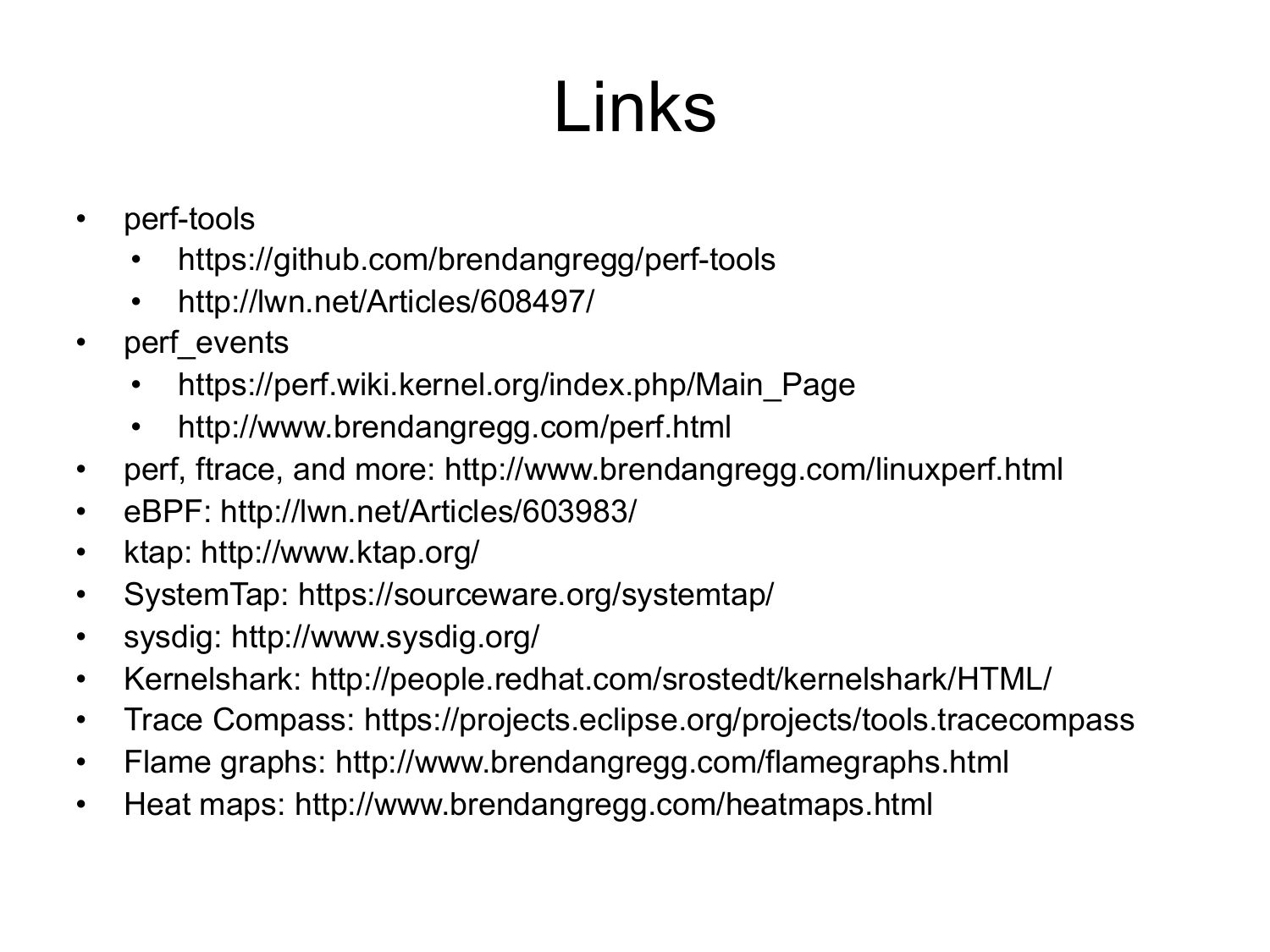

Links
perf-tools
• https://github.com/brendangregg/perf-tools
• http://lwn.net/Articles/608497/
perf_events
• https://perf.wiki.kernel.org/index.php/Main_Page
• http://www.brendangregg.com/perf.html
perf, ftrace, and more: http://www.brendangregg.com/linuxperf.html
eBPF: http://lwn.net/Articles/603983/
ktap: http://www.ktap.org/
SystemTap: https://sourceware.org/systemtap/
sysdig: http://www.sysdig.org/
Kernelshark: http://people.redhat.com/srostedt/kernelshark/HTML/
Trace Compass: https://projects.eclipse.org/projects/tools.tracecompass
Flame graphs: http://www.brendangregg.com/flamegraphs.html
Heat maps: http://www.brendangregg.com/heatmaps.html

Thanks
• Questions?
• http://slideshare.net/brendangregg
• http://www.brendangregg.com
• bgregg@netflix.com
• @brendangregg
