OSCON 2007: Observability Matters, How DTrace Helped Twitter

Talk given at OSCON 2007 by Adam Leventhal and Brendan Gregg.

This summarizes findings by a team of Sun Microsystems engineers who visited the headquarters of a small new startup that was running Solaris and having crippling performance issues. That startup was called Twitter.

next
prev
1/21
next
prev
2/21
next
prev
3/21
next
prev
4/21
next
prev
5/21
next
prev
6/21
next
prev
7/21
next
prev
8/21
next
prev
9/21
next
prev
10/21
next
prev
11/21
next
prev
12/21
next
prev
13/21
next
prev
14/21
next
prev
15/21
next
prev
16/21
next
prev
17/21
next
prev
18/21
next
prev
19/21
next
prev
20/21
next
prev
21/21

PDF: OSCON2007_Observability_DTrace_Twitter.pdf

Keywords (from pdftotext):

slide 1:
    USE
    IMPROVE
    EVANGELIZE
    Observability Matters:
    How DTrace Helped Twitter
    Adam Leventhal
    Brendan Gregg
    FishWorks
    Sun Microsystems

slide 2:
    USE
    IMPROVE
    EVANGELIZE

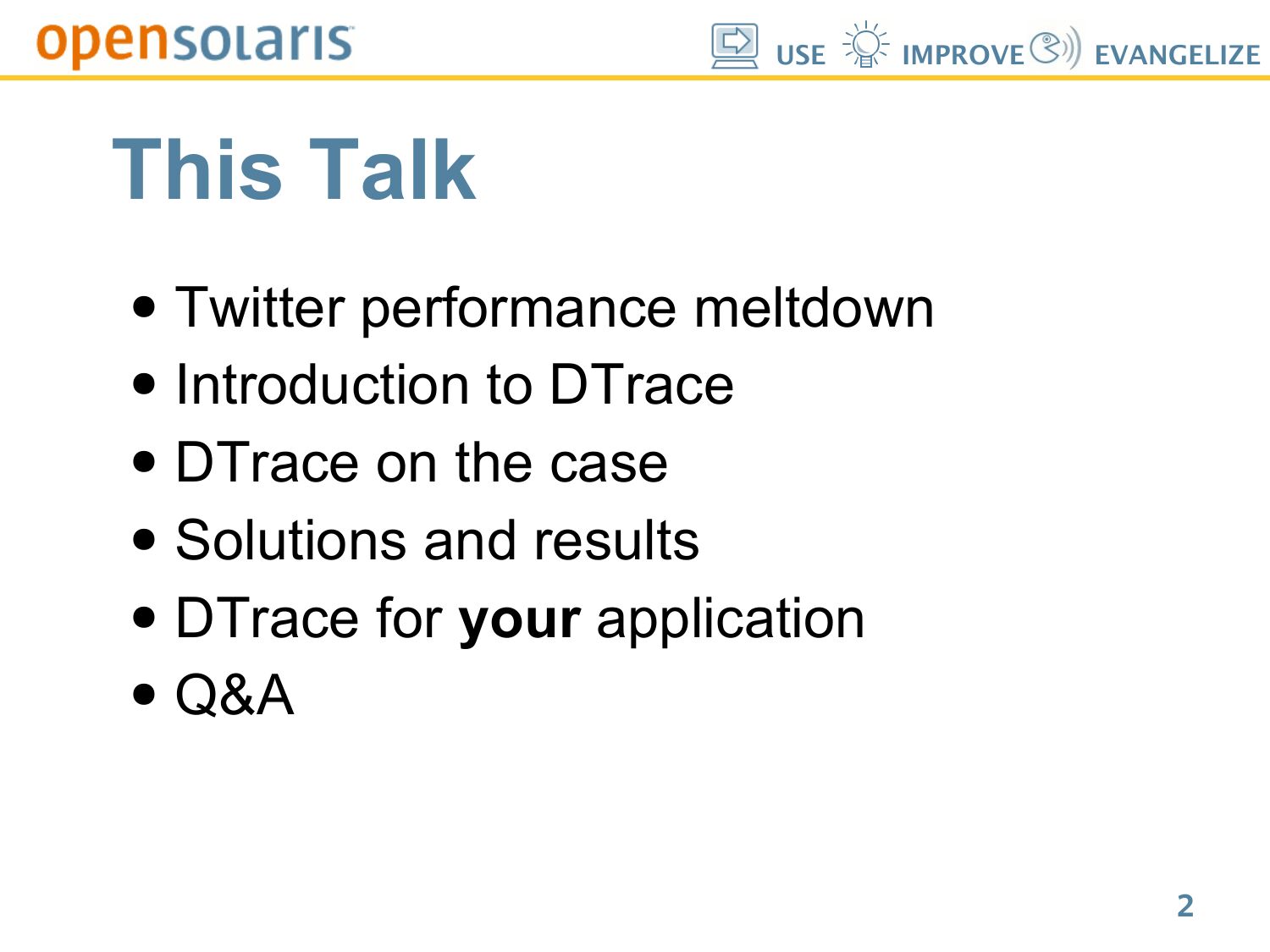

    This Talk
    ● Twitter performance meltdown
    ● Introduction to DTrace
    ● DTrace on the case
    ● Solutions and results
    ● DTrace for your application
    ● Q&A

slide 3:
    USE
    IMPROVE
    EVANGELIZE

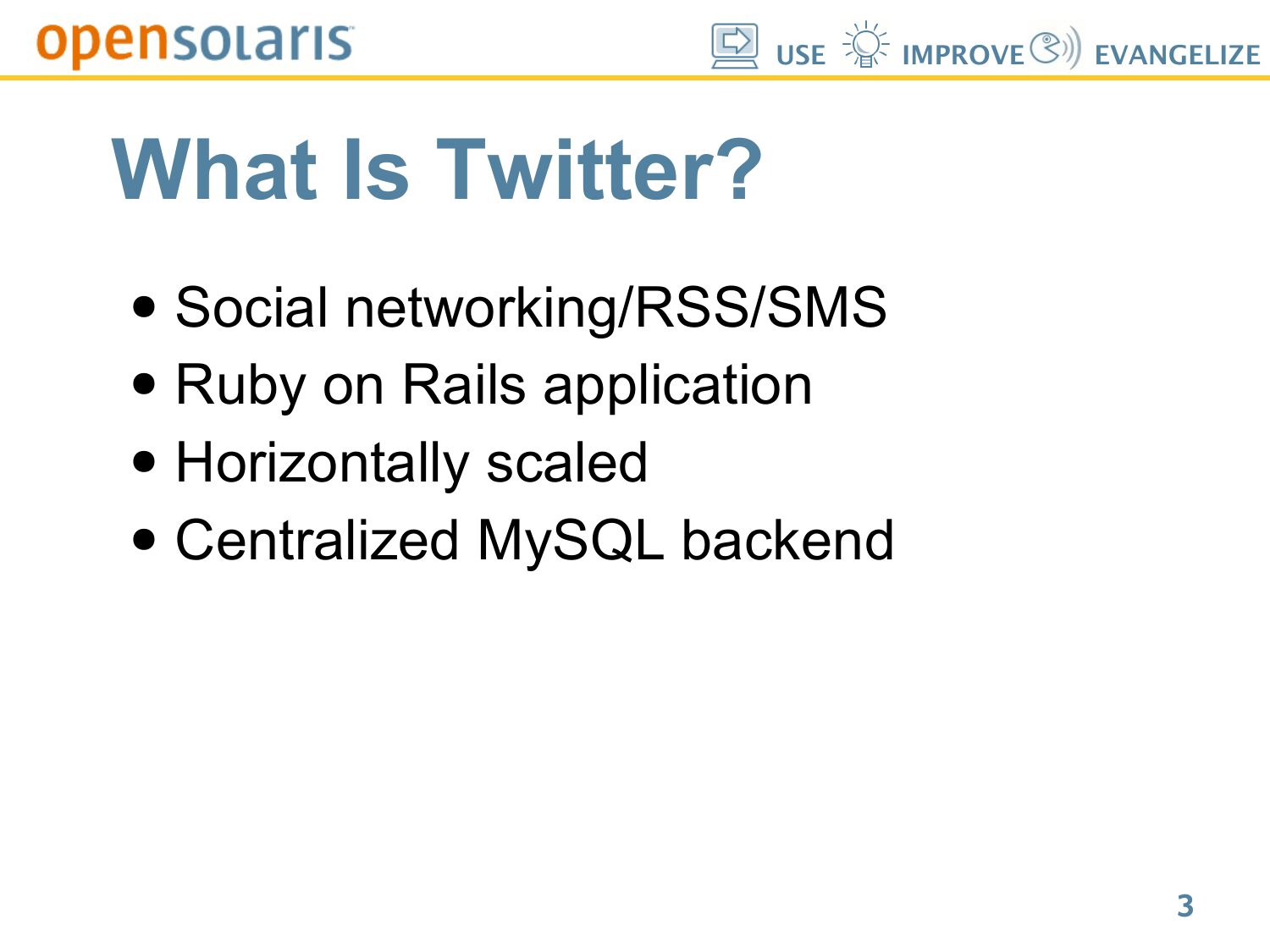

    What Is Twitter?
    ● Social networking/RSS/SMS
    ● Ruby on Rails application
    ● Horizontally scaled
    ● Centralized MySQL backend

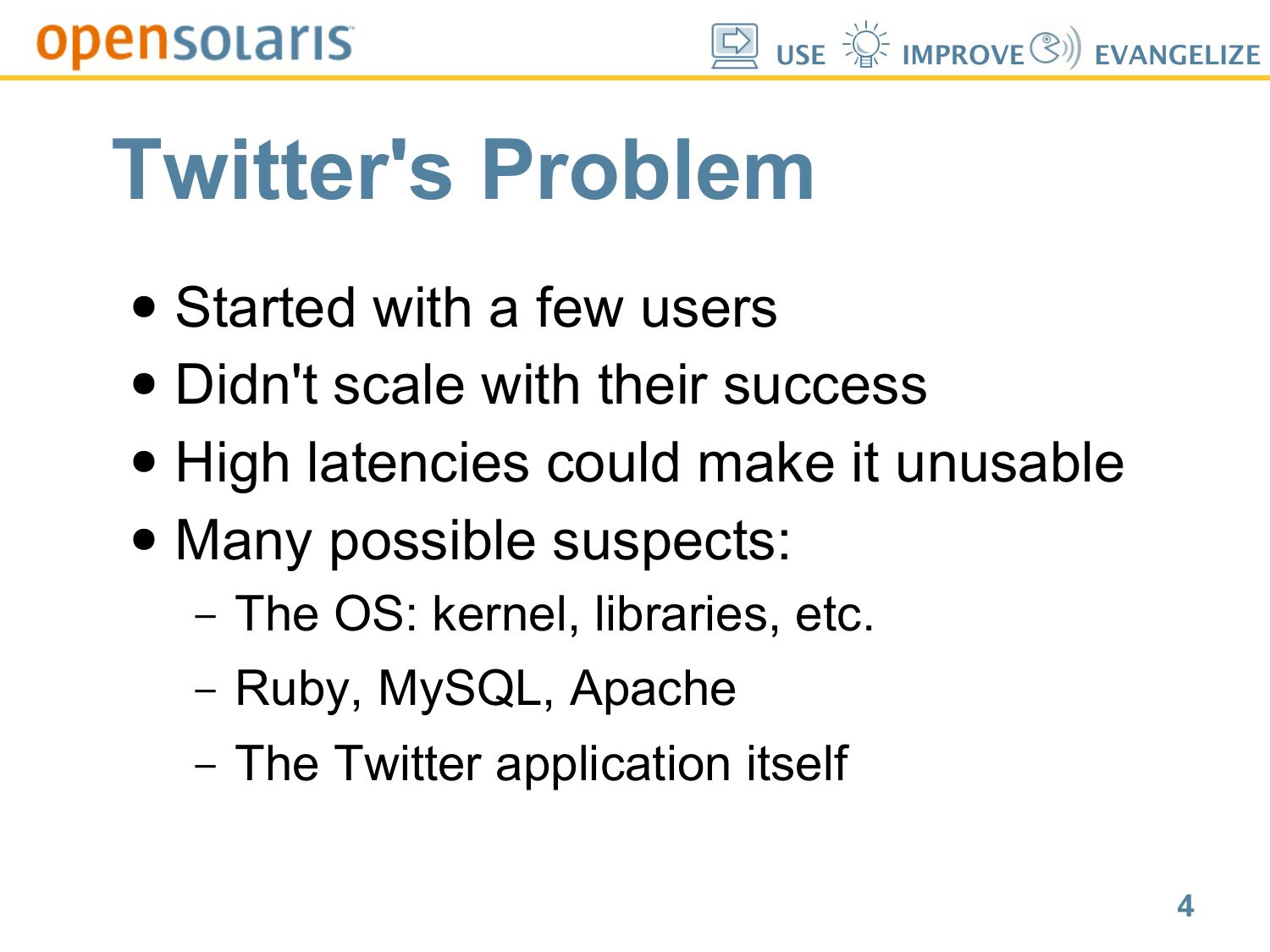

slide 4:
    USE
    IMPROVE
    EVANGELIZE
    Twitter's Problem
    ● Started with a few users
    ● Didn't scale with their success
    ● High latencies could make it unusable
    ● Many possible suspects:
    – The OS: kernel, libraries, etc.
    – Ruby, MySQL, Apache
    – The Twitter application itself

slide 5:
    USE
    IMPROVE
    EVANGELIZE

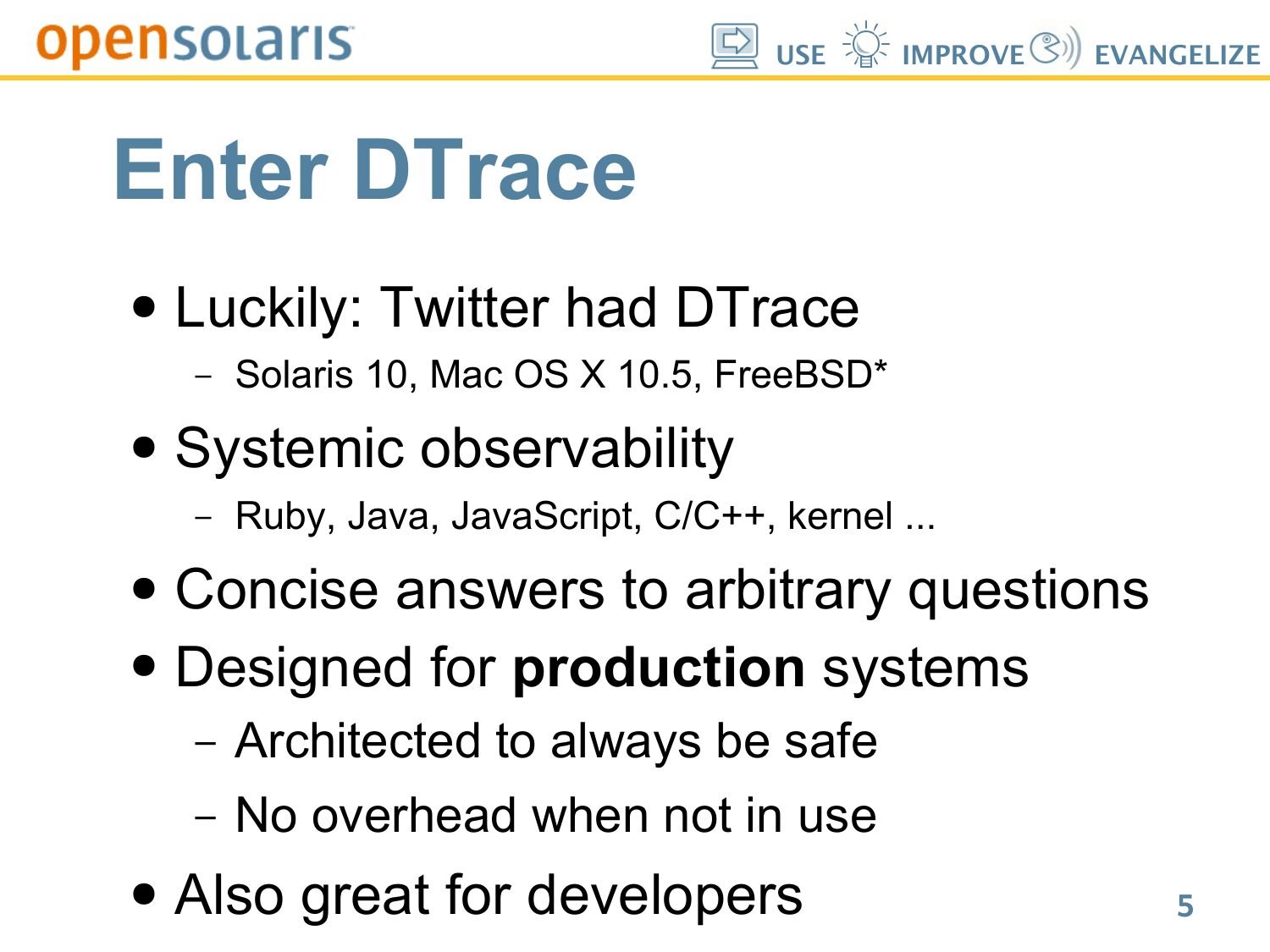

    Enter DTrace
    ● Luckily: Twitter had DTrace
    Solaris 10, Mac OS X 10.5, FreeBSD*
    ● Systemic observability
    Ruby, Java, JavaScript, C/C++, kernel ...
    ● Concise answers to arbitrary questions
    ● Designed for production systems
    – Architected to always be safe
    – No overhead when not in use
    ● Also great for developers

slide 6:
    USE
    IMPROVE
    EVANGELIZE

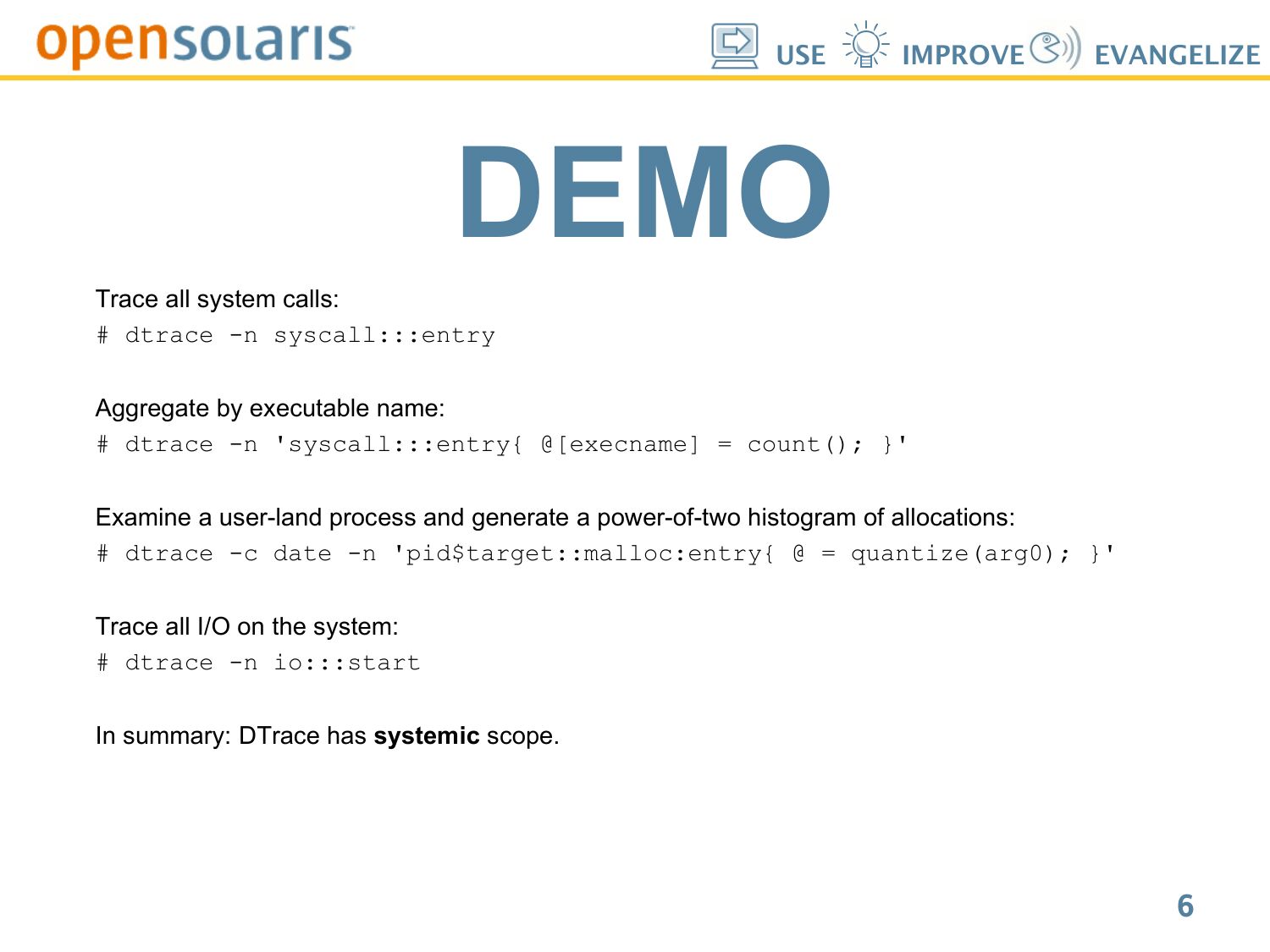

    DEMO
    Trace all system calls:
    # dtrace -n syscall:::entry
    Aggregate by executable name:
    # dtrace -n 'syscall:::entry{ @[execname] = count(); }'
    Examine a user-land process and generate a power-of-two histogram of allocations:
    # dtrace -c date -n 'pid$target::malloc:entry{ @ = quantize(arg0); }'
    Trace all I/O on the system:
    # dtrace -n io:::start
    In summary: DTrace has systemic scope.

slide 7:
    USE
    IMPROVE
    EVANGELIZE
    The Investigation
    ● High latencies under load
    ● What could cause these latencies?
    – on-CPU time: slow/numerous functions, ...
    – off-CPU time: I/O, lock contention, ...

slide 8:
    USE
    IMPROVE
    EVANGELIZE

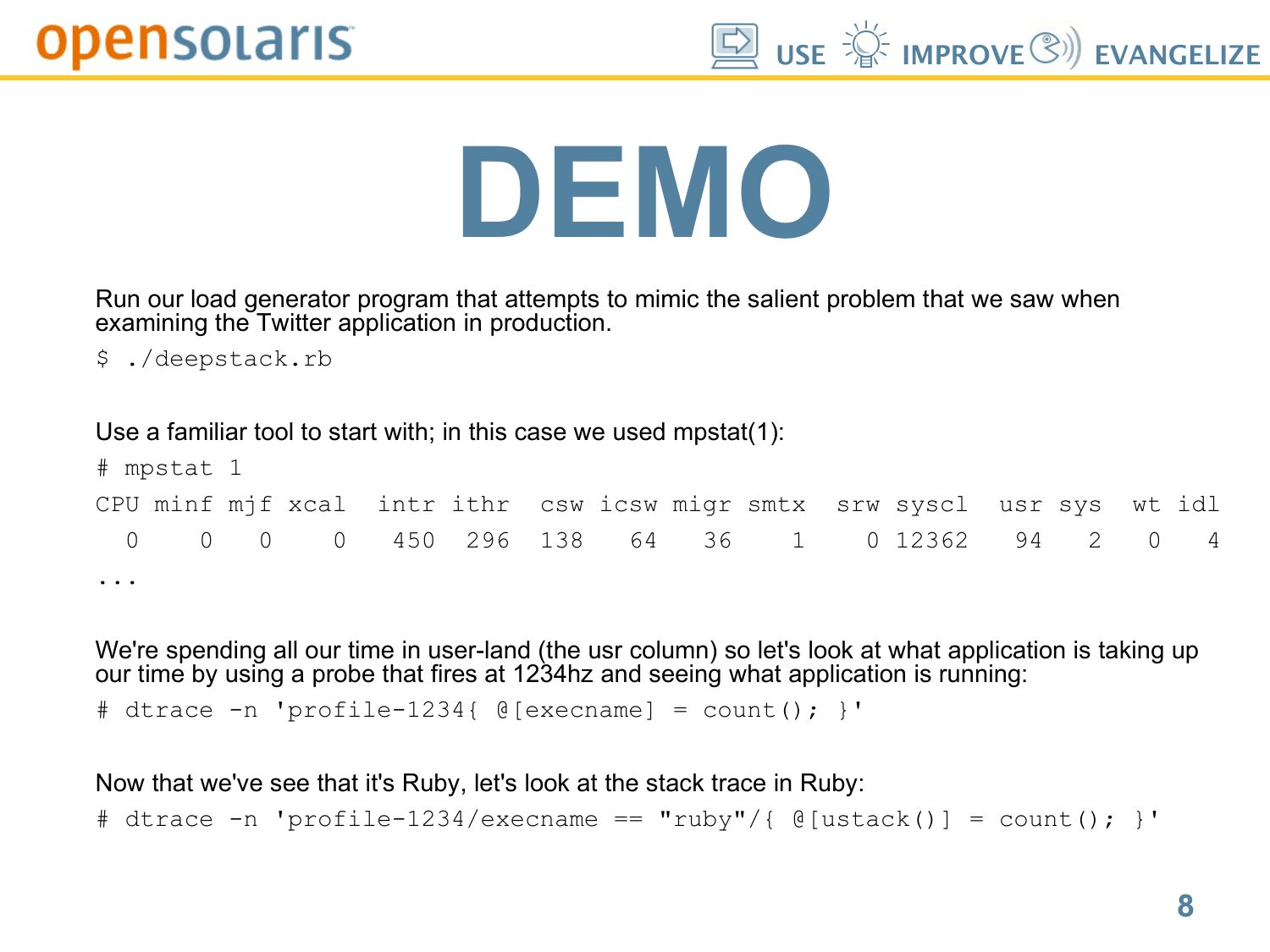

    DEMO
    Run our load generator program that attempts to mimic the salient problem that we saw when
    examining the Twitter application in production.
    $ ./deepstack.rb
    Use a familiar tool to start with; in this case we used mpstat(1):
    # mpstat 1
    CPU minf mjf xcal intr ithr csw icsw migr smtx
    450 296 138
    srw syscl
    0 12362
    usr sys
    wt idl
    We're spending all our time in user-land (the usr column) so let's look at what application is taking up
    our time by using a probe that fires at 1234hz and seeing what application is running:
    # dtrace -n 'profile-1234{ @[execname] = count(); }'
    Now that we've see that it's Ruby, let's look at the stack trace in Ruby:
    # dtrace -n 'profile-1234/execname == "ruby"/{ @[ustack()] = count(); }'

slide 9:
    USE
    IMPROVE
    EVANGELIZE

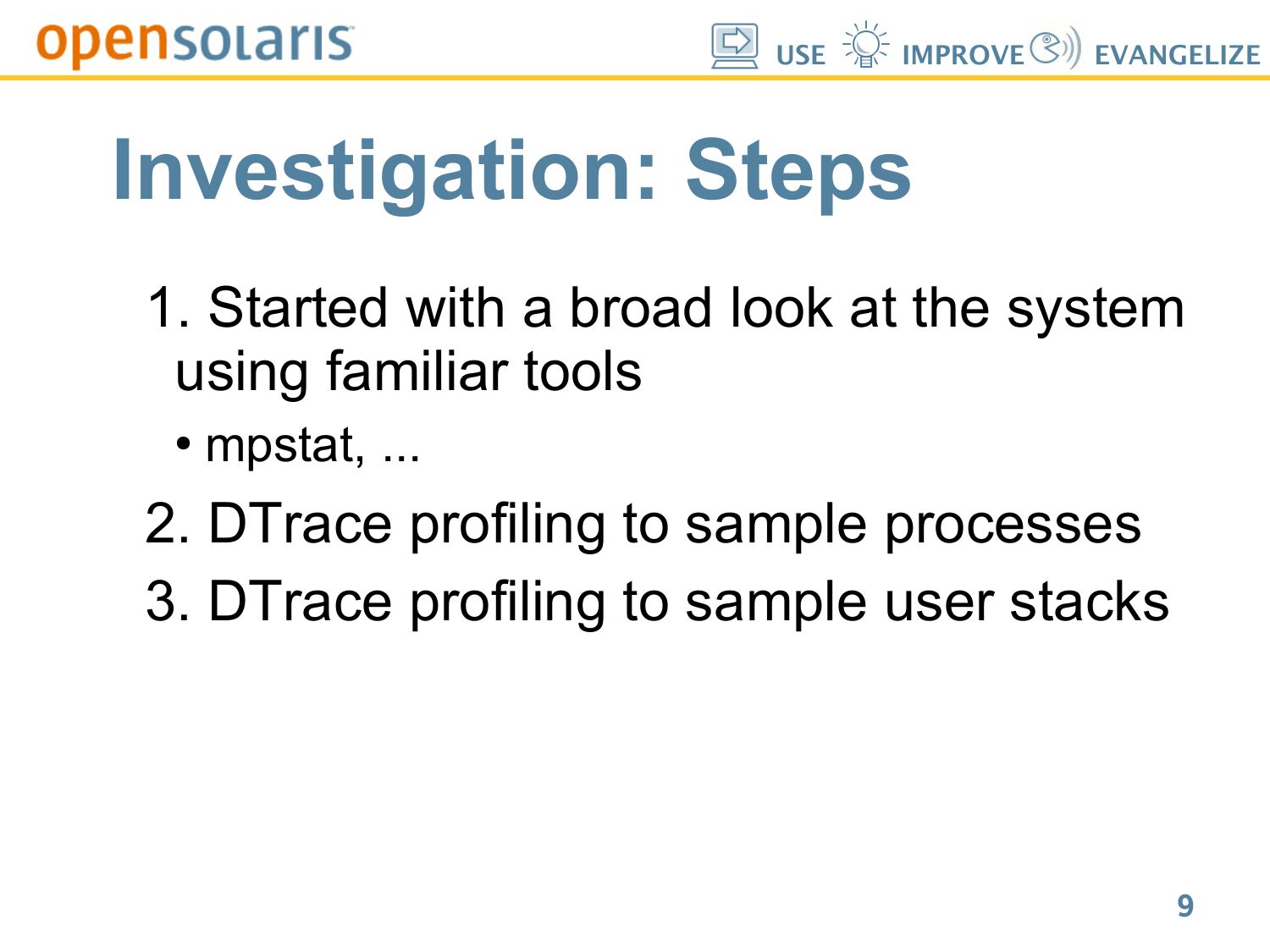

    Investigation: Steps
    1. Started with a broad look at the system
    using familiar tools
    mpstat, ...
    2. DTrace profiling to sample processes
    3. DTrace profiling to sample user stacks

slide 10:
    USE
    IMPROVE
    EVANGELIZE

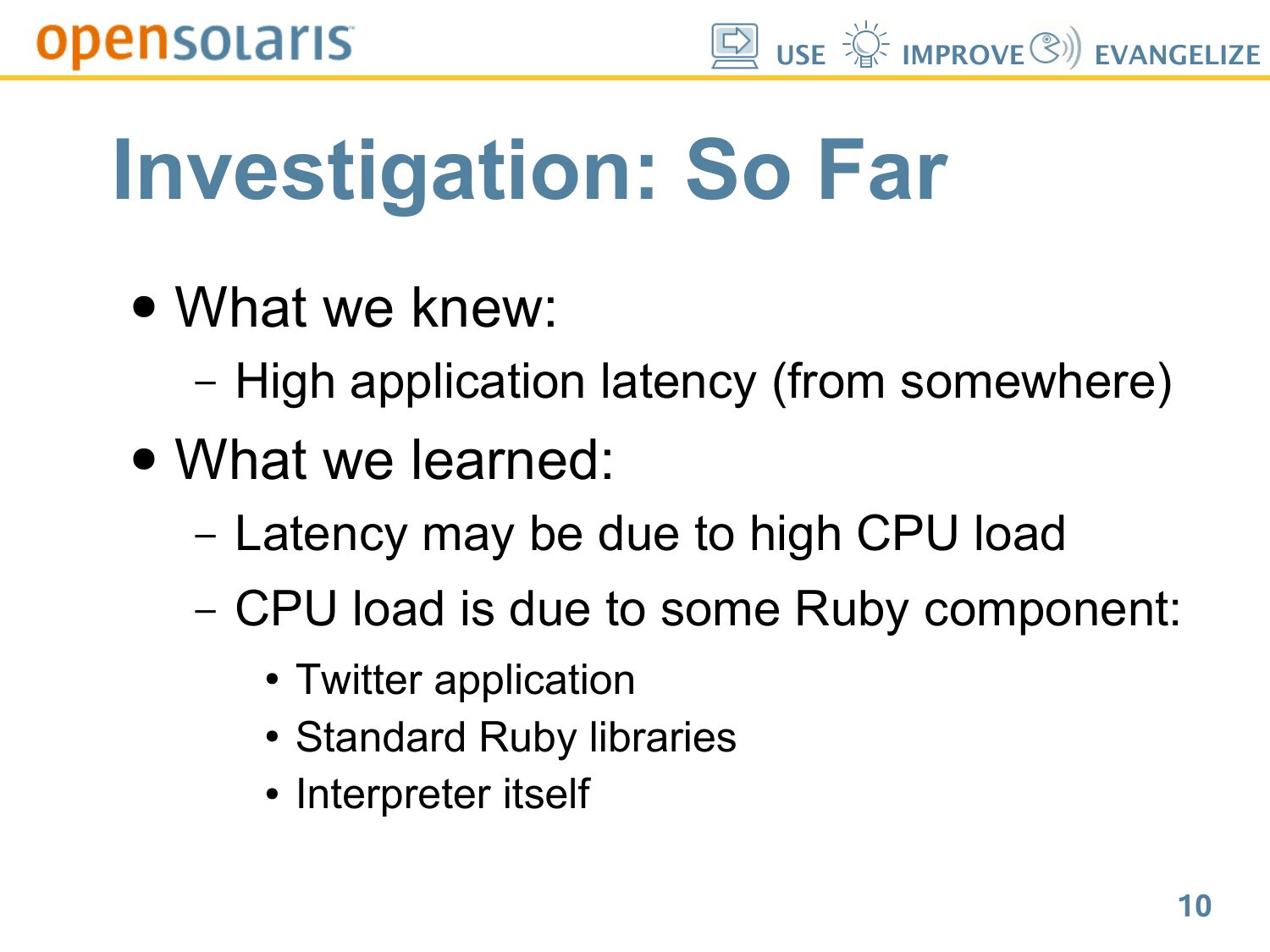

    Investigation: So Far
    ● What we knew:
    – High application latency (from somewhere)
    ● What we learned:
    – Latency may be due to high CPU load
    – CPU load is due to some Ruby component:
    Twitter application
    ● Standard Ruby libraries
    ● Interpreter itself

slide 11:
    USE
    IMPROVE
    EVANGELIZE
    DEMO
    We'll see what functions in the Ruby process are being called most frequently:
    # dtrace -p `pgrep ruby` -n 'pid$target:::entry{ @[probefunc] = count(); }'
    Now that we see that it's memcpy(3C), let's see the stack trace:
    # dtrace -p `pgrep ruby` -n 'pid$target::memcpy:entry{ @[ustack()]=count(); }'
    Looking at the stack trace a bit, we noticed backtrace() which seemed strange – why would the Twitter
    application spend so much time taking stack backtraces? We wanted to measure the amount of time
    spent in backtrace() to confirm our findings (be sure to look at the backtrace.d script):
    # ./backtrace.d -p `pgrep ruby`
    backtrace
    TOTAL:
    665 ms
    1005 ms

slide 12:
    USE
    IMPROVE
    EVANGELIZE

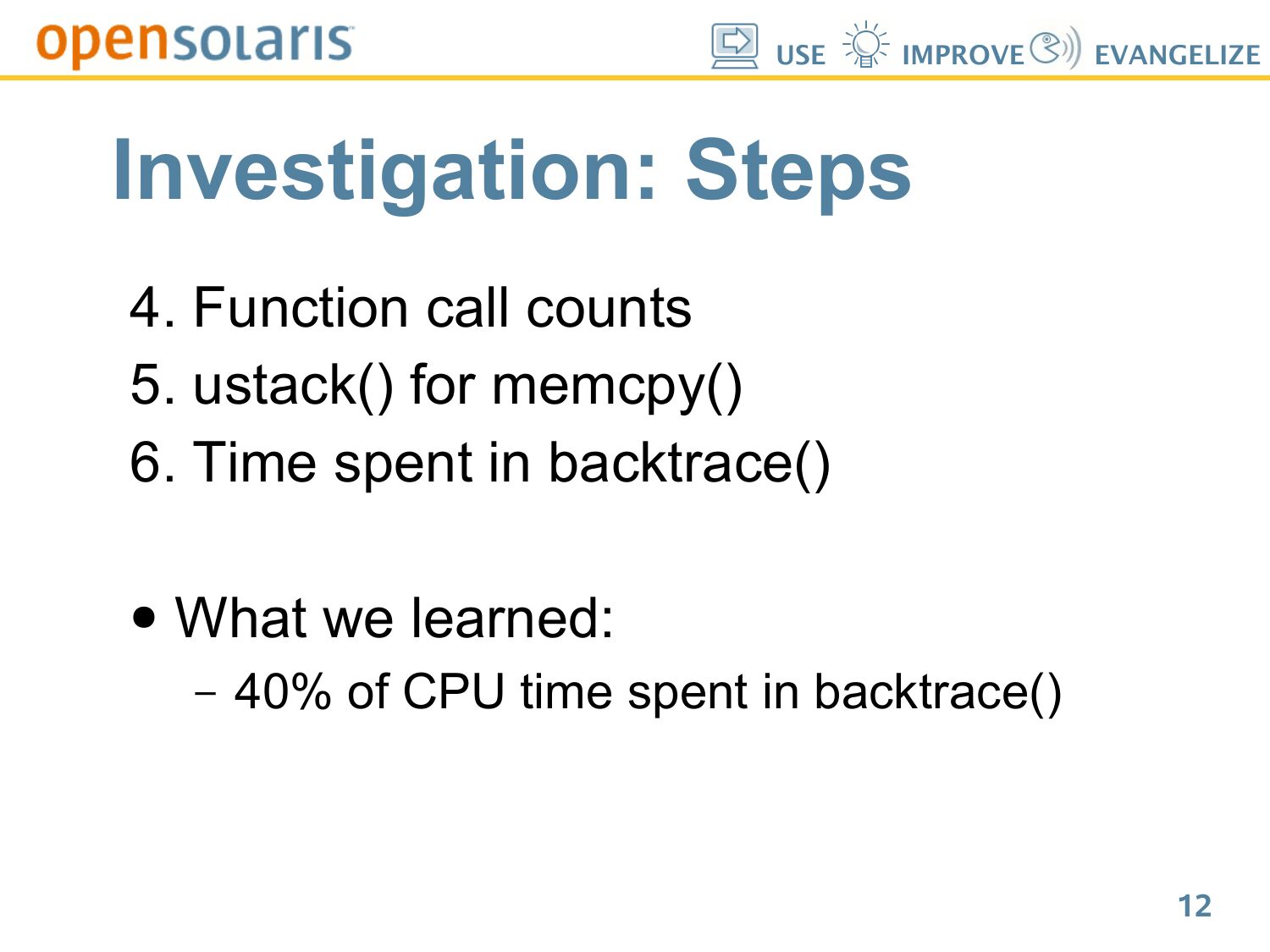

    Investigation: Steps
    4. Function call counts
    5. ustack() for memcpy()
    6. Time spent in backtrace()
    ● What we learned:
    – 40% of CPU time spent in backtrace()

slide 13:
    USE
    IMPROVE
    EVANGELIZE

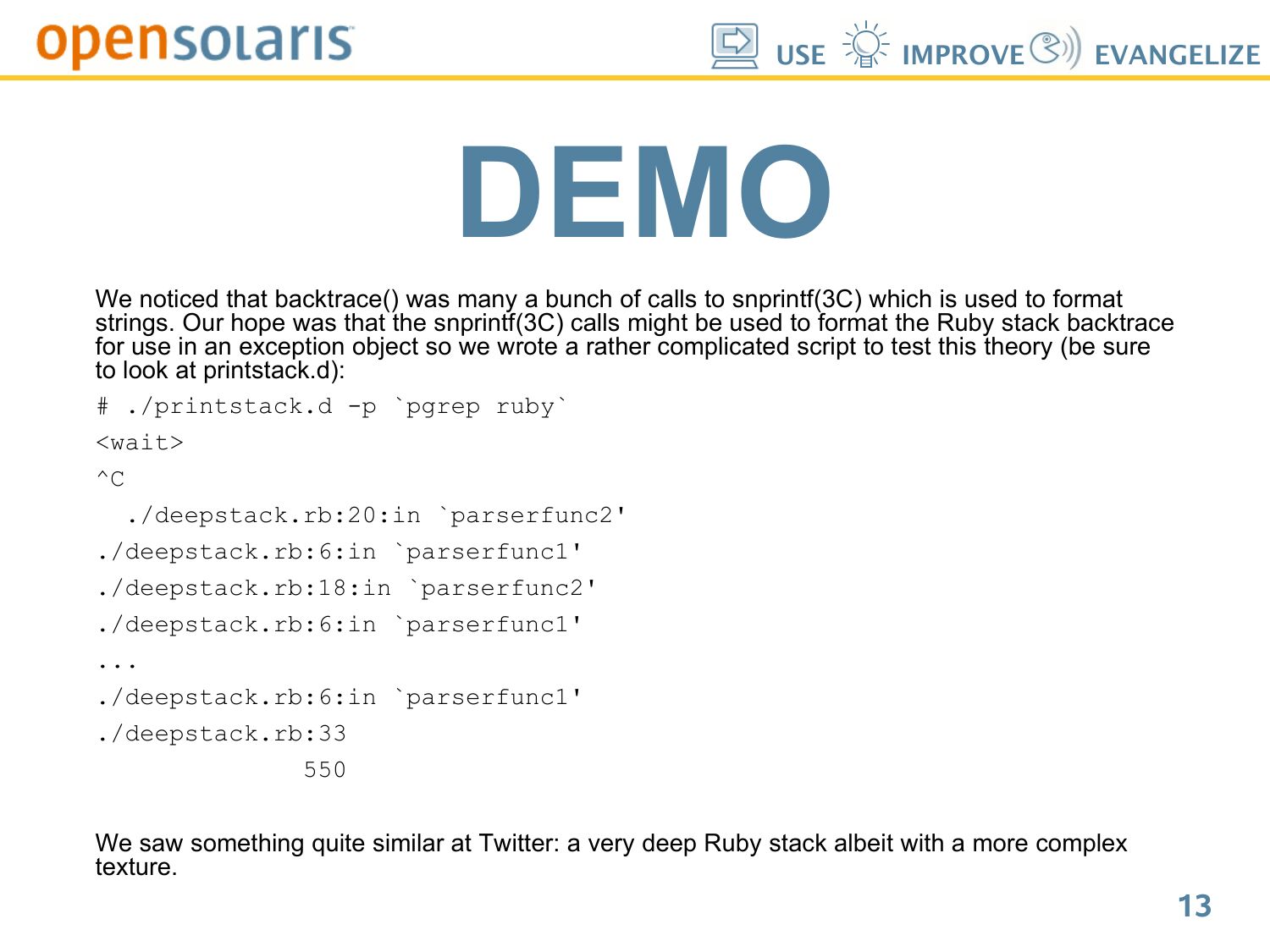

    DEMO
    We noticed that backtrace() was many a bunch of calls to snprintf(3C) which is used to format
    strings. Our hope was that the snprintf(3C) calls might be used to format the Ruby stack backtrace
    for use in an exception object so we wrote a rather complicated script to test this theory (be sure
    to look at printstack.d):
    # ./printstack.d -p `pgrep ruby`
    gt;
    ./deepstack.rb:20:in `parserfunc2'
    ./deepstack.rb:6:in `parserfunc1'
    ./deepstack.rb:18:in `parserfunc2'
    ./deepstack.rb:6:in `parserfunc1'
    ./deepstack.rb:6:in `parserfunc1'
    ./deepstack.rb:33
    We saw something quite similar at Twitter: a very deep Ruby stack albeit with a more complex
    texture.

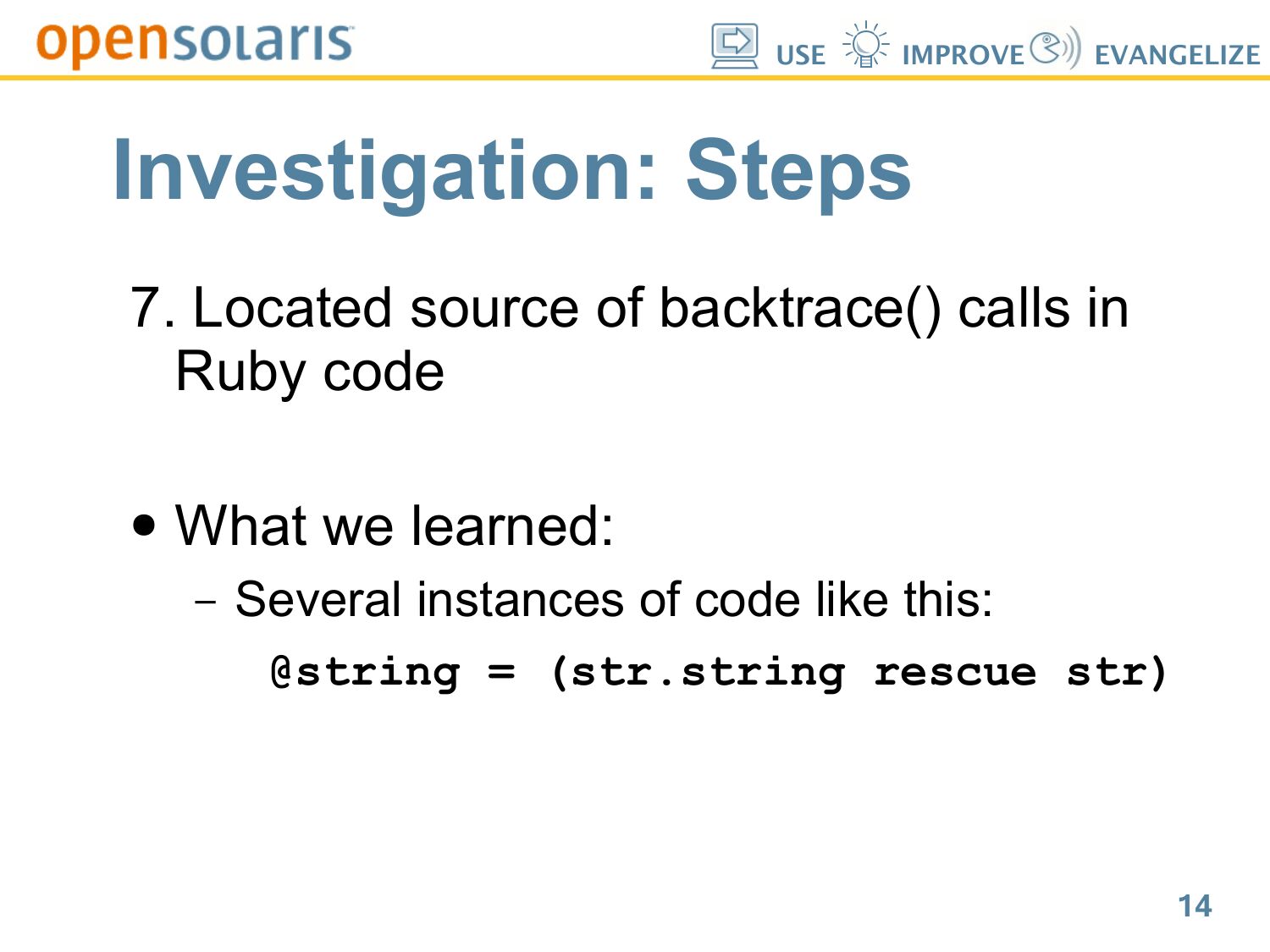

slide 14:
    USE
    IMPROVE
    EVANGELIZE
    Investigation: Steps
    7. Located source of backtrace() calls in
    Ruby code
    ● What we learned:
    – Several instances of code like this:
    @string = (str.string rescue str)

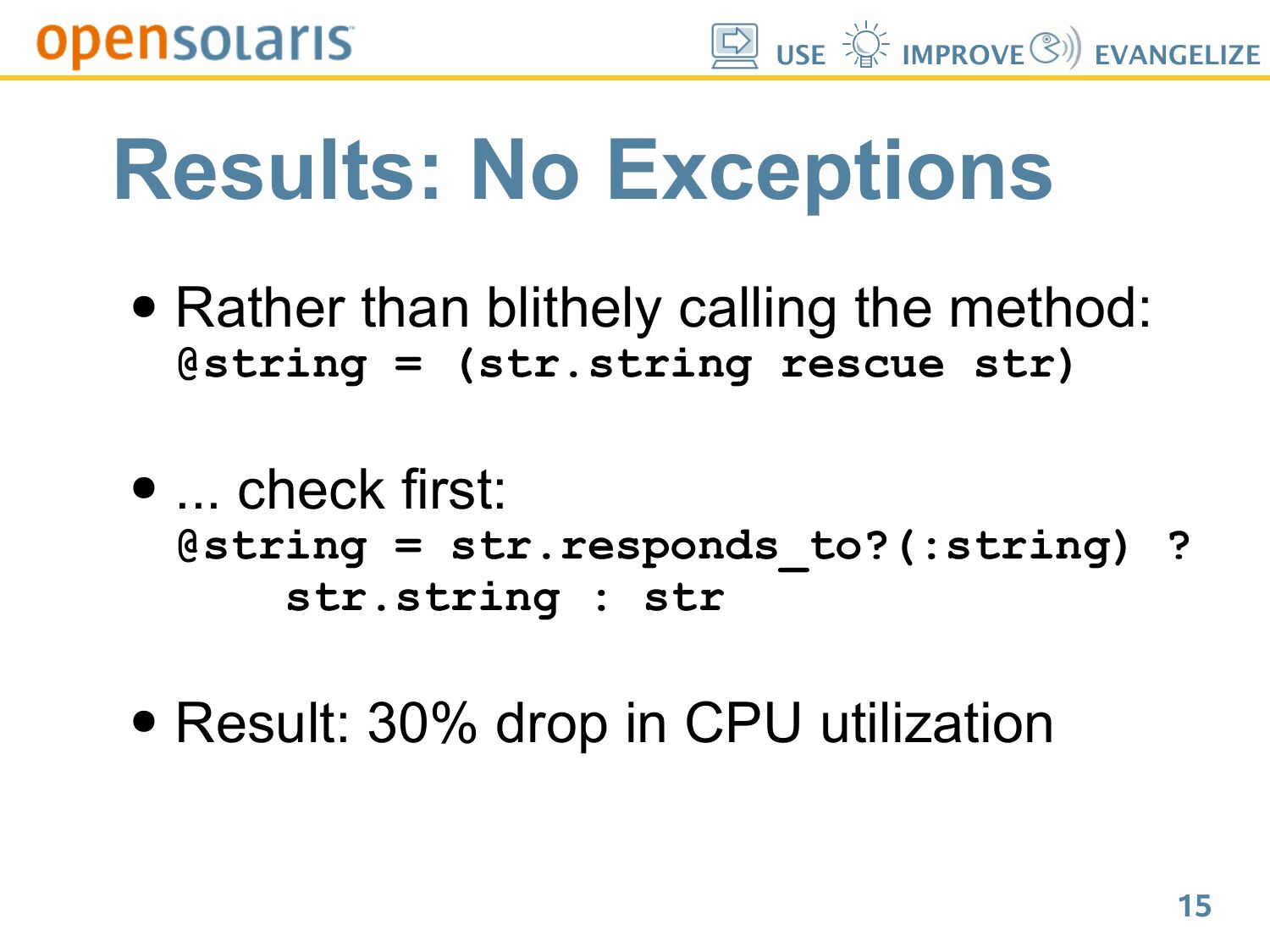

slide 15:
    USE
    IMPROVE
    EVANGELIZE
    Results: No Exceptions
    ● Rather than blithely calling the method:
    @string = (str.string rescue str)
    ● ... check first:
    @string = str.responds_to?(:string) ?
    str.string : str
    ● Result: 30% drop in CPU utilization

slide 16:
    USE
    IMPROVE
    EVANGELIZE

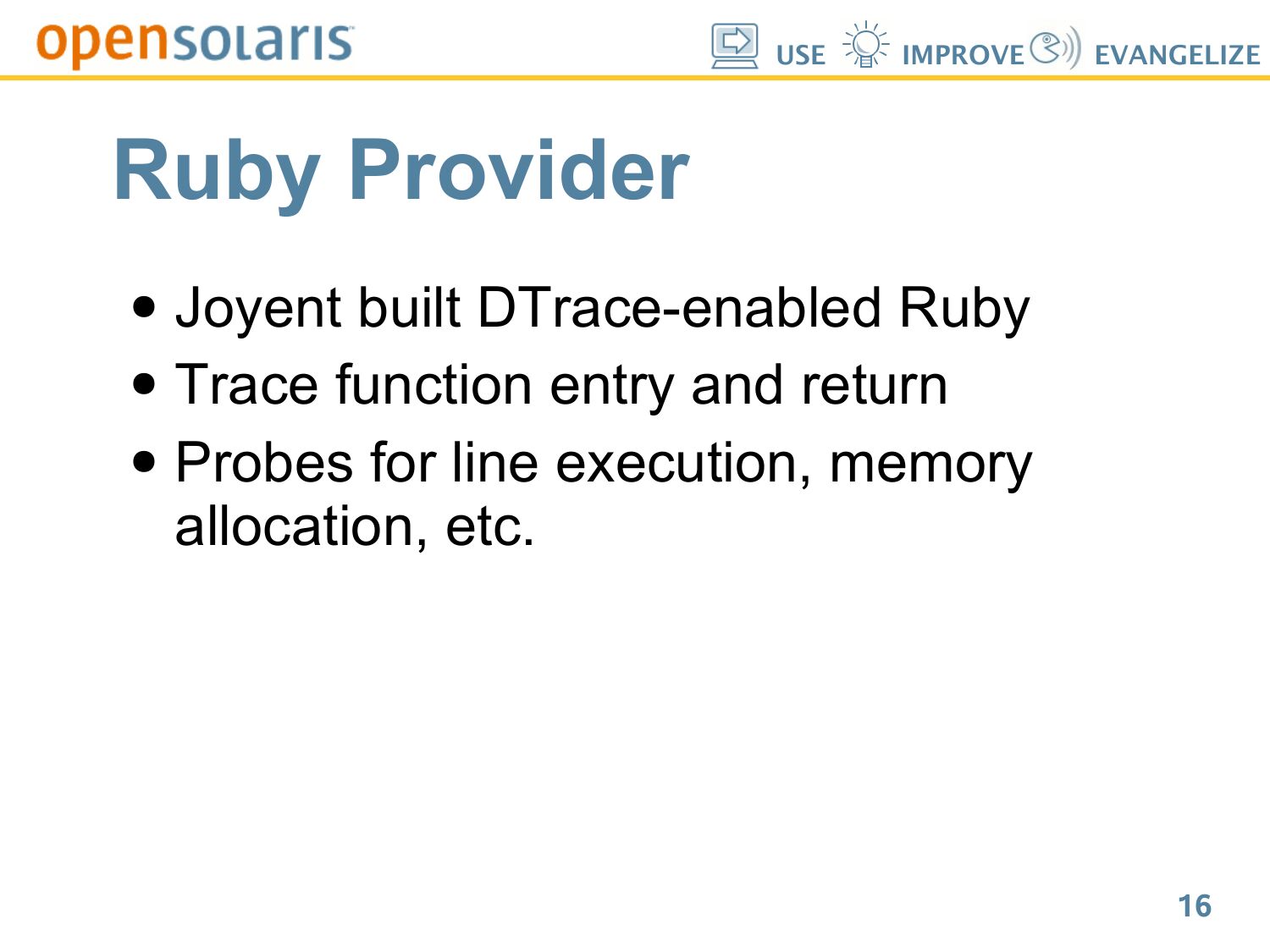

    Ruby Provider
    ● Joyent built DTrace-enabled Ruby
    ● Trace function entry and return
    ● Probes for line execution, memory
    allocation, etc.

slide 17:
    USE
    IMPROVE
    EVANGELIZE

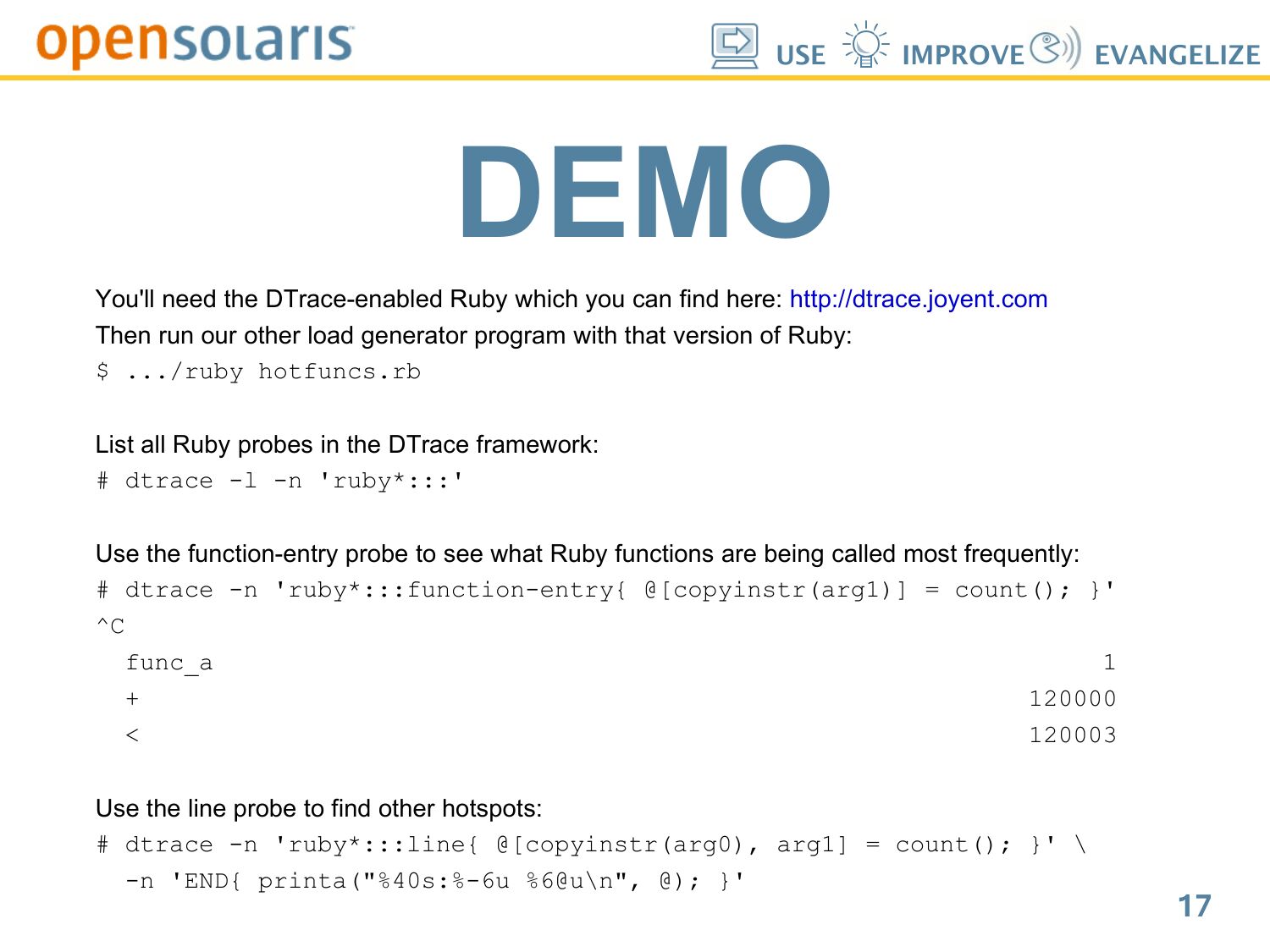

    DEMO
    You'll need the DTrace-enabled Ruby which you can find here: http://dtrace.joyent.com
    Then run our other load generator program with that version of Ruby:
    $ .../ruby hotfuncs.rb
    List all Ruby probes in the DTrace framework:
    # dtrace -l -n 'ruby*:::'
    Use the function-entry probe to see what Ruby functions are being called most frequently:
    # dtrace -n 'ruby*:::function-entry{ @[copyinstr(arg1)] = count(); }'
    func_a

slide 18:
    USE
    IMPROVE
    EVANGELIZE

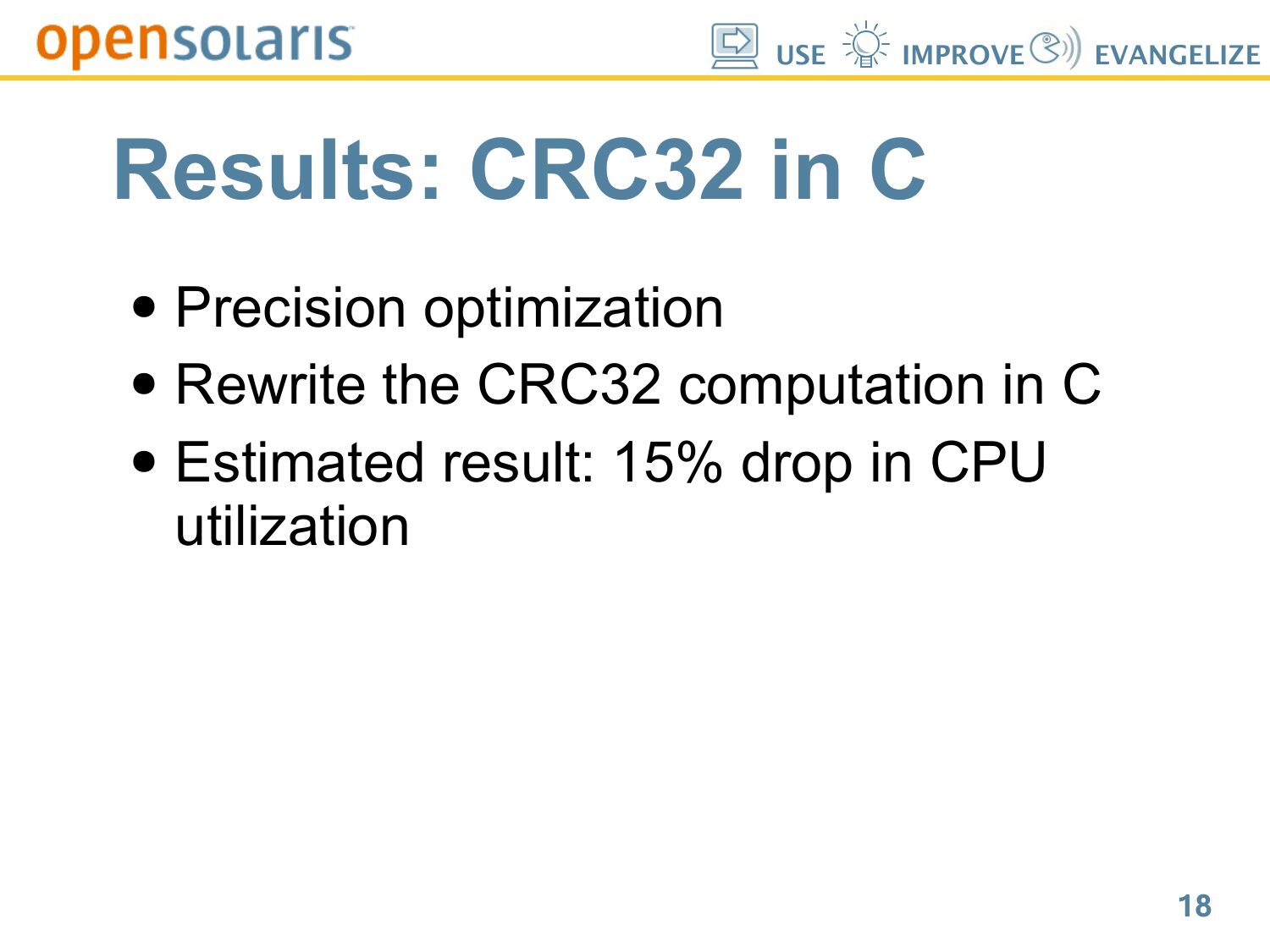

    Results: CRC32 in C
    ● Precision optimization
    ● Rewrite the CRC32 computation in C
    ● Estimated result: 15% drop in CPU
    utilization

slide 19:
    USE
    IMPROVE
    EVANGELIZE

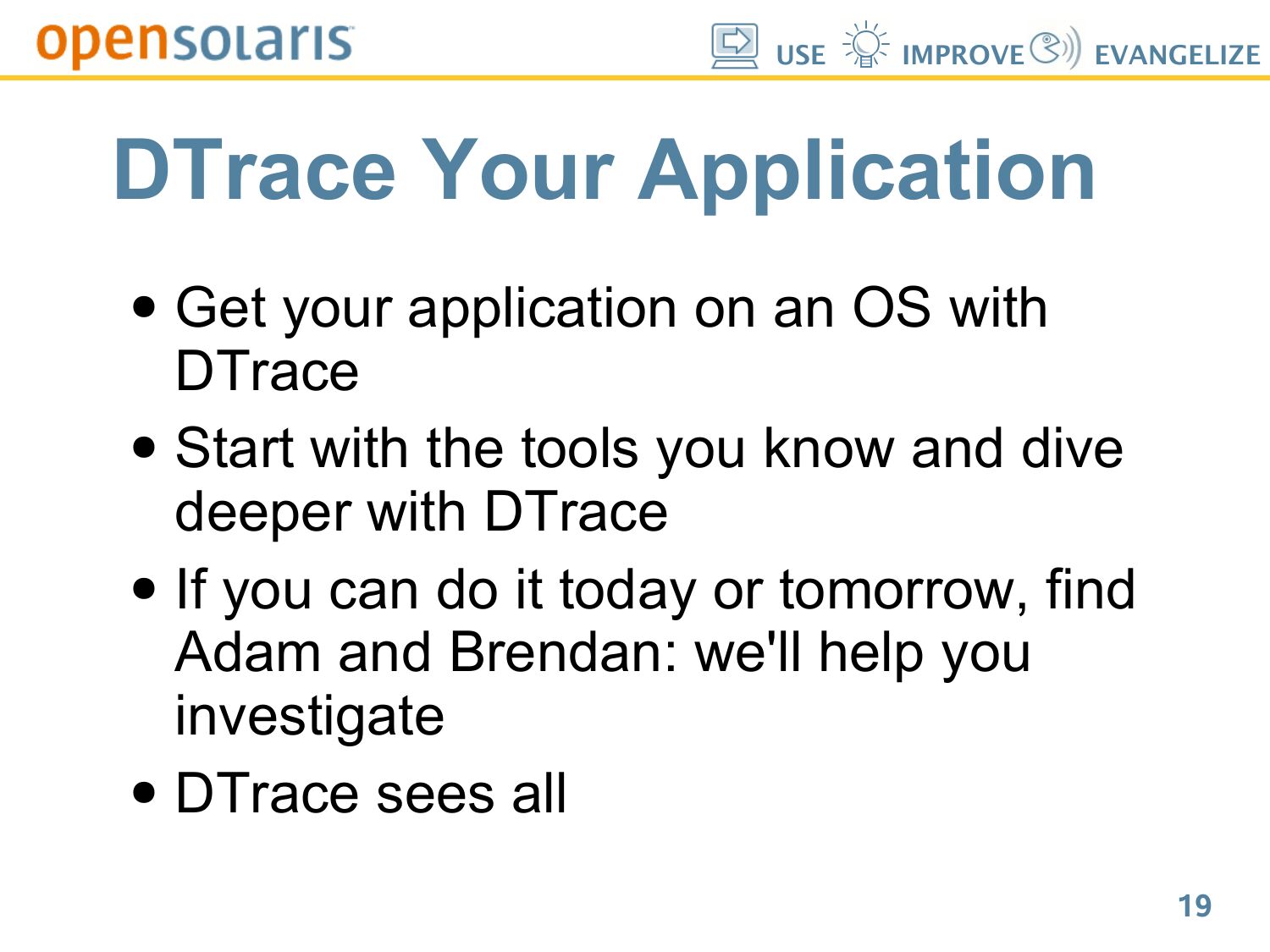

    DTrace Your Application
    ● Get your application on an OS with
    DTrace
    ● Start with the tools you know and dive
    deeper with DTrace
    ● If you can do it today or tomorrow, find
    Adam and Brendan: we'll help you
    investigate
    ● DTrace sees all

slide 20:
    USE
    IMPROVE
    EVANGELIZE

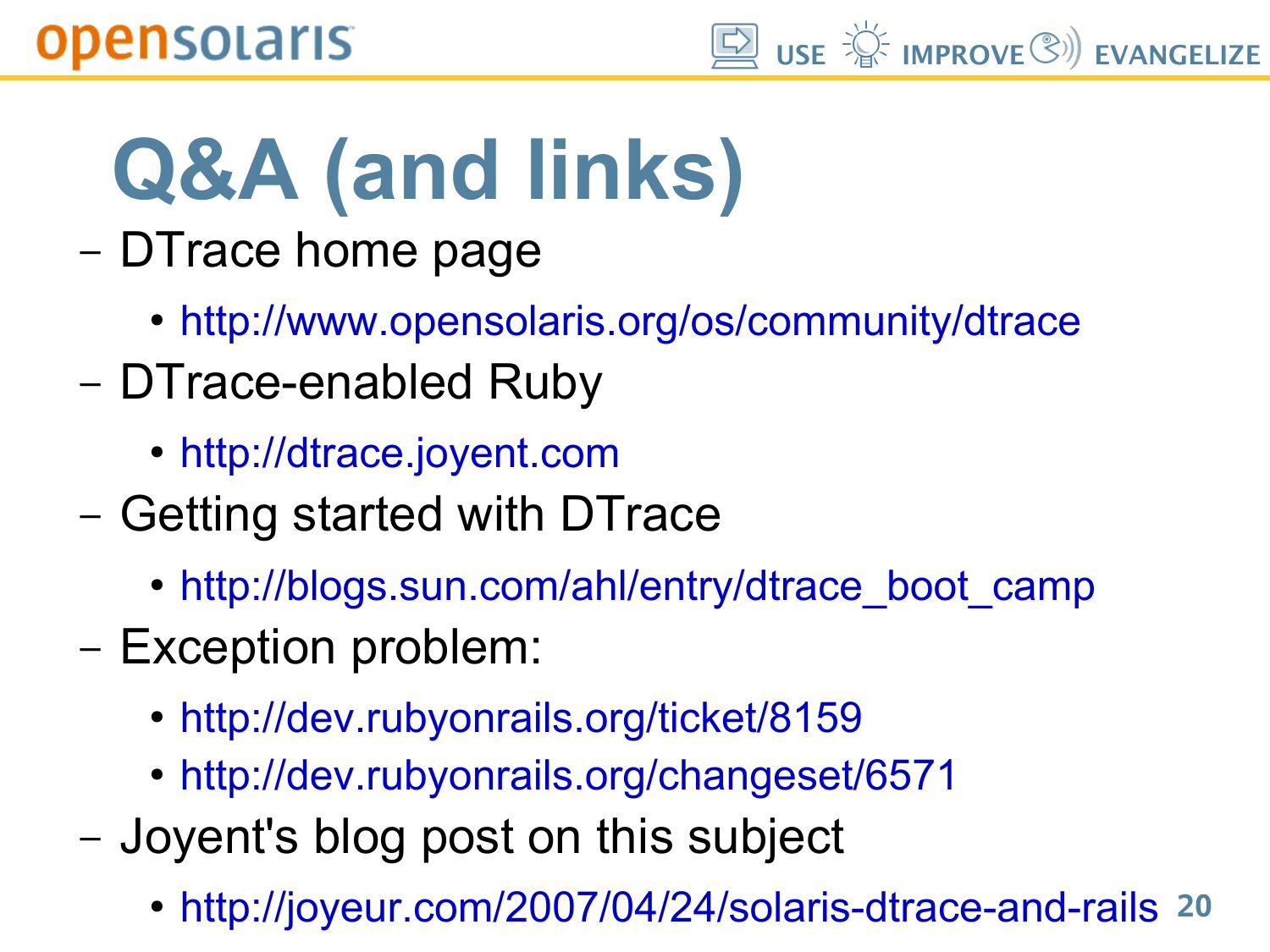

    Q&A (and links)
    – DTrace home page
    http://www.opensolaris.org/os/community/dtrace
    – DTrace-enabled Ruby
    http://dtrace.joyent.com
    – Getting started with DTrace
    http://blogs.sun.com/ahl/entry/dtrace_boot_camp
    – Exception problem:
    http://dev.rubyonrails.org/ticket/8159
    ● http://dev.rubyonrails.org/changeset/6571
    – Joyent's blog post on this subject
    http://joyeur.com/2007/04/24/solaris-dtrace-and-rails 20

slide 21:
    USE
    IMPROVE
    EVANGELIZE
    Observability Matters:
    How DTrace Helped Twitter
    Adam Leventhal
    http://blogs.sun.com/ahl
    Brendan Gregg
    http://blogs.sun.com/brendan
