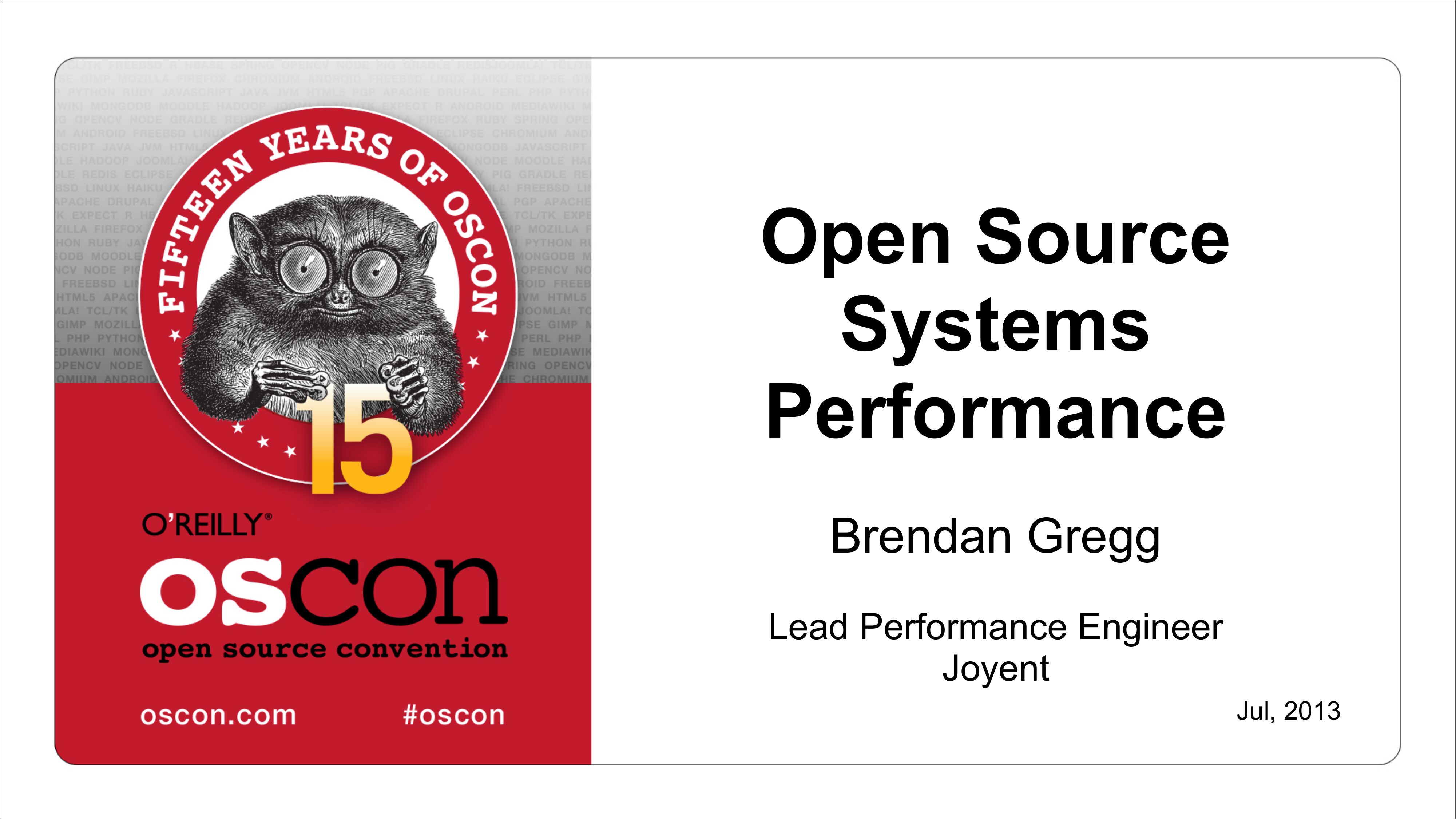

Open Source
Systems
Performance
Brendan Gregg
Lead Performance Engineer
Joyent
Jul, 2013

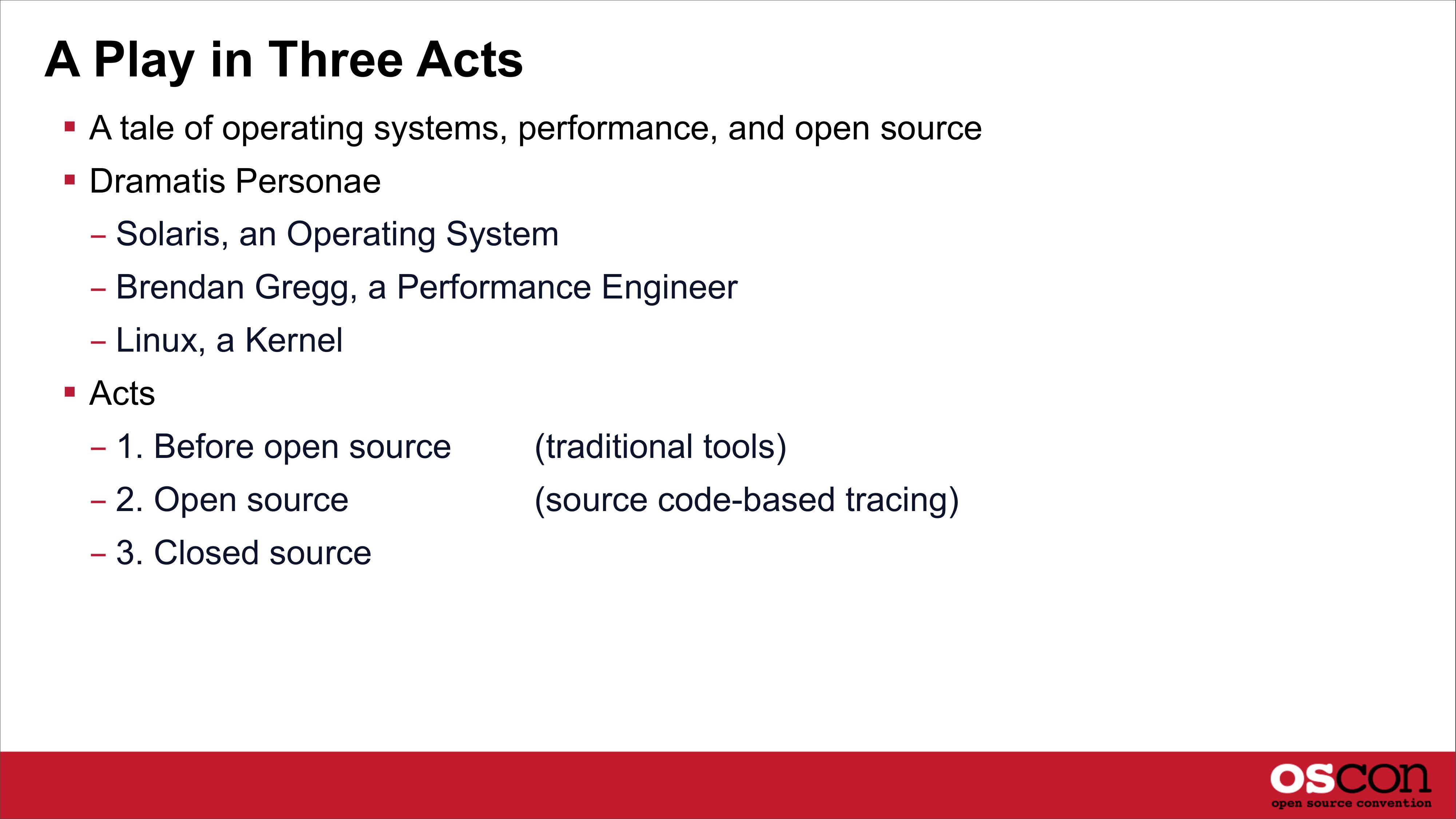

A Play in Three Acts
 A tale of operating systems, performance, and open source
 Dramatis Personae
- Solaris, an Operating System
- Brendan Gregg, a Performance Engineer
- Linux, a Kernel
 Acts
- 1. Before open source
(traditional tools)
- 2. Open source
(source code-based tracing)
- 3. Closed source

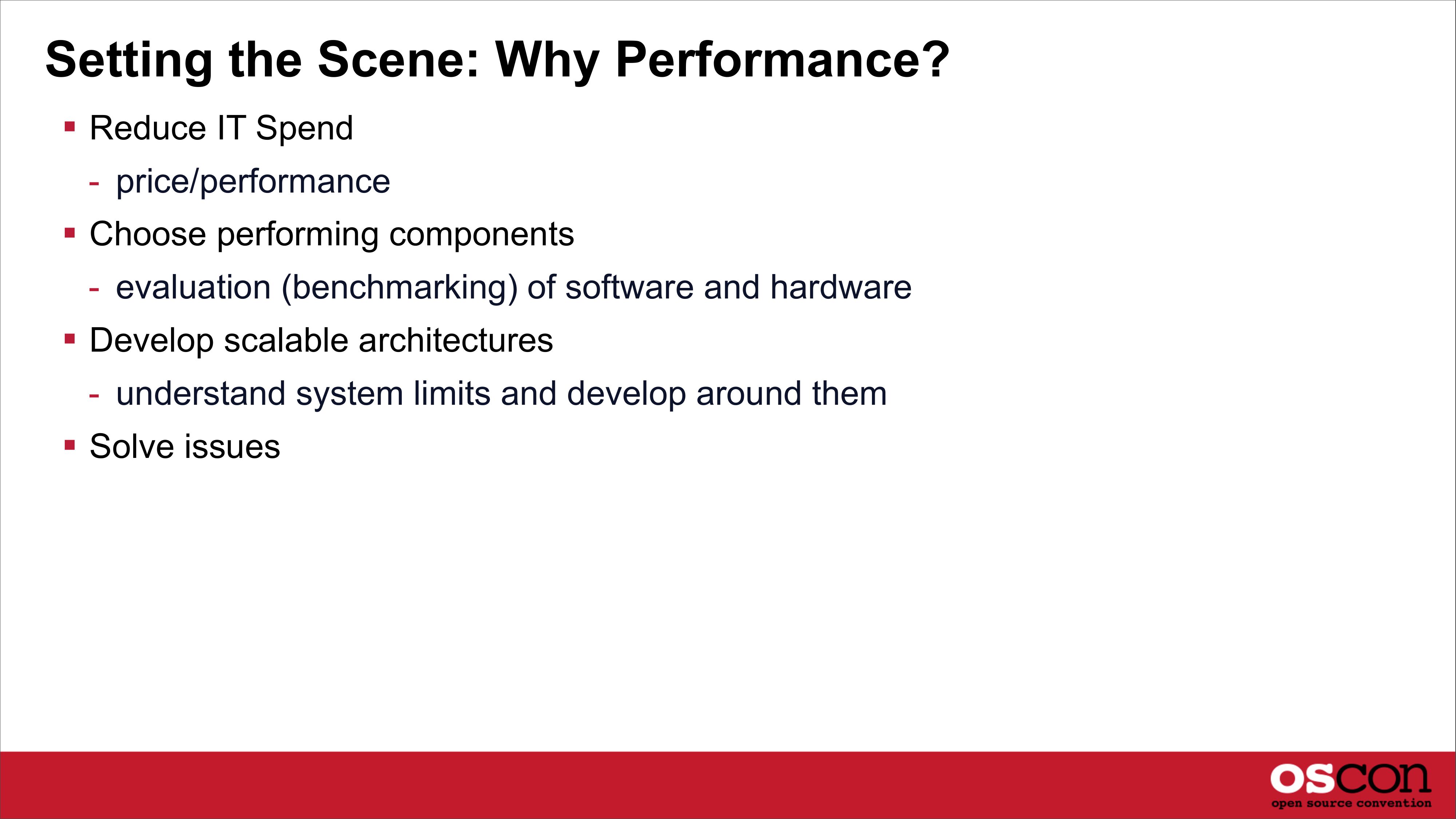

Setting the Scene: Why Performance?
 Reduce IT Spend
- price/performance
 Choose performing components
- evaluation (benchmarking) of software and hardware
 Develop scalable architectures
- understand system limits and develop around them
 Solve issues

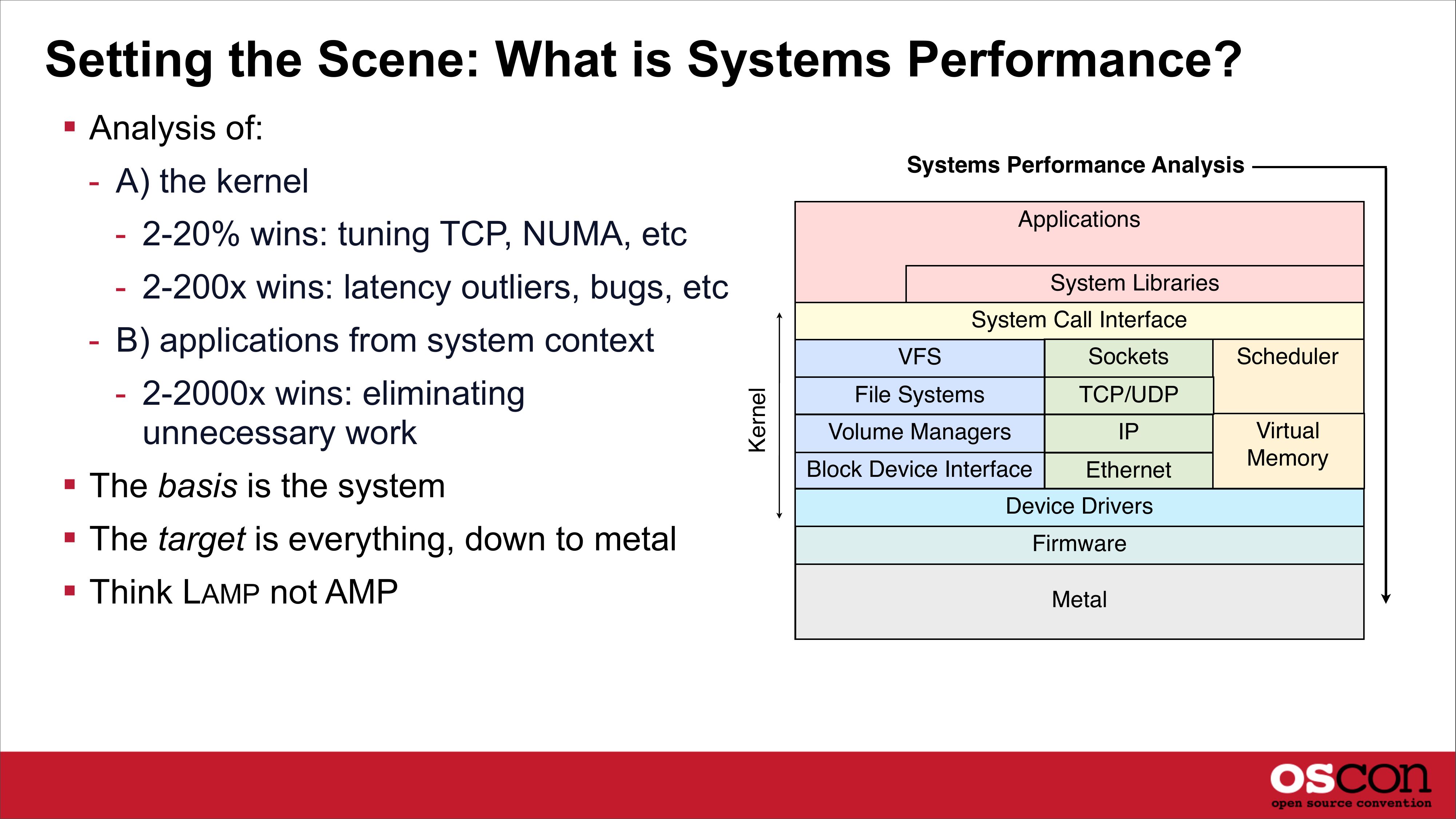

Setting the Scene: What is Systems Performance?
 Analysis of:
Systems Performance Analysis
- A) the kernel
Applications
- 2-20% wins: tuning TCP, NUMA, etc
- 2-200x wins: latency outliers, bugs, etc
System Libraries
System Call Interface
- 2-2000x wins: eliminating
unnecessary work
 The basis is the system
 The target is everything, down to metal
 Think LAMP not AMP
Kernel
- B) applications from system context
VFS
Sockets
File Systems
TCP/UDP
Volume Managers
Block Device Interface
Ethernet
Device Drivers
Firmware
Metal
Scheduler
Virtual
Memory

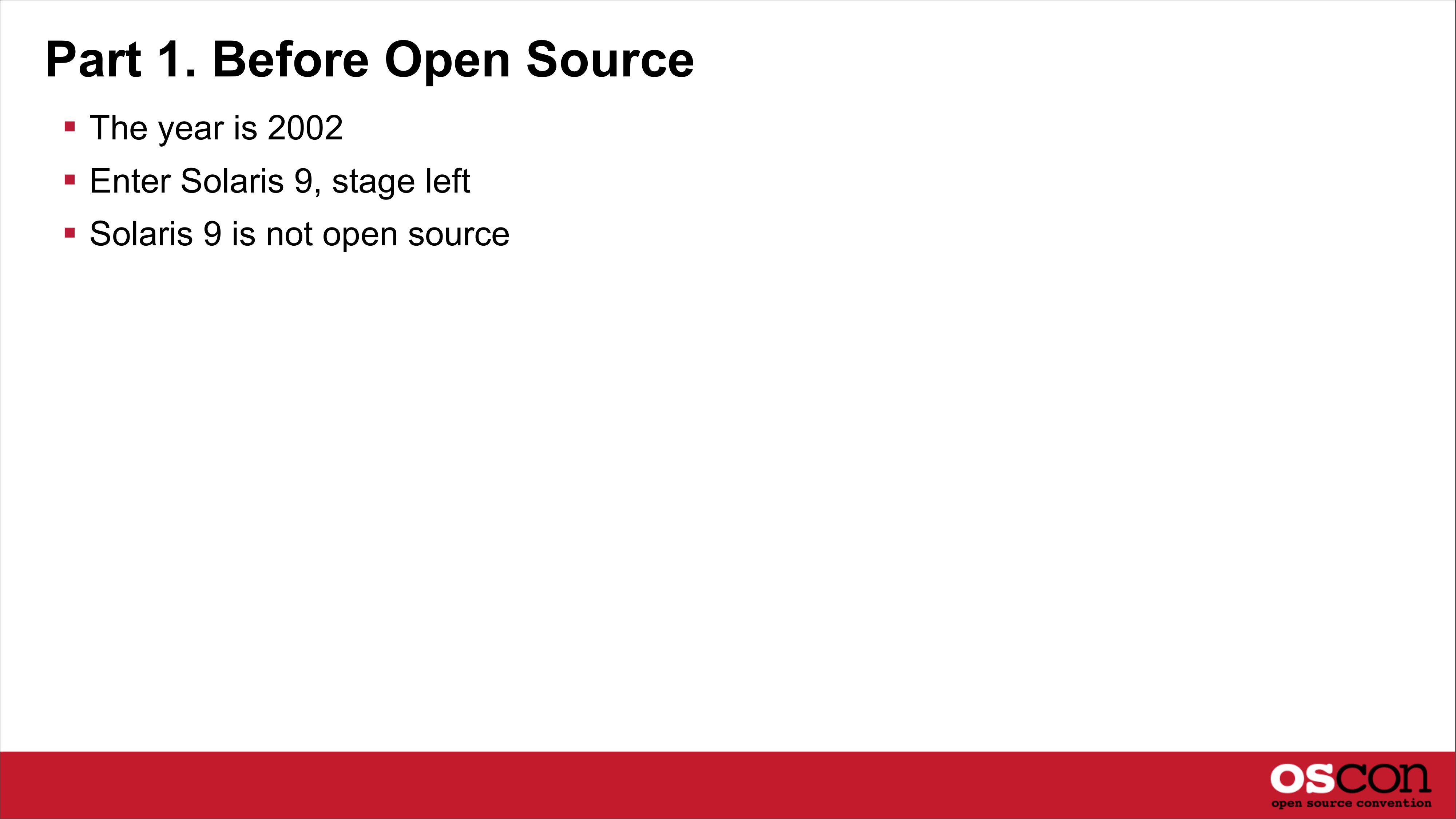

Part 1. Before Open Source

Part 1. Before Open Source
 The year is 2002
 Enter Solaris 9, stage left
 Solaris 9 is not open source

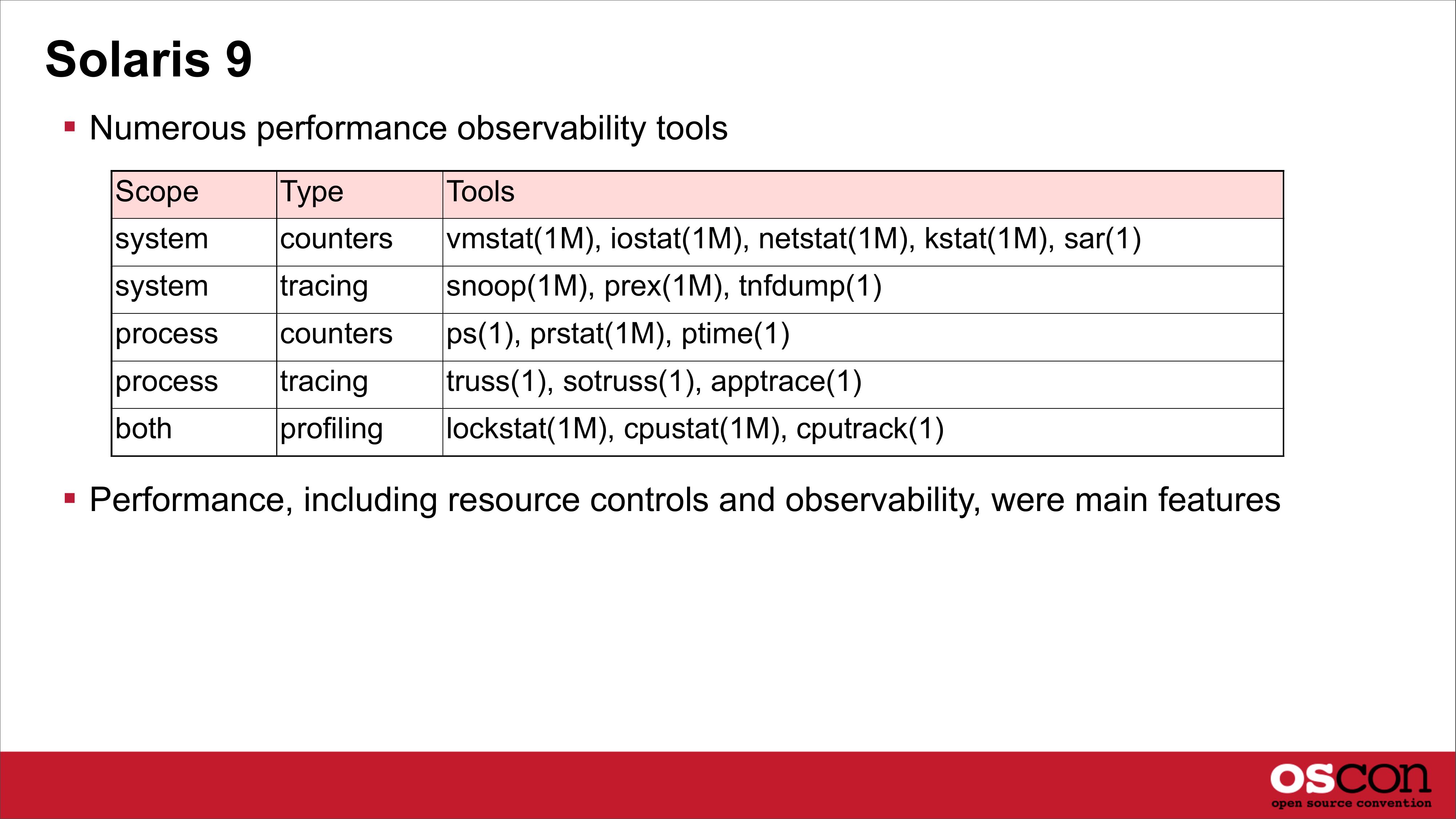

Solaris 9
 Numerous performance observability tools
Scope
Type
Tools
system
counters
vmstat(1M), iostat(1M), netstat(1M), kstat(1M), sar(1)
system
tracing
snoop(1M), prex(1M), tnfdump(1)
process
counters
ps(1), prstat(1M), ptime(1)
process
tracing
truss(1), sotruss(1), apptrace(1)
both
profiling
lockstat(1M), cpustat(1M), cputrack(1)
 Performance, including resource controls and observability, were main features

Systems Performance

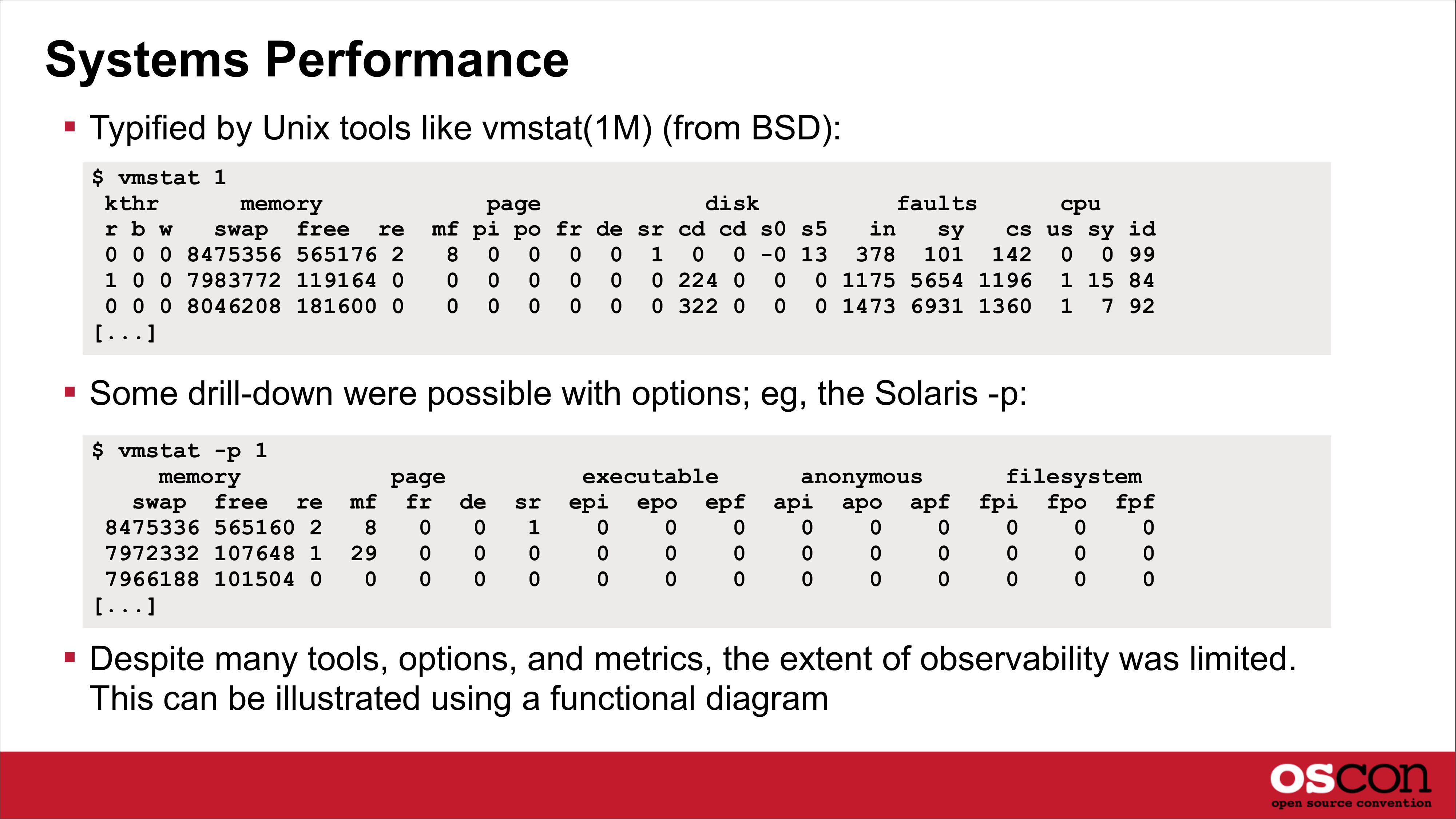

 Typified by Unix tools like vmstat(1M) (from BSD):
$ vmstat 1
kthr
memory
r b w
swap free re
0 0 0 8475356 565176 2
1 0 0 7983772 119164 0
0 0 0 8046208 181600 0
[...]
page
disk
faults
cpu
mf pi po fr de sr cd cd s0 s5
cs us sy id
8 0 0 0 0 1 0 0 -0 13 378 101 142 0 0 99
0 0 0 0 0 0 224 0 0 0 1175 5654 1196 1 15 84
0 0 0 0 0 0 322 0 0 0 1473 6931 1360 1 7 92
 Some drill-down were possible with options; eg, the Solaris -p:
$ vmstat -p 1
memory
swap free re
8475336 565160 2
7972332 107648 1
7966188 101504 0
[...]
page
mf fr de
executable
epi epo epf
anonymous
api apo apf
filesystem
fpi fpo fpf
 Despite many tools, options, and metrics, the extent of observability was limited.
This can be illustrated using a functional diagram

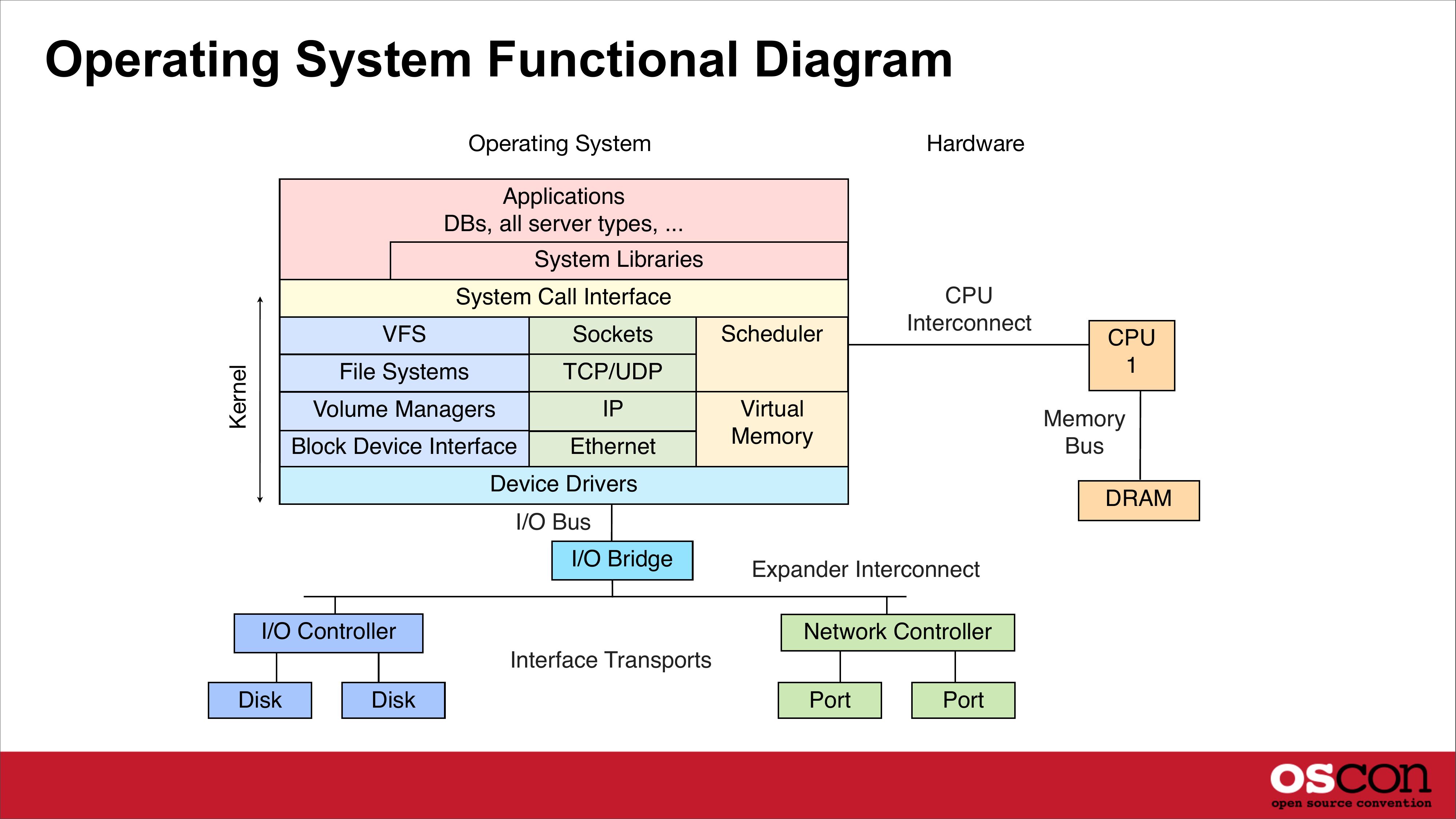

Operating System Functional Diagram
Operating System
Hardware
Applications
DBs, all server types, ...
System Libraries
Kernel
System Call Interface
VFS
Sockets
File Systems
TCP/UDP
Volume Managers
Block Device Interface
Ethernet
Scheduler
CPU
Interconnect
Virtual
Memory
Memory
Bus
Device Drivers
DRAM
I/O Bus
I/O Bridge
I/O Controller
Expander Interconnect
Network Controller
Interface Transports
Disk
Disk
CPU
Port
Port

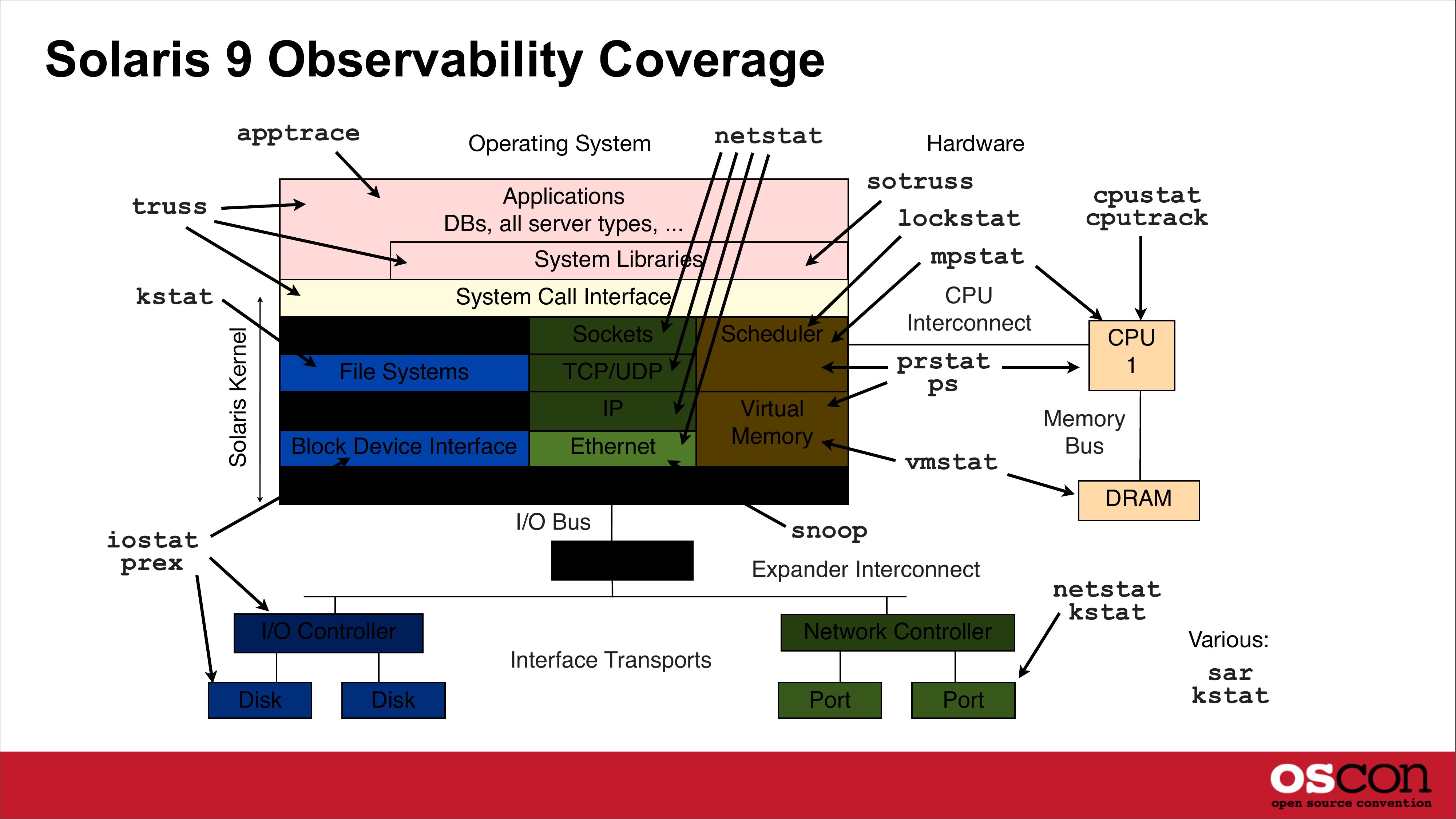

Solaris 9 Observability Coverage
apptrace
Operating System
netstat
sotruss
lockstat
mpstat
Applications
DBs, all server types, ...
truss
System Libraries
kstat
Hardware
Solaris Kernel
System Call Interface
VFS
Sockets
File Systems
TCP/UDP
Volume Managers
Block Device Interface
Ethernet
Scheduler
prstat
Virtual
Memory
Device Drivers
I/O Bus
iostat
prex
I/O Bridge
I/O Controller
CPU
Interconnect
vmstat
Disk
CPU
Memory
Bus
DRAM
snoop
Expander Interconnect
Network Controller
Interface Transports
Disk
cpustat
cputrack
Port
Port
netstat
kstat
Various:
sar
kstat

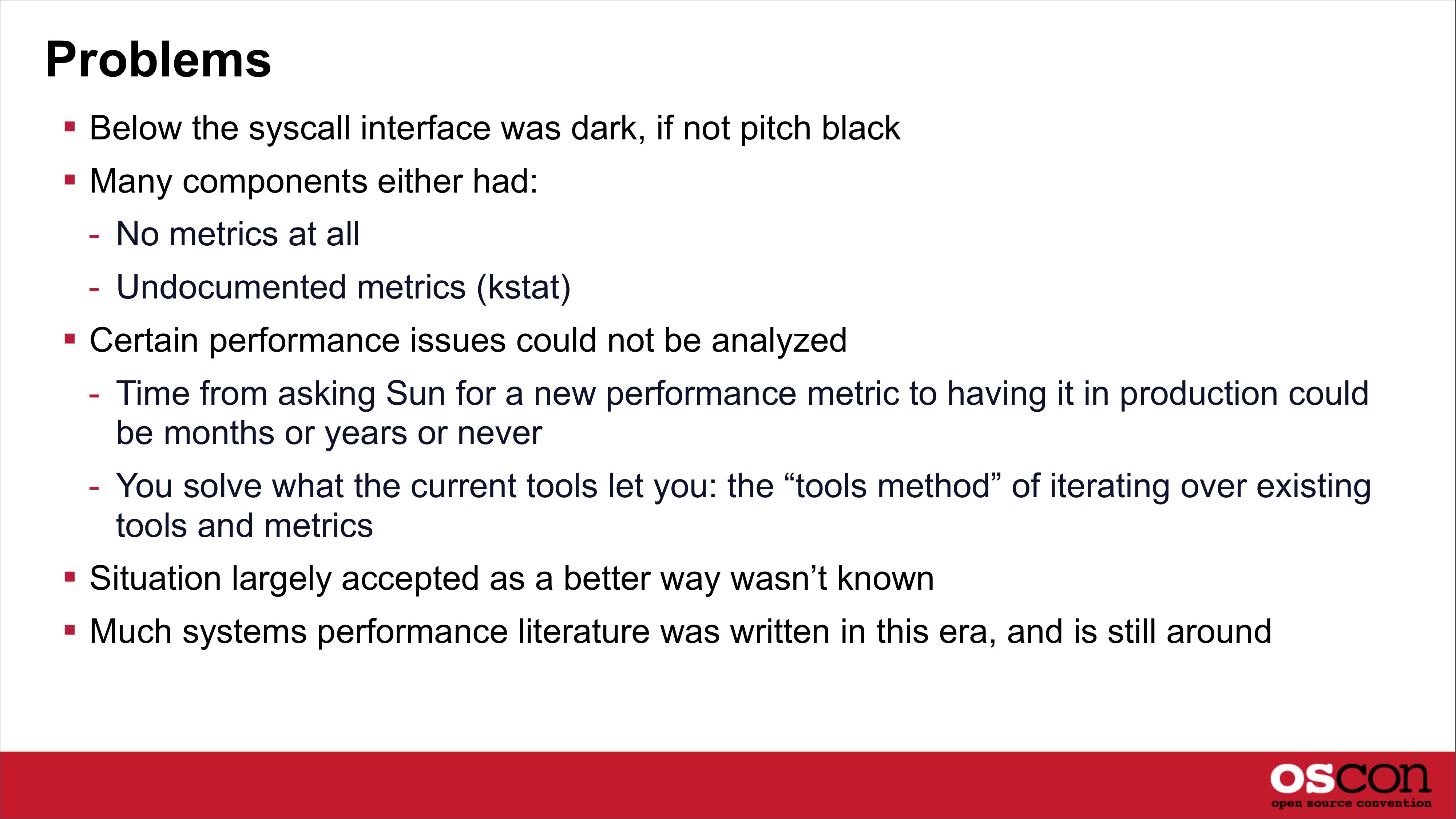

Problems
 Below the syscall interface was dark, if not pitch black
 Many components either had:
- No metrics at all
- Undocumented metrics (kstat)
 Certain performance issues could not be analyzed
- Time from asking Sun for a new performance metric to having it in production could
be months or years or never
- You solve what the current tools let you: the “tools method” of iterating over existing
tools and metrics
 Situation largely accepted as a better way wasn’t known
 Much systems performance literature was written in this era, and is still around

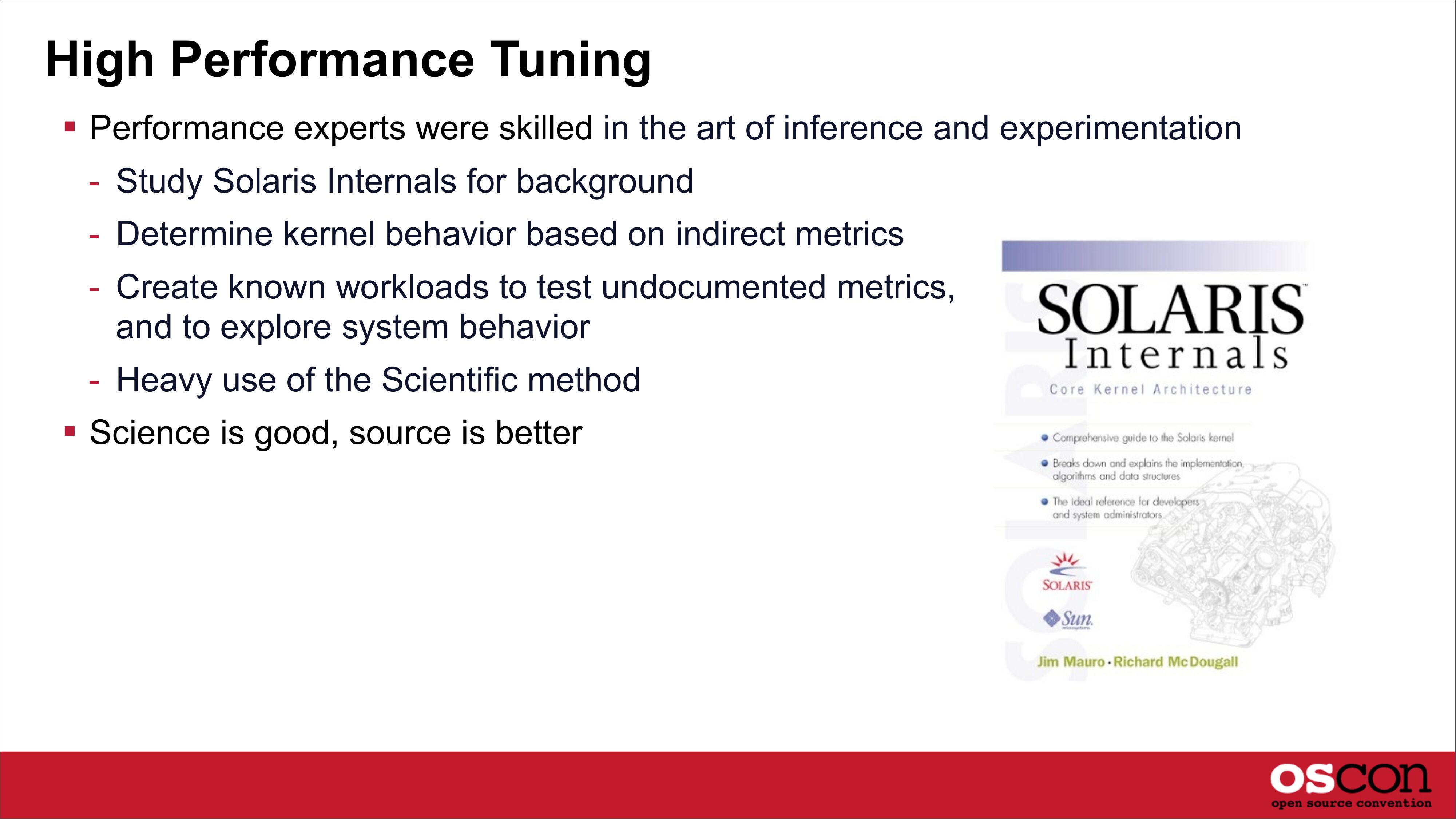

High Performance Tuning
 Performance experts were skilled in the art of inference and experimentation
- Study Solaris Internals for background
- Determine kernel behavior based on indirect metrics
- Create known workloads to test undocumented metrics,
and to explore system behavior
- Heavy use of the Scientific method
 Science is good, source is better

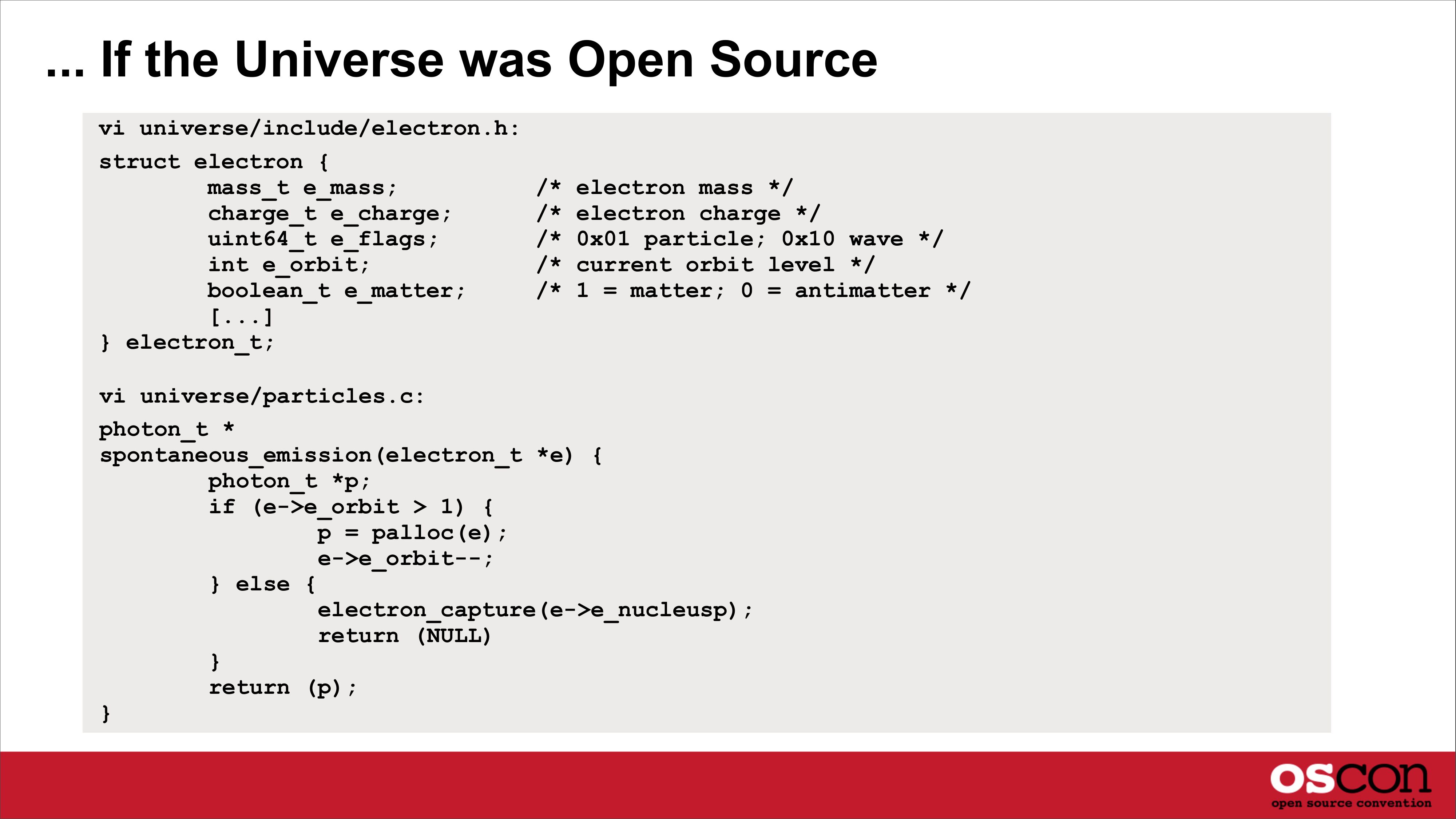

... If the Universe was Open Source
vi universe/include/electron.h:
struct electron {
mass_t e_mass;
/* electron mass */
charge_t e_charge;
/* electron charge */
uint64_t e_flags;
/* 0x01 particle; 0x10 wave */
int e_orbit;
/* current orbit level */
boolean_t e_matter;
/* 1 = matter; 0 = antimatter */
[...]
} electron_t;
vi universe/particles.c:
photon_t *
spontaneous_emission(electron_t *e) {
photon_t *p;
if (e->gt;e_orbit >gt; 1) {
p = palloc(e);
e->gt;e_orbit--;
} else {
electron_capture(e->gt;e_nucleusp);
return (NULL)
return (p);

Part 2. Open Source

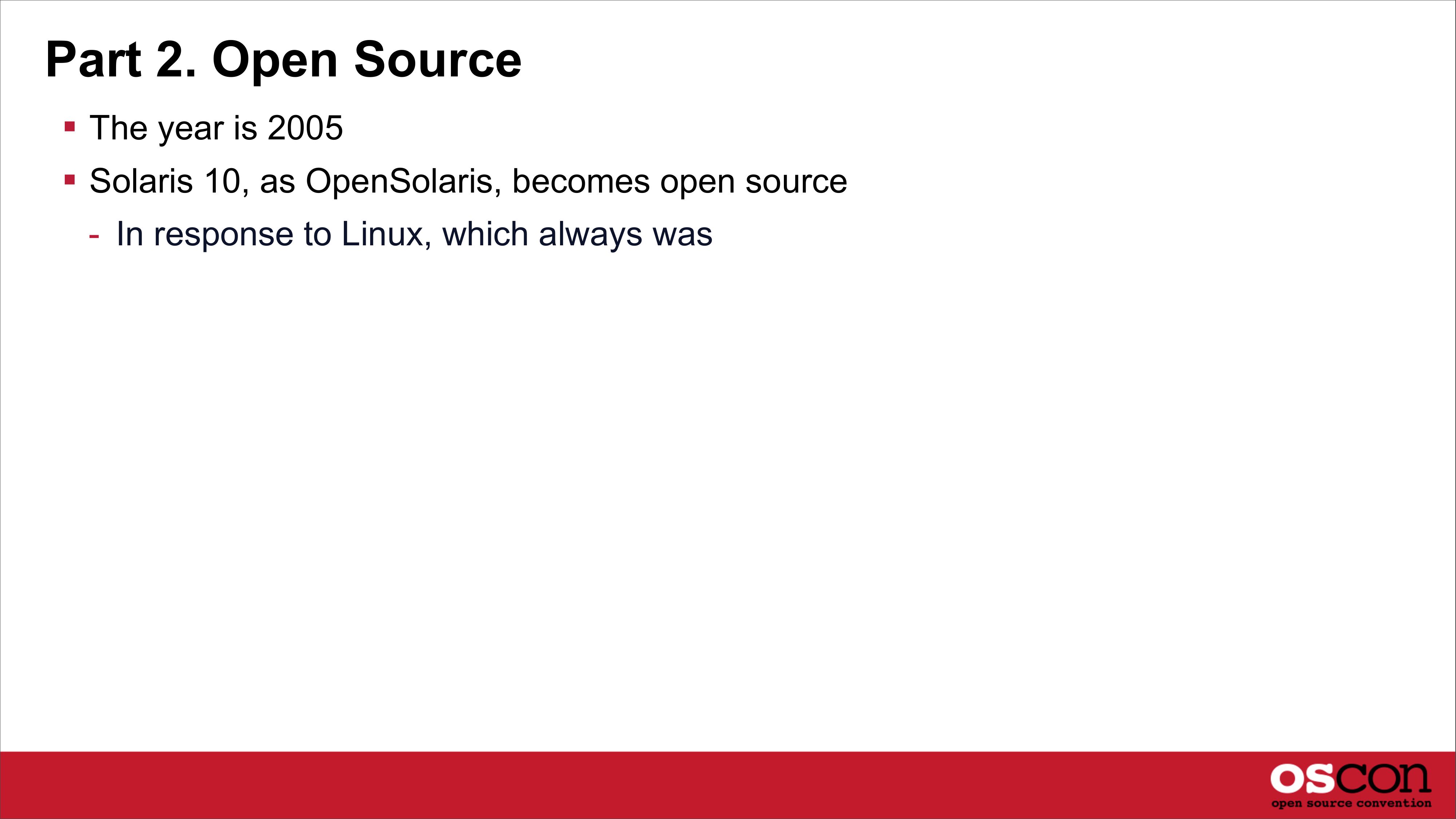

Part 2. Open Source
 The year is 2005
 Solaris 10, as OpenSolaris, becomes open source
- In response to Linux, which always was

Open Source Metrics
 Undocumented kstats could now be understood from source
- it was like being handed the source code to the Universe
- I wasn’t a Sun badged employee; I’d been working without source access
 Tool metrics could also be better understood, and exact behavior of the kernel

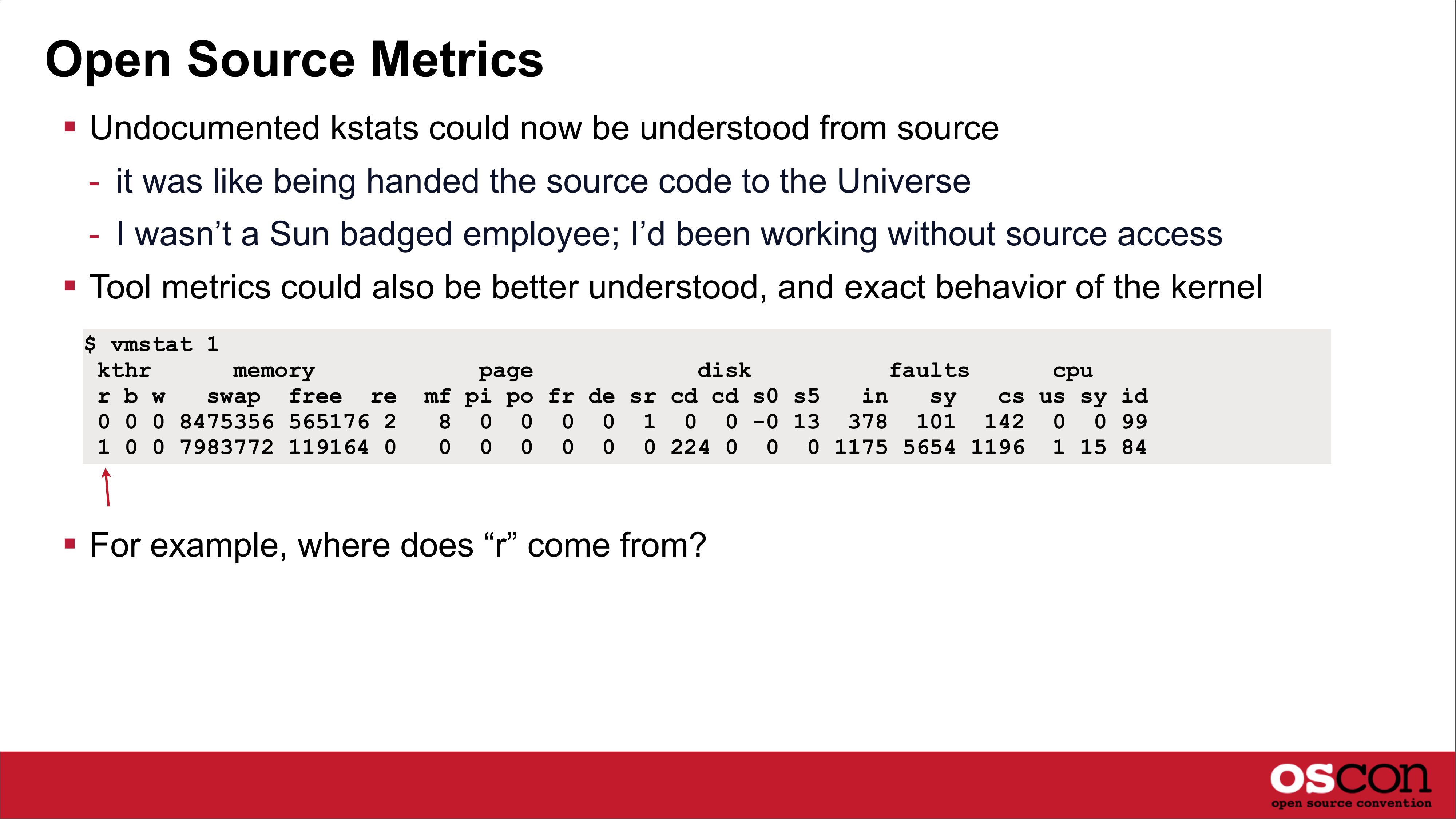

$ vmstat 1
kthr
memory
r b w
swap free re
0 0 0 8475356 565176 2
1 0 0 7983772 119164 0
page
disk
faults
cpu
mf pi po fr de sr cd cd s0 s5
cs us sy id
8 0 0 0 0 1 0 0 -0 13 378 101 142 0 0 99
0 0 0 0 0 0 224 0 0 0 1175 5654 1196 1 15 84
 For example, where does “r” come from?

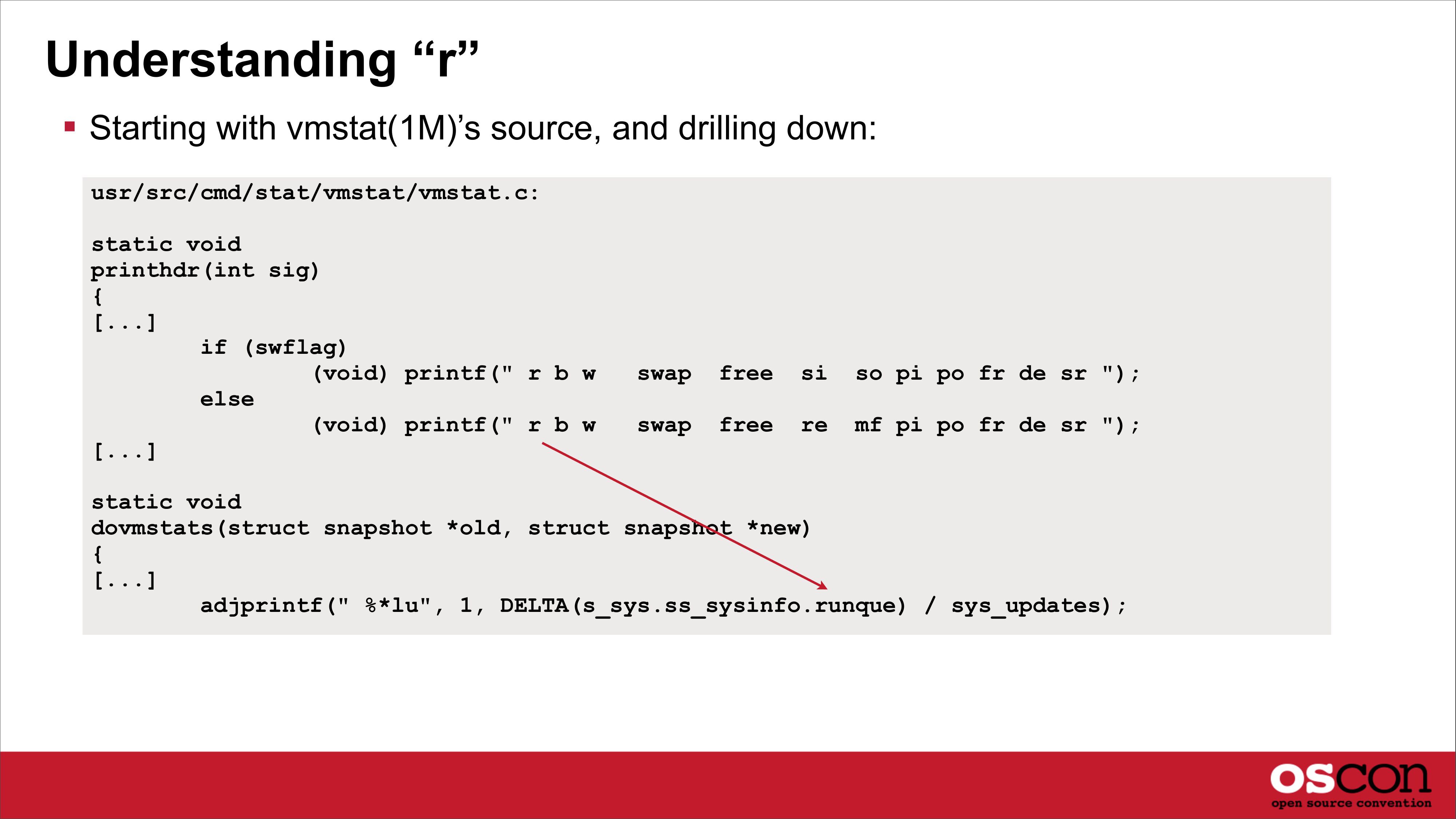

Understanding “r”
 Starting with vmstat(1M)’s source, and drilling down:
usr/src/cmd/stat/vmstat/vmstat.c:
static void
printhdr(int sig)
[...]
if (swflag)
(void) printf(" r b w
else
(void) printf(" r b w
[...]
swap
free
so pi po fr de sr ");
swap
free
mf pi po fr de sr ");
static void
dovmstats(struct snapshot *old, struct snapshot *new)
[...]
adjprintf(" %*lu", 1, DELTA(s_sys.ss_sysinfo.runque) / sys_updates);

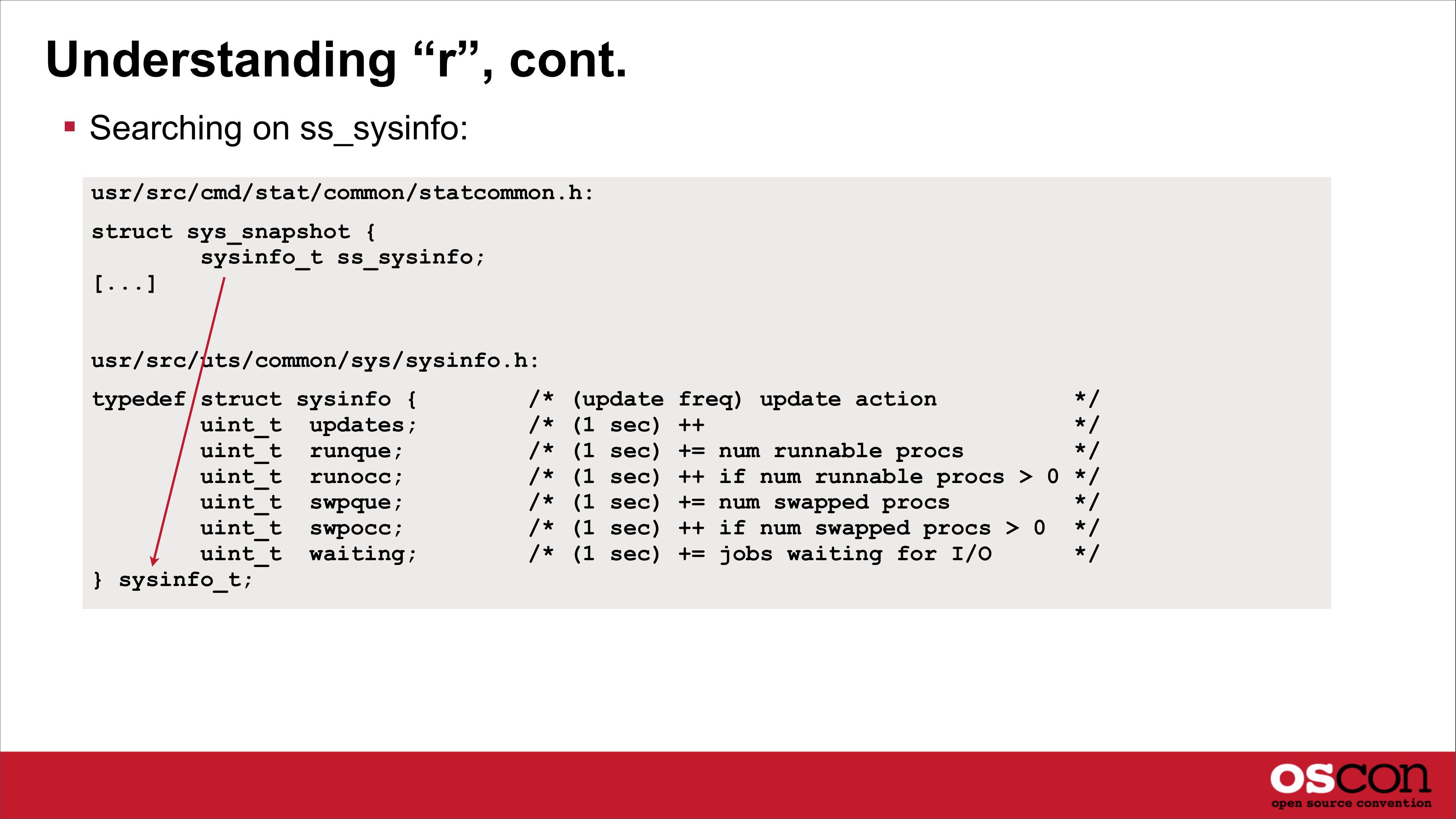

Understanding “r”, cont.
 Searching on ss_sysinfo:
usr/src/cmd/stat/common/statcommon.h:
struct sys_snapshot {
sysinfo_t ss_sysinfo;
[...]
usr/src/uts/common/sys/sysinfo.h:
typedef struct sysinfo {
uint_t updates;
uint_t runque;
uint_t runocc;
uint_t swpque;
uint_t swpocc;
uint_t waiting;
} sysinfo_t;
/* (update freq) update action
/* (1 sec) ++
/* (1 sec) += num runnable procs
/* (1 sec) ++ if num runnable procs >gt; 0 */
/* (1 sec) += num swapped procs
/* (1 sec) ++ if num swapped procs >gt; 0 */
/* (1 sec) += jobs waiting for I/O

Understanding “r”, cont.

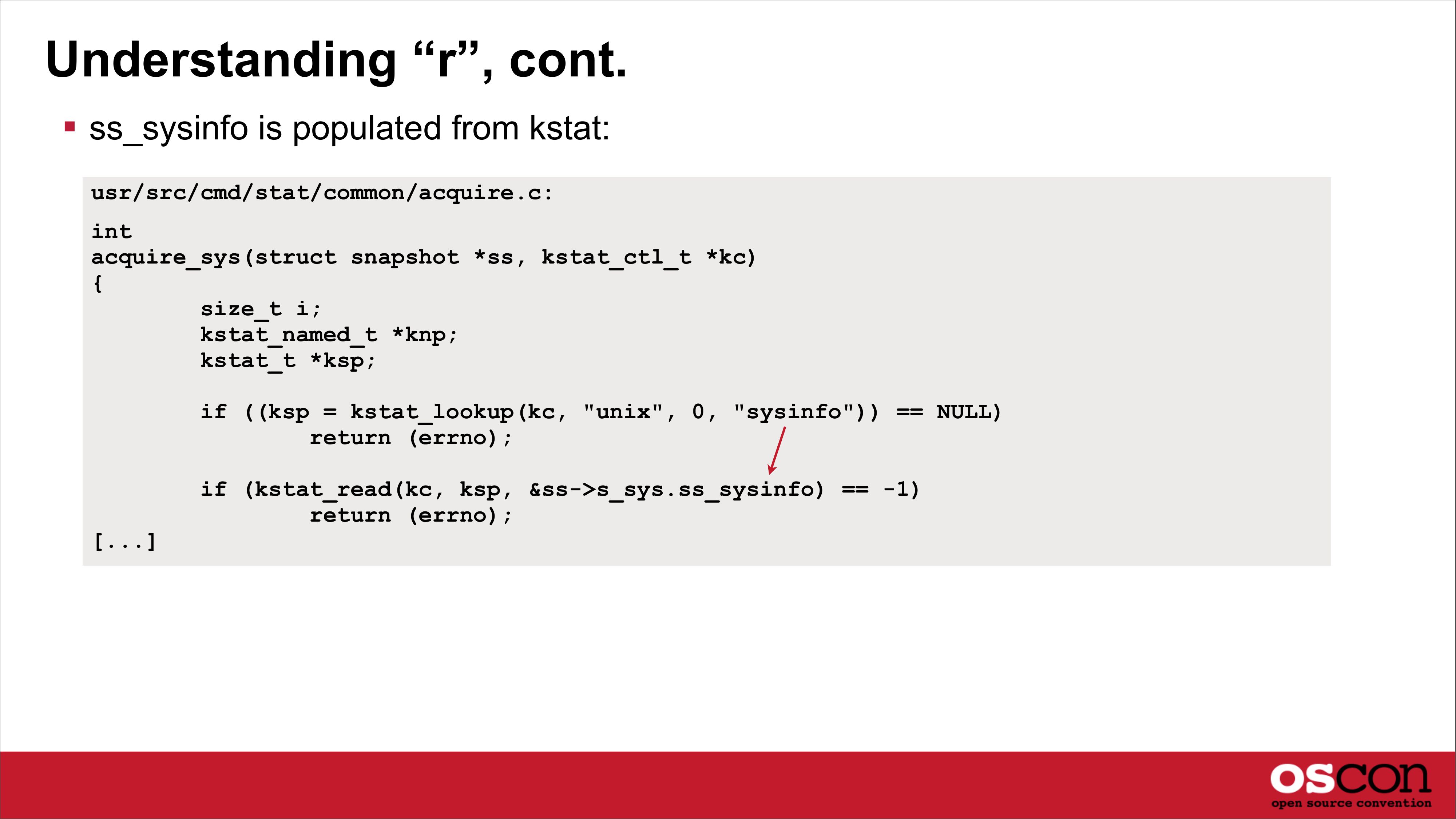

 ss_sysinfo is populated from kstat:
usr/src/cmd/stat/common/acquire.c:
int
acquire_sys(struct snapshot *ss, kstat_ctl_t *kc)
size_t i;
kstat_named_t *knp;
kstat_t *ksp;
if ((ksp = kstat_lookup(kc, "unix", 0, "sysinfo")) == NULL)
return (errno);
if (kstat_read(kc, ksp, &ss->gt;s_sys.ss_sysinfo) == -1)
return (errno);
[...]

Understanding “r”, cont.

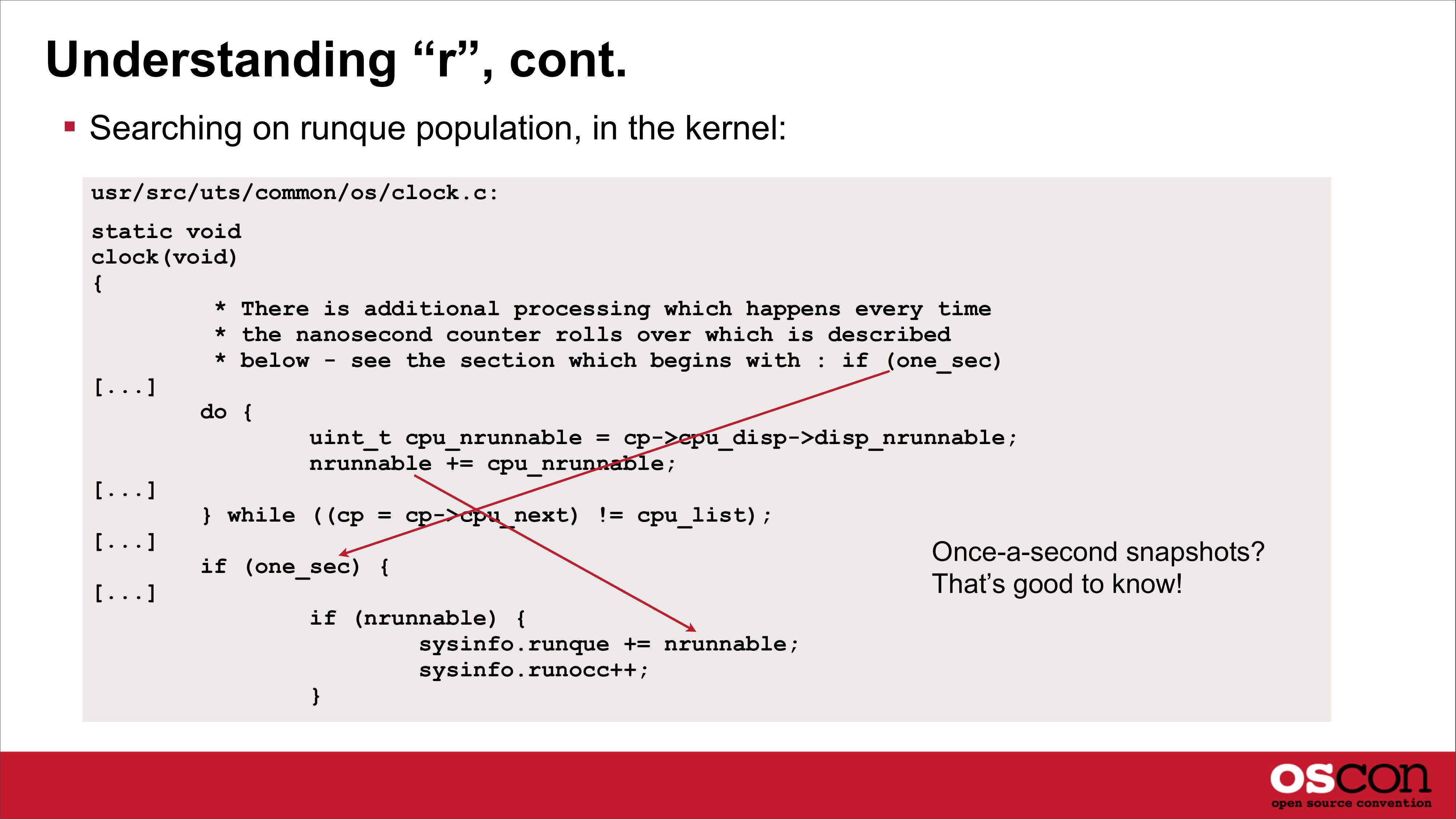

 Searching on runque population, in the kernel:
usr/src/uts/common/os/clock.c:
static void
clock(void)
* There is additional processing which happens every time
* the nanosecond counter rolls over which is described
* below - see the section which begins with : if (one_sec)
[...]
do {
uint_t cpu_nrunnable = cp->gt;cpu_disp->gt;disp_nrunnable;
nrunnable += cpu_nrunnable;
[...]
} while ((cp = cp->gt;cpu_next) != cpu_list);
[...]
Once-a-second
snapshots?
if (one_sec) {
That’s good to know!
[...]
if (nrunnable) {
sysinfo.runque += nrunnable;
sysinfo.runocc++;

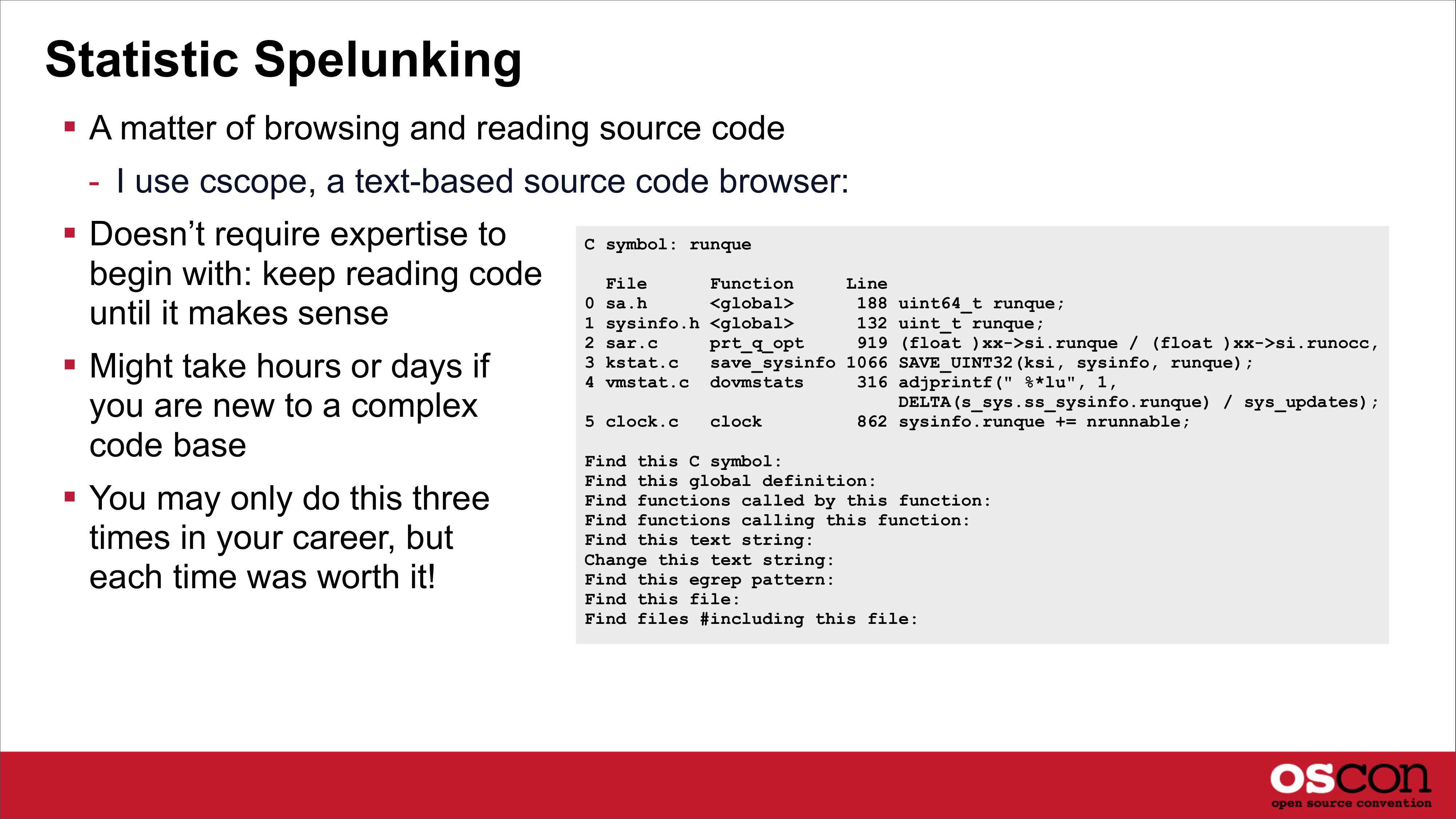

Statistic Spelunking
 A matter of browsing and reading source code
- I use cscope, a text-based source code browser:
 Doesn’t require expertise to
begin with: keep reading code
until it makes sense
 Might take hours or days if
you are new to a complex
code base
 You may only do this three
times in your career, but
each time was worth it!
C symbol: runque
File
Function
Line
0 sa.h
gt;
188 uint64_t runque;
1 sysinfo.h gt;
132 uint_t runque;
2 sar.c
prt_q_opt
919 (float )xx->gt;si.runque / (float )xx->gt;si.runocc,
3 kstat.c
save_sysinfo 1066 SAVE_UINT32(ksi, sysinfo, runque);
4 vmstat.c dovmstats
316 adjprintf(" %*lu", 1,
DELTA(s_sys.ss_sysinfo.runque) / sys_updates);
5 clock.c
clock
862 sysinfo.runque += nrunnable;
Find this C symbol:
Find this global definition:
Find functions called by this function:
Find functions calling this function:
Find this text string:
Change this text string:
Find this egrep pattern:
Find this file:
Find files #including this file:

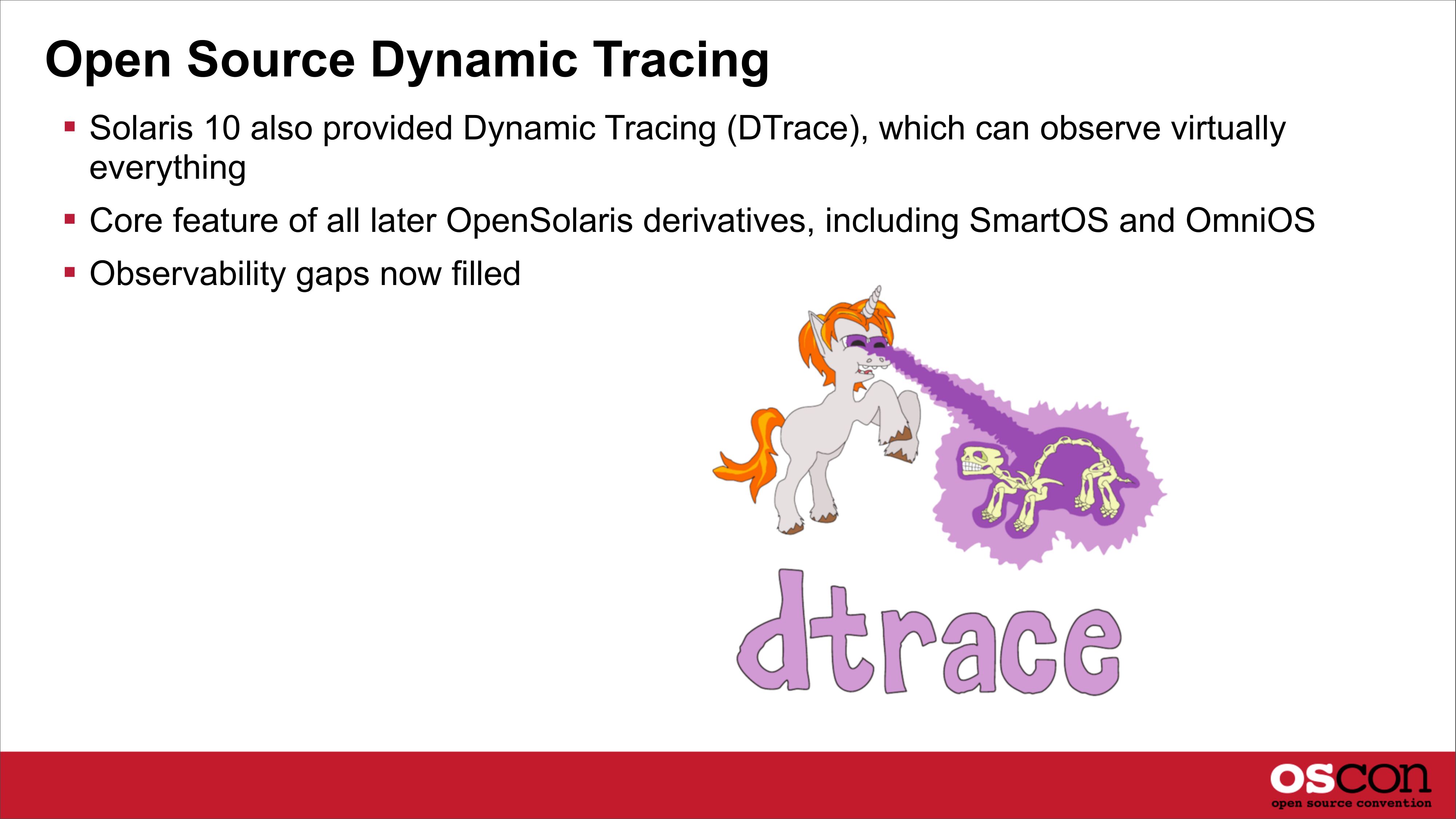

Open Source Dynamic Tracing
 Solaris 10 also provided Dynamic Tracing (DTrace), which can observe virtually
everything
 Core feature of all later OpenSolaris derivatives, including SmartOS and OmniOS
 Observability gaps now filled

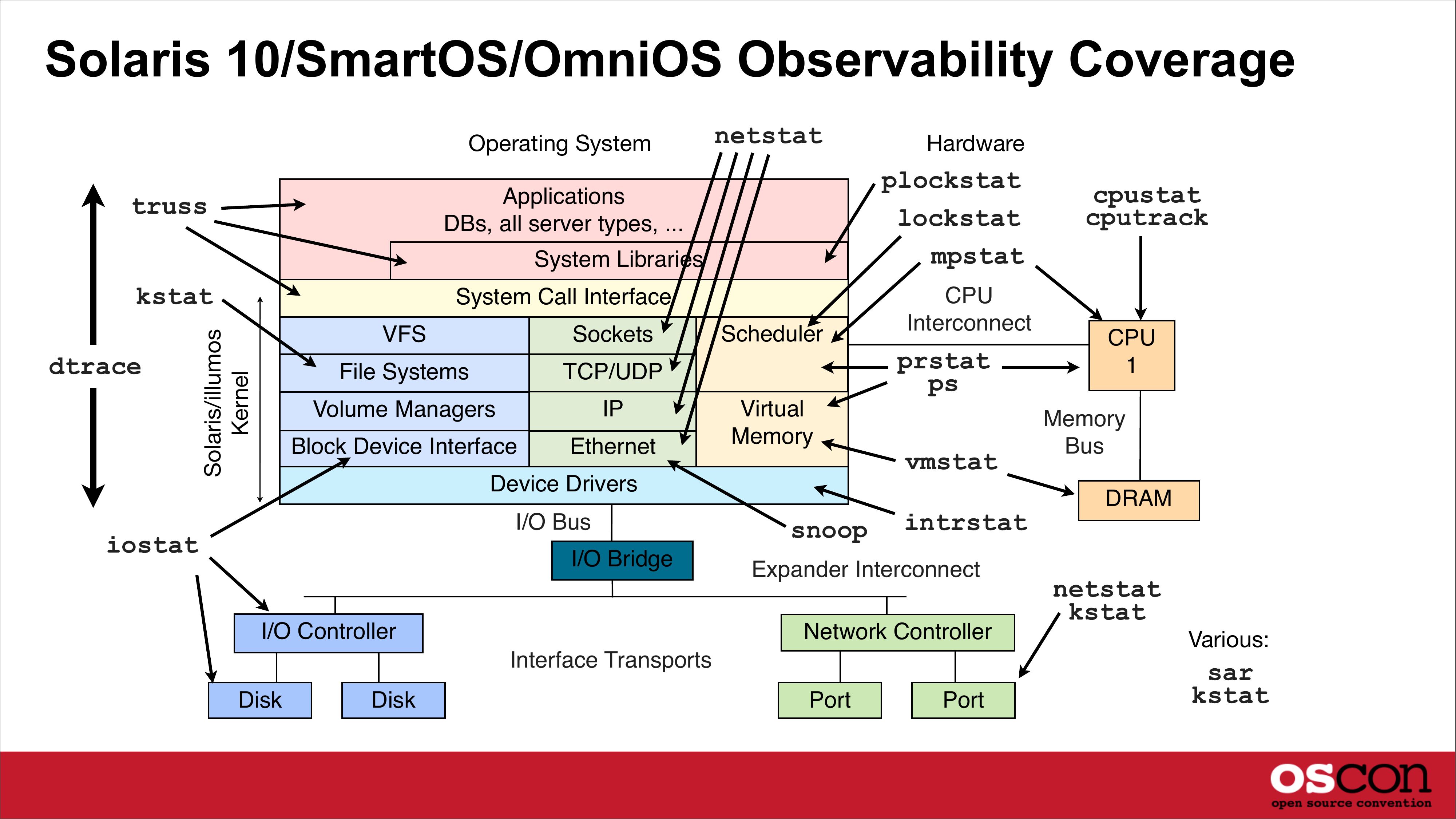

Solaris 10/SmartOS/OmniOS Observability Coverage
Operating System
netstat
plockstat
lockstat
mpstat
Applications
DBs, all server types, ...
truss
System Libraries
kstat
Solaris/illumos
Kernel
dtrace
System Call Interface
VFS
Sockets
File Systems
TCP/UDP
Volume Managers
Block Device Interface
Ethernet
Scheduler
iostat
I/O Bridge
I/O Controller
CPU
Interconnect
prstat
Virtual
Memory
Device Drivers
I/O Bus
Hardware
snoop
vmstat
intrstat
Expander Interconnect
Network Controller
Interface Transports
Disk
Disk
Port
Port
cpustat
cputrack
CPU
Memory
Bus
DRAM
netstat
kstat
Various:
sar
kstat

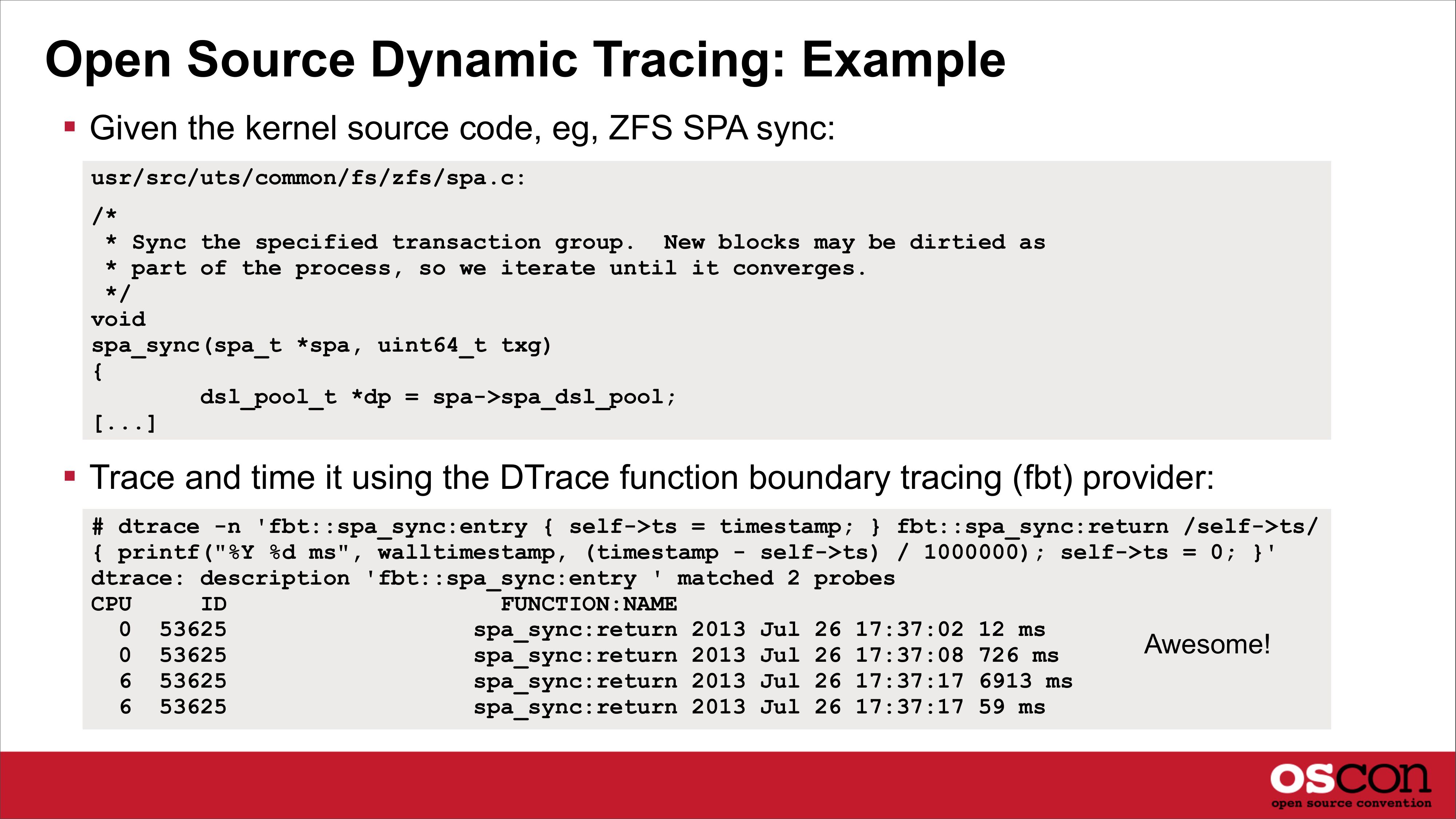

Open Source Dynamic Tracing: Example
 Given the kernel source code, eg, ZFS SPA sync:
usr/src/uts/common/fs/zfs/spa.c:
* Sync the specified transaction group. New blocks may be dirtied as
* part of the process, so we iterate until it converges.
void
spa_sync(spa_t *spa, uint64_t txg)
dsl_pool_t *dp = spa->gt;spa_dsl_pool;
[...]
 Trace and time it using the DTrace function boundary tracing (fbt) provider:
# dtrace -n 'fbt::spa_sync:entry { self->gt;ts = timestamp; } fbt::spa_sync:return /self->gt;ts/
{ printf("%Y %d ms", walltimestamp, (timestamp - self->gt;ts) / 1000000); self->gt;ts = 0; }'
dtrace: description 'fbt::spa_sync:entry ' matched 2 probes
CPU
FUNCTION:NAME
0 53625
spa_sync:return 2013 Jul 26 17:37:02 12 ms
Awesome!
0 53625
spa_sync:return 2013 Jul 26 17:37:08 726 ms
6 53625
spa_sync:return 2013 Jul 26 17:37:17 6913 ms
6 53625
spa_sync:return 2013 Jul 26 17:37:17 59 ms

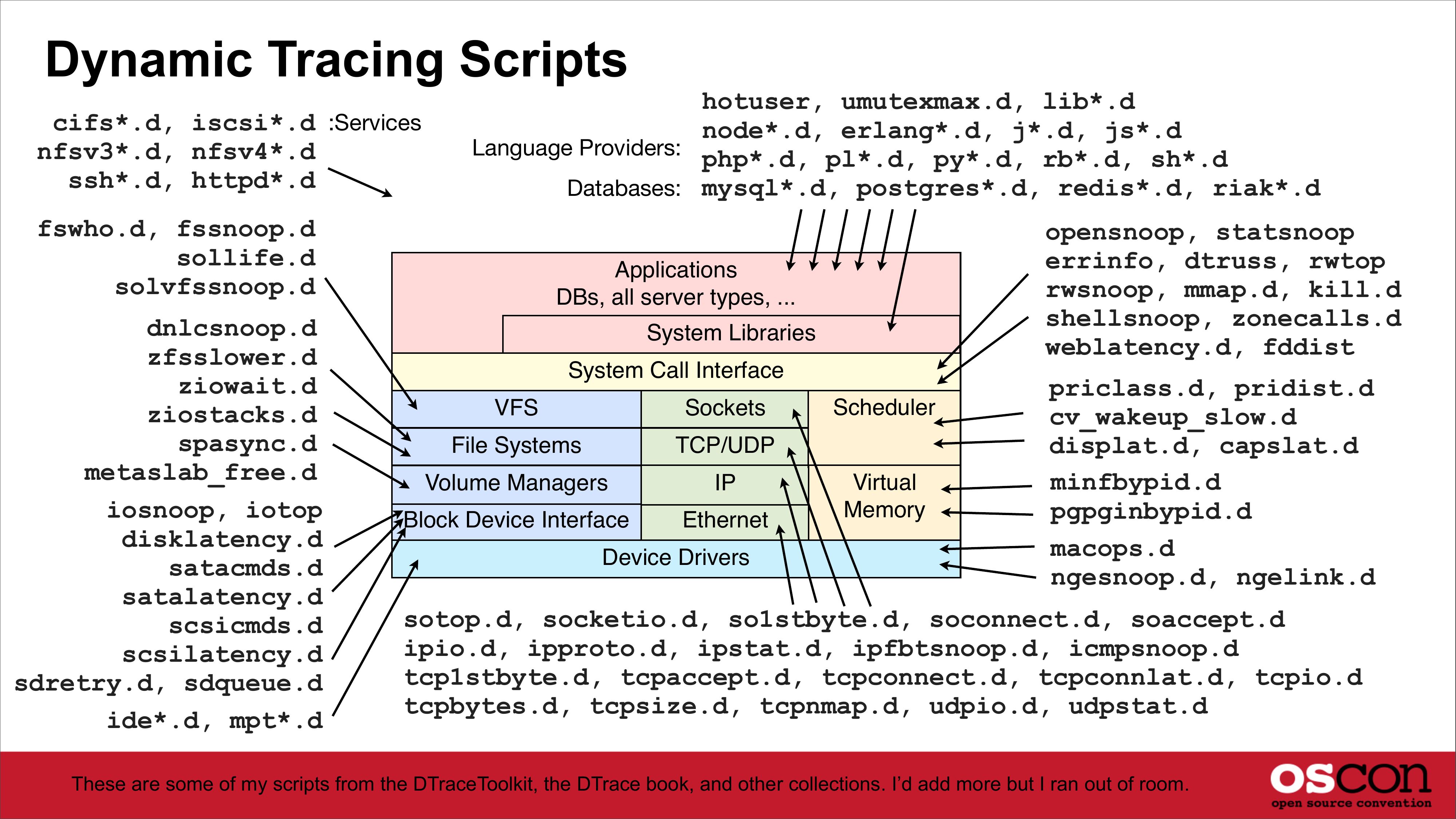

Dynamic Tracing Scripts
cifs*.d, iscsi*.d :Services
nfsv3*.d, nfsv4*.d
ssh*.d, httpd*.d
hotuser, umutexmax.d, lib*.d
node*.d, erlang*.d, j*.d, js*.d
Language Providers: php*.d, pl*.d, py*.d, rb*.d, sh*.d
Databases: mysql*.d, postgres*.d, redis*.d, riak*.d
fswho.d, fssnoop.d
sollife.d
solvfssnoop.d
dnlcsnoop.d
zfsslower.d
ziowait.d
ziostacks.d
spasync.d
metaslab_free.d
iosnoop, iotop
disklatency.d
satacmds.d
satalatency.d
scsicmds.d
scsilatency.d
sdretry.d, sdqueue.d
ide*.d, mpt*.d
opensnoop, statsnoop
errinfo, dtruss, rwtop
rwsnoop, mmap.d, kill.d
shellsnoop, zonecalls.d
weblatency.d, fddist
Applications
DBs, all server types, ...
System Libraries
System Call Interface
VFS
Sockets
File Systems
TCP/UDP
Volume Managers
Block Device Interface
Ethernet
Device Drivers
Scheduler
Virtual
Memory
priclass.d, pridist.d
cv_wakeup_slow.d
displat.d, capslat.d
minfbypid.d
pgpginbypid.d
macops.d
ngesnoop.d, ngelink.d
sotop.d, socketio.d, so1stbyte.d, soconnect.d, soaccept.d
ipio.d, ipproto.d, ipstat.d, ipfbtsnoop.d, icmpsnoop.d
tcp1stbyte.d, tcpaccept.d, tcpconnect.d, tcpconnlat.d, tcpio.d
tcpbytes.d, tcpsize.d, tcpnmap.d, udpio.d, udpstat.d
These are some of my scripts from the DTraceToolkit, the DTrace book, and other collections. I’d add more but I ran out of room.

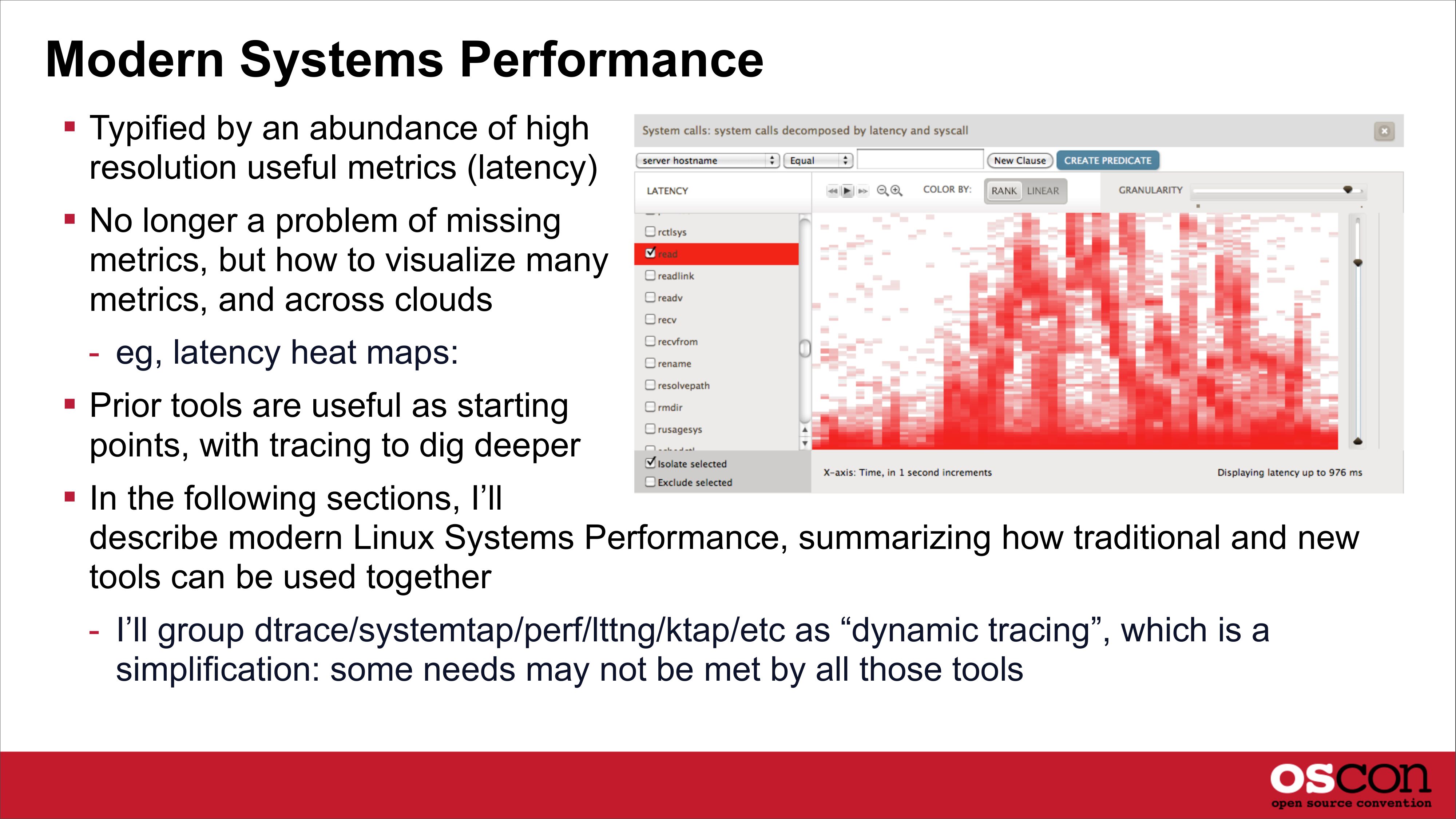

Modern Systems Performance
 Typified by an abundance of high
resolution useful metrics (latency)
 No longer a problem of missing
metrics, but how to visualize many
metrics, and across clouds
- eg, latency heat maps:
 Prior tools are useful as starting
points, with tracing to dig deeper
 In the following sections, I’ll
describe modern Linux Systems Performance, summarizing how traditional and new
tools can be used together
- I’ll group dtrace/systemtap/perf/lttng/ktap/etc as “dynamic tracing”, which is a
simplification: some needs may not be met by all those tools

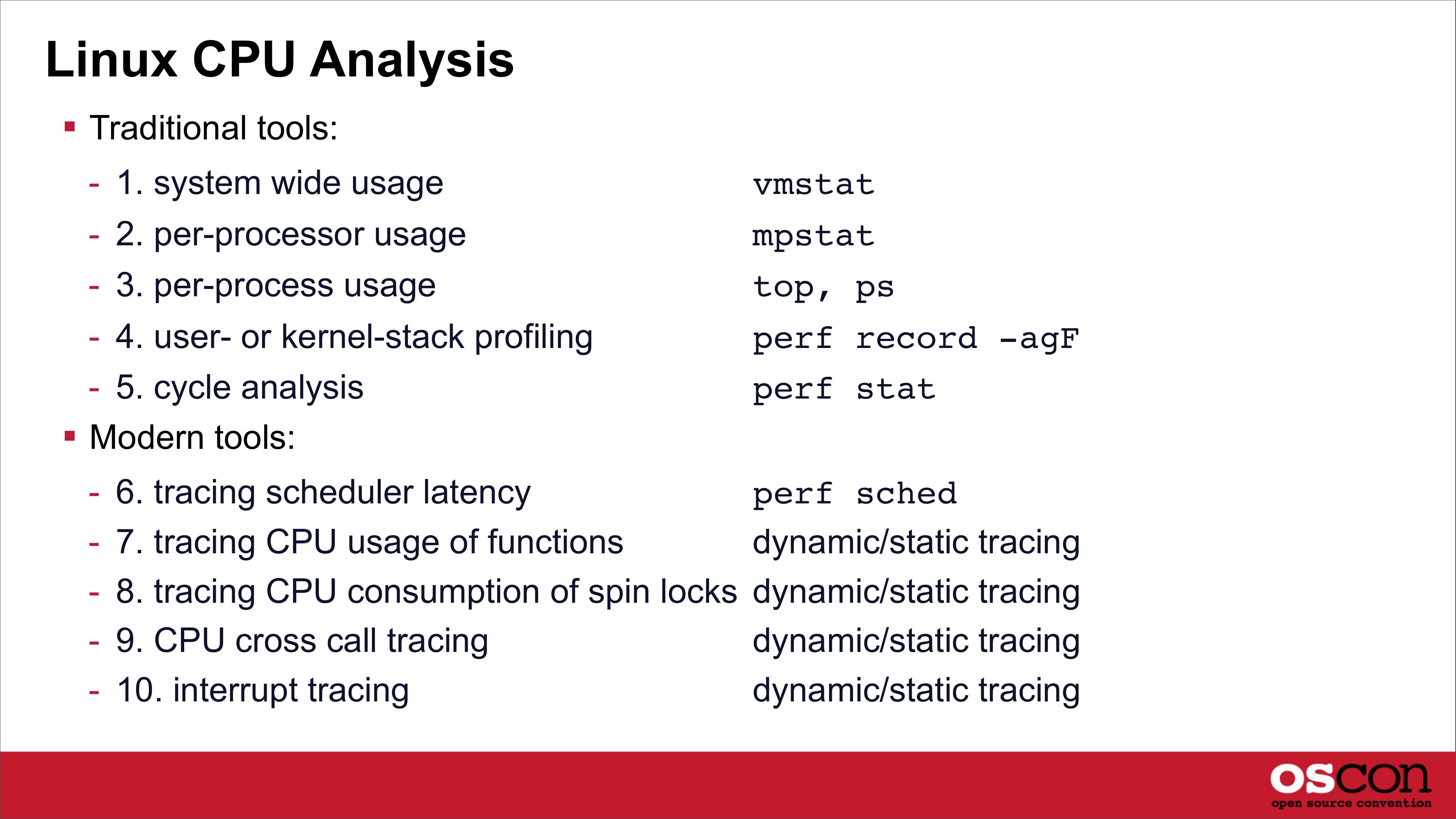

Linux CPU Analysis
 Traditional tools:
- 1. system wide usage
vmstat
- 2. per-processor usage
- 3. per-process usage
mpstat
top, ps
- 4. user- or kernel-stack profiling
- 5. cycle analysis
 Modern tools:
perf record -agF
perf stat
perf sched
- 6. tracing scheduler latency
- 7. tracing CPU usage of functions
dynamic/static tracing
- 8. tracing CPU consumption of spin locks dynamic/static tracing
- 9. CPU cross call tracing
dynamic/static tracing
- 10. interrupt tracing
dynamic/static tracing

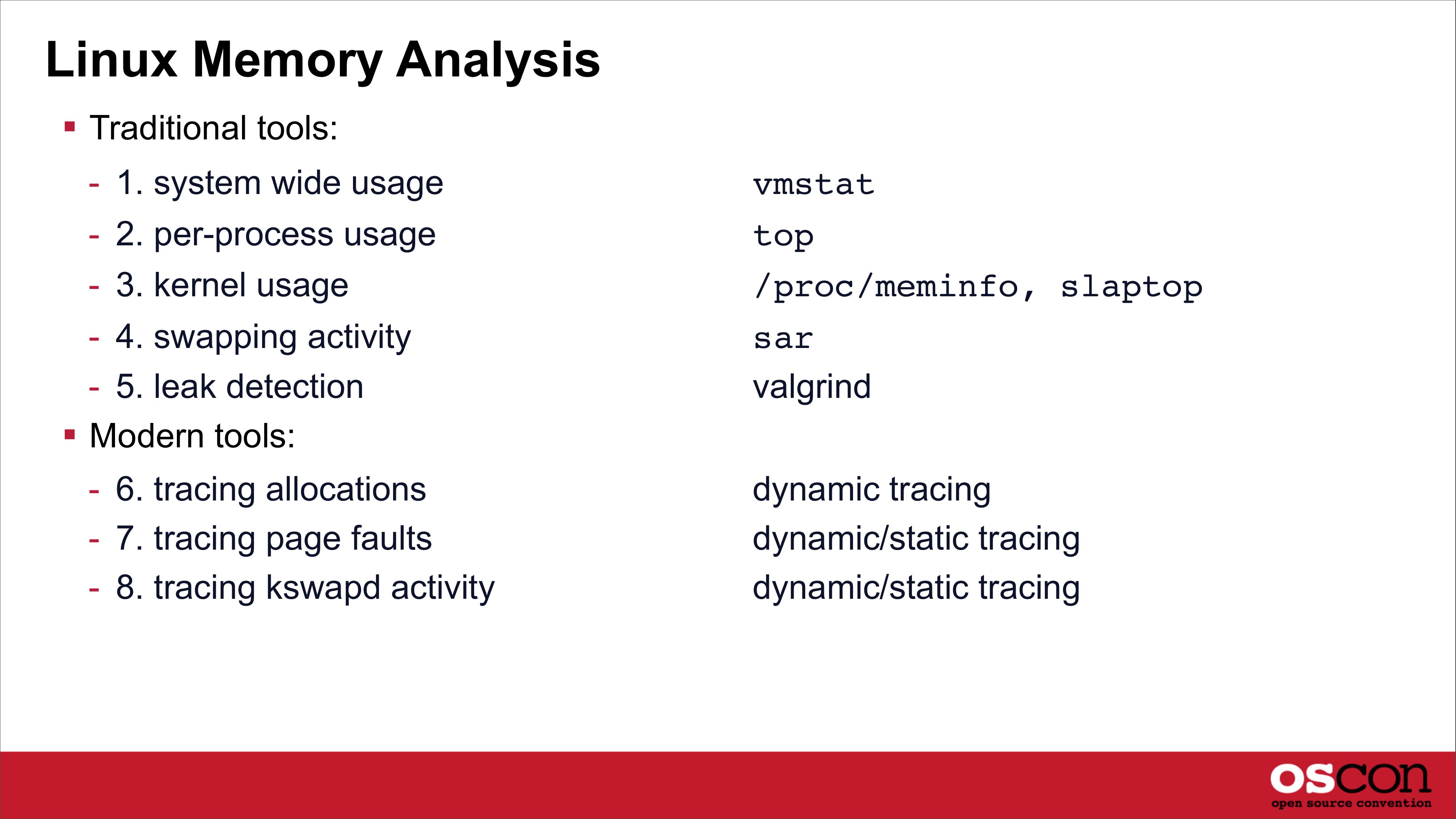

Linux Memory Analysis
 Traditional tools:
- 1. system wide usage
vmstat
- 2. per-process usage
- 3. kernel usage
top
/proc/meminfo, slaptop
- 4. swapping activity
- 5. leak detection
 Modern tools:
- 6. tracing allocations
- 7. tracing page faults
- 8. tracing kswapd activity
sar
valgrind
dynamic tracing
dynamic/static tracing
dynamic/static tracing

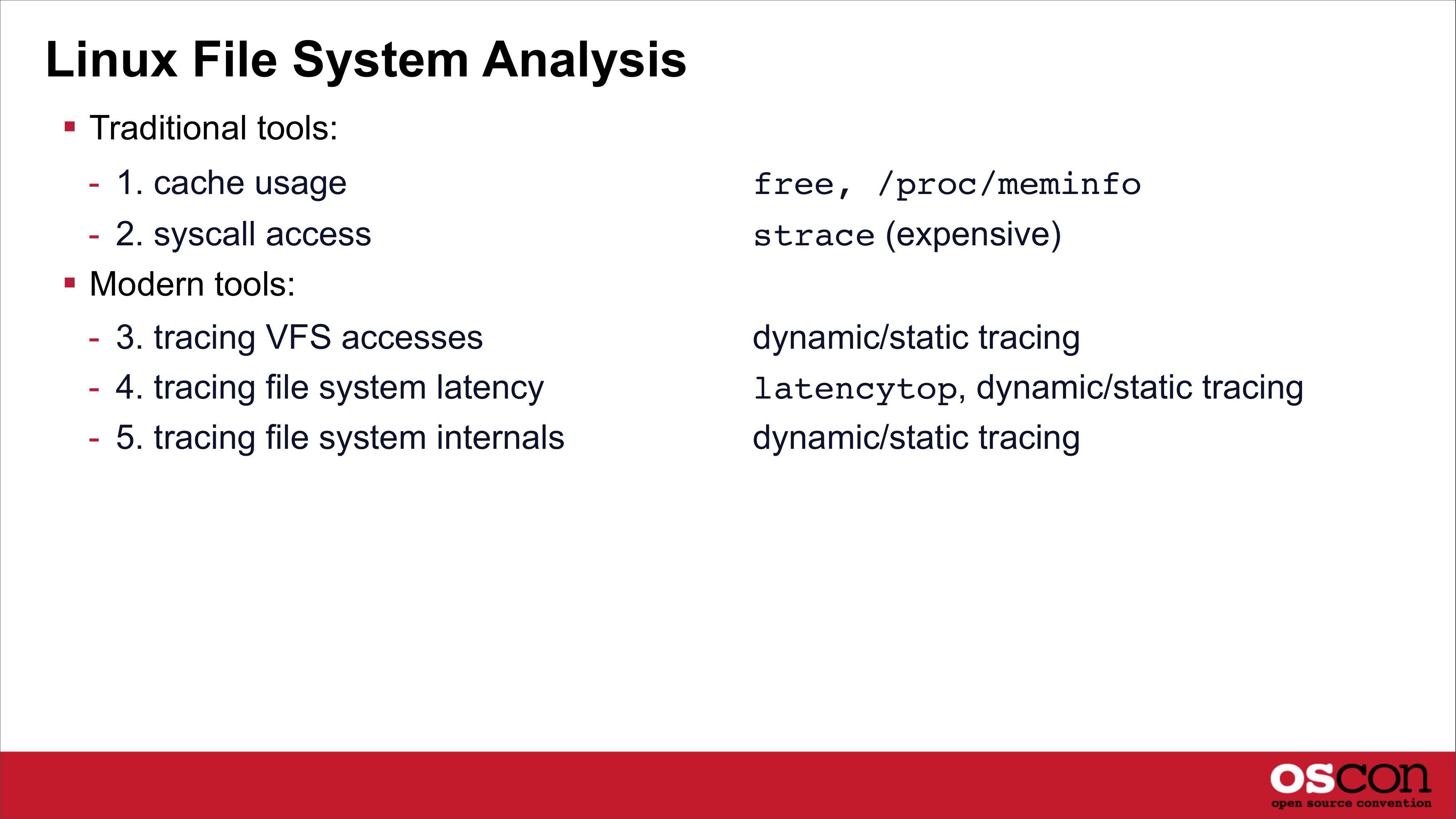

Linux File System Analysis
 Traditional tools:
- 1. cache usage
- 2. syscall access
 Modern tools:
- 3. tracing VFS accesses
- 4. tracing file system latency
- 5. tracing file system internals
free, /proc/meminfo
strace (expensive)
dynamic/static tracing
latencytop, dynamic/static tracing
dynamic/static tracing

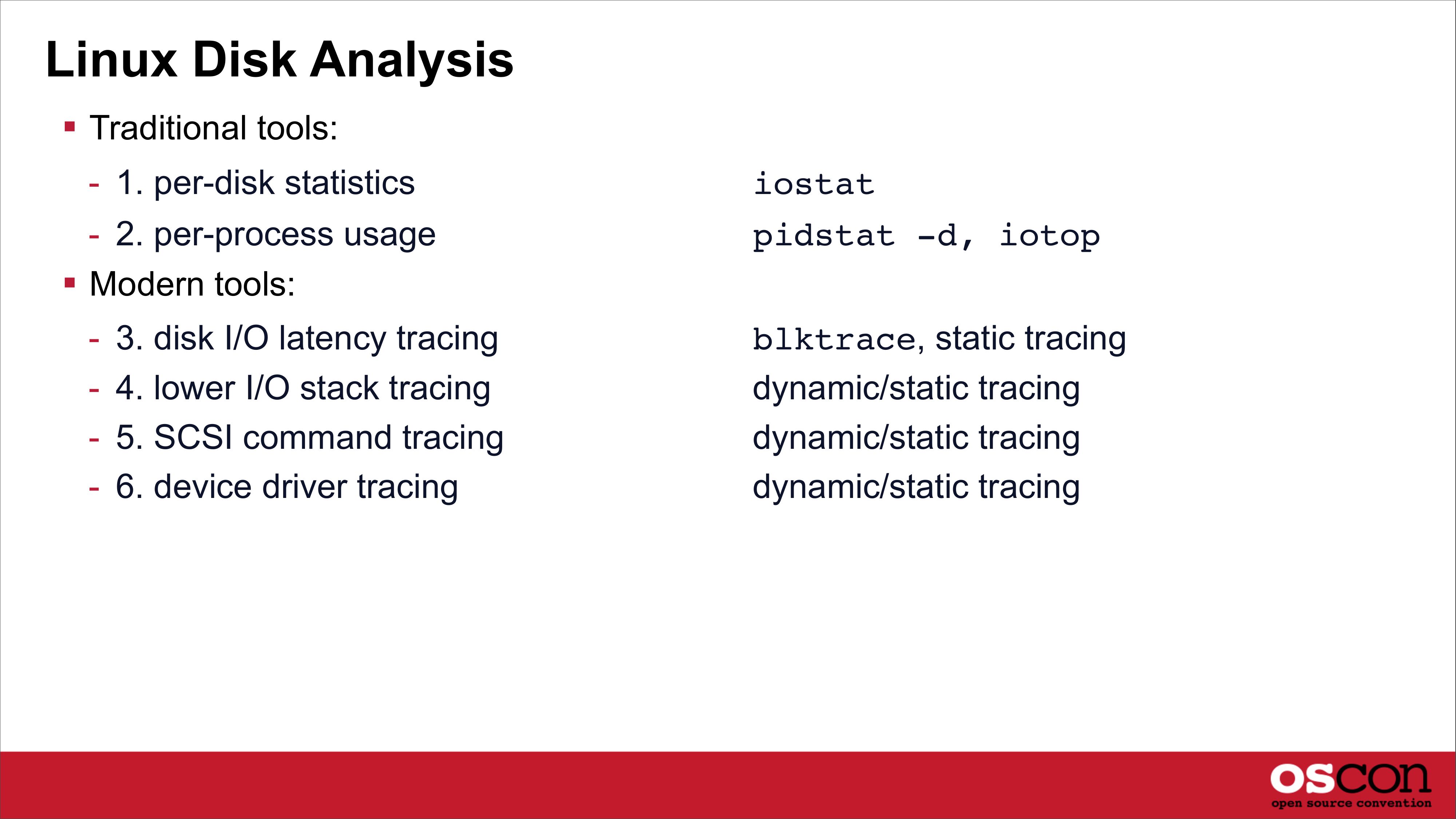

Linux Disk Analysis
 Traditional tools:
- 1. per-disk statistics
- 2. per-process usage
 Modern tools:
- 3. disk I/O latency tracing
- 4. lower I/O stack tracing
- 5. SCSI command tracing
- 6. device driver tracing
iostat
pidstat -d, iotop
blktrace, static tracing
dynamic/static tracing
dynamic/static tracing
dynamic/static tracing

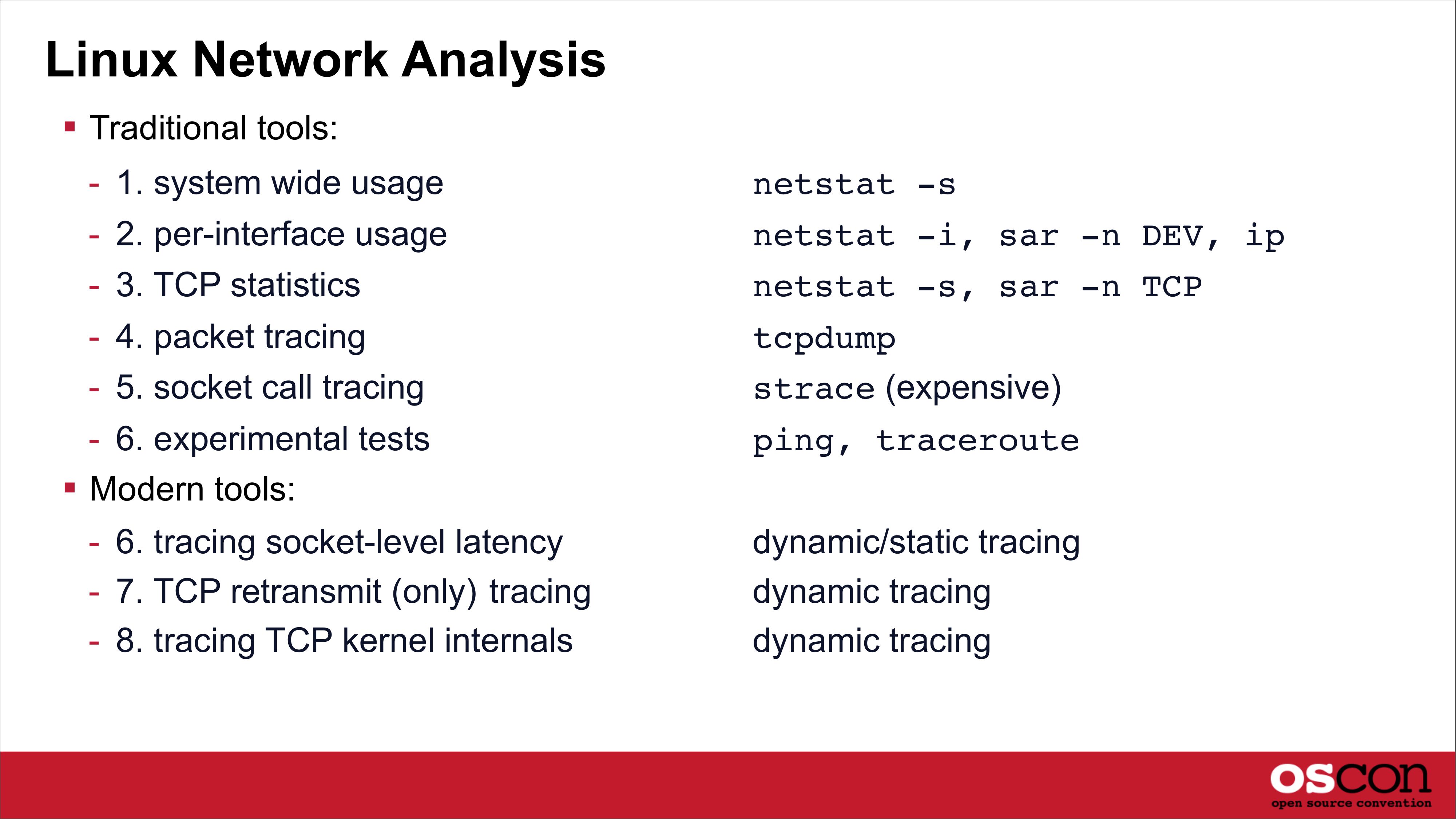

Linux Network Analysis
 Traditional tools:
- 1. system wide usage
netstat -s
- 2. per-interface usage
- 3. TCP statistics
netstat -i, sar -n DEV, ip
netstat -s, sar -n TCP
- 4. packet tracing
- 5. socket call tracing
tcpdump
strace (expensive)
- 6. experimental tests
 Modern tools:
ping, traceroute
- 6. tracing socket-level latency
- 7. TCP retransmit (only) tracing
- 8. tracing TCP kernel internals
dynamic/static tracing
dynamic tracing
dynamic tracing

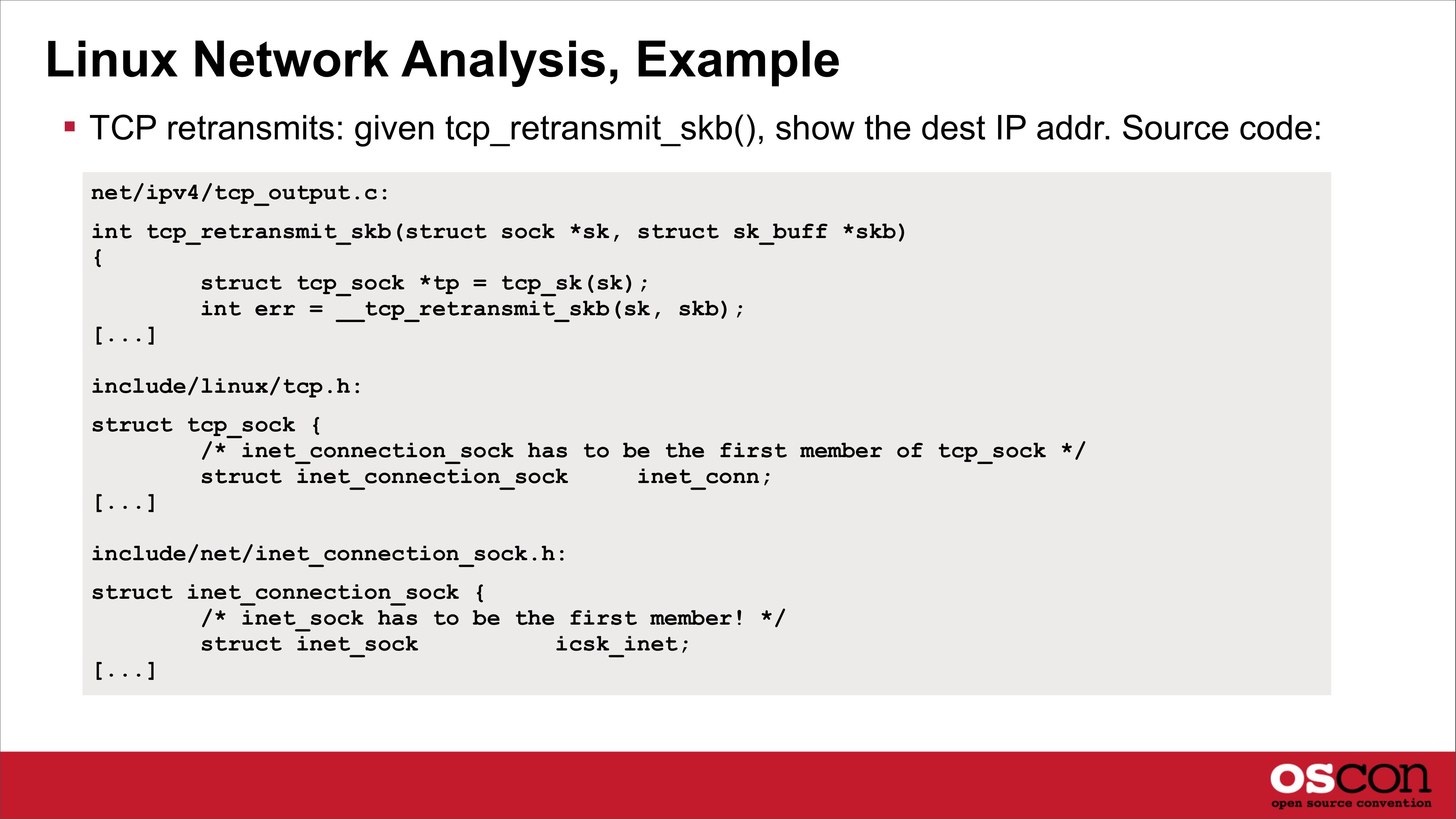

Linux Network Analysis, Example
 TCP retransmits: given tcp_retransmit_skb(), show the dest IP addr. Source code:
net/ipv4/tcp_output.c:
int tcp_retransmit_skb(struct sock *sk, struct sk_buff *skb)
struct tcp_sock *tp = tcp_sk(sk);
int err = __tcp_retransmit_skb(sk, skb);
[...]
include/linux/tcp.h:
struct tcp_sock {
/* inet_connection_sock has to be the first member of tcp_sock */
struct inet_connection_sock
inet_conn;
[...]
include/net/inet_connection_sock.h:
struct inet_connection_sock {
/* inet_sock has to be the first member! */
struct inet_sock
icsk_inet;
[...]

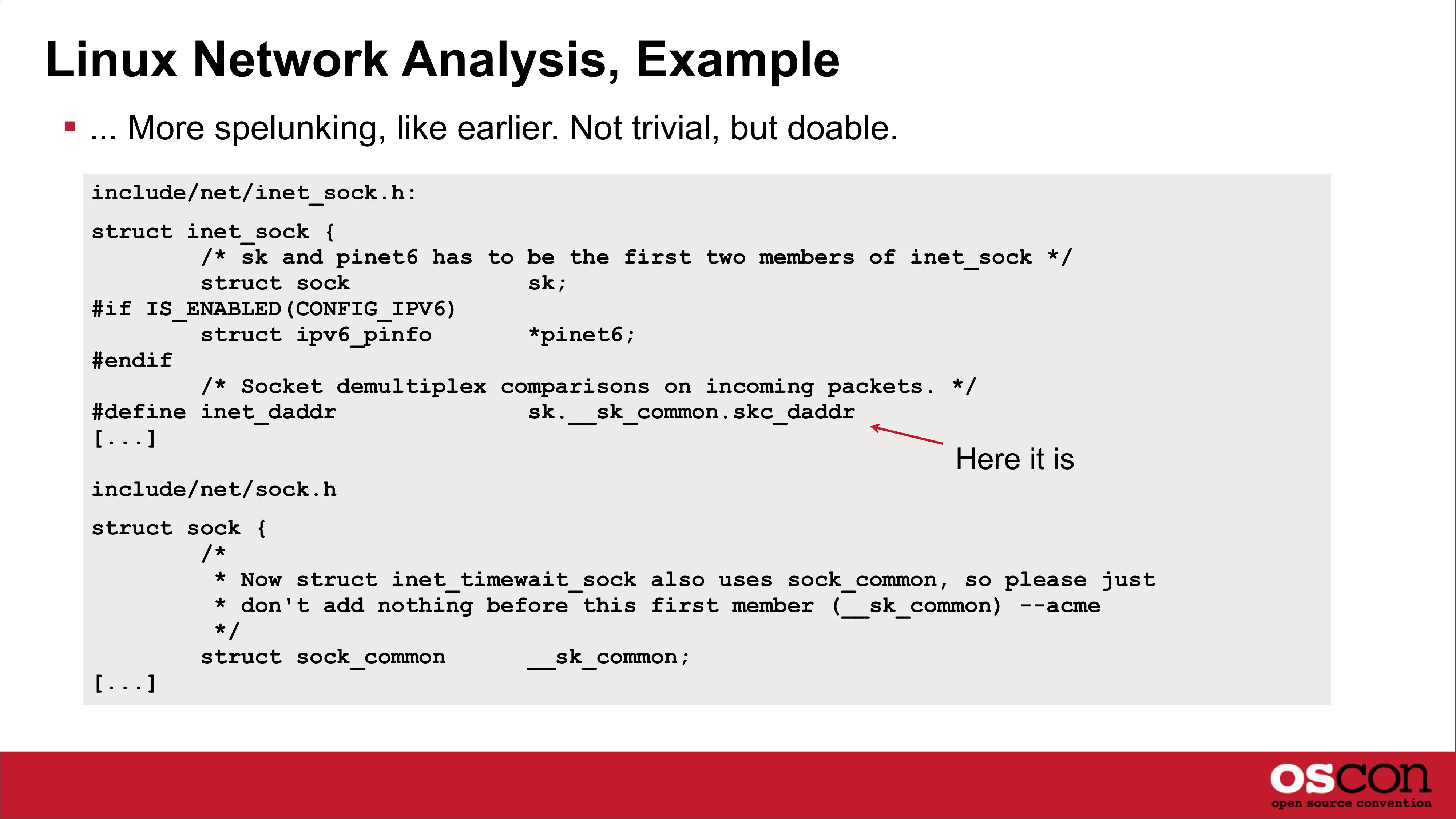

Linux Network Analysis, Example
 ... More spelunking, like earlier. Not trivial, but doable.
include/net/inet_sock.h:
struct inet_sock {
/* sk and pinet6 has to be the first two members of inet_sock */
struct sock
sk;
#if IS_ENABLED(CONFIG_IPV6)
struct ipv6_pinfo
*pinet6;
#endif
/* Socket demultiplex comparisons on incoming packets. */
#define inet_daddr
sk.__sk_common.skc_daddr
[...]
Here it is
include/net/sock.h
struct sock {
* Now struct inet_timewait_sock also uses sock_common, so please just
* don't add nothing before this first member (__sk_common) --acme
struct sock_common
__sk_common;
[...]

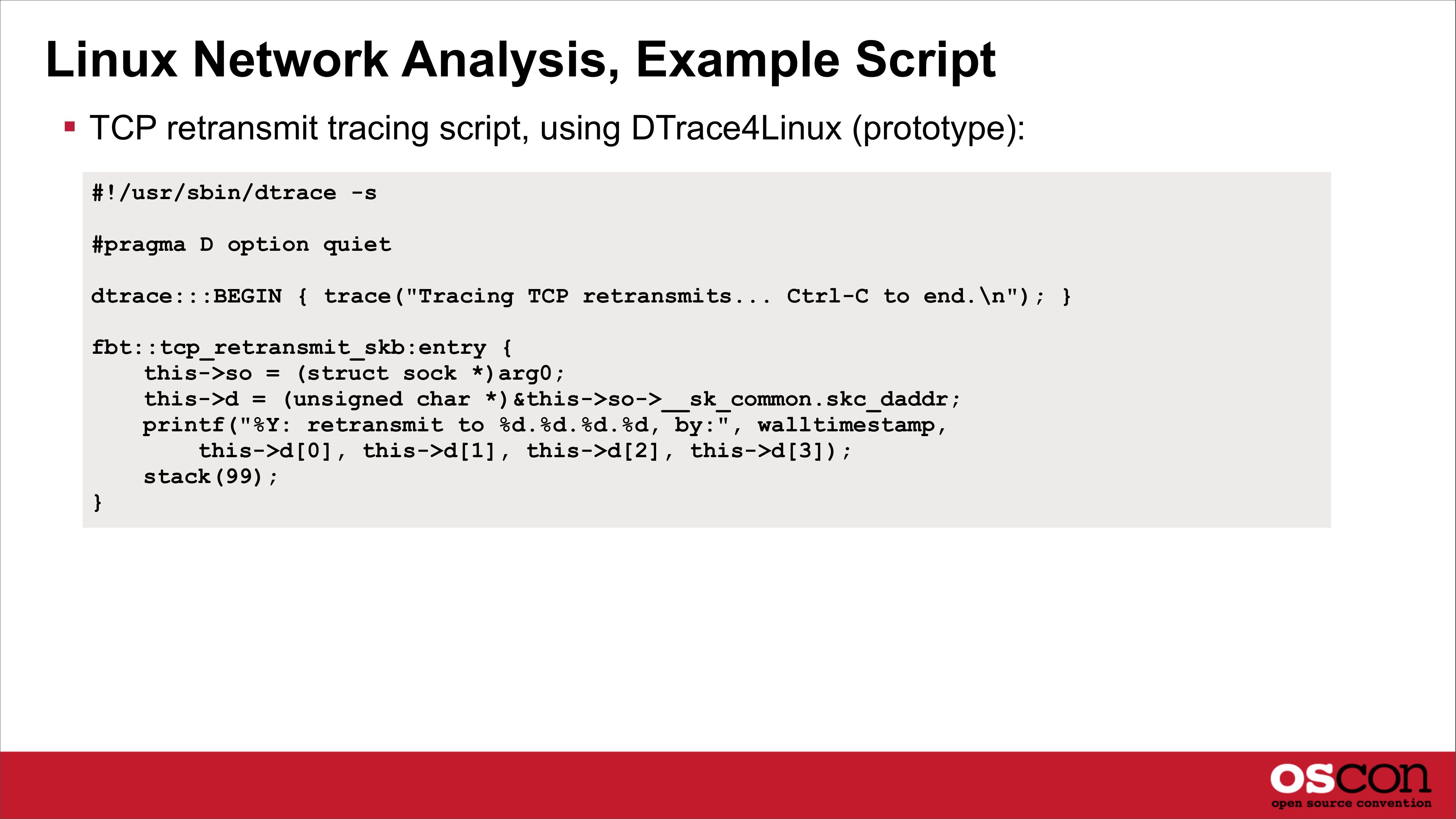

Linux Network Analysis, Example Script
 TCP retransmit tracing script, using DTrace4Linux (prototype):
#!/usr/sbin/dtrace -s
#pragma D option quiet
dtrace:::BEGIN { trace("Tracing TCP retransmits... Ctrl-C to end.\n"); }
fbt::tcp_retransmit_skb:entry {
this->gt;so = (struct sock *)arg0;
this->gt;d = (unsigned char *)&this->gt;so->gt;__sk_common.skc_daddr;
printf("%Y: retransmit to %d.%d.%d.%d, by:", walltimestamp,
this->gt;d[0], this->gt;d[1], this->gt;d[2], this->gt;d[3]);
stack(99);

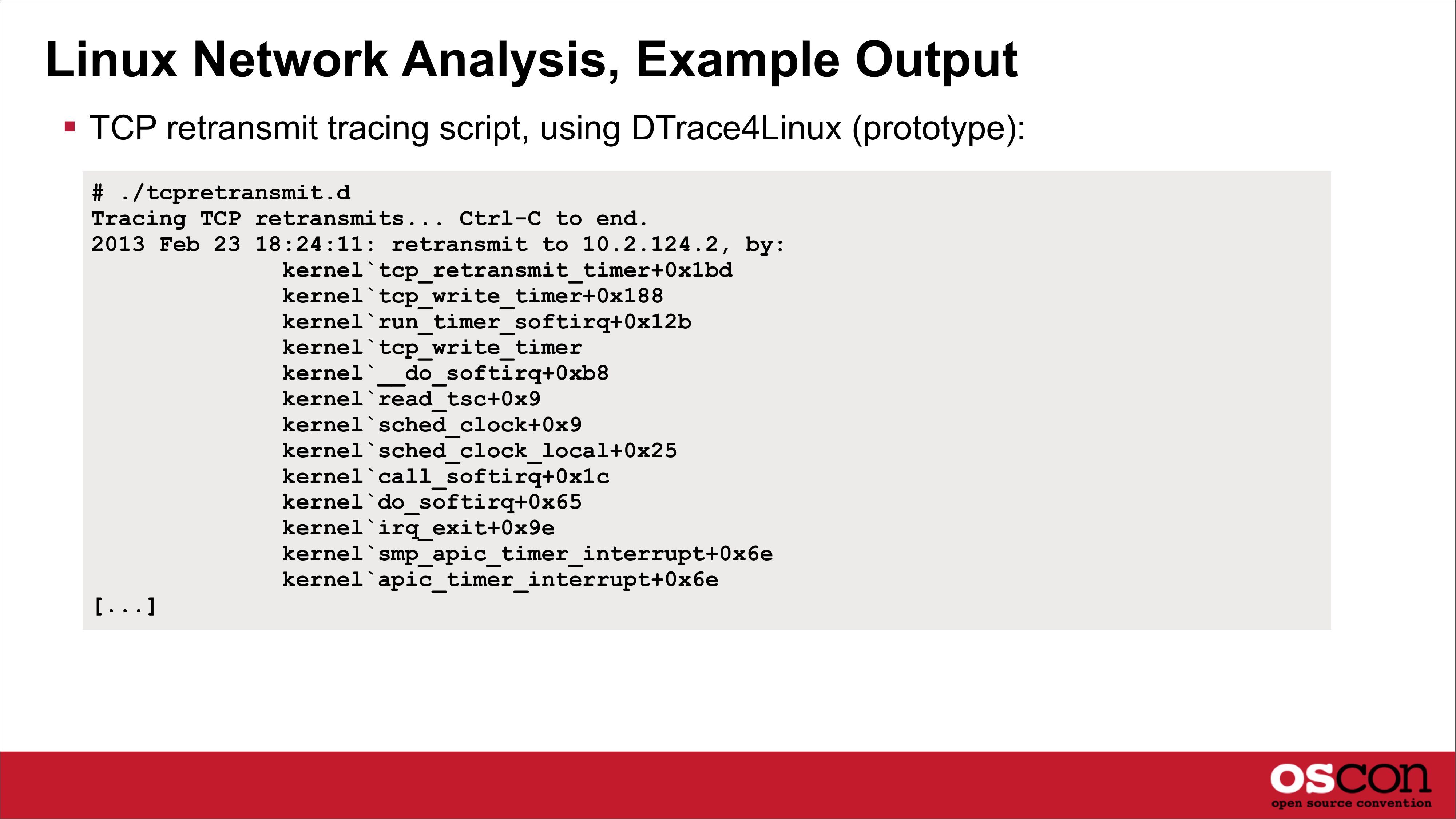

Linux Network Analysis, Example Output
 TCP retransmit tracing script, using DTrace4Linux (prototype):
# ./tcpretransmit.d
Tracing TCP retransmits... Ctrl-C to end.
2013 Feb 23 18:24:11: retransmit to 10.2.124.2, by:
kernel`tcp_retransmit_timer+0x1bd
kernel`tcp_write_timer+0x188
kernel`run_timer_softirq+0x12b
kernel`tcp_write_timer
kernel`__do_softirq+0xb8
kernel`read_tsc+0x9
kernel`sched_clock+0x9
kernel`sched_clock_local+0x25
kernel`call_softirq+0x1c
kernel`do_softirq+0x65
kernel`irq_exit+0x9e
kernel`smp_apic_timer_interrupt+0x6e
kernel`apic_timer_interrupt+0x6e
[...]

Linux Network Example, cont.
 I created a custom performance tool on the fly, without kernel changes
 Would it be possible if the kernel wasn’t open source?

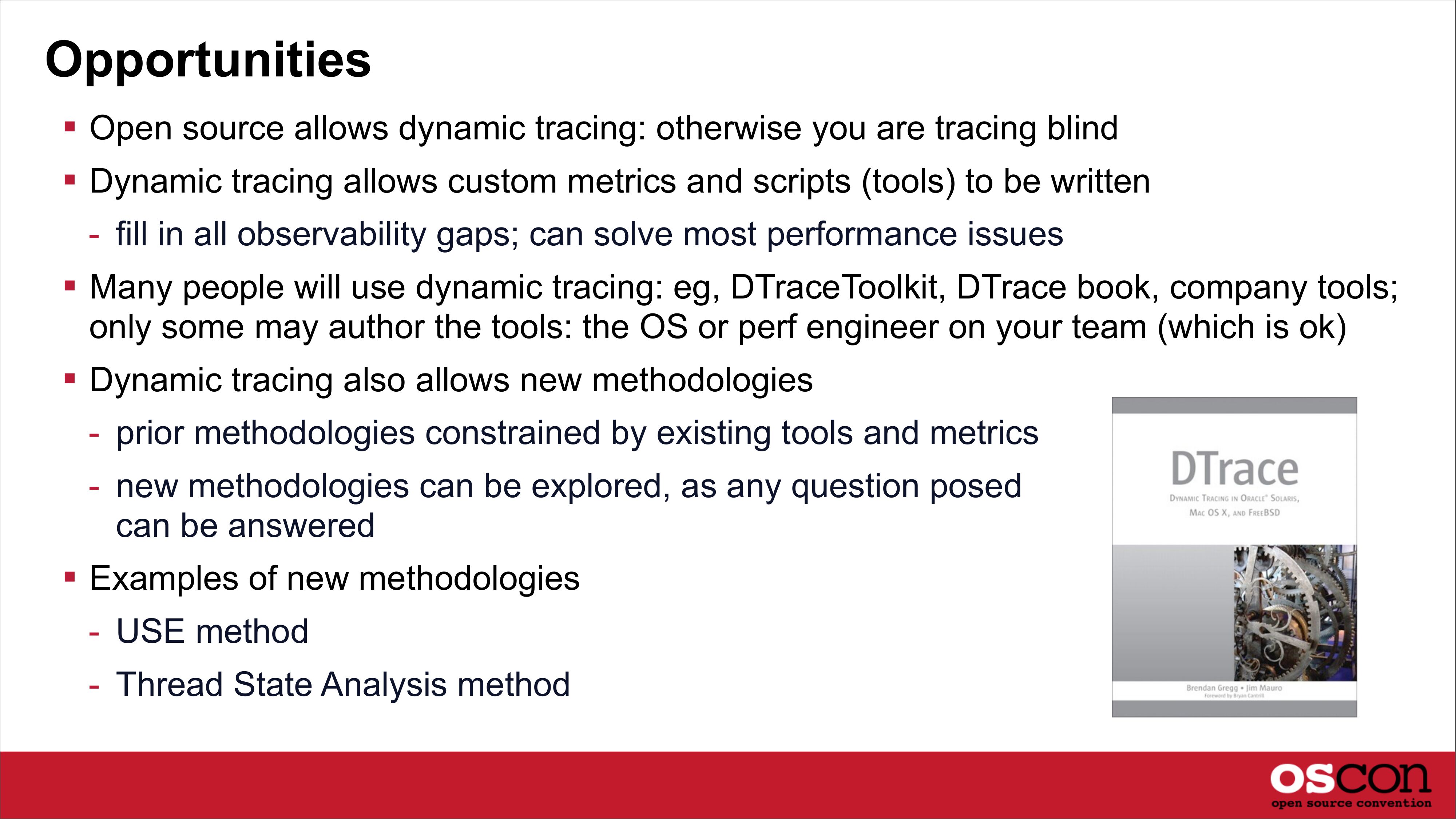

Opportunities
 Open source allows dynamic tracing: otherwise you are tracing blind
 Dynamic tracing allows custom metrics and scripts (tools) to be written
- fill in all observability gaps; can solve most performance issues
 Many people will use dynamic tracing: eg, DTraceToolkit, DTrace book, company tools;
only some may author the tools: the OS or perf engineer on your team (which is ok)
 Dynamic tracing also allows new methodologies
- prior methodologies constrained by existing tools and metrics
- new methodologies can be explored, as any question posed
can be answered
 Examples of new methodologies
- USE method
- Thread State Analysis method

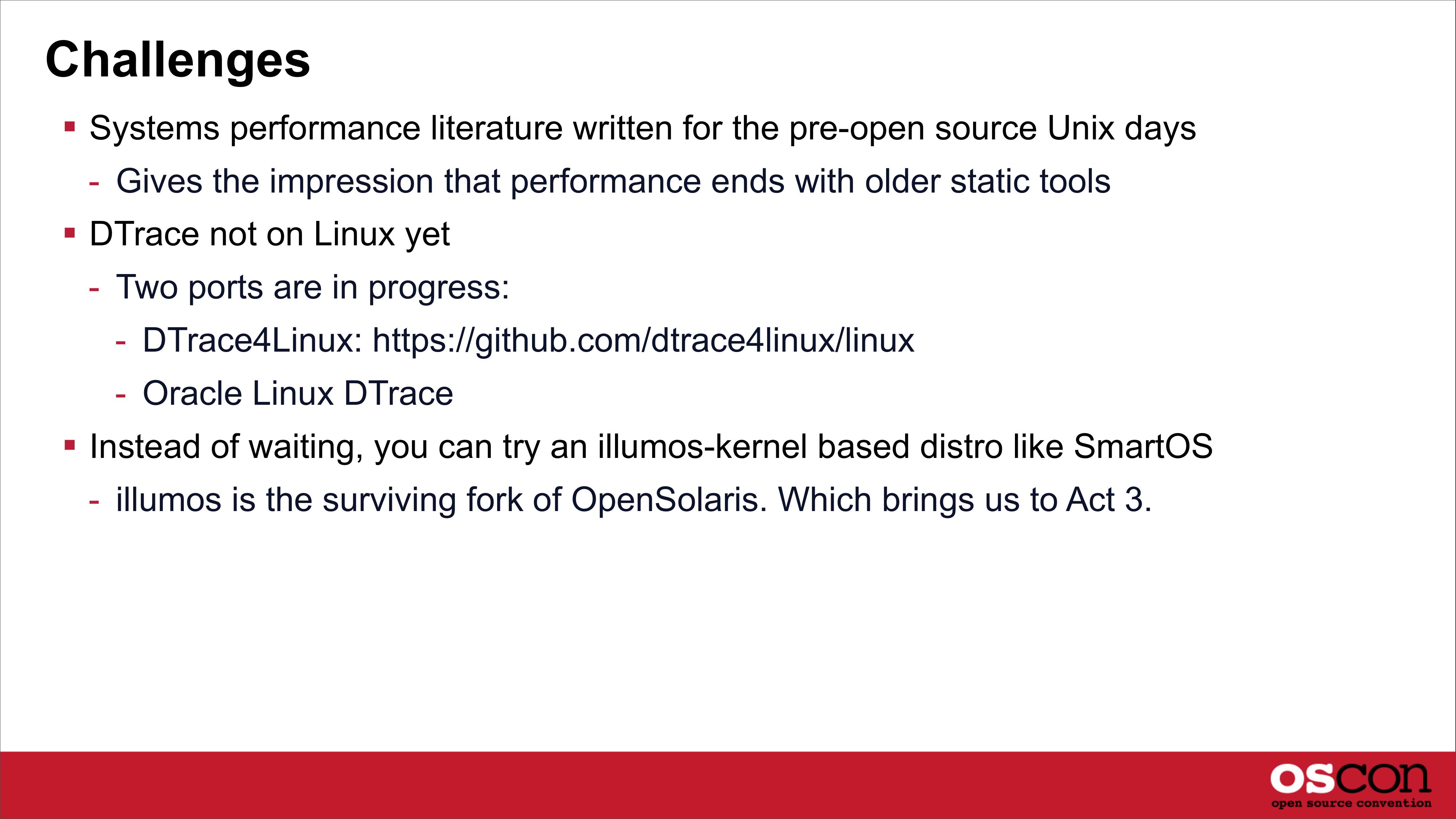

Challenges
 Systems performance literature written for the pre-open source Unix days
- Gives the impression that performance ends with older static tools
 DTrace not on Linux yet
- Two ports are in progress:
- DTrace4Linux: https://github.com/dtrace4linux/linux
- Oracle Linux DTrace
 Instead of waiting, you can try an illumos-kernel based distro like SmartOS
- illumos is the surviving fork of OpenSolaris. Which brings us to Act 3.

Act 3. Closed Source

Act 3. Closed Source
 The year is 2010
 Oracle stops releasing updates for OpenSolaris
 Oracle Solaris 11 is released a year later, closed source
 Provides us with a unique additional perspective for open source systems performance

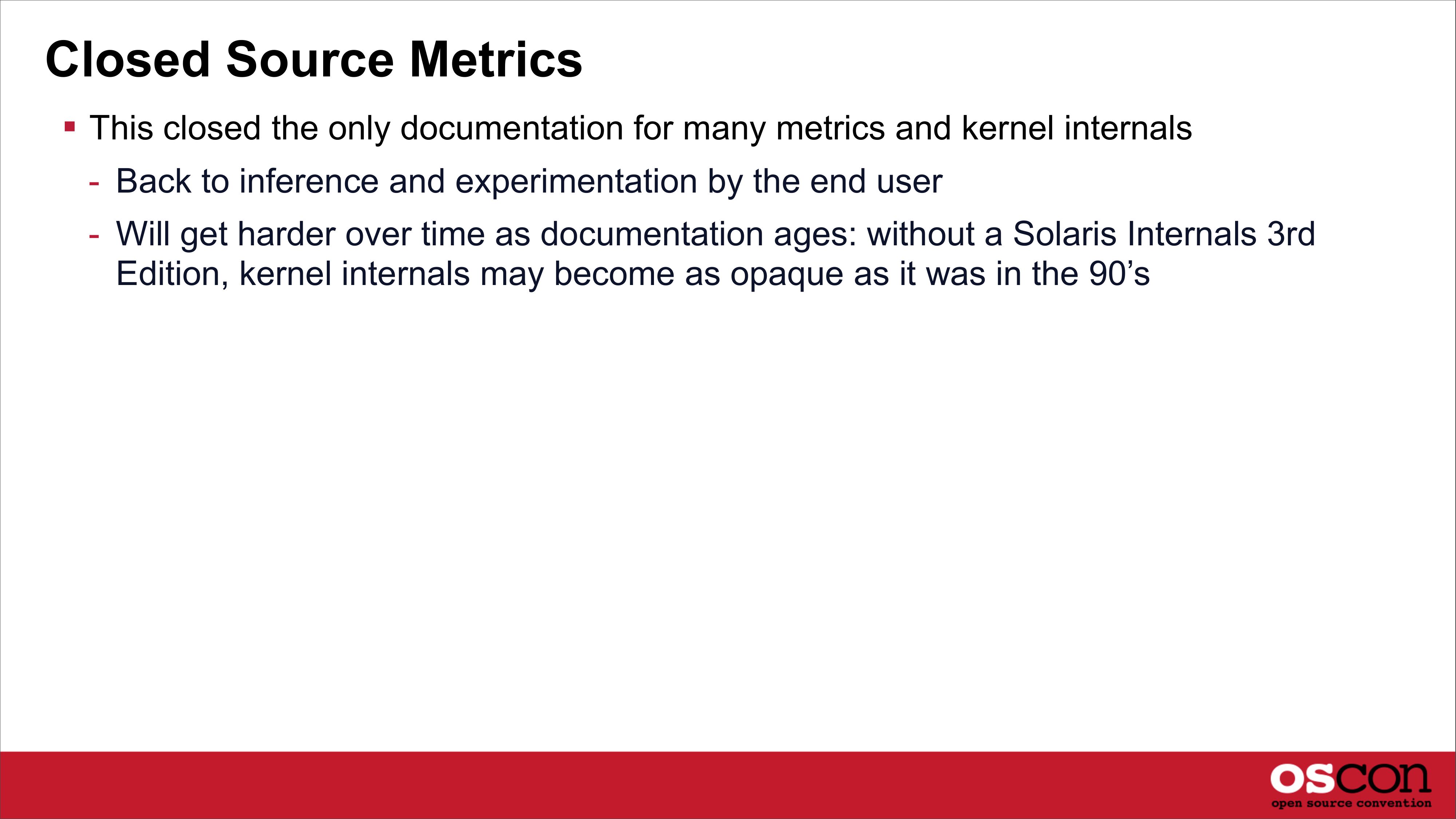

Closed Source Metrics
 This closed the only documentation for many metrics and kernel internals
- Back to inference and experimentation by the end user
- Will get harder over time as documentation ages: without a Solaris Internals 3rd
Edition, kernel internals may become as opaque as it was in the 90’s

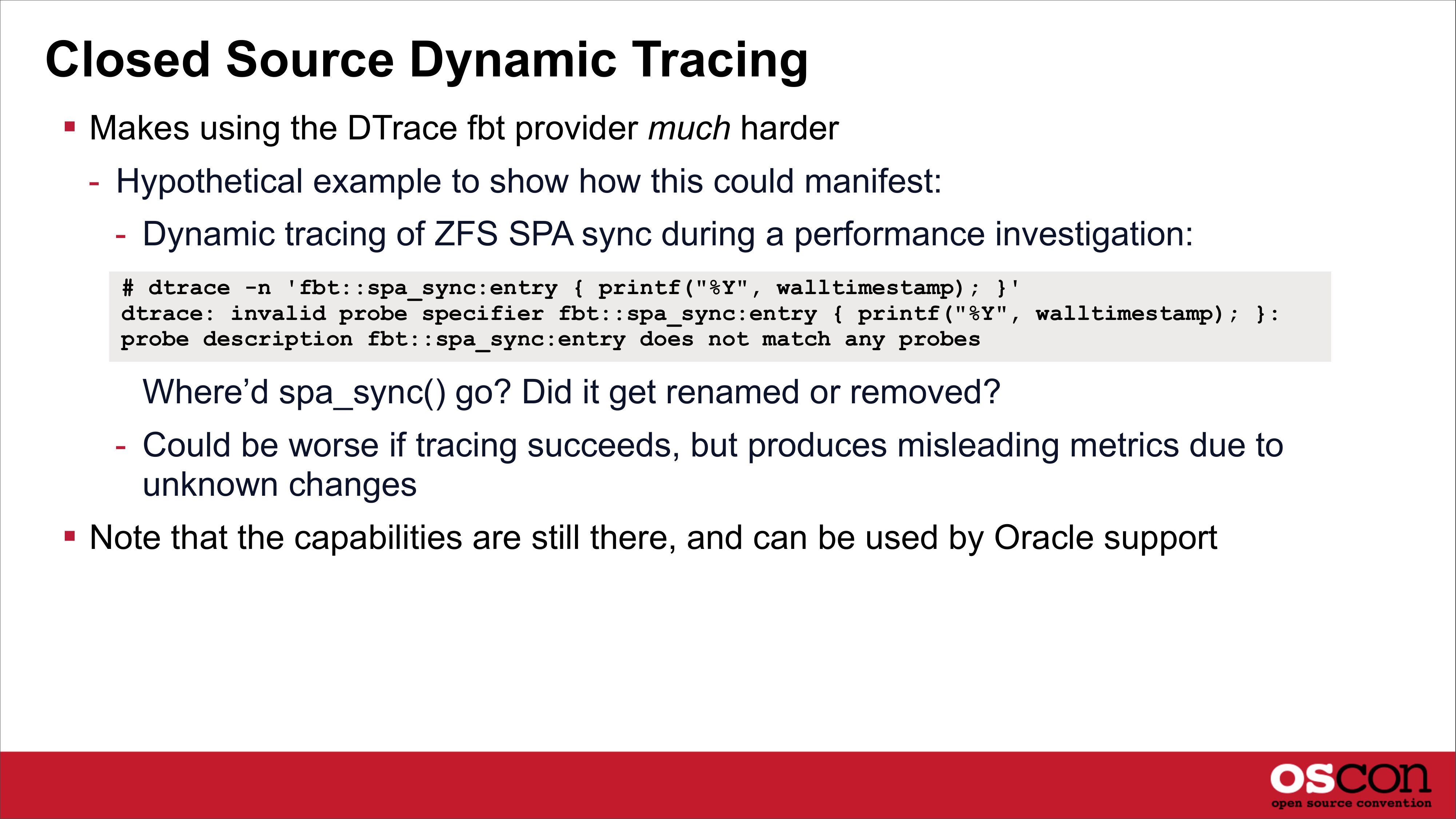

Closed Source Dynamic Tracing
 Makes using the DTrace fbt provider much harder
- Hypothetical example to show how this could manifest:
- Dynamic tracing of ZFS SPA sync during a performance investigation:
# dtrace -n 'fbt::spa_sync:entry { printf("%Y", walltimestamp); }'
dtrace: invalid probe specifier fbt::spa_sync:entry { printf("%Y", walltimestamp); }:
probe description fbt::spa_sync:entry does not match any probes
Where’d spa_sync() go? Did it get renamed or removed?
- Could be worse if tracing succeeds, but produces misleading metrics due to
unknown changes
 Note that the capabilities are still there, and can be used by Oracle support

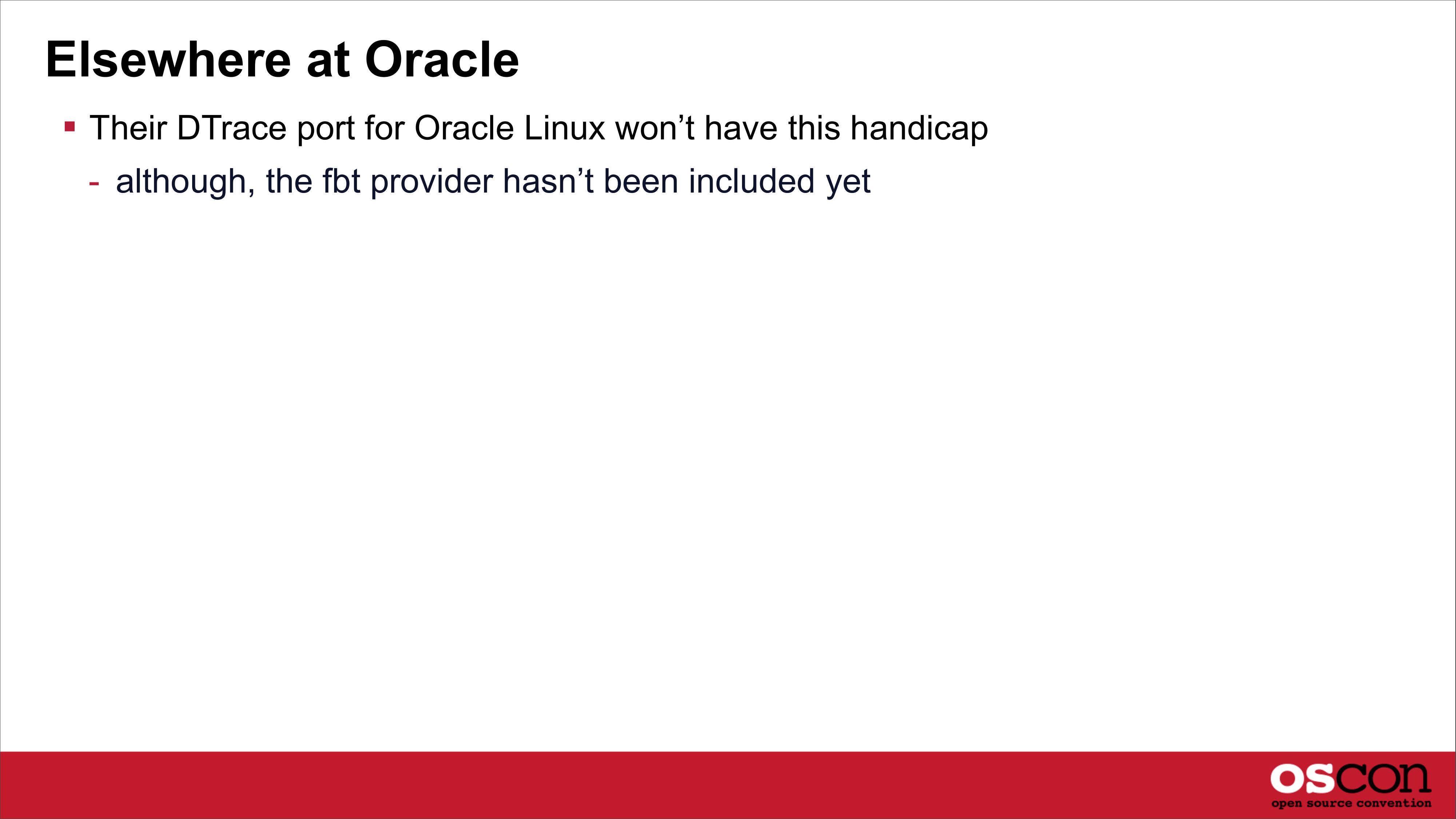

Elsewhere at Oracle
 Their DTrace port for Oracle Linux won’t have this handicap
- although, the fbt provider hasn’t been included yet

Epilog: The New Systems Performance
 An era of:
- Open source
- Dynamic tracing
- Methodologies
- Distributed systems (cloud)
 Covered in my book, out this year:

Thank you!
 email: brendan@joyent.com
 twitter: @brendangregg
 blog: http://dtrace.org/blogs/brendan
