PerconaLive: Linux Performance 2018

Keynote for PerconaLive 2018 by Brendan Gregg.

Video: https://youtu.be/sV3XfrfjrPo?t=30m51s

Description: "At over one thousand code commits per week, it's hard to keep up with Linux developments. This keynote will summarize recent Linux performance features, for a wide audience: the KPTI patches for Meltdown, eBPF for performance observability, Kyber for disk I/O scheduling, BBR for TCP congestion control, and more. This is about exposure: knowing what exists, so you can learn and use it later when needed. Get the most out of your systems, whether they are databases or application servers, with the latest Linux kernels and exciting features."

next
prev
1/19
next
prev
2/19
next
prev
3/19
next
prev
4/19
next
prev
5/19
next
prev
6/19
next
prev
7/19
next
prev
8/19
next
prev
9/19
next
prev
10/19
next
prev
11/19
next
prev
12/19
next
prev
13/19
next
prev
14/19
next
prev
15/19
next
prev
16/19
next
prev
17/19
next
prev
18/19
next
prev
19/19

PDF: Percona2018_Linux_Performance.pdf

Keywords (from pdftotext):

slide 1:
    Linux Performance
    Brendan Gregg
    Senior Performance Architect
    Apr 2018

slide 2:

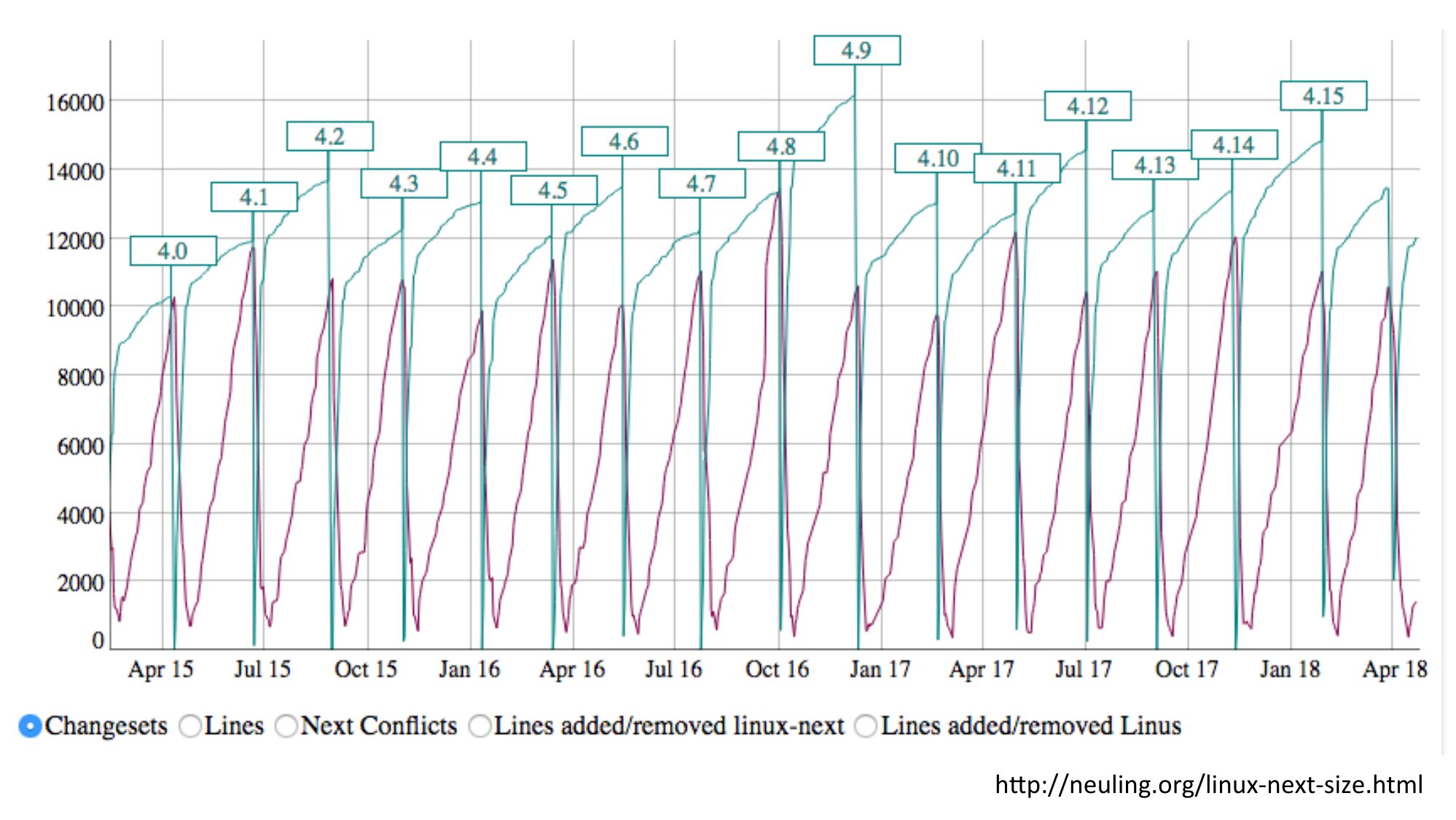

    h1p://neuling.org/linux-next-size.html

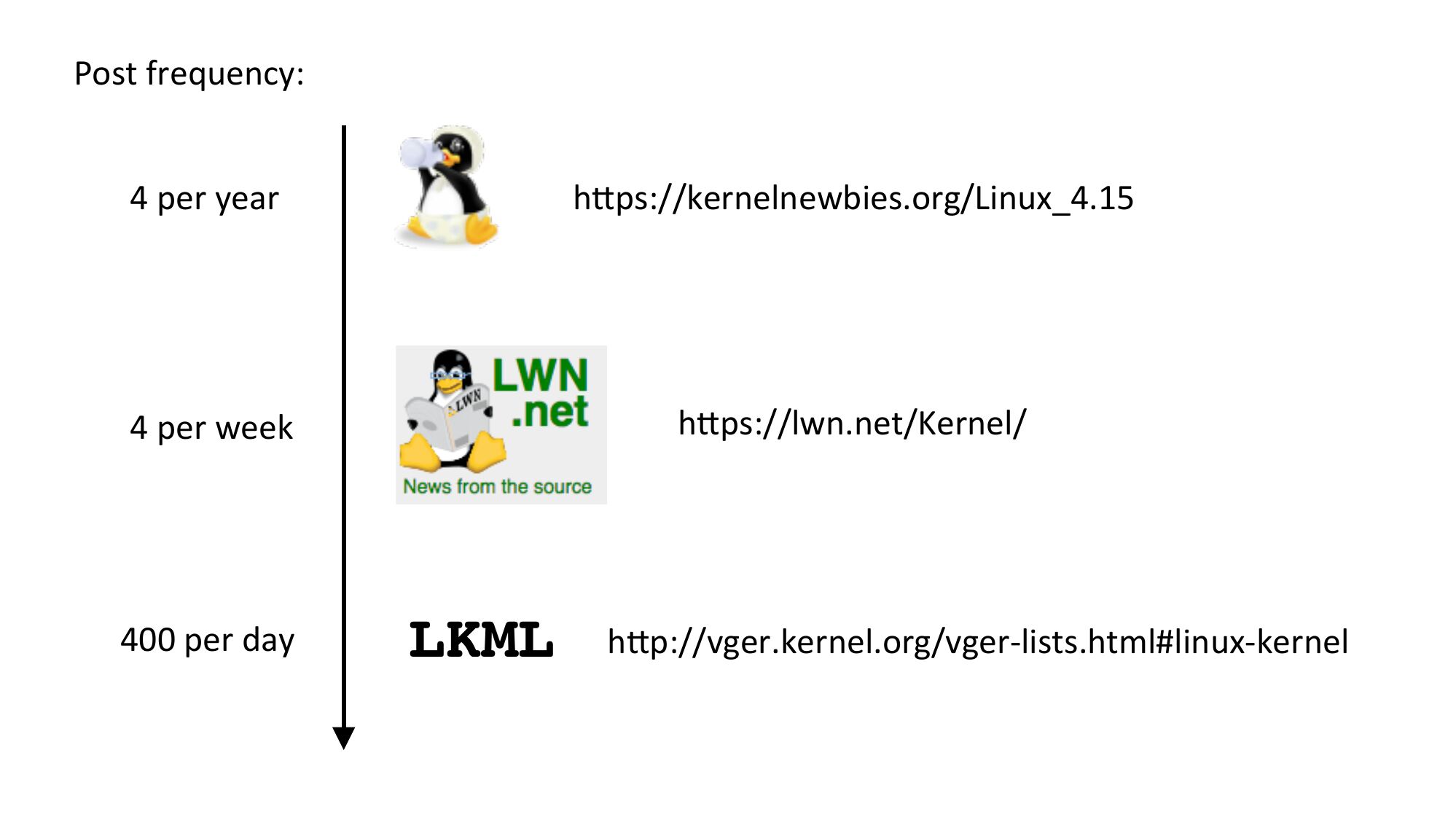

slide 3:
    Post frequency:
    4 per year
    h1ps://kernelnewbies.org/Linux_4.15
    4 per week
    h1ps://lwn.net/Kernel/
    400 per day
    LKML
    h1p://vger.kernel.org/vger-lists.html#linux-kernel

slide 4:
    h1ps://meltdowna1ack.com/

slide 5:

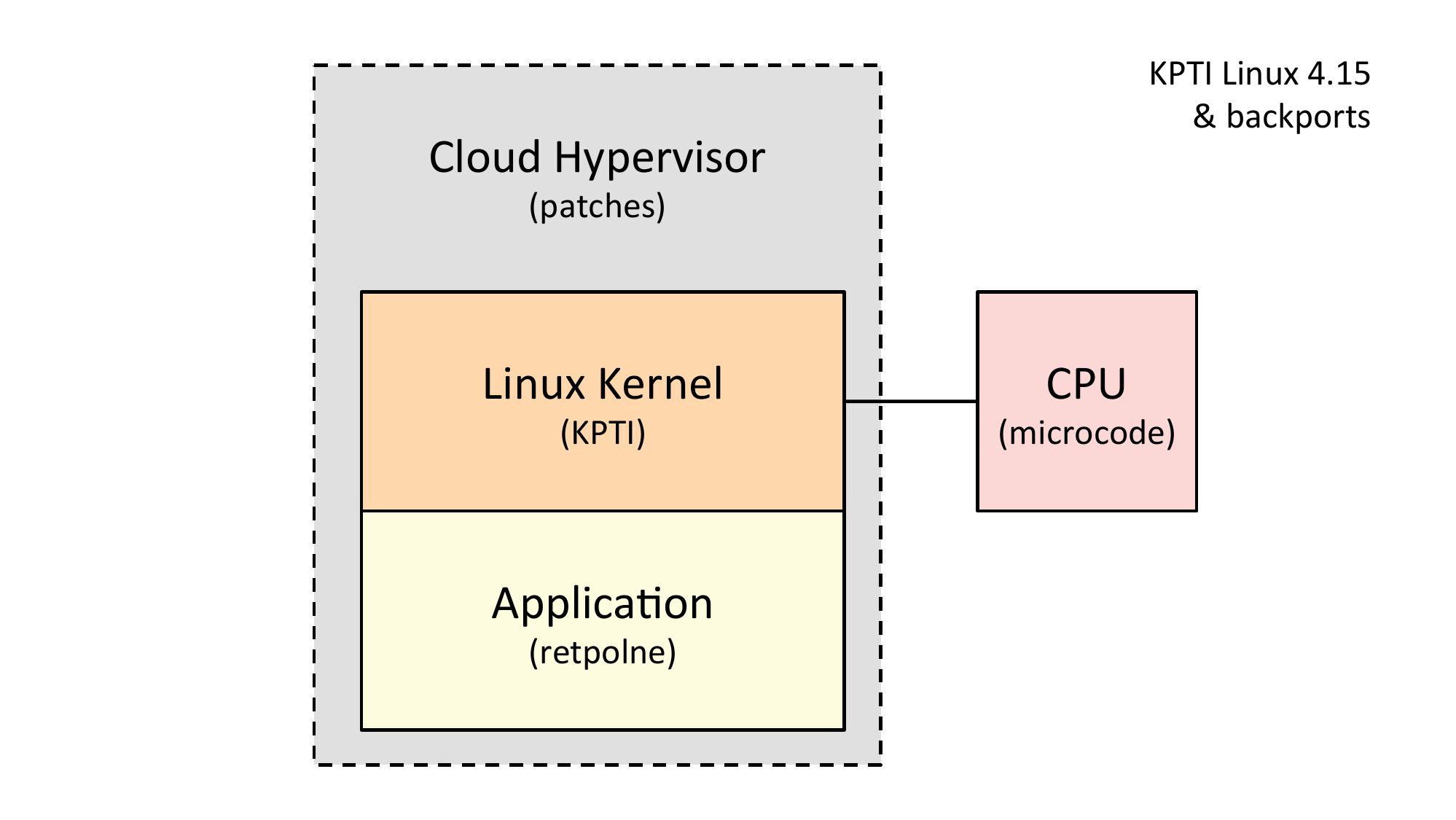

    KPTI Linux 4.15
    & backports
    Cloud Hypervisor
    (patches)
    Linux Kernel
    (KPTI)
    ApplicaUon
    (retpolne)
    CPU
    (microcode)

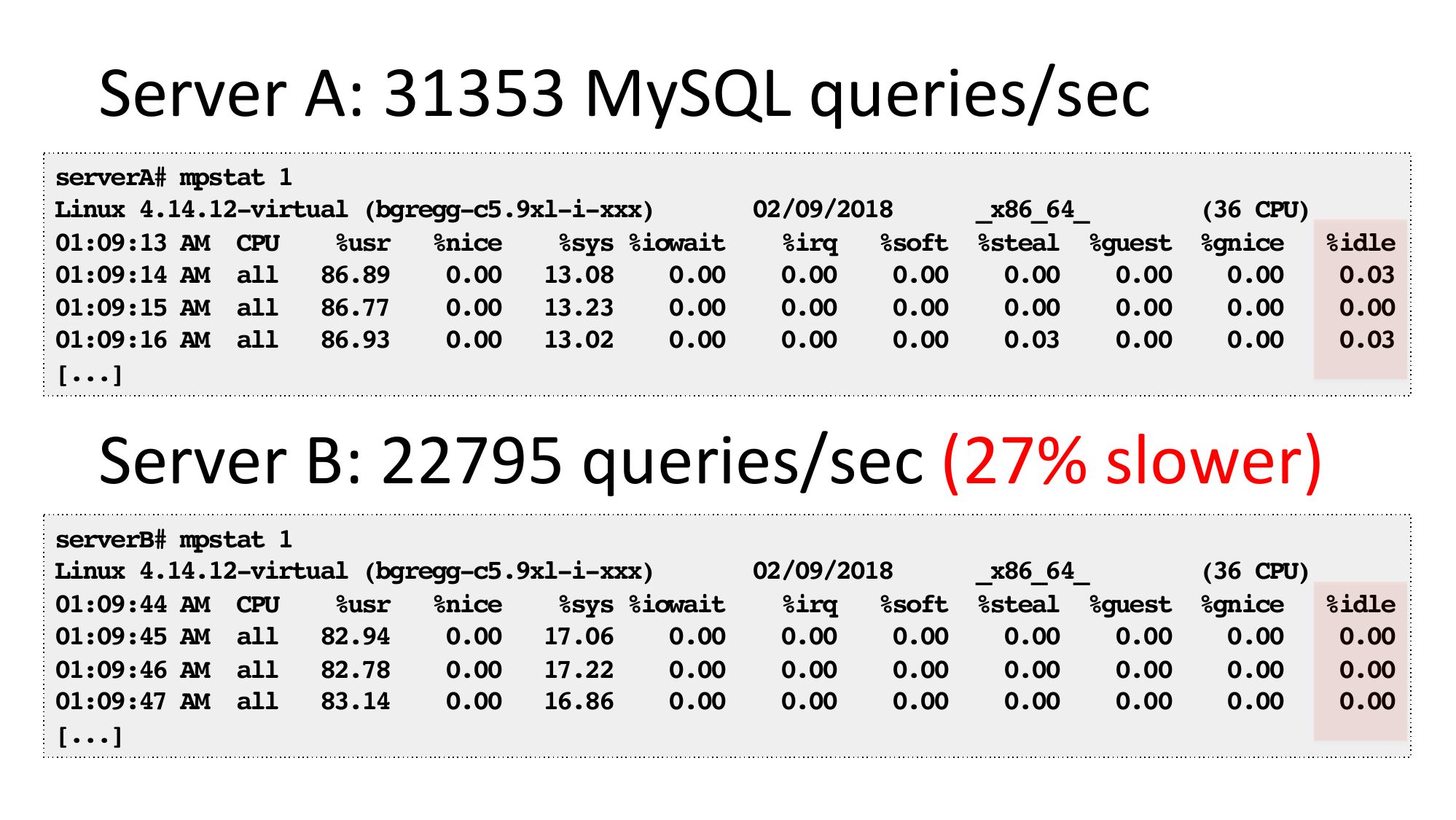

slide 6:
    Server A: 31353 MySQL queries/sec
    serverA# mpstat 1
    Linux 4.14.12-virtual (bgregg-c5.9xl-i-xxx)
    02/09/2018
    _x86_64_
    (36 CPU)
    01:09:13 AM CPU
    %usr %nice
    %sys %iowait
    %irq %soft %steal %guest %gnice %idle
    01:09:14 AM all 86.89
    0.00 13.08
    01:09:15 AM all 86.77
    0.00 13.23
    01:09:16 AM all 86.93
    0.00 13.02
    [...]
    Server B: 22795 queries/sec (27% slower)
    serverB# mpstat 1
    Linux 4.14.12-virtual (bgregg-c5.9xl-i-xxx)
    02/09/2018
    _x86_64_
    (36 CPU)
    01:09:44 AM CPU
    %usr %nice
    %sys %iowait
    %irq %soft %steal %guest %gnice %idle
    01:09:45 AM all 82.94
    0.00 17.06
    01:09:46 AM all 82.78
    0.00 17.22
    01:09:47 AM all 83.14
    0.00 16.86
    [...]

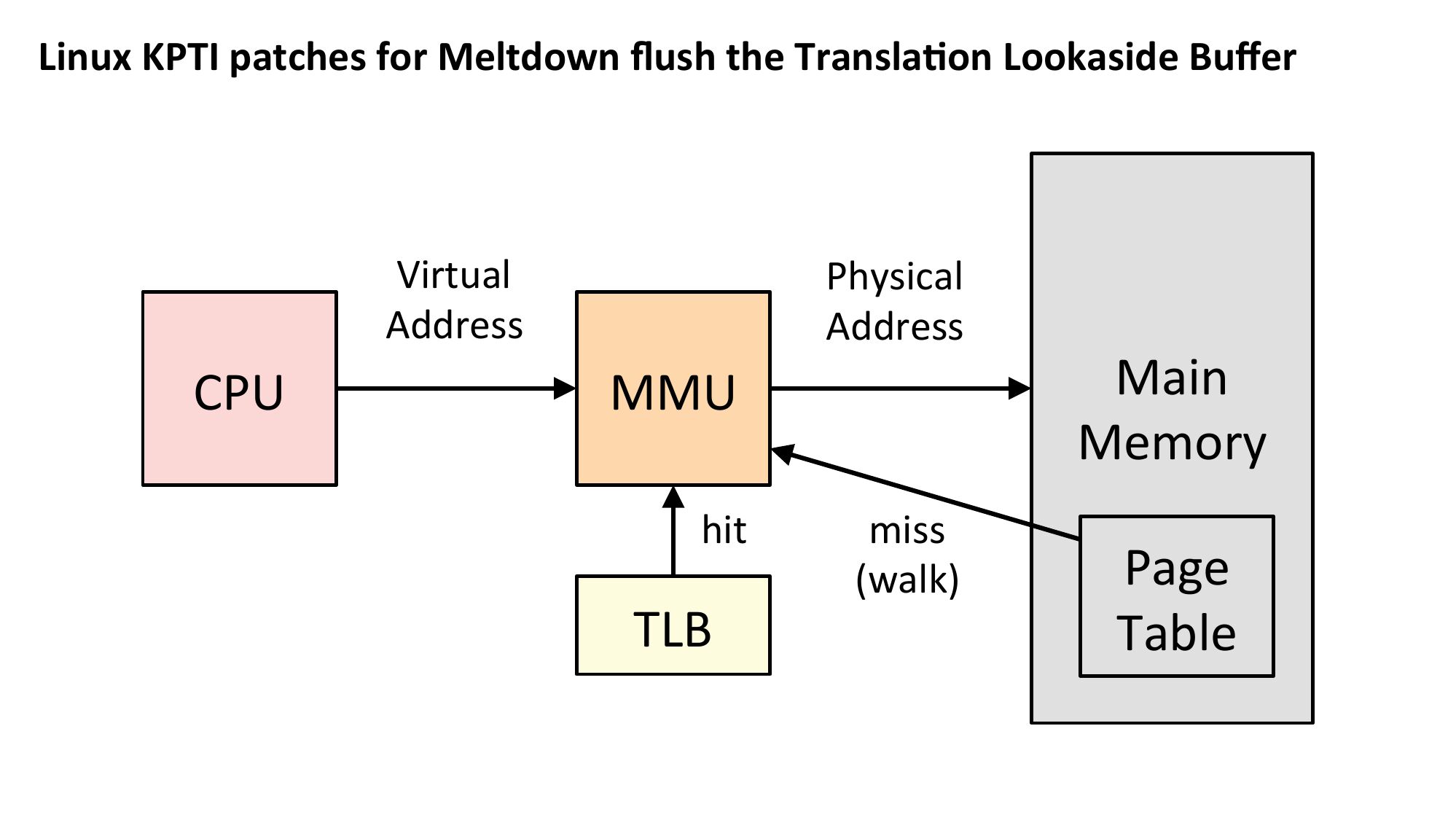

slide 7:
    Linux KPTI patches for Meltdown flush the Transla:on Lookaside Buffer
    Virtual
    Address
    CPU
    Physical
    Address
    MMU
    hit
    TLB
    miss
    (walk)
    Main
    Memory
    Page
    Table

slide 8:

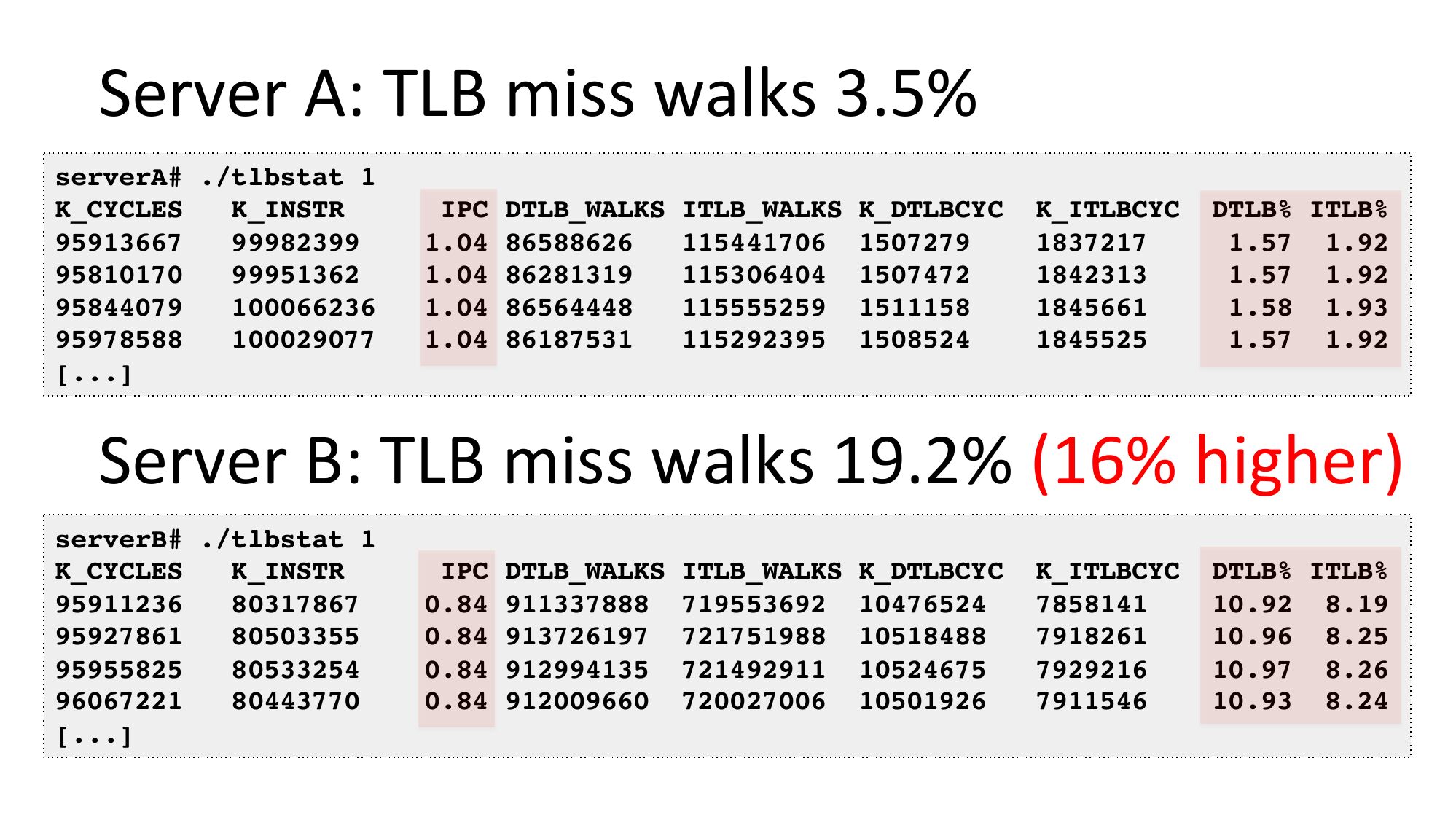

    Server A: TLB miss walks 3.5%
    serverA# ./tlbstat 1
    K_CYCLES
    K_INSTR
    [...]
    IPC DTLB_WALKS ITLB_WALKS K_DTLBCYC
    1.04 86588626
    115441706 1507279
    1.04 86281319
    115306404 1507472
    1.04 86564448
    115555259 1511158
    1.04 86187531
    115292395 1508524
    K_ITLBCYC
    DTLB% ITLB%
    1.57 1.92
    1.57 1.92
    1.58 1.93
    1.57 1.92
    Server B: TLB miss walks 19.2% (16% higher)
    serverB# ./tlbstat 1
    K_CYCLES
    K_INSTR
    [...]
    IPC DTLB_WALKS ITLB_WALKS K_DTLBCYC
    0.84 911337888 719553692 10476524
    0.84 913726197 721751988 10518488
    0.84 912994135 721492911 10524675
    0.84 912009660 720027006 10501926
    K_ITLBCYC
    DTLB% ITLB%
    10.92 8.19
    10.96 8.25
    10.97 8.26
    10.93 8.24

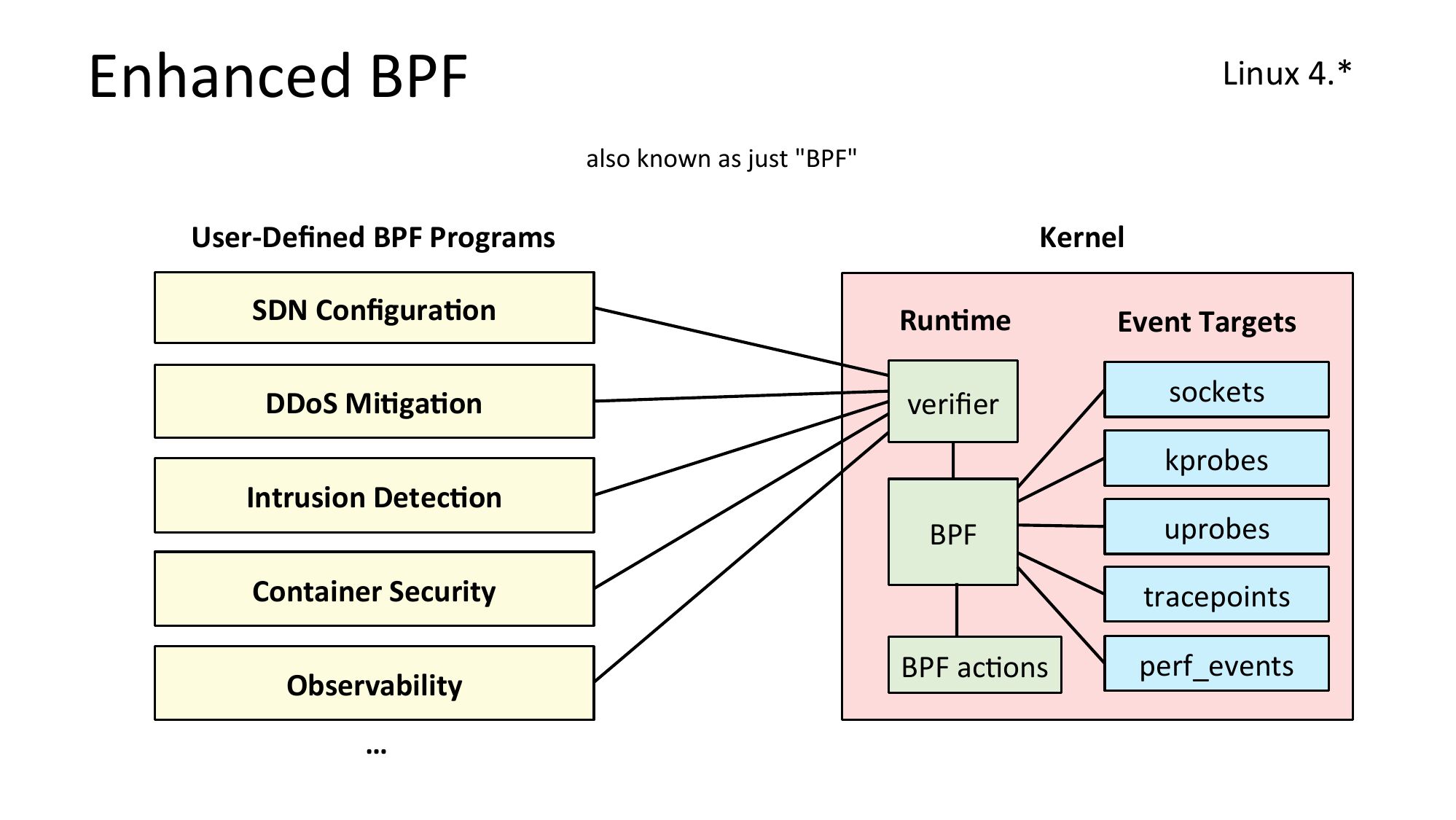

slide 9:
    h1p://www.brendangregg.com/blog/2018-02-09/kpU-kaiser-meltdown-performance.html

slide 10:
    Enhanced BPF
    Linux 4.*
    also known as just "BPF"
    User-Defined BPF Programs
    Kernel
    SDN Configura:on
    Run:me
    Event Targets
    DDoS Mi:ga:on
    verifier
    sockets
    Intrusion Detec:on
    kprobes
    BPF
    Container Security
    Observability
    uprobes
    tracepoints
    BPF acUons
    perf_events

slide 11:

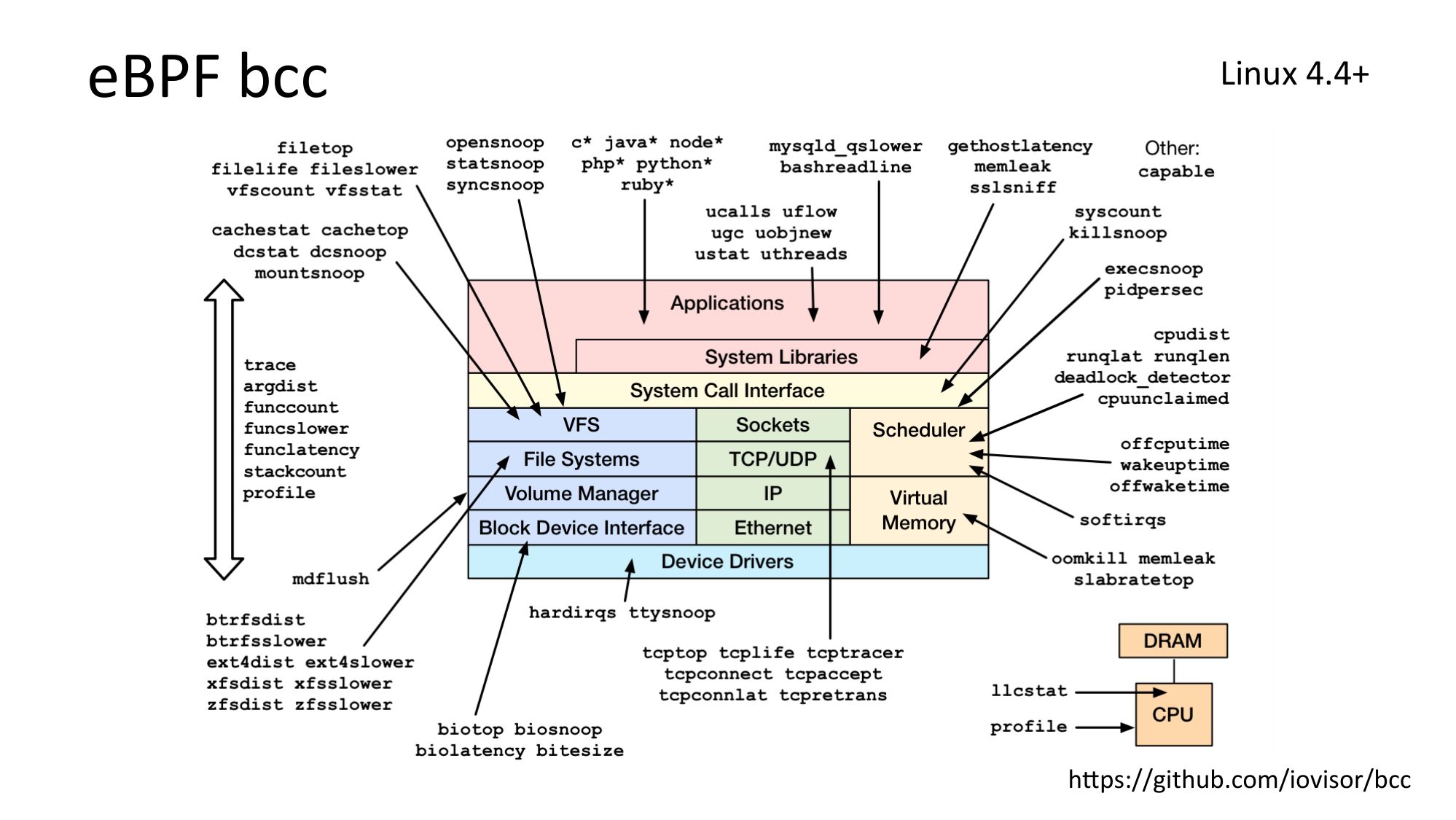

    eBPF bcc
    Linux 4.4+
    h1ps://github.com/iovisor/bcc

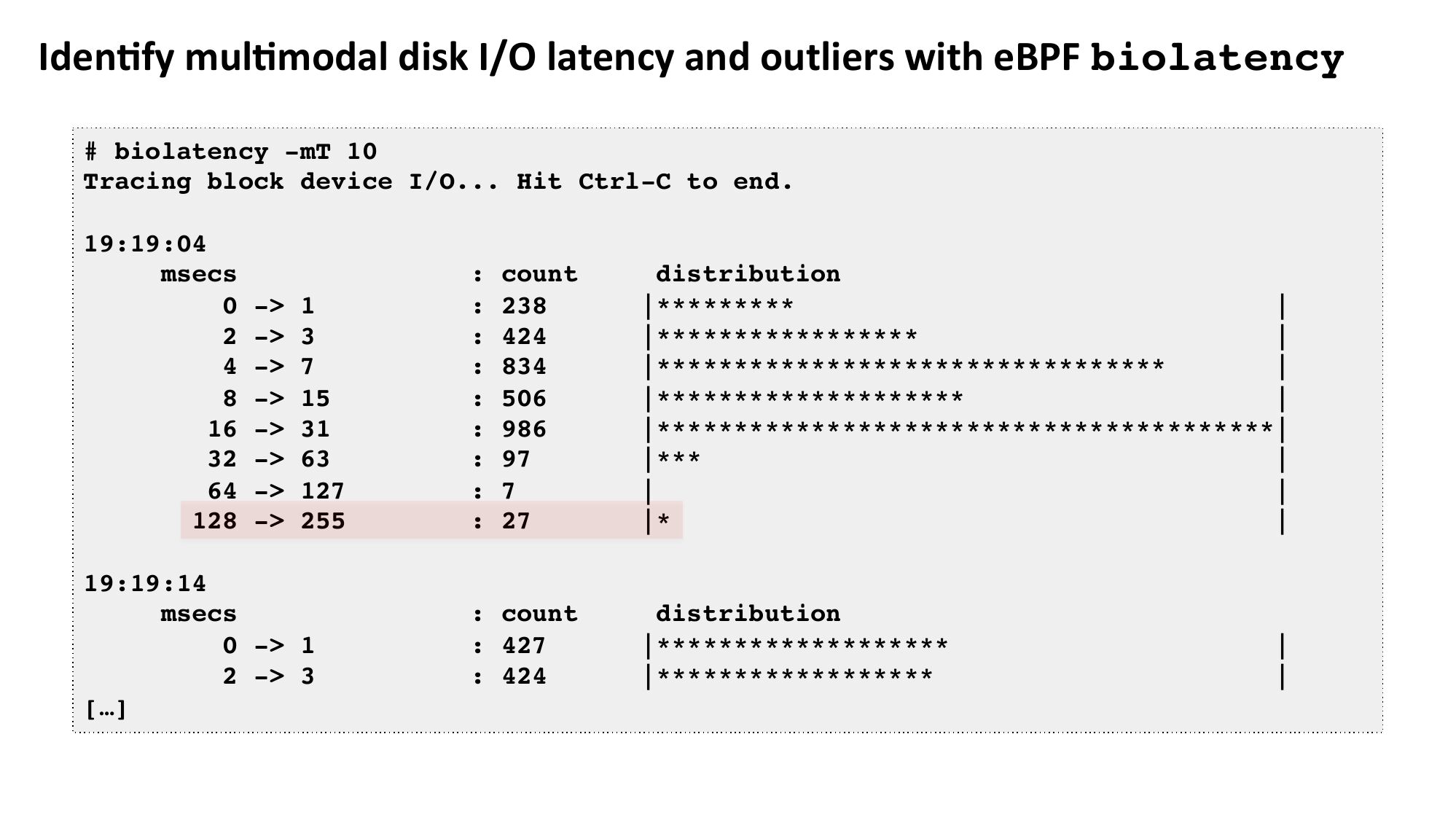

slide 12:
    Iden:fy mul:modal disk I/O latency and outliers with eBPF biolatency
    # biolatency -mT 10
    Tracing block device I/O... Hit Ctrl-C to end.
    19:19:04
    msecs
    0 ->gt; 1
    2 ->gt; 3
    4 ->gt; 7
    8 ->gt; 15
    16 ->gt; 31
    32 ->gt; 63
    64 ->gt; 127
    128 ->gt; 255
    19:19:14
    msecs
    0 ->gt; 1
    2 ->gt; 3
    […]
    : count
    : 238
    : 424
    : 834
    : 506
    : 986
    : 97
    : 7
    : 27
    distribution
    |*********
    |*****************
    |*********************************
    |********************
    |****************************************|
    |***
    : count
    : 427
    : 424
    distribution
    |*******************
    |******************

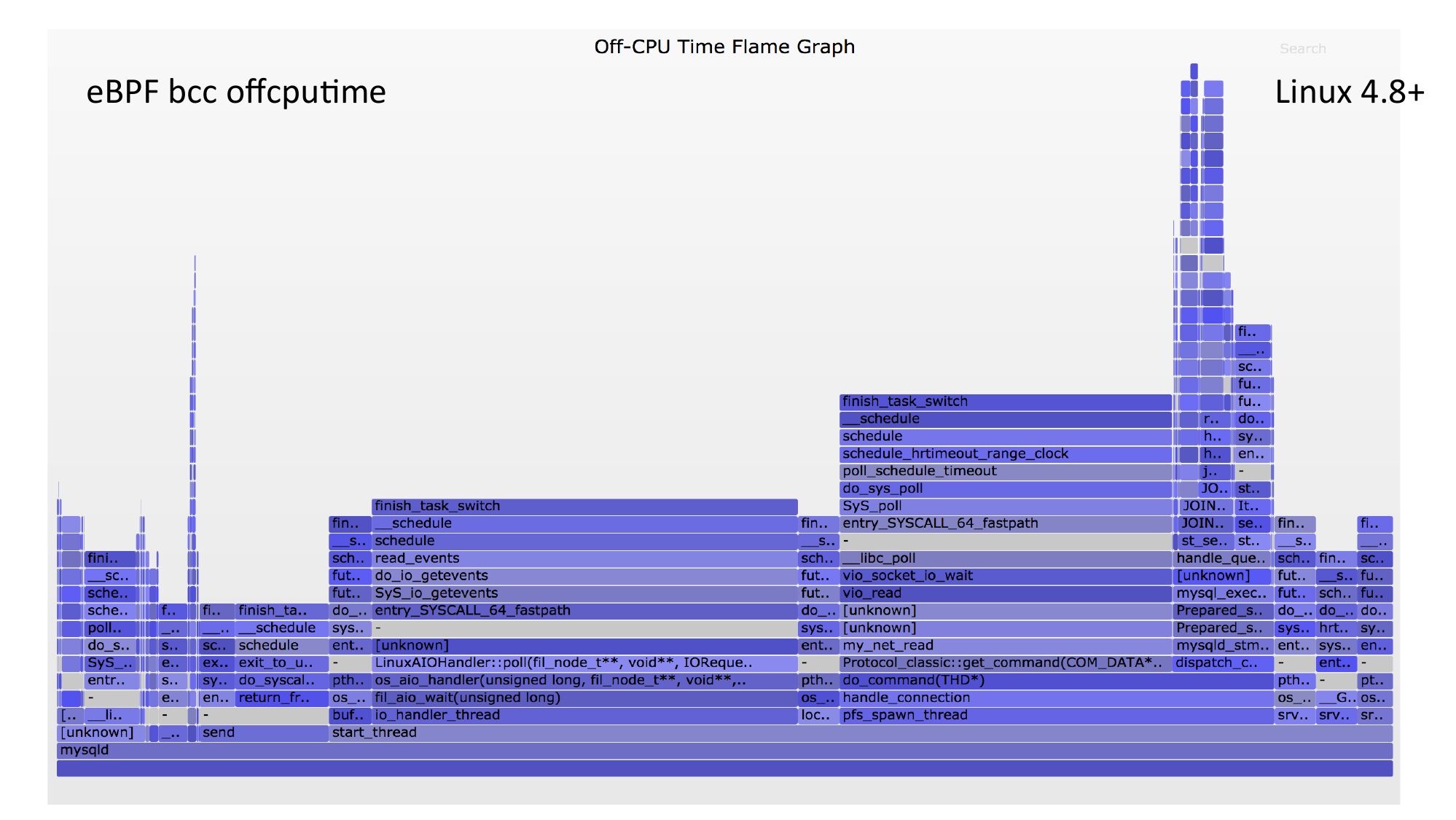

slide 13:
    eBPF bcc offcpuUme
    Linux 4.8+

slide 14:

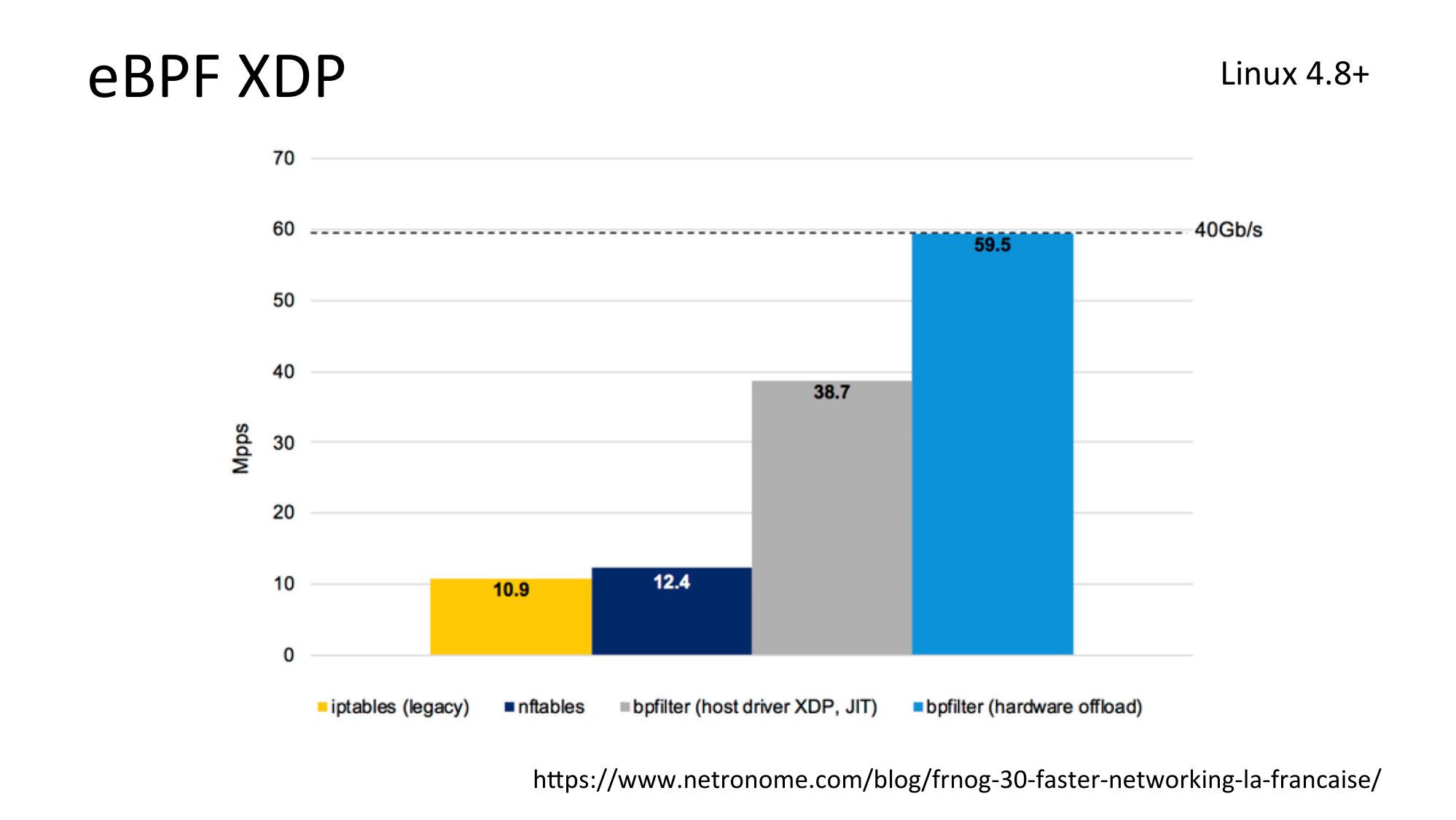

    eBPF XDP
    Linux 4.8+
    h1ps://www.netronome.com/blog/frnog-30-faster-networking-la-francaise/

slide 15:

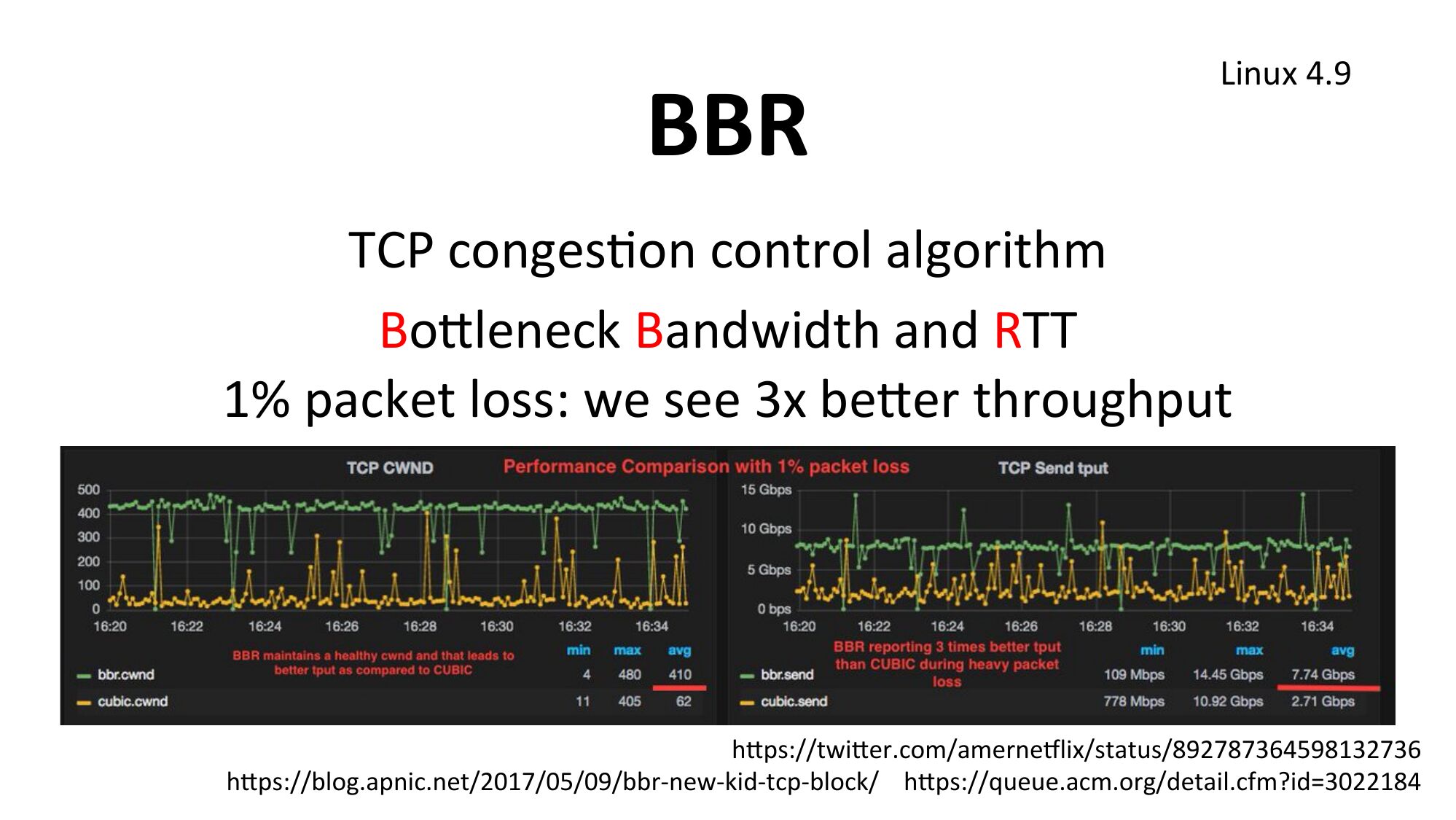

    BBR
    Linux 4.9
    TCP congesUon control algorithm
    Bo1leneck Bandwidth and RTT
    1% packet loss: we see 3x be1er throughput
    h1ps://twi1er.com/amerneklix/status/892787364598132736
    h1ps://blog.apnic.net/2017/05/09/bbr-new-kid-tcp-block/ h1ps://queue.acm.org/detail.cfm?id=3022184

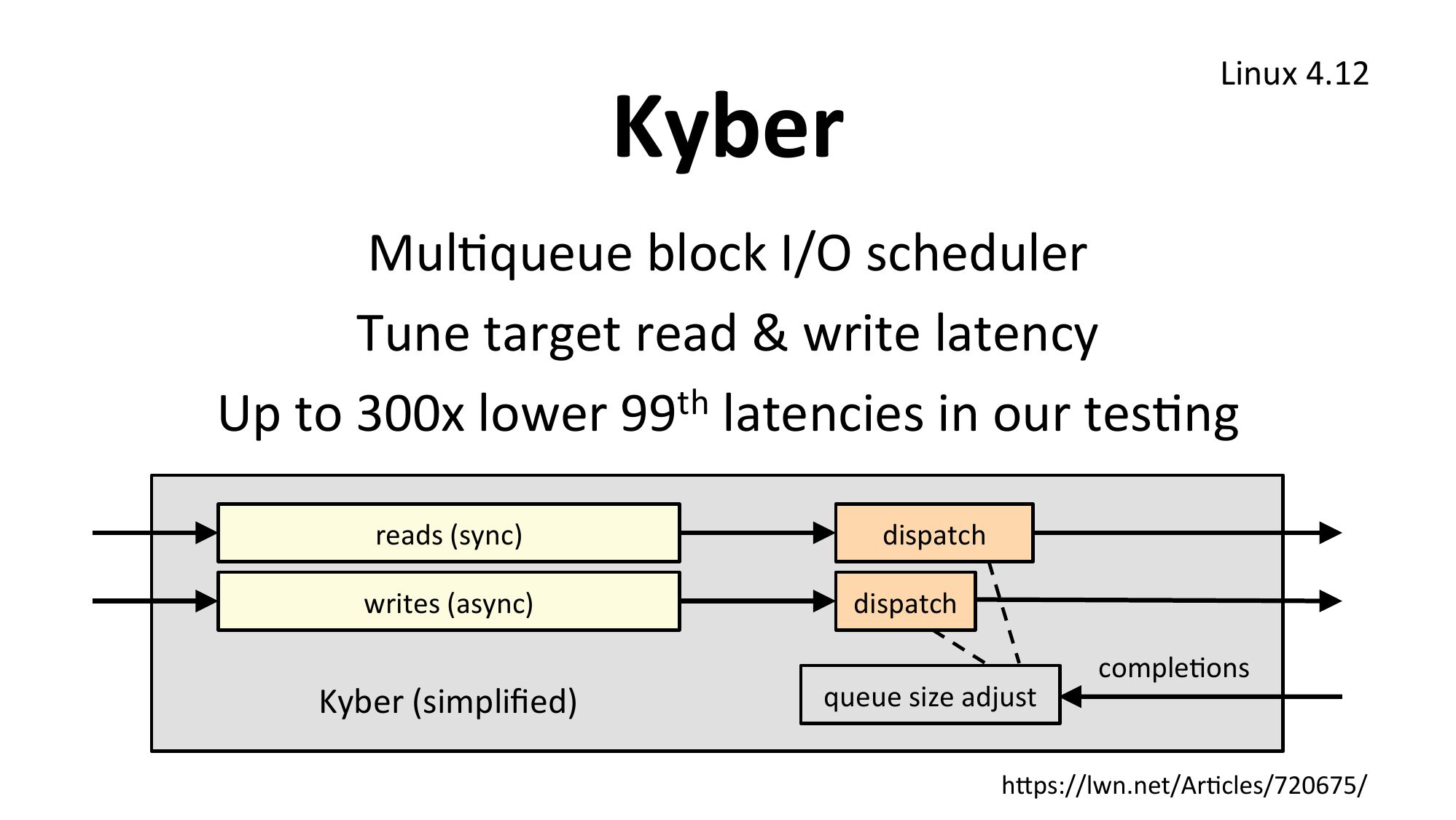

slide 16:
    Linux 4.12
    Kyber
    MulUqueue block I/O scheduler
    Tune target read & write latency
    Up to 300x lower 99th latencies in our tesUng
    reads (sync)
    writes (async)
    Kyber (simplified)
    dispatch
    dispatch
    queue size adjust
    compleUons
    h1ps://lwn.net/ArUcles/720675/

slide 17:

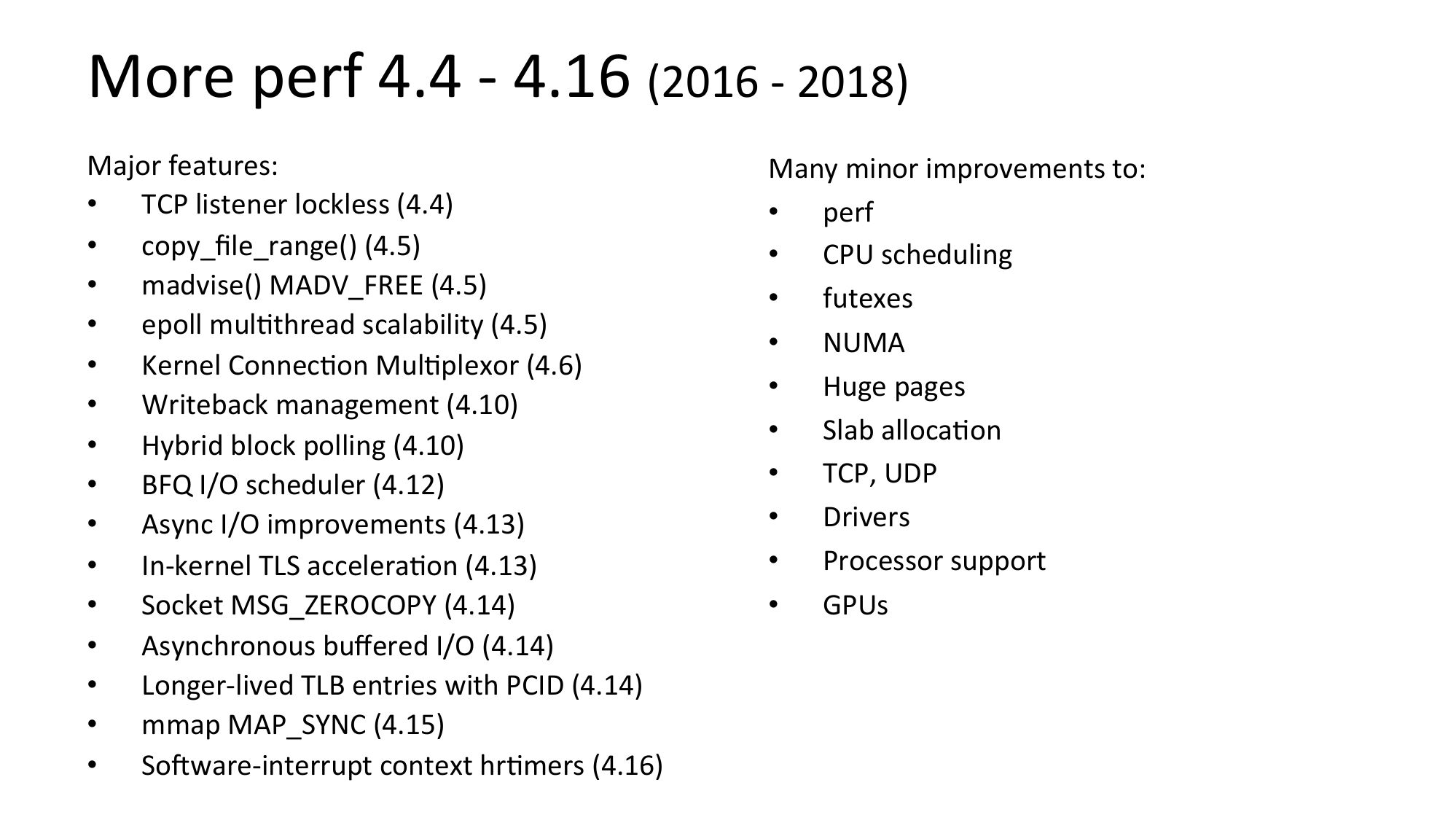

    More perf 4.4 - 4.16 (2016 - 2018)
    Major features:
    • TCP listener lockless (4.4)
    • copy_file_range() (4.5)
    • madvise() MADV_FREE (4.5)
    • epoll mulUthread scalability (4.5)
    • Kernel ConnecUon MulUplexor (4.6)
    • Writeback management (4.10)
    • Hybrid block polling (4.10)
    • BFQ I/O scheduler (4.12)
    • Async I/O improvements (4.13)
    • In-kernel TLS acceleraUon (4.13)
    • Socket MSG_ZEROCOPY (4.14)
    • Asynchronous buffered I/O (4.14)
    • Longer-lived TLB entries with PCID (4.14)
    • mmap MAP_SYNC (4.15)
    • Sosware-interrupt context hrUmers (4.16)
    Many minor improvements to:
    • perf
    • CPU scheduling
    • futexes
    • NUMA
    • Huge pages
    • Slab allocaUon
    • TCP, UDP
    • Drivers
    • Processor support
    • GPUs

slide 18:
    Take Aways
    1. Run latest
    2. Browse major features
    eg, h1ps://kernelnewbies.org/Linux_4.15

slide 19:
    Some Linux perf Resources
    h1p://www.brendangregg.com/linuxperf.html
    h1ps://kernelnewbies.org/LinuxChanges
    h1ps://lwn.net/Kernel
    h1ps://github.com/iovisor/bcc
    h1p://blog.stgolabs.net/search/label/linux
    h1p://www.brendangregg.com/blog/2018-02-09/kpU-kaiser-meltdown-performance.html
