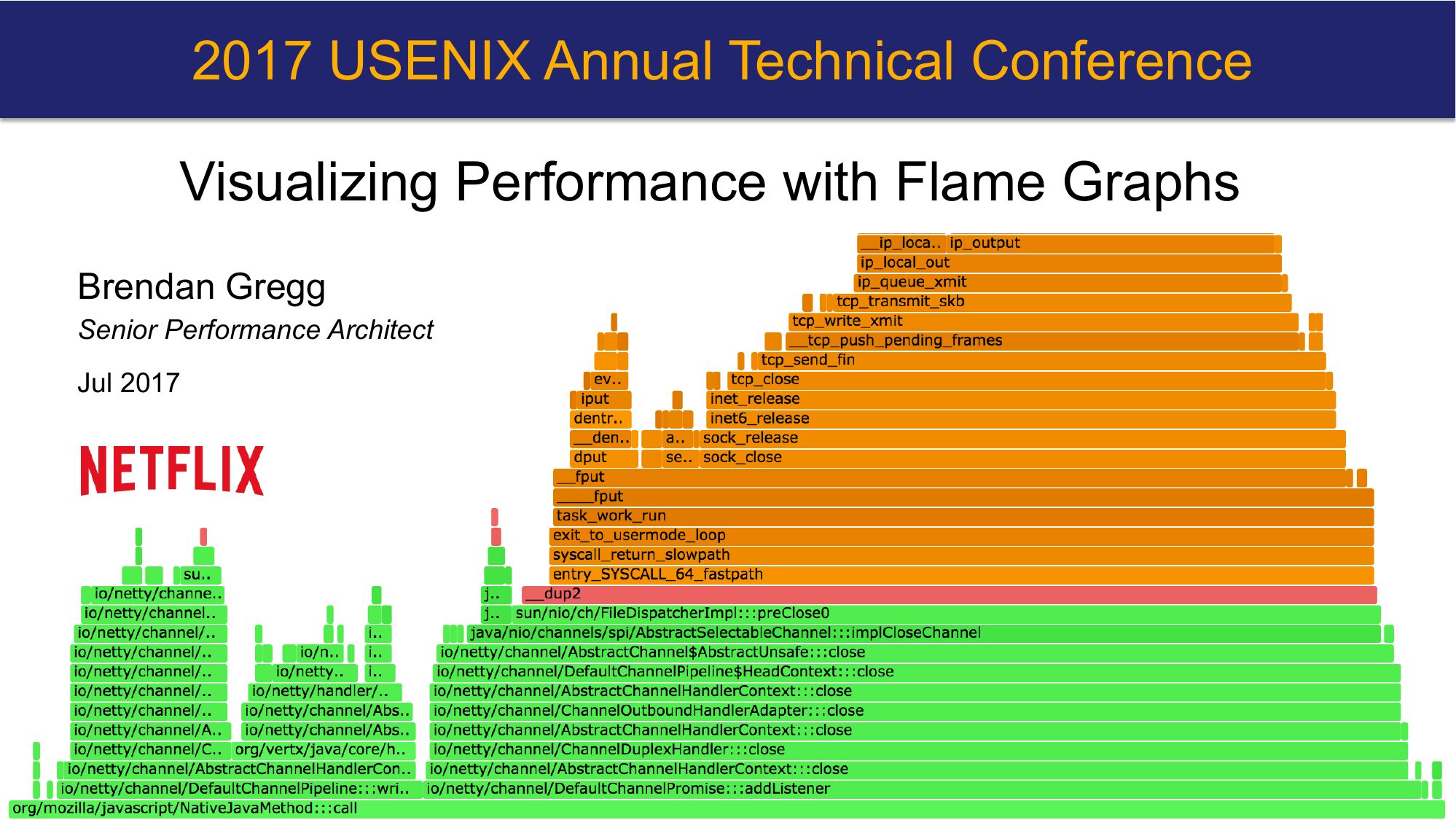

2017 USENIX Annual Technical Conference
Visualizing Performance with Flame Graphs
Brendan Gregg
Senior Performance Architect
Jul 2017

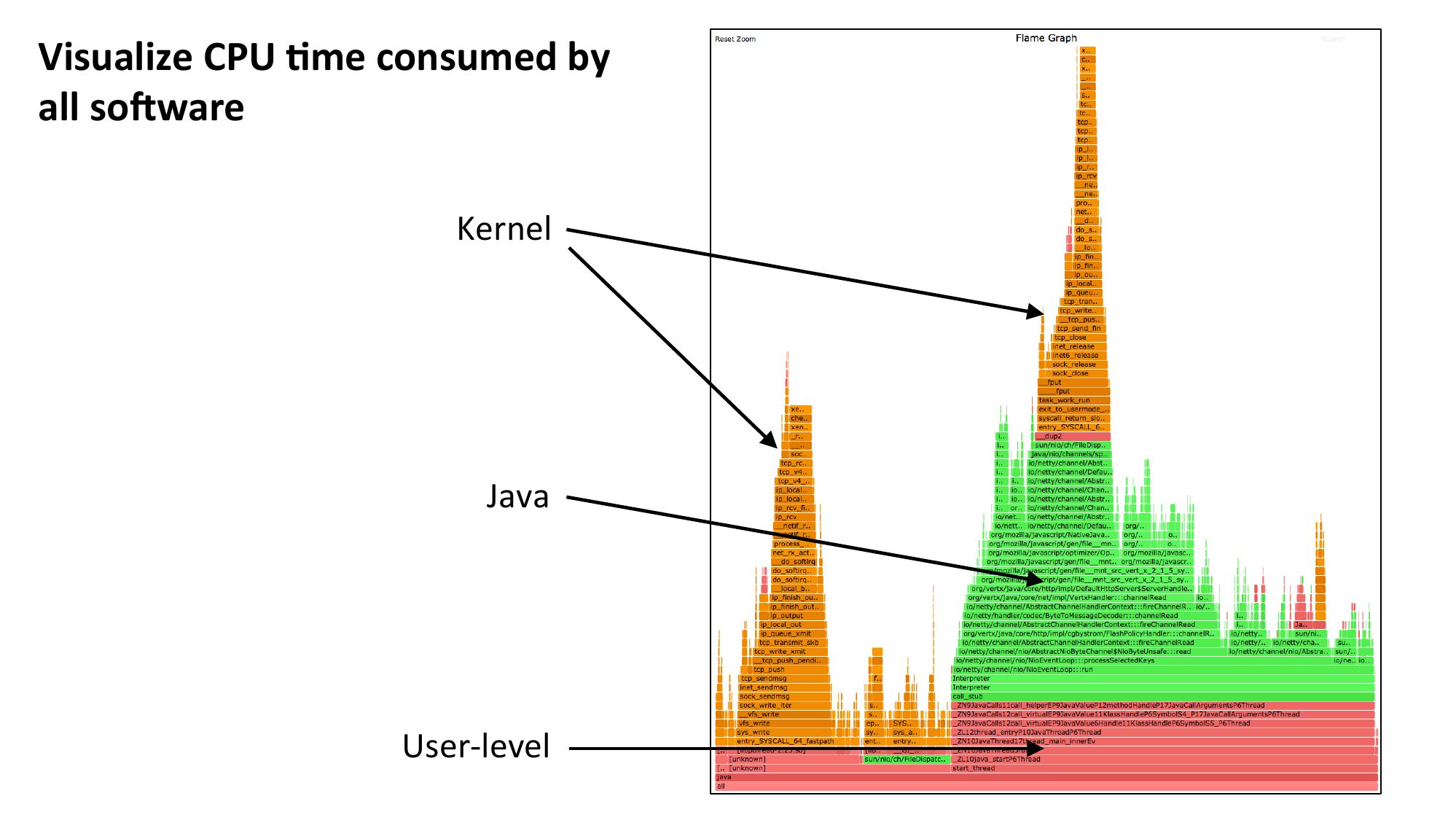

Visualize CPU -me consumed by
all so5ware
Kernel
Java
User-level

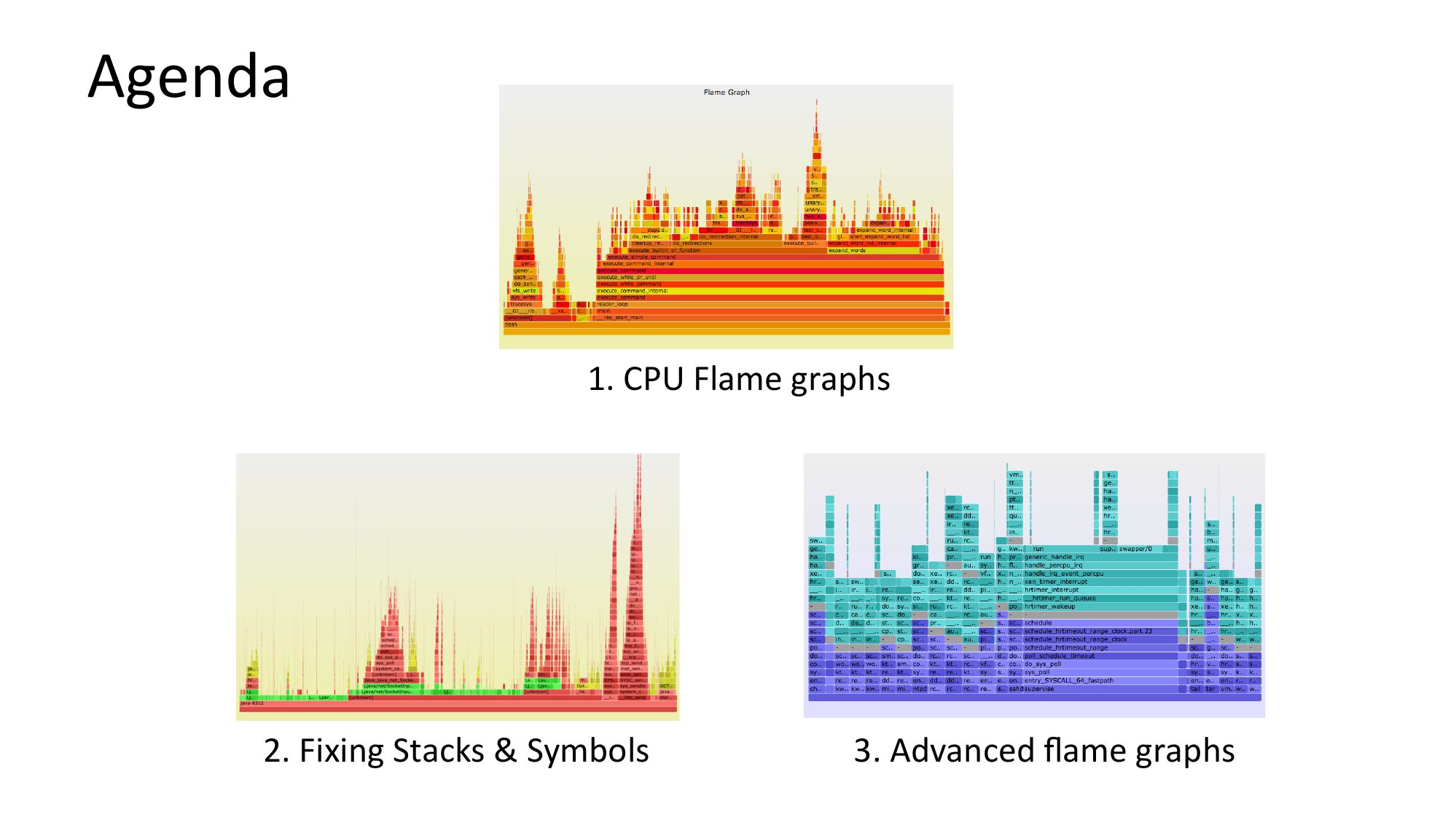

Agenda
1. CPU Flame graphs
2. Fixing Stacks & Symbols
3. Advanced flame graphs

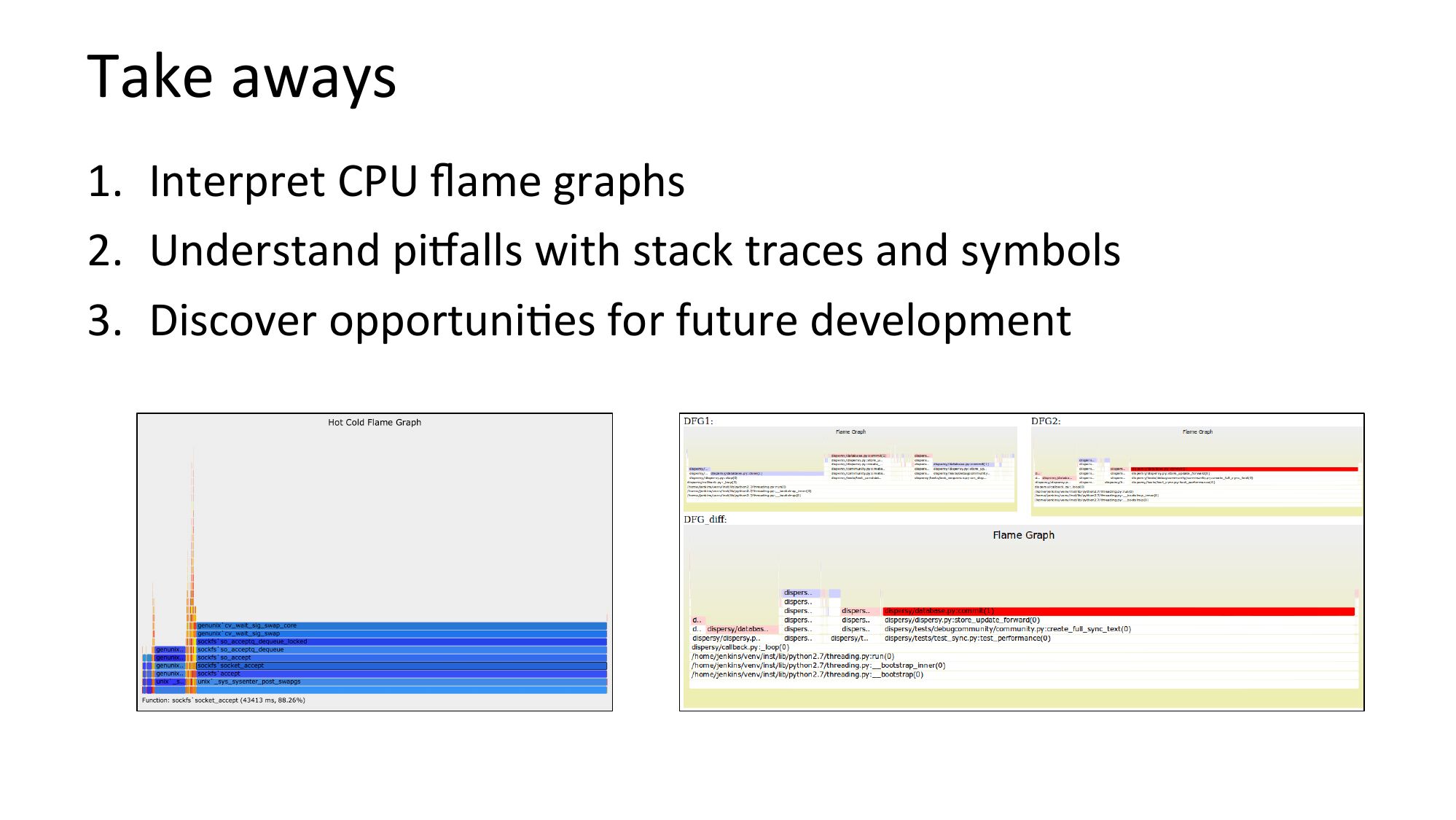

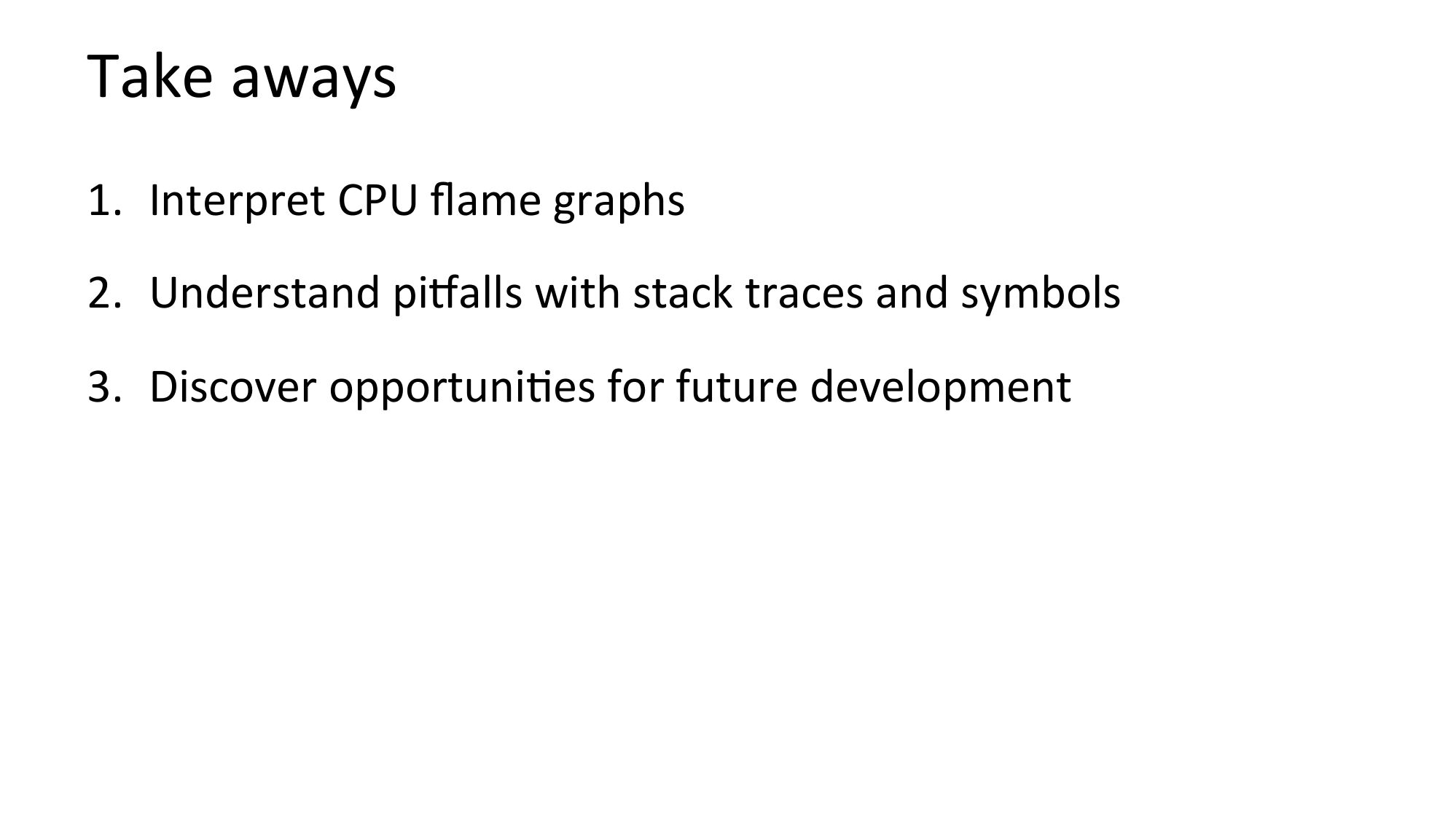

Take aways
1. Interpret CPU flame graphs
2. Understand piHalls with stack traces and symbols
3. Discover opportuniKes for future development

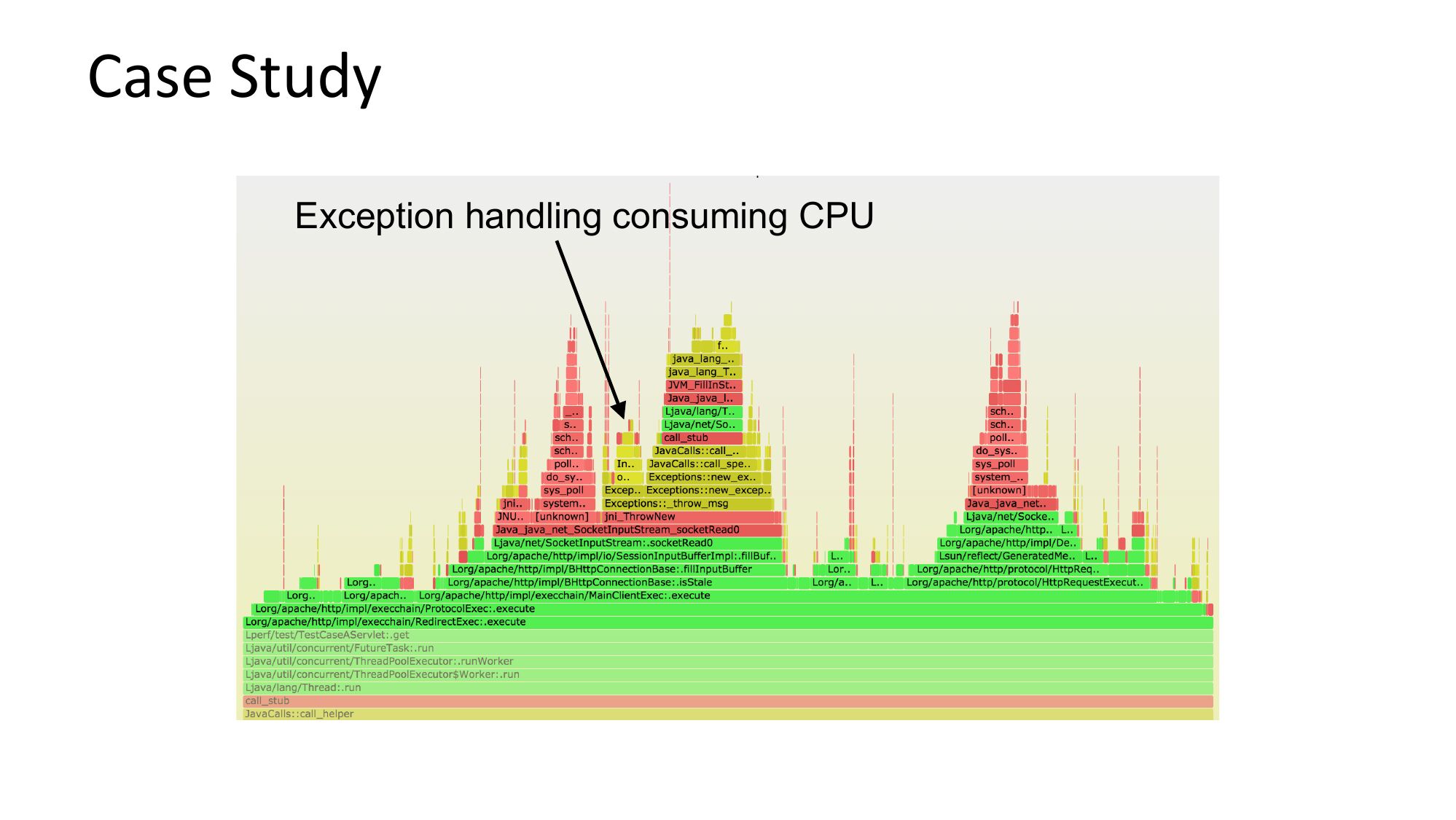

Case Study
Exception handling consuming CPU

Summary
CPU PROFILING

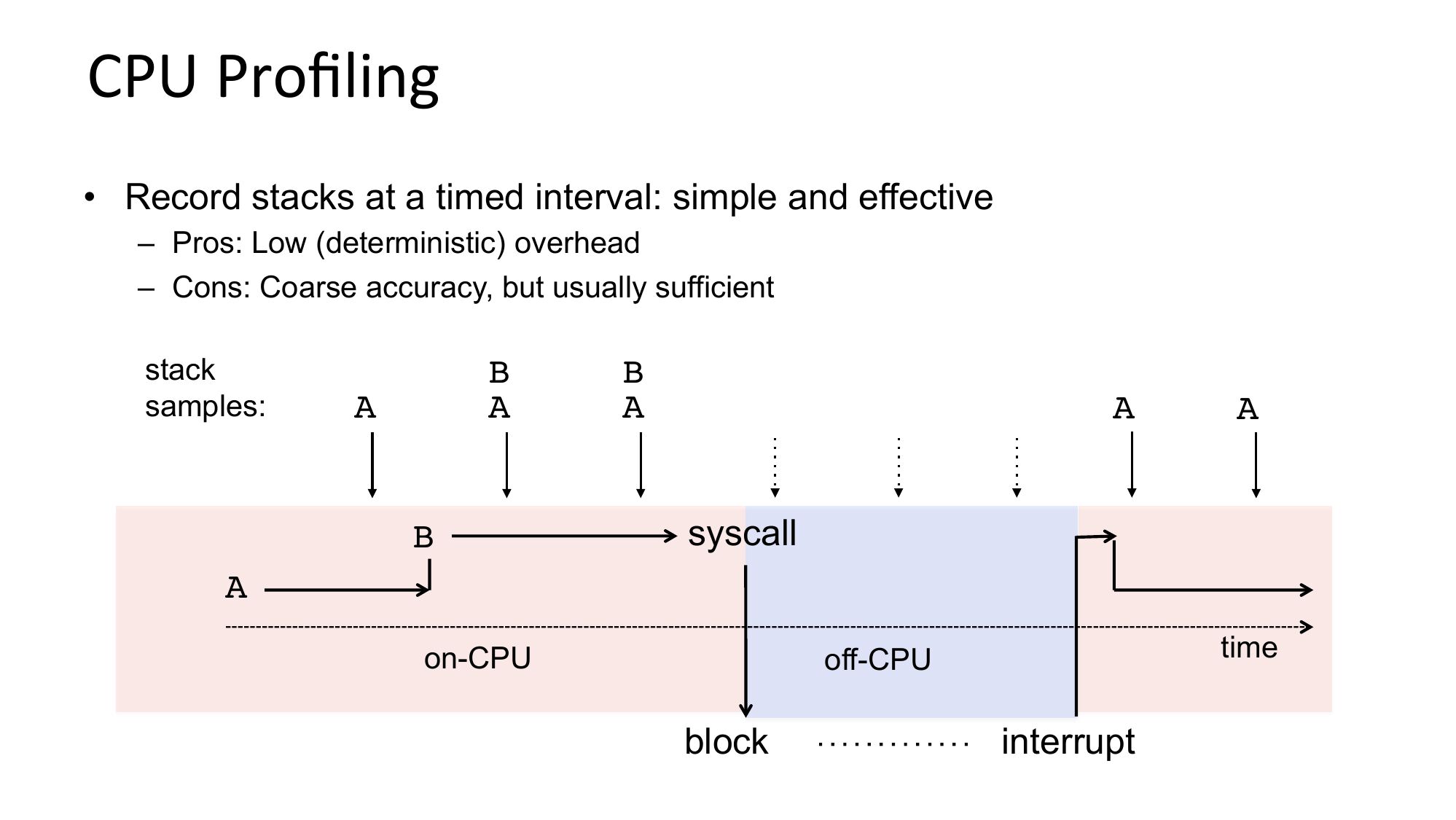

CPU Profiling
• Record stacks at a timed interval: simple and effective
– Pros: Low (deterministic) overhead
– Cons: Coarse accuracy, but usually sufficient
stack
samples:
syscall
on-CPU
time
off-CPU
block
interrupt

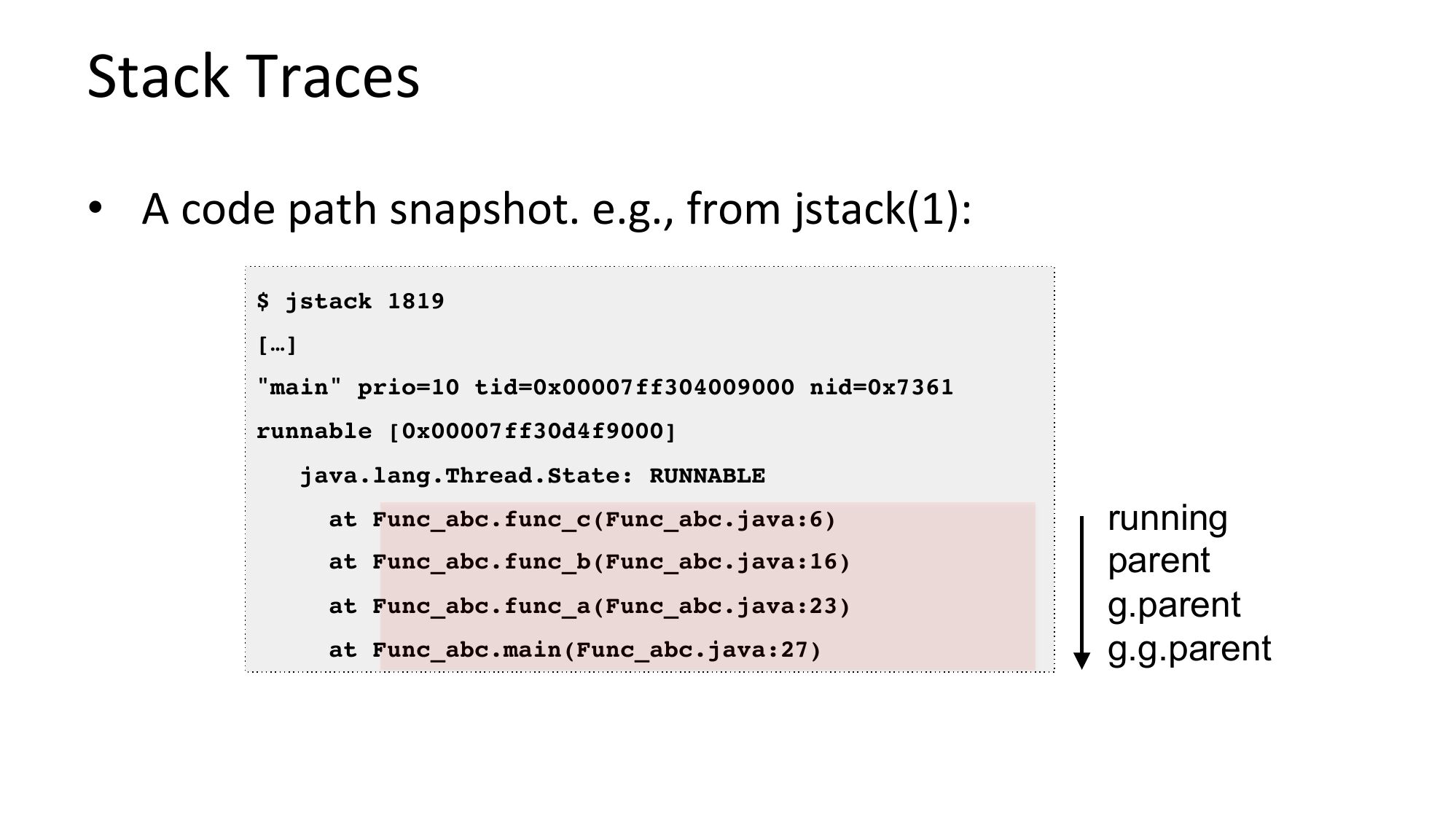

Stack Traces
• A code path snapshot. e.g., from jstack(1):
$ jstack 1819
[…]
"main" prio=10 tid=0x00007ff304009000 nid=0x7361
runnable [0x00007ff30d4f9000]
java.lang.Thread.State: RUNNABLE
at Func_abc.func_c(Func_abc.java:6)
at Func_abc.func_b(Func_abc.java:16)
at Func_abc.func_a(Func_abc.java:23)
at Func_abc.main(Func_abc.java:27)
running
parent
g.parent
g.g.parent

System Profilers
• Linux
– perf_events (aka "perf")
• Oracle Solaris
– DTrace
• OS X
– Instruments
• Windows
– XPerf, WPA (which now has flame graphs!)
• And many others…

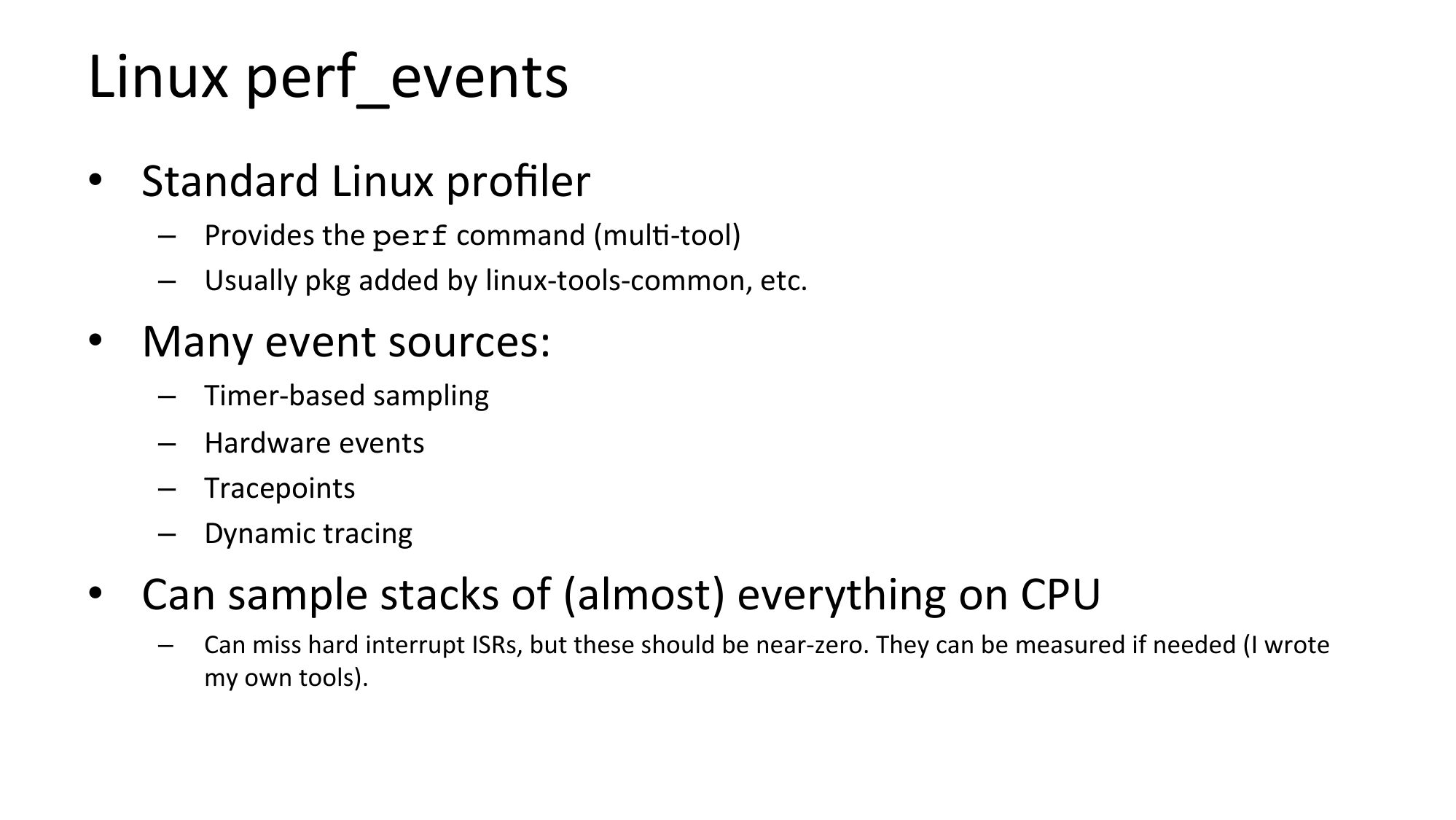

Linux perf_events
• Standard Linux profiler
– Provides the perf command (mulK-tool)
– Usually pkg added by linux-tools-common, etc.
• Many event sources:
Timer-based sampling
Hardware events
Tracepoints
Dynamic tracing
• Can sample stacks of (almost) everything on CPU
Can miss hard interrupt ISRs, but these should be near-zero. They can be measured if needed (I wrote
my own tools).

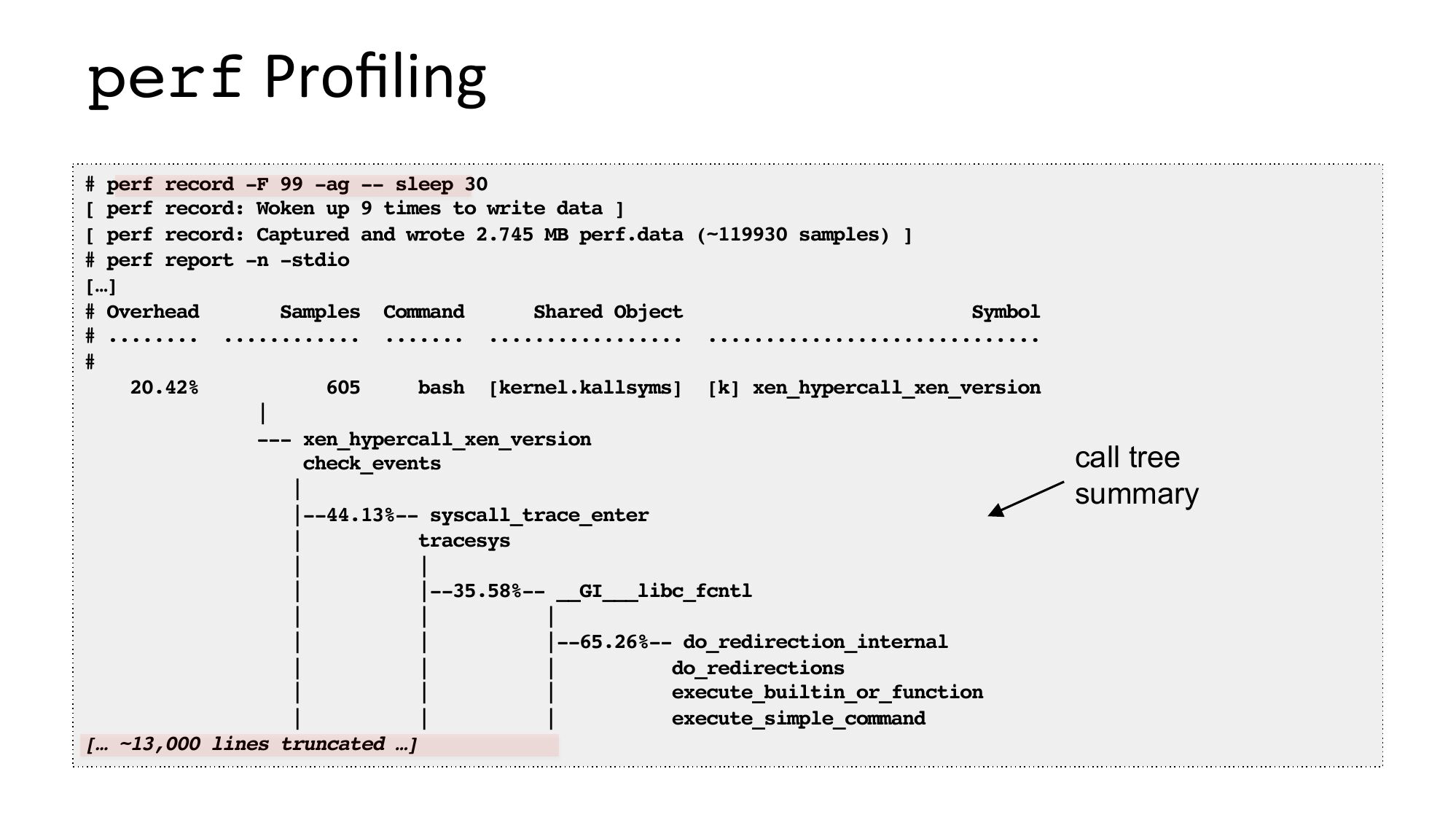

perf Profiling
# perf record -F 99 -ag -- sleep 30
[ perf record: Woken up 9 times to write data ]
[ perf record: Captured and wrote 2.745 MB perf.data (~119930 samples) ]
# perf report -n -stdio
[…]
# Overhead
Samples Command
Shared Object
Symbol
# ........ ............ ....... ................. .............................
20.42%
bash [kernel.kallsyms] [k] xen_hypercall_xen_version
--- xen_hypercall_xen_version
check_events
|--44.13%-- syscall_trace_enter
tracesys
|--35.58%-- __GI___libc_fcntl
|--65.26%-- do_redirection_internal
do_redirections
execute_builtin_or_function
execute_simple_command
[… ~13,000 lines truncated …]
call tree
summary

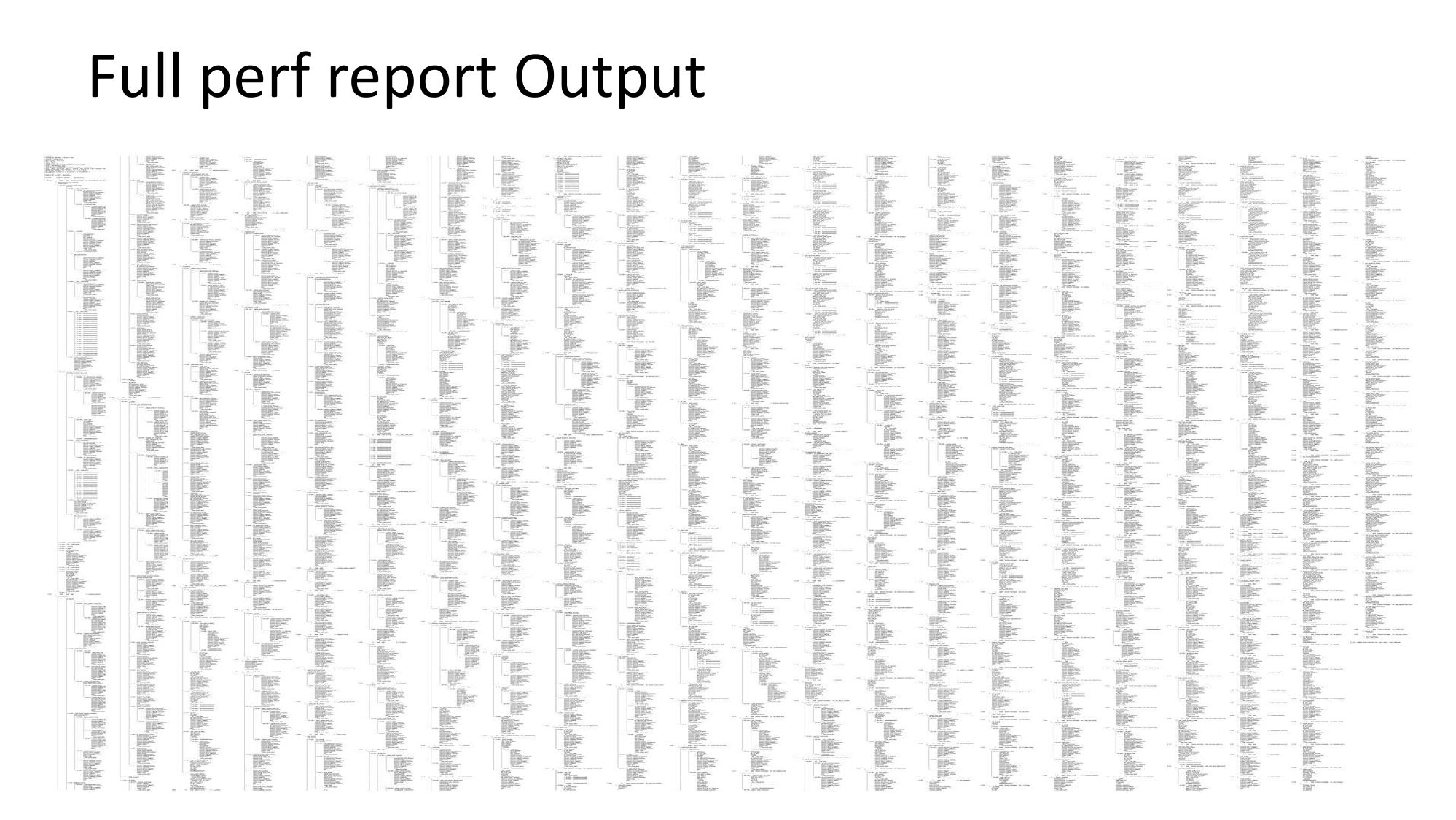

Full perf report Output

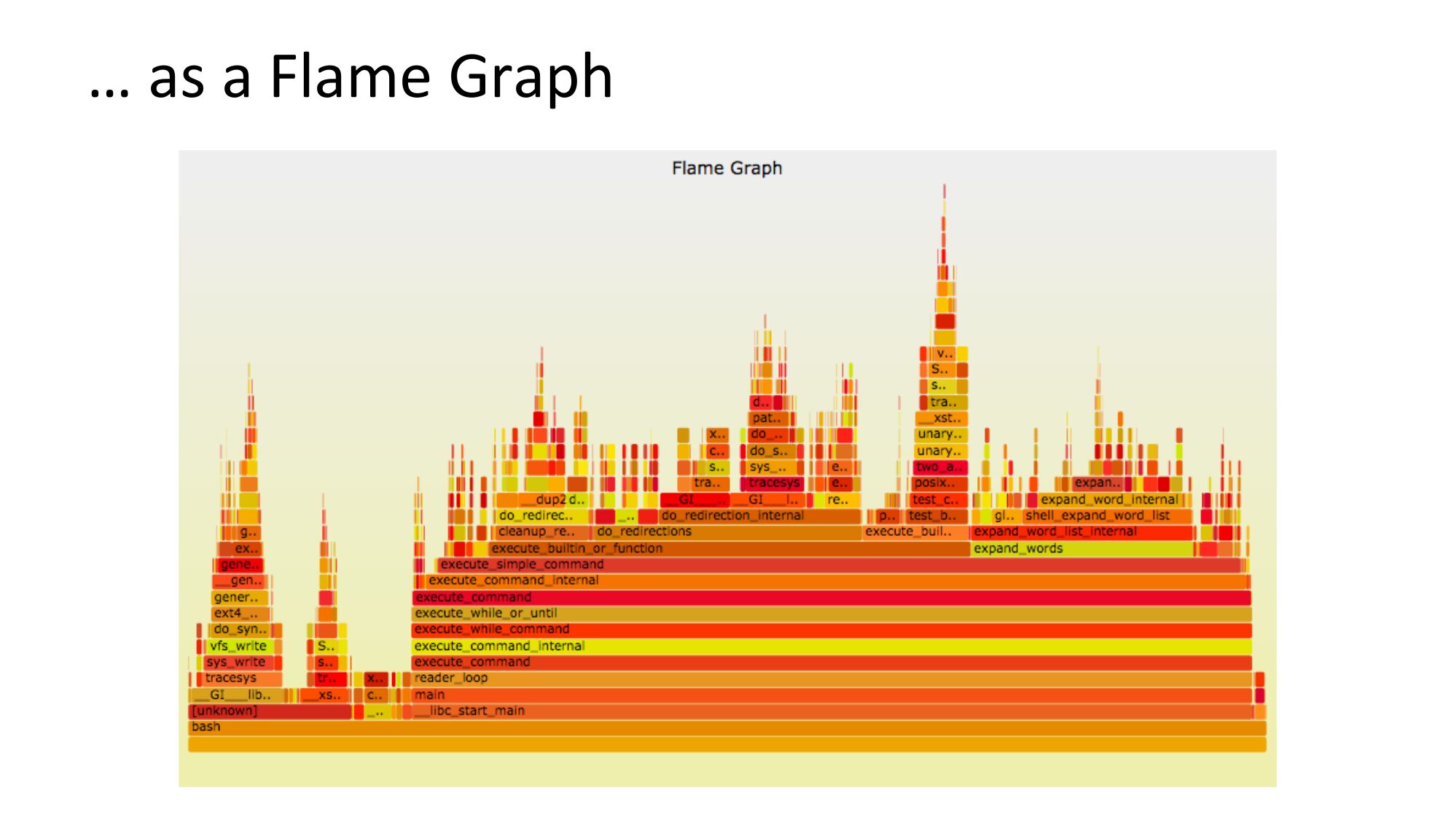

… as a Flame Graph

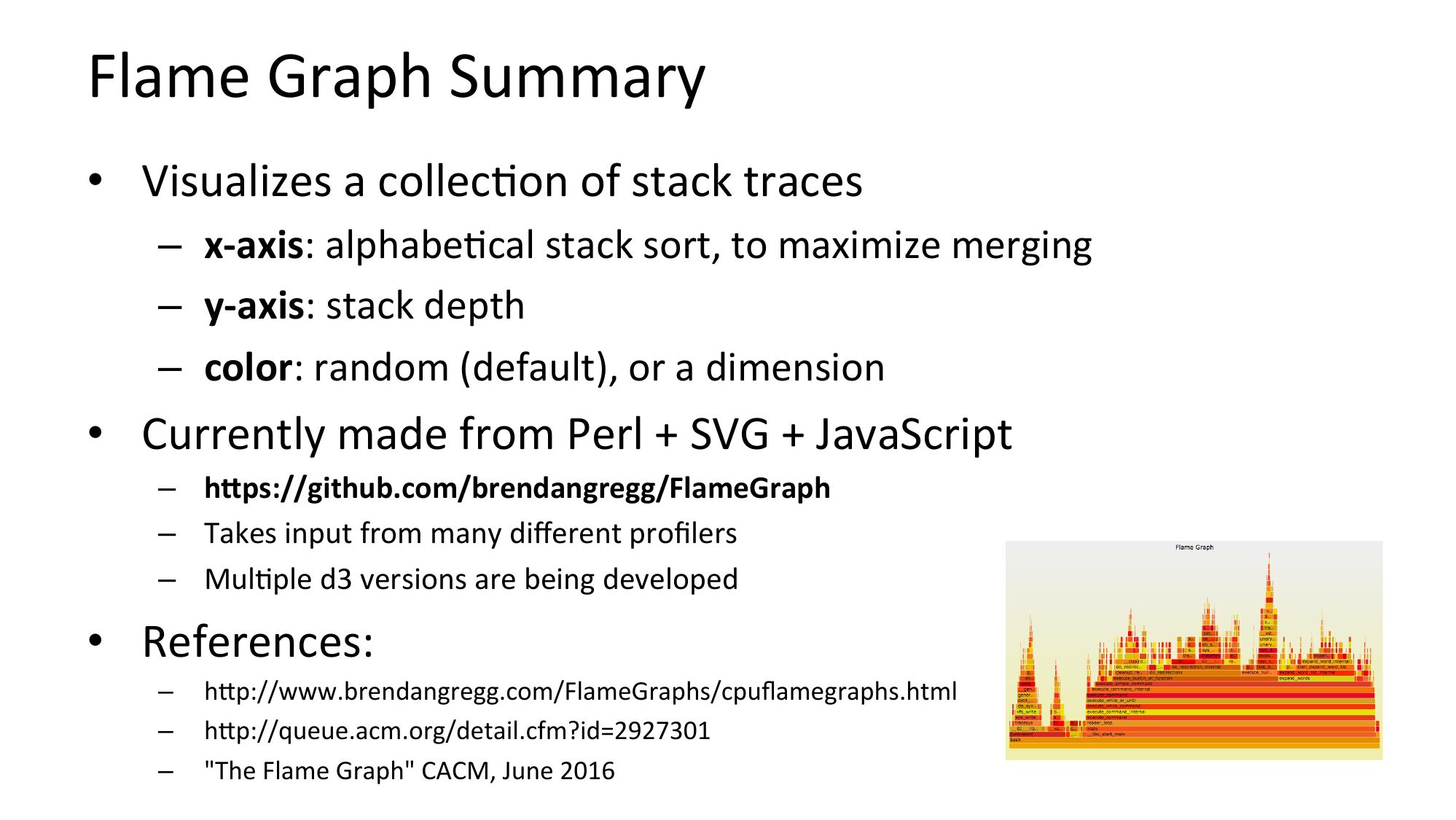

Flame Graph Summary
• Visualizes a collecKon of stack traces
– x-axis: alphabeKcal stack sort, to maximize merging
– y-axis: stack depth
– color: random (default), or a dimension
• Currently made from Perl + SVG + JavaScript
– hBps://github.com/brendangregg/FlameGraph
– Takes input from many different profilers
– MulKple d3 versions are being developed
• References:
hcp://www.brendangregg.com/FlameGraphs/cpuflamegraphs.html
hcp://queue.acm.org/detail.cfm?id=2927301
"The Flame Graph" CACM, June 2016

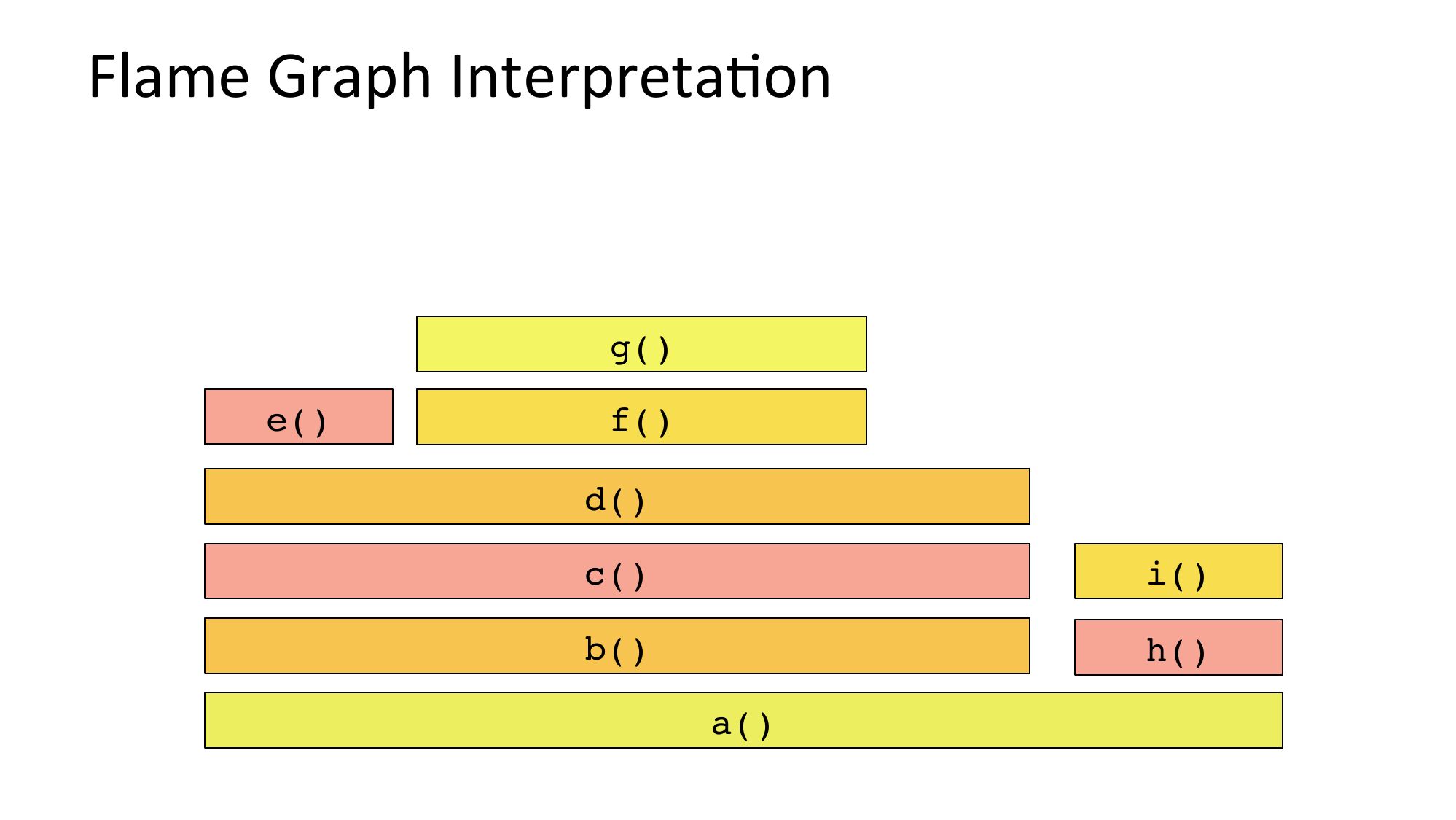

Flame Graph InterpretaKon
g()
e()
f()
d()
c()
i()
b()
h()
a()

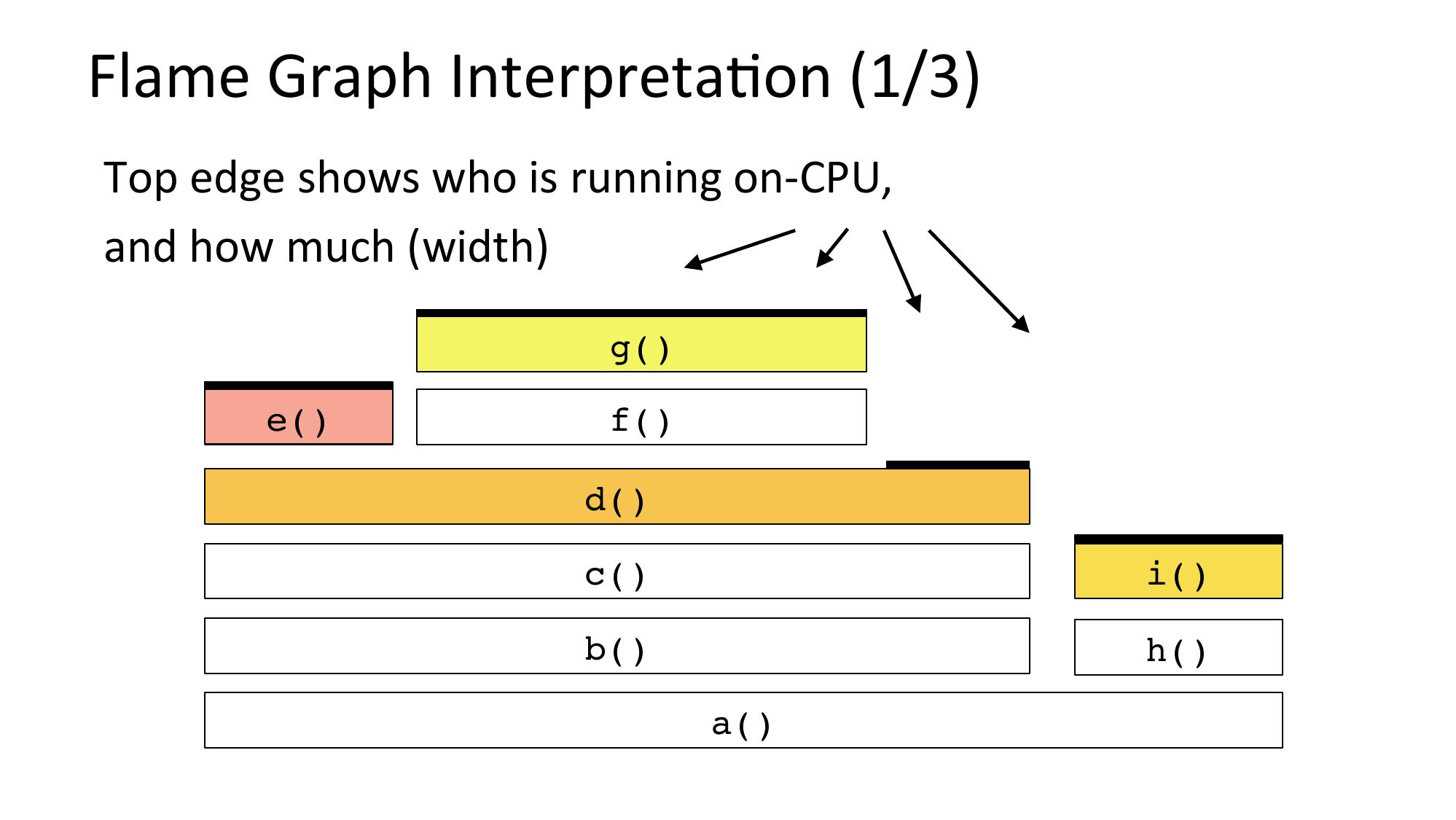

Flame Graph InterpretaKon (1/3)
Top edge shows who is running on-CPU,
and how much (width)
g()
e()
f()
d()
c()
i()
b()
h()
a()

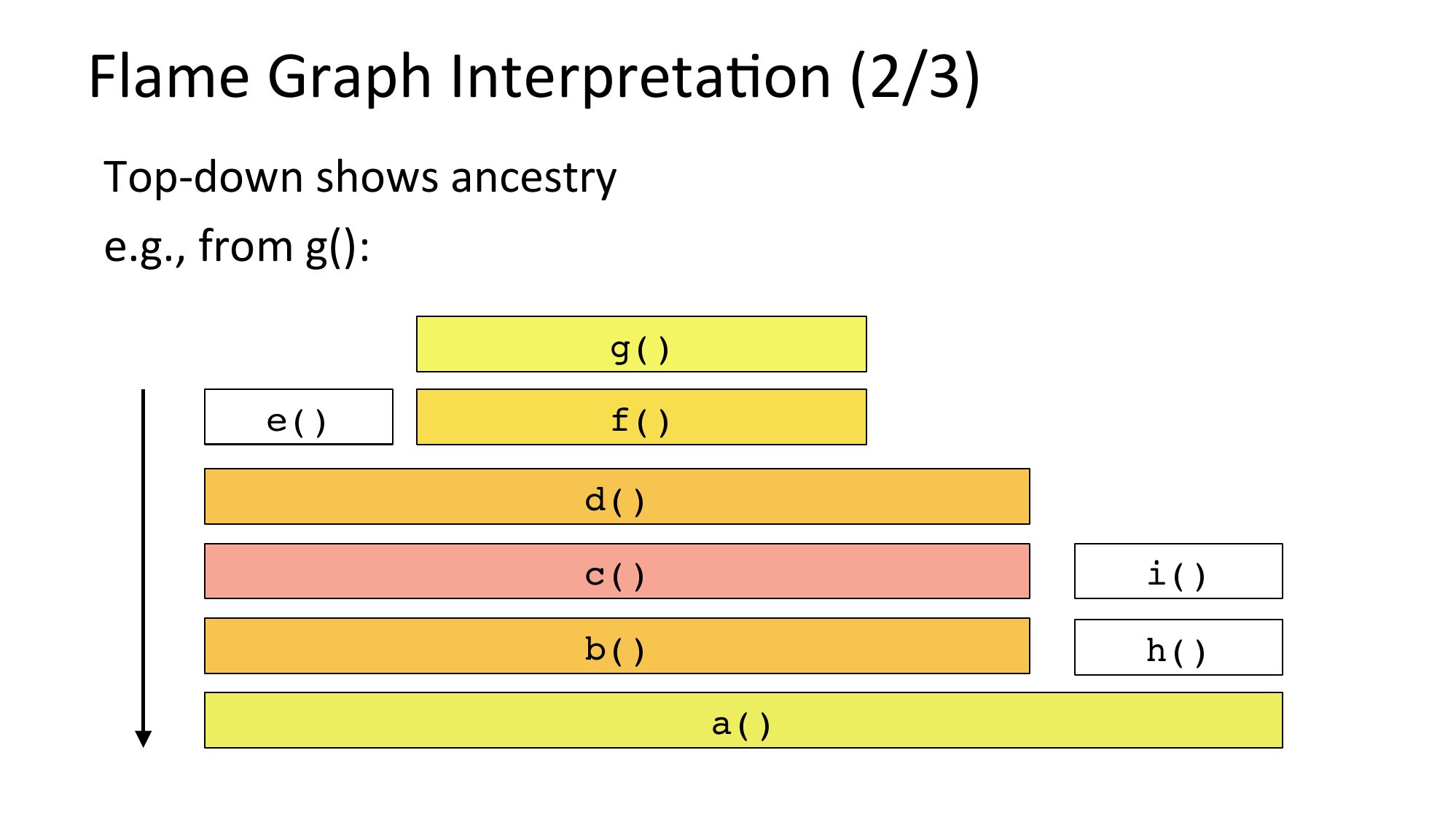

Flame Graph InterpretaKon (2/3)
Top-down shows ancestry
e.g., from g():
g()
e()
f()
d()
c()
i()
b()
h()
a()

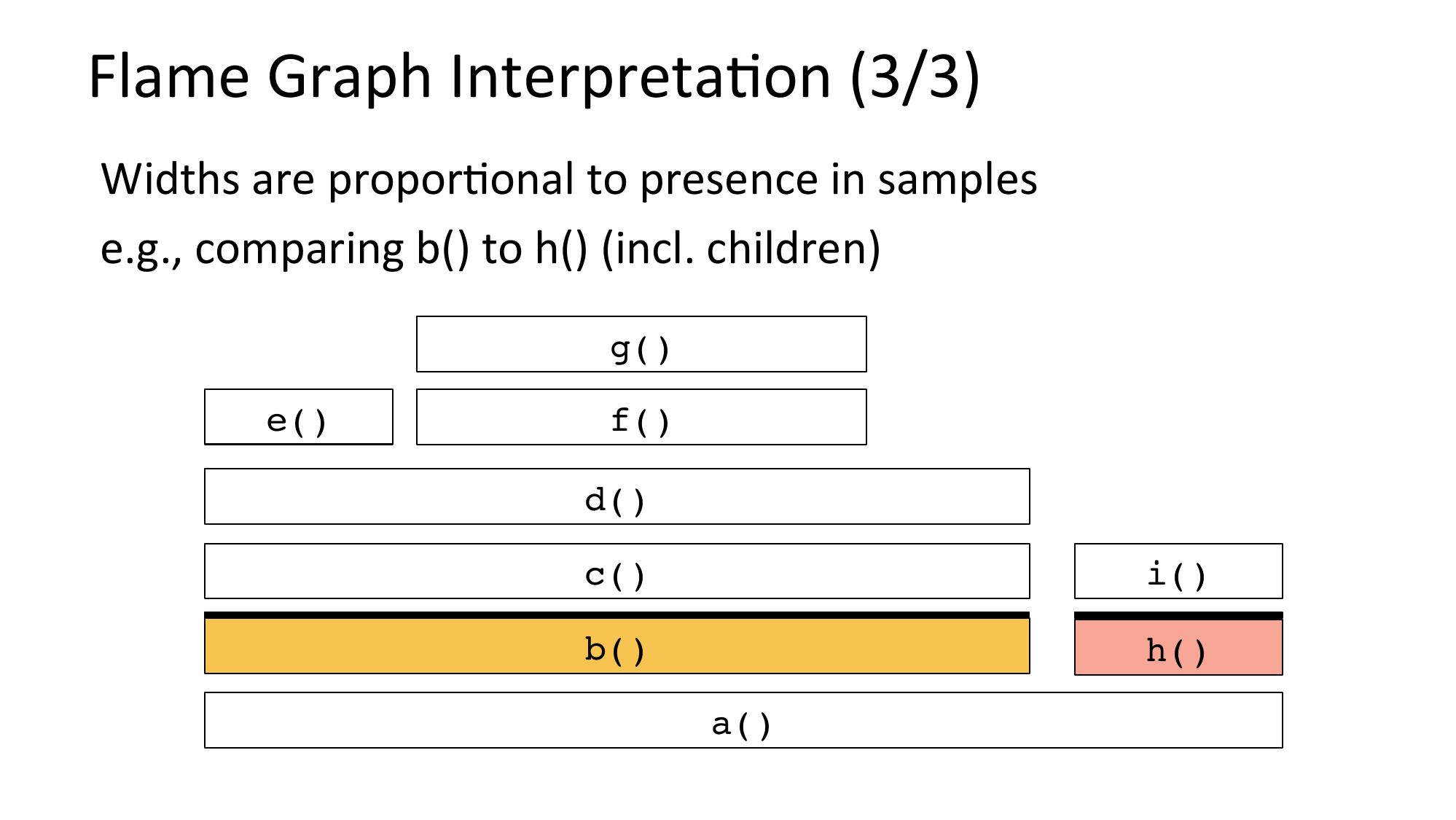

Flame Graph InterpretaKon (3/3)
Widths are proporKonal to presence in samples
e.g., comparing b() to h() (incl. children)
g()
e()
f()
d()
c()
i()
b()
h()
a()

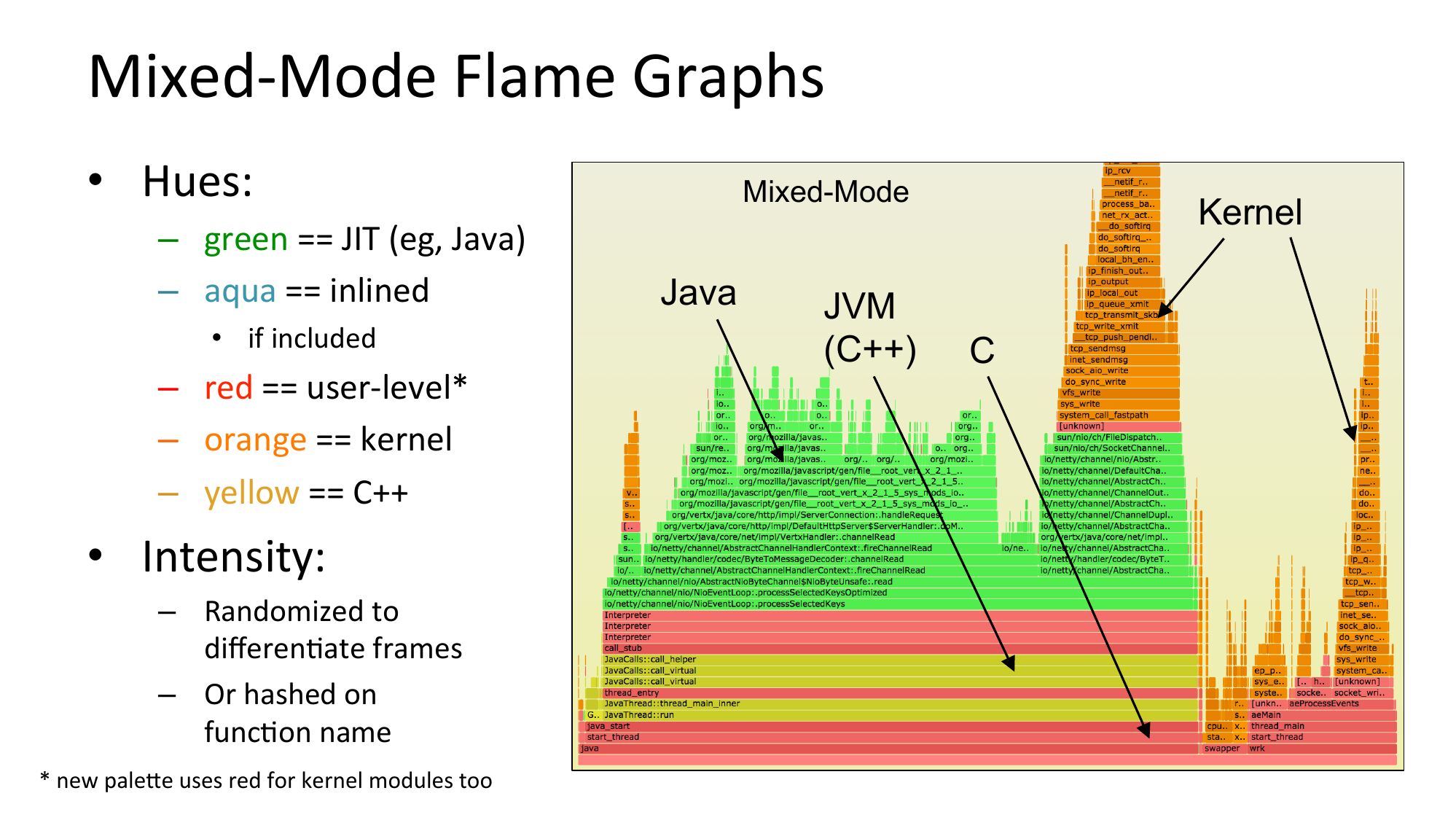

Mixed-Mode Flame Graphs
• Hues:
– green == JIT (eg, Java)
– aqua == inlined
• if included
– red == user-level*
– orange == kernel
– yellow == C++
• Intensity:
– Randomized to
differenKate frames
– Or hashed on
funcKon name
* new palece uses red for kernel modules too
Mixed-Mode
Java
JVM
(C++)
Kernel

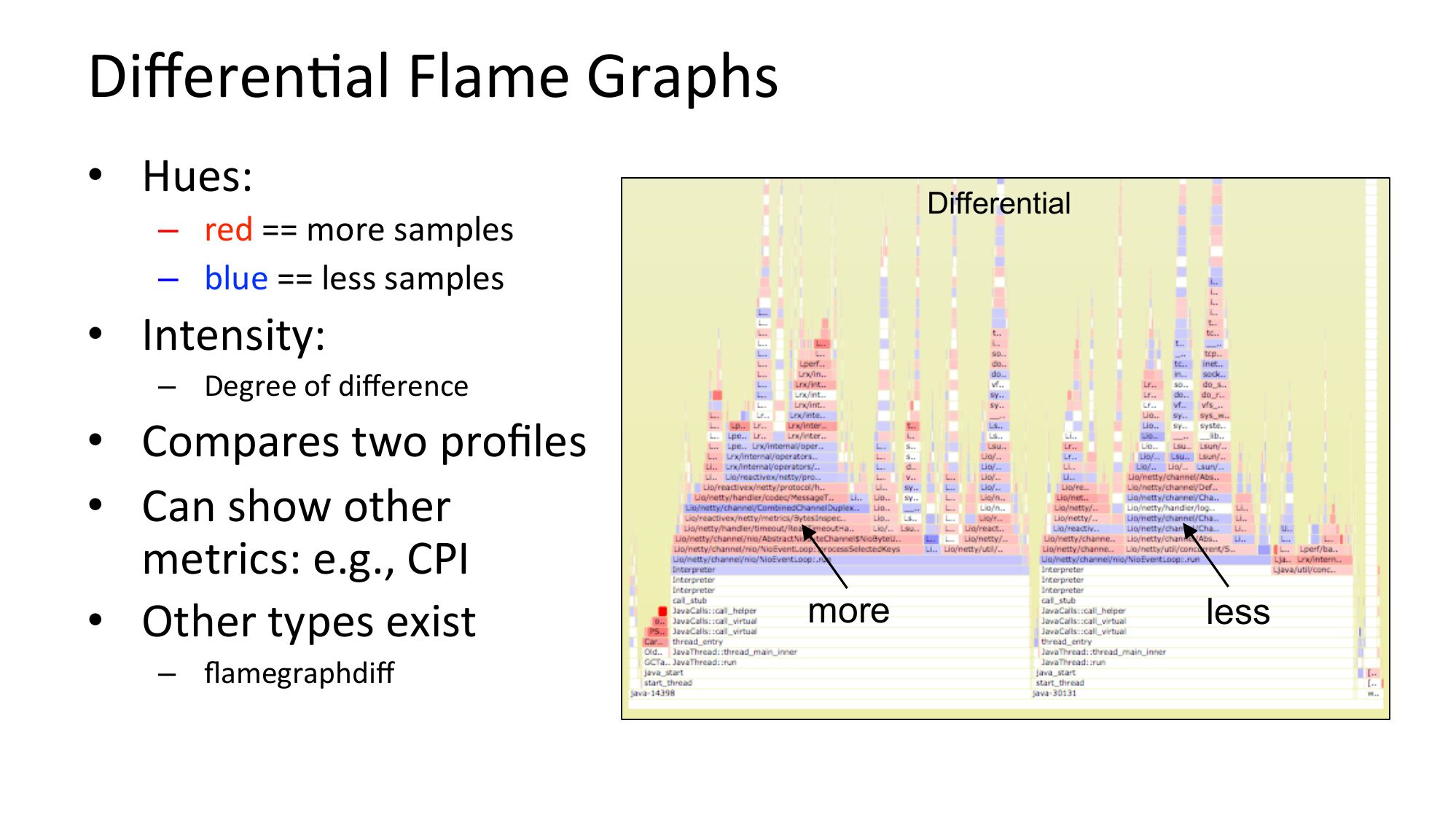

DifferenKal Flame Graphs
• Hues:
Differential
– red == more samples
– blue == less samples
• Intensity:
– Degree of difference
• Compares two profiles
• Can show other
metrics: e.g., CPI
• Other types exist
– flamegraphdiff
more
less

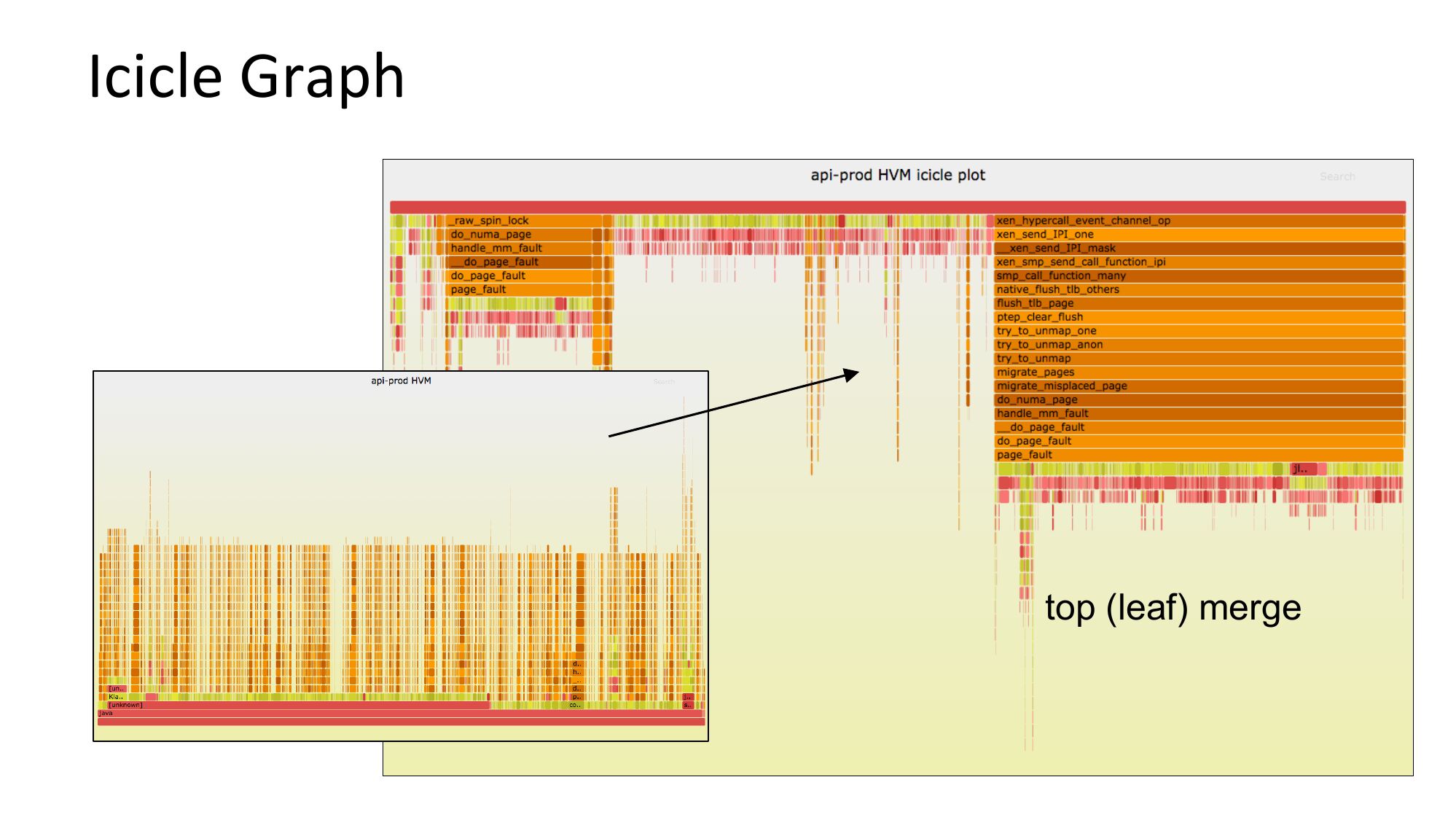

Icicle Graph
top (leaf) merge

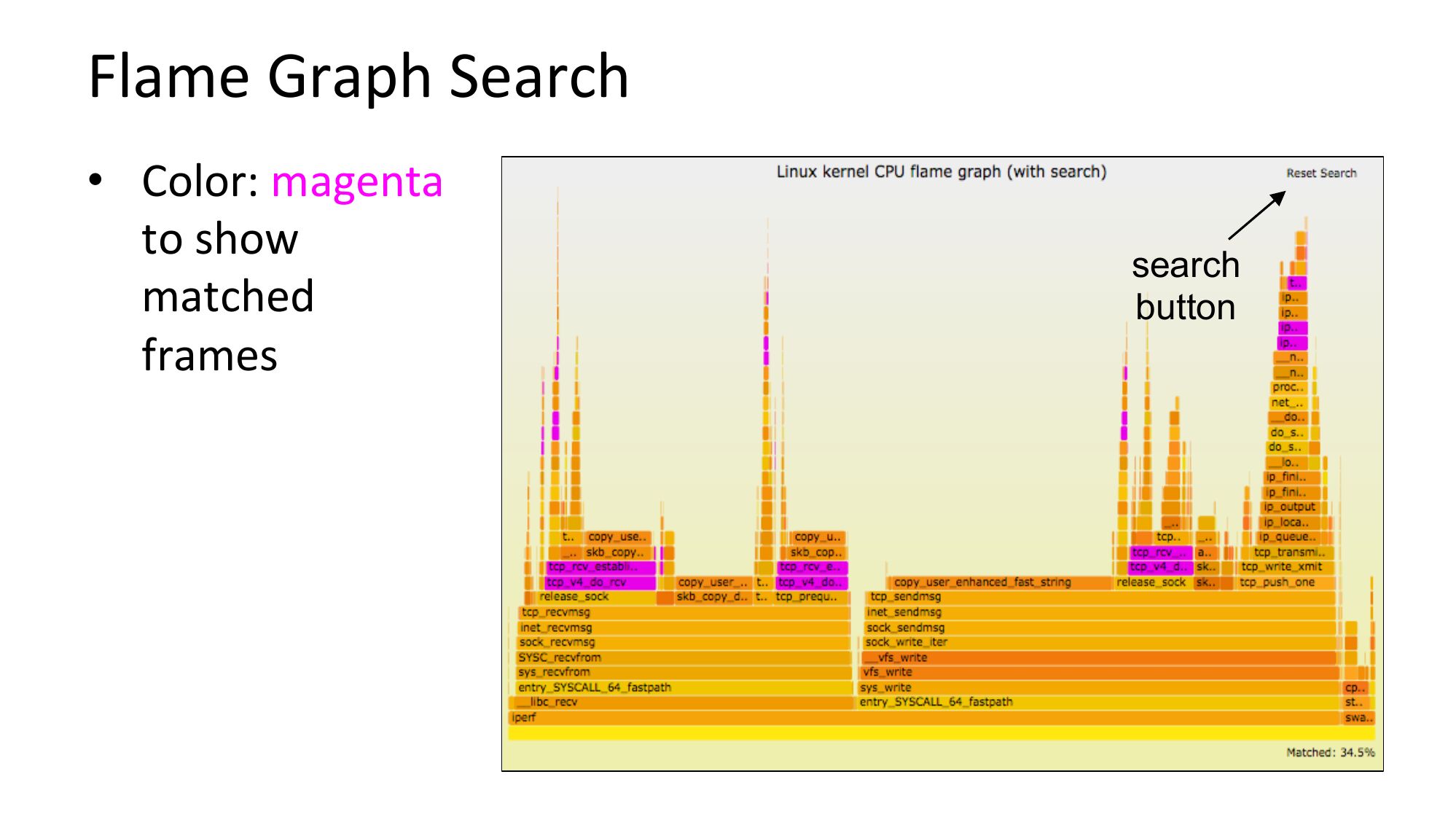

Flame Graph Search
• Color: magenta
to show
matched
frames
search
button

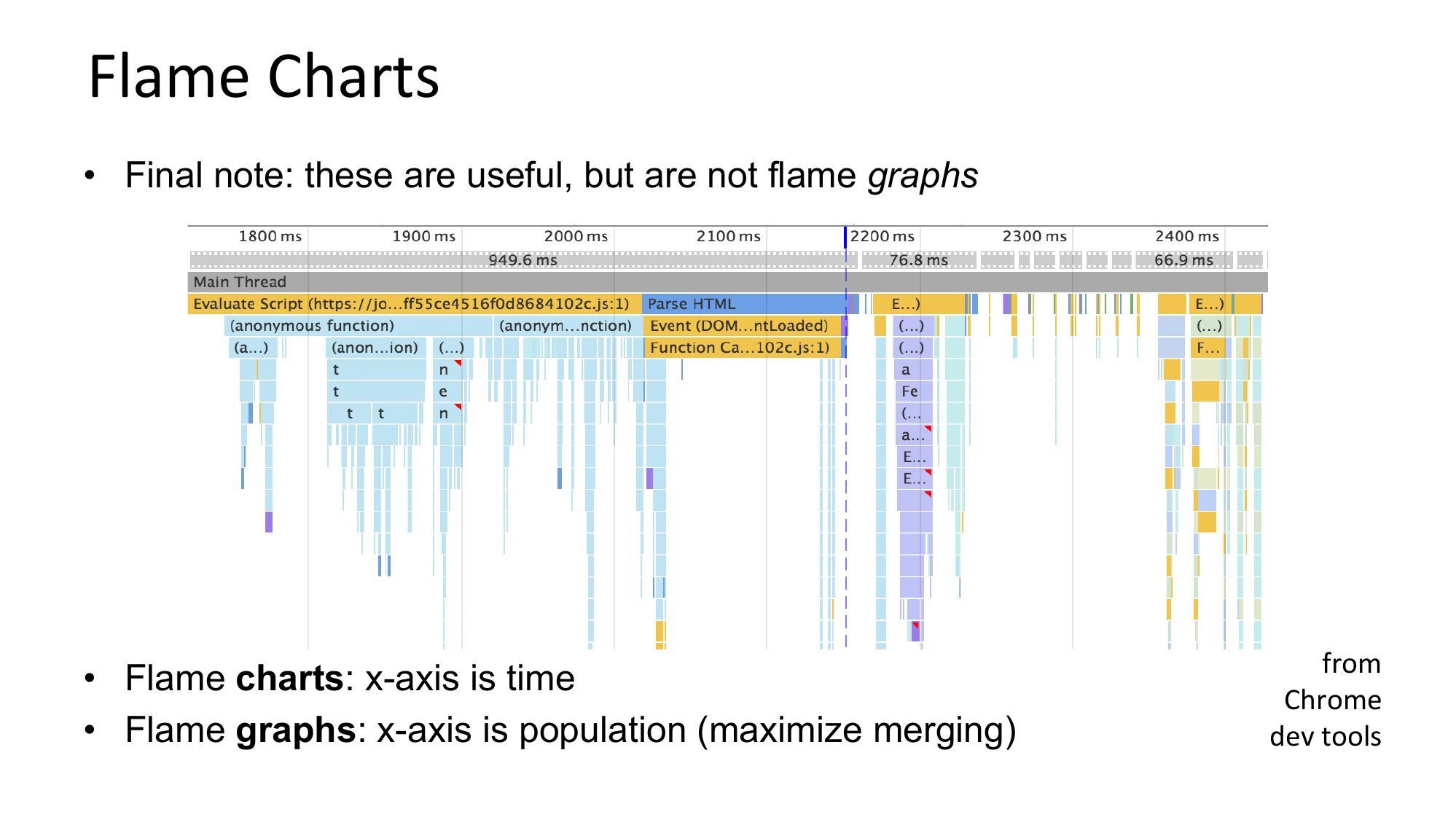

Flame Charts
• Final note: these are useful, but are not flame graphs
• Flame charts: x-axis is time
• Flame graphs: x-axis is population (maximize merging)
from
Chrome
dev tools

PiHalls and fixes
STACK TRACING

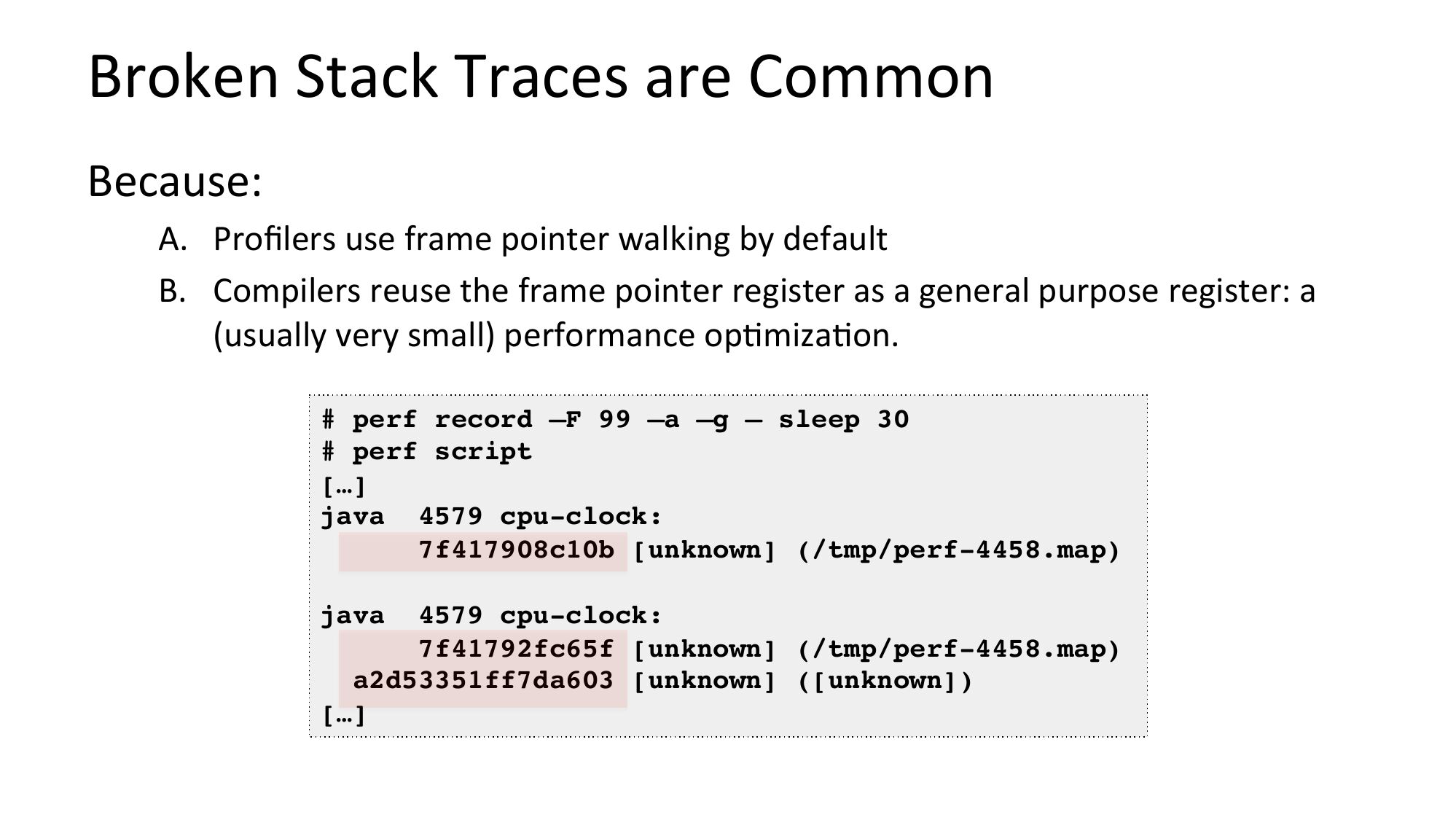

Broken Stack Traces are Common
Because:
A. Profilers use frame pointer walking by default
B. Compilers reuse the frame pointer register as a general purpose register: a
(usually very small) performance opKmizaKon.
# perf record –F 99 –a –g – sleep 30
# perf script
[…]
java 4579 cpu-clock:
7f417908c10b [unknown] (/tmp/perf-4458.map)
java
4579 cpu-clock:
7f41792fc65f [unknown] (/tmp/perf-4458.map)
a2d53351ff7da603 [unknown] ([unknown])
[…]

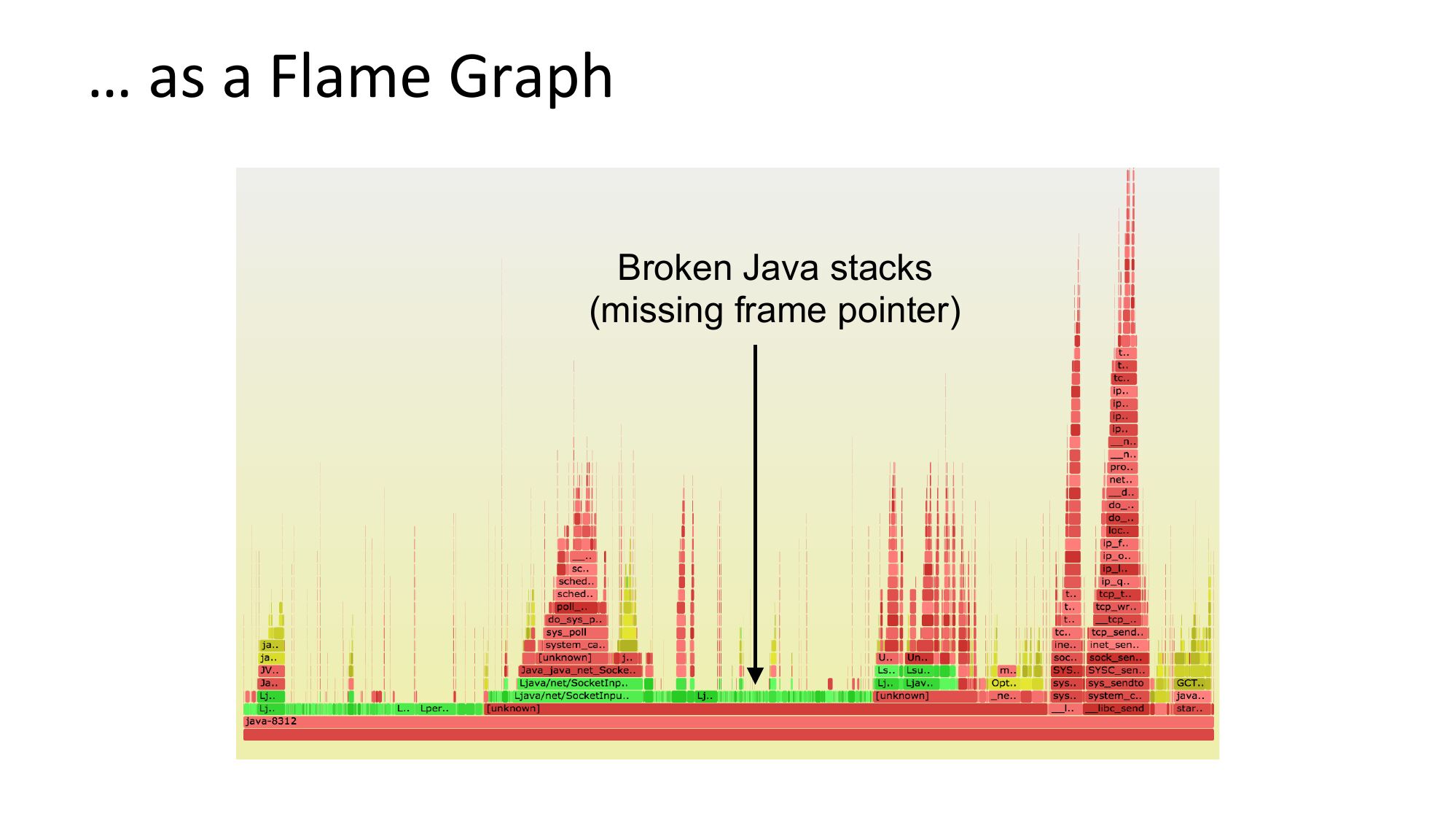

… as a Flame Graph
Broken Java stacks
(missing frame pointer)

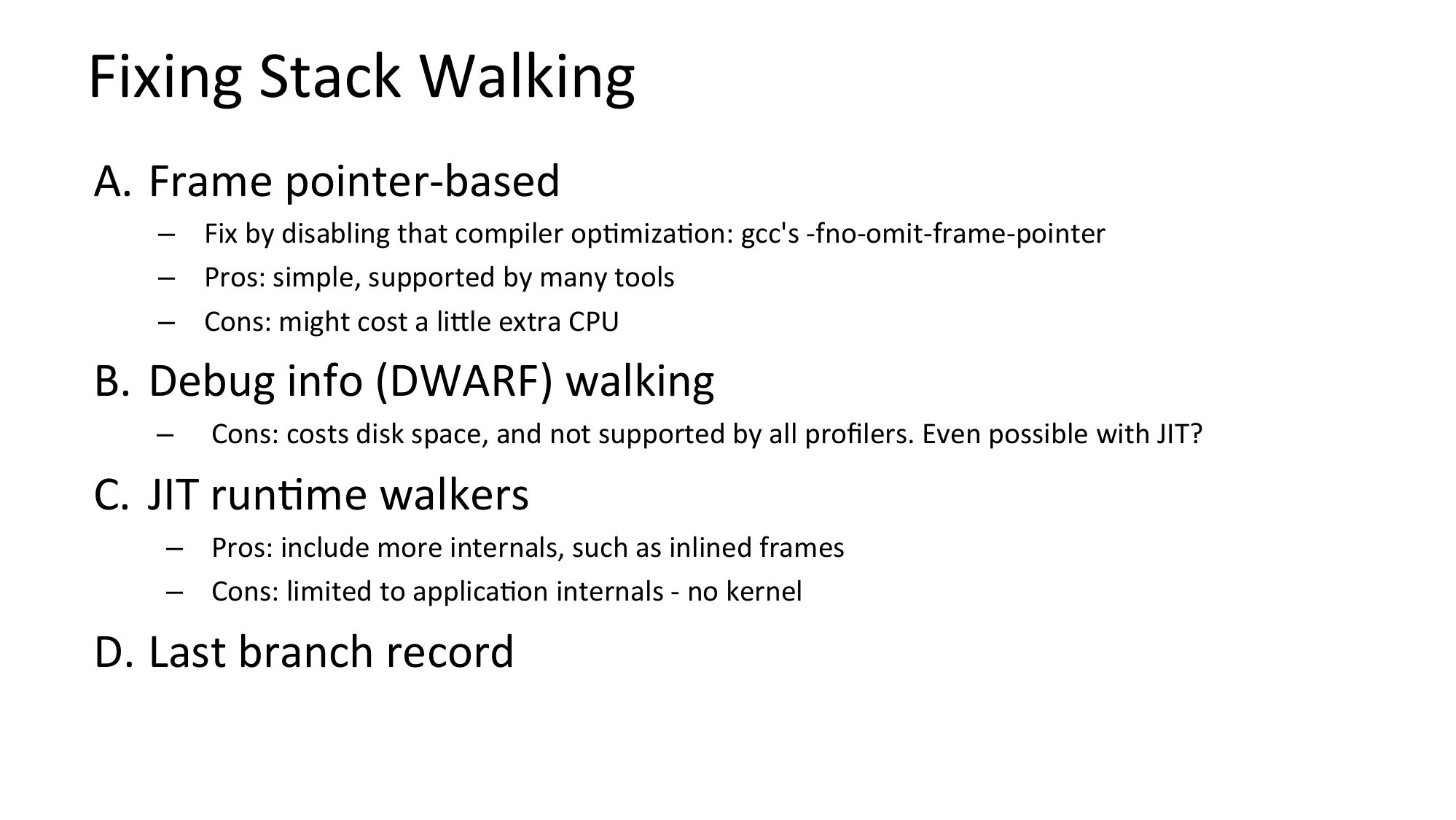

Fixing Stack Walking
A. Frame pointer-based
– Fix by disabling that compiler opKmizaKon: gcc's -fno-omit-frame-pointer
– Pros: simple, supported by many tools
– Cons: might cost a licle extra CPU
B. Debug info (DWARF) walking
Cons: costs disk space, and not supported by all profilers. Even possible with JIT?
C. JIT runKme walkers
– Pros: include more internals, such as inlined frames
– Cons: limited to applicaKon internals - no kernel
D. Last branch record

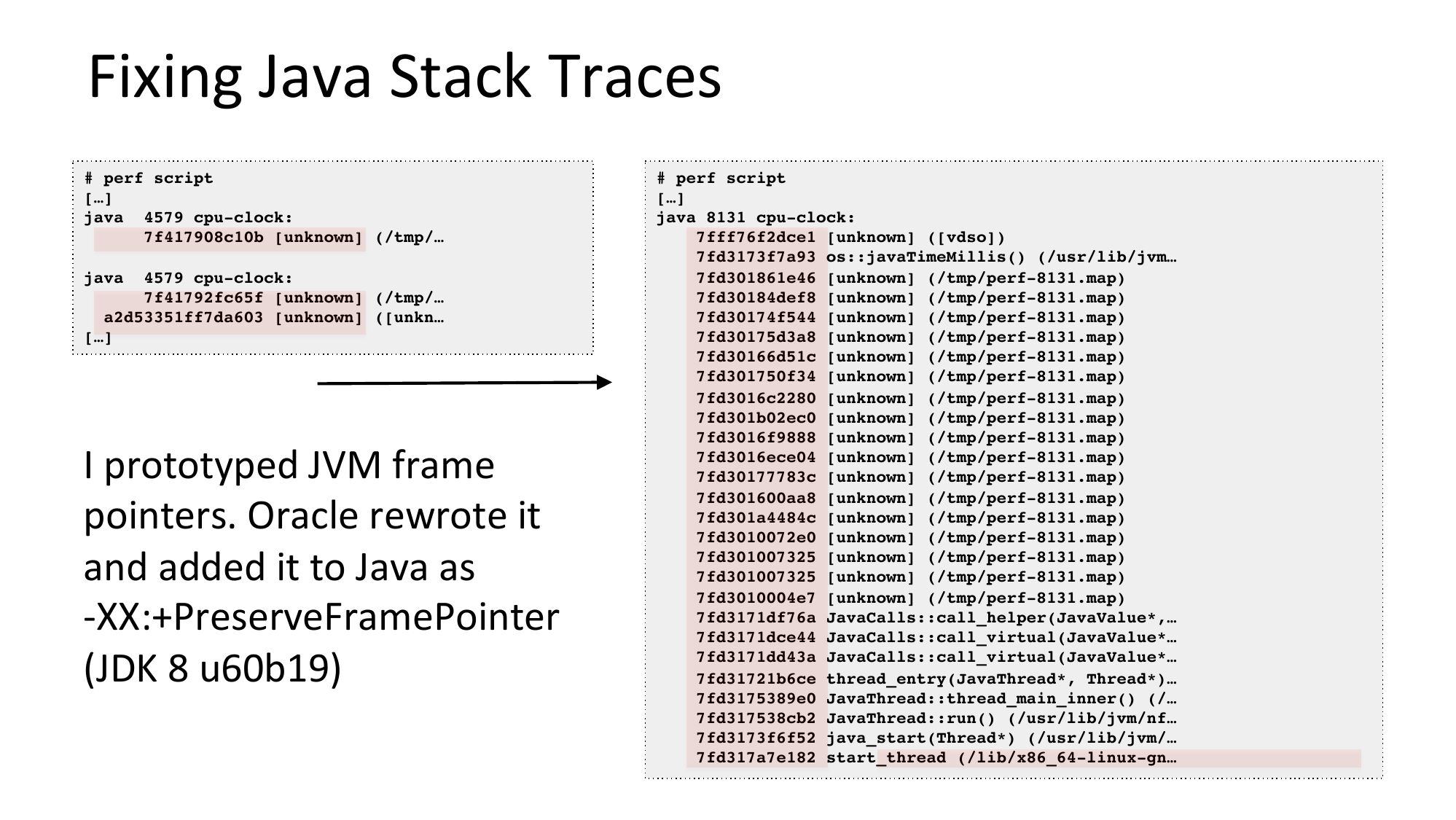

Fixing Java Stack Traces
# perf script
[…]
java 4579 cpu-clock:
7f417908c10b [unknown] (/tmp/…
java
4579 cpu-clock:
7f41792fc65f [unknown] (/tmp/…
a2d53351ff7da603 [unknown] ([unkn…
[…]
I prototyped JVM frame
pointers. Oracle rewrote it
and added it to Java as
-XX:+PreserveFramePointer
(JDK 8 u60b19)
# perf script
[…]
java 8131 cpu-clock:
7fff76f2dce1 [unknown] ([vdso])
7fd3173f7a93 os::javaTimeMillis() (/usr/lib/jvm…
7fd301861e46 [unknown] (/tmp/perf-8131.map)
7fd30184def8 [unknown] (/tmp/perf-8131.map)
7fd30174f544 [unknown] (/tmp/perf-8131.map)
7fd30175d3a8 [unknown] (/tmp/perf-8131.map)
7fd30166d51c [unknown] (/tmp/perf-8131.map)
7fd301750f34 [unknown] (/tmp/perf-8131.map)
7fd3016c2280 [unknown] (/tmp/perf-8131.map)
7fd301b02ec0 [unknown] (/tmp/perf-8131.map)
7fd3016f9888 [unknown] (/tmp/perf-8131.map)
7fd3016ece04 [unknown] (/tmp/perf-8131.map)
7fd30177783c [unknown] (/tmp/perf-8131.map)
7fd301600aa8 [unknown] (/tmp/perf-8131.map)
7fd301a4484c [unknown] (/tmp/perf-8131.map)
7fd3010072e0 [unknown] (/tmp/perf-8131.map)
7fd301007325 [unknown] (/tmp/perf-8131.map)
7fd301007325 [unknown] (/tmp/perf-8131.map)
7fd3010004e7 [unknown] (/tmp/perf-8131.map)
7fd3171df76a JavaCalls::call_helper(JavaValue*,…
7fd3171dce44 JavaCalls::call_virtual(JavaValue*…
7fd3171dd43a JavaCalls::call_virtual(JavaValue*…
7fd31721b6ce thread_entry(JavaThread*, Thread*)…
7fd3175389e0 JavaThread::thread_main_inner() (/…
7fd317538cb2 JavaThread::run() (/usr/lib/jvm/nf…
7fd3173f6f52 java_start(Thread*) (/usr/lib/jvm/…
7fd317a7e182 start_thread (/lib/x86_64-linux-gn…

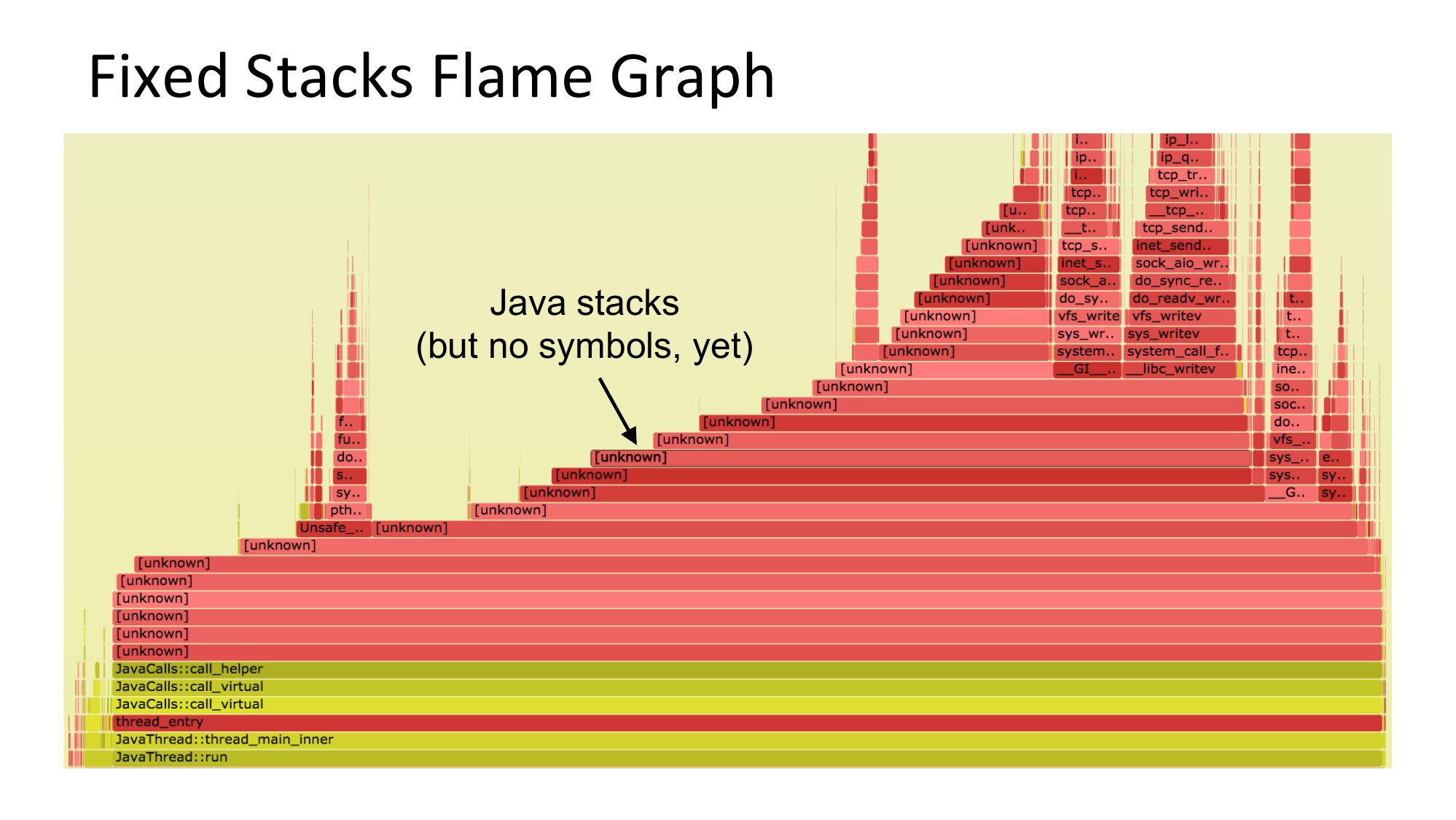

Fixed Stacks Flame Graph
Java stacks
(but no symbols, yet)

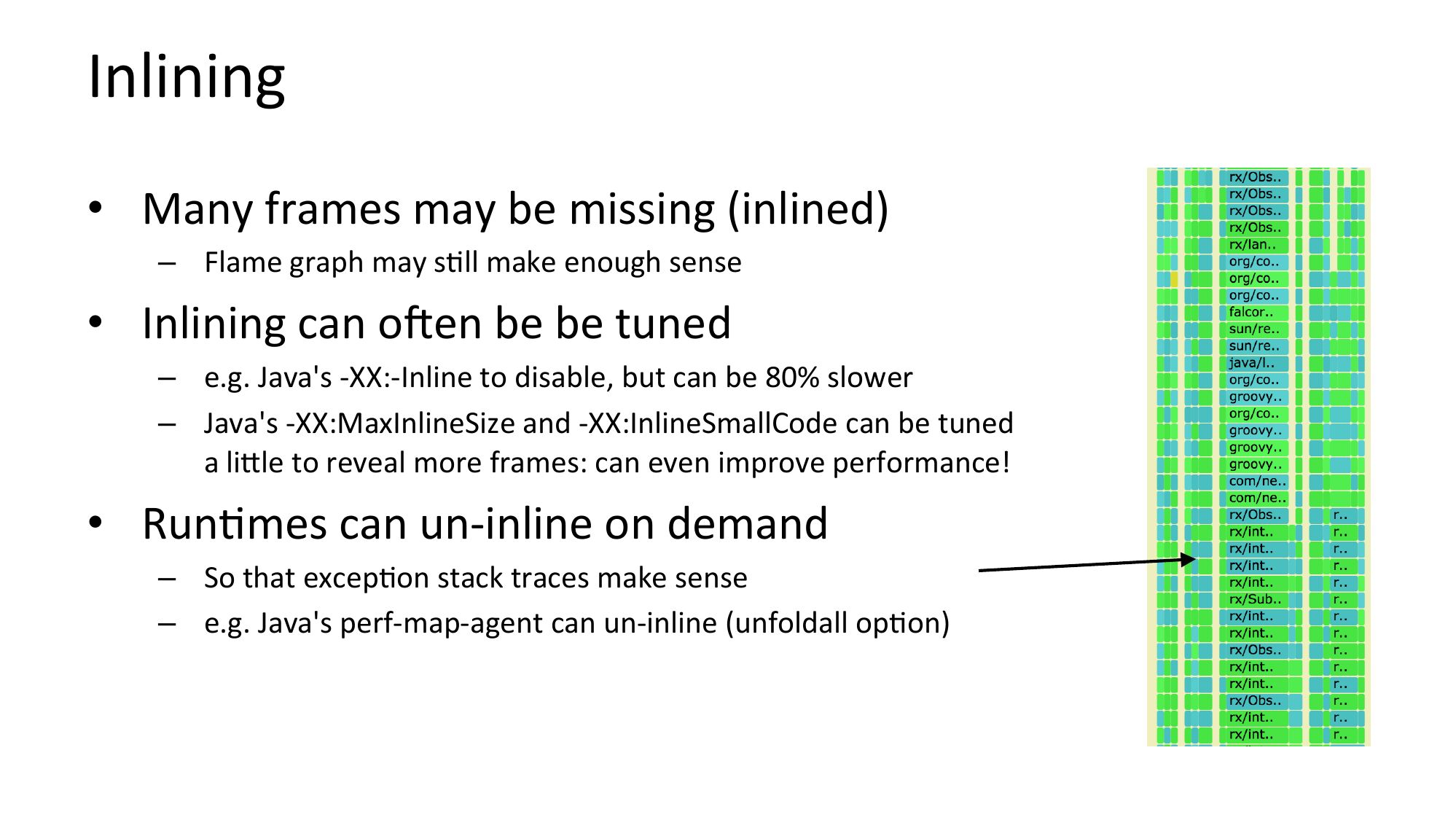

Inlining
• Many frames may be missing (inlined)
– Flame graph may sKll make enough sense
• Inlining can oqen be be tuned
– e.g. Java's -XX:-Inline to disable, but can be 80% slower
– Java's -XX:MaxInlineSize and -XX:InlineSmallCode can be tuned
a licle to reveal more frames: can even improve performance!
• RunKmes can un-inline on demand
– So that excepKon stack traces make sense
– e.g. Java's perf-map-agent can un-inline (unfoldall opKon)

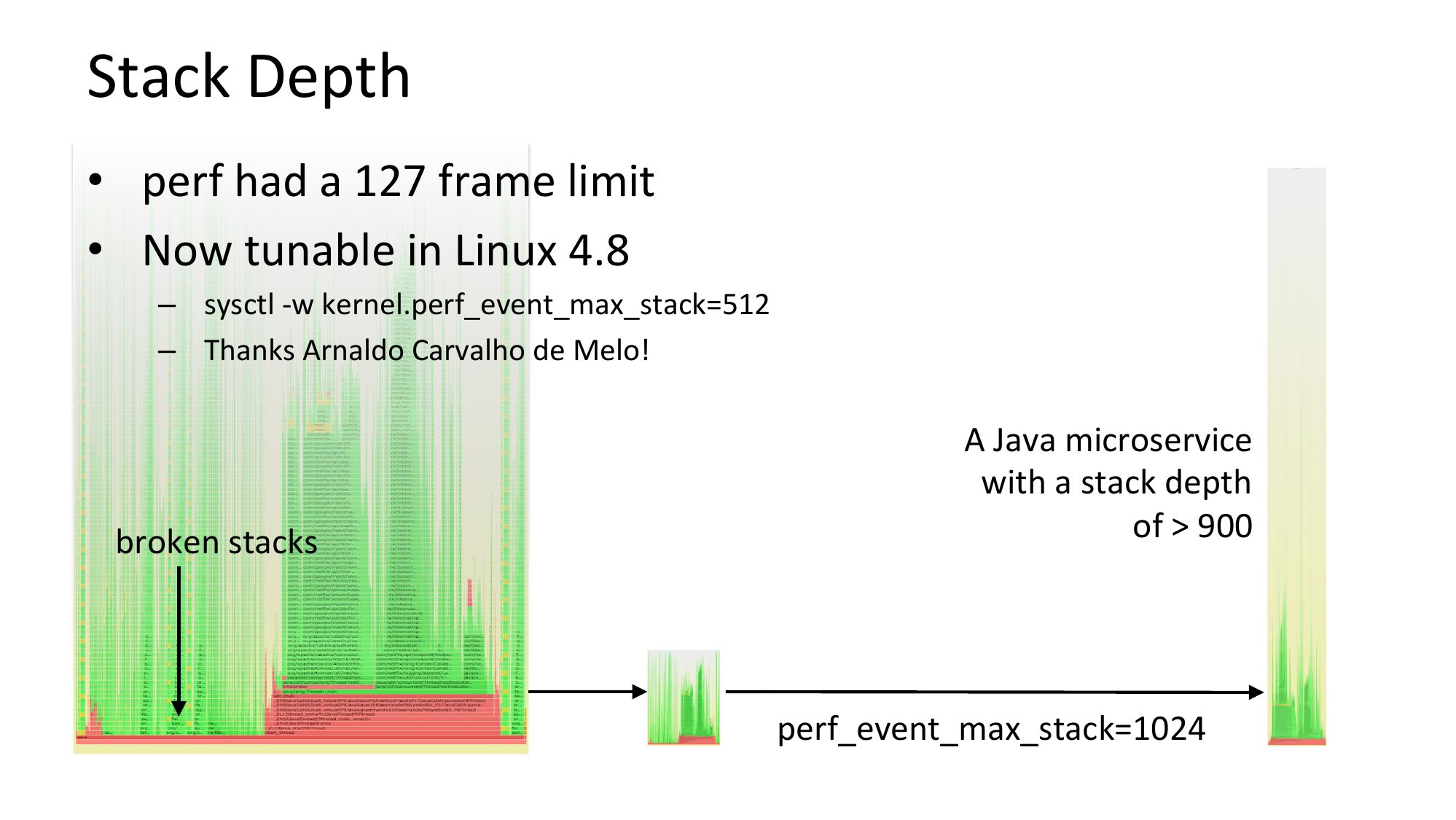

Stack Depth
• perf had a 127 frame limit
• Now tunable in Linux 4.8
– sysctl -w kernel.perf_event_max_stack=512
– Thanks Arnaldo Carvalho de Melo!
broken stacks
A Java microservice
with a stack depth
of >gt; 900
perf_event_max_stack=1024

Fixing
SYMBOLS

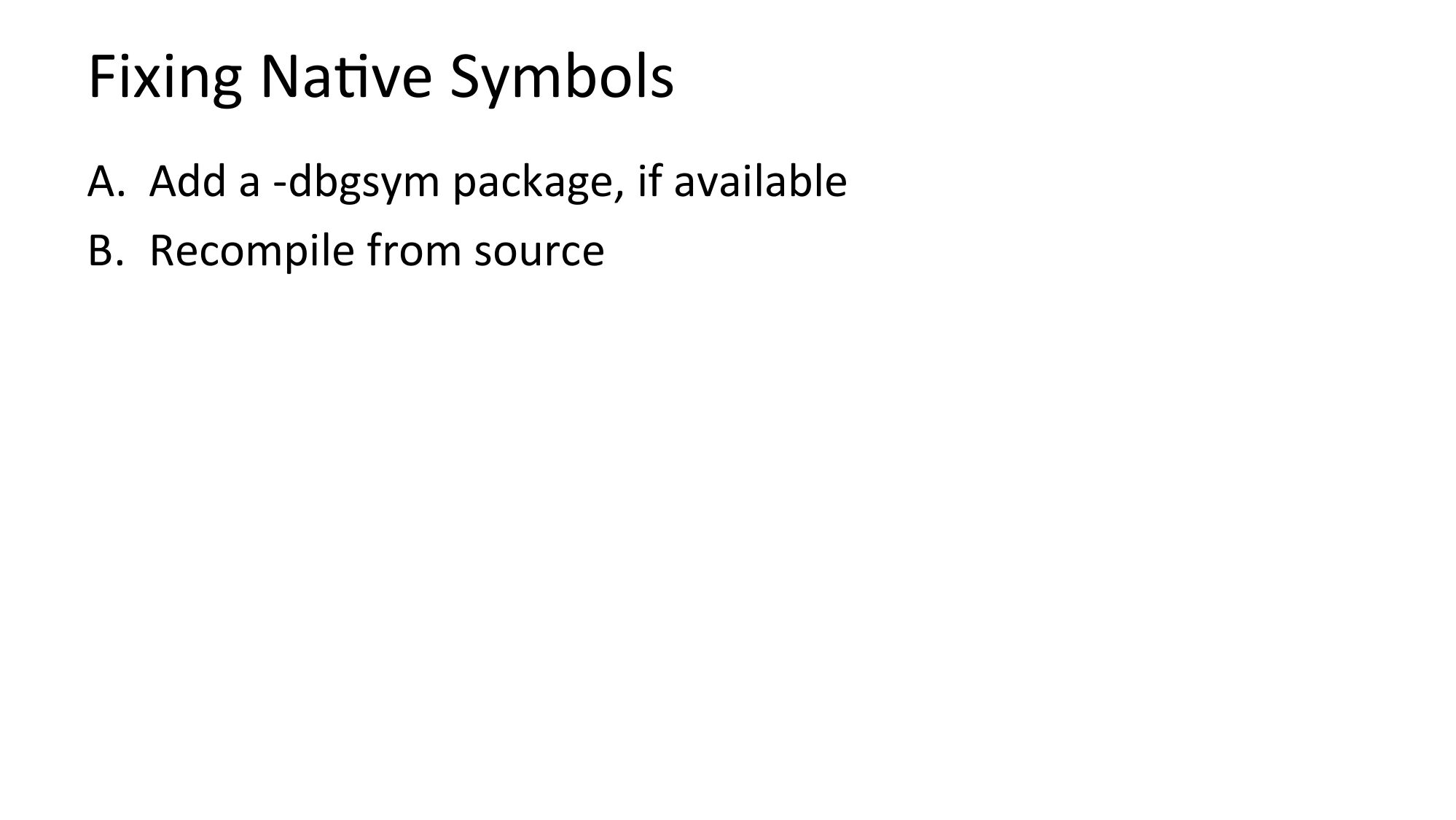

Fixing NaKve Symbols
A. Add a -dbgsym package, if available
B. Recompile from source

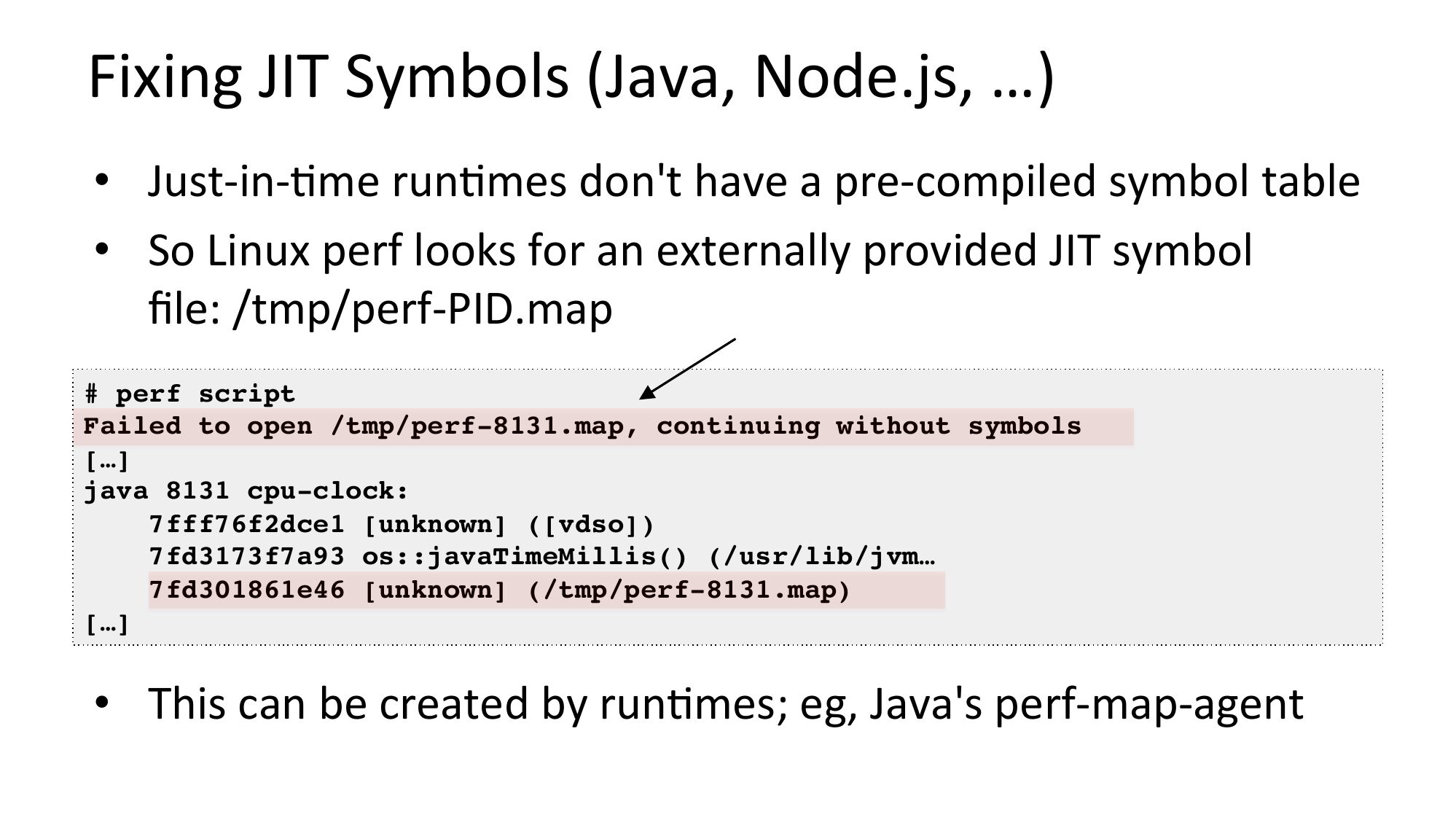

Fixing JIT Symbols (Java, Node.js, …)
• Just-in-Kme runKmes don't have a pre-compiled symbol table
• So Linux perf looks for an externally provided JIT symbol
file: /tmp/perf-PID.map
# perf script
Failed to open /tmp/perf-8131.map, continuing without symbols
[…]
java 8131 cpu-clock:
7fff76f2dce1 [unknown] ([vdso])
7fd3173f7a93 os::javaTimeMillis() (/usr/lib/jvm…
7fd301861e46 [unknown] (/tmp/perf-8131.map)
[…]
• This can be created by runKmes; eg, Java's perf-map-agent

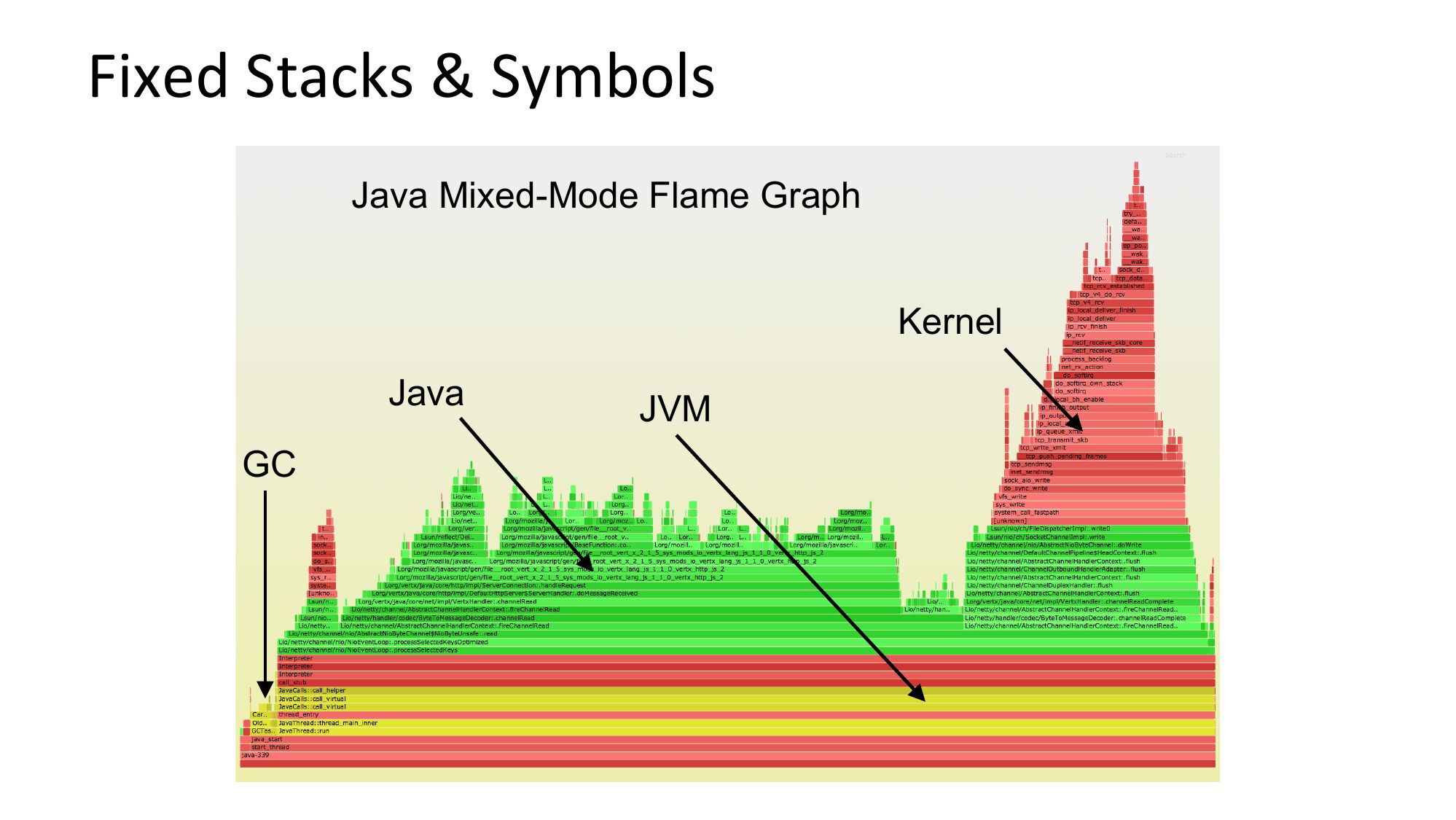

Fixed Stacks & Symbols
Java Mixed-Mode Flame Graph
Kernel
Java
JVM

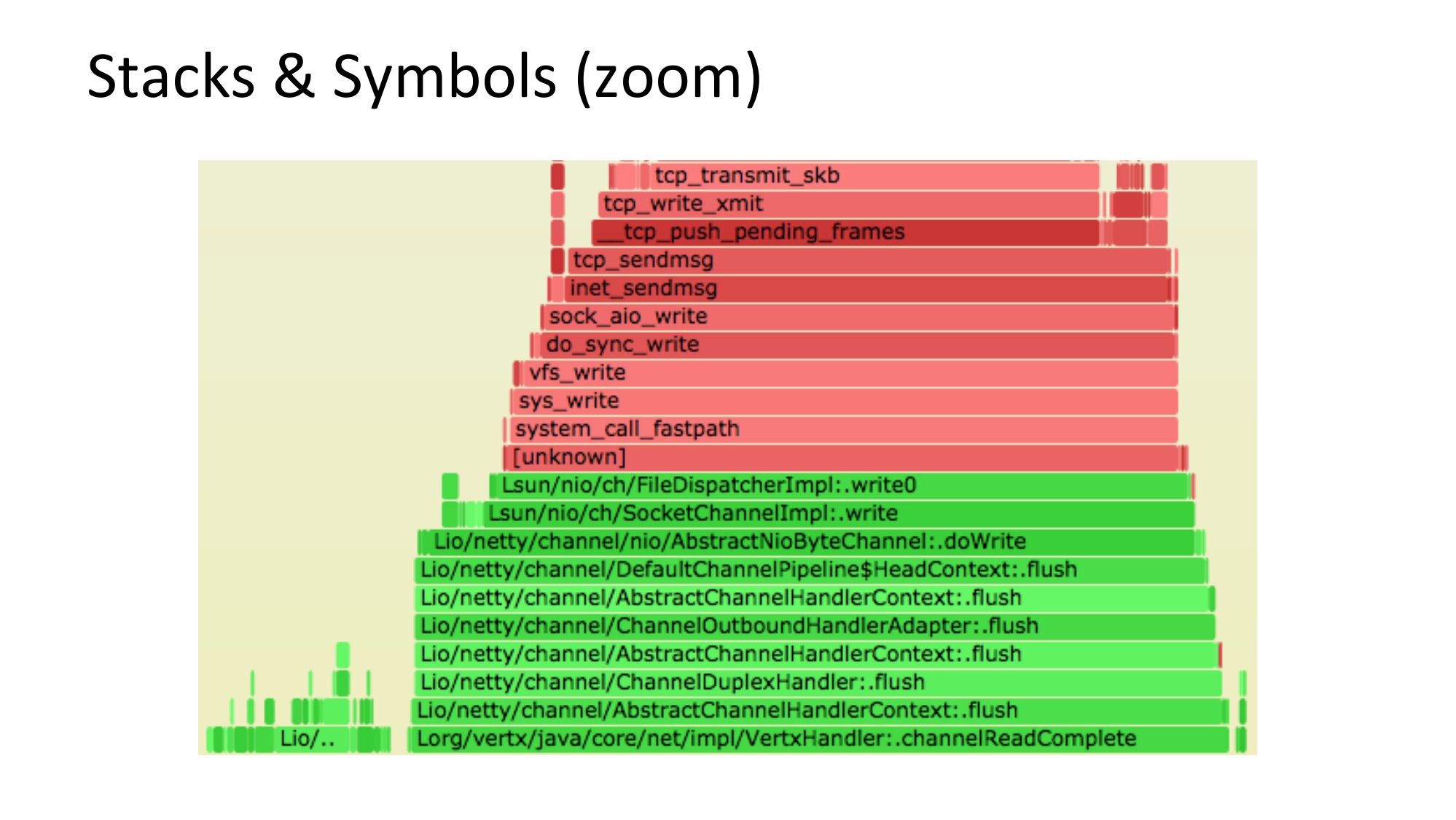

Stacks & Symbols (zoom)

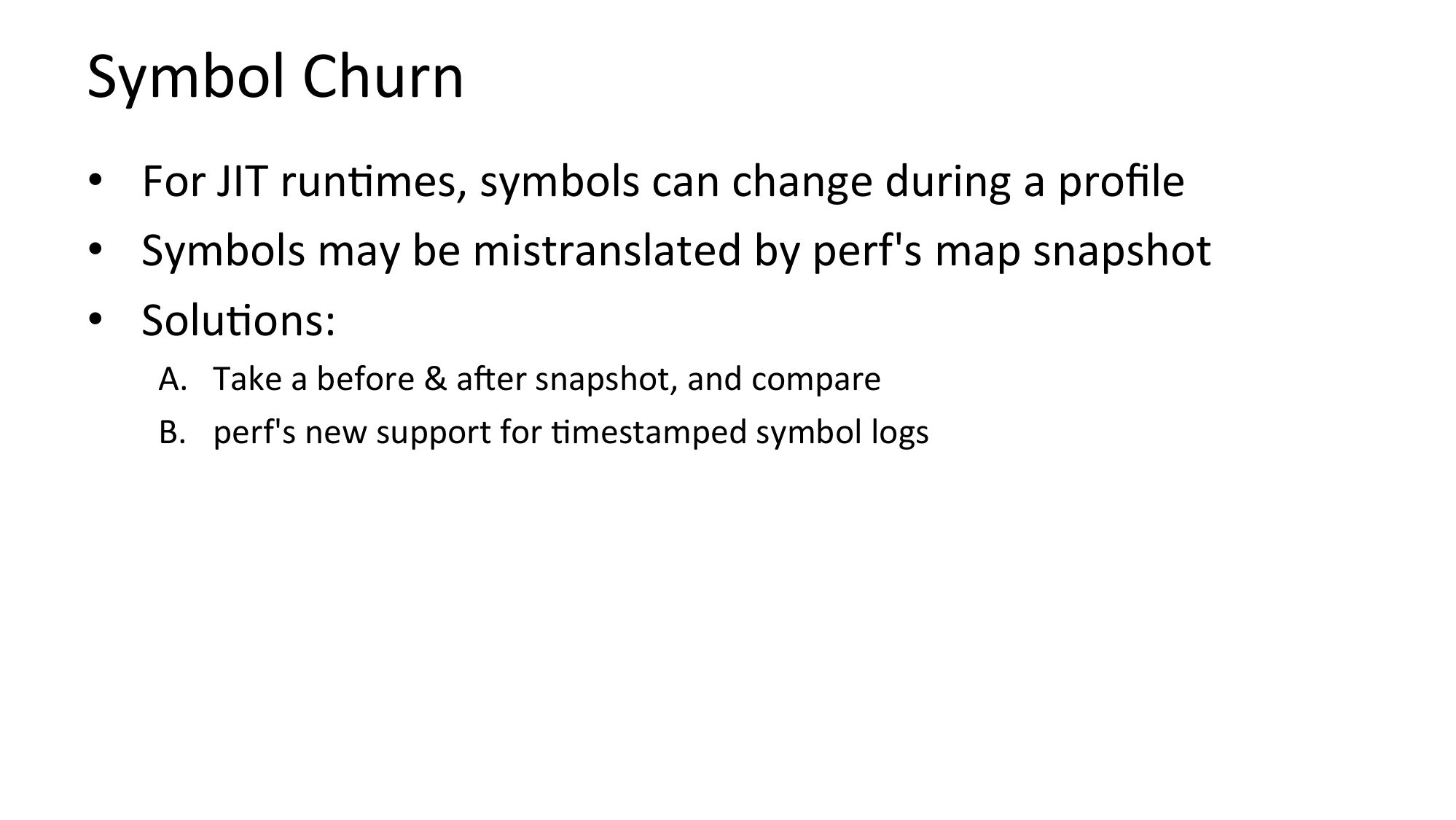

Symbol Churn
• For JIT runKmes, symbols can change during a profile
• Symbols may be mistranslated by perf's map snapshot
• SoluKons:
A. Take a before & aqer snapshot, and compare
B. perf's new support for Kmestamped symbol logs

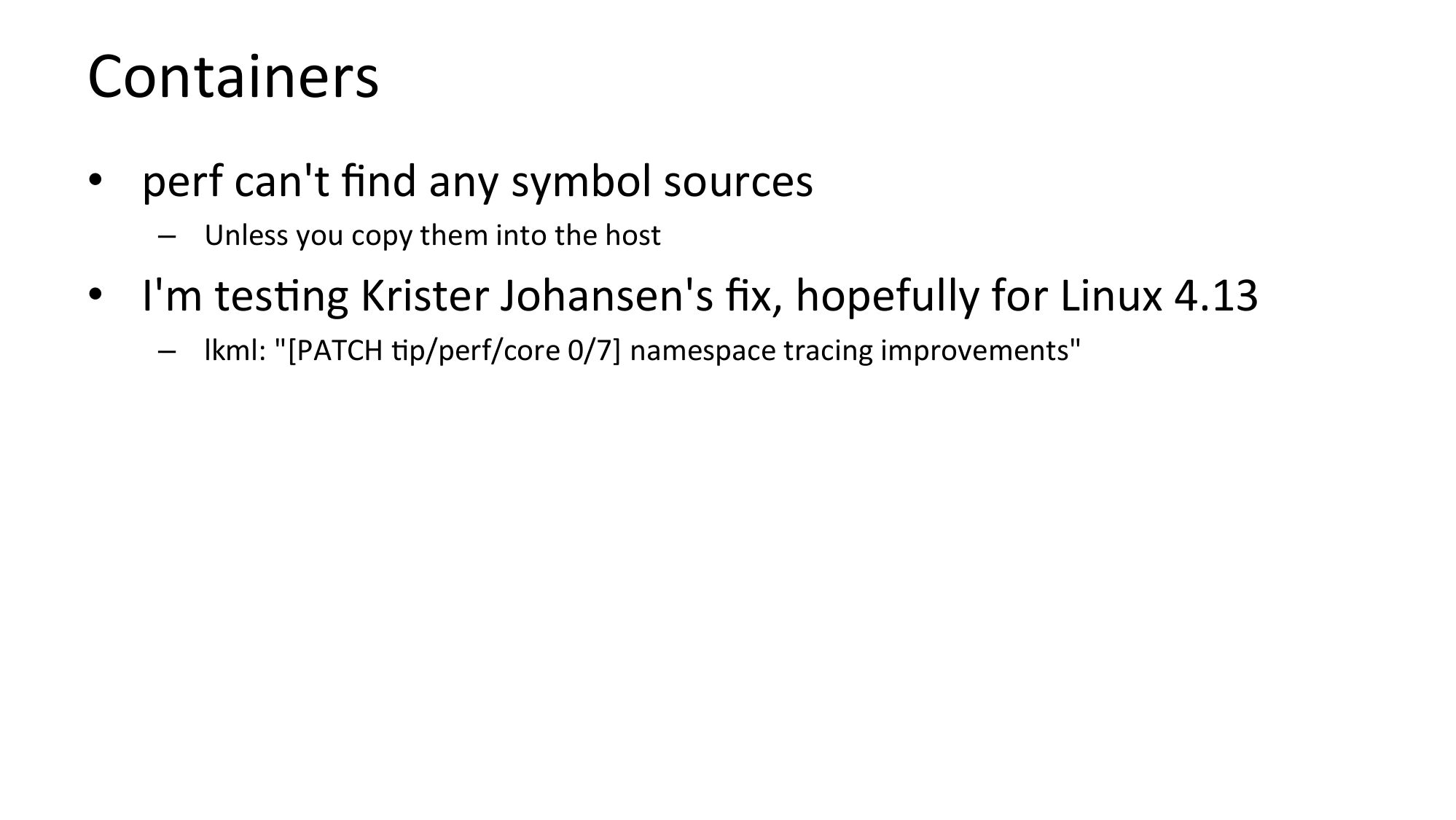

Containers
• perf can't find any symbol sources
– Unless you copy them into the host
• I'm tesKng Krister Johansen's fix, hopefully for Linux 4.13
– lkml: "[PATCH Kp/perf/core 0/7] namespace tracing improvements"

For Linux
INSTRUCTIONS

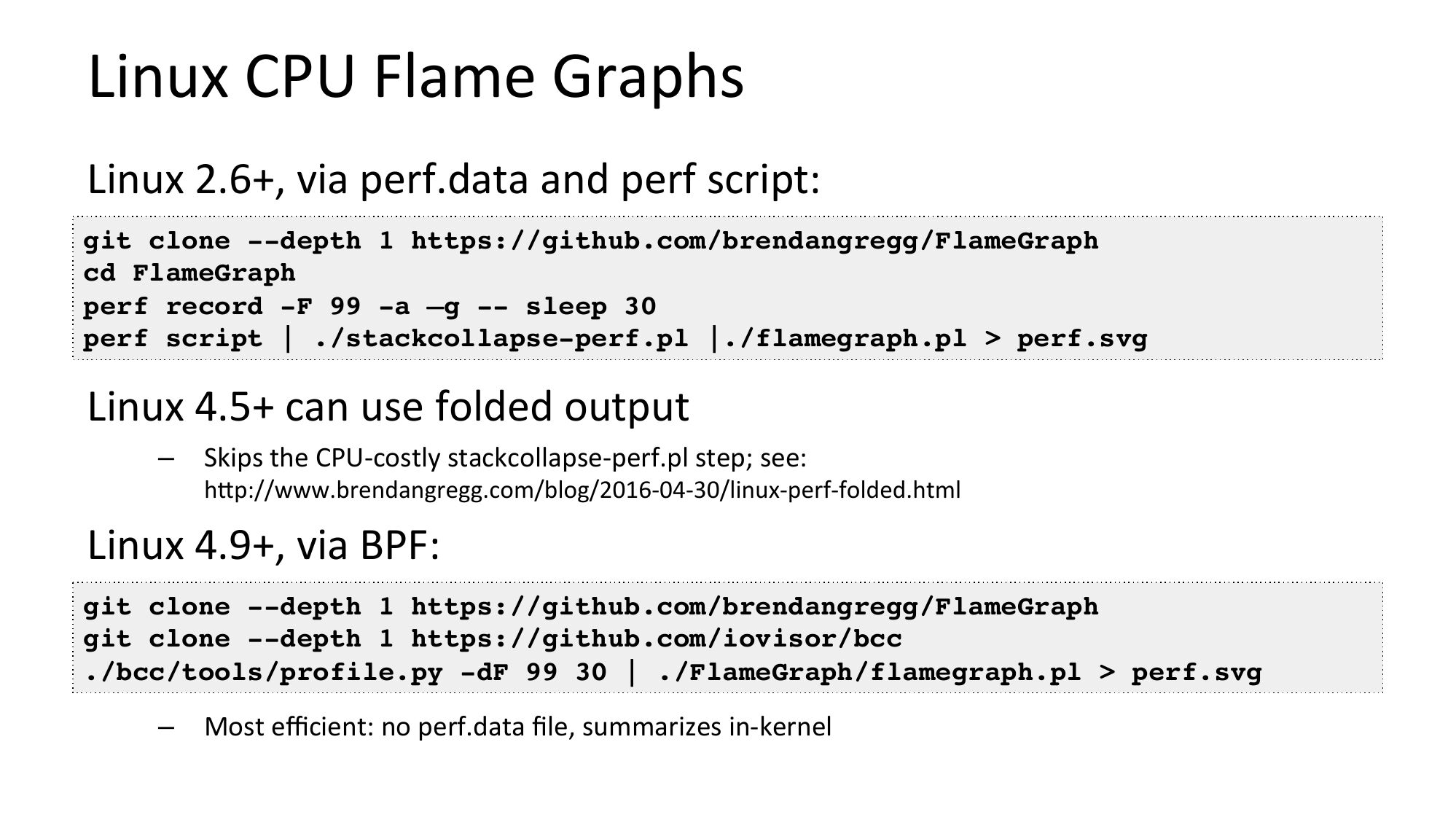

Linux CPU Flame Graphs
Linux 2.6+, via perf.data and perf script:
git clone --depth 1 https://github.com/brendangregg/FlameGraph
cd FlameGraph
perf record -F 99 -a –g -- sleep 30
perf script | ./stackcollapse-perf.pl |./flamegraph.pl >gt; perf.svg
Linux 4.5+ can use folded output
Skips the CPU-costly stackcollapse-perf.pl step; see:
hcp://www.brendangregg.com/blog/2016-04-30/linux-perf-folded.html
Linux 4.9+, via BPF:
git clone --depth 1 https://github.com/brendangregg/FlameGraph
git clone --depth 1 https://github.com/iovisor/bcc
./bcc/tools/profile.py -dF 99 30 | ./FlameGraph/flamegraph.pl >gt; perf.svg
Most efficient: no perf.data file, summarizes in-kernel

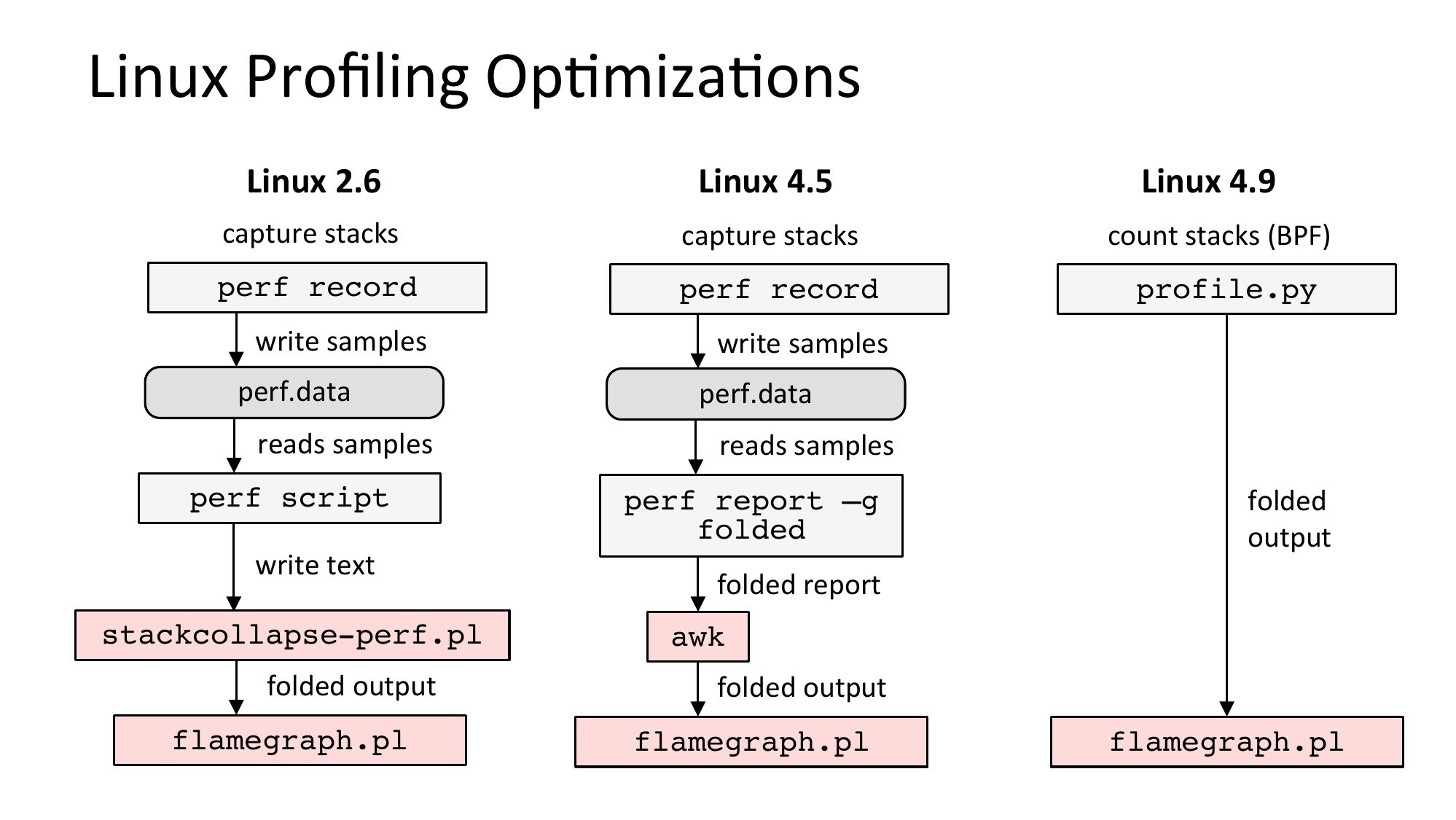

Linux Profiling OpKmizaKons
Linux 2.6
Linux 4.5
Linux 4.9
capture stacks
capture stacks
count stacks (BPF)
perf record
perf record
profile.py
write samples
write samples
perf.data
perf.data
reads samples
reads samples
perf script
write text
stackcollapse-perf.pl
folded output
flamegraph.pl
perf report –g
folded
folded
output
folded report
awk
folded output
flamegraph.pl
flamegraph.pl

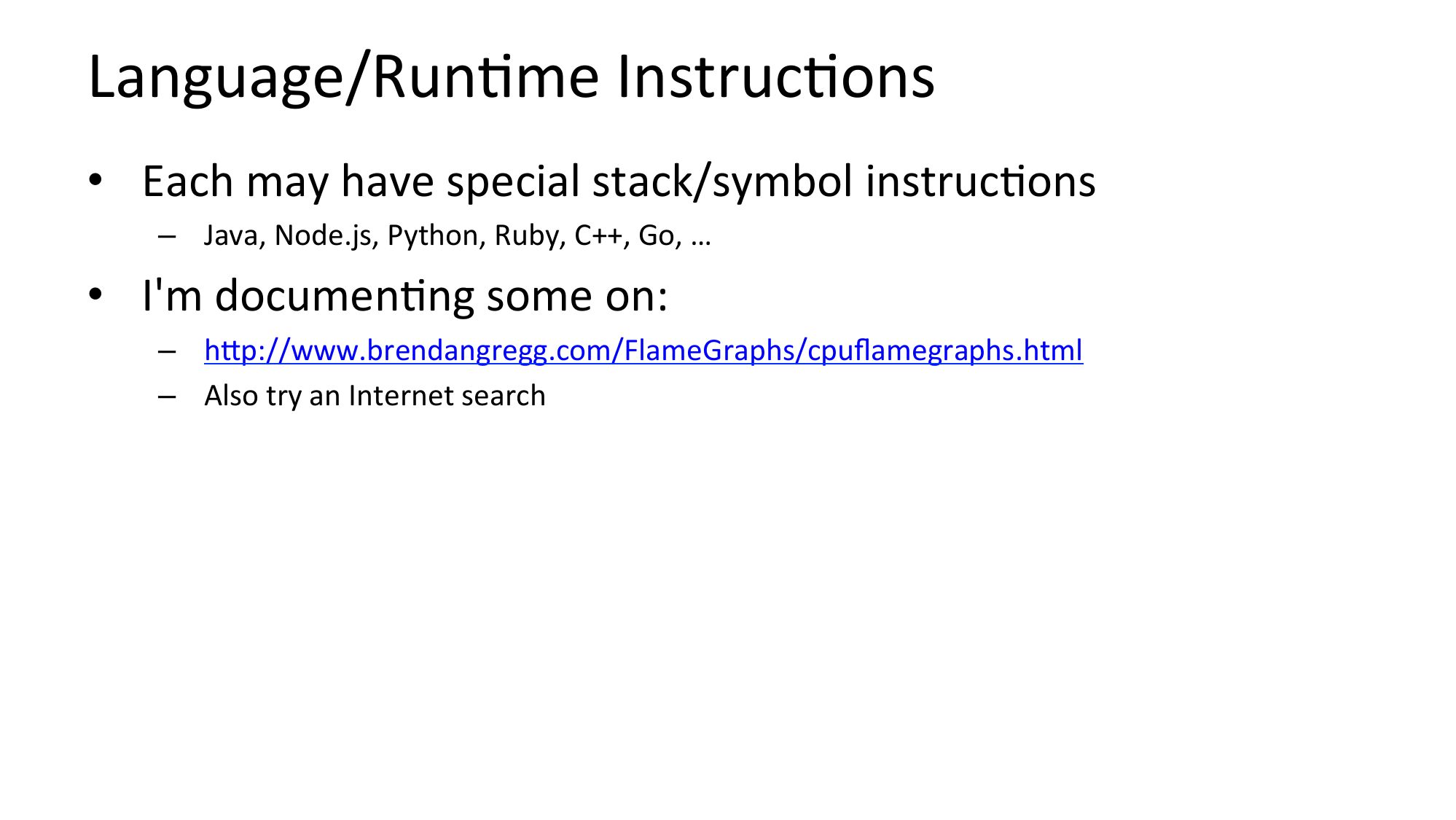

Language/RunKme InstrucKons
• Each may have special stack/symbol instrucKons
– Java, Node.js, Python, Ruby, C++, Go, …
• I'm documenKng some on:
– hcp://www.brendangregg.com/FlameGraphs/cpuflamegraphs.html
– Also try an Internet search

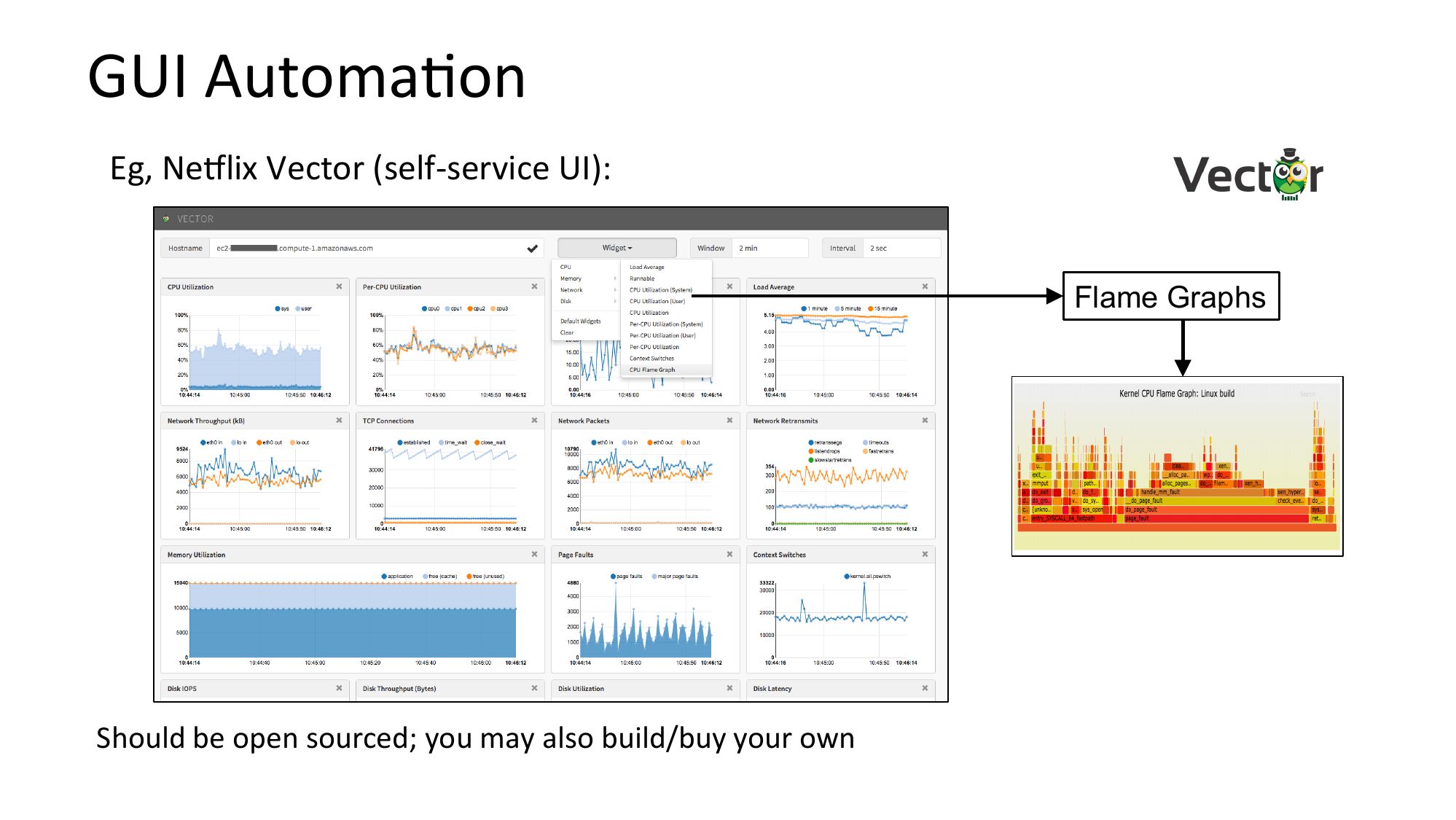

GUI AutomaKon
Eg, NeHlix Vector (self-service UI):
Flame Graphs
Should be open sourced; you may also build/buy your own

Future Work
ADVANCED FLAME GRAPHS

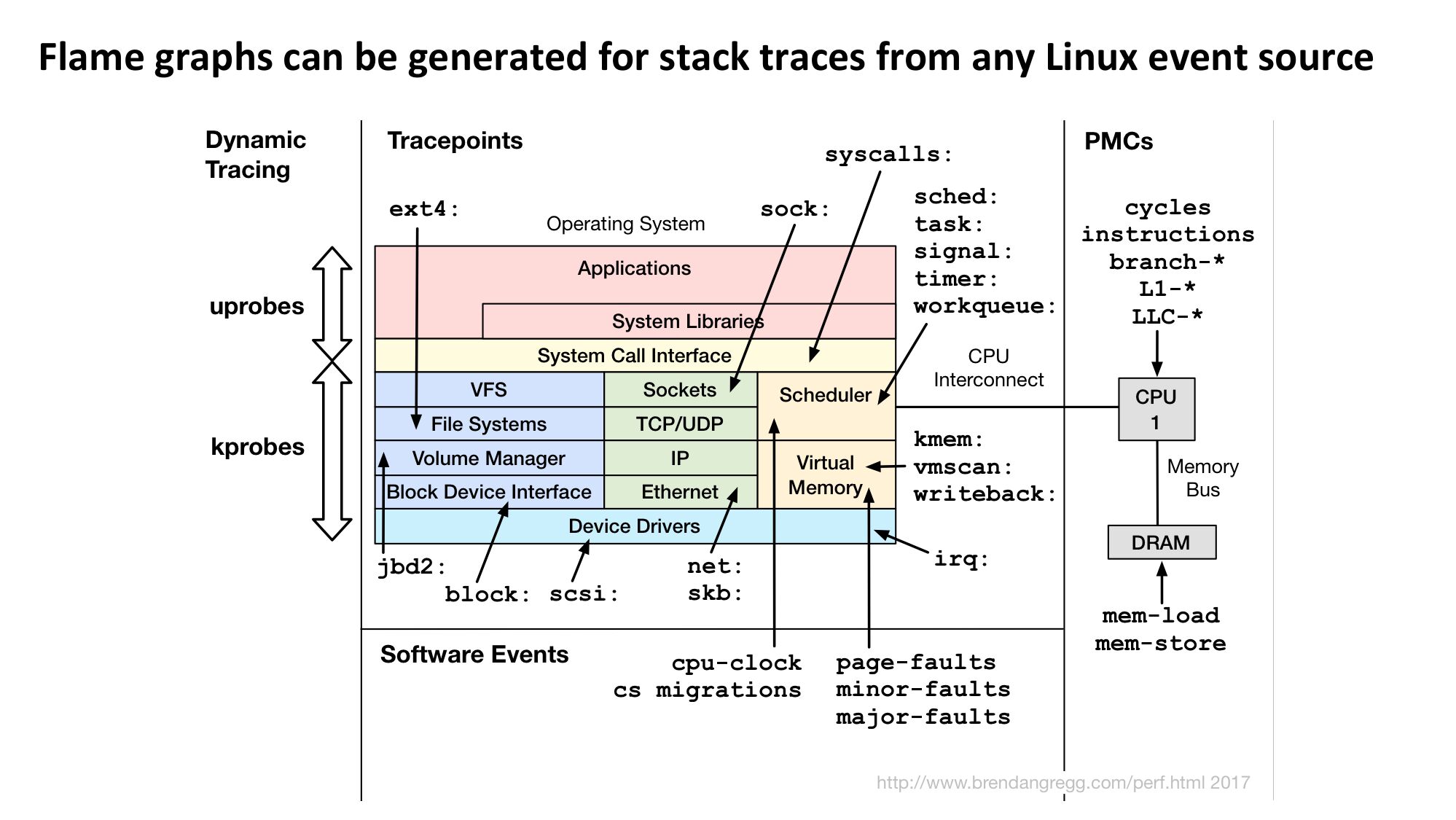

Flame graphs can be generated for stack traces from any Linux event source

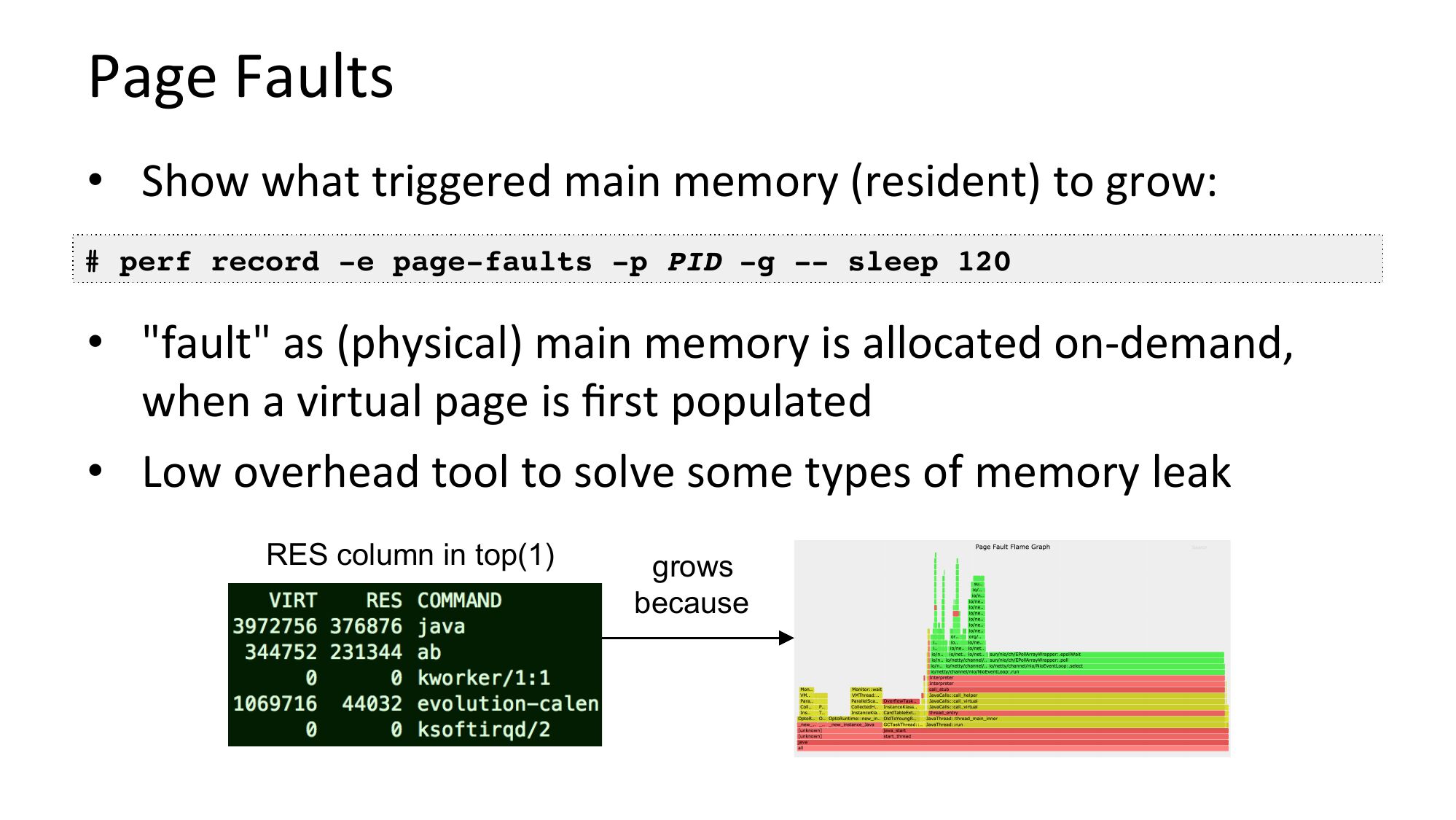

Page Faults
• Show what triggered main memory (resident) to grow:
# perf record -e page-faults -p PID -g -- sleep 120
• "fault" as (physical) main memory is allocated on-demand,
when a virtual page is first populated
• Low overhead tool to solve some types of memory leak
RES column in top(1)
grows
because

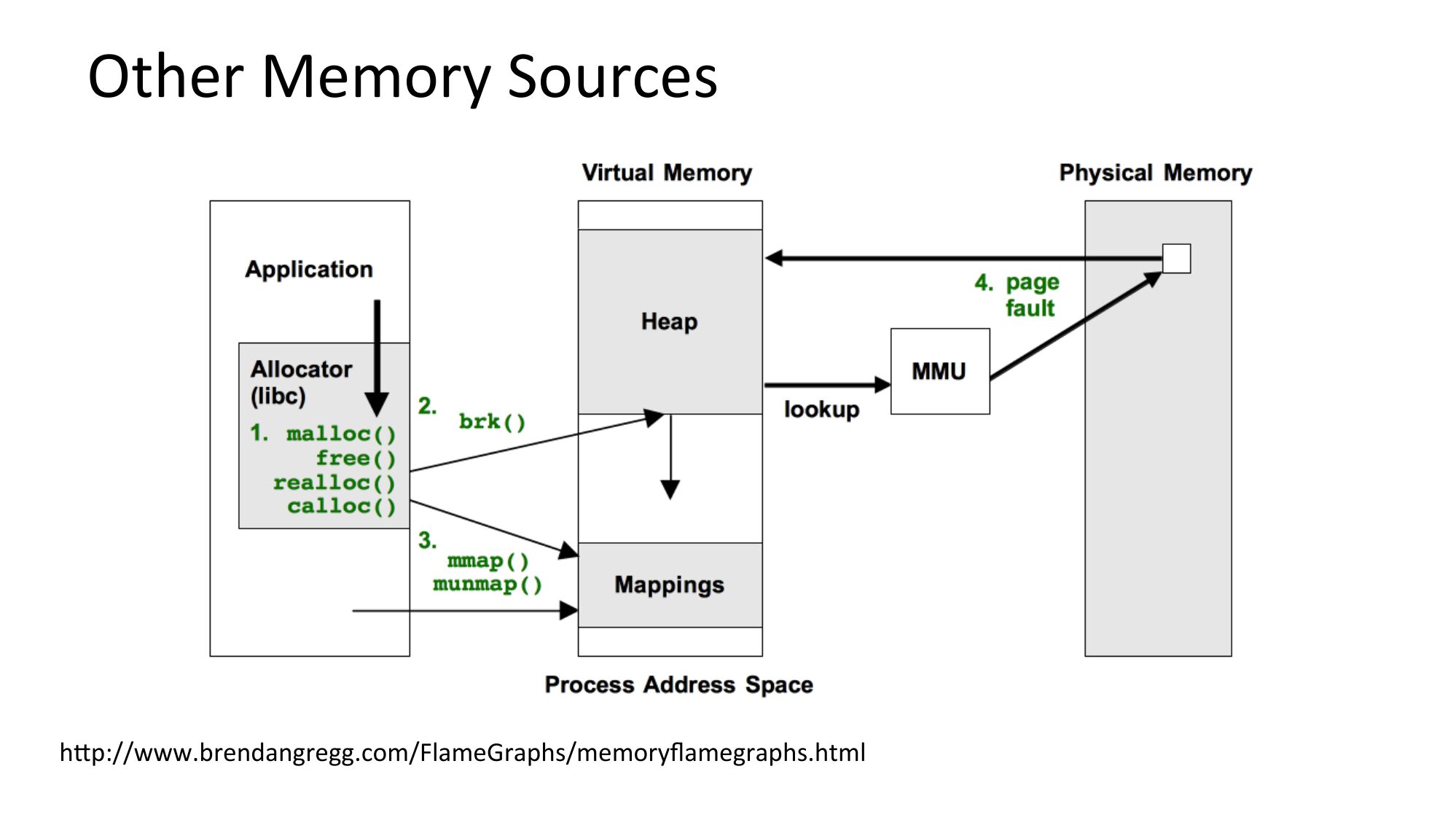

Other Memory Sources
hcp://www.brendangregg.com/FlameGraphs/memoryflamegraphs.html

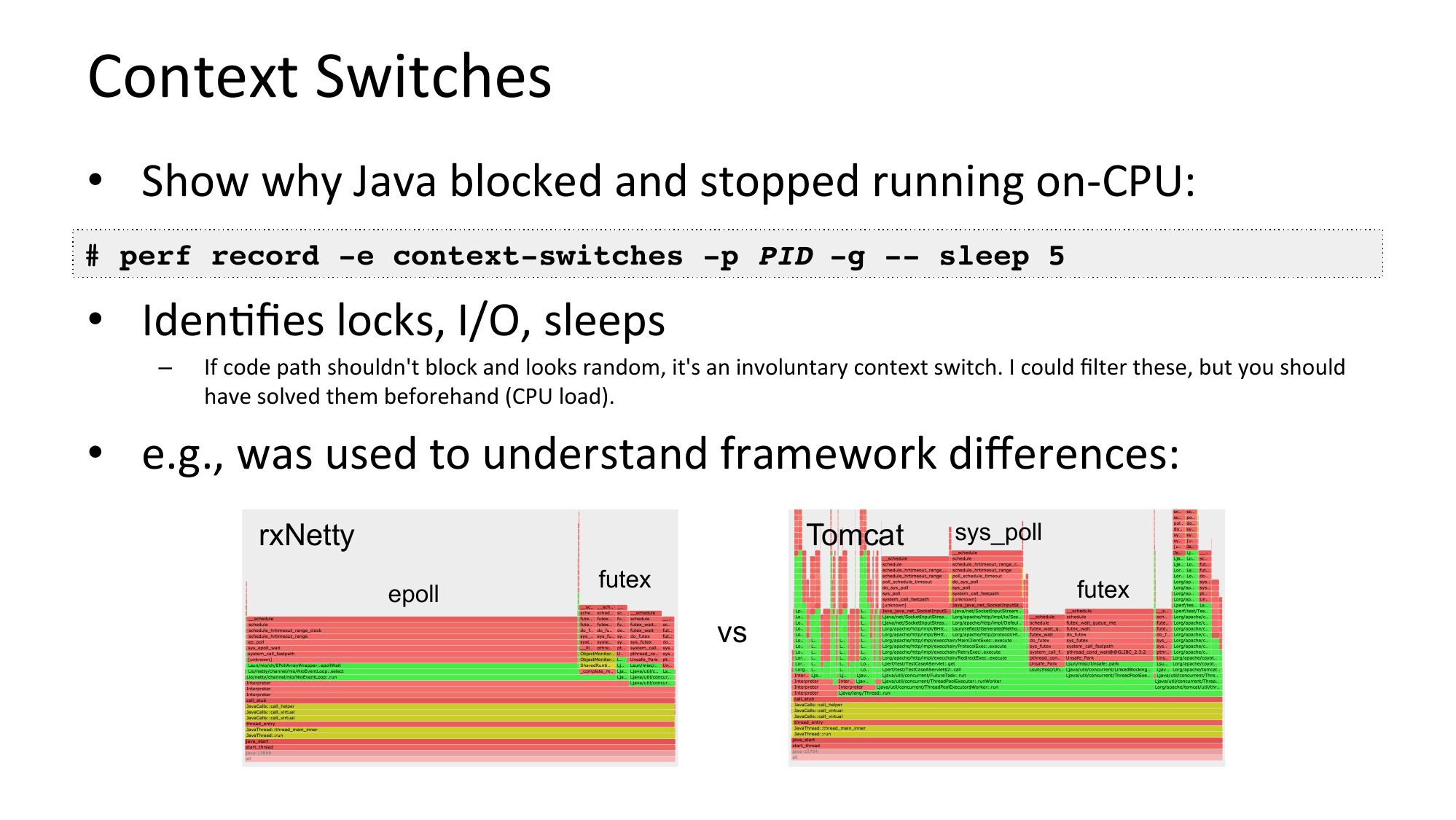

Context Switches
• Show why Java blocked and stopped running on-CPU:
# perf record -e context-switches -p PID -g -- sleep 5
• IdenKfies locks, I/O, sleeps
If code path shouldn't block and looks random, it's an involuntary context switch. I could filter these, but you should
have solved them beforehand (CPU load).
• e.g., was used to understand framework differences:
rxNetty
Tomcat
epoll
futex
sys_poll
futex

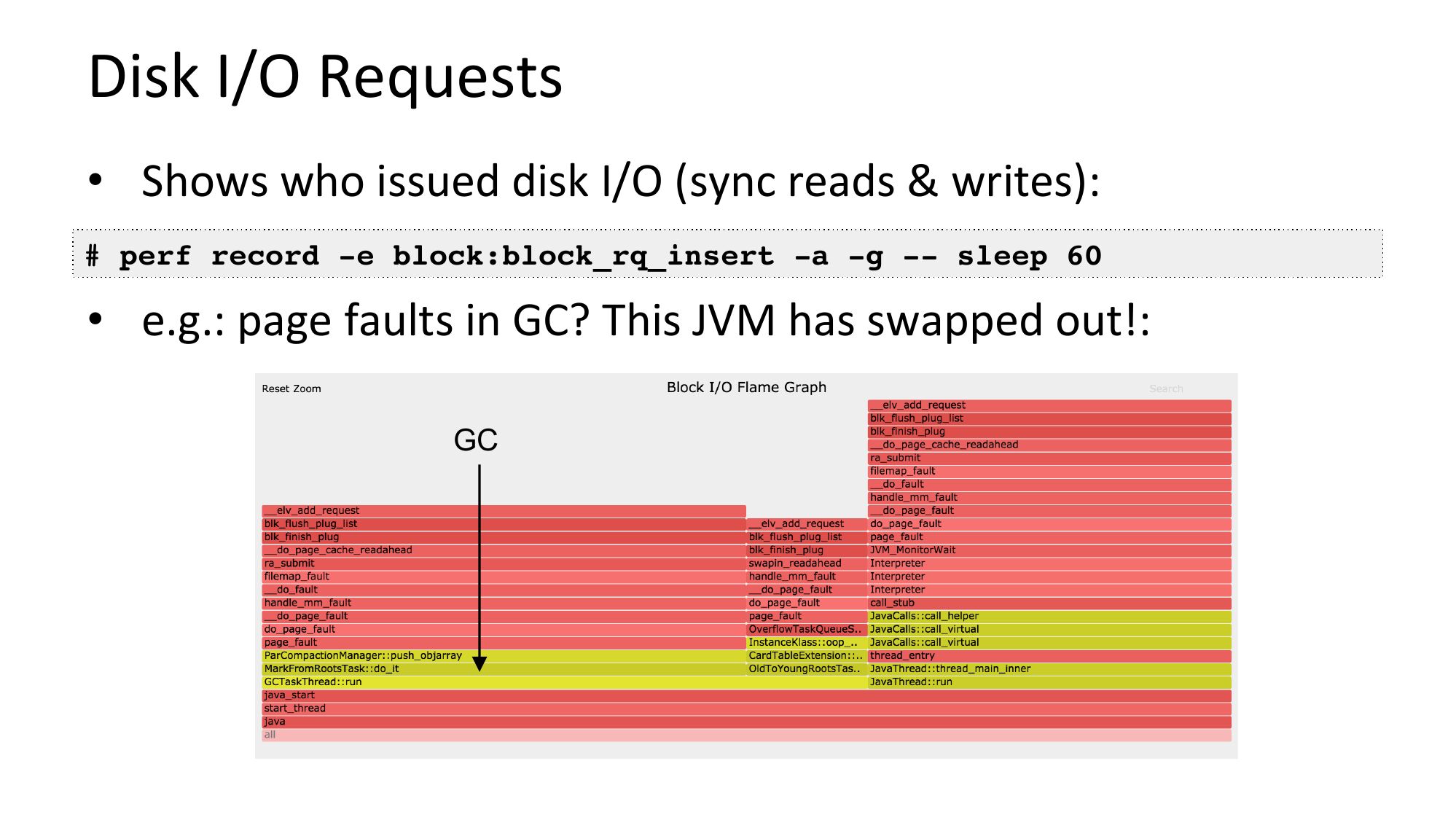

Disk I/O Requests
• Shows who issued disk I/O (sync reads & writes):
# perf record -e block:block_rq_insert -a -g -- sleep 60
• e.g.: page faults in GC? This JVM has swapped out!:

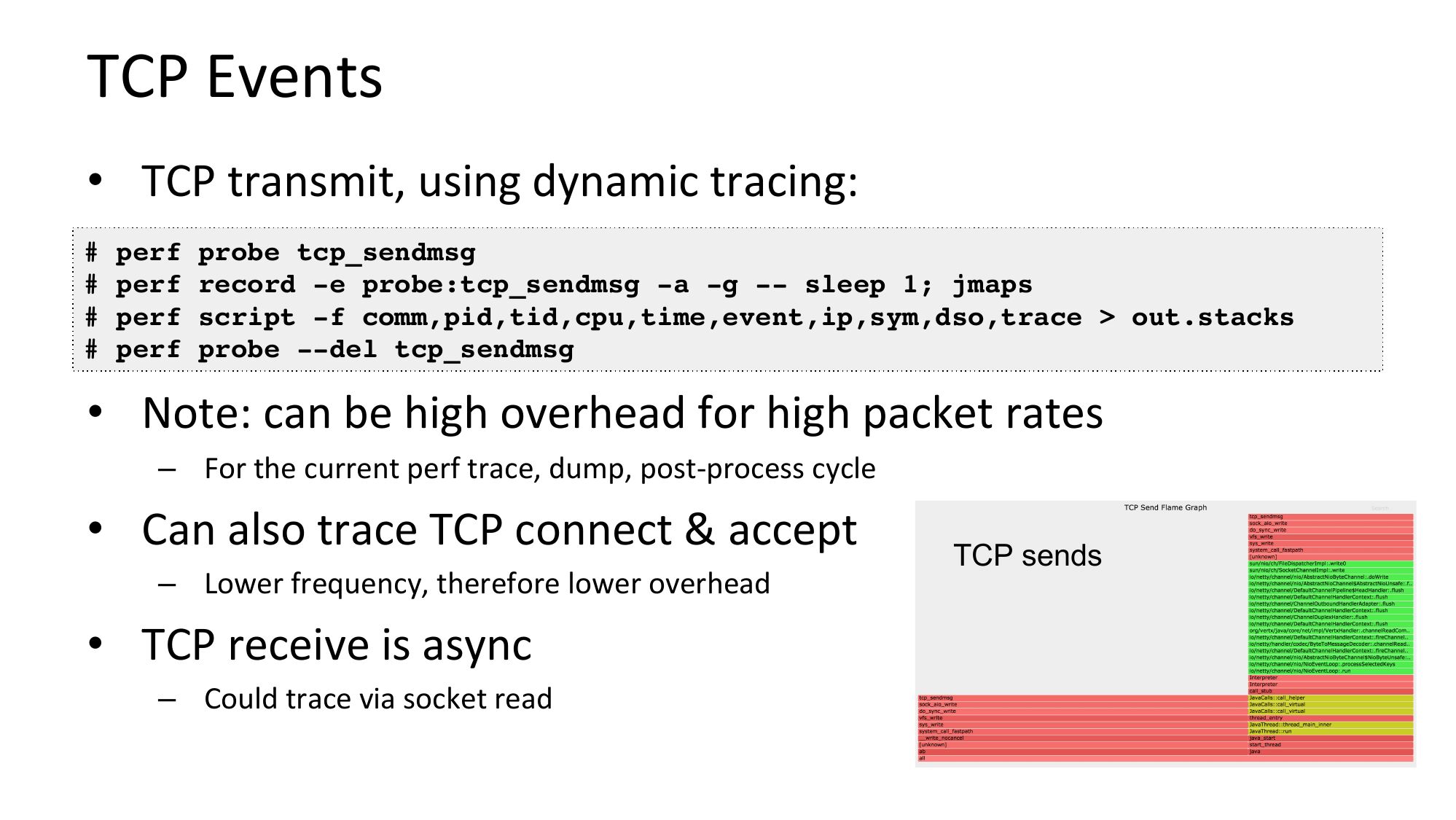

TCP Events
• TCP transmit, using dynamic tracing:
# perf probe tcp_sendmsg
# perf record -e probe:tcp_sendmsg -a -g -- sleep 1; jmaps
# perf script -f comm,pid,tid,cpu,time,event,ip,sym,dso,trace >gt; out.stacks
# perf probe --del tcp_sendmsg
• Note: can be high overhead for high packet rates
– For the current perf trace, dump, post-process cycle
• Can also trace TCP connect & accept
– Lower frequency, therefore lower overhead
• TCP receive is async
– Could trace via socket read
TCP sends

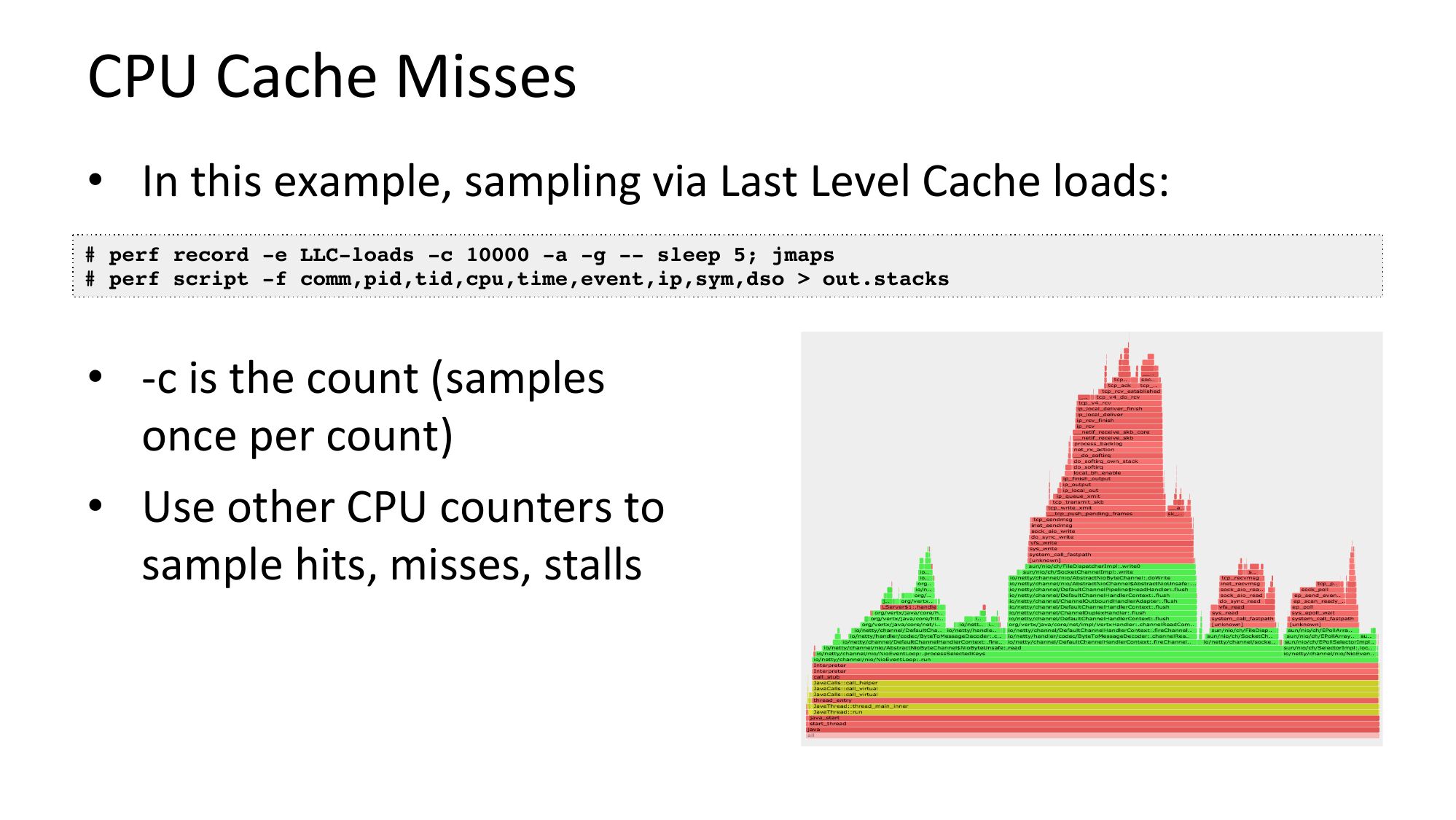

CPU Cache Misses
• In this example, sampling via Last Level Cache loads:
# perf record -e LLC-loads -c 10000 -a -g -- sleep 5; jmaps
# perf script -f comm,pid,tid,cpu,time,event,ip,sym,dso >gt; out.stacks
• -c is the count (samples
once per count)
• Use other CPU counters to
sample hits, misses, stalls

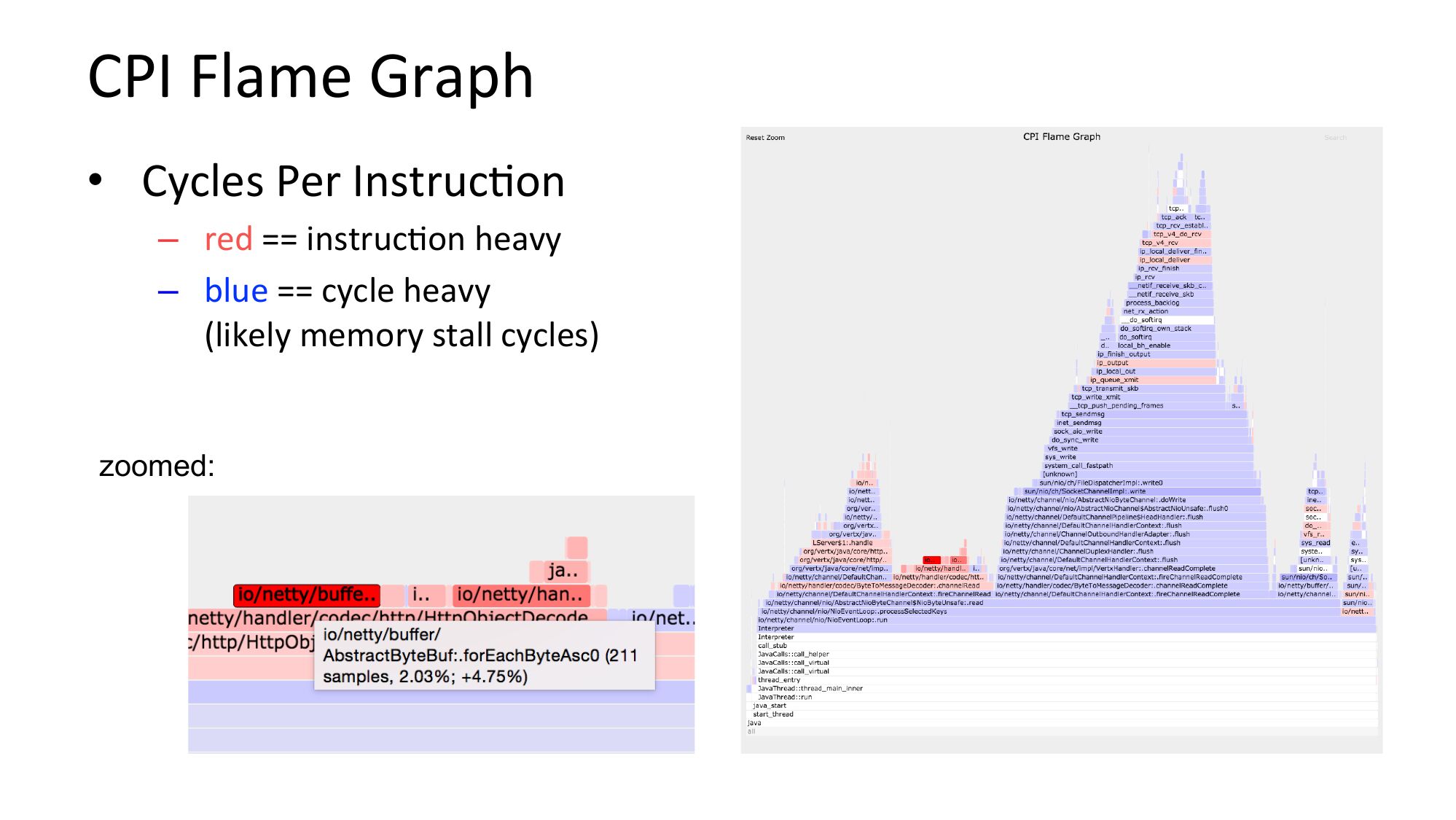

CPI Flame Graph
• Cycles Per InstrucKon
– red == instrucKon heavy
– blue == cycle heavy
(likely memory stall cycles)
zoomed:

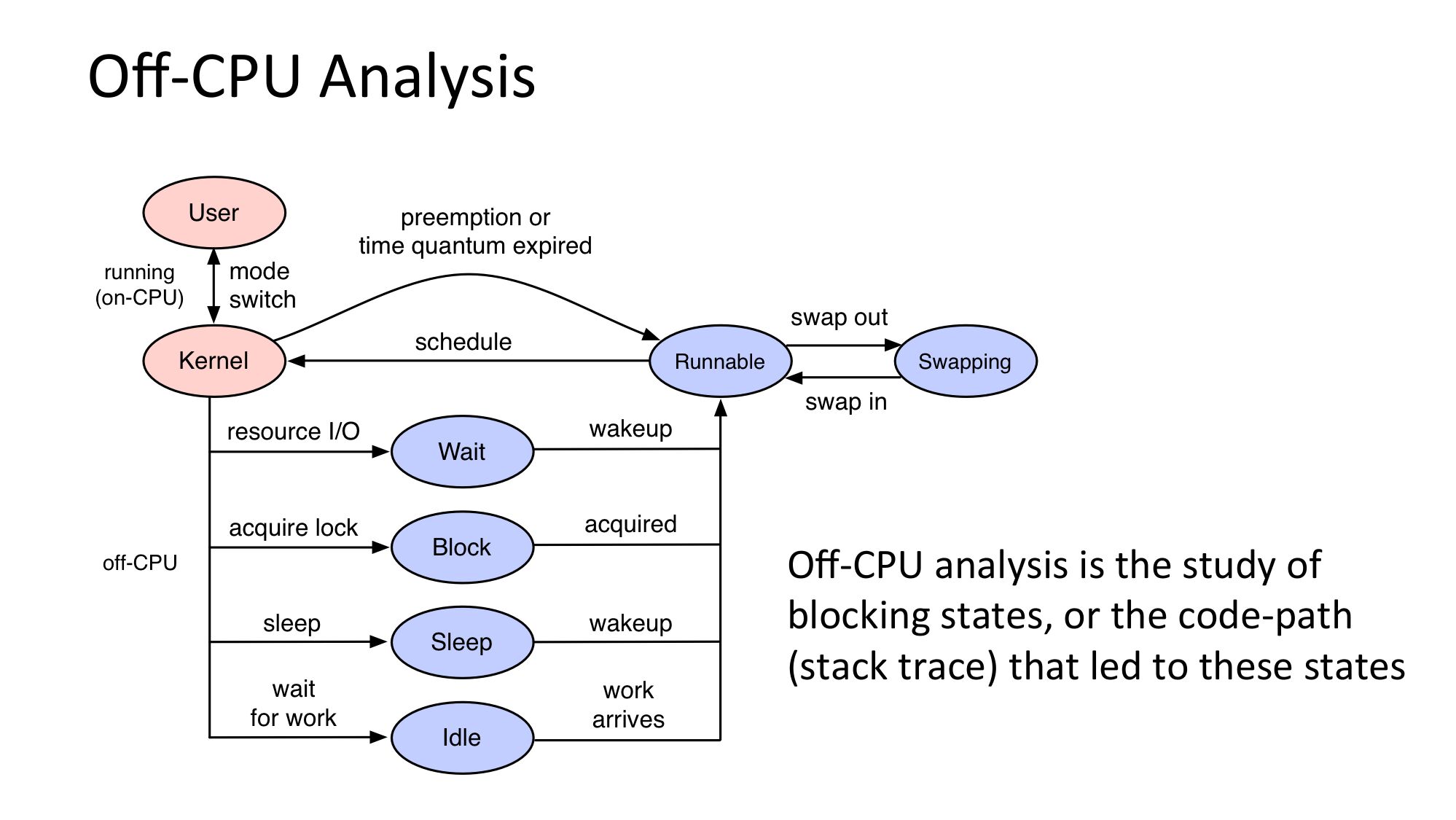

Off-CPU Analysis
Off-CPU analysis is the study of
blocking states, or the code-path
(stack trace) that led to these states

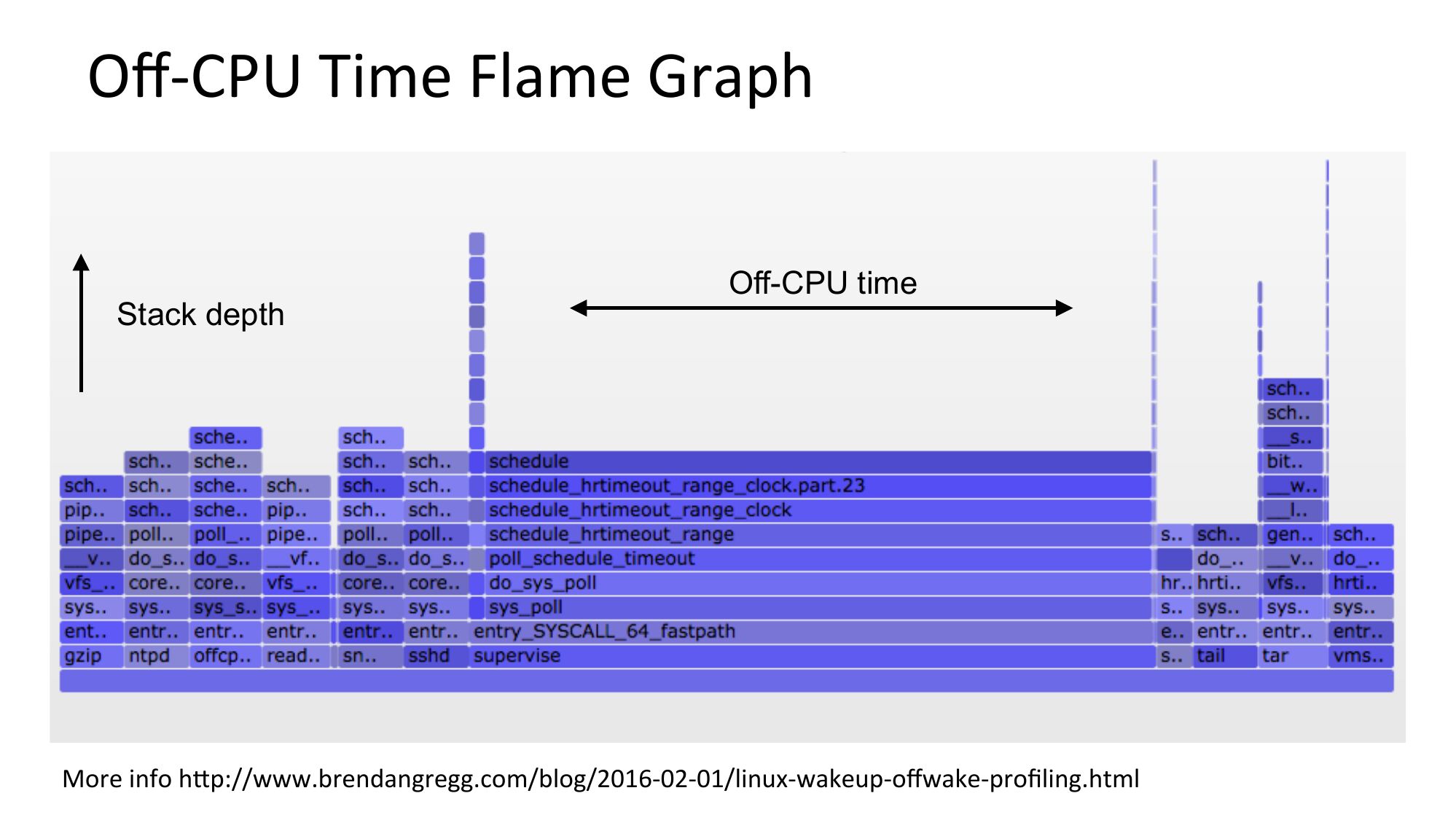

Off-CPU Time Flame Graph
Stack depth
Off-CPU time
More info hcp://www.brendangregg.com/blog/2016-02-01/linux-wakeup-offwake-profiling.html

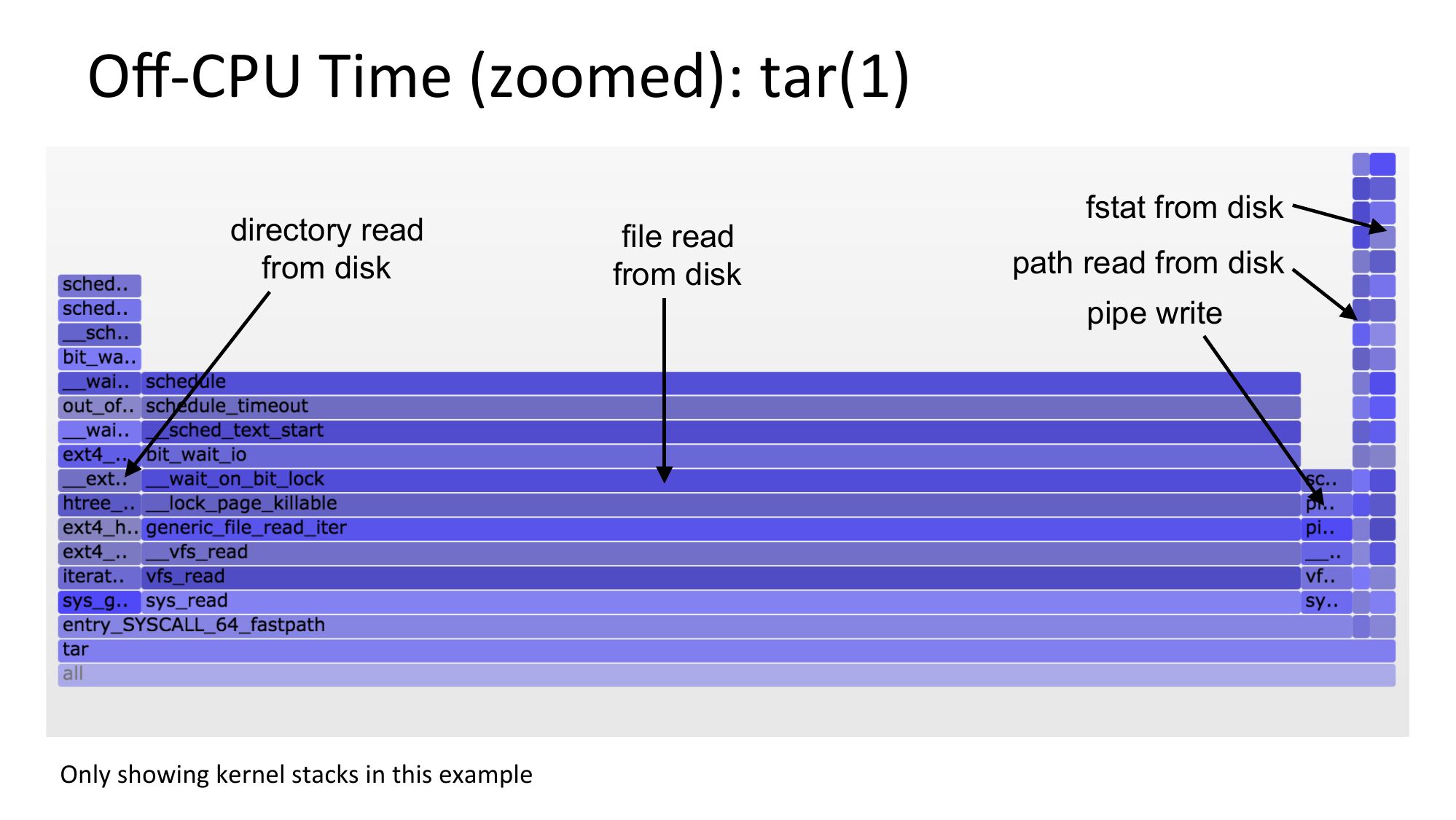

Off-CPU Time (zoomed): tar(1)
directory read
from disk
file read
from disk
fstat from disk
path read from disk
pipe write
Only showing kernel stacks in this example

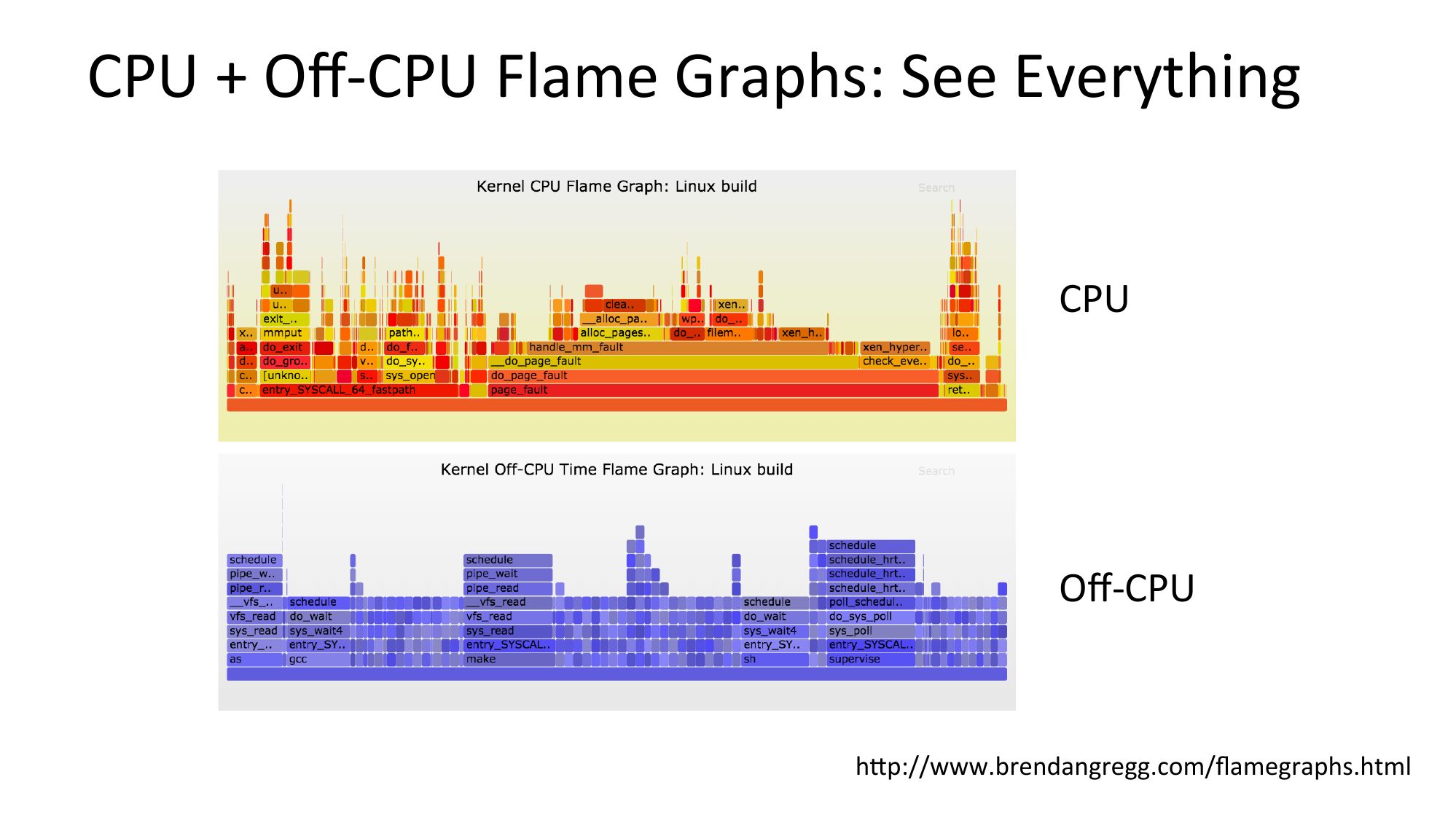

CPU + Off-CPU Flame Graphs: See Everything
CPU
Off-CPU
hcp://www.brendangregg.com/flamegraphs.html

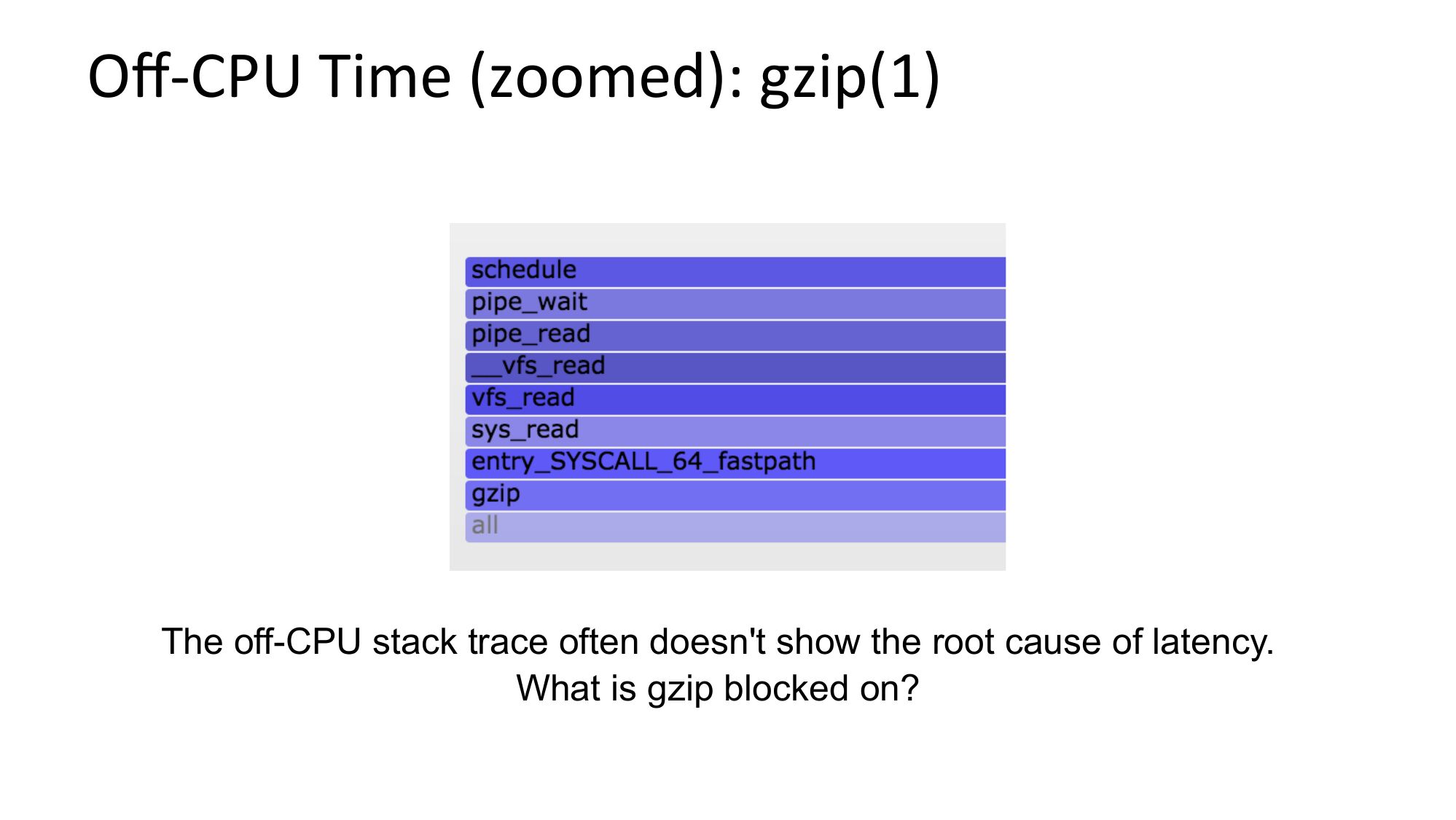

Off-CPU Time (zoomed): gzip(1)
The off-CPU stack trace often doesn't show the root cause of latency.
What is gzip blocked on?

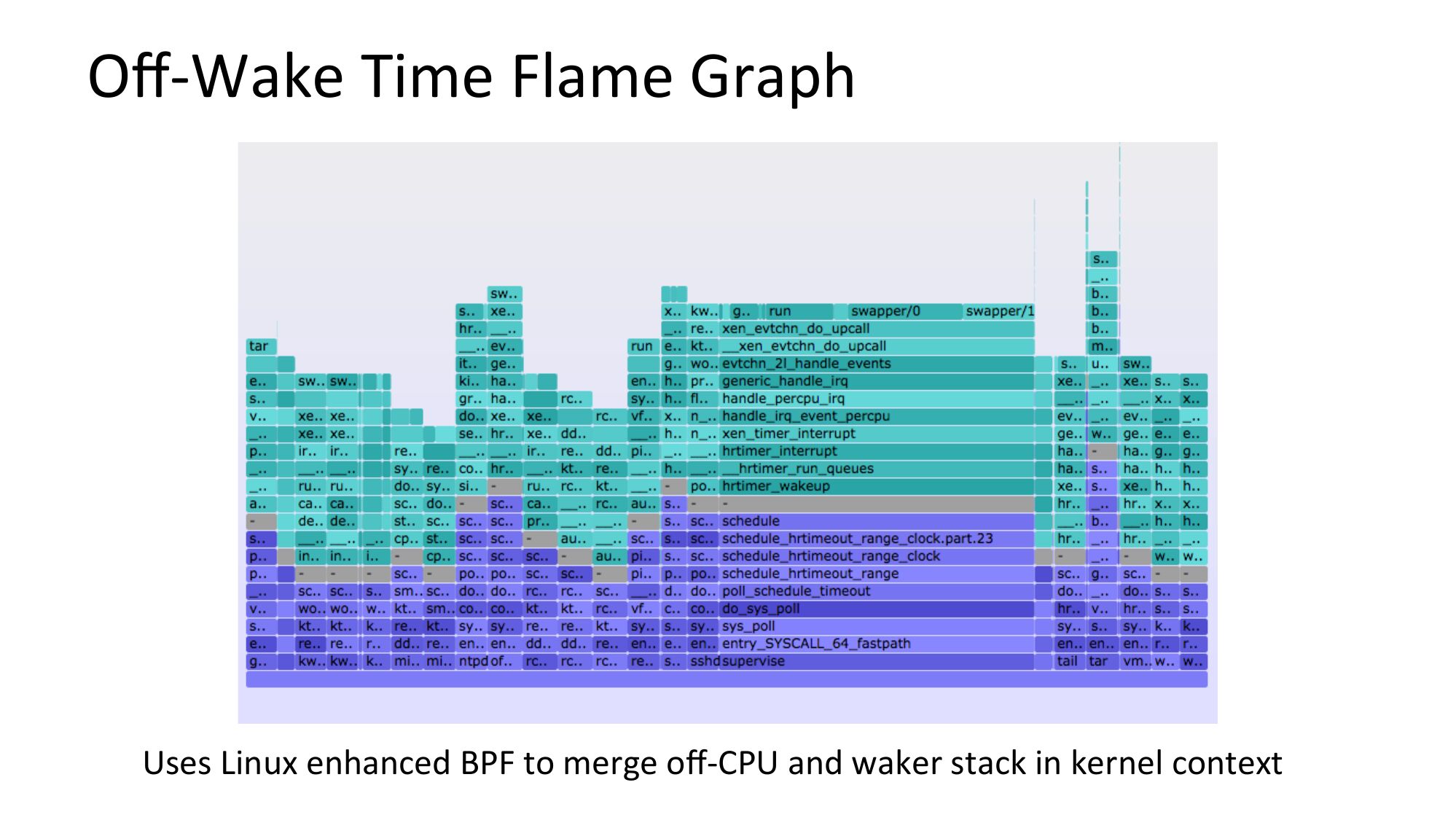

Off-Wake Time Flame Graph
Uses Linux enhanced BPF to merge off-CPU and waker stack in kernel context

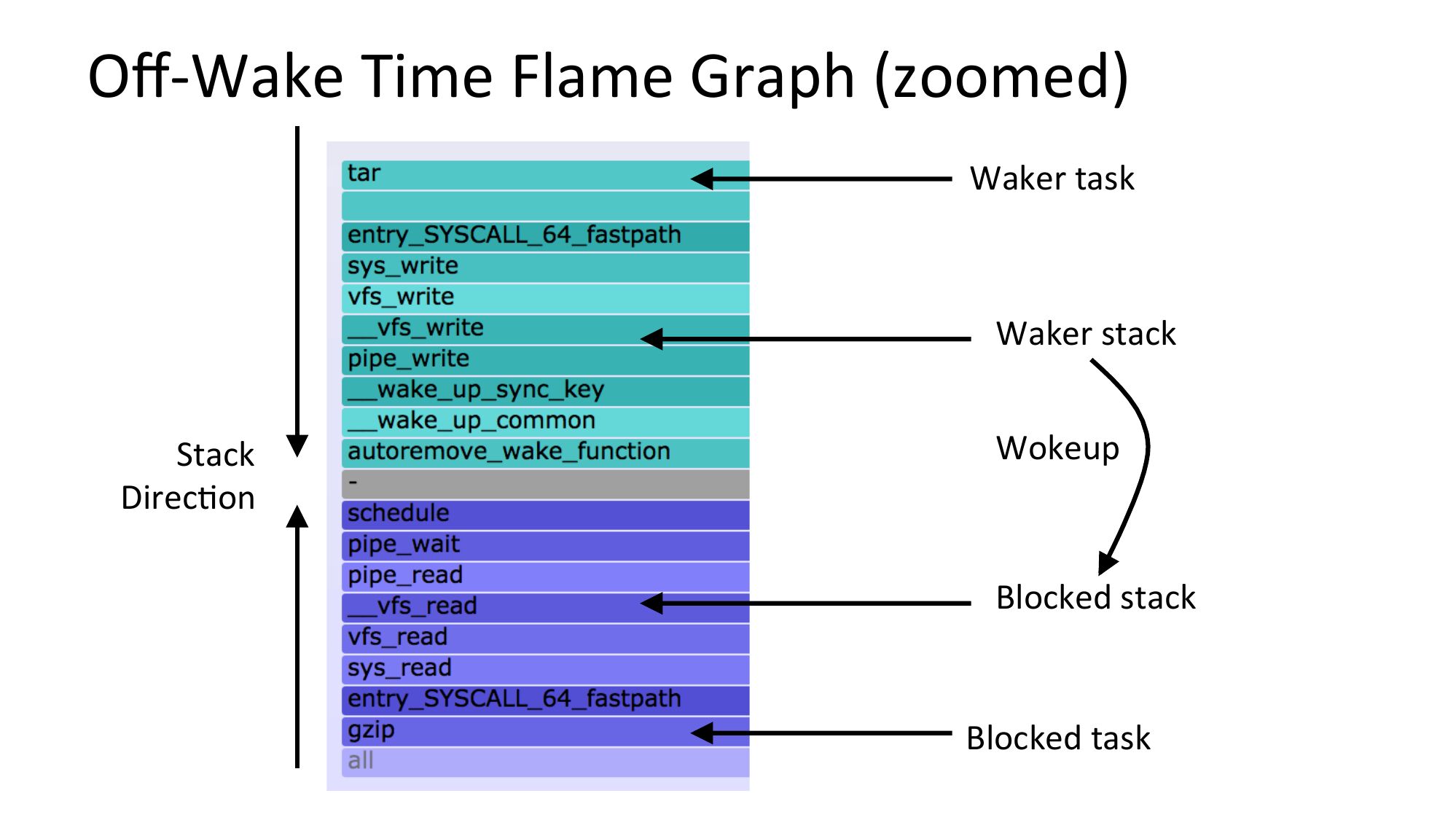

Off-Wake Time Flame Graph (zoomed)
Waker task
Waker stack
Stack
DirecKon
Wokeup
Blocked stack
Blocked task

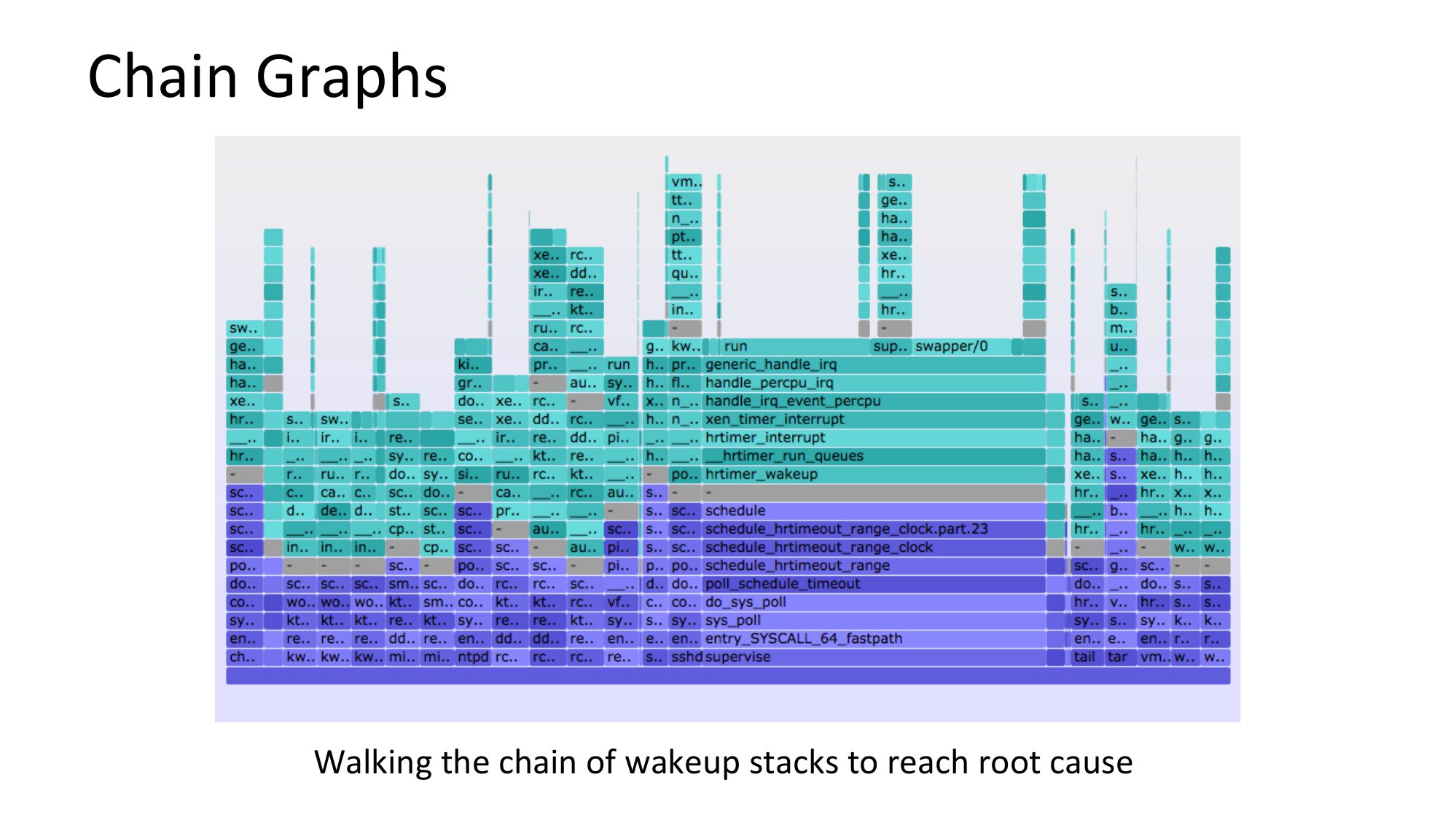

Chain Graphs
Walking the chain of wakeup stacks to reach root cause

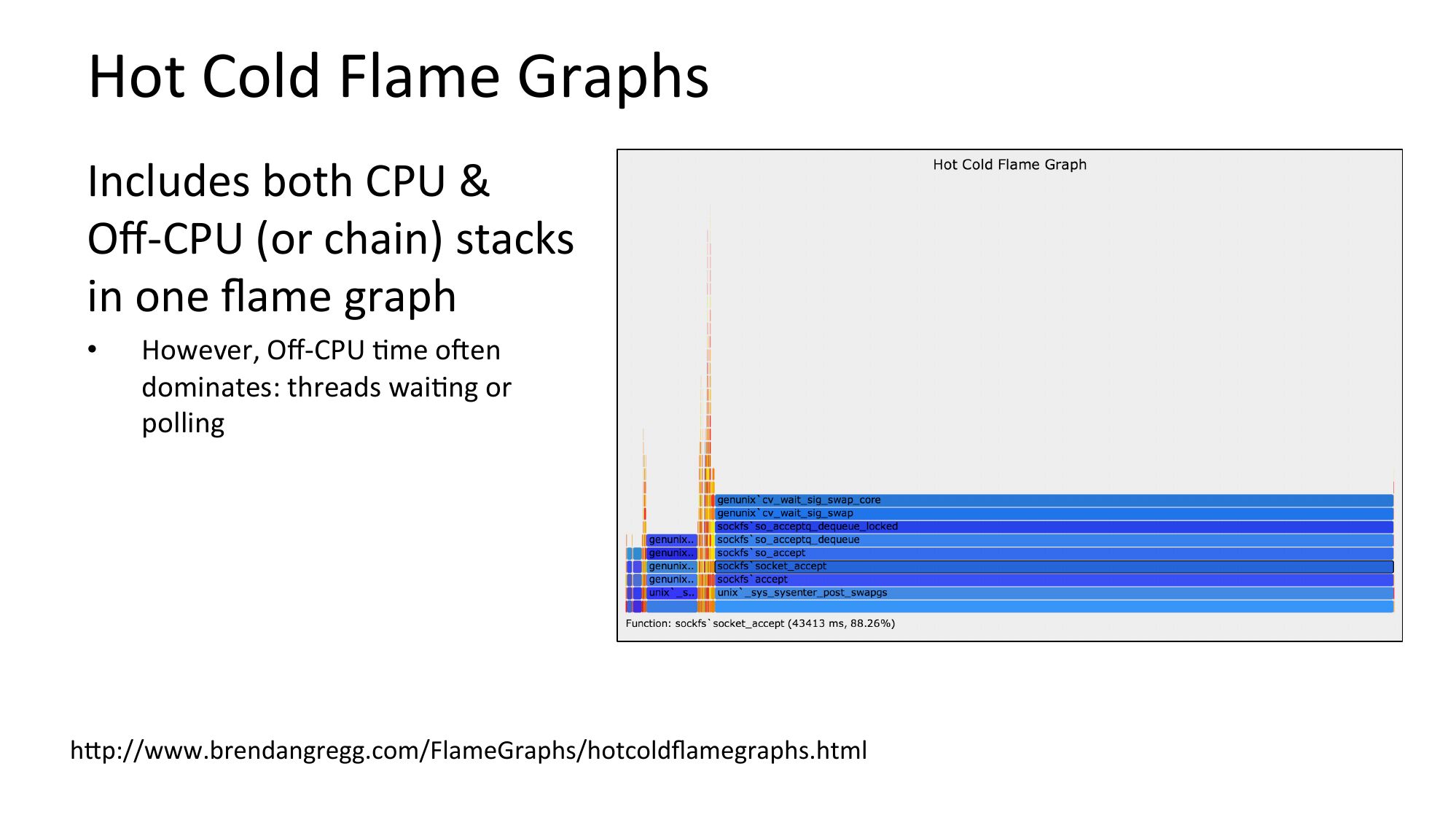

Hot Cold Flame Graphs
Includes both CPU &
Off-CPU (or chain) stacks
in one flame graph
However, Off-CPU Kme oqen
dominates: threads waiKng or
polling
hcp://www.brendangregg.com/FlameGraphs/hotcoldflamegraphs.html

Flame Graph Diff
hcps://github.com/corpaul/flamegraphdiff

Take aways
1. Interpret CPU flame graphs
2. Understand piHalls with stack traces and symbols
3. Discover opportuniKes for future development

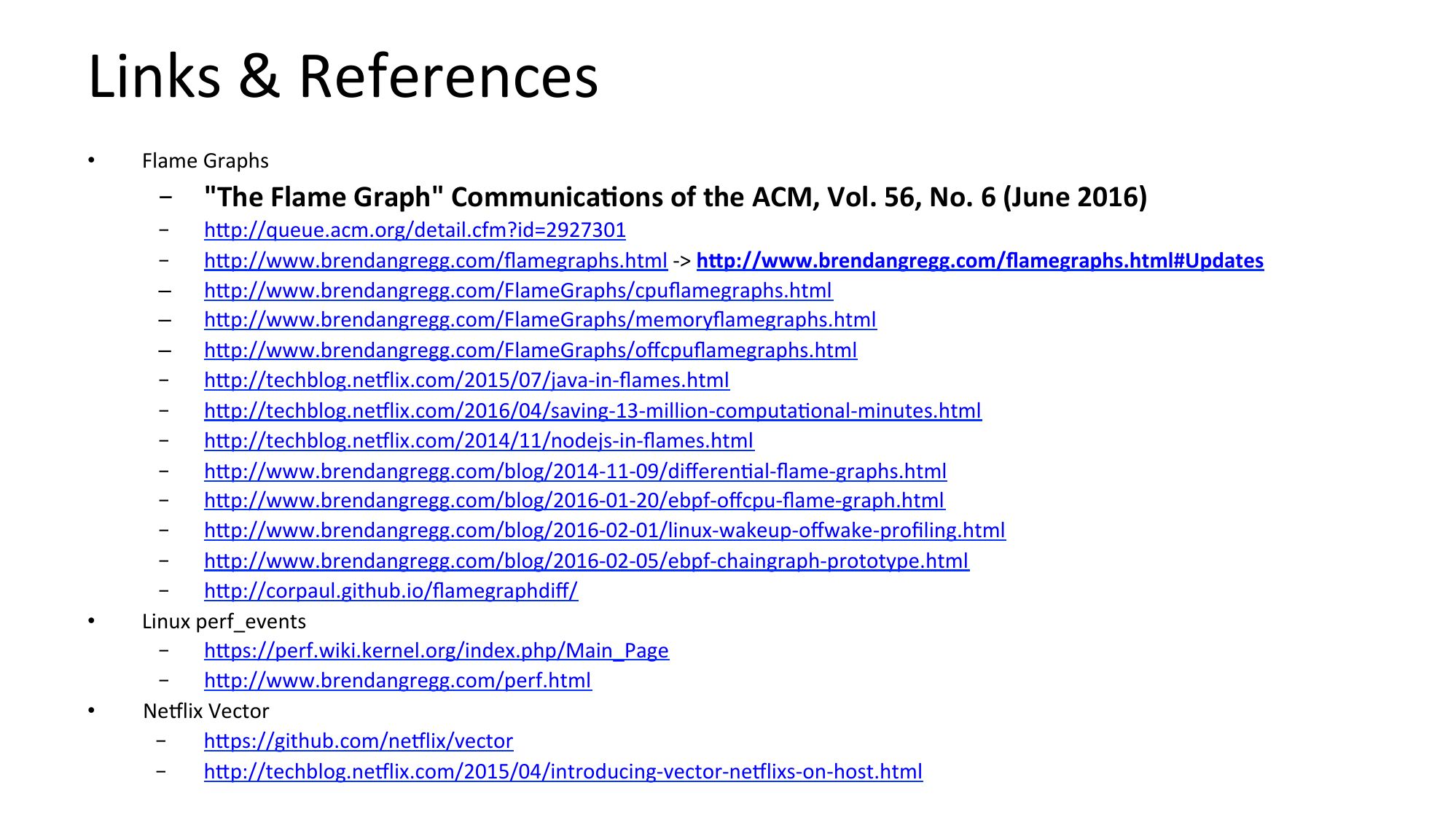

Links & References
Flame Graphs
– "The Flame Graph" Communica-ons of the ACM, Vol. 56, No. 6 (June 2016)
– hcp://queue.acm.org/detail.cfm?id=2927301
– hcp://www.brendangregg.com/flamegraphs.html ->gt; hBp://www.brendangregg.com/flamegraphs.html#Updates
– hcp://www.brendangregg.com/FlameGraphs/cpuflamegraphs.html
– hcp://www.brendangregg.com/FlameGraphs/memoryflamegraphs.html
– hcp://www.brendangregg.com/FlameGraphs/offcpuflamegraphs.html
– hcp://techblog.neHlix.com/2015/07/java-in-flames.html
– hcp://techblog.neHlix.com/2016/04/saving-13-million-computaKonal-minutes.html
– hcp://techblog.neHlix.com/2014/11/nodejs-in-flames.html
– hcp://www.brendangregg.com/blog/2014-11-09/differenKal-flame-graphs.html
– hcp://www.brendangregg.com/blog/2016-01-20/ebpf-offcpu-flame-graph.html
– hcp://www.brendangregg.com/blog/2016-02-01/linux-wakeup-offwake-profiling.html
– hcp://www.brendangregg.com/blog/2016-02-05/ebpf-chaingraph-prototype.html
– hcp://corpaul.github.io/flamegraphdiff/
Linux perf_events
– hcps://perf.wiki.kernel.org/index.php/Main_Page
– hcp://www.brendangregg.com/perf.html
NeHlix Vector
hcps://github.com/neHlix/vector
hcp://techblog.neHlix.com/2015/04/introducing-vector-neHlixs-on-host.html

2017 USENIX Annual Technical Conference
Thank You
– QuesKons?
– hcp://www.brendangregg.com
– hcp://slideshare.net/brendangregg
– bgregg@neHlix.com
– @brendangregg
Next topic: Performance Superpowers with Enhanced BPF
