Velocity 2013: Stop the Guessing, Performance Methodologies for Production Systems

Video: http://www.youtube.com/watch?v=0yyorhl6IjM

Talk presented at Velocity 2013 by Brendan Gregg.

Description: "When faced with performance issues on complex production systems and distributed cloud environments, it can be difficult to know where to begin your analysis, or to spend much time on it when it isn’t your day job. This talk covers various methodologies, and anti-methodologies, for systems analysis, which serve as guidance for finding fruitful metrics from your current performance monitoring products. Such methodologies can help check all areas in an efficient manner, and find issues that can be easily overlooked, especially for virtualized environments which impose resource controls. Some of the tools and methodologies covered, including the USE Method, were developed by the speaker and have been used successfully in enterprise and cloud environments."

next
prev
1/58
next
prev
2/58
next
prev
3/58
next
prev
4/58
next
prev
5/58
next
prev
6/58
next
prev
7/58
next
prev
8/58
next
prev
9/58
next
prev
10/58
next
prev
11/58
next
prev
12/58
next
prev
13/58
next
prev
14/58
next
prev
15/58
next
prev
16/58
next
prev
17/58
next
prev
18/58
next
prev
19/58
next
prev
20/58
next
prev
21/58
next
prev
22/58
next
prev
23/58
next
prev
24/58
next
prev
25/58
next
prev
26/58
next
prev
27/58
next
prev
28/58
next
prev
29/58
next
prev
30/58
next
prev
31/58
next
prev
32/58
next
prev
33/58
next
prev
34/58
next
prev
35/58
next
prev
36/58
next
prev
37/58
next
prev
38/58
next
prev
39/58
next
prev
40/58
next
prev
41/58
next
prev
42/58
next
prev
43/58
next
prev
44/58
next
prev
45/58
next
prev
46/58
next
prev
47/58
next
prev
48/58
next
prev
49/58
next
prev
50/58
next
prev
51/58
next
prev
52/58
next
prev
53/58
next
prev
54/58
next
prev
55/58
next
prev
56/58
next
prev
57/58
next
prev
58/58

PDF: VelocityStopTheGuessing2013.pdf

Keywords (from pdftotext):

slide 1:
    Stop the Guessing
    Performance Methodologies for
    Production Systems
    Brendan Gregg
    Lead Performance Engineer, Joyent
    Wednesday, June 19, 13

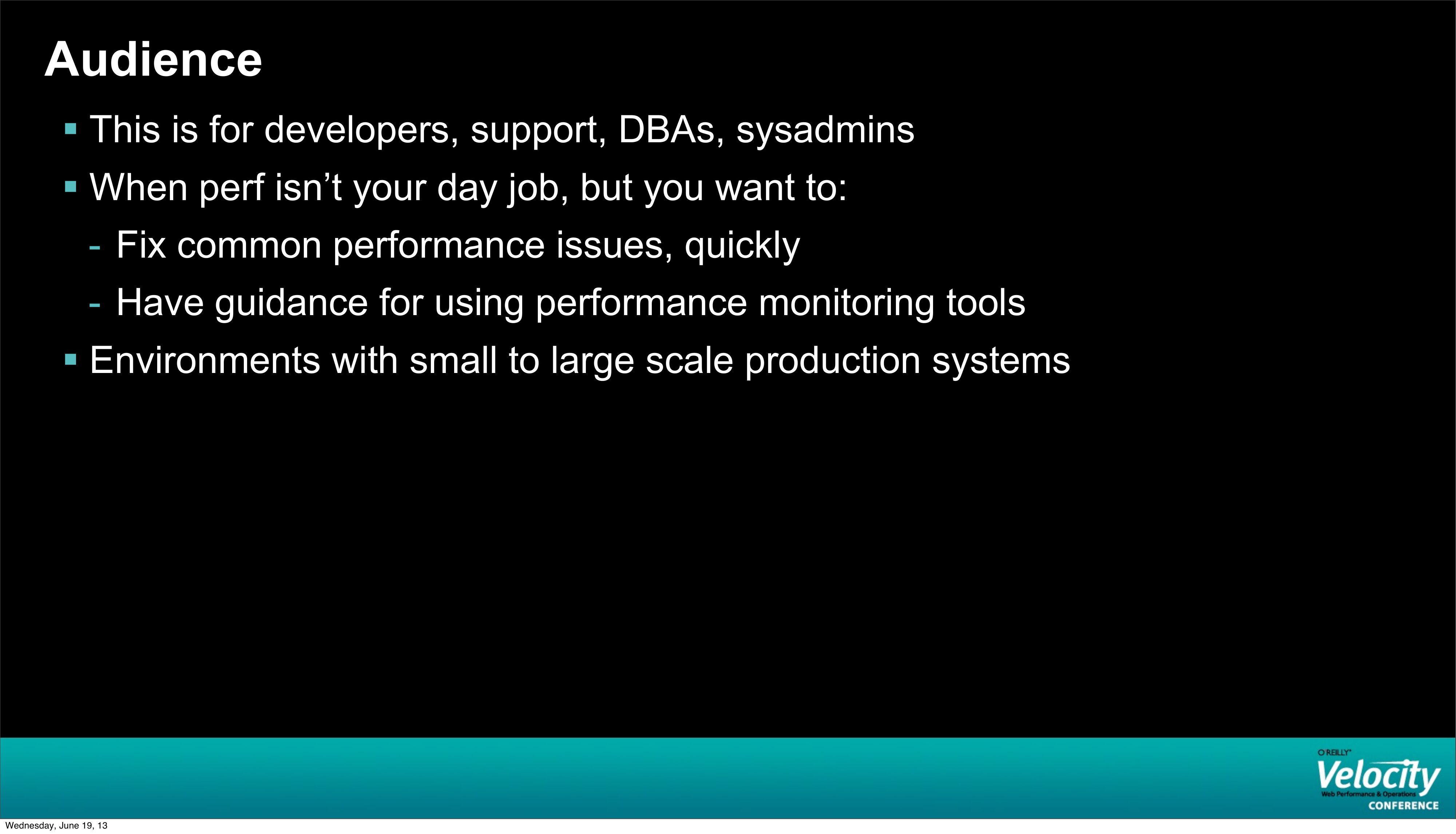

slide 2:
    Audience
     This is for developers, support, DBAs, sysadmins
     When perf isn’t your day job, but you want to:
    - Fix common performance issues, quickly
    - Have guidance for using performance monitoring tools
     Environments with small to large scale production systems
    Wednesday, June 19, 13

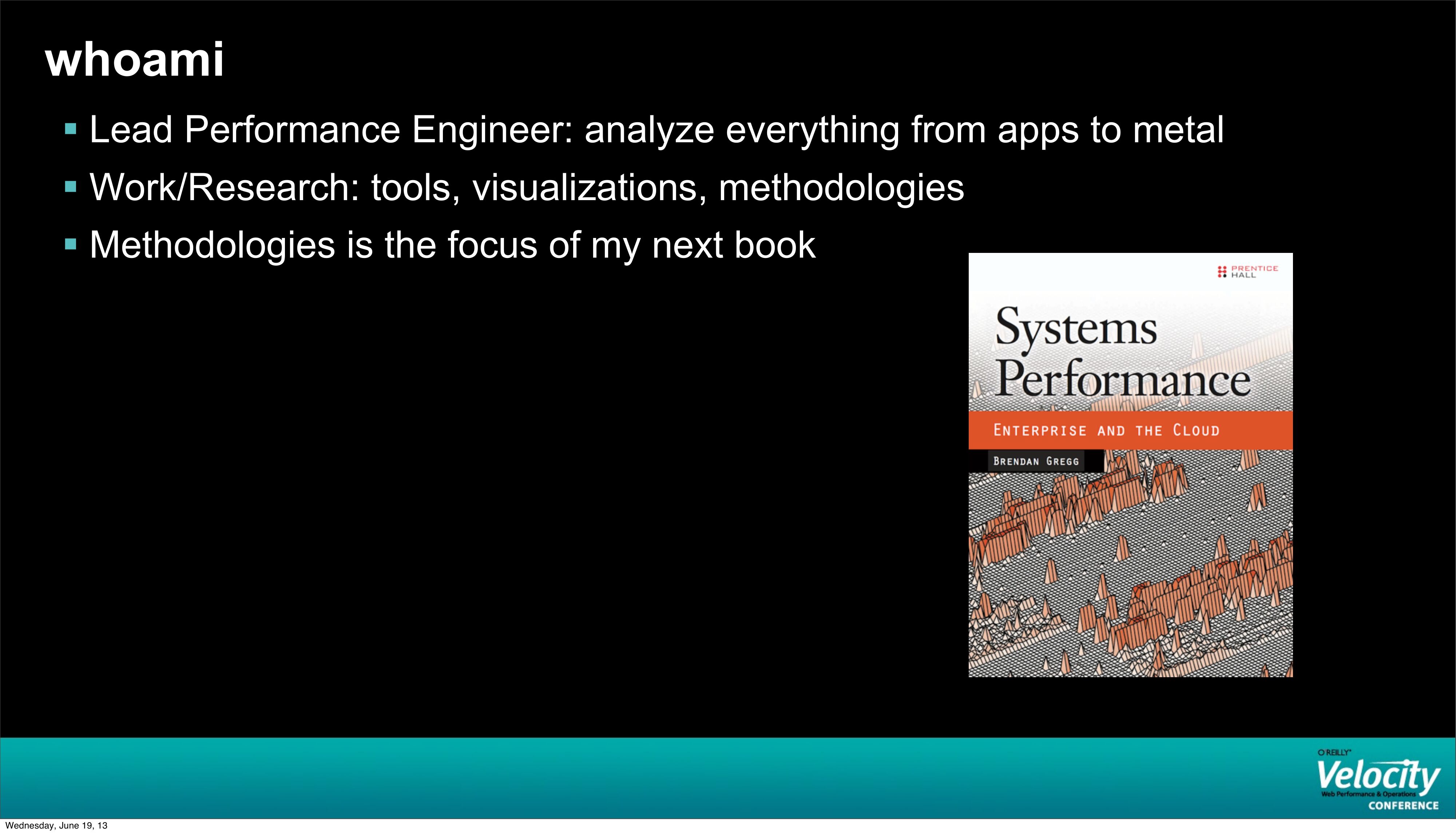

slide 3:
    whoami
     Lead Performance Engineer: analyze everything from apps to metal
     Work/Research: tools, visualizations, methodologies
     Methodologies is the focus of my next book
    Wednesday, June 19, 13

slide 4:
    Joyent
     High-Performance Cloud Infrastructure
    - Public/private cloud provider
     OS Virtualization for bare metal performance
     KVM for Linux and Windows guests
     Core developers of SmartOS and node.js
    Wednesday, June 19, 13

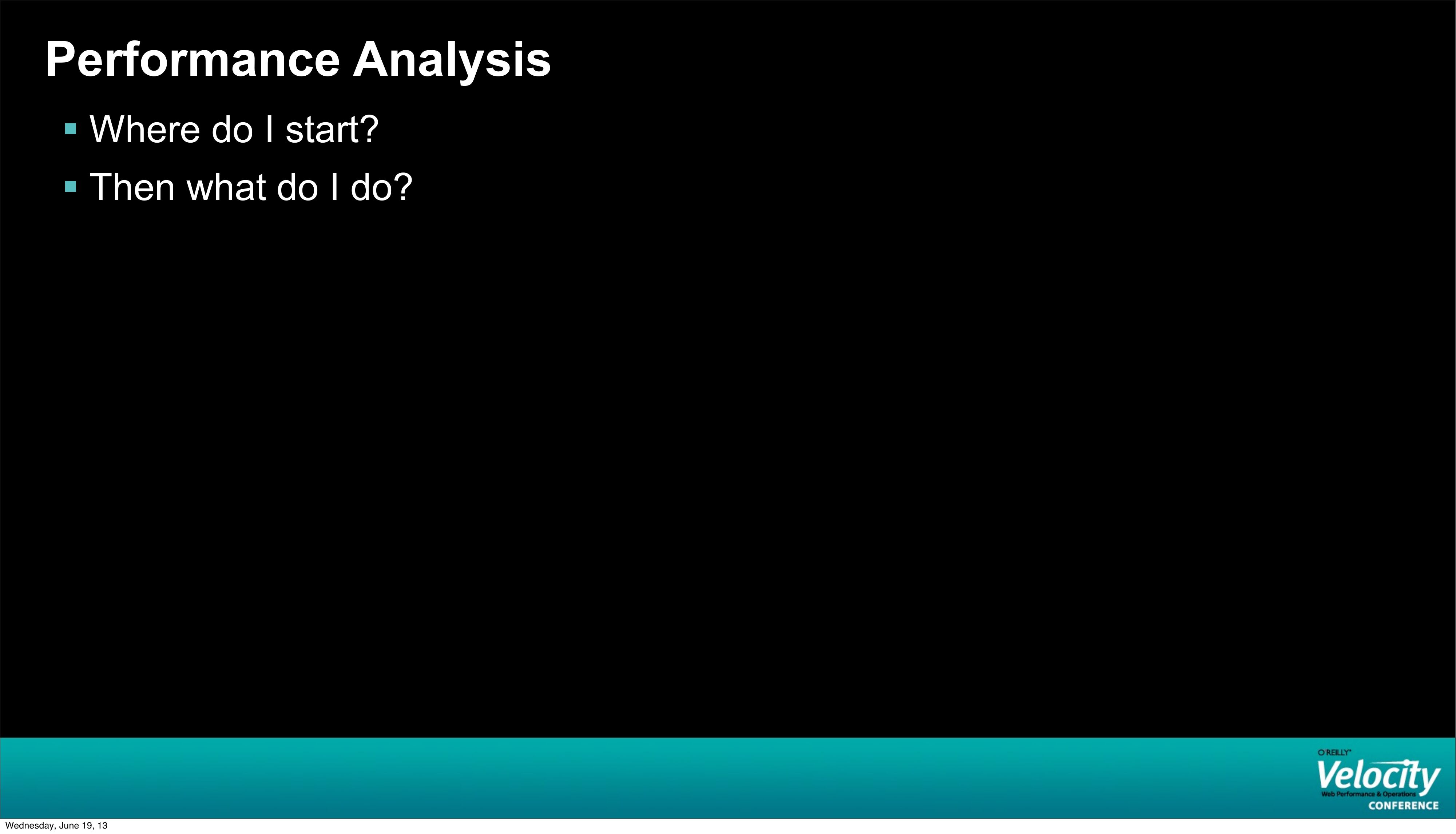

slide 5:
    Performance Analysis
     Where do I start?
     Then what do I do?
    Wednesday, June 19, 13

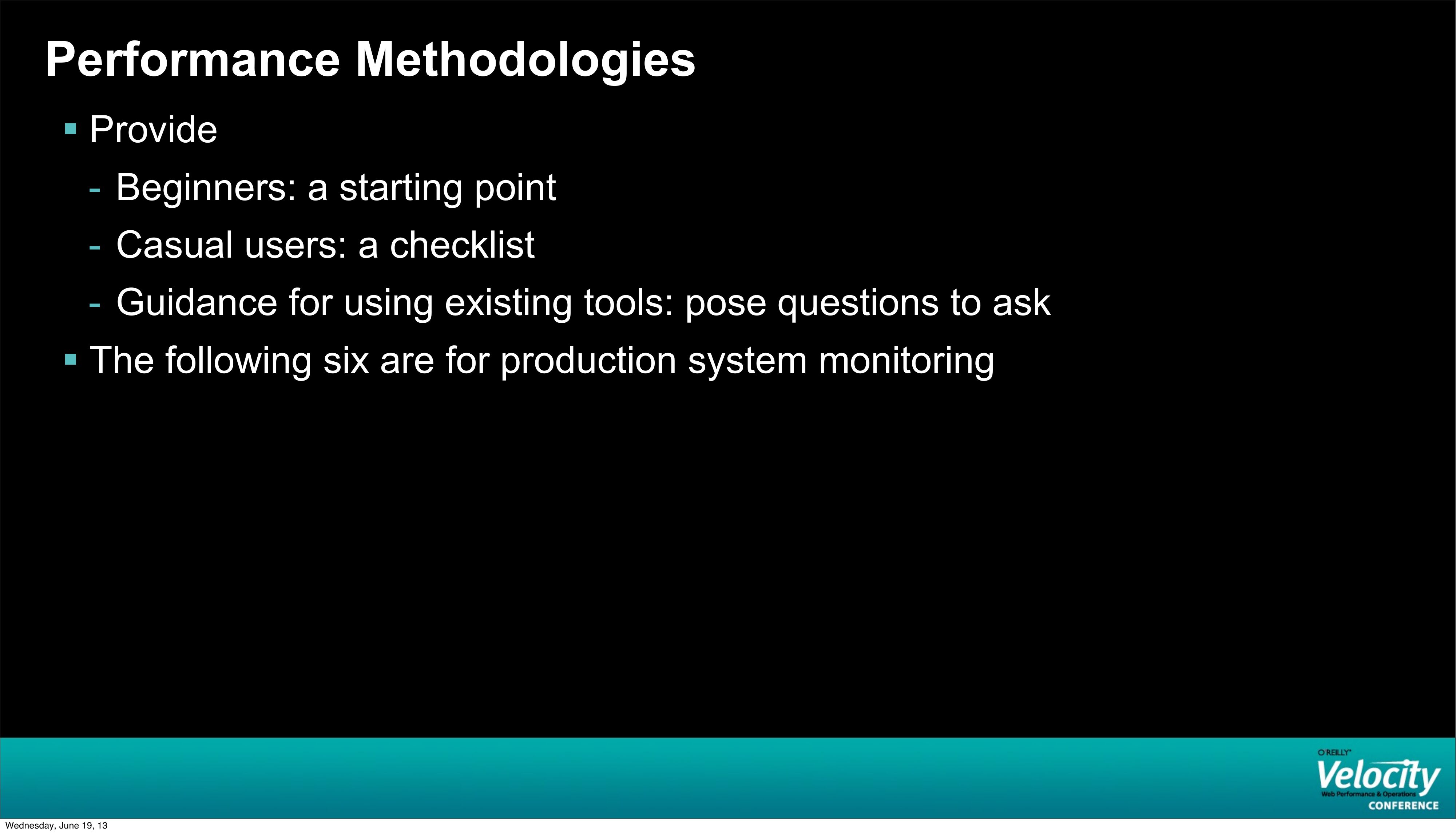

slide 6:
    Performance Methodologies
     Provide
    - Beginners: a starting point
    - Casual users: a checklist
    - Guidance for using existing tools: pose questions to ask
     The following six are for production system monitoring
    Wednesday, June 19, 13

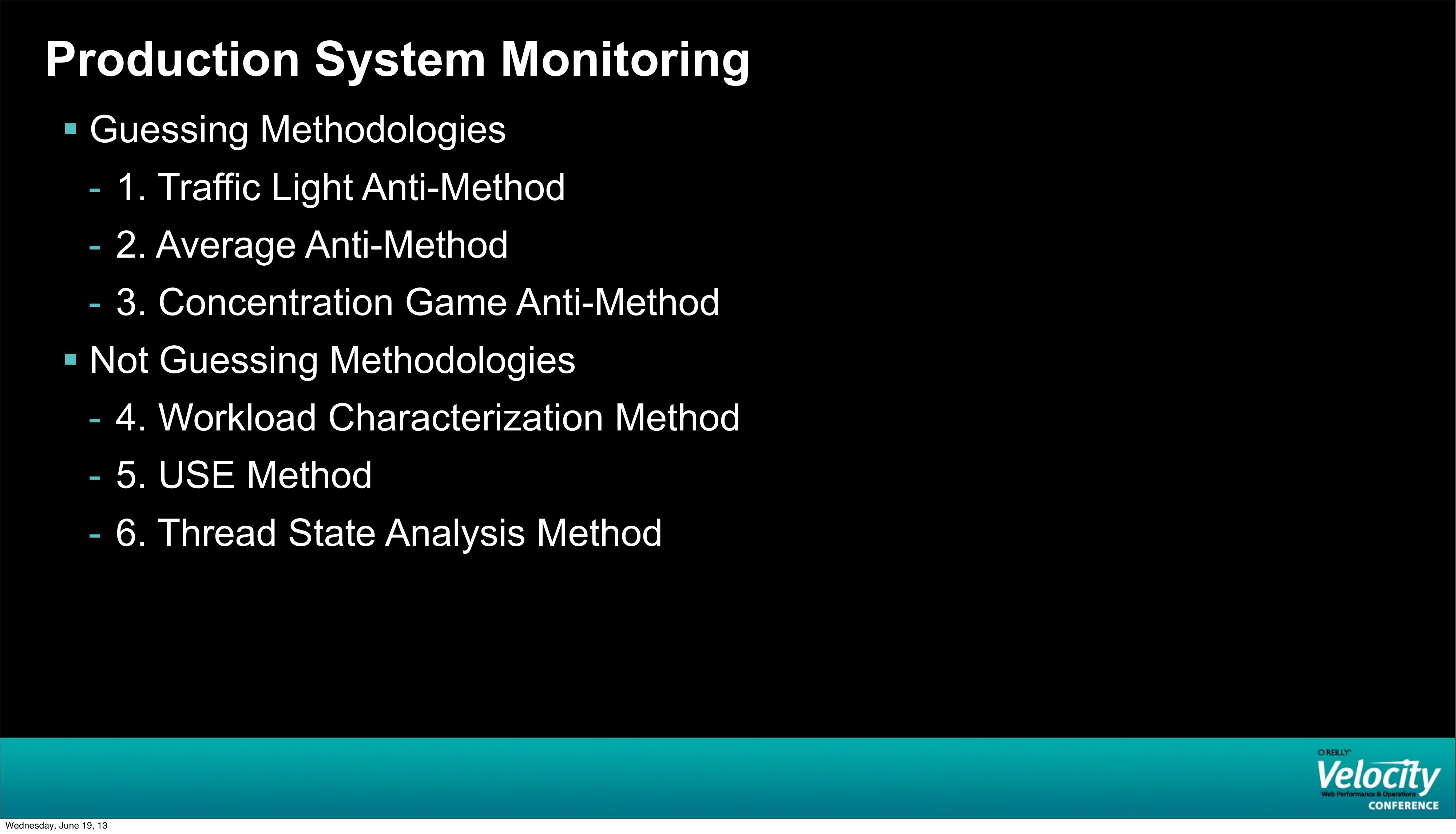

slide 7:
    Production System Monitoring
     Guessing Methodologies
    - 1. Traffic Light Anti-Method
    - 2. Average Anti-Method
    - 3. Concentration Game Anti-Method
     Not Guessing Methodologies
    - 4. Workload Characterization Method
    - 5. USE Method
    - 6. Thread State Analysis Method
    Wednesday, June 19, 13

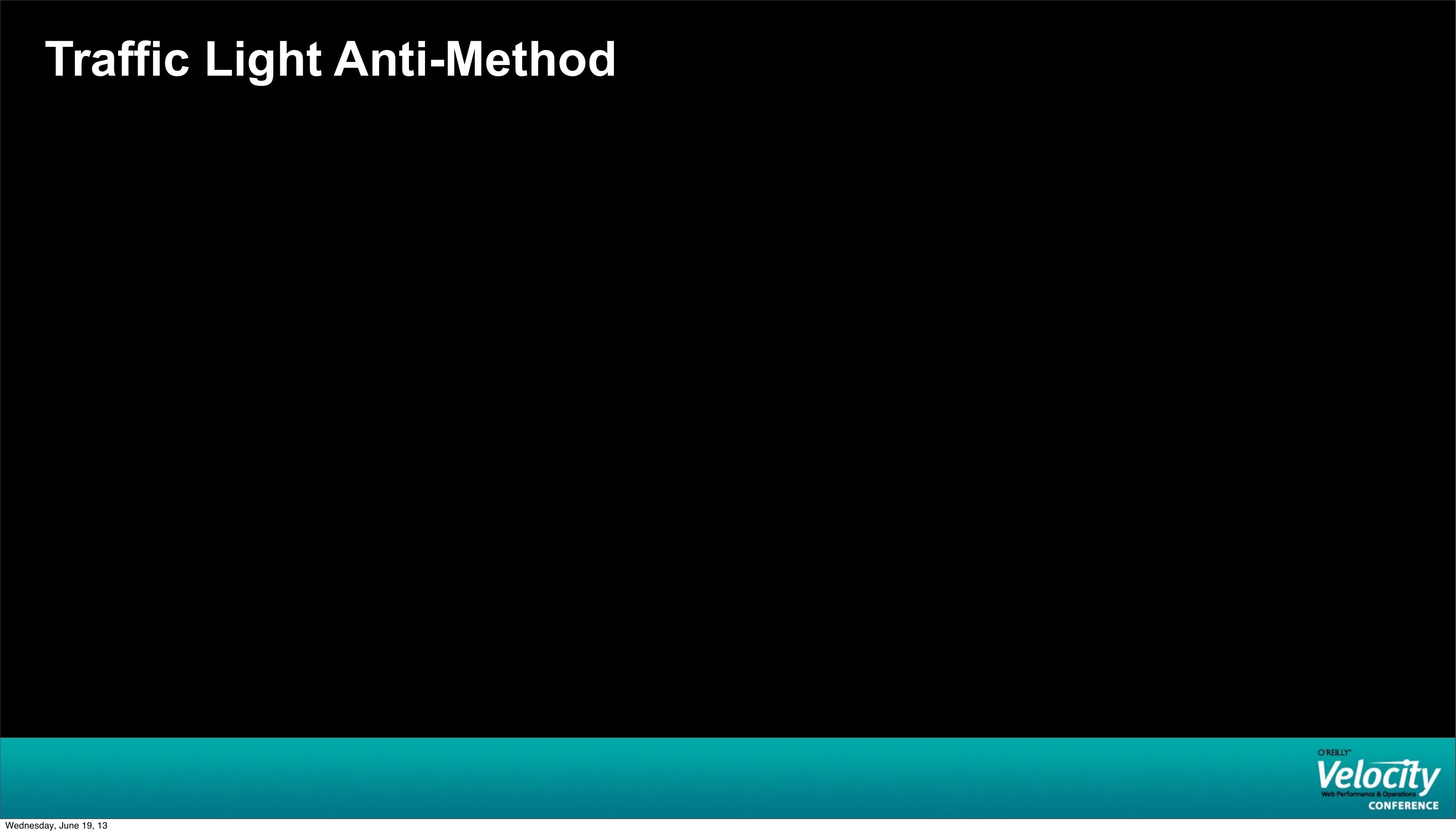

slide 8:
    Traffic Light Anti-Method
    Wednesday, June 19, 13

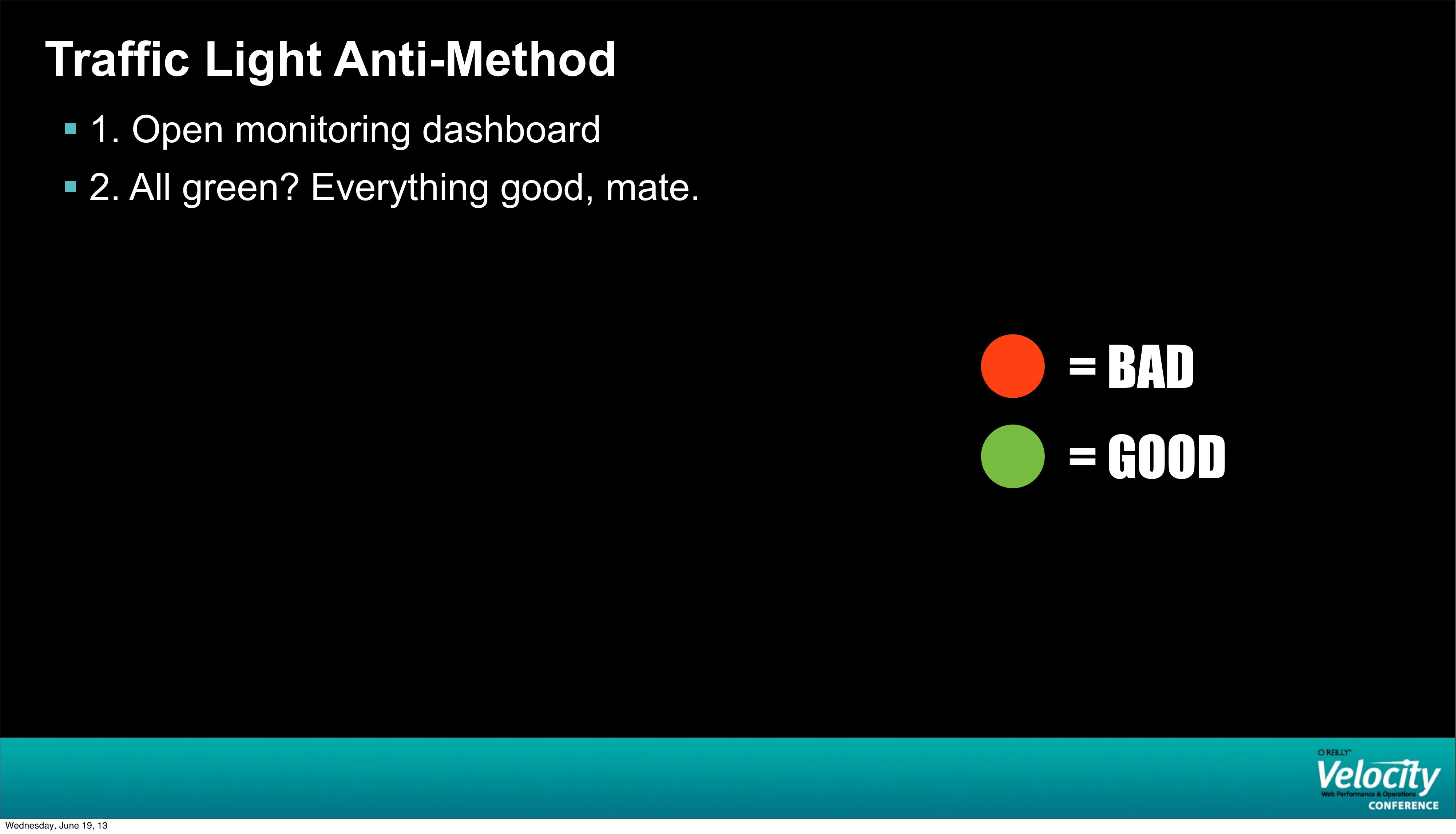

slide 9:
    Traffic Light Anti-Method
     1. Open monitoring dashboard
     2. All green? Everything good, mate.
    = BAD
    = GOOD
    Wednesday, June 19, 13

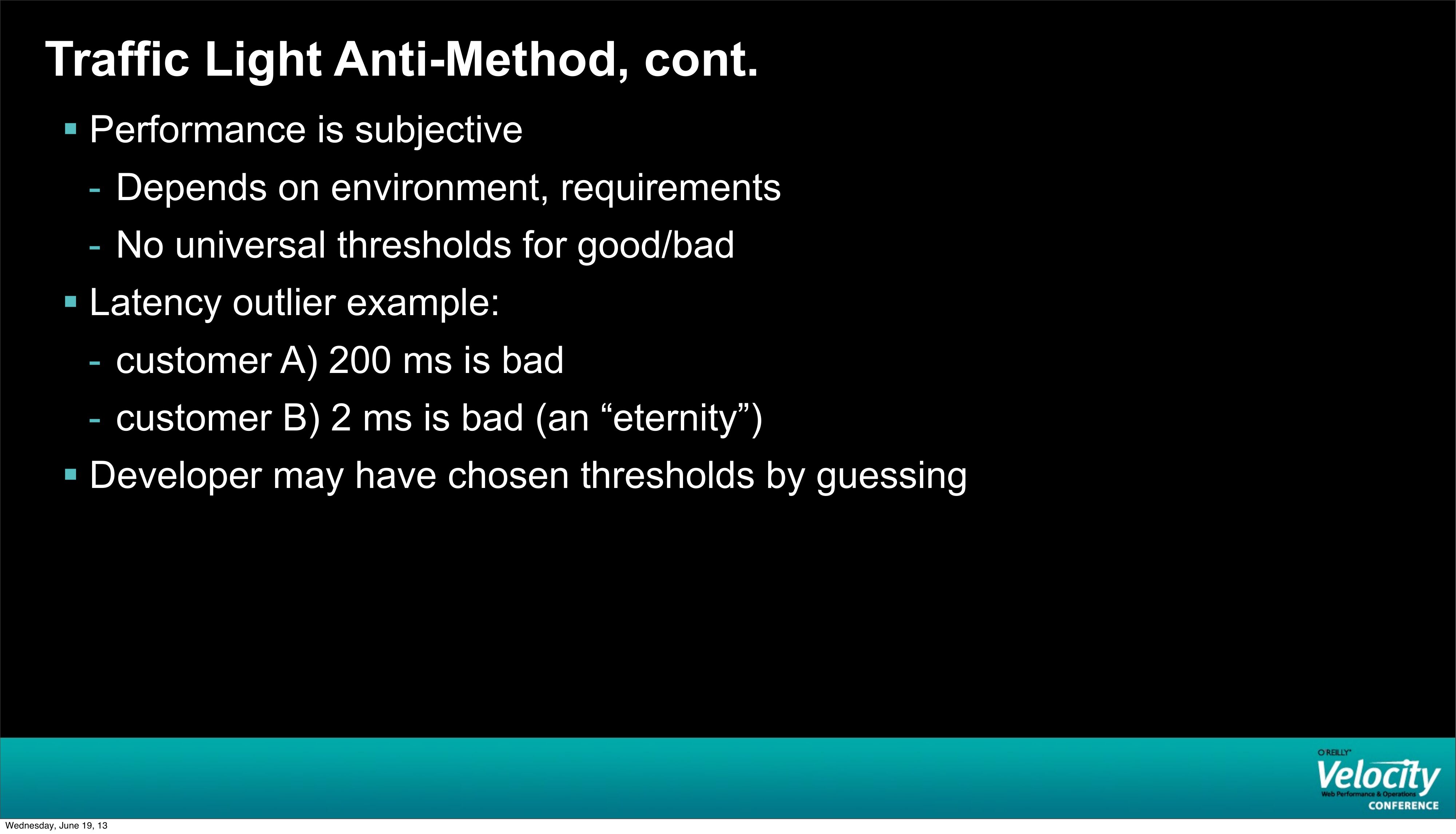

slide 10:
    Traffic Light Anti-Method, cont.
     Performance is subjective
    - Depends on environment, requirements
    - No universal thresholds for good/bad
     Latency outlier example:
    - customer A) 200 ms is bad
    - customer B) 2 ms is bad (an “eternity”)
     Developer may have chosen thresholds by guessing
    Wednesday, June 19, 13

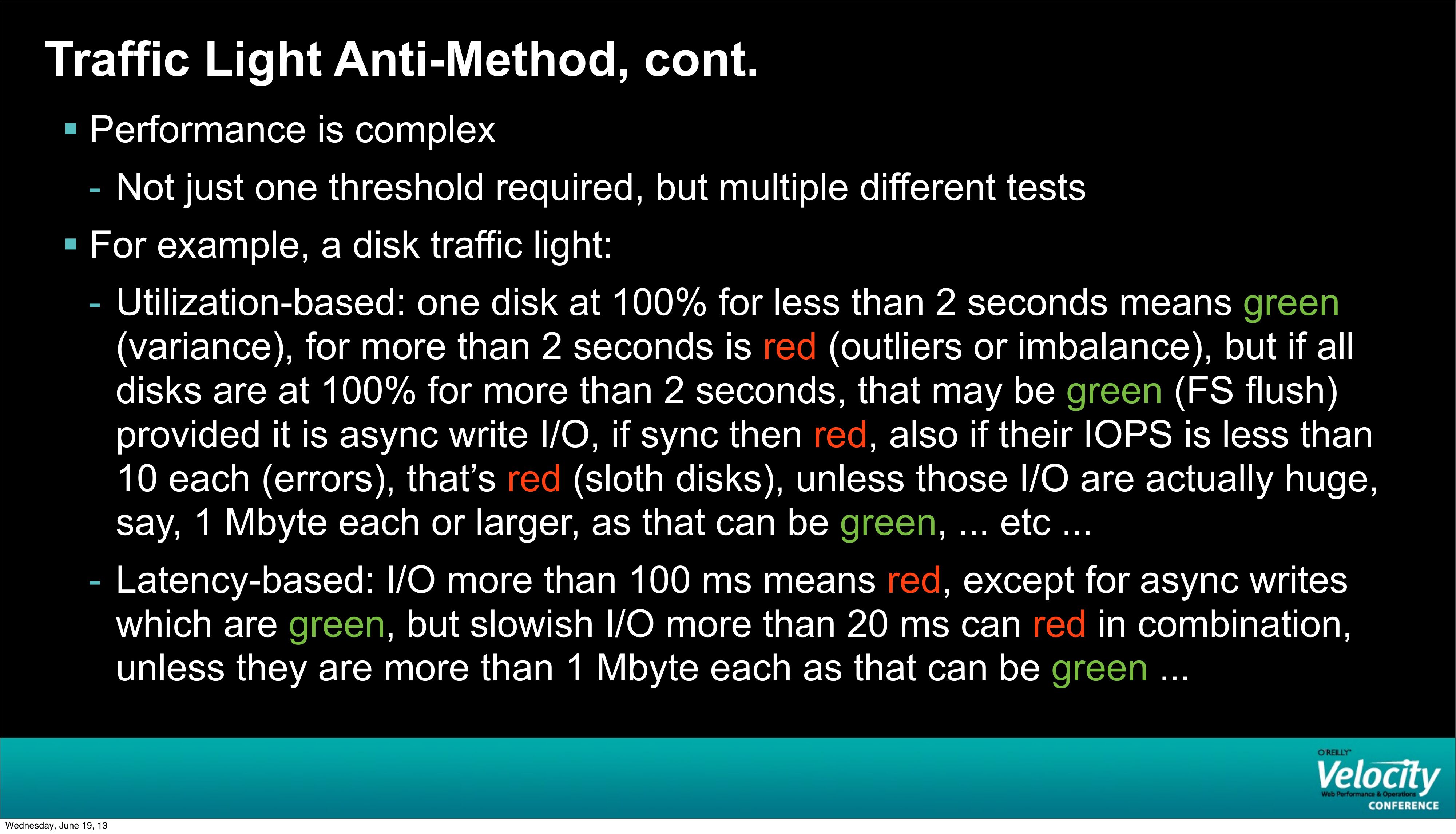

slide 11:
    Traffic Light Anti-Method, cont.
     Performance is complex
    - Not just one threshold required, but multiple different tests
     For example, a disk traffic light:
    - Utilization-based: one disk at 100% for less than 2 seconds means green
    (variance), for more than 2 seconds is red (outliers or imbalance), but if all
    disks are at 100% for more than 2 seconds, that may be green (FS flush)
    provided it is async write I/O, if sync then red, also if their IOPS is less than
    10 each (errors), that’s red (sloth disks), unless those I/O are actually huge,
    say, 1 Mbyte each or larger, as that can be green, ... etc ...
    - Latency-based: I/O more than 100 ms means red, except for async writes
    which are green, but slowish I/O more than 20 ms can red in combination,
    unless they are more than 1 Mbyte each as that can be green ...
    Wednesday, June 19, 13

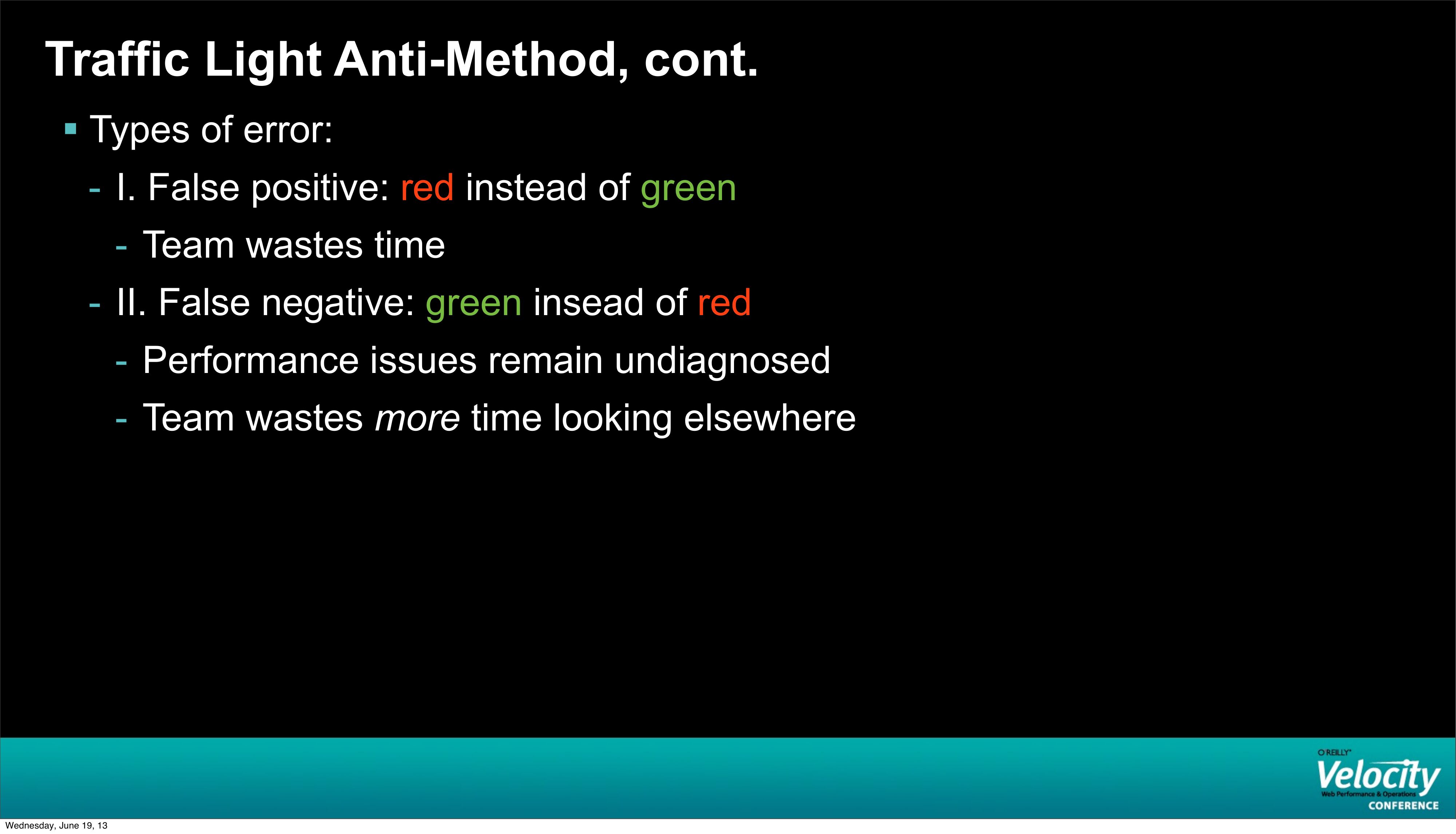

slide 12:
    Traffic Light Anti-Method, cont.
     Types of error:
    - I. False positive: red instead of green
    - Team wastes time
    - II. False negative: green insead of red
    - Performance issues remain undiagnosed
    - Team wastes more time looking elsewhere
    Wednesday, June 19, 13

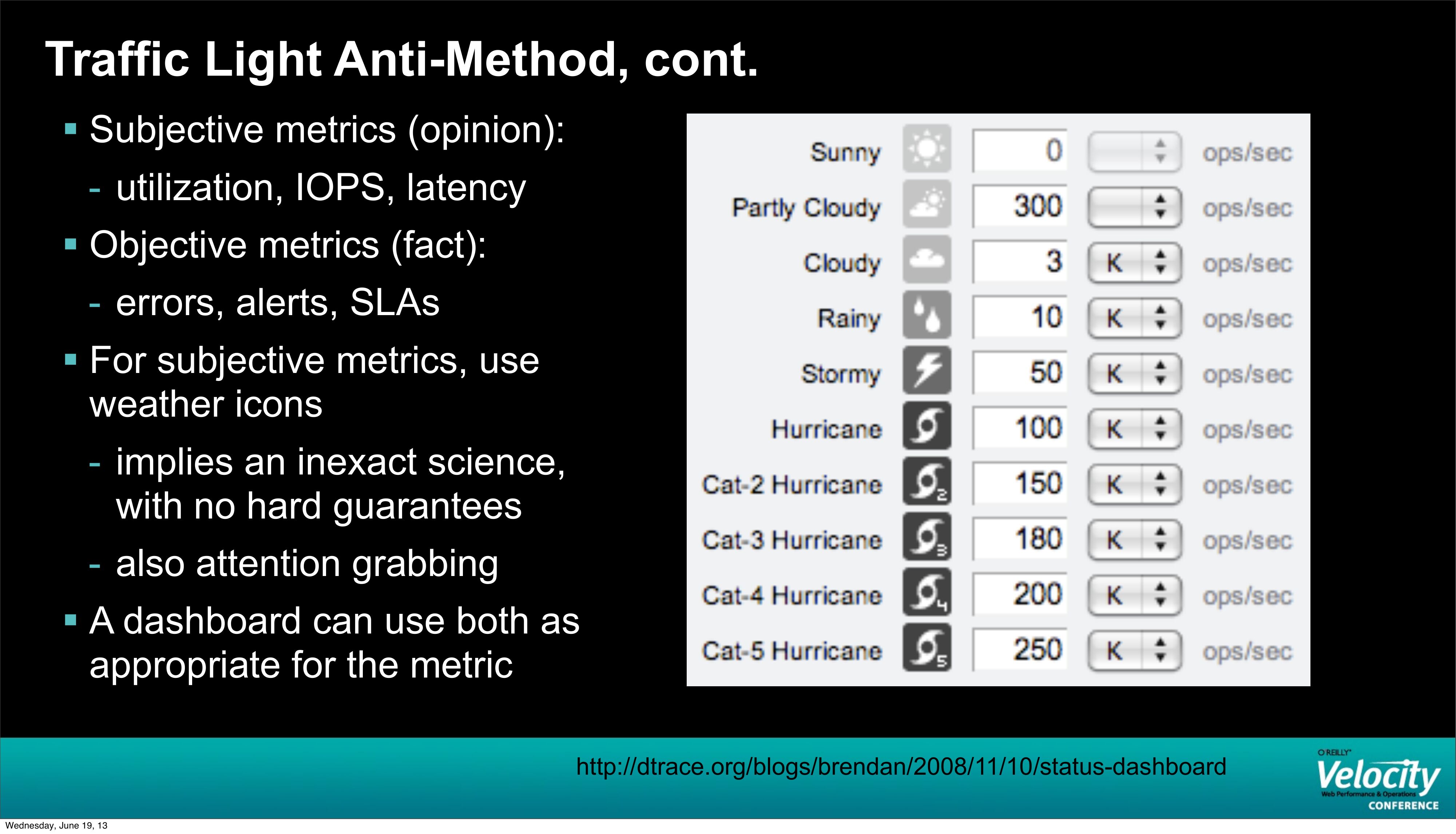

slide 13:
    Traffic Light Anti-Method, cont.
     Subjective metrics (opinion):
    - utilization, IOPS, latency
     Objective metrics (fact):
    - errors, alerts, SLAs
     For subjective metrics, use
    weather icons
    - implies an inexact science,
    with no hard guarantees
    - also attention grabbing
     A dashboard can use both as
    appropriate for the metric
    http://dtrace.org/blogs/brendan/2008/11/10/status-dashboard
    Wednesday, June 19, 13

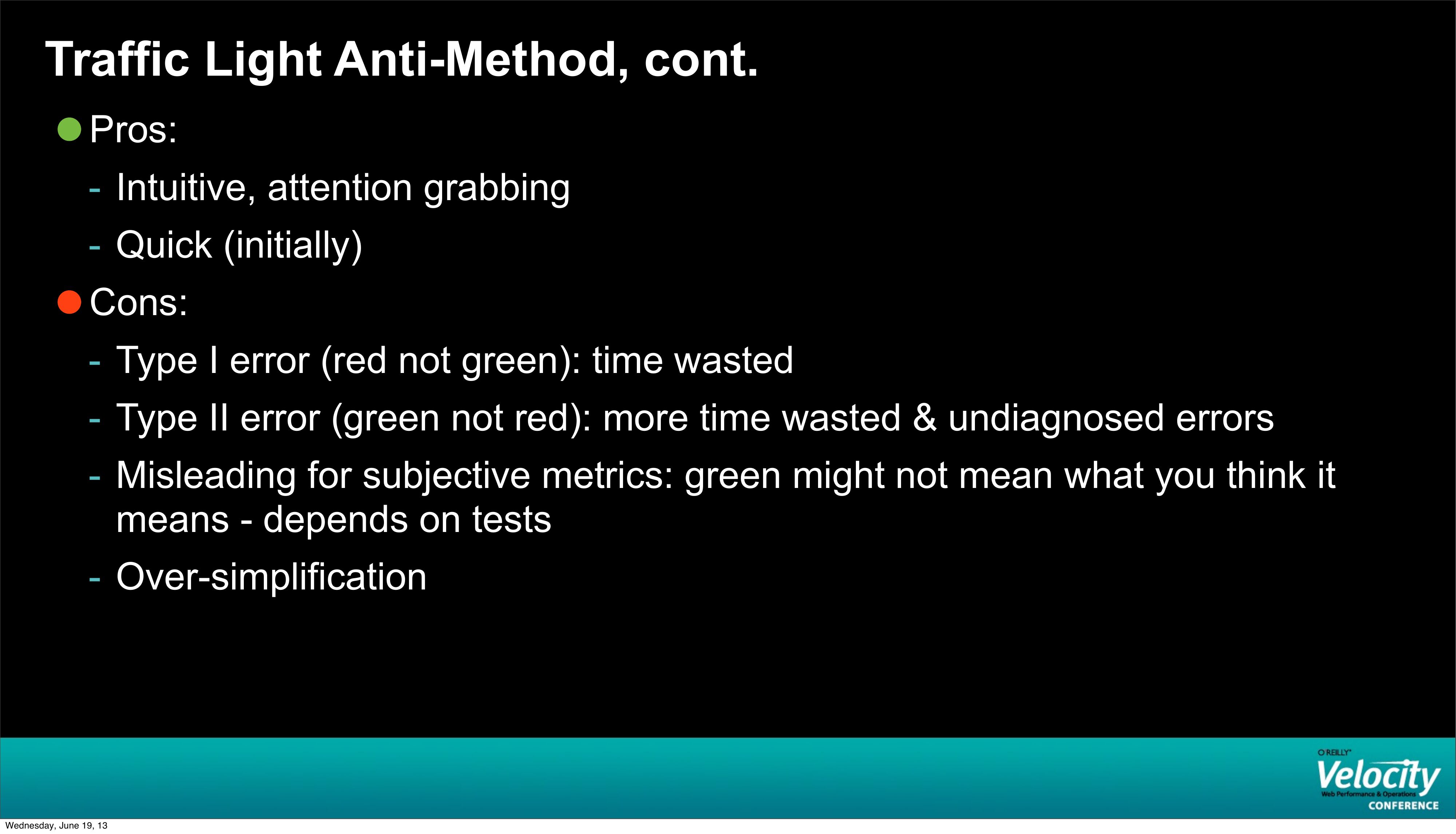

slide 14:
    Traffic Light Anti-Method, cont.
     Pros:
    - Intuitive, attention grabbing
    - Quick (initially)
     Cons:
    - Type I error (red not green): time wasted
    - Type II error (green not red): more time wasted & undiagnosed errors
    - Misleading for subjective metrics: green might not mean what you think it
    means - depends on tests
    - Over-simplification
    Wednesday, June 19, 13

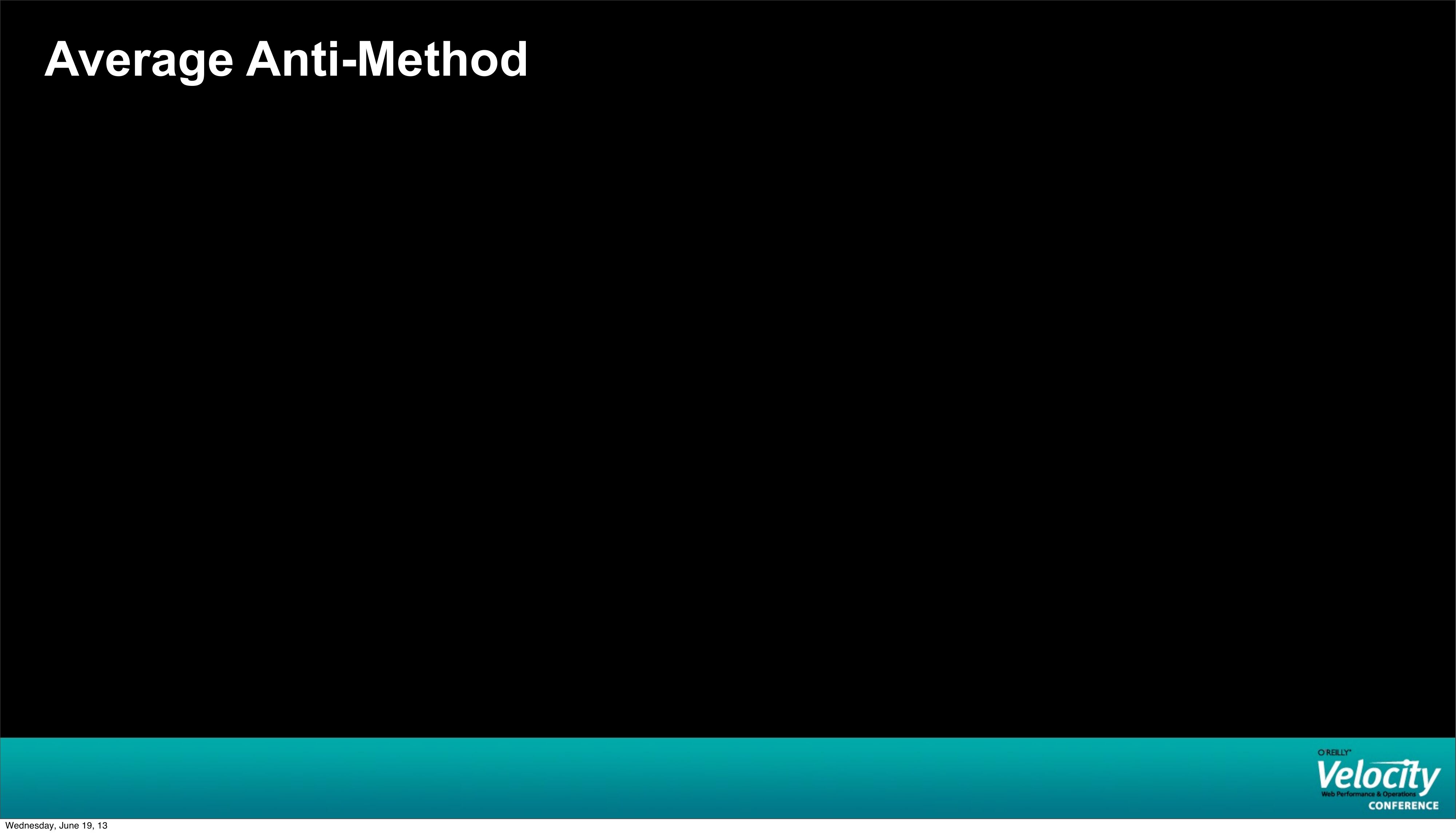

slide 15:
    Average Anti-Method
    Wednesday, June 19, 13

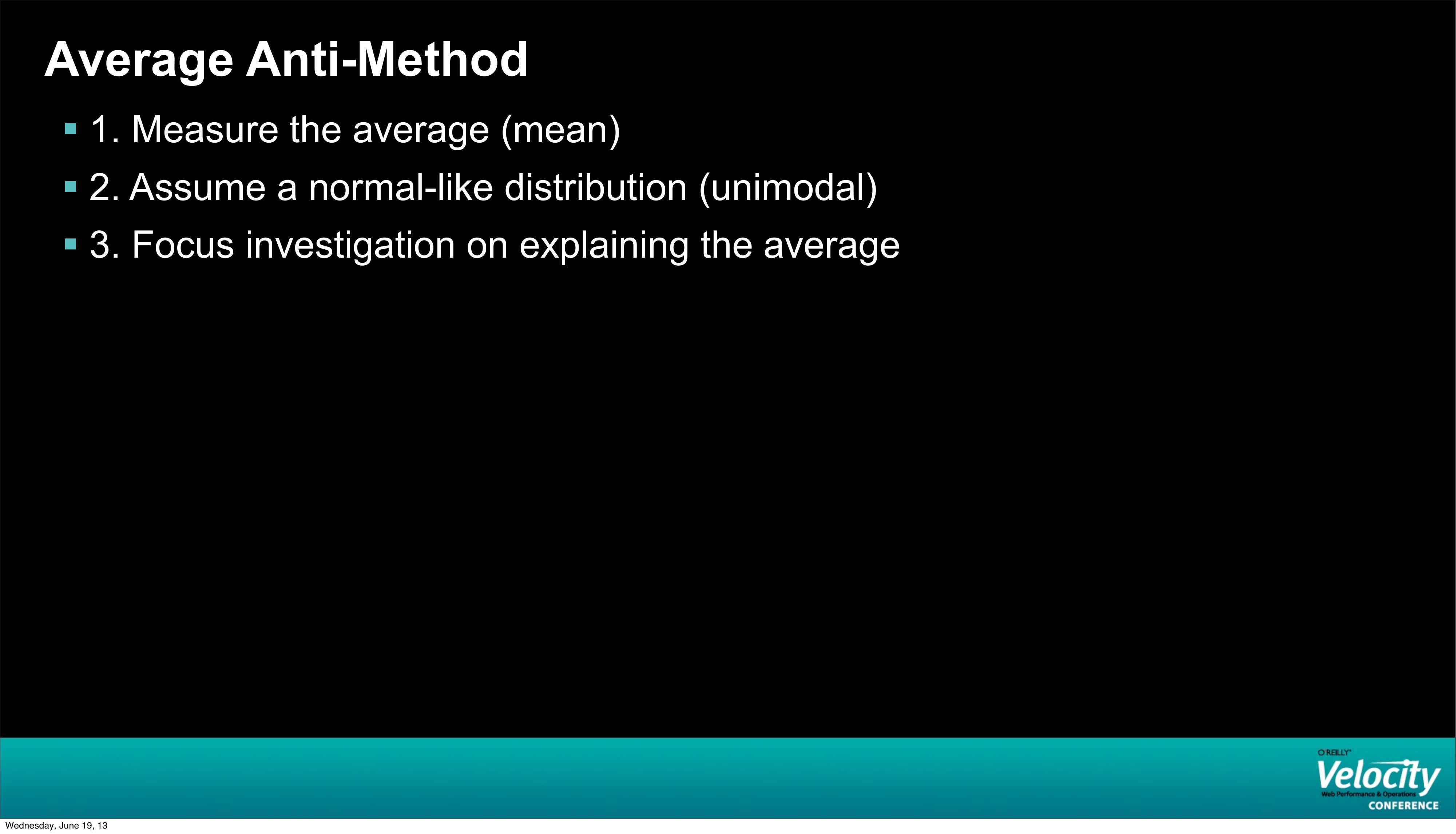

slide 16:
    Average Anti-Method
     1. Measure the average (mean)
     2. Assume a normal-like distribution (unimodal)
     3. Focus investigation on explaining the average
    Wednesday, June 19, 13

slide 17:
    Average Anti-Method: You Have
    stddev
    mean
    stddev
    Latency
    Wednesday, June 19, 13
    99th

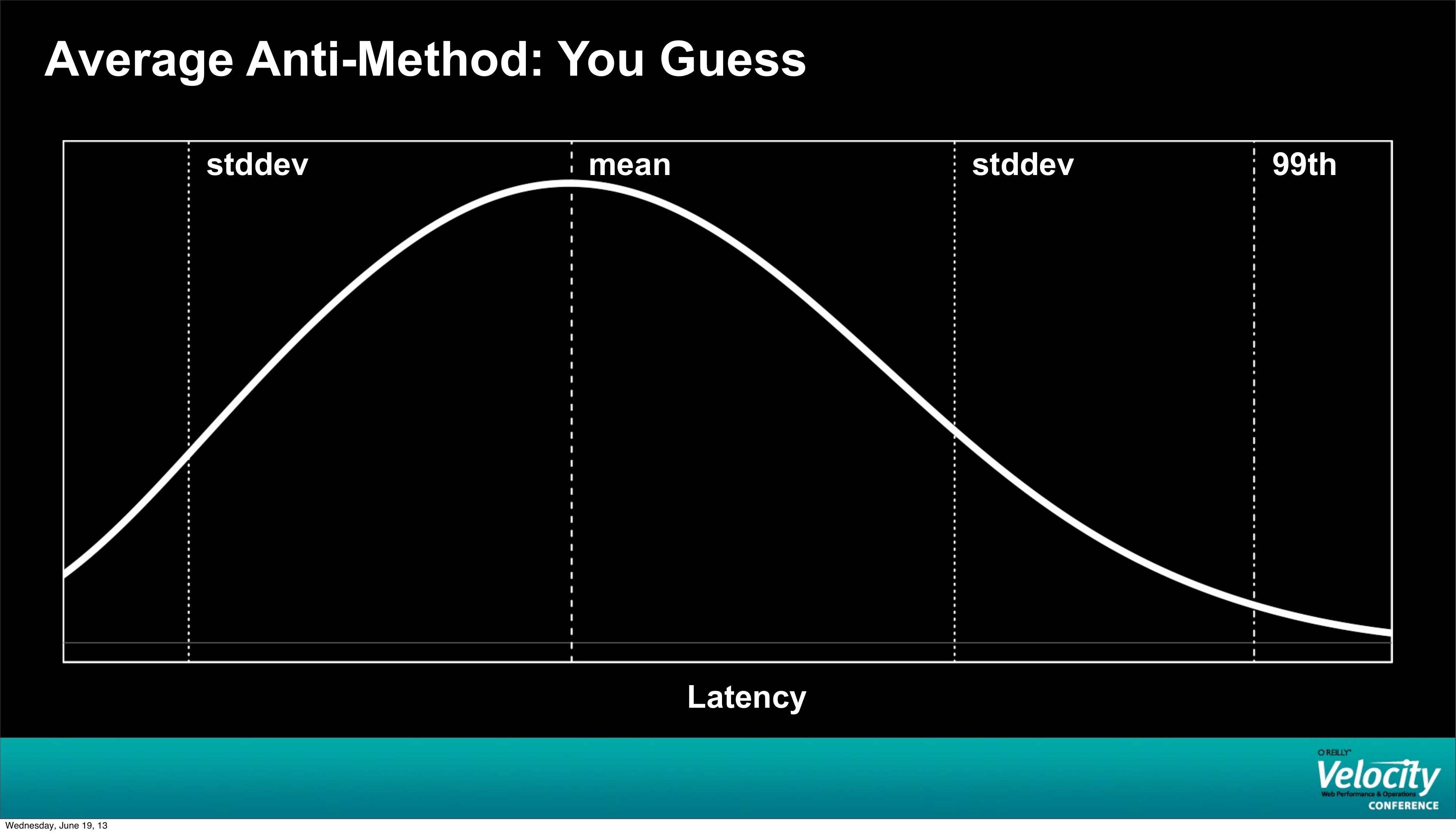

slide 18:
    Average Anti-Method: You Guess
    stddev
    mean
    stddev
    Latency
    Wednesday, June 19, 13
    99th

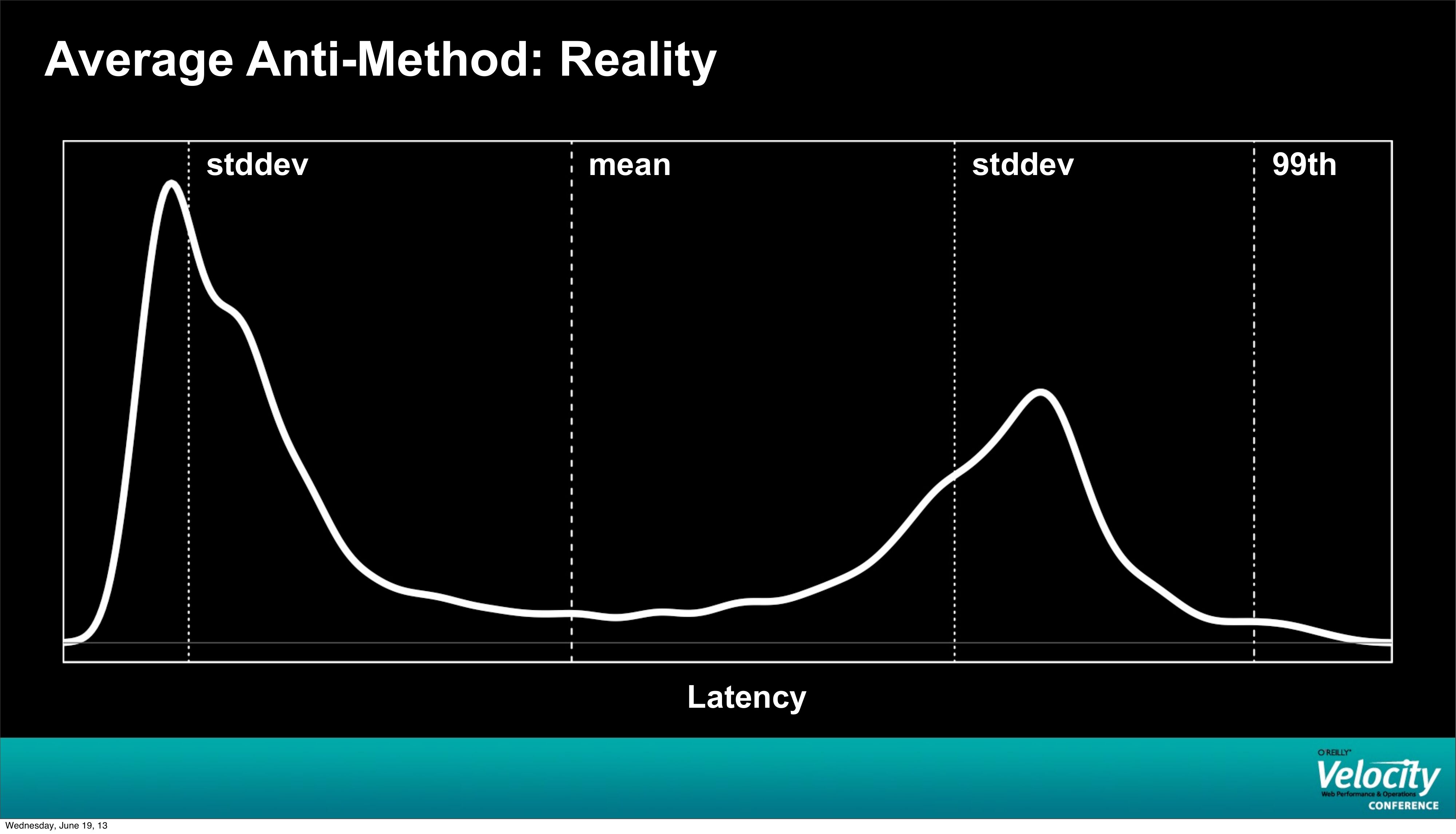

slide 19:
    Average Anti-Method: Reality
    stddev
    mean
    stddev
    Latency
    Wednesday, June 19, 13
    99th

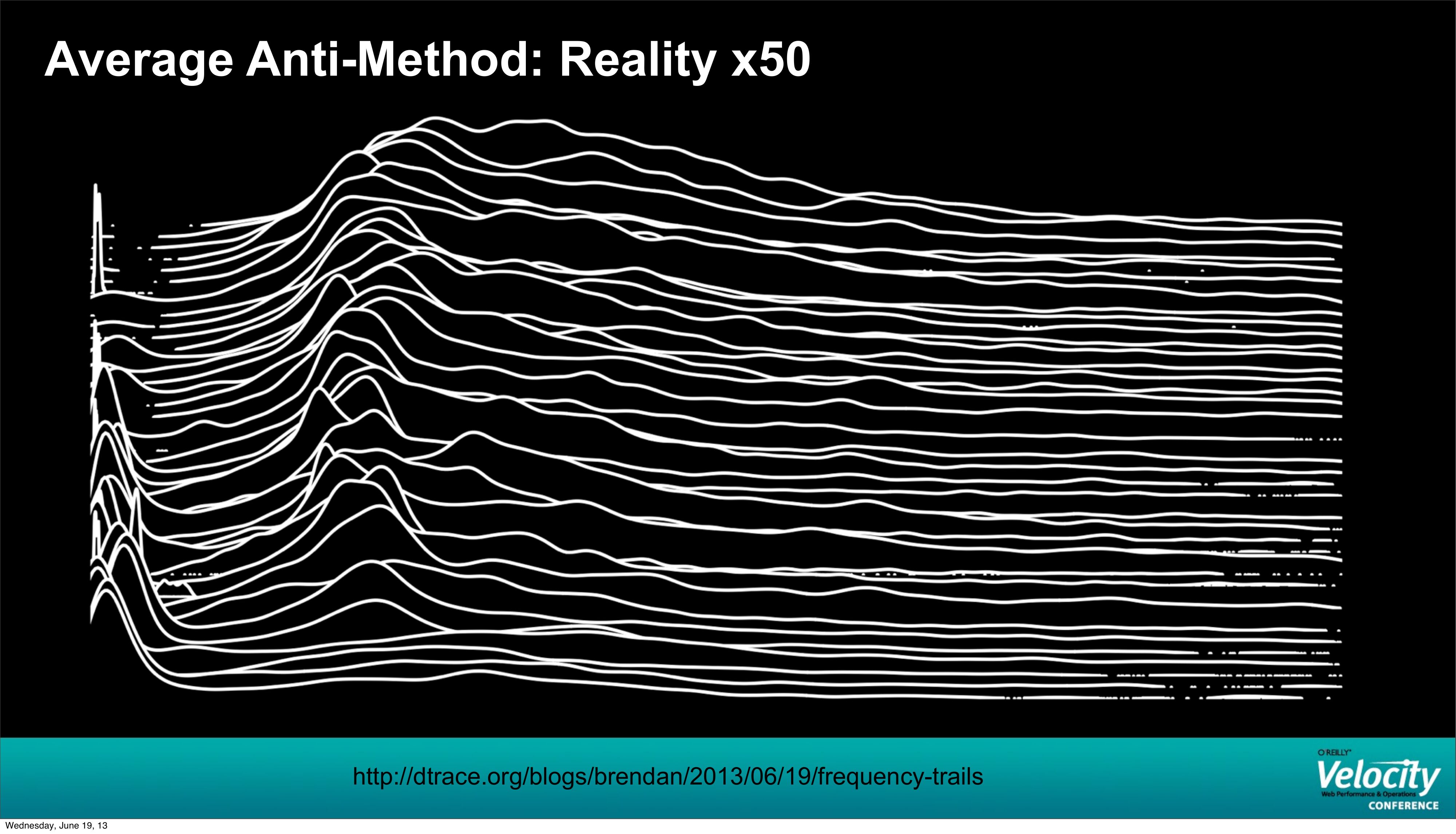

slide 20:
    Average Anti-Method: Reality x50
    http://dtrace.org/blogs/brendan/2013/06/19/frequency-trails
    Wednesday, June 19, 13

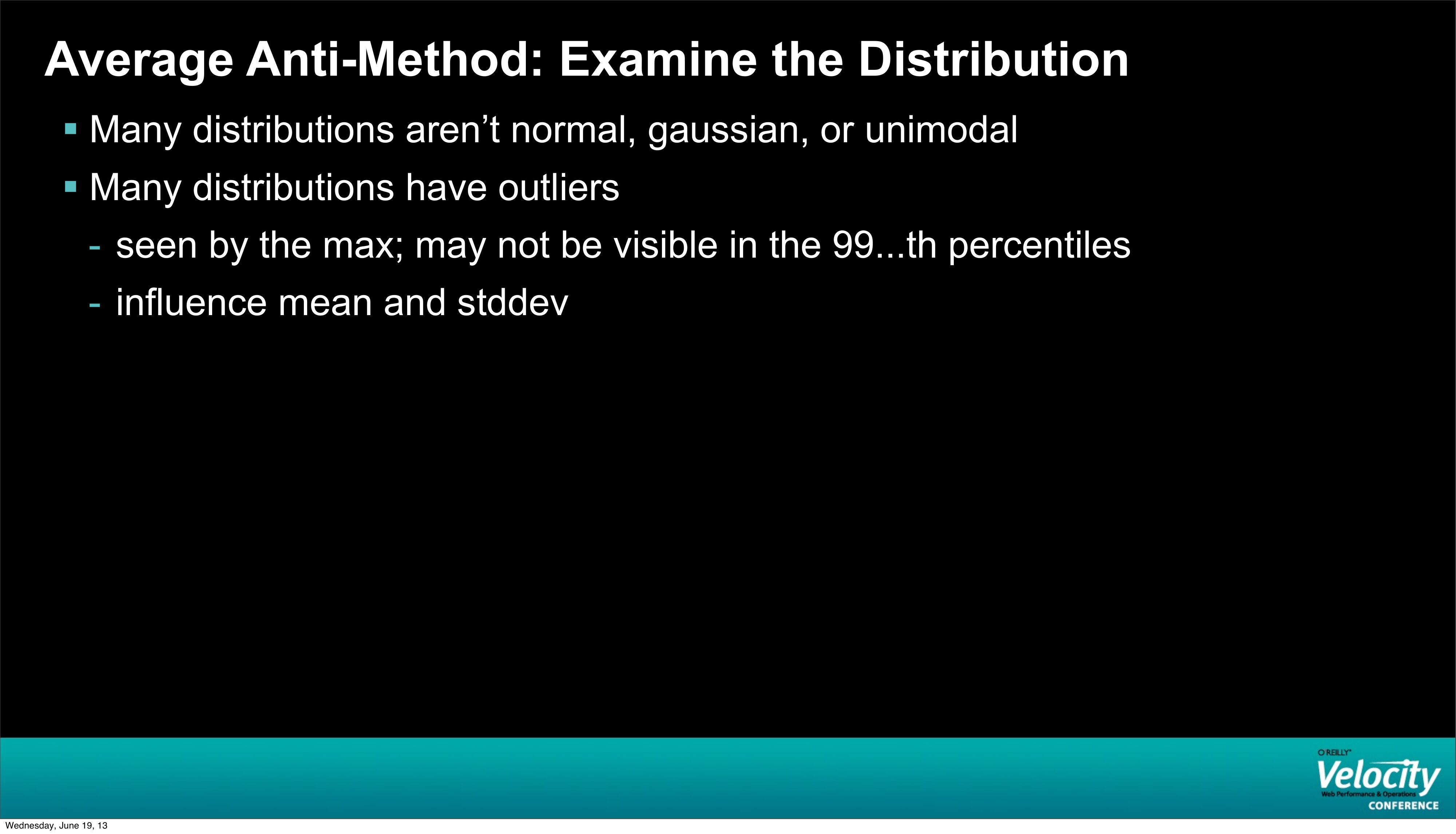

slide 21:
    Average Anti-Method: Examine the Distribution
     Many distributions aren’t normal, gaussian, or unimodal
     Many distributions have outliers
    - seen by the max; may not be visible in the 99...th percentiles
    - influence mean and stddev
    Wednesday, June 19, 13

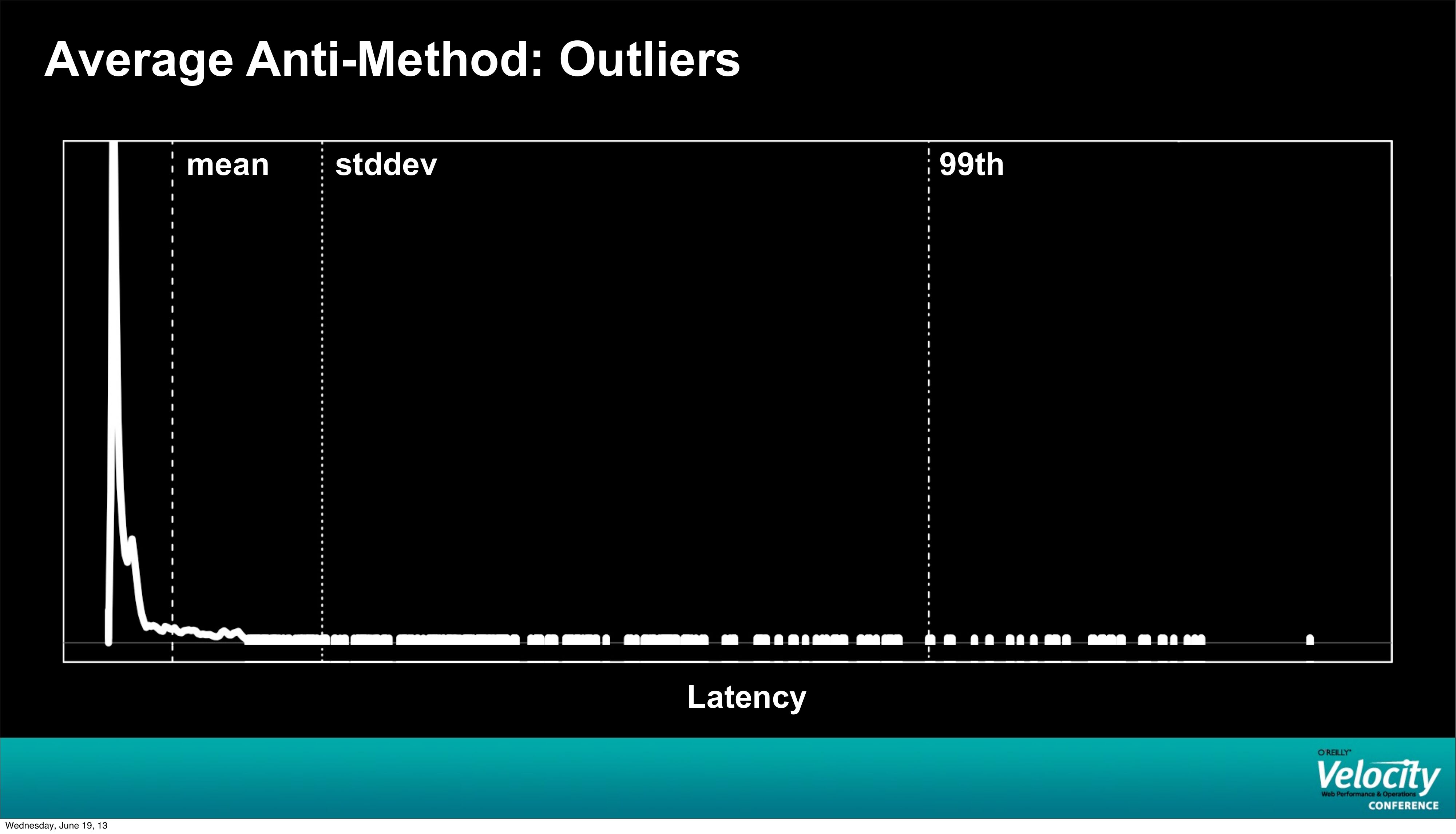

slide 22:
    Average Anti-Method: Outliers
    mean
    stddev
    99th
    Latency
    Wednesday, June 19, 13

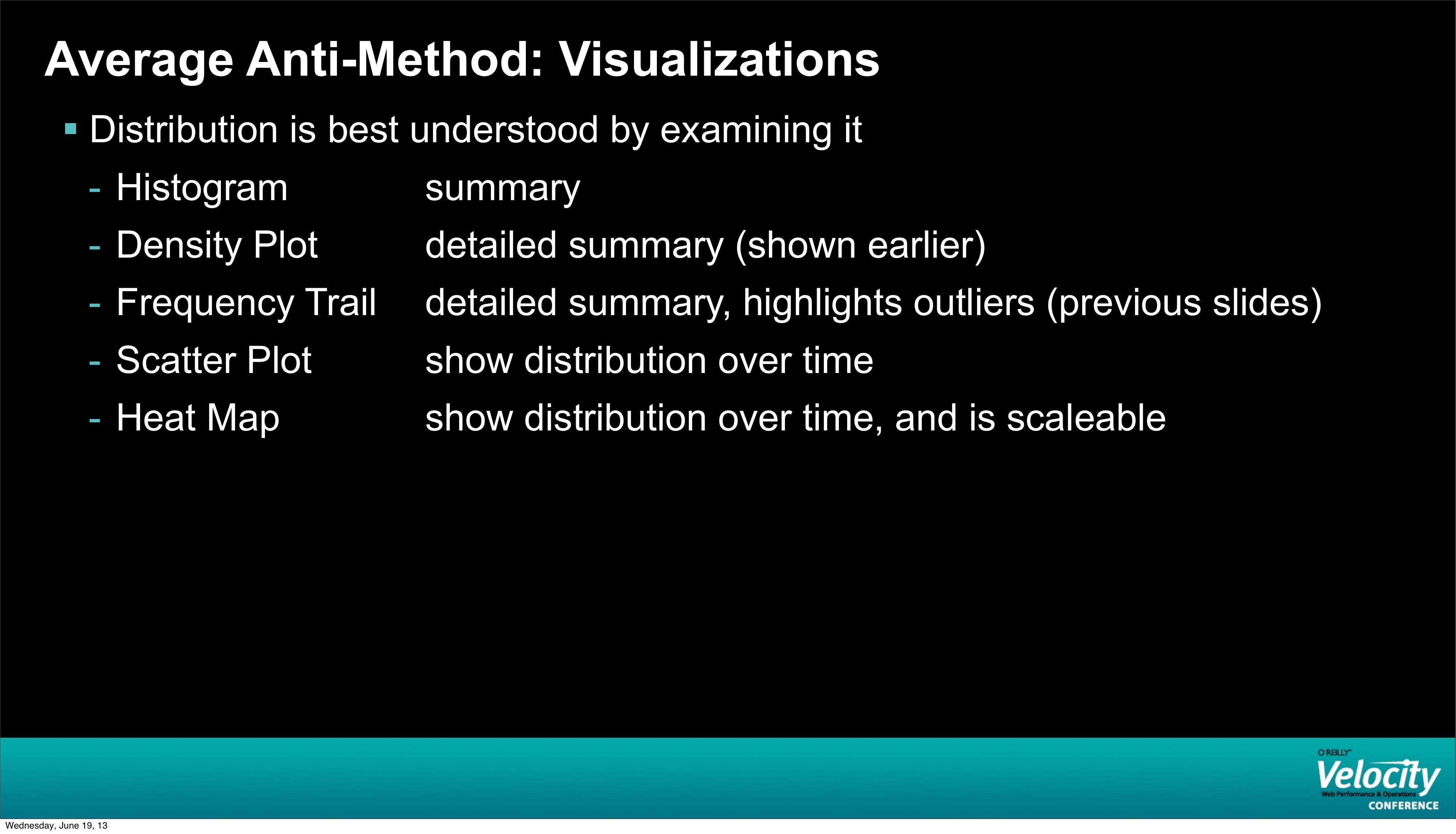

slide 23:
    Average Anti-Method: Visualizations
     Distribution is best understood by examining it
    - Histogram
    summary
    - Density Plot
    detailed summary (shown earlier)
    - Frequency Trail
    detailed summary, highlights outliers (previous slides)
    - Scatter Plot
    show distribution over time
    - Heat Map
    show distribution over time, and is scaleable
    Wednesday, June 19, 13

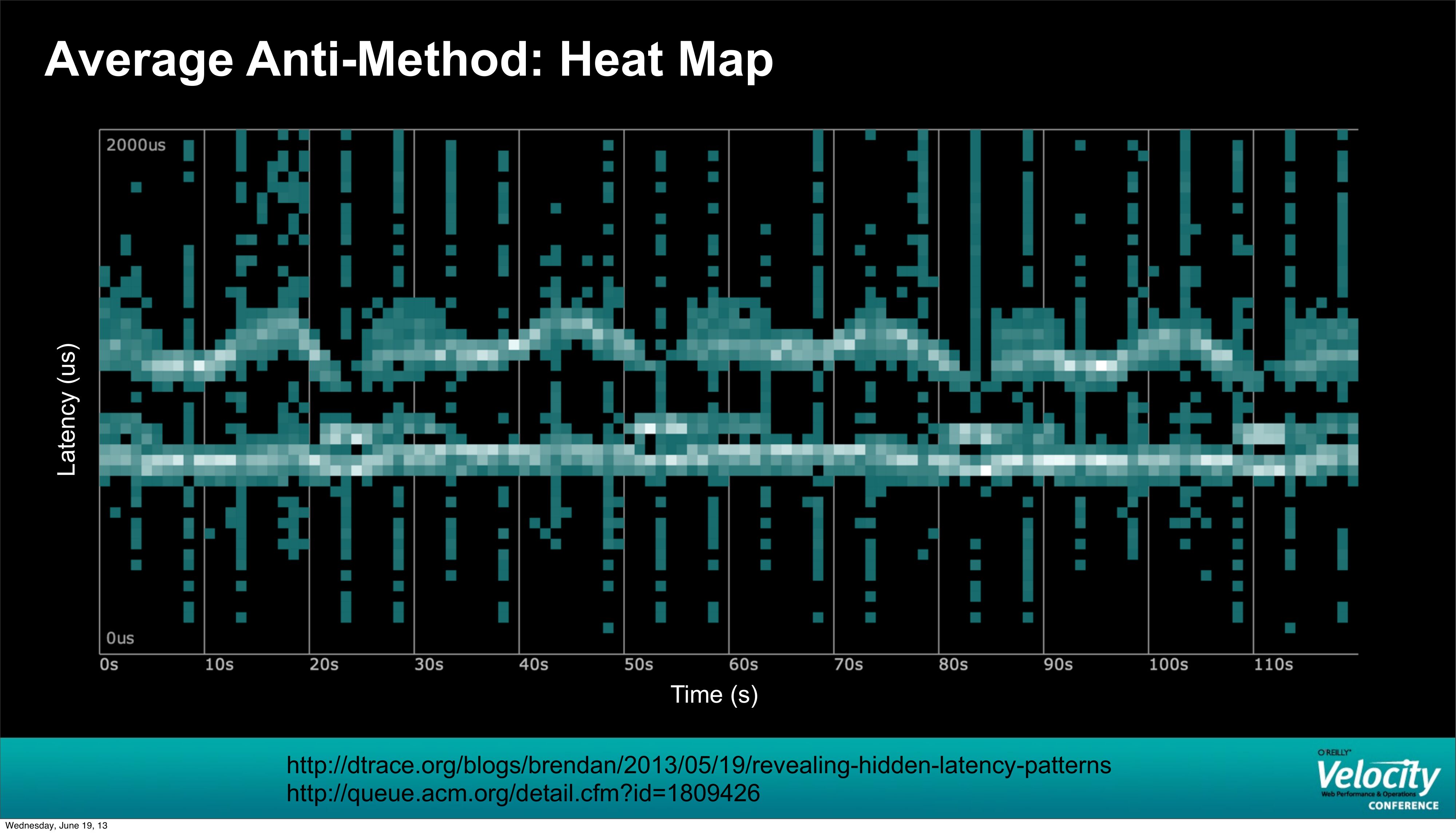

slide 24:
    Latency (us)
    Average Anti-Method: Heat Map
    Time (s)
    http://dtrace.org/blogs/brendan/2013/05/19/revealing-hidden-latency-patterns
    http://queue.acm.org/detail.cfm?id=1809426
    Wednesday, June 19, 13

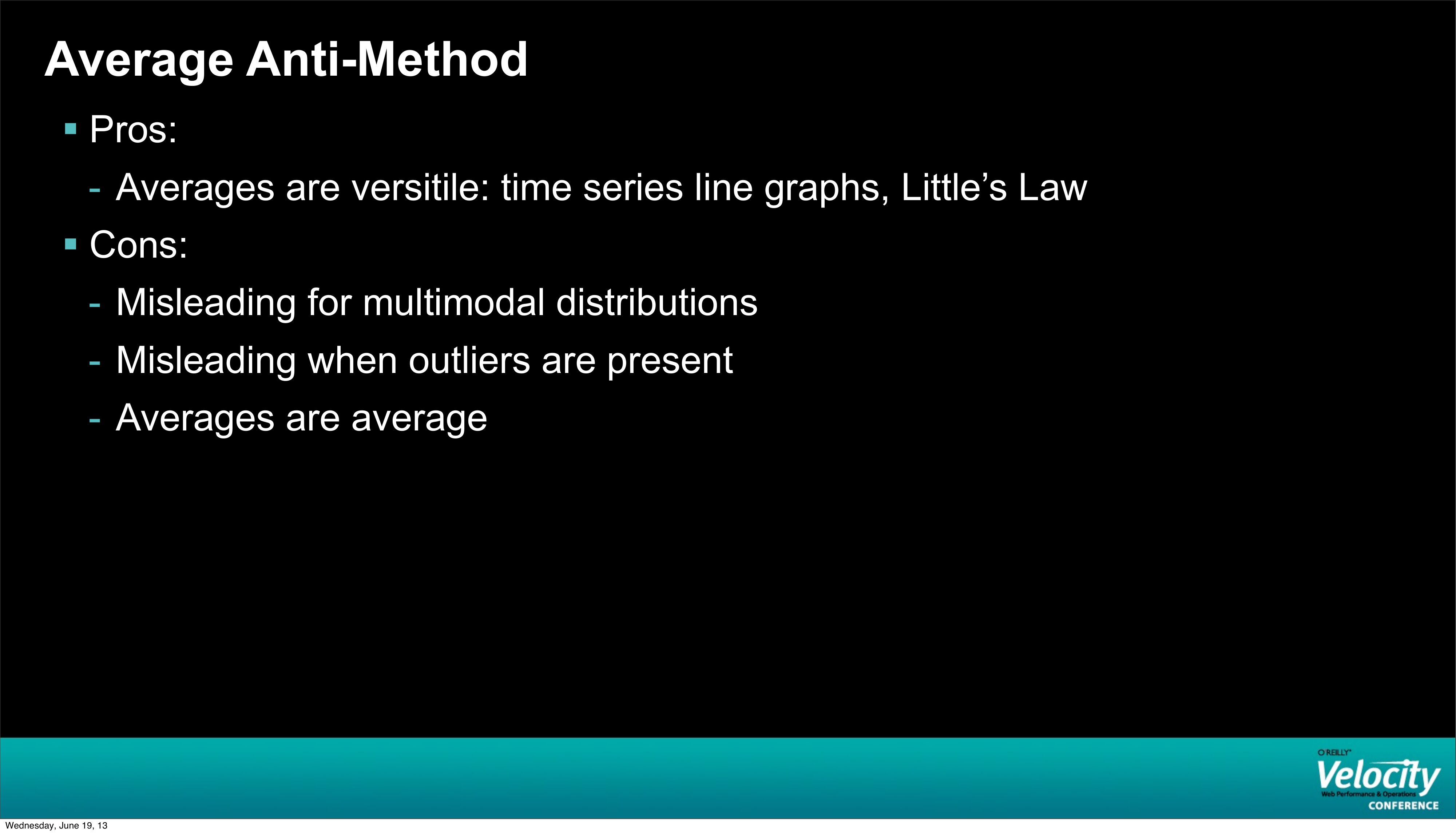

slide 25:
    Average Anti-Method
     Pros:
    - Averages are versitile: time series line graphs, Little’s Law
     Cons:
    - Misleading for multimodal distributions
    - Misleading when outliers are present
    - Averages are average
    Wednesday, June 19, 13

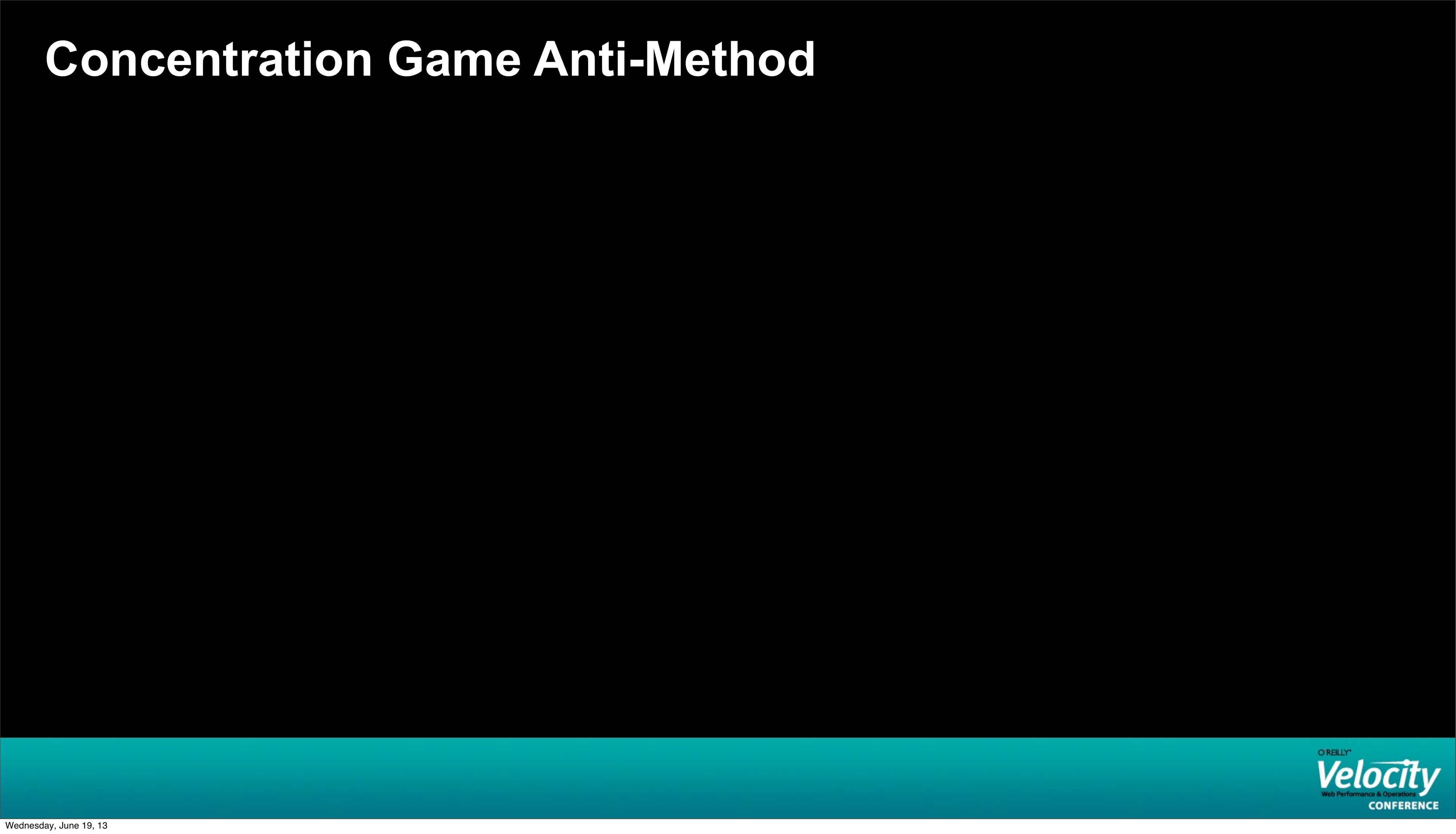

slide 26:
    Concentration Game Anti-Method
    Wednesday, June 19, 13

slide 27:
    Concentration Game Anti-Method
     1. Pick one metric
     2. Pick another metric
     3. Do their time series look the same?
    - If so, investigate correlation!
     4. Problem not solved? goto 1
    Wednesday, June 19, 13

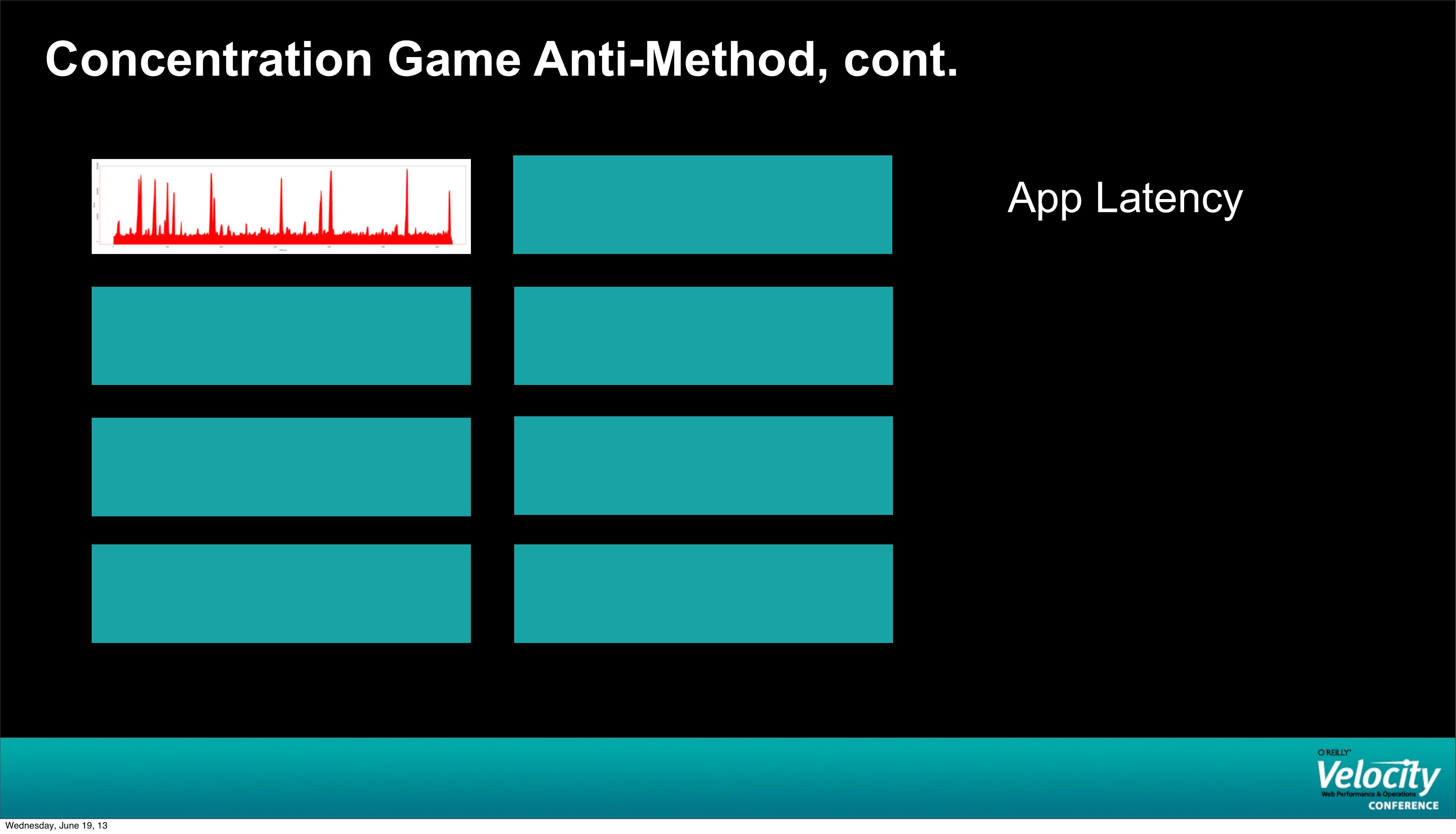

slide 28:
    Concentration Game Anti-Method, cont.
    App Latency
    Wednesday, June 19, 13

slide 29:

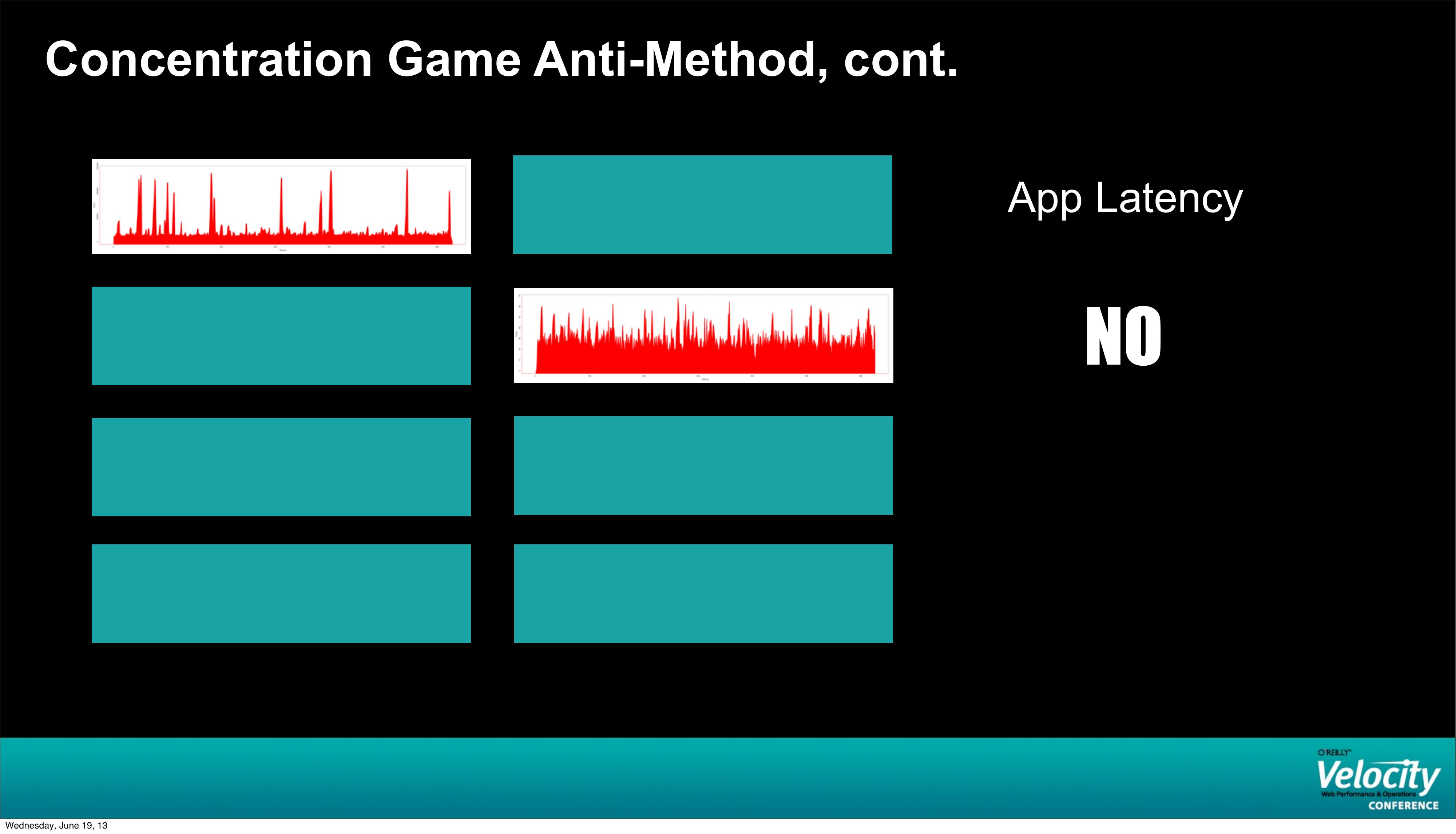

    Concentration Game Anti-Method, cont.
    App Latency
    Wednesday, June 19, 13

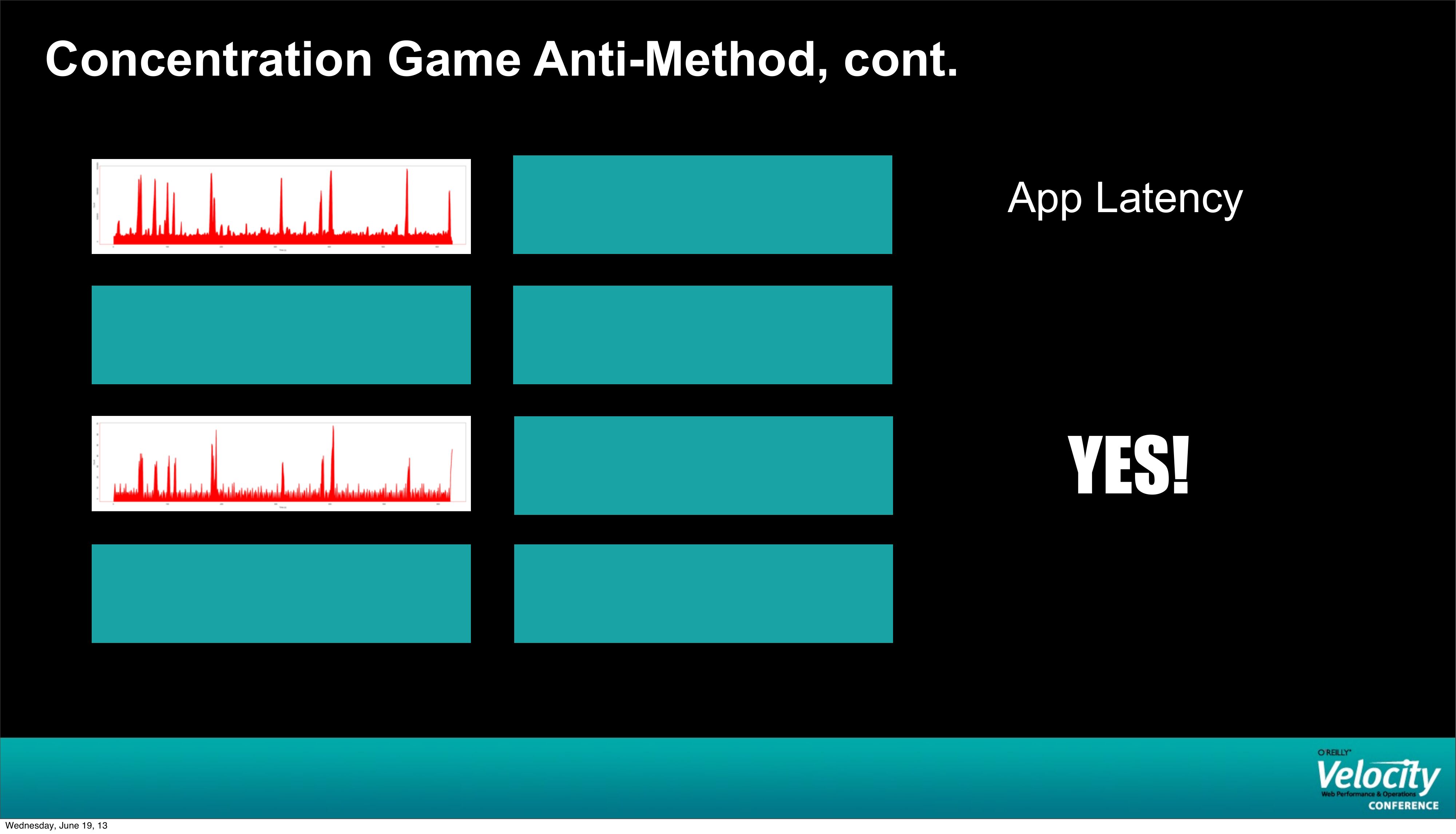

slide 30:
    Concentration Game Anti-Method, cont.
    App Latency
    YES!
    Wednesday, June 19, 13

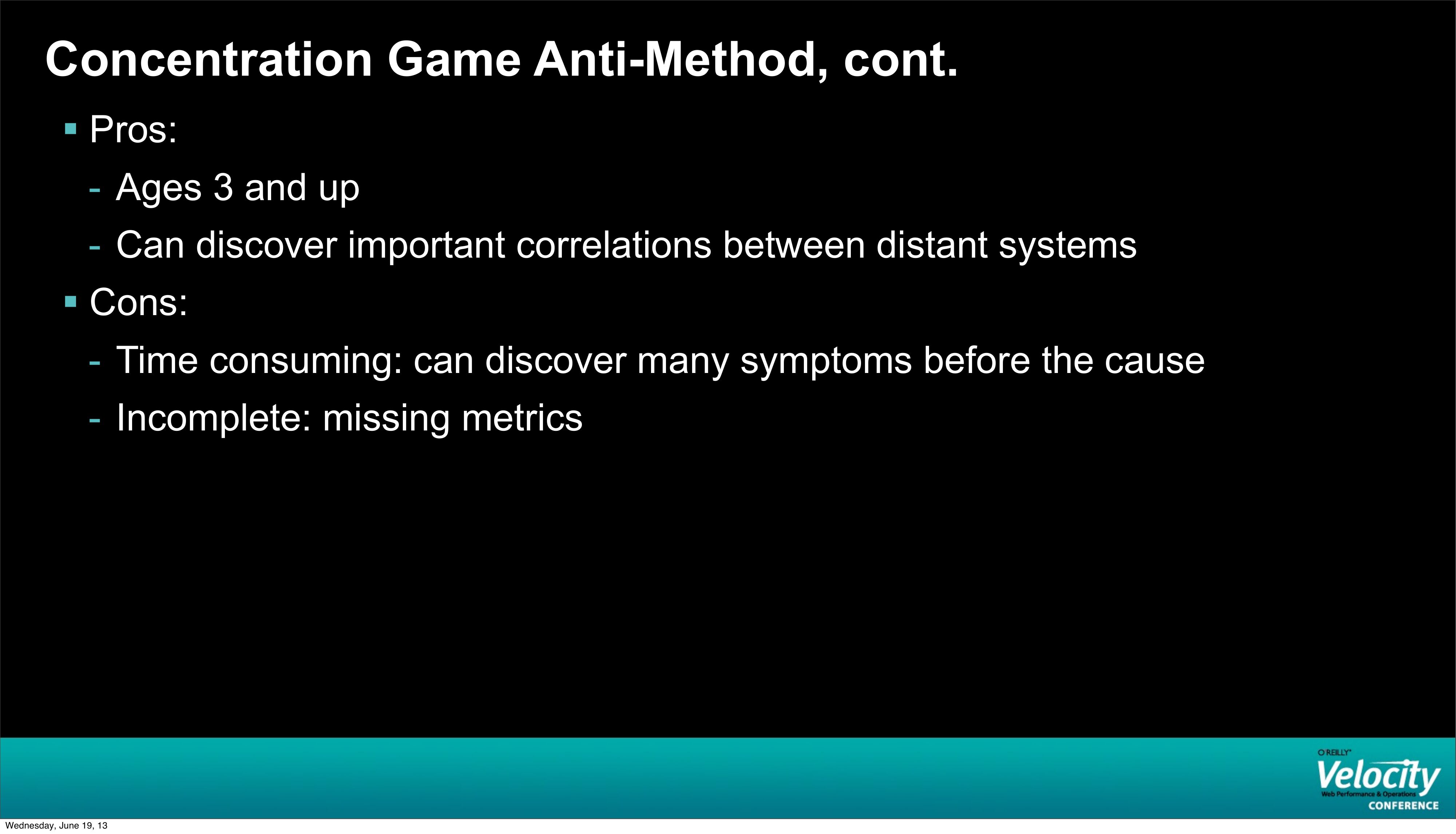

slide 31:
    Concentration Game Anti-Method, cont.
     Pros:
    - Ages 3 and up
    - Can discover important correlations between distant systems
     Cons:
    - Time consuming: can discover many symptoms before the cause
    - Incomplete: missing metrics
    Wednesday, June 19, 13

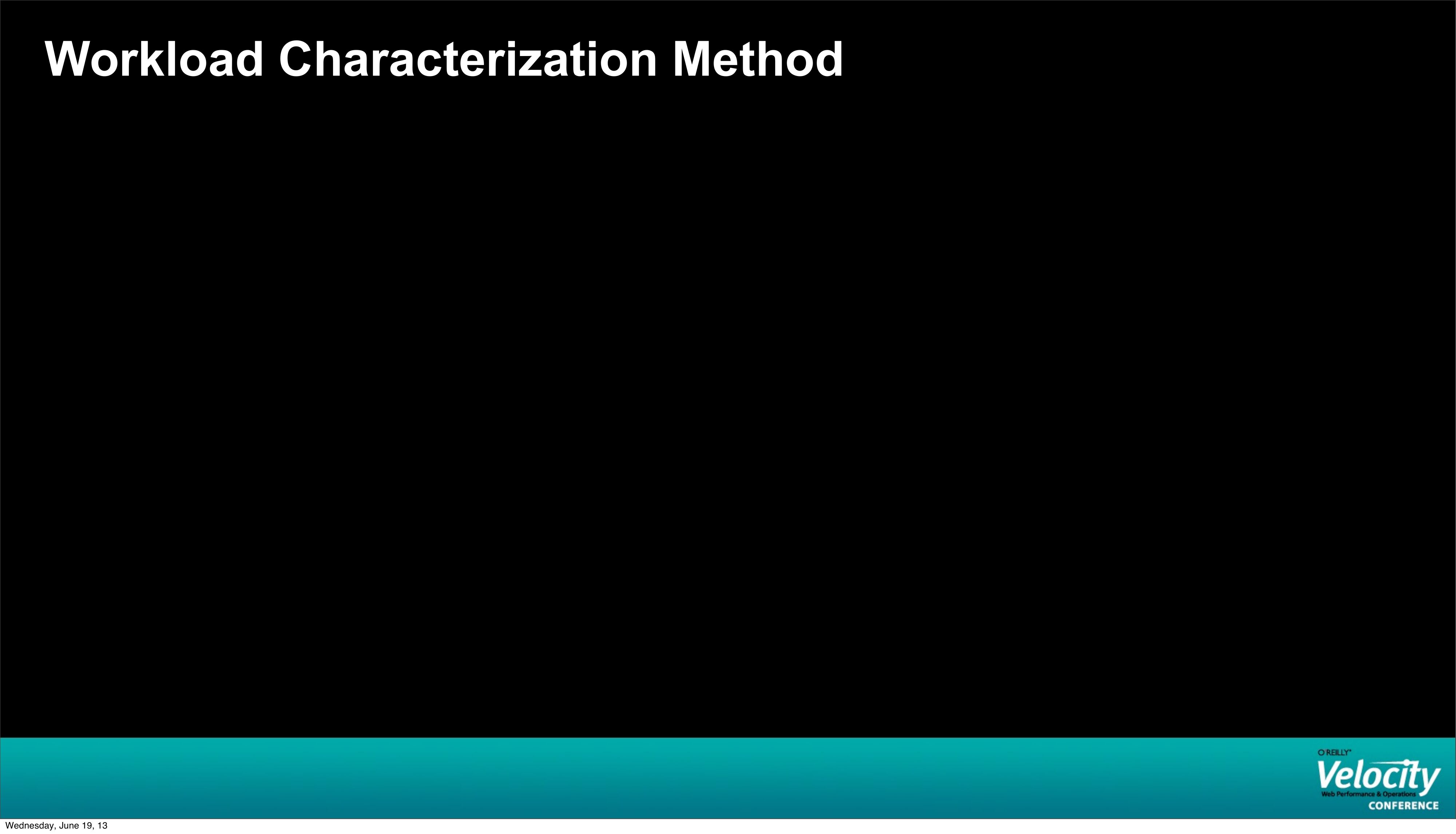

slide 32:
    Workload Characterization Method
    Wednesday, June 19, 13

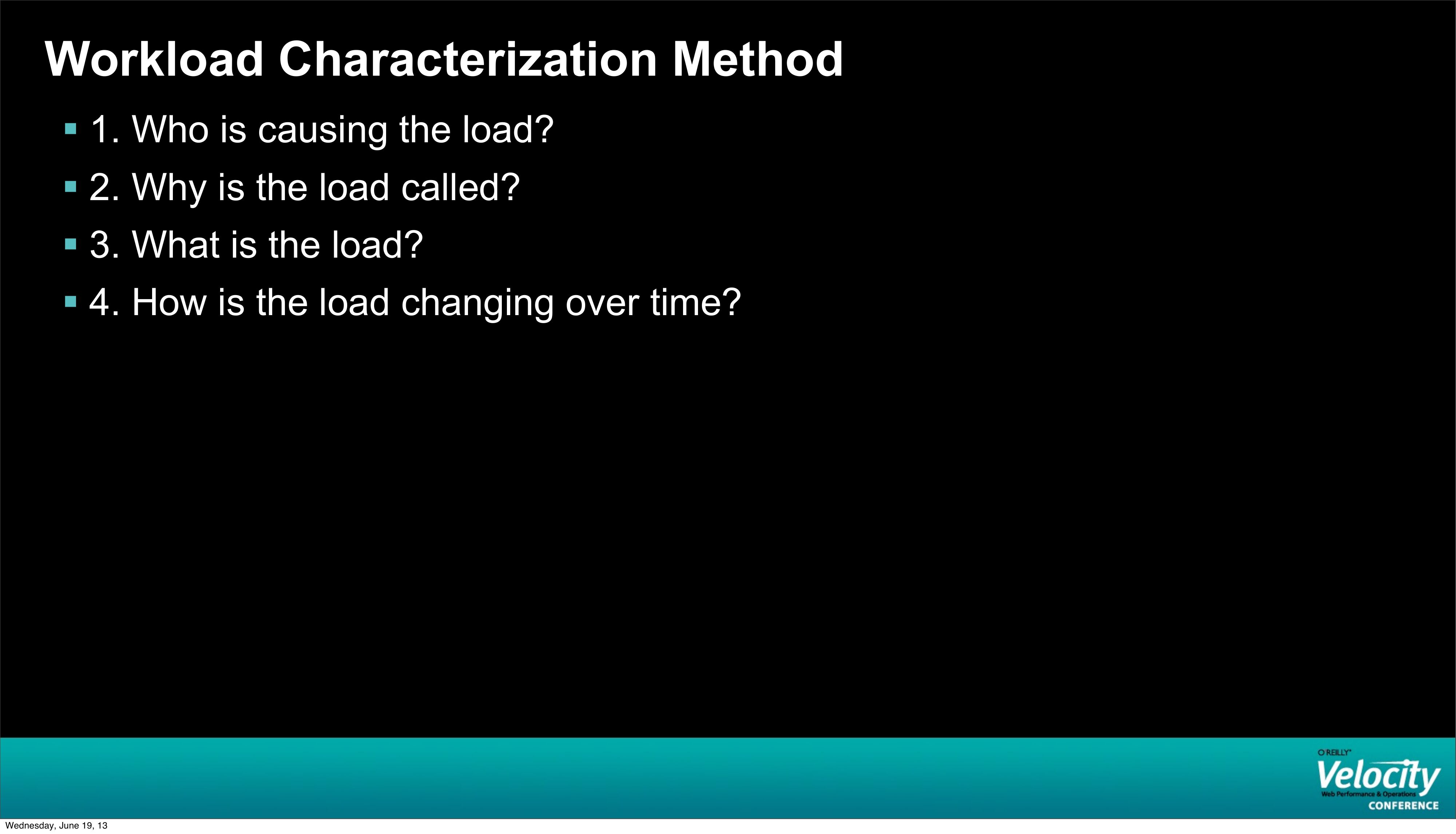

slide 33:
    Workload Characterization Method
     1. Who is causing the load?
     2. Why is the load called?
     3. What is the load?
     4. How is the load changing over time?
    Wednesday, June 19, 13

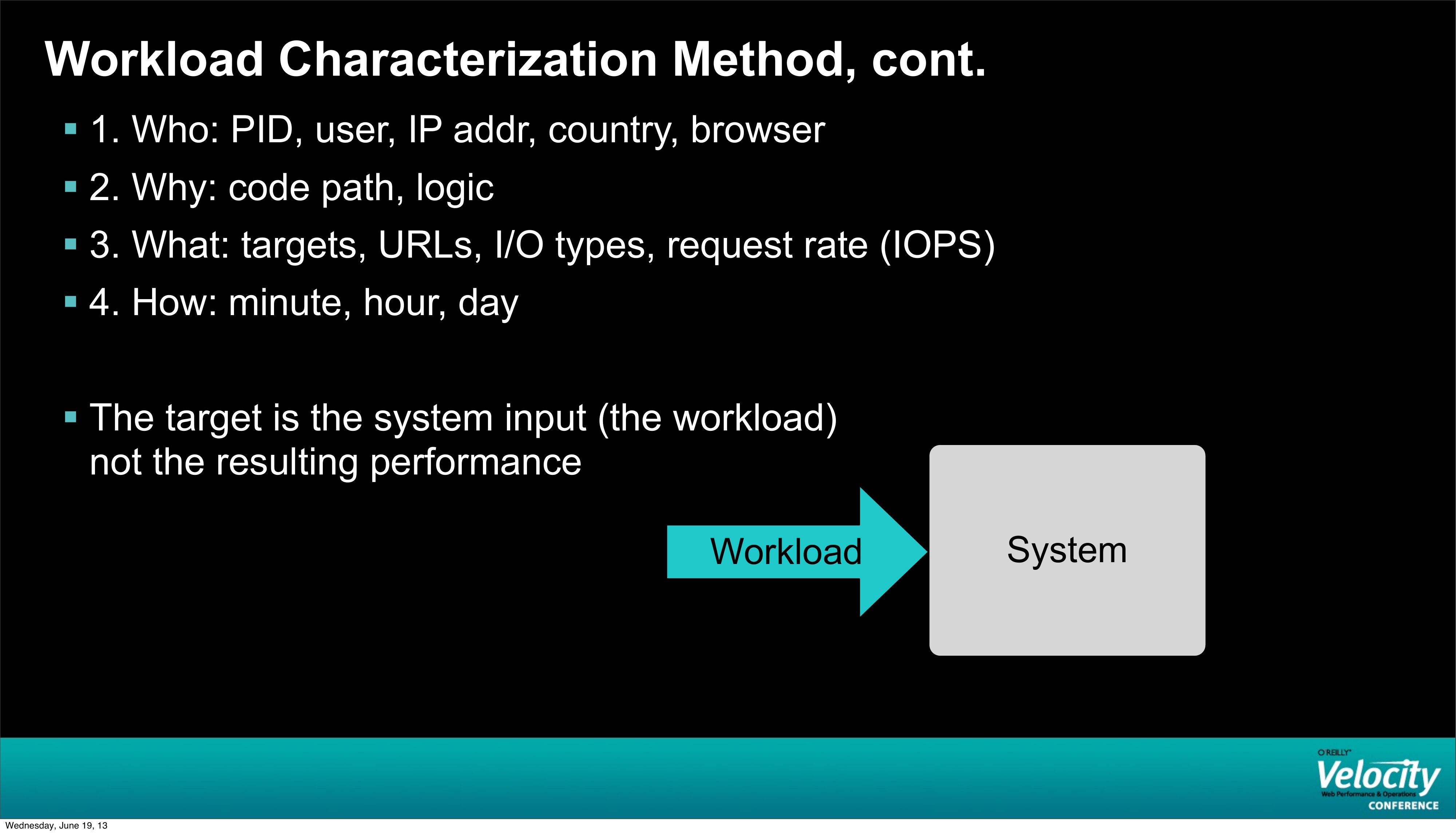

slide 34:
    Workload Characterization Method, cont.
     1. Who: PID, user, IP addr, country, browser
     2. Why: code path, logic
     3. What: targets, URLs, I/O types, request rate (IOPS)
     4. How: minute, hour, day
     The target is the system input (the workload)
    not the resulting performance
    Workload
    Wednesday, June 19, 13
    System

slide 35:
    Workload Characterization Method, cont.
     Pros:
    - Potentially largest wins: eliminating unnecessary work
     Cons:
    - Only solves a class of issues – load
    - Can be time consuming and discouraging – most attributes examined will not
    be a problem
    Wednesday, June 19, 13

slide 36:
    USE Method
    Wednesday, June 19, 13

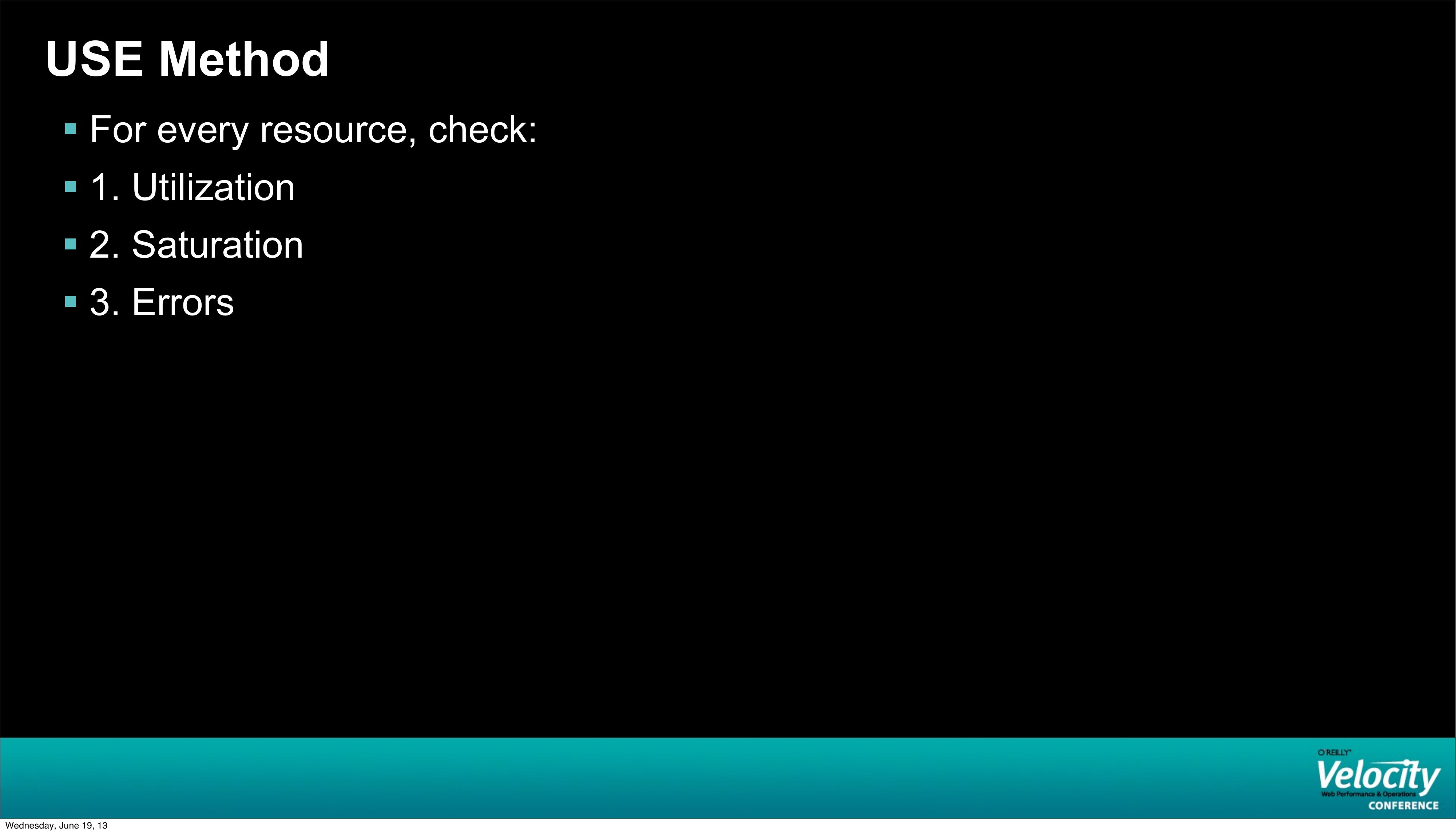

slide 37:
    USE Method
     For every resource, check:
     1. Utilization
     2. Saturation
     3. Errors
    Wednesday, June 19, 13

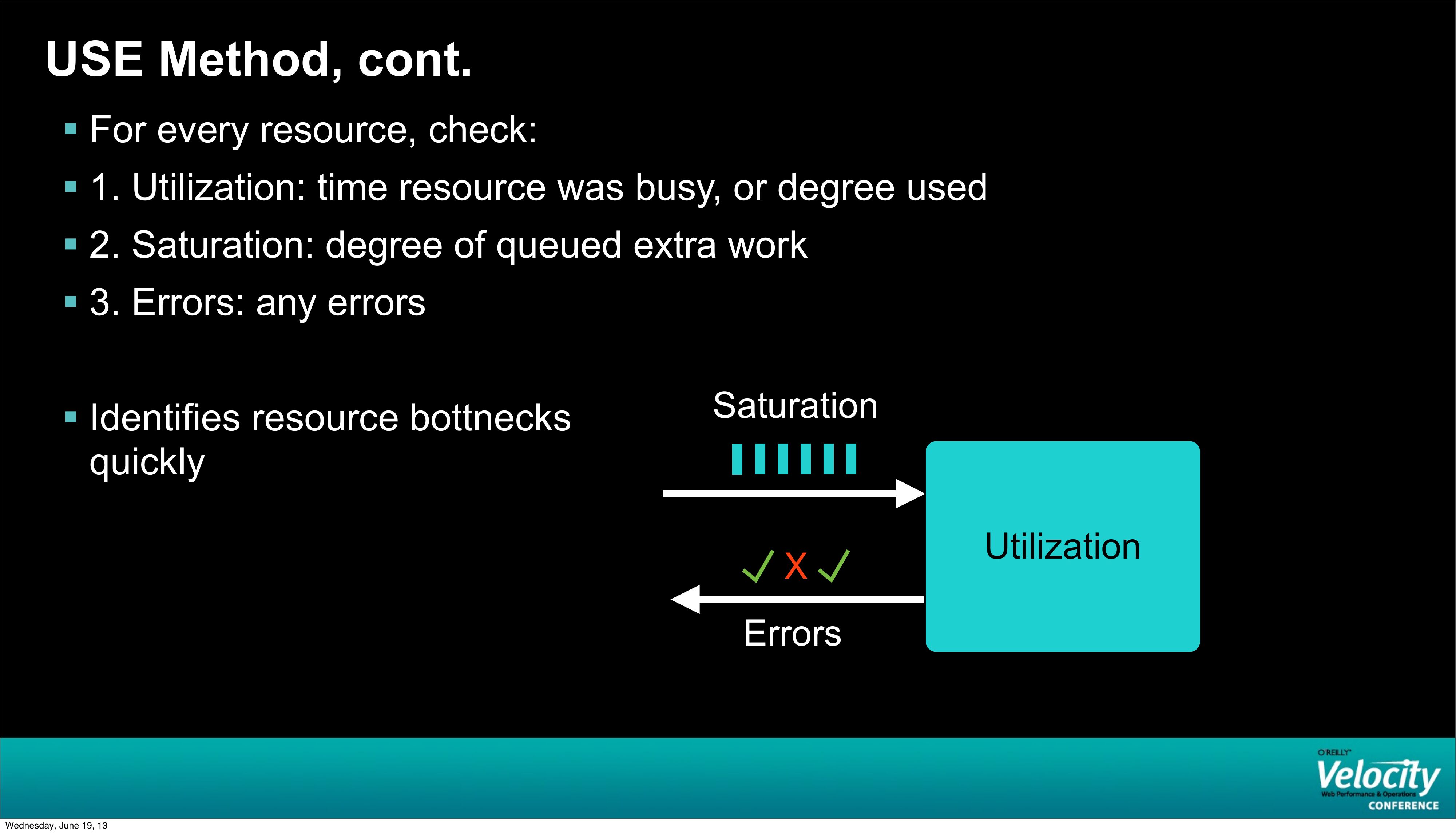

slide 38:
    USE Method, cont.
     For every resource, check:
     1. Utilization: time resource was busy, or degree used
     2. Saturation: degree of queued extra work
     3. Errors: any errors
     Identifies resource bottnecks
    quickly
    Saturation
    Errors
    Wednesday, June 19, 13
    Utilization

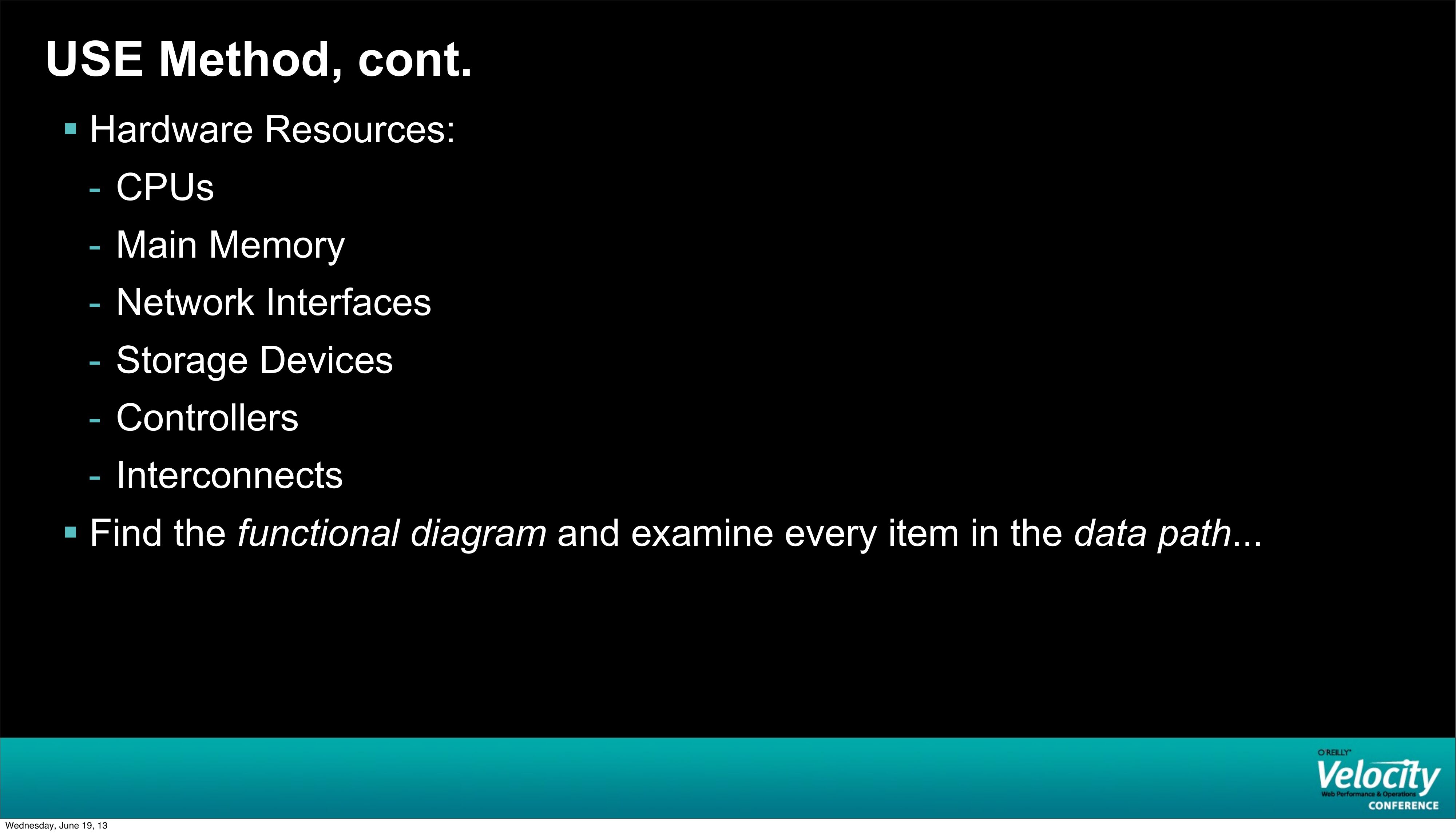

slide 39:
    USE Method, cont.
     Hardware Resources:
    - CPUs
    - Main Memory
    - Network Interfaces
    - Storage Devices
    - Controllers
    - Interconnects
     Find the functional diagram and examine every item in the data path...
    Wednesday, June 19, 13

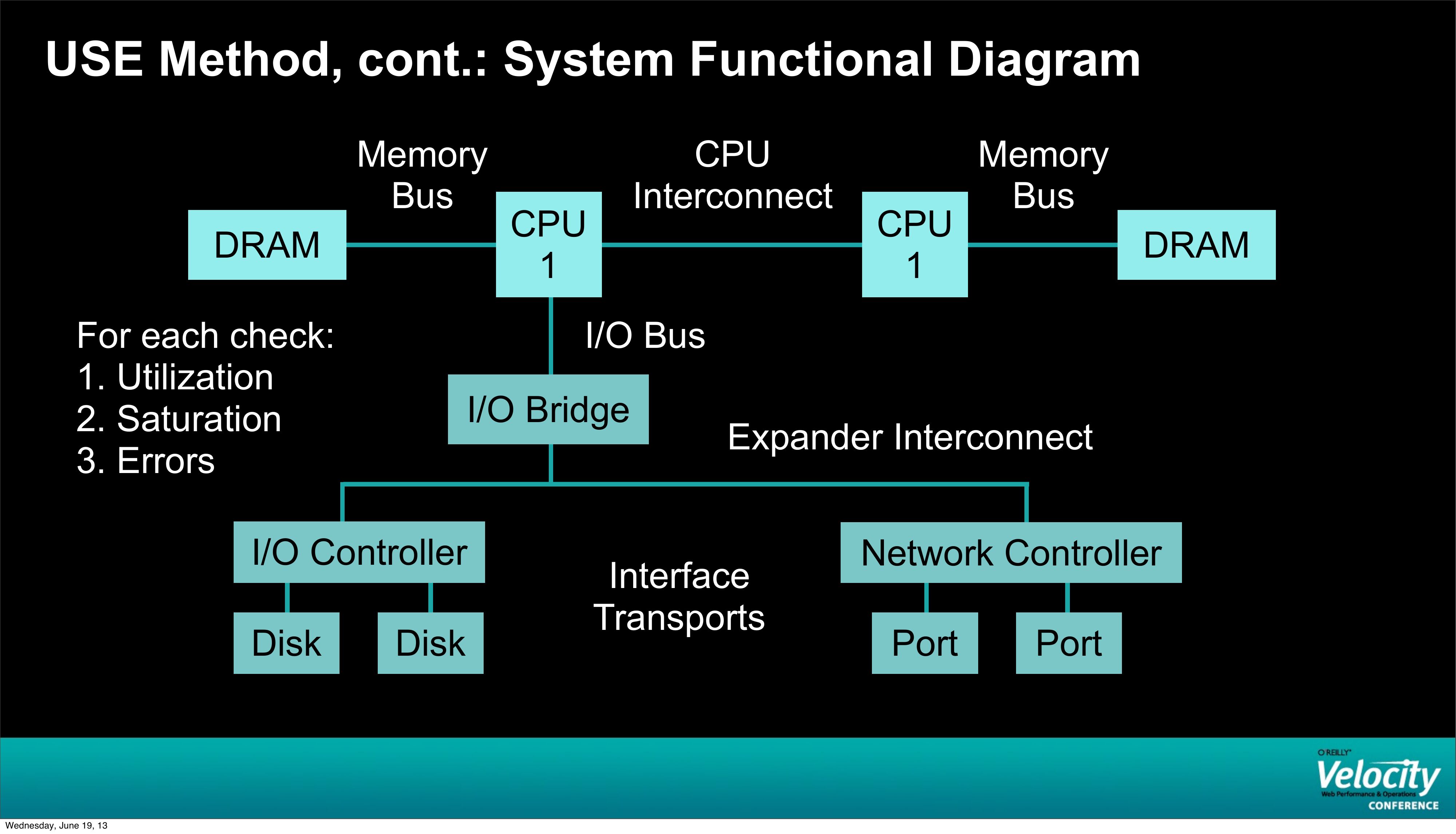

slide 40:
    USE Method, cont.: System Functional Diagram
    Memory
    Bus
    DRAM
    For each check:
    1. Utilization
    2. Saturation
    3. Errors
    Wednesday, June 19, 13
    CPU
    CPU
    Memory
    Bus
    DRAM
    I/O Bus
    I/O Bridge
    I/O Controller
    Disk
    CPU
    Interconnect
    Disk
    Expander Interconnect
    Interface
    Transports
    Network Controller
    Port
    Port

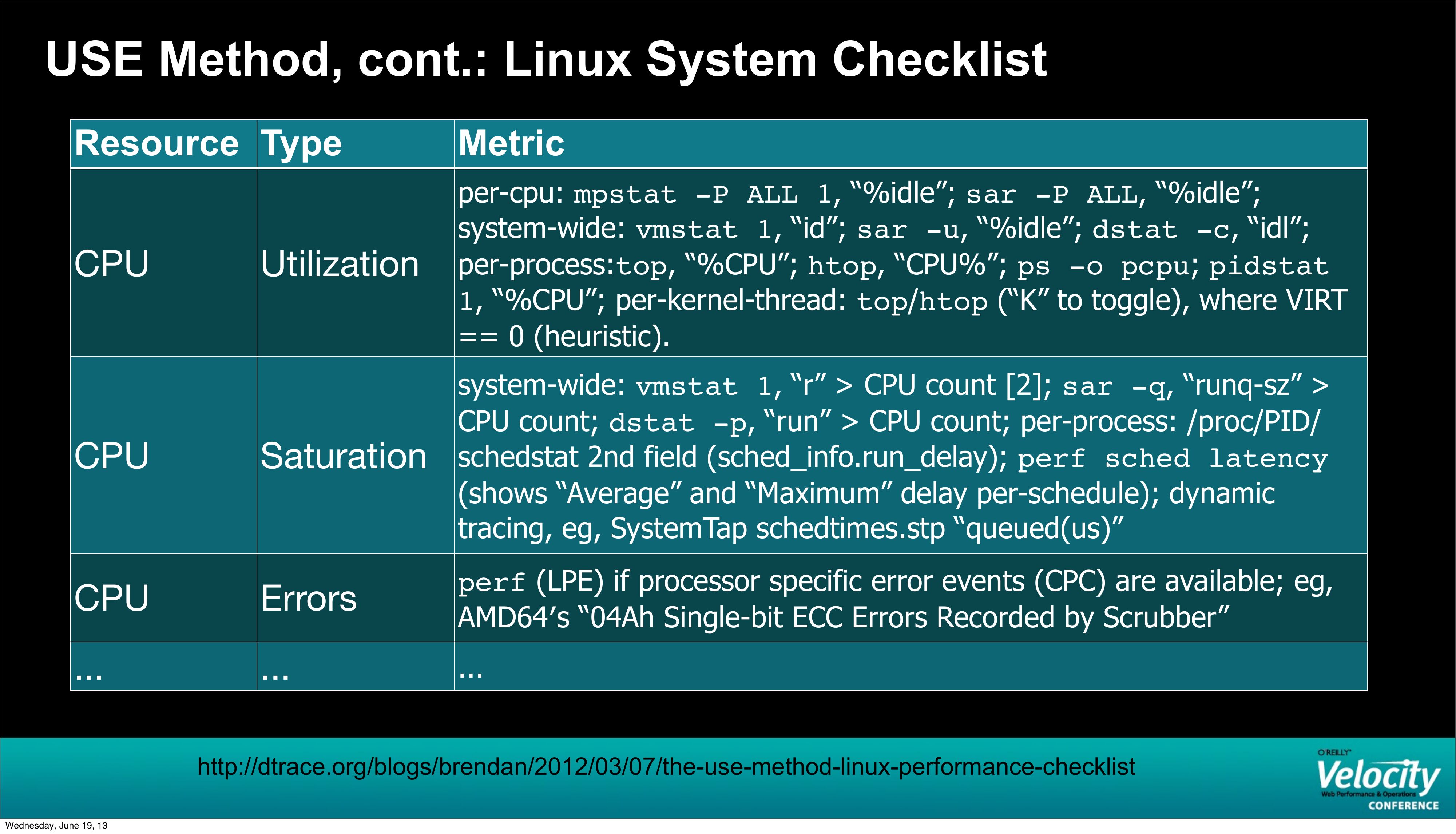

slide 41:
    USE Method, cont.: Linux System Checklist
    Resource Type
    Metric
    CPU
    Utilization
    per-cpu: mpstat -P ALL 1, “%idle”; sar -P ALL, “%idle”;
    system-wide: vmstat 1, “id”; sar -u, “%idle”; dstat -c, “idl”;
    per-process:top, “%CPU”; htop, “CPU%”; ps -o pcpu; pidstat
    1, “%CPU”; per-kernel-thread: top/htop (“K” to toggle), where VIRT
    == 0 (heuristic).
    Saturation
    system-wide: vmstat 1, “r” >gt; CPU count [2]; sar -q, “runq-sz” >gt;
    CPU count; dstat -p, “run” >gt; CPU count; per-process: /proc/PID/
    schedstat 2nd field (sched_info.run_delay); perf sched latency
    (shows “Average” and “Maximum” delay per-schedule); dynamic
    tracing, eg, SystemTap schedtimes.stp “queued(us)”
    CPU
    Errors
    perf (LPE) if processor specific error events (CPC) are available; eg,
    AMD64′s “04Ah Single-bit ECC Errors Recorded by Scrubber”
    CPU
    http://dtrace.org/blogs/brendan/2012/03/07/the-use-method-linux-performance-checklist
    Wednesday, June 19, 13

slide 42:

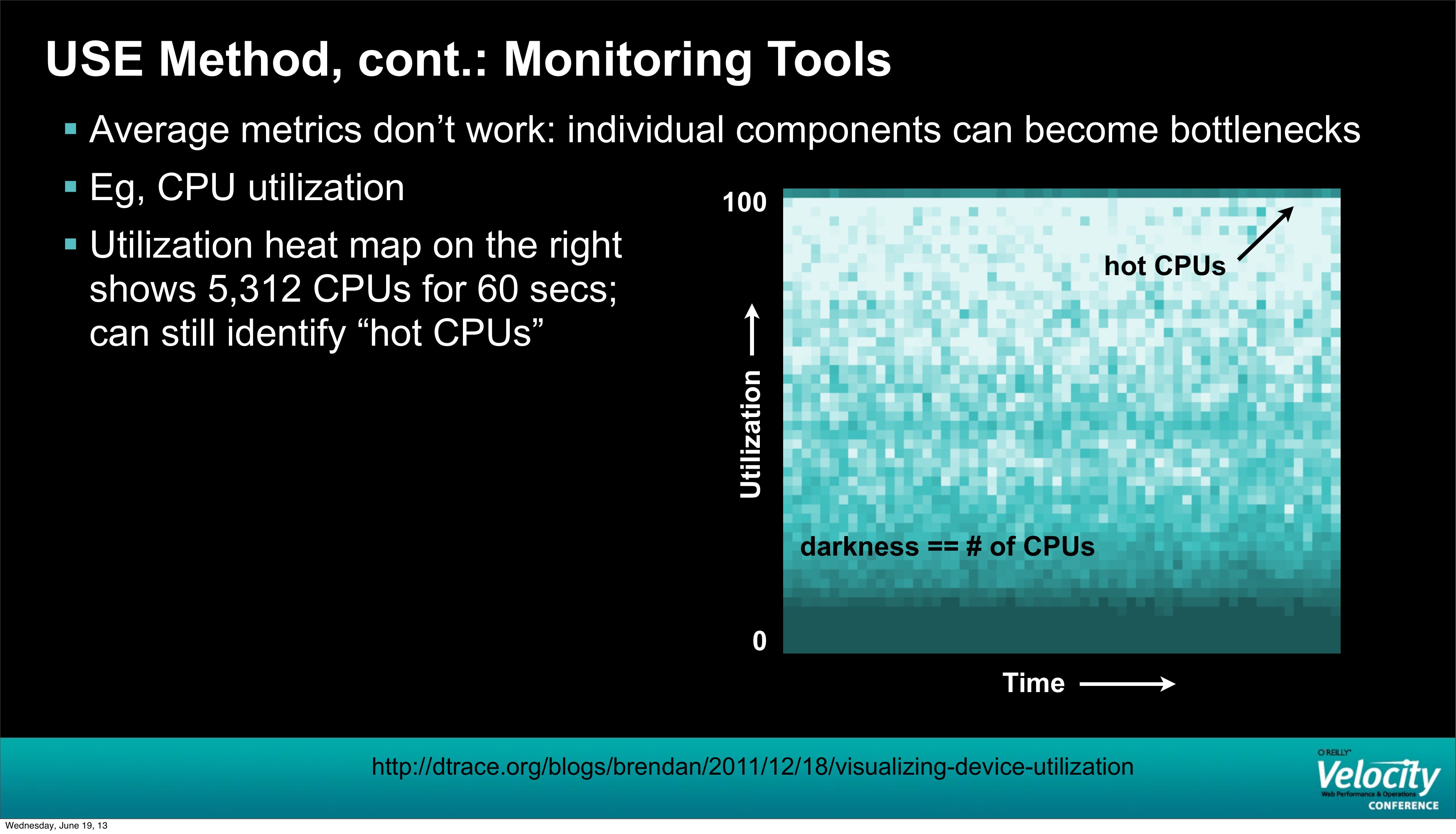

    USE Method, cont.: Monitoring Tools
     Average metrics don’t work: individual components can become bottlenecks
     Eg, CPU utilization
     Utilization heat map on the right
    shows 5,312 CPUs for 60 secs;
    can still identify “hot CPUs”
    Utilization
    hot CPUs
    darkness == # of CPUs
    Time
    http://dtrace.org/blogs/brendan/2011/12/18/visualizing-device-utilization
    Wednesday, June 19, 13

slide 43:

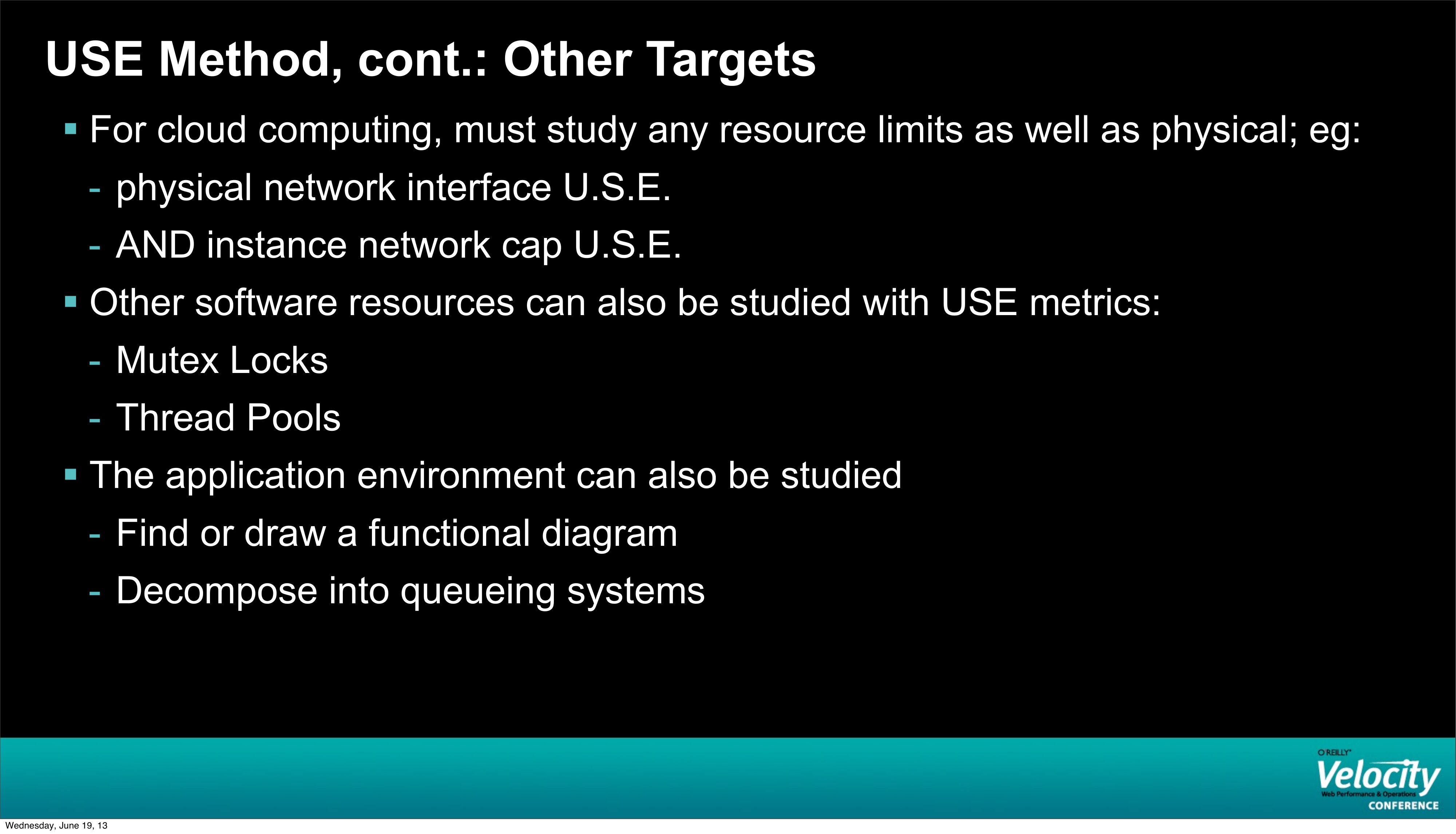

    USE Method, cont.: Other Targets
     For cloud computing, must study any resource limits as well as physical; eg:
    - physical network interface U.S.E.
    - AND instance network cap U.S.E.
     Other software resources can also be studied with USE metrics:
    - Mutex Locks
    - Thread Pools
     The application environment can also be studied
    - Find or draw a functional diagram
    - Decompose into queueing systems
    Wednesday, June 19, 13

slide 44:
    USE Method, cont.: Homework
     Your ToDo:
    - 1. find a system functional diagram
    - 2. based on it, create a USE checklist on your internal wiki
    - 3. fill out metrics based on your available toolset
    - 4. repeat for your application environment
     You get:
    - A checklist for all staff for quickly finding bottlenecks
    - Awareness of what you cannot measure:
    - unknown unknowns become known unknowns
    - ... and known unknowns can become feature requests!
    Wednesday, June 19, 13

slide 45:

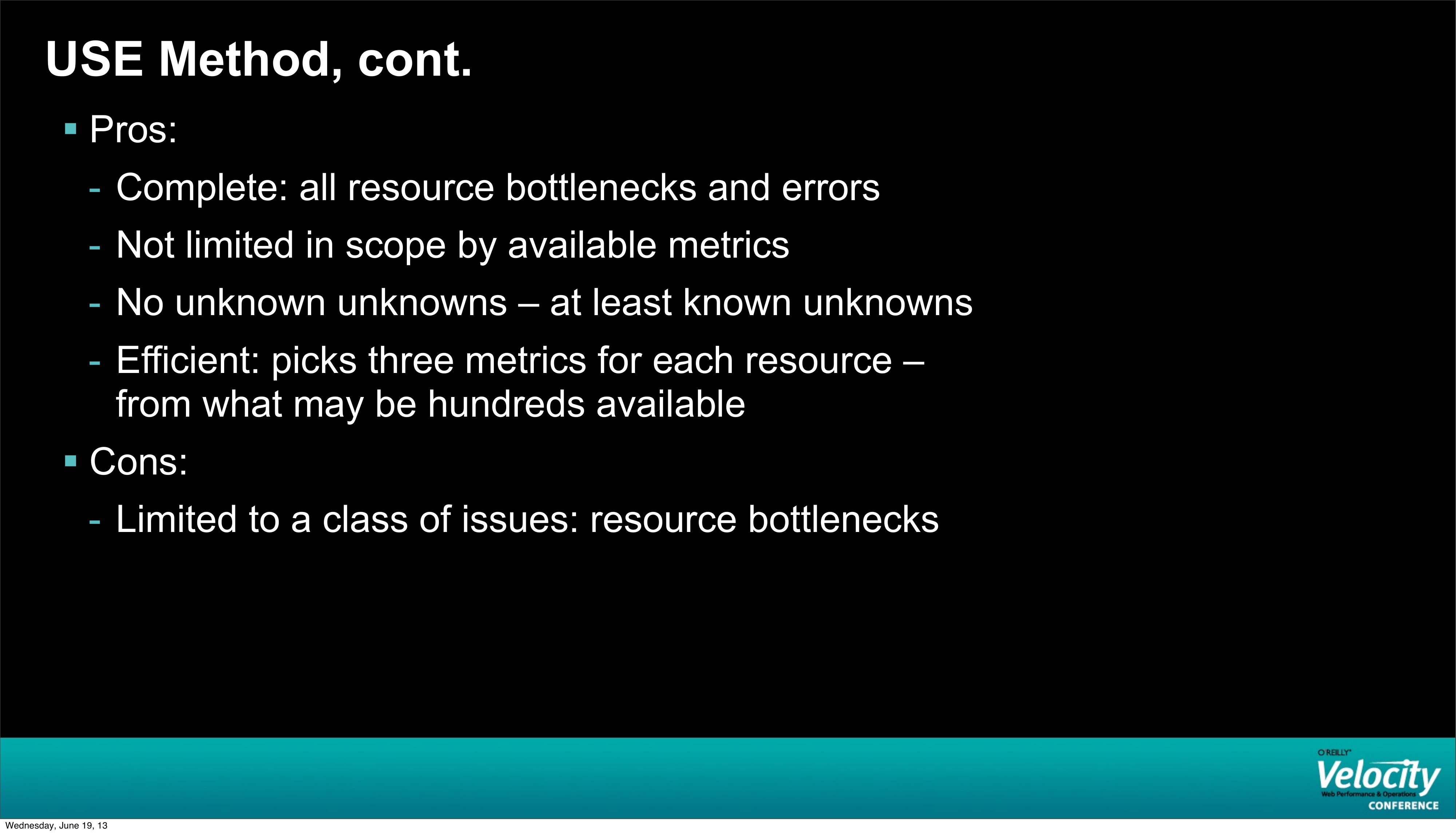

    USE Method, cont.
     Pros:
    - Complete: all resource bottlenecks and errors
    - Not limited in scope by available metrics
    - No unknown unknowns – at least known unknowns
    - Efficient: picks three metrics for each resource –
    from what may be hundreds available
     Cons:
    - Limited to a class of issues: resource bottlenecks
    Wednesday, June 19, 13

slide 46:
    Thread State Analysis Method
    Wednesday, June 19, 13

slide 47:

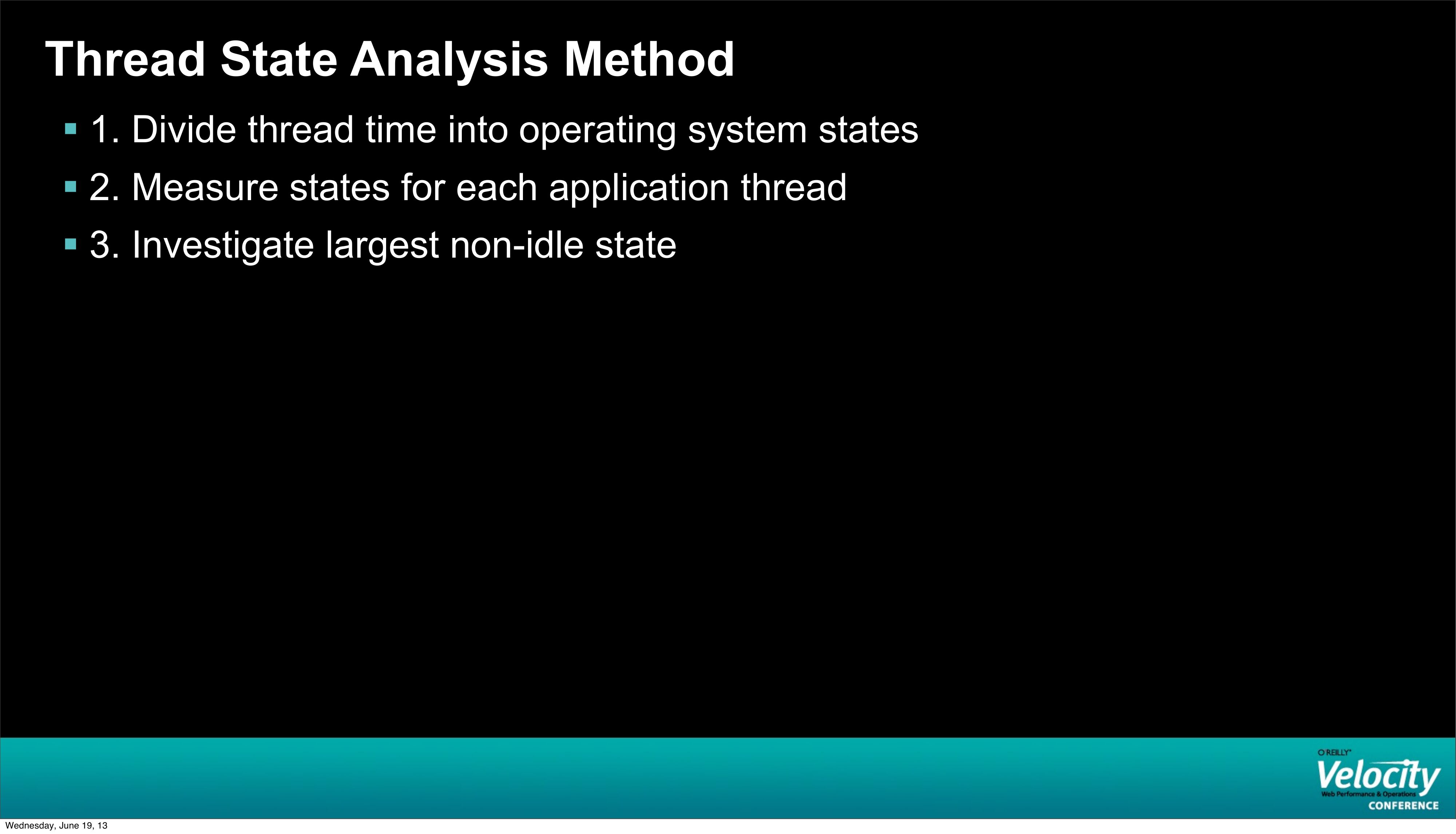

    Thread State Analysis Method
     1. Divide thread time into operating system states
     2. Measure states for each application thread
     3. Investigate largest non-idle state
    Wednesday, June 19, 13

slide 48:
    Thread State Analysis Method, cont.: 2 State
     A minimum of two states:
    On-CPU
    Off-CPU
    Wednesday, June 19, 13

slide 49:

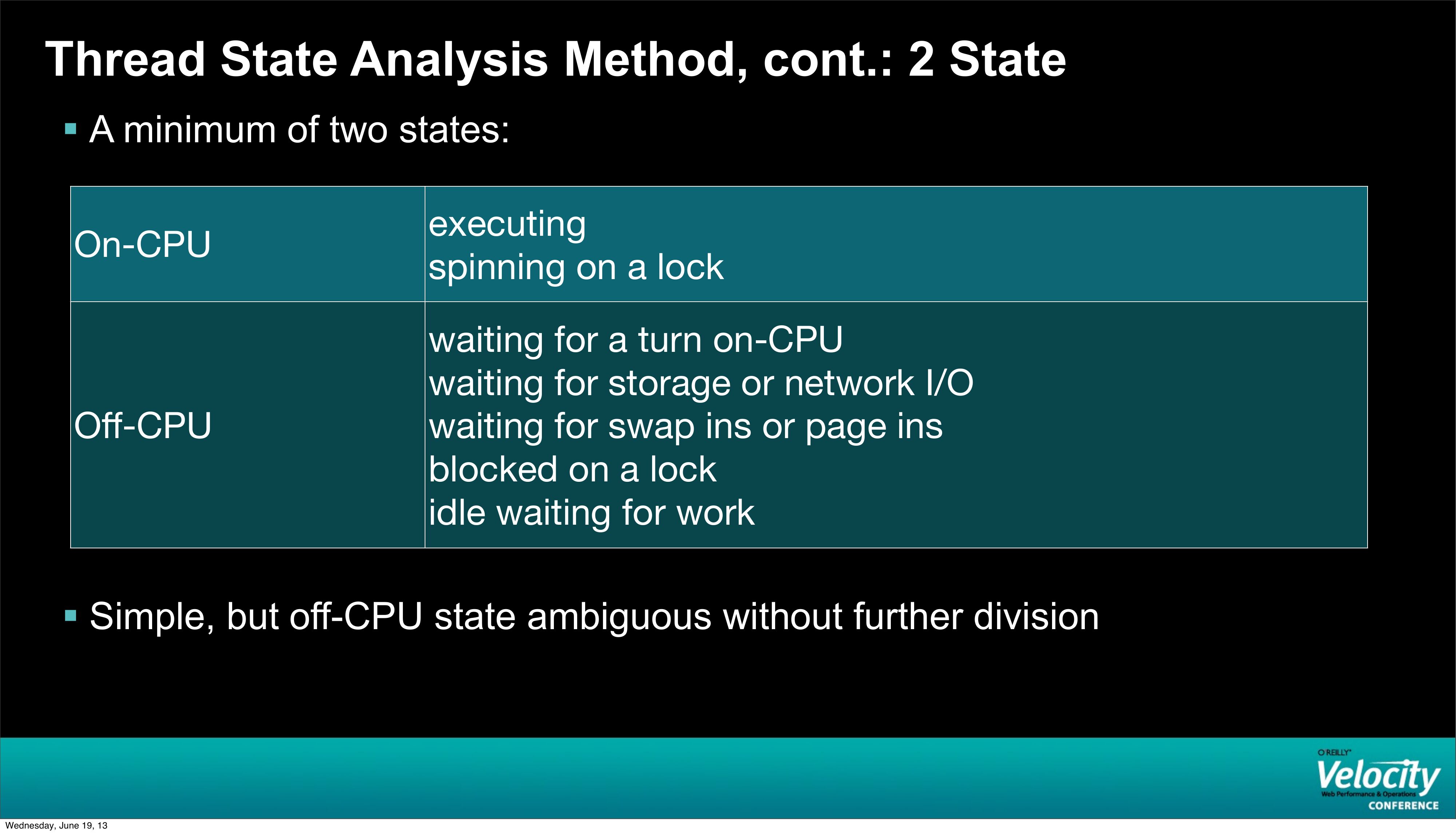

    Thread State Analysis Method, cont.: 2 State
     A minimum of two states:
    On-CPU
    executing
    spinning on a lock
    Off-CPU
    waiting for a turn on-CPU
    waiting for storage or network I/O
    waiting for swap ins or page ins
    blocked on a lock
    idle waiting for work
     Simple, but off-CPU state ambiguous without further division
    Wednesday, June 19, 13

slide 50:

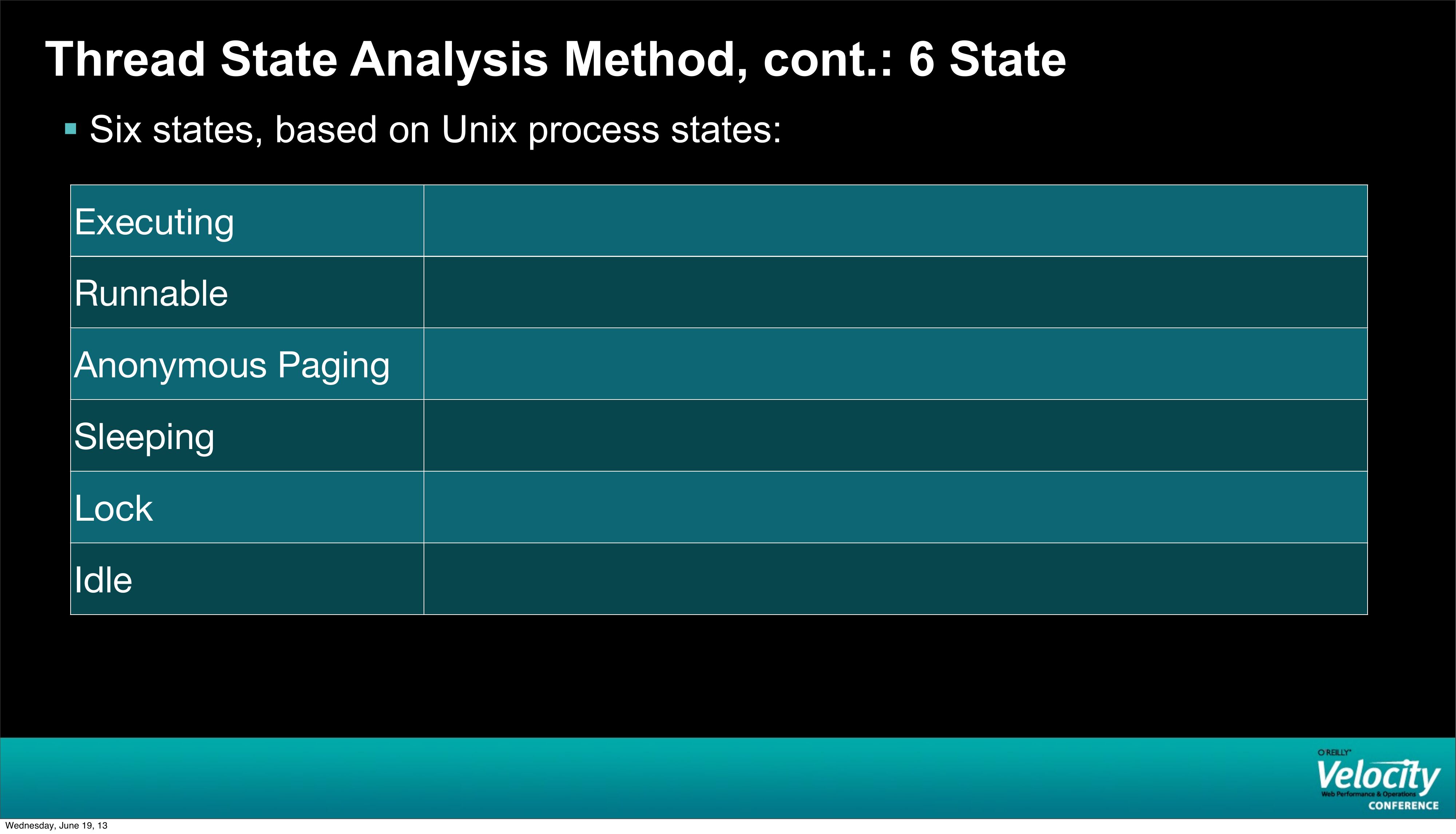

    Thread State Analysis Method, cont.: 6 State
     Six states, based on Unix process states:
    Executing
    Runnable
    Anonymous Paging
    Sleeping
    Lock
    Idle
    Wednesday, June 19, 13

slide 51:

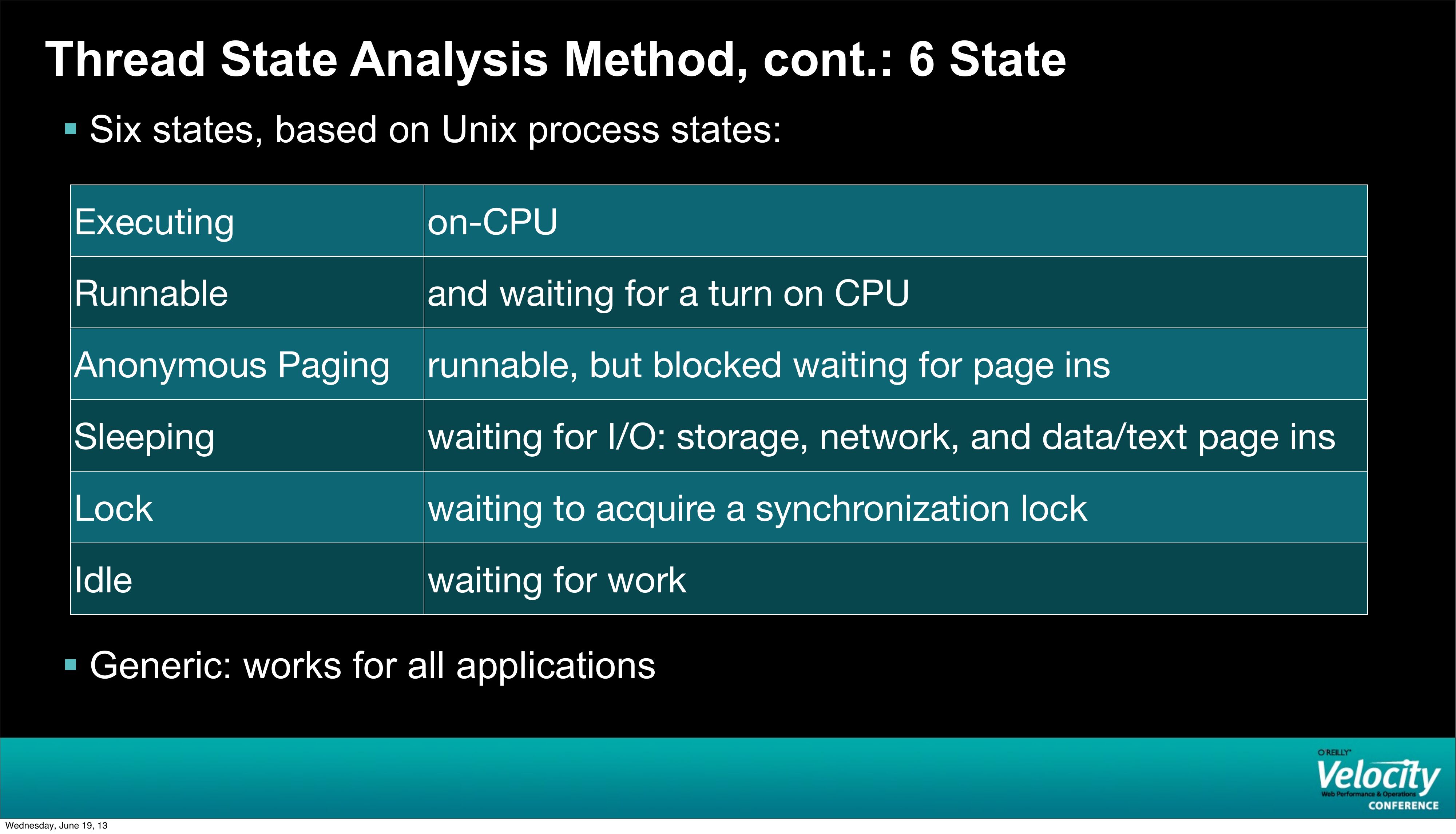

    Thread State Analysis Method, cont.: 6 State
     Six states, based on Unix process states:
    Executing
    on-CPU
    Runnable
    and waiting for a turn on CPU
    Anonymous Paging
    runnable, but blocked waiting for page ins
    Sleeping
    waiting for I/O: storage, network, and data/text page ins
    Lock
    waiting to acquire a synchronization lock
    Idle
    waiting for work
     Generic: works for all applications
    Wednesday, June 19, 13

slide 52:

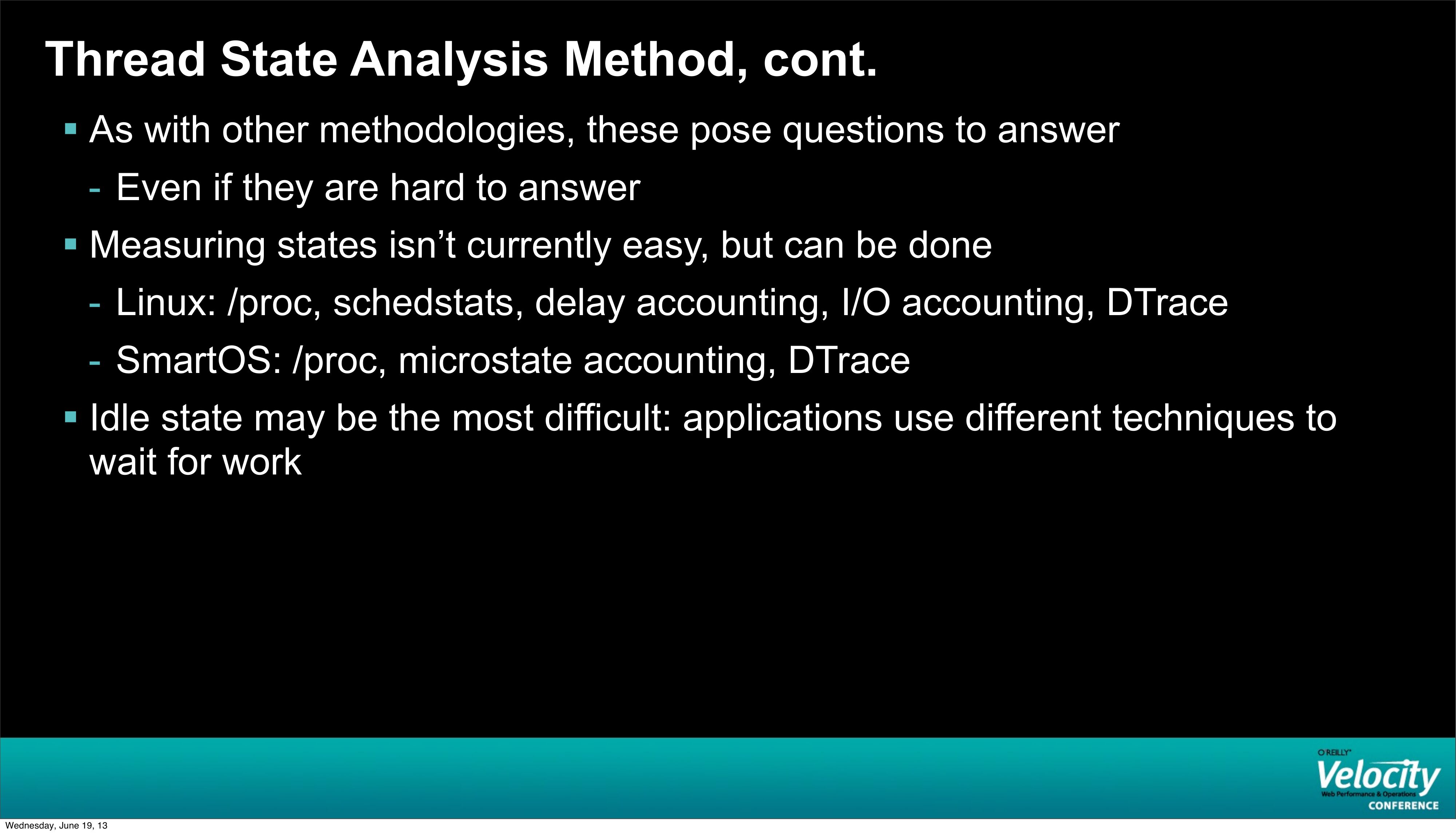

    Thread State Analysis Method, cont.
     As with other methodologies, these pose questions to answer
    - Even if they are hard to answer
     Measuring states isn’t currently easy, but can be done
    - Linux: /proc, schedstats, delay accounting, I/O accounting, DTrace
    - SmartOS: /proc, microstate accounting, DTrace
     Idle state may be the most difficult: applications use different techniques to
    wait for work
    Wednesday, June 19, 13

slide 53:

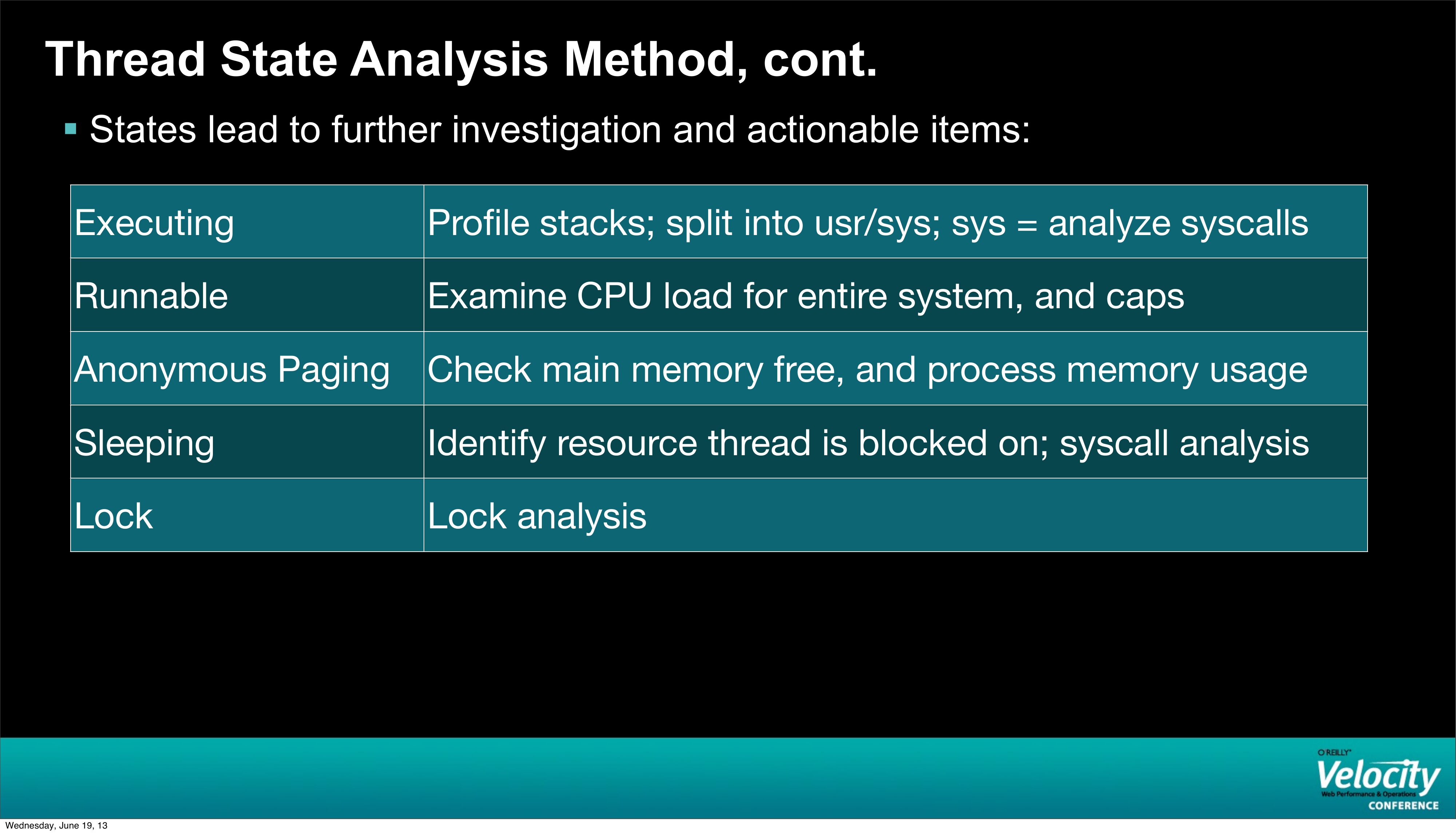

    Thread State Analysis Method, cont.
     States lead to further investigation and actionable items:
    Executing
    Profile stacks; split into usr/sys; sys = analyze syscalls
    Runnable
    Examine CPU load for entire system, and caps
    Anonymous Paging
    Check main memory free, and process memory usage
    Sleeping
    Identify resource thread is blocked on; syscall analysis
    Lock
    Lock analysis
    Wednesday, June 19, 13

slide 54:

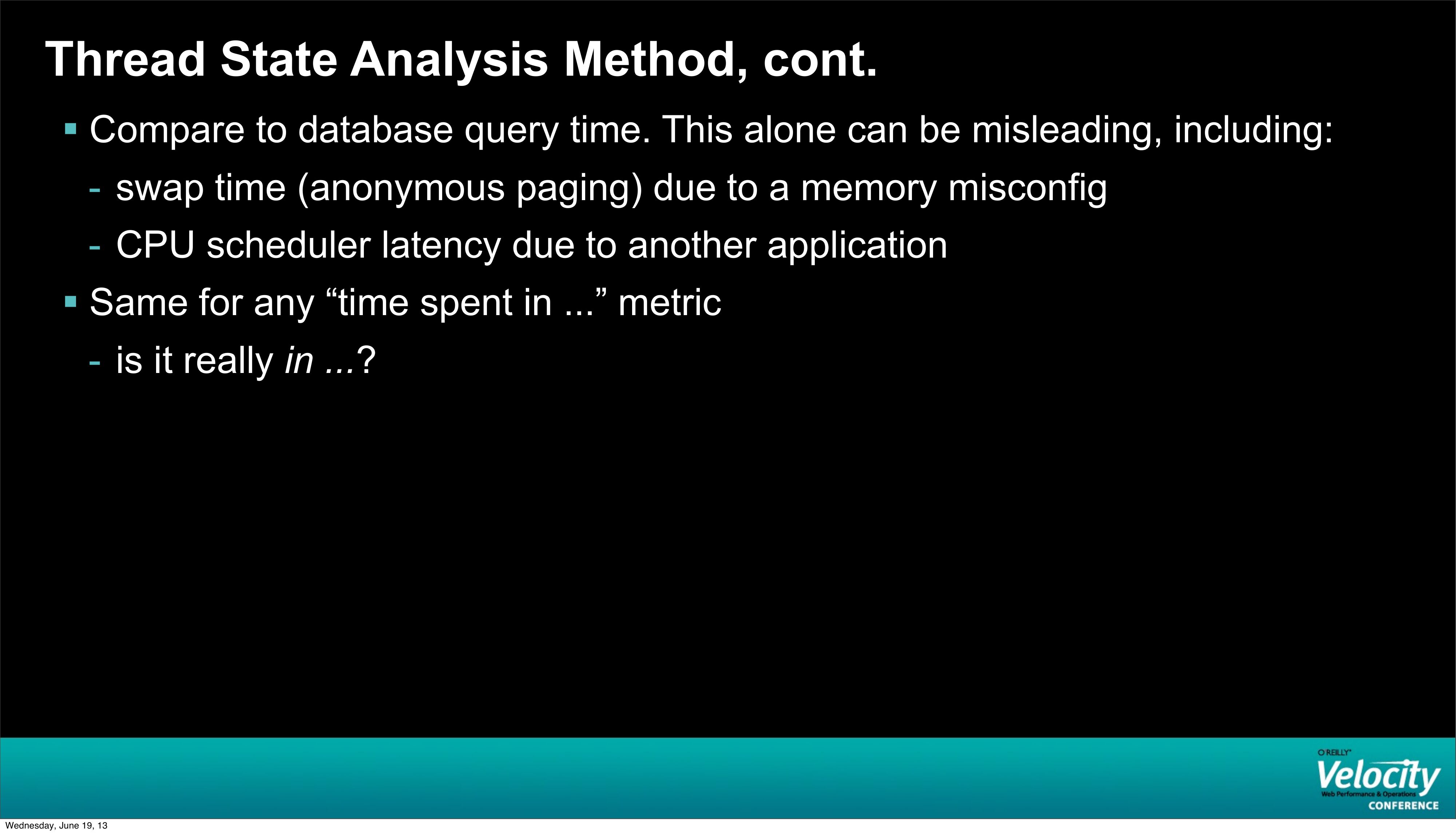

    Thread State Analysis Method, cont.
     Compare to database query time. This alone can be misleading, including:
    - swap time (anonymous paging) due to a memory misconfig
    - CPU scheduler latency due to another application
     Same for any “time spent in ...” metric
    - is it really in ...?
    Wednesday, June 19, 13

slide 55:

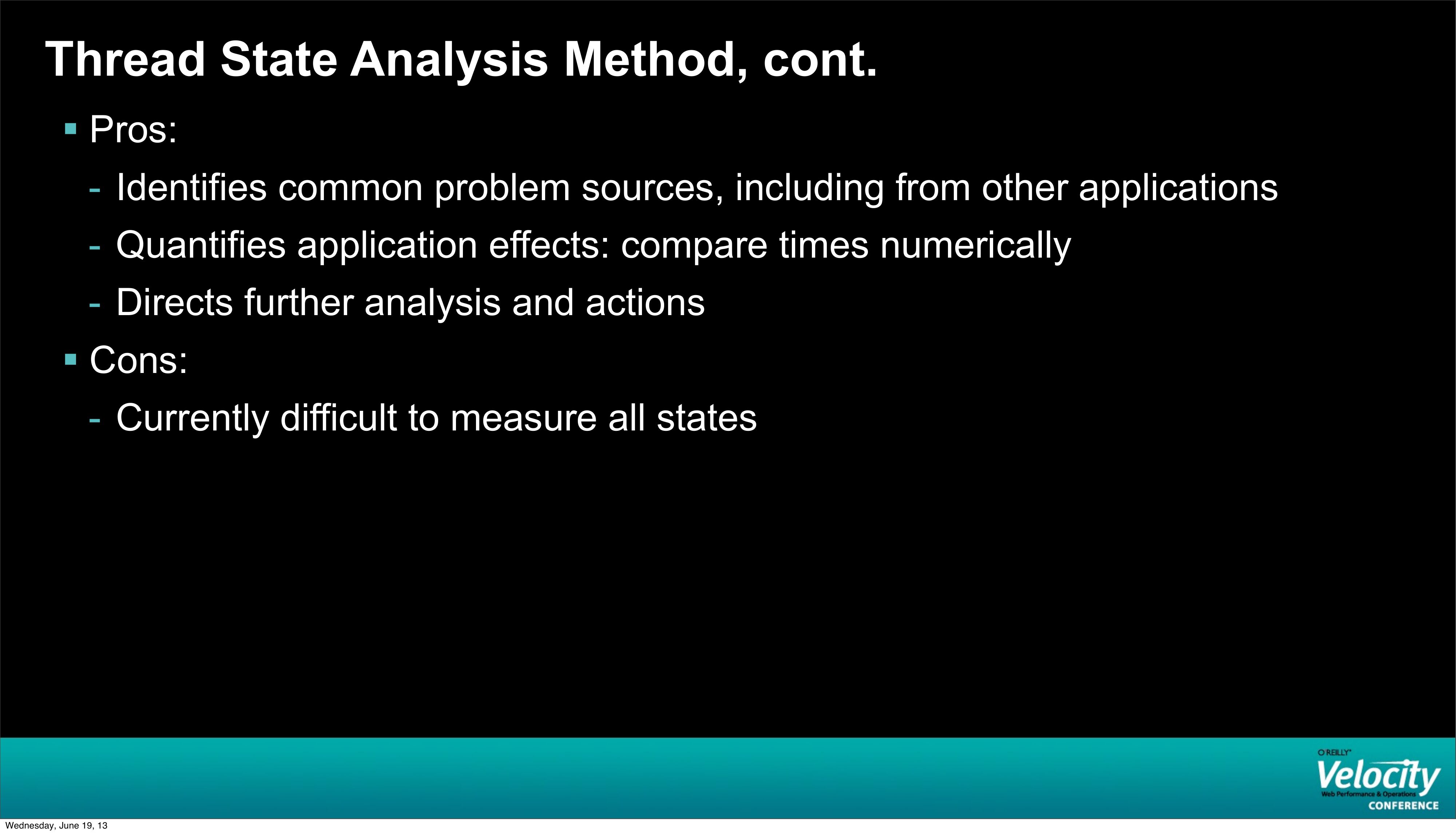

    Thread State Analysis Method, cont.
     Pros:
    - Identifies common problem sources, including from other applications
    - Quantifies application effects: compare times numerically
    - Directs further analysis and actions
     Cons:
    - Currently difficult to measure all states
    Wednesday, June 19, 13

slide 56:

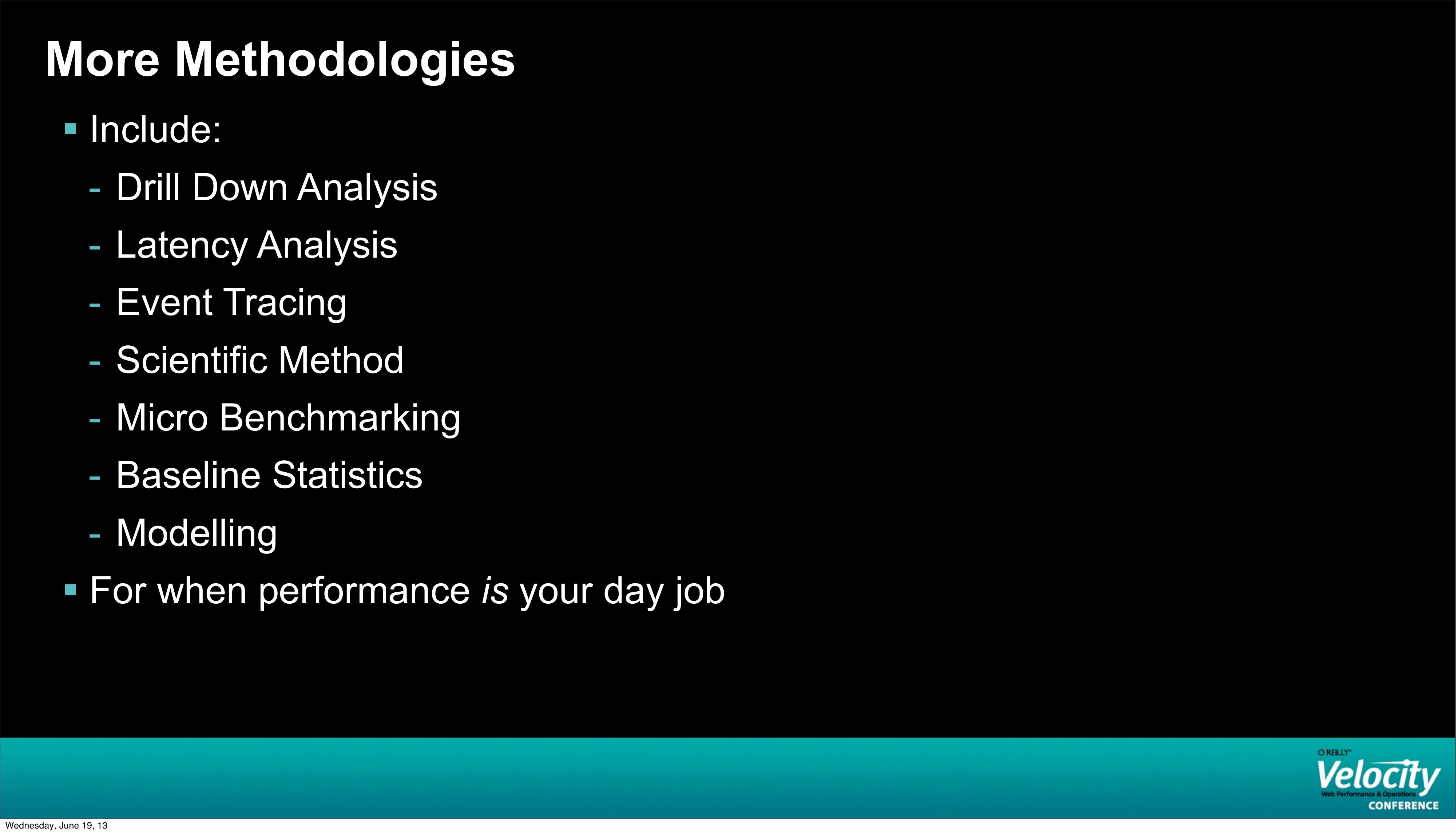

    More Methodologies
     Include:
    - Drill Down Analysis
    - Latency Analysis
    - Event Tracing
    - Scientific Method
    - Micro Benchmarking
    - Baseline Statistics
    - Modelling
     For when performance is your day job
    Wednesday, June 19, 13

slide 57:
    Stop the Guessing
     The anti-methodolgies involved:
    - guesswork
    - beginning with the tools or metrics (answers)
     The actual methodolgies posed questions, then sought metrics to answer them
     You don’t need to guess – post-DTrace, practically everything can be known
     Stop guessing and start asking questions!
    Wednesday, June 19, 13

slide 58:

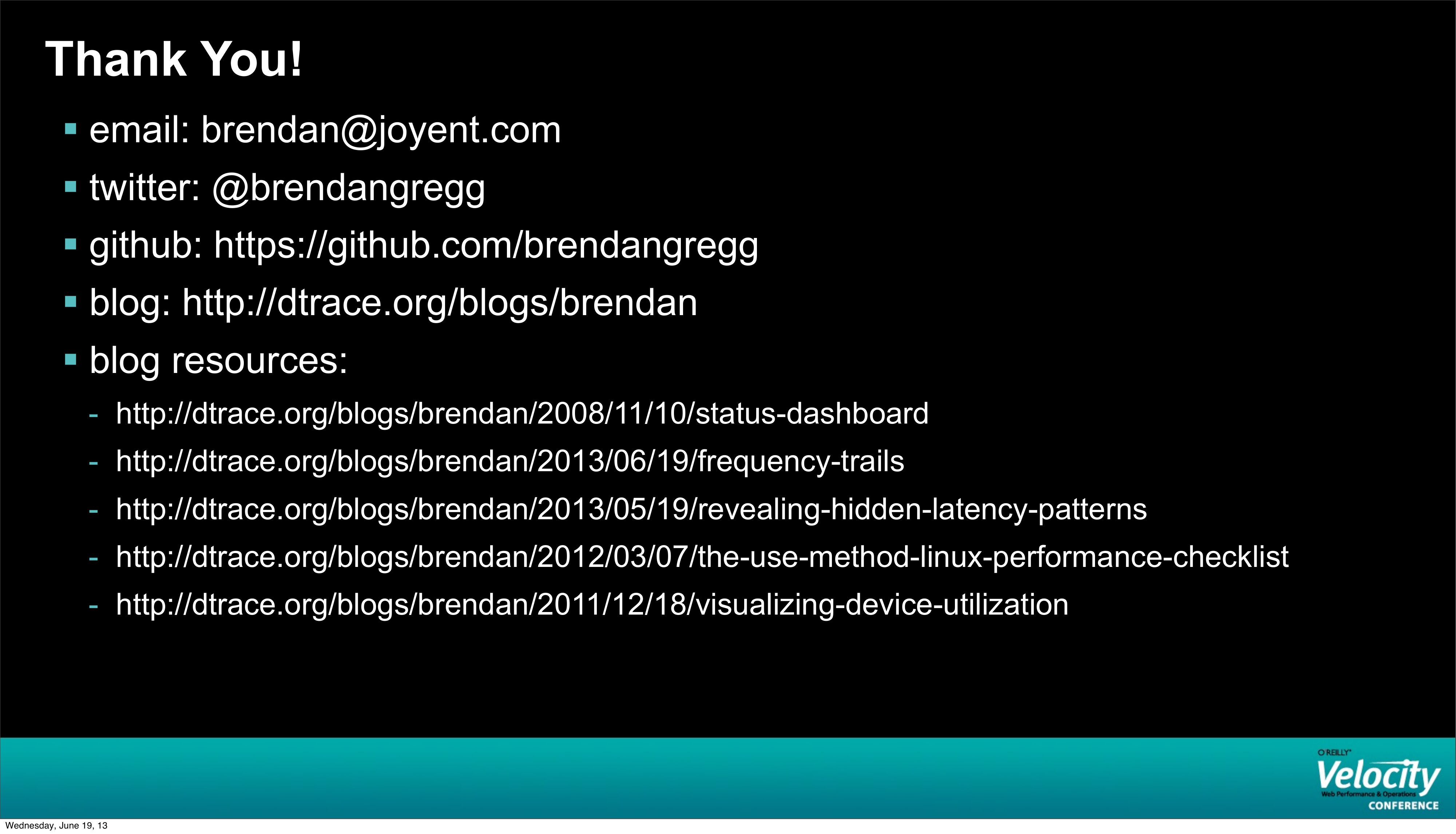

    Thank You!
     email: brendan@joyent.com
     twitter: @brendangregg
     github: https://github.com/brendangregg
     blog: http://dtrace.org/blogs/brendan
     blog resources:
    - http://dtrace.org/blogs/brendan/2008/11/10/status-dashboard
    - http://dtrace.org/blogs/brendan/2013/06/19/frequency-trails
    - http://dtrace.org/blogs/brendan/2013/05/19/revealing-hidden-latency-patterns
    - http://dtrace.org/blogs/brendan/2012/03/07/the-use-method-linux-performance-checklist
    - http://dtrace.org/blogs/brendan/2011/12/18/visualizing-device-utilization
    Wednesday, June 19, 13
