Fast by Friday
Why Kernel Superpowers are Essential
Brendan Gregg
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

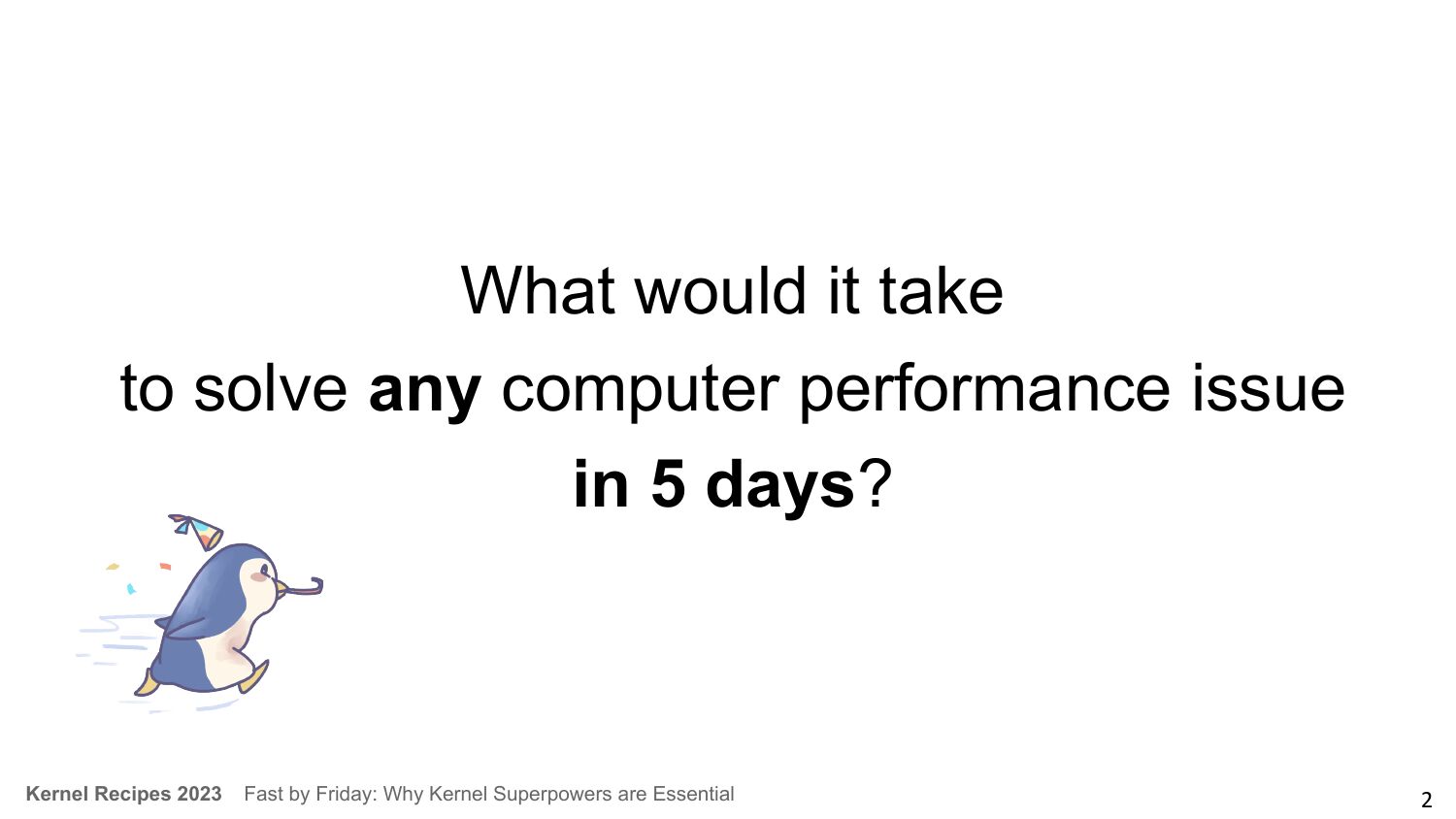

What would it take
to solve any computer performance issue
in 5 days?
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

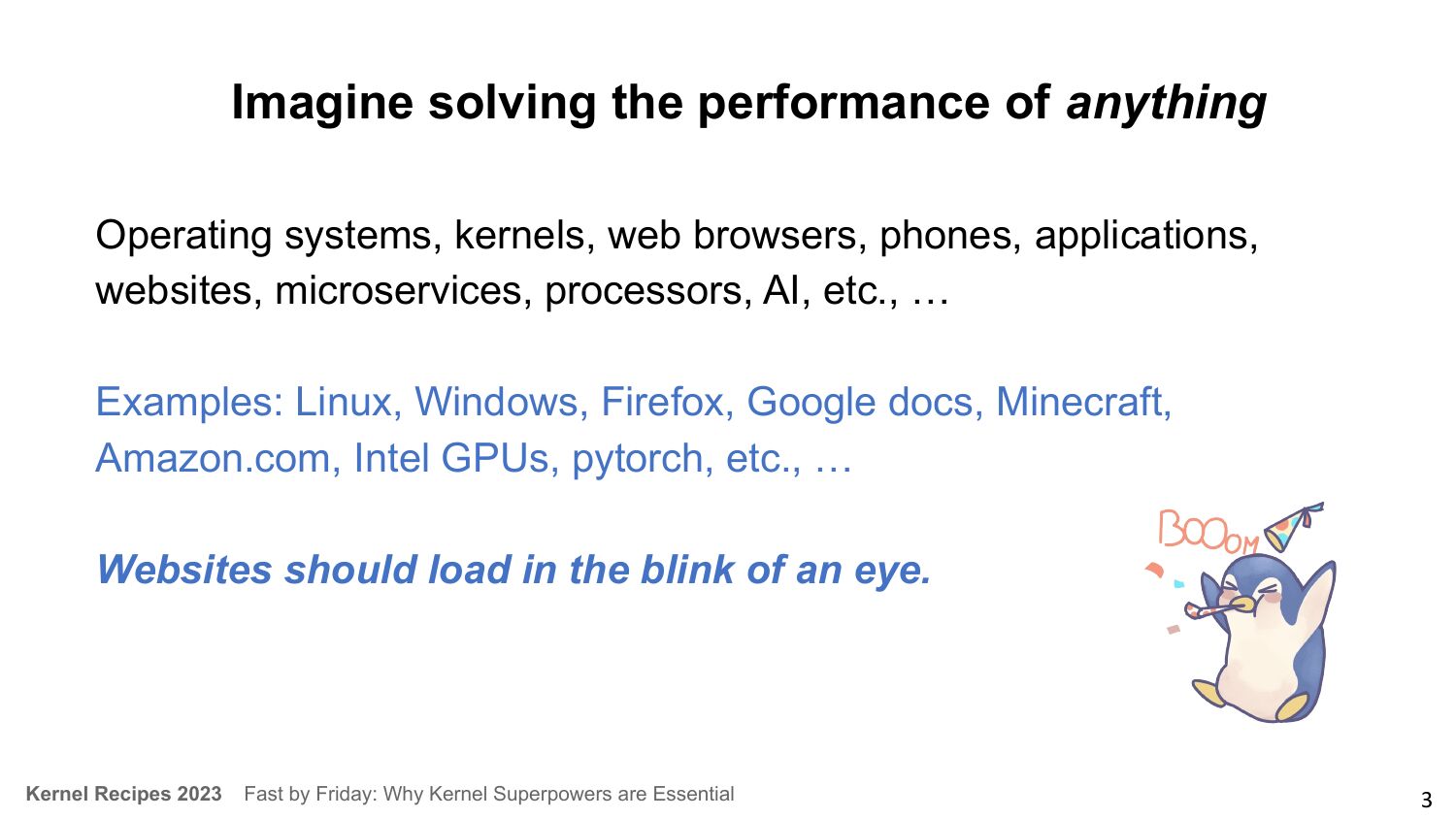

Imagine solving the performance of anything
Operating systems, kernels, web browsers, phones, applications,
websites, microservices, processors, AI, etc., …
Examples: Linux, Windows, Firefox, Google docs, Minecraft,
Amazon.com, Intel GPUs, pytorch, etc., …
Websites should load in the blink of an eye.
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

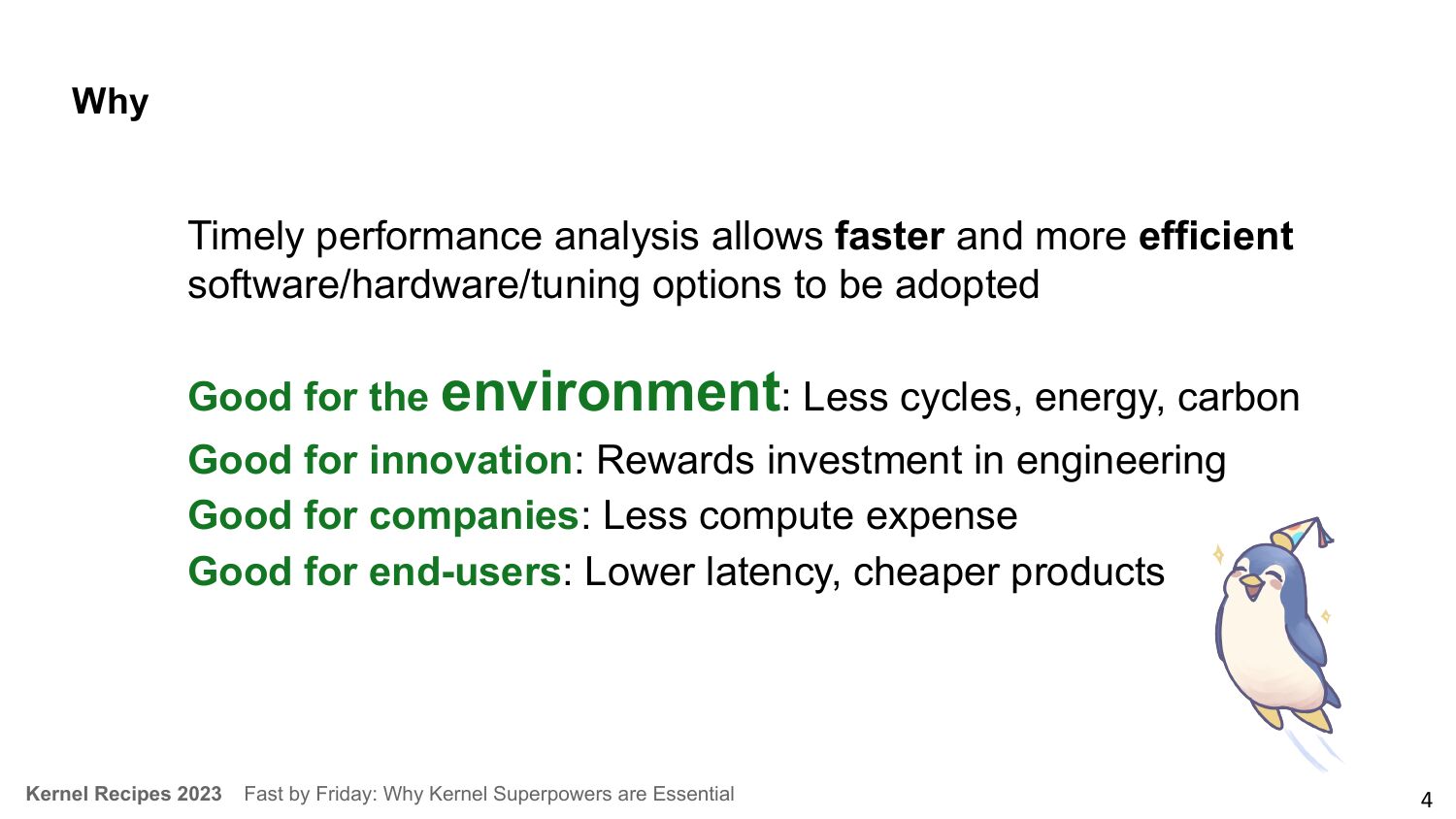

Why
Timely performance analysis allows faster and more efficient
software/hardware/tuning options to be adopted
Good for the environment: Less cycles, energy, carbon
Good for innovation: Rewards investment in engineering
Good for companies: Less compute expense
Good for end-users: Lower latency, cheaper products
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

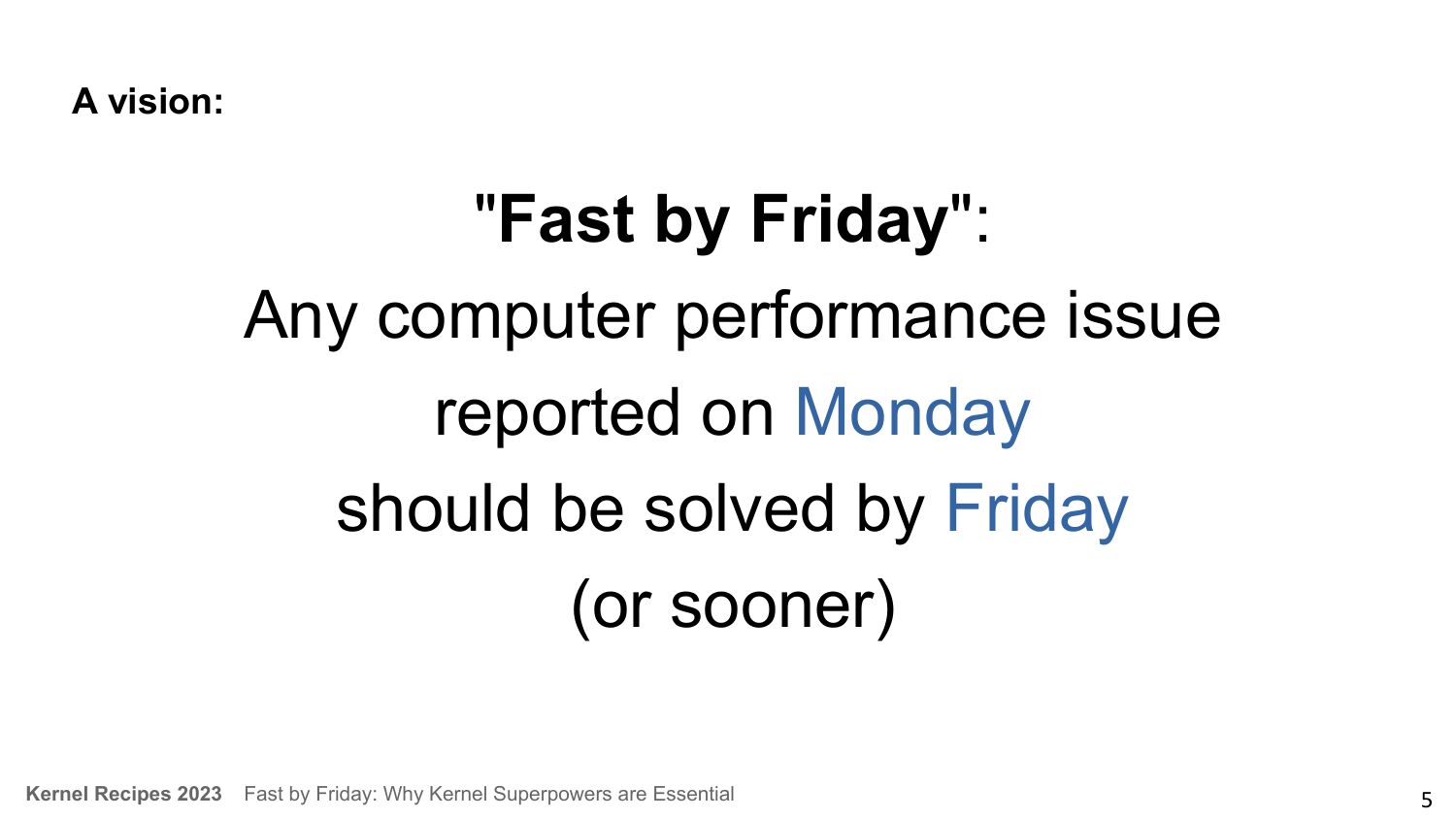

A vision:
"Fast by Friday":
Any computer performance issue
reported on Monday
should be solved by Friday
(or sooner)
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

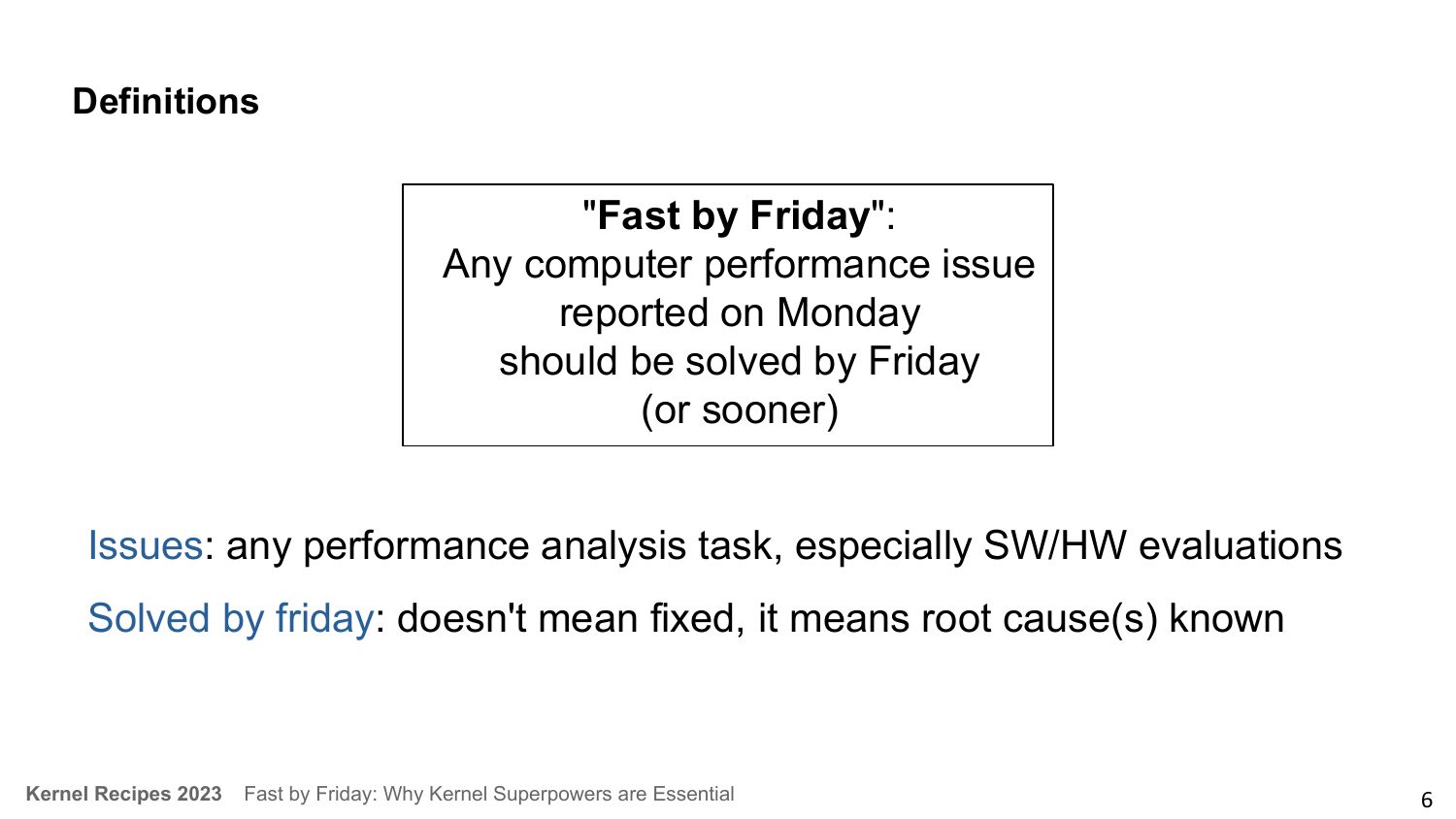

Definitions
"Fast by Friday":
Any computer performance issue
reported on Monday
should be solved by Friday
(or sooner)
Issues: any performance analysis task, especially SW/HW evaluations
Solved by friday: doesn't mean fixed, it means root cause(s) known
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

"Fast by Friday" is…
A vision
A way of thinking
A call to action
A methodology
A practical deadline
I want to completely understand the performance of everything…in 5 days
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

The first of three activities
1. Found
2. Fixed
3. Deployed
Performance root cause(s) known
Fix developed
Fixed everywhere
"Fast by Friday" focuses on (1) as it's often the biggest obstacle.
Yes, even for the Linux kernel. Show me a 2x perf fix and I'll show you comparies running it by Friday.
If the wasted cores paper was widely applicable, I'd have a pretty good example.
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

The Problem
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

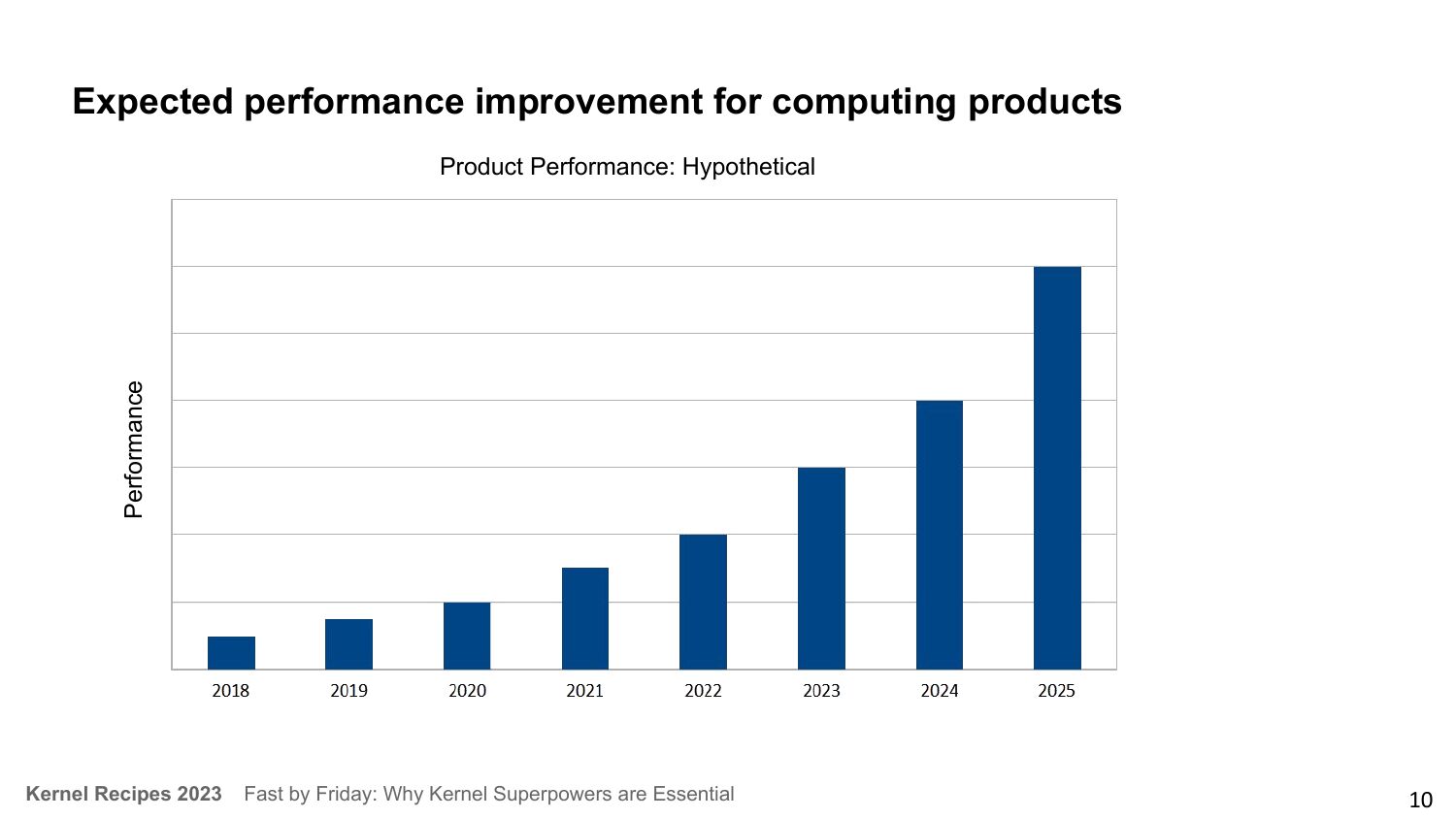

Expected performance improvement for computing products
Performance
Product Performance: Hypothetical
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

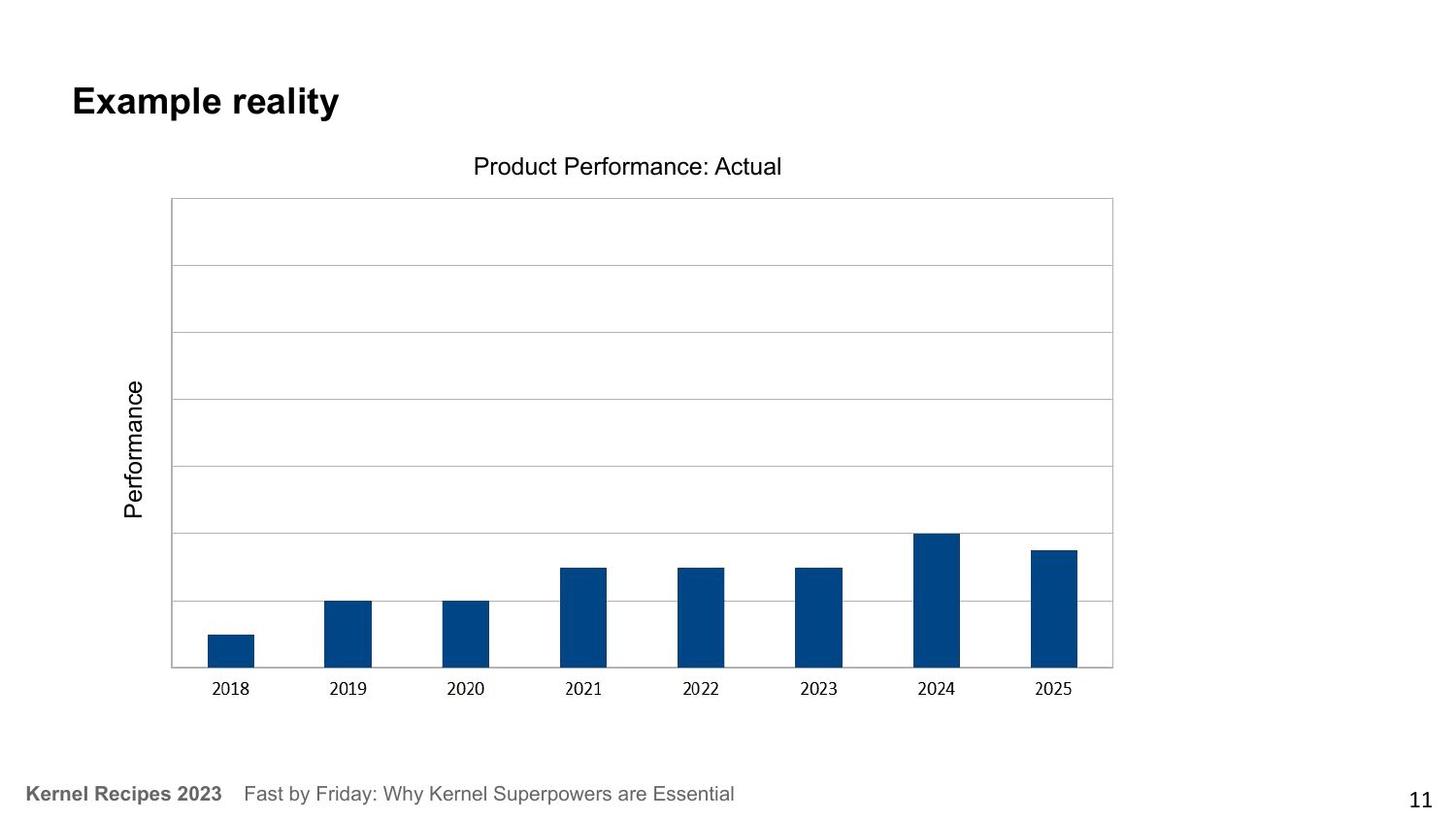

Example reality
Performance
Product Performance: Actual
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

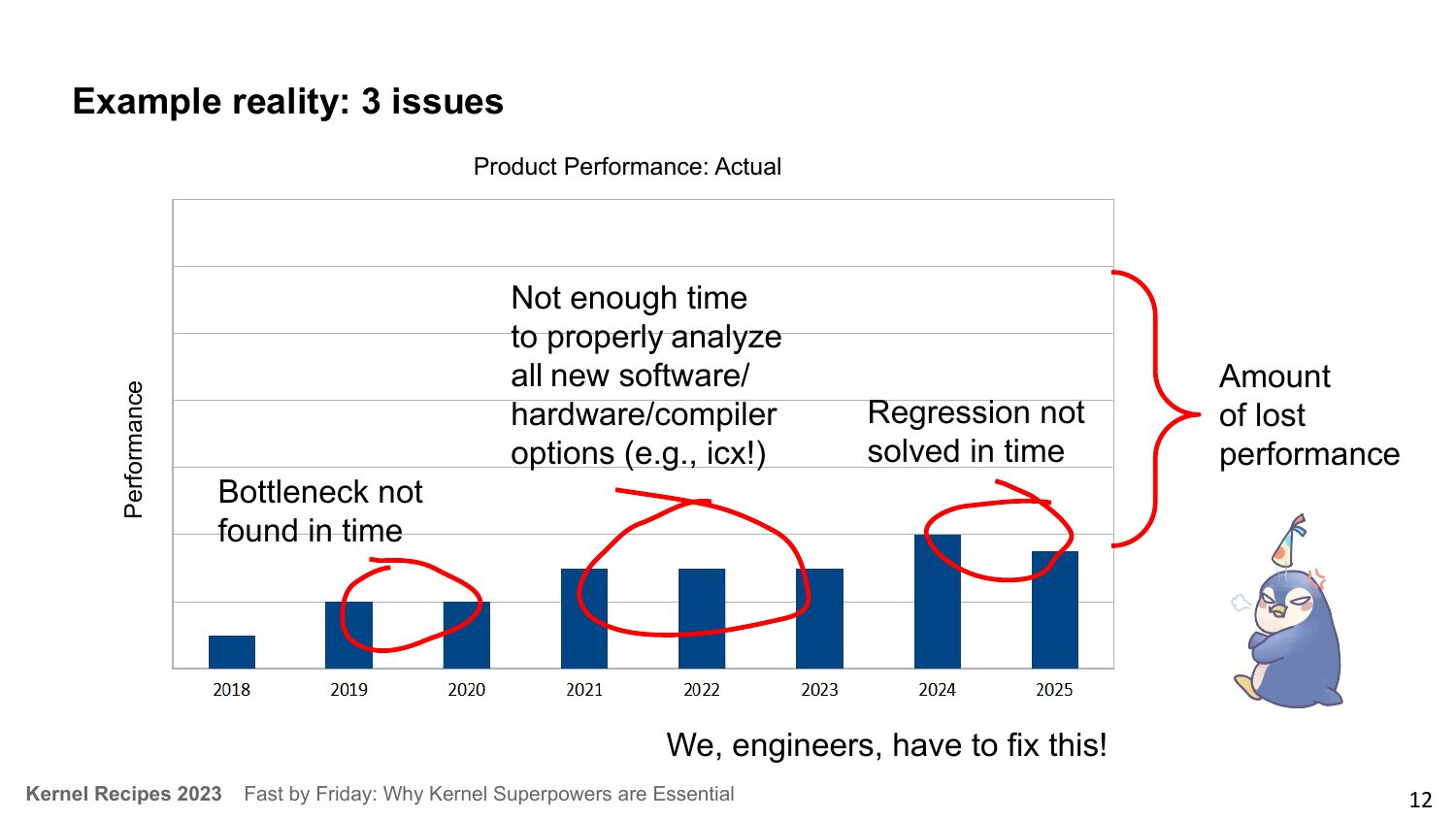

Example reality: 3 issues
Performance
Product Performance: Actual
Not enough time
to properly analyze
all new software/
hardware/compiler
options (e.g., icx!)
Regression not
solved in time
Amount
of lost
performance
Bottleneck not
found in time
We, engineers, have to fix this!
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

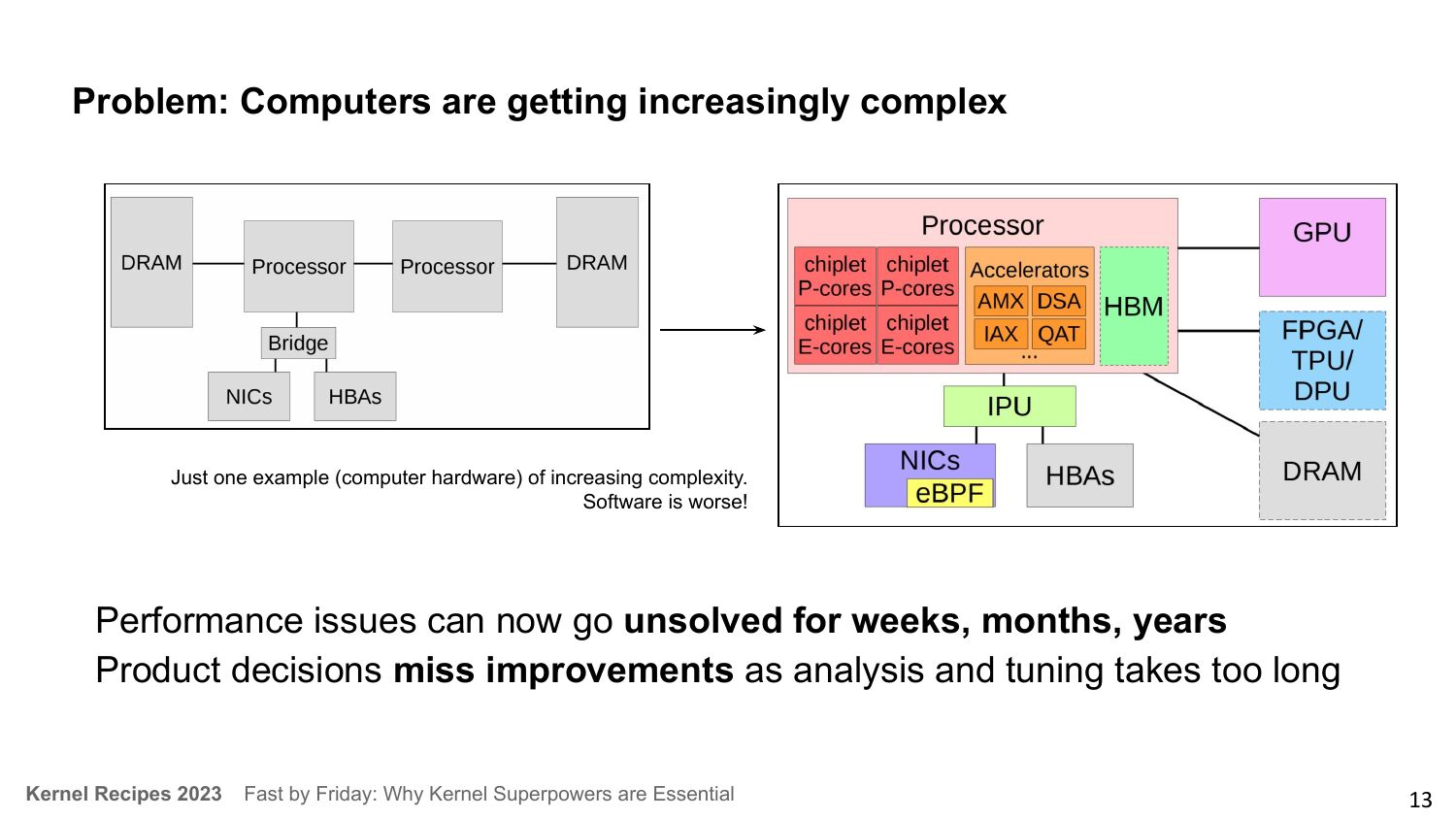

Problem: Computers are getting increasingly complex
Just one example (computer hardware) of increasing complexity.
Software is worse!
Performance issues can now go unsolved for weeks, months, years
Product decisions miss improvements as analysis and tuning takes too long
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

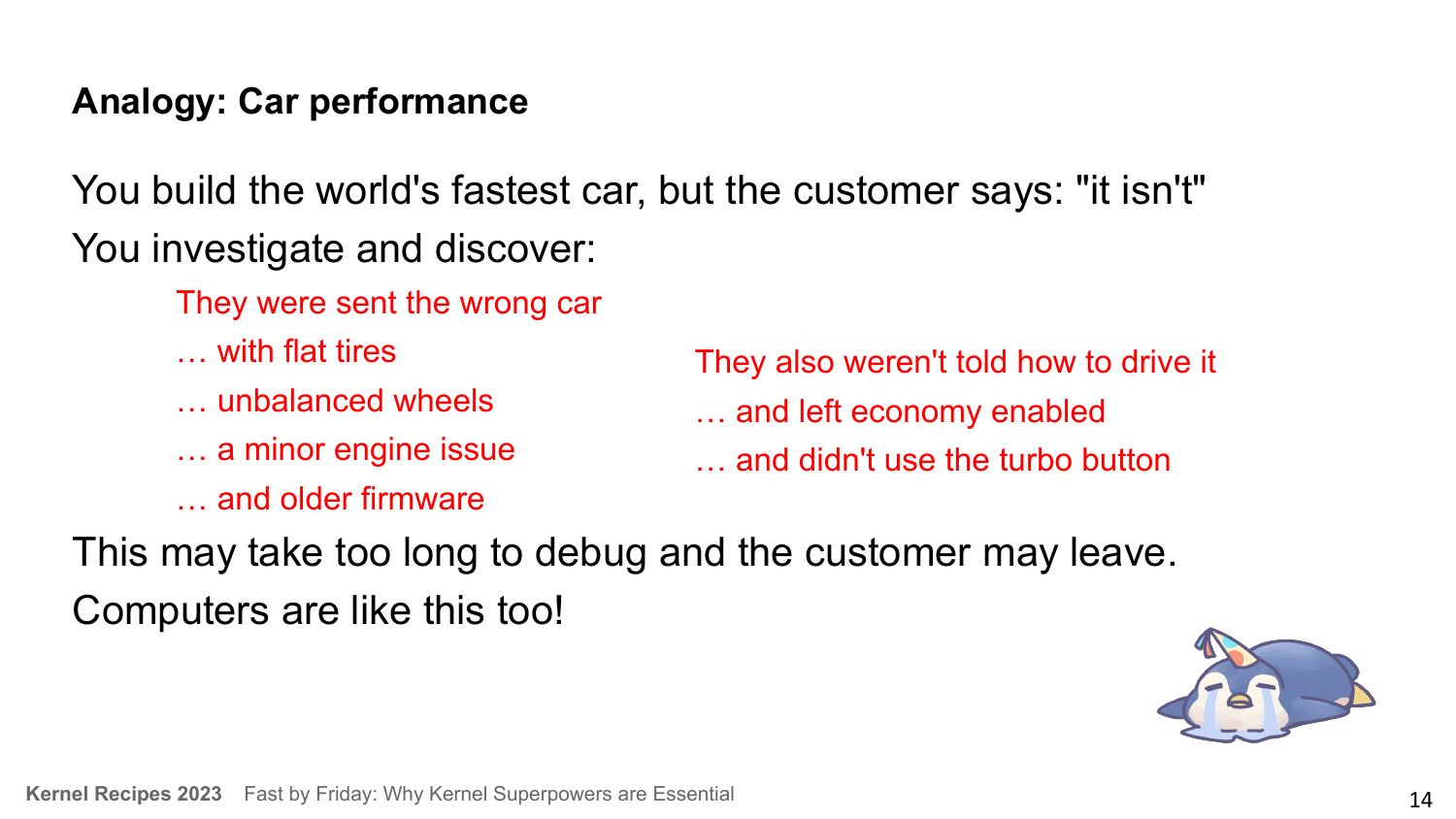

Analogy: Car performance
You build the world's fastest car, but the customer says: "it isn't"
You investigate and discover:
They were sent the wrong car
… with flat tires
They also weren't told how to drive it
… unbalanced wheels
… and left economy enabled
… a minor engine issue
… and didn't use the turbo button
… and older firmware
This may take too long to debug and the customer may leave.
Computers are like this too!
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

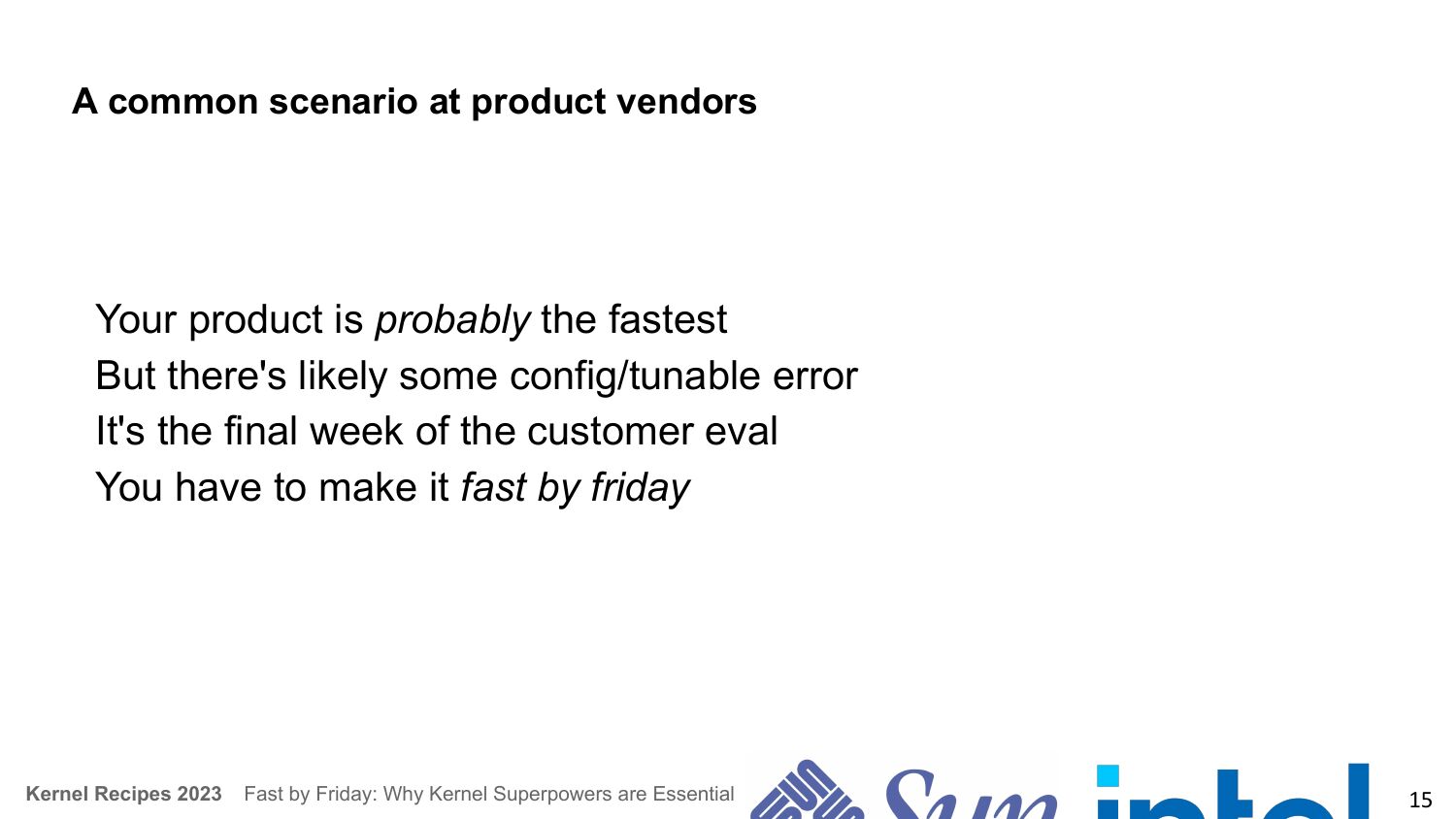

A common scenario at product vendors
Your product is probably the fastest
But there's likely some config/tunable error
It's the final week of the customer eval
You have to make it fast by friday
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

How
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

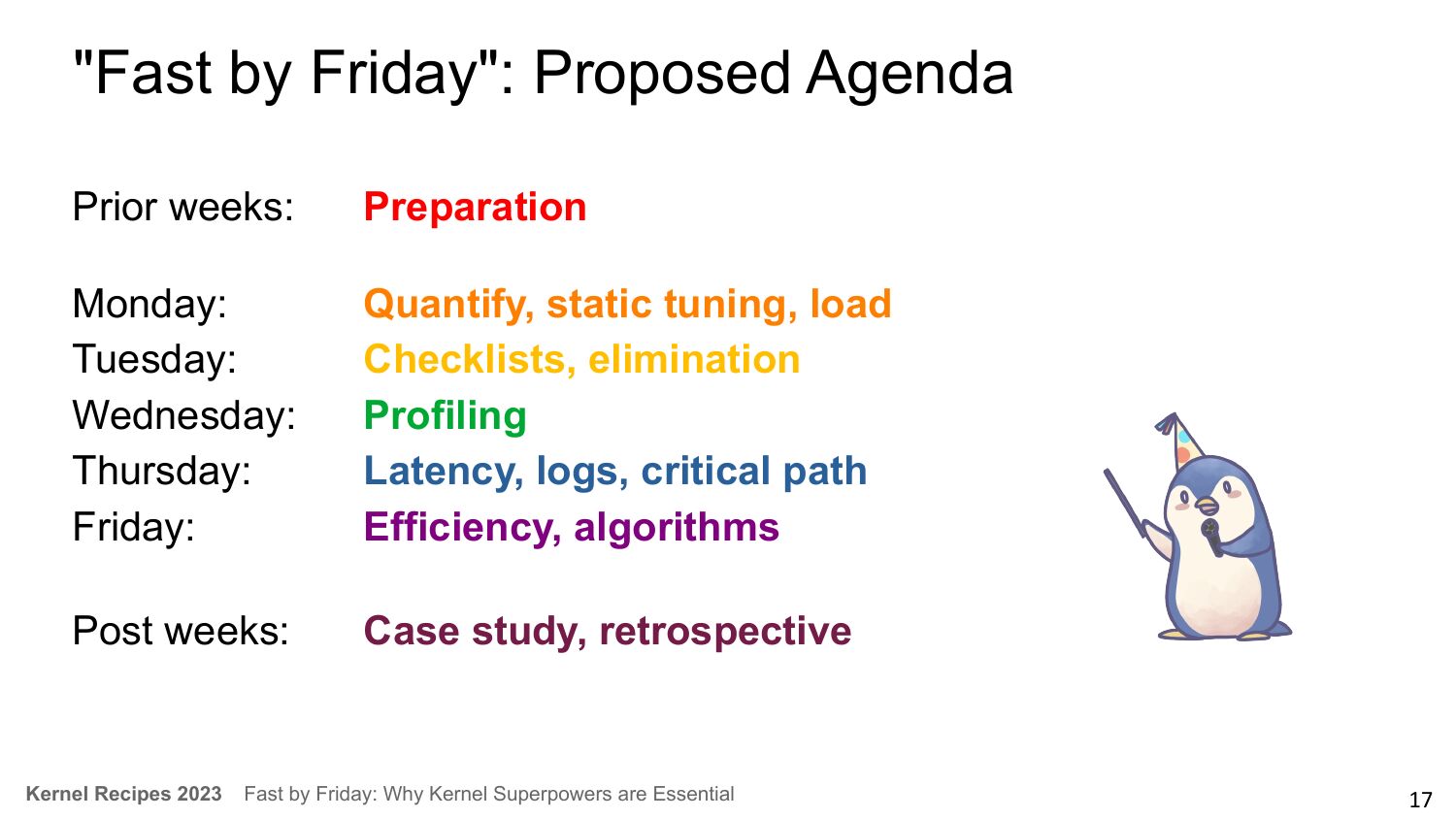

"Fast by Friday": Proposed Agenda
Prior weeks:
Preparation
Monday:
Tuesday:
Wednesday:
Thursday:
Friday:
Quantify, static tuning, load
Checklists, elimination
Profiling
Latency, logs, critical path
Efficiency, algorithms

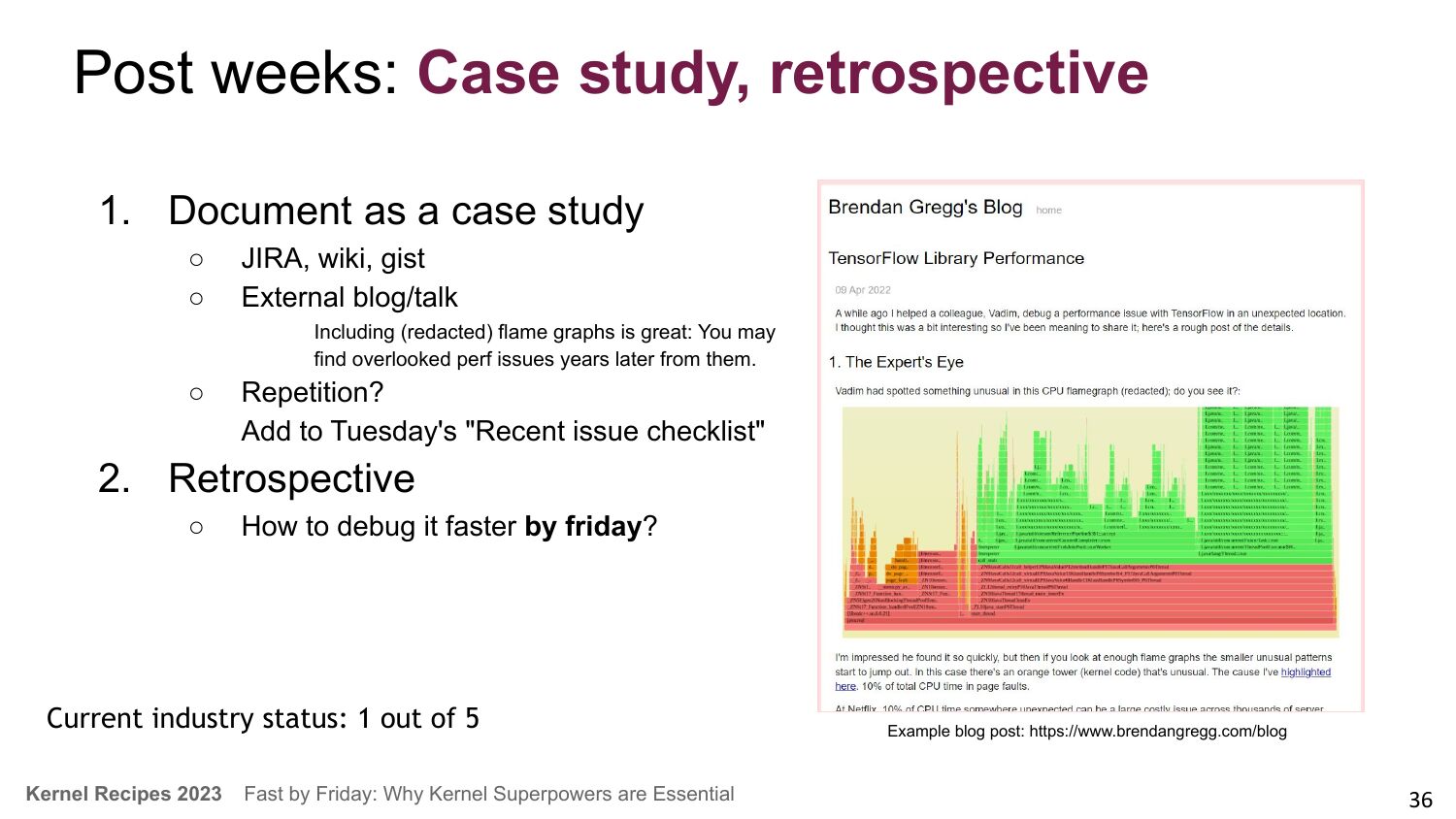

Post weeks:
Case study, retrospective
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

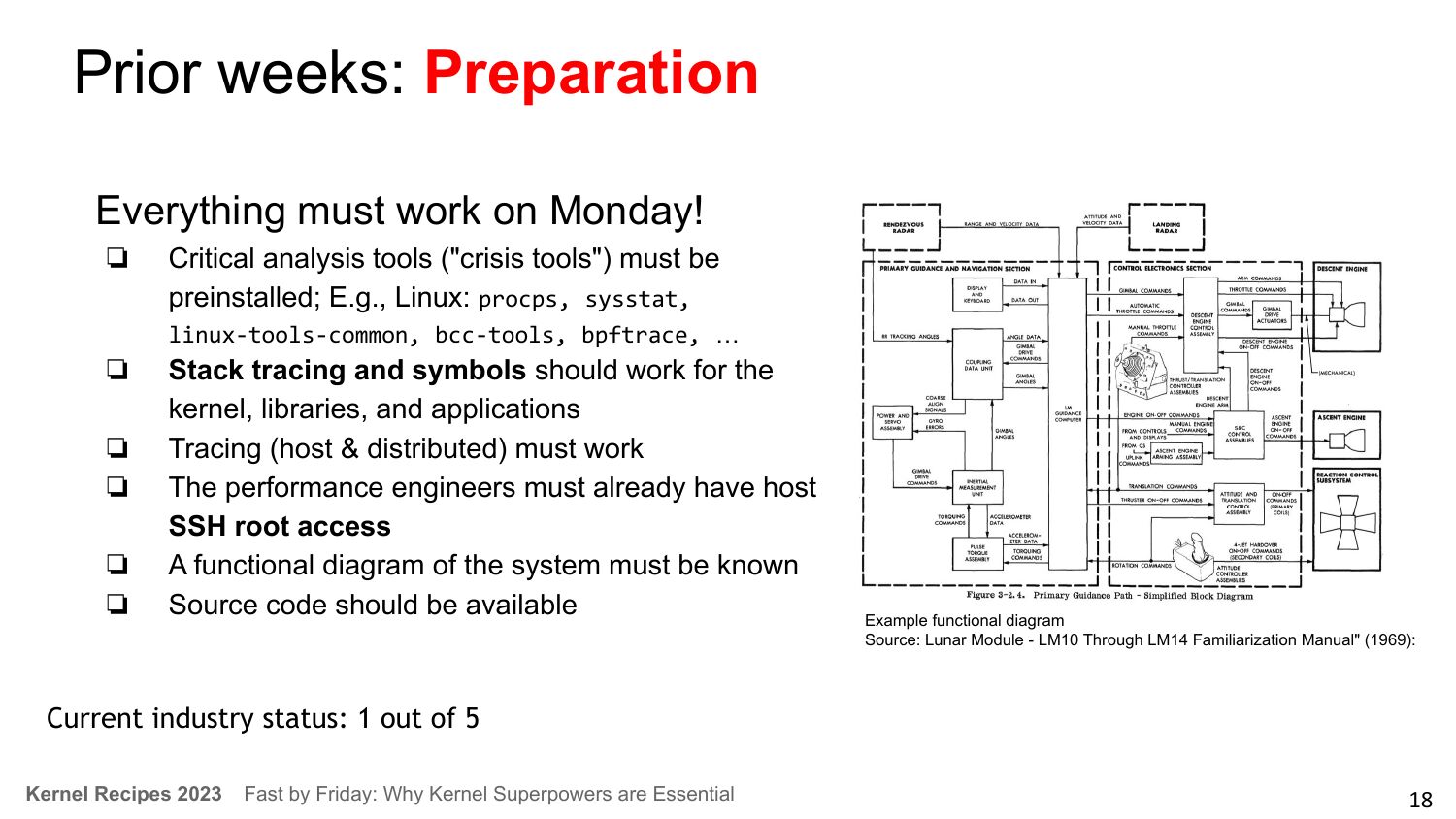

Prior weeks: Preparation
Everything must work on Monday!
Critical analysis tools ("crisis tools") must be
preinstalled; E.g., Linux: procps, sysstat,
linux-tools-common, bcc-tools, bpftrace, …
Stack tracing and symbols should work for the
kernel, libraries, and applications
Tracing (host & distributed) must work
The performance engineers must already have host
SSH root access
A functional diagram of the system must be known
Source code should be available
Example functional diagram
Source: Lunar Module - LM10 Through LM14 Familiarization Manual" (1969):
Current industry status: 1 out of 5
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

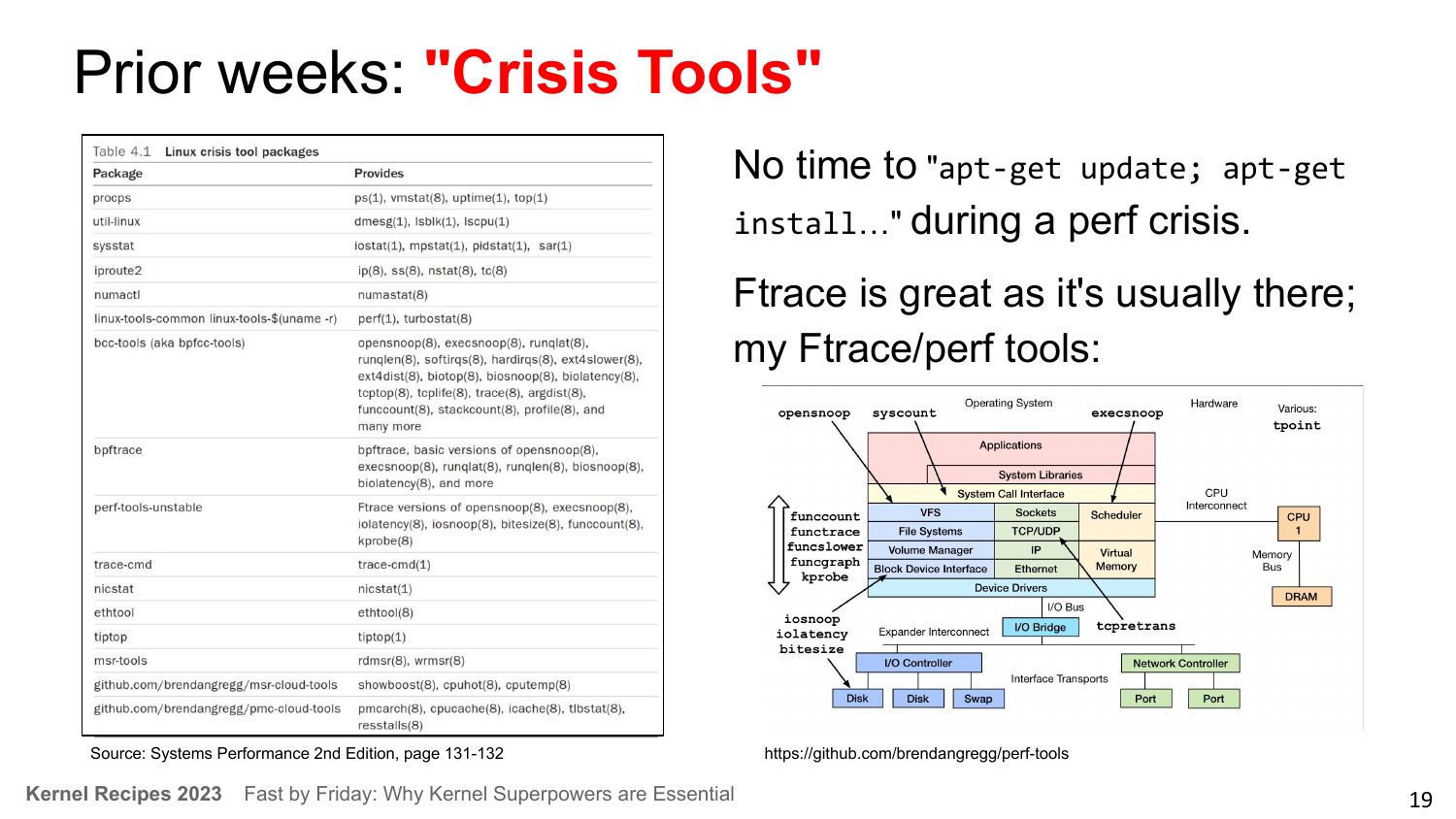

Prior weeks: "Crisis Tools"
No time to "apt-get update; apt-get
install…" during a perf crisis.
Ftrace is great as it's usually there;
my Ftrace/perf tools:
Source: Systems Performance 2nd Edition, page 131-132
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential
https://github.com/brendangregg/perf-tools

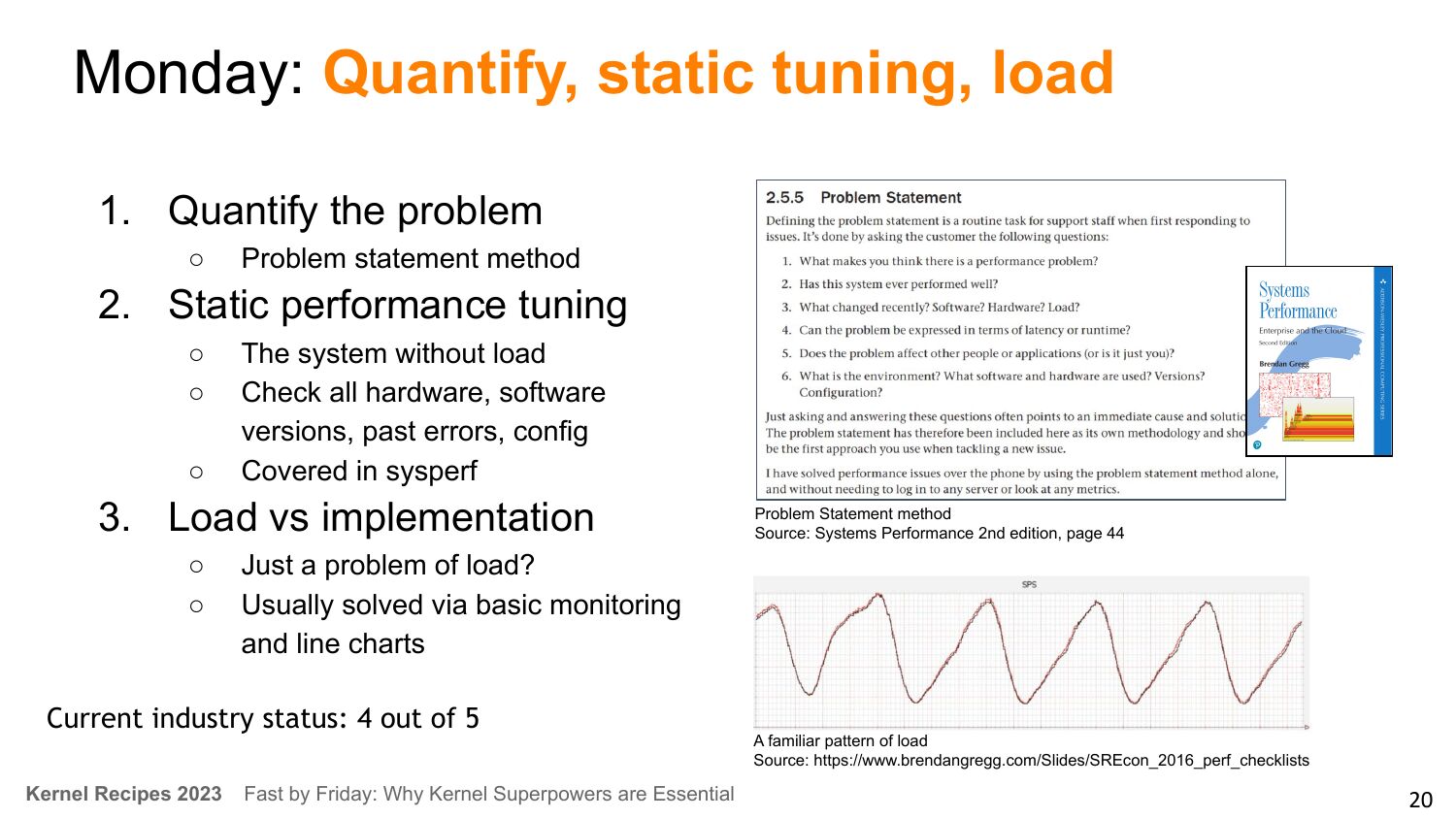

Monday: Quantify, static tuning, load
1. Quantify the problem
Problem statement method
2. Static performance tuning
The system without load
Check all hardware, software
versions, past errors, config
Covered in sysperf
3. Load vs implementation
Problem Statement method
Source: Systems Performance 2nd edition, page 44
Just a problem of load?
Usually solved via basic monitoring
and line charts
Current industry status: 4 out of 5
A familiar pattern of load
Source: https://www.brendangregg.com/Slides/SREcon_2016_perf_checklists
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

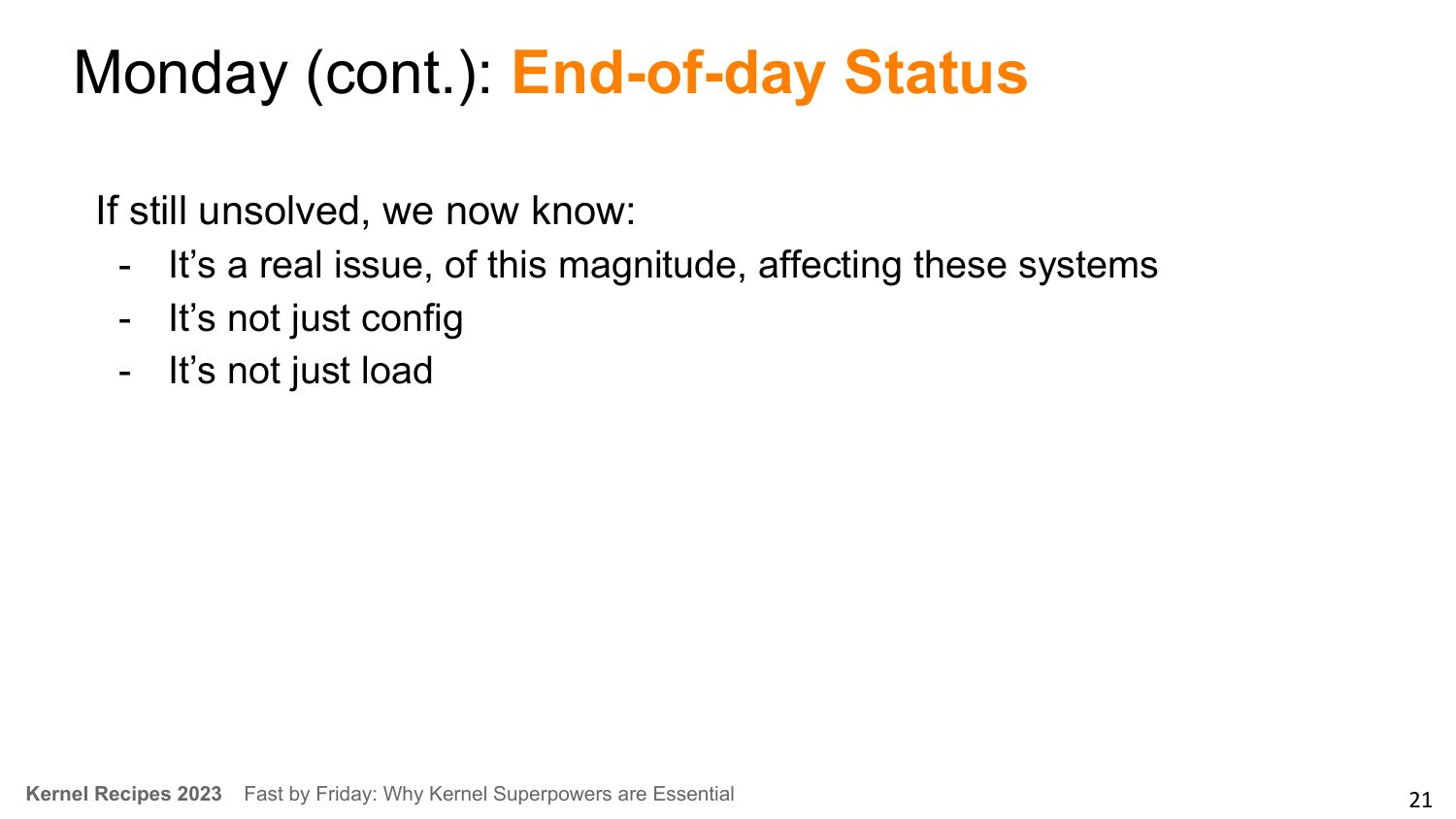

Monday (cont.): End-of-day Status
If still unsolved, we now know:
- It’s a real issue, of this magnitude, affecting these systems
- It’s not just config
- It’s not just load
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

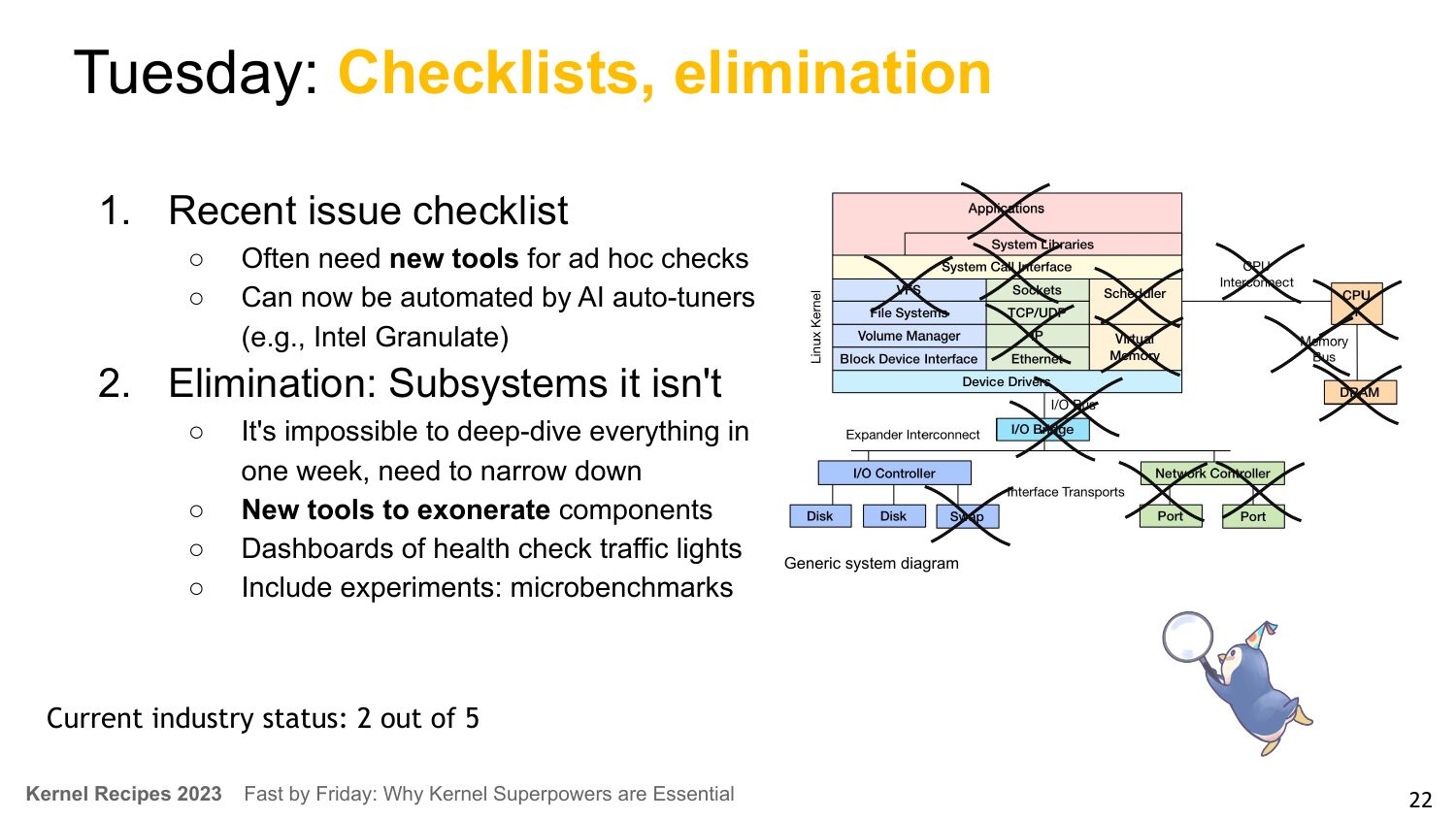

Tuesday: Checklists, elimination
1. Recent issue checklist
Often need new tools for ad hoc checks
Can now be automated by AI auto-tuners
(e.g., Intel Granulate)
2. Elimination: Subsystems it isn't
It's impossible to deep-dive everything in
one week, need to narrow down
New tools to exonerate components
Dashboards of health check traffic lights
Include experiments: microbenchmarks
Generic system diagram
Current industry status: 2 out of 5
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

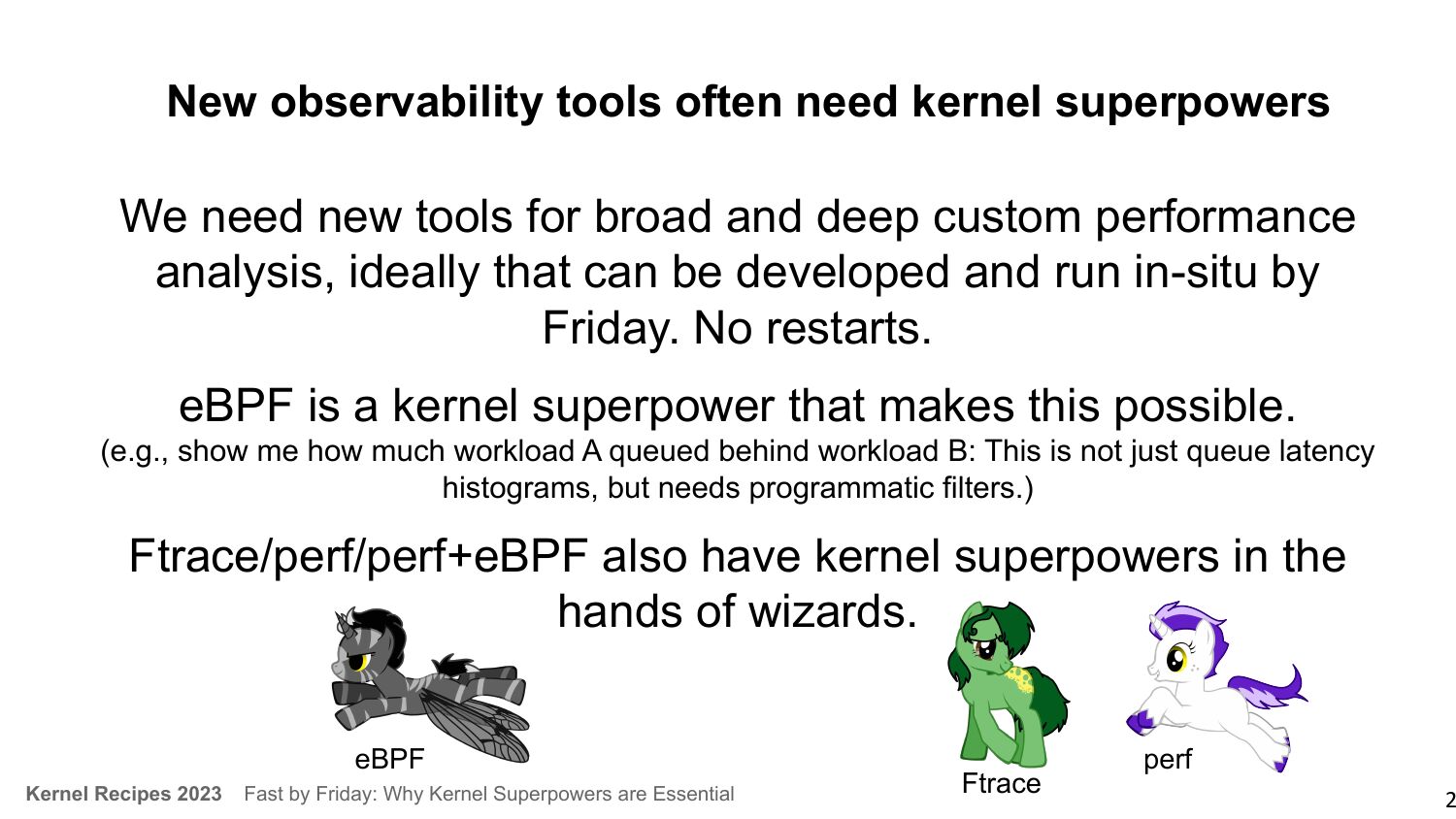

New observability tools often need kernel superpowers
We need new tools for broad and deep custom performance
analysis, ideally that can be developed and run in-situ by
Friday. No restarts.
eBPF is a kernel superpower that makes this possible.
(e.g., show me how much workload A queued behind workload B: This is not just queue latency
histograms, but needs programmatic filters.)
Ftrace/perf/perf+eBPF also have kernel superpowers in the
hands of wizards.
eBPF
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential
Ftrace
perf

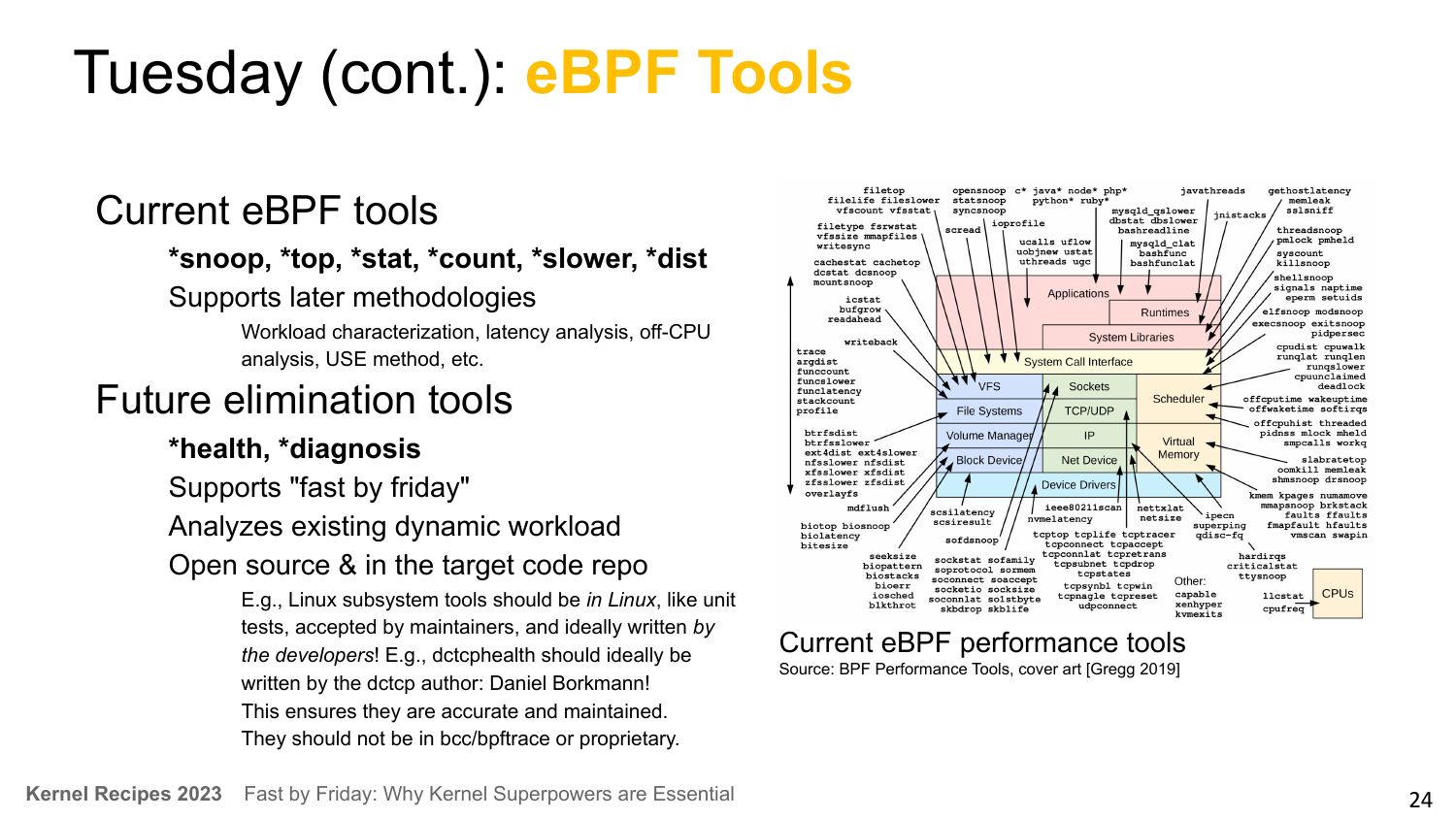

Tuesday (cont.): eBPF Tools
Current eBPF tools
*snoop, *top, *stat, *count, *slower, *dist
Supports later methodologies
Workload characterization, latency analysis, off-CPU
analysis, USE method, etc.
Future elimination tools
*health, *diagnosis
Supports "fast by friday"
Analyzes existing dynamic workload
Open source & in the target code repo
E.g., Linux subsystem tools should be in Linux, like unit
tests, accepted by maintainers, and ideally written by
the developers! E.g., dctcphealth should ideally be
written by the dctcp author: Daniel Borkmann!
This ensures they are accurate and maintained.
They should not be in bcc/bpftrace or proprietary.
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential
Current eBPF performance tools
Source: BPF Performance Tools, cover art [Gregg 2019]

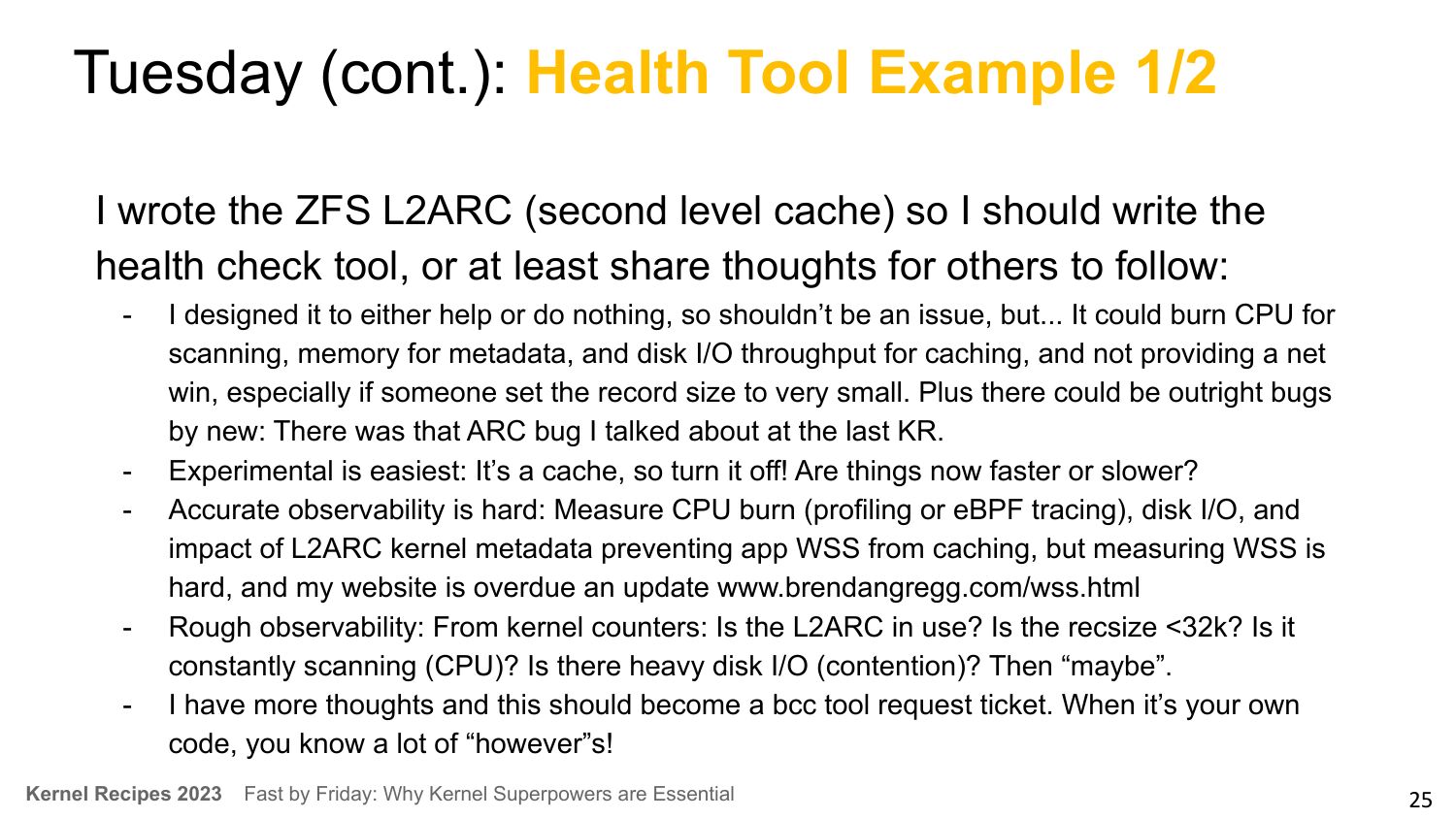

Tuesday (cont.): Health Tool Example 1/2
I wrote the ZFS L2ARC (second level cache) so I should write the
health check tool, or at least share thoughts for others to follow:
I designed it to either help or do nothing, so shouldn’t be an issue, but... It could burn CPU for
scanning, memory for metadata, and disk I/O throughput for caching, and not providing a net
win, especially if someone set the record size to very small. Plus there could be outright bugs
by new: There was that ARC bug I talked about at the last KR.
Experimental is easiest: It’s a cache, so turn it off! Are things now faster or slower?
Accurate observability is hard: Measure CPU burn (profiling or eBPF tracing), disk I/O, and
impact of L2ARC kernel metadata preventing app WSS from caching, but measuring WSS is
hard, and my website is overdue an update www.brendangregg.com/wss.html
Rough observability: From kernel counters: Is the L2ARC in use? Is the recsize

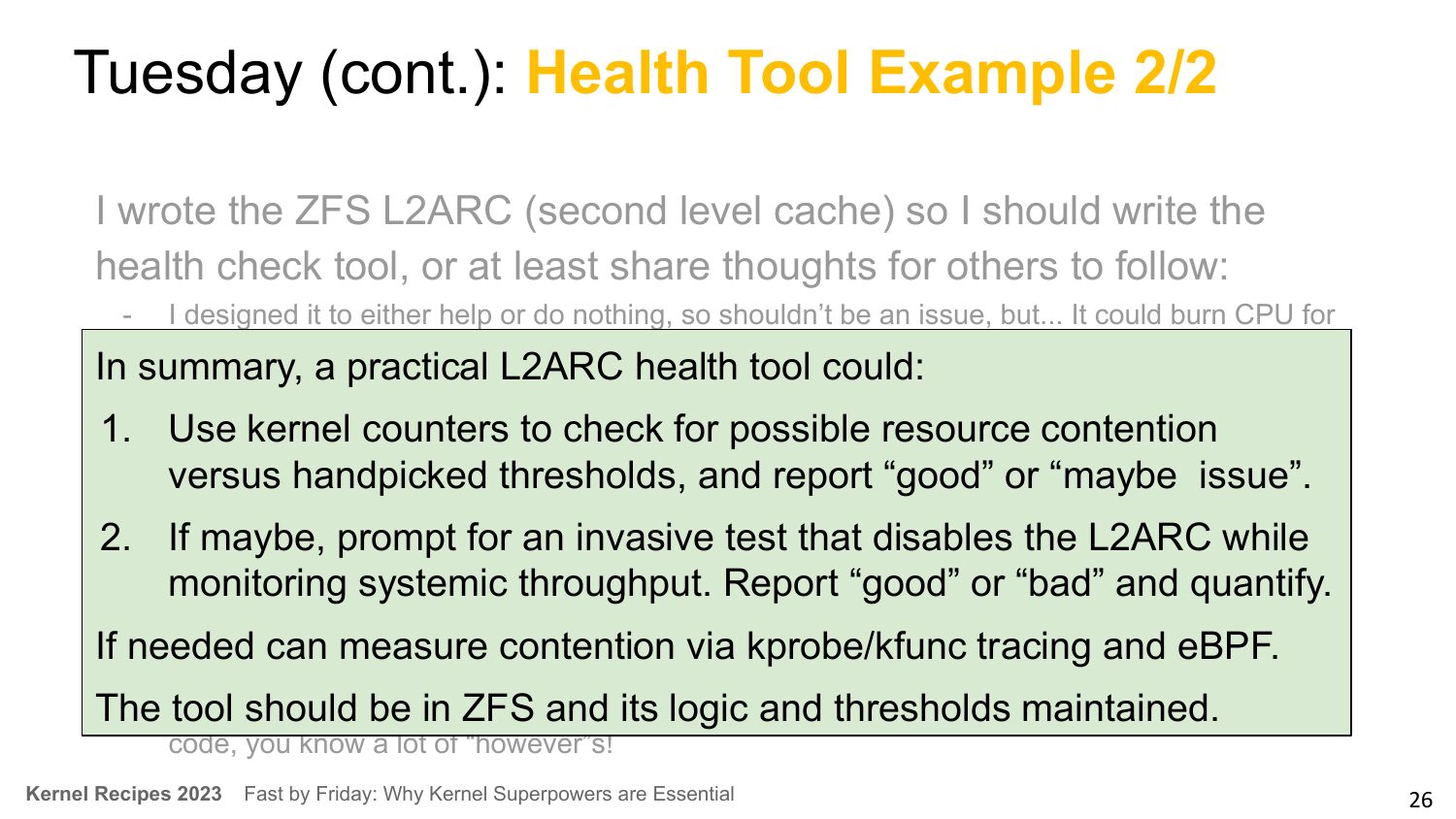

Tuesday (cont.): Health Tool Example 2/2
I wrote the ZFS L2ARC (second level cache) so I should write the
health check tool, or at least share thoughts for others to follow:
I designed it to either help or do nothing, so shouldn’t be an issue, but... It could burn CPU for
scanning, memory for metadata, and disk I/O throughput for caching, and not providing a net
In summary,
a practical L2ARC health tool could:
win, especially if someone set the record size to very small. Plus there could be outright bugs
by new:
There was
that ARCto
bug
I talkedfor
about
at the lastresource
KR.
1. Use
kernel
counters
check
possible
contention
- Experimental
is easiest: It’sthresholds,
a cache, so turn
it off!
Are things
now faster
or slower?issue”.
versus handpicked
and
report
“good”
or “maybe
- Accurate observability is hard: Measure CPU burn (profiling or eBPF tracing), disk I/O, and
2. If
maybe,
prompt
an invasive
that from
disables
impact
of L2ARC
kernelfor
metadata
preventingtest
app WSS
caching,the
but L2ARC
measuringwhile
WSS is
monitoring
systemic
throughput.
Report “good” or “bad” and quantify.
hard, and my website
is overdue
an update www.brendangregg.com/wss.html
- Rough observability: From kernel counters: Is the L2ARC in use? Is the recsize

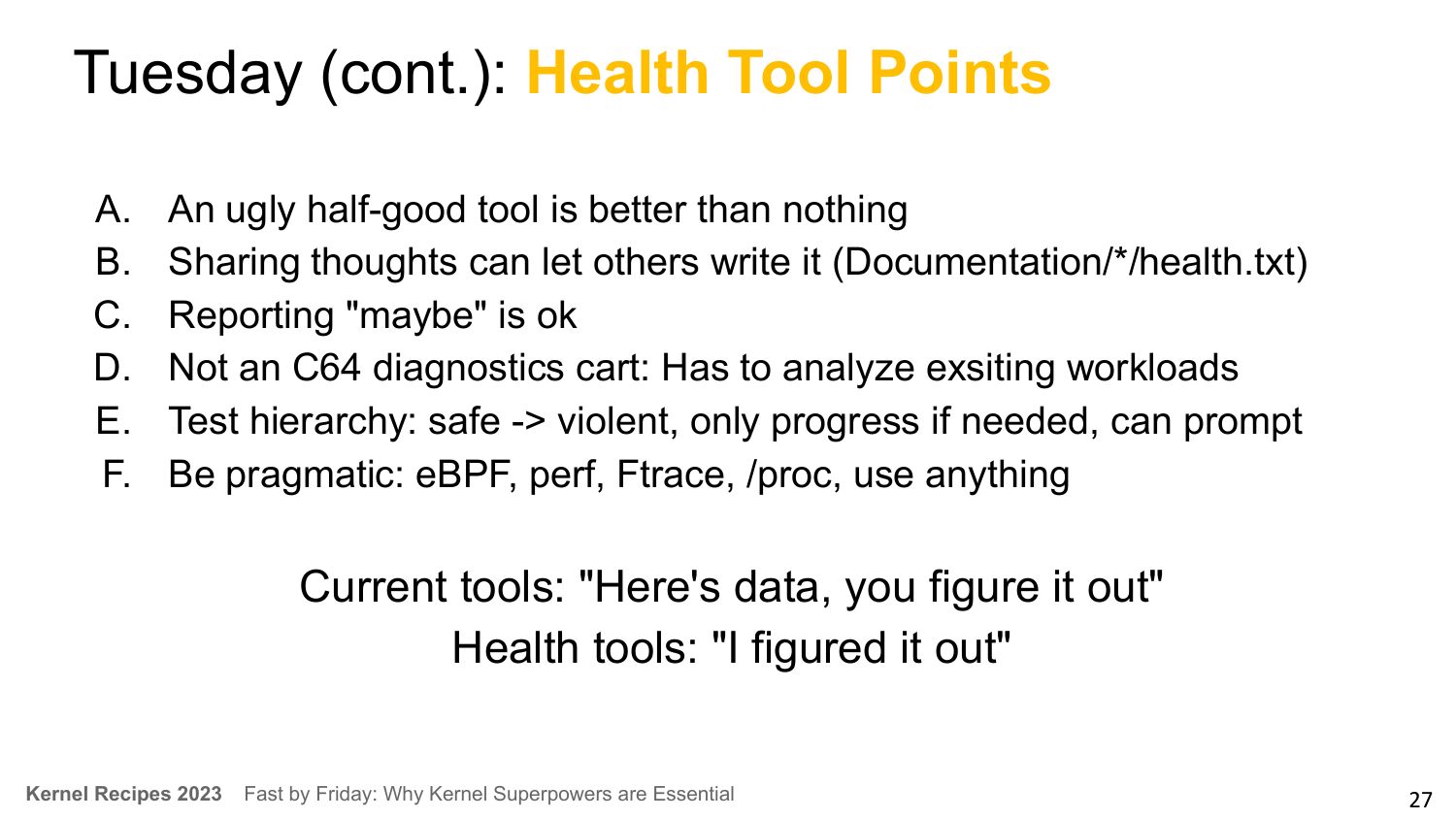

Tuesday (cont.): Health Tool Points
An ugly half-good tool is better than nothing
Sharing thoughts can let others write it (Documentation/*/health.txt)
Reporting "maybe" is ok
Not an C64 diagnostics cart: Has to analyze exsiting workloads
Test hierarchy: safe ->gt; violent, only progress if needed, can prompt
Be pragmatic: eBPF, perf, Ftrace, /proc, use anything
Current tools: "Here's data, you figure it out"
Health tools: "I figured it out"
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

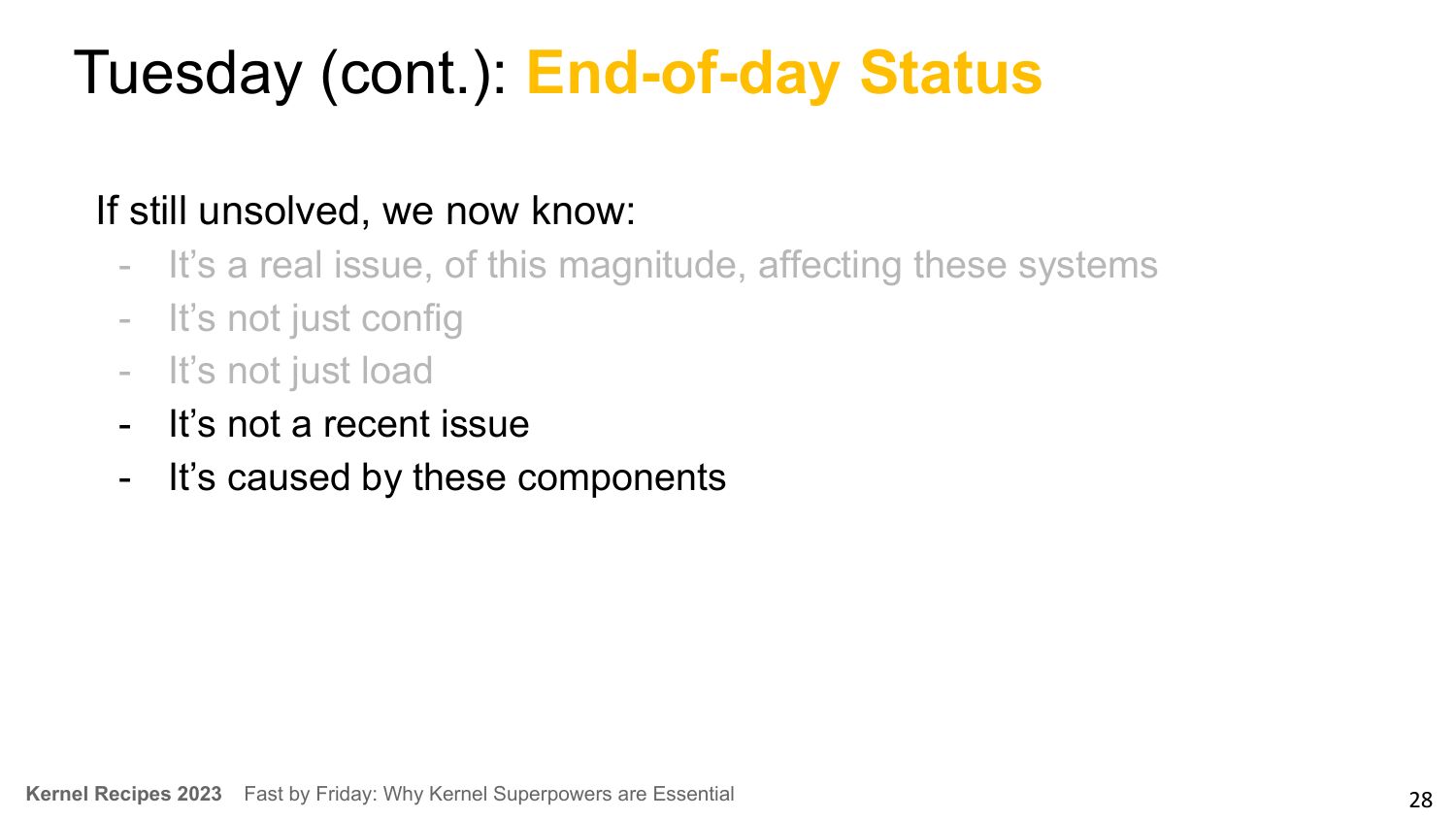

Tuesday (cont.): End-of-day Status
If still unsolved, we now know:
- It’s a real issue, of this magnitude, affecting these systems
- It’s not just config
- It’s not just load
- It’s not a recent issue
- It’s caused by these components
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

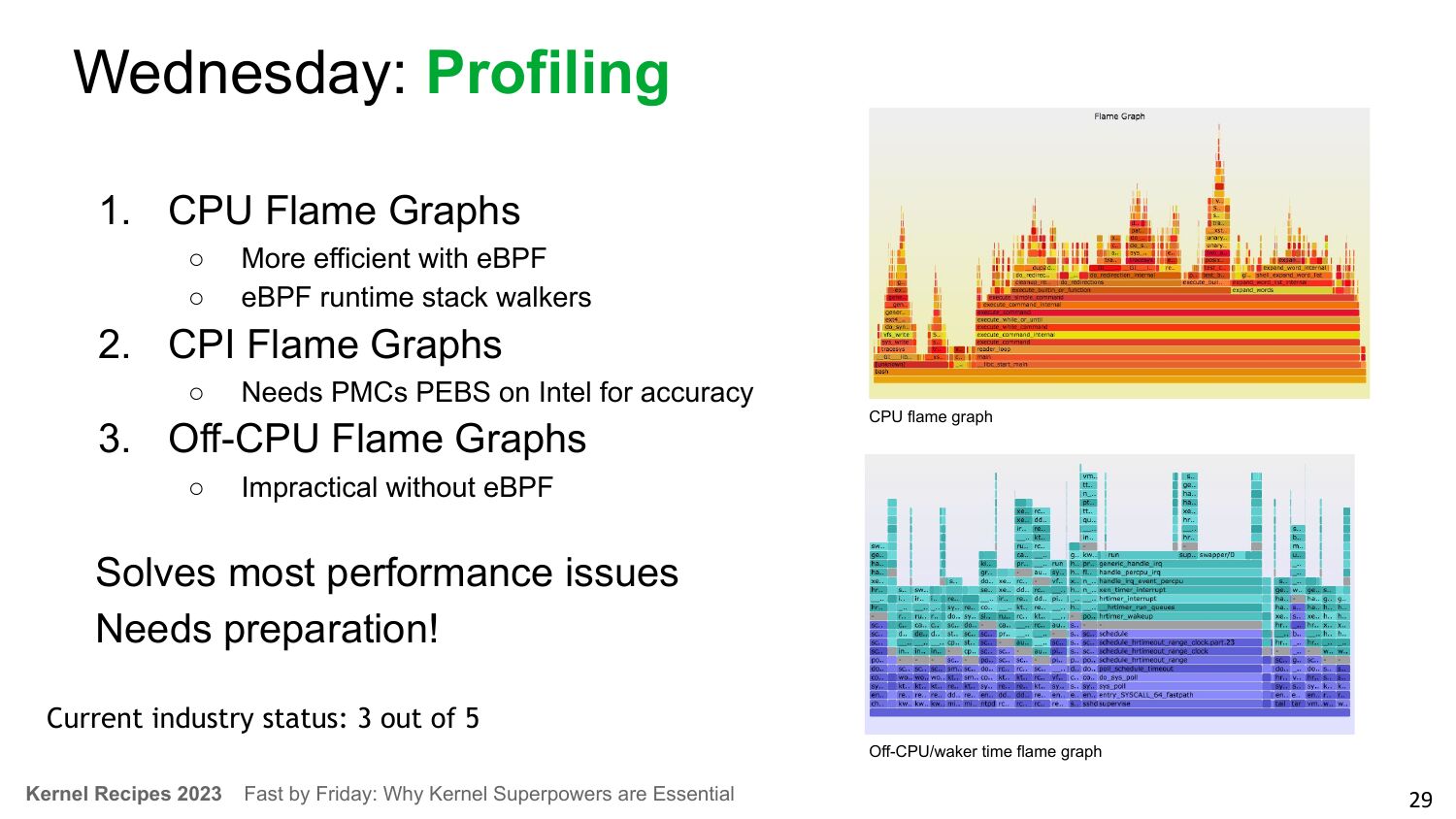

Wednesday: Profiling
1. CPU Flame Graphs
More efficient with eBPF
eBPF runtime stack walkers
2. CPI Flame Graphs
Needs PMCs PEBS on Intel for accuracy
3. Off-CPU Flame Graphs
CPU flame graph
Impractical without eBPF
Solves most performance issues
Needs preparation!
Current industry status: 3 out of 5
Off-CPU/waker time flame graph
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

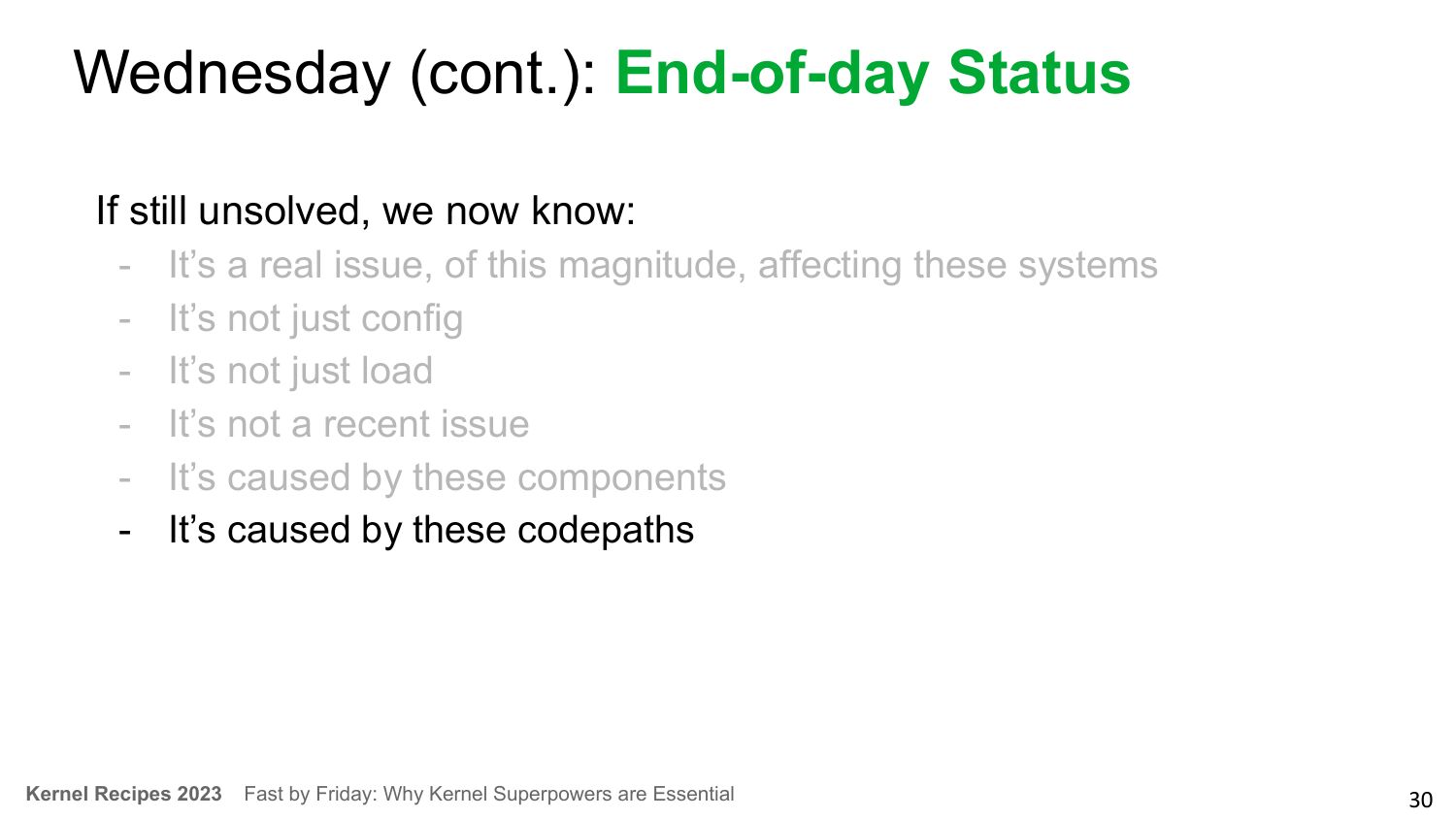

Wednesday (cont.): End-of-day Status
If still unsolved, we now know:
- It’s a real issue, of this magnitude, affecting these systems
- It’s not just config
- It’s not just load
- It’s not a recent issue
- It’s caused by these components
- It’s caused by these codepaths
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

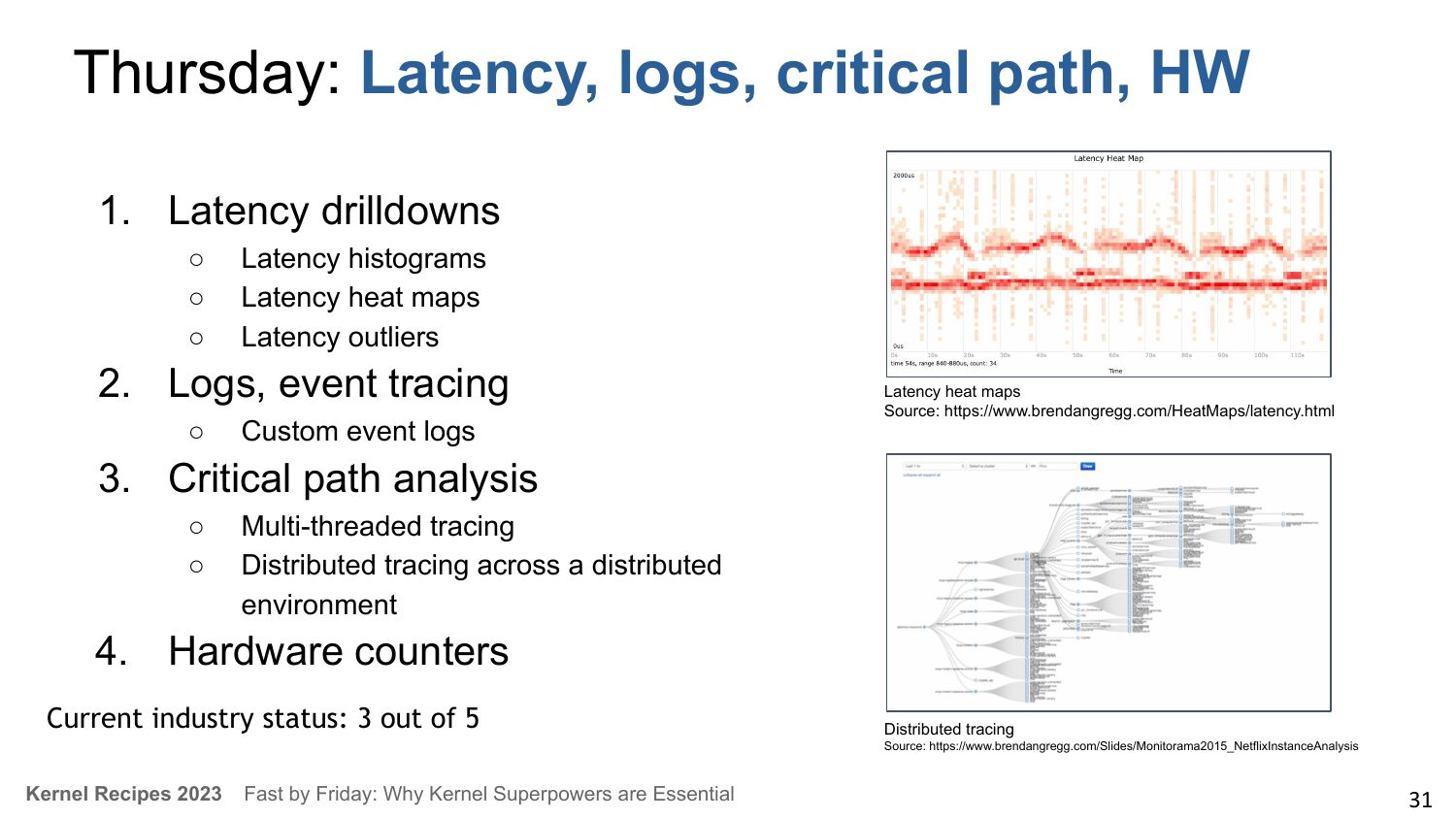

Thursday: Latency, logs, critical path, HW
1. Latency drilldowns
Latency histograms
Latency heat maps
Latency outliers
2. Logs, event tracing
Latency heat maps
Source: https://www.brendangregg.com/HeatMaps/latency.html
Custom event logs
3. Critical path analysis
Multi-threaded tracing
Distributed tracing across a distributed
environment
4. Hardware counters
Current industry status: 3 out of 5
Distributed tracing
Source: https://www.brendangregg.com/Slides/Monitorama2015_NetflixInstanceAnalysis
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

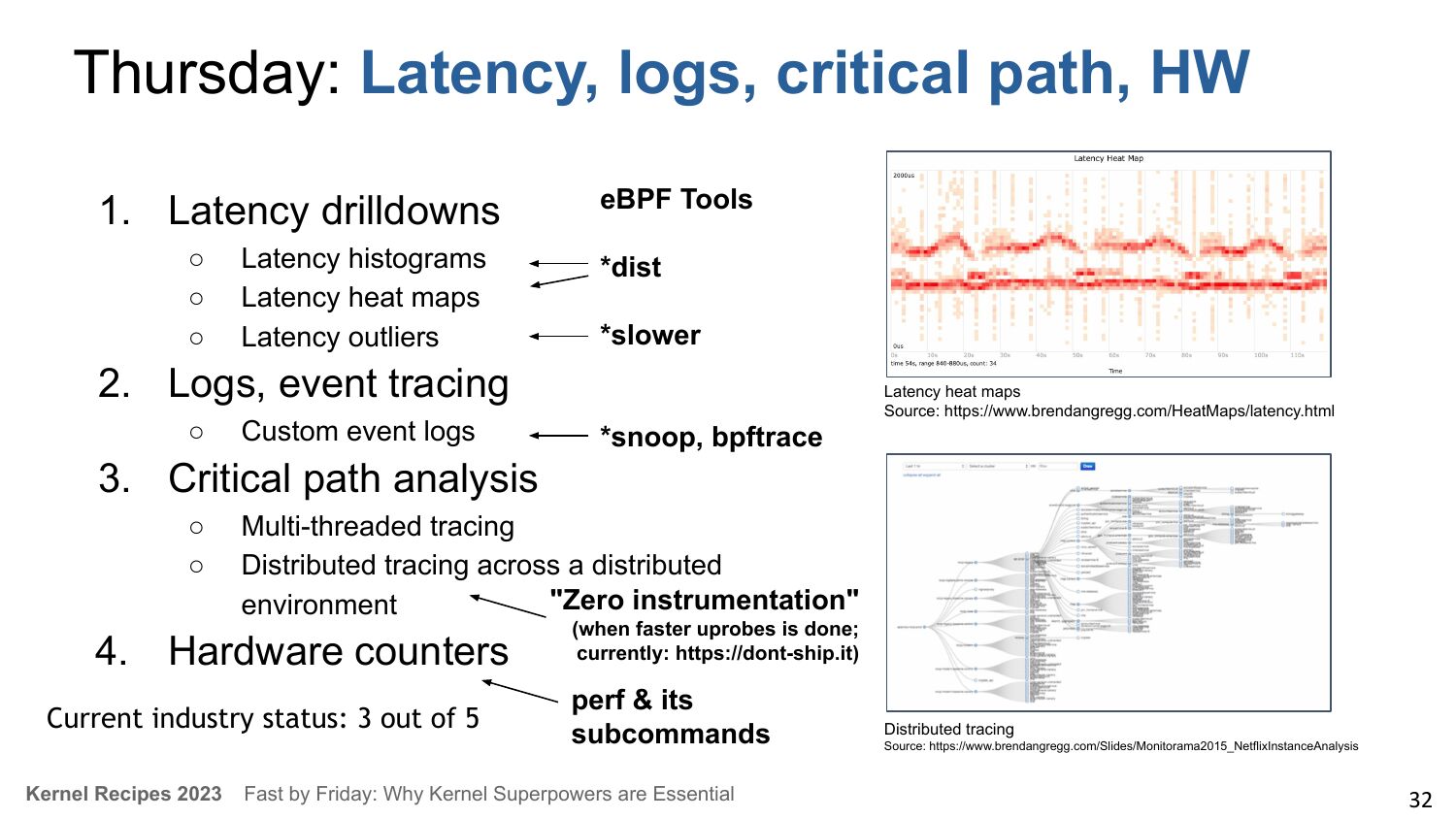

Thursday: Latency, logs, critical path, HW
1. Latency drilldowns
Latency histograms
Latency heat maps
Latency outliers
eBPF Tools
*dist
*slower
2. Logs, event tracing
Custom event logs
Latency heat maps
Source: https://www.brendangregg.com/HeatMaps/latency.html
*snoop, bpftrace
3. Critical path analysis
Multi-threaded tracing
Distributed tracing across a distributed
"Zero instrumentation"
environment
4. Hardware counters
Current industry status: 3 out of 5
Kernel Recipes 2023
(when faster uprobes is done;
currently: https://dont-ship.it)
perf & its
subcommands
Fast by Friday: Why Kernel Superpowers are Essential
Distributed tracing
Source: https://www.brendangregg.com/Slides/Monitorama2015_NetflixInstanceAnalysis

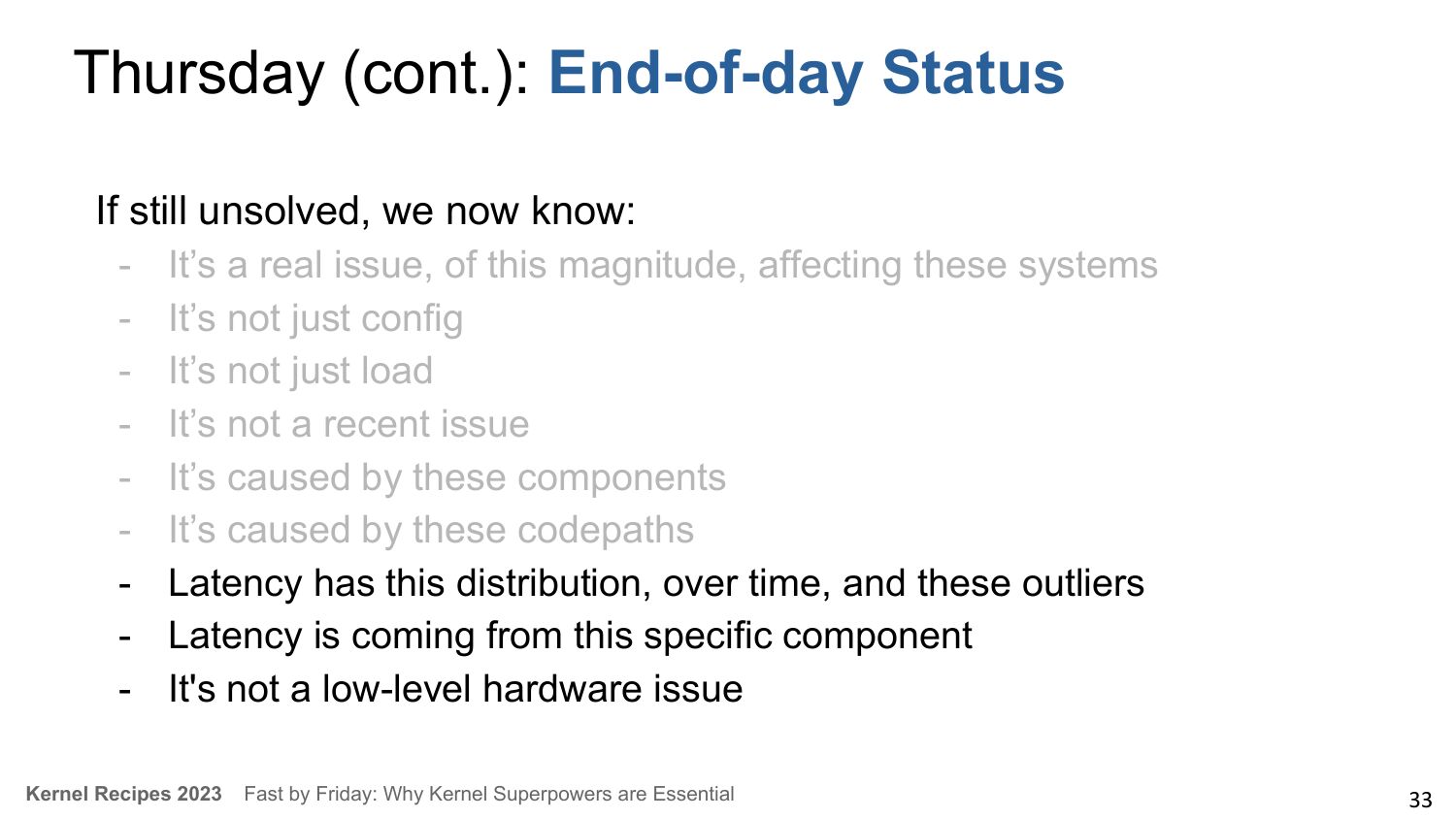

Thursday (cont.): End-of-day Status
If still unsolved, we now know:
- It’s a real issue, of this magnitude, affecting these systems
- It’s not just config
- It’s not just load
- It’s not a recent issue
- It’s caused by these components
- It’s caused by these codepaths
- Latency has this distribution, over time, and these outliers
- Latency is coming from this specific component
- It's not a low-level hardware issue
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

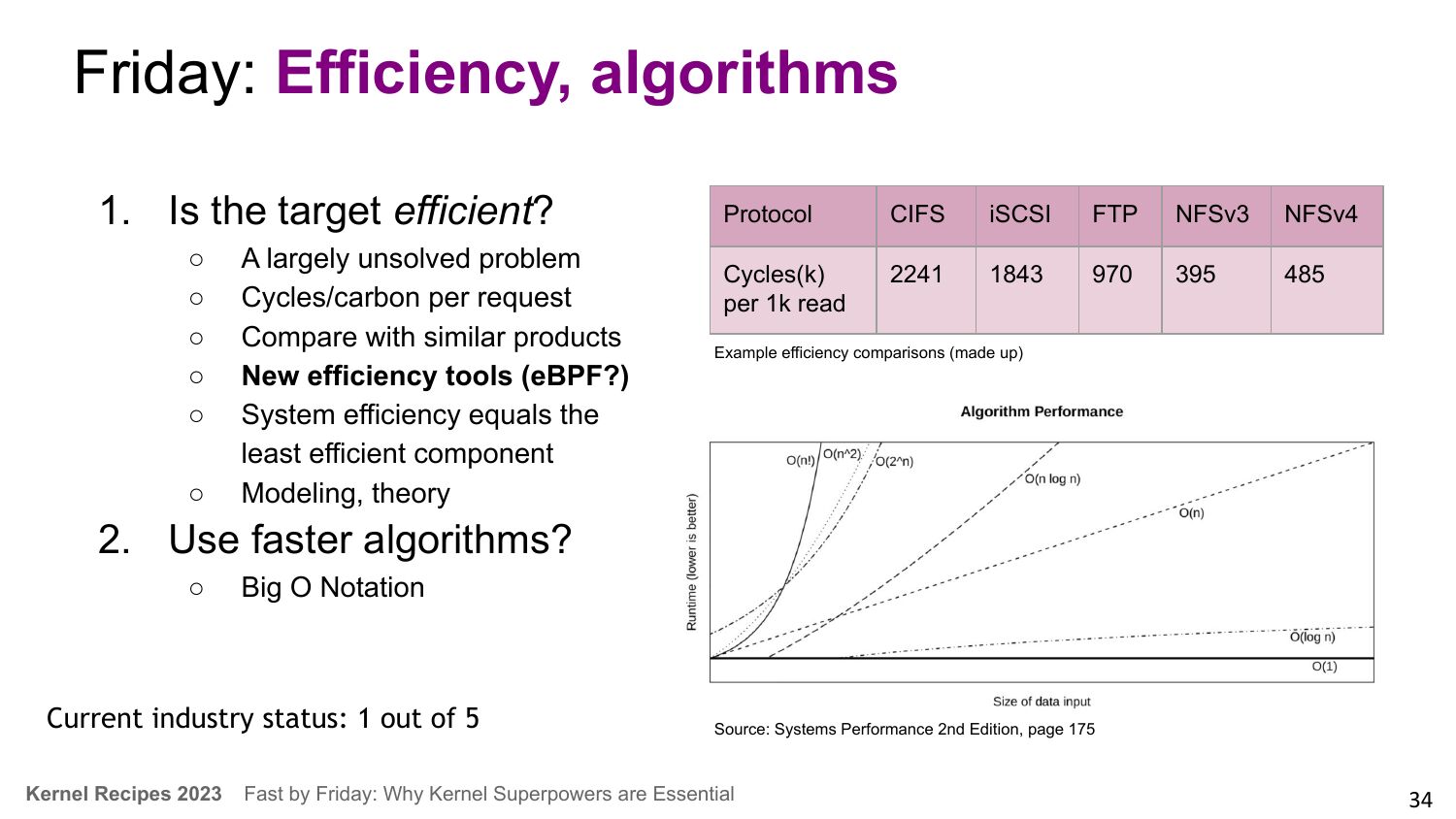

Friday: Efficiency, algorithms
1. Is the target efficient?
A largely unsolved problem
Cycles/carbon per request
Compare with similar products
New efficiency tools (eBPF?)
System efficiency equals the
least efficient component
Modeling, theory
Protocol
CIFS
iSCSI
FTP
NFSv3
NFSv4
Cycles(k)
per 1k read
Example efficiency comparisons (made up)
2. Use faster algorithms?
Big O Notation
Current industry status: 1 out of 5
Kernel Recipes 2023
Source: Systems Performance 2nd Edition, page 175
Fast by Friday: Why Kernel Superpowers are Essential

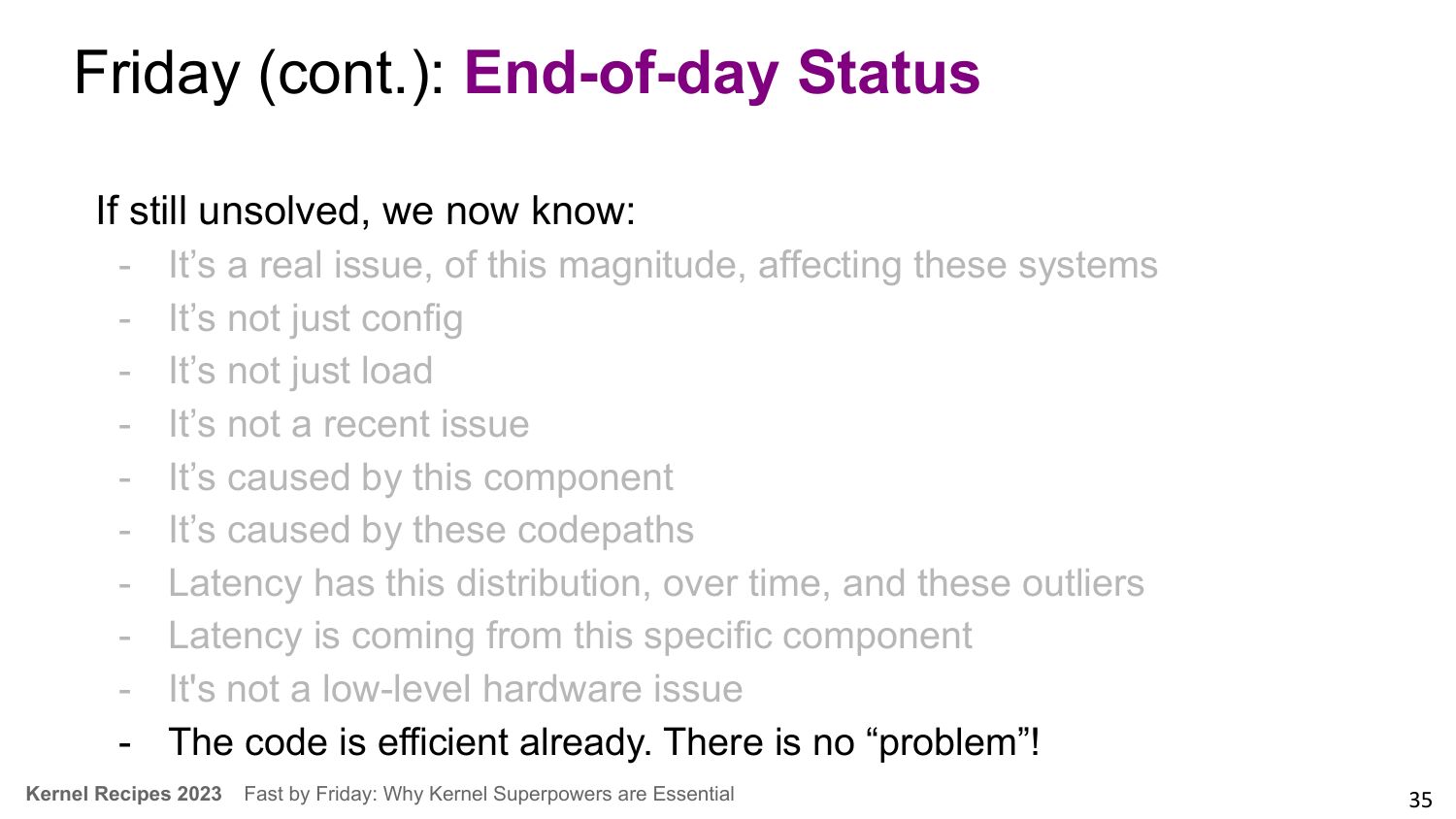

Friday (cont.): End-of-day Status
If still unsolved, we now know:
- It’s a real issue, of this magnitude, affecting these systems
- It’s not just config
- It’s not just load
- It’s not a recent issue
- It’s caused by this component
- It’s caused by these codepaths
- Latency has this distribution, over time, and these outliers
- Latency is coming from this specific component
- It's not a low-level hardware issue
- The code is efficient already. There is no “problem”!
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

Post weeks: Case study, retrospective
1. Document as a case study
JIRA, wiki, gist
External blog/talk
Including (redacted) flame graphs is great: You may
find overlooked perf issues years later from them.
Repetition?
Add to Tuesday's "Recent issue checklist"
2. Retrospective
How to debug it faster by friday?
Current industry status: 1 out of 5
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential
Example blog post: https://www.brendangregg.com/blog

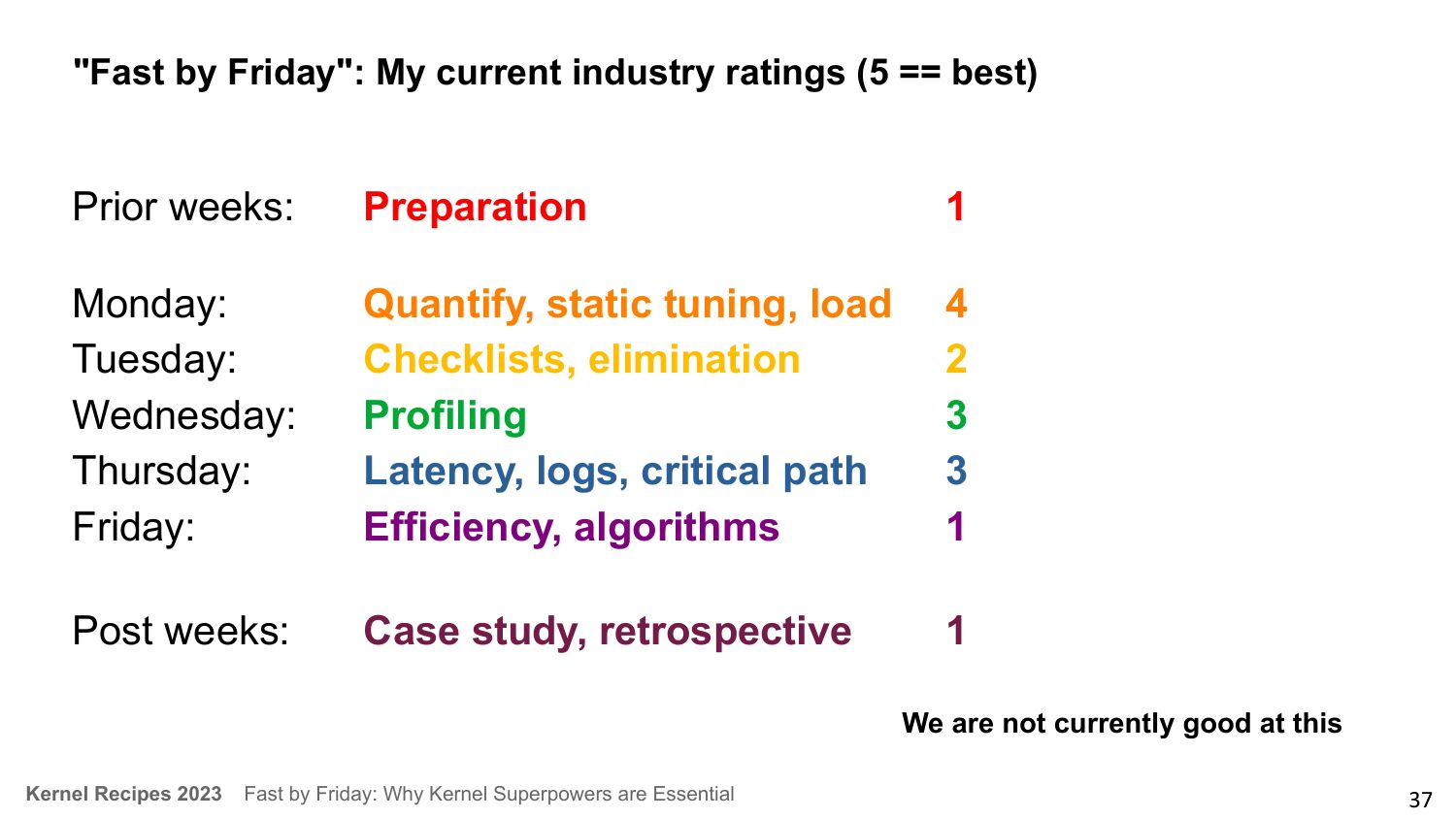

"Fast by Friday": My current industry ratings (5 == best)
Prior weeks:
Preparation
Monday:
Tuesday:
Wednesday:
Thursday:
Friday:
Quantify, static tuning, load
Checklists, elimination
Profiling
Latency, logs, critical path
Efficiency, algorithms
Post weeks:
Case study, retrospective
We are not currently good at this
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

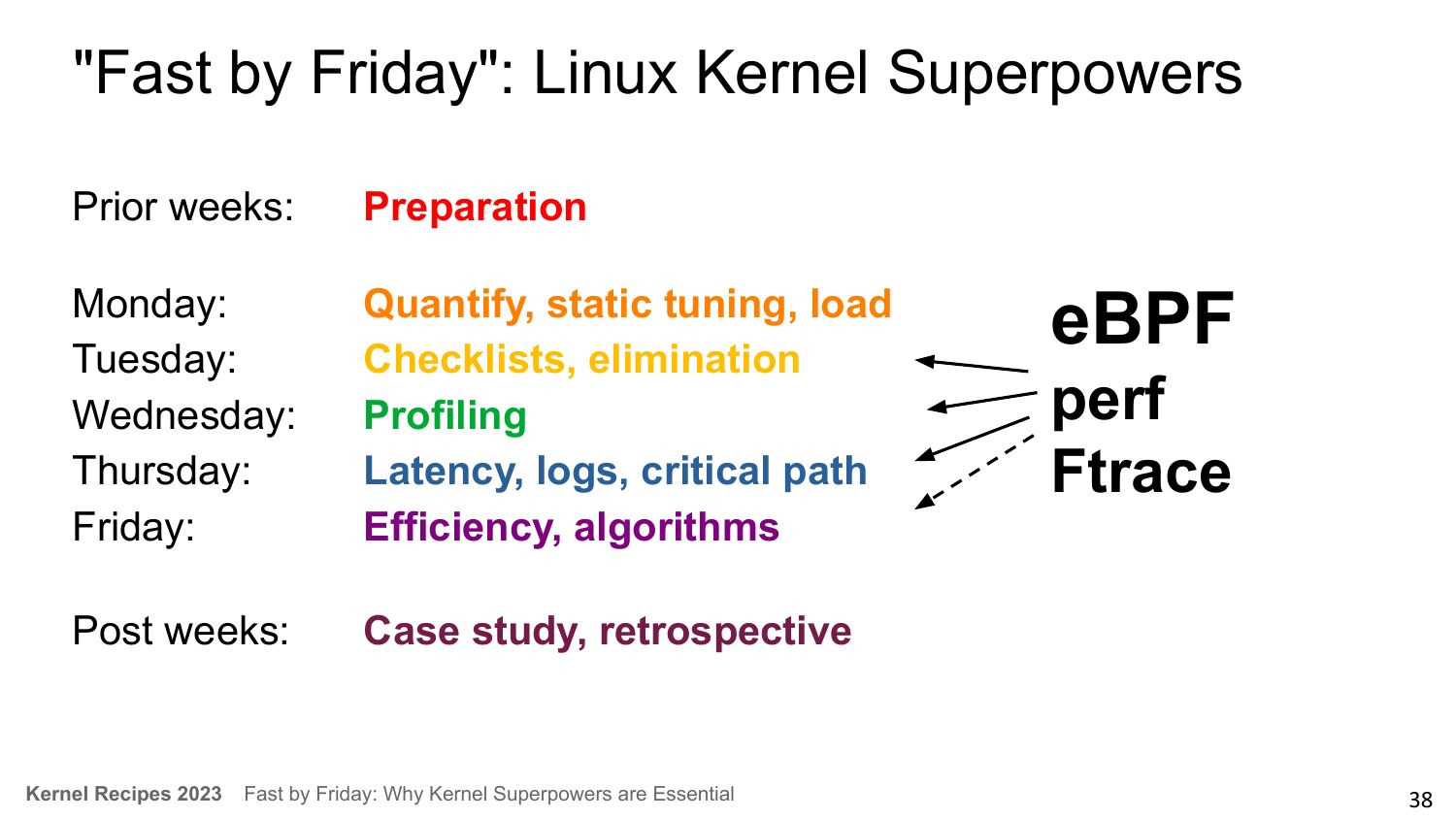

"Fast by Friday": Linux Kernel Superpowers
Prior weeks:
Preparation
Monday:
Tuesday:
Wednesday:
Thursday:
Friday:
Quantify, static tuning, load
Checklists, elimination
Profiling
Latency, logs, critical path
Efficiency, algorithms
Post weeks:
Case study, retrospective
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential
eBPF
perf
Ftrace

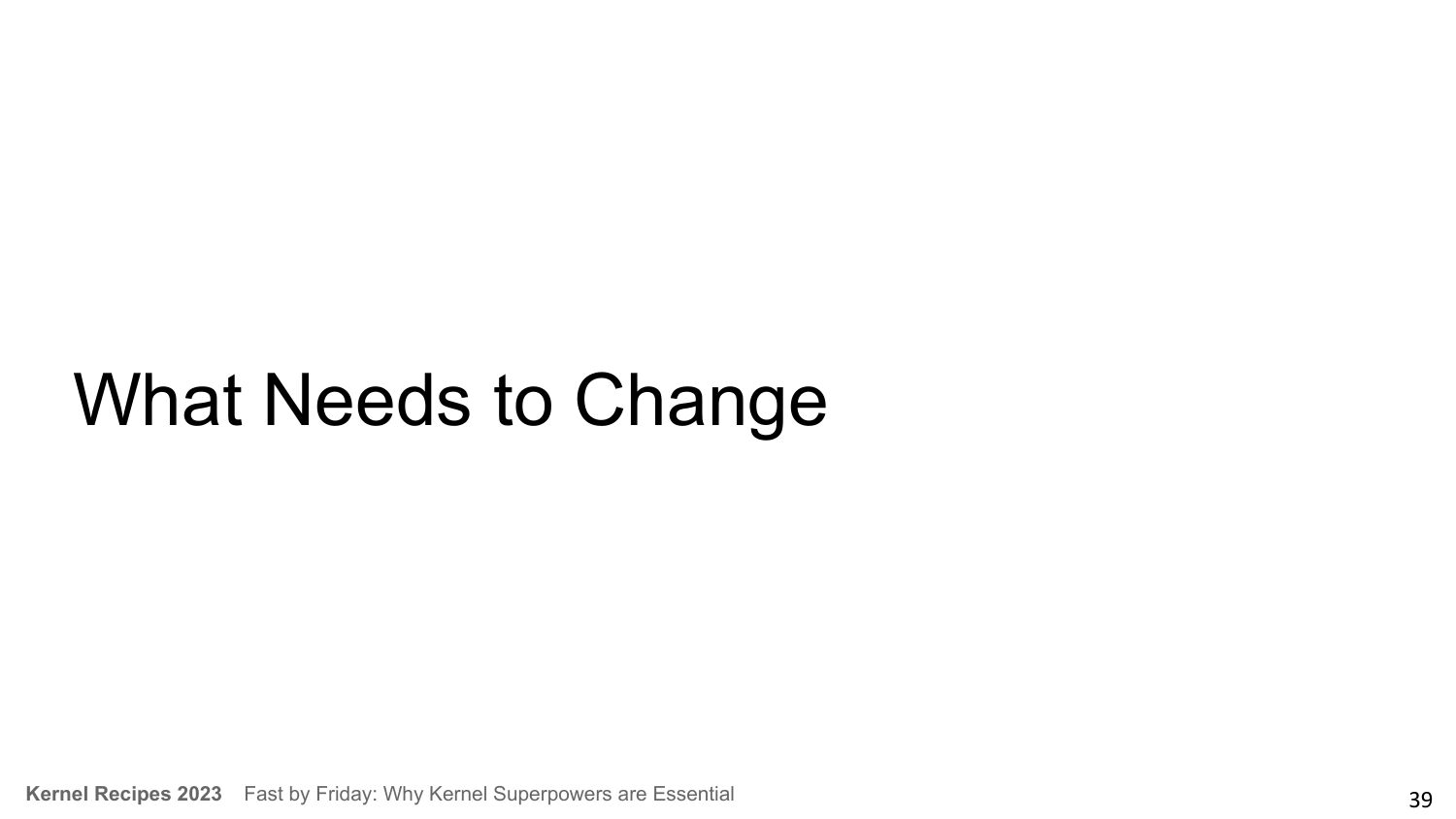

What Needs to Change
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

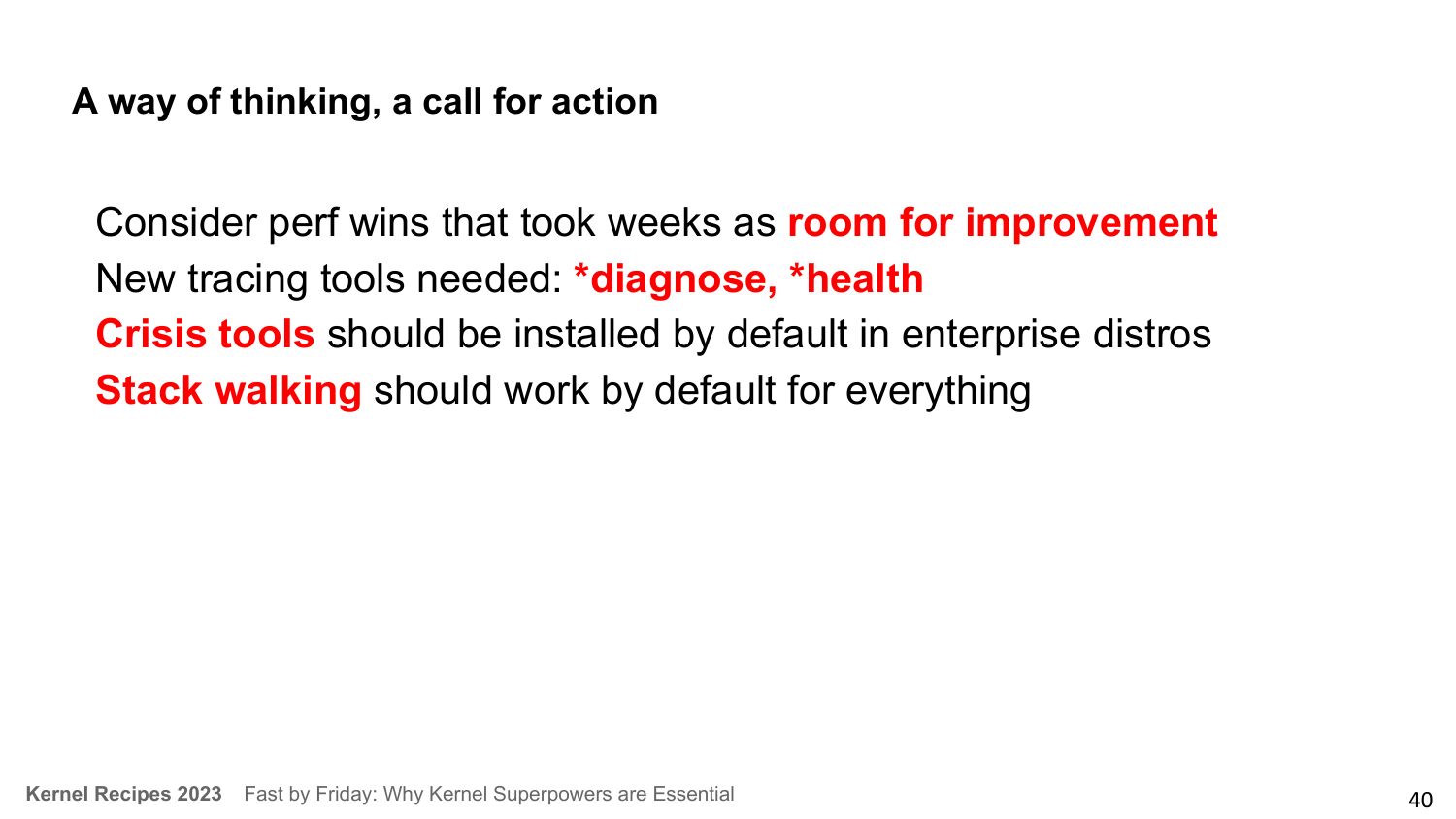

A way of thinking, a call for action
Consider perf wins that took weeks as room for improvement
New tracing tools needed: *diagnose, *health
Crisis tools should be installed by default in enterprise distros
Stack walking should work by default for everything
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

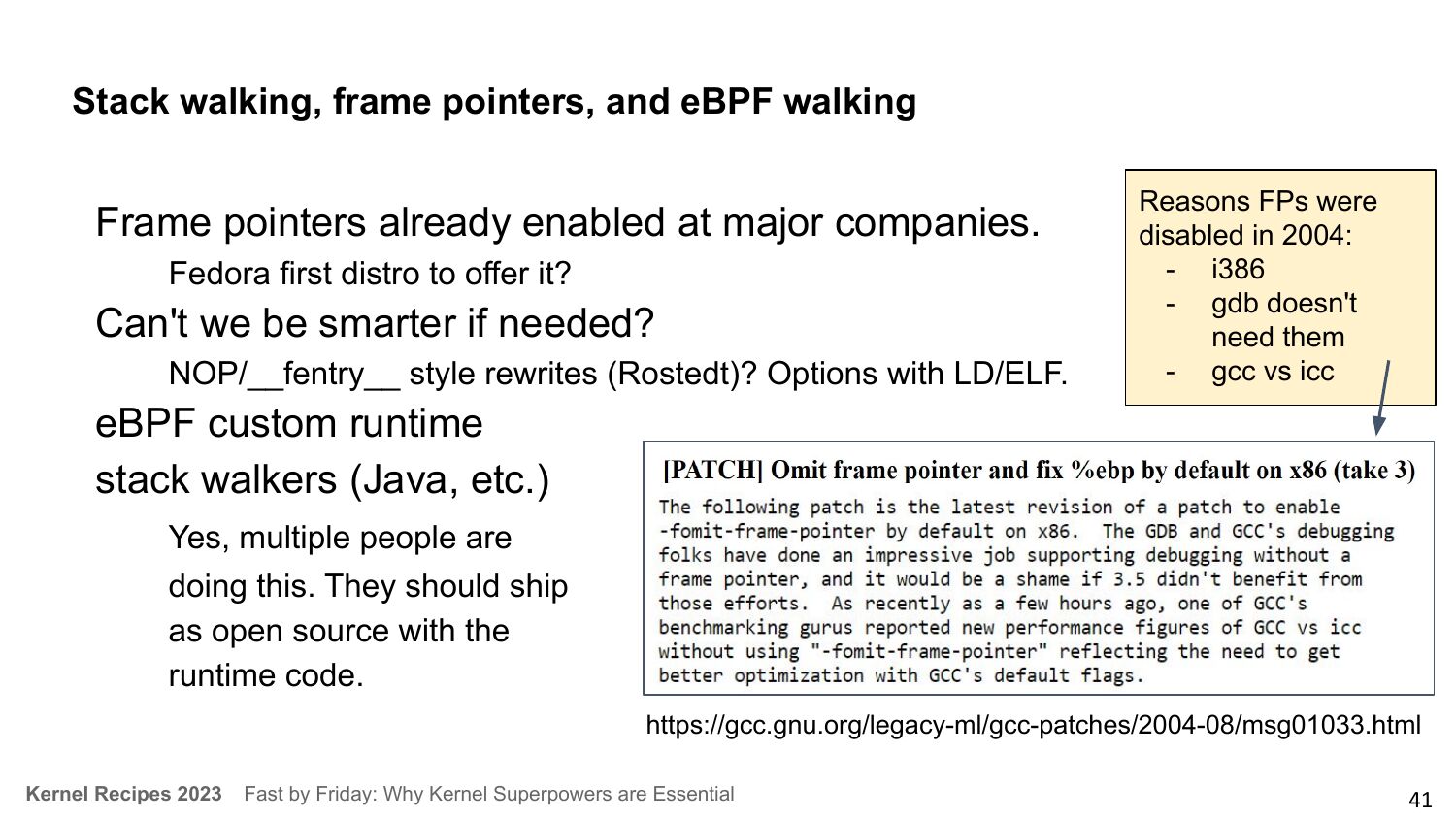

Stack walking, frame pointers, and eBPF walking
Frame pointers already enabled at major companies.
Fedora first distro to offer it?
Can't we be smarter if needed?
NOP/__fentry__ style rewrites (Rostedt)? Options with LD/ELF.
Reasons FPs were
disabled in 2004:
- i386
- gdb doesn't
need them
- gcc vs icc
eBPF custom runtime
stack walkers (Java, etc.)
Yes, multiple people are
doing this. They should ship
as open source with the
runtime code.
https://gcc.gnu.org/legacy-ml/gcc-patches/2004-08/msg01033.html
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

Summary
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

"Fast by Friday" Summary
Prior weeks: Preparation
Day 1:
Day 2:
Day 3:
Day 4:
Day 5:
Quantify, static tuning, load
Checklists, elimination
Profiling
Latency, logs, critical path
Efficiency, algorithms
Fast by Friday:
Any computer performance
issue reported on Monday
should be solved by Friday
(or sooner)
Post weeks: Case study, retrospective
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

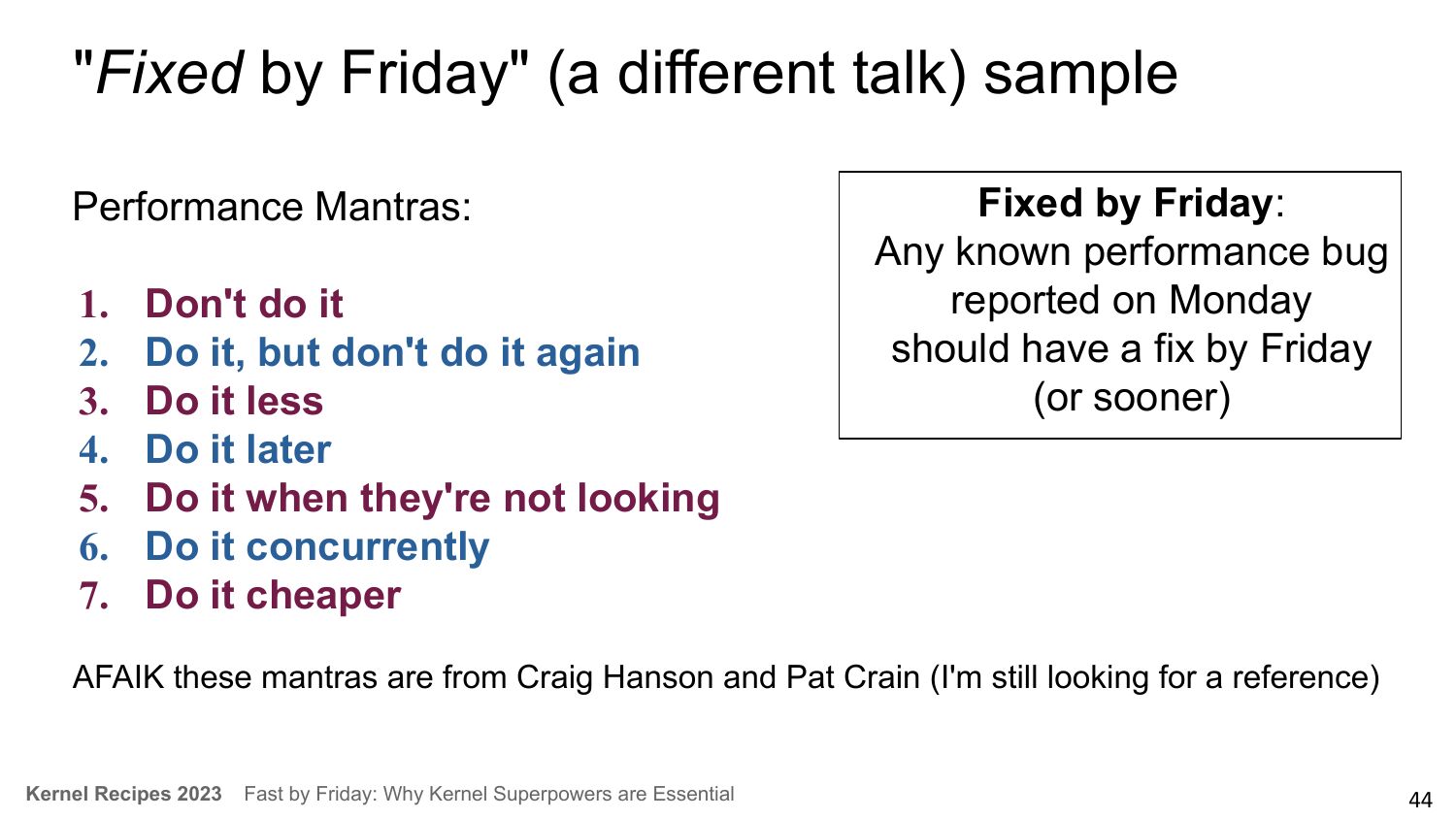

"Fixed by Friday" (a different talk) sample
Performance Mantras:
Don't do it
Do it, but don't do it again
Do it less
Do it later
Do it when they're not looking
Do it concurrently
Do it cheaper
Fixed by Friday:
Any known performance bug
reported on Monday
should have a fix by Friday
(or sooner)
AFAIK these mantras are from Craig Hanson and Pat Crain (I'm still looking for a reference)
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

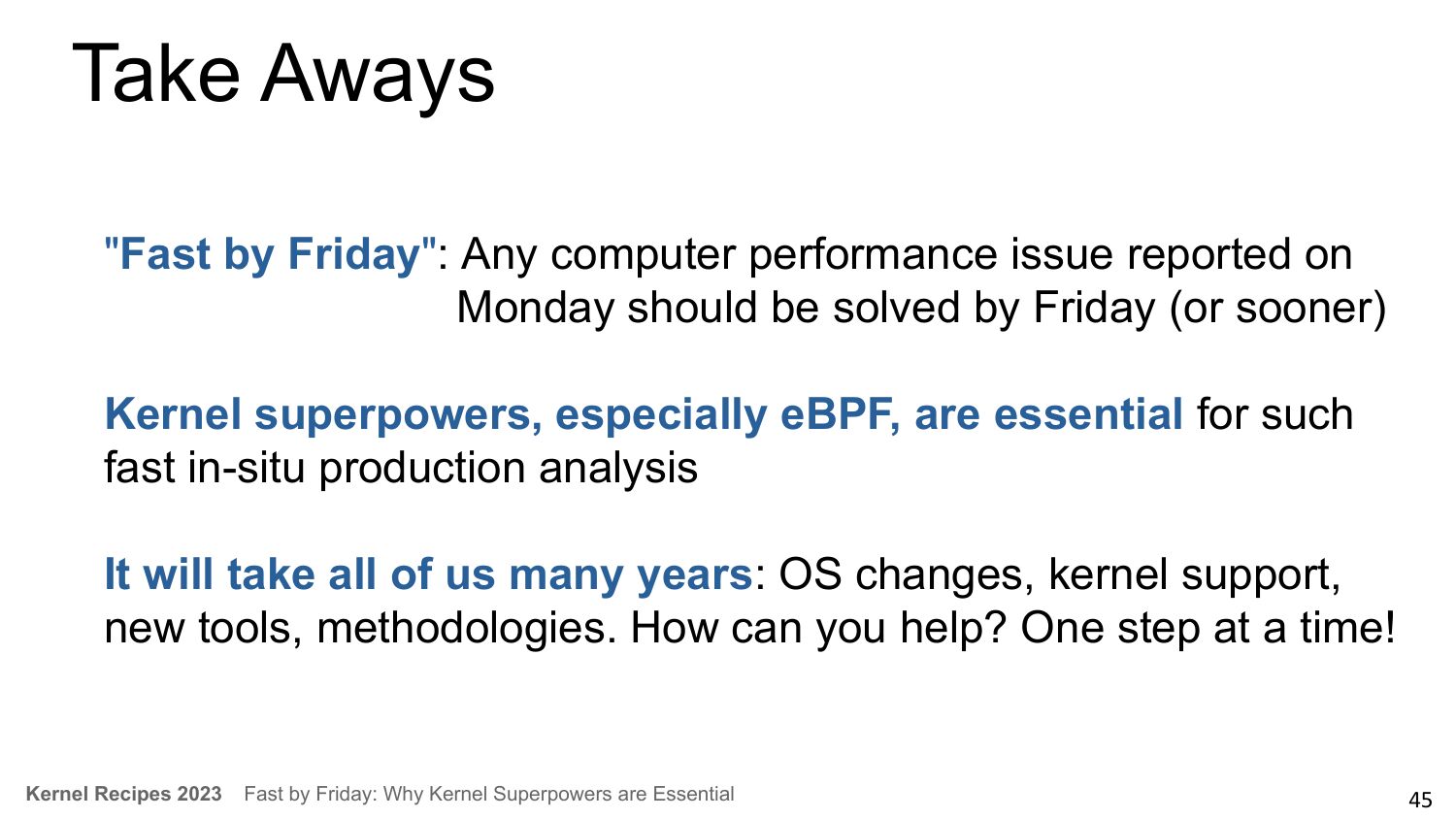

Take Aways
"Fast by Friday": Any computer performance issue reported on
Monday should be solved by Friday (or sooner)
Kernel superpowers, especially eBPF, are essential for such
fast in-situ production analysis
It will take all of us many years: OS changes, kernel support,
new tools, methodologies. How can you help? One step at a time!
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

Q&A
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential

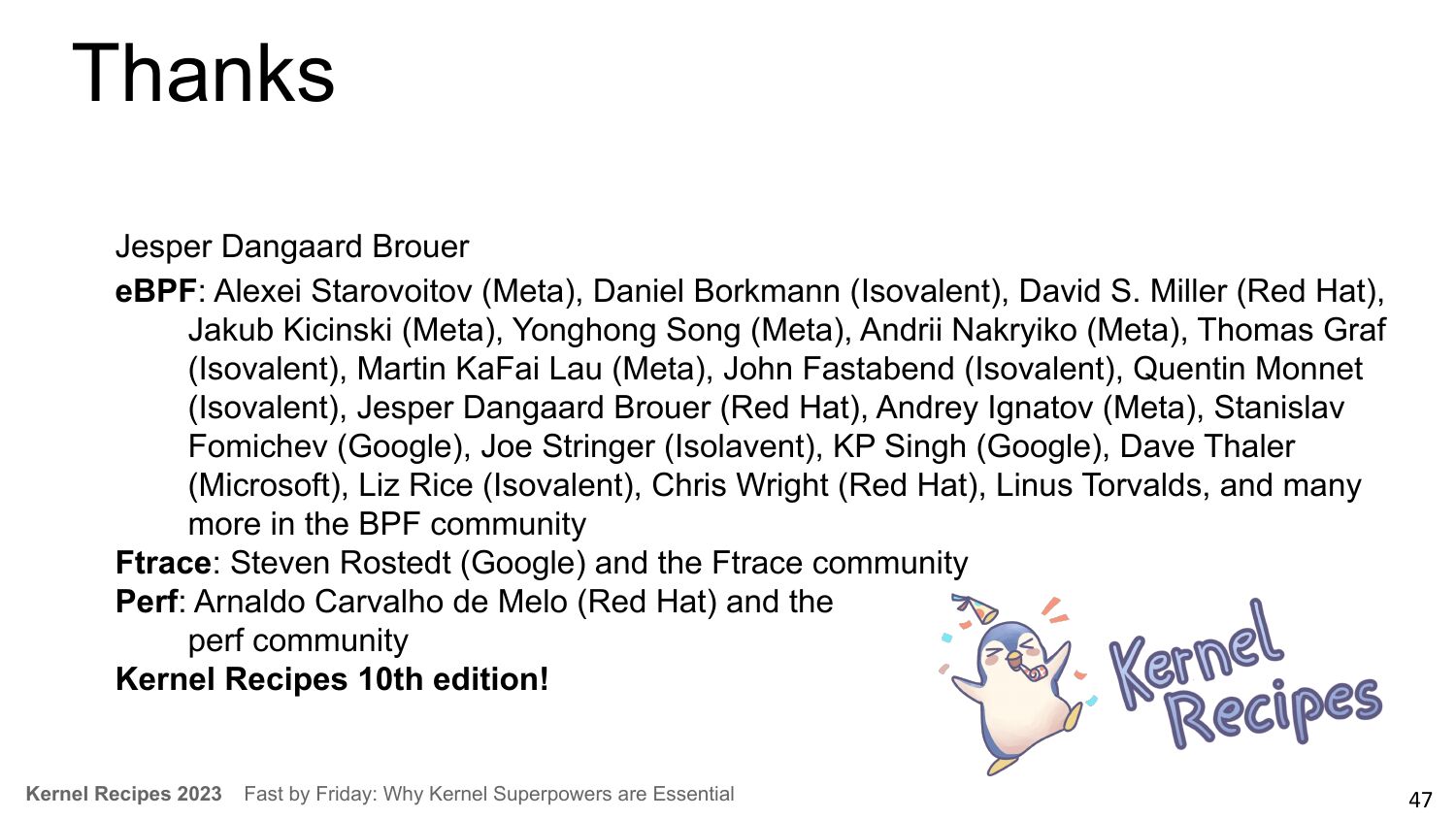

Thanks
Jesper Dangaard Brouer
eBPF: Alexei Starovoitov (Meta), Daniel Borkmann (Isovalent), David S. Miller (Red Hat),
Jakub Kicinski (Meta), Yonghong Song (Meta), Andrii Nakryiko (Meta), Thomas Graf
(Isovalent), Martin KaFai Lau (Meta), John Fastabend (Isovalent), Quentin Monnet
(Isovalent), Jesper Dangaard Brouer (Red Hat), Andrey Ignatov (Meta), Stanislav
Fomichev (Google), Joe Stringer (Isolavent), KP Singh (Google), Dave Thaler
(Microsoft), Liz Rice (Isovalent), Chris Wright (Red Hat), Linus Torvalds, and many
more in the BPF community
Ftrace: Steven Rostedt (Google) and the Ftrace community
Perf: Arnaldo Carvalho de Melo (Red Hat) and the
perf community
Kernel Recipes 10th edition!
Kernel Recipes 2023
Fast by Friday: Why Kernel Superpowers are Essential
