SCaLE14x (2016): Broken Linux Performance Tools
Video: https://www.youtube.com/watch?v=OPio8V-z03cTalk by Brendan Gregg for the Southern California Linux Expo 14x (2016).
Description: "Broken benchmarks, misleading metrics, and terrible tools. This talk will help you navigate the treacherous waters of Linux performance tools, touring common problems with system tools, metrics, statistics, visualizations, measurement overhead, and benchmarks. You might discover that tools you have been using for years, are in fact, misleading, dangerous, or broken.
The speaker, Brendan Gregg, has given many talks on tools that work, including giving the Linux PerformanceTools talk originally at SCALE. This is an anti-version of that talk, to focus on broken tools and metrics instead of the working ones. Metrics can be misleading, and counters can be counter-intuitive! This talk will include advice for verifying new performance tools, understanding how they work, and using them successfully."
PDF: SCALE2016_Broken_Linux_Performance_Tools.pdf
Keywords (from pdftotext):
slide 1:
Jan 2016 Broken Linux Performance Tools Brendan Gregg Senior Performance Architect, Netflixslide 2:

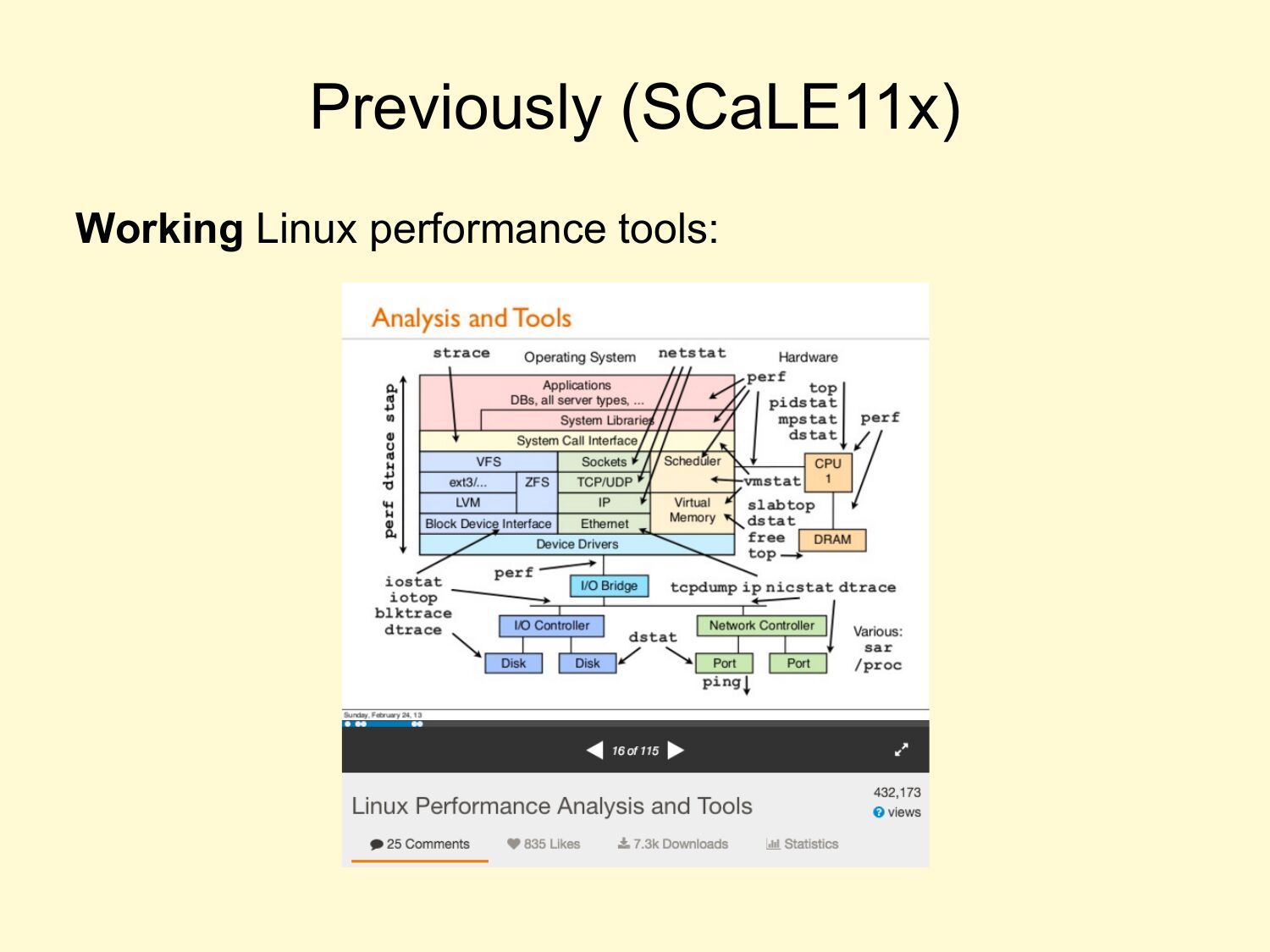

Previously (SCaLE11x) Working Linux performance tools:slide 3:

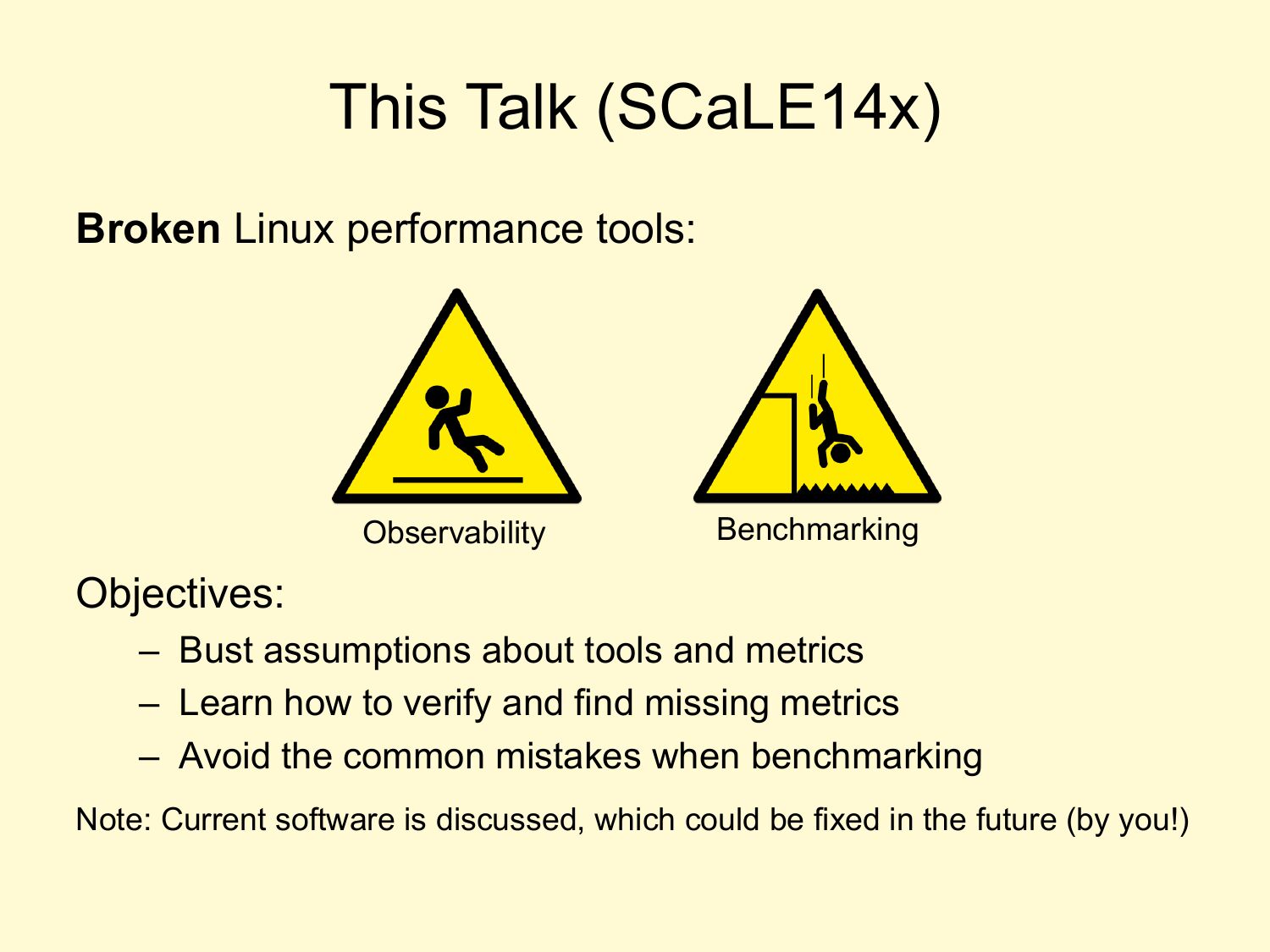

This Talk (SCaLE14x) Broken Linux performance tools: Observability Benchmarking Objectives: – Bust assumptions about tools and metrics – Learn how to verify and find missing metrics – Avoid the common mistakes when benchmarking Note: Current software is discussed, which could be fixed in the future (by you!)slide 4:
slide 5:
OBSERVABILITY Load Averages top %CPU iowait vmstat Overhead strace Java Profilers Monitoringslide 6:
LOAD AVERAGESslide 7:

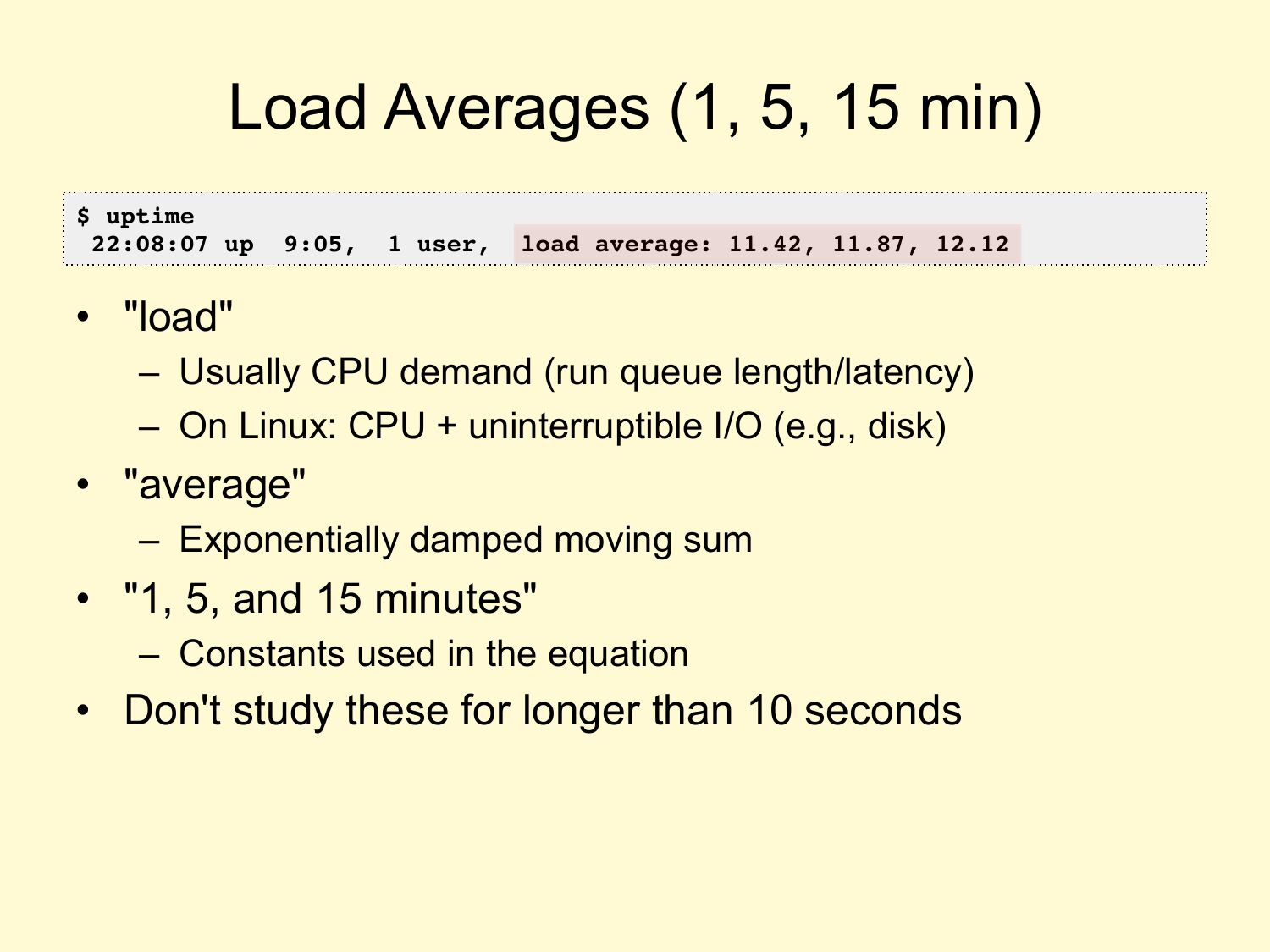

Load Averages (1, 5, 15 min) $ uptime 22:08:07 up 9:05, 1 user, load average: 11.42, 11.87, 12.12 • "load" – Usually CPU demand (run queue length/latency) – On Linux: CPU + uninterruptible I/O (e.g., disk) • "average" – Exponentially damped moving sum • "1, 5, and 15 minutes" – Constants used in the equation • Don't study these for longer than 10 secondsslide 8:

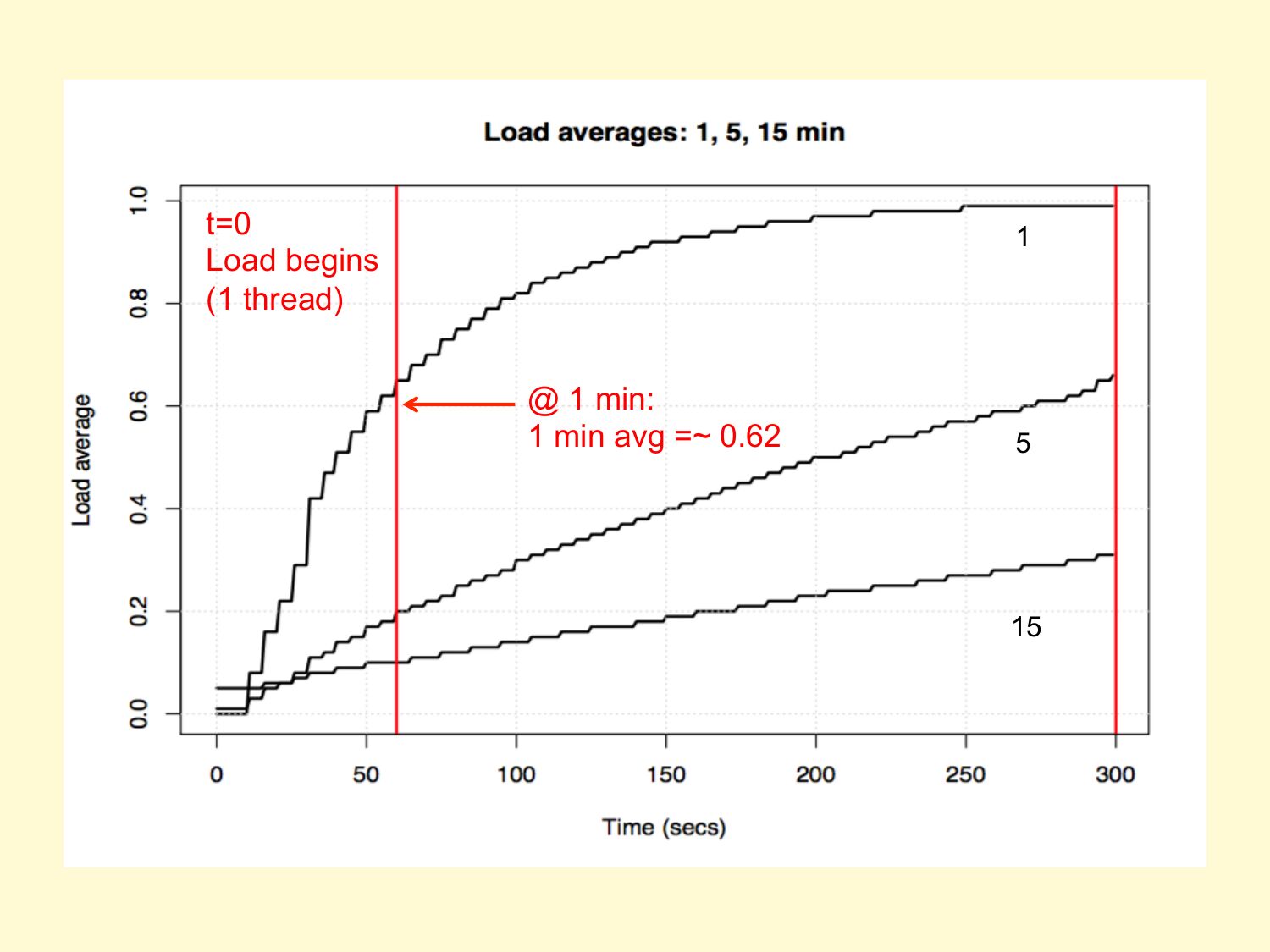

t=0 Load begins (1 thread) @ 1 min: 1 min avg =~ 0.62slide 9:
TOP %CPUslide 10:

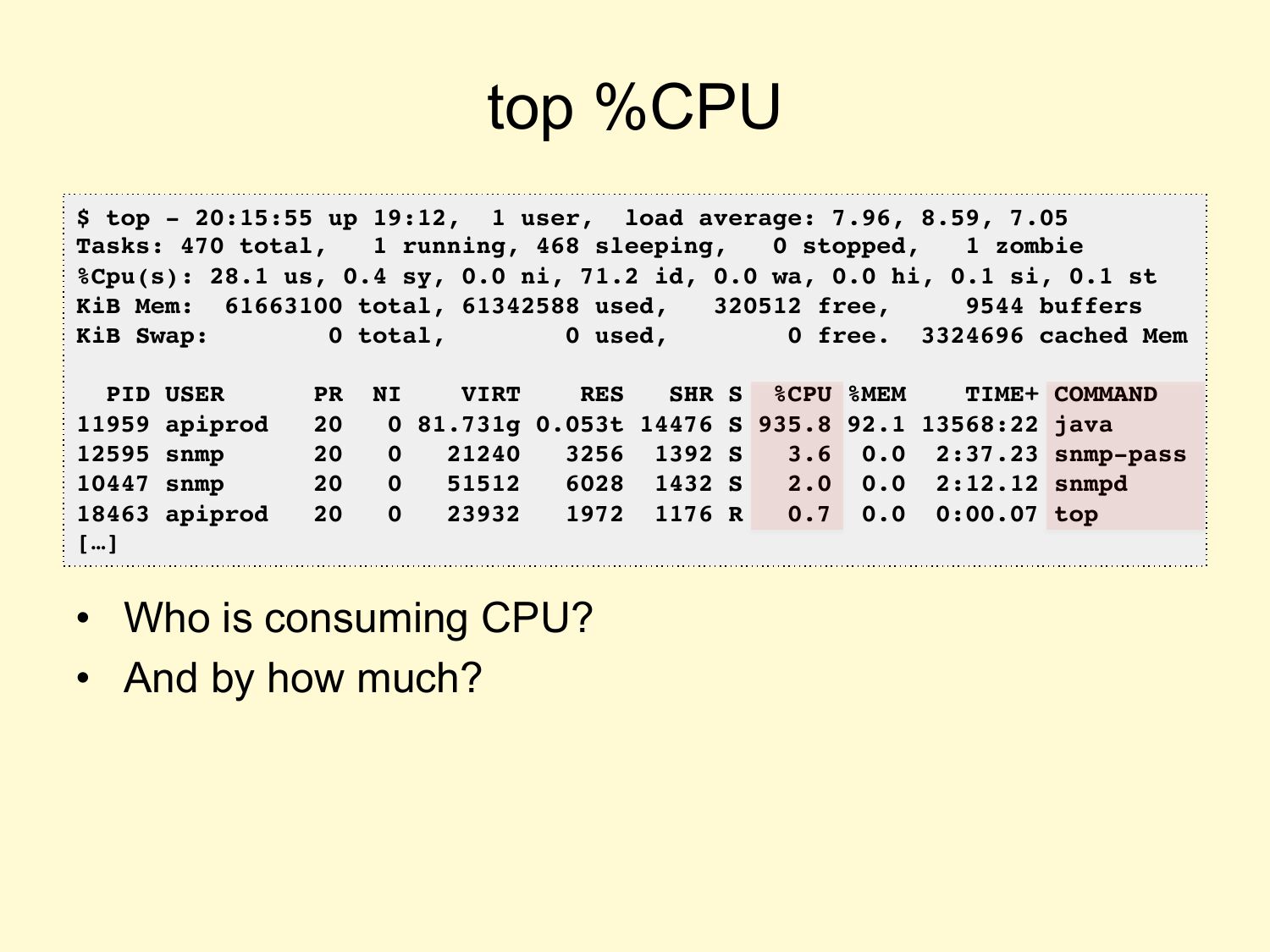

top %CPU $ top - 20:15:55 up 19:12, 1 user, load average: 7.96, 8.59, 7.05 Tasks: 470 total, 1 running, 468 sleeping, 0 stopped, 1 zombie %Cpu(s): 28.1 us, 0.4 sy, 0.0 ni, 71.2 id, 0.0 wa, 0.0 hi, 0.1 si, 0.1 st KiB Mem: 61663100 total, 61342588 used, 320512 free, 9544 buffers KiB Swap: 0 total, 0 used, 0 free. 3324696 cached Mem PID USER 11959 apiprod 12595 snmp 10447 snmp 18463 apiprod […] VIRT RES SHR S %CPU %MEM TIME+ COMMAND 0 81.731g 0.053t 14476 S 935.8 92.1 13568:22 java 3256 1392 S 3.6 0.0 2:37.23 snmp-pass 6028 1432 S 2.0 0.0 2:12.12 snmpd 1972 1176 R 0.7 0.0 0:00.07 top • Who is consuming CPU? • And by how much?slide 11:

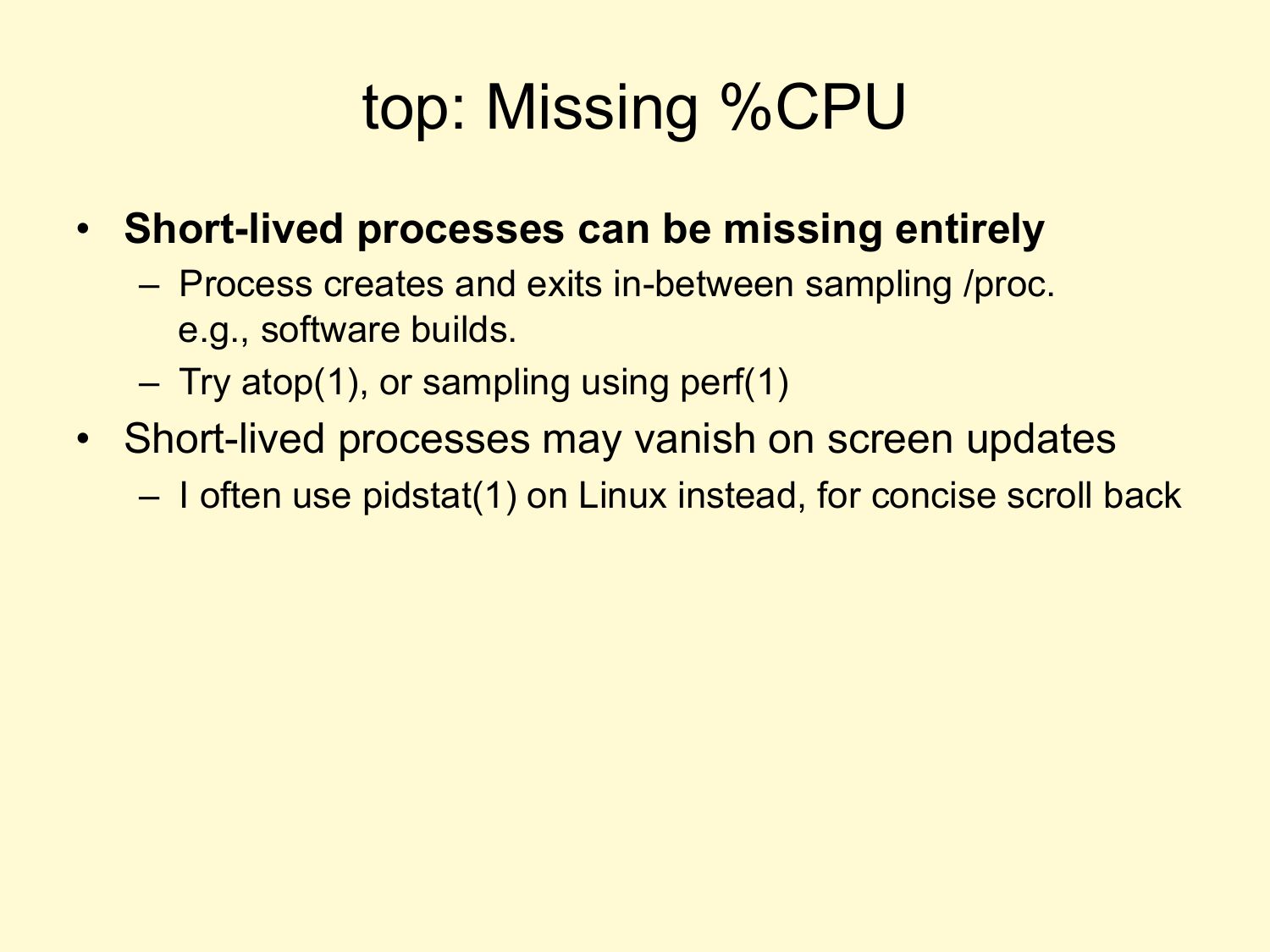

top: Missing %CPU • Short-lived processes can be missing entirely – Process creates and exits in-between sampling /proc. e.g., software builds. – Try atop(1), or sampling using perf(1) • Short-lived processes may vanish on screen updates – I often use pidstat(1) on Linux instead, for concise scroll backslide 12:

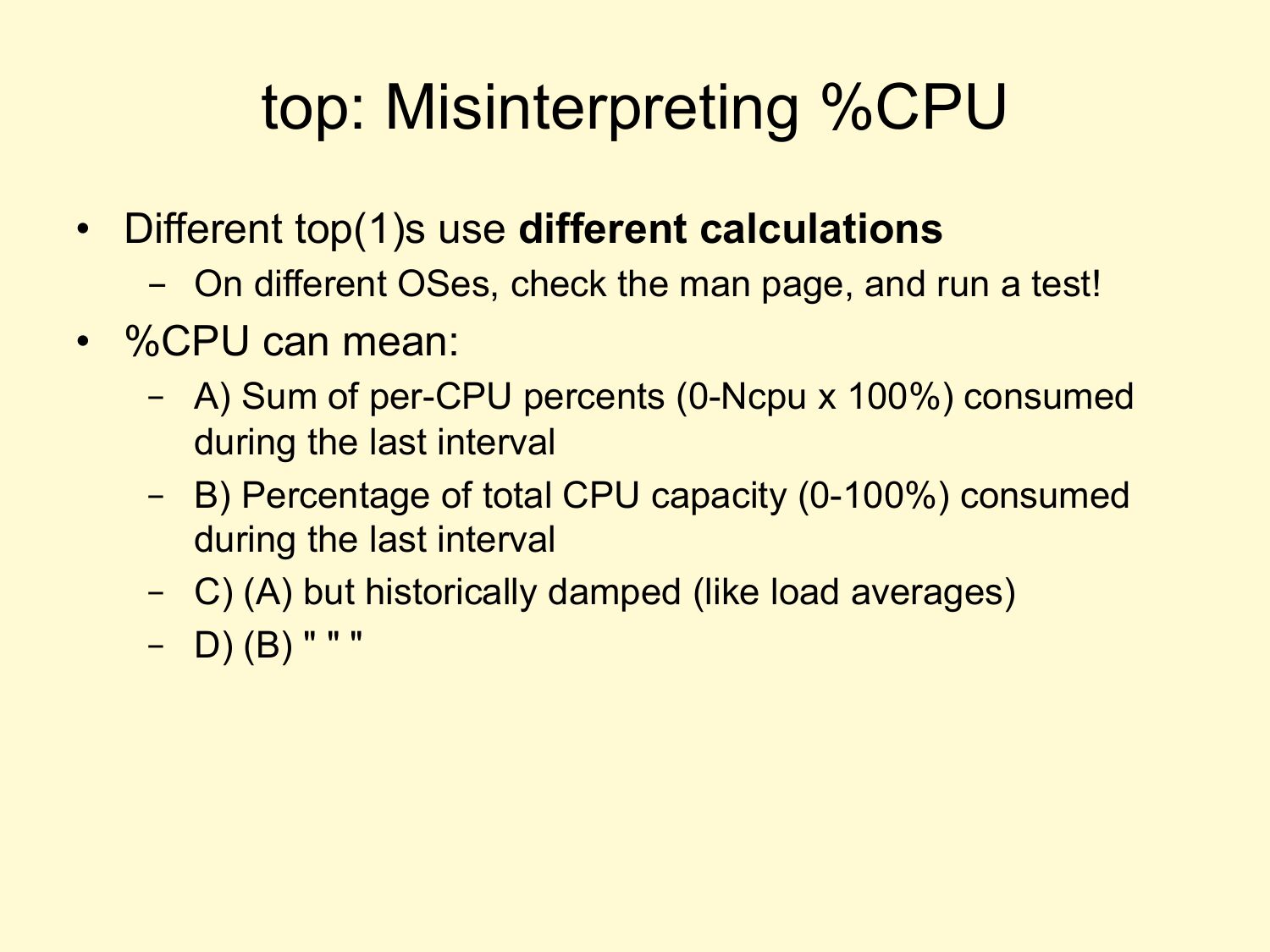

top: Misinterpreting %CPU • Different top(1)s use different calculations - On different OSes, check the man page, and run a test! • %CPU can mean: – A) Sum of per-CPU percents (0-Ncpu x 100%) consumed during the last interval – B) Percentage of total CPU capacity (0-100%) consumed during the last interval – C) (A) but historically damped (like load averages) – D) (B) " " "slide 13:

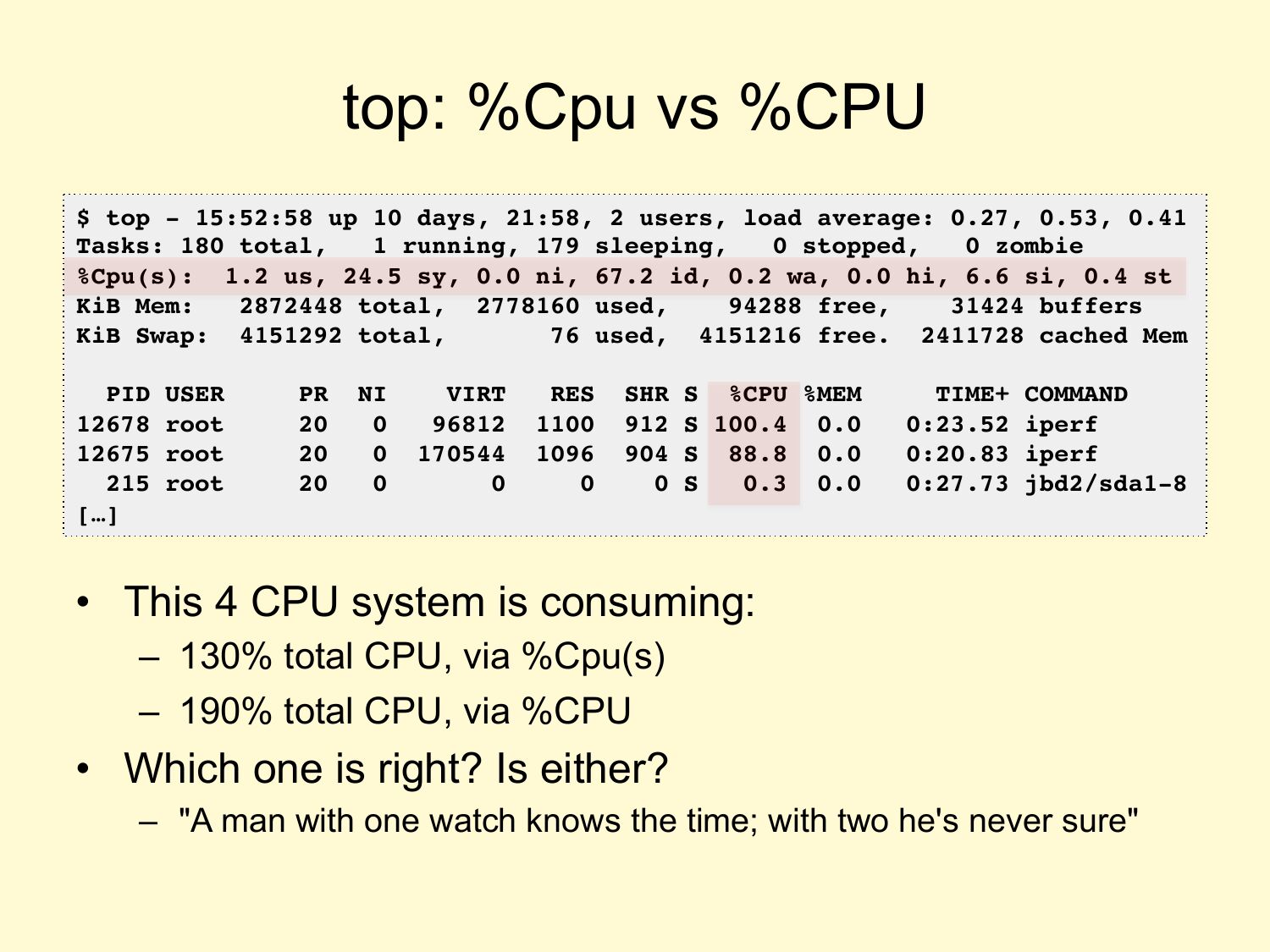

top: %Cpu vs %CPU $ top - 15:52:58 up 10 days, 21:58, 2 users, load average: 0.27, 0.53, 0.41 Tasks: 180 total, 1 running, 179 sleeping, 0 stopped, 0 zombie %Cpu(s): 1.2 us, 24.5 sy, 0.0 ni, 67.2 id, 0.2 wa, 0.0 hi, 6.6 si, 0.4 st KiB Mem: 2872448 total, 2778160 used, 94288 free, 31424 buffers KiB Swap: 4151292 total, 76 used, 4151216 free. 2411728 cached Mem PID USER 12678 root 12675 root 215 root […] VIRT RES SHR S %CPU %MEM 912 S 100.4 0.0 904 S 88.8 0.0 0 S 0.3 0.0 TIME+ COMMAND 0:23.52 iperf 0:20.83 iperf 0:27.73 jbd2/sda1-8 • This 4 CPU system is consuming: – 130% total CPU, via %Cpu(s) – 190% total CPU, via %CPU • Which one is right? Is either? – "A man with one watch knows the time; with two he's never sure"slide 14:

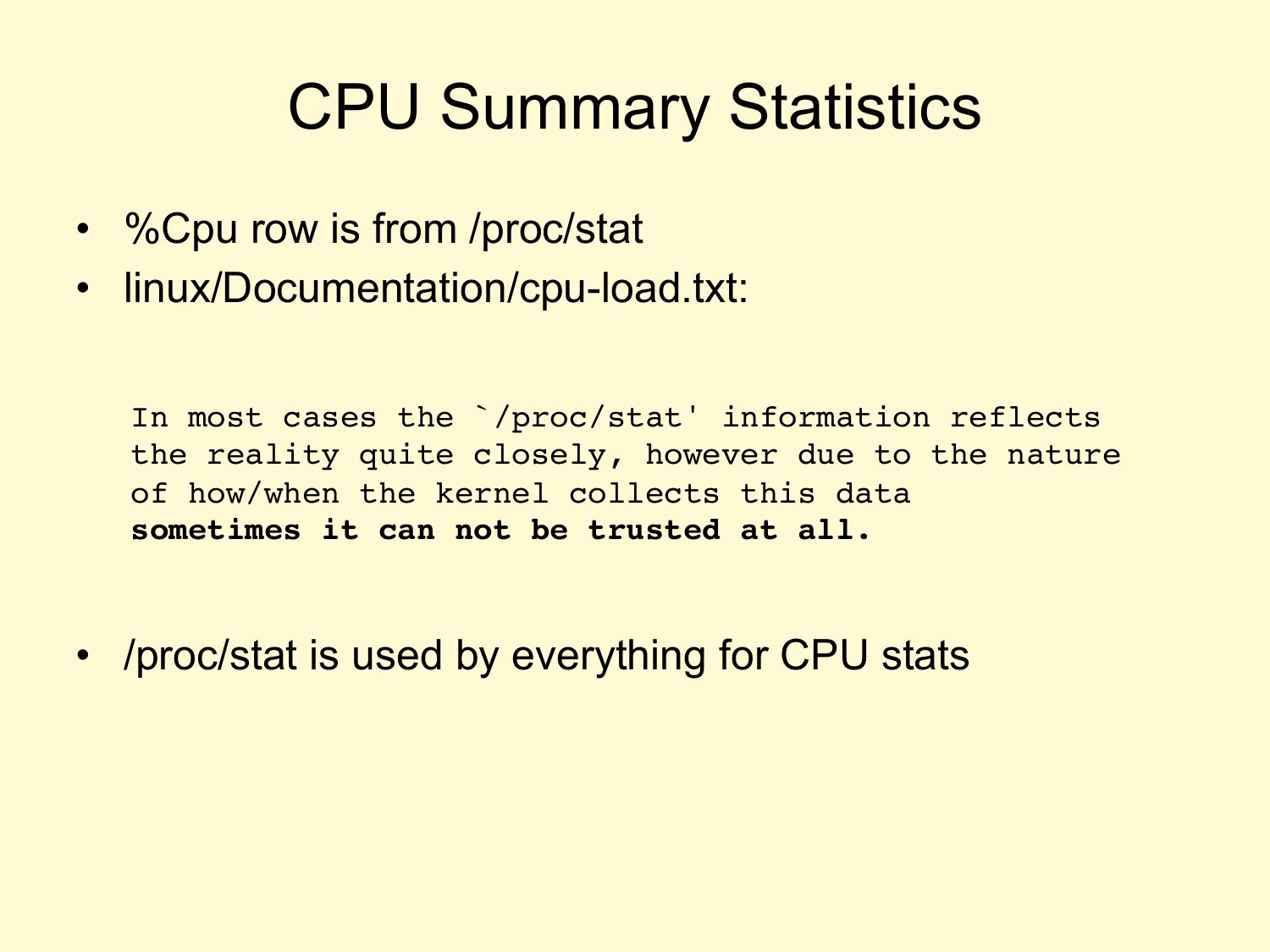

CPU Summary Statistics • %Cpu row is from /proc/stat • linux/Documentation/cpu-load.txt: In most cases the `/proc/stat' information reflects the reality quite closely, however due to the nature of how/when the kernel collects this data sometimes it can not be trusted at all. • /proc/stat is used by everything for CPU statsslide 15:
%CPUslide 16:

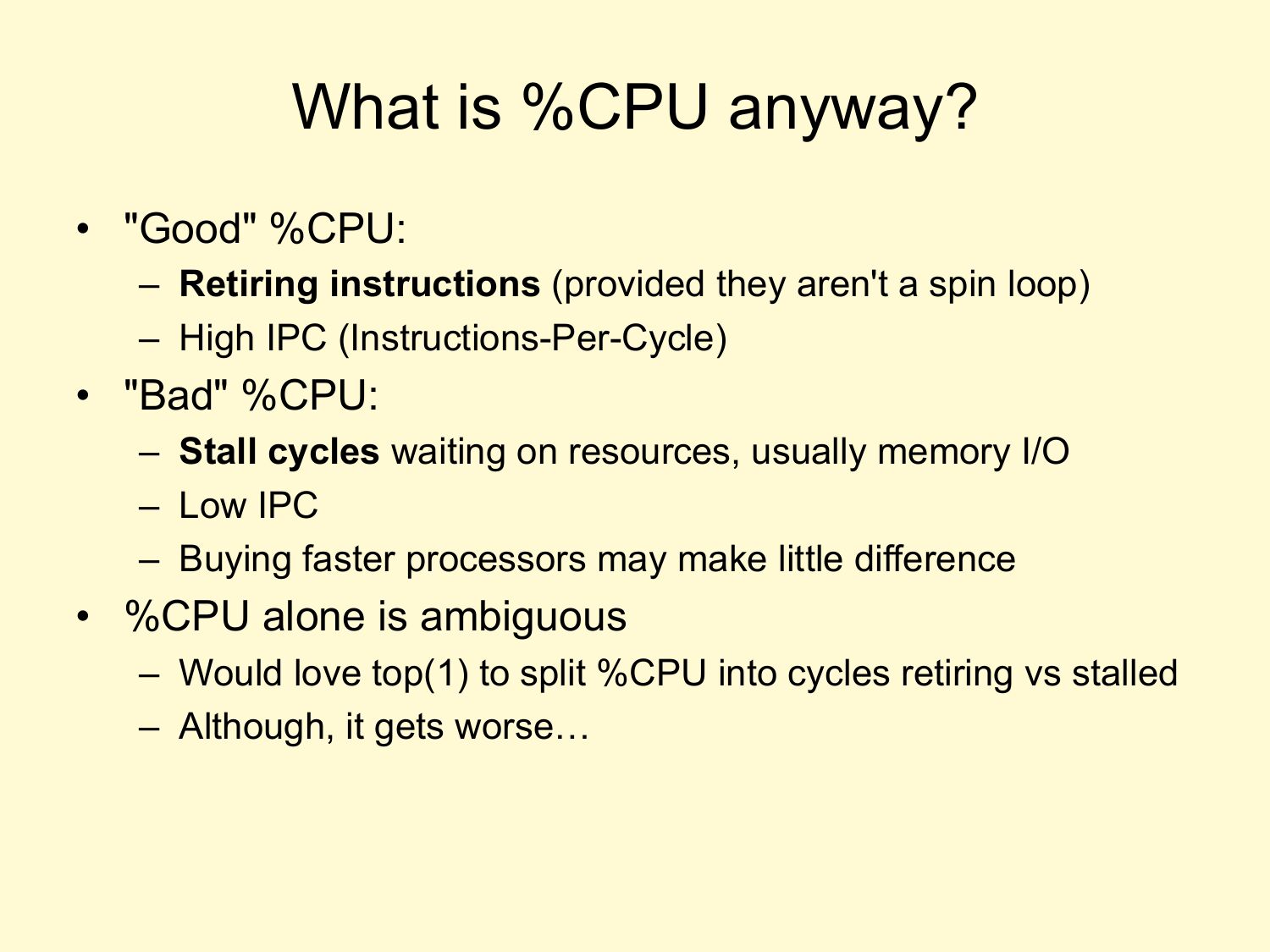

What is %CPU anyway? • "Good" %CPU: – Retiring instructions (provided they aren't a spin loop) – High IPC (Instructions-Per-Cycle) • "Bad" %CPU: – Stall cycles waiting on resources, usually memory I/O – Low IPC – Buying faster processors may make little difference • %CPU alone is ambiguous – Would love top(1) to split %CPU into cycles retiring vs stalled – Although, it gets worse…slide 17:

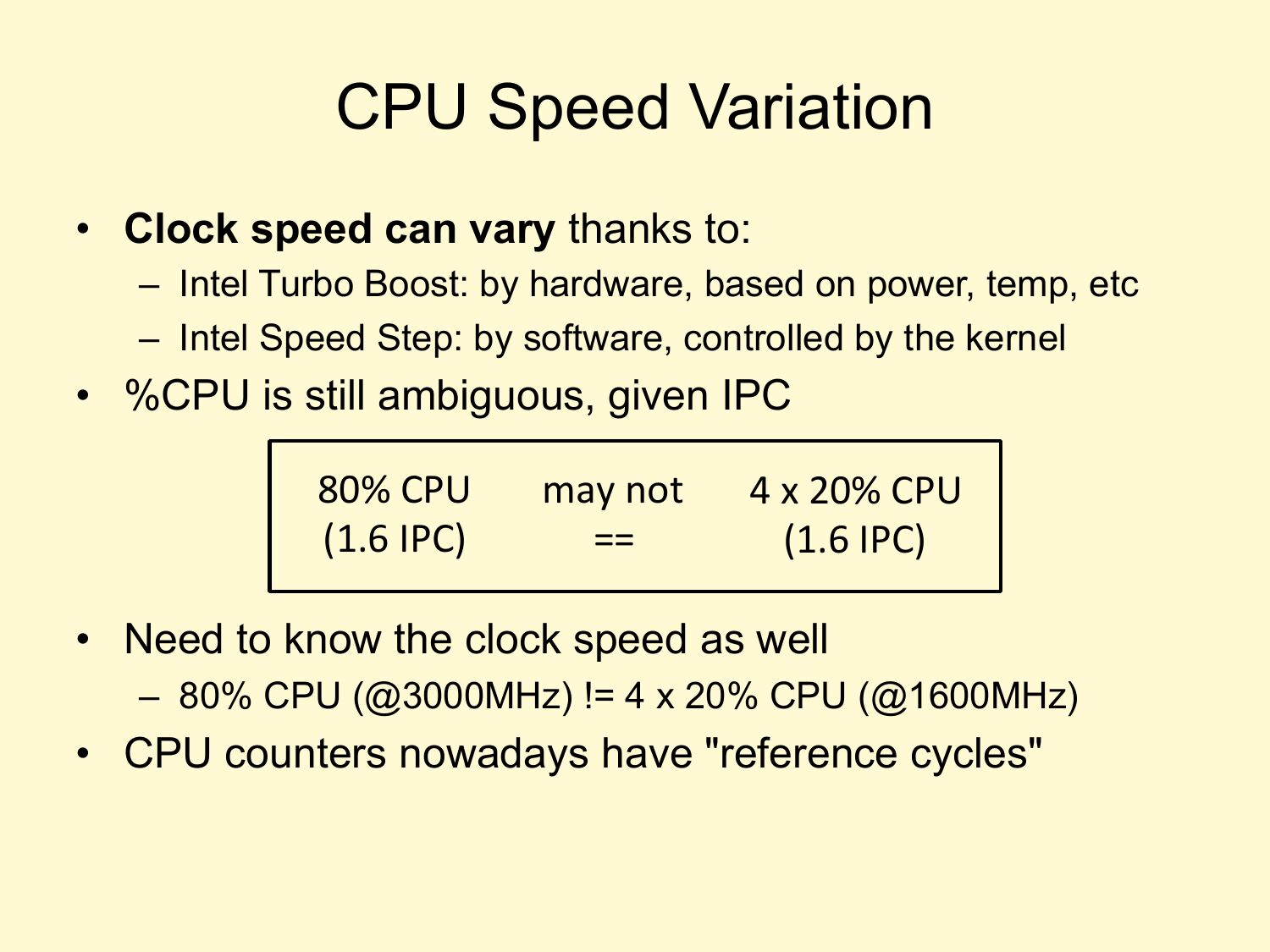

CPU Speed Variation • Clock speed can vary thanks to: – Intel Turbo Boost: by hardware, based on power, temp, etc – Intel Speed Step: by software, controlled by the kernel • %CPU is still ambiguous, given IPC 80% CPU (1.6 IPC) may not == 4 x 20% CPU (1.6 IPC) • Need to know the clock speed as well – 80% CPU (@3000MHz) != 4 x 20% CPU (@1600MHz) • CPU counters nowadays have "reference cycles"slide 18:

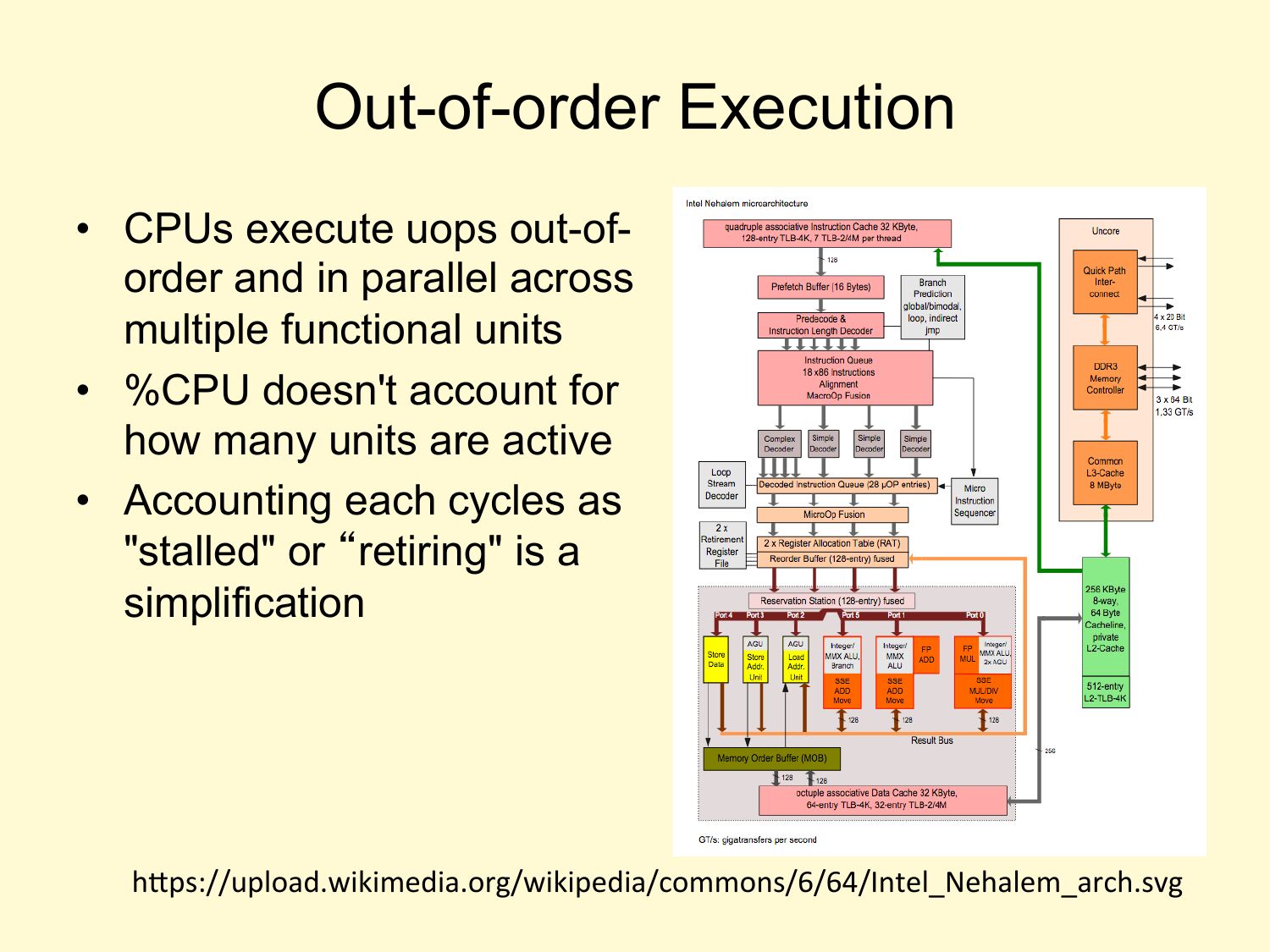

Out-of-order Execution • CPUs execute uops out-oforder and in parallel across multiple functional units • %CPU doesn't account for how many units are active • Accounting each cycles as "stalled" or “retiring" is a simplification h:ps://upload.wikimedia.org/wikipedia/commons/6/64/Intel_Nehalem_arch.svgslide 19:
I/O WAITslide 20:

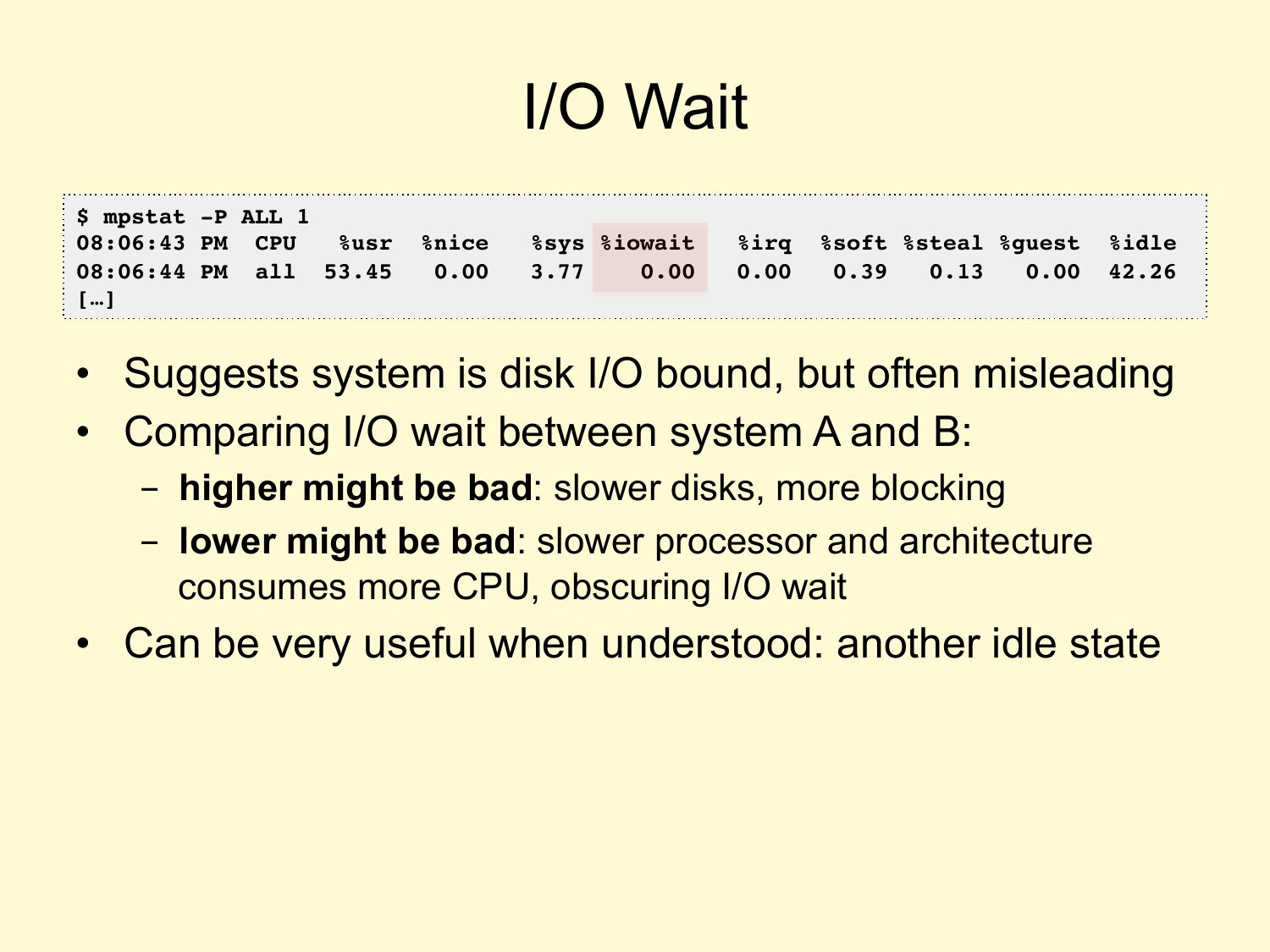

I/O Wait $ mpstat -P ALL 1 08:06:43 PM CPU %usr 08:06:44 PM all 53.45 […] %nice %sys %iowait %irq %soft %steal %guest %idle • Suggests system is disk I/O bound, but often misleading • Comparing I/O wait between system A and B: - higher might be bad: slower disks, more blocking - lower might be bad: slower processor and architecture consumes more CPU, obscuring I/O wait • Can be very useful when understood: another idle stateslide 21:

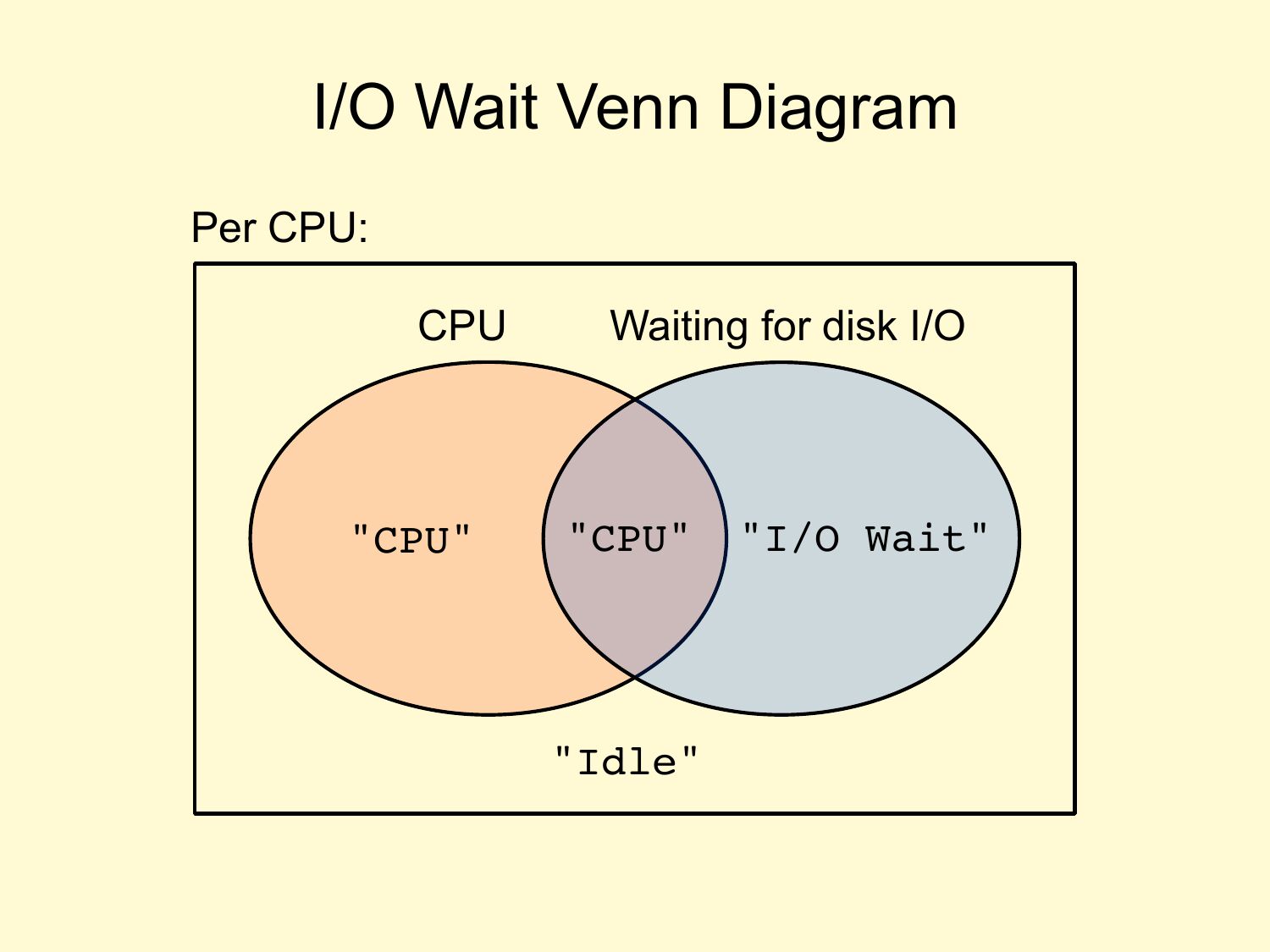

I/O Wait Venn Diagram Per CPU: CPU "CPU" Waiting for disk I/O "CPU" "I/O Wait" "Idle"slide 22:
FREE MEMORYslide 23:

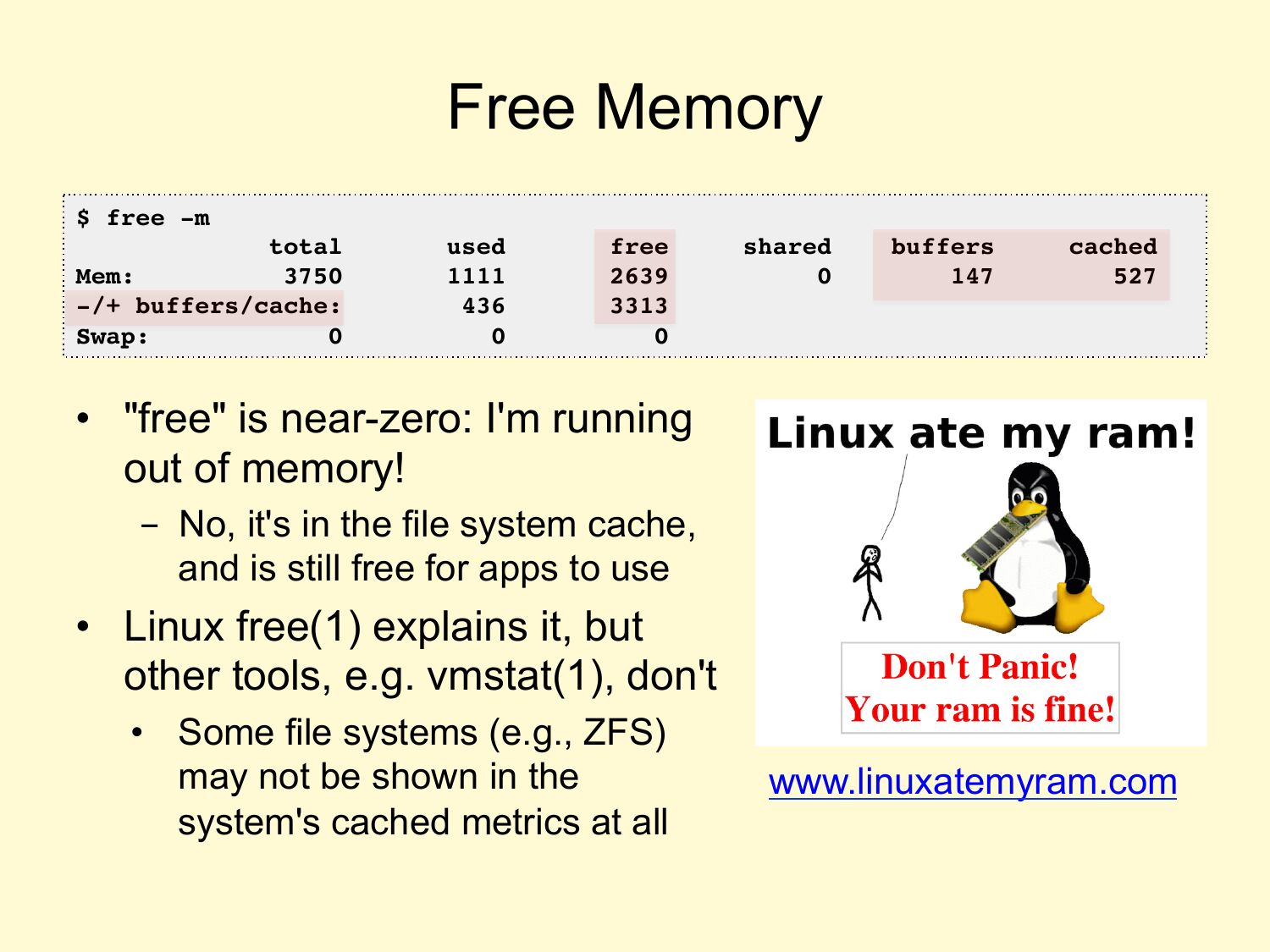

Free Memory $ free -m total Mem: -/+ buffers/cache: Swap: used free 0 shared buffers cached • "free" is near-zero: I'm running out of memory! - No, it's in the file system cache, and is still free for apps to use • Linux free(1) explains it, but other tools, e.g. vmstat(1), don't • Some file systems (e.g., ZFS) may not be shown in the system's cached metrics at all www.linuxatemyram.comslide 24:
VMSTATslide 25:

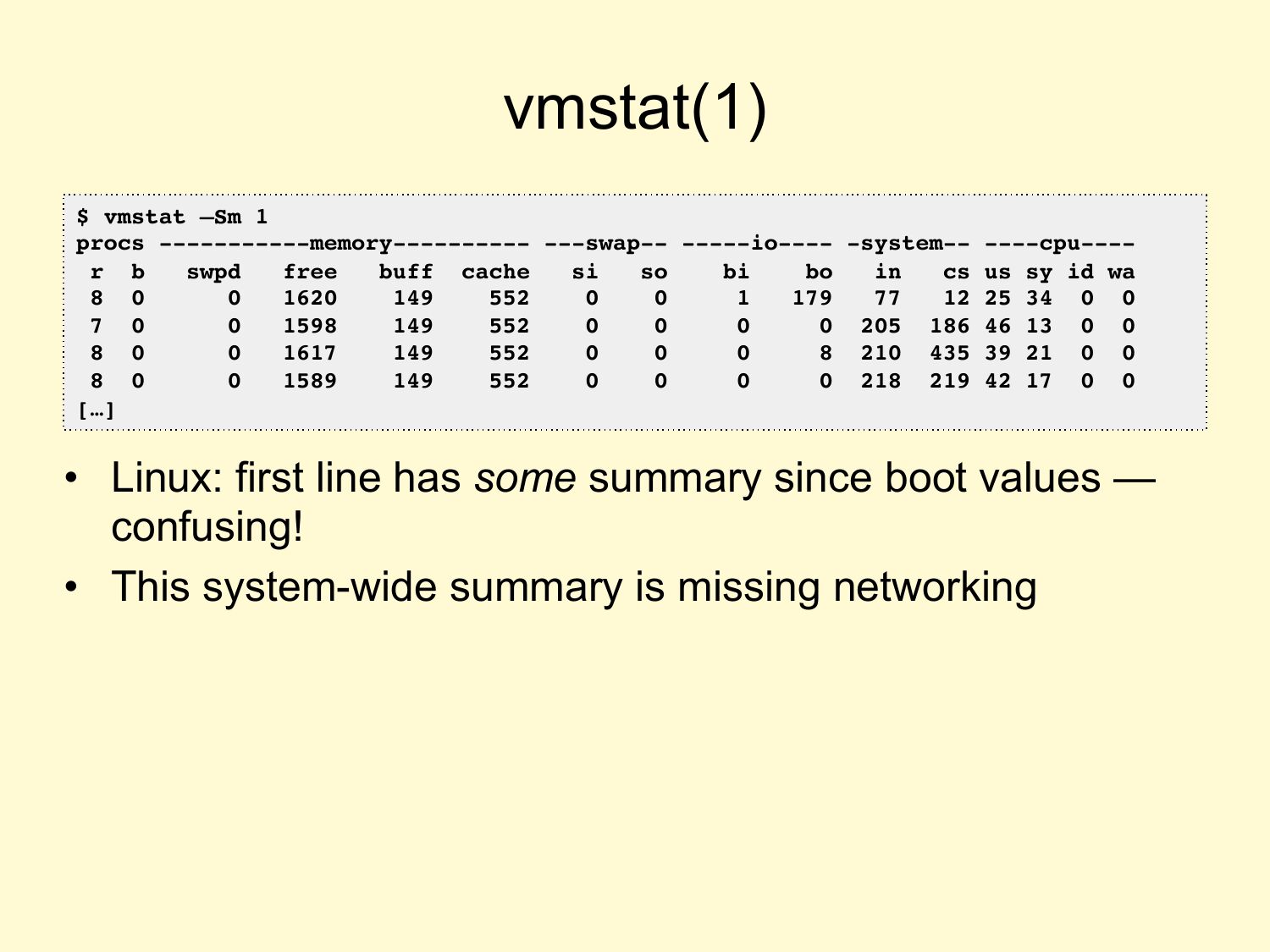

vmstat(1) $ vmstat –Sm 1 procs -----------memory---------- ---swap-- -----io---- -system-- ----cpu---r b swpd free buff cache cs us sy id wa 8 0 12 25 34 0 0 7 0 0 205 186 46 13 0 0 8 0 8 210 435 39 21 0 0 8 0 0 218 219 42 17 0 0 […] • Linux: first line has some summary since boot values — confusing! • This system-wide summary is missing networkingslide 26:
NETSTAT -Sslide 27:

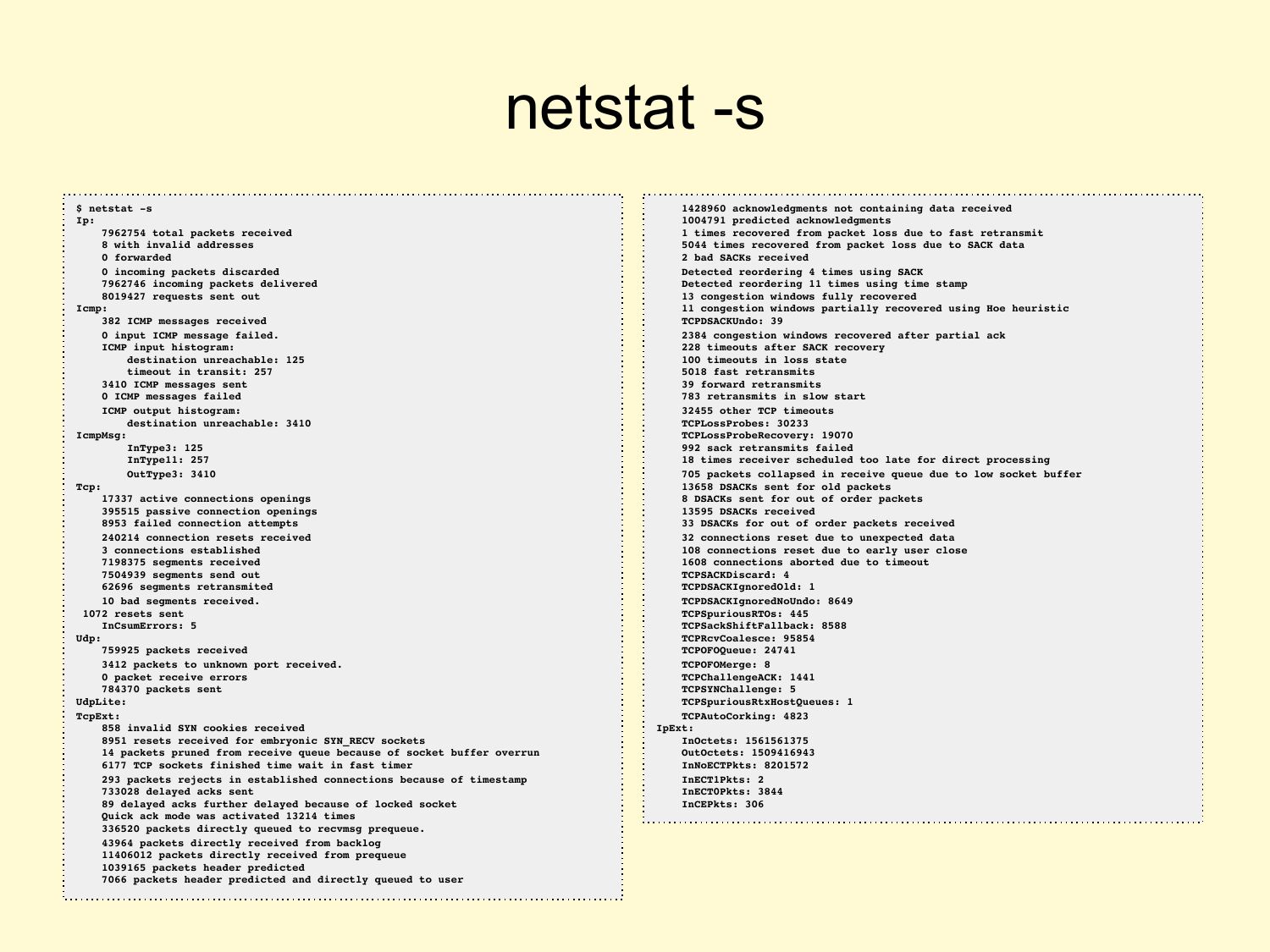

netstat -s $ netstat -s Ip: 7962754 total packets received 8 with invalid addresses 0 forwarded 0 incoming packets discarded 7962746 incoming packets delivered 8019427 requests sent out Icmp: 382 ICMP messages received 0 input ICMP message failed. ICMP input histogram: destination unreachable: 125 timeout in transit: 257 3410 ICMP messages sent 0 ICMP messages failed ICMP output histogram: destination unreachable: 3410 IcmpMsg: InType3: 125 InType11: 257 OutType3: 3410 Tcp: 17337 active connections openings 395515 passive connection openings 8953 failed connection attempts 240214 connection resets received 3 connections established 7198375 segments received 7504939 segments send out 62696 segments retransmited 10 bad segments received. 1072 resets sent InCsumErrors: 5 Udp: 759925 packets received 3412 packets to unknown port received. 0 packet receive errors 784370 packets sent UdpLite: TcpExt: 858 invalid SYN cookies received 8951 resets received for embryonic SYN_RECV sockets 14 packets pruned from receive queue because of socket buffer overrun 6177 TCP sockets finished time wait in fast timer 293 packets rejects in established connections because of timestamp 733028 delayed acks sent 89 delayed acks further delayed because of locked socket Quick ack mode was activated 13214 times 336520 packets directly queued to recvmsg prequeue. 43964 packets directly received from backlog 11406012 packets directly received from prequeue 1039165 packets header predicted 7066 packets header predicted and directly queued to user 1428960 acknowledgments not containing data received 1004791 predicted acknowledgments 1 times recovered from packet loss due to fast retransmit 5044 times recovered from packet loss due to SACK data 2 bad SACKs received Detected reordering 4 times using SACK Detected reordering 11 times using time stamp 13 congestion windows fully recovered 11 congestion windows partially recovered using Hoe heuristic TCPDSACKUndo: 39 2384 congestion windows recovered after partial ack 228 timeouts after SACK recovery 100 timeouts in loss state 5018 fast retransmits 39 forward retransmits 783 retransmits in slow start 32455 other TCP timeouts TCPLossProbes: 30233 TCPLossProbeRecovery: 19070 992 sack retransmits failed 18 times receiver scheduled too late for direct processing 705 packets collapsed in receive queue due to low socket buffer 13658 DSACKs sent for old packets 8 DSACKs sent for out of order packets 13595 DSACKs received 33 DSACKs for out of order packets received 32 connections reset due to unexpected data 108 connections reset due to early user close 1608 connections aborted due to timeout TCPSACKDiscard: 4 TCPDSACKIgnoredOld: 1 TCPDSACKIgnoredNoUndo: 8649 TCPSpuriousRTOs: 445 TCPSackShiftFallback: 8588 TCPRcvCoalesce: 95854 TCPOFOQueue: 24741 TCPOFOMerge: 8 TCPChallengeACK: 1441 TCPSYNChallenge: 5 TCPSpuriousRtxHostQueues: 1 TCPAutoCorking: 4823 IpExt: InOctets: 1561561375 OutOctets: 1509416943 InNoECTPkts: 8201572 InECT1Pkts: 2 InECT0Pkts: 3844 InCEPkts: 306slide 28:

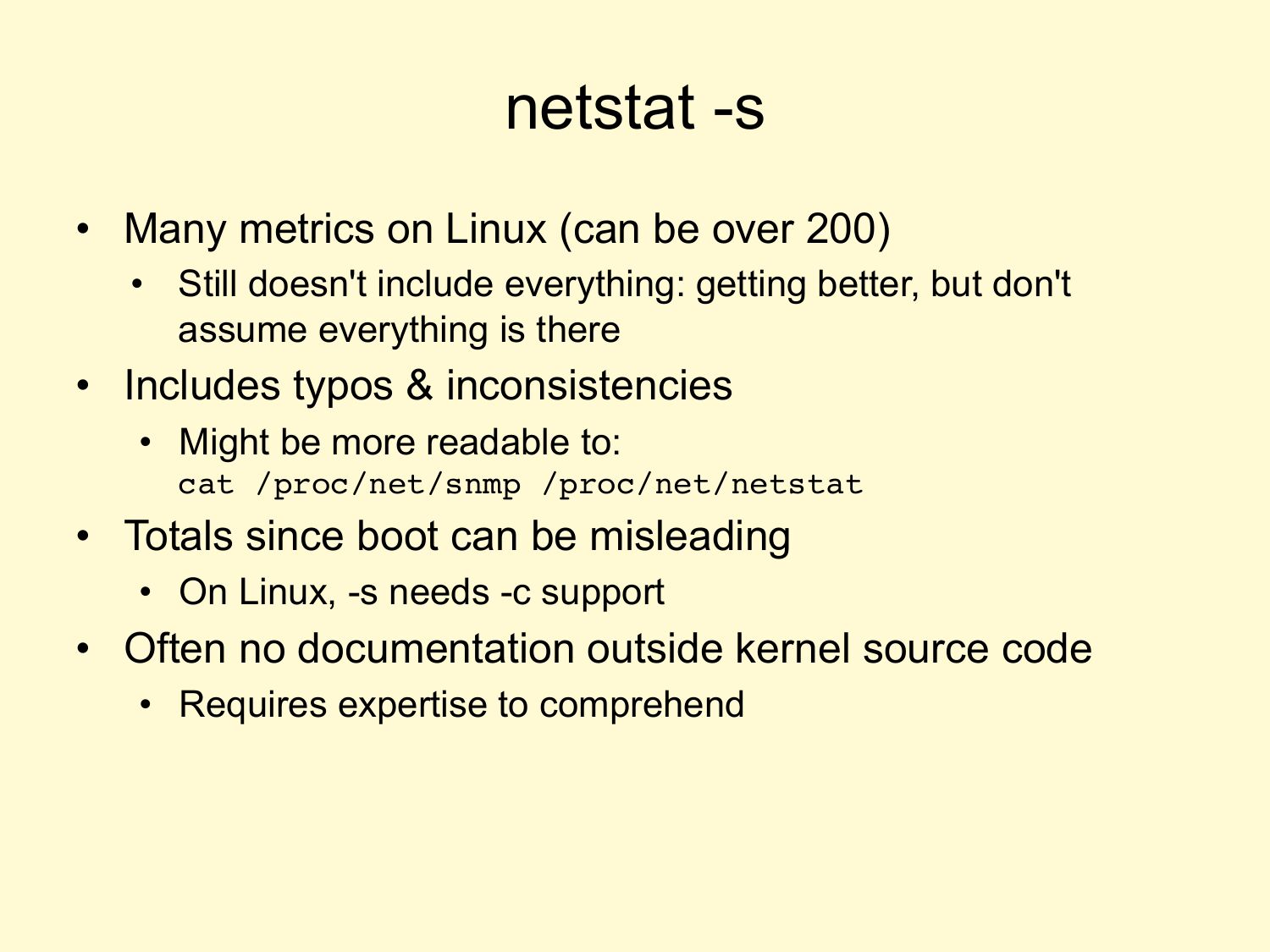

netstat -s • Many metrics on Linux (can be over 200) • Still doesn't include everything: getting better, but don't assume everything is there • Includes typos & inconsistencies • Might be more readable to: cat /proc/net/snmp /proc/net/netstat • Totals since boot can be misleading • On Linux, -s needs -c support • Often no documentation outside kernel source code • Requires expertise to comprehendslide 29:
DISK METRICSslide 30:

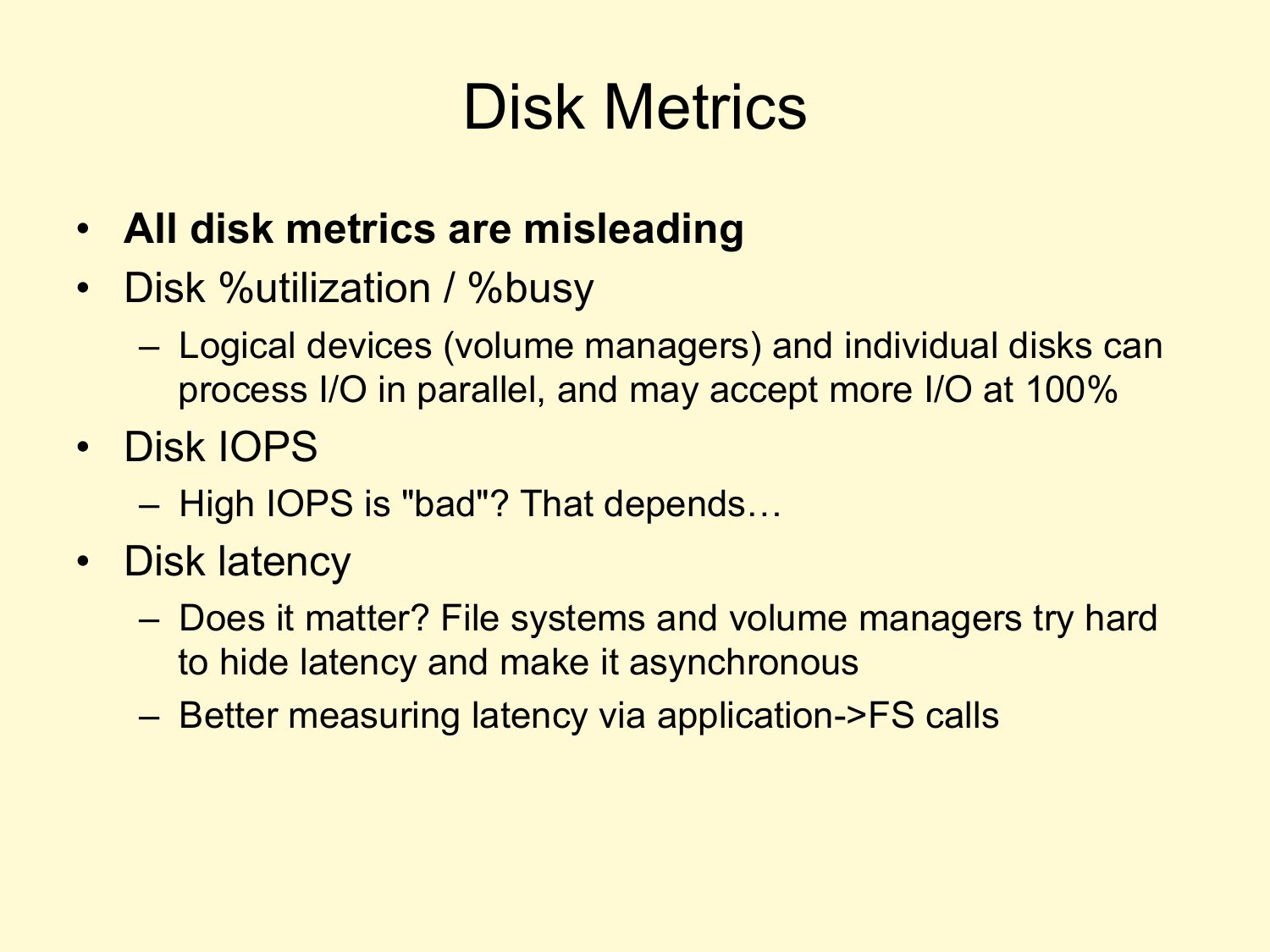

Disk Metrics • All disk metrics are misleading • Disk %utilization / %busy – Logical devices (volume managers) and individual disks can process I/O in parallel, and may accept more I/O at 100% • Disk IOPS – High IOPS is "bad"? That depends… • Disk latency – Does it matter? File systems and volume managers try hard to hide latency and make it asynchronous – Better measuring latency via application->gt;FS callsslide 31:
FS CACHE METRICSslide 32:

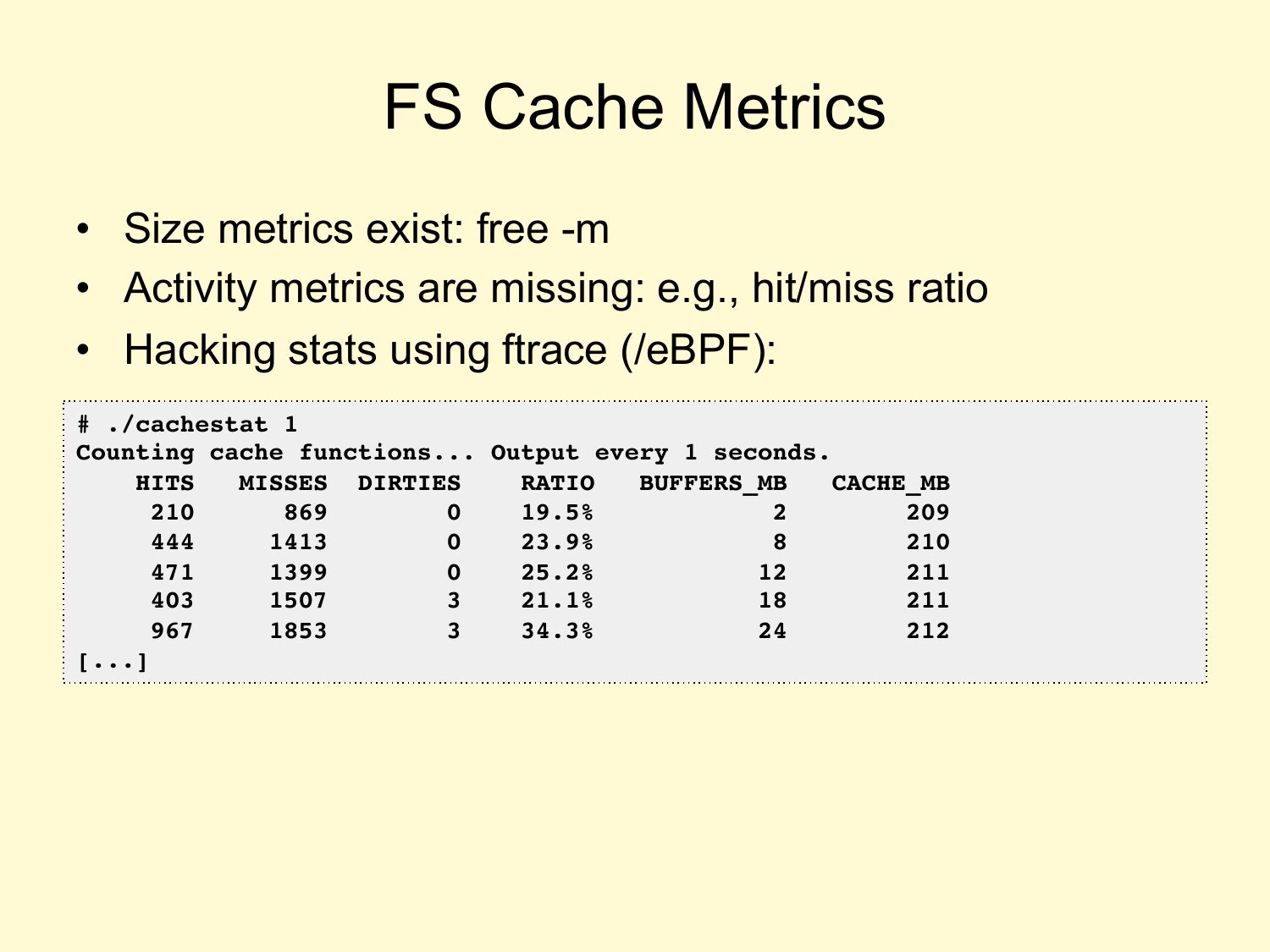

FS Cache Metrics • Size metrics exist: free -m • Activity metrics are missing: e.g., hit/miss ratio • Hacking stats using ftrace (/eBPF): # ./cachestat 1 Counting cache functions... Output every 1 seconds. HITS MISSES DIRTIES RATIO BUFFERS_MB CACHE_MB 19.5% 23.9% 25.2% 21.1% 34.3% [...]slide 33:

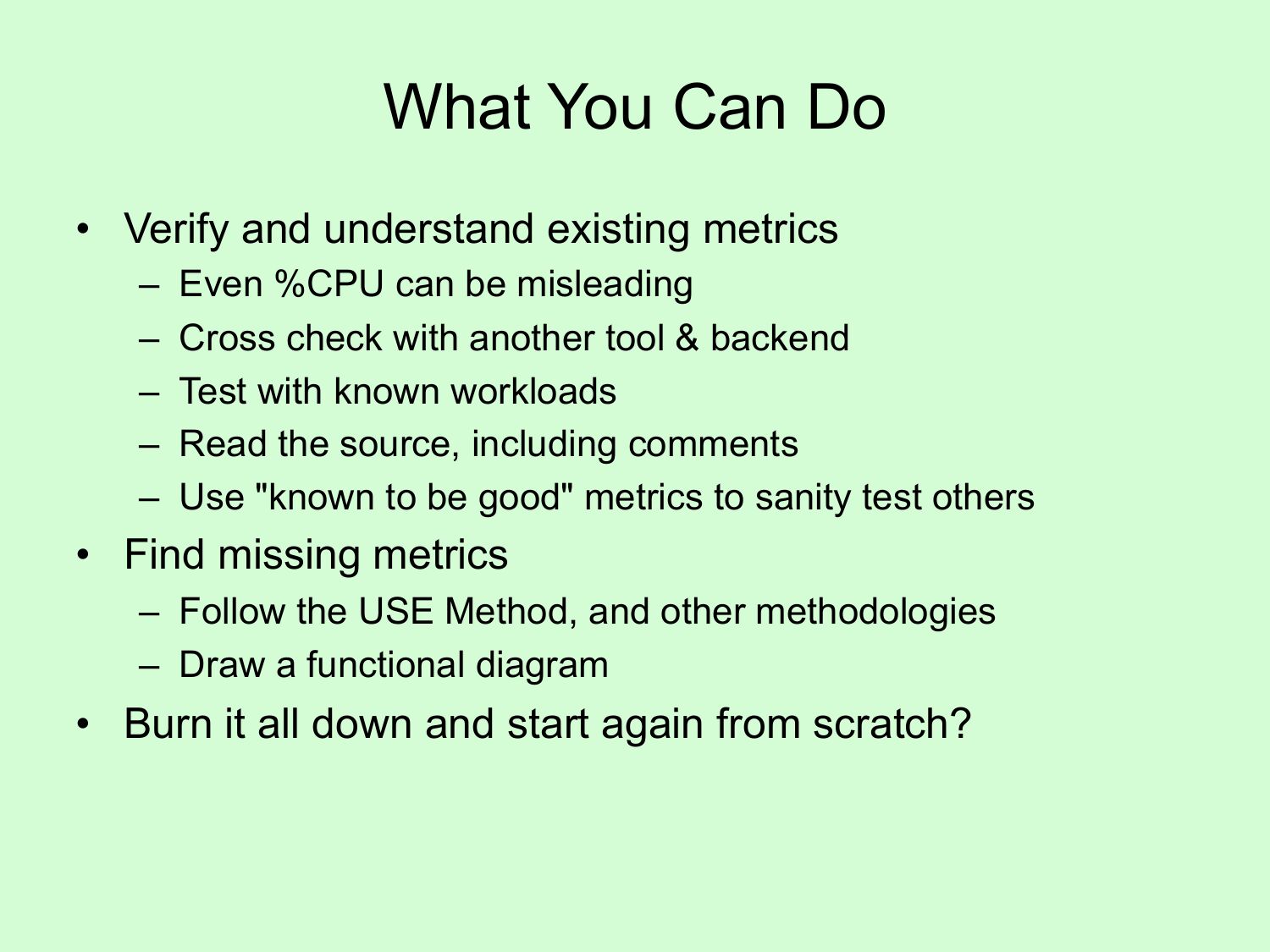

What You Can Do • Verify and understand existing metrics – Even %CPU can be misleading – Cross check with another tool & backend – Test with known workloads – Read the source, including comments – Use "known to be good" metrics to sanity test others • Find missing metrics – Follow the USE Method, and other methodologies – Draw a functional diagram • Burn it all down and start again from scratch?slide 34:
PROFILERSslide 35:

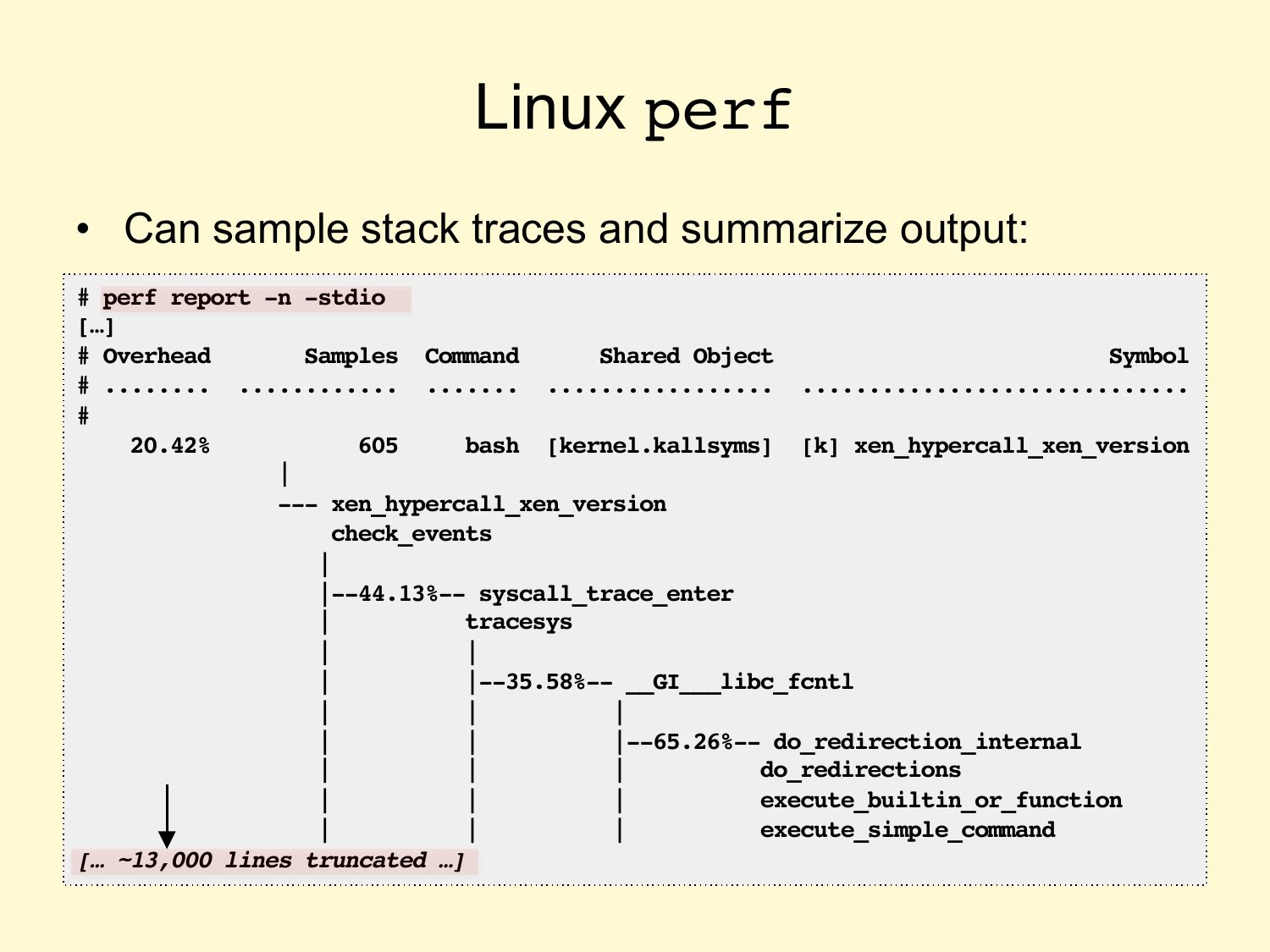

Linux perf • Can sample stack traces and summarize output: # perf report -n -stdio […] # Overhead Samples Command Shared Object Symbol # ........ ............ ....... ................. ............................. 20.42% bash [kernel.kallsyms] [k] xen_hypercall_xen_version --- xen_hypercall_xen_version check_events |--44.13%-- syscall_trace_enter tracesys |--35.58%-- __GI___libc_fcntl |--65.26%-- do_redirection_internal do_redirections execute_builtin_or_function execute_simple_command [… ~13,000 lines truncated …]slide 36:

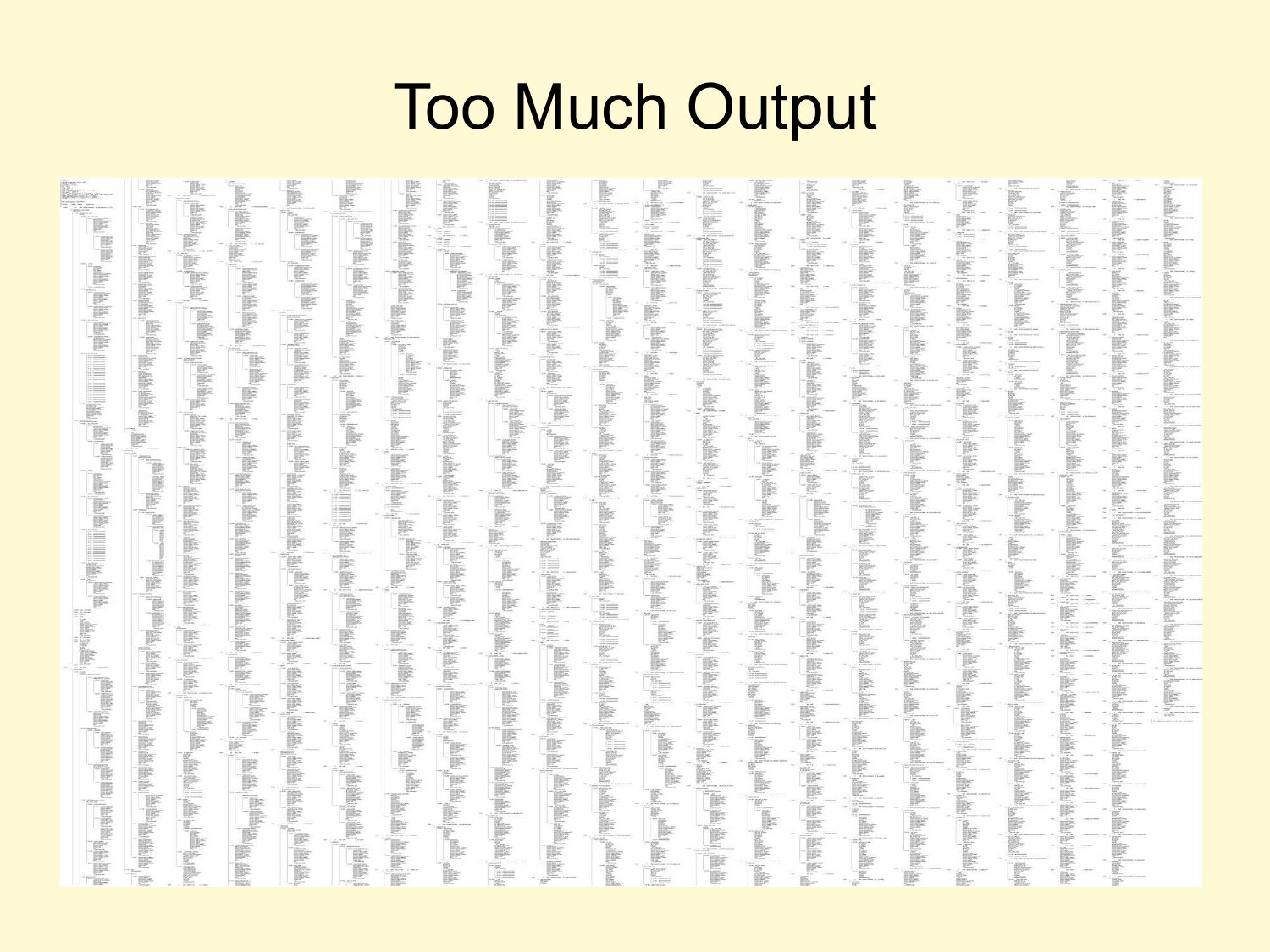

Too Much Outputslide 37:

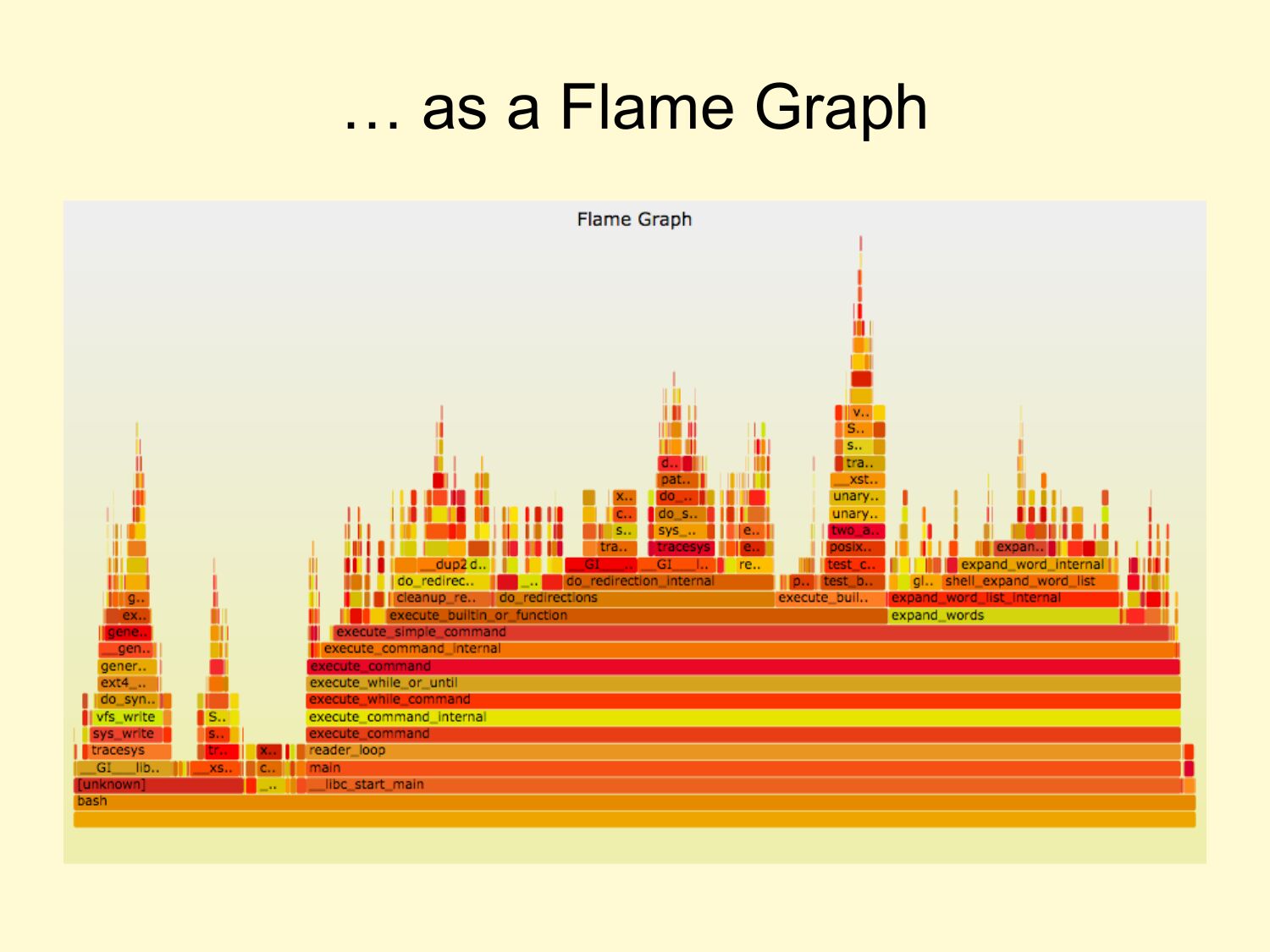

… as a Flame Graphslide 38:
PROFILER VISIBILITYslide 39:

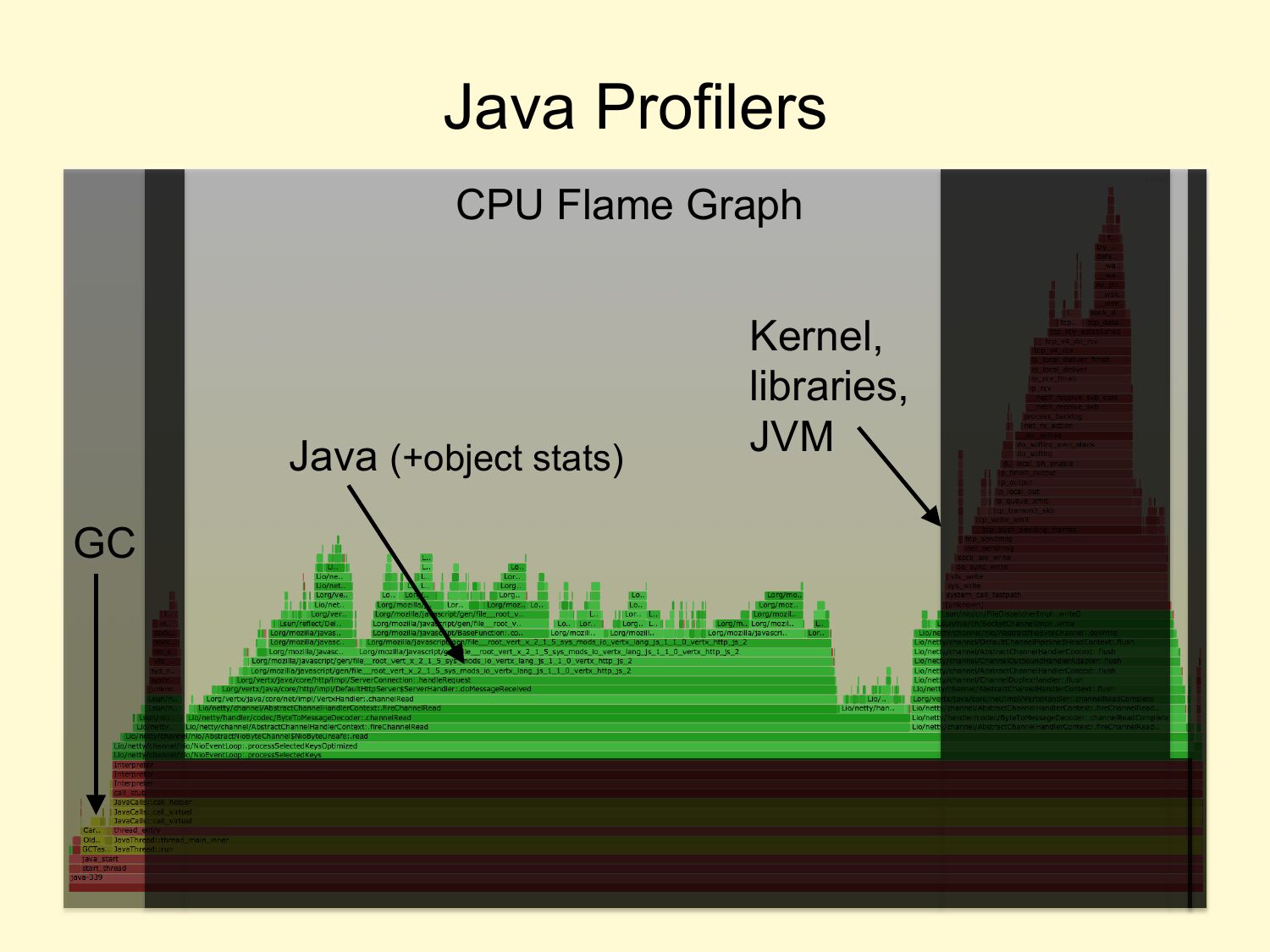

Java Profilers CPU Flame Graph Java (+object stats) Kernel, libraries, JVMslide 40:

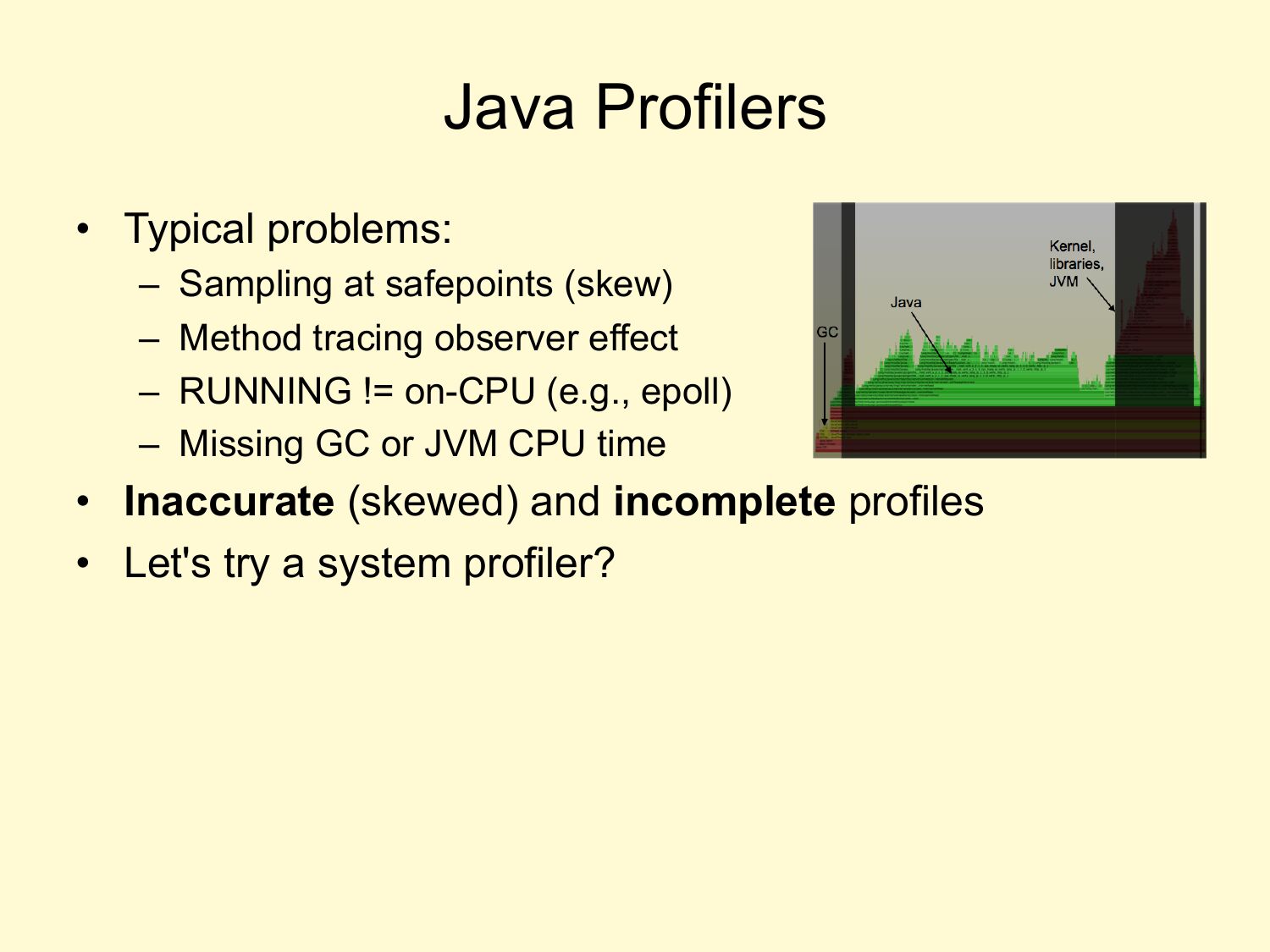

Java Profilers • Typical problems: – Sampling at safepoints (skew) – Method tracing observer effect – RUNNING != on-CPU (e.g., epoll) – Missing GC or JVM CPU time • Inaccurate (skewed) and incomplete profiles • Let's try a system profiler?slide 41:

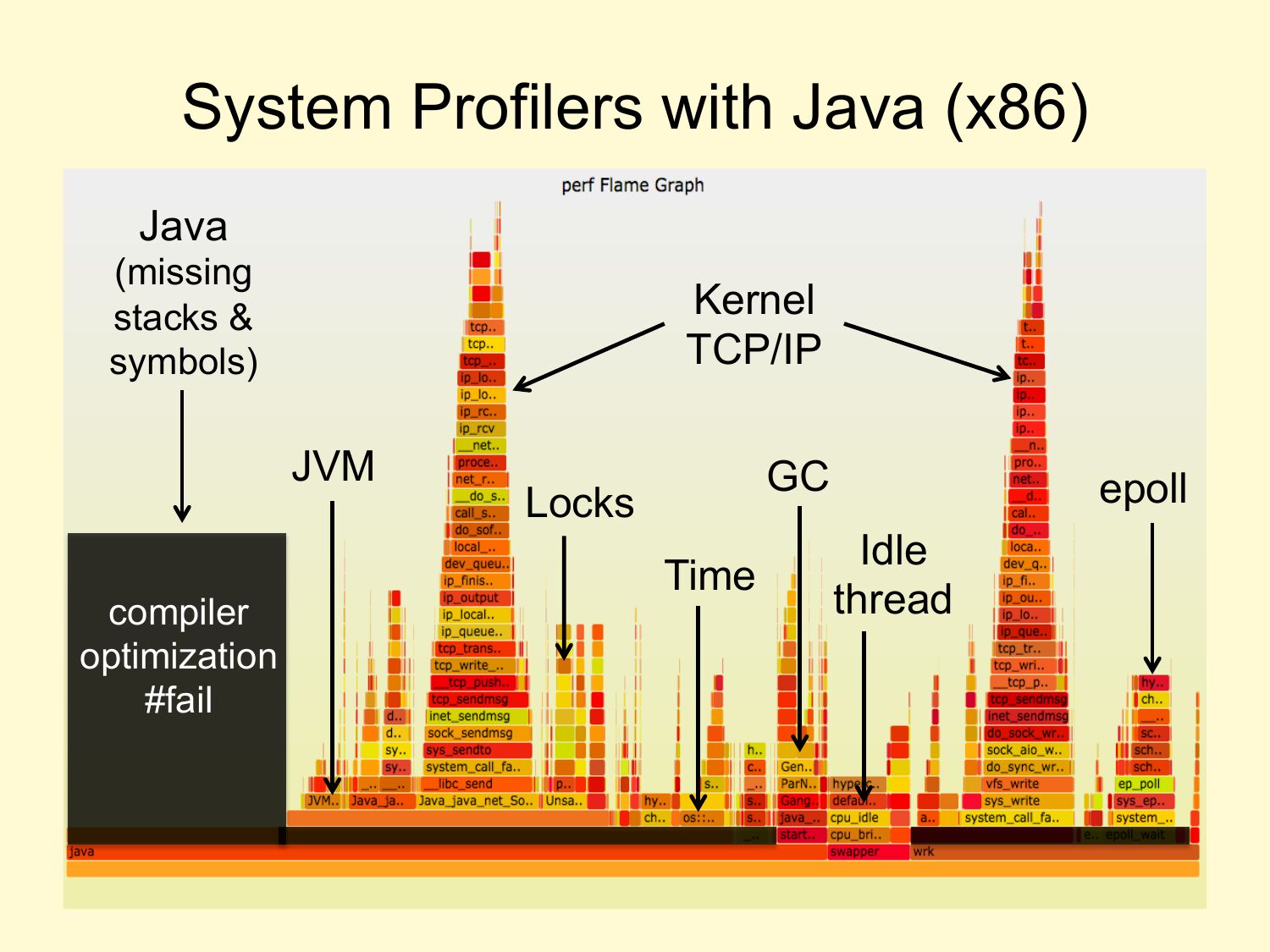

System Profilers with Java (x86) Java (missing stacks & symbols) Kernel TCP/IP JVM compiler optimization #fail Locks Time epoll Idle threadslide 42:
COMPILER OPTIMIZATIONSslide 43:

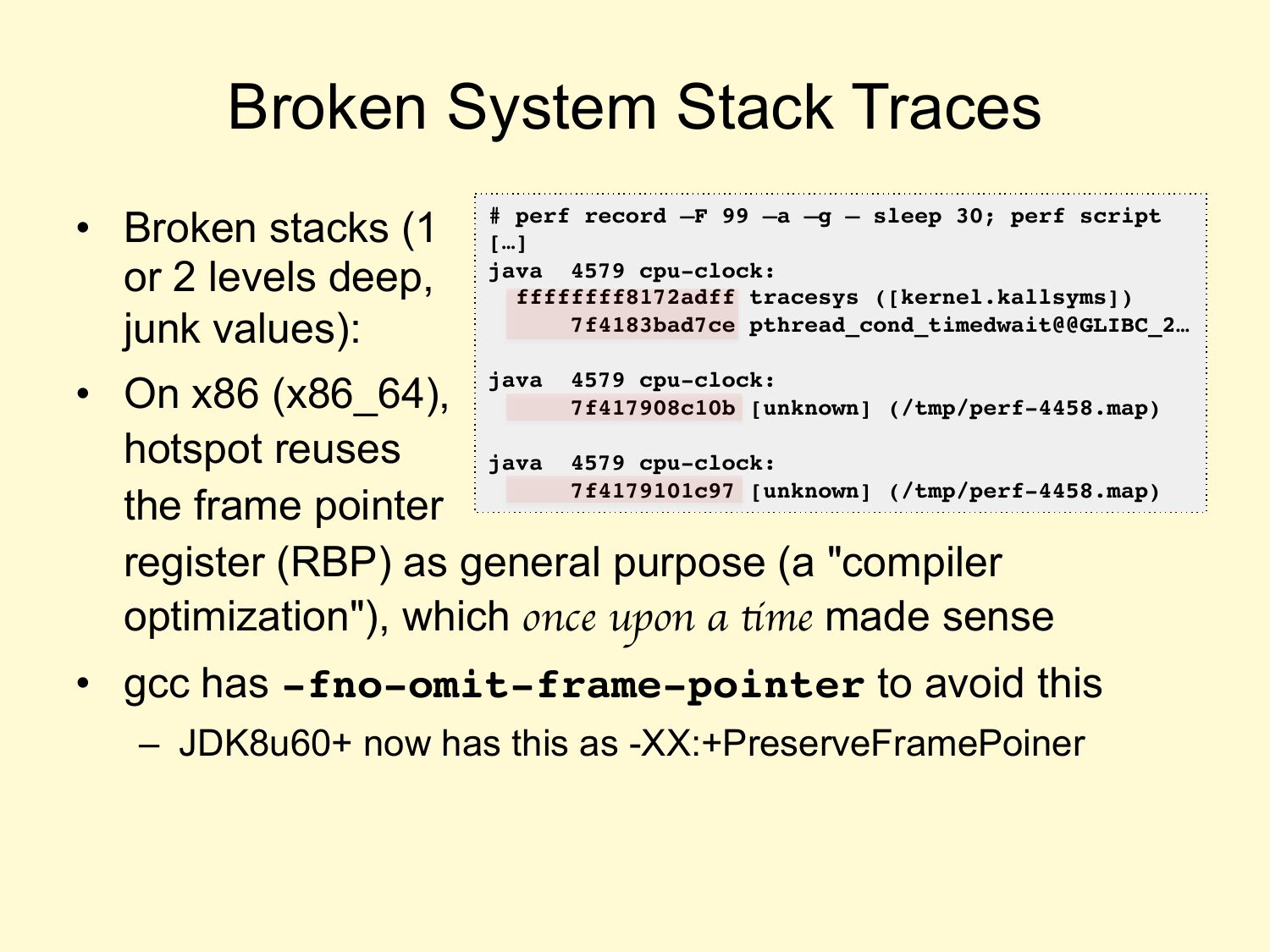

Broken System Stack Traces • Broken stacks (1 or 2 levels deep, junk values): # perf record –F 99 –a –g – sleep 30; perf script […] java 4579 cpu-clock: ffffffff8172adff tracesys ([kernel.kallsyms]) 7f4183bad7ce pthread_cond_timedwait@@GLIBC_2… java 4579 cpu-clock: • On x86 (x86_64), 7f417908c10b [unknown] (/tmp/perf-4458.map) hotspot reuses java 4579 cpu-clock: 7f4179101c97 [unknown] (/tmp/perf-4458.map) the frame pointer register (RBP) as general purpose (a "compiler optimization"), which once upon a time made sense • gcc has -fno-omit-frame-pointer to avoid this – JDK8u60+ now has this as -XX:+PreserveFramePoinerslide 44:

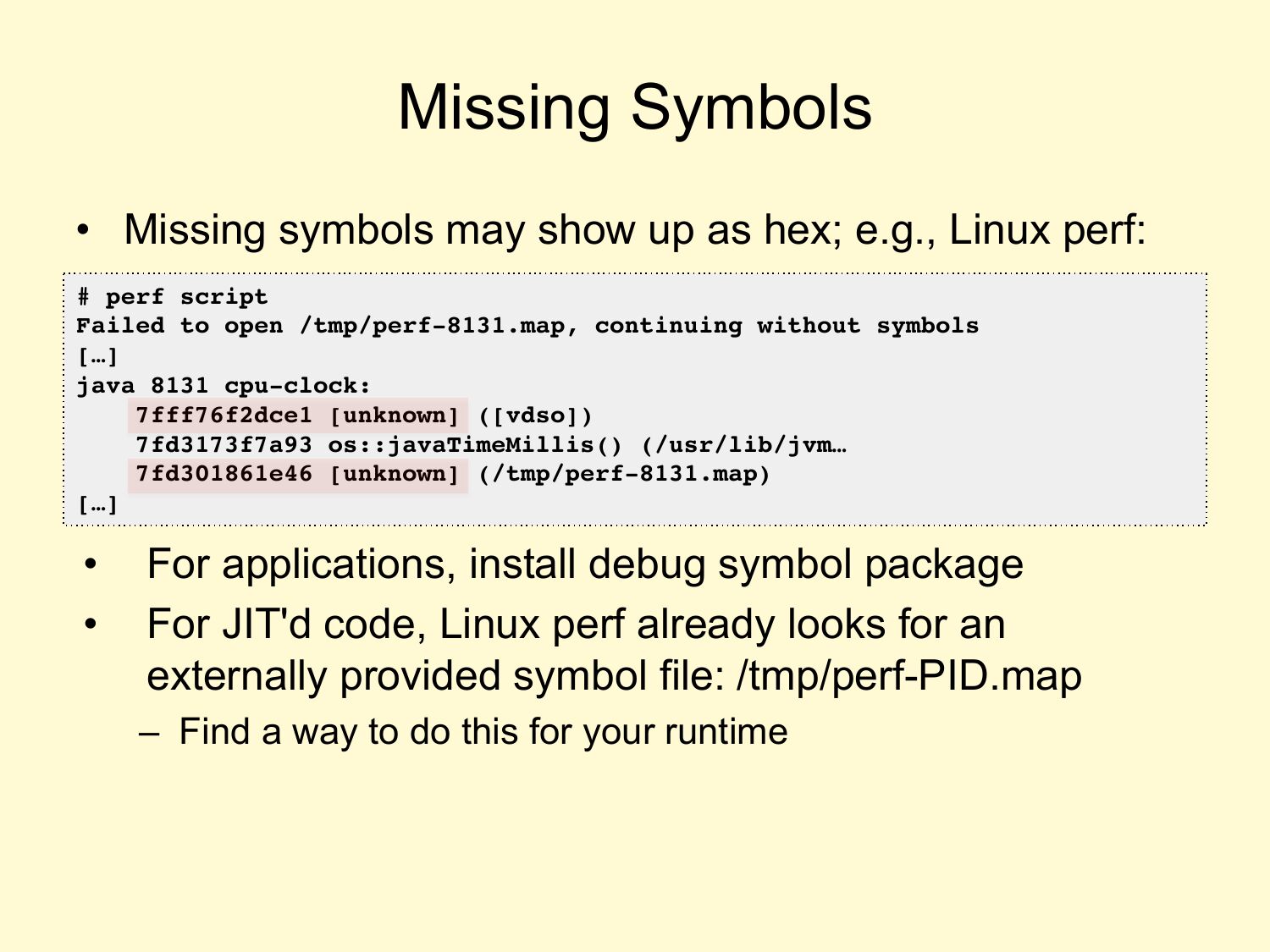

Missing Symbols • Missing symbols may show up as hex; e.g., Linux perf: # perf script Failed to open /tmp/perf-8131.map, continuing without symbols […] java 8131 cpu-clock: 7fff76f2dce1 [unknown] ([vdso]) 7fd3173f7a93 os::javaTimeMillis() (/usr/lib/jvm… 7fd301861e46 [unknown] (/tmp/perf-8131.map) […] For applications, install debug symbol package For JIT'd code, Linux perf already looks for an externally provided symbol file: /tmp/perf-PID.map – Find a way to do this for your runtimeslide 45:
INSTRUCTION PROFILINGslide 46:

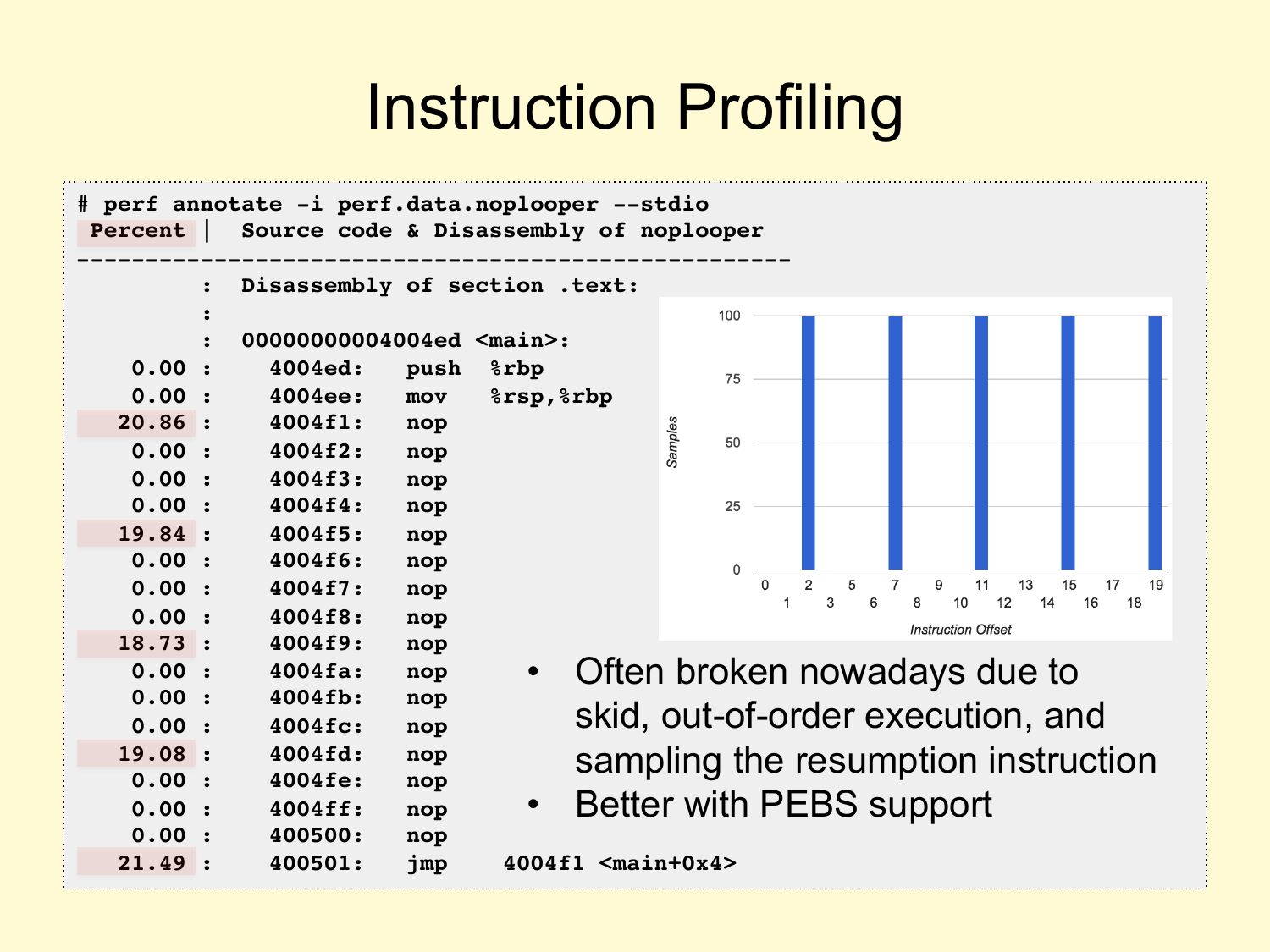

Instruction Profiling # perf annotate -i perf.data.noplooper --stdio Percent | Source code & Disassembly of noplooper ---------------------------------------------------: Disassembly of section .text: : 00000000004004edslide 47:gt;: 0.00 : 4004ed: push %rbp 0.00 : 4004ee: mov %rsp,%rbp 20.86 : 4004f1: nop 0.00 : 4004f2: nop 0.00 : 4004f3: nop 0.00 : 4004f4: nop 19.84 : 4004f5: nop 0.00 : 4004f6: nop 0.00 : 4004f7: nop 0.00 : 4004f8: nop 18.73 : 4004f9: nop 0.00 : 4004fa: nop 0.00 : 4004fb: nop 0.00 : 4004fc: nop 19.08 : 4004fd: nop 0.00 : 4004fe: nop 0.00 : 4004ff: nop 0.00 : 400500: nop 21.49 : 400501: jmp 4004f1 gt; • Often broken nowadays due to skid, out-of-order execution, and sampling the resumption instruction • Better with PEBS support

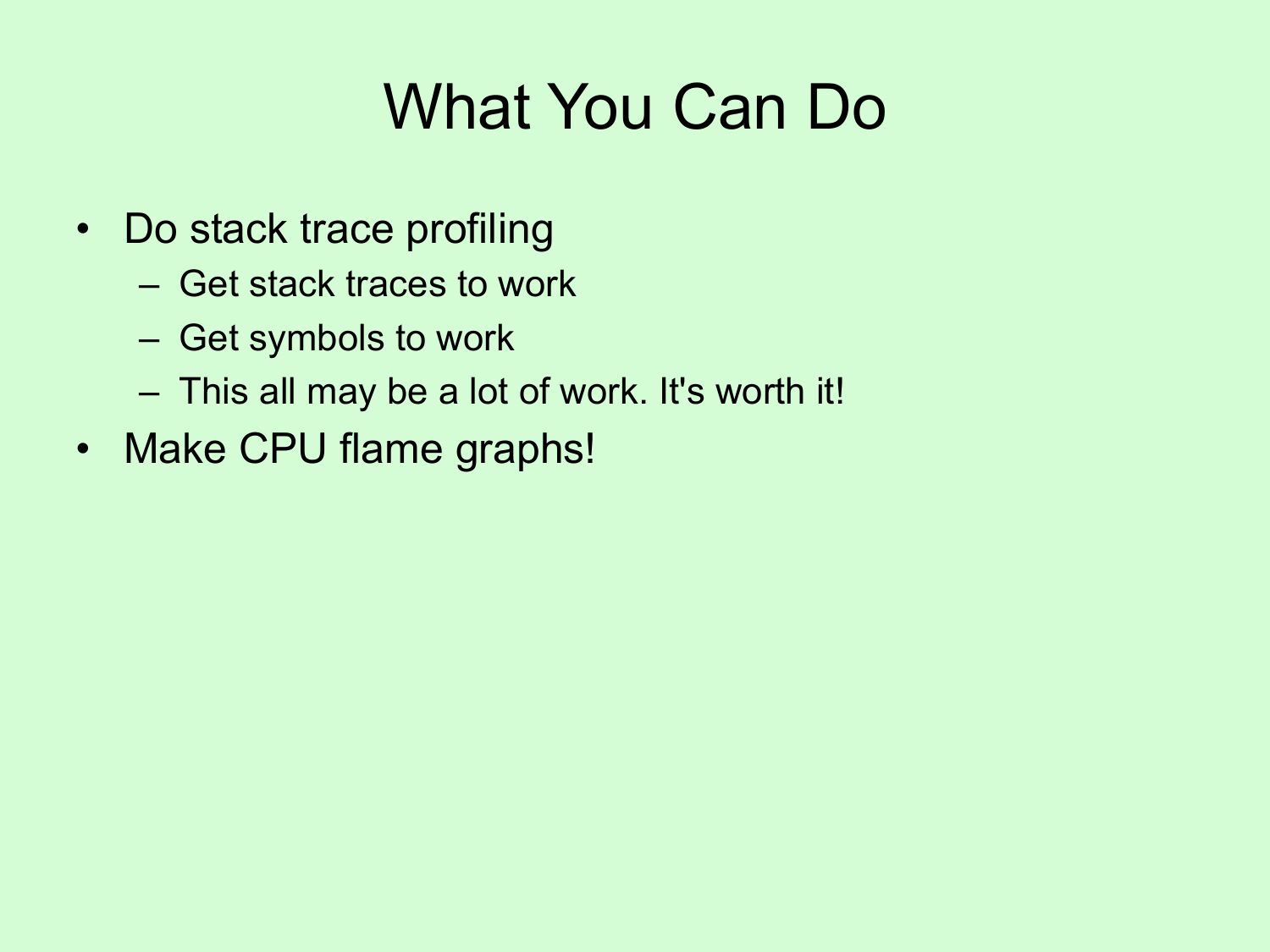

What You Can Do • Do stack trace profiling – Get stack traces to work – Get symbols to work – This all may be a lot of work. It's worth it! • Make CPU flame graphs!slide 48:
OVERHEADslide 49:

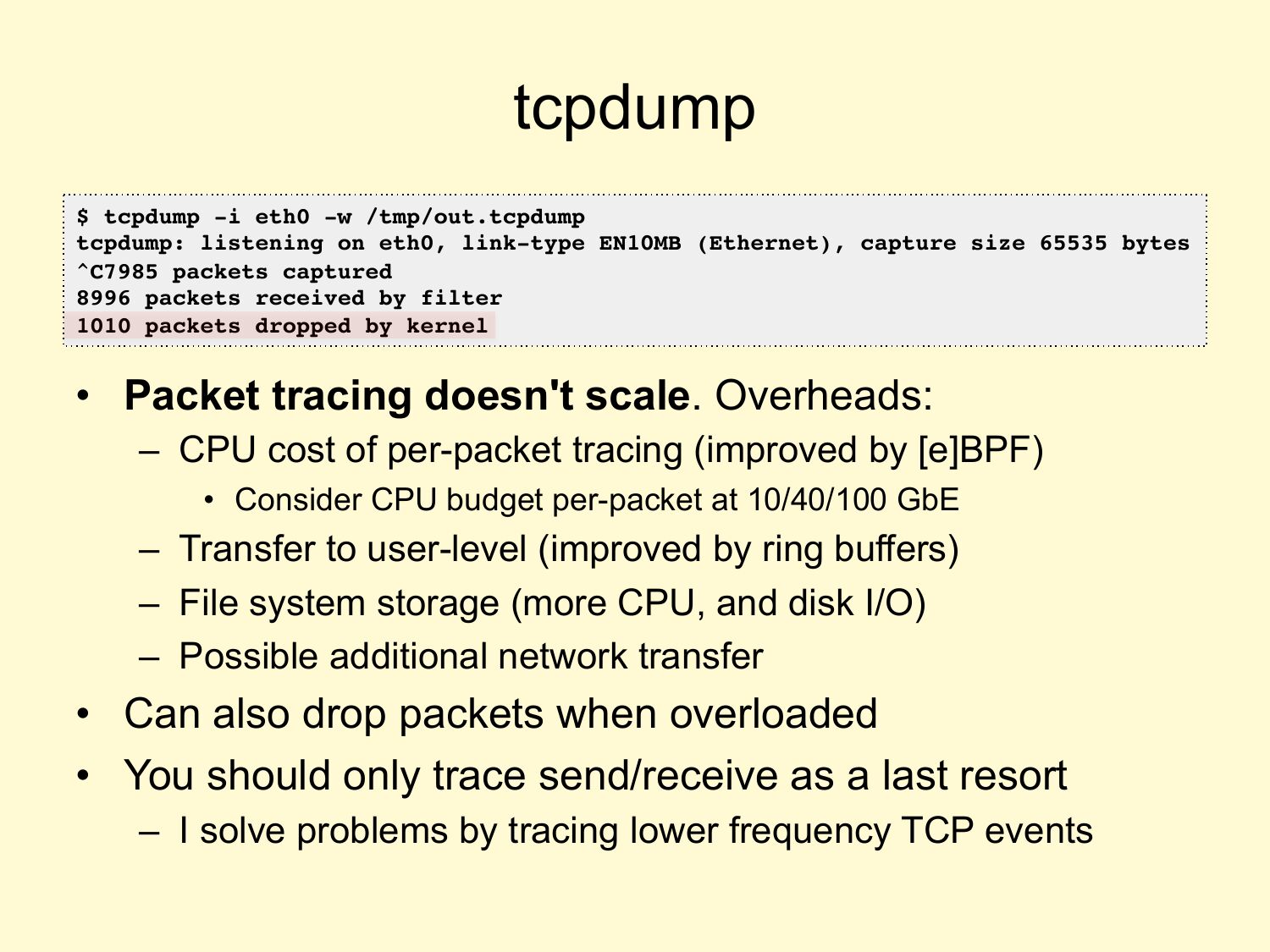

tcpdump $ tcpdump -i eth0 -w /tmp/out.tcpdump tcpdump: listening on eth0, link-type EN10MB (Ethernet), capture size 65535 bytes ^C7985 packets captured 8996 packets received by filter 1010 packets dropped by kernel • Packet tracing doesn't scale. Overheads: – CPU cost of per-packet tracing (improved by [e]BPF) • Consider CPU budget per-packet at 10/40/100 GbE – Transfer to user-level (improved by ring buffers) – File system storage (more CPU, and disk I/O) – Possible additional network transfer • Can also drop packets when overloaded • You should only trace send/receive as a last resort – I solve problems by tracing lower frequency TCP eventsslide 50:
STRACEslide 51:

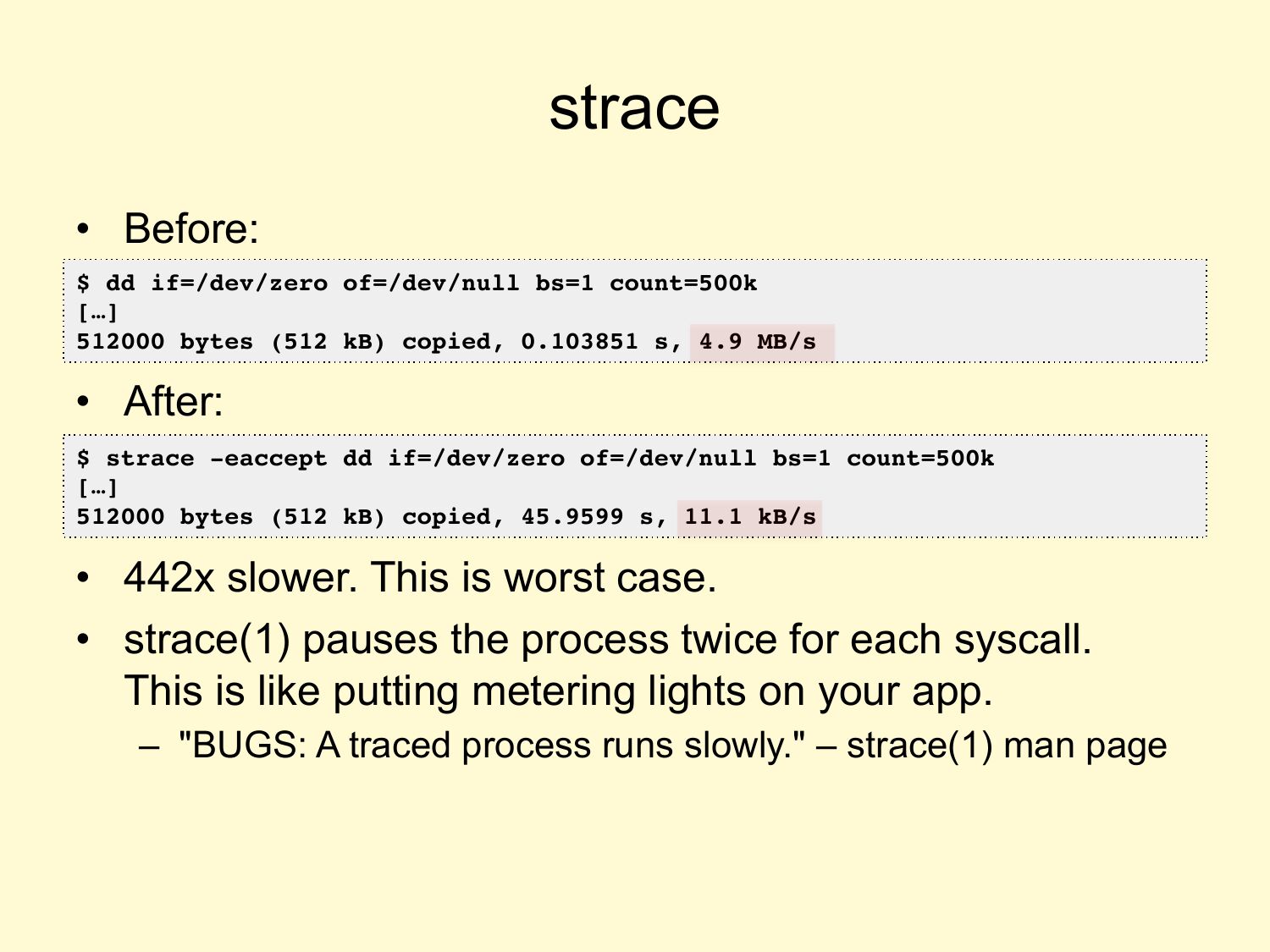

strace • Before: $ dd if=/dev/zero of=/dev/null bs=1 count=500k […] 512000 bytes (512 kB) copied, 0.103851 s, 4.9 MB/s • After: $ strace -eaccept dd if=/dev/zero of=/dev/null bs=1 count=500k […] 512000 bytes (512 kB) copied, 45.9599 s, 11.1 kB/s • 442x slower. This is worst case. • strace(1) pauses the process twice for each syscall. This is like putting metering lights on your app. – "BUGS: A traced process runs slowly." – strace(1) man pageslide 52:
PERF_EVENTSslide 53:

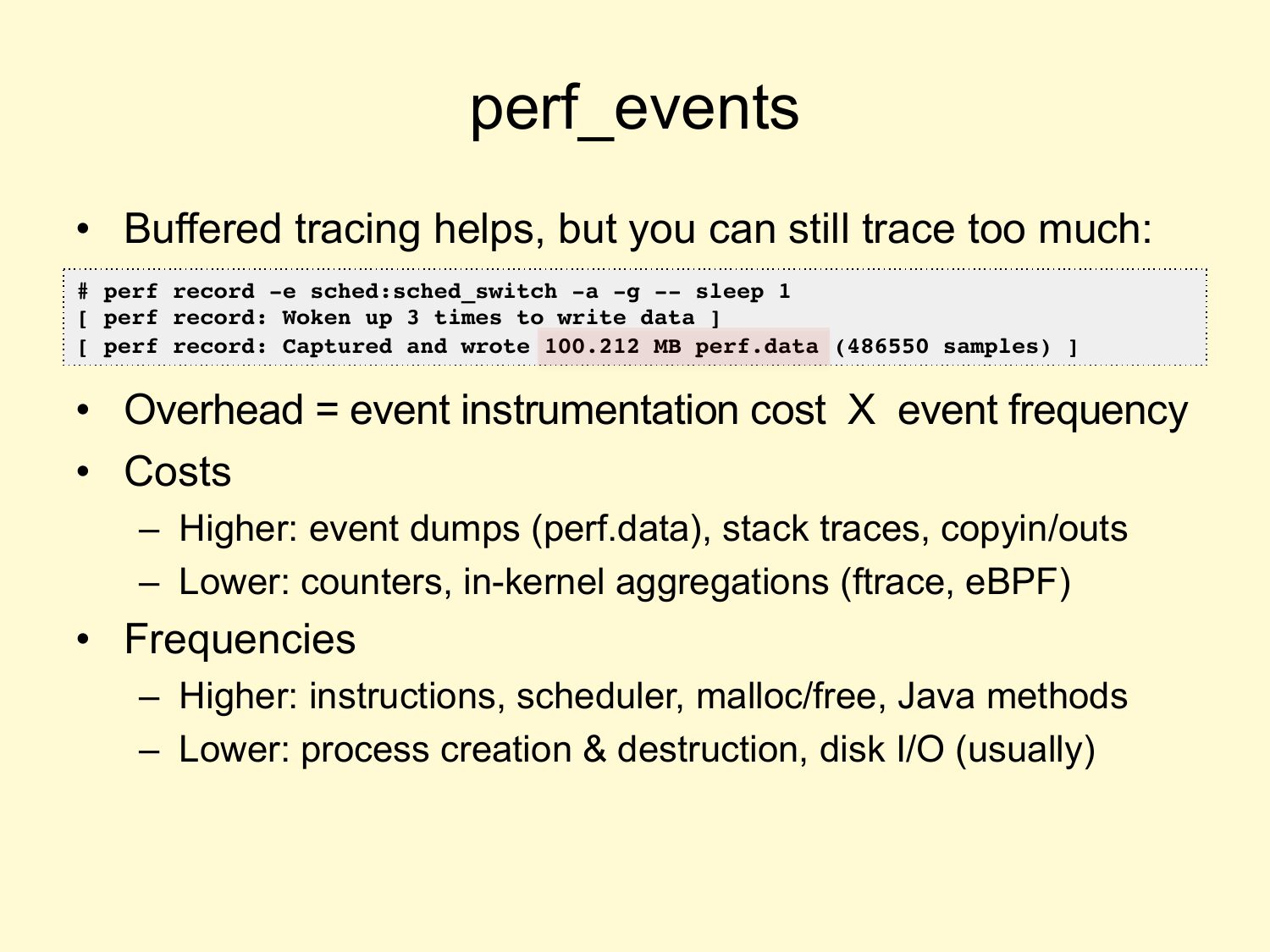

perf_events • Buffered tracing helps, but you can still trace too much: # perf record -e sched:sched_switch -a -g -- sleep 1 [ perf record: Woken up 3 times to write data ] [ perf record: Captured and wrote 100.212 MB perf.data (486550 samples) ] • Overhead = event instrumentation cost X event frequency • Costs – Higher: event dumps (perf.data), stack traces, copyin/outs – Lower: counters, in-kernel aggregations (ftrace, eBPF) • Frequencies – Higher: instructions, scheduler, malloc/free, Java methods – Lower: process creation & destruction, disk I/O (usually)slide 54:
VALGRINDslide 55:

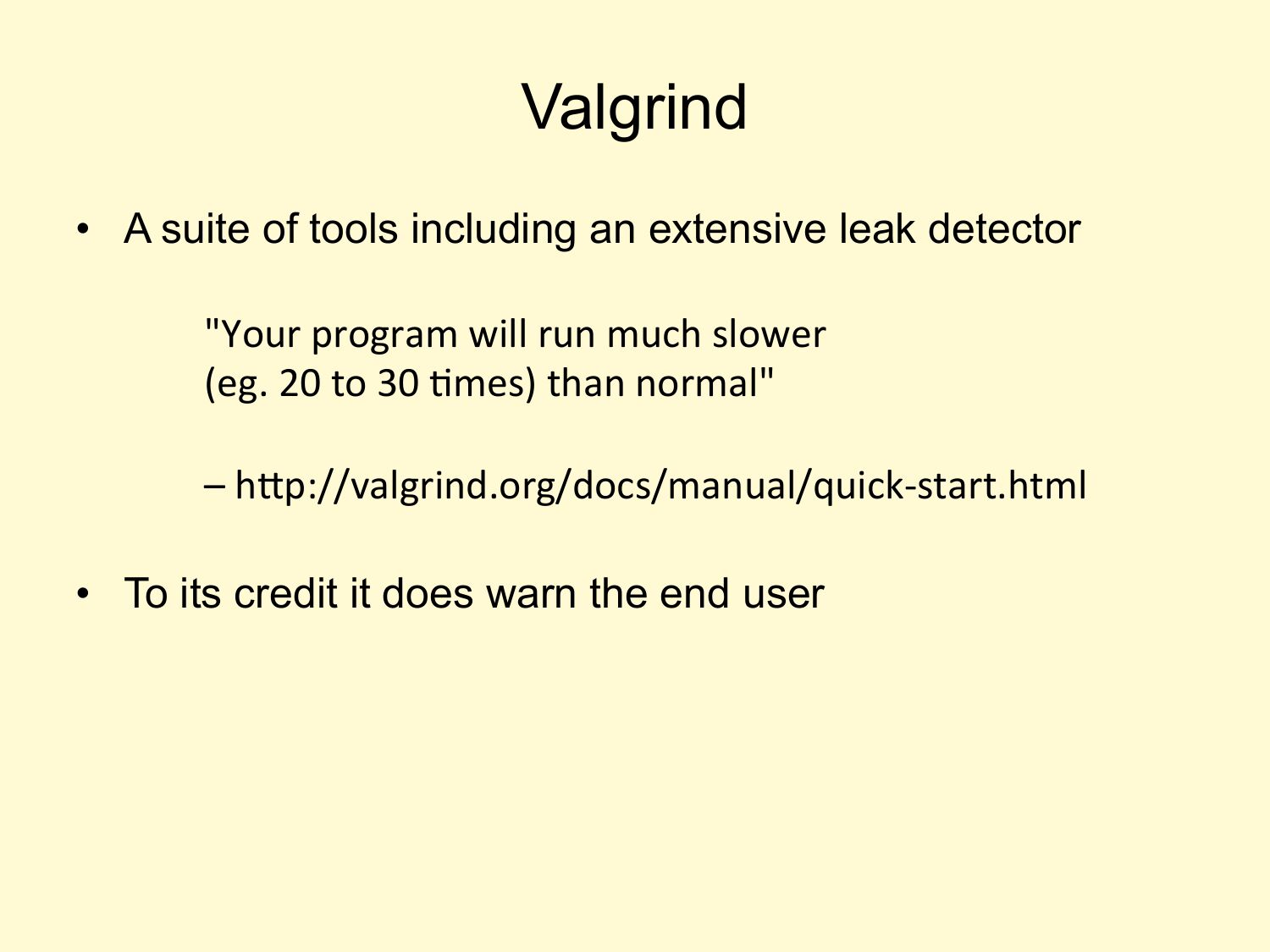

Valgrind • A suite of tools including an extensive leak detector "Your program will run much slower (eg. 20 to 30 Omes) than normal" – h:p://valgrind.org/docs/manual/quick-‐start.html • To its credit it does warn the end userslide 56:
JAVA PROFILERSslide 57:

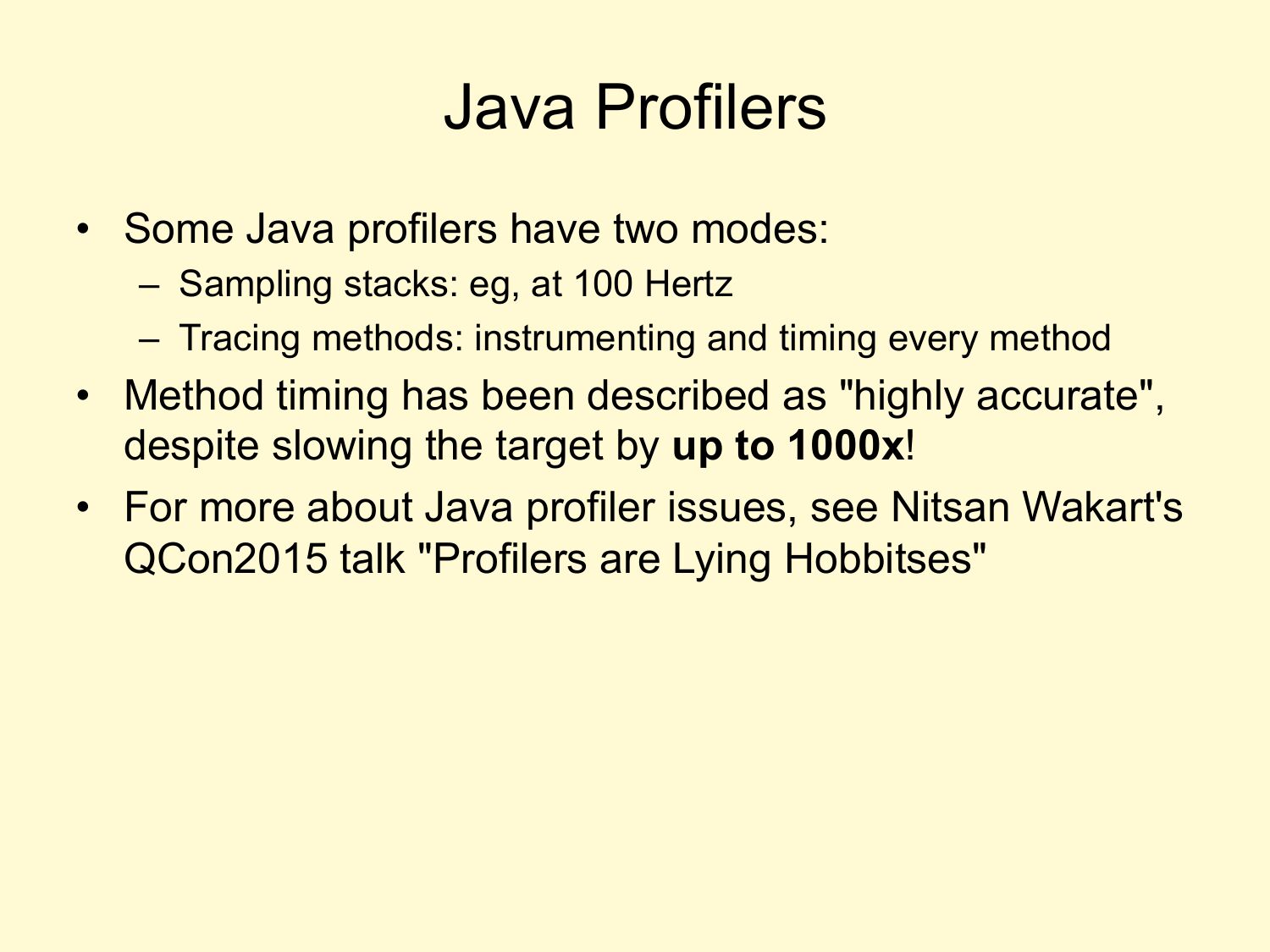

Java Profilers • Some Java profilers have two modes: – Sampling stacks: eg, at 100 Hertz – Tracing methods: instrumenting and timing every method • Method timing has been described as "highly accurate", despite slowing the target by up to 1000x! • For more about Java profiler issues, see Nitsan Wakart's QCon2015 talk "Profilers are Lying Hobbitses"slide 58:

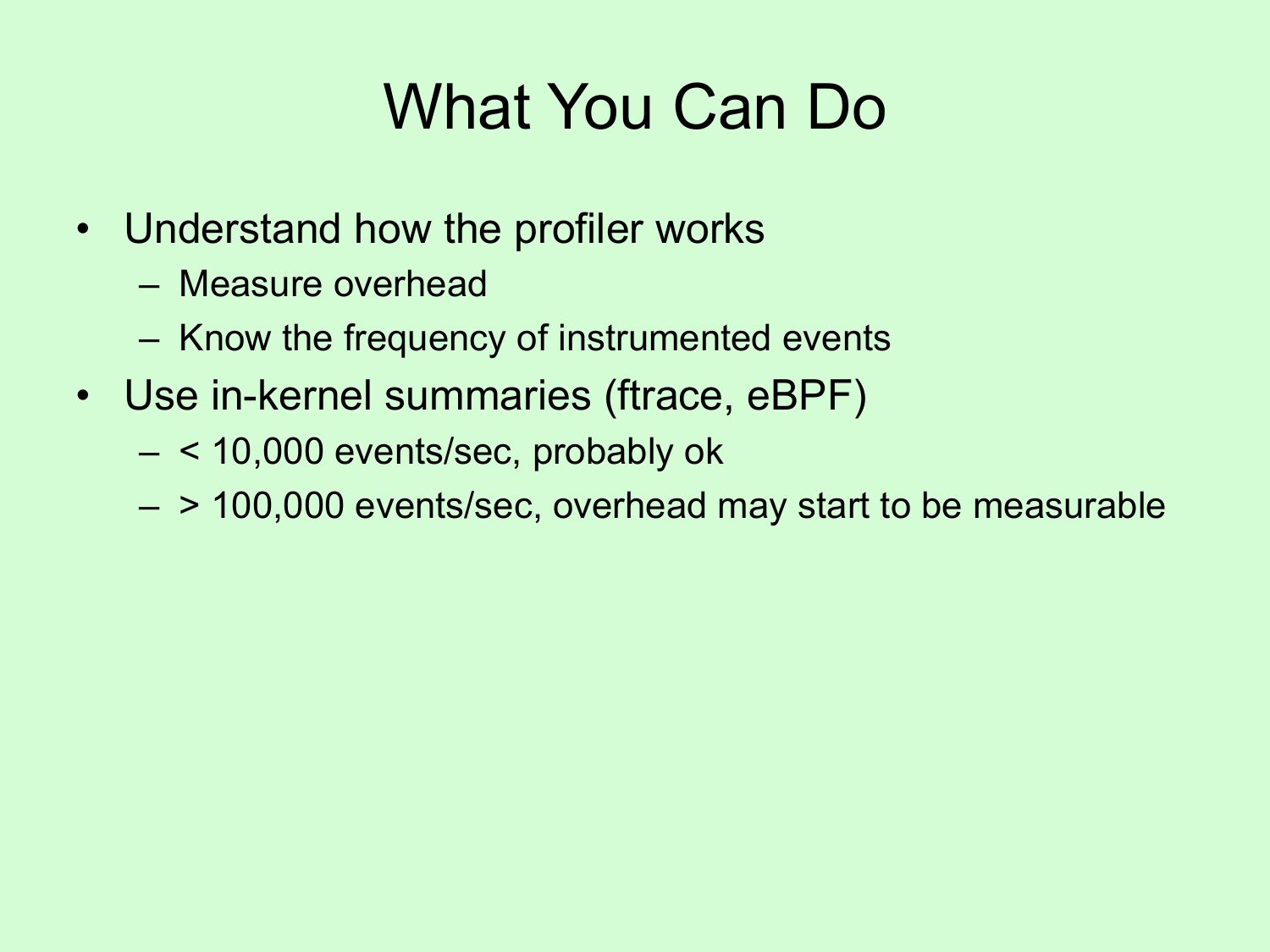

What You Can Do • Understand how the profiler works – Measure overhead – Know the frequency of instrumented events • Use in-kernel summaries (ftrace, eBPF) –slide 59:gt; 100,000 events/sec, overhead may start to be measurable
MONITORINGslide 60:

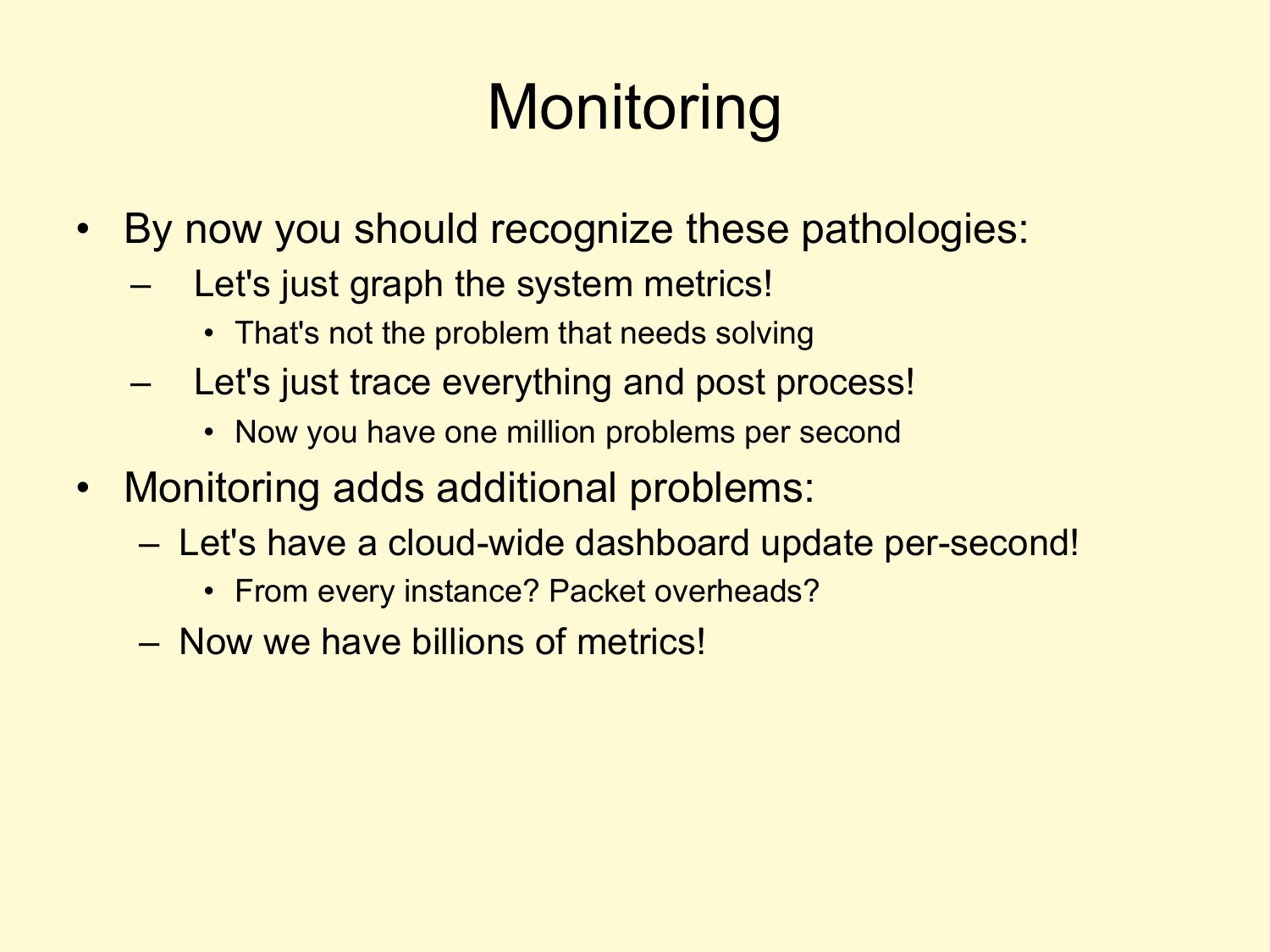

Monitoring • By now you should recognize these pathologies: Let's just graph the system metrics! • That's not the problem that needs solving Let's just trace everything and post process! • Now you have one million problems per second • Monitoring adds additional problems: – Let's have a cloud-wide dashboard update per-second! • From every instance? Packet overheads? – Now we have billions of metrics!slide 61:
STATISTICS "Then there is the man who drowned crossing a stream with an average depth of six inches." – W.I.E. Gatesslide 62:

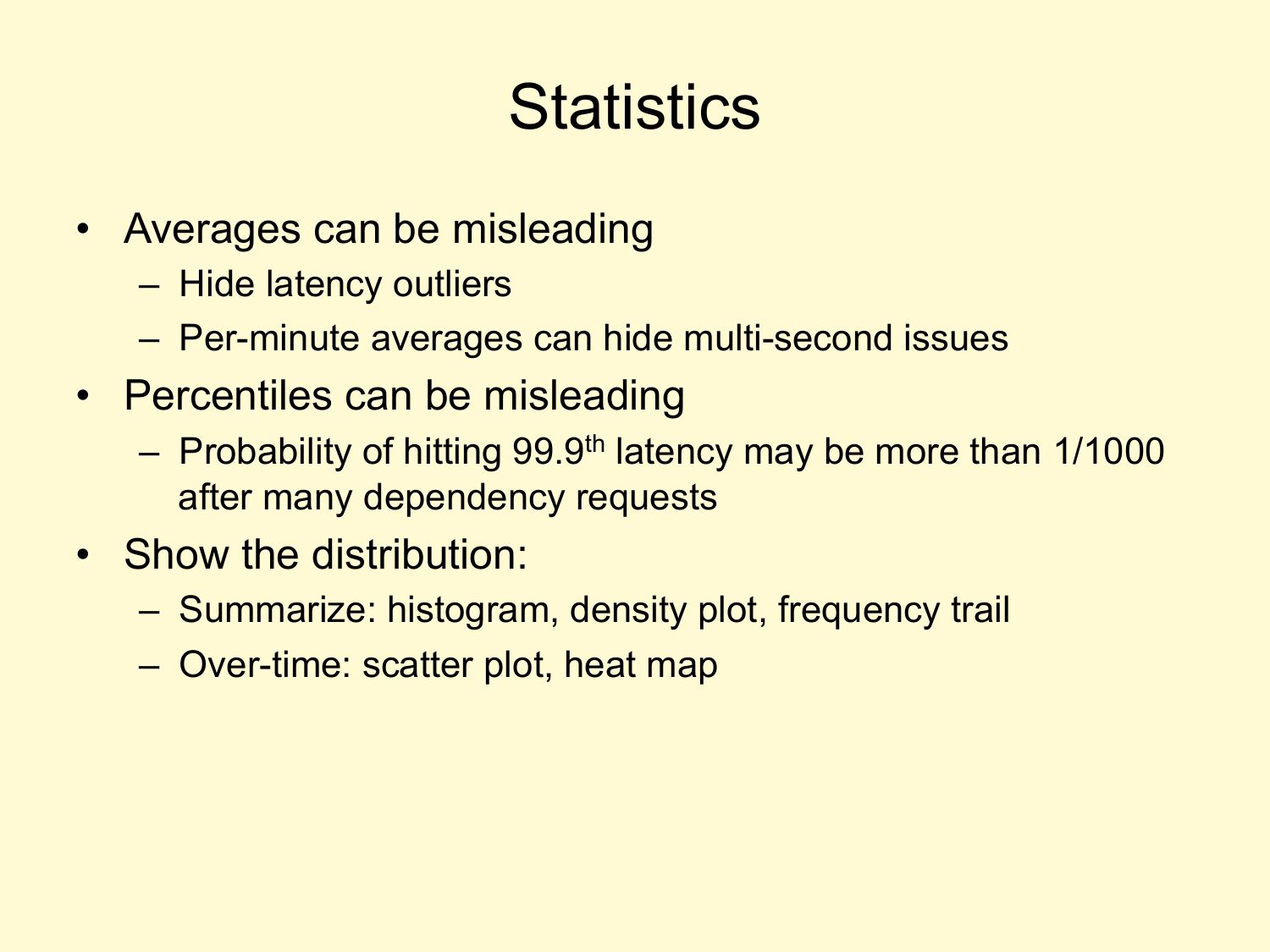

Statistics • Averages can be misleading – Hide latency outliers – Per-minute averages can hide multi-second issues • Percentiles can be misleading – Probability of hitting 99.9th latency may be more than 1/1000 after many dependency requests • Show the distribution: – Summarize: histogram, density plot, frequency trail – Over-time: scatter plot, heat mapslide 63:

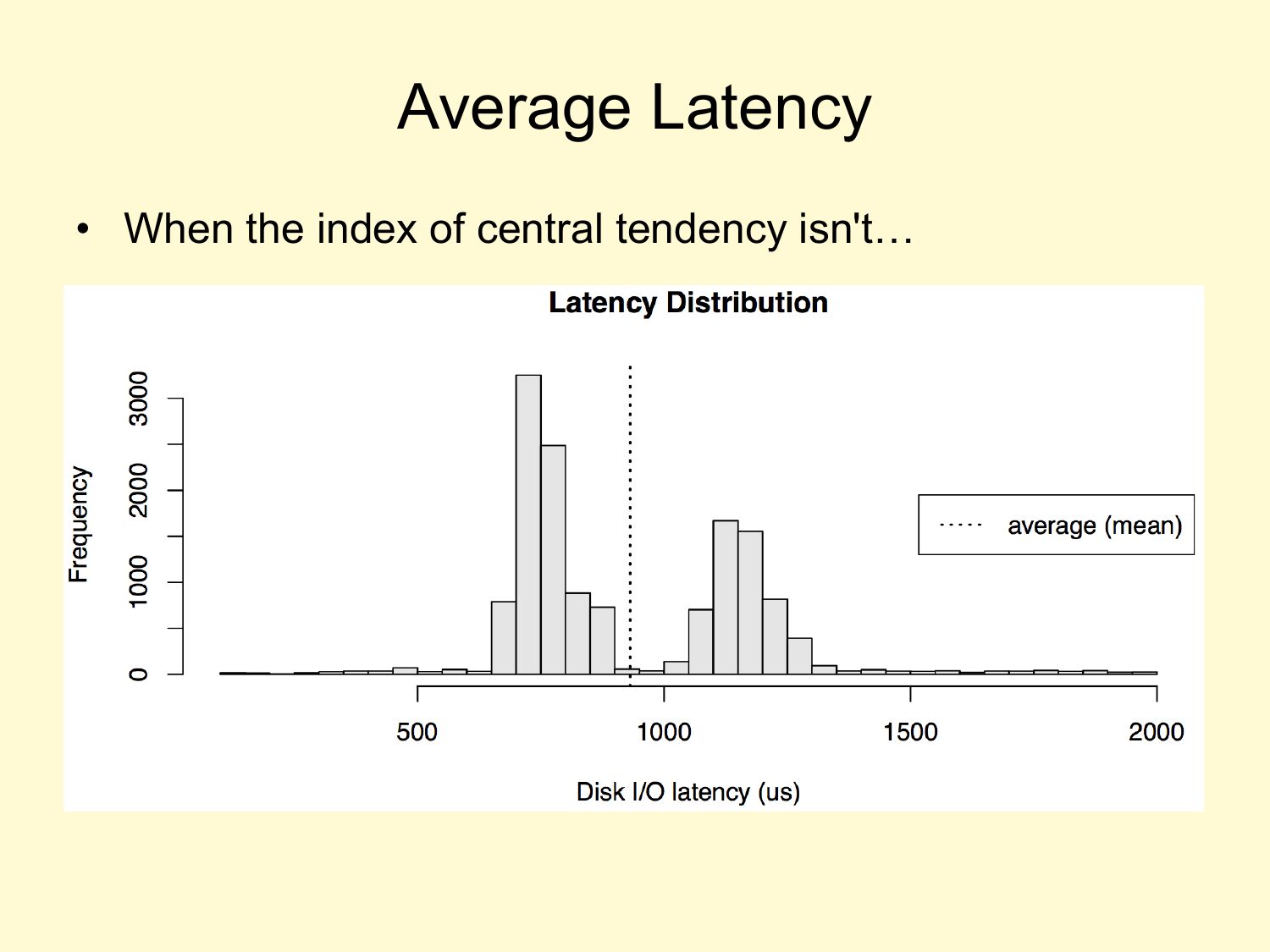

Average Latency • When the index of central tendency isn't…slide 64:
VISUALIZATIONSslide 65:

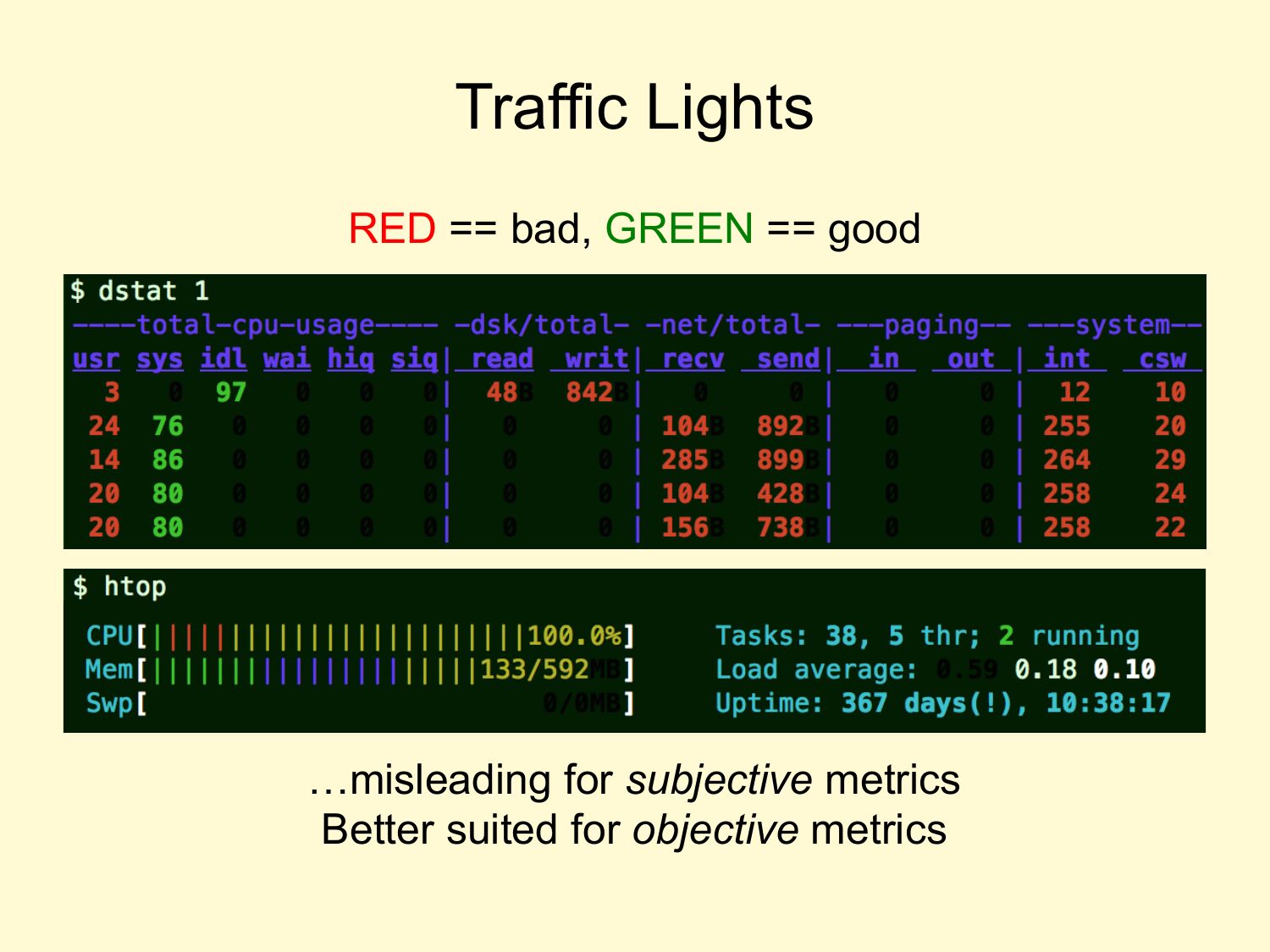

Traffic Lights RED == bad, GREEN == good …misleading for subjective metrics Better suited for objective metricsslide 66:
Tachometers …especially with arbitrary color highlightingslide 67:

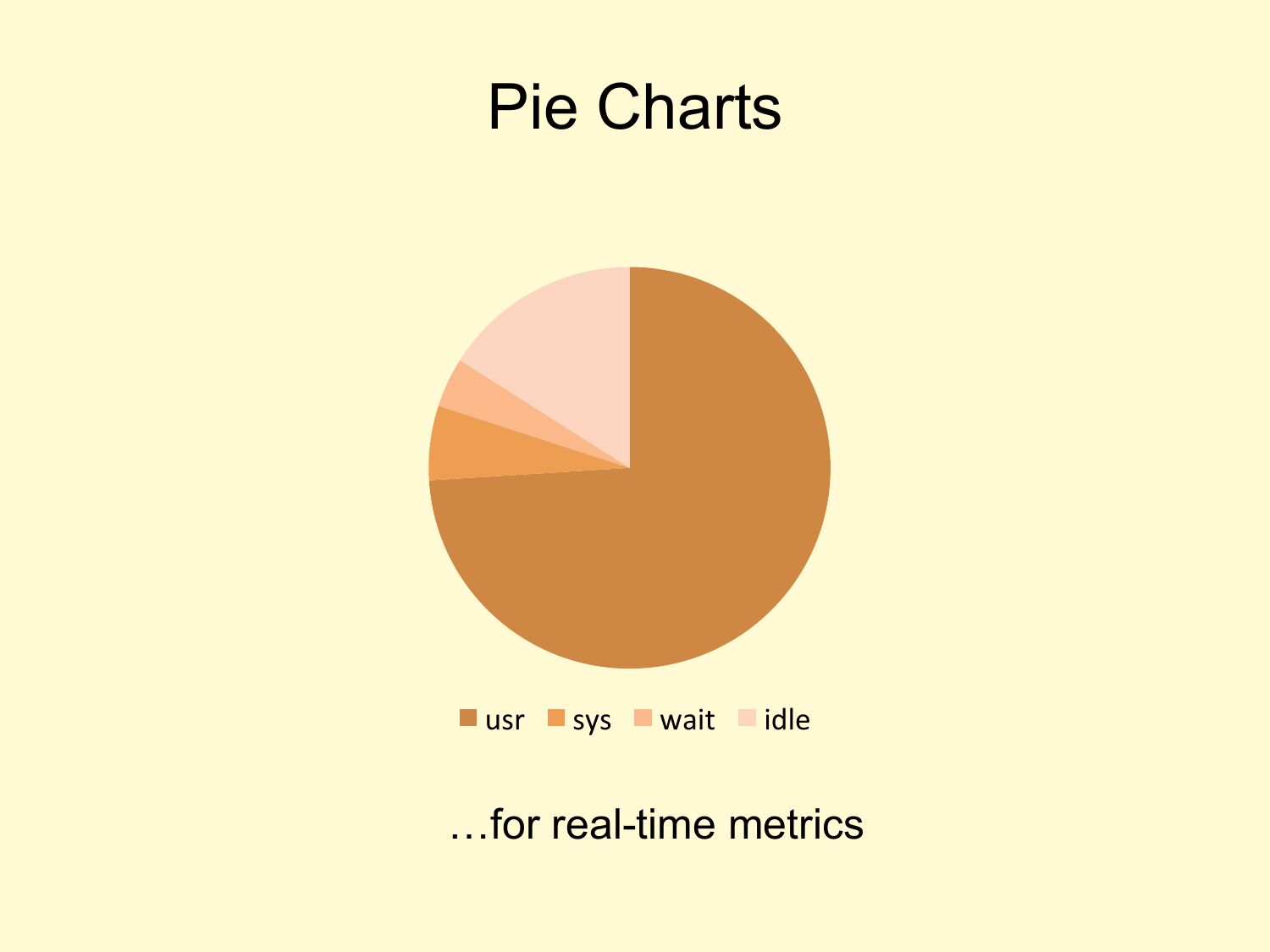

Pie Charts usr sys wait idle …for real-time metricsslide 68:

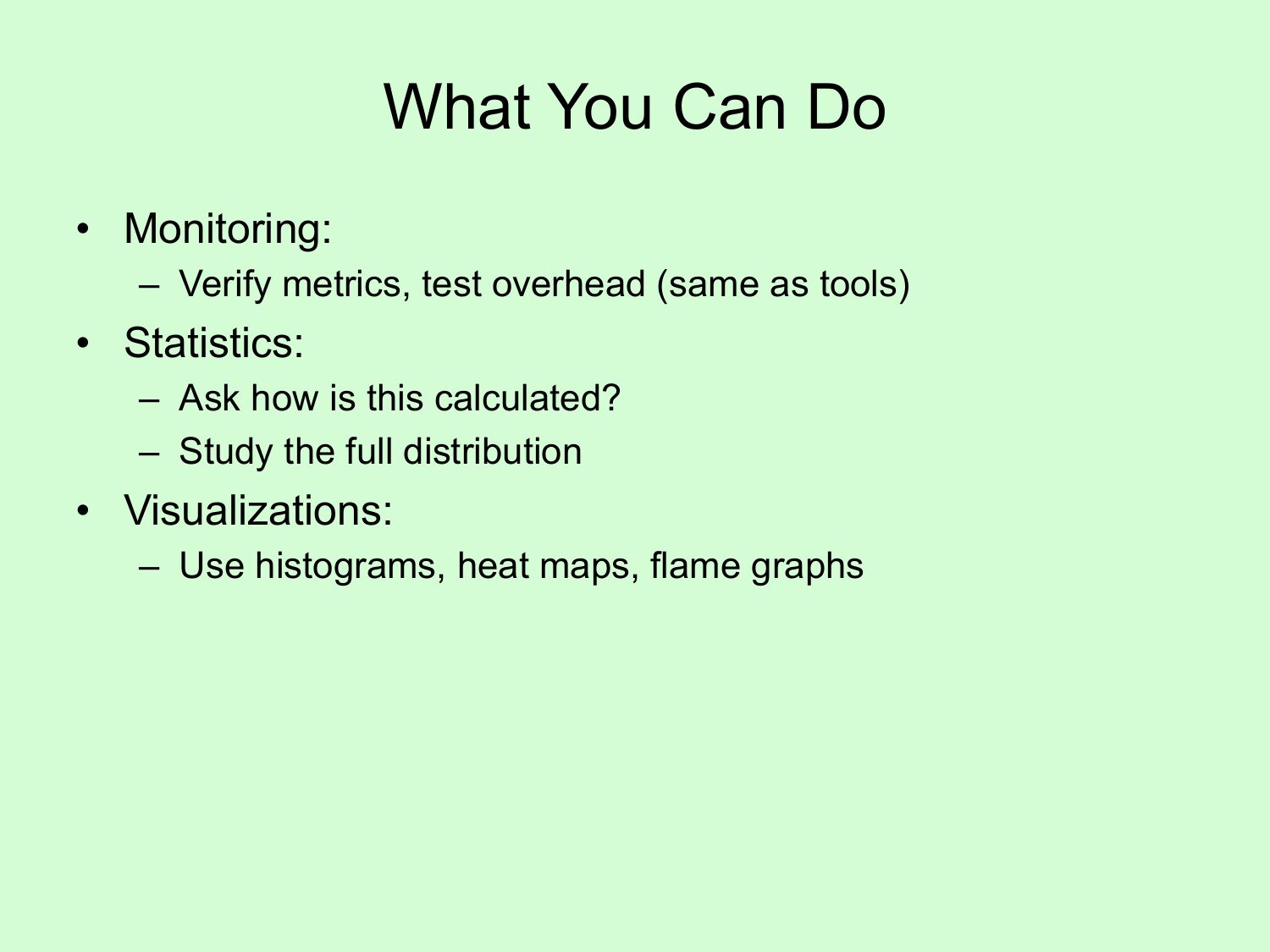

What You Can Do • Monitoring: – Verify metrics, test overhead (same as tools) • Statistics: – Ask how is this calculated? – Study the full distribution • Visualizations: – Use histograms, heat maps, flame graphsslide 69:
BENCHMARKING Benchmarks Macro Common Mistakes Kitchen-Sink bonnie++ Micro Apache Benchslide 70:
BENCHMARKSslide 71:

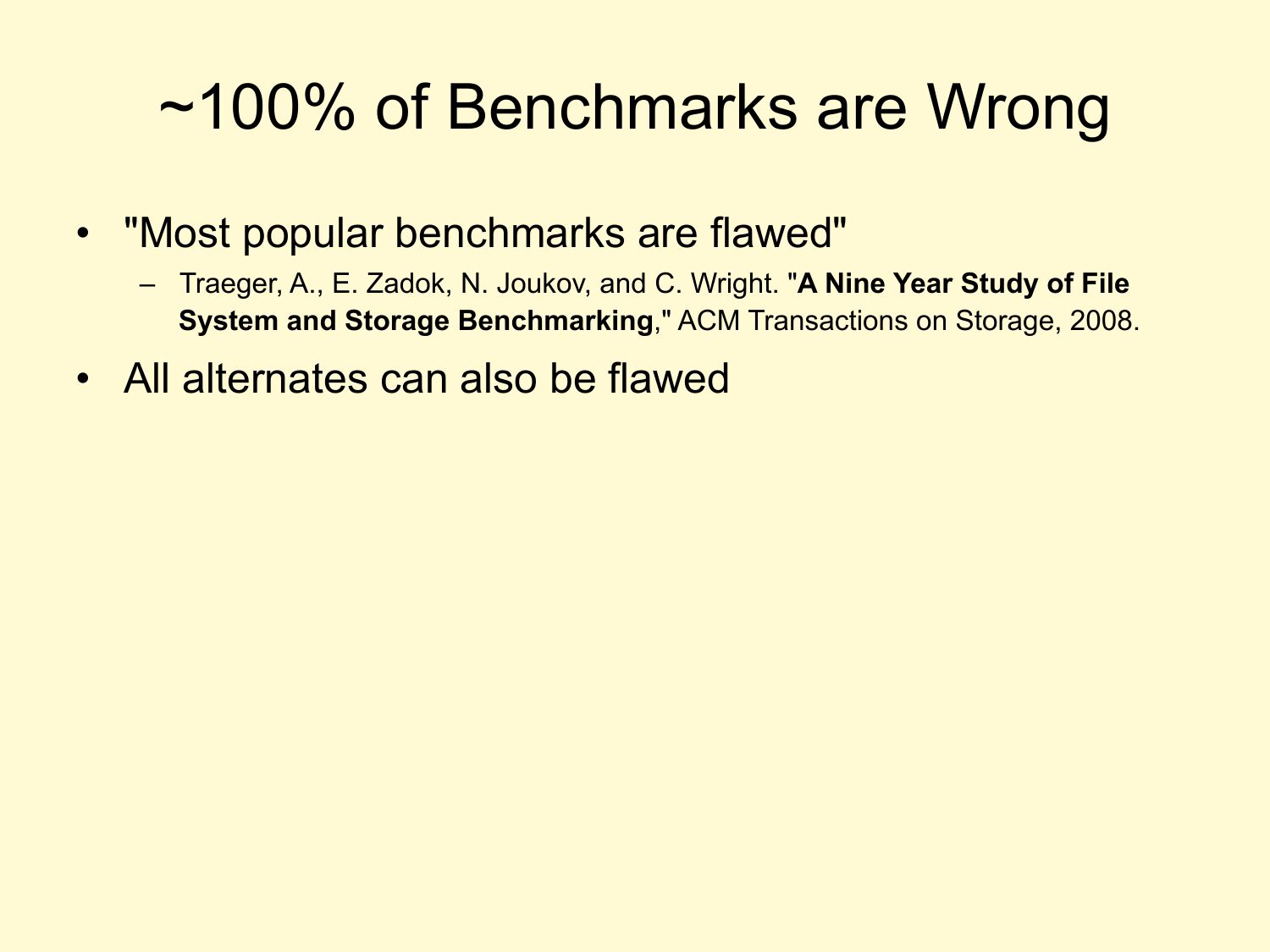

~100% of Benchmarks are Wrong • "Most popular benchmarks are flawed" – Traeger, A., E. Zadok, N. Joukov, and C. Wright. "A Nine Year Study of File System and Storage Benchmarking," ACM Transactions on Storage, 2008. • All alternates can also be flawedslide 72:
COMMON MISTAKESslide 73:

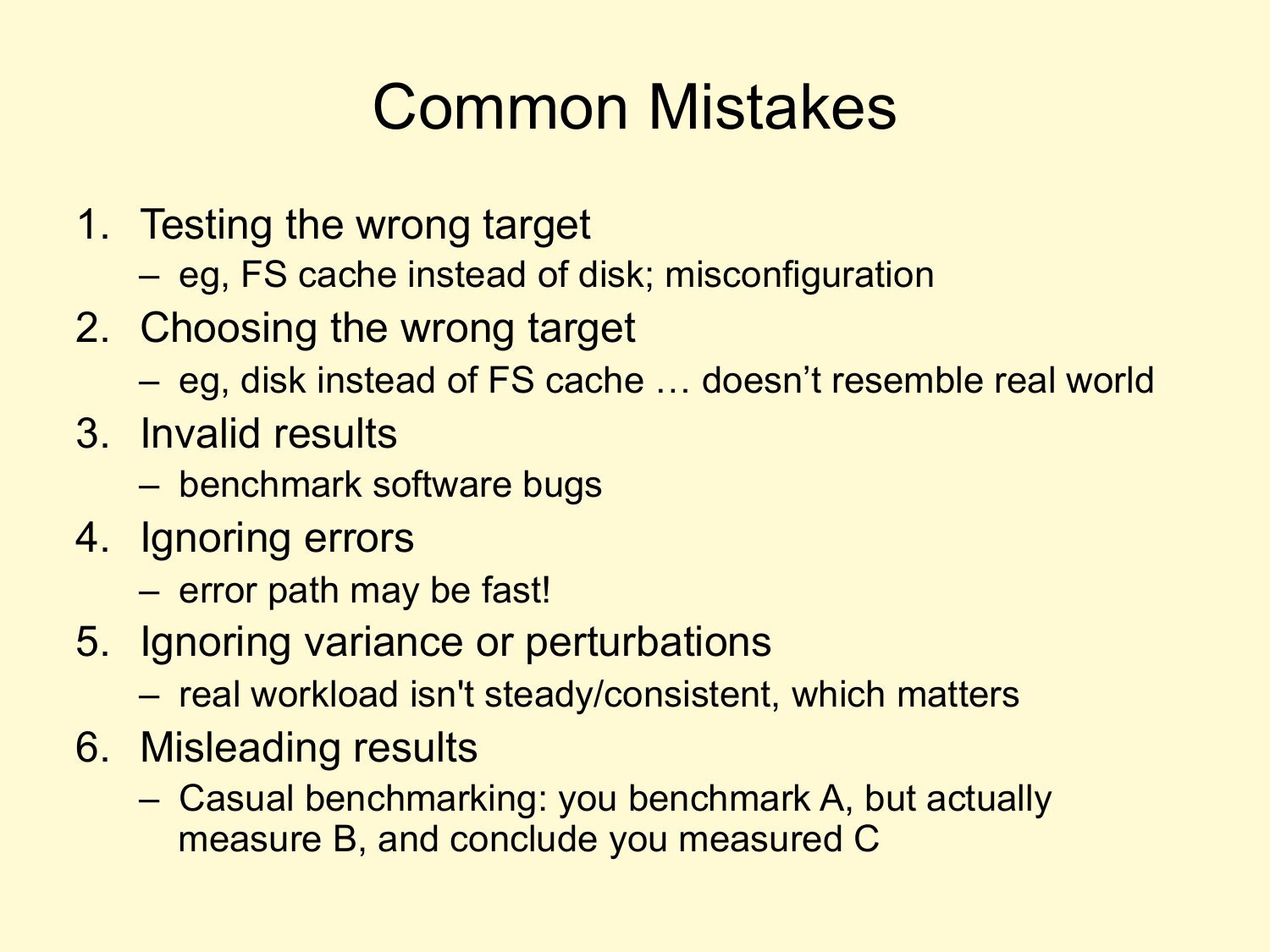

Common Mistakes 1. Testing the wrong target – eg, FS cache instead of disk; misconfiguration 2. Choosing the wrong target – eg, disk instead of FS cache … doesn’t resemble real world 3. Invalid results – benchmark software bugs 4. Ignoring errors – error path may be fast! 5. Ignoring variance or perturbations – real workload isn't steady/consistent, which matters 6. Misleading results – Casual benchmarking: you benchmark A, but actually measure B, and conclude you measured Cslide 74:
MICRO BENCHMARKSslide 75:

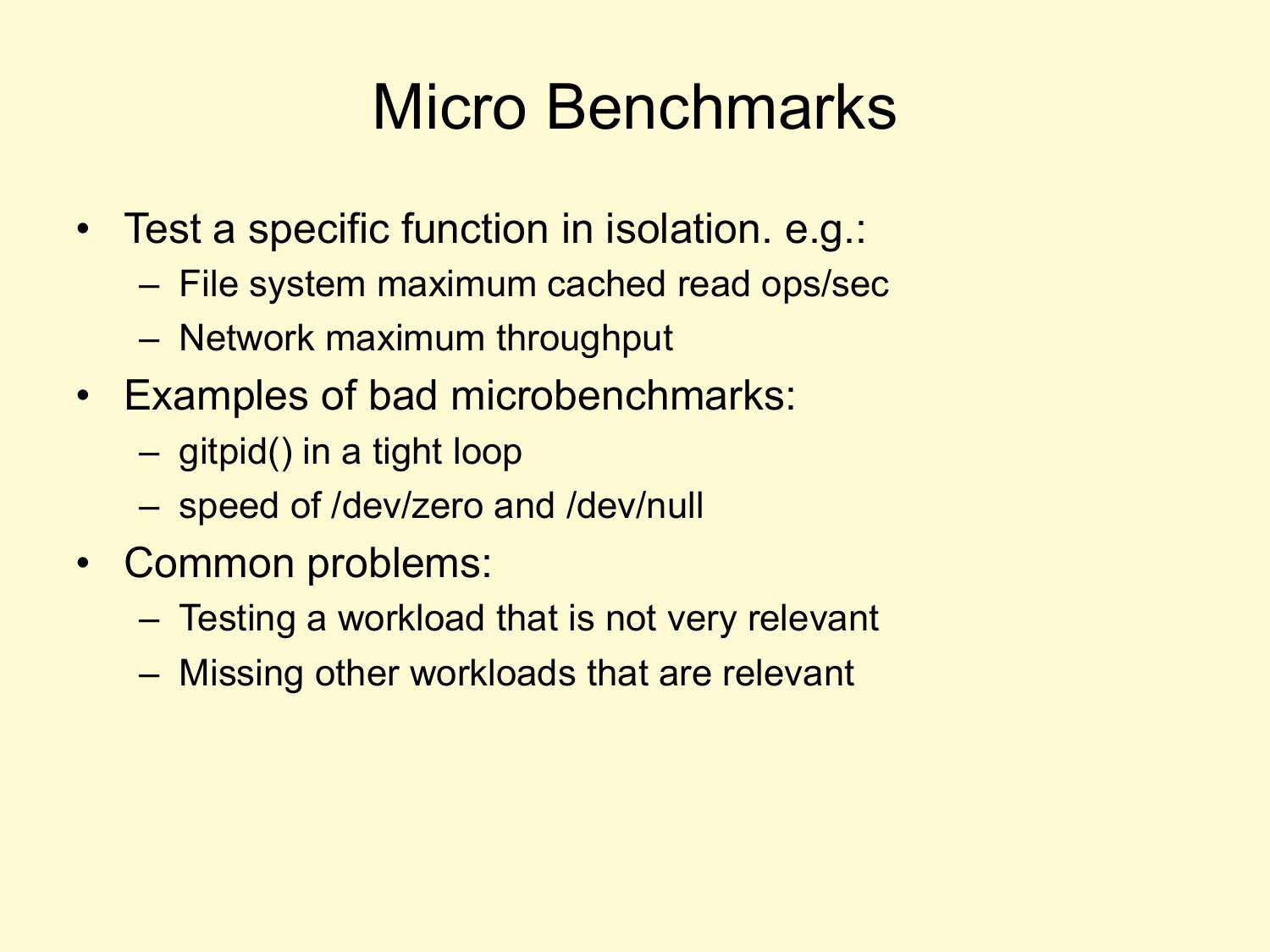

Micro Benchmarks • Test a specific function in isolation. e.g.: – File system maximum cached read ops/sec – Network maximum throughput • Examples of bad microbenchmarks: – gitpid() in a tight loop – speed of /dev/zero and /dev/null • Common problems: – Testing a workload that is not very relevant – Missing other workloads that are relevantslide 76:
MACRO BENCHMARKSslide 77:

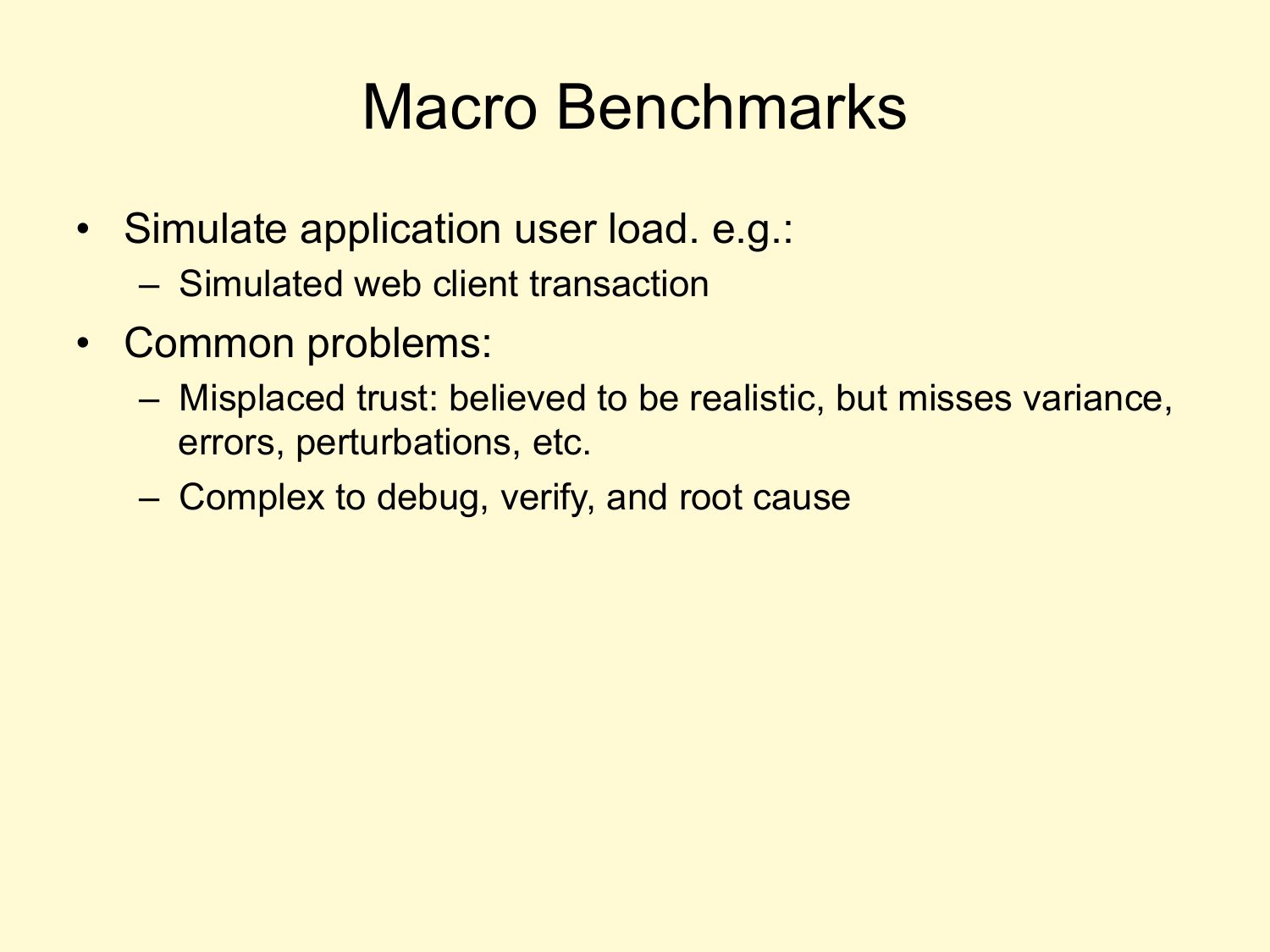

Macro Benchmarks • Simulate application user load. e.g.: – Simulated web client transaction • Common problems: – Misplaced trust: believed to be realistic, but misses variance, errors, perturbations, etc. – Complex to debug, verify, and root causeslide 78:
KITCHEN SINK BENCHMARKSslide 79:

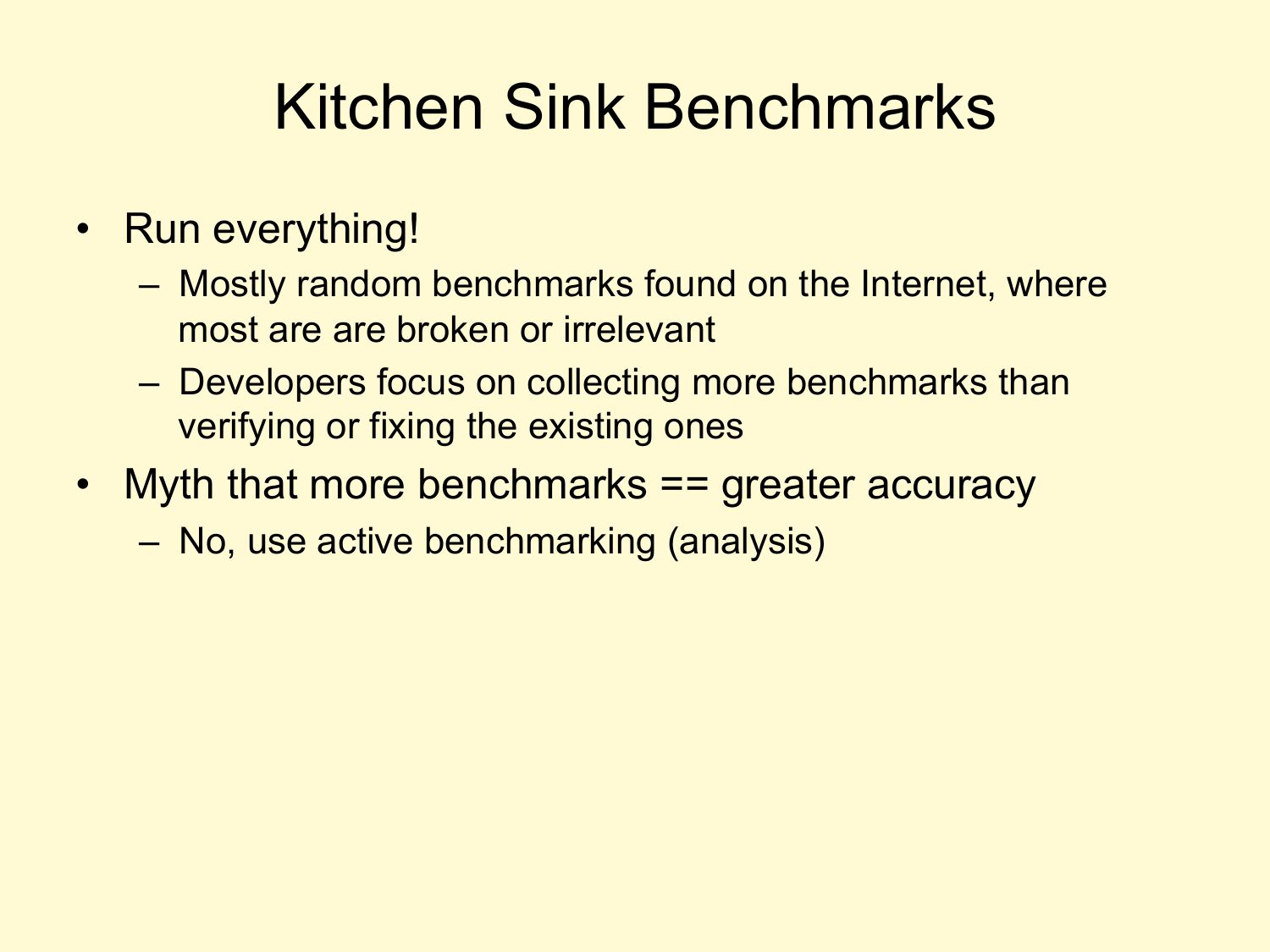

Kitchen Sink Benchmarks • Run everything! – Mostly random benchmarks found on the Internet, where most are are broken or irrelevant – Developers focus on collecting more benchmarks than verifying or fixing the existing ones • Myth that more benchmarks == greater accuracy – No, use active benchmarking (analysis)slide 80:
BONNIE++slide 81:

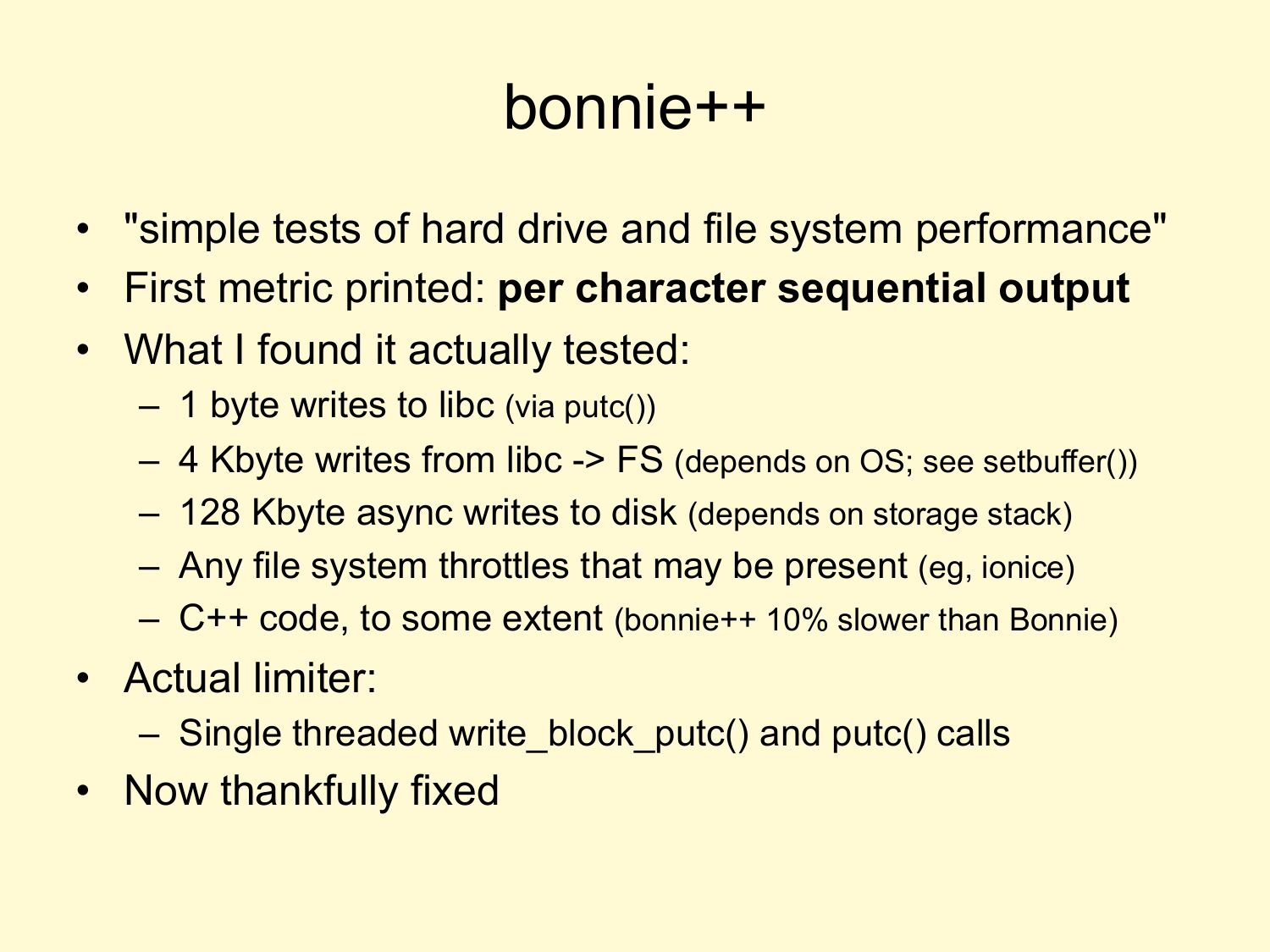

bonnie++ • "simple tests of hard drive and file system performance" • First metric printed: per character sequential output • What I found it actually tested: – 1 byte writes to libc (via putc()) – 4 Kbyte writes from libc ->gt; FS (depends on OS; see setbuffer()) – 128 Kbyte async writes to disk (depends on storage stack) – Any file system throttles that may be present (eg, ionice) – C++ code, to some extent (bonnie++ 10% slower than Bonnie) • Actual limiter: – Single threaded write_block_putc() and putc() calls • Now thankfully fixedslide 82:
APACHE BENCHslide 83:

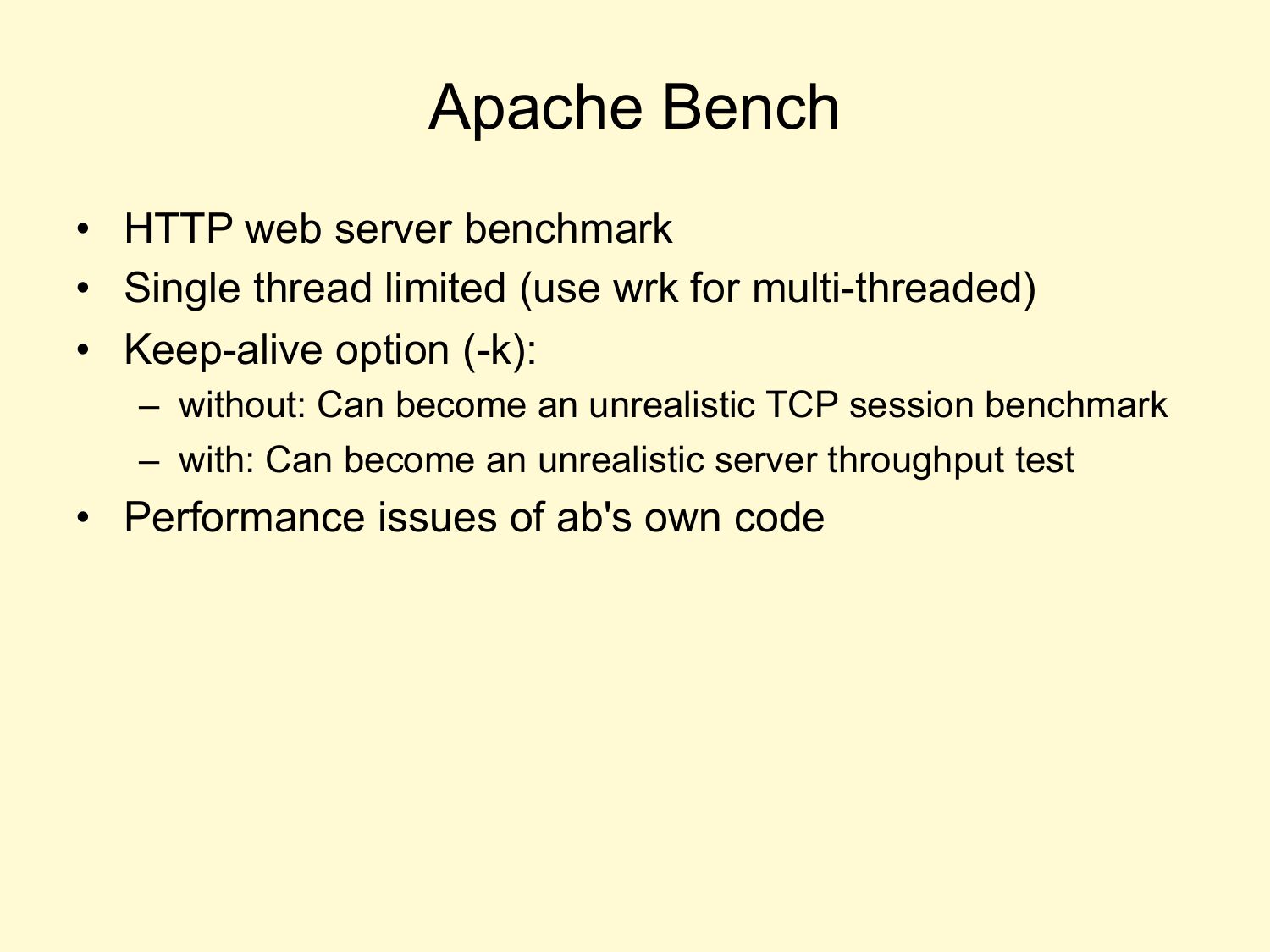

Apache Bench • HTTP web server benchmark • Single thread limited (use wrk for multi-threaded) • Keep-alive option (-k): – without: Can become an unrealistic TCP session benchmark – with: Can become an unrealistic server throughput test • Performance issues of ab's own codeslide 84:
UNIXBENCHslide 85:

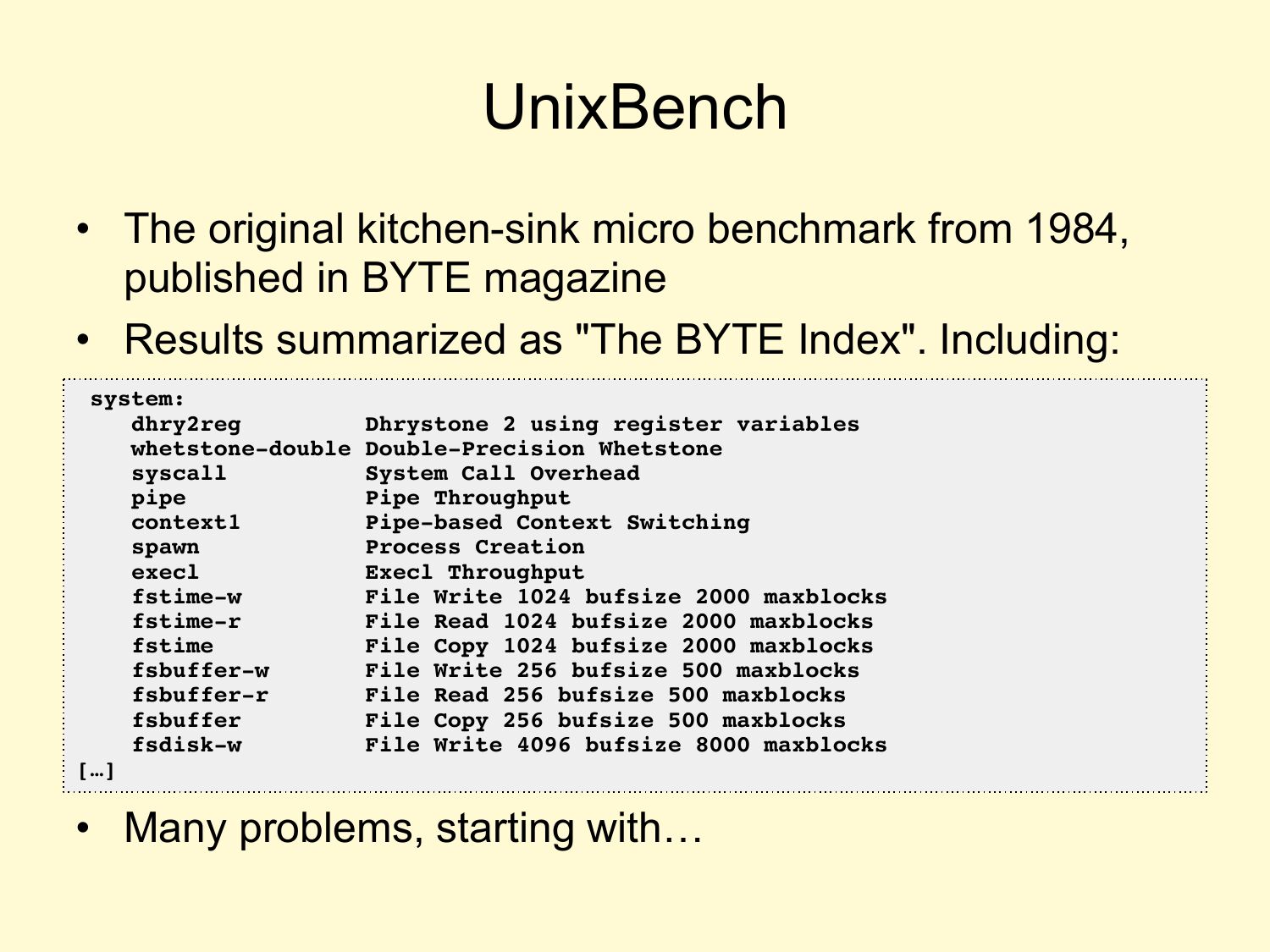

UnixBench • The original kitchen-sink micro benchmark from 1984, published in BYTE magazine • Results summarized as "The BYTE Index". Including: system: dhry2reg Dhrystone 2 using register variables whetstone-double Double-Precision Whetstone syscall System Call Overhead pipe Pipe Throughput context1 Pipe-based Context Switching spawn Process Creation execl Execl Throughput fstime-w File Write 1024 bufsize 2000 maxblocks fstime-r File Read 1024 bufsize 2000 maxblocks fstime File Copy 1024 bufsize 2000 maxblocks fsbuffer-w File Write 256 bufsize 500 maxblocks fsbuffer-r File Read 256 bufsize 500 maxblocks fsbuffer File Copy 256 bufsize 500 maxblocks fsdisk-w File Write 4096 bufsize 8000 maxblocks […] • Many problems, starting with…slide 86:

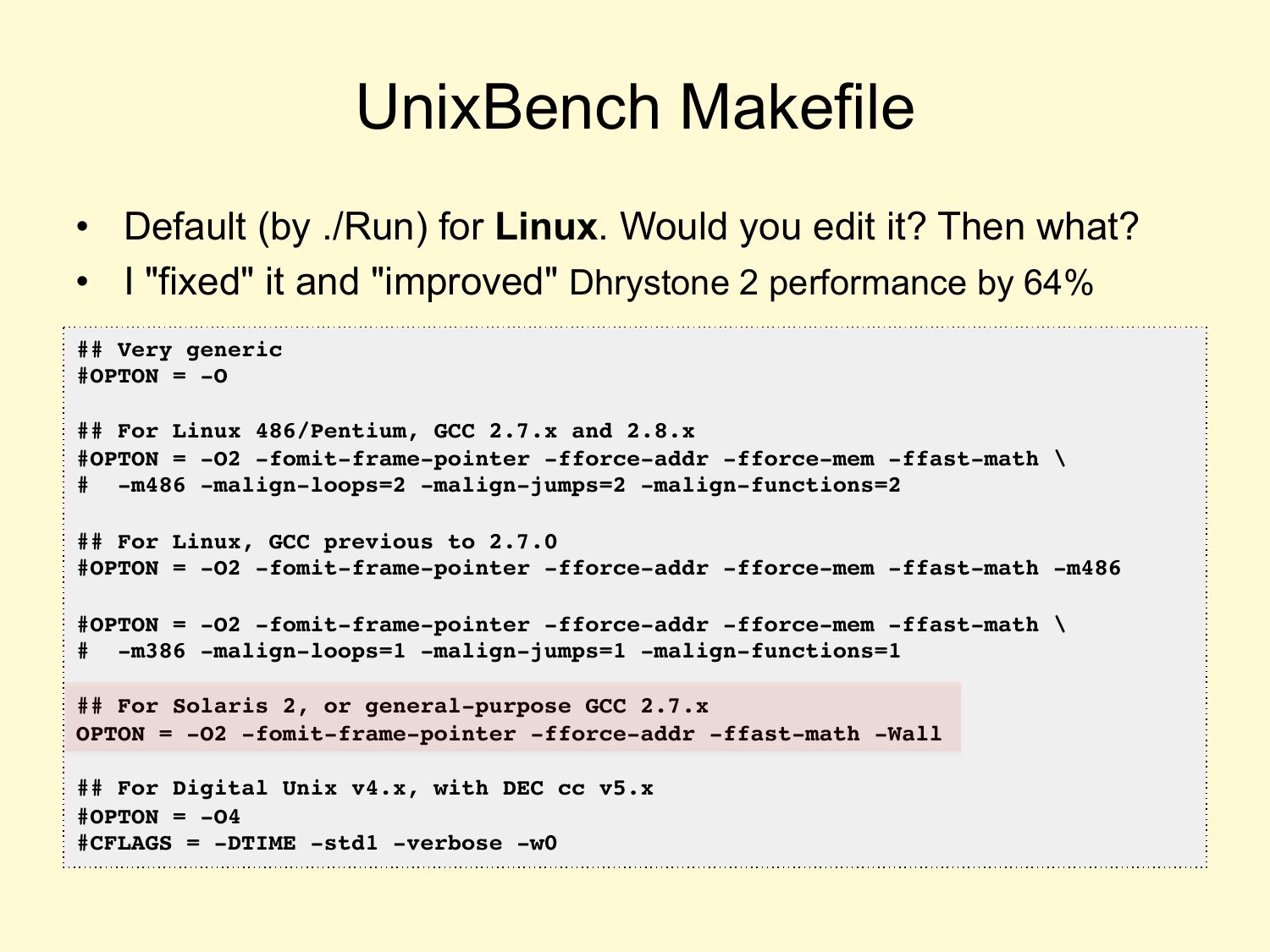

UnixBench Makefile • Default (by ./Run) for Linux. Would you edit it? Then what? • I "fixed" it and "improved" Dhrystone 2 performance by 64% ## Very generic #OPTON = -O ## For Linux 486/Pentium, GCC 2.7.x and 2.8.x #OPTON = -O2 -fomit-frame-pointer -fforce-addr -fforce-mem -ffast-math \ # -m486 -malign-loops=2 -malign-jumps=2 -malign-functions=2 ## For Linux, GCC previous to 2.7.0 #OPTON = -O2 -fomit-frame-pointer -fforce-addr -fforce-mem -ffast-math -m486 #OPTON = -O2 -fomit-frame-pointer -fforce-addr -fforce-mem -ffast-math \ # -m386 -malign-loops=1 -malign-jumps=1 -malign-functions=1 ## For Solaris 2, or general-purpose GCC 2.7.x OPTON = -O2 -fomit-frame-pointer -fforce-addr -ffast-math -Wall ## For Digital Unix v4.x, with DEC cc v5.x #OPTON = -O4 #CFLAGS = -DTIME -std1 -verbose -w0slide 87:

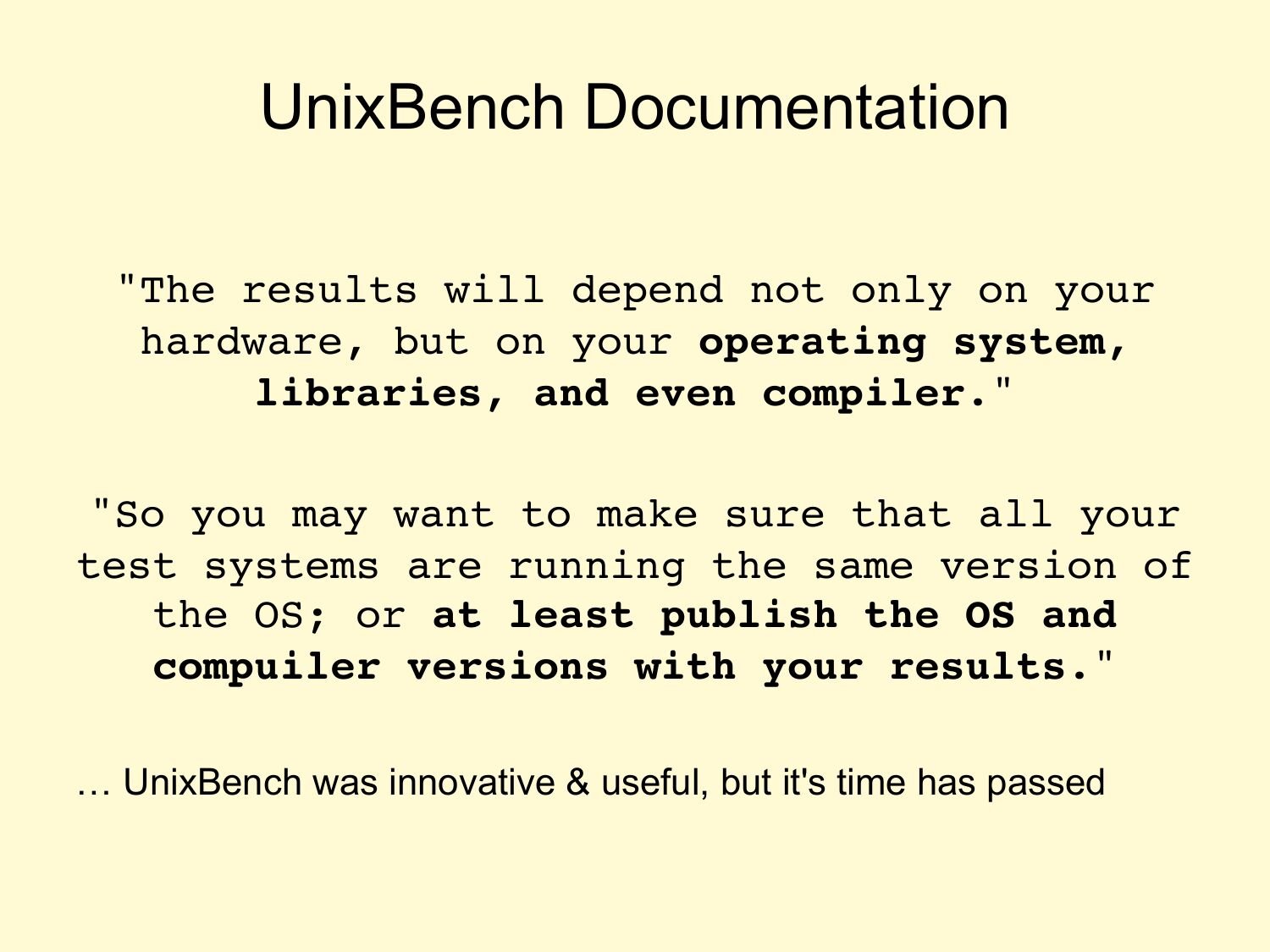

UnixBench Documentation "The results will depend not only on your hardware, but on your operating system, libraries, and even compiler." "So you may want to make sure that all your test systems are running the same version of the OS; or at least publish the OS and compuiler versions with your results." … UnixBench was innovative & useful, but it's time has passedslide 88:

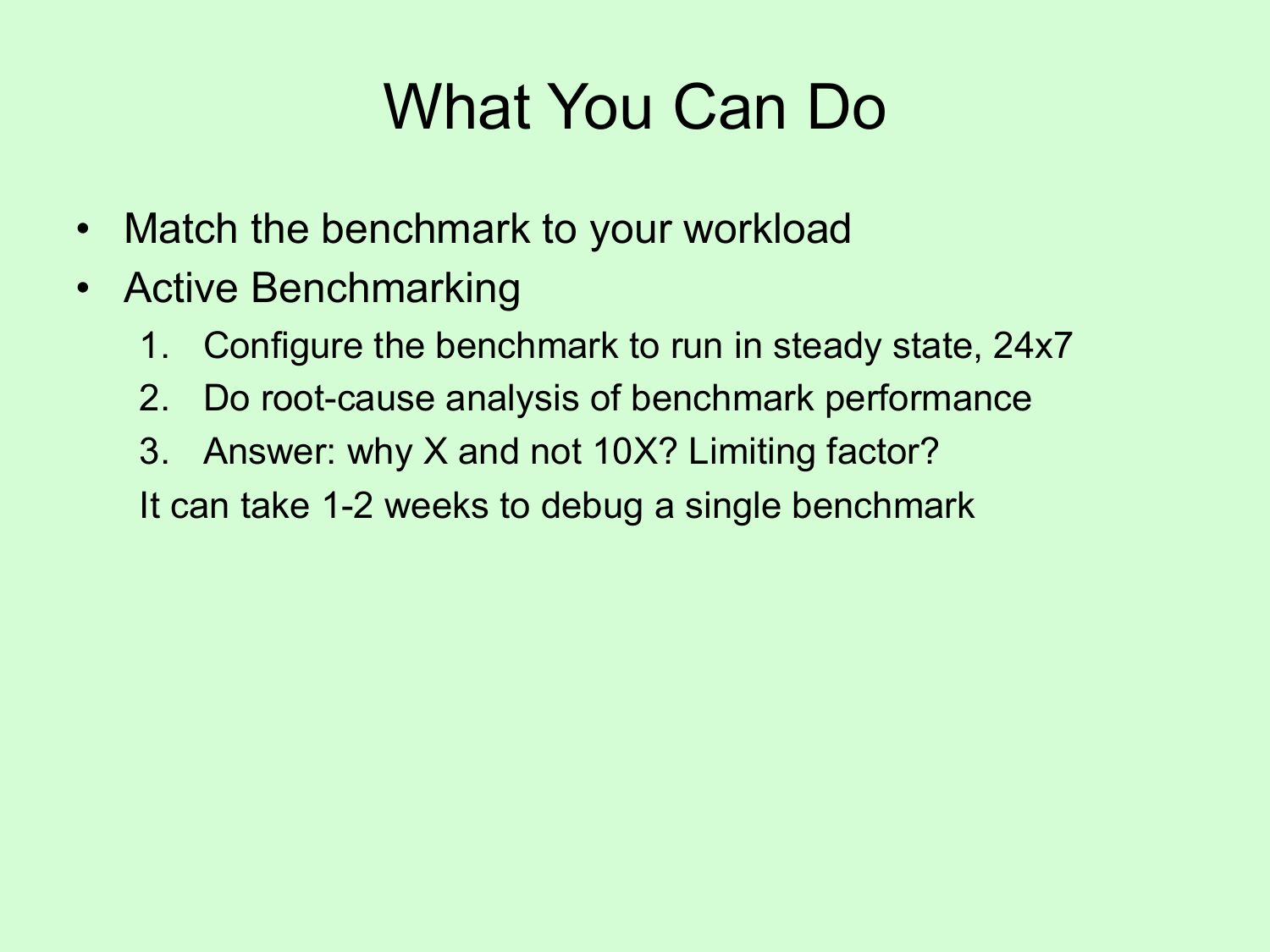

What You Can Do • Match the benchmark to your workload • Active Benchmarking 1. Configure the benchmark to run in steady state, 24x7 2. Do root-cause analysis of benchmark performance 3. Answer: why X and not 10X? Limiting factor? It can take 1-2 weeks to debug a single benchmarkslide 89:
Summaryslide 90:

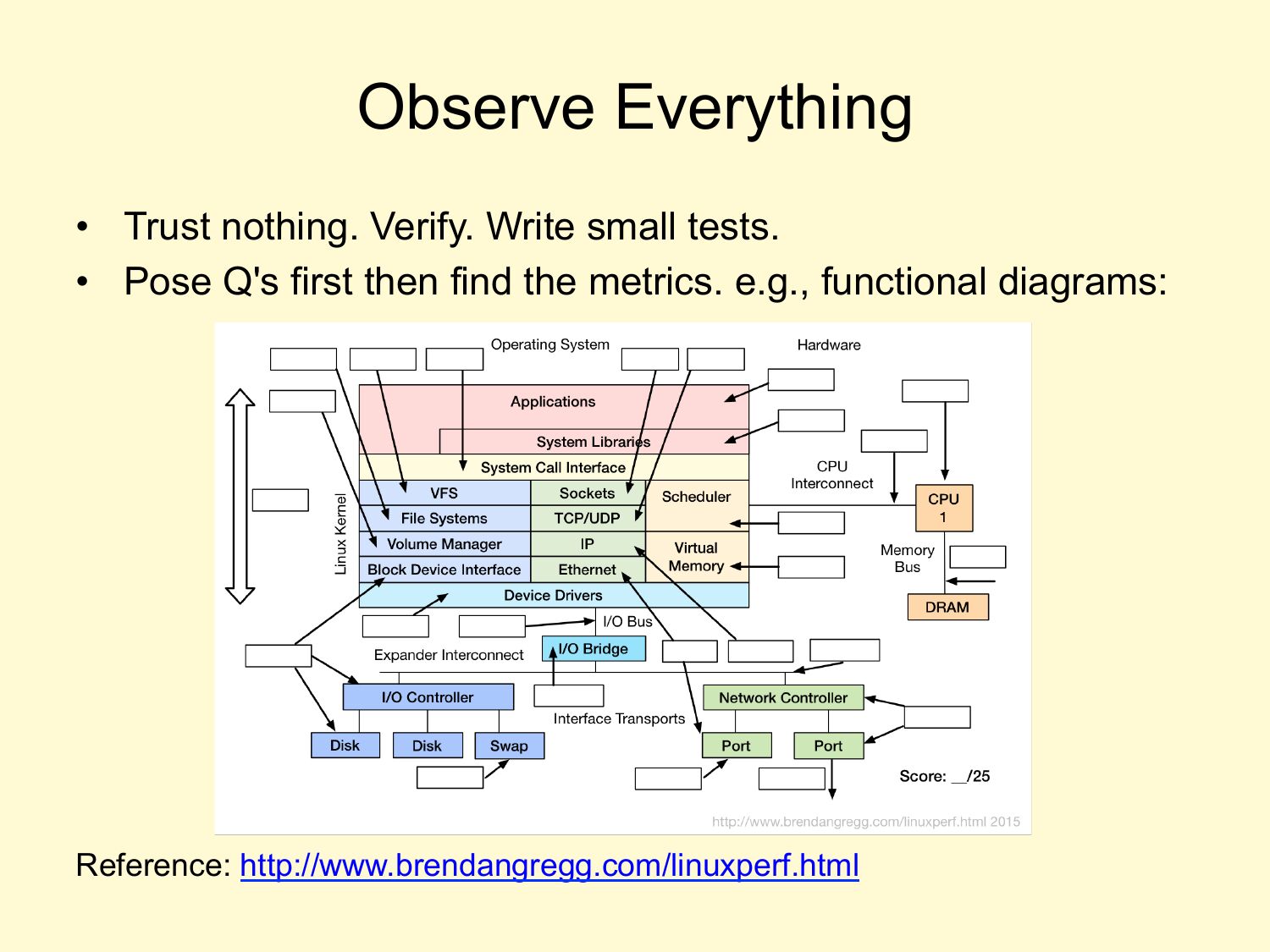

Observe Everything • Trust nothing. Verify. Write small tests. • Pose Q's first then find the metrics. e.g., functional diagrams: Reference: http://www.brendangregg.com/linuxperf.htmlslide 91:

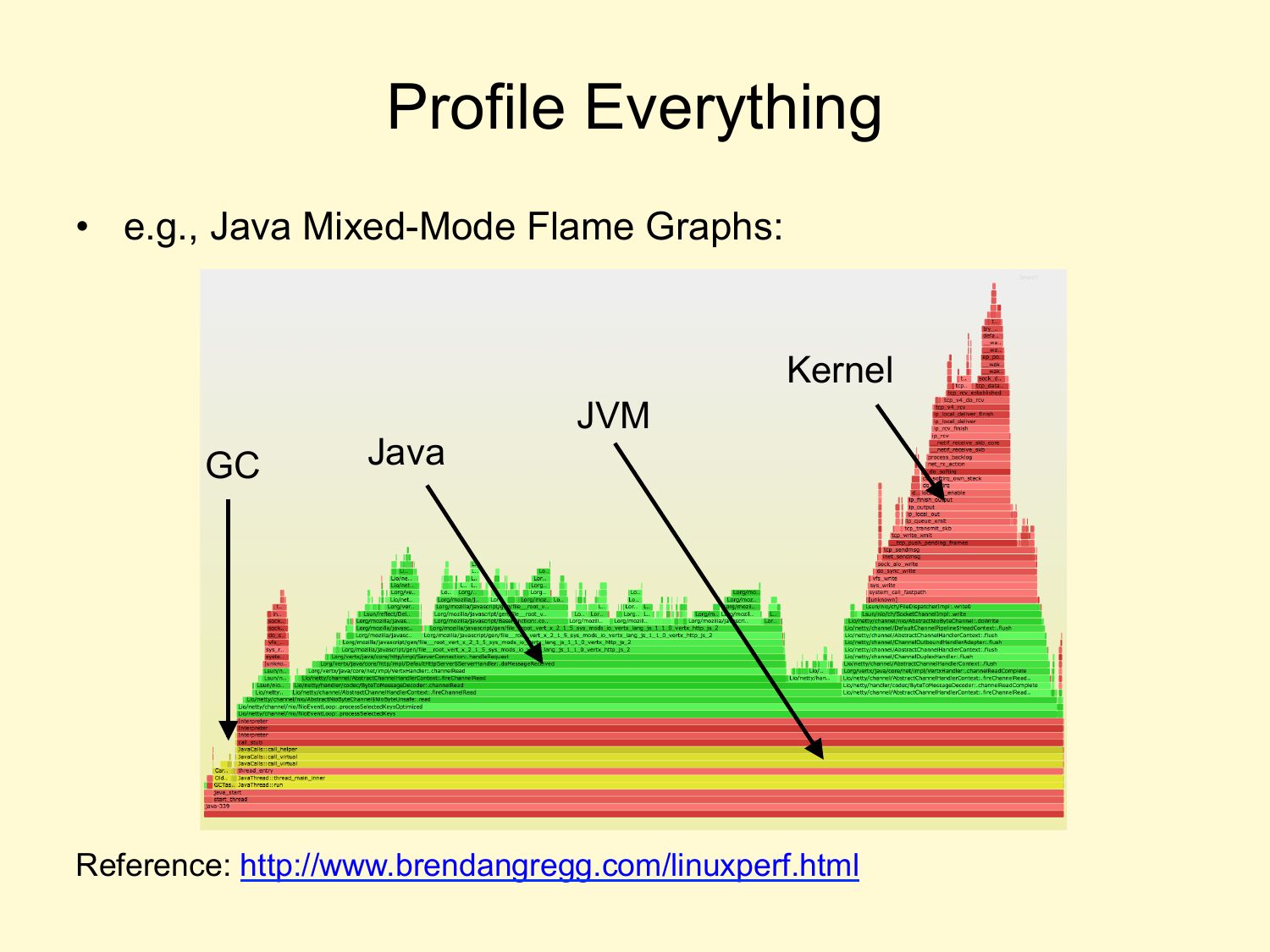

Profile Everything • e.g., Java Mixed-Mode Flame Graphs: Kernel Java JVM Reference: http://www.brendangregg.com/linuxperf.htmlslide 92:

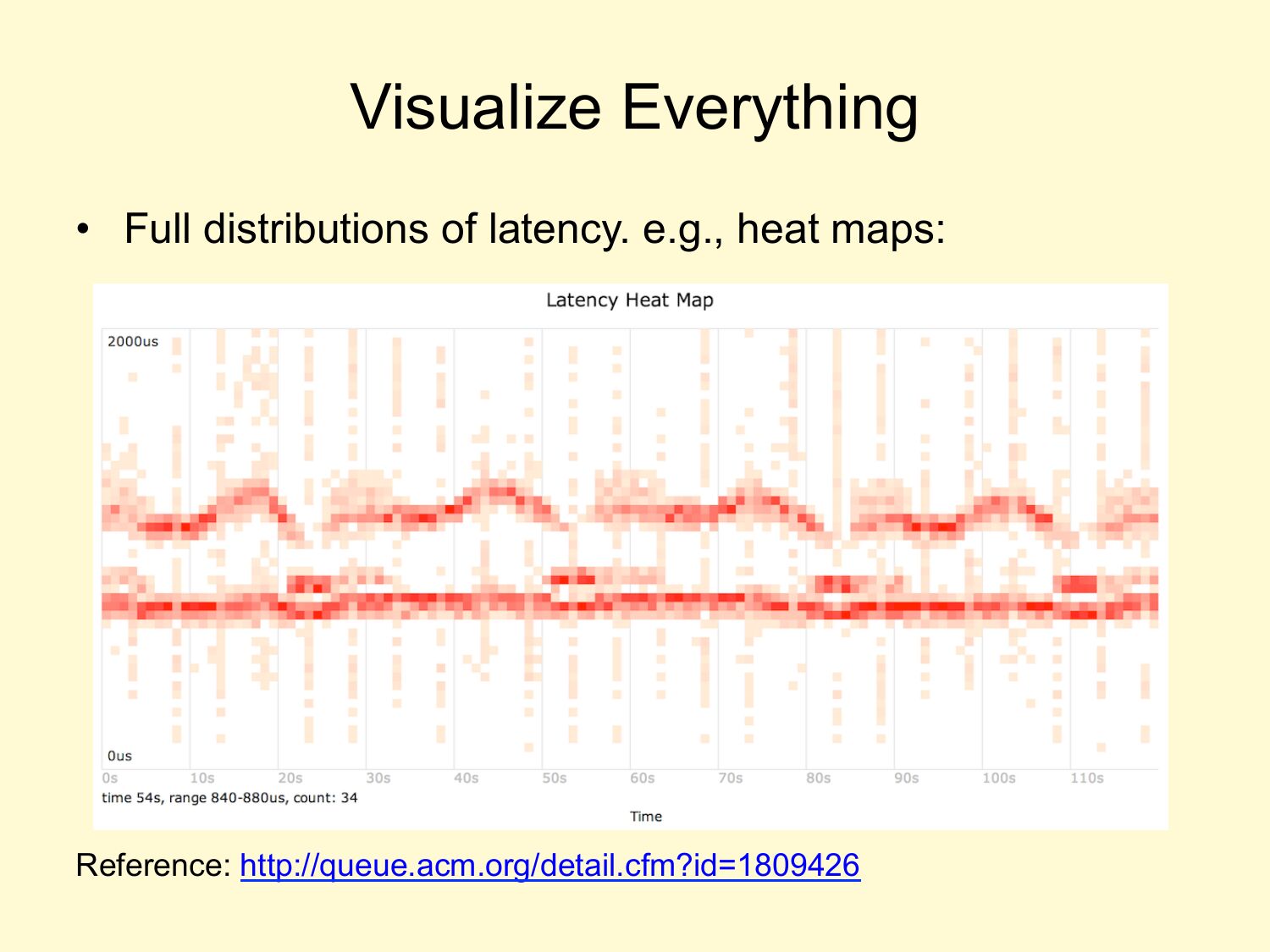

Visualize Everything • Full distributions of latency. e.g., heat maps: Reference: http://queue.acm.org/detail.cfm?id=1809426slide 93:

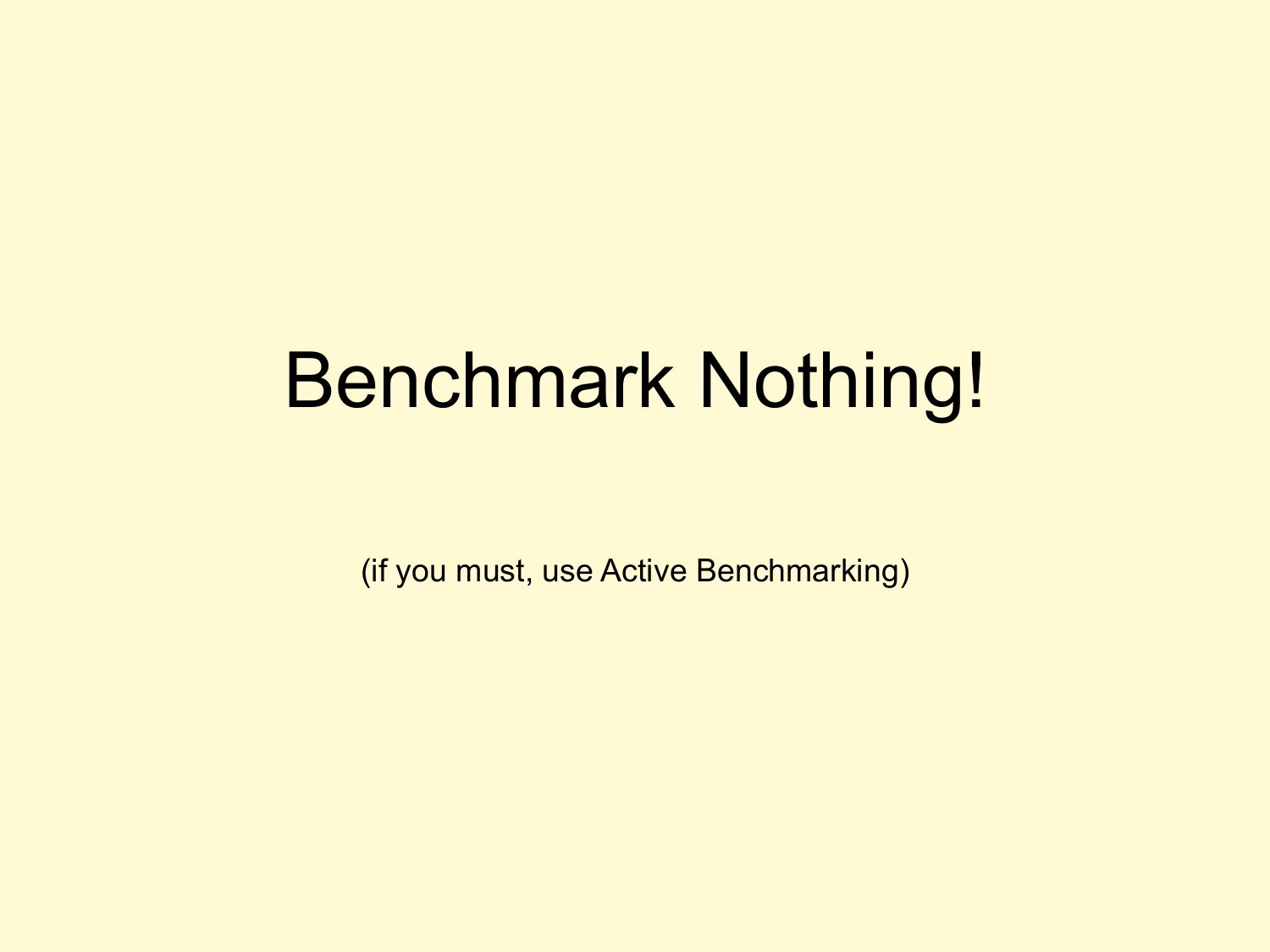

Benchmark Nothing! (if you must, use Active Benchmarking)slide 94:

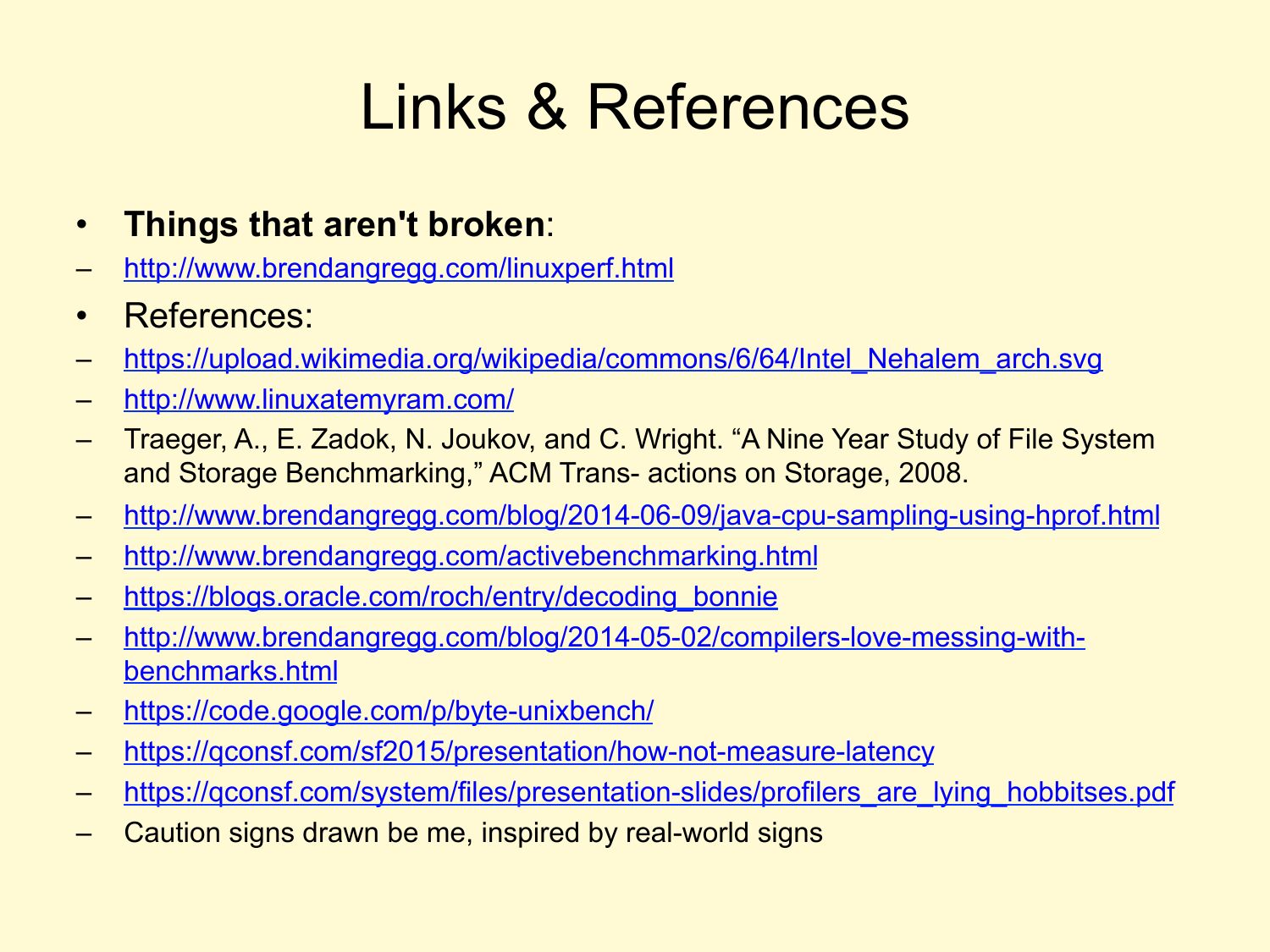

Links & References Things that aren't broken: http://www.brendangregg.com/linuxperf.html References: https://upload.wikimedia.org/wikipedia/commons/6/64/Intel_Nehalem_arch.svg http://www.linuxatemyram.com/ Traeger, A., E. Zadok, N. Joukov, and C. Wright. “A Nine Year Study of File System and Storage Benchmarking,” ACM Trans- actions on Storage, 2008. http://www.brendangregg.com/blog/2014-06-09/java-cpu-sampling-using-hprof.html http://www.brendangregg.com/activebenchmarking.html https://blogs.oracle.com/roch/entry/decoding_bonnie http://www.brendangregg.com/blog/2014-05-02/compilers-love-messing-withbenchmarks.html https://code.google.com/p/byte-unixbench/ https://qconsf.com/sf2015/presentation/how-not-measure-latency https://qconsf.com/system/files/presentation-slides/profilers_are_lying_hobbitses.pdf Caution signs drawn be me, inspired by real-world signsslide 95:
Jan 2016 Thanks Questions? http://techblog.netflix.com http://slideshare.net/brendangregg http://www.brendangregg.com bgregg@netflix.com @brendangregg
